Search Results (46)

In order to improve the microstructure and corrosion resistance of entropy alloy in the FeCrNi system, laser melting deposition technology was used as a preparation method to study the effects of different contents of Al and Ti on the microstructure and corrosion resistance of entropy alloy in FeCrNi(AlTi)_x (x = 0.17, 0.2, and 0.24). The results show that the addition of Al and Ti elements can change the phase structure of the alloy from a single FCC phase structure to an FCC + BCC biphase structure. The BCC phase volume fraction of FeCrNi(AlTi)_0.2 is the highest among the three alloys, reaching 37.5%. With the addition of Al and Ti content, the grain of the alloy will be refined to a certain extent. In addition, the dual-phase structure will also improve the corrosion resistance of the alloy. In 3.5 wt.% NaCl solution, the increase of Al and Ti content can effectively improve the protection of the passivation film on the surface of the entropy alloy in FeCrNi(AlTi)_x, effectively inhibit the large-scale corrosion phenomenon on the alloy surface, and thus improve the corrosion resistance of the alloy. In a certain range, increasing the content of Al and Ti elements in the FeCrNi(AlTi)_x system can improve the corrosion resistance of the alloy. Full article

Based on the innovative mode driven by “data + artificial intelligence”, in this study, three methods, namely Gaussian noise (GAUSS Noise), the Generative Adversarial Network (GAN), and the optimized Generative Adversarial Network (GANPro), are adopted to expand and enhance the collected dataset of element contents and the hardness of the AlCoCrCuFeNi high-entropy alloy. Bayesian optimization with grid search is used to determine the optimal combination of hyperparameters, and two interpretability methods, SHAP and permutation importance, are employed to further explore the relationship between the element features of high-entropy alloys and hardness. The results show that the optimal data augmentation method is Gaussian noise enhancement; its accuracy reaches 97.4% under the addition of medium noise (σ = 0.003), and an optimal performance prediction model based on the existing dataset is finally constructed. Through the interpretability method, it is found that the contributions of Al and Ni are the most prominent. When the Al content exceeds 0.18 mol, it has a positive promoting effect on hardness, while Ni and Cu exhibit a critical effect of promotion–inhibition near 0.175 mol and 0.14 mol, respectively, revealing the nonlinear regulation law of element contents. This study solves the problem of revealing the mutual relationship between the element contents and hardness of high-entropy alloys in the case of a lack of alloy data and provides theoretical guidance for further improving the performance of high-entropy alloys. Full article

In this study, 20 wt.% of Nb was incorporated into a CrFeNi medium-entropy alloy (MEA) powder system to prepare CrFeNi-Nb composite coatings on a Q235B mild steel substrate by laser cladding technology. The effects of Nb addition on the phase composition, microstructure, and wear resistance of CrFeNi coatings were systematically investigated. Microstructural characterization revealed that the CrFeNi coating exhibited a single face-centered cubic (FCC) phase structure, while the CrFeNi-Nb composite coating demonstrated a dual-phase structure comprising FCC phase and Laves phase. The Laves phase significantly enhanced the microhardness and wear resistance of the coating. The average microhardness of the CrFeNi-Nb coating increased by 259.62% compared to the substrate and 190.58% compared to the Nb-free CrFeNi coating. The average coefficient of friction (COF) of the coating decreased from 0.74 to 0.68; the wear rate reduced from 5.77 × 10⁻⁴ mm³ N⁻¹ m⁻¹ to 2.26 × 10⁻⁴ mm³ N⁻¹ m⁻¹; and the weight loss decreased from 10.77 mg to 4.3 mg. The experimental results demonstrated that the addition of Nb promoted the formation of the Laves phase in the CrFeNi MEA, which effectively improved the wear resistance of the coating. Full article

This study investigates the interfacial reactions of FeCoNiCr and FeCoNiMn medium-entropy alloys (MEAs) with Sn and Sn-3Ag-0.5Cu (SAC305) solders at 250 °C. The evolution of interfacial microstructures is analyzed over various aging periods. For comparison, the FeCoNiCrMn high-entropy alloy (HEA) is also examined. In the Sn/FeCoNiCr system, a faceted (Fe,Cr,Co)Sn₂ layer initially forms at the interface. Upon aging, the significant spalling of large (Fe,Cr,Co)Sn₂ particulates into the solder matrix occurs. Additionally, an extremely large, plate-like (Co,Ni)Sn₄ phase forms at a later stage. In contrast, the Sn/FeCoNiMn reaction produces a finer-grained (Fe,Co,Mn)Sn₂ phase dispersed in the solder, accompanied by the formation of the large (Co,Ni)Sn₄ phase. This observation suggests that Mn promotes the formation of finer intermetallic compounds (IMCs), while Cr facilitates the spalling of larger IMC particulates. The Sn/FeCoNiCrMn system exhibits stable interfacial behavior, with the (Fe,Cr,Co)Sn₂ layer showing no significant changes over time. The interfacial behavior and microstructure are primarily governed by the dissolution of the constituent elements and composition ratio of the HEAs, as well as their interactions with Sn. Similar trends are observed in the SAC305 solder reactions, where a larger amount of fine (Fe,Co,Cu)Sn₂ particles spall from the interface. This behavior is likely attributed to Cu doping, which enhances nucleation and stabilizes the IMC phases, promoting the formation of finer particles. The wettability of SAC305 solder on MEA/HEA substrates was further evaluated by contact angle measurements. These findings suggest that the presence of Mn in the substrate enhances the wettability of the solder. Full article

Aerospace and marine engineering impose higher requirements on mechanical properties and lightweight design of materials. In this work, combining the high mechanical properties of FeCrNi medium entropy alloy (MEA) and the lightweight advantages of lattice structure, four types of high-performance FeCrNi MEA lattice structures (BCC, BCCZ, FCC, and FCCZ) were prepared by selective laser melting (SLM) technology, and their dynamic mechanical properties were systematically characterized via split Hopkinson pressure bar (SHPB) method. The results demonstrate that the FCCZ FeCrNi MEA lattice structure exhibits superior comprehensive performance among the four lattice structures, achieving the highest specific compressive strength of 59.1 MPa·g⁻¹·cm⁻³ and specific energy absorption of 26.3 J/g, significantly outperforming conventional lattice materials including 316L and AlSi10Mg alloys. Furthermore, the finite element simulation and Johnson-Cook (J-C) constitutive model of the dynamic compression process can effectively predict the microstructural evolution and mechanical response of lattice structure, providing critical theoretical guidance for optimizing the design of high-performance lattice structure materials. Full article

This study focuses on the cobalt-free medium-to-high-entropy alloys Al_xCrFe₂Ni₂ and Al_xTi_xCrFe₂Ni₂, investigating the influence of Al_x and Ti_x (where x = 0.2, 0.3, 0.4, 0.5, and 0.6) on the development of microstructural and mechanical properties in as-cast and annealed states. Structural changes were examined using optical microscopy, scanning electron microscopy (SEM), and X-ray diffraction (XRD) measurements, while mechanical properties were evaluated through Vickers hardness testing and compression testing. X-ray diffraction analysis of the Al_xCrFe₂Ni₂ alloys confirmed that increasing the Al content in the as-cast state leads to the formation of a BCC phase, which completely dissolves into the FCC matrix after homogenization annealing. These single-phase alloys exhibit good ductility with relatively high strain hardening, such as the Al_0.6CrFe₂Ni₂ alloy, which achieved a maximum compressive strength of ${\sigma }_{max}=1511 \mathrm{M}\mathrm{P}\mathrm{a}$ at 50% deformation. A significant strengthening effect of Ti was observed in the Al_xTi_xCrFe₂Ni₂ alloys, the mechanical properties of which are closely linked to the higher BCC phase content in the homogenized structure. The highest compressive strength, ${\sigma }_{max}=2239 \mathrm{M}\mathrm{P}\mathrm{a}$, was achieved by the Al_0.5Ti_0.5CrFe₂Ni₂ alloy, which fractured via a transcrystalline brittle fracture at 43% deformation. All alloys investigated offer an excellent balance between strength and ductility, which could meet the requirements of demanding structural applications. Full article

CoCrNi medium-entropy alloy (MEA) coatings prepared using laser cladding (LC) with unique properties have aroused great interest in recent years and have been widely studied. However, limited studies have been conducted on the effect of adding Al/Fe on the wear properties of CoCrNi MEA coatings prepared on the surface of stainless steel. In this study, AlCoCrFeNi, CoCrFeNi, and CoCrNi MEA LC coatings were prepared on a stainless steel substrate. The grain structures and microscopic morphologies of coatings were characterized, and the wear mechanisms were analyzed using the nano-indentation and wear tests. The hardness-strengthening mechanism was theoretically investigated using phase diagrams and molecular dynamics (MD). The phase diagram results show that the addition of Al lowered the nucleation initiation temperature, thereby increasing the nucleation rate and forming more grains. Moreover, according to the Voronoi volumes and mean–square atomic displacements (MASD) results using MD, the addition of Al makes the appearance of severe localized lattice distortions, while the addition of Fe tends to form short-range ordered structures. In summary, fine-grain strengthening and the hardness strengthening caused by local lattice distortion were the main strengthening mechanisms of AlCoCrFeNi. These findings are highly significant for expanding the application potential and provide profound insights into the wear properties of the CoCrNi MEA coatings. Full article

This study designed Al_xCrFeNi (x = 0.8, 1.0, 1.2) medium-entropy alloys featuring a BCC + B2 dual-phase structure to systematically investigate the effects of Al content variation and heat treatment on microstructure evolution and corrosion behavior. Microstructural characterization revealed that all investigated alloys maintained the BCC + B2 dual-phase labyrinth structure. Electrochemical tests showed that as the Al content increased, the corrosion current density and corrosion rate in a 3.5 wt% NaCl solution increased. Synergistic analysis of post-corrosion morphology (through electrochemical testing and in-situ immersion) combined with XPS analysis of the passive films revealed that the initial stage of corrosion was primarily pitting. Subsequently, due to the loose and porous Al₂O₃ passive layer formed by the NiAl-rich phase, which was easily attacked by Cl⁻ ions, the corrosion progressed into selective corrosion of the NiAl phase. Notably, heat treatment at 1000 °C induced microstructural refinement with enhanced coupling between chunky and labyrinth structures, resulting in improved corrosion resistance despite a 4–6% reduction in Vickers hardness due to elemental homogenization. Among the investigated alloys, the heat-treated Al_0.8CrFeNi exhibited the most promising corrosion resistance. Full article

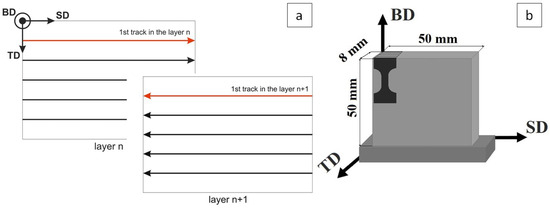

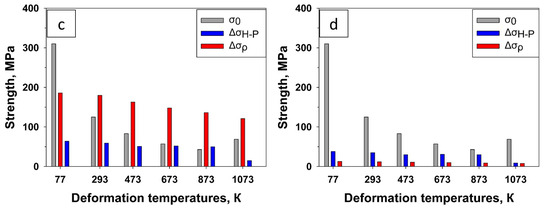

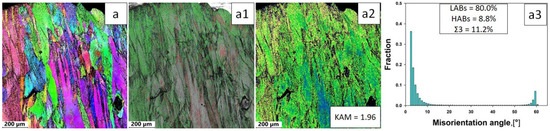

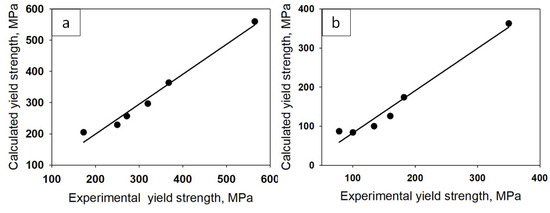

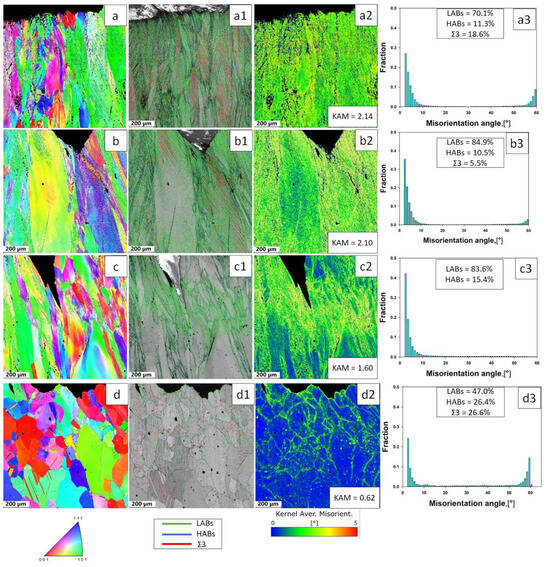

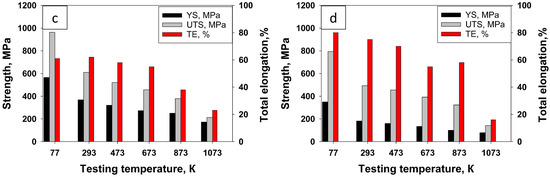

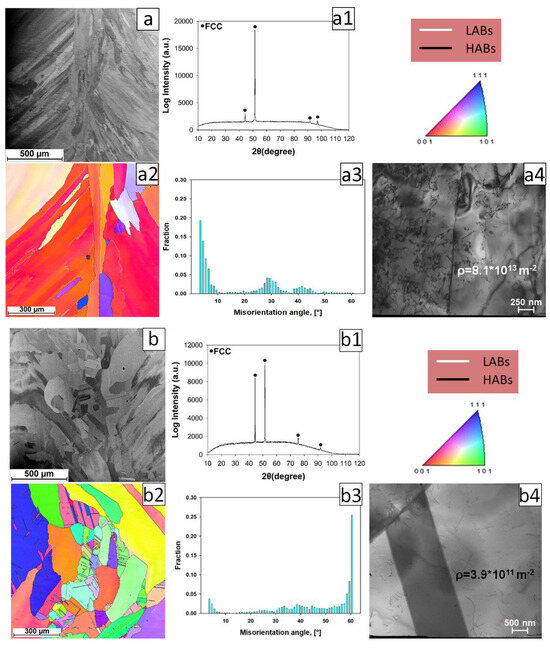

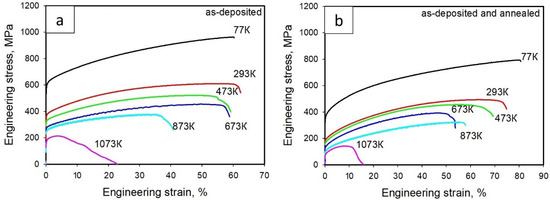

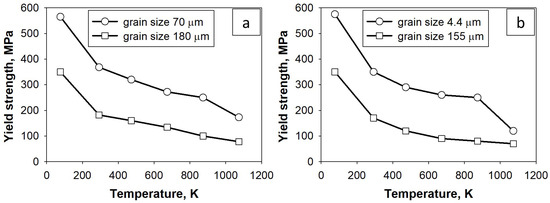

The temperature dependence of the mechanical properties of the CoCrFeNi medium-entropy alloy (MEA) manufactured by laser-directed energy deposition (L-DED) and additionally annealed at 1200 °C for 24 h was studied. The microstructure of the as-deposited alloy was represented by a single-phase face-centered cubic structure with coarse columnar grains and a high density of dislocation. Annealing resulted in the development of recrystallization and a reduction in dislocation density. The CoCrFeNi alloy produced by L-DED demonstrated mechanical properties comparable with those of the fine-grained equiatomic CoCrFeMnNi alloy, produced by casting followed by thermomechanical processing. Namely, as-deposited CoCrFeNi had a yield strength (YS) and ultimate tensile strength (UTS) of YS = 370 MPa and UTS = 610 MPa at room temperature, and YS = 565 MPa and UTS = 965 MPa at cryogenic temperature, along with a ductility of ~60%. Annealing resulted in a decrease in strength to YS = 180/350 MPa at 293/77 K. A quantitative analysis of various strengthening mechanisms showed that some strength increment of the as-deposited alloy was ensured by the high dislocation density formed during L-DED. Full article

This study meticulously examines the influence of aluminum (Al) and titanium (Ti) on the genesis of self-generated ordered phases in high-entropy alloys (HEAs), a class of materials that has garnered considerable attention due to their exceptional multifunctionality and versatile compositional palette. By meticulously tuning the concentrations of Al and Ti, this research delves into the modulation of the in situ self-generated ordered phases’ quantity and distribution within the alloy matrix. The annealing heat treatment outcomes revealed that the strategic incorporation of Al and Ti elements facilitates a phase transformation in the Cr-Fe-Ni medium-entropy alloy, transitioning from a BCC (body-centered cubic) phase to a BCC + FCC (face-centered cubic) phase. Concurrently, this manipulation precipitates the emergence of novel phases, including B2, L2₁, and σ. This orchestrated phase evolution enacts a synergistic enhancement in mechanical properties through second-phase strengthening and solid solution strengthening, culminating in a marked improvement in the compressive properties of the HEA. Full article

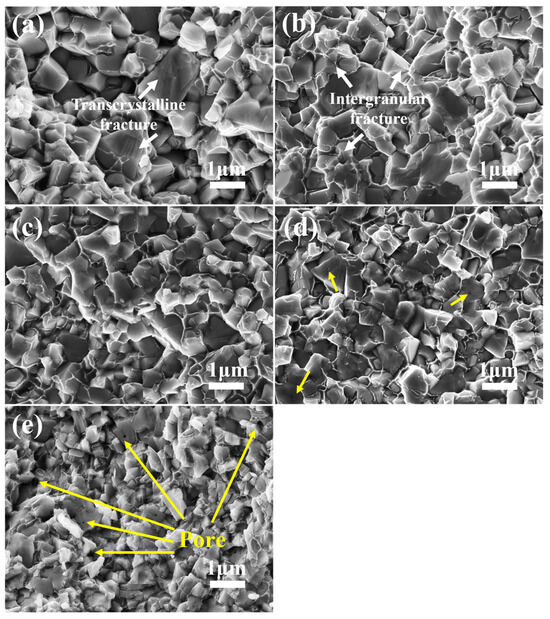

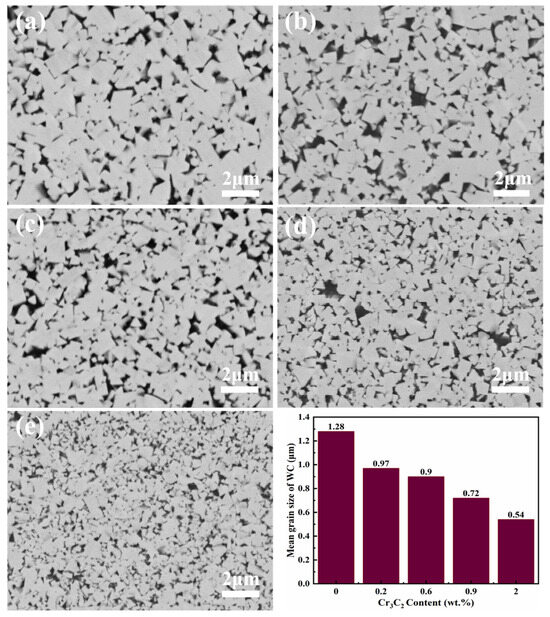

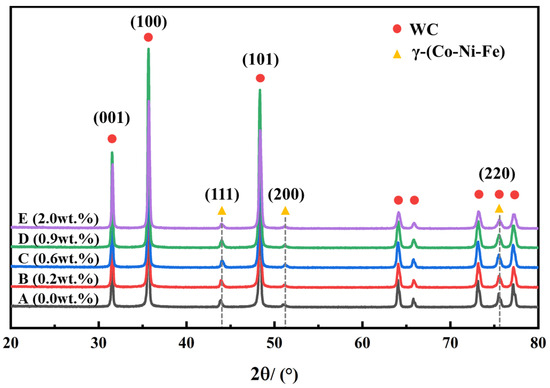

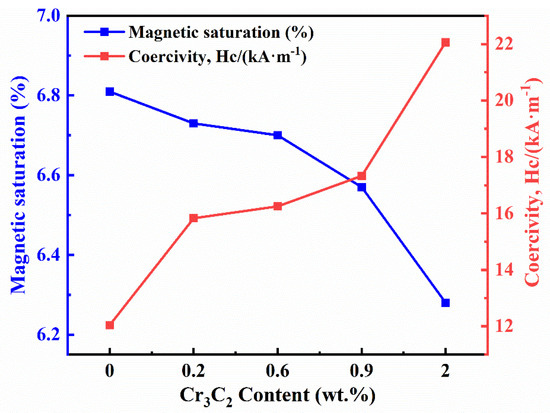

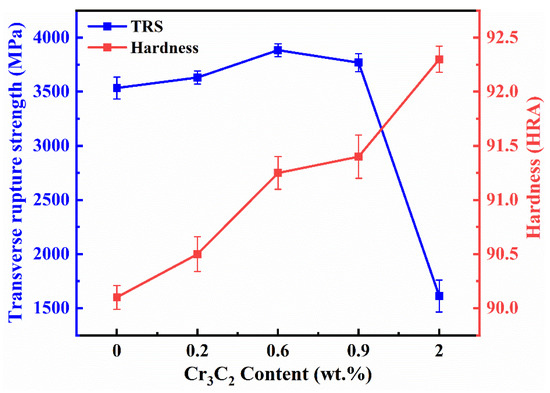

In traditional cemented carbides, Co is mainly used as a binder. Recently, replacing Co with medium- to high-entropy alloys has shown significant improvements in hardness, fracture toughness, high-temperature oxidation resistance, and corrosion resistance, making it a research focus globally. Both the typical grain refiner Cr₃C₂ and medium- to high-entropy alloy binders affect the WC grain size in cemented carbides. This study investigates the synergistic grain refinement mechanism of Cr₃C₂ and medium- to high-entropy alloy binders on WC grains and their impact on the microstructure and mechanical properties of cemented carbides. The results show that increasing the Cr₃C₂ addition refined WC grains in the WC-CoNiFe alloy, increased coercivity, and enhanced hardness, with transverse rupture strength first increasing and then decreasing. The alloy achieved optimal performance at 0.6 wt.%Cr₃C₂, with a hardness of 91.25 HRA and transverse rupture strength of 3883.2 MPa. Full article

In this work, the tensile deformation mechanisms of the Fe₅₅Co_17.5Cr_12.5Ni₁₀Mo_5−xC_x-based medium-entropy alloy at room temperature (R.T.), 77 K, and 4.2 K are studied. The formation of micro-defects and martensitic transformation to delay the cryogenic fracture are observed. The results show that FeCoCrNiMo_5−xC_x-based alloys exhibit outstanding mechanical properties under cryogenic conditions. Under an R.T. condition, the primary contributing mechanism of strain hardening is twinning-induced plasticity (TWIP), whereas at 77 K and 4.2 K, the activation of martensitic transformation-induced plasticity (TRIP) becomes the main strengthening mechanism during cryogenic tensile deformation. Additionally, the carbide precipitation along with increased dislocation density can significantly improve yield and tensile strength. Furthermore, the marked reduction in stacking fault energy (SFE) at cryogenic temperatures can promote mechanisms such as twinning and martensitic transformations, which are pivotal for enhancing ductility under extreme conditions. The Mo₄C₁ alloy obtains the optimal strength–ductility combination at cryogenic-to-room temperatures. The tensile strength and elongation of the Mo4C1 alloy are 776 MPa and 50.5% at R.T., 1418 MPa and 71.2% in liquid nitrogen 77 K, 1670 MPa and 80.0% in liquid helium 4.2 K, respectively. Full article

Fe₄₀Mn₂₀Cr₂₀Ni₂₀ medium-entropy alloy (MEA) has a single-phase crystal structure with high strength and good ductility at room temperature. It is important to study the hot deformation behavior for this alloy at a partially recrystallized state for possible high-temperature applications. In this investigation, the tensile tests were conducted on sheet materials treated via cold rolling combined with annealing at strain rates of 1 × 10⁻³–1 × 10⁻¹ s⁻¹ and deformation temperatures of 573–873 K. And the hyperbolic sine model was used to study the relationship between the peak stress, deformation energy storage and Zener–Hollomon parameter (Z parameter) of Fe₄₀Mn₂₀Cr₂₀Ni₂₀ medium-entropy alloys under high-temperature tension. According to the Arrhenius-type model, the constitutive equation of the alloys based on the flow stress was constructed, and the deformation activation energy and material parameters under different strain conditions were obtained. Based on the power dissipation theory and the instability criterion of the dynamic material model, the power dissipation diagram and the instability diagram were constructed, and the hot working map with a strain of 0.1 was obtained. The results show that the hyperbolic sine relation between the peak stress and Zener–Hollomon parameters can be well satisfied, and the deformation activation energy Q is 242.51 KJ/mol. Finally, the excellent thermo-mechanical processing range is calculated based on the hot working map. The flow instability region is 620–700 K and the strain rate is 2 × 10⁻³–4 × 10⁻³ s⁻¹, as well as in the range of 787–873 K and 2 × 10⁻³–2.73 × 10⁻² s⁻¹. The optimum thermo-mechanical window is 850–873 K, $\dot{\mathsf{\epsilon }}$ = 1 × 10⁻³–2 × 10⁻³ s⁻¹. Full article

Precipitation strengthening of body-center cubic (A2) alloys via ordered B2 nanoprecipitates is expected to achieve a desirable combination of strength and ductility. In this work, the A2/B2 configuration is manipulated by adjusting Fe content in medium-entropy AlCrFe_xNi (x = 0, 0.5, 1.0, 1.5, 2.0, 2.5 and 3.0) alloys fabricated via arc-melting for improved mechanical properties and wear resistance. As Fe content increases, the fraction of A2 phase increases, and A2 nanoprecipitates in the B2 matrix change to a weave-like A2/B2 structure. Continuously increasing Fe content leads to a mixture of BMAP (B2 matrix with A2 precipitates) and AMBP (A2 matrix with B2 precipitates), and finally to a complete AMBP structure. The yield strength decreases and fracture strain increases with increasing Fe content except x = 0. The alloy of x = 0 displays slightly higher hardness because of its relatively brittle B2 matrix. Cracks tend to propagate along A2/B2 interfaces. AMBP structure exhibits greater toughness than the BMAP structure. The alloy of x = 0 displays the second-greatest wear volume loss due to its relatively brittle B2 matrix. When Fe is added, the wear volume loss decreases considerably but shows a trend of an upward parabola with respect to the Fe content. After achieving the highest volume loss at x = 1.5 with a mixture of AMBP and BMAP, the volume loss decreases again. A completely uniform AMBP structure at x = 3.0 shows the least volume loss. Full article

Equiatomic medium-entropy alloy (MEA) FeNiCr-B₄C (0, 1, and 3 wt.% B₄C) coatings were deposited onto an AISI 1040 steel substrate using pulsed laser cladding. Based on an SEM microstructural analysis, it was found that the cross-sections of all the obtained specimens were characterized by an average coating thickness of 400 ± 20 μm, a sufficiently narrow (100 ± 20 μm) “coating–substrate” transition zone, and the presence of a small number of defects, including cracks and pores. An XRD analysis showed that the formed coatings consisted of a single face-centered cubic (FCC) γ-phase and the space group Fm-3m, regardless of the B₄C content. However, additional TEM analysis of the FeNiCr coating with 3 wt.% B₄C revealed a two-phase FCC structure consisting of grains (FCC-1 phase, Fm-3m) up to 1 µm in size and banded interlayers (FCC-2 phase, Fm-3m) between the grains. The grains were clean with a low density of dislocations. Raman spectroscopy confirmed the presence of B₄C carbides inside the FeNiCr (1 and 3 wt.% B₄C) coatings, as evidenced by detected peaks corresponding to amorphous carbon and peaks indicating the stretching of C-B-C chains. The mechanical characterization of the FeNiCr-B₄C coatings specified that additions of 1 and 3 wt.% B₄C resulted in a notable increase in microhardness of 16% and 38%, respectively, with a slight decrease in ductility of 4% and 10%, respectively, compared to the B₄C-free FeNiCr coating. Thus, the B₄C addition can be considered a promising method for strengthening laser-cladded MEA FeNiCr-B₄C coatings. Full article
