Search Results (26)

Nickel-based superalloys are widely utilized in critical hot-end components, such as aeroengine turbine blades, owing to their exceptional high-temperature strength, creep resistance, and oxidation resistance. During service, these components are frequently subjected to complex localized loading, leading to non-uniform plastic deformation and microstructure evolution within the material. Combining nanoindentation experiments with the crystal plasticity finite element method (CPFEM), this study systematically investigates the effects of loading rate and crystal orientation on the elastoplastic deformation of DD6 alloy under spherical indenter loading. The results indicate that the maximum indentation depth increases and hardness decreases with prolonged loading time, exhibiting a significant strain rate strengthening effect. The CPFEM model incorporating dislocation density effectively simulates the nonlinear characteristics of the nanoindentation process and elucidates the evolution of dislocation density and slip system strength with indentation depth. At low loading rates, both dislocation density and slip system strength increase with loading time. Significant differences in mechanical behavior are observed across different crystal orientations, which correspond to the extent of lattice rotation during texture evolution. For the [111] orientation, crystal rotation is concentrated and highly regular, while the [001] orientation shows uniform texture evolution. This demonstrates that anisotropy governs the deformation mechanism through differential slip system activation and texture evolution. Full article

Aerospace engines ingest small particles when operating in a particulate-rich environment, such as sandstorms, atmospheric pollution, and volcanic ash clouds. These micron particles enter their cooling channels, leading to film-cooling hole blockage and thus thermal damage to turbine blades made of nickel-based single-crystal superalloy materials. This work studied the collision and deposition mechanisms between the micron particles and structure surface. A combined theoretical and numerical study was conducted to investigate the effect of deposits on particle collision and deposition. Finite element models of deposits with flat and rough surfaces were generated and analyzed for comparison. The results show that the normal restitution coefficient is much lower when a micron particle impacts a deposit compared to that of particle collisions with DD3 nickel-based single-crystal wall surfaces. The critical deposition velocity of a micron particle is much higher for particle–deposit collisions than for particle–wall collision. The critical deposition velocity decreases with the increase in particle size. When micron particles deposit on the wall surface of the structure, early-stage particle–wall collision becomes particle–deposit collision when the height of the deposits is greater than twice the particle diameter. For contact between particles and rough surface deposits, surfaces with a shorter correlation length, representing a higher density of asperities and a steeper surface, have a much longer contact time but a lower contact area. The coefficient of restitution of the particle reduces as the surface roughness of the deposits increase. The characteristic length of the roughness has little effect on the rebounding rotation velocity of the particle. Full article

The isothermal oxidation behavior of single crystal DD6 film-cooling blades was investigated. The isothermal oxidation tests were conducted at 1050 °C, and the phase analysis was performed by XRD, while SEM (EDS) was employed to observe the material. In addition to experimental studies, a numerical simulation using three-dimensional finite element analysis based on Abaqus software (Version 6.13) was implemented to model the growth stress in specimens during the isothermal test. The obtained results showed that the average oxidation rate of specimens rose with increments in film hole spacing, up to a maximum value at a film hole spacing of 0.75 mm, and then fell, which could be interpreted with the concepts of the oxidation-affected zone and the growth stress. The results obtained from the numerical simulation of the growth stress agreed with the experimental results of the average oxidation rate. The oxide scale of film-cooling specimens mainly consisted of three layers, the NiO outer layer, the spinel sublayer containing cracks, and the non-continuous thin Al₂O₃ inner layer. The surface of the oxide scale commonly underwent spallation of the NiO outer layer, and the exposed sublayer could grow new NiO particles. The size of the NiO particles on the edge of the film holes was larger than those on the walls of the film holes. SEM images clearly showed that electro-hydraulic beam drilling on DD6 superalloy specimens could erode the γ phase in the γ/γ′ two-phase matrix, thereby inducing damages in regions near film holes. Full article

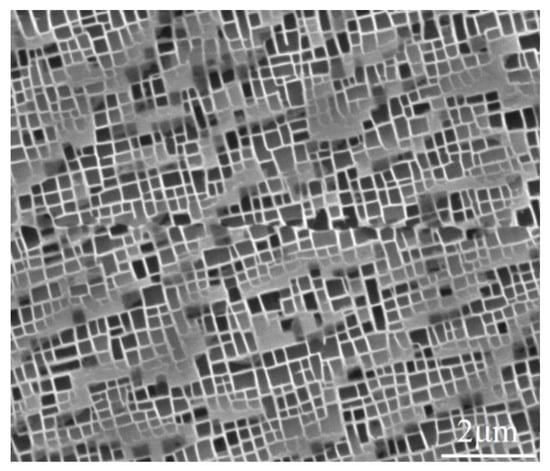

In the present work, the effect of different casting processes on the microstructure and creep properties of the second-generation single-crystal superalloy DD419 was investigated. Under conventional production conditions and a contour-suited thermal insulation method, single-crystal rods of types A and B were fabricated, respectively. In comparison to rod type A, the solidification process of rod type B featured a 1.6-fold increase in the temperature gradient and a 32% reduction in primary dendrite spacing. The γ/γ′ eutectic in the as-cast microstructure, the residual eutectic phase, and porosity after heat treatment were also significantly reduced, resulting in the improved homogeneity of the single crystal castings. Under the testing conditions of 850 °C/650 MPa and 1050 °C/190 MPa, the stress rupture life of sample B was enhanced by 25% and 5.2%, respectively, compared to sample A. Therefore, due to dendrite structure refinement, the stress rupture life of the superalloy was evidently improved, especially at medium temperatures. Full article

Two models with a wax module tree structure were employed for directional solidification simulation. An experimental alloy of a second-generation nickel-based single-crystal superalloy, DD5, was set for this investigation. The temperature gradient value of the conventional model at 80 mm and 160 mm was less than 3.8 K/mm, and the temperature gradient value of the new model structure at the same height could reach more than 5.0 K/mm. The paste–liquid interface paste zone of the new model structure in the directional solidification process was narrower. The solidification interface was more stable than that of the conventional model. The declination angle between the primary dendrite and the principal stress axis was smaller, and the average crystal orientation was about 6.0°. Under the new model, the integrity of the single crystal of the edge plate was good, and no heterocrystalline defects were formed. At the sharp corner of the end face of the edge plate, the solidified dendrites grew staggered, which hindered the effective contraction of other parts of the edge plate and produced micro-looseness. The whole simulation was in line with the test results. Full article

The high-temperature durability performance plays a crucial role in the applications of single-crystal (SX) superalloys repaired by laser-directed energy deposition (L-DED). A specialized heat treatment process for L-DED-repaired SX superalloys was developed in this study. The effect of the newly customized heat treatment on the microstructure and high-temperature mechanical properties of DD32 SX superalloy repaired by L-DED was investigated. Results indicate that the repaired area of the newly customized heat treatment specimen still maintained a SX structure, the average size of the γ′ phase was 236 nm, and the volume fraction was 69%. Obviously recrystallized grains were formed in the repair area of the standard heat treatment specimens, and carbide precipitated along the grain boundary. The size of the γ′ phase was about 535 nm. The high-temperature durable life of the newly custom heat treatment specimen was about 19.09 h at 1000 °C/280 MPa, the fracture mode was microporous aggregation fracture, and the fracture location was in the repair area. The durable life of the standard heat treatment specimen was about 8.70 h, the fracture mode was cleavage fracture, and the fracture location was in the matrix area. The crack source of both specimens was interdendrite carbide. Full article

This research investigates the complex temperature distribution and fatigue behavior of single film-cooling holes manufactured by lasers with different pulse widths in a real flow field. The aerodynamic and heat transfer characteristics of film-cooling holes manufactured using lasers with different pulse widths were analyzed through laser drilling experiments, conjugate heat transfer simulations, and crystal plasticity finite element methods. The study investigated the relationship between changes in the geometric accuracy of the film-cooling holes and the corresponding flow and temperature fields during the film-cooling process. Additionally, the effects of temperature and structural variations on the stress around the holes in a flat plate composed of the second-generation nickel-based single-crystal superalloy DD6 in real flow and temperature fields were studied. The coupling effect of the temperature and stress fields around the holes on the fatigue behavior of the film-cooling holes was examined, and the fatigue damage mechanism of film-cooling holes in complex temperature fields was analyzed. It was found that changes in the blowing ratio do not affect the temperature and stress distributions around the holes but only alter the temperature peak. An increase in the temperature peak results in a decrease in the stress peak. Additionally, the fatigue damage of single film-cooling holes is determined by both the structural defects of the holes and the changes in material behavior due to the temperature around the holes, with the structural influence being more significant. Full article

For China’s second-generation aero-engine blade DD6 single-crystal high-temperature alloy, the standard solution-treated test rods were subjected to long-term aging experiments (1290 °C, 1 h + 1300 °C, 2 h + 1315 °C, 4 h air cooling + 1120 °C, 4 h air cooling + 870 °C, 32 h air cooling) at 980 °C for 1000 h, 5000 h, and 7500 h, and the effects of different long-term aging times on the organization evolution, phase precipitation morphology, high-temperature mechanical properties, and endurance performance of the alloy were studied. The results show that with the increase of aging time, the γ′ phase coarsens, joins along the <100> and <010> directions, and merges to form irregularly shaped directional growth and rafting. The endurance life shows a decreasing trend; at 980 °C/243 MPa, 980 °C/270 MPa, 980 °C/309 MPa for the alloys after 5000 h aging, the enduring life decreased by 47.97%, 70.98%, and 76.75%, and 81.25%, 73.18%, and 87.00% after 7500 h aging, respectively. The tensile strength of the alloy at 760 °C first decreases and then increases, with a minimum value at 5000 h; there is a gradual increase in elongation; there is a gradual decrease in tensile strength at 980 °C; and there is first an increase and then decrease in elongation, with a maximum value at 1000 h. This is due to the diffusion phenomenon of the elements in the alloy after 5000 h aging, the emergence of W-rich, Re-, Mo-, and Ni-poor phenomena, and the transformation of the μ-phase from needle-like to rod-like and block-like. Full article

Single crystal superalloys are widely used in the manufacturing of turbine blades for aero-engines due to their superior performance at high temperatures. The directional solidification process is a key technology for producing single crystal turbine blades with excellent properties. In the directional solidification process, withdrawal rate is one of the critical parameters for microstructure formation and will ultimately determine the blade’s properties. In this paper, the as-cast microstructures in the typical sections of a DD9 single crystal (SX) superalloy turbine blade were investigated with 3 mm/min and 5 mm/min withdrawal rates during the directional solidification process. With increased withdrawal rate, the dendrite morphologies tended to become more refined, and the secondary dendritic arms tended to be highly developed. The dendrite in the blade aerofoil section was more refined than that in the tenon section, given the same withdrawal rate. Additionally, with increasing withdrawal rates, the size and dispersity of the γ′ precipitates in the inter-dendritic (ID) regions and dendritic core (DC) tended to decrease; furthermore, the size distributions of the γ′ precipitates followed a normal distribution law. Compared with the ID regions, an almost 62% reduction in the average γ′ sizes was measured in the DC. Meanwhile, given the same withdrawal rate, at the blade’s leading edge closest to the heater, the γ′ sizes in the aerofoil section (AS) were more refined than those in the tenon section (TS). As compared with the decreasing cross-sectional areas, the increased withdrawal rates clearly brought down the γ′ sizes. The sizes of the γ–γ′ eutectics decreased with increasing withdrawal rates, with the γ–γ′ eutectics showing both lamellar and rosette shapes. Full article

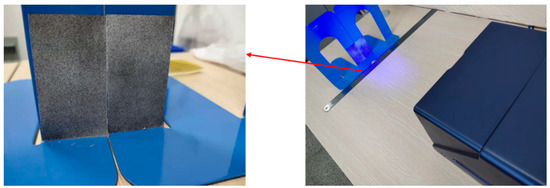

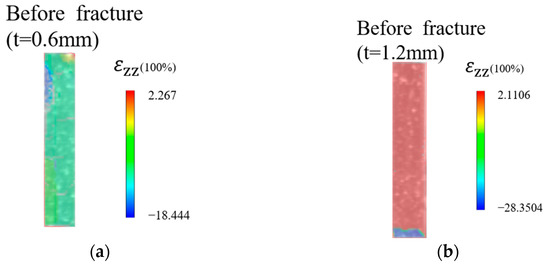

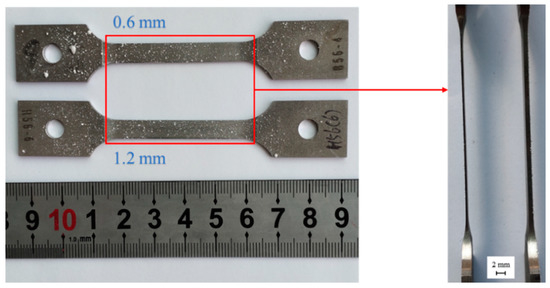

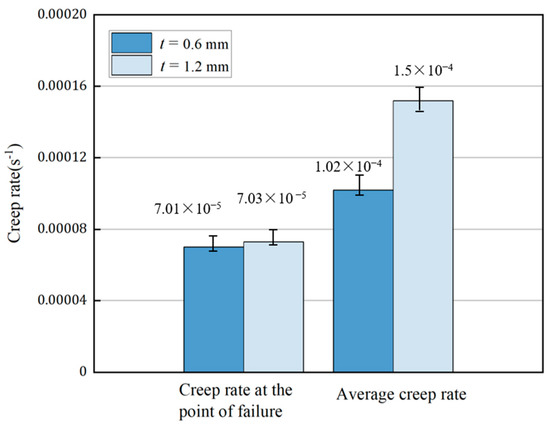

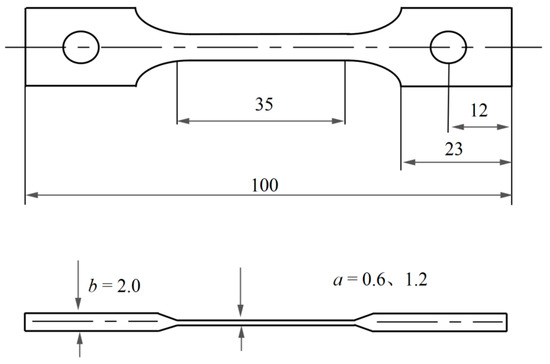

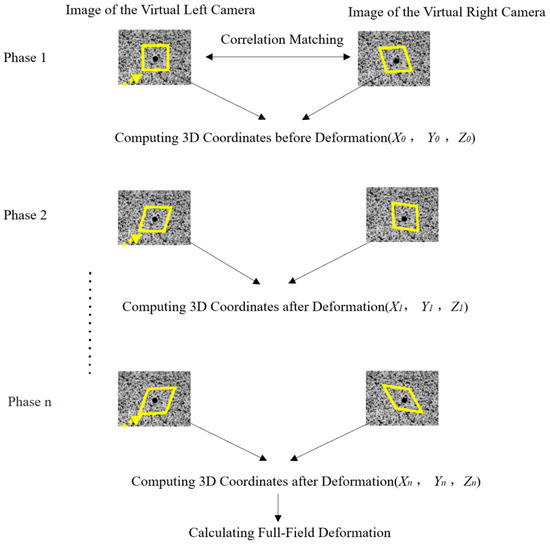

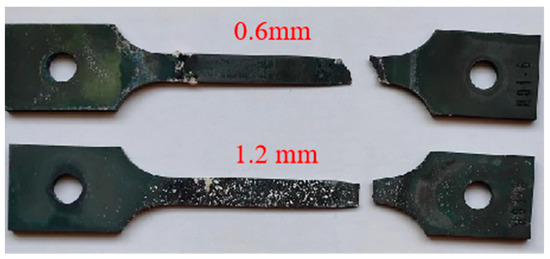

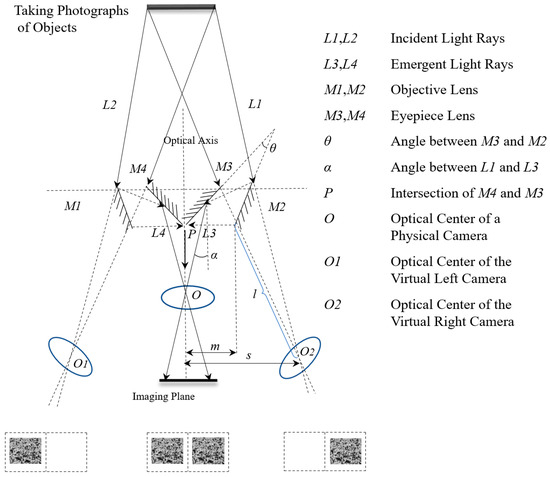

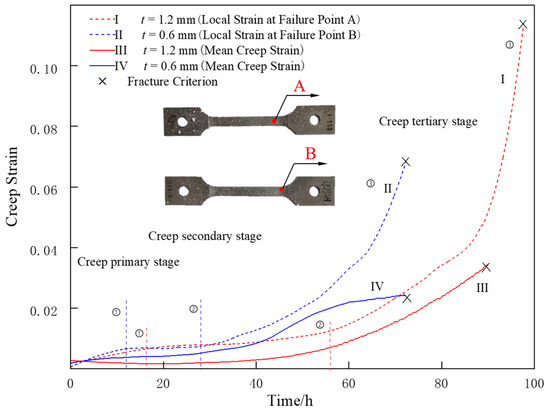

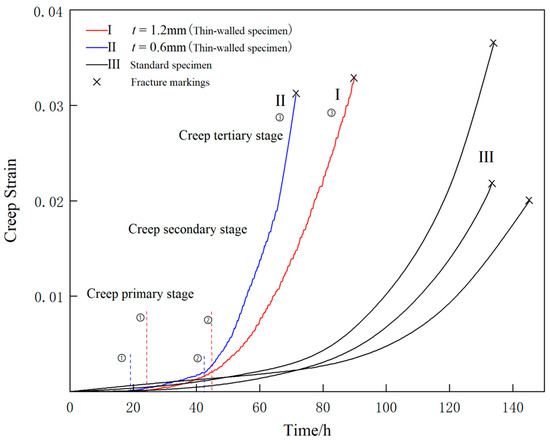

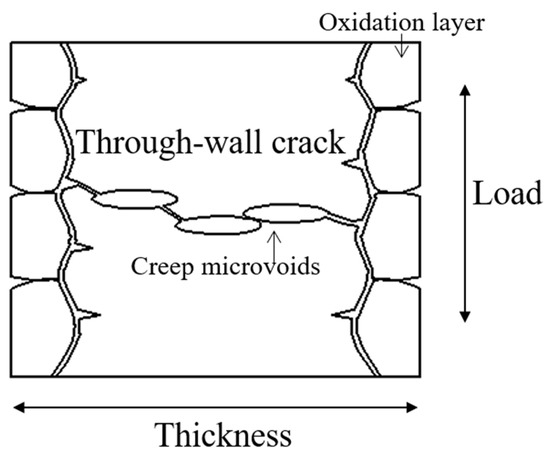

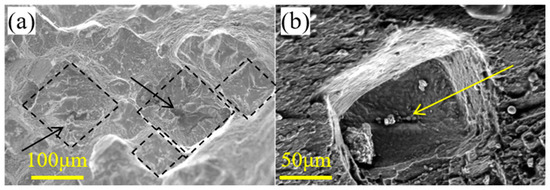

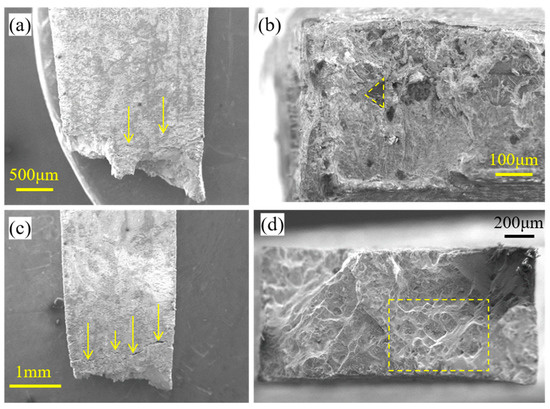

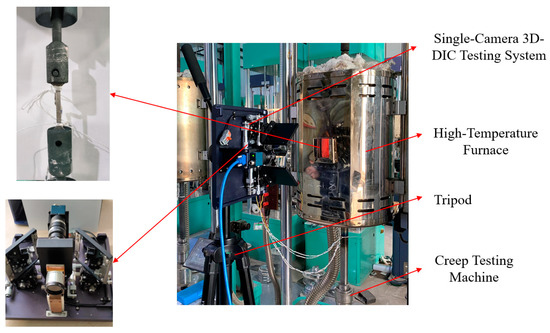

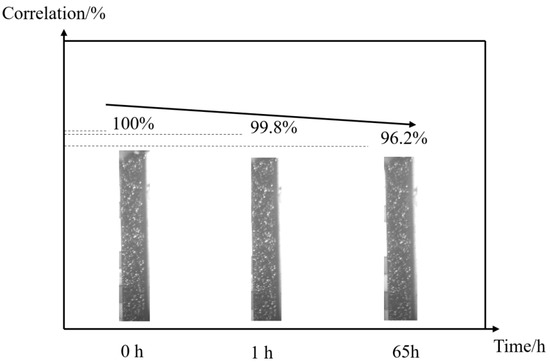

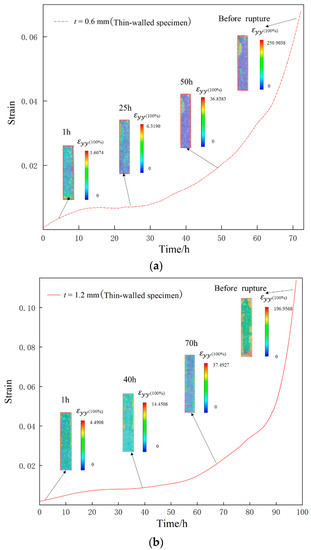

The thickness debit effect of creep behavior has been a focal point of nickel-based single-crystal superalloy research, and there is a need for an advanced creep deformation measurement method. This study developed a novel high-temperature creep test system based on a single-camera stereo digital image correlation (DIC) method with four plane mirrors to conduct creep tests on thin-walled specimens of a nickel-based single-crystal alloy, DD6, with thicknesses of 0.6 mm and 1.2 mm under experimental conditions of 980 °C/250 MPa. The reliability of the single-camera stereo DIC method in measuring long-term deformation at a high temperature was experimentally verified. The experimental results show that the creep life of the thinner specimen was significantly shorter. It was found the lack of coordination in the creep deformation process of the edge and middle section of the thin-walled specimens may be an important factor in the thickness debit effect according to the full-field strain contour. By comparing the local strain curve at the rupture point with the average creep strain curve, it was found that the creep rate at the rupture point was less affected by the specimen thickness during the secondary creep stage, while the average creep rate in the working section significantly increased as the wall thickness decreased. The thicker specimen usually had a higher average rupture strain and higher damage tolerance, which prolonged the rupture time. Full article

The fourth-generation single-crystal superalloy DD15 with 6% Co, 9% Co and 12% Co was cast using the vacuum directionally solidified furnace, while other alloying element’s content remained unchanged. The long-term aging experiment was conducted at 1100 °C for 1000 h after standard heat treatment. The stress rupture tests of the alloy were conducted at 1100 °C/137 MPa and 1140 °C/137 Mpa. The influence of Co content on the microstructure and stress rupture properties of DD15 alloy had been investigated to optimize the Co content to obtain excellent comprehensive performance. The results showed that the primary dendrite arm spacing of the alloy decreases at first and increases afterwards, and the volume fraction of γ-γ′ eutectic decreases with the growth of Co content in the as-cast microstructures. The size, cubic degree and volume fraction of the γ′ phase of the alloy after standard heat treatment all decrease with the increase in Co content. The microstructure stability of the alloy is enhanced with the increase in Co content. No TCP phase was present in the alloy with 12% Co precipitate even after aging 1000 h. The stress rupture lives at two conditions, both reduced in different degrees with the increase in Co content. The effect of Co on the stress rupture life of the alloy improves with the increase in Co content or test temperature. The acicular TCP phase appeared in the 6% Co alloy and 9% Co alloy in the microstructure of the ruptured specimens with different Co contents. Moreover, the TCP phase content in the 6% Co alloy is much more than that in the 9% Co alloy. There is no TCP phase precipitation in the 12% Co alloy. At last, the relationship between microstructure stability, stress rupture properties and Co content of the alloy is discussed. The alloy containing 9% Co is the best choice considering the microstructure stability and stress rupture properties. Full article

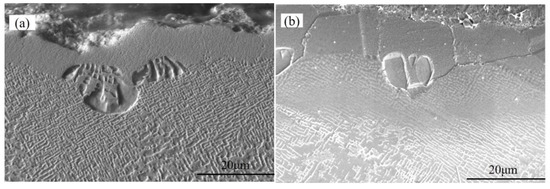

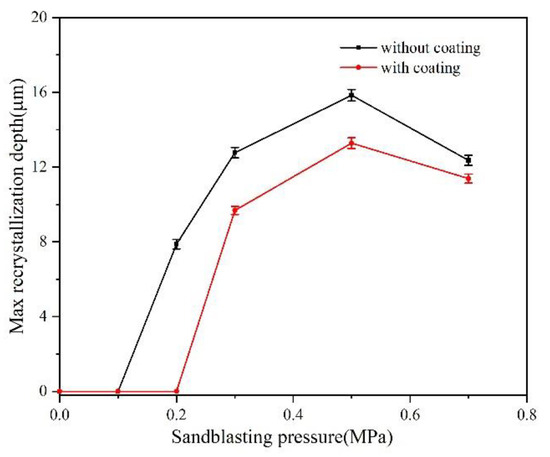

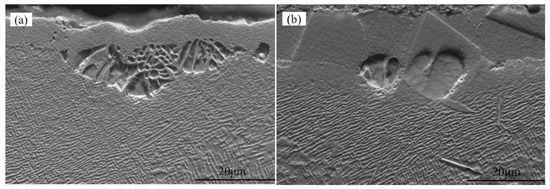

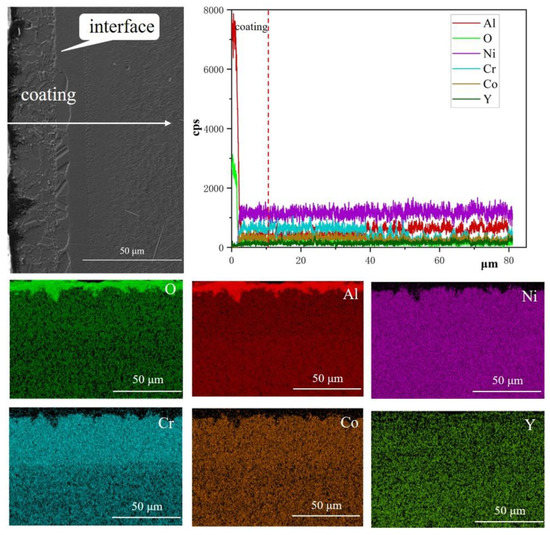

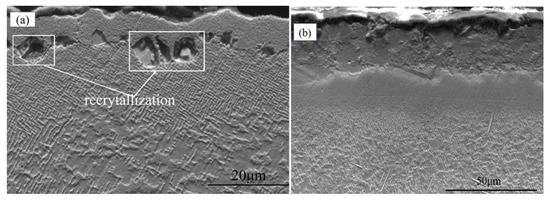

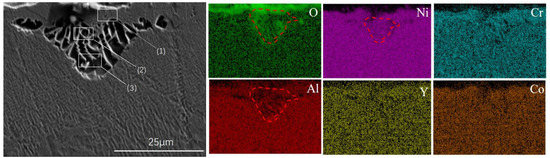

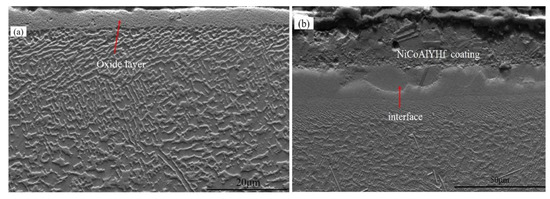

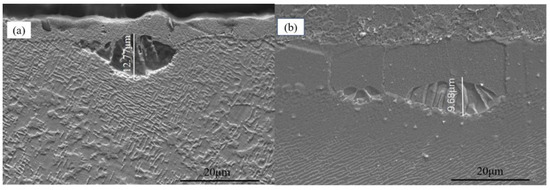

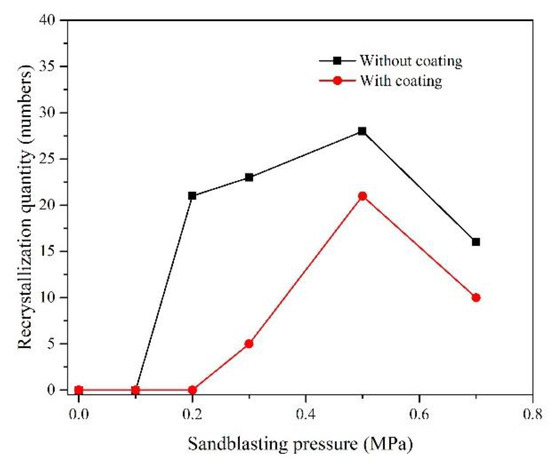

Thermal barrier coatings (TBCs) are widely used to protect high-temperature components against harsh environments, such as extremely high temperatures. In this work, a second generation Ni-based single crystal superalloy (DD6) was treated in two ways: (1) via simple surface sandblasting under different pressures with no additional coating, and (2) through simple surface sandblasting under different pressures and then by applying NiCoCrAlYHf (HY5) coatings. The effects of pre-treatment (sandblasting) and the HY5 coating on the surface recrystallization of the alloy were thoroughly investigated. According to the results, both sandblasting pressure and the presence or absence of a coating significantly influence surface recrystallization. In particular, the critical sandblasting pressure for recrystallization increased the maximum recrystallization depth in both the coated and uncoated samples. Meanwhile, the recrystallization depth of the alloy with a coating was reduced compared to that without a coating. In addition, the number of recrystallized cells in the coated alloy was decreased, which indicated that the HY5 coating effectively reduced the degree of recrystallization. Full article

Thermal barrier coatings (TBCs) suffer from the thermo-chemo-mechanical coupling action of thermal shock and calcium–magnesium–alumina–silicate (CMAS) corrosion. However, the failure mechanism of TBCs under the synergistic effect of thermal shock and CMAS corrosion is still unclear due to a lack of an environmental simulator. Herein, an 8YSZ ceramic coating is deposited on a PtAl bond coating/DD419 nickel-based single crystal superalloy substrate using the electron beam physical vapor deposition (EB-PVD) method. The thermo-chemo-mechanical coupling effect of TBCs is achieved in a self-developed environmental simulator. The interaction of volume expansion induced by the phase transition of ZrO₂, structural degradation and thermal fatigue further increases the out-of-plane tensile stress and in-plane shear stress in the ceramic coating, which accelerates the initiation and propagation of surface vertical cracks and horizontal cracks. As multiple surface vertical cracks propagate to the interface and merge with interfacial cracks, the ceramic coating spalls from the substrate. Full article

Single crystal superalloys are the preferred materials for manufacturing turbine blades of advanced aero-engines, due to their excellent high temperature comprehensive performance. The interfacial reaction between alloys and ceramic mould are an important factor to influence the surface quality and service performance of the turbine blade. It is very important to reveal the interfacial reaction mechanism to improve turbine blade quality and yield rate. In this paper, the interfacial reactions between DD6 single crystal superalloy and ceramic mould were investigated by scanning electron microscopy (SEM), energy dispersive spectroscopy (EDS) and X-ray diffraction analysis (XRD). The results show that the main reaction products were HfO₂, Al₂O₃ and Y₃Al₅O₁₂ when the yttrium oxide powders were the prime coat materials, while alloy surface suffered undesirable sand fusion; the thicknesses of the reaction layers were over 20 μm. The reaction layer can be divided into two layers, the layer close to the alloy was mainly composed of Al₂O₃ and Y₃Al₅O₁₂, and the layer close to the mould was composed of SiO₂, Al₂O₃ and Y₃Al₅O₁₂. Avoiding the formation of Y₂O₃-Al₂O₃-SiO₂ ternary low-melts can solve the interfacial reaction between DD6 alloy and yttrium oxide mould. Full article

The microstructure of low-angle boundaries (LABs) of thethird-generation single-crystal superalloy DD9 and its effect on the tensile properties at 1100 °C were investigated. Double seed crystals techniques were used to obtain the specimens of DD9 alloy with LABs. The results show thatthe as-cast LABs of DD9 alloy are composed of strip-like and bulk γ′ phases with γ matrix, while no γ′ phases were foundat the LABs after the heat treatment. The LABs had little effect on the tensile strength of DD9 alloy, but hadan obvious effect on the tensile plasticity, and the fracture surfaces of tensile-ruptured DD9 alloy with LABs of 3.7°~11.4° exhibited intergranular fracture features at 1100 °C. Full article
