Advancing Tree Species Classification with Multi-Temporal UAV Imagery, GEOBIA, and Machine Learning

Abstract

Accurate classification of tree species is crucial for forest management and biodiversity conservation. Remote sensing technology offers a unique capability for classifying and mapping trees across large areas; however, the accuracy of extracting and identifying individual trees remains challenging due to the limitations of available imagery and phenological variations. This study presents a novel integrated machine learning (ML) and Geographic Object-Based Image Analysis (GEOBIA) framework to enhance tree species classification in a botanical garden using multi-temporal unmanned aerial vehicle (UAV) imagery. High-resolution UAV imagery (2.3 cm/pixel) was acquired across four different seasons (summer, autumn, winter, and early spring) to incorporate the phenological changes. Spectral, textural, geometrical, and canopy height features were extracted using GEOBIA and then evaluated with four ML models (Random Forest (RF), Extra Trees (ET), eXtreme gradient boost (XGBoost), and Support Vector Machine (SVM)). Multi-temporal data significantly outperformed single-date imagery, with RF achieving the highest overall accuracy (86%, F1-score 0.85, kappa 0.83) compared to 57–75% for single-date classifications. Canopy height and textural features were dominant for species identification, indicating the importance of structural variations. Despite the limitations of moderate sample size and a controlled botanical garden setting, this approach offers a robust framework for forest and urban landscape managers as well as remote sensing professionals, by optimizing UAV-based strategies for precise tree species identification and mapping to support urban and natural forest conservation.

1. Introduction

Trees are integral components of terrestrial ecosystems and vital landscape architects that significantly shape the Earth’s biosphere [1]. They not only shape forest ecosystems but also various other environments, including urban landscapes and agricultural systems. Different tree species uniquely contribute to ecosystem functions, such as varying growth rates, wood qualities, carbon sequestration, nutrient cycling, pollutant absorption capabilities, and ecological functioning. These abilities depend on the tree type, leaf structure, surface area, and physiological characteristics [2,3,4,5]. Accurate classification and identification of tree species are valuable aspects of effective forest management [6], urban green spaces [7], and the sustainable development of ecosystems [8]. Tree species identification and classification always remain a challenge [9,10]; however, in conventional forest management practice, tree species classification was primarily conducted through laborious, time-consuming, and inefficient ground surveys [10].

Remote sensing has revolutionized tree species identification and classification by enabling large-scale and non-invasive mapping [11]. Medium-resolution satellite datasets, such as Landsat, MODIS, and Sentinel-2, have been widely used for the classification of trees [12,13,14,15], but are constrained by coarse spatial and temporal resolution, which obscures fine-scale canopy details and phenological variations critical for distinguishing species [16,17,18,19]. Unmanned aerial vehicle (UAV) photogrammetry technology has emerged in forestry to address these limitations [20,21,22] by providing centimetre-level spatial resolution, capturing detailed leaf-level information and canopy structure information [23,24,25]. Recent studies have enhanced tree species mapping and identification using UAV imagery, both in dense forests [26,27,28,29,30,31] and for urban species [32,33,34,35,36]. Despite these advancements, many previous studies rely on single-date imagery, overlooking temporal phenological changes that significantly influence species identification [7,37,38,39].

Furthermore, machine learning (ML) provides future improvements to remote sensing by using spectral, textural, and structural variables for species specific tree identification [24,40,41,42]. Various machine learning techniques such as support vector machine (SVM), random forest (RF), K-nearest neighbour (KNN), eXtreme gradient boost (XGBoost), extra tree (ET), and neural network (NN) have been used for tree species classification [7,43,44,45,46,47,48]. Many studies have also explored deep learning (DL) methods, particularly convolutional neural networks (CNNs) like REsNet and Vision Transformers, for tree species detection and classification using satellite and UAV data, achieving accuracies of up to 98% [31,49,50,51,52,53,54]. While these DL methods are effective at automatically extracting features from complex multimodal data, they typically demand extensive training datasets and high computational resources. In contrast, our study emphasizes traditional ML models, valuing their interpretability and efficiency when working with smaller phenological UAV data. Single-date images are generally less sensitive to temporal features [55], resulting in misclassification, especially in heterogeneous ecosystems, including botanical gardens or urban forests. In this context, Geographic Object-Based Image Analysis (GEOBIA)—a remote sensing image analysis technique that segments images into meaningful, homogenous objects rather than analyzing individual pixels, enabling classification based on spectral, geometrical, and textural attributes [56,57,58,59]—emerges as a promising approach. The recent approach that combines ML, multi-temporal UAV imagery, and GEOBIA offers the potential to incorporate spectral, geometric, textural, and canopy-height characteristics from different seasons, but to date, only a few studies have evaluated it systematically in different ecosystems.

This study presents a novel framework by integrating high-resolution multi-temporal UAV imagery with GEOBIA and ML to enhance tree species classification in a botanical garden. Using high-resolution (2.3 cm/pixel) imagery across four seasons (summer, autumn, winter, and early spring), this study identifies the best ML model for the classification of tree species by using different predictors and multi-temporal data. The work contributes to the advancement of UAV-based remote sensing methods for tree species identification, with a focus on achieving high efficiency in terms of both time and cost. The main objectives of this study are, (1) to evaluate the potential of multi-temporal high-resolution UAV imagery for the classification of tree species, (2) to identify key features (spectral, geometric, textural, and canopy height) distinguishing the species, and (3) to evaluate the performance of different ML models (RF, ET, XGBoost, and SVM).

2. Materials and Methods

2.1. Study Area

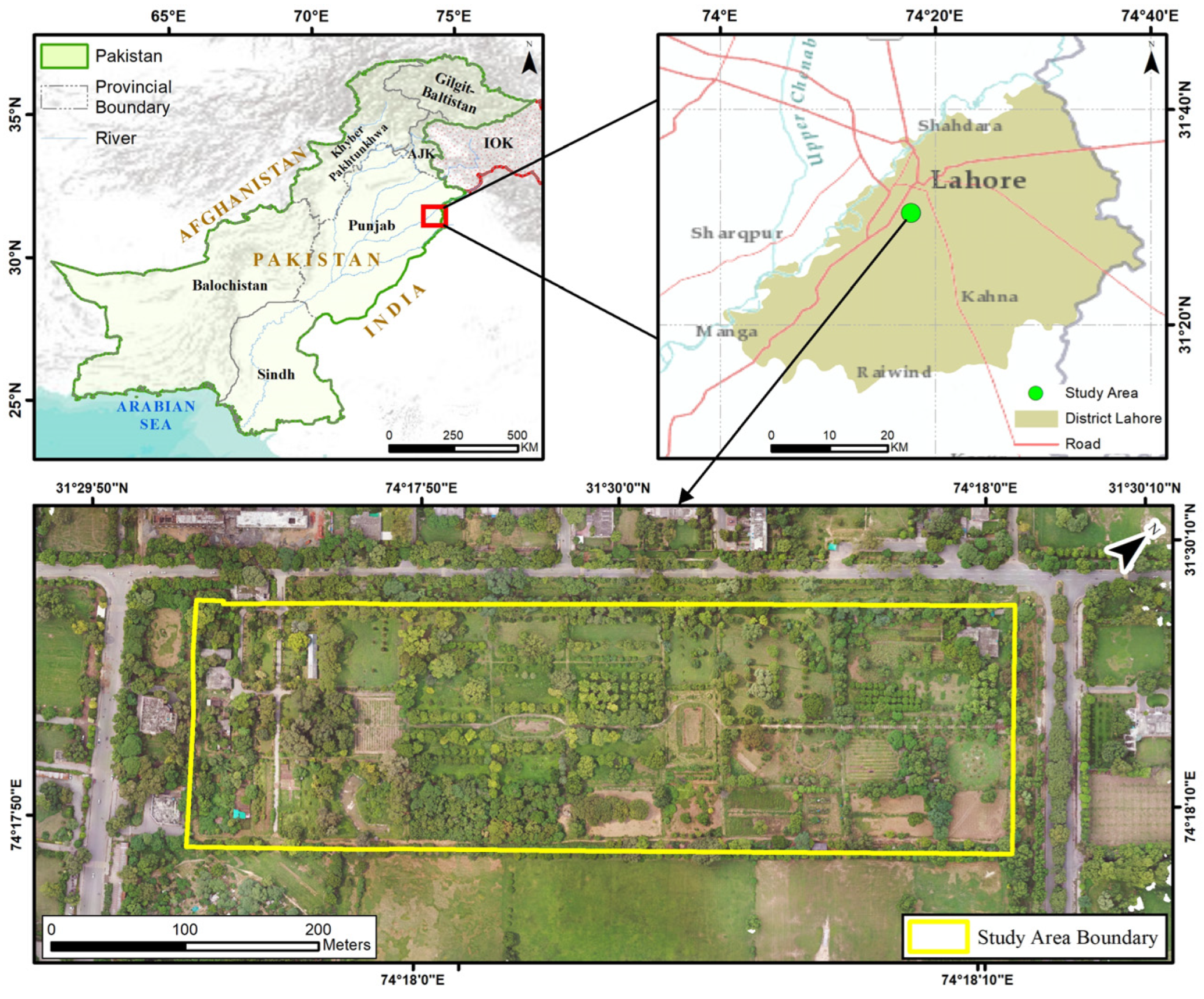

The study area was selected based on several criteria, including the trees being representative of similar areas elsewhere, the site being free of tall buildings, the site having no source of magnetic interference nearby, and the site not being located within any no-fly zones for UAVs. Considering these criteria, the botanical garden of the University of the Punjab, Quaid-e-Azam campus (31.499547° latitude and 74.299938° longitude) situated in Lahore city of Punjab province was selected. Figure 1 shows the University of the Punjab’s botanical garden, characterized by a rich diversity of tree species, which makes a significant contribution to the tree flora [60]. The total area of the botanical garden is about 32 acres (~13 ha) with a wide variety of native and non-native trees. Boasting more than four trees per 100 square metres, the botanical garden’s density represents a dense urban forest. Lahore city has four distinct seasons: winter (December to February), spring (March to May), summer (June to August), and autumn (September to November) [61]. High species diversity and abundance, combined with distinct seasonal variations, allow us to study the phenological effects of various tree species on classification accuracy.

2.2. Methods

This study developed a novel framework by integrating multi-temporal UAV imagery, GEOBIA, and ML to classify tree species in a botanical garden. The workflow comprised two primary steps: (a) data acquisition and extraction of the tree crown with its attributes (spectral, geometrical, textural, and canopy height), and (b) evaluation of machine learning models for species classification using ground truth information. Spectral, textural, geometrical, and canopy height attributes were extracted for all tree crowns delineated using GEOBIA. ML models were used to identify the most important features and, finally, the top-performing classifier for accurately classifying tree species was selected. The process flow comprised data acquisition, processing, and classification, as illustrated in the schematic diagram (Figure 2).

2.3. Image Acquisition and Data Preprocessing

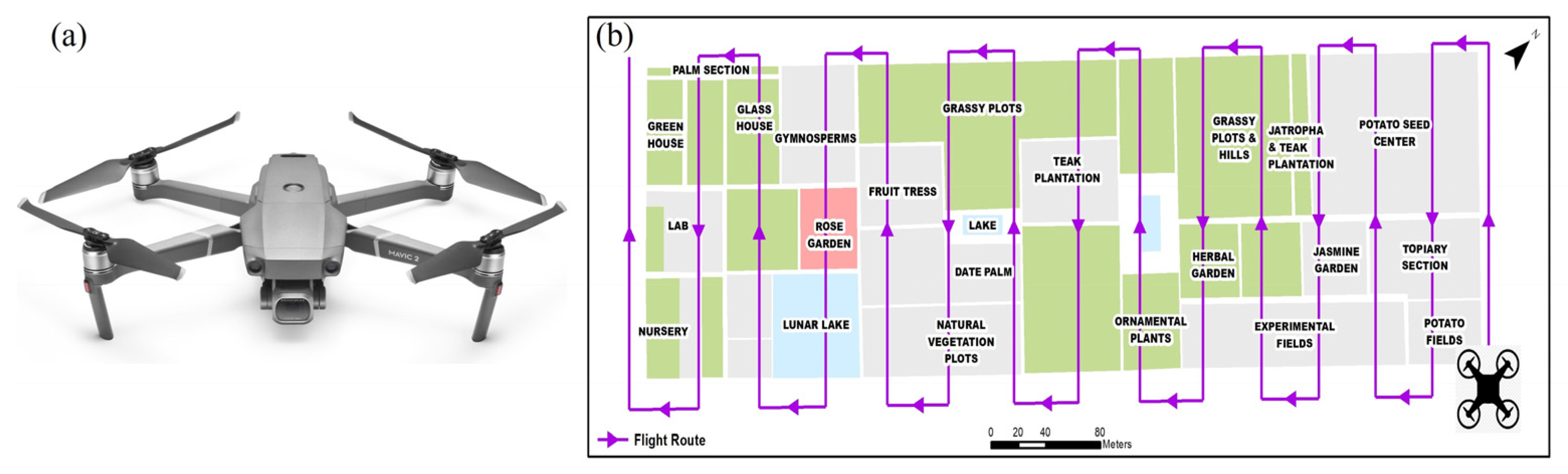

Multi-temporal imagery of the study area was acquired using the DJI (Da-Jiang Innovations, Shenzhen, Guangdong, China) Mavic 2 Pro-UAV (Figure 3a) with a high-resolution Hasselblad RGB camera, having a 1-inch CMOS sensor and 28 mm equivalent focal length [62]. The data was acquired with the four flights, one in each season—summer, autumn, winter, and early spring—following the similar flight path of the UAV developed for the study (Figure 3b). All the datasets were acquired between 10:00 and 11:00 am (Pakistan Standard Time) on clear-sky days with 80% overlap, nadir view angle (90° camera angle), and at 100 m flying height (

Table 1. Description of the data acquired from the UAV.

Sr. No.	Flying Month	Season	Camera Angle	Image Overlap	Flight Height
1	30 August 2023	Summer	90°	80%	100 m
2	29 October 2023	Autumn
3	28 January 2024	Winter
4	11 February 2024	Early Spring

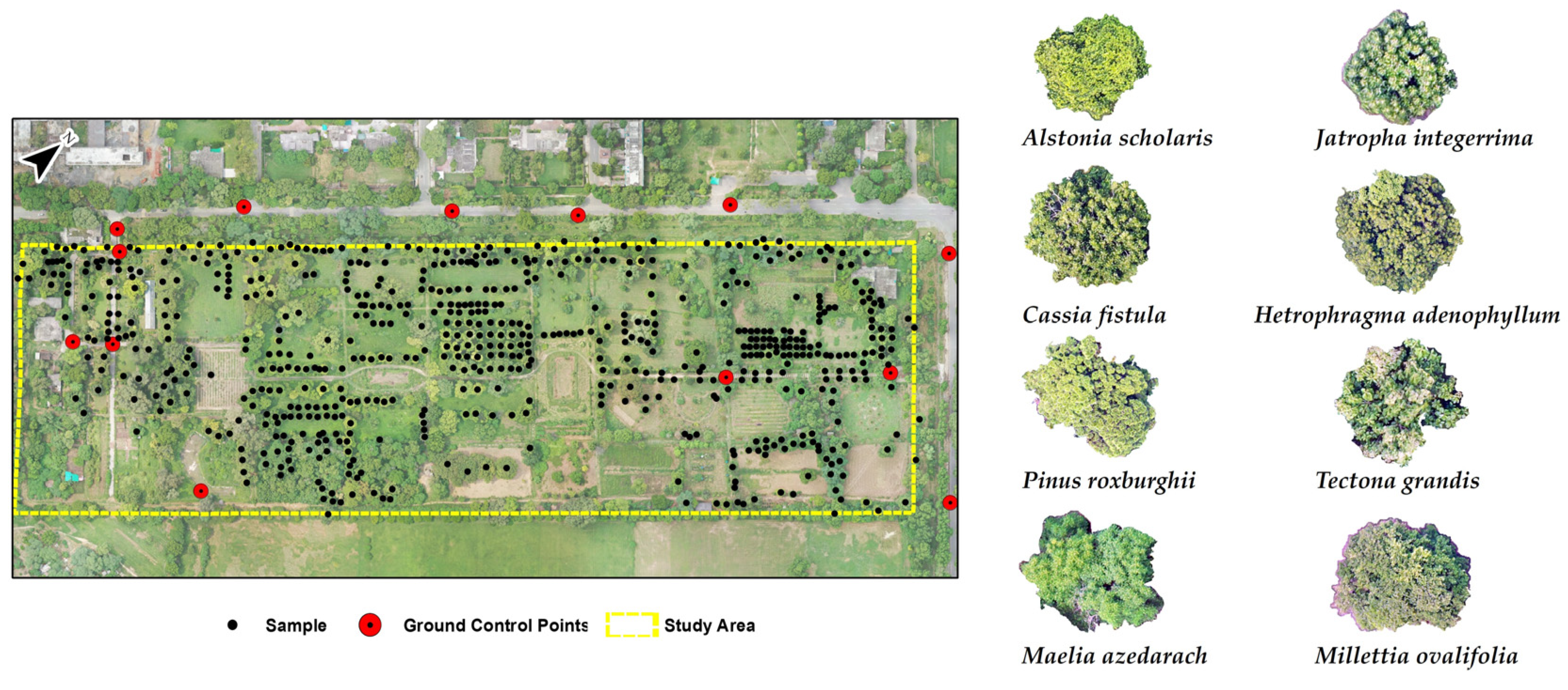

). Figure 4 shows the location of ground control points, which were taken using Real-time kinematic positioning using the Global Navigation Satellite System (RTK GNSS) to process and rectify the raw dataset with the Agisoft Metashape Professional (ver. 1.7.6) software by applying the structure from the motion photogrammetry method. A digital surface model (DSM) and high-resolution ortho-mosaic images with an average resolution of 2.3 cm per pixel were generated, and the canopy height was extracted by subtracting the Digital Terrain Model (DTM) from the Digital Surface Model (DSM). While high resolution enables detailed canopy capture, potential limitations include occlusion effects from overlapping canopies in dense areas and radiometric inconsistencies due to seasonal variations in sunlight angles, potentially affecting spectral feature stability across datasets.

2.4. Field Reference Data

The botanical garden is divided into different sections, and a field survey was conducted in May 2024 to collect information about tree species from all sections using a comprehensive inventory method to assess tree species diversity and distribution [63,64]. This involved identifying and recording trees across the sections, with an emphasis on mature individuals. The data collection included recording the precise spatial location, local name, scientific name, and family name of each species. The most sampled species was Jatropha (Jatropha integerrima) from the Euphorbiaceae family, with 39 samples, followed by Teak Wood (Tectona grandis) from the Verbenaceae family, with 33 samples, and Amaltas (Cassia fistula) from the Fabaceae family, with 25 samples. Other species included Villayati Shishum (Millettia ovalifolia), Karenwood (Hetrophragma adenophyllum), Alstonia (Alstonia scholaris), Chir Pine (Pinus roxburghii), and Dhrek/Bakain (Melia azedarach), with sample sizes ranging from 15 to 22, reflecting the diversity of the surveyed area. The collected site data were later converted into a GIS-based point shapefile for further analysis; Figure 4 shows the spatial distribution of the data, and a summary of the field inventory is provided in

Table 2. Distribution of reference data samples for each tree species.

No.	Local Name	Scientific Name	Family Name	Sample
1	Jatropha	Jatropha integerrima	Euphorbiaceae	39
2	Teak Wood	Tectona grandis	Verbenaceae	33
3	Amaltas	Cassia fistula	Fabaceae	25
4	Villayati Shishum	Millettia ovalifolia	Fabaceae	22
5	Karenwood	Hetrophragma adenophyllum	Bignoniaceae	18
6	Alstonia	Alstonia scholaris	Apocynaceae	17
7	Chir Pine	Pinus roxburghii	Pinaceae	17
8	Dhrek, Bakain	Melia azedarach	Meliaceae	15

.

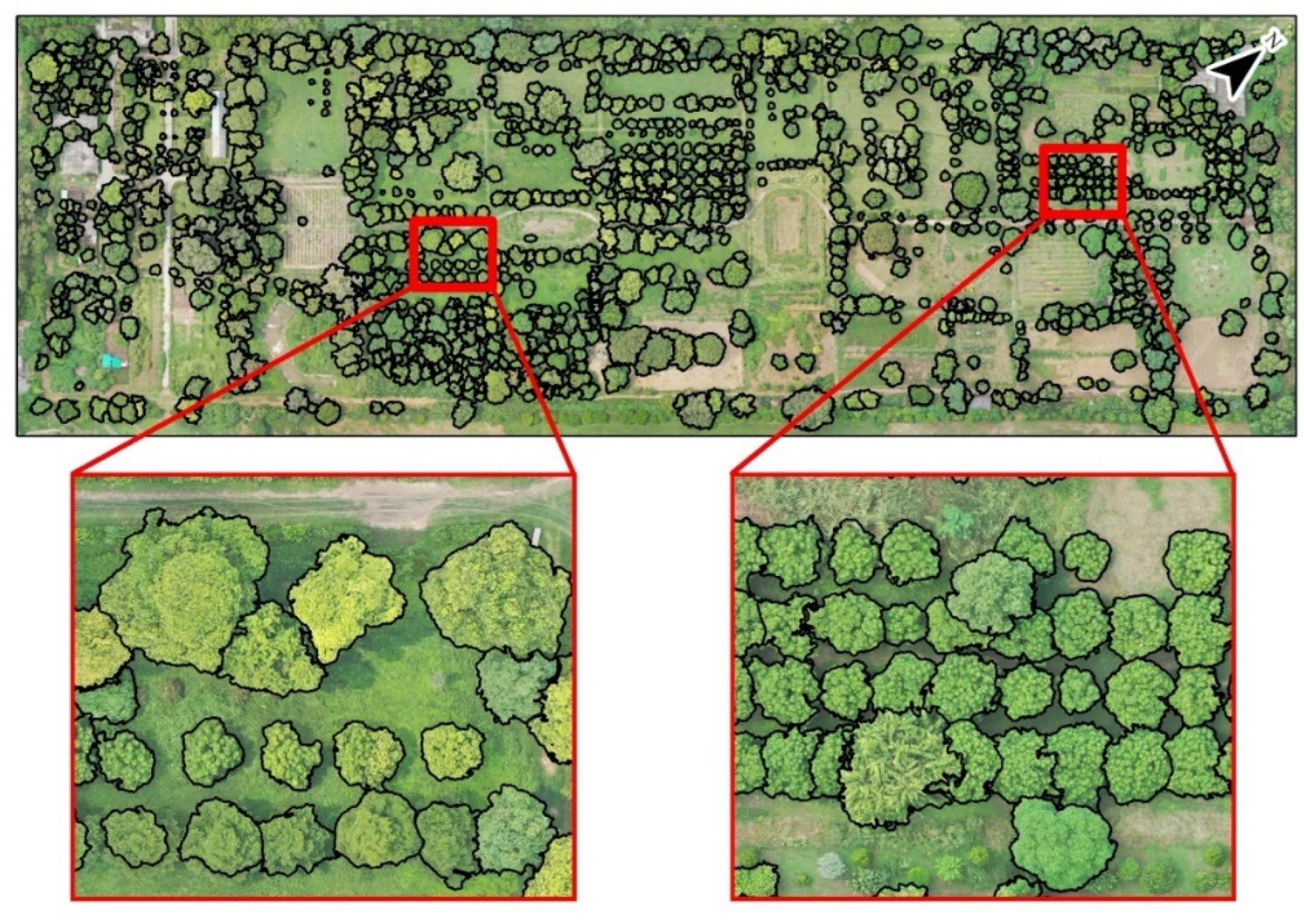

2.5. Tree Crown Extraction

Tree crowns were extracted using the GEOBIA [65,66], following the method proposed by Onishi & Ise [24]. Multiresolution segmentation, incorporating DSM, slope, and RGB bands of UAV imagery, was employed in eCognition Developer (ver. 9) software (Trimble, Inc., Westminster, CO, USA) to generate image object primitives. Segmentation parameters (Scale = 100, Compactness = 0.5, and Shape = 0.2) were selected using a trial-and-error approach, with values adjusted iteratively to achieve optimal segmentation results. These settings effectively reduced misclassification in dense foliage and enhanced the accuracy of downstream feature extraction, as validated by visual comparisons with the field observations. To exclude low-lying vegetation and ground-level segments, the DTM and DSM were utilized, and further refinement was achieved by removing non-tree segments using rule sets based on spectral, textural, and canopy height features. The resulting extracted crown covers are illustrated in Figure 5.

To improve the accuracy of tree species classification and understand the effect of different features on the classification result, textural, contextual, shape, and geometric features were used in addition to spectral features [38,67]. Spectral features included the standard deviation and mean of the RGB bands of tree crowns. Eight geometric features were calculated: asymmetry, border index, compactness, density, elliptic fit, main direction, roundness, and shape index. The mean and standard deviation of canopy height, along with the slope, were computed as terrain features. Two types of textural features, grey level co-occurrence matrix (GLCM) and grey level difference vectors (GLDV), were calculated for every tree object using all pixels within the segmented object [68]. Eight GLCM and two GLDV features, as outlined in

Table 3. Description of the textural features derived from the grey level co-occurrence matrix (GLCM).

Sr. No.	Texture Features	Calculation Equations	Features Description
1	Mean	$Mean={\displaystyle \sum _{i=1}^{N_g}}.{\displaystyle \sum _{j=1}^{N_g}}i\times P(i,j)$	The Mean value in the GLCM window.
2	Homogeneity	$Hom={\displaystyle \sum _{i=1}^{N_g}}.{\displaystyle \sum _{j=1}^{N_g}}{\displaystyle \frac{1}{1+{(i+j)}^2}}\times P(i,j)$	Gradually decreases in weight as values are further from the diagonal and weight values by the inverse of the contrast weight.
3	Contrast	$Con={\displaystyle \sum _{i=1}^{N_g}}.{\displaystyle \sum _{j=1}^{N_g}}{(i-j)}^2\times P(i,j)$	Measures local diversity in an image.
4	Dissimilarity	$Dis={\displaystyle \sum _{i=1}^{N_g}}.{\displaystyle \sum _{j=1}^{N_g}}\left|i-j\right|\times P(i,j)$	Very similar to contrast factors, but it increases linearly.
5	Entropy	$Ent=-{\displaystyle \sum _{i=1}^{N_g}}.{\displaystyle \sum _{j=1}^{N_g}}P(i,j)\times \mathit{log}\left[P(i,j)\right]$	High value if the values in GLCM are equally distributed.
6	Angular Second Moment	$SM={\displaystyle \sum _{i=1}^{N_g}}.{\displaystyle \sum _{j=1}^{N_g}}{\left[P(i,j)\right]}^2$	The uniformity of greyscale in the GLCM window.
7	Correlation	$Cor={\displaystyle \frac{\sum _{i=1}^{N_g}.\sum _{j=1}^{N_g}i\times P(i,j)-{\mu }_i{\mu }_j}{{\sigma }_i{\sigma }_j}}$	A linear relationship between the grey levels of adjacent pixels.
8	Standard Deviation	$STD=\sqrt{{\displaystyle \sum _{i=1}^{N_g}}.{\displaystyle \sum _{j=1}^{N_g}}P(i,j)\times {(i-Mean)}^2}$	Combination of neighbour and reference pixels.
9	GLDV angular second moment	$VASM={\displaystyle \sum _{k=0}^{N-1}}{V}_k^2$	Quantify uniformity of texture in an image.
10	GLDV entropy	$VENT={\displaystyle \sum _{k=0}^{N-1}}{V}_k(-ln{V}_k)$	Measures the randomness or unpredictability of the texture.

Note: P($i$,j) represents the probability of each pixel pair ($i$,j), where $i$ and j are the grey tones in the windows and the coordinates of the co-occurrence matrix space; $N_g$ Represents the number of distinct grey levels in the quantized image, reflecting the grey value range of the original image; μ and σ represent the mean and standard deviation of P($i$,j), respectively, and $V_k$ is the normalized GLDV.

, were extracted for every tree object. A label-encoding technique was used to convert tree species names into a numeric format, facilitating machine readability. Each tree species in the label data was assigned a unique value ranging from 0 to 7 for further processing.

2.6. Machine Learning Models

Four supervised machine learning models—Random Forest (RF), Extra Trees (ET), eXtreme Gradient Boost (XGBoost), and Support Vector Machine (SVM)—were implemented using PyCaret in Python (ver. 3.9) [67]. The sample data was divided into 70:30 training and testing datasets to balance model training and evaluation, given the dataset size [45]. To address the class imbalance, the Synthetic Minority Over-sampling technique (SMOTE) was applied to the training set. This technique generates synthetic samples for minority classes by interpolating between existing minority instances and their nearest neighbours [69].

2.6.1. Random Forest (RF)

RF is one of the widely used supervised machine learning models as it can solve classification and regression problems with high accuracy [70,71,72,73]. It is composed of numerous decision trees, and each tree is an output that returns a class prediction [74]. The prediction of each tree is aggregated, and the class with the majority votes is set as the final result. RF has been applied extensively in forestry for tree species identification and classification using medium-resolution satellite imagery such as Landsat and Sentinel-2 [19,75,76,77,78], as well as high-resolution imagery such as World View [46,79,80,81]. However, its application for individual tree species identification using high-resolution UAV imagery combined with GEOBIA has been less common [47,48], which underscores the novelty of our integrated approach in this study. Regarding the parameter value, hyperparameters were optimized using PyCaret’s grid search, resulting in n_estimators = 100, and min_samples_leaf and min_samples_split were 1 and 2, respectively. The split quality was measured by the criterion ‘gini’. To increase the diversity of the model and to avoid overfitting, the maximum number of features that were considered for the splitting of each tree, ‘max_features’, was the square root of the total available features (sqrt).

2.6.2. Extra Trees (ET)

Another type of tree ensemble for forests is ET, also known as Extremely Randomized Trees, which is a supervised tree-based ensemble model for classification and regression. It randomly selects the split points and, also, the features, either completely or a fraction of them [82]. The main benefit of using this classifier is its computational processing speed and low processing cost, and it is more effective than other ensembles, such as Random Forest, that require more parameter tuning and optimization [83]. In the input parameters, n_trees was 100, and min_samples_leaf and _split were 1 and 2, respectively. Measures of the quality of the split were obtained using ‘SoilType’ (with the ‘Gini’ index as the criterion), and the parameter ‘max_features’ was established at sqrt.

2.6.3. eXtreme Gradient Boost (XGBoost)

XGBoost is an extremely powerful supervised machine learning model, known for its speed and superior execution. It employs the gradient boosting method and makes an ensemble of weak learners (principally decision trees) to create an accurate predictive model. A novel way for dealing with sparse data and a weighted quantile-based framework of approximation learning enhance its performance and make it appropriate for classification [84,85]. For hyperparameter optimization, 50 trees were set, as XGBoost typically performs effectively with fewer trees due to its sequential boosting process that corrects errors from prior trees [84]. The learning rate is equal to 0.15 for the convergence and performance of the model. To control overfitting and complexity of the model, max_depth and min_child_weight were chosen as 11 and 4, respectively.

2.6.4. Support Vector Machine (SVM)

In the 1990s, Vapnik introduced a non-parametric supervised machine learning model known as SVM [86]. It separates two classes by finding the hyperplanes that entirely separate the closest data points belonging to each class [87]. In relation to the number of features in the input data, this hyperplane will appear as a plane in n-dimensional spaces or a line in 2-dimensional spaces [88,89]. Data were classified using SVM with a linear kernel, ‘none’as the class_weight assigned for dealing with imbalanced datasets. ‘Invscalling’ was used as learning_rate for efficient training and convergence, and max_iter was set to 1000 for efficient learning, to avoid overfitting, and to balance regularization and model complexity. ‘Ridge regularization (L2)’ was applied as a penalty.

2.7. Model Scenarios

Classification was performed in two steps, focusing on the selection of canopy height, spectral, geometrical, and textural attributes. Single-date datasets were first classified as an experimental measure to perceive and analyze the performance of the classification as well as the classification patterns in each season. Secondly, all the multi-temporal datasets were concatenated to make a large comprehensive dataset, which was used for classification using the same four machine learning models. This approach provides a comprehensive assessment of the model’s accuracy and compares it by month and multi-temporal datasets for the classification accuracy of tree species.

2.8. Accuracy Assessment

Accuracy assessment is essential to confirm the effectiveness of the proposed method, followed by a validation of the different machine learning classifications. Typically, to assess how well a supervised learning model is performing, predictions are developed using test data, and then those predictions are compared to the actual labels in a confusion matrix. The performance of the models was measured by several performance indexes, i.e., overall accuracy (OA), precision, recall, F1-score, kappa, and Matthews Correlation Coefficient (MCC) (Equations (1)–(5)). Confusion matrices were plotted for each machine learning model to further analyze the model’s performance based on different features. To assess potential multicollinearity and identify key discriminative features, Shapley Additive exPlanations (SHAP) values for all the models were computed, revealing mean absolute contributions of each feature [90]. The analysis of these outputs assessed the efficacy and computational performance of the models:

$$\mathrm{Precision} = {\displaystyle \frac{True Positives \left(TP\right)}{True Positives \left(TP\right)+False Positives \left(FP\right)}}$$

(1)

$$\mathrm{Recall}={\displaystyle \frac{True Positives \left(TP\right)}{True Positives \left(TP\right)+False Negatives\left(FN\right)}}$$

(2)

$$\mathrm{F}1\text{-Score}=2 \times {\displaystyle \frac{Precision\times Recall}{Precision+Recall}}$$

(3)

$$\mathrm{Kappa} \mathrm{Coefficient}={\displaystyle \frac{P_o-P_e}{1-P_e}}$$

(4)

where $P_o,P_e$ are the observed and expected agreement

$$\mathrm{MCC}={\displaystyle \frac{\left(TP\times TN\right)-(FP\times FN)}{\sqrt{(TP+FP)(TP+FN)(TN+FP)(TN+FN)}}}$$

(5)

3. Results

3.1. Evaluating Tree Classification Across Single-Date Imagery Using Different Machine Learning Models

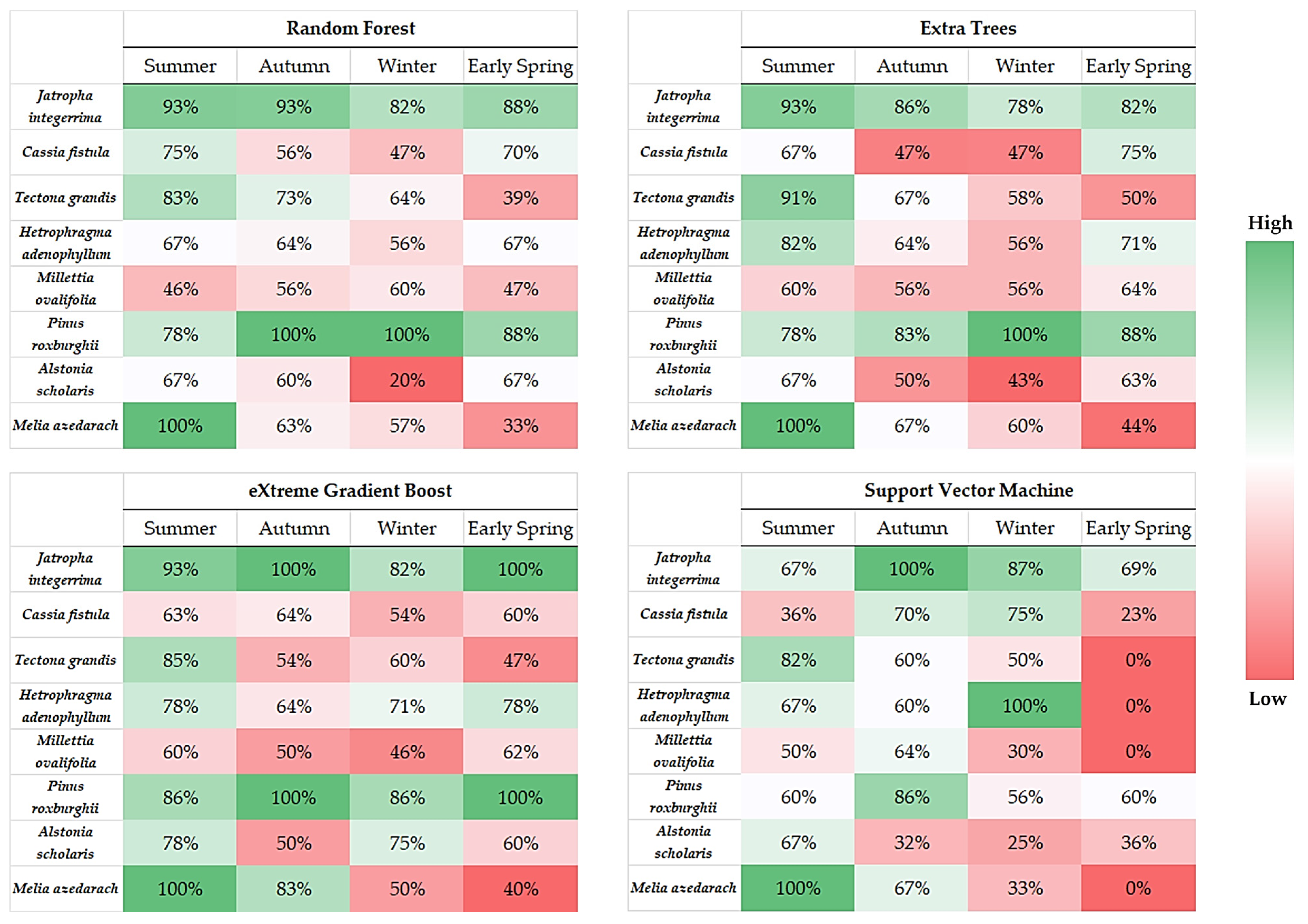

Initially, all the UAV temporal data was classified individually using four machine learning models—RF, ET, XGBoost, and SVM—and the classification results for tree species were evaluated. The result, demonstrated in Figure 6, is that Melia azedarach was classified effectively using all machine learning models during the summer. Pinus roxburghii exhibited good classification performance across all four machine learning models in the autumn, and it showed notable classification accuracy in winter as well. Jatropha integerrima classified well across all four machine learning models and all seasons. However, the OA of individual tree classification remains relatively low, with most species being misclassified.

To assess the performance of machine learning models, the models were examined on the single-date imagery. The results in

Table 4. Overall accuracies used to compare ML algorithms in the different seasons.

Summer							Autumn
Model	OA	Precision	Recall	F1	Kappa	MCC	OA	Precision	Recall	F1	Kappa	MCC
RF	75%	0.76	0.75	0.73	0.71	0.72	63%	0.62	0.63	0.60	0.57	0.58
ET	74%	0.74	0.74	0.72	0.69	0.70	67%	0.68	0.67	0.65	0.62	0.63
XGBoost	74%	0.77	0.74	0.73	0.70	0.71	65%	0.64	0.65	0.63	0.59	0.60
SVM	72%	0.72	0.72	0.70	0.67	0.68	57%	0.59	0.57	0.55	0.50	0.52
Winter							Early Spring
Model	OA	Precision	Recall	F1	Kappa	MCC	OA	Precision	Recall	F1	Kappa	MCC
RF	68%	0.68	0.70	0.66	0.63	0.64	61%	0.61	0.59	0.58	0.54	0.55
ET	66%	0.66	0.64	0.63	0.60	0.61	62%	0.62	0.59	0.58	0.55	0.56
XGBoost	64%	0.64	0.61	0.61	0.58	0.59	64%	0.64	0.62	0.62	0.58	0.59
SVM	65%	0.65	0.65	0.62	0.59	0.61	62%	0.63	0.62	0.58	0.55	0.57

show that during the summer, the RF outperformed others, achieving an OA of 75% and an F1 score of 0.73. In autumn, the OA of RF decreased, while ET performed well compared to the other models (XGBoost and SVM), achieving an OA of 67% and an F1 score of 0.62. For the winter, RF performed well with an OA of 68% and an F1 score of 0.66. XGBoost showed good performance on the early spring data with an OA of 64% and an F1 score of 0.62. The OA remains very low, ranging from 57 to 75%, due to the misclassification of trees. However, the summer imagery shows better accuracy across all four models compared to other seasons. Figure 6 illustrates the classification accuracy for individual tree species, highlighting how species like Pinus roxburghii and Heterophragma adenophyllum achieve high classification accuracy in certain seasons due to phenological variations.

3.2. Assessment of Tree Species Classification from Multi-Temporal Data

All the temporal data were merged, and the models were trained and tested on the combined features of multi-temporal data. The effectiveness of four machine learning models (RF, ET, XGBoost, and SVM) for tree species classification using multi-temporal UAV data was assessed. The performance of these machine learning models, with a focus on OA, was thoroughly evaluated. The improved results indicate that the multi-temporal UAV, by considering all spectral, geometrical, and textural features together, achieved the highest OA compared to the single-season data, with an OA of 86% for RF, followed by ET with an OA of 84%, XGBoost with OA of 83%, and SVM with OA of 75% (Figure 7a). RF outperformed ET, SVM, and XGBoost with the maximum OA of 86%, F1 score of 0.85, and Kappa value of 0.83 (

Table 5. Performance comparison of machine learning models on multi-temporal image composite.

Multi-Temporal Image Composite
Model	OA	Precision	Recall	F1	Kappa	MCC
RF	86%	0.88	0.86	0.85	0.83	0.84
ET	84%	0.87	0.84	0.83	0.80	0.81
XGBoost	83%	0.85	0.83	0.82	0.80	0.80
SVM	77%	0.80	0.77	0.76	0.74	0.75

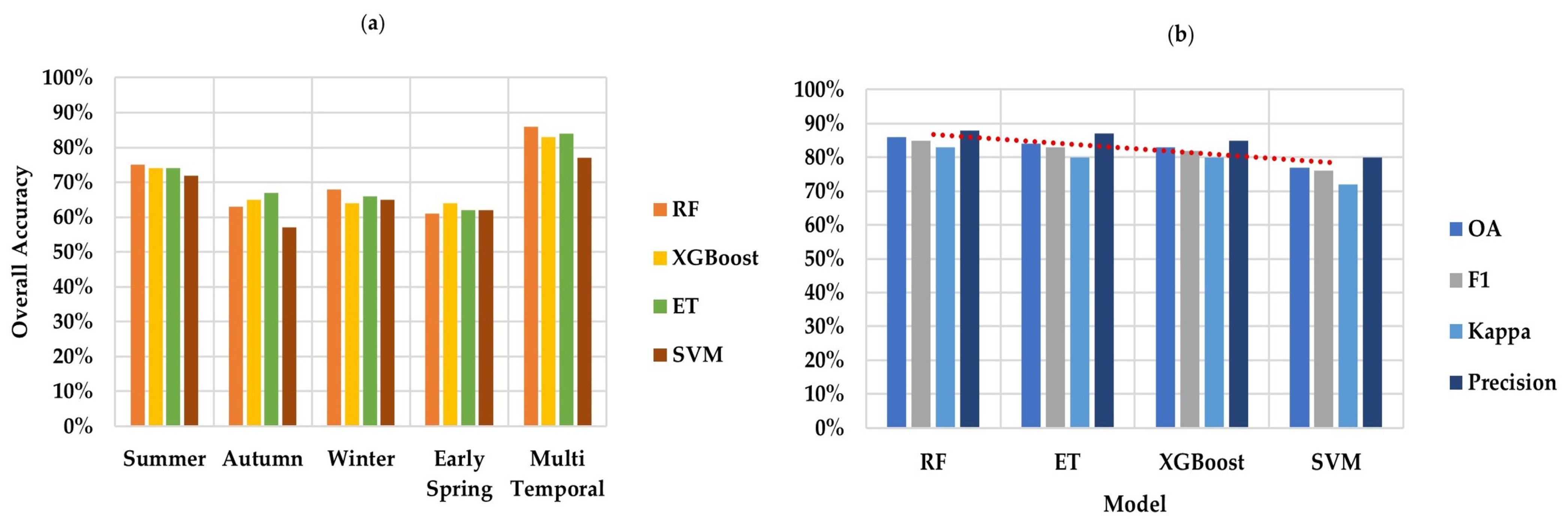

, Figure 7b). The OA range has increased from 57–75% to 77–86%, demonstrating an improvement in the classification results. This enhancement underscores the importance of temporal data in accurately classifying tree species.

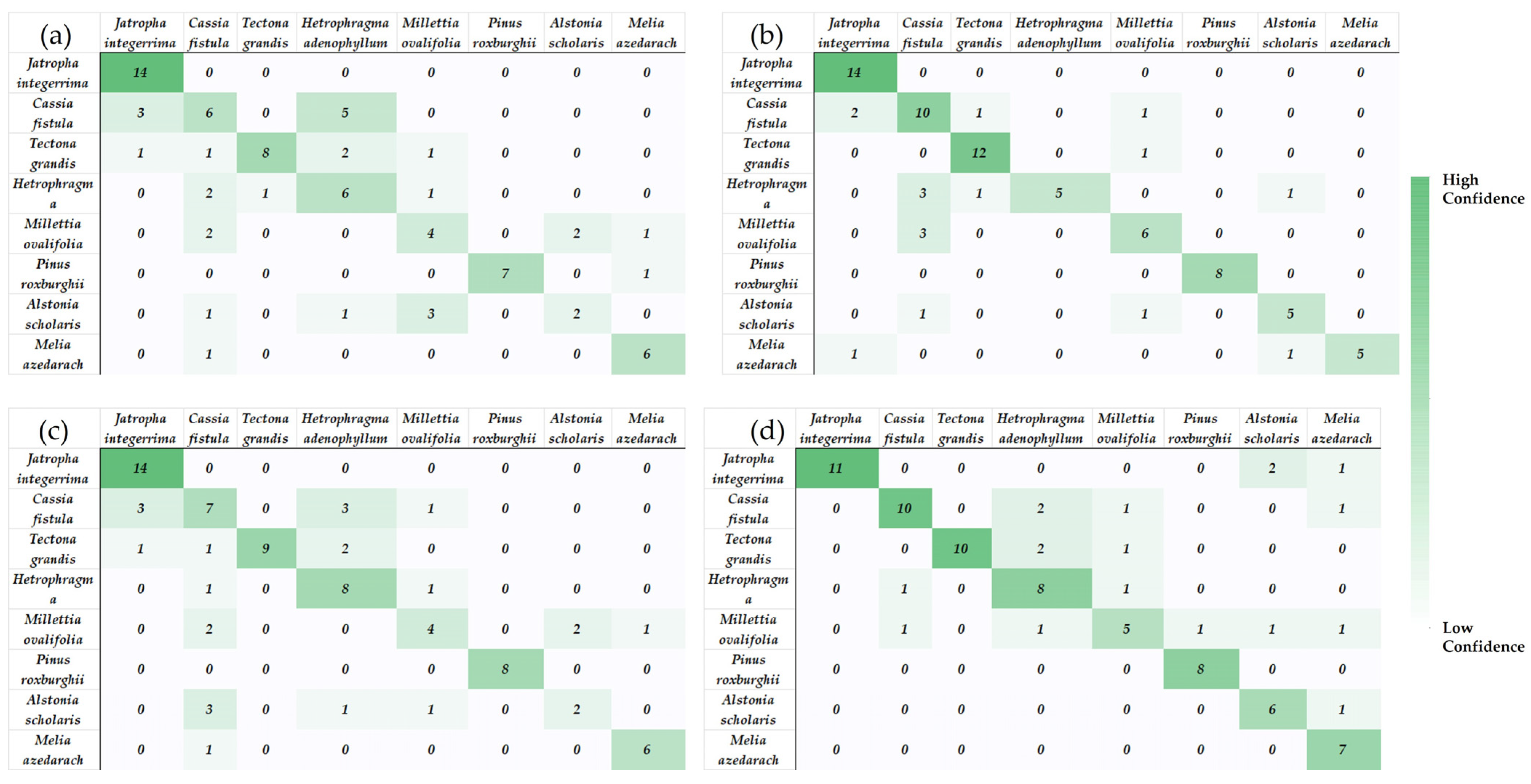

The confusion matrix provides a comprehensive overview of the model’s performance by displaying the true positive, true negative, false positive, and false negative predictions. The classification accuracy of each tree species using multi-temporal data varies across species, highlighting strengths and weaknesses for different tree species (Figure 8). For Pinus roxburghii, the RF classifier showed high precision, indicating its effectiveness in correctly identifying this species with few false negatives and positives. Millettia ovalifolia was not well classified by using RF and had lower precision. The ET classifier performed very well and showed high precision across several species, particularly Hetrophragma adenophyllum and Pinus roxburghiihad, making very accurate positive predictions. XGBoost exhibited high precision for Tectona grandis and Pinus roxburghii, and the SV classifier showed perfect precision for Jatropha integerrima and Tectona grandis. RF and ET classifiers appeared to have balanced performance across different species, making them effective models for tree species classification tasks using multi-temporal data. To address class imbalance, SMOTE oversampling was applied on the training set to reduce bias toward majority classes.

Table 6. Per-class precision, recall, and F1-scores for the RF model on multi-temporal data, highlighting performance across imbalanced classes.

Local Name (Species Name)	Precision	Recall	F1	Support
Jatropha (Jatropha integerrima)	1	1	1	14
Teak Wood (Tectona grandis)	0.67	0.86	0.75	14
Amaltas (Cassia fistula)	0.91	0.77	0.83	13
Villayati Shishum (Millettia ovalifolia)	0.7	0.7	0.7	10
Karenwood (Hetrophragma adenophyllum)	0.63	0.56	0.59	9
Alstonia (Alstonia scholaris)	1	1	1	8
Chir Pine (Pinus roxburghii)	0.8	0.57	0.67	7
Dhrek, Bakain (Melia azedarach)	0.8	1	0.93	7

presents the per-class precision, recall, and F-1 scores for the RF model using multi-temporal data, highlighting the effectiveness of SMOTE in improving performance across all classes. Minority classes, such as Hetrophragma adenophyllum (F1 score of 0.59) and Pinus roxburghii (F1 score of 0.67), still face some challenges, indicating no significant overfitting to majority classes as the weighted F1 align closely to OA.

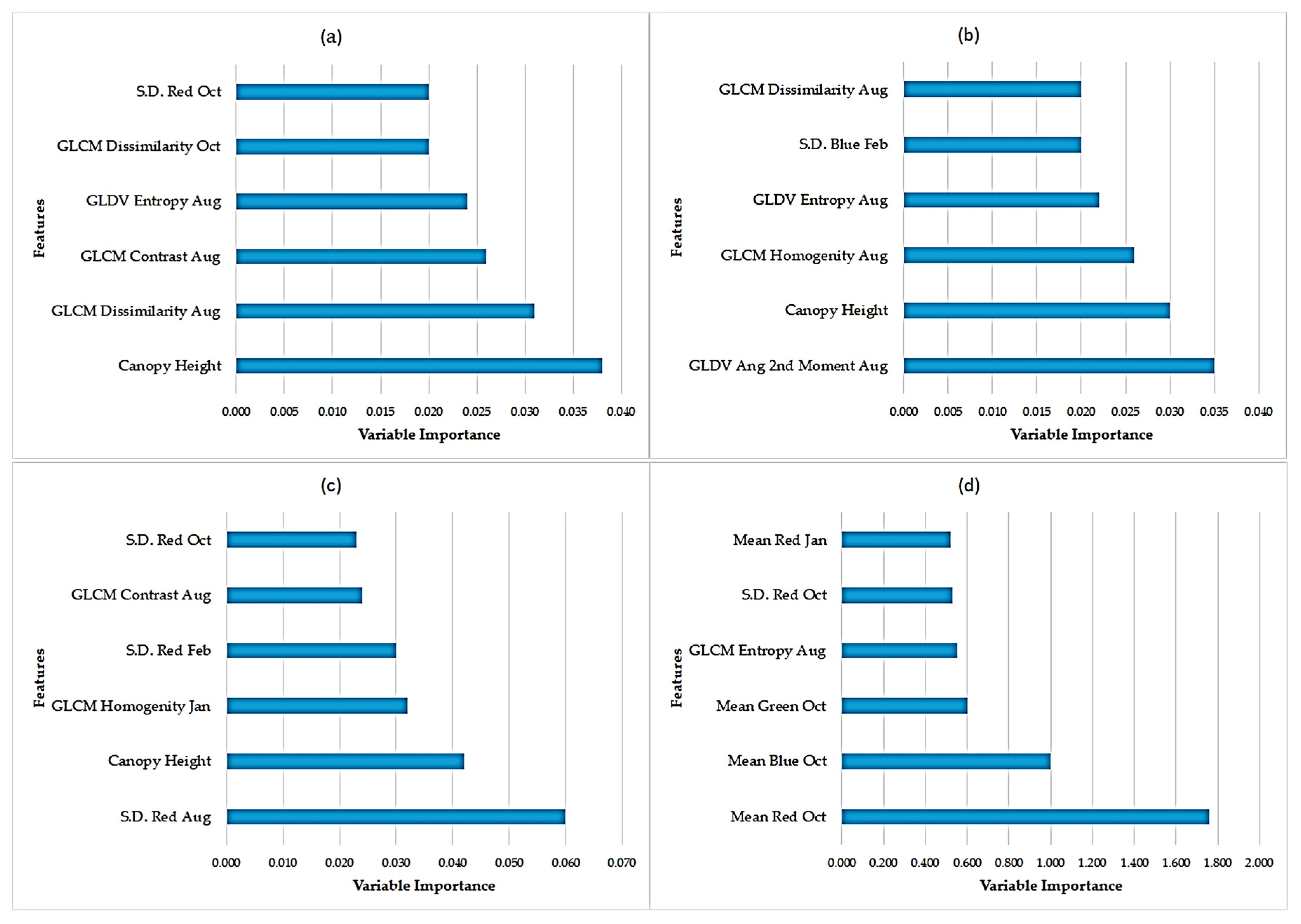

Feature importance for different ML models was assessed using SHAP analysis to identify the most significant contributors to the tree species classification with multi-temporal data. The top six variables across all models highlight how different feature types played distinct roles in classification (Figure 9). For the RF classifier, canopy height is the most influential feature in the classification, followed by the texture feature. In the case of the ET classifier, GLDV angular second moment is the most significant, with canopy height and texture features also playing important roles. For the XGBoost classifier, spectral features are the primary contributors, followed by canopy height and texture features. Similarly, for the SVM classifier, spectral features are important, with texture features also being significant. These results indicate that canopy height plays a crucial role in multi-temporal data classification, followed by textural and spectral features.

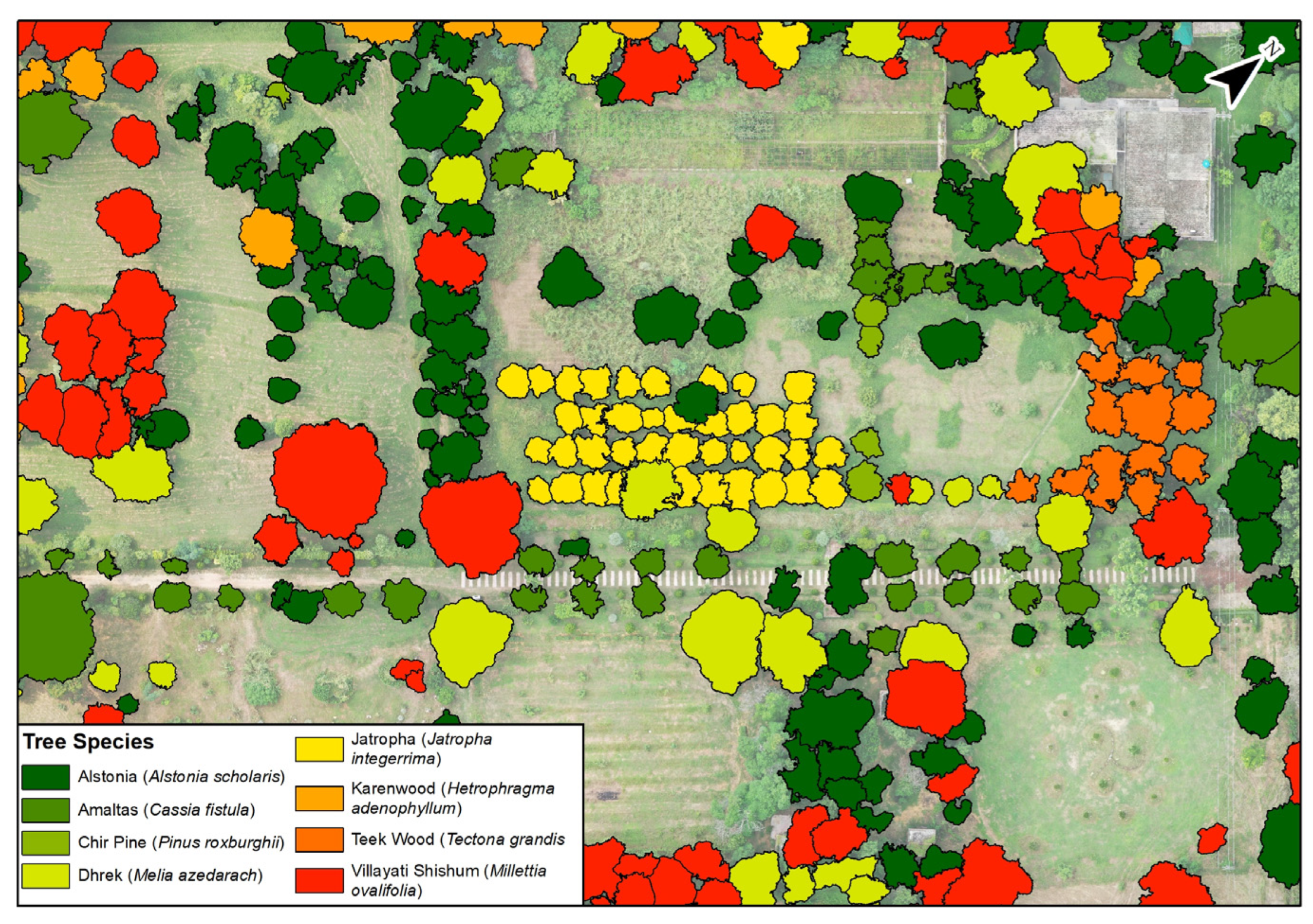

The RF classifier was considered robust based on its highest accuracy, and it was used to classify all tree objects in the study area using spectral, geometrical, and textural features of multi-temporal data. Figure 10 shows a map of the spatial distribution of dominant tree species in a portion of the botanical garden.

4. Discussion

This research validated the importance of multi-temporal UAV imagery integrated with GEOBIA and ML for high-accuracy tree species classification in a botanical garden. Taking advantage of high spatial resolution (2.3 cm/pixel) imagery on four separate seasonal datasets (summer, autumn, winter, and early spring), the RF classifier showed a significant increase in accuracy for single-date and multi-temporal data. It is consistent with many existing studies on the importance of multi-temporal images for the phenological characteristics [91,92,93,94,95]. This enhancement could be due to a combination of factors. The first factor is that the phenological behaviour of trees fluctuates seasonally, highlighting the necessity of incorporating seasonal variations to improve classification. This finding is consistent with several studies that utilize the phenological features of trees, based on multi-temporal information, to improve classification performance [76,94,96]. Second, the temporal aspect supports the decrease in errors and noise that are associated with single-date images. Through the use of multi-temporal imagery, anomalies can be averaged off and signals of the particular tree species enhanced [97]. The choice of season is also crucial, for if imagery from summer months is used, then the vegetation would be vigorous, as the monsoon results in dense green cover. This yields lush, exclusively covered leaves that are critical for classification, as features from the summer dataset markedly improve model capability.

In addition, feature importance was evaluated using SHAP analysis to investigate the contribution of different variables. The height of the canopy of the tree is an effective characteristic for classification; thus, some researchers applied the canopy height for the improvement of precision [71]. Canopy height is also a key factor in tree segmentation [98] and can be derived as tree height-related metrics, which may be the most significant predictors in classification [99]. This study also aligns with these findings, as canopy height was the most significant feature influencing classification accuracy. Textural features are important predictors too, particularly in seasonal analyses. Texture features can help to distinguish trees with similar spectral attributes, resulting in increased classification accuracy [100]. Deur et al. [79] also improved the accuracy of classification by introducing textural features in complement with spectral bands. Consistently, in our findings, the textural features were the second most important variable in the tree classification. Guo et al. [38] also used several features for UAV image classification, reporting that geometric features had a negative impact on their classification accuracy, potentially due to variability in crown shapes within the species. To study this result in more detail, we conducted an additional classification using all four machine learning classifiers, excluding the geometric features from the input samples. The OA remained consistent with the original, indicating that the geometric features had no adverse effect on model performance in this study and made little difference to the classification outcomes.

Secondly, in assessing how machine learning models were able to perform well in the classification of tree species, their performance was first evaluated on individual imagery and, later, on the multi-temporal dataset. According to our results, the RF model performed well using a multi-temporal dataset compared to other models, due to its non-parametric structure, and can handle imbalanced datasets, which improves its predictive capabilities. These inferences agree with prior studies related to the classification of tree species, as multiple studies show consistently that RF employs a more accurate classification of images. Adugna et al. [78] compared RF and SVM models using satellite images and found that RF performed better than SVM, achieving an OA of 0.86 compared to 0.84 for SVM. The authors found that RF is more effective in managing large input datasets, where SVM often struggles. Similarly, Herbryn-Baidy & Rees [101] assessed various machine learning models for land cover classification using Sentinel-2 data, showing that the RF algorithm achieved the highest OA. However, due to the low resolution of the imagery, the accuracy of forest classification was relatively low, at just 77%. For high-resolution satellite imagery, Jombo et al. [102] utilized World View-2 satellite data with RF to classify tree species in a heterogeneous environment, achieving an OA of 97%. Man et al. [103] applied RF on multispectral UAV imagery for urban tree species classification, demonstrating strong performance in heterogeneous environments. RF outperformed the other algorithms, clearly establishing it as the best option for tree species classification.

The overall framework’s high accuracy (86% with RF) demonstrates the power of multi-temporal UAV imagery for capturing phenological variation, aligning with Jiang et al. [94], who emphasize seasonal data for species mapping. Accuracy does vary for different species across seasons, while our results generally show the highest accuracy in the summer months for all ML algorithms. But Pinus roxburghii exhibits strong performance in autumn and winter due to its distinct phenological characteristics. This highlights the key contribution of this research, demonstrating the importance of acquiring UAV imagery in optimal months tailored to specific tree species to maximize the classification accuracy. This temporal flexibility of UAV imagery, combined with high spatial resolution, provides a significant advantage over available medium- and high-resolution satellite imagery. However, a limitation of this study is the focus on a botanical garden, which, while diverse, may not fully represent natural forest dynamics. The moderate sample size may limit generalizability to larger, more heterogeneous forests. Practical challenges, such as heavy cloud cover during the monsoon season, may reduce image quality, hinder drone operations, and limit scalability in cloud-prone regions. While homogeneous cloud cover can sometimes provide favorable conditions for data acquisition by minimizing shadows, it may also negatively affect solar flux capture, posing additional limitations. The computational cost of data acquisition and processing may also constrain broader applications. Future research should consider integrating other sensors with UAVs, such as multispectral and hyperspectral sensors, to capture spectral variations more accurately within specific classes. Furthermore, LiDAR technology can be employed with UAVs to estimate tree height reliably due to its ability to penetrate canopies [10].

5. Conclusions

This study provides a novel framework that integrates high-resolution UAV imagery with GEOBIA and ML for precise tree species identification and classification. Multi-temporal imagery (2.3 cm/pixel) was collected across four seasons (summer, autumn, winter, and early spring) at the University of the Punjab’s botanical garden. Four different ML models (RF, ET, XGBoost, and SVM) were tested and compared to classify the eight tree species, including Jatropha integerrima and Tectona grandis. The results demonstrate the highest performance was from RF, achieving an OA of 86% (F1 score 0.85, kappa 0.83). This shows an improvement over single-date imagery classification, which ranged from 57% to 75% in overall accuracy. These results highlight the essential role of multi-temporal data in capturing structural and phenological variations for accurate species classification. This study highlights the importance of canopy height and textural features as key predictors in reducing misclassification, aligning with prior research that emphasizes the use of structural and phenological data in remote sensing applications. The integration of spectral, textural, and geometrical features extracted through GEOBIA, combined with the robustness of the RF classifier, provides an efficient approach for tree species classification in diverse ecosystems. These findings have significant implications for urban green space management, sustainable forest management, and biodiversity conservation, offering urban planners and remote-sensing experts a high-precision tool to monitor and manage tree species.

Despite these promising results, this study has several limitations that remain to be addressed. The research was conducted in a controlled environment of a botanical garden, which may not fully capture the complexity of a natural forest ecosystem. The UAV imagery used was limited to three RGB bands, potentially restricting spectral differentiation. Class imbalance in the dataset may further limit generalizability, potentially introducing biases in biodiversity assessments, despite SMOTE mitigation. A moderate sample size may reduce robustness in a heterogeneous environment. Integrating advanced UAV payloads, such as multispectral or hyperspectral payloads or LiDAR, will enhance the spectral and structural characteristics of the trees. Expanding this framework to a larger and more heterogeneous forest ecosystem would further validate its robustness. This work advances the growing field of UAV-based remote sensing by demonstrating the effectiveness of ML analysis and GEOBIA of multi-temporal UAV imagery for precise tree species classification. The findings of this study could contribute to the development of robust and adaptable methodologies for more accurate and efficient monitoring of tree species, thereby supporting global efforts in ecosystem preservation and sustainable land management.
