Synthesis and Application of P(EDOT-co-Py)@MWCNT Hybrid as Cathode Electrode for Aqueous Aluminum-Ion Batteries

Abstract

A hybrid material based on the copolymerization of EDOT (3,4-ethylenedioxythiophene) and Py (pyrrole), 1:1 monomer ratio, onto multi-walled carbon nanotubes (MWCNTs) was synthesized through a multistep functionalization approach. The resulting P(EDOT-co-Py)@MWCNT hybrid, poly(3,4-ethylenedioxythiophene-co-pyrrol)@MWCNT hybrid, was characterized by Fourier-transform infrared spectroscopy (FTIR), Raman spectroscopy, X-ray photoelectron spectroscopy (XPS), and thermogravimetric analysis (TGA). These characterizations confirmed the successive functionalization steps, the effective anchoring of the monomers, and the subsequent formation of the copolymer. Transmission electron microscopy (TEM) images revealed a homogeneous polymer coating along the nanotube surface while preserving the structural integrity of the MWCNTs throughout the functionalization and polymerization processes. The P(EDOT-co-Py)@MWCNT hybrid was evaluated as an active electrode material for aluminum-ion storage in an aqueous aluminum sulfate electrolyte. The system exhibited two distinct charge-storage mechanisms: at high current densities, proton surface adsorption dominated, whereas at lower rates, a faradaic contribution associated with polymer chain redox activity and the reversible extraction/insertion of Al³⁺ became prevalent. The hybrid electrode delivered high specific capacities, reaching 200.6, 106.3, and 44.3 mAh g⁻¹ at 0.10, 0.25, and 0.50 A g⁻¹, respectively. These values are comparable to—or even exceed—those reported for similar cathodic materials designed for Al³⁺ storage, highlighting P(EDOT-co-Py)@MWCNT hybrid as a highly promising cathode candidate for aqueous aluminum-ion energy-storage systems.

1. Introduction

There is a growing demand for energy storage systems that combine high-energy and power density with low cost and safety. Among these devices, lithium-ion batteries (LIBs) are the most widely commercialized, primarily due to their long cycle life and high-energy density. However, LIBs also face significant drawbacks, including safety concerns, high production costs, toxicity, and the limited availability of lithium resources [1], which are unevenly distributed worldwide [2] and often subject to geopolitical issues [3]. These limitations have motivated the search for alternative energy storage chemistries based on safer and more abundant elements [1].

In this context, beyond lithium, several other systems have been investigated, including sodium-, potassium-, magnesium-, calcium-, zinc-, and aluminum-ion batteries [4]. Within this scenario, multivalent metal-ion-based systems offer notable advantages over monovalent cations, particularly due to their faster charge-transfer dynamics as well as higher energy density and capacity [5].

Among these alternatives, aluminum-based energy storage systems exhibit the highest theoretical capacity, attributed to the three-electron transfer during charge/discharge reactions. This results in an exceptionally high volumetric capacity (8046 mAh cm⁻³), surpassing that of lithium (2062 mAh cm⁻³). In terms of gravimetric capacity, however, aluminum (2980 mAh g⁻¹) falls below lithium (3870 mAh g⁻¹) [4]. Aluminum-ion batteries (AIBs) and aluminum-ion supercapacitors (AISCs) are also particularly attractive due to aluminum’s abundance and the benefits of its well-established recycling infrastructure—an aspect that remains a major challenge for LIBs [3].

Despite these advantages, significant challenges remain. The strong electrostatic interaction between Al³⁺ and host materials often leads to irreversible insertion processes. Moreover, the combination of a small ionic radius and high charge density hinders desolvation [3,6]. Other issues reported for Al insertion materials include capacitive behavior, poor reversibility (low coulombic efficiency), short cycle life, and structural disintegration during ion insertion/extraction [7].

Various materials have been explored as active components in Al-ion storage systems, such as Prussian Blue Analogues (PBAs), including KCu[Fe(CN)₆]·8H₂O [8]; chalcogenides (Cu_2–xSe) [9]; transition metal oxides such as VO₂ [10], Mg–MnO₂ [11], and TiO₂ [12]; NASICON-type Na₃V₂(PO₄)₃ [13]; and conducting polymers (CPs), such as poly(3,4-ethylenedioxythiophene):poly(4-styrenesulfonate) (PEDOT:PSS) [14], among others. Among Al-ion electrode materials, CPs have attracted particular attention due to their combination of electrical conductivity, environmental and thermal stability, lightweight, processability, and low cost [15].

CPs have been extensively investigated in LIBs, providing a solid foundation for next-generation devices. Representative CPs include polyacetylene (PAc), polyaniline (PANI), poly(p-phenylene) (PPP), poly(p-phenylenevinylene) (PPV), polythiophene (PTh), poly(3,4-ethylenedioxythiophene) (PEDOT), and polypyrrole (PPy) [16,17,18]. The strong π–π donor–acceptor interactions in these materials enhance electronic properties, while their macromolecular structures, stabilized by non-covalent interactions, prevent dissolution and maintain structural integrity during redox reactions [15,19].

Although PANI is widely studied for its low cost and ease of synthesis, it can release carcinogenic benzidine upon degradation, leading to PEDOT, one of the most environmentally friendly CPs [20]. PEDOT also exhibits high conductivity (up to 23.8 S cm⁻¹ [18]), rapid polymerization reactions, excellent thermal and chemical stability, and a theoretical specific capacitance of 210 F g⁻¹ [21]. The presence of sulfur atoms and the ethylenedioxy group enhances PEDOT’s robustness, giving it an advantage over PANI and PPy [22]. However, it still has limitations, including strong S:O interactions and the relatively high monomer cost [23,24,25]. PEDOT has been studied as a possible cathode for AIBS, e.g., Ai et al. (2021) [14] fabricated PEDOT:PSS electrodes via evaporation–solidification on carbon cloth. Galvanostatic measurements using Al₂(SO₄)₃ electrolyte (1.2 mol L⁻¹) revealed faradaic reactions with Al³⁺, yielding discharge capacities of 78, 59, 40, 25, 19, 12, and 9 mAh g⁻¹ (269, 201, 138, 86, 64, 41, and 29 F g⁻¹) at current densities of 0.2–3 A g⁻¹, demonstrating its potential for AIBs.

Similarly, PPy is environmentally friendly [20], exhibiting fast kinetics, stability via charge delocalization, and reversible doping. Its charge storage relies on surface pseudocapacitance, with theoretical capacitance up to 620 F g⁻¹ and conductivity ranging from 10⁻¹⁰ to 10⁻³ S cm⁻¹, which depends on the synthesis methodology [18]. Nonetheless, PPy suffers from rapid capacity fading caused by volumetric changes and the insertion/extraction of large anions, which may lead to structural collapse and poor cycling stability [26]. Additional challenges for PPy include discrepancies between theoretical and experimental performance [27].

Strategies to overcome these limitations include improving conductivity [23] and mitigating volumetric changes in the polymeric chains during charge and discharge processes [28], which includes copolymer formation and hybridization with inorganic nanomaterials. Kadac et al. (2015) [24] first reported P(Py-co-EDOT), combining PEDOT’s conductivity with pyrrole’s low cost, showing higher conductivity (0.710 ± 0.003 μS m⁻¹) than PEDOT (0.488 ± 0.004 μS m⁻¹) and PPy (0.432 ± 0.004 μS m⁻¹). Sanmuigam et al. (2025) [29] developed a PEDOT–PPy copolymer for dopamine sensing, achieving lower charge-transfer resistance (68 Ω vs. PPy: 135 Ω, PEDOT: 112 Ω) and enhanced current response.

Composites and hybrid materials [30] can be fabricated by combining organic and inorganic components in precise ratios, including combinations of inorganic components, such as metal ions, graphene, carbon nanotubes, and oxides, with organic components like polymers and ligands. This process creates a synergistic effect where the final material leverages the properties of its constituents and gains new, enhanced properties [31]. Among nanocarbon materials, carbon nanotubes (CNTs) stand out due to their high aspect ratio, large surface area, and high electrical conductivity (single-walled carbon nanotubes (SWCNTs) ~10⁴ S cm⁻¹ and multi-walled carbon nanotubes (MWCNTs) 10⁹–10²⁰ S cm⁻¹) [18].

In CP/CNT composites, CNTs act as conductive additives, enhancing the electrochemical performance of energy storage systems [32]. This nanocarbon provides fast charge–discharge kinetics [33] and exhibits capacitive behavior, which, despite its low intrinsic capacitance, interacts electrostatically with the CP surface and via π–π stacking, improving electron transfer and overall capacitance [28]. CNTs also reinforce the composite mechanically, enhancing structural integrity and cycling stability [34].

Neat MWCNTs have been applied as cathode materials in AIBs. For example, Jiao et al. (2016) [35] employed MWCNTs with the ionic liquid AlCl₃–[EMIm]Cl (1-Ethyl-3-methylimidazolium chloride–aluminum chloride), achieving specific capacitances of 55 F g⁻¹ at 0.15 A g⁻¹ and 25.2 F g⁻¹ at 0.50 A g⁻¹. Kong et al. (2025) [36] used a polypyrrole@CNT composite, synthesized via in-situ polymerization of PPy on CNTs and tested in the same electrolyte, which delivered discharge capacities of 137 mAh g⁻¹ at 0.25 A g⁻¹ and 100 mAh g⁻¹ at 2 A g⁻¹.

Previously, we developed three CNT–CP hybrid nanomaterials for aqueous and organic Li-ion supercapacitors [31,37]. These hybrids were synthesized by chemically bonding the CP to the CNT surface, following surface functionalization to enable monomer attachment and polymerization. This approach facilitates interfacial electronic transport compared to conventional polymerizations based on π–π interactions alone. The hybrids—poly(3,4-ethylenedioxythiophene-co-3-(pyrrol-1-methyl)pyridine) (P(EDOT-co-PyMP)) [31], poly(3,4-ethylenedioxythiophene-co-methylpyrrole) (P(EDOT-co-MPy)), and P(EDOT-co-PyMP) [37]—demonstrated effective hybrid formation, particularly in retaining capacitance during cycling. Symmetric cells containing P(EDOT-co-PyMP) or P(EDOT-co-MPy) in 1 mol L⁻¹ aqueous LiClO₄ retained ~70% of their capacity after 20,000 cycles, while the corresponding copolymers degraded completely after 10,000 cycles. The hybrid formation mitigates mechanical and electrochemical degradation caused by volumetric changes during cycling [37]. Testing P(EDOT-co-PyMP) hybrid in both aqueous and acetonitrile electrolytes (1 mol L⁻¹ LiClO₄) showed capacitance retention of 90.4% and 91%, respectively, after 5000 cycles.

In this study, we propose a hybrid designed P(EDOT-co-Py)@MWCNT, based on poly(3,4-ethylenedioxythiophene-co-pyrrole), synthesized by successive MWCNT functionalization followed by copolymerization of EDOT and Py in a 1:1 ratio. This strategy aims to combine the advantageous properties of PPy and PEDOT with the mechanical strength and conductivity of CNTs. The material was characterized by Fourier-transform infrared spectroscopy (FTIR), Raman spectroscopy, X-ray photoelectron spectroscopy (XPS), thermogravimetry analyses (TGA), and transmission electron microscopy (TEM). Its electrochemical performance as a positive electrode for aqueous aluminum-ion batteries was evaluated using cyclic voltammetry (CV), galvanostatic charge–discharge (GCD), and electrochemical impedance spectroscopy (EIS).

2. Materials and Methods

2.1. Synthesis of P(EDOT-co-Py)@MWCNT Hybrid

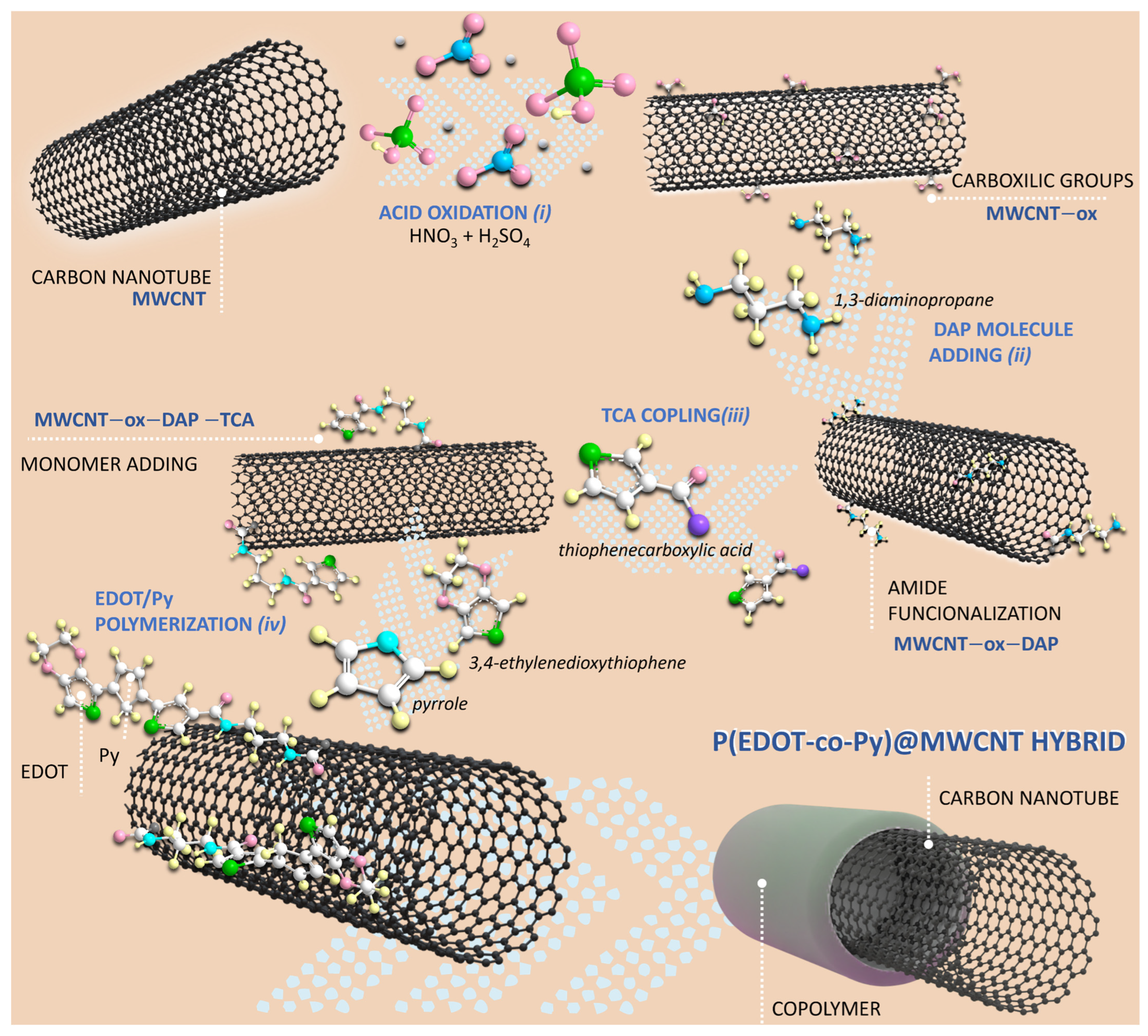

The P(EDOT-co-Py)@MWCNT hybrid was prepared through a multistep procedure, as illustrated in Scheme 1. The procedure involved CNT oxidation (i), amidation (ii), monomer coupling (iii), and in situ copolymerization (iv). Each step was designed to functionalize the CNT surface and promote efficient polymer growth.

Initially, MWCNTs (CTNANO, Belo Horizonte (Minas Gerais), Brazil, >95 wt.%) were oxidized using a concentrated H₂SO₄/HNO₃ mixture (3:1, v/v), then washed and dried to obtain oxidized MWCNTs (MWCNT–ox). Next, MWCNT–ox was functionalized with 1,3-diaminopropane (DAP) via microwave-assisted amidation. Briefly, 1.5 g of MWCNT–ox was dispersed in 100 mL of DAP and ultrasonicated for 10 min. The reaction was carried out at 100 °C and 100 W for 30 min under reflux. The resulting MWCNT–ox–DAP was filtered, washed with ethanol, and dried at 100 °C for 3 h.

Before in situ polymerization, monomer coupling was performed through thionyl chloride activation of carboxylic acids. MWCNT–ox–DAP (0.50 g) was dispersed in 18 mL of anhydrous dichloromethane, sonicated for 30 min, cooled to ~0 °C, and treated with 2 mL of triethylamine. A solution of 3-thiophene carbonyl chloride (TCC, prepared as described elsewhere [38]) in 4 mL of dichloromethane, was added dropwise over 30 min, followed by stirring for 3 h. The product, MWCNT–ox–DAP–TCA (TCA, tricholoacetic acid), was collected by filtration, washed with anhydrous dichloromethane, and dried at 100 °C for 3 h.

Finally, the P(EDOT-co-Py)@MWCNT hybrid was synthesized by dispersing MWCNT–ox–DAP–TCA (0.015 g mL⁻¹) in anhydrous chloroform and sonicated for 30 min in a three-necked flask equipped with a reflux condenser and addition funnel. An equimolar mixture of EDOT and pyrrole (1:1, 0.06 mol L⁻¹) was added dropwise, followed by FeCl₃ (0.038 g mL⁻¹ in chloroform). The polymerization was carried out at room temperature under nitrogen with continuous stirring for 24 h. The hybrid was collected by filtration through a PTFE (Polytetrafluoroethylene) membrane, washed with methanol, and further purified by Soxhlet extraction with methanol for 48 h.

2.2. Material Characterization

The obtained P(EDOT-co-Py)@MWCNT hybrid and its precursor materials were characterized using different techniques. Fourier Transform Infrared (FTIR) spectra were recorded with a Thermo Scientific Nicolet 380 spectrometer. The samples were prepared as KBr pellets, and spectra were collected in transmission mode with 128 scans. Raman spectra were acquired using a Witec Alpha 300 R Confocal Raman Microscope. A 633 nm laser (~2.3 mW) was used for the functionalized CNTs, while a 532 nm laser (~2 mW) was employed for the hybrids and copolymer. A VG Scientific Escalab 220-ixL system was employed to conduct X-ray photoelectron spectroscopy (XPS) measurements at room temperature, using a monochromatic Al Kα X-ray source (1486.6 eV) and a vacuum chamber base pressure of 2 × 10⁻⁹ mbar. While high-resolution spectra in the C1s, N1s, O1s, and S2p regions were gathered with 0.1 eV steps, survey spectra were obtained with a step size of 1 eV over the 0–1000 eV range. The electron energy analyzer was operative in large-area mode, with pass energies of 50 eV for survey scans and 20 eV for high-resolution scans. All the spectra were fit together using both Gaussian and Lorentzian functions. A Q5000 thermogravimetric analysis device (TA Instruments) was used to assess the thermal stability of functionalized carbon nanotubes, hybrids, and copolymers. Each sample was heated from room temperature to 800 °C at 10 °C min⁻¹, with a 25 mL synthetic air flow. Transmission electron microscopy (TEM) images were obtained using a Tecnai G2-12 Spirit Biotwin FEI, at 120 kV. Scanning electron microscopy (SEM) images and the energy dispersive spectroscopy (EDS) mapping were obtained using a Quanta-FEG 3D FEI instrument equipped with an energy-dispersive X-ray detector. Electrical conductivity tests were conducted using a four-probe method, Universal Probe Jandel—Engineering Ltd. Leighton Buzzard, England, Leighton Buzzard—couplet to Keithley 238. Before the measurements, P(EDOT-co-Py) and P(EDOT-co-Py)@MWCNT hybrid were dried in an oven for 24 h (70 °C) and then pressed into 1 mm thick pellets.

2.3. Preparation of the Electrodes

The working electrodes were prepared using the hybrid polymer as the active material, carbon black (C-nergy Super C65—Nanografi, Ankara, Turkey), and polyvinylidene fluoride (PVDF, Sigma-Aldrich, Burlington, MA, USA) as the binder. The components were mixed in an agate mortar at a mass ratio of 80:10:10. N-methyl-2-pyrrolidone (NMP, Sigma-Aldrich, 98%, Burlington, MA, USA) was then added as the solvent to form a homogeneous slurry, which was stirred overnight using a magnetic stirrer. The resulting slurry was applied onto graphite rods and dried overnight at 70 °C.

2.4. Electrochemical Characterization

The electrochemical performance of the P(EDOT-co-Py)@MWCNT hybrid was evaluated using a three-electrode configuration assembled in T-type Swagelok cells. All measurements were conducted on a VMP3 potentiostat (BioLogic, Auvergne-Rhône-Alpes, France).

GCD measurements were performed at current densities ranging from 0.1 to 2 A g⁻¹. CV was conducted at scan rates between 0.50 and 50 mV s⁻¹ within a potential window of −0.2 to 0.6 V versus Ag/AgCl (3.5 mol L⁻¹ KCl). GCD was conducted under the same potential range at 0.10, 0.25, 0.50, 0.80, 0.90, 1.00, and 2.00 A g⁻¹. Electrochemical impedance spectroscopy (EIS) was carried out using a ±5 mV amplitude signal over a frequency range of 500 kHz to 50 mHz.

For all tests, the cells employed a graphite rod as the counter electrode, an Ag/AgCl (3.5 mol L⁻¹ KCl) reference electrode, and a glass fiber as the separator. The electrolyte consisted of a 1.2 mol L⁻¹ aqueous Al₂(SO₄)₃ solution acidified with H₂SO₄, pH of 1.5.

Specific capacitance (C_sp), energy density (E_sp), power density (P_sp) and coulombic efficiency (ε) were calculated from the galvanostatic data using Equations (1)–(4). The C_sp and E_sp values were obtained from the integration of the chronopotentiometric curves, an approach that is rigorous and appropriate for electrodes or full cells exhibiting hybrid charge storage mechanisms, as described by Roldán et al. [39].

$$C_{sp }={\displaystyle \frac{2I{(\int Vdt)}_{discharge}}{{\left(m\right)V}_{discharge}^2}}$$

(1)

$$E_{sp}={\displaystyle \frac{I \int V dt}{m}}$$

(2)

$$P_{sp}={\displaystyle \frac{E_{sp}}{{∆t}_{discharge}}}$$

(3)

$$\epsilon ={\displaystyle \frac{Q_{discharge}}{Q_{Charge}}}\times 100={\displaystyle \frac{{∆t}_{discharge}}{{∆t}_{Charge}}}\times 100$$

(4)

where I refers to the applied current, t is the time, V refers to the potential, Q is the amount of charge, m refers to the active mass of the electrode, and V_discharge is the maximum potential at the end of the discharge, after the ohmic drop.

3. Results and Discussion

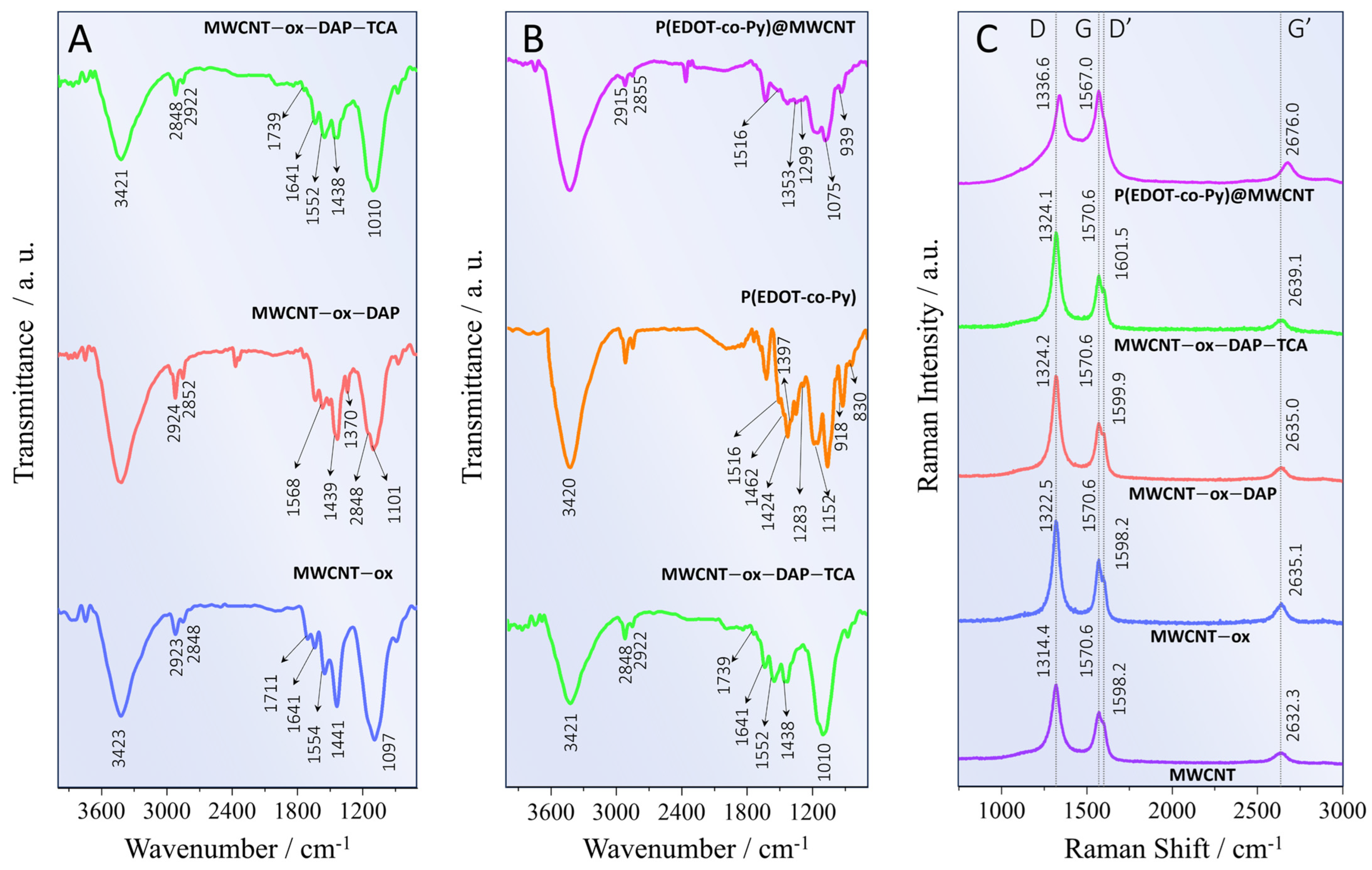

The P(EDOT-co-Py)@MWCNT hybrid was obtained through sequential synthesis steps. Figure 1A presents the FTIR spectra of MWCNT–ox, MWCNT–ox–DAP and MWCNT–ox–DAP–TCA, while Figure 1B presents the FTIR spectra for P(EDOT-co-Py) copolymer and P(EDOT-co-Py)@MWCNT hybrid, along with the spectrum of MWCNT–ox–DAP–TCA for comparison. All synthesis steps are summarized in Scheme S1.

The MWCNT–ox spectrum, Figure 1A, exhibits characteristic absorption bands at 3423, 2923, 2848, 1711, 1641, 1554, 1441, and 1097 cm⁻¹. The bands at 2923 and 2848 cm⁻¹ correspond to C–H (sp³) stretching vibrations, while the signal at 1441 cm⁻¹ is assigned to C=C stretching [40]. The remaining features are associated with functional groups introduced during the oxidation process, mainly O–H and C=O. The broad band centered at 3423 cm⁻¹ is attributed to O–H stretching, originating from adsorbed water molecules and hydroxyl or carboxylic groups (–COH and –COOH) [41]. The absorptions at 1097 and 1711 cm⁻¹ are ascribed to C–O and C=O stretching vibrations, respectively [42].

In the second synthesis step, an amine coupling reaction occurs, in which DAP reacts with the carboxylic groups present on the oxidized CNT surface, leading to amide functionalization of the nanotubes. The FTIR spectrum of MWCNT–ox–DAP retains the characteristic bands of MWCNT–ox, including the signal at 1439 cm⁻¹ (C=C stretching) and the C–H stretching bands at 2924 and 2852 cm⁻¹. The increase in intensity of these C–H bands indicates the incorporation of DAP molecules, which introduce additional aliphatic C–H bonds onto the MWCNT–ox surface. The band at 1101 cm⁻¹, associated with C–O stretching vibrations, also remains visible [42]. A new band appearing at 1568 cm⁻¹ is attributed to the secondary amine (N–H) group introduced onto the CNT surface [43]. In addition, the peak at 1370 cm⁻¹ confirms the formation of amide bonds between the carboxylic groups of the oxidized CNTs and the amino groups of DAP [44]. For the last CNT functionalization step, a low-intensity band at 820 cm⁻¹ is observed, corresponding to the C–S stretching vibration, confirming the TCA monomer coupling, Figure S1 [45,46,47].

Figure 1B shows the FTIR spectra of the P(EDOT-co-Py)@MWCNT hybrid. For better comparison, the spectrum of the P(EDOT-co-Py) copolymer is also included, while the spectra of the individual PEDOT and PPy polymers are provided in the Supplementary Material, Figure S2A and S2B, respectively.

The PEDOT spectrum, Figure S2A, displays the characteristic absorption bands of its polymer backbone. The asymmetric C=C stretching of the benzoid heterocyclic structure appears at 1520 cm⁻¹ [48], while the C–H stretching mode is observed at 1479 cm⁻¹ [29]. The C–O–C stretching vibrations of the EDOT ring are detected at 1190 and 1075 cm⁻¹ [48]. Additionally, the thiophenic ring stretching vibration occurs at 2379 cm⁻¹ [49] and the (C–S) ring deformation band at 927 cm⁻¹. The signal at 1641 cm⁻¹ is associated with C=N and –OH stretching, as well as N–H deformation modes [50].

The PPy spectrum, Figure S2B, also exhibits the typical absorption bands of polypyrrole. The C=C and C–H related vibrations appear at 1048, 780, and 686 cm⁻¹ [51], the latter also corresponding to C–C out-of-plane aromatic ring bending of the PPy skeleton [52]. The C=N stretching band is observed at 1477 cm⁻¹ [51], and the characteristic stretching of the five-membered pyrrole ring appears at 1561 cm⁻¹. Furthermore, a broad band centered at 3399 cm⁻¹ corresponds to the N–H stretching mode [53].

Similar to the pristine PPy and PEDOT spectra, the FTIR spectrum of the P(EDOT-co-Py)@MWCNT hybrid confirms the chemical functionalization and the formation of the hybrid through the coexistence of characteristic peaks from both polymers, frequently accompanied by small frequency shifts that indicate strong interactions, such as π–π* [54]. In the case of the copolymer, in addition to these peaks, there are some new ones corresponding to the interaction of the monomers [55]. The presence of PEDOT, specifically its thiophene ring component, is evidenced by the conjugated C=C and C–C stretching bands at 1516 cm⁻¹ and 1462 cm⁻¹ [56]. The broad peak at 1070 cm⁻¹ indicates a C–O–C tensile vibration [48], and bands at 918, 830, and 683 cm⁻¹ are ascribed to the C–S bond in the thiophene ring [57]. Concomitantly, the integration of PPy into the hybrid structure is confirmed by characteristic pyrrole ring vibrational peaks. Specifically, the strong band at 1424 cm⁻¹ corresponds to the N–C asymmetric stretching vibrational modes of the PPy ring. Furthermore, the peak observed at 1283 cm⁻¹ is consistent with C–H and N–H stretching vibrations within the PPy structure [58]. The presence of the C=C benzenoid heterocycle vibration at 1462 cm⁻¹ can be attributed to the existence of the doped state of the homopolymers [50]. Finally, the intense band centered at 3420 cm⁻¹ is characteristic of the pyrrole’s N–H stretching mode, which overlaps with the O–H stretching vibration from adsorbed moisture or hydroxyl groups [59].

For the P(EDOT-co-Py)@MWCNT hybrid, the FTIR spectrum confirms the incorporation of both polymeric and CNT components, including the bands at 2915 and 2855 cm⁻¹ attributed to C–H stretching vibrations. The successful formation of the P(EDOT-co-Py) copolymer is evidenced by characteristic peaks from both PEDOT and PPy units. The PEDOT component is confirmed by the conjugated C=C and C–C stretching bands of the thiophene ring at 1516 cm⁻¹ and 1353 cm⁻¹, respectively. Furthermore, the C–C tensile vibration of the EDOT unit contributes to the band at 1075 cm⁻¹, which also corresponds to C–O stretching from the CNT. The presence of the peak at 1299 cm⁻¹ is indicated as C–H and N–H stretching vibrations within the PPy [60]. Additionally, the C–S bond in the thiophene ring is ascribed to the band at 939 cm⁻¹. The coexistence of these distinct spectral features confirms the chemical functionalization and the formation of the P(EDOT-co-Py)@MWCNT hybrid [57].

Figure 1C presents the Raman spectra of the P(EDOT-co-Py)@MWCNT hybrid, along with those of the P(EDOT-co-Py) copolymer, MWCNT–ox, MWCNT–ox–DAP and MWCNT–ox–DAP–TCA. In the first stage of the synthesis, the MWCNT–ox sample exhibits three main peaks at 1322.5, 1570.6, and 2635.1 cm⁻¹, corresponding to the D, G, and G′ bands, respectively. A slight shoulder at 1598.2 cm⁻¹ can also be observed near the G band, which is assigned to the D′ band. All these bands are characteristic of the CNT structure and are also observed in pristine MWCNTs before the acid oxidation process [61]. For pristine CNTs, the corresponding bands appear at 1314.4 (D), 1570.6 (G), 1598.2 (D′), and 2632.3 cm⁻¹ (G′).

The D band, often referred to as the disorder band, is associated with the A_1g symmetric stretching mode and arises from defects and structural disorder within the carbon nanotubes [61]. The G band, known as the graphitic band, corresponds to the tangential vibration of the E_2g phonon mode of the sp² carbon network. [62] Meanwhile, the G′ band (also called the 2D band) results from a second-order scattering process of the D band and is related to the stacking order of graphene layers within the CNTs [61]. The D′ band, in turn, is associated with the effects of lattice distortion and finite-size disorder [63].

The I_D/I_G ratio provides information about the degree of structural order in the graphitic framework of the CNTs [61]. A higher I_D/I_G value indicates an increased amount of amorphous carbon, reflecting greater structural disorder [64]. These values for all materials are shown in Table S1. It can be observed that oxidation of the carbon nanotubes (MWCNT–ox, I_D/I_G = 1.07) leads to a slight decrease in structural order compared to pristine MWCNT (I_D/I_G = 1.03). This behavior is related to the oxidation process, which introduces oxygen-containing groups such as hydroxyl and carboxyl on the CNT surface, generating surface defects. The small variation observed in the I_D/I_G ratio suggests that the main CNT structure remains largely preserved after oxidation [63]. Subsequent CNT functionalization by DAP and TCA attachment leads to a slight increase in the I_D/I_G ratio to 1.10, indicating minor additional structural disorder.

P(EDOT-co-Py) Raman spectra are presented in Figure S3. The band at 1339.6 cm⁻¹ is associated with the ring stretching vibrations of the C–C bonds for the PPy structure (D band) and the band at 1557.3 cm⁻¹ is related to the π-conjugated structure and C=C backbone stretching mode (G band). The observed band is a characteristic band for the C_α=C_β tensile vibration in the thiophene ring of the PEDOT chain [65].

The Raman spectrum of the hybrid material, Figure 1C, displays three main bands characteristic of CNTs, located at 1336.6 cm⁻¹ (D), 1567 cm⁻¹ (G), and 2676.0 cm⁻¹ (G′). A noticeable shift is observed for the D band compared to the MWCNT–ox–DAP–TCA sample (1324.2 cm⁻¹), indicating that encapsulation of CNTs by the P(EDOT-co-Py) copolymer results in strong interactions between the polymer matrix and the CNT surface. These interactions modify the local electronic environment of the CNTs, requiring higher energy for the corresponding vibrational modes [66].

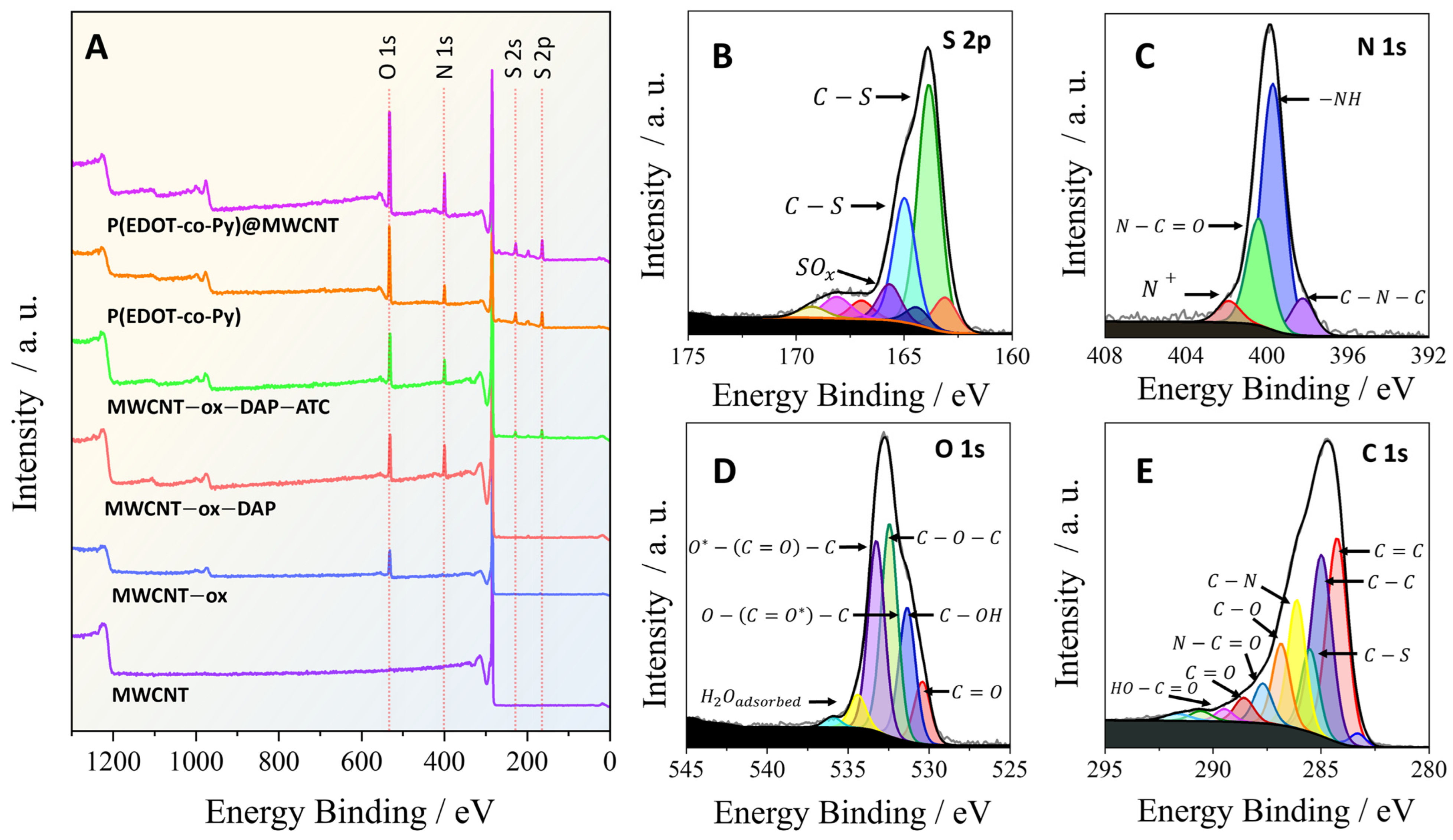

XPS spectra for the P(EDOT-co-Py)@MWCNT hybrid and its precursors, along with P(EDOT-co-Py), are presented in Figure 2A. The main elements of interest were analyzed, and their specific spectra—C 1s, O 1s, N 1s, S 2s, and S 2p—are presented in Figure 2B–E for P(EDOT-co-Py)@MWCNT hybrid. The spectra for MWCNT–ox, MWCNT–ox–DAP, MWCNT–ox–DAP–TCA and P(EDOT-co-Py) can be seen in Figure S4A–H. Every sample exhibits the C1s photoemission peak, which is associated with the C–C bond and is centered at about 285 eV. The oxidation step of the CNTs and, in the case of the copolymers, the C–O–C linkage from the EDOT units is linked to the O1s peaks, which appear at 532 eV. Consequently, the P(EDOT-co-Py), P(EDOT-co-Py)@MWCNT hybrid, MWCNT–ox–DAP and MWCNT–ox–DAP–TCA exhibit the anticipated N1s peak at approximately 398 eV. This signal is related to the presence of pyrrole units for P(EDOT-co-Py) and amine functionalization for MWCNT–ox–DAP and MWCNT–ox–DAP–TCA, and both for the P(EDOT-co-Py)@MWCNT hybrid material.

The presence of EDOT caused the S 2s (228 eV) and S 2p (164 eV) peaks to be found in the copolymer and hybrid sample. The thiophene ring from the TCA monomer unit is present for the MWCNT–ox–DAP–TCA sample. The atomic percentages of the elements derived from the wide-scan XPS spectra are summarized in Table S2. These results evidence the successful functionalization of the MWCNT at each synthesis step and are consistent with the complementary results obtained from FTIR and Raman spectra.

Table S3 displays the binding energy assignments for the C 1s photoemission peaks, which were determined through the deconvolution of the XPS spectra shown in Figure S4A–H. The XPS spectra for the C 1s, O 1s, N 1s, and S 2p regions of XPS spectra for MWCNT–ox–DAP–TCA and P(EDOT-co-Py) are show in Figure S4.

Approximately 285 eV is the center of the main C 1s peak for all samples. Because of variations in the atoms’ electronegativity, peaks for C=C, C–C, and C–S bonds appear at lower binding energies than those for C–N and C–O.

The findings suggest that covalent bonds have been established between the functionalized CNTs and the copolymers. When comparing the hybrid samples to MWCNT–ox–DAP–TCA, the C 1s photoemission peak at 285.5 eV, which is primarily attributed to C–S contributions, broadens and intensifies, confirming the covalent attachment between the copolymer and CNT [67]. Furthermore, π–π* electronic transitions are responsible for a satellite peak at roughly 290.9 eV observed in all samples [68].

Table S4 lists the atomic percentages of the various carbon bonding states and the spectral deconvolutions of O 1s. The peak at approximately 534 eV is attributed to surface-adsorbed oxygen-containing groups or residual acidic species from the oxidation reactions and is associated with O–H bonds. Additional contributions were identified, including C=O at approximately 530 eV (carbonyl groups), C–O–C at approximately 532 eV (ether linkages), and C=O at approximately 533 eV (carbonyl groups in esters, amides, or anhydrides). Additionally, peaks in the N 1s spectra are seen at about 398 eV and 400 eV, which represent amine and amide species, respectively. The amine and the carboxylic groups of the thiophene monomer unit have established covalent bonds, as evidenced by these results [69]. The amine and amide peaks in MWCNT–ox–DAP exhibit comparable intensities. In contrast, the amide peak area in MWCNT–ox–DAP–TCA is significantly larger, thereby verifying the successful amidation step.

The presence of thiophene in the hybrid samples is further confirmed by the photoemission peaks in the S 2s (~228 eV) and S 2p (~164 eV) regions, which show the covalent bond between the copolymers and the CNTs [67].

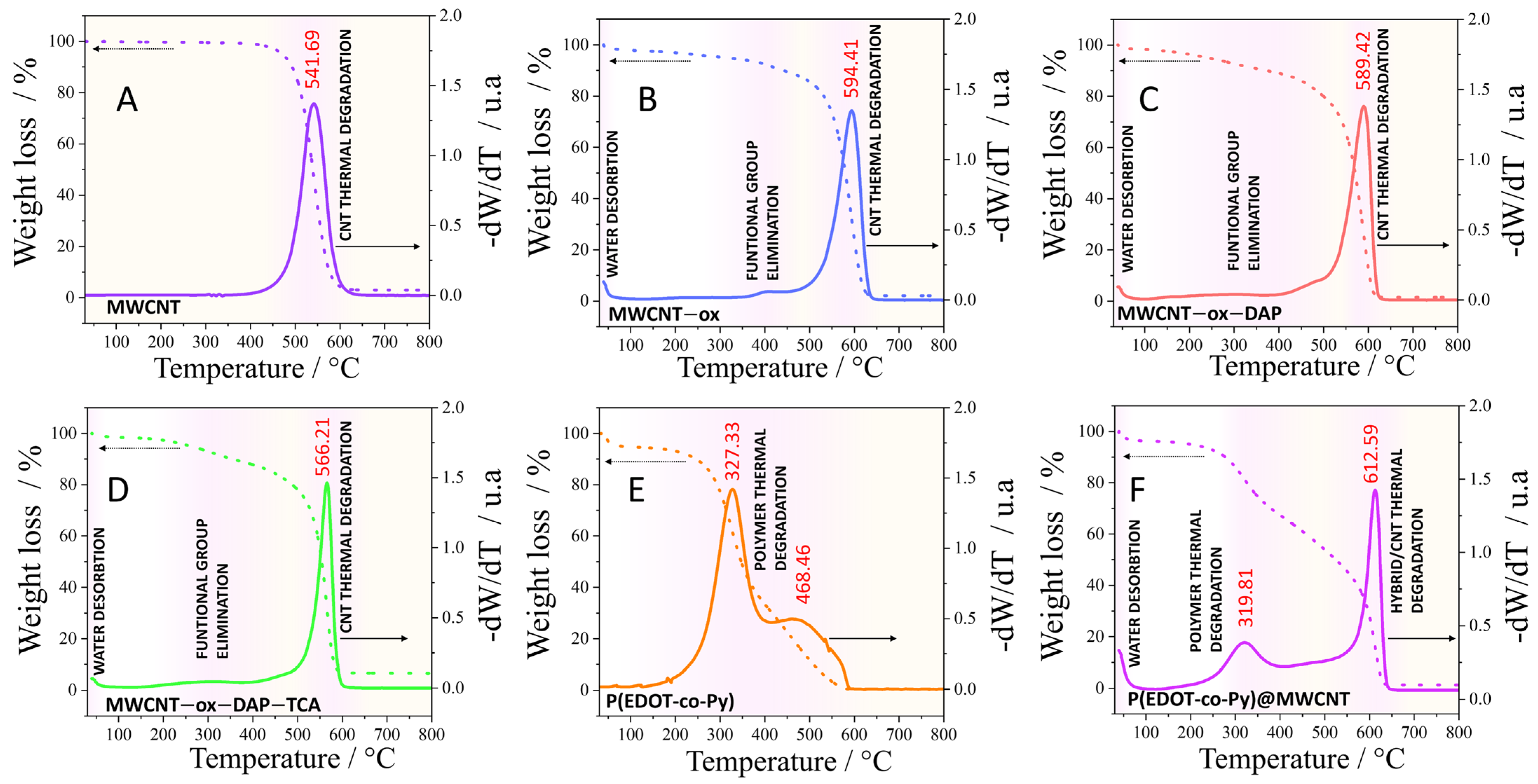

Figure 3 displays the TGA and thermogravimetric derivative (dTG) curves for MWCNT, MWCNT-ox, MWCNT-ox-DAP, MWCNT-ox-DAP-TCA, P(EDOT-co-Py), and P(EDOT-co-Py)@MWCNT hybrid.

The pristine MWCNT, Figure 3A, shows a single thermal event corresponding to its thermal breakdown. The degradation rate reaches its maximum at 541.7 °C, leaving a 4.5% residual mass [70]. After oxidation, Figure 3B, the MWCNT–ox sample undergoes a three-step decomposition process. Adsorbed water is lost during the initial stage, which takes place between 100 and 120 °C (approximately 2% loss). Decomposition of oxygen-containing functional groups produced during the oxidation and functionalization of CNTs is responsible for the second stage, which occurs in the 120–400 °C range (≈5.3% loss). The thermal decomposition of the CNT framework is characterized by the final stage with a maximum degradation rate at 594.4 °C [71].

Three degradation events are also noted for MWCNT–ox–DAP, Figure 3C. First, a 4% loss is due to the desorption of adsorbed water. Between 120 °C and 400 °C, the second stage exhibits a 9.0% mass loss rate, with the highest degradation rate at 302 °C, due to the elimination of nitrogen- and oxygen-containing functional groups [71]. This conduct validates the successful amidation and improved surface functionalization. The last step in breaking down, which happens at 589.4 °C, is linked to CNT combustion [72]. In the 120–400 °C range, the MWCNT–ox–DAP–TCA, Figure 3D, sample demonstrates a 10.7% mass loss and a maximum degradation rate at 297 °C. A comparable pattern is observed. The successful integration of TCA molecules onto the CNT surface is established by the increased mass loss.

When heated to 324 °C and 457 °C, the P(EDOT-co-Py) copolymer, Figure 3E, breaks down in two main ways, losing 63% and 32% of its mass, respectively. Correspondingly, the thermo-oxidative degradation of the copolymer is responsible for these events. According to earlier research, P(EDOT-co-Py) has thermal stability in the middle of that of its corresponding homopolymers [73].

The P(EDOT-co-Py)@MWCNT hybrid, Figure 3F, exhibits three primary thermal events. Below 100 °C, the loss of adsorbed water results in the first process. The degradation of the P(EDOT-co-Py) matrix, which has a maximum rate at 319.8 °C and a mass loss of 41.3%, is comparable to that seen for the pure copolymer. An additional 53.4% mass loss occurs during the breakdown of CNTs in the hybrid, which is linked to the final decomposition step at 612 °C. The hybrid’s estimated copolymer-to-CNT mass ratio is roughly 0.75:1 based on these data.

Table S5 provides a summary of the findings from the four-probe method used to measure the electronic conductivity of the pristine P(EDOT-co-Py) copolymer and the P(EDOT-co-Py)@MWCNT hybrid. The conductivity of the synthesized copolymer was 0.71 mS cm⁻¹. This value is higher than the one reported by Kadac et al. (2015) [24], which was 0.710 μS m⁻¹. However, the P(EDOT-co-Py)@MWCNT hybrid had a conductivity of 9.48 mS cm⁻², which was much better by more than an order of magnitude. This improvement can be attributed to the establishment of interconnected networks between the conducting polymer and the carbon nanotubes, which enables more efficient charge transport.

The TEM images of the hybrid at two different magnifications are displayed in Figure 4. As anticipated, the hybrid showed that the copolymer had evenly coated the CNTs along the whole nanotube. Figure 4B additionally displays the CNT width of 21.8 nm and the polymer coating layer. This uniform coating (5.5 to 11.3 nm thickness) agrees with the other details, especially the TGA analysis, which showed a mass ratio of 0.75:1 for the copolymer and CNT. It also explains why the hybrid had better electronic conductivity than the neat copolymer.

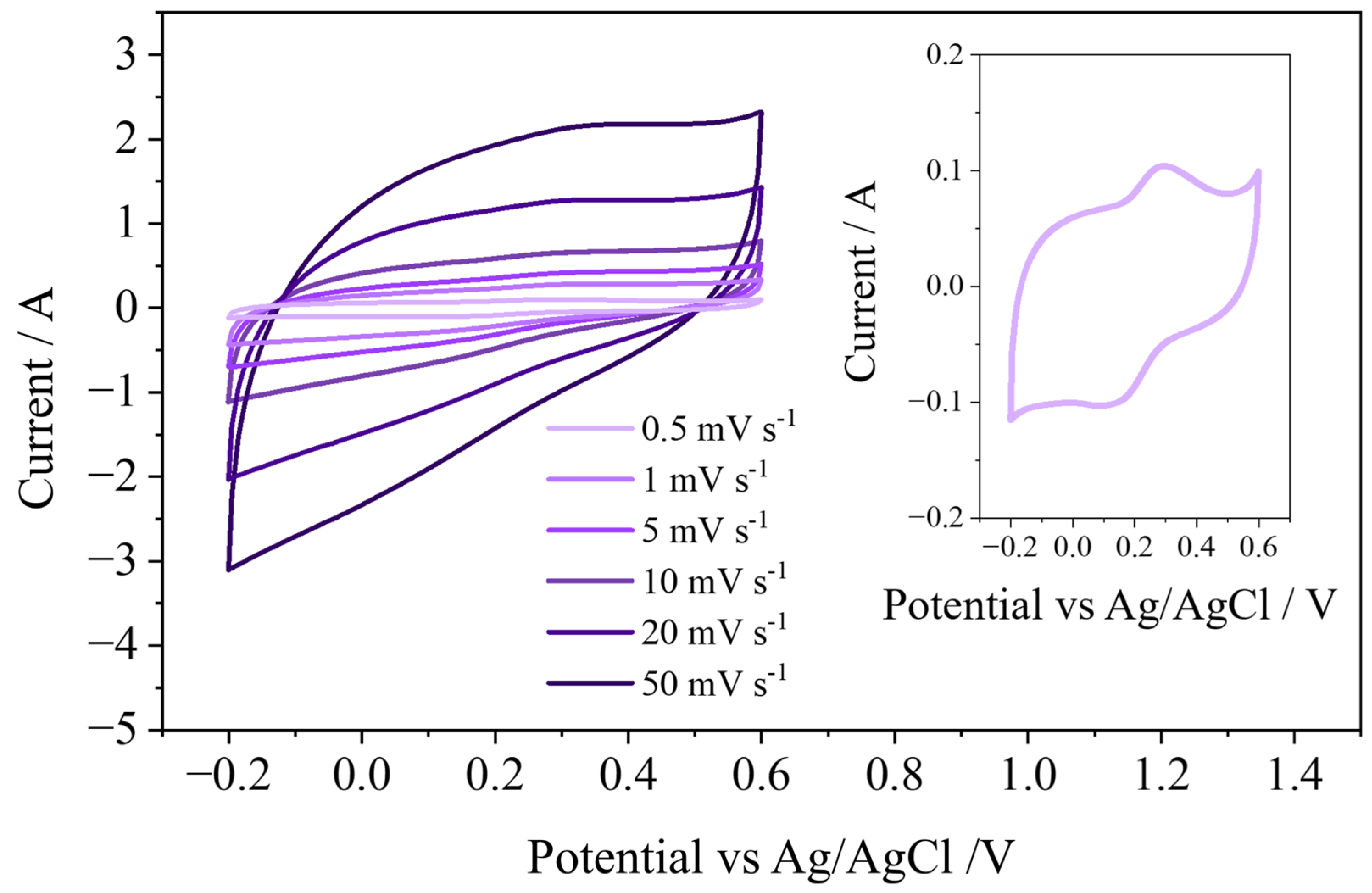

The electrochemical behavior of the P(EDOT-co-Py)@MWCNT hybrid was investigated in a three-electrode configuration system using aqueous aluminum-based electrolytes. The cyclic voltammetry (CV) curves obtained are shown in Figure 5.

At high scan rates, the voltammograms exhibit a characteristic capacitive charge storage behavior. However, at lower ones, the curves display well-defined faradaic features, indicating that the hybrid material operates through two concurrent mechanisms. Under a slow potential scan rate, the predominant process involves redox reactions within the polymer backbone, accompanied by the insertion and extraction of Al³⁺ ions. The cathodic peaks observed (at 0.5 mV s⁻¹) near 0.0 V vs. Ag/AgCl correspond to the reduction of the copolymer and the associated Al³⁺ insertion, while the anodic peaks at 0.33 V vs. Ag/AgCl arise from polymer oxidation and Al³⁺ extraction.

As the scan rate increases, the system becomes dominated by capacitive behavior. This is attributed to proton adsorption on the polymer surface, a faster process than the kinetically limited Al³⁺ insertion, which requires partial desolvation. The protons responsible for this effect originate from the hydrolysis equilibrium of the aluminum aquo-complex, in which [Al(H₂O)₆]³⁺ partially converts into [Al(H₂O)₅(OH)]²⁺ and H₃O⁺, Equation (5). The coexistence of faradaic and capacitive contributions is consistent with the behavior reported for PEDOT, polypyrrole, and other proton-involving pseudocapacitive polymers. Similar observations have been reported for PEDOT:PSS in aluminum-based electrolytes, where sharp redox peaks and slower Al³⁺ insertion kinetics are predominant at low scan rates, while capacitive proton adsorption takes over at higher rates [14].

$${\left[\mathrm{A}\mathrm{l}{\left({\mathrm{H}}_2\mathrm{O}\right)}_6\right]}^{3+}\left(\mathrm{a}\mathrm{q}\right)+{\mathrm{H}}_2\mathrm{O}(\mathrm{a}\mathrm{q})\rightleftharpoons {\left[\mathrm{A}\mathrm{l}{\left({\mathrm{H}}_2\mathrm{O}\right)}_5\left(\mathrm{O}\mathrm{H}\right)\right]}^{2+}(\mathrm{a}\mathrm{q})+{{\mathrm{H}}_3\mathrm{O}}^{+}(\mathrm{a}\mathrm{q})$$

(5)

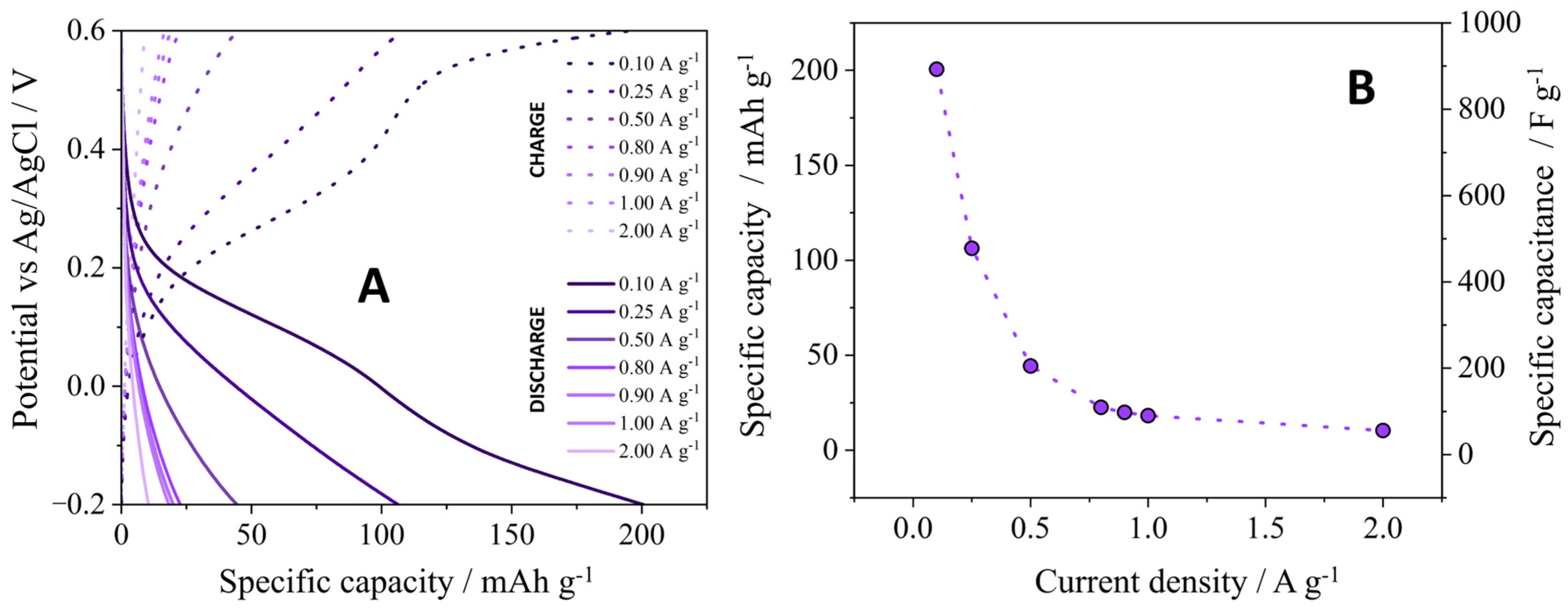

The hybrid charge-storage mechanism was further examined by galvanostatic charge–discharge (GCD) measurements, shown in Figure 6A.

Unlike voltametric measurements, which are predominantly sensitive to surface-controlled and kinetically fast processes due to the imposed potential sweep, galvanostatic charge–discharge measurements probe the electrode response under a constant current condition, thereby enhancing the contribution of bulk-limited and kinetically slower charge-storage processes. As a result, galvanostatic techniques provide a more representative assessment of the specific capacity or specific capacitance of the electrode material. The GCD curves recorded at different current densities (Figure 6A) display marked deviations from the ideal linear and symmetric triangular profile expected for purely electrostatic capacitive behavior. In particular, potential regions with reduced slope are observed, indicating the dominance of faradaic processes governed by finite charge-transfer kinetics and ion transport within the polymeric matrix. This kinetic limitation rationalizes the higher capacity values obtained at lower current densities, as shown in Figure 6B, where extended charge–discharge times allow more complete utilization of the electroactive bulk.

The specific capacities achieved were 200.6, 106.3, 44.33, 22.61, 19.94, 18.23, and 10.39 mAh g⁻¹, corresponding to 903.0, 478.5, 199.5, 101.7, 89.73, 82.07, and 46.77 F g⁻¹ for the current densities of 0.10, 0.25, 0.50, 0.80, 0.90, 1.00, and 2.00 A g⁻¹, respectively. Even at higher current densities, these values surpass those of neat MWCNT electrodes reported, of 24.4 F g⁻¹ (at 0.25 A g⁻¹) in aqueous electrolyte (LiClO₄, 0.5 mol L⁻¹) [31]. Along with the other materials previously reported by our research group, such as the neat copolymers P(EDOT-co-MPy) and P(EDOT-co-PyMP) (LiClO₄, 0.5 mol L⁻¹), which reached 69.2 and 64.9 F g⁻¹ [37]. Complete electrochemical data for the system is presented in Table S6.

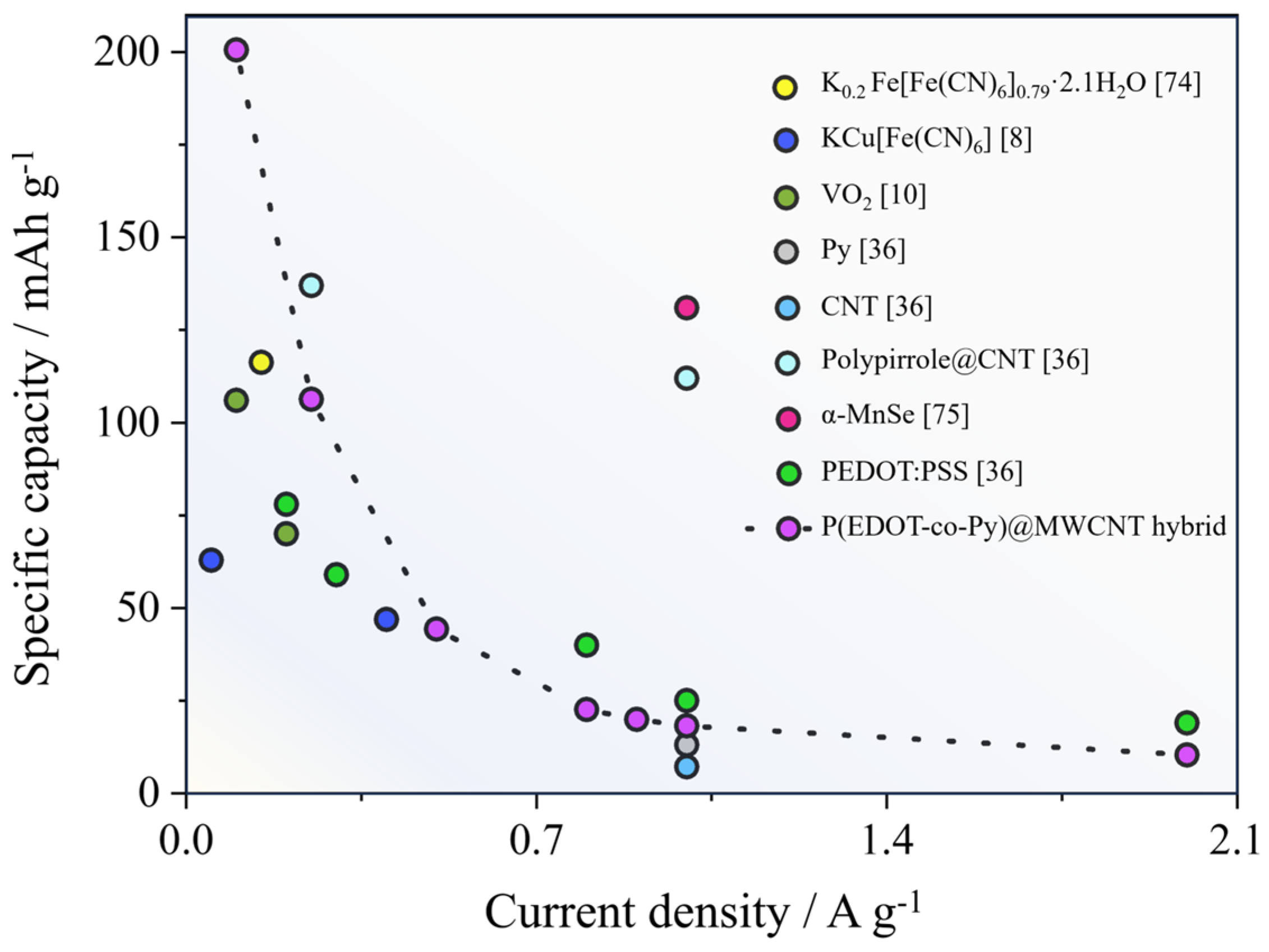

The data presented in Figure 7 (and in detail in Table S7) allow a direct comparison with other aqueous aluminum-based energy-storage systems described in the literature. PEDOT:PSS, used as the active material in aqueous aluminum-ion batteries operating in 1.2 mol L⁻¹ Al₂(SO₄)₃ + 0.0025 mol L⁻¹ H₂SO₄, delivers specific capacities ranging from 78 to 25 mAh g⁻¹ at current densities between 0.20 and 1.00 A g⁻¹ [14]. These values are comparable to those obtained for the P(EDOT-co-Py)@MWCNT hybrid, which delivers 106.3 to 18.23 mAh g⁻¹ in the 0.25 to 1.00 A g⁻¹ range.

Another polymer-based system, polypyrrole@CNT, [36] shows even higher performance, delivering 137 to 112 mAh g⁻¹ at 0.25 to 1.00 A g⁻¹. Its superior behavior, particularly at higher current densities, is likely due to the use of a different electrolyte based on an ionic liquid (AlCl₃/[EMim]-Cl, 1.3:1 molar ratio). In this configuration, charge storage arises from a combination of the capacitive adsorption/desorption of AlCl₄⁻ and pseudocapacitive insertion/extraction of the same species. The discrepancy in capacity values compared to the present work is strongly associated with the much wider electrochemical stability window afforded by the ionic-liquid electrolyte (0.3–2.3 V vs. Al/Al³⁺), in contrast to the narrower potential window of −0.2 to 0.6 V vs. Ag/AgCl used in this study.

P(EDOT-co-Py)@MWCNT can also be compared with other electrode materials investigated for Al-ion storage applications, such as Prussian Blue analogues. KCu[Fe(CN)₆], synthesized and tested at current densities from 0.05 to 0.40 A g⁻¹ in 0.50 mol L⁻¹ Al₂(SO₄)₃ aqueous electrolyte, delivered specific capacities ranging from 62.9 to 46.9 mAh g⁻¹ [8]. These values are lower than those obtained for the hybrid material, which reaches 200.6 mAh g⁻¹ at a lower current density (0.10 A g⁻¹) and 44.3 mAh g⁻¹ at 0.50 A g⁻¹.

Similarly, K_0.2Fe[Fe(CN)₆]_0.79·2.1H₂O tested in 5 m Al(OTF)₃ at 0.15 A g⁻¹ delivered 116.29 mAh g⁻¹ [74], a value that is lower than that of the hybrid at comparable current density, where 200.6 mAh g⁻¹ is achieved at 0.10 A g⁻¹. Other Al³⁺ insertion materials have also been investigated in ionic-liquid-based electrolytes, particularly AlCl₃/[EMim]-Cl systems. VO₂, for instance, was tested at 0.10 and 0.20 A g⁻¹, delivering 106 to 70 mAh g⁻¹ [10], again below the values obtained for the hybrid material developed in this work.

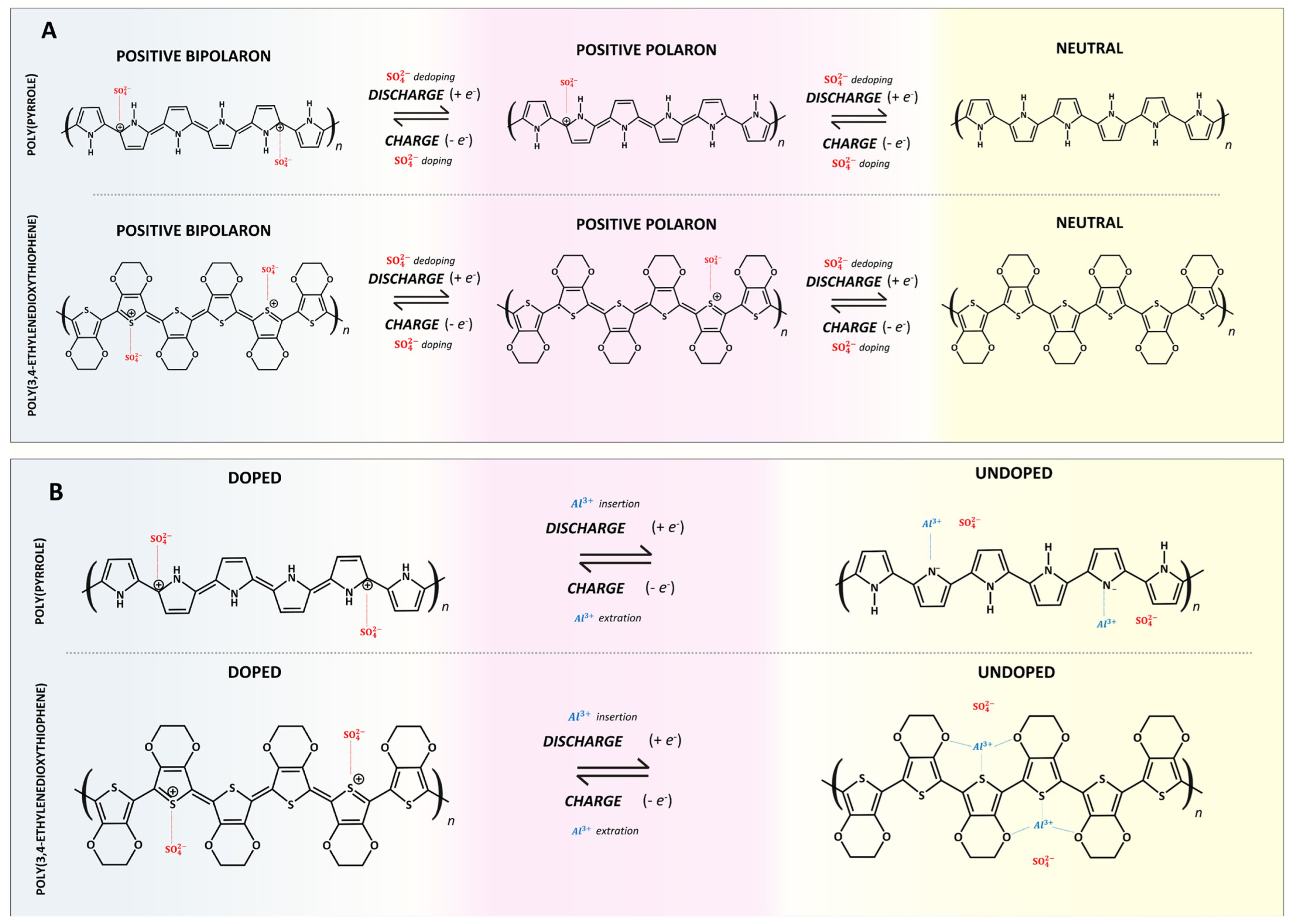

The synthesized hybrid exhibits a copolymer structure based on EDOT and pyrrole units. Figure 8A illustrates the processes involved during charge and discharge. For clarity, the polymeric units are discussed separately as PEDOT and PPy. Both polymers undergo p-type doping, in which oxidation of the polymer backbone generates positively charged polarons/bipolarons, with charge delocalized along the conjugated chain [76].

Considering the Py unit in its undoped form, the material can exhibit a band gap near 3.16 eV and behaves as an insulator. Upon oxidation of the polymer chain containing pyrrole units, benzenoid groups are converted into quinoid structures, forming a polaron through the removal of π-electrons. This process introduces two new electronic levels within the band gap, reducing it to 2.26 eV. Further oxidation removes additional electrons from the polymer backbone, generating a bipolaron and leading to the formation of two narrow bipolaronic bands. Consequently, conductivity increases as the band gap decreases to 1.4 eV [76].

With the formation of polarons and bipolarons, counterions are incorporated into the polymer structure to maintain charge balance. In this system, the counterions of the (bi)polarons are sulfate anions from the electrolyte. Thus, in summary, during charging the polymer undergoes oxidation: neutral → polaron (Py)⁺ → bipolaron (Py)²⁺, accompanied by doping of the polymer chain with SO₄²⁻ ions.

The polymer composed of EDOT units exhibits behavior very similar to that observed for Py, generating positively charged polarons and bipolarons during the charging (oxidation) process. This stage also involves doping of the material with SO₄²⁻ counterions. Therefore, charging corresponds to the conversion: neutral → polaron (PEDOT)⁺ → bipolaron (PEDOT)²⁺.

During reduction, the reverse conversion takes place, regenerating the neutral polymer without formation of negatively charged polarons, as also observed for polypyrrole [77]. As in Py, oxidation of the polymer backbone produces a monovalent radical cation, followed by formation of a divalent cation upon further oxidation. The generation of polarons and bipolarons increases the density of charge carriers, thereby enhancing electronic conductivity and reducing the band gap from ~1.5–1.8 eV in the neutral structure to values below 1 eV upon bipolaron formation [78].

Anion insertion/extraction is most commonly used to describe charge–discharge processes in conducting polymers, particularly in p-type systems involving positively charged polarons. However, some studies report dual-ion insertion/extraction behavior. Anions such as ClO₄⁻, NO₃⁻, citrate, SO₄²⁻, BF₄⁻, and PF₆⁻ are inserted during charging, whereas ions such as Na⁺, K⁺, Ru⁺, Cu²⁺, and Cs⁺ participate in the reverse processes. In some cases, cation insertion is interpreted as a charge-compensation mechanism occurring during reduction, where ions may remain trapped within the polymer structure even after overall charge neutralization; thus, additional cations are incorporated to balance the charge of these residual ions [79].

Based on this, insertion/extraction of Al³⁺ cations (most likely in hydrated form) may occur in the system as a charge-compensation process during reduction in the presence of sulfate ions in the polymer structure or via stronger interactions, leading to the formation of metal–CP complexes.

Accordingly, Al³⁺ insertion into the polymer framework may take place during the reduction of positively charged species to the neutral polymer state. These interactions are expected to involve heteroatoms in the backbone (N, S, and O), as well as possible cation–π interactions with the conjugated polymer units.

Thus, we propose a mechanism for aluminum cation insertion/extraction, illustrated in Figure 8B.

This mechanism represents the insertion/extraction capability of Al³⁺ ions from the polymer structure driven by reduction/oxidation. During discharge, EDOT and Py units undergo reduction, forming the neutral species. Although negatively charged polarons for both structures are not described in the literature, interaction of Al³⁺ with pyrrole units may occur via formation of an Al³⁺–Py complex through the nitrogen heteroatom. This hypothesis is supported by reports of Mⁿ⁺–CP⁻ complexes, such as Cu–PPy complexes formed via delocalized electrons on the pyrrolic nitrogen or through π-electron density of the aromatic ring [80,81].

For EDOT units, Cu–PEDOT complexes have also been reported. A Cu⁺–PEDOT complex has been observed via interaction between Cu²⁺ and carbon–carbon double bonds or the ether moiety of the 3,4-ethylenedioxythiophene ring [82]. Another study reports Cu²⁺–PEDOT interactions occurring through O and S heteroatoms in the structure [83]. Considering the preferential interaction of Al³⁺ with oxygen over sulfur, Al³⁺ interaction with EDOT units is represented here via the ether moiety of the EDOT ring, with weaker or negligible interaction with sulfur.

Formation of M–PPy complexes during reduction has also been proposed in Zn²⁺ batteries. During the reduction of the polymer chain, anions (counterions) are expelled while Zn²⁺ cations enter the structure to balance the charge of remaining anions [84]. Another study describes the formation of a Zn²⁺–(Py)⁻ complex during reduction, yielding a final Zn⁺–(Py) complex [85]. Although negatively charged polarons are not reported for PPy and PEDOT, studies indicate that oxidized nitrogen species in pyrrole (bi)polarons preferentially interact with anions, whereas reduced nitrogen sites in the polymer backbone are responsible for cation interaction. Theoretical DFT studies show strong interaction between Zn²⁺ and the reduced –NH– unit of pyrrole and favored SO₄²⁻ interaction with oxidized –N⁺– sites [86].

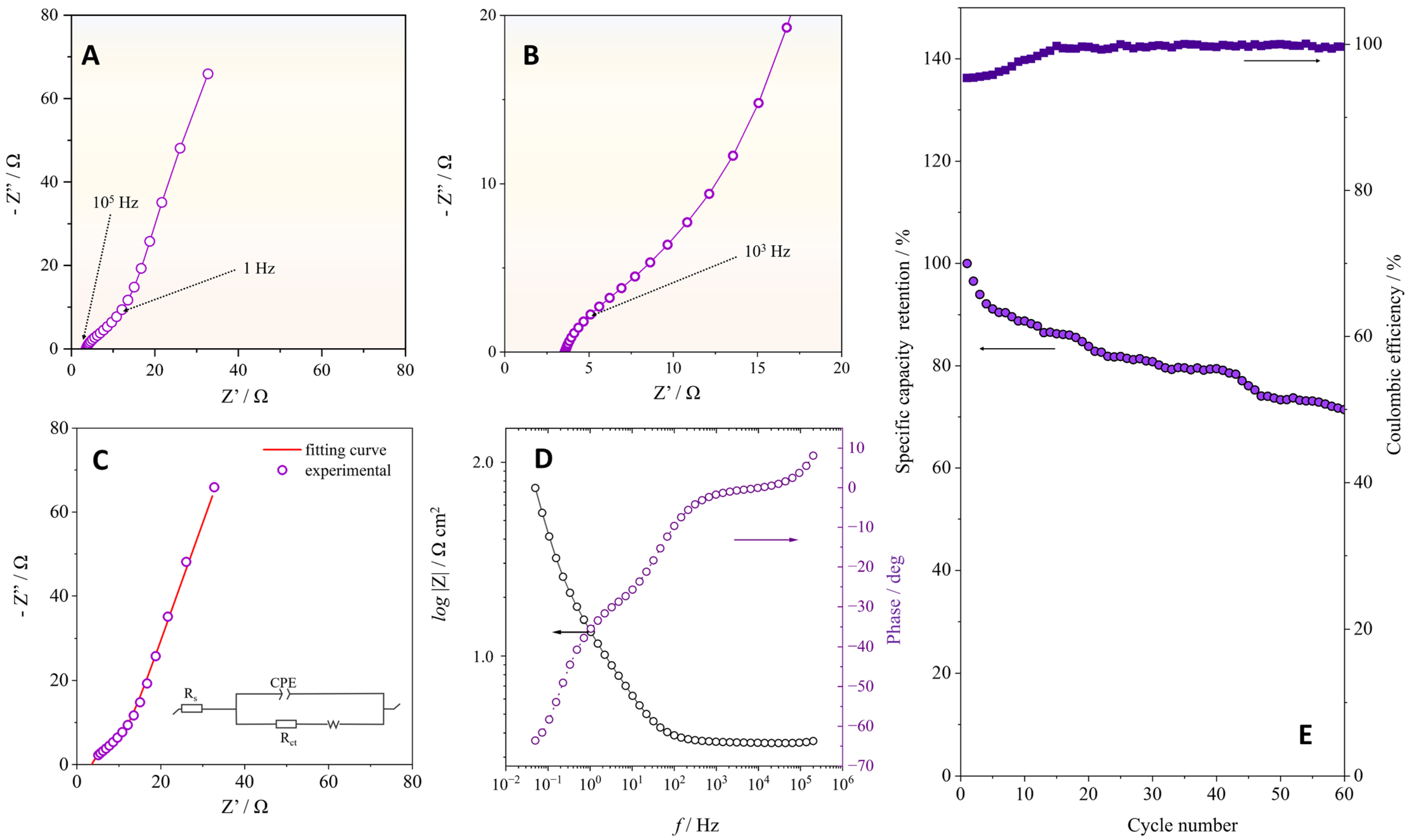

Electrochemical impedance spectroscopy (EIS) was employed to further elucidate the charge-storage mechanism of the P(EDOT-co-Py)@MWCNT hybrid electrode in an aluminum-based aqueous electrolyte. The Nyquist and Bode representations shown in Figure 9A,B provide complementary and consistent insights into the coexistence of fast surface-controlled pseudocapacitive processes and kinetically constrained faradaic reactions, in agreement with the trends inferred from CV and GCD analyses.

The Nyquist plot (Figure 9A) exhibits a low intercept on the real axis, corresponding to a small series resistance (R_s = 3.55 Ω). No well-defined semicircle is observed over the medium-frequency range; instead, the impedance rapidly evolves into an inclined tail toward lower frequencies. Such behavior is characteristic of conducting polymer-based electrodes dominated by pseudocapacitive charge storage rather than by classical battery-type responses governed by sluggish charge-transfer kinetics [87]. A magnified view of the high-frequency region (Figure 9B) reveals a small and depressed arc, indicating the presence of a charge-transfer process with low but finite resistance. This feature is associated with redox activity along the P(EDOT-co-Py) backbone coupled with the initial stages of Al³⁺ insertion. The depressed nature of the arc reflects the heterogeneous and porous architecture of the polymer–MWCNT hybrid and the resulting distribution of relaxation times. The limited extension of this arc confirms that faradaic reactions contribute to, but do not dominate, the overall impedance response. At lower frequencies, the Nyquist response progressively approaches a quasi-vertical line, deviating from the 45° slope expected for semi-infinite Warburg diffusion. This behavior indicates that long-range diffusion of Al³⁺ ions is not the sole rate-limiting process. Instead, charge storage is largely governed by surface or near-surface processes, consistent with a pseudocapacitive mechanism supplemented by diffusion-assisted faradaic contributions.

The experimental impedance spectra were fitted using a modified Randles-type equivalent circuit, Figure 9C, R_s-[CPE||(R_ct + Mα)], where R_s represents the overall series resistance arising from the electrolyte, electrode components, and electrical contacts. The constant phase element (CPE) accounts for the non-ideal capacitive behavior associated with the heterogeneous and porous nature of the hybrid electrode, while R_ct corresponds to the charge-transfer resistance related to the redox activity of the conducting polymer. The Mα element is a restricted diffusion component that reflects confined ionic transport within the polymeric phase, coupled with structural heterogeneity and finite diffusion length effects. The simulated fitting parameters extracted from this model are summarized in Table S8.

This interpretation is further corroborated by the Bode plots, Figure 9D, which reveal a clear correlation between the impedance magnitude and phase angle across the frequency spectrum. At high frequencies (~10⁴–10⁵ Hz), the impedance magnitude reaches a plateau at low values (|Z| ~ 3–4 Ω) while the phase angle remains close to 0° (−2° to −5°), confirming a predominantly ohmic response controlled by electrolyte resistance and electronic conduction through the MWCNT framework. As the frequency decreases into the intermediate–high range (~10²–10⁴ Hz), |Z| increases with a slope significantly smaller than −1 in the log|Z| versus log f representation, accompanied by a phase shift toward −20° to −3°. This regime reflects the activation of fast surface-controlled pseudocapacitive processes associated with electronic delocalization and rapid redox transitions within the conjugated polymer chains [87]. In the intermediate–low frequency region (~1–100 Hz), the impedance magnitude increases more steeply, and the phase angle progressively shifts to −40° to −55°, indicating an increasing contribution from kinetically limited faradaic reactions coupled to partial Al³⁺ insertion into the polymeric matrix. At the lowest frequencies (<1 Hz), |Z| continues to increase without reaching the ideal −1 slope expected for a purely capacitive system, while the phase angle approaches −60° to −65°, evidencing a non-ideal pseudocapacitive response governed by a broad distribution of relaxation times.

Figure 9E illustrates the cycling stability of the over 60 charge–discharge cycles at a current density of 0.1 A g⁻¹. The material retained a specific capacity of 144.43 mAh g⁻¹ at the 60th cycle, corresponding to 72% of its initial capacity (200.6 mAh g⁻¹). The coulombic efficiency, which initially reached 96%, increased to 100% by the 15th cycle and remained stable throughout the subsequent cycling, indicating highly reversible electrochemical behavior. The cycling performance of this hybrid material compares favorably with similar Al-ion storage systems reported in the literature.

VS₂ nanosheets [88] were evaluated for 50 cycles using an AlCl₃–([EMIm]Cl) ionic liquid electrolyte at 0.1 A g⁻¹. The G-VS₂ electrode retained 88.3 mAh g⁻¹ after five cycles and 50 mAh g⁻¹ after 100 cycles, corresponding to 47.47% and 26.88% of its initial capacity (186 mAh g⁻¹), respectively. Similarly, a V₂O₅·nH₂O cathode tested in an ionic liquid electrolyte delivered 80 mAh g⁻¹ after 100 cycles at the same current density, which is significantly lower than the capacity achieved in the present study [89]. In another report, MoS₂ microspheres [90] exhibited a capacity decrease from 77.7 to 66.7 mAh g⁻¹ between the 1st and 100th cycles. Although this system showed a higher capacity retention (85.84%), its absolute capacity values were considerably lower than those of the P(EDOT-co-Py)@MWCNT hybrid.

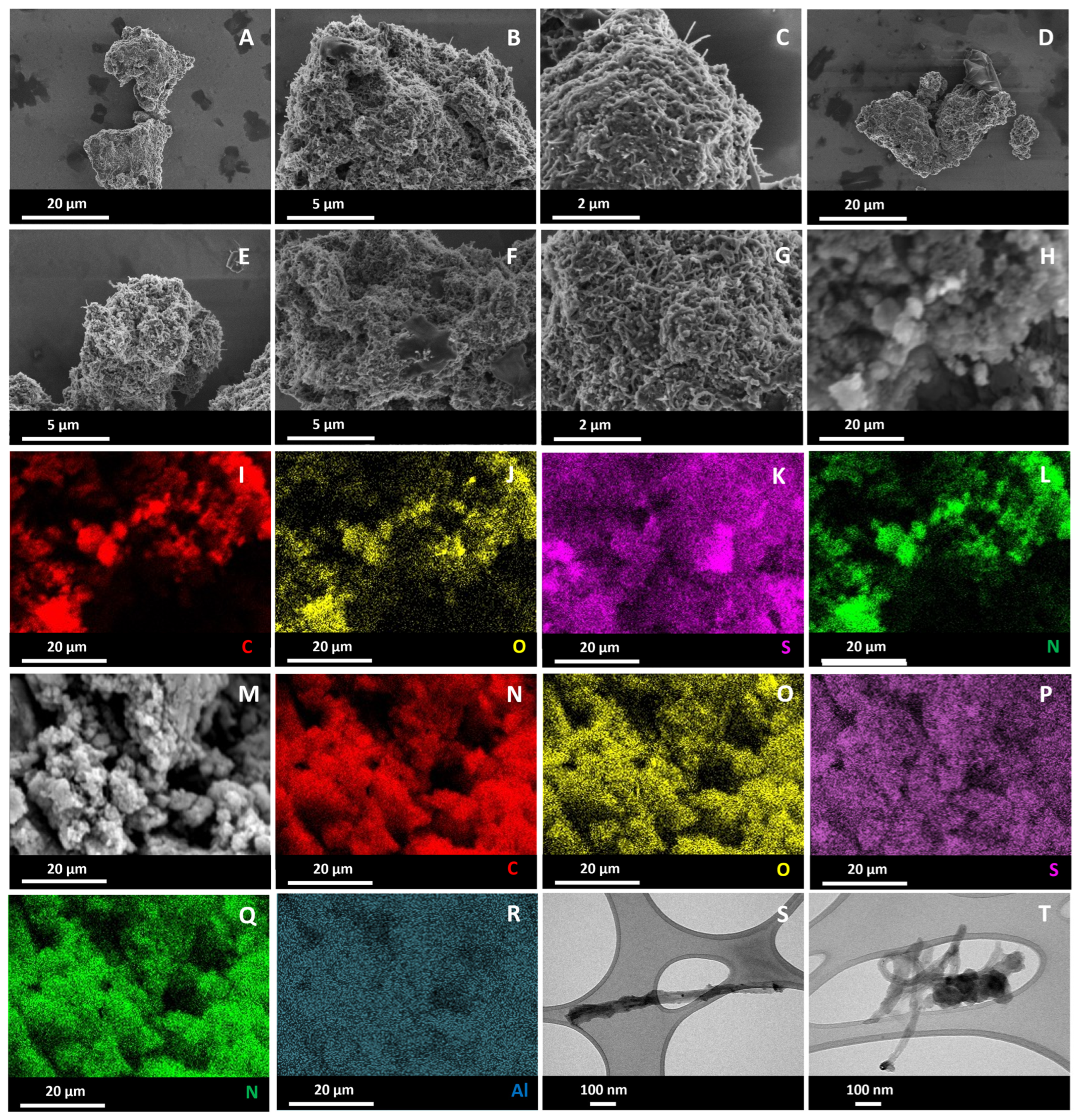

To provide insight into the effect of cycling on the working electrode containing the P(EDOT-co-Py)@MWCNT hybrid as the active material, the electrode was analyzed using scanning and transmission electron microscopy techniques. Figure 10A–C shows SEM images of the electrode material before cycling. The images reveal the electrode composite, which contains, in addition to the active material, carbon black and PVDF as a binder. The analyzed region exhibits a rough surface composed of distinct subunits with different morphologies, confirming the successful formation of a homogeneous electrode composite. In these images, the presence of carbon nanotubes coated with the copolymer can be clearly observed.

After electrode cycling (sixty charge–discharge cycles), the composite still exhibits morphological homogeneity without significant changes, as shown in the SEM images in Figure 10D–G. The images reveal an interwoven nanotube network within the composite, indicating that the material did not experience particle detachment from the composite structure.

For elemental analysis, the electrode materials were subjected to EDS, and elemental mapping of the electrode composite is presented in Figure 10H–L for the electrode before cycling. The distributions of C, O, S, and N were analyzed, and all elements showed a homogeneous distribution throughout the electrode material, confirming the uniformity of the obtained composite. The same technique was applied to the composite after cycling (Figure 10M–Q), and the material maintained a homogeneous distribution of C, O, S, and N, indicating good structural stability during cycling, as also observed in the charge–discharge tests. Additionally, the distribution of Al was analyzed for the material after cycling (Figure 10R), showing a uniform distribution of this element following the charge and discharge processes.

Finally, to better understand the specific effects of cycling on the P(EDOT-co-Py)@MWCNT hybrid, TEM was employed. The TEM image of the isolated P(EDOT-co-Py)@MWCNT hybrid present in the composite material is shown in Figure 10S. In this image, a carbon nanotube coated with polymer can be observed, consistent with images obtained for the pure material. After cycling (Figure 10T), the carbon nanotubes within the composite still appear uniformly coated with the polymer. This observation demonstrates the stability of the material during the charge and discharge processes, with no evidence of polymer detachment from the carbon nanotube surface.

The obtained images indicate that the P(EDOT-co-Py)@MWCNT hybrid exhibits good stability during cycling with respect to the integrity of the polymer coating on the carbon nanotubes. Therefore, the decrease in efficiency observed for the synthesized material is most likely associated with internal structural changes occurring during the charge and discharge processes. Ion insertion and extraction lead to expansion and contraction of the polymer chains, respectively. This repeated expansion and contraction may generate mechanical stress within the polymer structure, which can hinder ion insertion and extraction over prolonged cycling. The cycling stability of the synthesized material suggests that the primary bonds formed between the carbon nanotubes and the polymer chains help mitigate the rapid capacity fading typically observed in electrodes based on conducting polymers.

Overall, the competitive cycling stability combined with the higher reversible capacity demonstrates that the P(EDOT-co-Py)@MWCNT hybrid is a promising electrode material for Al-ion storage systems, particularly when considering the use of low-cost electrolytes.

4. Conclusions

In this work, a hybrid nanomaterial based on the copolymerization of EDOT and pyrrole chemically anchored onto multiwalled carbon nanotubes was successfully synthesized through a multistep functionalization strategy. The effective surface functionalization of the MWCNTs, the covalent attachment of the monomers, and the formation of a homogeneous P(EDOT-co-Py) coating along the nanotube surface were confirmed through structural, spectroscopic, thermal, and microscopic characterizations.

Electrochemical evaluation in aqueous aluminum sulfate electrolyte revealed that the P(EDOT-co-Py)@MWCNT hybrid exhibited a high specific capacity, with values reaching 200.6 mAh g⁻¹ at 0.10 A g⁻¹, being comparable to or exceeding those reported for several cathode materials for aqueous aluminum-ion storage. The combined Nyquist and Bode analyses demonstrate that charge storage in the P(EDOT-co-Py)@MWCNT electrode arises from the synergistic interplay between fast surface pseudocapacitance and slower insertion-controlled faradaic processes, rather than from a single dominant electrochemical mechanism. Moreover, the hybrid electrode demonstrated good cycling stability, retaining 72% of its initial capacity after 60 cycles and achieving a near 100% coulombic efficiency after initial activation.

Overall, the P(EDOT-co-Py)@MWCNT hybrid emerges as a promising cathode material for aqueous aluminum-ion batteries, combining high reversible capacity, mixed capacitive–faradaic storage behavior, and competitive cycling stability, while relying on low-cost and environmentally benign components. This approach opens new perspectives for the development of advanced polymer-based electrodes for safe and sustainable multivalent energy-storage technologies.
