Graphene Nanofoam Based Nanomaterials: Manufacturing and Technical Prospects

by
Ayesha Kausar
1,2,3,*,
Ishaq Ahmad
1,2,3,
Tingkai Zhao
1,4,
M. H. Eisa
5 and
O. Aldaghri
5
1
NPU-NCP Joint International Research Center on Advanced Nanomaterials and Defects Engineering, Northwestern Polytechnical University, Xi’an 710072, China
2
UNESCO-UNISA Africa Chair in Nanosciences/Nanotechnology, iThemba LABS, Somerset West 7129, South Africa
3
NPU-NCP Joint International Research Center on Advanced Nanomaterials and Defects Engineering, National Centre for Physics, Islamabad 44000, Pakistan
4
School of Materials Science & Engineering, Northwestern Polytechnical University, Xi’an 710072, China
5
Department of Physics, College of Science, Imam Mohammad Ibn Saud Islamic University (IMSIU), Riyadh 13318, Saudi Arabia
*
Author to whom correspondence should be addressed.
Nanomanufacturing 2023, 3(1), 37-56; https://doi.org/10.3390/nanomanufacturing3010004
Submission received: 2 January 2023 / Revised: 12 January 2023 / Accepted: 31 January 2023 / Published: 1 February 2023
(This article belongs to the Special Issue Featured Reviews in Nanomanufacturing)
Browse Figures
Versions Notes

Abstract

:
This article fundamentally reviews progress in the design and manufacturing of three-dimensional (3D) graphene-based nanocomposites for technical applications. The 3D graphene nanostructures have been manufactured using techniques like the template method, chemical vapor deposition, sol-gel, freeze-drying, hydrothermal technique, and other approaches. The nanofoam has been reinforced in polymers to achieve superior structural, morphological, and physical characteristics of the ensuing polymer/graphene nanofoam nanocomposites. The polymer/graphene nanofoam nanocomposites have been manufactured using the approaches like direct template method, in situ technique, infiltration process, and other methods. The 3D nanofoam- and polymer-based nanostructures have shown high specific surface area, suppleness, electron transport, thermal conduction, mechanical resilience, and other physical properties. The technical applications of hierarchical graphene nanofoams have been observed in the fields of radiation shielding, solar cells, supercapacitors, fuel cells, and other applications.

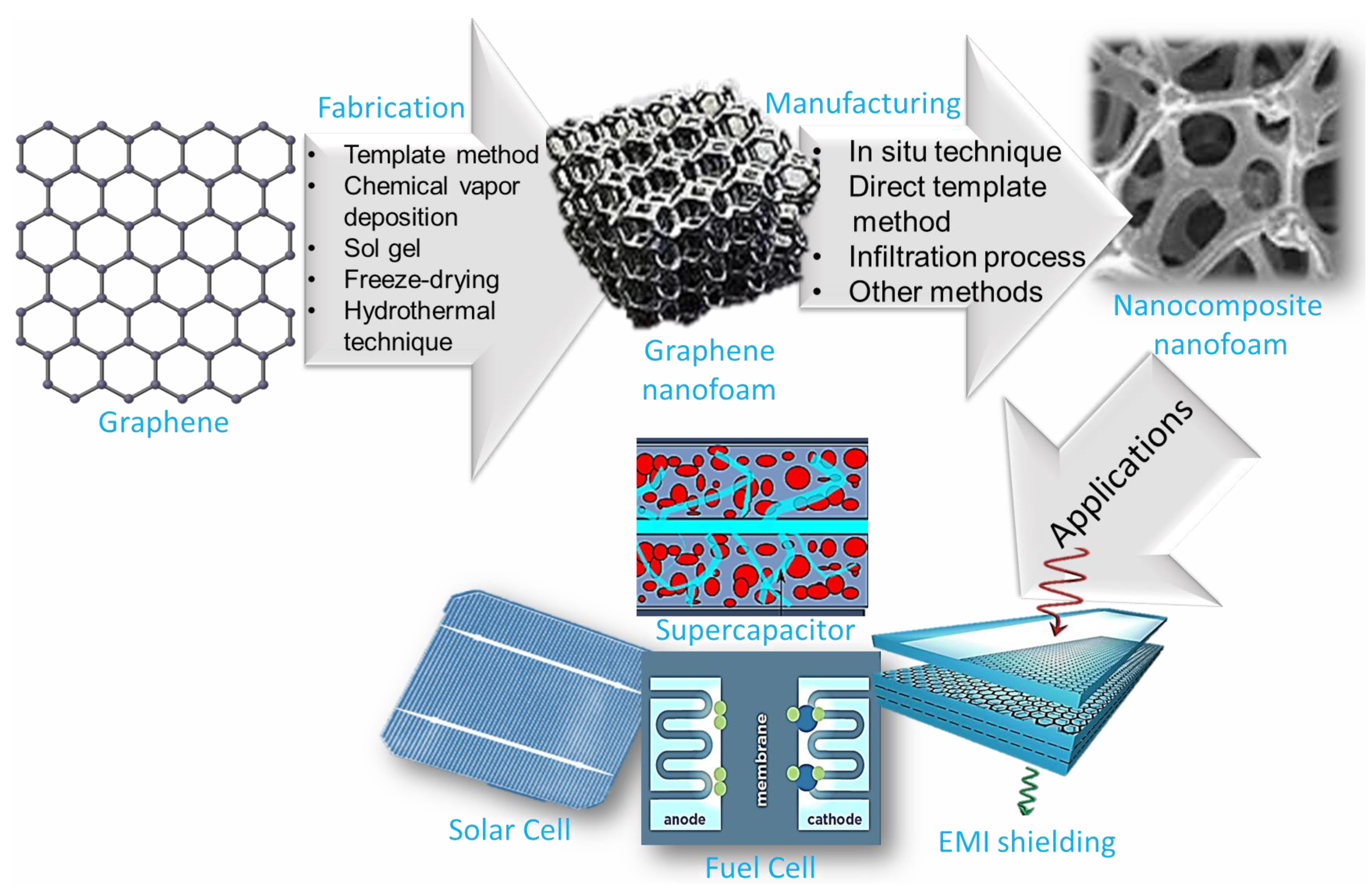

Graphical Abstract

1. Introduction

Graphene is a two-dimensional nanocarbon nanomaterial with sp2 hybridized carbon atoms [1]. It is a single-atom thick nanocarbon nano-allotrope. The van der Waals interactions may cause a nanosheet wrinkling effect [2,3]. Graphene has found potential applications in electronics, semiconductors, solar cells, and other technical fields [4]. In addition to two dimensional graphene, three dimensional (3D) graphene nanofoam has gained research attention [5]. The 3D graphene nanofoam or aerogel shows an excellent nano-porous structure and unique morphology. The graphene nanofoam not only exhibits the inherent properties of graphene nanosheet, but also reveals remarkable physical features [6]. Consequently, the 3D hierarchical nanofoam nanostructure possess high surface area, flexibility, robustness, porosity, and outstanding structural, mechanical, thermal, electrical, and other enhanced physical features [7,8]. Several approaches have been developed for the manufacture of graphene nanofoam such as template approach, chemical vapor deposition, freeze/supercritical drying, hydrothermal, sol-gel, and numerous other approaches [9,10,11]. The graphene nanofoam has been explored for the potential applications in the nanocomposites, electronics, supercapacitors, photovoltaics, batteries, energy, electronics, environment, and biomedical applications [12,13].
This state-of-the-art review presents advances in the design, manufacturing, and properties of 3D graphene nanofoam. Then, essential aspects of graphene nanofoam based nanocomposites are discussed including the manufacturing approaches, essential properties, and application areas. The transformation of graphene nanosheet into 3D graphene nanofoam revealed remarkable structural and property innovations leading to promising application areas of the graphene nanofoam nanocomposite. Figure 1 shows the graphic of technical developments of graphene-to-graphene nanofoam and nanocomposite nanofoam for high-tech applications.

2. Nanofoam

Carbon nanofoam is a three-dimensional nano-allotrope of carbon [14,15]. In carbon nanofoam, the carbon atoms are arranged in a 3D hexagonal structure, which is often referred to as aerogel [16,17]. Initially, laser pulse technique was used to form the nanofoam using a carbon target in an inert atmosphere [18]. Carbon nanofoam exhibits high surface area and a transparent structure [19]. The three dimensional nanofoam has a C–C bond length of 5.6 Å [20]. The nanofoam usually possesses low density of ~2 mgcm−3, and so it is lightweight [21]. Due to unpaired electrons, carbon nanofoam displays ferromagnetic properties below 90 K. Due to the magnetic properties, the carbon nanofoam revealed applications in spintronic devices and bio-imaging [22,23,24]. According to scanning/transmission electron microscopy, the nanofoam consists of woven forms of graphene nanosheets [25,26]. The periodic patterns have been observed in the three dimensional cross-linked nanostructures [27]. The simulation or computational studies have been performed to investigate the nanofoam nanostructures [28]. Furthermore, the carbon nanofoam has been applied in high-performance thermal insulation materials [29,30,31]. In addition, the three-dimensional nanofoam shows high electrical conductivity, thermal conductivity, and optical absorption [32,33]. The nanofoam displays a low dielectric constant, necessary for significant electrical properties [34]. The low dielectric constant and high charge transportation of these materials were found important for electronics/microelectronics applications [35,36]. The structure of carbon nanofoam has been modified through the inclusion of carbon nanoparticles (carbon nanotube or carbon nanofibers) in the three dimensional structure [37]. The modified nanofoam may lead to improved structural properties and high-tech applications.

3. 3D Graphene Nanofoam

Graphene is a unique two dimensional nanocarbon nanostructure [38,39]. It has a unique hexagonal arrangement of sp2 hybrid carbon atoms with π bonding [40]. Owing to unique structure and superior physical properties, graphene presented potential for various advanced technical applications ranging from energy/electronics to biomedical devices [41,42,43]. The two dimensional graphene nanosheets can be arranged into a three dimensional nanostructures [44,45]. The 3D graphene is often referred as graphene nanofoam, graphene sponge, or graphene aerogel in the literature [46]. The three dimensional macro-assemblies of graphene have been developed due to van der Waals interactions between the nanosheets [47]. The three dimensional graphene nanofoam shows the intrinsic features of graphene and also novel physicochemical properties [48]. Consequently, the three dimensional graphene nanofoam possesses a large surface area, thermal transport, electrical conductivity, mechanical stability, porosity, and flexibility [49]. Graphene nanofoam has a high specific surface area of 1000 m2g−1 [50]. The three-dimensional graphene nanofoam has high Young’s moduli ~102 kPa [51]. Graphene nanofoam has been developed using graphene as well as graphene oxide.

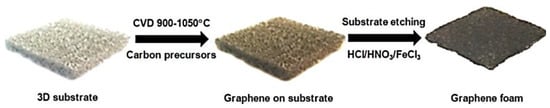

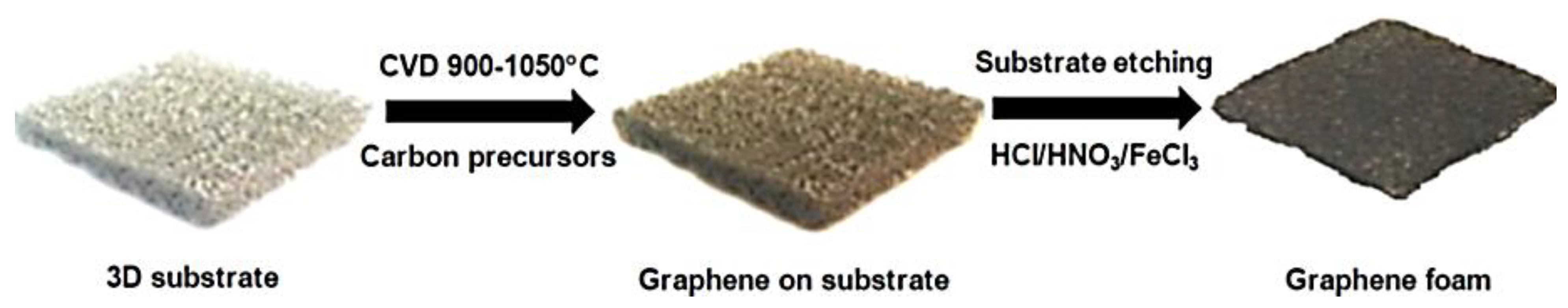

Numerous manufacturing approaches have been applied for the formation of the three dimensional graphene [52]. Depending upon the fabrication strategy used, the graphene nanofoam may reveal different morphologies [53]. The template methods have been frequently used for the synthesis of graphene nanofoam [54]. Deng and co-workers [55] developed the three dimensional graphene on the nickel foam template via chemical vapor deposition technique (CVD). The graphene nanofoam has large surface area and mechanical robustness properties. Moreover, the graphene-nanofoam-based electrode showed high specific capacitance of 321 Fg−1 for high performance supercapacitor. Zhang et al. [56] proposed a route to graphene nanofoam using the template- and catalyst-based methods (Figure 2). The graphene nanofoam derived from the template method showed low density, high porosity, mechanical stability, and electrical conductivity [57].
Along with CVD, numerous other manufacturing methods have been used for the formation of graphene nanofoam [58]. Consequently, the freeze/supercritical drying approaches have been adopted to produce the 3D inter-linked graphene nanofoam [59,60]. The direct hydrothermal technique has also been applied for the formation of 3D graphene nanofoam with nanoparticles [61]. Zhang et al. [62] fabricated the 3D graphene nanofoam with titanium dioxide nanoparticles using the one-pot technique. The graphene nanofoam has efficient absorption properties [63]. Consequently, the nanofoam has been found useful for the adsorption-photo-electrocatalytic degradation of bisphenol A. The sol-gel technique was considered useful to prepare the 3D graphene oxide nanofoam [64]. The chemical cross-linking was observed due to reaction between hydroxyl, carbonyl, and epoxide functionalities of graphene oxide and the sol-gel precursor [65]. In this method, the heat/thermal treatment has been applied for the development of covalently linked 3D graphene structure [66]. During thermal treatment, the macro-assemblies of graphene oxide were reduced to graphene [67]. The sol-gel-derived graphene nanofoam revealed high surface area, porosity, electron mobility, and thermal conductivity properties [68,69]. The graphene nanofoam nanocomposites exhibited applications in catalysis, sensors, energy storage devices, absorbents, and biomedical fields [70]. Table 1 compares the various graphene nanofoam fabricated using numerous manufacturing approaches. All the mentioned methods have been efficiently used to prepare the high performance nanofoam.

4. Polymer/Graphene Nanofoam Nanocomposite

Numerous manufacturing approaches have been applied for the formation of 3D nanofoam nanoarchitectures [73]. The nanofoam-based nanocomposites displayed high surface area, low density, and high electronic, thermal, and mechanical characteristics [74]. Yao et al. [75] applied the simple one-pot surfactant-free technique to manufacture polymer/3D reduced graphene oxide nanofoam nanocomposites. The materials have been used for the supercapacitor electrodes. A significantly high specific capacitance of 952.85 Fg−1 was obtained. Tang et al. [76] fabricated the three dimensional reduced graphene oxide using the hydrothermal method. Then, the polyaniline/three-dimensional reduced graphene oxide nanocomposite was manufactured using the in situ technique. Figure 3 demonstrates the formation of the polyaniline/three-dimensional reduced graphene oxide nanocomposite. The nanomaterial was developed as supercapacitor electrode with high specific capacitance of 243 Fg−1.

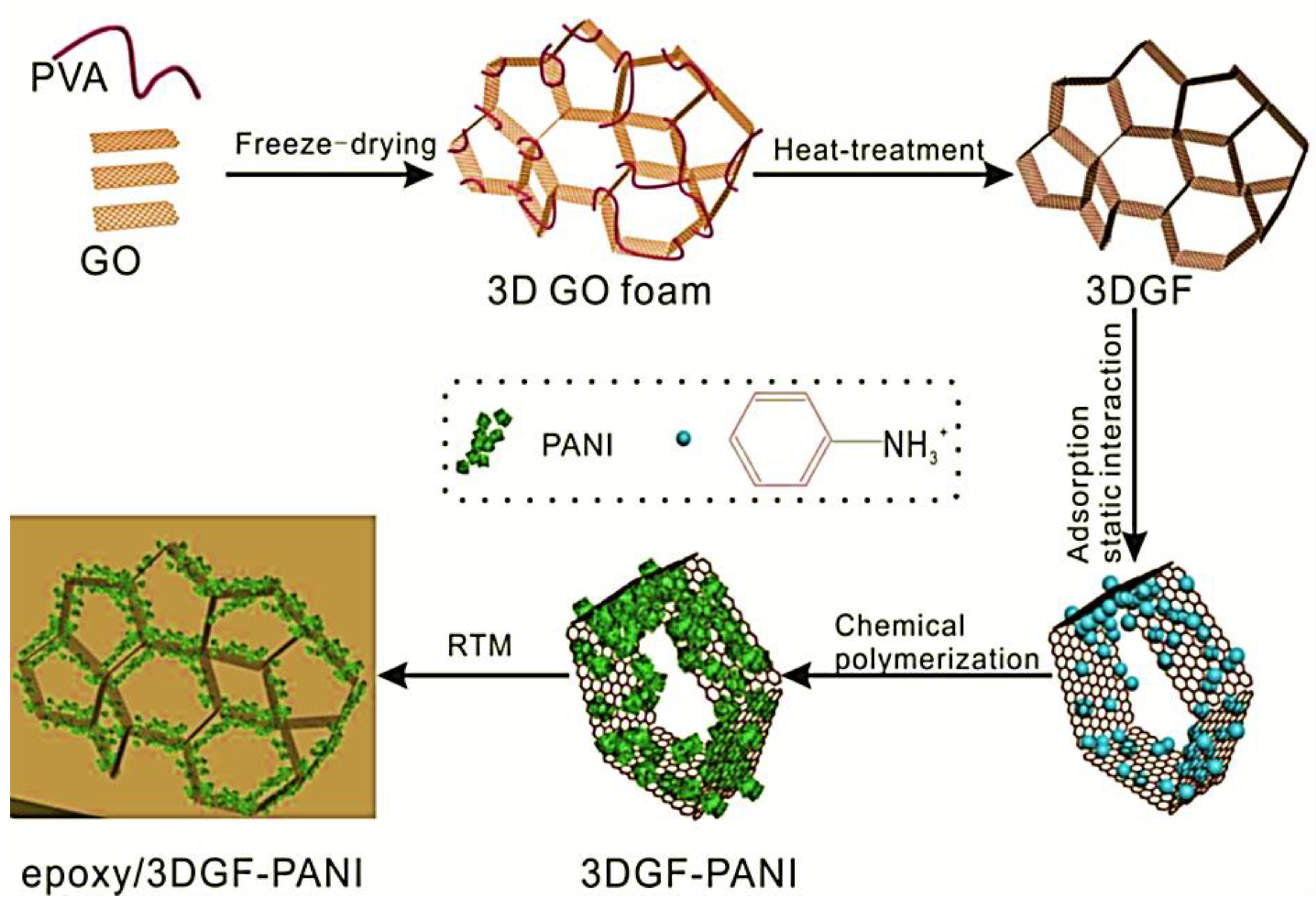

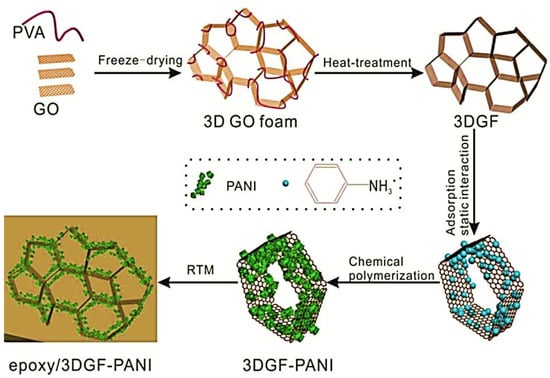

Wang et al. [77] manufactured the polyaniline/3D graphene oxide and reinforced in the epoxy matrix through the in situ oxidative polymerization. Figure 4 depicts the synthesis of epoxy and polyaniline/graphene oxide nanofoam derived nanocomposites. The graphene oxide nanofoam has been prepared using the freeze-drying method. The 3D graphene oxide nanofoam was reduced to the 3D graphene nanofoam. The in situ oxidative polymerization of aniline was performed on the 3D graphene nanofoam to form the nanocomposite. The resulting polyaniline/3D graphene nanofoam was reinforced in the epoxy matrix. The interface bonding between the polymer and nanofoam has been observed. The 0.39 wt.% nanofoam loading enhanced the electrical conductivity to 0.036 Scm−1. Figure 5 shows the interfacial bonding mechanism for the formation of the nanocomposite. The π–π stacking interactions have been observed between the polyaniline and graphene structure.
Li et al. [78] performed the manufacturing of graphene nanofoam by hydrolytic condensation technique. The 3D polypyrrole/graphene oxide nanofoam was developed using the in situ route [79]. The 3D nanofoams were applied for oil and solvent adsorption. The sorption capacities were found to be high, >100 gg−1, due to 3D covalent network formation in the nanofoams [80]. Salvatierra [81] reported on the preparation of polythiophene/graphene nanofoam nanocomposite through the one-pot in situ route.
Wang et al. [82] used the infiltration technique for the formation of the epoxy and graphene-nanofoam-based nanocomposite. Jia and co-workers [83] manufactured the graphene nanofoam reinforced epoxy derived nanocomposites using the infiltration method. The nanocomposite had high fracture toughness of 1.78 MPa·m1/2. Moreover, the 0.2 wt.% nanofoam loading revealed the electrical conductivity of 3 Scm−1. Ormategui et.al. [84] proposed the epoxy and reduced graphene-oxide-nanofoam-based nanocomposite with superior electrical conductivity and mechanical properties.
Rinaldi [85] manufactured the poly(dimethyl siloxane) (PDMS) and graphene-nanofoam-based nanocomposite using direct template method. The PDMS/graphene-nanofoam-derived pressure sensor was developed, which detected pressure variations ~1 Pa. The nanocomposite sensing material had compressive stress ~10 kP. Zhao and co-workers [86] manufactured the poly(dimethyl siloxane) nanocomposites with graphene nanofoam and graphene sheet nanofillers. The nanocomposites were formed through the solution and infiltration routes. Figure 6 depicts the scanning/transmission electron microscopy images of the graphene nanofoam and graphene sheet. The graphene nanofoam had a three-dimensional structure, whereas the graphene sheet possesses a wrinkled structure. Figure 7 shows the thermal conductivity of neat PDMS and nanocomposite with graphene nanofoam and graphene nanosheet. Neat PDMS revealed thermal conductivity of 0.19 Wm−1K−1. The graphene-nanofoam- and graphene-nanosheet-based nanocomposites had high thermal conductivity of 0.46 and 0.56 Wm−1K−1, respectively. The better graphene dispersion and inter-linked network formation led to better thermal conductivity and electron transportation properties.

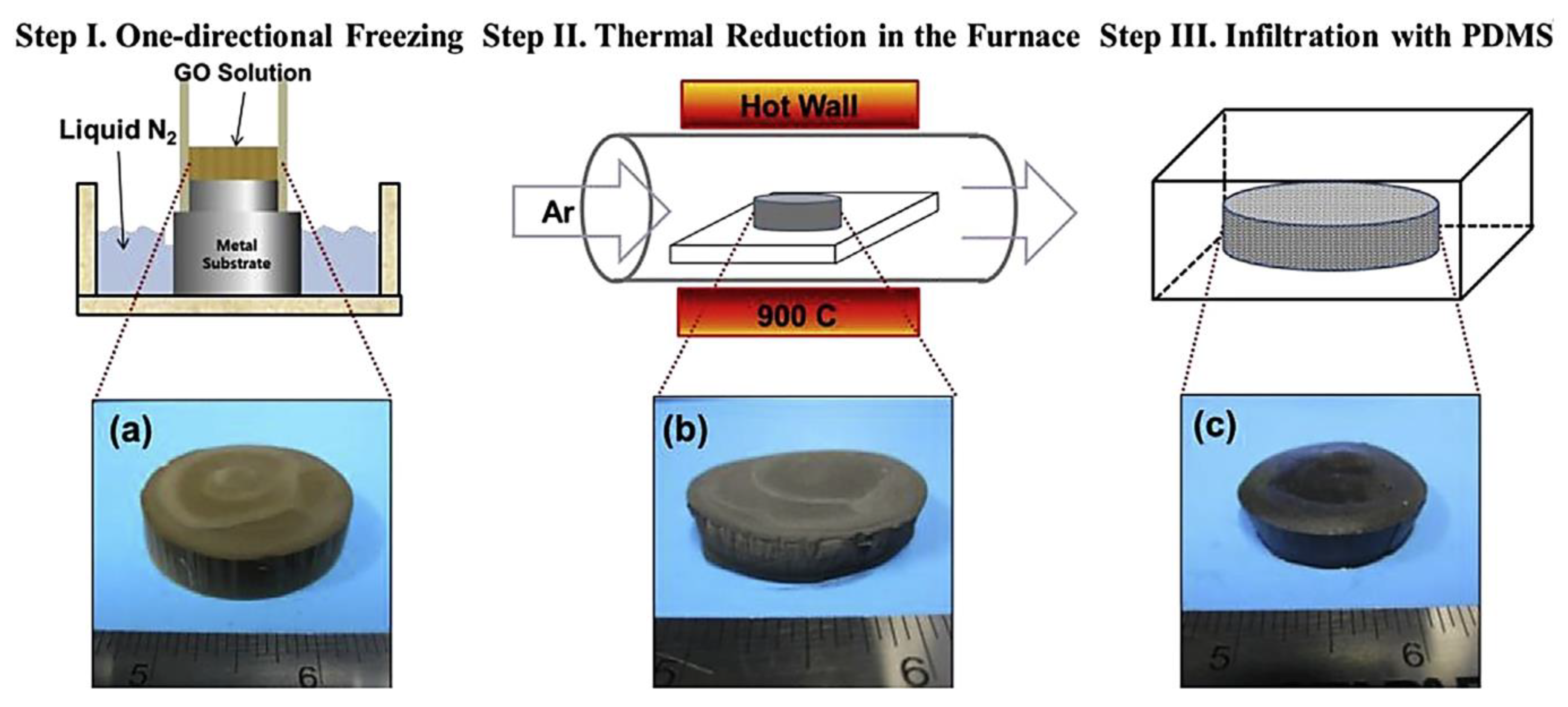

Jun et al. [87] manufactured the poly(dimethyl siloxane)/graphene nanofoam nanocomposites using the freeze-drying and infiltration methods. The small flake and large flake graphite nanosheets have been used to form the graphene nanofoam. Figure 8 demonstrates the manufacturing processes for the formation of graphene nanofoam by a freeze-drying technique. Later, the infiltration of PDMS resin through the nanofoam led to the formation of nanocomposite. Figure 9 depicts the in-plane electrical conductivity of the poly(dimethyl siloxane)/graphene nanofoam nanocomposites. The 1.9 wt.% large flake graphite led to high electrical conductivity of 102 Sm−1, due to better dispersion and interconnecting matrix-nanofiller network formation.

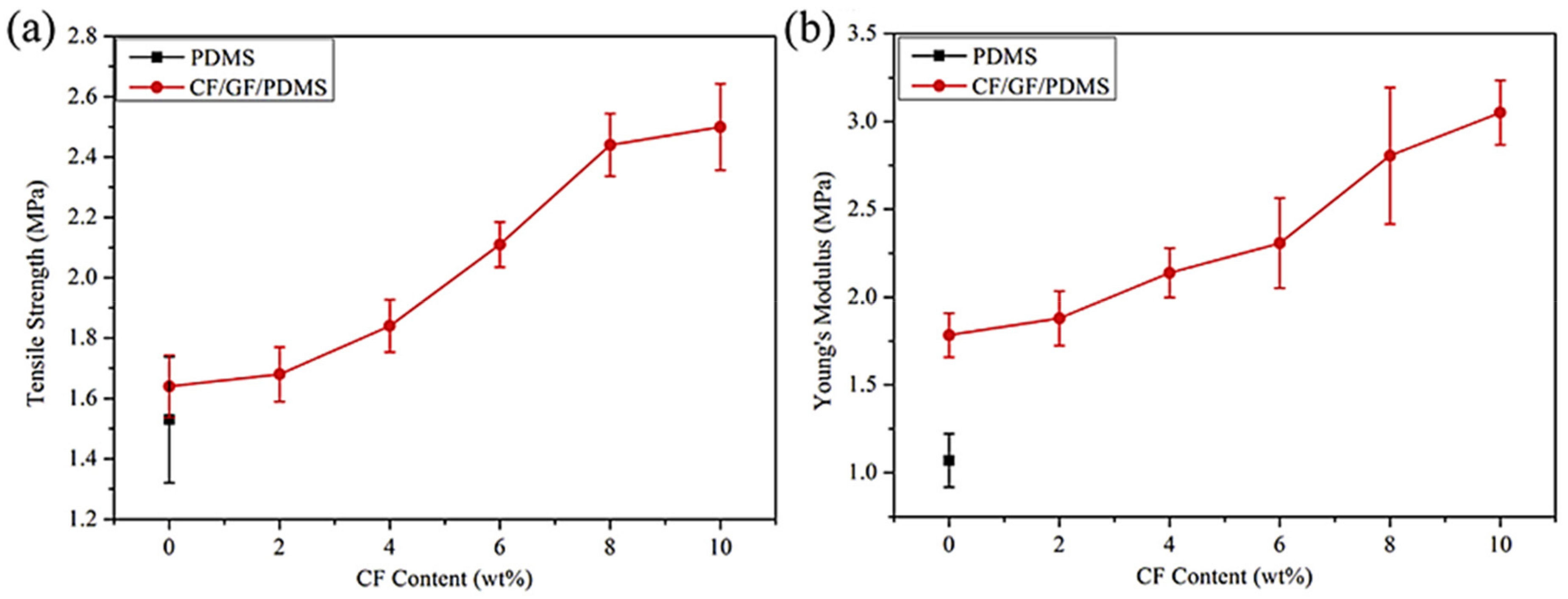

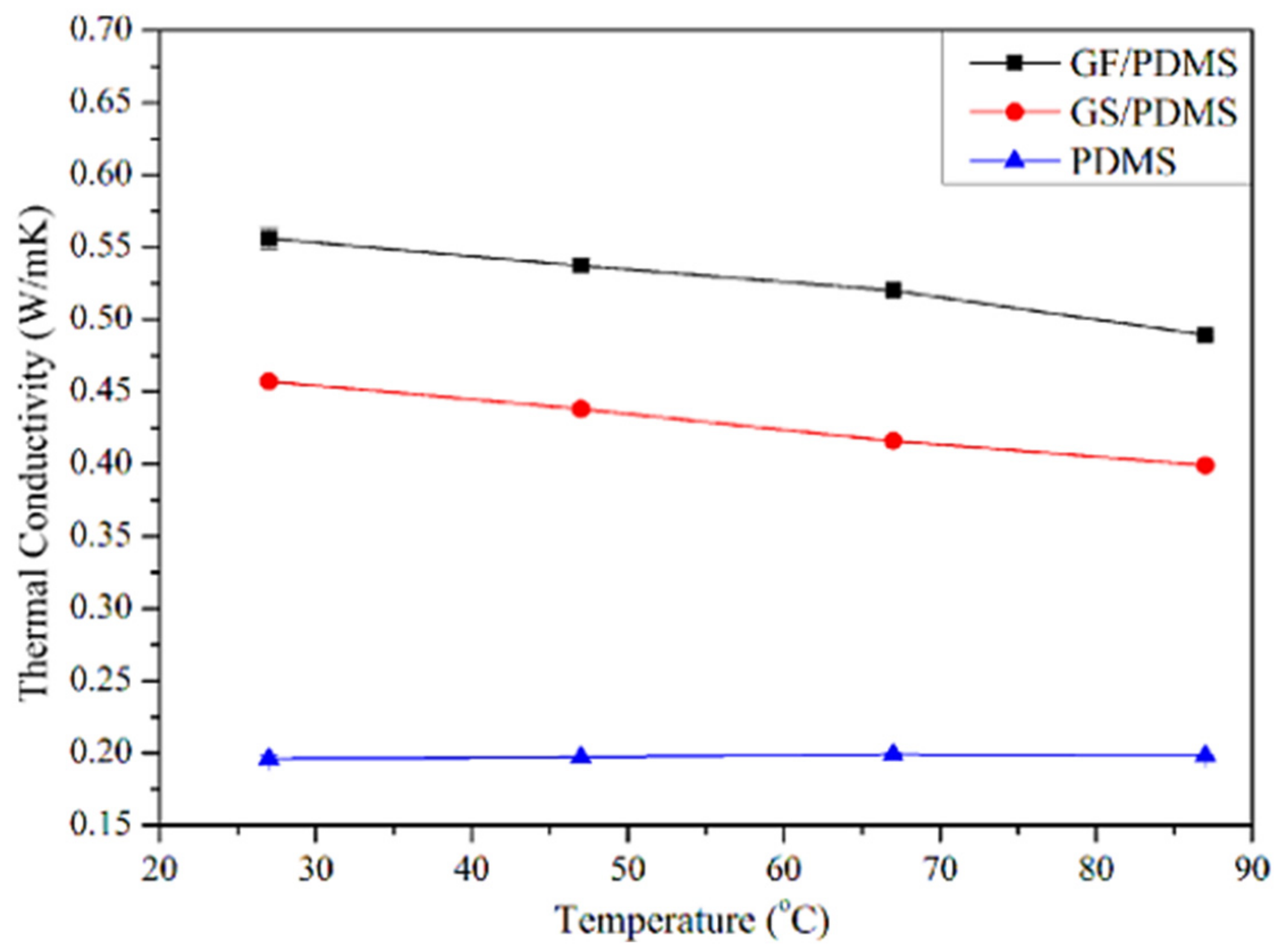

Zhao et al. [88] filled the PDMS matrix with the graphene nanofoam and carbon fiber fillers using high speed shearing and stirring techniques. The filler contents were varied up to 10 wt.%. The 10 wt.% filler addition enhanced the tensile strength and Young’s modulus by 52% and 71%, respectively, relative to neat PDMS (Figure 10). The increase was credited to the strong interfacial bonding between the PDMS and the fillers. Moreover, the thermal conductivity of 0.55 Wm−1 K−1 was observed, that is, ~162% higher than the neat PDMS. Yuan and co-researchers [89] manufactured the polystyrene and graphene-nanofoam-based nanomaterials through the vacuum filtration technique. The polystyrene/graphene nanofoam was used to form the supercapacitor electrode and own large specific capacitance of 141–206 Fg−1. Figure 11 shows the varying trend of specific capacitance as a function of current density for the graphene nanofoam nanocomposite.
Gnanasekaran and co-workers [90] manufactured the polybutylene terephthalate/graphene nanofoam nanocomposite using the infiltration method. The nanomaterial was utilized for the printing of electrically conducting structures. Among other polymers, polyamide 6 has been composited with the graphene nanofoam through in situ polymerization [91]. The polyamide 6/graphene nanofoam nanocomposite had high thermal conductivity of 0.891 Wm−1K−1 [92]. Thus, various combinations of polymers with graphene nanofoam, graphene oxide nanofoam, and reduced graphene oxide nanofoam have been manufactured through facile routes. The nanofoam designs have been explored for the enhanced morphological, conducting, capacitance, thermal, and mechanical properties.

5. Significance of Polymer/Graphene Nanofoam Nanocomposite

The manufacturing and property exploration of the polymer/graphene nanofoam architectures have attracted considerable research attention in numerous technical fields [93,94]. Table 2 compares the essential polymer- and nanofoam-based nanomaterials with fabrication techniques, properties, and application areas. It has been observed that the conducting polymer-based nanocomposites revealed enhanced electrical conductivity properties for suitable applications. However, thermoplastic polymer/graphene nanofoam nanomaterials also revealed high performance and technical uses. Consequently, by manufacturing 3D graphene nanofoam instead of two-dimensional graphene nanostructures, high performance and industrial applications have been achieved.
Consequently, significant technical application areas of the polymer/3D graphene nanofoam nanomaterials have been discovered [94]. The electromagnetic pollution, due to intensive use of electronic devices, has caused serious environmental issues [103]. In this regard, the electromagnetic interference (EMI) shielding nanocomposites were manufactured through the three dimensional graphene nanofoams [104]. Owing to high electrical conductivity, the graphene-nanofoam-based nanocomposites revealed fine EMI shielding performance. The graphene-nanofoam-based nanocomposites possess high durability, flexibility, and radiation protection features [105]. Such materials have been found very useful in the aerospace sector for radiation shielding [106]. Important research attempts have been found on the conducting polymer/graphene nanofoam nanocomposites for EMI shielding applications [107,108]. Wu et al. [95] manufactured the ultralight poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate)/graphene nanocomposite nanofoam using the drop coating technique. This method resulted in enhanced wettability and interfacial interactions between the poly(3,4-ethylenedioxythiophene):poly(styrenesulfonate) matrix and graphene nanofoam. The nanocomposite nanofoam revealed high porosity (98.8%) and ultralow density ~18.2 × 10−3 g/cm3. Due to a finely interlinked 3D network structure, high electrical conductivity of 43.2 Scm−1 was obtained. Consequently, the nanocomposite nanofoam revealed significantly high EMI shielding effectiveness of 91.9 dB. In addition, thermoplastic polymer/graphene nanofoam has been developed for EMI shielding applications [109]. Eswaraiah et al. [96] manufactured the poly(vinylidene fluoride)/graphene nanofoam nanomaterials using the hot pressing technique with a foaming agent. Due to fine compatibility between polymer–graphene nanofoam and conducting network formation, the electrical conductivity of nanomaterial (10−4 S m−1) was found to be higher than the neat polymer (10−16 S m−1). Consequently, the 0.5 wt.% graphene nanofoam contents led to EMI shielding effectiveness of ~20 dB in X-band (8–12 GHz). Furthermore, the polyurethane and graphene nanofoam nanocomposites have been manufactured through the hydrothermal method [97]. Due to superconductivity features, the polyurethane/graphene nanofoam nanocomposites own high EMI shielding effectiveness of 969–1578 dBcm2g−1. Future research attempts have been found desirable for lightweight high-performance polymer/graphene-nanofoam-based EMI shielding materials for X-band. Additionally, the mechanism of EMI shielding in these nanomaterials need to be explored in the future.
Another important application of 3D graphene nanofoam has been observed in photovoltaics [110]. By converting the 2D graphene to 3D graphene nanofoam network, remarkable solar cell performance has been observed for solar cells [111]. In this regard, graphene-nanofoam-based dye sensitized solar cells (DSSC) have been developed and analyzed for environmental stability, toxicity, cost-effective, and commercial uses. Lee et al. [98] designed the 3D nanofoam using CVD and spin coating techniques on the polymer/nickel. The photovoltaic performance of DSSC was measured with AM 1.5 illumination (100 mW cm2). Tang et al. [99] manufactured DSSC using graphene nanofoam and CVD system. The graphene nanofoam was applied as the photoanode to enhance the photovoltaic functioning (Figure 12 and Table 3). Inclusion of 1 wt.% graphene nanofoam resulted in high power conversion efficiency and short-circuit current density of 6.58% and 15.4 mAcm−2, respectively. The graphene-nanofoam-based material had high dye absorption efficiency of ~1.28 × 10−7 mol cm−2. The nanomaterial depicted competent solar cell efficiency, dye absorption, and electrode lifetime. However, limited research attempts have been seen in the field of polymer/graphene-nanofoam-based DSSC and need to be further explored.

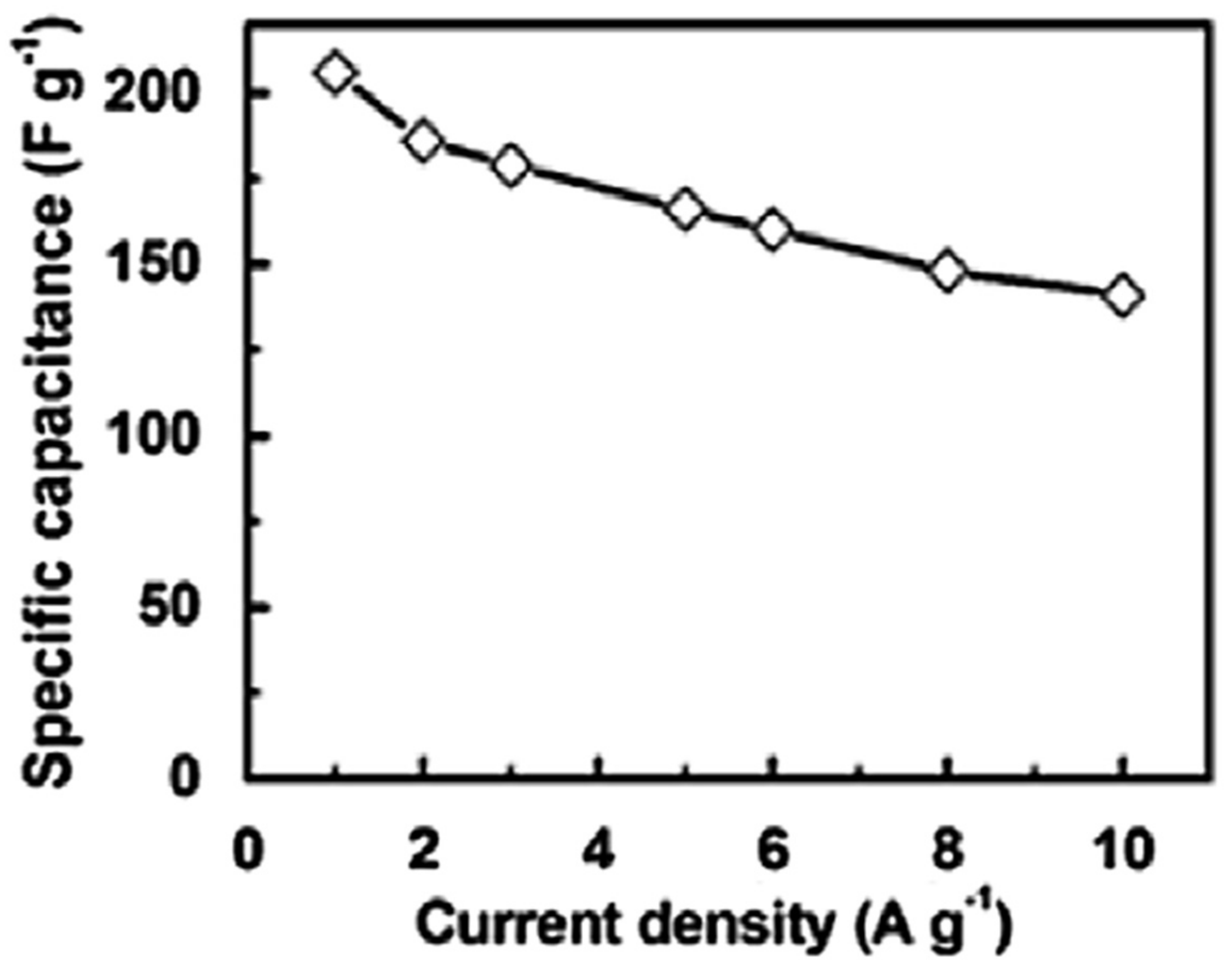

Supercapacitors are an efficient energy storage device exhibiting ultrahigh capacitance, power density, and long cycle life [112]. The supercapacitor materials have been researched for low cost, high specific surface area, mechanical robustness, and chemical stability properties [113,114]. Especially, graphene is an emerging carbon material used in the field of energy storage. The graphene nanofiller has been reinforced in the polymers for enhanced supercapacitance features [115]. For supercapacitors, the 3D graphene-nanofoam-based electrodes have also been used [116]. The polypyrrole/3D graphene nanofoam derived electrodes had elevated specific capacitance of ~300 F/g [117]. Graphene nanofoam exposed capacitance of ≥95% over 1000 galvanostatic charge/discharge cycles. Moreover, the epoxy/graphene nanofoam with nanoparticles have been used to form the supercapacitor electrode capacitance [118,119]. The supercapacitor electrode showed capacitance of 38 mFcm−2 and current density of 0.67 mAcm−2. The resulting supercapacitors possess high power efficiency and long lifetime [120]. Ye et al. [100] formed the 3D polypyrrole/graphene nanofoam using solution dispersion and chemical/hydrothermal reduction routes. The π–π stacking interactions were observed between the polypyrrole and graphene nanofoam. The nanocomposite nanofoam possess high specific surface areas and uniform porosity. The 3D interlinked hierarchically porous nanostructure led to high specific capacitance of 253–520 Fg−1 and excellent cycling stability [121]. Yu et al. [101] prepared the 3D polyaniline/graphene nanofoam using one-step electrochemical deposition technique. The highly ordered 3D nanostructure of polyaniline/graphene nanofoam electrode had high specific capacitance of 751 Fg−1 and capacitance retention of 98.2% after 1000 charging/discharging cycles. Future research attempts must focus the design of chemically/thermally stable conducting polymer/graphene nanofoam and use of green nanomaterials for advanced supercapacitors for commercial applications.
Graphene nanofoam has also been applied in electronics such as batteries, sensors, etc. [122,123]. To advance the existing lithium–sulfur batteries for the current energy storage marketplace, it has been found essential to increase the electrochemical stability of the sulfur electrodes [124]. In this regard, graphene nanofoam has been designed as a current collector for the lithium–sulfur battery cathode. The graphene nanofoam may develop tortuous conducting network to enhance the conductivity of sulfur cathodes. CVD technique has been used to form graphene-nanofoam-based electrodes for lithium–sulfur batteries [125]. Few attempts have also been observed on the graphene-nanofoam-based strain sensors [126]. Electron transportation through these sensors has been analyzed [127]. The potential application of graphene nanofoam in straintronics may result in further advances in this field [128]. Nevertheless, few polymer/graphene-nanofoam-derived nanomaterials have been applied for electronics, and further efforts are needed to explore the full potential of these materials in this application.
For fuel cell applications, latest advances have revealed the use of graphene-based nanomaterials in the bipolar plates, electrodes, and electrolytes [129]. In this regard, the novel graphene-based nanomaterials and related structure-property relationships have been explored. Accordingly, the graphene nanofoam has been applied as catalyst supports [130]. Especially, graphene nanofoam has been used as anode electrode for the microbial fuel cell [131]. High power density of 427.0 W/m3 of fuel cell was observed. Research efforts have been performed for improving the operational stability and lifetime of the polymer electrolyte membrane fuel cell (PEMFC) [132]. Nevertheless, the corrosion of metal bipolar plates has been observed as a major challenge in PEMFC, which may lead to low fuel cell efficiency and durability [133]. Sim et al. [102] designed the 3D nanostructure based on the poly(methyl methacrylate)/multilayer graphene using the rapid thermal annealing method. The 3D poly(methyl methacrylate)/graphene nanofoam was used to form the bipolar plate for fuel cell. The resulting PEMFC revealed significantly high power density of ∼967 mW cm−2 at cell potential of 0.5 V. Moreover, the interfacial contact resistance of 9.3 mΩ cm2 was observed at 10.1 kgf cm−2. Future efforts on manufacturing the novel polymer/graphene nanofoam designs may help to overcome the limitations of present PEMFC systems and to further enhance the efficiency of these energy conversion systems.
In future, the graphene-nanofoam-derived nanofibers can be developed for various unexplored technical application areas [134,135,136]. Moreover, large-scale production of polymer/graphene nanofoam materials need to be focused on in the future. In addition, the polymer/graphene nanofoams nanocomposites need to be explored in numerous uncovered areas like separation/purification applications, dye adsorption, oil–water separation, tissue engineering, and other biomedical fields [137,138,139]. Here, the choice of appropriate fabrication technique, in addition to the graphene-nanofoam-derived nanocomposite design led to high-tech applications.

6. Conclusions

The two-dimensional graphene has been applied to manufacture the 3D network structure of graphene nanofoam. The intrinsic features of graphene have been embodied in the graphene nanofoam architecture along with several exceptional properties of 3D nanostructure. Therefore, the graphene nanofoam show numerous beneficial features, relative to the neat graphene. The graphene nanofoam was manufactured using efficient techniques. An important use of graphene nanofoam has been observed in nanocomposite manufacturing. Here, the developments in design, features, and application areas of polymer and graphene nanofoam nanocomposite have been discussed. The graphene-nanofoam-derived nanocomposites, obtained through facile manufacturing techniques, led to high performance advanced uses. Graphene nanofoam has been found as a true wonder material that promises much in a variety of applications. Different facile methods have been discovered for the synthesis of graphene nanofoam and related nanomaterials, leading to viability and practicalities for the different practical relevance. Consequently, the modification of graphene-to-graphene nanofoam and polymer/graphene nanofoam has a marked impact in manifold applications including radiation shielding, energy storage/production devices, and electronics. Consequently, the current state-of-the-art graphene nanofoam research revolves around the EMI shielding, energy, and electronics fields. The development of 3D graphene nanostructures offers large surface area, porosity, electron transportation, charge passage, specific capacitance, current density, and radiation shielding effectiveness. Here, the interactions between the polymers and 3D graphene nanofoam are essential to improve the nanocomposite performance. Furthermore, the precise control over the pore size/distribution, flexibility, morphology, conductivity, and mechanical/chemical stability, and structure–property relationships of the materials may lead to future high-tech potential of unique graphene-nanofoam-based nanocomposites.

Author Contributions

Conceptualization, A.K.; data curation, A.K.; writing of original draft preparation, A.K.; Review and editing, A.K., I.A., T.Z., M.H.E. and O.A. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Xiong, Z.; Marconnet, A.; Ruan, X. Unconventional and Dynamically Anisotropic Thermal Conductivity in Compressed Flexible Graphene Foams. ACS Appl. Mater. Interfaces 2022, 14, 48960–48966. [Google Scholar] [CrossRef] [PubMed]
  2. Mubarik, S.; Qureshi, N.; Sattar, Z.; Shaheen, A.; Kalsoom, A.; Imran, M.; Hanif, F. Synthetic approach to rice waste-derived carbon-based nanomaterials and their applications. Nanomanufacturing 2021, 1, 109–159. [Google Scholar] [CrossRef]
  3. Trout, C.J.; Kumpf, P.; Sipps, K.; Griepenburg, J.C.; O’Malley, S.M. The Influence of Alkanethiols on the Production of Hydrophobic Gold Nanoparticles via Pulsed Laser Ablation in Liquids. Nanomanufacturing 2021, 1, 9. [Google Scholar] [CrossRef]
  4. Gao, J.; Li, Y.; Yu, X.; Ma, Y. Graphdiyne reinforced multifunctional Cu/Ni bimetallic Phosphides-Graphdiyne hybrid nanostructure as high performance electrocatalyst for water splitting. J. Colloid Interface Sci. 2022, 628, 508–518. [Google Scholar] [CrossRef] [PubMed]
  5. Kausar, A. Graphene to Polymer/Graphene Nanocomposites: Emerging Research and Opportunities; Elsevier: Amsterdam, The Netherlands, 2021. [Google Scholar]
  6. Yin, S.; Niu, Z.; Chen, X. Assembly of graphene sheets into 3D macroscopic structures. Small 2012, 8, 2458–2463. [Google Scholar] [CrossRef]
  7. Gao, H.; Duan, H. 2D and 3D graphene materials: Preparation and bioelectrochemical applications. Biosens. Bioelectron. 2015, 65, 404–419. [Google Scholar] [CrossRef] [PubMed]
  8. Zhu, C.; Han, T.Y.-J.; Duoss, E.B.; Golobic, A.M.; Kuntz, J.D.; Spadaccini, C.M.; Worsley, M.A. Highly compressible 3D periodic graphene aerogel microlattices. Nat. Commun. 2015, 6, 6962. [Google Scholar] [CrossRef]
  9. Su, D. Macroporous ‘bubble’graphene film via template-directed ordered-assembly for high rate supercapacitors. Chem. Commun. 2012, 48, 7149–7151. [Google Scholar]
  10. Chen, Z.; Ren, W.; Gao, L.; Liu, B.; Pei, S.; Cheng, H.-M. Three-dimensional flexible and conductive interconnected graphene networks grown by chemical vapour deposition. Nat. Mater. 2011, 10, 424. [Google Scholar] [CrossRef]
  11. Cao, X.; Shi, Y.; Shi, W.; Lu, G.; Huang, X.; Yan, Q.; Zhang, Q.; Zhang, H. Preparation of novel 3D graphene networks for supercapacitor applications. Small 2011, 7, 3163–3168. [Google Scholar] [CrossRef]
  12. Choi, B.G.; Yang, M.; Hong, W.H.; Choi, J.W.; Huh, Y.S. 3D macroporous graphene frameworks for supercapacitors with high energy and power densities. ACS Nano 2012, 6, 4020–4028. [Google Scholar] [CrossRef] [PubMed]
  13. Chen, W.; Li, S.; Chen, C.; Yan, L. Self-assembly and embedding of nanoparticles by in situ reduced graphene for preparation of a 3D graphene/nanoparticle aerogel. Adv. Mater. 2011, 23, 5679–5683. [Google Scholar] [CrossRef]
  14. Liu, Y.; Jiang, X.; Fu, J.; Zhao, J. New metallic carbon: Three dimensionally carbon allotropes comprising ultrathin diamond nanostripes. Carbon 2018, 126, 601–610. [Google Scholar] [CrossRef]
  15. Moss, S. Less is more: A holey grail of materials science. MRS Bull. 2013, 38, 431–432. [Google Scholar] [CrossRef]
  16. Xu, H.; Li, Y.; Wang, R. Pore-rich iron-nitrogen-doped carbon nanofoam as an efficient catalyst towards the oxygen reduction reaction. Int. J. Hydrogen Energy 2019, 44, 26285–26295. [Google Scholar] [CrossRef]
  17. DeBlock, R.H.; Ko, J.S.; Sassin, M.B.; Hoffmaster, A.N.; Dunn, B.S.; Rolison, D.R.; Long, J.W. Carbon nanofoam paper enables high-rate and high-capacity Na-ion storage. Energy Storage Mater. 2019, 21, 481–486. [Google Scholar] [CrossRef]
  18. Rode, A.V.; Gamaly, E.G.; Christy, A.; Gerald, J.F.; Hyde, S.; Elliman, R.; Luther-Davies, B.; Veinger, A.; Androulakis, J.; Giapintzakis, J. Unconventional magnetism in all-carbon nanofoam. Phys. Rev. B 2004, 70, 54407. [Google Scholar] [CrossRef]
  19. Worsley, M.A.; Baumann, T.F. Carbon aerogels. In Handbook of Sol-Gel Science and Technology; Springer: Berlin/Heidelberg, Germany, 2016; pp. 1–36. [Google Scholar]
  20. Georgakilas, V.; Perman, J.A.; Tucek, J.; Zboril, R. Broad family of carbon nanoallotropes: Classification, chemistry, and applications of fullerenes, carbon dots, nanotubes, graphene, nanodiamonds, and combined superstructures. Chem. Rev. 2015, 115, 4744–4822. [Google Scholar] [CrossRef]
  21. Chandrasekaran, S.; Campbell, P.G.; Baumann, T.F.; Worsley, M.A. Carbon aerogel evolution: Allotrope, graphene-inspired, and 3D-printed aerogels. J. Mater. Res. 2017, 32, 4166–4185. [Google Scholar] [CrossRef]
  22. Tuček, J.; Błoński, P.; Ugolotti, J.; Swain, A.K.; Enoki, T.; Zbořil, R. Emerging chemical strategies for imprinting magnetism in graphene and related 2D materials for spintronic biomedical applications. Chem. Soc. Rev. 2018, 47, 3899–3990. [Google Scholar] [CrossRef]
  23. Ni, W.; Wu, H.B.; Wang, B.; Xu, R.; Lou, X.W. One-Pot Synthesis of Ultra-Light Nickel Nanofoams Composed of Nanowires and Their Transformation into Various Functional Nanofoams. Small 2012, 8, 3432–3437. [Google Scholar] [CrossRef] [PubMed]
  24. Reddy, B.N.; Gupta, B.; Gacche, R. An arsenal for 21st century noxious diseases: Carbon nanomaterials. Int. J. Nanotechnol. Appl. 2009, 3, 61–76. [Google Scholar]
  25. Kohno, H.; Tatsutani, K.; Ichikawa, S. Carbon nanofoam formed by laser ablation. J. Nanosci. Nanotechnol. 2012, 12, 2844–2848. [Google Scholar] [CrossRef]
  26. Ju, Z.; Zhang, S.; Xing, Z.; Zhuang, Q.; Qiang, Y.; Qian, Y. Direct synthesis of few-layer F-doped graphene foam and its lithium/potassium storage properties. ACS Appl. Mater. Interfaces 2016, 8, 20682–20690. [Google Scholar] [CrossRef] [PubMed]
  27. Li, C.; Li, Z.; Ye, X.; Yang, X.; Zhang, G.; Li, Z. Crosslinking-induced spontaneous growth: A novel strategy for synthesizing sandwich-type graphene@ Fe3O4 dots/amorphous carbon with high lithium storage performance. Chem. Eng. J. 2018, 334, 1614–1620. [Google Scholar] [CrossRef]
  28. Dutta, S.; Kim, J.; Ide, Y.; Kim, J.H.; Hossain, M.S.A.; Bando, Y.; Yamauchi, Y.; Wu, K.C.-W. 3D network of cellulose-based energy storage devices and related emerging applications. Mater. Horiz. 2017, 4, 522–545. [Google Scholar] [CrossRef]
  29. Błaszczyński, T.; Ślosarczyk, A.; Morawski, M. Synthesis of silica aerogel by supercritical drying method. Procedia Eng. 2013, 57, 200–206. [Google Scholar] [CrossRef]
  30. Mujeebu, M.A.; Ashraf, N.; Alsuwayigh, A.H. Effect of nano vacuum insulation panel and nanogel glazing on the energy performance of office building. Appl. Energy 2016, 173, 141–151. [Google Scholar] [CrossRef]
  31. Berardi, U. The development of a monolithic aerogel glazed window for an energy retrofitting project. Appl. Energy 2015, 154, 603–615. [Google Scholar] [CrossRef]
  32. Song, S.H.; Park, K.H.; Kim, B.H.; Choi, Y.W.; Jun, G.H.; Lee, D.J.; Kong, B.S.; Paik, K.W.; Jeon, S. Enhanced thermal conductivity of epoxy–graphene composites by using non-oxidized graphene flakes with non-covalent functionalization. Adv. Mater. 2013, 25, 732–737. [Google Scholar] [CrossRef]
  33. Zhao, S.; Yan, Y.; Gao, A.; Zhao, S.; Cui, J.; Zhang, G. Flexible polydimethylsilane nanocomposites enhanced with a three-dimensional graphene/carbon nanotube bicontinuous framework for high-performance electromagnetic interference shielding. ACS Appl. Mater. Interfaces 2018, 10, 26723–26732. [Google Scholar] [CrossRef] [PubMed]
  34. Bor, J.; Lafond, O.; Merlet, H.; Le Bars, P.; Himdi, M. Technological process to control the foam dielectric constant application to microwave components and antennas. IEEE Trans. Compon. Packag. Manuf. Technol. 2014, 4, 938–942. [Google Scholar] [CrossRef] [Green Version]
  35. Yuan, X.; Chung, T.M. Cross-linking effect on dielectric properties of polypropylene thin films and applications in electric energy storage. Appl. Phys. Lett. 2011, 98, 062901. [Google Scholar] [CrossRef]
  36. Zhao, B.; Hamidinejad, M.; Zhao, C.; Li, R.; Wang, S.; Kazemi, Y.; Park, C.B. A versatile foaming platform to fabricate polymer/carbon composites with high dielectric permittivity and ultra-low dielectric loss. J. Mater. Chem. A 2019, 7, 133–140. [Google Scholar] [CrossRef]
  37. Wang, G.; Liao, X.; Yang, J.; Tang, W.; Zhang, Y.; Jiang, Q.; Li, G. Frequency-selective and tunable electromagnetic shielding effectiveness via the sandwich structure of silicone rubber/graphene composite. Compos. Sci. Technol. 2019, 184, 107847. [Google Scholar] [CrossRef]
  38. Molle, A.; Goldberger, J.; Houssa, M.; Xu, Y.; Zhang, S.-C.; Akinwande, D. Buckled two-dimensional Xene sheets. Nat. Mater. 2017, 16, 163. [Google Scholar] [CrossRef]
  39. Geng, D.; Wu, B.; Guo, Y.; Huang, L.; Xue, Y.; Chen, J.; Yu, G.; Jiang, L.; Hu, W.; Liu, Y. Uniform hexagonal graphene flakes and films grown on liquid copper surface. Proc. Natl. Acad. Sci. USA 2012, 109, 7992–7996. [Google Scholar] [CrossRef]
  40. Pashangpour, M.; Bagheri, Z.; Ghaffari, V. A comparison of electronic transport properties of graphene with hexagonal boron nitride substrate and graphane, a first principle study. Eur. Phys. J. B 2013, 86, 269. [Google Scholar] [CrossRef]
  41. Butler, S.Z.; Hollen, S.M.; Cao, L.; Cui, Y.; Gupta, J.A.; Gutiérrez, H.R.; Heinz, T.F.; Hong, S.S.; Huang, J.; Ismach, A.F. Progress, challenges, and opportunities in two-dimensional materials beyond graphene. ACS Nano 2013, 7, 2898–2926. [Google Scholar] [CrossRef]
  42. Bozzi, M.; Pierantoni, L.; Bellucci, S. Applications of graphene at microwave frequencies. Radioengineering 2015, 24, 661–669. [Google Scholar] [CrossRef]
  43. Yuchang, Q.; Qinlong, W.; Fa, L.; Wancheng, Z. Temperature dependence of the electromagnetic properties of graphene nanosheet reinforced alumina ceramics in the X-band. J. Mater. Chem. C 2016, 4, 4853–4862. [Google Scholar] [CrossRef]
  44. Jiang, W.; Xin, H.; Li, W. Microcellular 3D graphene foam via chemical vapor deposition of electroless plated nickel foam templates. Mater. Lett. 2016, 162, 105–109. [Google Scholar] [CrossRef]
  45. Wang, D.; Gao, H.; Roze, E.; Qu, K.; Liu, W.; Shao, Y.; Xin, S.; Wang, Y. Synthesis and photoluminescence of three-dimensional europium-complexed graphene macroassembly. J. Mater. Chem. C 2013, 1, 5772–5778. [Google Scholar] [CrossRef]
  46. Xie, X.; Zhou, Y.; Bi, H.; Yin, K.; Wan, S.; Sun, L. Large-range control of the microstructures and properties of three-dimensional porous graphene. Sci. Rep. 2013, 3, 2117. [Google Scholar] [CrossRef] [PubMed]
  47. Kawai, S.; Foster, A.S.; Björkman, T.; Nowakowska, S.; Björk, J.; Canova, F.F.; Gade, L.H.; Jung, T.A.; Meyer, E. Van der Waals interactions and the limits of isolated atom models at interfaces. Nat. Commun. 2016, 7, 11559. [Google Scholar] [CrossRef] [PubMed]
  48. Jiang, L.; Fan, Z. Design of advanced porous graphene materials: From graphene nanomesh to 3D architectures. Nanoscale 2014, 6, 1922–1945. [Google Scholar] [CrossRef]
  49. Chowdhury, S.; Balasubramanian, R. Three-dimensional graphene-based macrostructures for sustainable energy applications and climate change mitigation. Prog. Mater. Sci. 2017, 90, 224–275. [Google Scholar] [CrossRef]
  50. Sheng, H.; Wei, M.; D’Aloia, A.; Wu, G. Heteroatom polymer-derived 3D high-surface-area and mesoporous graphene sheet-like carbon for supercapacitors. ACS Appl. Mater. Interfaces 2016, 8, 30212–30224. [Google Scholar] [CrossRef]
  51. Cong, H.-P.; Chen, J.-F.; Yu, S.-H. Graphene-based macroscopic assemblies and architectures: An emerging material system. Chem. Soc. Rev. 2014, 43, 7295–7325. [Google Scholar] [CrossRef]
  52. Fang, Q.; Shen, Y.; Chen, B. Synthesis, decoration and properties of three-dimensional graphene-based macrostructures: A review. Chem. Eng. J. 2015, 264, 753–771. [Google Scholar] [CrossRef]
  53. Chabot, V.; Higgins, D.; Yu, A.; Xiao, X.; Chen, Z.; Zhang, J. A review of graphene and graphene oxide sponge: Material synthesis and applications to energy and the environment. Energy Environ. Sci. 2014, 7, 1564–1596. [Google Scholar] [CrossRef]
  54. Xia, X.; Chao, D.; Zhang, Y.Q.; Shen, Z.X.; Fan, H.J. Three-dimensional graphene and their integrated electrodes. Nano Today 2014, 9, 785–807. [Google Scholar] [CrossRef]
  55. Deng, X.; Li, J.; Zhu, S.; He, F.; He, C.; Liu, E.; Shi, C.; Li, Q.; Zhao, N. Metal–organic frameworks-derived honeycomb-like Co3O4/three-dimensional graphene networks/Ni foam hybrid as a binder-free electrode for supercapacitors. J. Alloys Compd. 2017, 693, 16–24. [Google Scholar] [CrossRef]
  56. Banciu, C.A.; Nastase, F.; Istrate, A.-I.; Veca, L.M. 3D Graphene Foam by Chemical Vapor Deposition: Synthesis, Properties, and Energy-Related Applications. Molecules 2022, 27, 3634. [Google Scholar] [CrossRef] [PubMed]
  57. Ma, Y.; Chen, Y. Three-dimensional graphene networks: Synthesis, properties and applications. Natl. Sci. Rev. 2015, 2, 40–53. [Google Scholar] [CrossRef]
  58. Sai, H.; Xing, L.; Xiang, J.; Cui, L.; Jiao, J.; Zhao, C.; Li, Z.; Li, F.; Zhang, T. Flexible aerogels with interpenetrating network structure of bacterial cellulose–silica composite from sodium silicate precursor via freeze drying process. RSC Adv. 2014, 4, 30453–30461. [Google Scholar] [CrossRef]
  59. Thomas, T.; Agarwal, A. A facile and scalable approach in the fabrication of tailored 3D graphene foam via freeze drying. Materials 2021, 14, 864. [Google Scholar] [CrossRef]
  60. Qu, B.; Lian, X.-B.; Wu, Q.-H. Growth of three-dimensional graphene films on the Ni foil. Surf. Eng. 2016, 32, 750–754. [Google Scholar] [CrossRef]
  61. Hu, C.; Mou, Z.; Lu, G.; Chen, N.; Dong, Z.; Hu, M.; Qu, L. 3D graphene–Fe3O4 nanocomposites with high-performance microwave absorption. Phys. Chem. Chem. Phys. 2013, 15, 13038–13043. [Google Scholar] [CrossRef]
  62. Zhang, Y.; Cui, W.; An, W.; Liu, L.; Liang, Y.; Zhu, Y. Combination of photoelectrocatalysis and adsorption for removal of bisphenol A over TiO2-graphene hydrogel with 3D network structure. Appl. Catal. B Environ. 2018, 221, 36–46. [Google Scholar] [CrossRef]
  63. Yang, Q.; Lu, R.; Ren, S.; Chen, C.; Chen, Z.; Yang, X. Three dimensional reduced graphene oxide/ZIF-67 aerogel: Effective removal cationic and anionic dyes from water. Chem. Eng. J. 2018, 348, 202–211. [Google Scholar] [CrossRef]
  64. Wan, W.; Li, L.; Zhao, Z.; Hu, H.; Hao, X.; Winkler, D.A.; Xi, L.; Hughes, T.C.; Qiu, J. Ultrafast fabrication of covalently cross-linked multifunctional graphene oxide monoliths. Adv. Funct. Mater. 2014, 24, 4915–4921. [Google Scholar] [CrossRef]
  65. Pan, H.; Zhu, S.; Mao, L. Graphene nanoarchitectonics: Approaching the excellent properties of graphene from microscale to macroscale. J. Inorg. Organomet. Polym. Mater. 2015, 25, 179–188. [Google Scholar] [CrossRef]
  66. Liu, S.; Bastola, A.K.; Li, L. A 3D printable and mechanically robust hydrogel based on alginate and graphene oxide. ACS Appl. Mater. Interfaces 2017, 9, 41473–41481. [Google Scholar] [CrossRef]
  67. Lv, P.; Tan, X.-W.; Yu, K.-H.; Zheng, R.-L.; Zheng, J.-J.; Wei, W. Super-elastic graphene/carbon nanotube aerogel: A novel thermal interface material with highly thermal transport properties. Carbon 2016, 99, 222–228. [Google Scholar] [CrossRef]
  68. Min, B.H.; Kim, D.W.; Kim, K.H.; Choi, H.O.; Jang, S.W.; Jung, H.-T. Bulk scale growth of CVD graphene on Ni nanowire foams for a highly dense and elastic 3D conducting electrode. Carbon 2014, 80, 446–452. [Google Scholar] [CrossRef]
  69. Yang, Z.; Chabi, S.; Xia, Y.; Zhu, Y. Preparation of 3D graphene-based architectures and their applications in supercapacitors. Prog. Nat. Sci. Mater. Int. 2015, 25, 554–562. [Google Scholar] [CrossRef]
  70. Xu, L.; Wei, N.; Zheng, Y.; Fan, Z.; Wang, H.-Q.; Zheng, J.-C. Graphene-nanotube 3D networks: Intriguing thermal and mechanical properties. J. Mater. Chem. 2012, 22, 1435–1444. [Google Scholar] [CrossRef]
  71. Thomas, T.; Zhang, C.; Feliciano Ruiz, K.M.; Ramos-Pagan, C.I.; Negron, D.M.R.; Boesl, B.; Agarwal, A. Engineering Graphene-Ceramic 3D Composite Foams by Freeze Drying. Adv. Eng. Mater. 2021, 23, 2001546. [Google Scholar] [CrossRef]
  72. Ming, R.; Ding, Y.; Chang, F.; He, X.; Feng, J.; Wang, C.; Zhang, P. Humidity-dependant compression properties of graphene oxide foams prepared by freeze-drying technique. Micro Nano Lett. 2013, 8, 66–67. [Google Scholar] [CrossRef]
  73. Zhou, W.; Wang, Z.L. Three-dimensional nanoarchitectures. In Designing Next-Generation Devices; Springer Science Business Media, LLC: New York, NY, USA, 2011. [Google Scholar]
  74. Fan, X.; Chen, X.; Dai, L. 3D graphene based materials for energy storage. Curr. Opin. Colloid Interface Sci. 2015, 20, 429–438. [Google Scholar] [CrossRef]
  75. Yao, H.; Zhang, G.; Zhang, F.; Li, W.; Yang, Y.; Chen, L. A novel Ni Coordination Supramolecular Network hybrid monolith of 3D graphene as electrode materials for supercapacitors. Mater. Today Energy 2017, 6, 164–172. [Google Scholar] [CrossRef]
  76. Tang, W.; Peng, L.; Yuan, C.; Wang, J.; Mo, S.; Zhao, C.; Yu, Y.; Min, Y.; Epstein, A.J. Facile synthesis of 3D reduced graphene oxide and its polyaniline composite for super capacitor application. Synth. Met. 2015, 202, 140–146. [Google Scholar] [CrossRef]
  77. Wang, K.; Wang, W.; Wang, H.; Liu, L.; Xu, Z.; Fu, H.; Zhao, L.; Zhang, X.; Chen, L.; Zhao, Y. 3D graphene foams/epoxy composites with double-sided binder polyaniline interlayers for maintaining excellent electrical conductivities and mechanical properties. Compos. Part A Appl. Sci. Manuf. 2018, 110, 246–257. [Google Scholar] [CrossRef]
  78. Li, H.; Liu, L.; Yang, F. Covalent assembly of 3D graphene/polypyrrole foams for oil spill cleanup. J. Mater. Chem. A 2013, 1, 3446–3453. [Google Scholar] [CrossRef]
  79. Wang, H.; Yuan, X.; Zeng, G.; Wu, Y.; Liu, Y.; Jiang, Q.; Gu, S. Three dimensional graphene based materials: Synthesis and applications from energy storage and conversion to electrochemical sensor and environmental remediation. Adv. Colloid Interface Sci. 2015, 221, 41–59. [Google Scholar] [CrossRef]
  80. Asen, P.; Shahrokhian, S. A high performance supercapacitor based on graphene/polypyrrole/Cu2O–Cu(OH)2 ternary nanocomposite coated on nickel foam. J. Phys. Chem. C 2017, 121, 6508–6519. [Google Scholar] [CrossRef]
  81. Salvatierra, R.V.; Cava, C.E.; Roman, L.S.; Oliveira, M.M.; Zarbin, A.J. The total chemical synthesis of polymer/graphene nanocomposite films. Chem. Commun. 2016, 52, 1629–1632. [Google Scholar] [CrossRef]
  82. Wang, Y.Q.; Liu, Y.F. Free vibration and buckling of polymeric shells reinforced with 3D graphene foams. Results Phys. 2019, 14, 102510. [Google Scholar] [CrossRef]
  83. Jia, J.; Sun, X.; Lin, X.; Shen, X.; Mai, Y.-W.; Kim, J.-K. Exceptional electrical conductivity and fracture resistance of 3D interconnected graphene foam/epoxy composites. ACS Nano 2014, 8, 5774–5783. [Google Scholar] [CrossRef] [PubMed]
  84. Ormategui, N.; Veloso, A.; Leal, G.P.; Rodriguez-Couto, S.; Tomovska, R. Design of stable and powerful nanobiocatalysts, based on enzyme laccase immobilized on self-assembled 3D graphene/polymer composite hydrogels. ACS Appl. Mater. Interfaces 2015, 7, 14104–14112. [Google Scholar] [CrossRef] [PubMed]
  85. Rinaldi, A.; Tamburrano, A.; Fortunato, M.; Sarto, M. A flexible and highly sensitive pressure sensor based on a PDMS foam coated with graphene nanoplatelets. Sensors 2016, 16, 2148. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  86. Zhao, Y.-H.; Wu, Z.-K.; Bai, S.-L. Study on thermal properties of graphene foam/graphene sheets filled polymer composites. Compos. Part A Appl. Sci. Manuf. 2015, 72, 200–206. [Google Scholar] [CrossRef]
  87. Jun, Y.-S.; Sy, S.; Ahn, W.; Zarrin, H.; Rasen, L.; Tjandra, R.; Amoli, B.M.; Zhao, B.; Chiu, G.; Yu, A. Highly conductive interconnected graphene foam based polymer composite. Carbon 2015, 95, 653–658. [Google Scholar] [CrossRef]
  88. Zhao, Y.-H.; Zhang, Y.-F.; Bai, S.-L.; Yuan, X.-W. Carbon fibre/graphene foam/polymer composites with enhanced mechanical and thermal properties. Compos. Part B Eng. 2016, 94, 102–108. [Google Scholar] [CrossRef]
  89. Yuan, C.; Zhou, L.; Hou, L. Facile fabrication of self-supported three-dimensional porous reduced graphene oxide film for electrochemical capacitors. Mater. Lett. 2014, 124, 253–255. [Google Scholar] [CrossRef]
  90. Gnanasekaran, K.; Heijmans, T.; Van Bennekom, S.; Woldhuis, H.; Wijnia, S.; de With, G.; Friedrich, H. 3D printing of CNT-and graphene-based conductive polymer nanocomposites by fused deposition modeling. Appl. Mater. Today 2017, 9, 21–28. [Google Scholar] [CrossRef]
  91. Shao, L.; Shi, L.; Li, X.; Song, N.; Ding, P. Synergistic effect of BN and graphene nanosheets in 3D framework on the enhancement of thermal conductive properties of polymeric composites. Compos. Sci. Technol. 2016, 135, 83–91. [Google Scholar] [CrossRef]
  92. Loeblein, M.; Jing, L.; Liu, M.; Cheah, J.; Tsang, S.; Teo, E. A “hairy” polymer/3D-foam hybrid for flexible high performance thermal gap filling applications in harsh environments. RSC Adv. 2017, 7, 39292–39298. [Google Scholar] [CrossRef]
  93. Niyobuhungiro, D.; Hong, L. Graphene Polymer Composites: Art of Review on Fabrication Method, Properties, and Future Perspectives. Advances in Science and Technology. Res. J. 2021, 15, 37–49. [Google Scholar]
  94. Idowu, A.; Boesl, B.; Agarwal, A. 3D graphene foam-reinforced polymer composites—A review. Carbon 2018, 135, 52–71. [Google Scholar] [CrossRef]
  95. Wu, Y.; Wang, Z.; Liu, X.; Shen, X.; Zheng, Q.; Xue, Q.; Kim, J.-K. Ultralight graphene foam/conductive polymer composites for exceptional electromagnetic interference shielding. ACS Appl. Mater. Interfaces 2017, 9, 9059–9069. [Google Scholar] [CrossRef]
  96. Eswaraiah, V.; Sankaranarayanan, V.; Ramaprabhu, S. Functionalized graphene–PVDF foam composites for EMI shielding. Macromol. Mater. Eng. 2011, 296, 894–898. [Google Scholar] [CrossRef]
  97. Hu, Z.; Ji, X.; Li, B.; Luo, Y. A self-assembled graphene/polyurethane sponge for excellent electromagnetic interference shielding performance. RSC Adv. 2019, 9, 25829–25835. [Google Scholar] [CrossRef]
  98. Lee, J.-S.; Ahn, H.-J.; Yoon, J.-C.; Jang, J.-H. Three-dimensional nano-foam of few-layer graphene grown by CVD for DSSC. Phys. Chem. Chem. Phys. 2012, 14, 7938–7943. [Google Scholar] [CrossRef]
  99. Tang, B.; Hu, G.; Gao, H.; Shi, Z. Three-dimensional graphene network assisted high performance dye sensitized solar cells. J. Power Sources 2013, 234, 60–68. [Google Scholar] [CrossRef]
  100. Ye, S.; Feng, J. Self-assembled three-dimensional hierarchical graphene/polypyrrole nanotube hybrid aerogel and its application for supercapacitors. ACS Appl. Mater. Interfaces 2014, 6, 9671–9679. [Google Scholar] [CrossRef]
  101. Yu, M.; Ma, Y.; Liu, J.; Li, S. Polyaniline nanocone arrays synthesized on three-dimensional graphene network by electrodeposition for supercapacitor electrodes. Carbon 2015, 87, 98–105. [Google Scholar] [CrossRef]
  102. Sim, Y.; Kwak, J.; Kim, S.-Y.; Jo, Y.; Kim, S.; Kim, S.Y.; Kim, J.H.; Lee, C.-S.; Jo, J.H.; Kwon, S.-Y. Formation of 3D graphene–Ni foam heterostructures with enhanced performance and durability for bipolar plates in a polymer electrolyte membrane fuel cell. J. Mater. Chem. A 2018, 6, 1504–1512. [Google Scholar] [CrossRef]
  103. He, J.; Han, M.; Wen, K.; Liu, C.; Zhang, W.; Liu, Y.; Su, X.; Zhang, C.; Liang, C. Absorption-dominated electromagnetic interference shielding assembled composites based on modular design with infrared camouflage and response switching. Compos. Sci. Technol. 2023, 231, 109799. [Google Scholar] [CrossRef]
  104. Kausar, A. Advances in polymer-anchored carbon nanotube foam: A review. Polym. -Plast. Technol. Mater. 2019, 58, 1965–1978. [Google Scholar] [CrossRef]
  105. Li, Y.; Huang, X.; Zeng, L.; Li, R.; Tian, H.; Fu, X.; Wang, Y.; Zhong, W.-H. A review of the electrical and mechanical properties of carbon nanofiller-reinforced polymer composites. J. Mater. Sci. 2019, 54, 1036–1076. [Google Scholar] [CrossRef]
  106. Sudhakar, K.; Reddy, N.N.; Jayaramudu, T.; Jayaramudu, J.; Reddy, A.B.; Manjula, B.; Sadiku, E.R. Aerogels and Foamed Nanostructured Polymer Blends: Design and Applications of Nanostructured Polymer Blends and Nanocomposite Systems; Elsevier: Amsterdam, The Netherlands, 2016; pp. 75–99. [Google Scholar]
  107. Chen, Z.; Xu, C.; Ma, C.; Ren, W.; Cheng, H.M. Lightweight and flexible graphene foam composites for high-performance electromagnetic interference shielding. Adv. Mater. 2013, 25, 1296–1300. [Google Scholar] [CrossRef]
  108. Yu, W.-C.; Zhang, G.-Q.; Liu, Y.-H.; Xu, L.; Yan, D.-X.; Huang, H.-D.; Tang, J.-H.; Xu, J.-Z.; Li, Z.-M. Selective electromagnetic interference shielding performance and superior mechanical strength of conductive polymer composites with oriented segregated conductive networks. Chem. Eng. J. 2019, 373, 556–564. [Google Scholar] [CrossRef]
  109. Shen, B.; Li, Y.; Zhai, W.; Zheng, W. Compressible graphene-coated polymer foams with ultralow density for adjustable electromagnetic interference (EMI) shielding. ACS Appl. Mater. Interfaces 2016, 8, 8050–8057. [Google Scholar] [CrossRef]
  110. Wang, H.; Sun, K.; Tao, F.; Stacchiola, D.J.; Hu, Y.H. 3D honeycomb-like structured graphene and its high efficiency as a counter-electrode catalyst for dye-sensitized solar cells. Angew. Chem. Int. Ed. 2013, 52, 9210–9214. [Google Scholar] [CrossRef]
  111. Li, D.; Zhong, H. Facile engineering 3-D photothermal laser induced graphene for efficient steam generation. Sol. Energy Mater. Sol. Cells 2023, 250, 112104. [Google Scholar] [CrossRef]
  112. Miah, M.; Hota, P.; Mondal, T.K.; Chen, R.; Saha, S.K. Mixed metal sulfides (FeNiS2) nanosheets decorated reduced graphene oxide for efficient electrode materials for supercapacitors. J. Alloys Compd. 2023, 933, 167648. [Google Scholar] [CrossRef]
  113. El-Kady, M.F.; Shao, Y.; Kaner, R.B. Graphene for batteries, supercapacitors and beyond. Nat. Rev. Mater. 2016, 1, 16033. [Google Scholar] [CrossRef]
  114. Kumar, R.; Sahoo, S.; Joanni, E.; Singh, R.K. A review on the current research on microwave processing techniques applied to graphene-based supercapacitor electrodes: An emerging approach beyond conventional heating. J. Energy Chem. 2022, 74, 252–282. [Google Scholar] [CrossRef]
  115. Gao, Y. Graphene and polymer composites for supercapacitor applications: A review. Nanoscale Res. Lett. 2017, 12, 387. [Google Scholar] [CrossRef]
  116. Manjakkal, L.; Núñez, C.G.; Dang, W.; Dahiya, R. Flexible self-charging supercapacitor based on graphene-Ag-3D graphene foam electrodes. Nano Energy 2018, 51, 604–612. [Google Scholar] [CrossRef]
  117. Zhao, Y.; Liu, J.; Hu, Y.; Cheng, H.; Hu, C.; Jiang, C.; Jiang, L.; Cao, A.; Qu, L. Highly compression-tolerant supercapacitor based on polypyrrole-mediated graphene foam electrodes. Adv. Mater. 2013, 25, 591–595. [Google Scholar] [CrossRef]
  118. Yang, X.; Fan, S.; Li, Y.; Guo, Y.; Li, Y.; Ruan, K.; Zhang, S.; Zhang, J.; Kong, J.; Gu, J. Synchronously improved electromagnetic interference shielding and thermal conductivity for epoxy nanocomposites by constructing 3D copper nanowires/thermally annealed graphene aerogel framework. Compos. Part A Appl. Sci. Manuf. 2020, 128, 105670. [Google Scholar] [CrossRef]
  119. Ni, J.; Zhan, R.; Qiu, J. Constructing honeycomb conductive rings in graphene foam/epoxy resin metacomposites for adjustable negative permittivity, low dielectric loss tangent and mechanical enhancement. Org. Electron. 2020, 82, 105706. [Google Scholar] [CrossRef]
  120. Mehtab, T.; Yasin, G.; Arif, M.; Shakeel, M.; Korai, R.M.; Nadeem, M.; Muhammad, N.; Lu, X. Metal-organic frameworks for energy storage devices: Batteries and supercapacitors. J. Energy Storage 2019, 21, 632–646. [Google Scholar] [CrossRef]
  121. Yang, F.; Xu, M.; Bao, S.-J.; Wei, H.; Chai, H. Self-assembled hierarchical graphene/polyaniline hybrid aerogels for electrochemical capacitive energy storage. Electrochim. Acta 2014, 137, 381–387. [Google Scholar] [CrossRef]
  122. Kamyshny, A.; Magdassi, S. Conductive nanomaterials for 2D and 3D printed flexible electronics. Chem. Soc. Rev. 2019, 48, 1712–1740. [Google Scholar] [CrossRef]
  123. Mahmood, N.; Zhang, C.; Yin, H.; Hou, Y. Graphene-based nanocomposites for energy storage and conversion in lithium batteries, supercapacitors and fuel cells. J. Mater. Chem. A 2014, 2, 15–32. [Google Scholar] [CrossRef]
  124. Chen, S.-Y.; Chung, S.-H. Advanced current collectors with carbon nanofoams for electrochemically stable lithium—Sulfur cells. Nanomaterials 2021, 11, 2083. [Google Scholar] [CrossRef]
  125. Hwang, J.; Kim, S.-I.; Yoon, J.-C.; Ha, S.-J.; Jang, J.-H. Realizing battery-like energy density with asymmetric supercapacitors achieved by using highly conductive three-dimensional graphene current collectors. J. Mater. Chem. A 2017, 5, 13347–13356. [Google Scholar] [CrossRef]
  126. Muñoz, E.; Soto-Garrido, R. Analytic approach to magneto-strain tuning of electronic transport through a graphene nanobubble: Perspectives for a strain sensor. J. Phys. Condens. Matter 2017, 29, 445302. [Google Scholar] [CrossRef]
  127. Song, T.; Myoung, N.; Lee, H.; Park, H.C. Machine learning approach to the recognition of nanobubbles in graphene. Appl. Phys. Lett. 2021, 119, 193103. [Google Scholar] [CrossRef]
  128. Si, C.; Sun, Z.; Liu, F. Strain engineering of graphene: A review. Nanoscale 2016, 8, 3207–3217. [Google Scholar] [CrossRef]
  129. Su, H.; Hu, Y.H. Recent advances in graphene-based materials for fuel cell applications. Energy Sci. Eng. 2021, 9, 958–983. [Google Scholar] [CrossRef]
  130. Mahyari, M.; Laeini, M.S.; Shaabani, A. Aqueous aerobic oxidation of alkyl arenes and alcohols catalyzed by copper (II) phthalocyanine supported on three-dimensional nitrogen-doped graphene at room temperature. Chem. Commun. 2014, 50, 7855–7857. [Google Scholar] [CrossRef]
  131. Lotfi, N.; Shahrabi, T.; Yaghoubinezhad, Y.; Darband, G.B. Direct electrodeposition of platinum nanoparticles@ graphene oxide@ nickel-copper@ nickel foam electrode as a durable and cost-effective catalyst with remarkable performance for electrochemical hydrogen evolution reaction. Appl. Surf. Sci. 2020, 505, 144571. [Google Scholar] [CrossRef]
  132. Simakov, D.S. Renewable Synthetic Fuels and Chemicals from Carbon Dioxide: Fundamentals, Catalysis, Design Considerations and Technological Challenges; Springer: Berlin/Heidelberg, Germany, 2017. [Google Scholar]
  133. Hornés, A.; Pesce, A.; Hernández-Afonso, L.; Morata, A.; Torrell, M.; Tarancón, A. 3D Printing of Fuel Cells and Electrolyzers. 3D Print. Energy Appl. 2022, 273–306. [Google Scholar]
  134. Yu, D.; Goh, K.; Wang, H.; Wei, L.; Jiang, W.; Zhang, Q.; Dai, L.; Chen, Y. Scalable synthesis of hierarchically structured carbon nanotube–graphene fibres for capacitive energy storage. Nat. Nanotechnol. 2014, 9, 555. [Google Scholar] [CrossRef]
  135. Xu, T.; Ding, Y.; Wang, Z.; Zhao, Y.; Wu, W.; Fong, H.; Zhu, Z. Three-dimensional and ultralight sponges with tunable conductivity assembled from electrospun nanofibers for a highly sensitive tactile pressure sensor. J. Mater. Chem. C 2017, 5, 10288–10294. [Google Scholar] [CrossRef]
  136. Navarro-Pardo, F.; Martinez-Hernandez, A.L.; Velasco-Santos, C. Carbon nanotube and graphene based polyamide electrospun nanocomposites: A review. J. Nanomater. 2016, 2016, 14. [Google Scholar] [CrossRef]
  137. Kwon, S.R.; Harris, J.; Zhou, T.; Loufakis, D.; Boyd, J.G.; Lutkenhaus, J.L. Mechanically strong graphene/aramid nanofiber composite electrodes for structural energy and power. ACS Nano 2017, 11, 6682–6690. [Google Scholar] [CrossRef]
  138. Rout, S.; Qi, Z.; Petrosyan, L.S.; Shahbazyan, T.V.; Biener, M.M.; Bonner, C.E.; Noginov, M.A. Effect of Random Nanostructured Metallic Environments on Spontaneous Emission of HITC Dye. Nanomaterials 2020, 10, 2135. [Google Scholar] [CrossRef]
  139. Ebrahimi, M.; Botelho, M.; Lu, W.; Monmaturapoj, N. Integrated approach in designing biphasic nanocomposite collagen/nBCP scaffolds with controlled porosity and permeability for bone tissue engineering. J. Biomed. Mater. Res. Part B Appl. Biomater. 2020, 108, 1738–1753. [Google Scholar] [CrossRef]
Nanomanufacturing 03 00004 g001 550
Figure 1. Schematic of technological developments of graphene-to-graphene nanofoam and nanocomposite nanofoam.
Figure 1. Schematic of technological developments of graphene-to-graphene nanofoam and nanocomposite nanofoam.
Nanomanufacturing 03 00004 g001
Nanomanufacturing 03 00004 g002 550
Figure 2. Schematic of synthesis of three dimensional graphene network through chemical vapor deposition. Reprinted with permission from Ref. [56]. 2022, MDPI.
Figure 2. Schematic of synthesis of three dimensional graphene network through chemical vapor deposition. Reprinted with permission from Ref. [56]. 2022, MDPI.
Nanomanufacturing 03 00004 g002
Nanomanufacturing 03 00004 g003 550
Figure 3. Preparation scheme of three dimensional reduced graphene oxide (3D-rGO) and three dimensional reduced graphene oxide/polyaniline (3D-rGO/PANI). GO = graphene oxide; PANI = polyaniline. Reprinted with permission from Ref. [76]. 2015, Elsevier.
Figure 3. Preparation scheme of three dimensional reduced graphene oxide (3D-rGO) and three dimensional reduced graphene oxide/polyaniline (3D-rGO/PANI). GO = graphene oxide; PANI = polyaniline. Reprinted with permission from Ref. [76]. 2015, Elsevier.
Nanomanufacturing 03 00004 g003
Nanomanufacturing 03 00004 g004 550
Figure 4. Schematic of preparation of three dimensional graphene oxide-polyaniline (3DGF-PANI) and epoxy/three dimensional graphene oxide-polyaniline (epoxy/3DGF-PANI) nanocomposite. Reprinted with permission from Ref. [77]. 2018, Elsevier.
Figure 4. Schematic of preparation of three dimensional graphene oxide-polyaniline (3DGF-PANI) and epoxy/three dimensional graphene oxide-polyaniline (epoxy/3DGF-PANI) nanocomposite. Reprinted with permission from Ref. [77]. 2018, Elsevier.
Nanomanufacturing 03 00004 g004
Nanomanufacturing 03 00004 g005 550
Figure 5. Schematic of proposed interfacial bonding mechanism (a) vertical view and (b) front view. Reprinted with permission from Ref. [77]. 2018, Elsevier.
Figure 5. Schematic of proposed interfacial bonding mechanism (a) vertical view and (b) front view. Reprinted with permission from Ref. [77]. 2018, Elsevier.
Nanomanufacturing 03 00004 g005
Nanomanufacturing 03 00004 g006 550
Figure 6. Scanning electron microscopy images of (a) graphene nanofoam; (b) graphene sheet; and (c) transmission electron microscopy image of graphene sheet. PDMS = poly(dimethyl siloxane); GF/PDMS = /poly(dimethyl siloxane); GS/PDMS = poly(dimethyl siloxane). Reprinted with permission from Ref. [86]. 2015, Elsevier.
Figure 6. Scanning electron microscopy images of (a) graphene nanofoam; (b) graphene sheet; and (c) transmission electron microscopy image of graphene sheet. PDMS = poly(dimethyl siloxane); GF/PDMS = /poly(dimethyl siloxane); GS/PDMS = poly(dimethyl siloxane). Reprinted with permission from Ref. [86]. 2015, Elsevier.
Nanomanufacturing 03 00004 g006
Nanomanufacturing 03 00004 g007 550
Figure 7. Thermal conductivity as a function of temperature. PDMS = poly(dimethyl siloxane); GF/PDMS = graphene nanofoam/poly(dimethyl siloxane); GS/PDMS = graphene sheet/poly(dimethyl siloxane). Reprinted with permission from Ref. [86]. 2015, Elsevier.
Figure 7. Thermal conductivity as a function of temperature. PDMS = poly(dimethyl siloxane); GF/PDMS = graphene nanofoam/poly(dimethyl siloxane); GS/PDMS = graphene sheet/poly(dimethyl siloxane). Reprinted with permission from Ref. [86]. 2015, Elsevier.
Nanomanufacturing 03 00004 g007
Nanomanufacturing 03 00004 g008 550
Figure 8. Schematic illustrating manufacturing procedure for (a) reduced graphene oxide nanofoam; (b) poly(dimethyl siloxane)/graphene nanofoam nanocomposite (c), and sliced slab of poly(dimethyl siloxane)/graphene nanofoam on probe fixture PDMS = poly(dimethyl siloxane); LFG = large flake graphite; SFG = small flake graphite. Reprinted with permission from Ref. [87]. 2015, Elsevier.
Figure 8. Schematic illustrating manufacturing procedure for (a) reduced graphene oxide nanofoam; (b) poly(dimethyl siloxane)/graphene nanofoam nanocomposite (c), and sliced slab of poly(dimethyl siloxane)/graphene nanofoam on probe fixture PDMS = poly(dimethyl siloxane); LFG = large flake graphite; SFG = small flake graphite. Reprinted with permission from Ref. [87]. 2015, Elsevier.
Nanomanufacturing 03 00004 g008
Nanomanufacturing 03 00004 g009 550
Figure 9. In-plane electrical conductivity of poly(dimethyl siloxane) nanocomposites produced from LFG and SFG, respectively. LFG = large flake graphite; SFG = small flake graphite. Reprinted with permission from Ref. [87]. 2015, Elsevier.
Figure 9. In-plane electrical conductivity of poly(dimethyl siloxane) nanocomposites produced from LFG and SFG, respectively. LFG = large flake graphite; SFG = small flake graphite. Reprinted with permission from Ref. [87]. 2015, Elsevier.
Nanomanufacturing 03 00004 g009
Nanomanufacturing 03 00004 g010 550
Figure 10. (a) Typical tensile strength and (b) Young’s modulus of nanocomposite materials PDMS = poly(dimethyl siloxane); CF/GF/PDMS = carbon fiber/graphene nanofoam/poly(dimethyl siloxane). Reprinted with permission from Ref. [88]. 2016, Elsevier.
Figure 10. (a) Typical tensile strength and (b) Young’s modulus of nanocomposite materials PDMS = poly(dimethyl siloxane); CF/GF/PDMS = carbon fiber/graphene nanofoam/poly(dimethyl siloxane). Reprinted with permission from Ref. [88]. 2016, Elsevier.
Nanomanufacturing 03 00004 g010
Nanomanufacturing 03 00004 g011 550
Figure 11. Specific capacitance vs. current density of graphene-nanofoam-based nanocomposite electrode. Reprinted with permission from Ref. [89]. 2014, Elsevier.
Figure 11. Specific capacitance vs. current density of graphene-nanofoam-based nanocomposite electrode. Reprinted with permission from Ref. [89]. 2014, Elsevier.
Nanomanufacturing 03 00004 g011
Nanomanufacturing 03 00004 g012 550
Figure 12. DSSC with graphene-nanofoam-based photoanode. DSSC = dye sensitized solar cell. Reprinted with permission from Ref. [99]. 2013, Elsevier.
Figure 12. DSSC with graphene-nanofoam-based photoanode. DSSC = dye sensitized solar cell. Reprinted with permission from Ref. [99]. 2013, Elsevier.
Nanomanufacturing 03 00004 g012
Table
Table 1. Essential properties of graphene nanofoam.
Table 1. Essential properties of graphene nanofoam.
NanofoamFabricationProperties/ApplicationsRef.
Graphene nanofoamChemical vapor deposition techniqueSpecific capacitance
321 Fg−1		[55]
Graphene nanofoamTemplate + catalyst methodLow density;
high porosity;
mechanical stability;
electrical conductivity		[56]
Graphene nanofoamHydrothermal techniqueMechanical stability;
electrical conductivity		[61]
Graphene nanofoamOne-pot techniqueAbsorption properties[62]
Graphene nanofoamSol-gel technique; heat/thermal treatmentChemical cross-linking;
high surface area;
porosity;
electron mobility;
thermal conductivity		[64,68,69]
Graphene nanofoamFreeze-drying1280 times higher elastic modulus than CVD nanofoam[59]
Graphene nanofoamFreeze-dryingAverage pore size
70–100 μm		[71]
Graphene oxide foamFreeze-dryingCompression strength;
recovery after
300 compression cycles		[72]
Table
Table 2. Specifications of polymer/graphene nanofoam nanocomposites.
Table 2. Specifications of polymer/graphene nanofoam nanocomposites.
PolymerNanofoamFabricationProperties/ApplicationsRef.
Polymer3D reduced graphene oxide nanofoamOne-pot surfactant-free techniqueSupercapacitor;
specific capacitance
952.85 Fg−1		[75]
Polyaniline3D reduced graphene oxideHydrothermal method;
in situ technique		Supercapacitor;
specific capacitance
243 Fg−1		[76]
Polyaniline3D graphene oxideFreeze-drying; In situ oxidative polymerizationπ-π stacking interactions; electrical conductivity 0.036 Scm−1[77]
PolypyrroleGraphene oxide nanofoamHydrolytic condensation;
in situ route		Oil/solvent adsorption;
sorption capacities
>100 gg−1		[76,78]
Polythiophene/Graphene nanofoamIn situ routeElectrical conductivity[81]
EpoxyGraphene nanofoamInfiltration methodFracture toughness
1.78 MPa·m1/2;
electrical conductivity
3 Scm−1		[83]
Poly(dimethyl siloxane)Graphene nanofoamDirect template methodPressure sensor;
pressure variations ~1 Pa; compressive stress ~10 kP		[85]
Poly(dimethyl siloxane)Graphene nanofoamSolution and infiltration routeThermal conductivity
0.56 Wm−1K−1		[86]
Poly(dimethyl siloxane)Graphene nanofoamFreeze-drying;
infiltration methods		Electrical conductivity
102 Sm−1		[87]
Poly(dimethyl siloxane)Graphene nanofoamHigh speed shearing and stirring techniquesIncrease in tensile strength 52%;
Young’s modulus 71%; thermal conductivity
0.55 Wm−1 K−1 i.e., increase by 162%		[88]
PolystyreneGraphene nanofoamVacuum filtration techniqueSupercapacitor;
specific capacitance 141–206 Fg−1		[89]
Polybutylene terephthalateGraphene nanofoamInfiltration method.Thermal conductivity
0.891 Wm−1K−1		[90]
Poly(3,4-ethylenedioxythiophene):
poly(styrenesulfonate)		Graphene nanofoamDrop coating techniqueHigh porosity 98.8%;
ultralow density ~18.2 × 10−3 g/cm3;
EMI shielding effectiveness
91.9 dB;
electrical conductivity 43.2 Scm−1		[95]
Poly(vinylidene fluoride)Graphene nanofoamHot pressing techniqueEMI shielding effectiveness ~20 dB; electrical conductivity
10−4 S m−1		[96]
PolyurethaneGraphene nanofoamHydrothermal methodEMI shielding effectiveness
969–1578 dBcm2g−1		[97]
PolymerGraphene nanofoamCVD;
spin coating techniques		Dye sensitized solar cells;
AM 1.5 illumination		[98]
PolymerGraphene nanofoamSolution/
coating		Power conversion efficiency 6.58%;
short-circuit current density 15.4 mAcm−2;
dye absorption efficiency ~1.28 × 10−7 mol cm−2		[99]
PolypyrroleGraphene nanofoamSolution dispersion;
chemical/hydrothermal reduction routes		Specific capacitance
253–520 Fg−1		[100]
PolyanilineGraphene nanofoamOne-step electrochemical depositionSpecific capacitance
751 Fg−1		[101]
Poly(methyl methacrylate) nanofoamingGrapheneThermal annealing methodPolymer electrolyte membrane fuel cell;
high power density ∼967 mW cm−2		[102]
Table
Table 3. Results of photovoltaic properties and dye loading of the DSSC with varied photoanodes. DSSC = dye sensitized solar cell. Reprinted with permission from Ref. [99]. 2013, Elsevier.
Table 3. Results of photovoltaic properties and dye loading of the DSSC with varied photoanodes. DSSC = dye sensitized solar cell. Reprinted with permission from Ref. [99]. 2013, Elsevier.
PhotoanodeShort Circuit Current Density (Jsc) (mAcm−2)Photovoltaic Bias (Voc) (mV)Fill Factor (FF) (%)Efficiency
η (%)		Absorbed Dye (×10−7mol cm−2)
3D graphene nanofoam 0.5 wt.%13.667163.45.791.03
3D graphene nanofoam 1 wt.%15.467363.56.581.15
3D graphene nanofoam 2 wt.%1167463.26.011.28
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kausar, A.; Ahmad, I.; Zhao, T.; Eisa, M.H.; Aldaghri, O. Graphene Nanofoam Based Nanomaterials: Manufacturing and Technical Prospects. Nanomanufacturing 2023, 3, 37-56. https://doi.org/10.3390/nanomanufacturing3010004

AMA Style

Kausar A, Ahmad I, Zhao T, Eisa MH, Aldaghri O. Graphene Nanofoam Based Nanomaterials: Manufacturing and Technical Prospects. Nanomanufacturing. 2023; 3(1):37-56. https://doi.org/10.3390/nanomanufacturing3010004

Chicago/Turabian Style

Kausar, Ayesha, Ishaq Ahmad, Tingkai Zhao, M. H. Eisa, and O. Aldaghri. 2023. "Graphene Nanofoam Based Nanomaterials: Manufacturing and Technical Prospects" Nanomanufacturing 3, no. 1: 37-56. https://doi.org/10.3390/nanomanufacturing3010004

APA Style

Kausar, A., Ahmad, I., Zhao, T., Eisa, M. H., & Aldaghri, O. (2023). Graphene Nanofoam Based Nanomaterials: Manufacturing and Technical Prospects. Nanomanufacturing, 3(1), 37-56. https://doi.org/10.3390/nanomanufacturing3010004

Article Metrics

Back to TopTop
