Review

Translating Biochemistry Concepts into Cartoons and Graphic Narratives: Potential and Pitfalls

1
CNC—Center for Neuroscience and Cell Biology, CIBB, Rua Larga, University of Coimbra, 3004-504 Coimbra, Portugal
2
PhD Programme in Experimental Biology and Biomedicine (PDBEB), IIIUC—Institute for Interdisciplinary Research, University of Coimbra, 3030-789 Coimbra, Portugal
3
IIIUC—Institute for Interdisciplinary Research, University of Coimbra, 3030-789 Coimbra, Portugal
4
DCV—Department of Life Sciences, University of Coimbra, Calçada Martim de Freitas, 3000-456 Coimbra, Portugal
*
Author to whom correspondence should be addressed.
Academic Editor: Buyong Ma
BioChem 2022, 2(1), 104-114; https://doi.org/10.3390/biochem2010008
Received: 24 November 2021 / Revised: 28 February 2022 / Accepted: 9 March 2022 / Published: 17 March 2022
(This article belongs to the Special Issue Selected Papers from XXI SPB National Congress of Biochemistry 2021)

Abstract

Simple biochemical concepts can be hard to grasp by non-specialists, even when they are related to practical contexts in industry, day-to-day activities, or well-acknowledged pathological conditions. This is especially important in instances where accurate communication of biochemical aspects for different types of stakeholders may be crucial. Examples include interacting with policymakers to establish guidelines, with patients (and/or caregivers) to identify key concepts in promoting awareness and adherence to therapeutic regimens, or with teachers and students for novel approaches in critical thinking. Focusing on our own work in developing communication tools for different purposes, in this review we will focus on some examples of how biochemical concepts can be effectively translated into illustrations and graphical narratives. For this purpose, engagement with target audiences in developing the materials themselves is key. We also discuss how specific projects can be tailored for different purposes, as well as evidence that comic-book strategies are effective in conveying biochemical and biomedical knowledge.
Keywords: metabolism; comics; biomedical knowledge; health communication; science communication metabolism; comics; biomedical knowledge; health communication; science communication

1. Introduction

Scientific concepts in Biochemistry, and the life sciences in general, can be hard to understand, and the use of images to better convey information is common at all levels, from very basic leaflets tailored to a lay audience to schoolbooks and the most advanced scientific papers [1,2,3,4,5,6]. In fact, no Biochemistry or Molecular Biology textbook is devoid of images (photos, graphs, diagrams, and schematics) to help guide the reader [7,8].
In many cases, sequential images are used to display a sequence of events, for example relating to enzyme-mediated catalysis, the binding of ligands to receptors, signaling cascades, or steps in embryo development. One of the challenges in both education and outreach towards different types of audiences is translating biochemical concepts to a target audience that may need assistance in grasping the most basic information. While classical textbook images are effective at more professional levels, they may not be the ideal choice to communicate with all audiences.
It is therefore unsurprising to note that science communication aiming at different target audiences often uses illustrations, sketch notes, cartoons, and comics, with or without an accompanying narrative [9,10,11,12,13,14,15]. In this review, we will discuss examples of how biochemical concepts can be effectively translated into graphical narratives, providing tools for both formal and informal education, as well as for more effective stakeholder engagement. Importantly, we will also discuss the appropriate methodology needed to create effective comics-based materials. The considerations to take into account include content selection, graphic considerations regarding style and representation, preparatory interactions with a putative target audience to tailor the content to specific needs, and the monitoring of impact to ensure that key messages are indeed transmitted. To the best of our knowledge, this is the first review to simultaneously focus on all these aspects of comics-based science communication.

2. Using Sequential Images and Comics in Science Communication

By combining words and images, comics, in particular, embody a reliable format to effectively communicate biomedical knowledge [16] as well as for introducing scientific information in the classroom [12,17]. Moreover, using narrative techniques and well-designed characters and narratives can also potentiate effectiveness in terms of scientific or health-related beliefs, attitudes, intentions, and behaviors [18,19,20,21,22]. Although some understanding of the specificities and conventions of the language is needed, comics seem to be approachable and able to reach and engage new audiences, also showing that entertainment and education are not mutually exclusive [23]. On the other hand, the narrative dimension contextualizes the scientific or health-related knowledge, both through verbal and visual cues, and engages the reader at a personal level [14,16,23]. Importantly comics have been clearly shown to be a successful tool in science communication, in some cases outperforming other forms of communication dealing with the same content (text, animations, etc.) [17,23,24,25,26,27].
In a biomedical context, examples include efforts dedicated to human immunodeficiency virus (HIV)/AIDS prevention programs [28,29], but later also sexual health education [30,31,32], rheumatoid disease [33,34], cancer [35,36,37], mental health [38,39,40,41,42,43] and metabolic disorders [44,45,46,47]. More recently, and concomitant with a gradual transition from hard copies to digital media, several comics designed to promote healthier diets, increased physical activity, and weight loss as preventive and therapeutic practices for obesity, diabetes, and cardiovascular diseases have been produced [48,49,50,51,52,53].

3. Defining Representations, Topics, Characters, and Storylines

Several aspects can be considered when using comics or visual-related language via a series of illustrations. These must be carefully considered and tailored towards the specific goals of a given project, starting with the choices to show scientific content in a simplified (not simplistic) manner.
For example, the use of analogies or metaphors is pervasive throughout scientific discourse in general and to convey biochemical concepts in particular. As shown in Figure 1, ATP production in the mitochondria follows a well-understood process that involves electron transport through several complexes coupled with proton pumping across the inner mitochondrial membrane. The resulting electrochemical gradient (mitochondrial membrane potential) is then used by the ATP synthase to phosphorylate ADP to ATP. At the molecular level, the mechanism regarding ATP synthase activity is often represented as rotating paddles converting different forms of energy. On the other hand, to convey the basic notions of what is at stake, the mitochondrial membrane potential can be metaphorically represented as a hydroelectric dam and the organelle itself as a battery (Figure 1C). Although these metaphors or analogies can also lead to misconceptions and improper simplifications, they can nevertheless be useful, especially as a first approach or in contacting audiences with limited scientific knowledge. In another example, discussing the molecular basis of actin-myosin interactions leading to voluntary skeletal muscle contraction in sarcomeres can be done logically in the context of exercise (possibly also related to the promotion of healthy lifestyles), for example, using the similarities with rowing as a metaphor (Figure 2).
Another use of images to convey biochemical concepts includes the recently established Graphic Medicine genre, which applies to comics paradigms and principles generated with Narrative Medicine. This approach aims to humanize medical care, focusing on the experiences of those involved (patients, practitioners, family members, caregivers, health care systems, community) [54,55,56,57,58,59], stemming from individual experiences [60,61,62,63]. However, while the stories may resonate with others under the same circumstances, their goal is not necessarily to convey biochemical aspects related to a specific pathology or explain a treatment regimen from a scientific/clinical standpoint. Therefore, in a more educational context, this type of strategy may not be useful, as it introduces subjectivity and can neglect paramount scientific information [55,57].
A similar discussion may be had in terms of visual style [64,65], as both realistic depictions and cartoonish representations are possible. Indeed they are often combined, for example, using human characters as patients and cartoons to anthropomorphize phenomena (such as cancer, for example), cells, or proteins, thus equipping them with a clearer sense of (metaphorical) agency [14,16,66,67,68]. The goal is to engage readers using different strategies, leading to very different tools. The issues at stake are evident in three comics that focus on DNA and its functions. While the subject matter is essentially the same and accurately depicted in each case, one [69] opts for a more realistic style characteristic of classical textbooks (drawn photos of key researchers and detailed schematics of molecular events), another relies on the anthropomorphizing of important molecules (helicases, transcription factors, repair enzymes) to better represent their actions [70]. Yet another has human characters interact directly with molecular aspects [71]. These choices may be related to the different goals of each approach: a thorough historical narrative on the discovery of DNA, an accessible approach on DNA function for the general population, and a textbook in Japanese comic (mangá) format to engage young readers, respectively. Regardless of the choices made, the images should not distract the reader from the main message. This can be the case with more expressionist styles drawings featuring unclear or unnecessary details, a confusing color palette, over-complex visual analogies, or even page layouts with an unintuitive reading experience.
On the other hand, the choices of what to communicate and how should actively involve the potential end-users, in other words, adopt a participatory approach in co-producing the content [72]. One has to start by identifying the main topics to communicate and the target audience, and then try to work with said audience (in focus groups or short interviews, preferably with some open questions) to establish a realistic knowledge baseline [73,74,75,76]. A few questions may need to be answered, for example: what is the background knowledge? In material focused on a specific medical issue, what do patients know about their own condition? What do learners know about the topic? What are the gaps in knowledge? What are audiences curious about knowing? Could it make a difference in how they interact with a given technology, adherence to treatment, or lifestyle changes? What do practitioners think would be useful information for patients (and caregivers) to have in order to elicit behavioral changes? What do teachers and professors think would be useful for the students’ perception and cognition?
Patients and other learners, even those with limited literacy, have their own experiences and may have more developed and detailed knowledge than should be assumed, although misconceptions are also common [14,16]. These mutual interactions may also be useful if the goal is to create characters and narratives. If, for example, characters in an educational comic, as well as their biographies/behaviors, are based on a composite of different members of a target audience, there might be a better chance of other readers from the same population identifying with the fictional characters. One example is shown in Figure 3 and discussed in detail below [77].
It is important to note that this should be as open and as collaborative a process as possible, although financial, organizational, and time constraints will likely play a role. Ideally, an initial effort should lead to a first draft that can then be shared for possible feedback and eventually result in the refining of both visual and verbal narratives [75,76,78,79,80]. Did the audience understand the key concepts and message accurately? Did they appreciate the comic or think the story, characters, and script were convincing? Did they find something off-putting, and why? Finally, distribution of the final product should not be considered as the ending, but rather an evaluation of impact should be performed, if possible. Again, the goal, in this case, is to determine how effective the comic (or whatever other tool) was in a wider context, or if, for instance, its effectiveness varied with different segments of the population (age, gender, culture, literacy levels). These two aspects can be carried out using appropriately structured questionnaires (or interviews), which must nevertheless be validated using appropriate methodologies and expertise [26,77].

4. Comics and the Communicating Biochemical Concepts in a Context of Metabolic Disorders

Biochemical aspects related to metabolic disorders are a good place to start, as they can be important in many relevant biomedical and educational contexts [38,81]. Previously we faced the tensions of discussing accuracy versus aesthetics in our work on metabolic disorders focusing on mitochondrial biology [47]. Is there a realistic limit for depicting cellular mechanisms in a graphic narrative? What were the best strategies to bring mitochondria to ‘real-life’, convey the fundamental research, and engage in healthier habits? The narrative is about a young woman diagnosed with a metabolic disorder, and transports the reader to a realistic view of mitochondrial biology blended with the changing daily routines of the character. The intent was to target different types of lay audiences, not only patients but also children or at-risk segments, and students at different levels of education. This is relevant both in conditions that are relatively well-known, such as diabetes, as well as conditions where that is not at all the case, such as Nonalcoholic Fatty Liver Disease (NAFLD). NAFLD has been the target of a few campaigns exactly because it is not only underdiagnosed but a burden predicted to increase, especially in the developed world [77].
But, besides the obvious healthy lifestyle aspects related to both prevention and management of metabolic disorders (proper nutrition, regular physical activity, and exercise) as well as regular monitoring (blood sugar and cholesterol levels, liver enzyme activity etc.), what biochemical aspects can be conveyed to strengthen the message? In our work focusing on type 2 diabetes patients at high risk for NAFLD [82], a few issues arose out of conversations with researchers, practitioners, and patients who were interviewed for the project, albeit at different levels [83]. Two of these issues can be cited because they involve clear mechanistic biochemical insights: Why do people who avoid fatty foods (but not sweets) have fat accumulation and obesity-related problems (de novo lipogenesis)? Why does insulin sometimes “stop working” (insulin resistance)?
The advantage of excess sugars being converted to fat is clear from the standpoint of efficient energy storage, but conveying even a simple version of the biochemical reactions involved would likely confuse more than enlighten a lay audience [84]. One possible solution (Figure 3) is using a well-known nutritional choice (the ingestion of a sugary beverage) in parallel with a simple schematic showing that the liver can convert sugar to fat. The narrative, in this case, involves an older relative explaining to a child why drinking that particular beverage is, in a biochemical sense, equivalent to eating fatty foods [85,86]. The older character functions both as an explainer and a positive role model [20], and it should be noted that this particular character is aware of these issues because she suffers from type 2 diabetes. She is, in fact, a composite character based on the biographies and experiences of some of the patients interviewed at the start of the project [83]. This is an example of how more abstract notions may be interspersed with real-life situations different readers can relate to.
On the other hand, the concept of insulin resistance is crucial to explain when interacting with a lay audience [87,88]. First of all, the normal situation regarding the function of pancreas-produced insulin to ensure proper blood sugar management must be explained before its deregulation can be addressed. In this case, a possible solution is using cartoons that embody cells and molecules with anthropomorphic characteristics, as well as with an omnipotent narrator solution [82]. After explaining how the process usually works, insulin resistance is then represented as a systems overload that, by burdening biochemical circuits with an excess activity it can no longer cope with, causes a “rebellion” or a “strike”, leading to several important health-related consequences (Figure 4).

5. Planning a Project: Monitoring Impact and Tailoring Strategies in Graphic Narrative-Based Science Communication

Although comics-based science communication is not new, what is novel is the increasing interest in scholarly research in this field, involving different types of analyses [89,90,91,92]. In addition, an important issue is whether concepts are in fact learned by a target audience. Importantly, comics have been shown to be effective in this regard in different contexts, notably in the classroom [12,42]. In our work, we previously showed that comics were particularly effective compared to other methods in terms of conveying meaning and complex biomedical concepts to diverse audiences. Specifically, readers with little previous knowledge of the basic characteristics and biomedical applications of stem cells could grasp complex notions (pluripotency, multipotency, differentiation, reprogramming) by interacting with a tailored comic [26]. The methodology to assess this knowledge increase used structured questionnaires given to participants before and after interacting with different science communication materials on the same topics (texts, interviews, and animations, besides the comic). However, this initial effort had two clear limitations. On the one hand, the materials had been produced by basic researchers without any interaction with target audiences to pre-validate the different approaches or introduce any clarifying changes. On the other hand, impact monitoring was planned after the materials were produced, not as an integral part of the project. It is extremely important that besides the issues already discussed (choosing a type of narrative and graphic style), both issues should be considered when planning a project.
In our current work on metabolic disorders, and as previously stated, we interacted with patients [83] to better tailor the comic book produced [82]. Additionally, we also planned to assess impact using two structured questionnaires before and after interaction with the comic. While the data obtained suggest that the comic was indeed effective in both increasing awareness related to NAFLD, explaining the biochemistry behind the pathology, and transmitting key concepts such as insulin resistance (Alemany-Pagès et al., submitted), it is worth noting that the COVID-19 pandemic greatly limited contact with users of an online platform, thus selecting a specific segment of the possible target audience.
Additionally, although the biochemical aspects may be the same regardless of context, the context does matter when communicating effectively. Besides an understandable and approachable scientific content, if a message is to be received and acted upon, the audience must be able to fully identify with the situations depicted. These should not seem “foreign” to them [14,16,20,74]. For example, when fictional elements are depicted related to everyday life situations involving human characters, the types of people represented, landscape, housing, clothing, social dynamics, eating habits, environment, etc., must be considered [74,89]. In this case, one size might not fit all, and the same materials might have to be changed to reach different audiences in different contexts (social backgrounds, countries, local environment) effectively [77].
In conclusion, although more structured and planned projects meeting the criteria noted above are certainly needed, comics-based narratives seem to be a valid tool in the field of science communication, specifically in transmitting biochemical and biomedical concepts.

Author Contributions

Conceptualization, J.R.-S.; critical literature search and analysis, M.A.-P.; figures and graphic considerations, R.T.; writing—original draft preparation J.R.-S.; writing—editing and review M.A.-P., A.M.A., J.R.-S. All authors have read and agreed to the published version of the manuscript.

Funding

This study received support from the FOIE GRAS project, funded by the European Union’s Horizon 2020, Research and Innovation programme under the Marie Skłodowska-Curie Grant Agreement No. 722619 and the European Regional Development Fund (ERDF), through the COMPETE 2020—Operational Programme for Competitiveness and Internationalisation and Portuguese national funds via FCT—Fundação para a Ciência e a Tecnologia, under the projects UIDB/04539/2020, UIDP/04539/2020 and LA/P/0058/2020; and through the Centro 2020 Regional Operational Programme: project CENTRO-01-0145-FEDER-000012-HealthyAging2020.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Theel, E.S.; McAdam, A.J. What about Serology? A Micro-Comic Strip. J. Clin. Microbiol. 2019, 57, e00797-19. [Google Scholar] [CrossRef] [PubMed]
  2. Hosler, J. Science Comics. Available online: http://jayhosler.com/science-comics.html (accessed on 19 November 2021).
  3. Hosler, J. Optical Allusions; CreateSpace Independent Publishing Platform: Scotts Valley, CA, USA, 2013; ISBN 978-1482387773. [Google Scholar]
  4. Delp, C.; Jones, J. Communicating information to patients: The use of cartoon illustrations to improve comprehension of instructions. Acad. Emerg. Med. 1996, 3, 264–270. [Google Scholar] [CrossRef] [PubMed]
  5. Houts, P.S.; Doak, C.C.; Doak, L.G.; Loscalzo, M.J. The role of pictures in improving health communication: A review of research on attention, comprehension, recall, and adherence. Patient Educ. Couns. 2006, 61, 173–190. [Google Scholar] [CrossRef]
  6. Zehr, E.P. From Claude Bernard to the Batcave and beyond: Using Batman as a hook for physiology education. Adv. Physiol. Educ. 2011, 35, 1–4. [Google Scholar] [CrossRef] [PubMed]
  7. Nelson, D.L.; Cox, M.M. Lehninger Principles of Biochemistry, 8th ed.; W.H. Freeman: New York, NY, USA, 2021. [Google Scholar]
  8. Alberts, B.; Heald, R.; Johnson, A.; Lewis, J.; Morgan, D.; Raff, M.C.; Roberts, K.; Walter, P. Molecular Biology of the Cell, 7th ed.; W.W. Norton & Company: New York, NY, USA, 2022. [Google Scholar]
  9. Barry, A.M.; Gazzaniga, M. Science and Visual Communication. 2008, pp. 1–11. Available online: https://www.giantscreencinema.com/Portals/0/BarryPaperFinal.pdf (accessed on 19 November 2021).
  10. Flemming, D.; Cress, U.; Kimmig, S.; Brandt, M.; Kimmerle, J. Emotionalization in Science Communication: The Impact of Narratives and Visual Representations on Knowledge Gain and Risk Perception. Front. Commun. 2018, 3, 3. [Google Scholar] [CrossRef]
  11. Bucchi, M. Science and the Media: Alternative Routes in Scientific Communication; Routledge: London, UK, 1998. [Google Scholar]
  12. Tatalovic, M. Science comics as tools for science education and communication: A brief, exploratory study. SISSA Int. Sch. Adv. Stud. J. Sci. Commun. 2009, 8, 1824–2049. [Google Scholar] [CrossRef]
  13. Tribull, C.M. Sequential Science: A Guide to Communication Through Comics. Ann. Entomol. Soc. Am. 2017, 110, 457–466. [Google Scholar] [CrossRef]
  14. Farinella, M. The potential of comics in science communication. J. Sci. Commun. 2018, 17, Y01. [Google Scholar] [CrossRef]
  15. Fernández-Fontecha, A.; O’Halloran, K.L.; Tan, S.; Wignell, P. A multimodal approach to visual thinking: The scientific sketchnote. Vis. Commun. 2018, 18, 5–29. [Google Scholar] [CrossRef]
  16. Jee, B.D.; Anggoro, F.K. Comic cognition: Exploring the potential cognitive impacts of science comics. J. Cogn. Educ. Psychol. 2012, 11, 196–208. [Google Scholar] [CrossRef]
  17. Aleixo, P.A.; Sumner, K. Memory for biopsychology material presented in comic book format. J. Graph. Nov. Comics 2017, 8, 79–88. [Google Scholar] [CrossRef]
  18. Shen, F.; Sheer, V.C.; Li, R. Impact of Narratives on Persuasion in Health Communication: A Meta-Analysis. J. Advert. 2015, 44, 105–113. [Google Scholar] [CrossRef]
  19. Petraglia, J. Narrative intervention in behavior and public health. J. Health Commun. 2007, 12, 493–505. [Google Scholar] [CrossRef]
  20. Slater, M.D. Entertainment education and the persuasive impact of narratives. In Narrative Impact: Social and Cognitive Foundations; Green, M.C., Strange, J.J., Brock, T.C., Eds.; Lawrence Erlbaum Associates Publishers: Mahwah, NJ, USA, 2002; pp. 157–181. [Google Scholar]
  21. Hinyard, L.J.; Kreuter, M.W. Using narrative communication as a tool for health behavior change: A conceptual, theoretical, and empirical overview. Health Educ. Behav. 2007, 34, 777–792. [Google Scholar] [CrossRef]
  22. Greenhalgh, T. Cultural Contexts of Health: The Use of Narrative Research in the Health Sector; World Health Organization: Geneva, Switzerland, 2016. [Google Scholar]
  23. Collver, J.; Weitkamp, E. Alter egos: An exploration of the perspectives and identities of science comic creators. J. Sci. Commun. 2018, 17, A01. [Google Scholar] [CrossRef]
  24. Hosler, J.; Boomer, K.B. Are comic books an effective way to engage nonmajors in learning and appreciating science? CBE Life Sci. Educ. 2011, 10, 309–317. [Google Scholar] [CrossRef]
  25. Spiegel, A.N.; Mcquillan, J.; Halpin, P.; Matuk, C.; Diamond, J. Engaging Teenagers with Science Through Comics. Res. Sci. Educ. 2013, 43, 2309–2326. [Google Scholar] [CrossRef]
  26. Amaral, S.V.; Forte, T.; Ramalho-Santos, J.; Da Cruz, M.T.G. I want more and better cells!—An outreach project about stem cells and its impact on the general population. PLoS ONE 2015, 10, e0133753. [Google Scholar] [CrossRef]
  27. Pratt, H.J. Narrative in Comics. J. Aesthet. Art Crit. 2009, 67, 107–117. [Google Scholar] [CrossRef]
  28. Cain, B. Saying it with feeling: Photonovels and comic books in development. Dev. Commun. Rep. 1986, 55, 1–2. [Google Scholar]
  29. Pillai, V.K.; Kelley, A.C. Men and family planning: Toward a policy of male involvement. Pol. Popul. Rev. 1994, 5, 293–304. [Google Scholar]
  30. Garbarino, J. Children’s response to a sexual abuse prevention program: A study of the Spiderman comic. Child Abus. Negl. 1987, 11, 143–148. [Google Scholar] [CrossRef]
  31. Speizer, I.S.; Calhoun, L.M.; Guilkey, D.K. Reaching Urban Female Adolescents at Key Points of Sexual and Reproductive Health Transitions: Evidence from a Longitudinal Study from Kenya. Afr. J. Reprod. Health 2018, 22, 47–59. [Google Scholar] [PubMed]
  32. Jacoby, S.D.; Lucarelli, M.; Musse, F.; Krishnamurthy, A.; Salyers, V. A Mixed-Methods Study of Immigrant Somali Women’s Health Literacy and Perinatal Experiences in Maine. J. Midwifery Women’s Health 2015, 60, 593–603. [Google Scholar] [CrossRef]
  33. Massone, F.; Martínez, M.E.; Pascual-Ramos, V.; Quintana, R.; Stange, L.; Caballero-Uribe, C.V.; Massardo, L. Educational website incorporating rheumatoid arthritis patient needs for Latin American and Caribbean countries. Clin. Rheumatol. 2017, 36, 2789–2797. [Google Scholar] [CrossRef] [PubMed]
  34. Mendelson, A.; Rabinowicz, N.; Reis, Y.; Amarilyo, G.; Harel, L.; Hashkes, P.J.; Uziel, Y. Comics as an educational tool for children with juvenile idiopathic arthritis. Pediatric Rheumatol. 2017, 15, 69. [Google Scholar] [CrossRef] [PubMed]
  35. Putnam, G.L.; Yanagisako, K.L. Skin cancer comic book: Evaluation of a public educational vehicle. J. Audiov. Media Med. 1985, 8, 22–25. [Google Scholar] [CrossRef]
  36. Alam, S.; Elwyn, G.; Percac-Lima, S.; Grande, S.; Durand, M.-A. Assessing the acceptability and feasibility of encounter decision aids for early stage breast cancer targeted at underserved patients. BMC Med. Inform. Decis. Mak. 2016, 16, 147. [Google Scholar] [CrossRef] [PubMed]
  37. Criado, P.R.; Ocampo-Garza, J.; Brasil, A.L.D.; Belda Junior, W.; Di Chiacchio, N.; de Moraes, A.M.; Vasconcellos, C. Skin cancer prevention campaign in childhood: Survey based on 3676 children in Brazil. J. Eur. Acad. Dermatol. Venereol. 2018, 32, 1272–1277. [Google Scholar] [CrossRef]
  38. King, A.J. Using Comics to Communicate About Health: An Introduction to the Symposium on Visual Narratives and Graphic Medicine. Health Commun. 2017, 32, 523–524. [Google Scholar] [CrossRef]
  39. Shirotsuki, K.; Nonaka, Y.; Takano, J.; Abe, K.; Adachi, S.-I.; Adachi, S.; Nakao, M. Brief internet-based cognitive behavior therapy program with a supplement drink improved anxiety and somatic symptoms in Japanese workers. Biopsychosoc. Med. 2017, 11, 25. [Google Scholar] [CrossRef]
  40. Imamura, K.; Kawakami, N.; Furukawa, T.A.; Matsuyama, Y.; Shimazu, A.; Umanodan, R.; Kasai, K. Effects of an internet-based cognitive behavioral therapy intervention on improving work engagement and other work-related outcomes: An analysis of secondary outcomes of a randomized controlled trial. J. Occup. Environ. Med. 2015, 57, 578–584. [Google Scholar] [CrossRef] [PubMed]
  41. Tekle-Haimanot, R.; Preux, P.M.; Gerard, D.; Worku, D.K.; Belay, H.D.; Gebrewold, M.A. Impact of an educational comic book on epilepsy-related knowledge, awareness, and attitudes among school children in Ethiopia. Epilepsy Behav. 2016, 61, 218–223. [Google Scholar] [CrossRef]
  42. Cicero, C.E.; Giuliano, L.; Todaro, V.; Colli, C.; Padilla, S.; Vilte, E.; Nicoletti, A. Comic book-based educational program on epilepsy for high-school students: Results from a pilot study in the Gran Chaco region, Bolivia. Epilepsy Behav. 2020, 107, 107076. [Google Scholar] [CrossRef] [PubMed]
  43. Hernandez, M.Y.; Organista, K.C. Entertainment-education? A fotonovela? A new strategy to improve depression literacy and help-seeking behaviors in at-risk immigrant Latinas. Am. J. Community Psychol. 2013, 52, 224–235. [Google Scholar] [CrossRef] [PubMed]
  44. Leung, M.M.; Tripicchio, G.; Agaronov, A. Manga Comic Influences Snack Selection in Black and Hispanic New York City Youth. J. Nutr. Educ. Behav. 2014, 46, 142–147. [Google Scholar] [CrossRef] [PubMed]
  45. Tarver, T.; Woodson, D.; Fechter, N.; Vanchiere, J.; Olmstadt, W.; Tudor, C. A Novel Tool for Health Literacy: Using Comic Books to Combat Childhood Obesity. J. Hosp. Librariansh. 2016, 16, 152–159. [Google Scholar] [CrossRef] [PubMed]
  46. Thompson, D.; Mahabir, R.; Bhatt, R.; Boutte, C.; Cantu, D.; Vazquez, I.; Buday, R. Butterfly Girls; promoting healthy diet and physical activity to young African American girls online: Rationale and design. BMC Public Health 2013, 13, 709. [Google Scholar] [CrossRef]
  47. Azul, A.M.; Ramalho-Santos, J.; Oliveira, P.J.; Tavares, R. Mitochondrial Follies: A Short Journey in Life and Energy. In Mitochondrial Biology and Experimental Therapeutics; Oliveira, P.J., Ed.; Springer International Publishing: Cham, Germany, 2018; pp. 649–692. [Google Scholar] [CrossRef]
  48. Ko, L.K.; Rillamas-Sun, E.; Bishop, S.; Cisneros, O.; Holte, S.; Thompson, B. Together We STRIDE: A quasi-experimental trial testing the effectiveness of a multi-level obesity intervention for Hispanic children in rural communities. Contemp. Clin. Trials 2018, 67, 81–86. [Google Scholar] [CrossRef]
  49. Matsuzono, K.; Yokota, C.; Takekawa, H.; Okamura, T.; Miyamatsu, N.; Nakayama, H.; Watanabe, T. Effects of stroke education of junior high school students on stroke knowledge of their parents: Tochigi project. Stroke 2015, 46, 572–574. [Google Scholar] [CrossRef] [PubMed]
  50. Kato, S.; Okamura, T.; Kuwabara, K.; Takekawa, H.; Nagao, M.; Umesawa, M.; Minematsu, K. Effects of a school-based stroke education program on stroke-related knowledge and behaviour modification-school class based intervention study for elementary school students and parental guardians in a Japanese rural area. BMJ Open 2017, 7, e017632. [Google Scholar] [CrossRef]
  51. Ohyama, S.; Yokota, C.; Miyashita, F.; Amano, T.; Inoue, Y.; Shigehatake, Y.; Minematsu, K. Effective Education Materials to Advance Stroke Awareness Without Teacher Participation in Junior High School Students. J. Stroke Cerebrovasc. Dis. 2015, 24, 2533–2538. [Google Scholar] [CrossRef] [PubMed]
  52. Leung, A.Y.M.; Chau, P.H.; Leung, I.S.H.; Tse, M.; Wong, P.L.C.; Tam, W.M.; Leung, D.Y. Motivating Diabetic and Hypertensive Patients to Engage in Regular Physical Activity: A Multi-Component Intervention Derived from the Concept of Photovoice. Int. J. Environ. Res. Public Health 2019, 16, 1219. [Google Scholar] [CrossRef] [PubMed]
  53. Learning about Diabetes. 2020. Available online: https://learningaboutdiabetes.org/programs-consumer/ (accessed on 19 November 2021).
  54. Charon, R. Medicine, the novel, and the passage of time. Ann. Intern. Med. 2000, 132, 63–68. [Google Scholar] [CrossRef] [PubMed]
  55. Charon, R. Narrative Medicine: Form, Function, and Ethics. Ann. Intern. Med. 2001, 134, 83–87. [Google Scholar] [CrossRef]
  56. Green, M.J.; Czerwiec, M.K. Graphic Medicine: The Best of 2016. JAMA 2016, 316, 2580–2581. [Google Scholar] [CrossRef]
  57. Williams, I.; Squier, S.; Myers, K.S. Graphic Medicine Manifesto; Penn State University Press: University Park, PA, USA, 2015; ISBN 978-0-271-06649-3. [Google Scholar]
  58. Myers, K.R.; George, D.R.; Huang, X.; Goldenberg, M.D.F.; Van Scoy, L.J.; Lehman, E.; Green, M.J. Use of a Graphic Memoir to Enhance Clinicians’ Understanding of and Empathy for Patients with Parkinson Disease. Perm. J. 2020, 24, 19.060. [Google Scholar] [CrossRef]
  59. Czerwiec, M.K. Representing AIDS in Comics. AMA J. Ethics 2018, 20, 199–205. [Google Scholar]
  60. Czerwiec, M.K. Taking Turns: Stories from HIV/AIDS Care Unit 371; Penn State University Press: University Park, PA, USA, 2017; ISBN 978-0271078182. [Google Scholar]
  61. Forney, E. Marbles: Mania, Depression, Michelangelo & Me: A Graphic Memoir; Robinson: London, UK, 2013; ISBN 978-1592407323. [Google Scholar]
  62. Fies, B. Mom’s Cancer; Abrams ComicArts: New York, NY, USA, 2011; ISBN 978-0810971073. [Google Scholar]
  63. Marchetto, M.A. Cancer Vixen; Pantheon: New York, NY, USA, 2009; ISBN 978-0375714740. [Google Scholar]
  64. Waite, M. Writing medical comics. J. Vis. Commun. Med. 2019, 42, 144–150. [Google Scholar] [CrossRef] [PubMed]
  65. Walker, S. Effective antimicrobial resistance communication: The role of information design. Palgrave Commun. 2019, 5, 24. [Google Scholar] [CrossRef]
  66. McMullin, J. Cancer and the Comics: Graphic Narratives and Biolegitimate Lives. Med. Anthropol. Q. 2016, 30, 149–167. [Google Scholar] [CrossRef] [PubMed]
  67. Hamdy, S.; Nye, C.; Bao, S.; Brewer, C.; Parenteau, M. Lissa: A Story About Medical Promise, Friendship, and Revolution; University of Toronto Press: North York, ON, Canada, 2017. [Google Scholar]
  68. El Refaie, E. Visual Metaphor and Embodiment in Graphic Illness Narratives; Oxford University Press: New York, NY, USA, 2019; ISBN 978-0190678173. [Google Scholar]
  69. Roselfield, I.; Ziff, E.; Van Loon, B. DNA: A Graphic Guide to the Molecule that Shock the World; Columbia University Press: New York, NY, USA, 2011; ISBN 978-0231142717. [Google Scholar]
  70. Schultz, M.; Cannon, Z.; Cannon, K. The Stuff of Life: A Graphic Guide to Genetics and DNA; Hill and Wang: New York, NY, USA, 2009; ISBN 978-0809089475. [Google Scholar]
  71. Takemura, M.; Kikuyaro, S.O. The Manga Guide to Biochemistry; No Starch Press: San Francisco, CA, USA, 2011; ISBN 978-1593272760. [Google Scholar]
  72. Filipe, A.; Renedo, A.; Marston, C. The co-production of what? Knowledge, values, and social relations in health care. PLoS Biol. 2017, 15, e2001403. [Google Scholar] [CrossRef]
  73. Weitkamp, E.; Featherstone, H. Often overlooked: Formative evaluation in the development of Science Comics. J. Sci. Commun. 2009, 8, A04. [Google Scholar] [CrossRef]
  74. Dobbins, S. Comics in public health: The sociocultural and cognitive influence of narrative on health behaviours. J. Graph. Nov. Comics 2016, 7, 35–52. [Google Scholar] [CrossRef]
  75. Willis, L.A.; Kachur, R.; Castellanos, T.J.; Nichols, K.; Mendoza, M.C.B.; Gaul, Z.J.; Spikes, P.; Gamayo, A.C.; Durham, M.D.; LaPlace, L.; et al. Developing a Motion Comic for HIV/STD Prevention for Young People Ages 15–24, Part 2: Evaluation of a Pilot Intervention. Health Commun. 2018, 33, 229–237. [Google Scholar] [CrossRef] [PubMed]
  76. Willis, L.A.; Kachur, R.; Castellanos, T.J.; Spikes, P.; Gaul, Z.J.; Gamayo, A.C.; Durham, M.; Jones, S.; Nichols, K.; Han Barthelemy, S.; et al. Developing a Motion Comic for HIV/STD Prevention for Young People Ages 15–24, Part 1: Listening to Your Target Audience. Health Commun. 2018, 33, 212–221. [Google Scholar] [CrossRef]
  77. Alemany-Pagès, M.; Azul, A.M.; Ramalho-Santos, J. The use of comics to promote health awareness: A template using non-alcoholic fatty liver disease. Eur. J. Clin. Investig. 2022, 52, e13642. [Google Scholar] [CrossRef] [PubMed]
  78. Toroyan, T.; Reddy, P.S. Participation of South african youth in the design and development of AIDS photocomics. Int. Q. Community Health Educ. 1997, 17, 131–146. [Google Scholar] [CrossRef] [PubMed]
  79. Leung, M.M.; Green, M.C.; Cai, J.; Gaba, A.; Tate, D.; Ammerman, A. Fight for Your Right to Fruit: Development of a Manga Comic Promoting Fruit Consumption in Youth. Open Nutr. J. 2015, 9, 82–90. [Google Scholar] [CrossRef]
  80. Kiragu, K.; Obwaka, E.; Odallo, D.; Van Hulzen, C. Communicating about sex: Adolescents and parents in Kenya. AIDS/STD Health Promot. Exch. 1996, 3, 11–13. [Google Scholar]
  81. Schneider, E.F. Quantifying and Visualizing the History of Public Health Comics. In iConference 2014 Proceedings; iSchools: Grandville, MI, USA, 2014; pp. 995–997. [Google Scholar] [CrossRef]
  82. Alemany-Pagès, M.; Ramalho-Santos, J.; Azul, A.M.; Tavares, R. A Healthy Liver Will Always Deliver; Coimbra University Press: Coimbra, Portugal, 2020; ISBN 978-9892620428. [Google Scholar]
  83. Alemany-Pagès, M.; Moura-Ramos, M.; Araújo, S.; Macedo, M.P.; Ribeiro, R.T.; Ramalho-Santos, J.; Azul, A.M. Insights from qualitative research on NAFLD awareness with a cohort of T2DM patients: Time to go public with insulin resistance? BMC Public Health 2020, 20, 1142. [Google Scholar] [CrossRef] [PubMed]
  84. Fox, S.I.; Rompolski, K. Human Physiology, 15th ed.; McGraw-Hill Education: New York, NY, USA, 2018; ISBN 978-1260092844. [Google Scholar]
  85. Jensen, T.; Abdelmalek, M.F.; Sullivan, S.; Nadeau, K.J.; Green, M.; Roncal, C.; Nakagawa, T.; Kuwabara, M.; Sato, Y.; Kang, D.H.; et al. Fructose and sugar: A major mediator of non-alcoholic fatty liver disease. J. Hepatol. 2018, 68, 1063–1075. [Google Scholar] [CrossRef] [PubMed]
  86. Lim, J.S.; Mietus-Snyder, M.; Valente, A.; Schwarz, J.-M.; Lustig, R.H. The role of fructose in the pathogenesis of NAFLD and the metabolic syndrome. Nat. Rev. Gastroenterol. Hepatol. 2010, 7, 251–264. [Google Scholar] [CrossRef] [PubMed]
  87. Petersen, M.C.; Vatner, D.F.; Shulman, G.I. Regulation of hepatic glucose metabolism in health and disease. Nat. Rev. Endocrinol. 2017, 13, 572–587. [Google Scholar] [CrossRef]
  88. Brunt, E.M.; Wong, V.W.-S.; Nobili, V.; Day, C.P.; Sookoian, S.; Maher, J.J.; Bugianesi, E.; Sirlin, C.B.; Neuschwander-Tetri, B.A.; Rinella, M.E. Nonalcoholic fatty liver disease. Nat. Rev. Dis. Primers 2015, 1, 15080. [Google Scholar] [CrossRef] [PubMed]
  89. McNicol, S. Humanising illness: Presenting health information in educational comics. Med. Humanit. 2014, 40, 49–55. [Google Scholar] [CrossRef] [PubMed]
  90. Friesen, J.; Van Stan, J., II; Elleuche, S. Communicating science through comics: A method. Publications 2018, 6, 38. [Google Scholar] [CrossRef]
  91. Kuttner, P.; Weaver-Hightower, M.B.; Sousanis, N. Comics-based Research: The affordances of comics for research across disciplines. Qual. Res. 2021, 21, 195–214. [Google Scholar] [CrossRef]
  92. Farinella, M. Of Microscopes and Metaphors: Visual Analogy as a Scientific Tool. Comics Grid J. Comics Scholarsh. 2018, 18, 1–16. [Google Scholar] [CrossRef]
Figure 1. Typical representation of the electron transport chain in the inner mitochondrial membrane and the generation of an electrochemical gradient (A). The use of the gradient to synthesize ATP by the ATP synthase can be depicted as a system of rotating paddles based on structural information (B). More metaphorical is an analogy to show how a hydroelectric dam produced electricity (C).
Figure 1. Typical representation of the electron transport chain in the inner mitochondrial membrane and the generation of an electrochemical gradient (A). The use of the gradient to synthesize ATP by the ATP synthase can be depicted as a system of rotating paddles based on structural information (B). More metaphorical is an analogy to show how a hydroelectric dam produced electricity (C).
Biochem 02 00008 g001

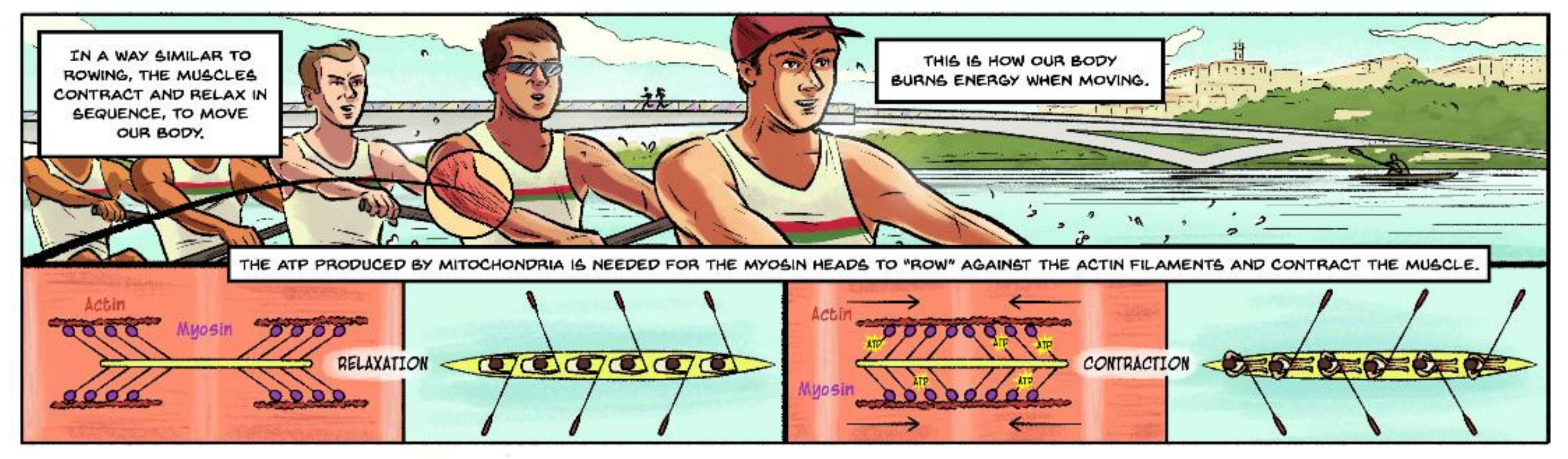

Figure 2. The introduction of a common activity (rowing) to stress the movements of myosin and actin filaments relevant in muscular contraction.
Figure 2. The introduction of a common activity (rowing) to stress the movements of myosin and actin filaments relevant in muscular contraction.
Biochem 02 00008 g002

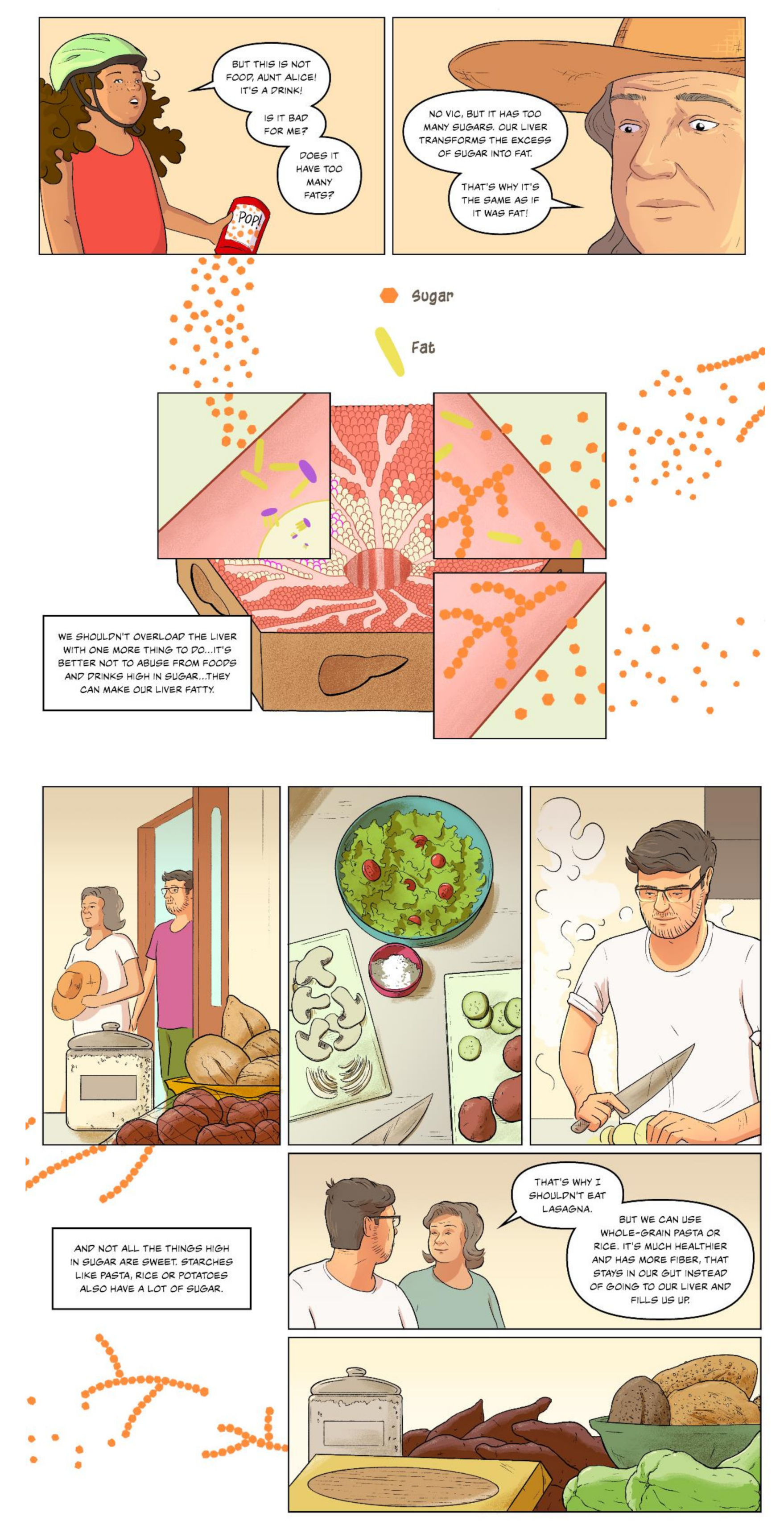

Figure 3. The use of characters with specific biographies and storylines to help convey both biochemical information (the synthesis of fat from sugars) and to help convey information relative to nutrition and healthier lifestyles (see text for discussion).
Figure 3. The use of characters with specific biographies and storylines to help convey both biochemical information (the synthesis of fat from sugars) and to help convey information relative to nutrition and healthier lifestyles (see text for discussion).
Biochem 02 00008 g003
Figure 4. Anthropomorphizing biochemical elements such as molecules (Insulin) or cells/tissues (from left to right: muscle fat, liver) as a communication tool, in this case to convey the concept of insulin resistance using a “cells on strike” metaphor. See text for discussion.
Figure 4. Anthropomorphizing biochemical elements such as molecules (Insulin) or cells/tissues (from left to right: muscle fat, liver) as a communication tool, in this case to convey the concept of insulin resistance using a “cells on strike” metaphor. See text for discussion.
Biochem 02 00008 g004
