RF Sputter-Deposited Nanostructured CuO Films for Micro-Supercapacitors

Abstract

Copper oxide is considered as an alternative electrode material for supercapacitors due to its low cost, chemical stability and high theoretical specific capacitance. In the present work, nanostructured copper oxide (CuO) films are prepared by radio-frequency (RF) magnetron sputtering, and the influence of the substrate temperature on the microstructure and supercapacitive properties was studied. The copper oxide films prepared at 350 °C exhibit a predominant ($\overline{1}$11) orientation corresponding to the monoclinic Cu(II)O phase with a crystallite size of 24 nm. The surface of the film consists of uniformly distributed oval-like grains providing a high surface roughness of 45 nm. The films exhibit an optical bandgap of 1.68 ± 0.01 eV and an electrical conductivity of 0.4 S cm⁻¹ at room temperature. The as-prepared CuO films deliver a discharge specific capacitance of 387 mF cm⁻² (375 F g⁻¹) at a current density of 1 mA cm⁻² with excellent cyclic capacitance retention of 95% (367 mF cm⁻²) even after 1000 cycles. Hence, these films are potential electrodes for micro-supercapacitors.

1. Introduction

The spectacular development of the microelectronic industry is day-by-day downscaling its products for a wide range of applications such as medical implants, micro-sensors, self-powered integrated circuits or micro-electro-mechanical systems (MEMS). The reduction in size and improvement in the capability of such microsystems demand a high-energy and high-power unit in a small footprint area with dimensions at the scale of 1–10 mm², including all the components and the associated packing. However, the fabrication of micro-miniaturized energy storage and conversion devices and the respective interconnects is still challenging [1,2,3]. In the present scenario, intensive investigations are in progress for the development of two complementary electrochemical energy storage devices, viz., Li-ion microbatteries and micro-supercapacitors. The micro-supercapacitors based on capacitive ion adsorption/desorption in electrodes, which offer an optimum cycle life (>100,000 cycles), are particularly attractive for high-power applications (>10 mW cm⁻²) [4,5,6,7]. The efficiency of micro-supercapacitors is mainly dependent on suitable electrode materials that facilitate the ion motion between the electrode surface and electrolyte to generate high capacitance and store energy through faradaic redox reactions. Due to their high oxidation states, transition metal oxides (TMOs) demonstrate efficient redox charge storage, meaning that they could satisfy the needs of high energy density and power density [8,9]. Among various electrode materials, CuO has been extensively investigated as a supercapacitive material due to its low cost, abundant resources, high chemical stability, high theoretical capacity (690 F g⁻¹) and non-toxic nature [10,11,12]. Copper oxide was one of the first semiconducting materials studied in the 1930s [13,14]. It has two major forms: (i) copper(II) oxide (CuO, tenorite), a defect p-type semiconductor, which crystallizes in the monoclinic structure (C2/c space group, #15) with high absorbability, low thermal emittance and a moderate bandgap of 1.1–1.7 eV [15]; and (ii) copper(I) oxide (Cu₂O, cuprite), which crystallizes in the cubic structure (Pnm space group, #224) and exhibits a wider bandgap of 1.8–2.5 eV [16].

Due to their merits and easy fabrication, CuO films are extensively used in versatile applications such as microelectronic devices [17], sensors [18] and solar energy conversion [19]. The microstructural and surface morphological properties of CuO films are determined by their preparation technique. CuO films have been grown using various deposition techniques such as thermal oxidation [20], electrodeposition [21,22], pulsed-laser deposition [23], plasma evaporation [24], thermal evaporation [25], reactive sputtering [26], electron-beam evaporation [27], molecular-beam epitaxy [28], spray pyrolysis [29,30], spin coating [31], successive ionic layer adsorption and reaction (SILAR) [32] and chemical vapor deposition [33,34]. Among these film deposition processes, radio-frequency (RF) magnetron sputtering is one of the most pre-eminent industrial practical techniques to achieve high-quality and uniform thickness films with the required chemical composition [35]. For two decades, RF magnetron sputtering has become the most popular deposition technique for the growth of crystalline CuO films [36,37,38,39,40,41,42,43,44,45]. Further, during deposition, thermally activated parameters such as the relaxation time to dissipate the kinetic energy of sputtered species, surface diffusion and structural changes in the surface are effectively influenced by the oxygen partial pressure and the substrate temperature. A previous work showed that changes in the phase of copper oxide films from metallic copper to Cu₂O and Cu₂O to Cu₄O₃ and then to CuO were observed by varying the ratio of the O₂/Ar gas mixture from 1:25 to 1:1 [42]. The reported capacitance for the films was 357 F g⁻¹ at a low current density of 0.5 mA cm⁻².

The suitability and electrochemical performance of the film electrode to be used in micro-supercapacitors should satisfy the following criteria:

(a)

Stable crystallographic structure with good integrity between the crystallites to avoid running-off of the active material during the electrochemical intercalation and de-intercalation process for long cycle stability.

(b)

The microstructure of the electrode with a high specific surface area and high mesoporosity provides more intercalation sites for enhancement of the specific capacitance.

(c)

Reasonable conductivity of the electrode yields low charge transfer resistance and, in turn, improves the transportation of electrons and ions.

(d)

Good adhesion among the layers avoids the running-off of the material.

The electrochemical performance mainly depends upon the microstructure, surface morphology and electrical properties of the films which, in turn, depend upon the type of deposition technique and process parameters employed during the film growth. Extensive investigations have been conducted on the growth of CuO films using RF magnetron sputtering by varying all deposition parameters, i.e., T_s, Ar/O₂ ratio and RF power, which is a single-step process. The optimized deposition conditions of the O₂-to-Ar gas flow ratio at 1:7 and RF power at 250 W determined in earlier work [42] are kept constant and the temperature of the Si substrate is varied to obtain high supercapacitance performance. Growth of a single-phase CuO film with a good crystalline nature is very difficult. It was demonstrated that the pure CuO monoclinic phase is stable in this temperature range, while the film grown at T_s < 250 °C is amorphous in nature or poorly crystallized and displays a mixture of cubic CuO and Cu₂O. At T_s > 450 °C, impurity phases such as Cu₂O and Cu₄O₃ are mixed with monoclinic CuO [20,33,41]. Hence, we have focused our attention more critically to observe the crystalline growth between 300 and 400 °C with a step of 25 °C. This work emphasizes the optimization of the deposition temperature in relation to the film microstructure and morphology. A detailed study was conducted to arrive at an optimum deposition temperature of 350 °C, where the CuO films demonstrate a single phase with a monoclinic structure, better crystallinity, high surface area and reasonable electronic conductivity. These binder-free films were employed in the fabrication of an electrochemical cell and demonstrated pseudo-capacitance behavior with high specific capacitance and a long cycle life.

Note that the number of works reporting the supercapacitive properties of CuO films is very limited. We only identified nine articles, which are listed in

Table 1. Description of the stepped synthesis of CuO films for supercapacitors.

Number of Steps	Successive Processes	Ref.
3	Solution + SILAR (90 cycles) + annealing	[31]
4	Solution + refluxing + washing + drying	[43]
3	Solution + spray pyrolysis + annealing	[44]
3	Ultrasonication + spray pyrolysis + drying	[45]
3	Solution + chemical bath (pH control) + drying	[46]
3	Solution + precipitation process + annealing	[47]
3	Solution + chemical bath + annealing	[48]
5	Solution + filtration + washing + drying + annealing	[49]
4	Acid treatment + surface oxidation + washing + drying	[50]

with the brief description of the synthesis procedures [31,43,44,45,46,47,48,49,50]. All works show multi-step processes (at least three steps) used for the synthesis of CuO films, which are rather complex and costly methods compared with the one-step magnetron sputtering technique, which is also scalable for low-cost industrial production without the use of chemicals in aqueous solutions. Moreover, the CuO-based micro-supercapacitors can be fabricated in a unique vacuum chamber by successive depositions of the device elements, i.e., current collectors, solid electrolyte and counter electrode, using the same process.

2. Materials and Methods

2.1. CuO Film Deposition

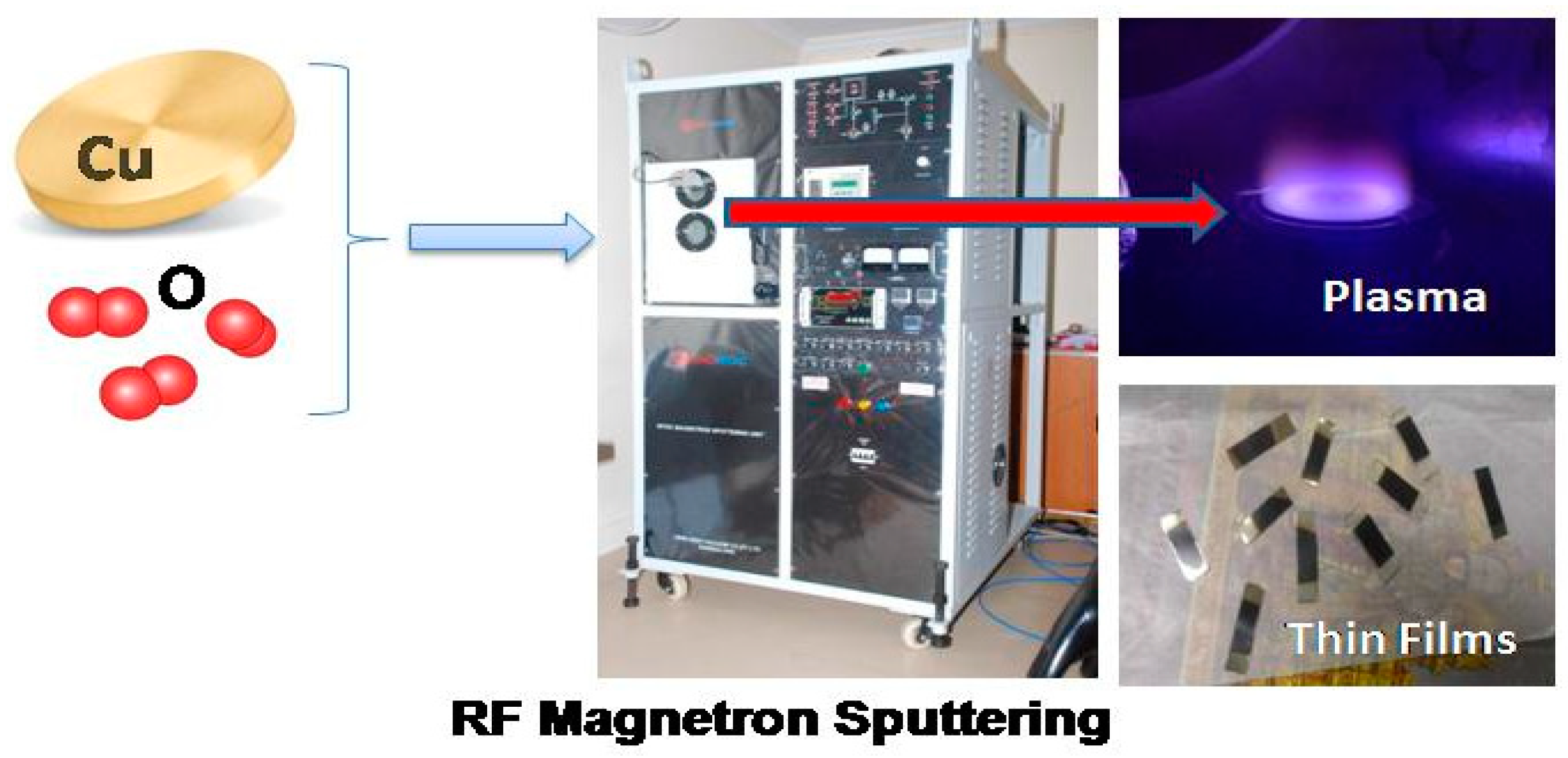

Films of copper monoxide (CuO) were deposited on silicon substrates by the RF magnetron sputtering technique using a 3” circular copper metal target of 99.99% purity. The chamber (24” Box Coater-Hind High Vacuum) was evacuated to a base pressure of 5.4 mPa using a turbo-molecular pump backed by a rotary pump. The Cu metal target (purity 99.99%) was pre-sputtered for 10 min by introducing Ar gas into the chamber to remove the native oxide layer from the target. Throughout the deposition procedure, the RF power and ratio of the O₂/Ar gas mixture were maintained at 250 W and 1:7, respectively [42,51]. The source to substrate distance was kept constant at 8.0 cm and the sputtering pressure was maintained at 2 Pa during the deposition. Samples were elaborated at different substrate temperatures between 300 and 400 °C with a step of 25 °C. The experimental diagram of the RF magnetron sputtering process to prepare CuO films is shown in Scheme 1.

2.2. Characterization

The phase identification of the as-grown CuO films was carried out by X-ray diffraction (XRD, Seifert X-ray diffractometer, model 3003TT) equipped with a CuK_α1 radiation source (λ = 0.15406 nm) in the 2θ range from 10° to 100°, at a scan rate of 0.03° s⁻¹. The structural analysis of Cu oxide was also performed by Raman spectroscopy using a LabRAM-HR 800 confocal apparatus (Horiba, Kyoto, Japan) with the He-Ne laser line at 632 nm as the excitation wavelength. The surface morphological properties were studied using atomic force microscopy (AFM, model SOLVER Next, NT-MDT Spectrum Instruments, New Delhi, India) and scanning electron microscopy (SEM, model Carl Zeiss EVO50, Jena, Germany). The surface roughness and grain size were characterized using Nova PX software. The thickness of the prepared film was measured using a stylus-type surface profiler (Mitutoyo Surftest SJ-301, Kanagawa, Japan). The elemental composition and surface analyses were conducted by X-ray photoelectron spectroscopy (XPS, model PHI Versa Probe II, Physical electronics Inc., Chanhassen, MN, USA) equipped with a rotating anode (Al Kα, radiation source, λ = 1486.6 eV). The binding energy (BE) values were referenced to the C 1s core level at 284.5 eV. The optical transmittances of as-prepared films were recorded by a UV–VIS–NIR double-beam spectrometer (model Lambda 950, Perkin Elmer, Rodgau, Germany) in the wavelength range from 300 to 1100 nm. The electrical properties were studied using the standard four-probe technique. The electrochemical properties such as cyclic voltammetry (CV) and galvanostatic charge–discharge (GCD) and electrochemical impedance spectroscopy (EIS) measurements were carried out using a three-electrode aqueous cell. The as-prepared CuO films deposited on silicon substrates, platinum strip and Ag/AgCl electrodes were used as working, counter and reference electrodes, by which the electrochemical analysis was calibrated in the presence of a phosphate-buffered aqueous solution (PBS, Life Technologies, Carlsbad, CA, USA) of pH 7.2 as the electrolyte. The electrochemical tests were performed using an electrochemical analyzer, the CHI 608C instrument. All the experiments were conducted at 25 °C.

3. Results

3.1. Structure and Morphology

The structural properties of the RF sputtered CuO films were investigated by XRD and Raman spectroscopy, while the film morphology was examined by SEM and AFM experiments. The as-prepared CuO films deposited at 300 ≤ T_s ≤ 400 °C without subsequent annealing have a uniform aspect without pinholes, distinct bump formation and a surface with the appearance of granular morphology. The thicknesses of as-grown films are in the range 1.37–1.53 µm.

Figure 1 presents the XRD diffractograms in the range 10 ≤ 2θ ≤ 100° of RF sputtered CuO films prepared at five different substrate temperatures of 300, 325, 350, 375 and 400 °C. The XRD pattern of the CuO film prepared at 350 °C exhibits the predominant reflection at the 2θ angle of 35.37° with d_hkl of 0.253 nm ascribed to the ($\overline{1}$11)/(002) planes. Diffraction peaks of lower intensity at 32.61°, 38.75°, 62.05°, 76.17° and 89.71° are attributed to the reflection planes (110), (111)/(200), ($\overline{1}$13), (222) and (131) with d_hkl of 0.278, 0.236, 0.149, 0.117 and 0.109 nm, respectively. All diffraction peaks match well with the standard data (JCPDS card no. 89-2531) and reveal the growth of single-phase CuO with the tenorite-type monoclinic structure. It can be observed that the intensity of all diffraction peaks reaches a maximum at T_s = 350 °C, which indicates that it is the optimized temperature where the superior crystallinity is reached. No extra peak is observed (see Figure 1), which provides evidence that the film is free of any impurities and other Cu-based phases, i.e., Cu₂O, Cu₃O₄ or Cu(OH)₂. Moreover, the polycrystalline monoclinic lattice is confirmed, in contrast with the cubic structure observed for films deposited at T_s < 300 °C. These results are consistent with data reported in the literature [52,53,54,55]. In the substrate temperature range 300 ≤ T_s ≤ 400 °C, the films exhibit preferential growth of the grains along the ($\overline{1}$11) orientation.

The lattice parameters of the CuO films were determined using a least-squares fitting method with six reflection lines (monoclinic structure, C2/c space group). The obtained values are a = 4.674(2) Å, b = 3.471(8) Å, c = 5.117(0) Å and β = 98.61 for the films grown at 350 °C and an elementary unit volume V = abc sin β of 83.015 ų. The elementary unit volume is only 0.2% less than the value for the bulk crystal, indicating the formation of rather dense films [56]. The crystallite (grain) size (L) of the RF sputtered CuO films was calculated using the Debye–Scherrer’s formula [57]:

$$L=\frac{K\mathsf{\lambda }}{B \cos \mathsf{\theta } },$$

(1)

where K is a dimensionless shape factor (0.9 for quasi-spherical particles), λ is the wavelength of the X-ray source, B is the full width at half maximum (FWHM) and θ is the Bragg angle. The dislocation density (δ), indicating the density of defects in the films, and the micro-strain (ε) were calculated using the following equations:

$$\mathsf{\delta }=\frac{1}{L^2},$$

(2)

$$\epsilon =\frac{B}{4 \tan \mathsf{\theta }}.$$

(3)

Results of the crystallographic parameters are summarized in

Table 2. The crystallographic parameters for as-grown monoclinic CuO films (i.e., lattice parameters, grain size, lattice strain and dislocation density). Errors in lattice parameters are ± 0.0001 Å.

Ts (°C)	Lattice Parameters				Grain Size (nm)	Strain <e> ×10−3	Dislocation Density 1017 cm−2
	a (Å)	b (Å)	c (Å)	β (°)
300	4.664(2)	3.466(1)	5.111(5)	98.70(1)	18	4.12	3.1
325	4.669(9)	3.467(5)	5.114(3)	98.65(2)	20	3.88	2.5
350	4.674(2)	3.471(8)	5.117(0)	98.61(0)	24	3.32	1.7
375	4.677(7)	3.472(2)	5.121(3)	98.64(5)	22	3.64	2.0
400	4.689(3)	3.478(1)	5.127(1)	98.66(3)	22	3.97	2.1

. The estimated crystallite sizes ($\pm 1 \mathrm{nm}$) of the CuO films deposited at T_s of 300, 350 and 400 °C are found to be 18, 24 and 22 nm, respectively. It can be observed that the crystallite size increases initially (from 18 to 24 nm) upon increasing T_s in the range 300–350 °C, and then it is unchanged (~24 nm) with a further increase of T_s from 350 to 400 °C. The small crystallite size at 300 °C is attributed to the large number of grain boundaries, which creates a free volume in films and produces a hydrostatic-like pressure responsible for high stress and high dislocation densities [58]. For the further increase in T_s from 300 to 350 °C, the crystallite size increases by 30% because less free volume occurs at high T_s, which causes lower stress in the film. More precisely, from the substrate side, the potential barrier should become flat and the diffusion of ad-atoms should occur. In addition, a large number of ad-atoms are originated and may coalesce, improving the crystallite size [36]. On the other hand, at T_s = 400 °C, the crystallite size is reduced by 8%. This has been attributed to the creation of oxygen vacancies [59], responsible for local distortions, and thus an increase in the strain field [36]. As a result, a lower crystallinity is observed. The results in Table 2 show that the optimized T_s = 350 °C of the deposit is the temperature leading not only to the best crystallinity, but also to the minimum of the strain field inside the film.

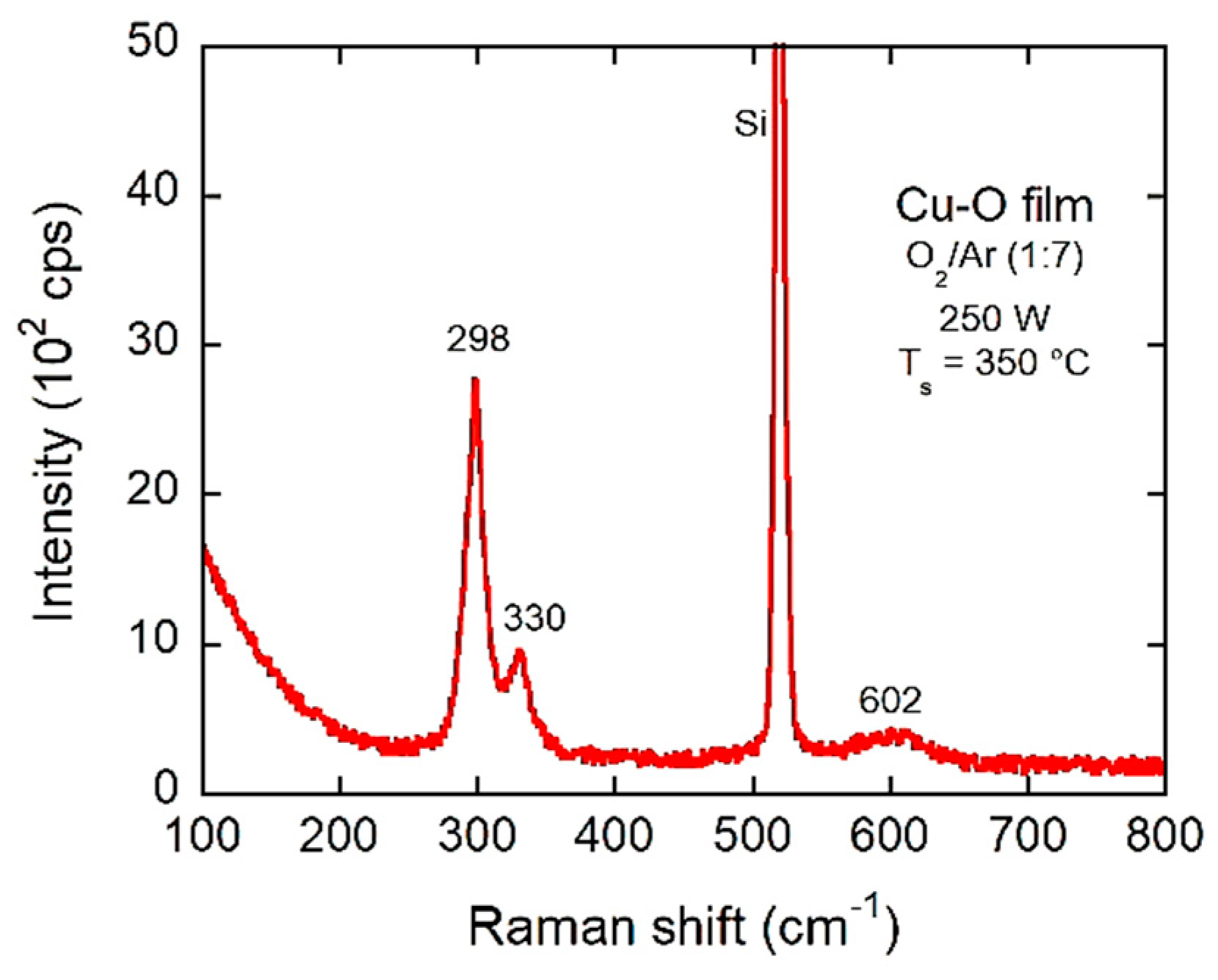

The phase identification was also performed by Raman spectroscopy. Figure 2 shows the spectrum of the sputtered Cu-O film deposited on the Si substrate and heated at 350 °C with a power of 250 W in the O₂/Ar (1:7) gas mixture. The Raman spectrum shows three bands located at 298, 330 and 602 cm⁻¹, which are the characteristic vibrations of the monoclinic CuO crystal. They are assigned to the A_g, B_g⁽¹⁾ and B_g⁽²⁾ Raman active modes, respectively, with the peak at 602 cm⁻¹ being a Cu-O stretching mode [60]. The strong peak at 520 cm⁻¹ is the first-order Raman active mode of the Si substrate. The presence of both phases of Cu₂O and Cu₄O₃ is excluded since the Raman peaks at 218 (Cu₂O) and 533 cm⁻¹ (Cu₄O₃) are not observed. Thus, from Raman and XRD analyses, the monoclinic CuO phase is clearly identified. Note that Raman spectroscopy is a very sensitive tool to detect such impurities and more sensitive than XRD in particular. The Raman spectra are thus a probe of the purity of the CuO film.

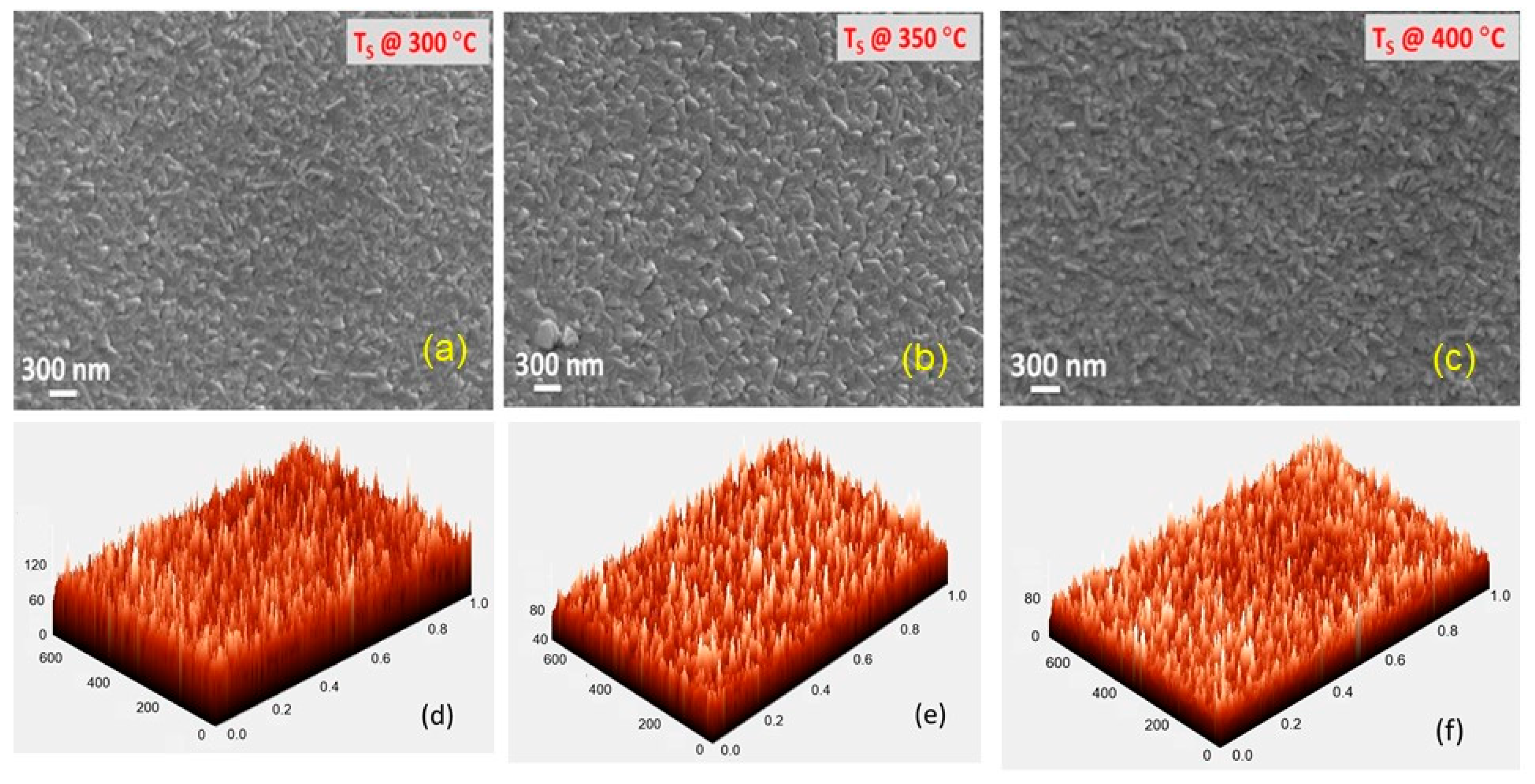

The surface morphology of the CuO films deposited on the silicon wafer was investigated by SEM. Figure 3 shows the 2D SEM images (a–c) and 3D SEM images (d–f) obtained by using NOVA Px software. The 2D images display a regular surface coverage that is crack-free with high densities in contact with the silicon substrate. Further, the micrographs reveal a very homogeneous grain size distribution (i.e., almost monodisperse). The grain size (100–200 nm) bigger than that of crystallites indicates the polycrystalline form of the as-sputtered films. At T_s < 300 °C, the films exhibit aggregation of grains, which indicates that the crystalline structure is initiated at 300 °C. This is thus the threshold temperature at which the sputtered CuO species receive the potential energy of nucleation sites to form the crystalline film. When the substrate temperature increases from 300 to 350 °C, we observe well-ordered grains and grain boundaries, with corresponding development in the grain size and surface roughness. The surface topography of the CuO films deposited at T_s = 350 °C displays a uniform distribution of grains. A detailed examination of SEM images in Figure 3 reveals the same tendency of the increasing grain size to that of the crystallite size. The grain size is increased with increasing the substrate temperature from 300 to 350 °C. The average grain size of the prepared sample at the substrate temperature of 350 °C is 140 nm. For the further increase in T_s from 350 to 400 °C, the grain size is decreased. Thus, according to the XRD and SEM results, we consider that the best CuO film suitable for further characterizations was obtained at T_s = 350 °C.

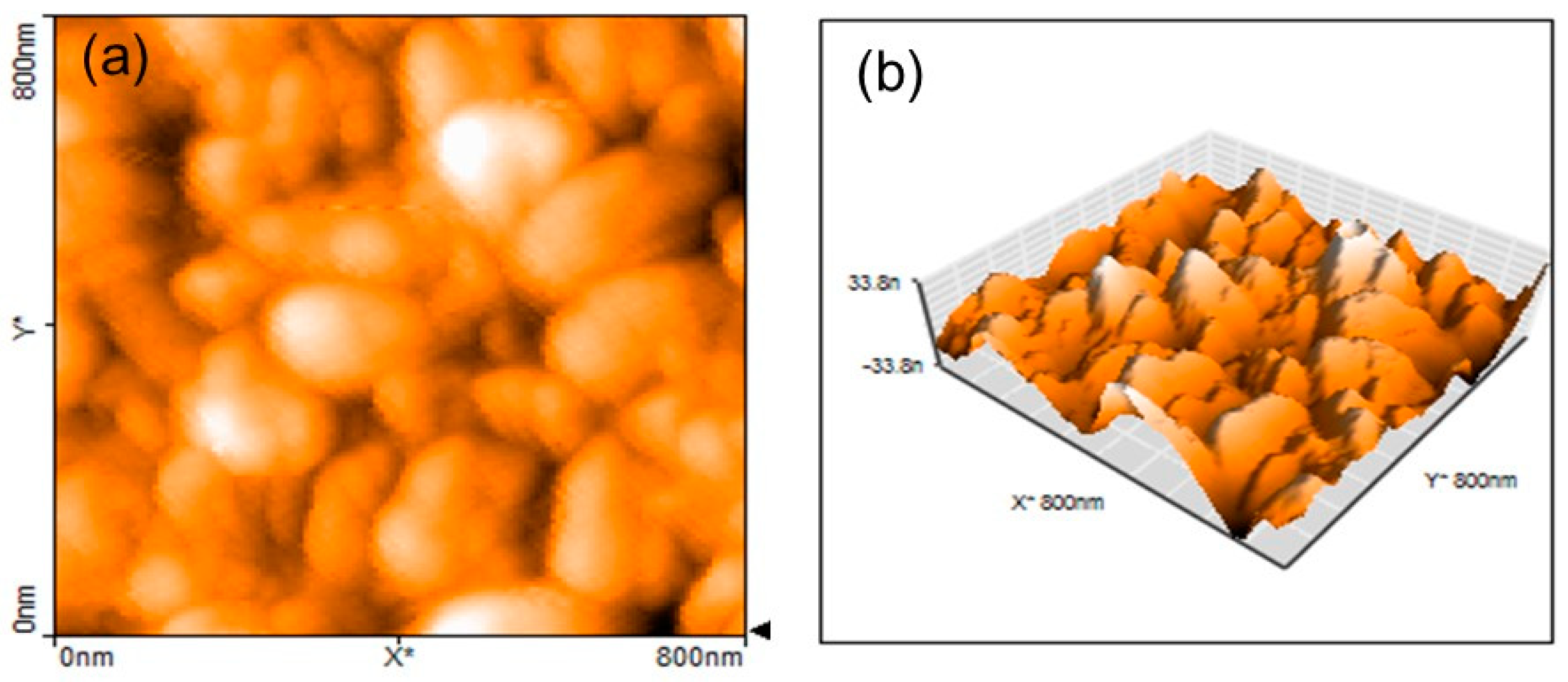

The surface topography of CuO films was studied by AFM measurements. Figure 4 presents the 2D and 3D topographical images showing the grain distribution and surface roughness of the RF sputtered CuO films at T_s = 350 °C. The 2D 800 × 800 nm² image displays a compact and granular morphology of the film (Figure 4a). It can be seen that the surface of the film consists of elongated grains uniformly distributed with a high surface-to-volume ratio. The 3D AFM micrograph (Figure 4b) shows profound grain features and less voided boundaries, revealing the formation of densely packed grains. Using the Nova PX software, the calculated average grain size and surface roughness of the films are 134 ± 2 and 45 ± 2 nm, respectively. This topology confirms the results from SEM and XRD studies. Note that the root mean square surface roughness for Si substrates is ~3 nm. Thus, the morphology of CuO films cannot be influenced by the Si substrate, which has a small grain-like structure.

In particular, the CuO film deposited at 350 °C with a large grain size (143 nm) shows a high value of the root mean square (rms) roughness of 45 nm. This may be due to the fact that larger particles with an oval-elongated morphology exhibit higher differences in the height (z range) by the side of their boundaries in comparison to the smaller grain. The Brunauer-Emmett-Teller (BET) specific surface area S_BET can be calculated by the relation [61]:

$$S_{\mathit{BET}}=\frac{K\lambda }{\rho D} ,$$

(4)

where λ is the surface roughness, ρ is the grain density, D is the average grain diameter and K is a geometry factor (K equals 6 for ideal spheres). Using a density of ρ ≈ 6 g cm⁻³ for the well-crystallized CuO film deposited at 350 °C, one obtains S_BET = 10.5 m² g⁻¹, which is an important factor for the electrochemical performance of the SC electrode.

3.2. XPS Studies

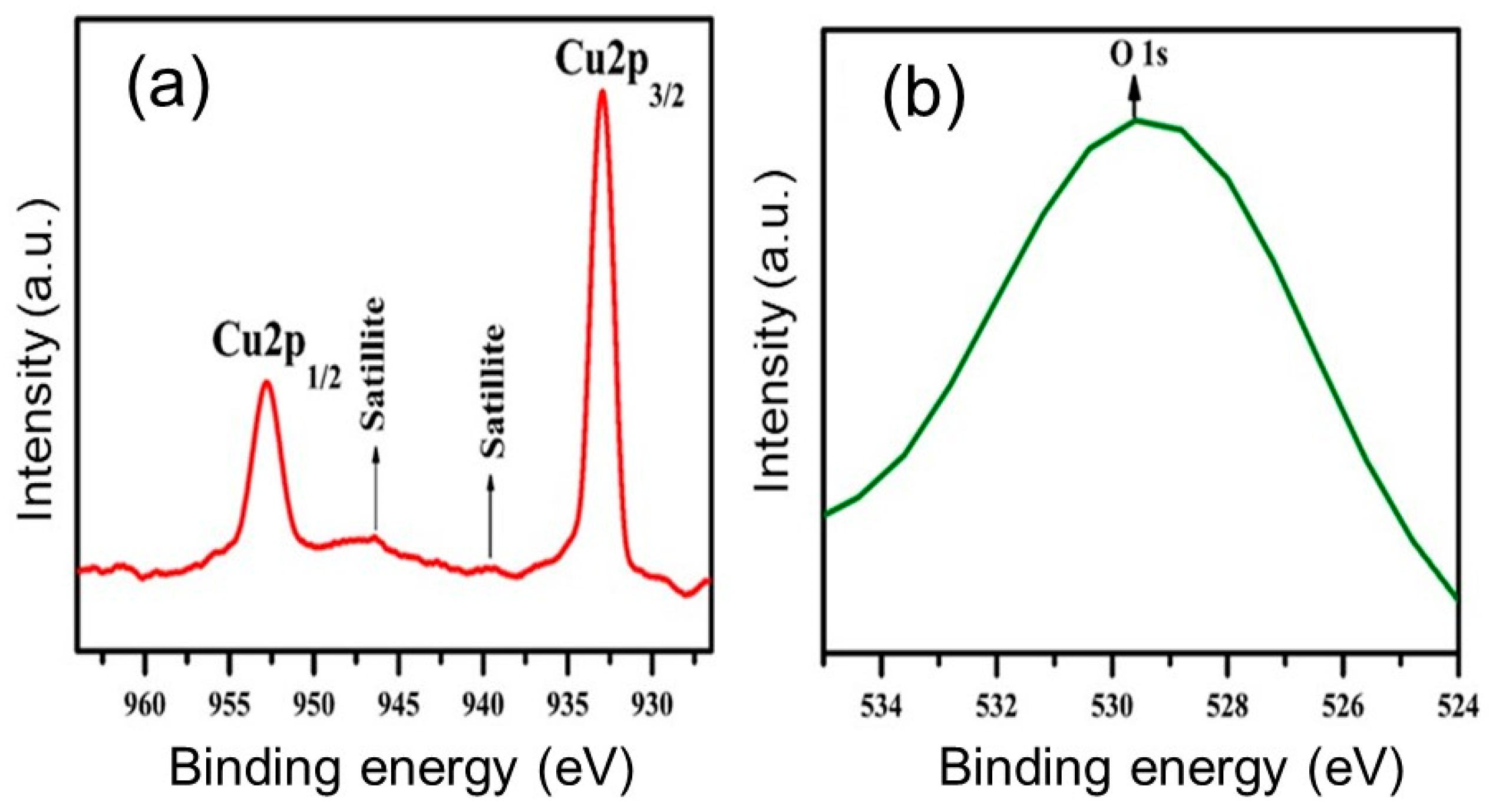

The chemical states of RF sputtered CuO films prepared on the Si substrate and heated at a T_s of 350 °C were investigated by XPS, as shown in Figure 5. The characteristic core level spectrum of Cu 2p is recorded in the binding energy range 920–960 eV (Figure 5a), while the broad peak of O 1s is pointed out at 529.7 eV (Figure 5b). The Cu 2p spectrum displays the two peaks located at 952.0 and 933.2 eV corresponding to the binding energies of Cu 2p_1/2 and Cu 2p_3/2, respectively, along with the satellite components. The binding energy of the Cu 2p_3/2 peak at 933.2 eV confirms the oxidation state of Cu(II) of the monoclinic CuO phase, which differs from the binding energy of 932.4 eV for Cu (I) [62]. The two observed satellite peaks for Cu 2p are characteristic features of the CuO phase [63]. Moreover, the splitting between the binding energies of 2p_3/2 and 2p_1/2 core levels of 18.8 eV matches well with the standard spectrum of CuO. The single peak of the O 1s core level located at a binding energy of 529.7 eV provides conclusive evidence of lattice oxygen bound to Cu²⁺ within the monoclinic CuO phase. The obtained results are consistent with the reported values in [64].

3.3. Optical Bandgap

The optical bandgap of CuO films was determined using optical spectroscopy in the vicinity of the fundamental transition, i.e., wavelength range of 300–1100 nm. Due to the crystallinity and high transparency of copper oxide, measurements were carried out using films (less than 300 nm thick) deposited on glass slides. Figure 6a shows the plots of the transmittance and reflectance vs. the incident energy for the films deposited at different substrate temperatures. An optical transmittance of ~65% is recorded in the wavelength range of 850–1100 nm. All samples exhibit strong absorption in the visible and near-infrared region up to 800 nm. The optical absorption coefficient (α) was calculated taking into consideration the transmittance (T%) and reflectance (R%) of the film using the standard equation [65]:

$$\alpha = \frac{1}{d} ln\left[\frac{{\left(1-R\right)}^2}{T}\right],$$

(5)

where d is the film thickness. The bandgap E_g of films was calculated by Tauc’s formula [66]:

αhν = A (E_g − hν)ⁿ,

(6)

where hν is the incident photon energy and A is a constant depending on several intrinsic properties of the material, i.e., the effective mass of the electron and hole and the material refractive index. The exponent n depends on the type of optical transition that prevails. It is equal to ½, 3/2, 2 and 3 for the direct-allowed, direct-forbidden, indirect-allowed and indirect-forbidden transitions, respectively [66]. Note that the knowledge of the bandgap is also useful for the phase identification of the films, such as 1.1 ≤ E_g ≤ 1.7 eV for CuO, and 1.8 ≤ E_g ≤ 2.5 eV for Cu₂O. The bandgap of the as-prepared films is calculated by the plot of (αhν)ⁿ against hν and the extrapolation of the linear portion to the energy axis (α = 0). As copper oxide is a direct-allowed semiconductor, the graph in Figure 6b is plotted with (αhν)² vs. hν. It can be observed that, with increasing T_s from 300 to 350 °C, the optical energy bandgap values (±0.01 eV) were marginally decreased from 1.72 to 1.68 eV and increased to 1.70 eV with a further increase in the temperature to 400 °C. Indeed, the optical properties of the films critically depend on the physical properties, and these variations in the energy gap here are consistent with those of the crystallite size.

3.4. Electrical Properties

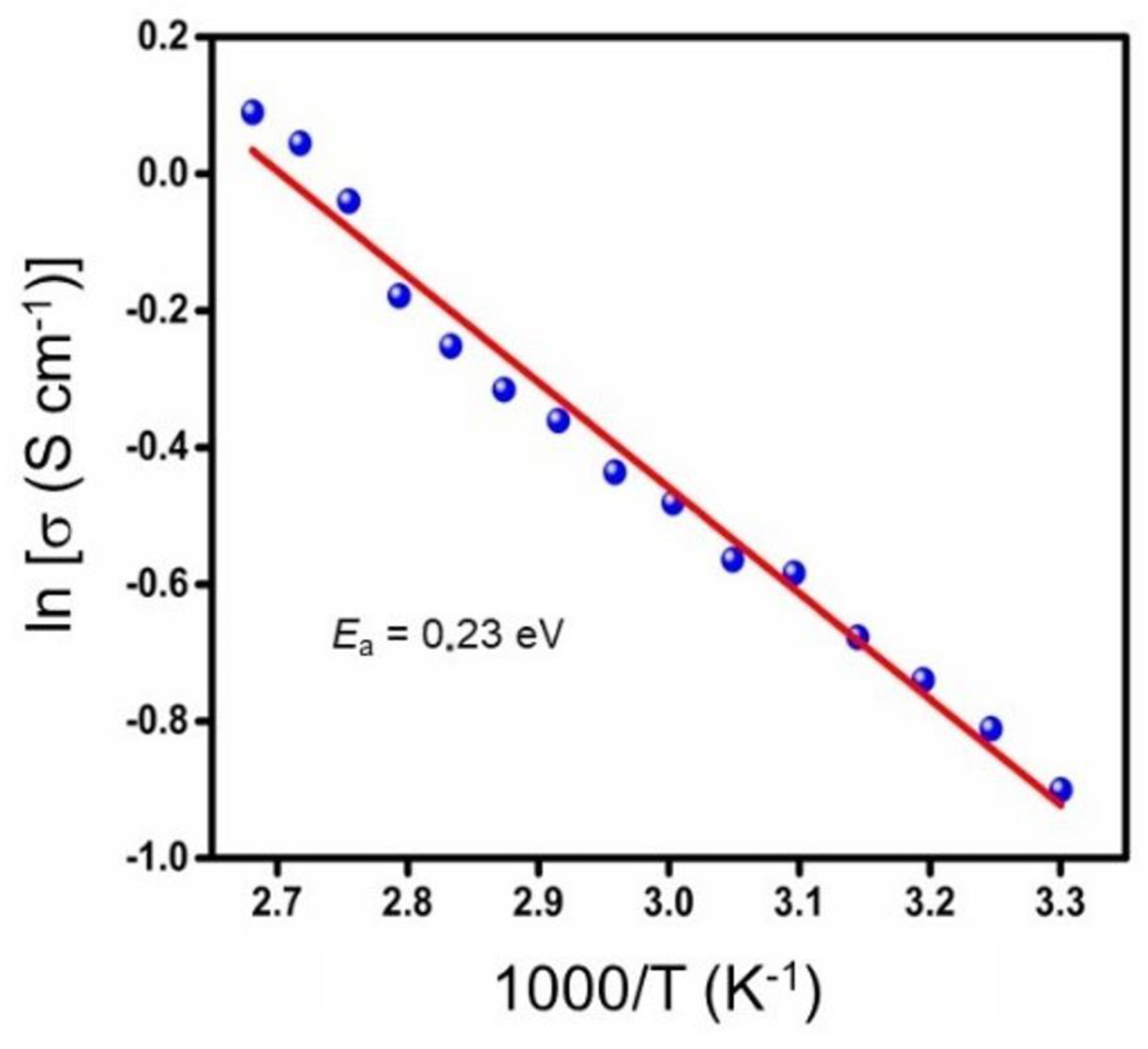

The electrical properties of the optimized RF sputtered CuO films deposited at 350 °C were studied using the four-point probe technique in the temperature range 25–100 °C. Measurements give a room-temperature conductivity (σ) of 4.0 × 10⁻¹ S cm⁻¹. Figure 7 shows that the conductivity is thermally activated; the plot ln (σ) vs. 1000/T follows a linear behavior, from which the activation energy E_a is obtained using the Arrhenius law:

$$\mathsf{\sigma }= ne\mu ={\mathsf{\sigma }}_0\mathit{exp}\left(\frac{E_a}{k_{B}T}\right),$$

(7)

where n is the carrier (hole) concentration, e is the elementary charge, µ is the mobility, σ₀ is a pre-exponential factor, k_B is the Boltzmann constant and T is the absolute temperature. The activation energy (±0.02 eV) of CuO films deposited at 350 °C is 0.23 eV. The p-type semiconducting character of RF sputtered films is confirmed by hot probe measurement, which is attributed to copper deficiency. These results are consistent with those of the literature [33,36,41].

The above investigations demonstrate that the fundamental thermodynamic parameter (T_s) effectively governs the growth and microstructure of sputtered CuO films. The films deposited at the optimized substrate temperature of 350 °C were found to be single phase with the monoclinic structure (C2/c space group), with an estimated elementary volume of 83.015 ų, which is only 0.2% less than the value for the bulk crystal, indicating the formation of rather dense films. The Raman and optical studies confirmed the existence of the CuO phase. The crystallographic structure with good integrity between the crystallites was observed through SEM and AFM studies with an estimated average crystallite size and surface roughness of 134 ± 2 and 45 ± 2 nm, respectively, providing a high specific surface area of 10.5 m² g⁻¹. Hence, the CuO film electrodes prepared at 350 °C were subjected to electrochemical studies to demonstrate their applicability towards micro-supercapacitors.

3.5. Electrochemical Properties

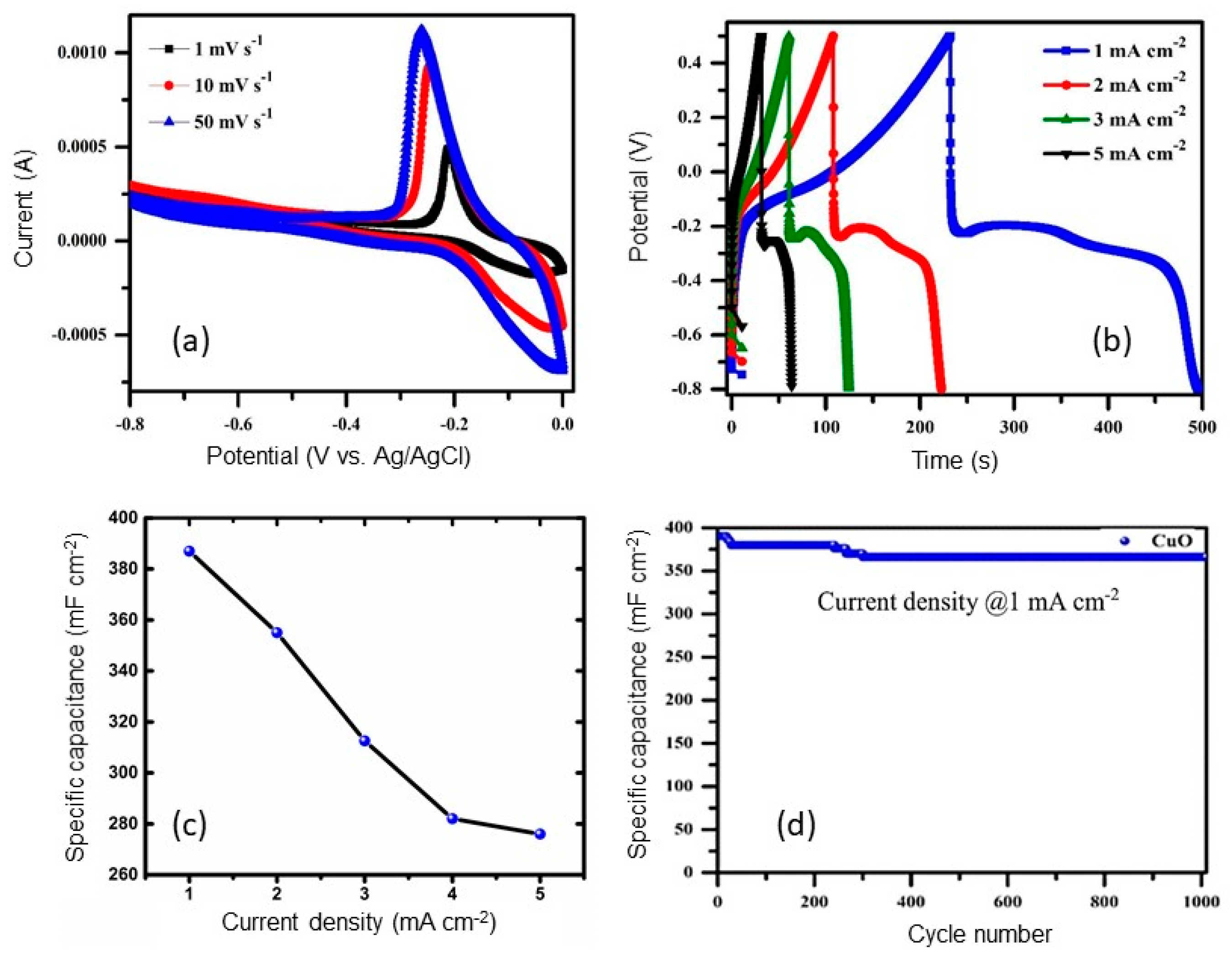

The electrochemical properties of the RF sputtered CuO film prepared at T_s = 350 °C, i.e., cyclic voltammetry and galvanostatic charge–discharge profiles, were carried out using a conventional three-electrode cell with 1 mol L⁻¹ saturated phosphate-buffered saline (PBS) aqueous solution (pH = 7.2) as the electrolyte. Results are presented in Figure 8. The typical CV curves were recorded in the potential window of −0.8 to +0.0 V with respect to Ag/AgCl as the reference electrode at different scan rates in the range 1–100 mV s⁻¹ (Figure 8a). The CV profiles show one set of well-defined and intense cathodic and anodic peaks assigned to the faradaic redox reaction of the Cu(I)/Cu(II) transition. In contrast with the electrochemical double-layer (EDL) capacitors, which display rectangular shaped and nearly symmetric CV curves, the electrochemical response of CuO films evidences a pseudocapacitive behavior. It can be observed that, with increasing the scan rate, the CV profiles remained almost unchanged. The corresponding increase in the peak current (i_p) and integral area under the CV curves confirms the excellent electrochemical kinetics and the reversibility of the film electrodes. At the scan rate of 1 mV s⁻¹, the CV profile of CuO films exhibits an anodic peak at −0.27 V, which originates from the oxidation of Cu⁺ to Cu²⁺, and a cathodic peak located at −0.02 V, which is assigned to the reduction of Cu²⁺ to Cu⁺ [67]. With increasing scan rates, the cathodic and anodic peaks shift to lower and higher potentials, respectively, which is due to an increase in polarization [68]. The phase pure ($\overline{1}$11)-orientated CuO films with good crystallinity provide easy transportation of redox species and enrich the overall electrochemical performance of the film electrodes.

The fast Li-ion kinetics at the surface of the electrode is a result of the high surface area. In order to distinguish the relative charge storage contribution from diffusion-controlled and surface effects, a series of CV tests were conducted at a scan rate of 1–100 mV s⁻¹ in the potential window of 0.01–0.8 V. The general approach for the analysis of the scan rate can be described by a power law [69]:

i_p = kν^b,

(8)

where i_p is the current, ν is the potential scan rate (V s⁻¹) and k and b are arbitrary coefficients. The coefficient b can vary from 0.5 to 1.0, with b = 0.5 being characteristic of a diffusion-limited process (charge storage via ion insertion) and b = 1.0 being characteristic of a capacitance process (charge storage via surface capacitance effects). From the slope of log i_p vs. log ν, the calculated b value for the CuO film is 0.68, indicating that the current response is pseudocapacitive as the result of a combination of capacitive and insertion processes.

The GCD curves of the RF sputtered CuO films recorded at different current densities from 1 to 5 mA cm⁻² in 1 mole PBS solution (pH = 7.2) are shown in Figure 8b. These non-linear-shaped profiles confirm the pseudocapacitive behavior of the CuO electrode in contrast with EDL capacitors which present nearly linear discharge slopes. The potential vs. time discharge curve is composed of three regions: first, a large drop in voltage due to the internal resistance, followed by a flat region at a potential of −0.2 V corresponding to a double-layer capacitance behavior and, finally, a slopy potential related to the charge transfer reaction. These features corroborate the CV profile. The specific capacitance (C_s) of the RF sputtered CuO film electrodes was calculated using the formula [70]:

$$C_{\mathrm{s}} = \frac{I}{\left(\frac{\mathsf{\Delta }V}{\mathsf{\Delta }t}\right)A},$$

(9)

where I is the current, ΔV is the potential change during the discharge process, Δt is the discharge time and A is the active area of the electrode. Figure 8c shows the specific capacitance of the RF sputtered CuO film electrode as a function of the current density. Specific capacitances of 387, 355, 347, 282 and 276 mF cm⁻² are delivered at current densities of 1, 2, 3, 5 and 10 mA cm⁻², respectively. It can be noticed that the specific capacitance can be decreased gradually with increasing current densities because of the large voltage change and limited diffusion of the active ion at the surface of the film during the fast charging/discharging reaction. Moreover, less redox sites at the surface can react with the electrolyte when the current density increases [70].

The cycling stability of CuO film electrodes investigated at a current density of 1 mA cm⁻² is shown in Figure 8d. A slight decrease in the specific capacitance during early cycles is due to the cell formation, i.e., a dissolution of the material and irreversible reaction of the electrode which occurred at the initial stage. After 300 cycles, the specific capacitance value remains constant, indicating the excellent stabilization of the CuO film electrode. The RF sputtered CuO film electrode delivers an initial specific capacitance of 387 mF cm⁻² at 1 mA cm⁻² current density (corresponding to ~1.5 A g⁻¹) and 95% capacitance retention (i.e., 367 mF cm⁻²) even after 1000 cycles. These results are comparatively higher than the values in the literature (see next section). The high capacitance and excellent cycling stability can be attributed to three reasons: (1) the open nanograins shorten the distance of ion diffusion and improve the ionic and electronic conductivity, (2) the rough surface structure of the electrode not only provides a large surface area and mechanical strength, but also facilitates the 3D storage of charges and (3) the thermodynamically stable ($\overline{1}$11) planes can provide high conductivity and promote a large storage capacity.

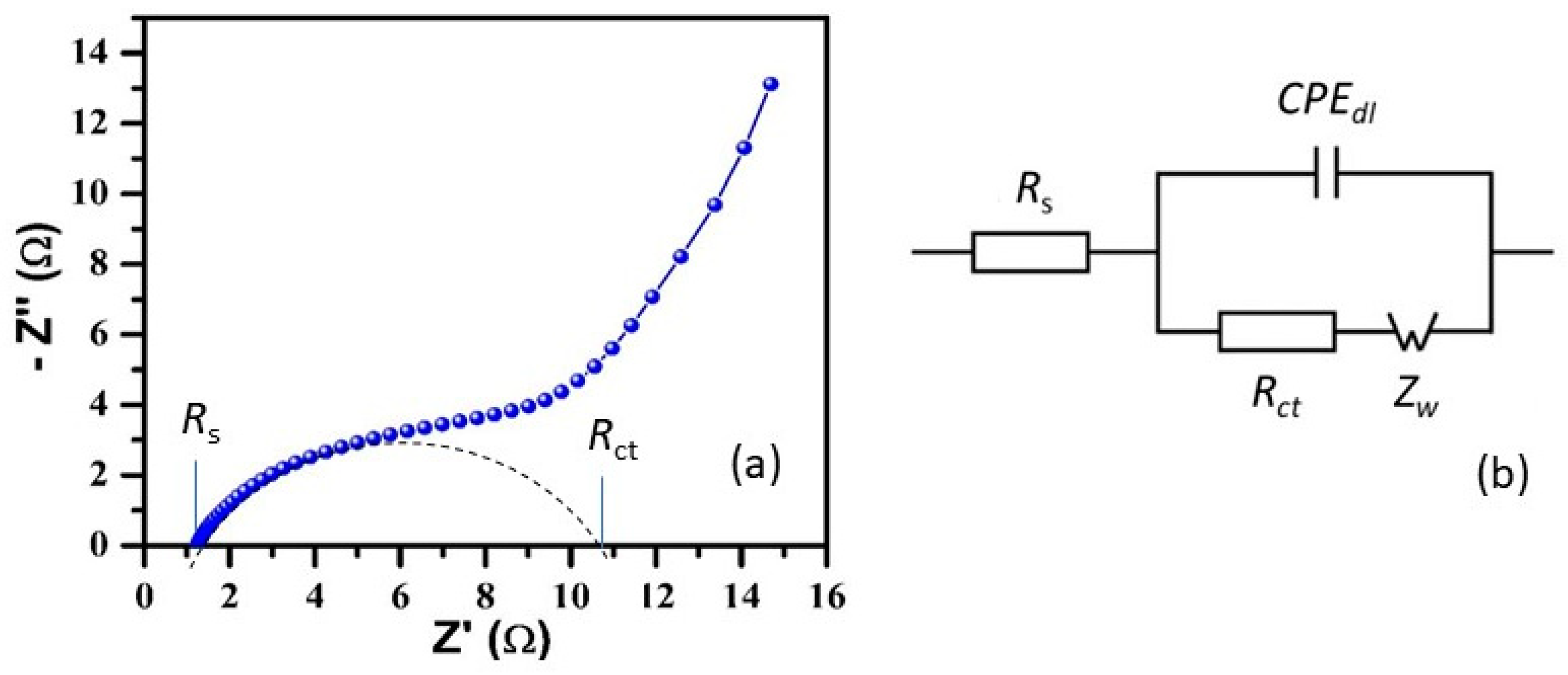

The electrochemical impedance spectroscopy (EIS) measurements were carried out in the frequency range from 0.01 Hz to 1 MHz in PBS solution. The Nyquist plot Z”(ω) vs. Z’(ω) of the CuO film deposited at 350 °C is shown in Figure 9, together with the equivalent circuit used to fit the data. The Nyquist plot is composed of a depressed semicircle at the high- to middle-frequency region and a steeper line at the low-frequency range. The depressed semicircle corresponds to the charge transfer resistance (R_ct) caused by faradaic reactions (i.e., Cu²⁺/Cu⁺ redox couple). The steeper line evidences the capacitive nature of the electrode (it should be a vertical line for an ideal capacitor). The ohmic resistance (R_s) of the CuO electrode is calculated from the intercept of the real axis at the high-frequency range. The values of R_ct and R_S are found to be ~10.8 and ~1.4 Ω, respectively. These low values support the claim of higher electrical conductivity (low R_ct value) and a larger electro-active surface area for the RF sputtered CuO electrode. The efficient ion transport pathways are supplied by the film architecture, providing a high surface area and thermodynamically stable ($\overline{1}$11)-oriented crystal planes.

4. Discussion

In this work, we have shown the influence of the substrate temperature on the morphology of RF sputtered copper oxide(II) films. The best crystallinity was simply formed at 350 °C under an O₂/Ar reactive atmosphere with a ratio of 1:7 and an oxygen partial pressure of p(O₂) ≈ 0.9 Pa without post-annealing treatment. The deposition rate of the tenorite phase was as low as ~1.2 µm h⁻¹ due to the easy oxidation of the Cu target through the oxygen flow of 0.1 sccm. Such a growth behavior was also observed for CuO films prepared by pulsed-laser deposition, showing the appearance of a granular texture at T_s = 400 °C [55]. However, there is some discrepancies relative to the sputtering growth conditions with literature data. As pointed out by Parretta et al. [71], the sputtering deposition rate, Qs, is strongly dependent on the O₂ concentration in the gas mixture and weakly affected by the deposition temperature, and Qs becomes almost constant for p(O₂) > 0.2 Pa at a low deposition temperature (25 °C). Cho et al. [37] reported that CuO films (50 nm crystallite size) prepared by reactive RF magnetron sputtering show a monoclinic structure with the main CuO ($\overline{1}$11) orientation irrespective of the substrate temperature but also stated that the highest figure of merit occurs at T_s = 300 °C. In their recent work, Asl and Rozati [72] successfully demonstrated the influence of the substrate temperature (in the range 450–550 °C) on fundamental properties of CuO films prepared by spray pyrolysis.

It appears that the pure CuO monoclinic phase is stable in the substrate temperature range 300–400 °C, while the film grown at T_s < 250 °C is poorly crystallized and displays a mixture of cubic CuO and Cu₂O. When heated at ca. 300 °C in an oxygen-rich environment, the conversion of Cu₂O to CuO is observed [33]. During subsequent heating up to 450 °C, the monoclinic CuO phase is maintained without alteration [20]. For T_s > 450 °C, impurity phases such as Cu₂O and Cu₄O₃ are mixed with monoclinic CuO. The results are in good agreement with those of Pecquenard et al. [41], who prepared columnar CuO films with the monoclinic structure at T_s = 350 °C. Ghosh and coworkers [73] stated that Cu₂O is the prominent phase at the substrate temperature in the range 30 ≤ T_s ≤ 150 °C, whereas the CuO phase is obtained at a T_s of 300 °C. Surprisingly, Al-Ghamdi et al. [74] claimed to prepare crystalline CuO films at T_s = 25 °C with the tenorite phase but did not specify the existence of oxygen in the sputtering process.

Even though CuO films have been intensively studied, the results reported in the different works differ due to the different experimental conditions, i.e., sputtering power, O₂/Ar ratio and p(O₂). Several authors claim different features regarding the phase composition of the reactively sputtered films. In 2013, Cho et al. [37] prepared a variety of CuO films at different T_s and showed the best crystallized films at T_s = 300 °C. Du et al. [54] reported a poor crystallization of CuO films deposited at T_s < 300°C and the growth of CuO with a (111)-preferential orientation up to a T_s of 600 °C. It is believed that, at T_s = 350 °C, the ad-atoms reaching the surface of the substrate initiate the nucleation due to a collision process, which supports the formation of islands in order to grow a film with a larger grain size. Here, the highly structured CuO film appears at a high sputtering power of 250 W, which generates highly energized Ar ions during the deposition process. Such features have also been suggested by Chan and Teo for the deposition of copper films by DC magnetron sputtering [75]. In terms of a high surface area, our results (surface roughness of 45 nm) are superior to previous reports. Poorly crystallized CuO oxide films prepared by dip coating displayed ($\overline{1}$11)-oriented grains with the size lying between 30 and 80 nm and a surface roughness of ~19 nm [76]. The RF sputtered CuO films deposited on glass slides at room temperature are almost amorphous (cubic phase) with a grain size of 11 nm and an average surface roughness of 0.3 nm [77]. CuO films prepared by pulsed-laser deposition on a sapphire substrate maintained at 400 °C are composed of grains >100 nm in size and a low surface roughness of ~3 nm [78].

Results of the conductivity measurements (σ = 0.4 S cm⁻¹, E_a = 0.23 eV) are consistent with most of the literature data [33,36,41]. As suggested by first principles calculation [79], the present experimental hot probe test evidenced the p-type semiconducting character of CuO films; thus, the Cu^(I) (d¹⁰)-based oxide is naturally cation-deficient, and cation vacancies lead to delocalized conductive states near the top of the valence band. In our case, the large grains generated at T_s = 350 °C reduce the grain boundaries. The high value of σ is attributed to the minor role in the hole transport played by the grain boundary scattering. Cho et al. [37] found that the growth temperature critically modulates the bandgap and carrier concentration. For example, RF sputtered CuO films deposited on glass slides exhibit an increase by three orders of magnitude in the hole concentration ranging from 1.6 × 10¹⁴ to 8.5 × 10¹⁷ cm⁻³. CuO films obtained by oxidation of Cu₂O at 400 °C have shown a high conductivity of 4.0 × 10⁻¹ S cm⁻¹ [32]. Pierson et al. [36] reported a resistivity of 100 Ω cm for a CuO film deposited by reactive magnetron sputtering, which exhibits a bandgap of E_g = 1.71 eV. Prabu et al. [80] showed that the conductivity of CuO films deposited by spray pyrolysis depends strongly on the deposition temperature. At 320 °C, the films display a conductivity of 2.16 × 10⁻³ S cm⁻¹, Hall mobility of 1 cm² V⁻¹ s⁻¹ and hole concentration of 1.35 × 10¹⁶ cm⁻³. Note that the small discrepancy is due to the difference in crystallinity and grain size. Pecquenard et al. [41] demonstrated that sputtered CuO films obtained with an oxygen concentration of 12% (6 sccm O₂ flow rate, total Ar + O₂ pressure of 0.5 Pa) have a high electronic conductivity of 9.3 × 10⁻³ S·cm⁻¹ with an activation energy of 0.11 eV. When the oxygen flow rate decreases to 5 sccm, the conductivity is reduced to 3.9 × 10⁻³ S·cm⁻¹. Recently, Baturay et al. [81] established that CuO films prepared by spin coating on soda-lime glasses with subsequent annealing at 500 °C for 1 h exhibit a p-type conduction with a resistivity of 68.2 Ω cm and charge carrier density of 4.4 × 10¹⁷ cm⁻³. Asl and Rozati [73] evidenced the influence of the deposition temperature on the electrical properties of CuO films prepared by spray pyrolysis in the range 450–550 °C. The resistivity decreases from 7.94 to 1.68 kΩ cm, while the carrier concentration increases from 8.03 × 10¹³ to 1.90 × 10¹⁵ cm⁻³ when T_s varies from 450 to 550 °C. This tendency was attributed to the reduction in the barrier height at the grain boundaries by virtue of a larger crystallite size.

Table 3. Electrical characteristics of CuO films from the literature. ^(a) value measured at 100 °C.

Growth Conditions	Conductivity at 25 °C (S cm−1)	Activation Energy (eV)	Ref.
sputtering; Ts = 25 °C; p(O2) = 2.5 Pa; glass slide	2.0 × 10−3	0.14	[82]
sputtering; Ts = 25 °C; p(O2) = 0.08 Pa; glass slide	5.5 × 10−3	0.22	[71]
spray deposition; Ts = 350 °C; glass slide	4.0 × 10−6	0.97	[29]
spray pyrolysis; Ts = 320 °C; glass slide	2.1 × 10−3	0.012	[80]
sputtering; Ts = 25 °C; F(O2) = 5 sccm; silicon	3.9× 10−3 (a)	0.25	[41]
sputtering; Ts = 25 °C; F(O2) = 5 sccm; silicon	9.3× 10−3 (a)	0.11	[41]
spray pyrolysis; Ts = 475 °C; glass slide	3.4 × 10−4	-	[83]
spray pyrolysis; Ts = 400 °C; glass slide	1.8 × 10−3	0.31	[84]
sputtering; Ts = 350 °C; p(O2) = 2 Pa; Si wafer	4.0 × 10−1	0.23	this work

summarizes the electrical characteristics of CuO films from the literature.

The average value of the bandgap E_g = 1.65 ± 0.01 eV confirms the monoclinic CuO structure of the sputtered films and is in good agreement with values of the literature [56,85,86,87,88,89]. The shift in the absorption edge to the higher wavelength and the slight decrease in the bandgap with increasing substrate temperature increase, which are assigned to the enhanced crystallinity of CuO films along with the reduction in porosity [56]. Dolai et al. [89] prepared polycrystalline CuO films using DC magnetron sputtering in Ar/O₂ (60:40) plasma. The films deposited onto glass substrates maintained at 300 ≤ T_s ≤ 400 °C show optical bandgaps in the range 1.58–1.60 eV. In contrast, cupric oxide (CuO) films deposited on Si substrates by the RF magnetron sputtering technique show a nano-pillar morphology with a root mean square surface roughness of 3.64 nm and an optical direct bandgap energy of 1.37 eV [40].

Presently, electrochemical measurements have shown the remarkable supercapacitive properties of the RF sputtered CuO films fabricated at T_s = 350 °C under a reactive atmosphere (O₂/Ar of 1:7) with a specific capacitance of 355 mF cm⁻² at a current density of 2 mA cm⁻². To compare our results with those of the literature, let us calculate the gravimetric capacitance. Considering that the as-sputtered CuO films (1.53 µm thick) are as dense as the bulk material (~6.8 cm³ g⁻¹), the areal capacitance of 355 F cm^-2 converts to the gravimetric capacitance of 375 F g⁻¹. This performance is improved importantly with respect to our prior work [42], which demonstrates that the optimization of the substrate temperature is an important parameter, since it impacts the crystallinity and the strain field of CuO. The obtained performance is superior to that obtained for a CuO film deposited by chemical bath deposition on a stainless-steel (SS) substrate, i.e., 79 mF g⁻¹ at current densities of 2 mA cm⁻² [90]. Similarly, a lower capacitance of 357 mF cm⁻² at 0.5 mA cm⁻² was reported by Purusottam-Reddy for RF sputtered CuO films deposited on stainless-steel and maintained at T_s = 350 °C under a reactive O₂/Ar (1:11) gas mixture [42]. Supercapacitive performances of other CuO films are summarized as follows. Kambale et al. [45] prepared CuO films by automatic spray pyrolysis via an aqueous solution of Cu(NO₃)₂·3H₂O. The films deposited at 400 °C on stainless-steel substrates display a specific capacitance of 58.2 F g⁻¹ in 1 mol L⁻¹ of a KOH electrolyte. Waikar and collaborators [90] studied the supercapacitive performance of CuO films deposited onto stainless-steel substrates via a chemical method assisted by ammonia as a complexing agent. Pure CuO films obtained after removing hydroxide by annealing at 200 °C for 2 h exhibit a mesoporous morphology with a crystallite size of ~13 nm and a BET specific surface area of ~40 m² g⁻¹. These electrodes achieved a specific capacitance of 576 F g⁻¹ at a 5 mV s⁻¹ scan rate. Dubal et al. [10] studied the cauliflower-like structures of CuO films, which exhibit a specific capacitance of 179 F g⁻¹ at a 100 mV s⁻¹ scan rate in 1 mol L⁻¹ of a Na₂SO₄ aqueous electrolyte having 81% stability over 2000 cycles. Senthilkumar et al. [91] prepared CuO films by a chemical method on Ni foam and found 536 F g⁻¹ specific capacitance in 6 mol L⁻¹ of a KOH electrolyte with a 29.4 Wh kg⁻¹ energy density, at a current density of 2 A g⁻¹, which corresponds to approximately 1.6 mV s⁻¹. Xu et al. used a reflux method to prepare CuO, but only the catalytic performance was investigated [92]. Such a reflux deposition approach to synthesize CuO nanosheets with supercapacitive performance was first proposed by Bhise et al. [93]. The nanosheets demonstrated 180 F g⁻¹ specific capacitance at 10 mV s⁻¹ with 87% stability after 2000 cycles. More recently, Shelke et al. [43] also used the reflux approach to investigate the supercapacitor performance, but the film was insulating. In absence of structural analysis such as Raman spectroscopy or XPS, the composition of the film remains unknown, but the insulating property suggests that the material was not well-crystallized CuO. The nanoflower-like structure of CuO films synthesized by Shinde et al. [46] on flexible Cu foil indicated the supercapacitor performance of a CuO electrode with 498 F g⁻¹ specific capacitance and a 26 Wh kg⁻¹ energy density at 5 mV s⁻¹ in 1 mol L⁻¹ of a KOH electrolyte. Dubal et al. [47] developed a CuO film through a chemical bath deposition process using 1 wt.% non-ionic surfactant Triton X-100 and polyvinyl alcohol. The porous and well-defined nanostructure displays a uniform size and highly (~10–20 nm) nanosheet-constructed clusters, which achieved the maximum specific capacitance of 396 F g⁻¹ at 5 mV s⁻¹. The same group also reported a capacitance of 411 F g⁻¹ at 5 mV s⁻¹ for a sample prepared by chemical deposition at the same scan rate [48]. Sayson [44] evaluated the supercapacitive properties of spray-deposited CuO films annealed at 400 °C. In an aqueous electrolyte (1 mol L⁻¹ Na₂SO₄), the films exhibited a capacitance of 87 F g⁻¹ at a scan rate of 10 mV s⁻¹ and a retention of 84.7% after 1000 cycles. Patil et al. [32] reported a maximum specific capacitance of 184 F g⁻¹ at the scan rate of 50 mV s⁻¹ and 83% capacitive retention after 5000 cycles in 1 mol L⁻¹ of a KOH electrolyte for CuO films grown by the SILAR technique. More recently, Khatavkar and Sartale [49] reported the deposition of copper hydroxide by liquid-phase deposition on stainless-steel (SS) substrates with subsequent annealing at 300–500 °C to obtain CuO films. The supercapacitive performance of CuO films was evidenced by a specific capacitance of 552 F g⁻¹ at a scan rate of 3 mV s⁻¹, provided that the substrate was a mesh SS. This large capacitance is due to the fact that at this very slow scan rate, the full electrochemical reaction can be achieved. However, at the current density of 2 mA cm⁻² of practical use and used in this work, the capacitance was 58 F g⁻¹ only. For the same reason, it is not possible to compare our results with the supercapacitive performance for different CuO supercapacitors reviewed in [49] because the results concern tests performed only at low scan rates of ≤10 mV s⁻¹, at which capacitance larger than 500 F g⁻¹ is expected and observed in different works. A benchmarking can be conducted, however, for CuO films with supercapacitance performance reported in the literature at the same current density of 2 mA cm⁻² as in the present work. The best results are reported in

Table 4. Comparison of the supercapacitive properties of CuO films tested at 2 mA cm⁻² current density. PBS = phosphate-buffered aqueous solution.

Preparation Method	Specific Capacitance (F g−1)	Electrolyte	Ref.
Liquid–solid reaction	278	NaOH	[94]
Reflux process	225	KOH	[95]
Chemical deposition	79	Na2SO4	[90]
Surface oxidation of Cu	190	KOH	[50]
Reactive RF sputtering	375	PBS	this work

. They include flower-like CuO standing on Cu(OH)₂ nanowire arrays on a copper foil prepared by a liquid–solid reaction, which exhibited a capacity of 278 F g⁻¹ [94]. CuO nanoparticles anchored on N-doped reduced graphene oxide prepared by refluxing in ammonia solution demonstrated a capacitance of 225 F g⁻¹ at this same current density [95]. The larger specific capacitance observed in the present work is thus also a demonstration of the efficiency of the RF sputtering process to synthesize CuO for supercapacitive performance. We also report in Table 4 the electrolyte used for the measurements, since the capacitance also depends on this parameter. However, despite the fact that the choice of the electrolyte differs between the different works, Table 4 gives evidence that the reactive RF sputtering process gives the best supercapacitance performance.

The maximum specific capacitance (387 mF cm⁻²) for the CuO thin films prepared at 350 °C can be explained by understanding three important factors, i.e., the grain morphology, the surface constitution and the electroconductivity. As mentioned, in the case of CuO films, the grains are well-crystallized with an oval-elongated shape and the main ($\overline{1}$11) orientation irrespective of the substrate temperature, which result in a well-ordered electroactive framework. The surface chemistry of films plays a decisive role in determining the electrode–electrolyte kinetics, especially in the case of aqueous electrolytes [96]. Tobari et al. [96] showed experimentally and theoretically that the electrical capacitance (C) of film capacitors with realistic interface roughness is significantly larger than the value of flat and smooth electrodes of surface A (C > ε_oε_r A/h_o). As mentioned, in the case of CuO electrodes, the charge storage mechanism is pseudocapacitive, which is basically influenced by the surface state [97]. Thus, the increase in the CuO film’s surface roughness results in a higher specific surface area (S_BET = 10.5 m² g⁻¹), which creates excess capacitance in the micro-supercapacitor film. Moreover, the electronic conductivity of 0.4 S cm⁻¹, suitable for easy insertion/de-insertion of ions, mostly contributes to the excellent redox reactions of the pseudocapacitor. In conclusion, the rough surface and the well-structured oval-shaped grains with the main ($\overline{1}$11) orientation perhaps dictate the electrochemical properties of the active electrode material, thus providing a higher number of electrochemically active sites for the pseudocapacitive behavior of CuO-based micro-supercapacitors.

5. Conclusions

In the present work, CuO films prepared by the RF magnetron sputtering technique were investigated as pseudocapacitive binder-free electrodes for micro-supercapacitors. Optimized CuO films were deposited on a silicon substrate at various temperatures, keeping the RF power at 250 W and the O₂ to Ar gas ratio at 1:7. The XRD studies of the film prepared at a T_s of 350 °C exhibit the predominant (111) orientation along with other (110), (200) and (131) reflection lines corresponding to a monoclinic structure of the CuO phase. The estimated average crystallite size is approximately 24 nm. The SEM analysis displays a uniform distribution of grains with an average grain size of 140 nm. The AFM analysis reveals that the surface of the film is composed of oval-shaped grains providing a high surface roughness of 45 nm. The calculated optical bandgap of copper oxide films is 1.68 ± 0.01 eV with a room-temperature electrical p-type conductivity of 0.4 S cm⁻¹. The CuO film deposited at 350 °C exhibits a discharge specific capacitance of 387 mF cm⁻² (375 F g⁻¹) at a current density of 1 mA cm⁻² with excellent cyclic retention of 95% even after 1000 cycles. The high capacitance and good cycle stability can be explained by the rough surface and the well-structured oval-shaped grains with the main ($\overline{1}$11) orientation that make the present CuO film electrodes promising potential electrodes for the next generation of micro-supercapacitors.
