Review

State of the Art on Thin Films of Metals, Metalloids and Lanthanides and Their Binary Compounds Prepared by PLD and RPLD Techniques

by
Alessio Perrone
1,2,
Muhammad Rizwan Aziz
1,*,
Nikolaos A. Vainos
3 and
Anna Paola Caricato
1,2
1
Dipartimento di Matematica e Fisica “E. De Giorgi”, Università del Salento, 73100 Lecce, Italy
2
INFN—Istituto Nazionale di Fisica Nucleare, 73100 Lecce, Italy
3
Photonics Nanotechnology Research Laboratory (PNRL), Department of Materials Science, University of Patras, 26504 Patras, Greece
*
Author to whom correspondence should be addressed.
Surfaces 2026, 9(2), 44; https://doi.org/10.3390/surfaces9020044
Submission received: 5 April 2026 / Revised: 7 May 2026 / Accepted: 13 May 2026 / Published: 19 May 2026
(This article belongs to the Special Issue Surface Engineering of Thin Films)

Abstract

This article reviews the state of the art of laser ablation and deposition techniques applied so far to more than 50 elements, including metals, metalloids and lanthanides, yielding a wide variety of compounds in the form of thin films. Laser deposition processes have been performed in high-vacuum (HV) reactors at pressure values ranging between 10−1 and 10−5 Pa, namely pulsed laser deposition (PLD), or, under different reactive gas ambient (O2, N2, CH4, NH3 and many others), so-called reactive pulsed laser deposition (RPLD), with the aim to form thin films with desirable chemical compositions. While a few metals have not been deposited as pure metallic films because they have no immediate technological interest, others, like alkali and alkaline earth metals, cannot be deposited in pure metallic form due to their very strong reactivity with oxygen, water vapor and hydrogen molecules which are always present, even in ultra-high-vacuum (UHV) systems, at pressure values of 10−5–10−10 Pa. Furthermore, elements of the Mendeleev periodic table with an atomic number higher than 88, such as actinides and synthetic elements, are dangerous to handle and deposit in the form of thin films due to their high radioactivity; therefore, they are excluded from this review. The inclusion of the non-metal thin films of carbon (C) and related chemical compounds prepared by PLD and RPLD in the present review is justified by the extensive research and the numerous scientific articles reported in the field. All the results obtained by PLD and RPLD techniques so far are discussed and presented in tabular format to guide the reader.

1. Introduction

Laser-ablation-based physical vapor deposition has evolved from an early demonstration of laser-assisted vacuum film growth to a mature thin-film synthesis route used across materials science, photonics, and micro/nanoelectronics [1,2,3,4]. The earliest widely cited report of laser-based vacuum thin-film deposition is the work of Smith and Turner (1965), who deposited thin films using a ruby laser [1]. Since then, pulsed laser deposition (PLD) and its reactive variant (RPLD) have evolved and become established methods for producing thin films from an exceptionally broad palette of solids, including metals, metalloids, lanthanides, and their compounds [2,3,4,5].
A key reason for the lasting impact of PLD is that it couples a highly localized, high-power-density energy source—the laser pulse—to a condensed-matter target, to generate an energetic, transient ablation plume that can deliver atoms, ions, clusters, and droplets to a facing substrate [2,3,4]. This highly non-equilibrium nature enables film growth under conditions unreachable by thermally equilibrated vapor sources. This virtue is particularly relevant for the growth of novel compounds and metastable phases, and materials requiring tight control of composition and microstructure [2,3,4,5]. At the same time, the plume energetics that make PLD so versatile yield persistent challenges, most notably the deposition of particulates/droplets and, depending on conditions, a limited throughput, issues that still constrain the industrial translation of such systems [6,7,8,9].
For metals, metalloids, and lanthanides, PLD/RPLD offers opportunities but sets constraints that are strongly dictated by physical chemistry. On the one hand, the method can deposit technologically relevant metallic films (e.g., transition and noble metals) and synthesize oxides/nitrides/carbides by introducing reactive gases (RPLD), thereby enabling tunable stoichiometry and new functional properties [10,11,12,13,14,15]. On the other hand, certain classes, especially highly reactive alkali and alkaline earth elements, are intrinsically difficult to deposit as pure metallic films because of the residual reactive species (e.g., H2O, O2, H2) present even in ultra-high-vacuum environments [16]. In effect, the high kinetic energy (up to 200 eV) of ablated species further enhances such unintended reactions during their flight and upon incidence on the growth surface [16].
The present review focuses on thin films of metals, metalloids, lanthanides and their binary compounds produced by PLD and RPLD and organizes the available literature in a way intended to guide both newcomers and specialists [2,3,4,5]. However, beyond rendering prior reports, a central goal of this work is to associate the answers to “what has been deposited?” to the underlying “why can or can it not be deposited?” by emphasizing the ablation regimes, plume dynamics, gas-phase reactions and growth mechanisms that govern film formation [17,18,19,20,21,22,23]. This mechanistic framing is necessary to interpret trends across the periodic table (e.g., volatility, reflectivity, reactivity, oxidation thermodynamics) and identify actionable knowledge gaps and technical bottlenecks for future PLD/RPLD research on metallic, metalloids and lanthanide-containing films.
In the following section we summarize the PLD/RPLD process chain, in a physics- and chemistry-oriented manner, from laser radiation absorption in the target to material ejection, plume expansion, reactive chemistry and film growth. Highlighting the role of laser wavelength, intensity and pulse duration (ns/ps/fs), background pressure, and substrate conditions we aim to justify the nature of ablation products and ultimately the structure and composition of deposited films. This discussion provides the conceptual basis for the subsequent materials-focused sections and for critically analyzing the reasons why the literature focuses on specific element group compound families and laser sources.

2. PLD and RPLD: Physical Processes and Ablation Regimes

2.1. From Laser Pulse to Ablation Plume: Regimes and Thresholds

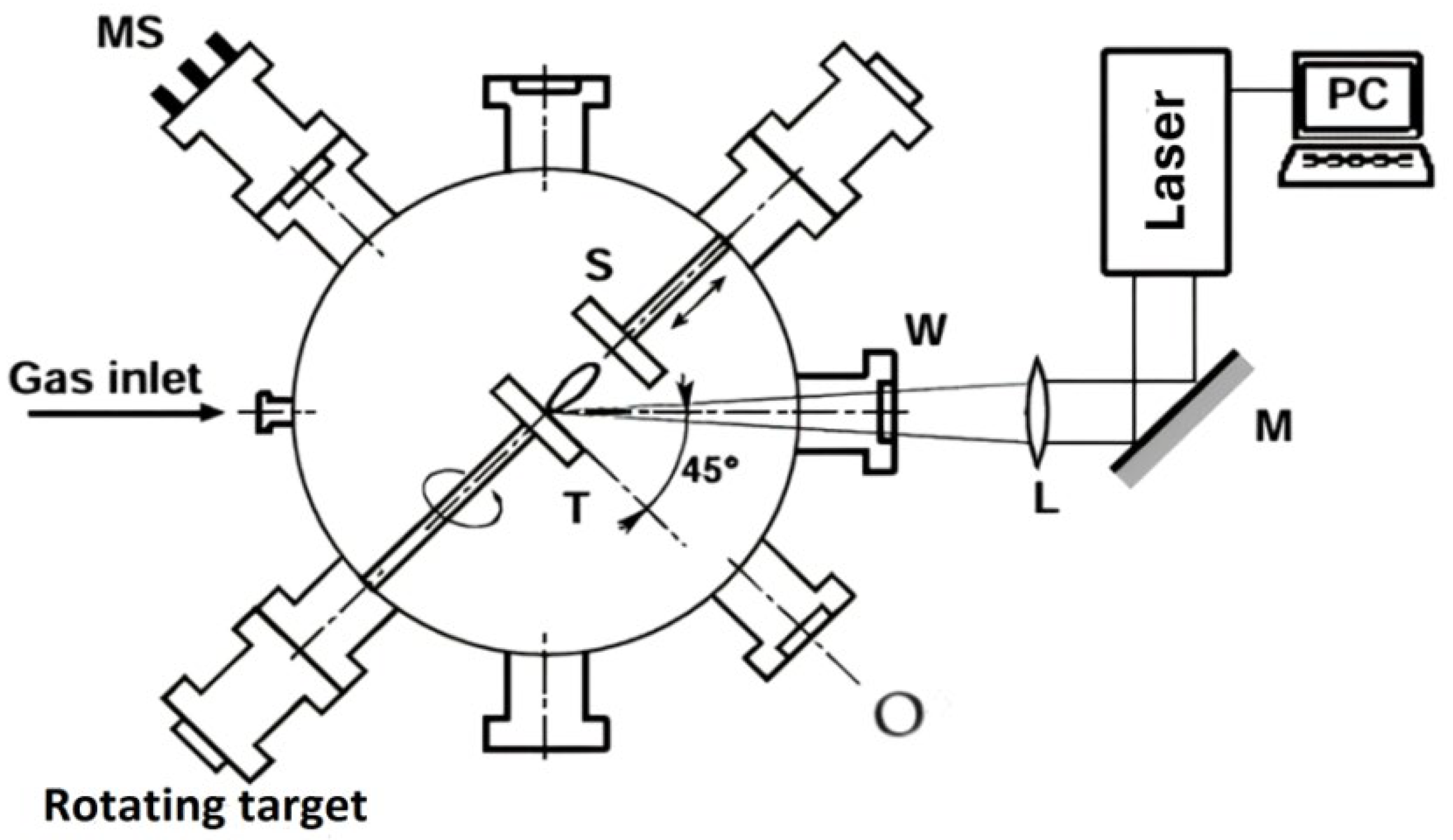

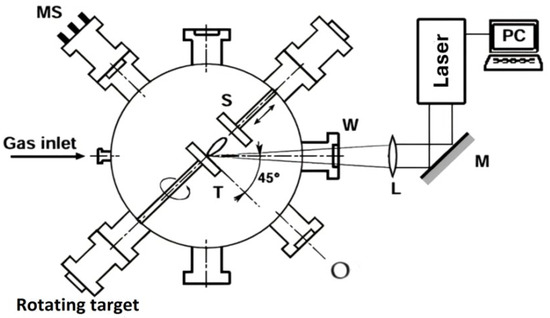

Figure 1 presents a schematic of a PLD/RPLD reactor system, incorporating all major required components. The laser beam is focused on target T and irradiates it with a usually short laser pulse to produce ablation of the target material. The process begins with the absorption of short laser pulse radiation in a shallow volume near the surface of the target. Depending on the optical and thermal properties of the target material, the laser wavelength and the pulse duration, extremely rapid heating and/or non-thermal excitation and dissociation of the target are produced. Above an effective laser radiation intensity, defined as the ‘ablation threshold’ and expressed in J/cm2, material is ejected in the form of atoms, ions, nanoparticles/clusters, and, in many practical cases, micron-scale particulates and droplets produced by subsurface boiling, melt expulsion, shock-driven fracture, or other ejection pathways [24,25,26,27]. Because these ejection mechanisms depend critically on laser pulse duration and the energy coupling into the target, PLD is often discussed in terms of distinct ablation regimes, namely the contrasting nanosecond (ns) pulse and the ultrashort (ps/fs) pulse ablation regimes, where energy deposition can be much faster than any significant heat diffusion [28,29].
For metallic targets, optical reflectivity and absorption depth are major determinants of how efficiently radiation energy at a given wavelength couples into the target surface. This effect directly impacts on ablation efficiency, plasma temperature and the balance between smooth vaporization and melt-related particulate. This is one reason why many PLD studies preferentially use UV excimer wavelengths (e.g., 248 nm) and frequency-multiplied Nd:YAG harmonics, rather than long-wavelength infrared sources, especially for ablating highly reflective metals. Importantly, these wavelength and pulse-duration choices not only affect the quantity of ablated material, but they also shift the distribution of kinetic energies and charge states within the plume, thus altering surface mobility, defect creation, oxidation and reduction kinetics during growth [28,29,30].

2.2. Plume Expansion and Background-Gas Effects

After ejection, the ablated material expands away from the target as a transient plasma plume, typically with strong directionality and normally to the target surface, rapidly evolving in density, temperature and composition. In high vacuum, at typical PLD base pressures of 10−3–10−5 Pa, the plume undergoes a relatively collision-poor expansion, allowing energetic species to reach the substrate and promoting dense films even at modest substrate temperatures [2,3,29]. This, however, increases the probability that energetic impacts generate defects or resputter weakly bound adatoms. When a background gas is introduced, whether inert (e.g., Ar) or reactive (e.g., O2, N2, NH3, CH4), collisions broaden and slow down the plume, reduce the energy of ejected species, change arrival angles and significantly modify nucleation and growth modes [30,31,32,33].
This pressure-dependent plume thermalization has two direct consequences relevant to the present review [5,30,33]. First, it changes the competition between smooth film growth and particulate incorporation, because droplet trajectories, fragmentation, and sticking can be altered by collisional scattering [6,7,8,9]. Second, it controls reactive chemistry pathways in RPLD, where film composition is not simply transferred from a target but emerges from coupled processes (ablation stoichiometry, gas-phase reactions, surface reactions and possible preferential re-evaporation of volatile species).

2.3. Reactive PLD (RPLD): Chemistry and Stoichiometry Control

RPLD extends PLD by intentionally introducing a reactive ambient so that compound formation proceeds during plume flight and/or on the growth surface [2,5]. In practice, RPLD is frequently used to produce oxides, nitrides, carbides and related binary phases, by ablating metal (or compound) targets in reactive gases under controlled partial pressures, as presented in the tables and material sections of this manuscript [10,11,12,13,14,15]. In the RPLD experiments, the collision frequency and therefore the reaction probability strongly depend on the ambient gas pressure, which ranges between tenths and hundreds of Pa. At pressure values lower than tenths of Pa, the reaction probability in gas phase is too low; conversely, at pressures higher than hundreds of Pa, the collision frequency in the gas phase is so high that no material is deposited on the substrate.
The collision frequency (ν) between the ablated species and the reactive gas molecules is given by:
ν = n × σ × v rel
where n is the ambient gas density, σ is the collision cross-section and vrel is the relative velocity between the ablated material and the ambient gas molecules.
The above scaling law for collision frequency highlights why lanthanides require higher ambient pressures. Due to their large atomic mass, lanthanide species possess high momentum; therefore, a higher background gas density (n) is mandatory to achieve sufficient scattering events. This also prevents high-energy bombardment of the growing film which would otherwise compromise the stoichiometry and structural integrity.
The resulting film stoichiometry is therefore governed by a set of coupled chemical, thermodynamic and kinetic processes: the chemical reactivity of ablated species that are often highly energetic and partially ionized, the collision frequency in the gas phase and the ability of the growth surface to incorporate (or reject) reactive species under the selected substrate temperature and energy flux [28,29,30]. This coupling of mechanisms is especially important for the material families emphasized here, such as metals and lanthanides, because their oxidation and nitridation thermodynamics prevail. For metals the thermodynamic and kinetic models are dominated by kinetic energy of the ablated material, while for lanthanides and metalloids, the Gibbs free energy of formation (ΔG) plays the main role in determining whether the film maintains the desired phase or not. For example, many lanthanides exhibit high oxygen affinity (ΔG << 0) and thus, in the case of lanthanide oxides, this necessitates the fine-tuning of oxygen partial pressure to avoid over-oxidation or target poisoning during the RPLD experiments. In fact, even small changes in residual oxygen or water vapor can shift the film growth away from the desired metallic state. Consequently, the “success” of a reported RPLD recipe should be interpreted not only by nominal gas pressure, but also by (i) plume energetics determined by wavelength, pulse duration and fluence, (ii) chamber background gas composition and pumping dynamics, and (iii) surface kinetics such as oxygen vacancy formation, re-evaporation and diffusion-limited growth [30,33]. Concerning the morphology of the deposited films, it is well known that low laser fluences yield the lowest droplet density on the film surface, resulting in superior morphological quality. However, film crystallinity and compactness significantly improve at higher fluences. This is because an increase in laser fluence enhances the kinetic energy of the ablated species, thereby promoting the surface mobility of adatoms on the substrate and allowing them to reach thermodynamically stable lattice sites, i.e., better crystallinity [8]. The stoichiometry of the deposited films depends on the type and pressure of the ambient gas. In the specific case of nitride thin-film deposition, the nitrogen content depends primarily on the gas species (N2 or NH3) and the pressure within the deposition chamber. The higher the partial pressure of the ambient gas, the higher the nitrogen content in the deposited film.

2.4. Film Growth: Energetic Deposition, Microstructure, and Particulates

PLD and RPLD are high-energy deposition processes in which the energy of light is transferred to the material and ablates it in thermodynamic equilibrium. The ablated species impact on the substrate with kinetic energies substantially higher than those met in thermodynamically equilibrated processes. We underline that in this work alternative and competitive vapor deposition techniques, such as reactive magnetron sputtering, and thermal and electron-beam evaporation, are not discussed; however, relevant studies utilizing these methods are cited in the text where appropriate. In fact, a major difference is due to the high laser pulse intensity. Provided suitable conditions such as, for example, laser parameters, lattice matching, and chemical ambient are met, it can lead to a plurality of growth routes from single crystal epitaxy to amorphous metal or oxide compositions. However, such a high laser fluence values can cause resputtering, severely increasing defect density and producing film erosion. Such unwanted effects could be counterbalanced by controlling the ambient pressure and laser parameters, depending on the nature of the materials. For metals, this can influence grain size, texture, residual stress and electrical resistivity; for compounds, it can influence phase selection and oxygen (or nitrogen) vacancy concentrations and thus the functional properties of the grown film [31,32]. A persistent limitation is the presence of droplets/particulates, which can dominate surface roughness and limit device-quality films unless mitigated via plume filtering, geometry choice, target conditioning or suitable laser parameters [6,7,8,9]. The present manuscript examines materials along the periodic table with the aim to explicitly connect growth mechanisms to target classes [17,18,19,20,21,22,23]. In a paradigm, low-melting-point metals under ns irradiation are more prone to the formation of particulates by melt expulsion [6,7,24]. In contrast, ultrashort-pulse regimes suppress such melt-driven mechanisms but potentially introduce different nanoparticle formation routes [26,28,29]. Such trade-offs justify the increasing use of diagnostics and mitigation strategies aiming to control the entire process chain and optimize material growth.

2.5. Technology and Diagnostics

Table 1 presents a set of typical experimental conditions and laser parameters used in the growth of thin films by PLD and RPLD techniques. A recurring theme in modern PLD/RPLD is the move toward more quantitative, feedback-informed control using in situ or time-resolved diagnostics that associate plume properties to grown film qualities [28,29,30,31,32]. Even though the present manuscript already lists common ex situ characterization tools and typical experimental ranges (e.g., target–substrate distance, base pressure, fluence ranges for ns/ps/fs, and commonly used lasers) as shown in Table 1, a key trend is the ability to, in a reproducible way, correlate the plume composition/energetics with the stoichiometry and microstructure of the grown material [28,29,30,31,32,33]. This is particularly relevant for reactive systems (oxides/nitrides/carbides) and for chemically sensitive metallic targets (e.g., reactive light metals and lanthanides), where minor uncontrolled variations in, for example, background gas chemistry can govern the oxidation reactions and determine the final phase of the produced material.

3. Metals, Metalloids and Lanthanides Ablated and Deposited by PLD and RPLD Techniques

Laser ablation and deposition techniques have been applied to more than 50 elements (metals, metalloids and lanthanides) to successfully prepare thin films and a wide variety of binary compounds. Laser deposition can be carried out in high vacuum (PLD) or under a reactive gas ambient (RPLD) such as O 2 , N 2 , C H 4 , and N H 3 , with the aim of forming thin films with the desirable chemical composition and functional properties. In several cases, deposition of the pure metallic element is not reported because either (i) it has limited technological interest in thin-film form or (ii) it is intrinsically difficult to stabilize as a metal due to strong reactivity with oxygen, water and hydrogen-containing residual gases that are present even in UHV systems. This limitation is particularly severe for alkali metals and some alkaline earth metals, whose intrinsic reactivity can be further enhanced by the high kinetic energy of ablated species typically found in PLD/RPLD plumes [16].
This study categorizes the elements into property-driven groups organized in reference to their reactivity/volatility, tendency to oxidization or other reactions, compound families and practical feasibility of PLD vs. RPLD. In text, the notation A B x indicates that the chemical element A can exhibit multiple oxidation or other reaction states when bonded with the chemical element B. Literature reports concerning deposition conditions, material properties and applications are summarized in tabular form. In this work we discuss why certain targets/compounds dominate the PLD/RPLD literature and where key limitations arise. In cases where PLD/RPLD reports are absent, available alternative deposition methods are cited; in addition, we distinguish a lack of feasibility from a lack of application-driven interest, aiming to underline the current exploitation potential of each material.

3.1. Highly Reactive S-Block Metals and Early-Period Reactive Elements (Alkali + Alkaline Earth)

This group is characterized by a strong affinity for oxygen- and/or hydrogen-containing species and, for alkali metals, also by high volatility; consequently, many studies target stable compounds (oxides, halides, phosphates) or rely on alternative deposition methods rather than direct PLD of the pure metal. When PLD/RPLD is used successfully, the reactive gas ambient, or the unavoidable residual gases, often become the dominant factor controlling the metallic or compound nature of the deposited layer.
Lithium (Li): Lithium is a highly reactive alkali metal group 1A with oxidation state +1. Although it is the least reactive alkali metal, a pure Li thin film has not been obtained successfully using PLD. In practice, this shifts attention toward Li thin-film compounds, such as lithium oxide Li2O [34,35] and lithium chloride LiCl [36], typically prepared by deposition techniques other than PLD. From a PLD/RPLD point of view, Li is a representative case where the limitation is not targeting ablation itself, but preservation of a metallic phase against rapid reaction with residual gases during plume transport and on-surface growth.
Sodium (Na): Sodium, like the other alkali metals Li, K, Rb, Cs and Fr, has high chemical reactivity with residual gas in vacuum deposition systems. This is particularly critical in laser ablation/deposition, and therefore Na has never been prepared by PLD as a thin film. Sodium thin films have instead been achieved by other competitive deposition methods [37]. Na illustrates a general reactive-metal barrier for PLD energetic species and unavoidable background chemistry can dominate film composition even when the intended target is the elemental metal.
Potassium (K): Potassium cannot be grown as a pure thin film using PLD or other physical vapor deposition techniques because of its extremely high chemical reactivity and volatility. Even under UHV conditions of 10−5–10−10 Pa, energetic ablated material atoms, excited atoms, and ions form oxides and hydrides both during flight from target to substrate and on the substrate surface. In the PLD/RPLD framework, K emphasizes that vacuum level alone is not a sufficient descriptor for chemically active systems, because trace species can control the final material phase.
Rubidium (Rb): Rubidium belongs to the alkali metals and is highly reactive; therefore, it cannot be deposited as a pure metallic thin film by laser ablation of a bulk Rb target. Rubidium thin films have been obtained by other physical deposition processes [38,39]. Reported interest in Rb thin films is linked to its optical, photoelectric and electronic properties relevant to photocathodes, optical devices and magnetometers. Rb further supports the trend that for alkali metals, compound stabilization and/or non-PLD routes dominate the thin-film literature.
Cesium (Cs): Cesium is the most reactive alkali metal and reacts violently with water and oxygen. Its oxidation state is +1. Despite this reactivity, studies exist on electrical properties of pure Cs ultra-thin layers [40] and cesium oxide Cs2O thin films grown by alternative deposition techniques [41]. Several studies also address cesium halides, e.g., CsCl in cancer-related diagnosis/treatment contexts and CsI as a sensing material in scintillation detectors for ionizing radiation monitoring [42,43,44,45]. Of PLD/RPLD relevance, Cs highlights how for the most reactive alkalis technological interest is often realized through stable compound films rather than the elemental metal.
Francium (Fr): Francium is a rare, highly reactive and radioactive alkali element with oxidation state +1 and no practical applications in bulk or thin-film form; accordingly, the thin-film literature essentially does not include Fr and its binary compounds. This element marks the combined limit of reactivity and radioactivity where PLD/RPLD thin-film studies are not realistically accessible.
Beryllium (Be): Beryllium is an alkaline earth metal group IIA whose surface forms a 1–10 nm thick oxide layer even at room temperature. For this reason, deposition of pure Be thin films is typically performed by evaporation and sputtering rather than PLD, where ablated atoms/ions are energetic and can be highly reactive [46,47]. The continuing interest in Be is related to its superconducting properties. From a PLD/RPLD standpoint, Be shows how a readily formed native oxide can steer the community away from PLD for the elemental film even when bulk properties are attractive.
Magnesium (Mg): Magnesium is a lightweight alkaline earth metal, among the most reactive in its group, with common oxidation state +2. Mg and Mg-based compounds have important applications due to its lightweight character, mechanical properties and biocompatibility [48,49]. Mg thin films have been used as photocathodes in RF guns because of their reported quantum efficiency of 1.8 × 10 3 and relatively low work function of 3.6 eV [50,51]. MgO thin layers have been grown by laser ablation of a Mg target in an O2 atmosphere [52]. In this review, Mg represents an instructive intermediate case where PLD of the pure metal is feasible for targeted applications, while RPLD enables controlled conversion into a stable oxide when that is the functional requirement.
Calcium (Ca): Calcium is a highly reactive alkaline earth metal and while it has not been widely deposited as a pure thin film, there is extensive research on thin films of its chemical compounds. In particular, calcium phosphate CaP [53] and hydroxyapatite HA thin films [54,55] are major targets in biomaterials. Ca illustrates the broader trend for oxygen-affine metals, where PLD/RPLD research advances through compound film growth chosen for stable chemistry and application pull rather than through elemental-metal films.
Strontium (Sr): Strontium is highly chemically reactive like other alkaline earth metals, and its deposition as a pure thin film is described as practically impossible and of limited commercial interest. In contrast, Sr-based compounds, such as strontium oxide SrO, are in demand for industrial applications in microelectronic devices, as buffer layers and phosphor materials [56,57]. In laser ablation terms, Sr follows the same pattern observed for Ca, since stable binary compounds dominate because they better match both chemical feasibility and device-driven needs.
Barium (Ba): Barium is a highly reactive alkaline earth metal, making it very difficult to obtain pure layers. Ba has not been prepared as a thin layer using any deposition technique. Its common oxidation state is +2, and it reacts strongly with oxygen to form BaO [58,59]. Another important Ba compound is barium dichloride BaCl2, with applications in wastewater treatment [60,61]. Within the theme of this review [5,30,33], Ba represents the practical-end member where elemental thin films are essentially inaccessible, and thus thin-film science and applications must proceed through stable compound chemistry.

3.2. Metalloids and Carbon: Semiconductors and Bonding-Driven Materials (B, C, Si, Ge, As, Se, Sb, Te)

This group is strongly represented in the PLD/RPLD literature because (i) these are core elements in semiconductor, optical and sensing technologies and (ii) reactive backgrounds ( O 2 , N 2 , C H 4 , N H 3 ) allow direct steering toward technologically important binary compounds (oxides, nitrides, carbides) without changing the target stoichiometry by chemical synthesis. Compared with highly reactive alkali metals, these elements more often allow stable deposition either as the elemental film or as a controlled compound, making them useful reference systems for connecting ablation/plume conditions to phase formation.
Boron (B): Boron is the lightest among the metalloids (Si, Ge, As, Sb, Te, Po, At). Boron thin layers have been grown by PLD under various experimental conditions [62,63] and are used as neutron detector material due to their high reaction cross-section for thermal neutron beams. Boron nitride BN has been synthesized by laser ablation of a B target in nitrogen atmosphere [64,65], showing a direct route to nitride formation through reactive deposition.
Carbon (C): There is a vast body of literature on laser ablation/deposition of carbon and carbon-based compounds such as carbon nitrides ( C N x ), which justifies inclusion of this non-metal element in the present review [66,67,68,69,70]. Thin layers of C, C N x and diamond-like carbon (DLC) are notable for high hardness, chemical inertness, a low friction coefficient and optical/semiconducting properties [71,72,73,74,75]. Graphene layers have also been deposited by laser ablation of a carbon target, highlighting that PLD can access distinct carbon bonding/phases depending on the conditions [76].
Silicon (Si): PLD and RPLD thin films of silicon and its binary compounds are key materials in high-technology semiconductor devices [77,78,79]. Silicon-based compounds such as S i O 2 , SiC and SiN, synthesized by laser ablation of Si in O 2 , C H 4 , N 2 and N H 3 atmospheres, have applications in numerous fields [80,81,82,83,84,85,86]. This element/compound set is a clear example where reactive environments provide a practical chemistry knob to tune film composition and functionality (insulating S i O 2 , robust SiC, dielectric SiN) from a single elemental target [80,81,82,83,84,85,86].
Germanium (Ge): Germanium is a metalloid semiconductor with properties similar to silicon. Ge thin films and Ge-based compounds such as G e O 2 and G e N x have been deposited using PLD and RPLD techniques [87,88,89,90]. Because of its transparency to infrared radiation and high refractive index, Ge thin films are suited for electronics, infrared optics and fiber optics [87,88,89,90].
Arsenic (As): Arsenic is a strongly toxic metalloid. It has not been prepared as a pure thin coating due to high vapor pressure, tendency to oxidize and toxicity inhibiting commercial applications. Despite this, as remains technologically important in semiconductor technology through III–V compounds (e.g., GaAs) [91].
Selenium (Se): Selenium is sometimes considered a metalloid due to its intermediate chemical/physical properties, and it is treated here as a metalloid element. Se thin films have been deposited by laser ablation of a pure bulk Se target in a high-vacuum system [92,93,94]. Its main reported properties include tunable band gap and high refractive index, supporting optical-device and sensor applications.
Antimony (Sb): Antimony is a toxic metalloid with common oxidation state +5. Ultra-thin Sb films have been deposited via PLD, and there is substantial literature on Sb-based binary compounds, including antimony selenide ( S b 2 S e 3 ), antimony sulfide ( S b 2 S 3 ) and antimony oxides ( S b O x ), prepared by PLD and other deposition techniques [95,96,97,98,99,100]. These compounds are studied for applications relating to solar cells, hydrogen storage and memory devices.
Tellurium (Te): Tellurium is a metalloid with chemical properties similar to selenium and sulfur. Pure Te thin layers have been grown by laser ablation of a Te target in a high-vacuum system [101]. Important Te-related thin-film materials include CdTe (deposited by PLD) and tellurium oxides ( T e O x ) generally prepared by other deposition methods, with applications spanning optoelectronics, solar cells, nanosensors, LEDs, photocatalysis, and imaging [102,103,104,105].

3.3. First-Row Transition Metals: Metallic Films vs. Functional Oxides/Nitrides (Sc–Zn)

This group is central to PLD/RPLD because many elements form multiple stable oxidation states and technologically important oxides, nitrides and carbides, where reactive-gas control (especially O2 and N2) often determines whether the deposited film is metallic or compound. In practice, the literature frequently emphasizes compound films when the elemental metal has limited thin-film demand (or is difficult to stabilize), while metals are targeted when conductivity, magnetism, superconductivity, photocathode performance or corrosion resistance is the primary driver.
Scandium (Sc): Scandium is the first transition element in the group B. There is no literature on deposition of Sc thin films, either by PLD or other deposition techniques, most likely because of the absence of immediate technological applications. The main binary compound is scandium sesquioxide (Sc2O3), prepared as thin films by laser ablation of an Sc2O3 bulk target under low oxygen pressure [106].
Titanium (Ti): Several research groups have published on Ti thin films and titanium-based compounds deposited by PLD and RPLD [107,108,109,110,111,112,113]. Key examples are titanium nitride (TiN), titanium carbide (TiC) and titanium dioxide (TiO2), that have been grown by laser ablation of a Ti target in reactive gas atmospheres. These materials support applications spanning protective coatings, optical coatings, biocompatibility, microelectronics, gas sensing and solar cells.
Vanadium (V): Vanadium thin films have not attracted strong interest, whereas vanadium-based compounds are widely studied. In particular, vanadium oxides (VOx) and vanadium nitride (VN) have been grown by PLD and RPLD [114,115,116,117,118]. Many other deposition techniques are also used for vanadium compounds [119,120,121], with functional performances typically linked to compound phase and stoichiometry rather than the elemental nature.
Chromium (Cr): Chromium is a hard transition metal. Deposition of pure Cr thin films has been achieved by various methods though not frequently by PLD [122,123,124]. Chromium oxides (CrOx) have the extensive thin-film literature on different deposition techniques [125,126,127]. Reported applications for CrO span protective coatings, solar energy, electronics/spintronics, gas sensors and biomaterials.
Manganese (Mn): While pure manganese is not commonly prepared as a thin film, manganese oxides (MnOx) are deposited by RPLD and by several other techniques [128,129,130]. These oxides are discussed for medical and sensor-related applications. This is a typical example where reactive deposition targets functional oxide chemistry rather than the elemental metal film.
Iron (Fe): Iron has not been deposited using PLD in the surveyed literature, while many papers report pure Fe thin films grown by alternative deposition techniques [131,132,133]. The most important Fe-containing thin-film materials are iron oxides (FeOx) [134,135,136]. FeOx have also been synthesized by RPLD [137,138]. Magnetic and electrical devices are indicated as key application areas for FeOx thin films.
Cobalt (Co): Cobalt thin layers have been achieved by PLD (reported first in 2008) [139], and Co films have also been deposited by methods such as MOCVD and ALD [140,141]. Reported applications include giant magnetoresistance devices, MOSFETs, magneto-optic recording media, and spintronic devices. Cobalt oxide (CoOx) thin films have been prepared by laser ablation of a Co target at low O2 pressure [142].
Nickel (Ni): Nickel thin layers have been deposited using PLD [143,144] and other alternative techniques [145,146]. NiO thin films have been widely deposited by laser ablation of a nickel target in oxygen atmosphere [147,148,149], as well as by other deposition methods [150,151]. The balance between metallic Ni (conductive/ferromagnetic) and NiO (functional oxide with distinct electrical/chemical behavior) is representative of how oxygen availability can flip the dominant phase and application space in PLD/RPLD studies.
Copper (Cu): Cu thin films were grown by different techniques and have important applications as photocathodes in RF cavities due to good photo-emissive and physical properties [152,153,154,155,156,157,158]. A large body of thin-film research also targets copper oxides (CuOx) because of their high optical absorption coefficient [159,160,161,162,163,164,165]. Cu is therefore a clear “metal vs. oxide” split-case where the thin-film objective (conductive metal vs. absorbing oxide) largely decides between PLD (metal) or RPLD/oxygen-assisted oxide growth.
Zinc (Zn): Zinc commonly exhibits oxidation state +2 in binary compounds. Technologically important Zn compounds include ZnO, ZnS, ZnSe and ZnTe, but among these only ZnO thin films are reported as deposited by RPLD in the compiled literature [166,167,168]. The remaining Zn-based binary compounds are typically grown by other physical deposition processes [169,170,171,172,173,174] and are used in optoelectronics (semiconductors, solar cells), catalysis and bio/medical contexts.

3.4. Post-Transition Metals: Low Melting Points, Oxides and Transparent Conductors (Ga–Bi)

This group is marked by comparatively low melting point elements, frequent oxide formation and strong application pull in optoelectronics and sensing, so the thin-film literature often emphasizes compound films (notably oxides, sulfides, halides) and established device-relevant stacks rather than pure-metal PLD as an end goal. In PLD/RPLD processes, the reactive ambient and stoichiometry control are typically the key levers for obtaining functional phases (e.g., GaN/Ga2O3, CdO, In2O3, SnO2, PbOx, Bi2O3).
Gallium (Ga): Gallium is solid at room temperature but becomes liquid slightly above it (melting point ~30 °C), and deposition of pure Ga thin films has not been obtained. In contrast, Ga-based binary compounds such as gallium nitride (GaN) [175,176,177] and gallium sesquioxide (Ga2O3) [178,179,180] have been obtained (mainly by deposition methods other than PLD for many reports), reflecting that Ga thin-film relevance is primarily tied to compound semiconductors for optoelectronics and power devices rather than metallic Ga layers.
Indium (In): Indium is a rare post-transition metal with low oxidizing power. The literature on pure In films deposited by PLD is limited and attributed here to its low commercial interest [181]. Its main oxidation state is + 3. Much stronger emphasis is placed on indium sesquioxide (In2O3) deposited by RPLD [182,183] and on indium tin oxide (ITO) thin films produced by various deposition techniques [184,185], consistent with the role of these oxides as transparent conducting materials in optoelectronics and solar cells.
Tin (Sn): Tin is a post-transition metal with oxidation states +2 and +4, and the literature focus is on its oxide compounds rather than on pure Sn thin films. The most studied Sn-based thin-film materials include SnO2 (by PLD and RPLD) [186,187,188], ITO [189,190], and alloys such as Al-Sn [191,192] and Cu-Sn [193,194]. This element is therefore representative of systems where functional performance is mainly engineered through oxide chemistry and alloying, rather than by depositing the elemental metal alone.
Thallium (Tl): Thallium is a post-transition metal with oxidation states +1 and +3 and has limited scientific/commercial interest in thin-film form. Reported thin-film studies emphasize Tl binary compounds such as thallium sulfides (TlSx) [195,196] and thallium oxides (TlOx) [197,198], rather than pure Tl films.
Lead (Pb): Lead is a post-transition metal (oxidation states +2 and +4) with extensive literature on pure Pb thin films grown by PLD and cathodic arc techniques [199,200], as well as on key Pb binary compounds. Important Pb compounds discussed include lead oxides (PbOx) [201,202], lead sulfide (PbS) [203,204], and lead bihalides (PbX2, X = halogen) [205,206].
Bismuth (Bi): Bismuth is described as a strongly diamagnetic metalloid with very low thermal conductivity and high electrical resistivity, properties exploited in electronic devices and pharmaceutical-related applications. Many papers report growth of pure Bi thin layers by laser ablation of Bi targets [207,208,209], and Bi2O3 is identified as the main Bi compound grown by both PLD and RPLD [210,211]. Bi thus provides a clear metal vs. oxide pair inside the same element, where oxygen availability and targeted functionality determine whether PLD (metal) or RPLD/oxidizing conditions (oxide) dominate.

3.5. Refractory and Noble Transition Metals: Photocathodes, Corrosion Resistance, Catalysis and High-Temperature Coatings (Y–Hg)

This subgroup is dominated by elements used in demanding environments (high temperature, high corrosion, high wear) and in advanced electronic/energy technologies, so the literature often separates into (i) pure-metal films grown in high vacuum (when conductivity, catalytic activity, or photoemission is desired) and (ii) oxide/nitride/carbide films grown in reactive atmospheres to access stable functional phases. Compared with the first-row transition elements, many late 4d/5d metals are chemically inert, so reports on their binary compounds via RPLD can be scarce, while refractory metals show extensive compound families (oxides, nitrides, carbides, sulfides) because those phases carry most of the functionality.
Yttrium (Y): Yttrium is considered a rare-earth element despite being a transition metal, with common oxidation state +3, and its most important inorganic compound is yttrium sesquioxide (Y2O3). Y thin films have been studied for photoemission, with low work function (~3.1 eV) and relatively high quantum efficiency (~3.3 × 10−4), and Y films have been obtained by laser ablation of bulk Y in high-vacuum systems. Y2O3 thin films have been built by laser ablation of Y in oxygen atmosphere, and the principal applications of yttrium oxide are in solid-state lighting, displays, lasers and scintillators [212,213,214,215,216,217].
Zirconium (Zr): Zirconium is a transition metal with oxidation state +4. Zr thin films have been synthesized by laser ablation of Zr bulk targets using high-vacuum systems [218,219]. This review highlights biomedical relevance (e.g., dental implants) and it also stresses the technological importance of Zr-based compounds such as ZrO2, ZrN and ZrC. These compound families are frequently emphasized because they provide chemically inert, biocompatible and refractory coatings where the elemental film is not always the optimal endpoint [220,221,222,223,224].
Niobium (Nb): Niobium is a valuable transition metal with notable superconductive properties and is described as having the highest superconducting transition temperature among pure metals. Nb thin films have been deposited by laser ablation of Nb in high-vacuum systems [225,226,227], with a key application being photocathodes in superconducting radio-frequency (SRF) cavities. The most important Nb-based binary compounds discussed are NbOx, NbN and NbC, reflecting how oxide/nitride/carbide chemistry expands the accessible property set beyond the elemental film [228,229,230,231,232].
Molybdenum (Mo): Molybdenum is a heavy transition metal with many oxidation states, most commonly +4 and +6 in MoO2/MoO3, and it also forms sulfides (MoSx) and nitrides (e.g., MoN). PLD has been applied to deposit pure Mo thin layers [233,234], while RPLD is reported for MoOx, MoSx, and MoNx films grown in O2, H2S and N2 atmospheres, respectively. This spread of phases underlines why Mo is frequently treated as a refractory platform element where reactive ambient selection directly maps to functional film families [235,236,237,238,239,240].
Technetium (Tc): Technetium is a radioactive transition metal used in nuclear medicine and cancer diagnostics applications. Tc has not been prepared as a pure thin coating because of radioactivity and only a few studies are reported on Tc2O7 thin films [241,242].
Ruthenium (Ru): Ruthenium is chemically stable and capable of multiple oxidation states, with RuO4 and RuO2 among the most studied Ru-based compounds. Pure Ru thin-films have been deposited by laser ablation of a Ru target in a high-vacuum system [243,244]. Ru oxide thin films are also widely studied in the frame of various techniques including laser ablation of RuOx targets in O2 atmosphere [245]. This combination (metal film + conductive/stable oxide) explains Ru’s recurring role in electrical-contact and device-related thin film research in the compiled literature [246,247,248].
Rhodium (Rh): Rh is a noble, low-reactivity transition metal (group 9) described as extremely rare and expensive. Pure Rh thin films have been prepared by laser ablation of a Rh target in high-vacuum systems [249,250], and its high hardness, corrosion resistance and catalytic activity motivate applications such as protective coatings and jewelry decoration. There are no literature reports on Rh-based compound thin films prepared via PLD/RPLD.
Palladium (Pd): Palladium is presented as similar to platinum, with a key and distinguishing property being its capability to absorb large amounts of hydrogen. Several research groups have deposited and studied Pd thin films using PLD [251,252,253], but there is no evidence of PLD/RPLD experiments achieving binary Pd compounds.
Silver (Ag): Silver is a low-reactivity metal with very high electrical and thermal conductivity and high reflectivity in the visible region. PLD experiments have achieved pure Ag films [254,255,256,257,258], and Ag-based compounds such as silver oxides (AgOx) have also been grown by RPLD. This metal/oxide split supports applications ranging from reflective and conductive coatings to the oxide-enabled functionalities described in the tables.
Cadmium (Cd): Cadmium is similar to zinc and commonly shows oxidation state +2; it is used in nuclear contexts due to its high neutron absorption cross-section. Pure Cd thin films have not been deposited by PLD, while CdO thin films have been grown using RPLD and spray pyrolysis [259,260], with interest driven by its tunable band gap, photoconductivity and chemical stability for devices such as photodetectors and display/solar-related components.
Hafnium (Hf): Hafnium is described as corrosion-resistant with a high melting point and a good thermal neutron absorption cross-section. The most important Hf-based binary compounds highlighted are HfO2, HfC and HfN, with HfC specifically noted for an extremely high melting point and value in aerospace applications such as hypersonic vehicles [261,262,263,264].
Tantalum (Ta): Tantalum is a refractory transition metal with high melting point and notable hardness. Ta thin films prepared by PLD have been studied by different groups [265,266]. Its main binary compounds listed include Ta2O5, TaNx, TaC and TaS2, prepared by different deposition techniques [267,268,269,270,271,272,273,274]. This element is therefore treated largely through its compound set when targeting dielectric, barrier, or high-temperature coating functionality.
Tungsten (W): Tungsten is described as one of the hardest elements and the metal with the highest melting point, as well as high electrical and thermal conductivity that motivates its use in electrodes, heating elements and field electron emitters. There is a rich body of PLD literature on W thin films [275,276], and major compound families include WOx, WNx and WCx [277,278,279,280,281,282,283,284]. The manuscript also emphasizes tungsten-based binary alloys for radiation absorption, strength/hardness, wear/corrosion resistance, and strong thermal/electrical conductivity, supporting aerospace parts, cutting tools and radiation shielding.
Rhenium (Re): Rhenium is a heavy transition metal, and its main binary compounds reported include ReNx, ReS2 and ReB2, prepared via PLD/RPLD and other techniques [285,286,287,288,289]. Like tungsten, it is used in super alloys and superconductors, with well-known super alloys including W–Re and Mo–Re systems used for jet engines because of wear and corrosion resistance [290,291,292,293].
Osmium (Os): Osmium is described as hard, very dense, and with a high melting point, with wear and corrosion resistance as key mechanical properties. Os thin films have been grown by laser ablation in high vacuum and also by hollow cathode plasma CVD, with principal applications in electrical contacts and heat-resistant alloys [294,295]. OsO2 and OsB2 thin films prepared by alternative deposition methods rather than PLD/RPLD are reported [296,297].
Iridium (Ir): Iridium is highlighted for the highest chemical corrosion resistance and very high melting point, supporting uses such as high-temperature apparatuses, OLED devices and crucibles. There is extensive literature on Ir thin films grown by laser ablation [298,299,300], and IrO2 is identified as the main binary compound [301,302]. IrO2 is emphasized for its high chemical/thermal stability, high electrical conductivity and good electrochemical properties, enabling applications such as fuel cells, water electrolysis and sensors.
Platinum (Pt): Platinum (group 10) is discussed as corrosion-resistant and chemically inert, often classed as a noble metal. Many deposition techniques have been used for pure Pt thin films, while the literature on Pt binary compounds is described as very scarce due to Pt’s high chemical inertness [303,304,305].
Gold (Au): Gold is described as the most noble transition metal exhibiting very low reactivity, close to platinum. Pure Au thin films have been grown by several groups using different deposition techniques [306,307,308,309,310], while AuOx can be grown only in highly reactive environments (e.g., RPLD) or in selective oxidation experiments due to its excellent chemical stability [311,312].
Mercury (Hg): Mercury is the only metallic element that is liquid under standard conditions and is used in instruments such as thermometers, barometers and fluorescent lamps; it readily forms amalgams with many metals. A pure Hg thin film has not been successfully grown by PLD, but Hg thin films [313,314] and several Hg binary compounds have been grown using alternative deposition techniques [315,316,317,318,319,320]. This is a practical example where physical state and handling constraints strongly limit PLD applicability, even though thin films might be scientifically interesting.

3.6. Lanthanides: Oxide-Dominated Thin Films and Reactivity/Cost Constraints (La–Lu)

Lanthanides are strategically important for optics, lighting, catalysis, high- k dielectrics and related technologies, but pure metallic lanthanide films are difficult because of high cost and strong reactivity with oxygen-containing molecules (O2, H 2 O) that remain present even in UHV systems. As a result, the lanthanide portion of the PLD/RPLD literature is largely compound-led, with oxides being the most frequently targeted phases and oxygen pressure acting as a practical control knob to approach nominal stoichiometry.
Lanthanum (La): La is the first lanthanide and is among the most reactive of the series, typically with oxidation state +3. The manuscript notes that pure La thin films have never been deposited, while La2O3 and LaS thin films have been grown by PLD/RPLD [321,322,323]. La2O3 (RPLD in O 2 ) is associated with a high dielectric constant, high melting point and wide band gap for applications such as N O x gas sensors, optical glasses and ceramics, whereas LaS (PLD in UHV) is linked to low work function/low resistivity for field emission and display devices.
Cerium (Ce): Ce exhibits oxidation states +3 and +4 and is highly reactive, readily forming C e O 2 . C e O 2 thin films can be prepared by laser ablation in UHV, and also under low-pressure oxygen to compensate oxygen depletion, which is a common issue when ablating oxides in vacuum. The interest in C e O 2 is tied to high thermal stability, chemical inertness, oxygen storage capacity and high refractive index, supporting applications in glass manufacturing, automotive industry and catalysis [324,325,326].
Praseodymium (Pr): Pr commonly exhibits oxidation state +3 (also +4). Its very high cost limits availability and publication volume for several elements. The main investigated Pr compounds are praseodymium oxides ( P r O x ), which are noted for chemical stability and favorable electrical/thermal conductivity and magnetic susceptibility. Applications highlighted include optical fiber systems, high-power magnets and glass coloration technologies [327,328].
Neodymium (Nd): Nd is primarily +3, but can also show +2 and +4 in some compounds. Nd2O3 is described as a metal-oxide semiconductor (MOS) and is presented as the most investigated Nd-based thin-film compound, deposited by laser ablation of Nd targets in Ar/ O 2 atmospheres. Reported application areas include solid-state lasers, fiber lasers, color sunglasses and catalysts [329].
Promethium (Pm): Pm is radioactive and practically absent in nature, and the manuscript states that chemical/physical investigations (including thin films) are rare due to the high cost, radioactivity and scarcity. This is one of the clearest examples in Section 3 where safety/supply constraints, rather than PLD/RPLD capability, dominate the literature landscape [330].
Samarium (Sm): Sm is reported with oxidation state +3, and this review highlights photocathode-relevant parameters (low work function and high quantum efficiency) while also noting nuclear-industry relevance via a high thermal-neutron reaction cross-section. The most studied Sm compound in PLD is S m 2 O 3 , emphasized for high resistivity, a high dielectric constant and large band gap. Applications listed include electronics, nuclear industry and glass manufacturing [331,332,333].
Europium (Eu): Eu is among the more reactive lanthanides and shows oxidation states +2 and +3. The manuscript focuses on Eu oxide thin films ( E u O x , including E u 2 O 3 ) prepared by PLD, highlighting high melting point, thermal resistance and strong fluorescence. Applications include lighting/displays, nuclear industry and ceramics [334,335].
Gadolinium (Gd): Gd is a lanthanide with oxidation state +3 and has multiple radioactive isotopes. The manuscript points to biomedical relevance of Gd isotopes (contrast-agent use is cited) as a main motivation for interest in Gd-containing materials. In thin-film contexts, Gd is also discussed for its use as a dopant in functional materials rather than as a pure-metal film target [336].
Terbium (Tb): Tb is not found in nature as a free element and is often used as a dopant in thin-film materials for photonics and biosensing. Tb is reported with oxidation state +3 (also +4), and terbium oxides ( T b O x ) are linked to fluorescent lamps, television and cathode-ray tubes [337,338,339].
Dysprosium (Dy): The literature on pure Dy metallic films is lacking as for most lanthanides, while Dy is frequently used as a dopant in various thin-film systems. Reported Dy compound families include D y 2 O 3 and Dy halides ( D y X 3 ), with oxides valued for their thermal/chemical stability, high dielectric constant and wide band gap, and halides for their magnetic devices, solid-state lasers and medical-sector uses [340,341,342,343,344].
Holmium (Ho): Ho is described as one of the most reactive lanthanides and as having the highest magnetic permeability among elements, forming Ho2O3 and Ho halides readily. This paper emphasizes Ho2O3 thin-film studies for lasers, ceramics and nuclear reactors, while noting that lanthanide halogen compounds are comparatively neglected in the thin-film literature, likely due to limited commercial interest [345,346].
Erbium (Er): Er is described with oxidation state +3 and the manuscript affirms it does not exist as a pure metal but rather as compounds (e.g., oxides/halides). E r 2 O 3 thin films (PLD and magnetron sputtering) are highlighted for their chemical/thermal stability, high dielectric constant and wide band gap, with applications including gate dielectrics, lasers and fiber-lasers, electronics and display monitors [347,348,349,350].
Thulium (Tm): Tm is listed with oxidation state +3 and is known as very expensive. It is often used as a dopant in solid-state lasers. Pure Tm thin films have not been grown by any deposition technique, although T m 2 O 3 is the most studied compound due to optical properties supporting lasers, ceramics and glass applications [351,352].
Ytterbium (Yb): Yb is commonly used as a dopant and it is reactive with oxygen and halogens with oxidation states +2 and +3. A considerable literature is noted for Yb thin films and Y b O x films by techniques alternative to PLD/RPLD, while halide thin films receive comparatively little attention, attributed to limited industrial interest [353,354,355,356].
Lutetium (Lu): Lu is the last/heaviest lanthanide and is described as extremely expensive (commercial price noted as about six times higher than gold), with main oxidation state +3 but also 0/+1/+2. L u O x (e.g., Lu2O3) thin films are prepared by laser ablation of Lu2O3 targets in different oxygen atmospheres [357]. This review highlights its good thermal stability, wide band gap (~5.5 eV) and high dielectric constant as the key properties enabling use in laser crystals, ceramics and glasses [358,359].

3.7. Radioactive and Ultra-Rare Elements: Scope Limits and Thin-Film Feasibility (Po, At, Fr, Ra)

A small set of elements is effectively absent from PLD/RPLD thin-film studies because radioactivity, scarcity and handling hazards dominate over any potential thin-film application pull. In fact, we notice that highly radioactive metallic elements such as Fr, Tc, At, Po and Ra have not been deposited using PLD (or other techniques), with the exception of Tc, which has been deposited by ionic evaporation. Consistent with this, actinides and synthetic elements having an atomic number higher than 88 amu are excluded from the review because of high radioactivity.
Polonium (Po): Po is classified here as a radioactive metalloid because of its intermediate properties between metals and non-metals. Po has only a few applications, primarily limited by high radioactivity and associated hazards, and its compounds (mostly synthetically produced) have no significant commercial/industrial relevance. Only a few early studies exist on pure Po thin films and its oxide (PoO), with the most recent cited work being from 1954 (Bagnall and D’Eye) [360].
Astatine (At): Although At is a non-metal, it is treated as a metalloid in the manuscript due to its position in the periodic table. It is described as very rare and highly radioactive, making bulk chemical/physical properties difficult to study, and it exists mainly as a decay product of heavier radioactive elements. Only a few studies exist on this element and its chemical products, and essentially none on thin films.
Francium (Fr): Fr has been already treated and discussed in the highly reactive s-block metals (Section 3.1).
Radium (Ra): Ra is presented as the last element considered in the present review as one of the rarest naturally occurring metals (after protactinium), first isolated by Marie and Pierre Curie in 1898. It is described as the first radioactive element used in radiotherapy. There are no scientific publications on thin films of this very rare radioactive element.

4. Brief Description on Tabulated Findings

The results discussed in Section 3 are summarized in tabular form to provide a compact guide to materials achieved by PLD and RPLD across the categories of metals, metalloids, lanthanides, and their binary compounds. The tables include only those elements and binary compounds for which the relevant literature exists. They intend to help the reader to quickly identify feasible target materials and processing parameters.
In particular:
Table 2 summarizes the results concerning pure-metal deposition including the whole variety of metal elements reported.
Table 3 presents respective binary chemical compounds with their main properties and technological applications.
Table 4 is a summary reporting on metalloid thin-film growth, their main properties and potential technological applications.
Table 5 reports on the respective metalloid binary chemical compounds grown, with their main properties and applications.
The surveyed literature indicates that PLD of elemental targets is often performed not only in high vacuum, but also in controlled ambient gases (frequently noble gases), aiming either to tailor film structure, or to increase deposition rate by confining the ablated material [361,362]. In addition, many PLD studies of oxides and nitrides are effectively carried out under low partial pressures of oxygen or nitrogen to approach nominal stoichiometry by tuning O and N incorporation in the growing film [117,276]. This practical overlap between PLD-in-gas and RPLD underscores the reactive background as a frequently decisive parameter for stabilizing the desired compound phase and composition.
Table 6 is dedicated to lanthanides and lanthanide-based binary compounds prepared by PLD and RPLD. Further to intrinsic experimental challenges this is a topic of high interest because of its strategic applications. The deposition of pure metallic lanthanide films remains particularly difficult due to the very high cost of pure lanthanides and their strong reactivity with oxygen-containing molecules such as O 2 and H 2 O, which are always present in vacuum deposition systems. Consequently, the lanthanide literature mostly concerns compounds, especially oxides, grown in reactive atmospheres to leverage stable functional compositions.
Table 7 complements the work by summarizing the reports on carbon and related compounds obtained by PLD and RPLD, to outline the exceptionally broad literature on laser ablation/deposition of this element.
In conclusion, Table 2, Table 3, Table 4, Table 5, Table 6 and Table 7 provide a consolidated map of elements that have been deposited as pure films, or are predominantly studied as binary compounds, and are or will be employed in technological applications.
Finally, Table 8 summarizes the ablation thresholds and laser fluences for all the chemical elements investigated in this study, grouped as metals, metalloids, and lanthanides. The ranges of reactive gas pressures used during RPLD experiments are also reported. In brief, metals have the highest ablation thresholds due to high reflectivity and high thermal conductivity; metalloids, having lower thermal conductivity than metals, show lower ablation thresholds but a greater tendency to expel macroparticles and droplets. Lanthanides, being very heavy, in RPLD experiments, require high background pressures to promote thermalization and reduce stoichiometric imbalance due to scattering. In contrast, for the synthesis of binary compounds of metals and metalloids, in RPLD experiments, the reactive gas pressure typically ranges from 0.5 to 20 Pa.

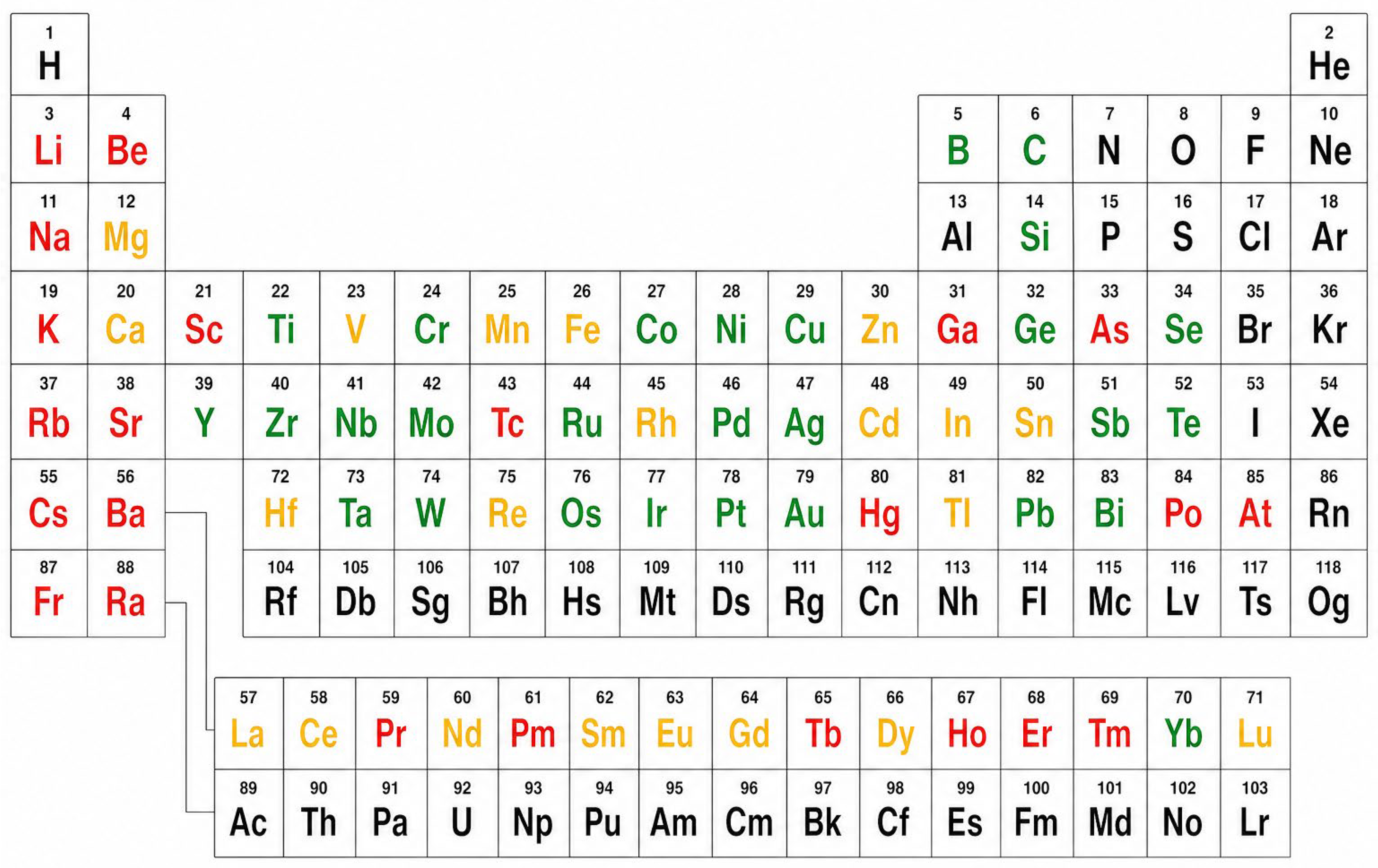

Moreover, Figure 2 shows a periodic table heatmap that categorizes the investigated chemical elements based on their PLD/RPLD feasibility. Specifically, green indicates elements with high feasibility (e.g., many transition metals), yellow represents those with moderate feasibility (such as several lanthanides), and red highlights elements (including most alkali and alkaline earth metals) that are challenging to ablate due to high reactivity, radioactivity, or extreme thermodynamic instability of the target.

5. Conclusions and Outlook

The present review provides a comprehensive account of thin-film growth by pulsed laser deposition (PLD) and reactive pulsed laser deposition (RPLD), encompassing elemental metals, metalloids, lanthanides, and a representative set of binary compounds, thereby offering a consolidated reference to guide future investigations in the field.
Despite the well-established versatility of PLD and RPLD, the analysis conducted here indicates that the viability of thin-film growth is predominantly determined by the material-specific characteristics rather than the availability of experimental means. In this context, the dominant constraint of the processing feasibility is mainly the chemical reactivity and/or the volatility of the materials. Many transition and post-transition elements are widely exploited in the form of thin-film functional oxides, nitrides, carbides, sulfides, or halides. The highly reactive alkali and alkaline earth metals are practically impossible to stabilize in pure metallic films, since the highly energetic ablated species readily react with the residual gases, even under UHV conditions, in addition to plasma erosion deteriorating the deposited film.
The nature, stoichiometry, microstructure and overall quality of the grown materials are strong functions of the experimental parameters. The most common experimental parameter ranges are summarized in Table 1 and reported growth results are found in Table 2, Table 3, Table 4, Table 5, Table 6 and Table 7. Results are associated with sets of suitable experimental parameters, including laser wavelength, laser pulse duration and fluence, pulse repetition rate, number of pulses, base pressure, reactive gas type/pressure, target–substrate distance, and substrate-related variables. The experimental parameters collectively control the plasma-plume properties, growth kinetics, stoichiometry, and microstructure of the produced material. This is consistent with several metal PLD experiments which have been performed in gas ambient, of usually noble gases, to tailor the structure and/or confine the plume, while oxide and nitride growth frequently rely on low O2/N2 pressures to approach the nominal stoichiometry by tuning oxygen and nitrogen incorporation. The review highlights the strong reactivity of lanthanides and the practical constraints of high cost that limit operations to oxides’ growth. In instances where PLD/RPLD reports are lacking for a given element or compound, alternative deposition methods have been referenced to distinguish between the genuine absence of a fundamental processing limitation and a lack of research or technological interest.
From the applications viewpoint, the literature indicates that PLD remains a particularly versatile research tool for exploring new compositions and phases. However, two limitations affect its industrial scale adoption. The particulate (droplet) formation and the relatively low deposition rates, are both recognized as key shortcomings of PLD/RPLD. These affect the reliability of the methods in large-scale operations.
Overall, the consolidated tables and section structure used here are intended not only to catalog, but also to expose recurring processes, property relationships and constraints that can guide future PLD/RPLD research toward better stoichiometry control, improved film uniformity, and reduced particulate contamination.
These conclusions directly motivate the outlook and future research directions towards where the most impactful opportunities are laid. Strengthening the physics and chemistry interpretation, the laser–material coupling and the reactive growth pathways will enable minimization of current constraints, reproducibility of growth and prospectively the wider technological uptake.
In the above context, a first research direction may focus on laser–material coupling and the community’s strong reliance on ultraviolet excimer lasers and Nd:YAG laser harmonics. For materials with wavelength-dependent absorption, systematic studies relating optical constants to ablation regimes, plume composition, and film quality are limited today, and extending investigations beyond the most common UV harmonics may reveal more efficient growth domains. A second major direction concerns the improved composition and phase control in reactive growth. An explicit link of reactive ambient to kinetic pathways at the substrate will enable predictive selection of conditions and will stabilize the material phases sought.
A third direction is mitigating droplets/particulates to promote industrial scalability. Beyond reporting the existence of droplets, future studies should quantify particulate density versus fluence, background pressure, and target conditioning, in order to develop, verify, benchmark and widely adopt mitigation strategies.
A fourth research direction will address the broad disparity in reported results and experimental methodologies, with the objective of improving comparability and establishing standardized experimental and analytical protocols across the field. The tabulated data presented in this work compile results spanning several decades and encompassing a wide range of experimental conditions and instrumentation. Our analysis verifies the scarcity of consistent findings and underlines the need for defining a broadly accepted parametric framework. Establishing such a unified research space will not only address the prevailing challenges but it will significantly accelerate progress, enhance the practical and strategic means and open up the space for the industrial exploitation of PLD and RPLD.

Author Contributions

Conceptualization and writing—original draft preparation, A.P.; writing—review editing and formal analysis N.A.V.; validation and supervision, M.R.A.; methodology and data curation A.P.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Data Availability Statement

The data presented in this study is available on request from the corresponding author.

Acknowledgments

This work was supported by the Italian National Institute of Nuclear Physics (INFN). M. R. Aziz would like to express sincere gratitude to the Center of Applied Physics, Dating and Diagnostics (CEDAD) for the unwavering support to this research.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Smith, H.M.; Turner, A. Vacuum deposited thin films using a ruby laser. Appl. Opt. 1965, 4, 147–148. [Google Scholar] [CrossRef] [Scilit]
  2. Shepelin, N.A.; Tehrani, Z.P.; Ohannessian, N.; Schneider, C.W.; Pergolesi, D.; Lippert, T. A practical guide to pulsed laser deposition. Chem. Soc. Rev. 2023, 52, 2294–2321. [Google Scholar] [CrossRef] [Scilit]
  3. Chrisey, D.B.; Hubler, G.K. Pulsed Laser Deposition of Thin Films; Wiley: New York, NY, USA, 1994. [Google Scholar]
  4. Haider, A.J.; Alawsi, T.; Haider, M.J.; Taha, B.A.; Marhoon, H.A. A comprehensive review on pulsed laser deposition technique to effective nanostructure production: Trends and challenges. Opt. Quantum Electron. 2022, 54, 488. [Google Scholar] [CrossRef] [Scilit]
  5. Perrone, A. State-of-the-Art on the Reactive Pulsed Laser Deposition of Nitrides. Jpn. J. Appl. Phys. 2002, 41, 2163–2170. [Google Scholar] [CrossRef] [Scilit]
  6. Fähler, S.; Störmer, M.; Krebs, H.U. Origin and avoidance of droplets during laser ablation of metals. Appl. Surf. Sci. 1997, 109–110, 433–436. [Google Scholar] [CrossRef] [Scilit]
  7. Mustofa, S.; Satoshi, T.; Takao, A.; Minoru, N.; Takanori, H. Formation of droplets on thin film surface in pulsed laser deposition using metal targets. Q. J. Jpn. Weld. Soc. 2003, 21, 338–343. [Google Scholar] [CrossRef] [Scilit]
  8. Gontad, F.; Lorusso, A.; Perrone, A. Structure and morphology of laser-ablated Pb thin films. Thin Solid Films 2012, 520, 3892–3895. [Google Scholar] [CrossRef] [Scilit]
  9. Mihailescu, I.N.; Teodorescu, V.S.; Gyorgy, E.; Luches, A.; Perrone, A.; Martino, M. About the nature of particulates covering the surface of thin films obtained by reactive pulsed laser deposition. J. Phys. D Appl. Phys. 1998, 31, 2236–2240. [Google Scholar] [CrossRef] [Scilit]
  10. Kaloyeros, A.E.; Pan, Y.; Goff, J.; Arkles, B. Review—Silicon nitride and silicon nitride-rich thin film technologies: State-of-the-art processing technologies, properties, and applications. ECS J. Solid State Sci. Technol. 2020, 9, 063006. [Google Scholar] [CrossRef] [Scilit]
  11. Schlom, D.G.; Chen, L.-Q.; Pan, X.; Schmehl, A.; Zurbuchen, M.A. A thin film approach to engineering functionality into oxides. J. Am. Ceram. Soc. 2008, 91, 2429–2454. [Google Scholar] [CrossRef] [Scilit]
  12. Krishna, M.G.; Padmanabhan, K.A. Titanium nitride based multi-functional thin films. IOP Conf. Ser. Mater. Sci. Eng. 2022, 1221, 012007. [Google Scholar] [CrossRef] [Scilit]
  13. Shinde, S.S.; Bansode, R.A.; Bhosale, C.H.; Rajpure, K.Y. Physical properties of hematite α-Fe2O3 thin films: Application to photoelectrochemical solar cells. J. Semicond. 2011, 32, 013001. [Google Scholar] [CrossRef] [Scilit]
  14. Eessaa, A.K.; El-Shamy, A.M. Review on fabrication, characterization, and applications of porous anodic aluminum oxide films with tunable pore sizes for emerging technologies. Microelectron. Eng. 2023, 279, 112061. [Google Scholar] [CrossRef] [Scilit]
  15. Wittmer, M. Properties and microelectronic applications of thin films of refractory metal nitrides. J. Vac. Sci. Technol. A 1985, 3, 1797–1803. [Google Scholar] [CrossRef] [Scilit]
  16. Baraldi, G.; Perea, A.; Afonso, C.N. Dynamics of ions produced by laser ablation of several metals at 193 nm. J. Appl. Phys. 2011, 109, 043302. [Google Scholar] [CrossRef] [Scilit]
  17. Sharko, S.A.; Serokurova, A.I.; Novitskii, N.N.; Ketsko, V.A.; Smirnova, M.N.; Almuqrin, A.H.; Sayyed, M.I.; Trukhanov, S.V.; Trukhanov, A.V. A new approach to the formation of nanosized gold and beryllium films by ion-beam sputtering deposition. Nanomaterials 2022, 12, 470. [Google Scholar] [CrossRef] [Scilit]
  18. Akbarnejad, E.; Asl Soleimani, E.; Ghorannevis, Z. Chromium thin film deposition on ITO substrate by RF sputtering. J. Theor. Appl. Phys. 2014, 8, 129. [Google Scholar] [CrossRef] [Scilit]
  19. Schwebke, S.; Schultes, G. Antiferromagnetic chromium thin films as piezoresistive sensor materials. J. Appl. Phys. 2022, 132, 185303. [Google Scholar] [CrossRef] [Scilit]
  20. Nadhom, H.; Yuan, Y.; Rouf, P.; Pedersen, N.H. Area selective deposition of iron films using temperature sensitive masking materials and plasma electrons as reducing agents. J. Vac. Sci. Technol. A 2021, 39, 043411. [Google Scholar] [CrossRef] [Scilit]
  21. Lovell, A.C.B. The electrical conductivity of thin metallic films I—Rubidium on pyrex glass surfaces. Proc. R. Soc. Lond. Ser. A-Math. Phys. Sci. 1936, 157, 311–330. [Google Scholar] [CrossRef] [Scilit]
  22. Tiron, V.; Porosnicu, C.; Dinca, P.; Velicu, I.L.; Cristea, D.; Munteanu, D.; Révész, Á.; Stoian, G.; Lungu, C.P. Beryllium thin films deposited by thermionic vacuum arc for nuclear applications. Appl. Surf. Sci. 2019, 481, 327–336. [Google Scholar] [CrossRef] [Scilit]
  23. Teplov, A.A.; Mikheeva, M.N.; Golyanov, V.M. Critical magnetic fields of superconducting films of technetium. Zh. Eksp. Teor. Fiz. 1975, 68, 1108–1116. [Google Scholar]
  24. Wang, Y.; Zhang, M.; Dong, Y.; Zhao, J.; Zhu, X.; Li, Y.; Fan, L.; Leng, H. Morphology modelling and validation in nanosecond pulsed laser ablation of metallic materials. Precis. Eng. 2023, 79, 34–42. [Google Scholar] [CrossRef] [Scilit]
  25. Craciun, V.; Craciun, D.; Bunescu, M.C.; Dabu, R.; Boyd, I.W. Scanning electron microscopy investigation of laser ablated oxide targets. J. Phys. D Appl. Phys. 1999, 32, 1306. [Google Scholar] [CrossRef] [Scilit]
  26. Bashir, S.; Rafique, M.S.; Ajami, A.A.; Nathala, C.S.; Husinsky, W.; Whitmore, K. Femtosecond laser ablation of Zn in air and ethanol: Effect of fluence on the surface morphology, ablated area, ablation rate and hardness. Appl. Phys. A 2021, 127, 226. [Google Scholar] [CrossRef] [Scilit]
  27. Shaheen, M.E.; Gagnon, J.E.; Fryer, B.J. Scanning electron microscope studies on laser ablation of solids. Laser Part. Beams 2019, 37, 101–109. [Google Scholar] [CrossRef] [Scilit]
  28. Grojo, D.; Hermann, J.; Perrone, A. Plasma Analyses During Femtosecond Laser Ablation of Ti, Zr and Hf. J. Appl. Phys. 2005, 97, 063306. [Google Scholar] [CrossRef] [Scilit]
  29. Chen, Z.; Ning, H.; Zhang, X. Spatial distribution characteristics of plumes induced by femtosecond laser ablation of silicon in vacuum. Sci. Rep. 2023, 13, 6623. [Google Scholar] [CrossRef] [Scilit]
  30. Dinescu, G.; Aldea, E.; De Giorgi, M.L.; Luches, A.; Perrone, A.; Zocco, A. Optical emission spectroscopy of molecular species in plasma induced by laser ablation of carbon in nitrogen. Appl. Surf. Sci. 1998, 127–129, 697–702. [Google Scholar] [CrossRef] [Scilit]
  31. N-ur-Rehman Khan, H.; Mehmood, M.; Ling, F.C.C.; Khan, A.F.; Ali, S.M. Comparative Study on Structural, Optical, and Electrical Properties of ZnO Thin Films Prepared by PLD and Sputtering Techniques. Semiconductors 2020, 54, 999–1010. [Google Scholar] [CrossRef] [Scilit]
  32. Rodríguez-Rosales, K.; Cruz-Gómez, J.; Santos Cruz, J.; Guillén-Cervantes, A.; de Moure-Flores, F.; Villagrán-Muniz, M. Plasma emission spectroscopy for studying Bi2S3 produced by pulsed laser deposition and effects of substrate temperature on structural, morphological, and optical properties of thin films. Mater. Sci. Eng. B 2025, 312, 117867. [Google Scholar] [CrossRef] [Scilit]
  33. Radical modification of the wetting behaviour of textiles coated with ZnO thin films and nanoparticles when changing the ambient pressure in the pulsed laser deposition process. J. Appl. Phys. 2011, 110, 064321. [CrossRef] [Scilit]
  34. Popescu, A.C.; Duta, L.; Dorcioman, G.; Mihailescu, I.N.; Stan, G.E.; Pasuk, I.; Zgura, I.; Beica, T.; Enculescu, I.; Ianculescu, A.; et al. Atomic Layer Deposition and in situ Characterization of Ultraclean Lithium Oxide and Lithium Hydroxide. J. Phys. Chem. C 2014, 118, 27749–27753. [Google Scholar] [CrossRef] [Scilit]
  35. Maximov, M.; Nazarov, D.; Mitrofanov, I.; Koshtyal, Y.; Rymyantsev, A.; Popovich, A. Atomic layer deposition of lithium oxide, tin oxide, and lithiated tin oxide nanofilms for high performance thin film batteries anodes. In Proceedings of the NANOCON 2018—Conference Proceedings, 10th Anniversary International Conference on Nanomaterials—Research and Application, Brno, Czech Republic, 17–19 October 2018. [Google Scholar]
  36. Bach, A.; Fischer, D.; Jansen, M. Synthesis of a new modification of lithium chloride confirming theoretical predictions. Z. Anorg. Allg. Chem. 2009, 635, 2406–2409. [Google Scholar] [CrossRef] [Scilit]
  37. Brady, J.J.; Jacobsmeyer, V.P. Photoelectric properties of sodium films on aluminum. Phys. Rev. 1936, 49, 670. [Google Scholar] [CrossRef] [Scilit]
  38. Snsteby, H.H.; Weibye, K.; Bratvold, J.E.; Nilsen, O. Rubidium containing thin films by atomic layer deposition. Dalton Trans. 2017, 46, 16139–16144. [Google Scholar] [CrossRef] [Scilit]
  39. Ives, H.E.; Johnsrud, A.L. Electrical and photo-electric properties of thin films of rubidium on glass. Astrophys. J. 1925, 62, 309. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  40. Astrakharchik, E.G.; Shalnikov, A.I. Electric properties of thin films of cesium and rubidium. Zh. Eksp. Teor. Fiz. 1977, 72, 1607–1612. [Google Scholar]
  41. Uebbing, J.J.; James, L.W. Behavior of cesium oxide as a low work-function coating. J. Appl. Phys. 1970, 41, 4505–4516. [Google Scholar] [CrossRef] [Scilit]
  42. Farzaneh, A.; Abdi, M.R.; Saraee, K.R.E.; Mostajabaldaavati, M.; Quaranta, A. The preparation of cesium-iodide thin films via sol-gel method for the detection of ionizing radiation. J. Sol.-Gel Sci. Technol. 2016, 78, 313–321. [Google Scholar] [CrossRef] [Scilit]
  43. Triloki Rai, R.; Gupta, N.; Jammal, N.F.A.; Singh, B.K. Photoemission and optical constant measurements of a cesium iodide thin film photocathode. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrom. Detect. Assoc. Equip. 2015, 787, 161–165. [Google Scholar] [CrossRef] [Scilit]
  44. Kumar, K.; Arun, P.; Kant, C.R.; Mehra, N.C.; Makinistian, L.; Albanesi, E.A. Effect of residual stress on the optical properties of CsCl thin films. J. Phys. Chem. Solids 2010, 71, 163–169. [Google Scholar] [CrossRef] [Scilit]
  45. Li, W.; Li, J.; Niua, G.; Wang, L. Effect of cesium chloride modification on the film morphology and UV-induced stability of planar perovskite solar cells. J. Mater. Chem. A 2016, 4, 11688–11695. [Google Scholar] [CrossRef] [Scilit]
  46. Svechnikov, M.; Chkhalo, N.; Lopatin, A.; Pleshkov, R.; Polkovnikov, V.; Salashchenko, N.; Schäfers, F.; Sertsu, M.G.; Sokolov, A.; Tsybin, N. Optical constants of sputtered beryllium thin films determined from photoabsorption measurements in the spectral range 20.4–250 eV. J. Synchrotron Radiat. 2020, 27, 75–82. [Google Scholar] [CrossRef] [Scilit]
  47. Curzon, A.E.; Mascall, A.J. Superconductivity in thin films of beryllium. J. Phys. C Solid State Phys. 1969, 2, 382. [Google Scholar] [CrossRef] [Scilit]
  48. Cultrera, L.; Pereira, A.; Ristoscu, C.; Clozza, A.; Tazzioli, F.; Vicario, C. Pulsed laser deposition of Mg thin films on Cu substrates for photocathode applications. Appl. Surf. Sci. 2005, 248, 397–401. [Google Scholar] [CrossRef] [Scilit]
  49. Sterl, F.; Strohfeldt, N.; Walter, R.; Griessen, R.; Tittl, A.; Giessen, H. Magnesium as novel material for active plasmonics in the visible wavelength range. Nano Lett. 2015, 15, 7949–7955. [Google Scholar] [CrossRef] [Scilit]
  50. Perrone, A.; Cultrera, L.; Pereira, A.; Rossi, M.; Cialdi, S.; Boscolo, I.; Tazzioli, F.; Vicario, C.; Gatti, G. Ablated Mg films with a graphite cover as photocathodes. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrom. Detect. Assoc. Equip. 2005, 554, 220–225. [Google Scholar] [CrossRef] [Scilit]
  51. Cultrera, L.; Ristoscu, C.; Gatti, G.; Miglietta, P.; Tazzioli, F.; Perrone, A. Photoemission characteristics of PLD grown Mg films under UV laser irradiation. J. Phys. D Appl. Phys. 2007, 40, 5965–5970. [Google Scholar] [CrossRef] [Scilit]
  52. Salem, E.T.; Mohamed, F.A. Transparent oxide MgO thin films prepared by reactive pulsed laser deposition. Eng. Technol. J. 2010, 28, 723–729. [Google Scholar] [CrossRef] [Scilit]
  53. Nelea, V.; Craciun, V.; Iliescu, M.; Mihailescu, I.N.; Pelletier, H.; Mille, P.; Werckmann, J. Growth of calcium phosphate thin films by in situ assisted ultraviolet pulsed laser deposition. Appl. Surf. Sci. 2003, 208, 638–644. [Google Scholar] [CrossRef] [Scilit]
  54. Wang, C.K.; Lin, J.H.; Ju, C.P.; Ong, H.C.; Chang, R.P. Structural characterization of pulsed laser-deposited hydroxyapatite film on titanium substrate. Biomaterials 1997, 18, 1331–1338. [Google Scholar] [CrossRef] [Scilit]
  55. Cotell, C.M.; Chrisey, D.B.; Grabowski, K.S.; Sprague, J.A.; Gossett, C.R. Pulsed laser deposition of hydroxylapatite thin films on Ti6Al4V. J. Appl. Biomater. 1992, 3, 87–93. [Google Scholar] [CrossRef] [Scilit]
  56. Komats, K.; Tanabe, M.; Toda, I.; Ohshio, S.; Muramatsu, H.; Saitoh, H. Synthesis of strontium oxide whiskers with preferential <111> orientation by atmospheric chemical vapor deposition. J. Mater. Sci. Res. 2016, 52, 50–55. [Google Scholar] [CrossRef] [Scilit]
  57. Ahmad, F.; Belkhedkar, M.R.; Salodkar, R.V. Physical properties of nanostructured strontium oxide thin film grown by chemical bath deposition technique. AIP Conf. Proc. 2018, 1953, 030105. [Google Scholar] [CrossRef] [Scilit]
  58. Acharya, S.; Torgersen, J.; Kim, Y.; Park, J.; Schindler, P.; Dadlani, A.L.; Winterkorn, M.; Xu, S.; Walch, S.P.; Usui, T.; et al. Self-limiting atomic layer deposition of barium oxide and barium titanate thin films using a novel pyrrole based precursor. J. Mater. Chem. C 2016, 4, 1945–1952. [Google Scholar] [CrossRef] [Scilit]
  59. Alharby, S.R.; Qasrawi, A.F.; Gaabour, L.H. Barium Oxide Thin Films Designed as Electro-Optical Gigahertz-Terahertz Filters. Cryst. Res. Technol. 2025, 60, 2400212. [Google Scholar] [CrossRef] [Scilit]
  60. Ono, A.; Okada, K.; Akaeda, K. On the Validity of the Vapor-Deposited Thin Film of Barium Chloride for the Detection of Sulfate in Individual Atmospheric Particles. J. Meteorol. Soc. Jpn. 1981, 59, 417–422. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  61. Bond, C.W. Pulsed Laser Deposition of Glass-Ceramic Thin Films for Computed Radiography. Master’s Thesis, University of Tennessee, Knoxville, TN, USA, 2018. [Google Scholar]
  62. De Giorgi, M.L.; Aziz, M.R.; Manousaki, A.; Perrone, A.; Klini, A. Sub-ps pulsed laser deposition of boron films for neutron detector applications. Materials 2023, 16, 1512. [Google Scholar] [CrossRef] [Scilit]
  63. Dellasega, D.; Russo, V.; Pezzoli, A.; Conti, C.; Lecis, N.; Besozzi, E.; Beghi, M.; Bottani, C.E.; Passoni, M. Boron films produced by high energy pulsed laser deposition. Mater. Des. 2017, 134, 35–43. [Google Scholar] [CrossRef] [Scilit]
  64. Kutagulla, S.; Carmichael, P.T.; Biswas, A.; Mutyala, D.; Terlier, T.; Le, N.H.; Bohn, I.C.; Vajtai, R.; Korgel, B.A.; Aluru, N.; et al. Room-Temperature Pulsed Laser Deposition of Boron Nitride for Enhanced Fuel Cell Selectivity. ACS Nano 2025, 20, 1238–1248. [Google Scholar] [CrossRef] [Scilit]
  65. Glavin, N.R.; Jespersen, M.L.; Check, M.H.; Hu, J.; Hilton, A.M.; Fisher, T.S.; Voevodin, A.A. Synthesis of few-layer, large area hexagonal-boron nitride by pulsed laser deposition. Thin Solid Films 2014, 572, 245–250. [Google Scholar] [CrossRef] [Scilit]
  66. Vick, D.; Tsui, Y.Y.; Brett, M.J.; Fedosejevs, R. Production of porous carbon thin films by pulsed laser deposition. Thin Solid Films 1999, 350, 49–52. [Google Scholar] [CrossRef] [Scilit]
  67. Yoshitake, T.; Nishiyama, T.; Aoki, H.; Suizu, K.; Takahashi, K.; Nagayama, K. Carbon thin films prepared by pulsed laser deposition. Trans. Mater. Res. Soc. Jpn. 1999, 24, 599–602. [Google Scholar]
  68. Lu, Y.; Huang, G.; Wang, S.; Mi, C.; Wei, S.; Tian, F.; Li, W.; Cao, H.; Cheng, Y. A review on diamond-like carbon films grown by pulsed laser deposition. Appl. Surf. Sci. 2021, 541, 148573. [Google Scholar] [CrossRef] [Scilit]
  69. Soto, R.; González, P.; Lusquiños, F.; Pou, J.; León, B.; Pérez-Amor, M. Carbon nitride films prepared by guanazole laser ablation in ammonia atmosphere. Carbon 1998, 36, 781–784. [Google Scholar] [CrossRef] [Scilit]
  70. De Giorgi, M.L.; Leggieri, G.; Luches, A.; Martino, M.; Perrone, A.; Zocco, A.; Barucca, G.; Majni, G.; Gyorgy, E.; Mihailescu, I.N.; et al. Carbon nitride films deposited by reactive laser ablation. Appl. Surf. Sci. 1998, 127–129, 481–485. [Google Scholar] [CrossRef] [Scilit]
  71. Gaudiuso, R. Pulsed Laser Deposition of Carbon-Based Materials: A Focused Review of Methods and Results. Processes 2023, 11, 2373. [Google Scholar] [CrossRef] [Scilit]
  72. Kusano, Y.; Evetts, J.E.; Somekh, R.E.; Hutchings, I.M. Properties of carbon nitride films deposited by magnetron sputtering. Thin Solid Films 1998, 332, 56–61. [Google Scholar] [CrossRef] [Scilit]
  73. Kohzaki, M.; Matsumuro, A.; Hayashi, T.; Muramatsu, M.; Yamaguchi, K. Preparation of carbon nitride thin films by ion beam assisted deposition and their mechanical properties. Thin Solid Films 1997, 308–309, 239–244. [Google Scholar] [CrossRef] [Scilit]
  74. Muhl, S.; Mendez, J.M. A review of the preparation of carbon nitride films. Diam. Relat. Mater. 1999, 8, 1809–1830. [Google Scholar] [CrossRef] [Scilit]
  75. Aoi, Y.; Tani, Y.; Hisa, M.; Kamijo, E. Preparation and Characterization of Carbon Nitride Thin Films by Electron Cyclotron Resonance (ECR) Sputtering Method. MRS Online Proc. Libr. (OPL) 1998, 555, 419–422. [Google Scholar] [CrossRef] [Scilit]
  76. Wang, J.; Fan, L.; Wang, X.; Xiao, T.; Peng, L.; Wang, X.; Yu, J.; Cao, L.; Xiong, Z.; Fu, Y.; et al. Pulsed laser deposition of monolayer and bilayer graphene. Appl. Surf. Sci. 2019, 494, 651–658. [Google Scholar] [CrossRef] [Scilit]
  77. Vijayalakshmi, S.; Iqbal, Z.; George, M.A.; Federici, J.; Grebel, H. Characterization of laser ablated silicon thin films. Thin Solid Films 1999, 339, 102–108. [Google Scholar] [CrossRef] [Scilit]
  78. Smann, C.; Khler, J.R.; Dahlinger, M.; Schubert, M.B.; Werner, J.H. Pulsed laser porosification of silicon thin films. Materials 2016, 9, 509. [Google Scholar] [CrossRef] [Scilit]
  79. Ayouchi, R.; Schwarz, R.; Melo, L.V.; Ramalho, R.; Alves, E.; Marques, C.P.; Santos, L.; Almeida, R.; Conde, O. Morphological and optical properties of silicon thin films by PLD. Appl. Surf. Sci. 2009, 255, 5299–5302. [Google Scholar] [CrossRef] [Scilit]
  80. Jackson, B.D.; Herman, P.R. Vacuum-ultraviolet pulsed-laser deposition of silicon dioxide thin films. Appl. Surf. Sci. 1998, 127, 595–600. [Google Scholar] [CrossRef] [Scilit]
  81. He, X.; Wu, J.; Li, X.; Gao, X.; Zhao, L.; Wu, L. Synthesis and properties of silicon dioxide films prepared by pulsed laser deposition using ceramic SiO2 target. Appl. Surf. Sci. 2009, 256, 231–234. [Google Scholar] [CrossRef] [Scilit]
  82. Leggieri, G.; Luches, A.; Martino, M.; Perrone, A.; Alexandrescu, R.; Barborica, A.; Gyorgy, E.; Mihailescu, I.N.; Majni, G.; Mengucci, P. Laser reactive ablation deposition of silicon carbide films. Appl. Surf. Sci. 1996, 96, 866–869. [Google Scholar] [CrossRef] [Scilit]
  83. Paneerselvam, E.; Vasa, N.J.; Nakamura, D.; Palani, I.A.; Higashihata, M.; Ramachandra Rao, M.S.; Thomas, T. Pulsed laser deposition of SiC thin films and influence of laser-assisted annealing. Mater. Today Proc. 2021, 35, 312–317. [Google Scholar] [CrossRef] [Scilit]
  84. Teodorescu, V.S.; Nistor, L.C.; Popescu, M.; Mihailescu, I.N.; Gyorgy, E.; Van Landuyt, J.; Perrone, A. Transmission electron microscopy study of silicon nitride amorphous films obtained by reactive pulsed laser deposition. Thin Solid Films 2001, 397, 12–16. [Google Scholar] [CrossRef] [Scilit]
  85. Suda, Y.; Ebihara, K.; Baba, K.; Abe, H.; Grishin, A.M. Crystalline silicon nitride thin films grown by pulsed YAG laser deposition. Nanostruct. Mater. 1999, 12, 391–394. [Google Scholar] [CrossRef] [Scilit]
  86. Mihailescu, I.N.; Lita, A.; Teodorescu, V.S.; Luches, A.; Martino, M.; Perrone, A.; Gartner, M. Pulsed laser deposition of silicon nitride thin films by laser ablation of a Si target in low pressure ammonia. J. Mater. Sci. 1996, 31, 2839–2847. [Google Scholar] [CrossRef] [Scilit]
  87. Schumacher, P.; Mayr, S.G.; Rauschenbach, B. Topography evolution of germanium thin films synthesized by pulsed laser deposition. AIP Adv. 2017, 7, 045115. [Google Scholar] [CrossRef] [Scilit]
  88. Cojocaru, C.V.; Bernardi, A.; Reparaz, J.S.; Alonso, M.I.; MacLeod, J.M.; Harnagea, C.; Rosei, F. Site-controlled growth of Ge nanostructures on Si(100) via pulsed laser deposition nanostenciling. Appl. Phys. Lett. 2007, 91, 113112. [Google Scholar] [CrossRef] [Scilit]
  89. Mei, Y.F.; Siu, G.G.; Huang, X.H.; Cheah, K.W.; Dong, Z.G.; Fang, L.; Sheng, M.R.; Wu, X.L.; Bao, X.M. Growth and optical properties of Ge oxide thin film on silicon substrate by pulsed laser deposition. Phys. Lett. A 2004, 331, 248–251. [Google Scholar] [CrossRef] [Scilit]
  90. Maggioni, G.; Carturan, S.; Fiorese, L.; Pinto, N.; Caproli, F.; Napoli, D.R.; Giarola, M.; Mariotto, G. Germanium nitride and oxynitride films for surface passivation of Ge radiation detectors. Appl. Surf. Sci. 2017, 393, 119–126. [Google Scholar] [CrossRef] [Scilit]
  91. Carapella, S.C., Jr. Arsenic and Arsenic Alloys. In Kirk-Othmer Encyclopedia of Chemical Technology; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2001. [Google Scholar]
  92. Fernandez-Guasti, M.; Haro-Poniatowski, E.; Diamant, R.; Ponce, L.; Jimnez, E. Pulsed-laser deposition of selenium. J. Mater. Sci. 1995, 30, 6253–6256. [Google Scholar] [CrossRef] [Scilit]
  93. Hansen, S.G.; Robitaille, T.E. Characterization of the pulsed laser evaporation process: Selenium thin-film formation. Appl. Phys. Lett. 1987, 50, 359–361. [Google Scholar] [CrossRef] [Scilit]
  94. Fahad, O.A.; Abdulkareem, F.A.; Mohammed, A.S.; Kareem, O.A. Produce of selenium nanoparticles by pulsed laser ablation for anticancer treatments. Int. J. Nanosci. 2021, 20, 2150055. [Google Scholar] [CrossRef] [Scilit]
  95. Yimam, D.T.; Kooi, B.J. Thickness-dependent crystallization of ultrathin antimony thin films for monatomic multilevel reflectance and phase change memory designs. ACS Appl. Mater. Interfaces 2022, 14, 13593–13600. [Google Scholar] [CrossRef] [Scilit]
  96. Bai, H.; Li, Y.; Shen, H.; Wang, L.; Li, H.; Xie, Z.; Chen, A.; Shi, Z.; Wang, W. Preparation of antimony selenide thin films by electrochemical deposition and application in optoelectronic devices. Mater. Sci. Semicond. Process. 2024, 171, 108027. [Google Scholar] [CrossRef] [Scilit]
  97. Jain, A.K.; Gopalakrishnan, C.; Malar, P. Study of pulsed laser deposited antimony selenide thin films. J. Mater. Sci. Mater. Electron. 2022, 33, 10430–10438. [Google Scholar] [CrossRef] [Scilit]
  98. Versavel, M.Y.; Haber, J.A. Structural and optical properties of amorphous and crystalline antimony sulfide thin-films. Thin Solid Films 2007, 515, 7171–7176. [Google Scholar] [CrossRef] [Scilit]
  99. Santos-Cruz, D.; de la L Olvera-Amador, M.; Mayen-Hernandez, S.A.; Quiñones-Galván, J.G.; Santos-Cruz, J.; de Moure-Flores, F. Structural, optical, and morphological characterization of Sb2S3 thin films grown by pulsed laser deposition. J. Laser Appl. 2021, 33, 042012. [Google Scholar] [CrossRef] [Scilit]
  100. De Sande, J.C.G.; Vega, F.; Afonso, C.N.; Ortega, C.; Siejka, J. Optical properties of Sb and SbOx films. Thin Solid Films 1994, 249, 195–200. [Google Scholar] [CrossRef] [Scilit]
  101. Apte, A.; Bianco, E.; Krishnamoorthy, A.; Yazdi, S.; Rao, R.; Glavin, N.; Kumazoe, H.; Varshney, V.; Roy, A.; Shimojo, F.; et al. Polytypism in ultrathin tellurium. 2D Mater. 2018, 6, 015013. [Google Scholar] [CrossRef] [Scilit]
  102. Hu, P.; Li, B.; Feng, L.; Wu, J.; Jiang, H.; Yang, H.; Xiao, X. Effects of the substrate temperature on the properties of CdTe thin films deposited by pulsed laser deposition. Surf. Coat. Technol. 2012, 213, 84–89. [Google Scholar] [CrossRef] [Scilit]
  103. Munoz-Martin, D.; Fernandez-Navarro, J.M.; Gonzalo, J.; Jose, G.; Jha, A.; Fierro, J.L.G.; Domingo, C.; Garcia-Lopez, J. Structural and optical properties of tellurite thin film glasses deposited by pulsed laser deposition. Thin Solid Films 2011, 520, 131–137. [Google Scholar] [CrossRef] [Scilit]
  104. McCandless, B.E.; Sites, J.R. Cadmium telluride solar cells. In Handbook of Photovoltaic Science and Engineering; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2011; pp. 600–641. [Google Scholar]
  105. Siciliano, T.; Di Giulio, M.; Tepore, M.; Filippo, E.; Micocci, G.; Tepore, A. Ammonia sensitivity of RF sputtered tellurium oxide thin films. Sens. Actuators B Chem. 2009, 138, 550–555. [Google Scholar] [CrossRef] [Scilit]
  106. Govindassamy, G.A.; Prentice, J.J.; Lunney, J.G.; Eason, R.W.; Mackenzie, J.I. Effect of laser repetition rate on the growth of Sc2O3 via pulsed laser deposition. Appl. Phys. A 2022, 128, 577. [Google Scholar] [CrossRef] [Scilit]
  107. Lu, L.; Lu, Y.; Hong, M.; Ho, T.M.; Low, T. Plasma diagnostics in KrF excimer laser deposition of Ti thin films. In Laser Processing of Materials and Industrial Applications II; SPIE: Bellingham, WA, USA, 1998; Volume 3550. [Google Scholar]
  108. Kim, W.-S. Titanium Nitride and Silicon Nitride Films Grown by Pulsed Laser Deposition. Master’s Thesis, University of Tennessee, Knoxville, TN, USA, 1999. [Google Scholar]
  109. Kim, S.H.; Lee, K.H.; Kim, D.-J.; Chae, H.B. Structure and mechanical properties of titanium nitride thin films grown by reactive pulsed laser deposition. J. Ceram. Process. Res. 2009, 10, 49–53. [Google Scholar]
  110. Teghil, R.; D’Alessio, L.; De Bonis, A.; Galasso, A.; Villani, P.; Santagata, A. Femtosecond pulsed laser ablation and deposition of titanium carbide. Thin Solid Films 2006, 515, 1411–1418. [Google Scholar] [CrossRef] [Scilit]
  111. Leggieri, G.; Luches, A.; Martino, M.; Perrone, A.; Majni, G.; Mengucci, P.; Mihailescu, I.N. Laser reactive ablation deposition of titanium carbide films. Thin Solid Films 1995, 258, 40–45. [Google Scholar] [CrossRef] [Scilit]
  112. Orlianges, J.C.; Crunteanu, A.; Pothier, A.; Merle-Mejean, T.; Blondy, P.; Champeaux, C. Titanium dioxide thin films deposited by pulsed laser deposition and integration in radio frequency devices. Appl. Surf. Sci. 2012, 263, 111–114. [Google Scholar] [CrossRef] [Scilit]
  113. Fusi, M.; Russo, V.; Casari, C.S.; Li Bassi, A.; Bottani, C.E. Titanium oxide nanostructured films by reactive pulsed laser deposition. Appl. Surf. Sci. 2009, 255, 5334–5337. [Google Scholar] [CrossRef] [Scilit]
  114. Ramana, C.V.; Smith, R.J.; Hussain, O.M.; Julien, C.M. On the growth mechanism of pulsed-laser deposited vanadium oxide thin films. Mater. Sci. Eng. B 2004, 111, 218–225. [Google Scholar] [CrossRef] [Scilit]
  115. Soltani, M.; Chaker, M.; Haddad, E.; Kruzelecky, R.V.; Nikanpour, D. Optical switching of vanadium dioxide thin films deposited by reactive pulsed laser deposition. J. Vac. Sci. Technol. A 2004, 22, 859–864. [Google Scholar] [CrossRef] [Scilit]
  116. Madiba, I.G.; Chaker, M.; Thema, F.T.; Tadadjeu, S.I.; Muller, U.; Zolliker, P.; Braun, A.; Kotsedi, L.; Maaza, M. Effects of gamma irradiations on reactive pulsed laser deposited vanadium dioxide thin films. Appl. Surf. Sci. 2017, 411, 271–278. [Google Scholar] [CrossRef] [Scilit]
  117. Matei Ghimbeu, C.; Sima, F.; Ostaci, R.V.; Socol, G.; Mihailescu, I.N.; Vix-Guterl, C. Crystalline vanadium nitride ultra-thin films obtained at room temperature by pulsed laser deposition. Surf. Coat. Technol. 2012, 211, 158–162. [Google Scholar] [CrossRef] [Scilit]
  118. D’Anna, E.; Di Cristoforo, A.; Fernández, M.; Leggieri, G.; Luches, A.; Majni, G.; Mengucci, P.; Nanai, L. Excimer laser reactive deposition of vanadium nitride thin films. Appl. Surf. Sci. 2002, 186, 496–501. [Google Scholar] [CrossRef] [Scilit]
  119. Cui, J.; Da, D.; Jiang, W. Structure characterization of vanadium oxide thin films prepared by magnetron sputtering methods. Appl. Surf. Sci. 1998, 133, 225–229. [Google Scholar] [CrossRef] [Scilit]
  120. Mohimi, E.; Zhang, Z.V.; Mallek, J.L.; Liu, S.; Trinh, B.B.; Shetty, P.P.; Girolami, G.S.; Abelson, J.R. Low temperature chemical vapor deposition of superconducting vanadium nitride thin films. J. Vac. Sci. Technol. A 2019, 37, 031509. [Google Scholar] [CrossRef] [Scilit]
  121. García-Wong, A.C.; Pilloud, D.; Bruyère, S.; Mangin, D.; Migot, S.; Pierson, J.F.; Capon, F. Surface morphology–optical properties relationship in thermochromic VO2 thin films obtained by air oxidation of vanadium nitride. J. Mater. 2020, 7, 657–664. [Google Scholar] [CrossRef] [Scilit]
  122. Rauf, A.; Ahmed, K.; Nasim, F.; Khan, A.N.; Gul, A. Optical and structural properties of Cr and Ag thin films deposited on glass substrate. Mater. Sci. Eng. 2016, 146, 012013. [Google Scholar] [CrossRef] [Scilit]
  123. Wang, S.-F.; Lin, H.-C.; Bor, H.-Y.; Tsai, Y.-L.; Wei, C.-N. Characterization of chromium thin films by sputter deposition. J. Alloys Compd. 2011, 509, 10110–10114. [Google Scholar] [CrossRef] [Scilit]
  124. Petkov, K. Characteristics of thin chromium films obtained by different methods of deposition. Vacuum 1984, 34, 1061–1065. [Google Scholar] [CrossRef] [Scilit]
  125. Al-Kuhaili, M.F.; Durrani, S.M.A. Optical properties of chromium oxide thin films deposited by electron-beam evaporation. Opt. Mater. 2007, 29, 709–713. [Google Scholar] [CrossRef] [Scilit]
  126. Hones, P.; Diserens, M.; Levy, F. Characterization of sputter-deposited chromium oxide thin films. Surf. Coat. Technol. 1999, 120–121, 277–283. [Google Scholar] [CrossRef] [Scilit]
  127. Madi, C.; Tabbal, M.; Christidis, T.; Isber, S.; Nsouli, B.; Zahraman, K. Microstructural characterization of chromium oxide thin films grown by remote plasma assisted pulsed laser deposition. J. Phys. Conf. Ser. 2007, 59, 600–604. [Google Scholar] [CrossRef] [Scilit]
  128. Xia, H.; Wan, Y.; Yan, F.; Lu, L. Manganese oxide thin films prepared by pulsed laser deposition for thin film micro-batteries. Mater. Chem. Phys. 2014, 143, 720–727. [Google Scholar] [CrossRef] [Scilit]
  129. Macrelli, A.; Monforte Ferrario, A.; Lamperti, A.; Calloni, A.; Russo, V.; Casari, C.S. Nanostructure and phase engineering of manganese oxide thin films grown by pulsed laser deposition: A Raman and XRD study. Phys. Rev. Mater. 2023, 7, 083403. [Google Scholar] [CrossRef] [Scilit]
  130. Astinchap, B.; Moradian, R.; Namdari, T.; Jurečka, S.; Ţălu, Ş. Prepared β-MnO2 thin films by chemical bath deposition methods and study of its optical and microstructure properties. Opt. Quantum Electron. 2019, 56, 170. [Google Scholar] [CrossRef] [Scilit]
  131. Liu, F.; Umlor, M.T.; Shen, L.; Weston, J.; Eads, W.; Barnard, J.A.; Mankeya, G.J. The growth of nanoscale structured iron films by glancing angle deposition. J. Appl. Phys. 1999, 85, 5486. [Google Scholar] [CrossRef] [Scilit]
  132. Saitou, M. Formation of amorphous iron thin films during electrodeposition. Int. J. Electrochem. Sci. 2020, 15, 434–441. [Google Scholar] [CrossRef] [Scilit]
  133. Muhammad Nadzri, N.I.; Che Halin, D.S.; Khemar, A.; Hasbi, M.A.M.; Wahab, Y. Development of iron thin films by electron beam physical vapour deposition (EBPVD): A review. IOP Conf. Ser. Mater. Sci. Eng. 2020, 957, 012043. [Google Scholar] [CrossRef] [Scilit]
  134. Aronniemi, M.; Lahtinen, J.; Hautojarvi, P. Characterization of iron oxide thin films. Surf. Interface Anal. 2004, 36, 1004–1006. [Google Scholar] [CrossRef] [Scilit]
  135. Pal, B.; Sharon, M. Preparation of iron oxide thin film by metal organic deposition from Fe(III)-acetylacetonate: A study of photocatalytic properties. Thin Solid Films 2000, 379, 83–88. [Google Scholar] [CrossRef] [Scilit]
  136. Al-Kuhaili, M.F.; Saleem, M.; Durrani, S.M.A. Optical properties of iron oxide (α-Fe2O3) thin films deposited by the reactive evaporation of iron. J. Alloys Compd. 2012, 521, 178–182. [Google Scholar] [CrossRef] [Scilit]
  137. Heo, J.E.; Choi, T.; Chang, S.H.; Jeong, J.H.; Choi, B.C.; Jang, J.W. Structural and optical properties of epitaxial iron oxide thin films deposited by pulsed laser deposition. J. Korean Phys. Soc. 2020, 76, 512–516. [Google Scholar] [CrossRef] [Scilit]
  138. Caricato, A.P.; Kudryavtsev, Y.V.; Leggieri, G.; Luches, A.; Mulenko, S.A. Laser deposition of semiconductor thin films based on iron oxides. J. Phys. D Appl. Phys. 2007, 40, 4866. [Google Scholar] [CrossRef] [Scilit]
  139. Jin, C.; Nori, S.; Wei, W.; Aggarwal, R.; Kumar, D.; Narayan, J. Pulsed laser deposition of nanoporous cobalt thin films. J. Nanosci. Nanotechnol. 2008, 8, 6043–6047. [Google Scholar] [CrossRef] [Scilit]
  140. Ramos, K.B.; Saly, M.J.; Chabal, Y.J. Precursor design and reaction mechanisms for the atomic layer deposition of metal films. Coord. Chem. Rev. 2013, 257, 3271–3281. [Google Scholar] [CrossRef] [Scilit]
  141. Khelladi, M.R.; Mentar, L.; Boubatra, M.; Azizi, A.; Kahoul, A. Early stages of cobalt electrodeposition on FTO and n-type Si substrates in sulfate medium. Mater. Chem. Phys. 2010, 122, 449–453. [Google Scholar] [CrossRef] [Scilit]
  142. Laureti, S.; Agostinelli, E.; Scavia, G.; Varvaro, G.; Rossi Albertini, V.; Generosi, A.; Mezzi, A.; Kaciulis, S. Effect of oxygen partial pressure on PLD cobalt oxide films. Appl. Surf. Sci. 2008, 254, 5111–5115. [Google Scholar] [CrossRef] [Scilit]
  143. Largeanu, A.; Pompilian, G.O.; Galusca, D.G.; Agop, M.; Gurlui, S. Pulsed laser deposition of Ni thin films on metallic substrate. UPB Sci. Bull. Ser. A 2011, 73, 195–202. [Google Scholar]
  144. Rizwana, M.N.; Bell, C.; Kalyara, M.A.; Makhdoom, A.R.; Anwar-ul-Haqa, M.; Gilory, E. Structural, magnetic and electrical properties of nickel thin films deposited on Si (100) substrates by pulsed laser deposition. J. Ovonic Res. 2021, 17, 225–230. [Google Scholar] [CrossRef] [Scilit]
  145. Muslim, N.; Soon, Y.W.; Lim, C.M.; Voo, N.Y. Properties of nickel films growth by radio frequency magnetron sputtering at elevated substrate temperatures. Thin Solid Films 2016, 612, 82–86. [Google Scholar] [CrossRef] [Scilit]
  146. Priyadarshini, B.G.; Aich, S.; Chakraborty, M. On the microstructure and interfacial properties of sputtered nickel thin film on Si (100). Bull. Mater. Sci. 2014, 37, 1265–1273. [Google Scholar] [CrossRef] [Scilit]
  147. Sasi, B.; Gopchandran, K.G. Preparation and characterization of nanostructured NiO thin films by reactive-pulsed laser ablation technique. Sol. Energy Mater. Sol. Cells 2007, 91, 1505–1509. [Google Scholar] [CrossRef] [Scilit]
  148. Fasaki, I.; Giannoudakos, A.; Stamataki, M.; Kompitsas, M.; György, E.; Mihailescu, I.N.; Roubani-Kalantzopoulou, F.; Lagoyannis, A.; Harissopulos, S. Nickel oxide thin films synthesized by reactive pulsed laser deposition: Characterization and application to hydrogen sensing. Appl. Phys. A 2008, 91, 487–492. [Google Scholar] [CrossRef] [Scilit]
  149. Fahra, A.H. Structural and optical characteristics of NiO films deposited using the PLD technique. Mater. Sci. Technol. 2023, 39, 2900–2909. [Google Scholar] [CrossRef] [Scilit]
  150. Lu, Y.M.; Hwang, W.S.; Yang, J.S.; Chuang, H.C. Properties of nickel oxide thin films deposited by RF reactive magnetron sputtering. Thin Solid Films 2002, 420–421, 54–61. [Google Scholar] [CrossRef] [Scilit]
  151. Ai, L.; Fang, G.; Yuan, L.; Liu, N.; Wang, M.; Li, C.; Zhang, Q.; Li, J.; Zhao, X. Influence of substrate temperature on electrical and optical properties of p-type semitransparent conductive nickel oxide thin films deposited by radio frequency sputtering. Appl. Surf. Sci. 2008, 254, 2401–2405. [Google Scholar] [CrossRef] [Scilit]
  152. Rashidian Vaziri, M.R.; Hajiesmaeilbaigi, F. Optical and structural properties of copper nanostructured thin films prepared by pulsed laser deposition. Optik 2015, 126, 1348–1351. [Google Scholar] [CrossRef] [Scilit]
  153. Tikhomirov, G.V.; Tikhomirova, T.V.; Shupenev, A.E.; Korshunov, I.S.; Mikhailova, A.V. Structural study of thin copper and brass films deposited on a polyimide substrate by PLD. In Proceedings of the 7th International Youth Conference on Radio Electronics, Electrical and Power Engineering (REEPE), Moscow, Russian Federation, 8–10 April 2025; IEEE: Piscataway, NJ, USA, 2025; pp. 1–5. [Google Scholar]
  154. Conde, J.C.; Lusquinos, F.; Gonzalez, P.; Serra, J.; Leon, B.; Cultrera, L.; Guido, D.; Perrone, A. Laser ablation of silicon and copper targets: Experimental and finite elements studies. Appl. Phys. A 2004, 79, 1105–1110. [Google Scholar] [CrossRef] [Scilit]
  155. Lorusso, A.; Kovacs, Z.; Gilicze, B.; Szatmari, S.; Perrone, A.; Szrenyi, T. Sub-ps laser deposited copper films for application in RF guns. Materials 2023, 12, 1267. [Google Scholar] [CrossRef] [Scilit]
  156. Perrone, A.; D’Elia, M.; Gontad, F.; Di Giulio, M.; Maruccio, G.; Cola, A.; Stankova, N.E.; Kovacheva, D.G.; Broitman, E. Non conventional photocathodes based on Cu thin films deposited on Y substrate by sputtering. Nucl. Instrum. Meth. Phys. Res. A 2014, 752, 27–32. [Google Scholar] [CrossRef] [Scilit]
  157. Zhang, S.; Sakane, M.; Nagasawa, T.; Kobayashi, K. Mechanical properties of copper thin films used in electronic devices. Procedia Eng. 2011, 10, 1497–1502. [Google Scholar] [CrossRef] [Scilit]
  158. Lee, S.; Kim, J.Y.; Lee, T.W.; Kim, W.K.; Kim, B.S.; Park, J.H.; Bae, J.S.; Cho, Y.C.; Kim, J.; Oh, M.W.; et al. Fabrication of high-quality single-crystal Cu thin films using radio-frequency sputtering. Sci. Rep. 2014, 4, 6230. [Google Scholar] [CrossRef] [Scilit]
  159. Alshaikhli, Z.S.; Alhasan, S.F.H.; Salim, E.T.; Parmin, N.A. Visible ranges photo detector fabricated based on nano copper oxide deposited by reactive pulsed laser deposition. Defect Diffus. Forum 2022, 418, 89–97. [Google Scholar] [CrossRef] [Scilit]
  160. Panda, R.; Patel, M.; Thomas, J.; Joshi, H.C. Pulsed laser deposited Cu2O/CuO films as efficient photocatalyst. Thin Solid Films 2022, 744, 139080. [Google Scholar] [CrossRef] [Scilit]
  161. Rudenko, V.I.; Stefan, N.; Mulenko, S.A.; Yukhymchuk, V.O.; Liakhovetskyi, V.R.; Brod, A.M. Optical cubic nonlinearity of copper oxide thin films synthesized by reactive pulsed laser deposition. J. Laser Appl. 2022, 34, 032015. [Google Scholar] [CrossRef] [Scilit]
  162. Kartha, C.V.; Rehspringer, J.L.; Muller, D.; Roques, S.; Bartringer, J.; Ferblantier, G.; Slaoui, A.; Fix, T. Insights into Cu2O thin film absorber via pulsed laser deposition. Ceram. Int. 2022, 48, 15274–15281. [Google Scholar] [CrossRef] [Scilit]
  163. Seiler, W.; Millon, E.; Perriere, J.; Benzerga, R.; Boulmer-Leborgne, C. Epitaxial growth of copper oxide films by reactive cross-beam pulsed-laser deposition. J. Cryst. Growth 2009, 311, 3352–3358. [Google Scholar] [CrossRef] [Scilit]
  164. Papadimitropoulos, G.; Vourdas, N.; Vamvakas, V.E.; Davazoglou, D. Deposition and characterization of copper oxide thin films. J. Phys. Conf. Ser. 2005, 10, 182. [Google Scholar] [CrossRef] [Scilit]
  165. Hashim, H.; Shariffudin, S.S.; Saad, P.S.M.; Ridah, H.A.M. Electrical and optical properties of copper oxide thin films by sol-gel technique. IOP Conf. Ser. Mater. Sci. Eng. 2015, 99, 012032. [Google Scholar] [CrossRef] [Scilit]
  166. Villanueva, Y.Y.; Liu, D.-R.; Cheng, P.T. Pulsed laser deposition of zinc oxide. Thin Solid Films 2006, 501, 366–369. [Google Scholar] [CrossRef] [Scilit]
  167. Cui, J.B.; Soo, Y.C.; Kandel, H.; Thomas, M.A.; Chen, T.P.; Daghlian, C.P. Investigations of ZnO thin films deposited by a reactive pulsed laser ablation. Sci. China Ser. E-Technol. Sci. 2009, 52, 99–103. [Google Scholar] [CrossRef] [Scilit]
  168. Khandelwal, R.; Singh, A.P.; Kapoor, A.; Grigorescu, S.; Miglietta, P.; Stankova, N.E.; Perrone, A. Effects of deposition temperature on the structural and morphological properties of thin ZnO films fabricated by pulsed laser deposition. Opt. Laser Technol. 2008, 40, 247–251. [Google Scholar] [CrossRef] [Scilit]
  169. Shao, L.X.; Chang, K.H.; Hwang, H.L. Zinc sulfide thin films deposited by RF reactive sputtering for photovoltaic applications. Appl. Surf. Sci. 2003, 212–213, 305–310. [Google Scholar] [CrossRef] [Scilit]
  170. Simandan, I.-D.; Sava, F.; Buruiana, A.-T.; Burducea, I.; Becherescu, N.; Mihai, C.; Velea, C.; Galca, A.-C. The effect of the deposition method on the structural and optical properties of ZnS thin films. Coatings 2021, 11, 1064. [Google Scholar] [CrossRef] [Scilit]
  171. Emir, C.; Tataroglu, A.; Gökmen, U.; Ocak, S.B. Analysis of the structural and optical characteristics of ZnSe thin films as interface layer. J. Mater. Sci. Mater. Electron. 2025, 36, 168. [Google Scholar] [CrossRef] [Scilit]
  172. Simi, S.; Navas, I.; Vinodkumar, R.; Chalana, S.R.; Gangrade, M.; Ganesan, V.; Mahadevan Pillai, V.P. Pulsed laser ablation of zinc selenide in nitrogen ambience: Formation of zinc nitride films. Appl. Surf. Sci. 2011, 257, 9269–9276. [Google Scholar] [CrossRef] [Scilit]
  173. Skhouni, O.; El Manouni, A.; Mollar, M.; Schrebler, R.; Mar, B. ZnTe thin films grown by electrodeposition technique on fluorine tin oxide substrates. Thin Solid Films 2014, 564, 195–200. [Google Scholar] [CrossRef] [Scilit]
  174. Bellakhder, H.; Outzourhit, A.; Ameziane, E.L. Study of ZnTe thin films deposited by r.f. sputtering. Thin Solid Films 2001, 382, 30–33. [Google Scholar] [CrossRef] [Scilit]
  175. Cazzanelli, M.; Cole, D.; Versluijs, J.; Donegan, J.F.; Lunney, J.G. Pulsed laser deposition of GaN thin films. Mater. Sci. Eng. B 1999, 59, 98–103. [Google Scholar] [CrossRef] [Scilit]
  176. Dinescu, M.; Verardi, P.; Boulmer-Leborgne, C.; Gerardi, C.; Mirenghi, L.; Sandu, V. GaN thin films deposition by laser ablation of liquid Ga target in nitrogen reactive atmosphere. Appl. Surf. Sci. 1998, 127–129, 559–563. [Google Scholar] [CrossRef] [Scilit]
  177. Xiao, R.F.; Sun, X.W.; Kwok, H.S. Liquid-target pulsed laser deposition of gallium nitride thin films. Appl. Surf. Sci. 1998, 127–129, 425–430. [Google Scholar] [CrossRef] [Scilit]
  178. Feng, Q.; Li, F.; Dai, B.; Jia, Z.; Xie, W.; Xu, T.; Lu, X.; Tao, X.; Zhang, J.; Hao, Y. Properties of gallium oxide thin film grown by pulsed laser deposition. Appl. Surf. Sci. 2015, 359, 847–852. [Google Scholar] [CrossRef] [Scilit]
  179. Gajdics, M.; Sernyi, M.; Kolonits, M.; Sulyok, T.; Horvth, A.; Pcz, Z.E. Reactive sputter deposition of Ga2O3 thin films using liquid Ga target. Coatings 2023, 13, 1550. [Google Scholar] [CrossRef] [Scilit]
  180. Zubkins, M.; Vibornijs, V.; Strods, E.; Butanovs, E.; Bikse, L.; Ottosson, M.; Hallen, A.; Gabrusenoks, J.; Purans, J.; Azens, A. Deposition of Ga2O3 thin films by liquid metal target sputtering. Vacuum 2023, 209, 111789. [Google Scholar] [CrossRef] [Scilit]
  181. Marotta, V.; Orlando, S.; Parisi, G.; Giardini, A. Indium and tin oxide polycrystalline thin films as NO gas sensors produced by reactive pulsed laser ablation and deposition. Appl. Phys. A 1999, 69, S675–S677. [Google Scholar] [CrossRef] [Scilit]
  182. Fakhri, M.A. Effect of substrate temperature on optical and structural properties of indium oxide thin films prepared by reactive PLD method. Eng. Technol. J. 2014, 32, 1323–1330. [Google Scholar] [CrossRef] [Scilit]
  183. Grivas, D.; Gill, S.; Mailis, L.; Boutsikaris, N.; Vainos, N.A. Indium oxide thin-film holographic recorders grown by excimer laser reactive sputtering. Appl. Phys. A 1998, 66, 201–204. [Google Scholar] [CrossRef] [Scilit]
  184. Teghil, R.; Marotta, V.; Giardini Guidoni, A.; Di Palma, T.M.; Flamini, C. Reactive pulsed laser ablation and deposition of thin indium tin oxide films for solid state compact sensors. Appl. Surf. Sci. 1999, 138–139, 522–526. [Google Scholar] [CrossRef] [Scilit]
  185. Socol, M.; Preda, N.; Rasoga, O.; Costas, A.; Stanculescu, A.; Breazu, A.; Gherendi, C.; Socol, G. Pulsed laser deposition of indium tin oxide thin films on nanopatterned glass substrates. Coatings 2019, 9, 19. [Google Scholar] [CrossRef] [Scilit]
  186. Phillips, H.M.; Li, Y.; Bi, Z.; Zhang, B. Reactive pulsed laser deposition and laser induced crystallization of SnO2 transparent conducting thin films. Appl. Phys. A 1996, 63, 347–351. [Google Scholar] [CrossRef]
  187. Hu, W.S.; Liu, Z.G.; Wu, Z.C.; Feng, D. Comparative study of laser ablation techniques for fabricating nanocrystalline SnO2 thin films for sensors. Mater. Lett. 1996, 28, 369–372. [Google Scholar] [CrossRef] [Scilit]
  188. Khandelwal, R.; Singh, A.P.; Kapoor, A.; Grigorescu, S.; Miglietta, P.; Stankova, N.E.; Perrone, A. Effects of deposition temperature on the structural and morphological properties of thin SnO2 films fabricated by pulsed laser deposition. Opt. Laser Technol. 2009, 41, 89–93. [Google Scholar] [CrossRef] [Scilit]
  189. Kim, H.; Horwitz, J.S.; Kushto, G.; Piqu, A.; Kafafi, Z.H.; Gilmore, C.M.; Chrisey, D.B. Effect of film thickness on the properties of indium tin oxide thin films. J. Appl. Phys. 2000, 88, 6021–6025. [Google Scholar] [CrossRef] [Scilit]
  190. Her, S.C.; Chang, C.F. Fabrication and characterization of indium tin oxide films. J. Appl. Biomater. Funct. Mater. 2017, 15, 170–175. [Google Scholar] [CrossRef] [Scilit]
  191. Perrone, A.; Zocco, A.; De Rosa, H.; Zimmermann, R.; Bersani, M. Al-Sn thin films deposited by pulsed laser ablation. Mater. Sci. Eng. C 2002, 22, 465–468. [Google Scholar] [CrossRef] [Scilit]
  192. Hu, R.; Zeng, M.; Li, C.Y.V.; Zhu, M. Microstructure and electrochemical performance of thin film anodes for lithium-ion batteries in immiscible Al-Sn system. J. Power Sources 2009, 188, 268–273. [Google Scholar] [CrossRef] [Scilit]
  193. Karthik, M.; Abhinav, J.; Shanka, K.V. Morphological and mechanical behaviour of Cu-Sn alloys—A review. Met. Mater. Int. 2021, 27, 1915–1946. [Google Scholar] [CrossRef] [Scilit]
  194. Hu, H.; Wang, Y.; Jia, Q.; Zhou, B.; Liu, R.; Ma, L.; Zou, G.; Guo, F. Rapid in-situ formation of Cu-Sn full intermetallic compound films and their joint strengthening mechanisms. Mater. Des. 2025, 256, 114241. [Google Scholar] [CrossRef] [Scilit]
  195. Estrella, V.; Nair, M.T.S.; Nair, P.K. Crystalline structure of chemically deposited thallium sulfide thin films. Thin Solid Films 2002, 414, 281–287. [Google Scholar] [CrossRef] [Scilit]
  196. Adeniji, Q.A.; Odunaike, K.; Leshi, D.A.; Talabi, A.T.; Adeleke, A.T.; Abe, A.O.; Momoh, R.E.; Musah, F.B. Optical and electrical analyses of thallium sulphide thin films. Jordan J. Phys. 2025, 14, 3. [Google Scholar]
  197. Phillips, R.J.; Shane, M.J.; Switzer, J.A. Electrochemical and photoelectrochemical deposition of thallium(III) oxide thin films. J. Mater. Res. 1989, 4, 923–929. [Google Scholar] [CrossRef] [Scilit]
  198. Robert, A.; Leeuwen, V.; Hung, C.-J.; Kammler, D.R.; Switzer, J.A. Optical and electronic transport properties of electrodeposited thallium(III) oxide films. J. Phys. Chem. 1995, 99, 15247–15252. [Google Scholar] [CrossRef] [Scilit]
  199. Gontad, F.; Perrone, A. State of the art of Pb photocathodes deposited by pulsed laser deposition. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrom. Detect. Assoc. Equip. 2014, 747, 1–6. [Google Scholar] [CrossRef] [Scilit]
  200. Strzyzewski, P.; Tazzari, S.; Rao, T.; Russo, R.; Witkowski, J.; Smedley, J.; Langner, J.; Sadowski, M.; Sekutowicz, J. Deposition of lead thin films used as photocathodes by means of cathodic arc under UHV conditions. In Proceedings of the EPAC 2006, Edinburgh, UK, 26–30 June 2006. [Google Scholar]
  201. Abdulrahman, A.F.; Mohammed, R.Y.; Ahmed, S.M.; Hamad, S.M. Synthesis of lead oxide thin films by using physical vapor deposition technique. Mater. Today Proc. 2021, 42, 2752–2755. [Google Scholar] [CrossRef] [Scilit]
  202. Zhao, J.S.; Sim, J.S.; Lee, H.J.; Park, D.-Y.; Hwang, C.S. Investigation of the deposition behavior of a lead oxide thin film on Ir substrates by liquid delivery metallorganic chemical vapor deposition. Electrochem. Solid-State Lett. 2006, 9, C29–C31. [Google Scholar] [CrossRef] [Scilit]
  203. Mathews, N.R.; Ángeles-Chávez, C.; Corts-Jcome, M.A.; Toledo-Antonio, J.A. Physical properties of pulse electrodeposited lead sulfide thin films. Electrochim. Acta 2013, 99, 76–84. [Google Scholar] [CrossRef] [Scilit]
  204. Sahadevan, J.; Esakki Muthu, S.; Kulathuraan, K.; Arumugam, S.; Kim, I.; Baby Sri Pratha, G.; Sivaprakash, P. Structural, morphology and optical properties of PbS lead sulfide thin film. Mater. Today Proc. 2022, 64, 1849–1853. [Google Scholar] [CrossRef] [Scilit]
  205. Ngqoloda, S.; Arendse, C.J.; Muller, T.F.; Magubane, S.S.; Oliphan, C.J. Controlled deposition of lead iodide and lead chloride thin films by low-pressure chemical vapor deposition. Coatings 2020, 10, 1208. [Google Scholar] [CrossRef] [Scilit]
  206. Popov, G.; Bačić, G.; Van Dijck, C.; Junkers, L.S.; Weiß, A.; Mattinen, M.; Vihervaara, A.; Chundak, M.; Jalkanen, P.; Mizohata, K.; et al. Atomic layer deposition of PbCl2, PbBr2 and mixed lead halide (Cl, Br, I) PbXnY2−n thin films. Dalton Trans. 2022, 51, 15142–15157. [Google Scholar] [CrossRef] [Scilit]
  207. De Sande, J.C.G.; Missana, T.; Afonso, C.N. Optical properties of pulsed laser deposited bismuth films. J. Appl. Phys. 1996, 80, 7023–7027. [Google Scholar] [CrossRef] [Scilit]
  208. Boffou, M.O.; Lenoir, B.; Jacquot, A.; Scherrer, H.; Dauscher, A.; Stlzer, M. Bismuth (Bi): Structure and transport properties of polycrystalline Bi films. J. Phys. Chem. Solids 2000, 61, 1979–1983. [Google Scholar] [CrossRef] [Scilit]
  209. Dauscher, A.; Boffou, M.O.; Lenoir, B.; Martin-Lopez, R.; Scherrer, H. Unusual growth of pulsed laser deposited bismuth films on Si (100). Appl. Surf. Sci. 1999, 138–139, 188–194. [Google Scholar] [CrossRef] [Scilit]
  210. Zhu, B.L.; Zhao, X.Z. Study on structure and optical properties of Bi2O3 thin films prepared by reactive pulsed laser deposition. Opt. Mater. 2006, 29, 192–198. [Google Scholar] [CrossRef] [Scilit]
  211. Condurache-Bota, S.; Tigau, N.; Constantinescu, C. Effect of substrate temperature on bismuth oxide thin films grown by pulsed laser deposition. SN Appl. Sci. 2020, 2, 417. [Google Scholar] [CrossRef] [Scilit]
  212. Scifo, J.; Lorusso, A.; Chiadroni, E.; Cinquegrana, P.; Dabagov, S.; Danailov, M.; Demidovich, A.; Ferrario, M.; Garzella, D.; Giribono, A.; et al. Photoemission studies of yttrium photocathodes by using the visible radiation. Phys. Rev. Accel. Beams 2020, 23, 123401. [Google Scholar] [CrossRef] [Scilit]
  213. Cultrera, L.; Grigorescu, S.; Gatti, G.; Miglietta, P.; Tazzioli, F.; Perrone, A. Photoelectron emission from yttrium thin films prepared by pulsed laser deposition. J. Nanosci. Nanotechnol. 2009, 9, 1585–1588. [Google Scholar] [CrossRef] [Scilit]
  214. Perrone, A.; Aziz, M.R.; Vainos, N.A. The influence of the laser cleaning treatment on the quantum efficiency of the most used metallic photocathodes: An overview. Materials 2025, 18, 690. [Google Scholar] [CrossRef] [Scilit]
  215. Miglietta, P.; Fasano, V.; Papadopoulou, E.; Liu, B.; De Rosa, H.; Perrone, A. Detailed studies of yttrium thin films deposited by laser radiation of different pulse durations. Phys. Procedia 2012, 32, 335–339. [Google Scholar] [CrossRef] [Scilit]
  216. Zhang, S.; Xiao, R. Yttrium oxide films prepared by pulsed laser deposition. J. Appl. Phys. 1998, 83, 3842–3848. [Google Scholar] [CrossRef] [Scilit]
  217. Korzenski, M.B.; Lecoeur, P.; Mercey, B.; Chippaux, D.; Raveau, B. PLD-grown Y2O3 thin films from Y metal: An advantageous alternative to films deposited from yttria. Chem. Mater. 2000, 12, 3139–3150. [Google Scholar] [CrossRef] [Scilit]
  218. Khuzhakulov, Z. Synthesis and characterization of a zirconium (Zr) thin film on Si(100) via pulsed laser deposition. Coatings 2023, 13, 1748. [Google Scholar] [CrossRef] [Scilit]
  219. Liu, W.; Wan, J.P.; Cai, W.P.; Liang, J.H.; Zhou, X.S.; Long, X.G. Characterization of zirconium thin films deposited by pulsed laser deposition. Chin. Phys. B 2014, 23, 098103. [Google Scholar] [CrossRef] [Scilit]
  220. Balakrishnan, G.; Kuppusami, P.; Murugesan, S.; Mohandas, E.; Sastikumar, D. High temperature x-ray diffraction studies of zirconia thin films prepared by reactive pulsed laser deposition. Cryst. Res. Technol. 2012, 47, 415–422. [Google Scholar] [CrossRef] [Scilit]
  221. Al-Kuhaili, M.F.; Durrani, S.M.A. Effect of annealing on pulsed laser deposited zirconium oxide thin films. J. Alloys Compd. 2011, 509, 9536–9541. [Google Scholar] [CrossRef] [Scilit]
  222. Mahmood, K.; Bashir, S.; Haq, F.-ul; Akram, M.; Hayat, A.; Rafique, M.S.; Mahmood, A. Surface, structural, electrical and mechanical modifications of pulsed laser deposited ZrN thin films by implantation of MeV carbon ions. Nucl. Instrum. Methods Phys. Res. Sect. B Beam Interact. Mater. At. 2019, 448, 61–69. [Google Scholar] [CrossRef] [Scilit]
  223. Craciun, D.; Socol, G.; Stefan, N.; Dorcioman, G.; Hanna, M.; Taylor, C.R.; Lambers, E.; Craciun, V. Effect of deposition atmosphere on the chemical composition of TiN and ZrN thin films grown by pulsed laser deposition. Appl. Surf. Sci. 2014, 302, 124–128. [Google Scholar] [CrossRef] [Scilit]
  224. Craciun, D.; Socol, G.; Stefan, N.; Bourne, G.; Craciun, V. Chemical composition of ZrC thin films grown by pulsed laser deposition. Appl. Surf. Sci. 2009, 255, 5260–5263. [Google Scholar] [CrossRef] [Scilit]
  225. Grosse, V.; Pansow, C.; Steppke, A.; Schmidl, F.; Undisz, A.; Rettenmayr, M.; Grib, A.; Seidel, P. Pulsed laser deposition of niobium thin films for in-situ device fabrication and their superconducting properties. J. Phys. Conf. Ser. 2010, 234, 012015. [Google Scholar] [CrossRef] [Scilit]
  226. Gontad, F.; Lorusso, A.; Panareo, M.; Monteduro, A.G.; Maruccio, G.; Broitman, E.; Perrone, A. Nanomechanical and electrical properties of Nb thin films deposited on Pb substrates by pulsed laser deposition as a new concept photocathode for superconductor cavities. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrom. Detect. Assoc. Equip. 2015, 804, 132–136. [Google Scholar] [CrossRef] [Scilit]
  227. Gontad, F.; Lorusso, A.; Manousaki, A.; Klini, A.; Perrone, A. Morphology and structure of Nb thin films grown by pulsed laser deposition at different substrate temperatures. J. Mater. Sci. Technol. 2016, 32, 1192–1196. [Google Scholar] [CrossRef] [Scilit]
  228. Novodvorsky, O.; Parshina, L.; Khramova, O.; Gusev, D.; Polyakov, A.; Cherebilo, E. Laser synthesis of volatile memristors based on niobium oxide thin films. Surf. Interfaces 2022, 30, 101891. [Google Scholar] [CrossRef] [Scilit]
  229. Fernandez, F.E.; Marrero, P.J. Tantalum oxide and niobium oxide thin films grown by pulsed laser deposition. MRS Online Proc. Libr. (OPL) 1995, 397, 205–210. [Google Scholar] [CrossRef] [Scilit]
  230. Krishnan, R.; David, C.; Ajikumar, P.K.; Dash, S.; Tyagi, A.K.; Jayaram, V.; Raj, B. Reactive pulsed laser deposition and characterization of niobium nitride thin films. Surf. Coat. Technol. 2011, 206, 1196–1202. [Google Scholar] [CrossRef] [Scilit]
  231. Ufuktepe, Y.; Farha, A.H.; Kimura, S.I.; Hajiri, T.; Imura, K.; Mamun, M.A.; Karadag, F.; Elmustafa, A.A.; Elsayed-Ali, H.E. Superconducting niobium nitride thin films by reactive pulsed laser deposition. Thin Solid Films 2013, 545, 601–607. [Google Scholar] [CrossRef] [Scilit]
  232. Duhalde, S.; Colaco, R.; Audebert, F.; Perrone, A.; Zocco, A. Deposition of NbC thin films by pulsed laser ablation. Appl. Phys. A 1999, 69, S569–S571. [Google Scholar] [CrossRef] [Scilit]
  233. Mostako, A.T.T.; Rao, C.V.S.; Khare, A. Pulsed laser deposition of thin film of molybdenum. J. Phys. Conf. Ser. 2010, 208, 012114. [Google Scholar] [CrossRef] [Scilit]
  234. Dai, S.; Yu, J.; Mo, Z.; Wang, J.; He, J.; Meng, J.; Wang, X. Uniform and smooth molybdenum film produced through picosecond pulsed laser deposition. J. Vac. Sci. Technol. A 2019, 37, 061506. [Google Scholar] [CrossRef] [Scilit]
  235. Holovsk, J.; Horynov, E.; Hork, L.; Ridzoov, K.; Reme, Z.; Landov, L.; Sharma, R.K. Pulsed laser deposition of high-transparency molybdenum oxide thin films. Vacuum 2021, 194, 110613. [Google Scholar] [CrossRef] [Scilit]
  236. Hussain, O.M.; Srinivasa Rao, K.; Madhuri, K.V.; Ramana, C.V.; Naidu, B.S.; Pai, S.; John, J.; Pinto, R. Growth and characteristics of reactive pulsed laser deposited molybdenum trioxide thin films. Appl. Phys. A 2002, 75, 417–422. [Google Scholar] [CrossRef] [Scilit]
  237. Fominski, V.Y.; Romanov, R.I.; Fominski, D.V.; Shelyakov, A.V. Regulated growth of quasi-amorphous MoSx thin-film hydrogen evolution catalysts by pulsed laser deposition of Mo in reactive H2S gas. Thin Solid Films 2017, 642, 58–68. [Google Scholar] [CrossRef] [Scilit]
  238. Fominski, V.; Demin, M.; Nevolin, V.; Fominski, D.; Romanov, R.; Gritskevich, M.; Smirnov, N. Reactive pulsed laser deposition of clustered-type MoSx (x ~ 2, 3, and 4) films and their solid lubricant properties at low temperature. Nanomaterials 2020, 10, 653. [Google Scholar] [CrossRef] [Scilit]
  239. Wu, J.D.; Wu, C.Z.; Song, Z.M.; Li, F.M. Preparation of molybdenum nitrides by laser-promoted nitridation reaction. Thin Solid Films 1997, 311, 62–66. [Google Scholar] [CrossRef] [Scilit]
  240. Bereznai, M.; Tth, Z.; Caricato, A.P.; Fernndez, M.; Luches, A.; Majni, G.; Mengucci, P.; Nagy, P.M.; Juhsz, A.; Nnai, L. Reactive pulsed laser deposition of thin molybdenum- and tungsten-nitride films. Thin Solid Films 2005, 473, 16–23. [Google Scholar] [CrossRef] [Scilit]
  241. Wu, H.C.; Yen, R.F.; Shen, Y.Y.; Kao, C.H.; Lin, C.C.; Lee, C.C. Comparing whole body 18F-2-deoxyglucose positron emission tomography and technetium-99m methylene diphosphate bone scan to detect bone metastases in patients with renal cell carcinomas—A preliminary report. J. Cancer Res. Clin. Oncol. 2002, 128, 503–506. [Google Scholar]
  242. Herrell, A.Y.; Busey, R.H.; Gayer, K.H.; Schwochau, K.; Gutzeit, S. Technetium (VII) Oxide. Inorg. Synth. 1977, 17, 155–158. [Google Scholar]
  243. Lee, W.K.; Wong, H.Y.; Chan, K.Y.; Yong, T.K.; Yap, S.S.; Tou, T.Y. Effects of laser fluence on the structural properties of pulsed laser deposited ruthenium thin films. Appl. Phys. A 2010, 100, 561–568. [Google Scholar] [CrossRef] [Scilit]
  244. Sun, H.; Kim, H.; Xu, X.; Fei, L.; Jung, W.C.; Shao, Z. Thin Films Fabricated by Pulsed Laser Deposition for Electrocatalysis. Renewables 2023, 1, 21–38. [Google Scholar] [CrossRef] [Scilit]
  245. Hiratani, M.; Matsui, Y.; Imagawa, K.; Kimura, S. Growth of RuO2 thin films by pulsed-laser deposition. Thin Solid Films 2000, 366, 102–106. [Google Scholar] [CrossRef] [Scilit]
  246. Lim, W.T.; Cho, K.R.; Lee, C.H. Structural and electrical properties of RF-sputtered RuO2 films having different conditions of preparation. Thin Solid Films 1999, 348, 56–62. [Google Scholar] [CrossRef] [Scilit]
  247. Angermann, M.; Jakopic, G.; Prietl, C.; Griesser, T.; Reichmann, K.; Deluca, M. Highly conductive RuO2 thin films from novel facile aqueous chemical solution deposition. J. Sol.-Gel Sci. Technol. 2023, 108, 575–587. [Google Scholar] [CrossRef] [Scilit]
  248. Hones, P.; Kohli, C.H.; Sanjinés, R.; Lévy, F.; Gerfin, T.; Grätzel, M. Conducting Thin Films of Ruthenium Oxide Prepared by MOCVD. MRS Online Proc. Libr. (OPL) 1998, 514, 479–484. [Google Scholar] [CrossRef] [Scilit]
  249. Passoni, M.; Dellasega, D.; Grosso, G.; Conti, C.; Ubaldi, M.C.; Bottani, C.E. Nanostructured rhodium films produced by pulsed laser deposition for nuclear fusion applications. J. Nucl. Mater. 2010, 404, 1–5. [Google Scholar] [CrossRef] [Scilit]
  250. Mostako, A.T.T.; Khare, A. Effect of target-substrate distance onto the nanostructured rhodium thin films via PLD technique. Appl. Nanosci. 2012, 2, 189–193. [Google Scholar] [CrossRef] [Scilit]
  251. Bouhtiyya, S.; Roue, L. On the characteristics of Pd thin films prepared by pulsed laser deposition under different helium pressures. Int. J. Hydrogen Energy 2008, 33, 2912–2920. [Google Scholar] [CrossRef] [Scilit]
  252. Krishna Kumar, M.; Ramachandra Rao, M.S.; Ramaprabhu, S. Structural, morphological and hydrogen sensing studies on pulsed laser deposited nanostructured palladium thin films. J. Phys. D Appl. Phys. 2006, 39, 2791. [Google Scholar] [CrossRef] [Scilit]
  253. Singh, U.; Jha, N.; Kapoor, A.I. Characterization of palladium thin film deposited by pulsed laser deposition. In International Conference on Applications of Optics and Photonics; SPIE: Bellingham, WA, USA, 2011; Volume 8001, p. 80010W. [Google Scholar]
  254. Zakaria, M.A.; Menazea, A.A.; Mostafa, A.M.; Al-Ashkar, E.A. Ultra-thin silver nanoparticles film prepared via pulsed laser deposition: Synthesis, characterization, and catalytic activity on reduction of 4-nitrophenol. Surf. Interfaces 2020, 19, 100438. [Google Scholar] [CrossRef] [Scilit]
  255. Kuznetsov, I.A.; Garaeva, M.Y.; Mamichev, D.A.; Grishchenko, Y.V. Formation of ultrasmooth thin silver films by pulsed laser deposition. Crystallogr. Rep. 2013, 58, 739–742. [Google Scholar] [CrossRef] [Scilit]
  256. Cocean, A.; Cocean, G.; Postolachi, C.; Garofalide, S.; Pricop, D.A.; Munteanu, B.S.; Bulai, G.; Cimpoesu, N.; Motrescu, I.; Pelin, V.; et al. High energy pulsed laser beam to produce a thin layer of crystalline silver without heating the deposition substrate and its catalytic effects. Quantum Beam Sci. 2024, 8, 16. [Google Scholar] [CrossRef] [Scilit]
  257. Filipescu, M.; Papavlu, A.P.; Dinescu, M. Functional metal oxide thin films grown by pulsed laser deposition. In Crystalline and Non-Crystalline Solids; Mandracci, P., Ed.; IntechOpen: London, UK, 2016. [Google Scholar]
  258. Raju, N.R.C.; Kumar, K.J.; Subrahmanyam, A. Physical properties of silver oxide thin films by pulsed laser deposition: Effect of oxygen pressure during growth. J. Phys. D Appl. Phys. 2009, 42, 135411. [Google Scholar] [CrossRef] [Scilit]
  259. Ismail, R.; Rasheed, B.G.; Salm, E.T. High transmittance-low resistivity cadmium oxide films grown by reactive pulsed laser deposition. J. Mater. Sci. Mater. Electron. 2007, 18, 1027–1030. [Google Scholar] [CrossRef] [Scilit]
  260. Ullah, H.; Rahaman, R.; Mahmud, S. Optical properties of cadmium oxide (CdO) thin films. Mater. Sci. Pol. 2017, 51, 81–84. [Google Scholar] [CrossRef] [Scilit]
  261. Yadav, G.; Jindal, K.; Tomar, M. Influence of pulsed laser deposited hafnium oxide thin film as gate dielectric on the fabrication of Al0.1Ga0.9N/GaN MOS-HEMT. Mater. Sci. Semicond. Process. 2023, 153, 107136. [Google Scholar] [CrossRef] [Scilit]
  262. Barinov, S.M.; Ferro, D.; Bertuli, C.; D’Alessio, L. Hardness of hafnium carbide films deposited on silicon by pulsed laser ablation. J. Mater. Sci. Lett. 2001, 20, 1485–1487. [Google Scholar] [CrossRef] [Scilit]
  263. Farrell, I.L.; Reeves, R.J.; Preston, A.R.H.; Ludbrook, B.M.; Downes, J.E.; Ruck, B.J.; Durbin, S.M. Tunable electrical and optical properties of hafnium nitride thin films. Appl. Phys. Lett. 2010, 96, 071914. [Google Scholar] [CrossRef] [Scilit]
  264. Sucheewa, N.; Wongwiriyapan, W.; Klamchuen, A.; Obata, M.; Fujishige, M.; Takeuchi, K.; Lertvanithphol, T.; Wutikhun, T.; Kullyakool, S.; Auttasiri, W.; et al. Tailoring properties of hafnium nitride thin film via reactive gas-timing RF magnetron sputtering for surface enhanced Raman scattering substrates. Crystals 2022, 12, 78. [Google Scholar] [CrossRef] [Scilit]
  265. Zhang, J.-Y.; Boyd, I.W. Thin tantalum and tantalum oxide films grown by pulsed laser deposition. Appl. Surf. Sci. 2000, 168, 234–238. [Google Scholar] [CrossRef] [Scilit]
  266. Scherschel, M.; Finkbeiner, F.; Zhao, S.P.; Jaggi, A.; Maier, T.; Lerch, P.; Zehnder, A.; Ott, H.R. Growth of superconducting tantalum films by pulsed laser deposition. Phys. B 1994, 194–196, 2289–2290. [Google Scholar] [CrossRef] [Scilit]
  267. Stanciu, G.; Filipescu, M.; Ion, V.; Andronescu, E.; Dinescu, M. Optical properties of tantalum oxide thin films obtained by laser deposition techniques. UPB Sci. Bull. Ser. B 2013, 75, 15–22. [Google Scholar]
  268. Li, Y.; Sanna, S.; Norrman, K.; Christensen, D.V.; Pedersen, C.S.; Lastra, J.M.G.; Traulsen, M.L.; Esposito, V.; Pryds, N. Tuning the stoichiometry and electrical properties of tantalum oxide thin films. Appl. Surf. Sci. 2019, 470, 1071–1074. [Google Scholar] [CrossRef] [Scilit]
  269. Cedillo Rosillo, M.; Contreras López, O.; Díaz, J.A.; Conde Gallardo, A.; Castillo Cuero, H.A. High-temperature epitaxial growth of tantalum nitride thin films on MgO: Structural evolution and potential for SQUID applications. Beilstein J. Nanotechnol. 2025, 16, 690–699. [Google Scholar] [CrossRef] [Scilit]
  270. Chaudhuri, S.; Maasilta, I.J.; Chandernagor, L.; Ging, M.; Lahtinen, M. Fabrication of superconducting tantalum nitride thin films using infra-red pulsed laser deposition. J. Vac. Sci. Technol. A 2013, 31, 061502. [Google Scholar] [CrossRef] [Scilit]
  271. Teghil, R.; De Bonis, A.; Galasso, A.; Villani, P.; Santagata, A. Femtosecond pulsed laser ablation and deposition of tantalum carbide. Appl. Surf. Sci. 2007, 254, 1220–1223. [Google Scholar] [CrossRef] [Scilit]
  272. Chang, Y.-H.; Wu, J.-B.; Chang, P.-J.; Chiu, H.-T. Chemical vapor deposition of tantalum carbide and carbonitride thin films from Me3CE=Ta(CH2CMe3)3 (E = CH, N). J. Mater. Chem. 2003, 13, 365–369. [Google Scholar] [CrossRef] [Scilit]
  273. Shi, J.; Wang, X.; Zhang, S.; Xiao, L.; Huan, Y.; Gong, Y.; Zhang, Z.; Li, Y.; Zhou, X.; Hong, M.; et al. Two-dimensional metallic tantalum disulfide as a hydrogen evolution catalyst. Nat. Commun. 2017, 8, 958. [Google Scholar] [CrossRef] [Scilit]
  274. Yanase, T.; Ebashi, M.; Takamure, K.; Ise, W.; Waizumi, H.; Chikamatsu, A.; Hirose, Y.; Shimada, T. Unidirectional growth of epitaxial tantalum disulfide triangle crystals grown on sapphire by chemical vapor deposition with a separate-flow system. CrystEngComm 2024, 26, 341–348. [Google Scholar] [CrossRef] [Scilit]
  275. Bailini, A.; Di Fonzo, F.; Fusi, M.; Casari, C.S.; Bassi, A.L.; Russo, V.; Baserga, A.; Bottani, C.E. Pulsed laser deposition of tungsten and tungsten oxide thin films with tailored structure at the nano- and mesoscale. Appl. Surf. Sci. 2007, 253, 8130–8135. [Google Scholar] [CrossRef] [Scilit]
  276. Kajita, S.; Kodate, S.; Kato, S.; Shi, Q.; Hayashi, Y. Mechanism of porous tungsten nanostructure formation by pulsed laser by pulsed laser deposition. Materialia 2025, 43, 102529. [Google Scholar] [CrossRef] [Scilit]
  277. Kassem, W.; Tabbal, M.; Roumie, M. Pulsed laser deposition of tungsten thin films on graphite. Adv. Mater. Res. 2011, 324, 77–80. [Google Scholar] [CrossRef] [Scilit]
  278. Soto, G.; De La Cruz, W.; Dıaz, J.A.; Machorro, R.; Castillón, F.F.; Farıas, M.H. Characterization of tungsten oxide films produced by reactive pulsed laser deposition. Appl. Surf. Sci. 2003, 218, 281–289. [Google Scholar] [CrossRef] [Scilit]
  279. Kawasaki, H.; Ueda, T.; Suda, Y.; Ohshima, T. Properties of metal doped tungsten oxide thin films for NOx gas sensors grown by PLD method combined with sputtering process. Sens. Actuators B Chem. 2004, 100, 266–269. [Google Scholar] [CrossRef] [Scilit]
  280. Soto, G.; De la Cruz, W.; Castillon, F.F.; Dıaz, J.A.; Machorro, R.; Farıas, M.H. Tungsten nitride films grown via pulsed laser deposition studied in situ by electron spectroscopies. Appl. Surf. Sci. 2003, 214, 58–67. [Google Scholar] [CrossRef] [Scilit]
  281. Chitica, N.; Gyorgy, E.; Lita, A.; Marin, G.; Mihailescu, I.N.; Pantelica, D.; Petrascu, M.; Hatziapostolou, A.; Grivas, C.; Broll, N.; et al. Synthesis of tungsten carbide thin films by reactive pulsed laser deposition. Thin Solid Films 1997, 301, 71–76. [Google Scholar] [CrossRef] [Scilit]
  282. Mihailescu, I.N.; Gyorgy, E.; Marin, G.; Popescu, M.; Teodorescu, V.S.; Van Landuyt, J.; Grivas, C.; Hatziapostolou, A. Crystalline structure of very hard tungsten carbide thin films obtained by reactive pulsed laser deposition. J. Vac. Sci. Technol. A 1999, 17, 249–255. [Google Scholar] [CrossRef] [Scilit]
  283. Younes, O.; Zhu, L.; Rosenberg, Y.; Shacham-Diamand, Y.; Gileadi, E. Electroplating of amorphous thin films of tungsten-nickel alloys. Langmuir 2001, 17, 8270–8275. [Google Scholar] [CrossRef] [Scilit]
  284. Nikolić, V.; Wurster, S.; Savan, A.; Ludwig, A.; Pippan, R. High-throughput study of binary thin film tungsten alloys. Int. J. Refract. Met. Hard Mater. 2017, 69, 40–48. [Google Scholar] [CrossRef] [Scilit]
  285. Soto, G.; Rosas, A.; Farias, M.H.; De la Cruz, W.; Diaz, J.A. Characterization of rhenium nitride films produced by reactive pulsed laser deposition. Mater. Charact. 2007, 58, 519–526. [Google Scholar] [CrossRef] [Scilit]
  286. Arroyave, M.; Ruiz, C.; Echeverri, P.; Jaoul, C.; Grisales, M.; Bejarano, G. Microstructure, chemical composition and mechanical properties of rhenium nitride hard coating deposited by reactive magnetron sputtering. Int. J. Refract. Met. Hard Mater. 2023, 110, 106026. [Google Scholar] [CrossRef] [Scilit]
  287. Vishal, B.; Sharona, H.; Bhat, U.; Paul, A.; Sreedhara, M.B.; Rajaji, V.; Sarma, S.C.; Narayana, C.; Peter, S.C.; Datta, R. Growth of ReS2 thin films by pulsed laser deposition. Thin Solid Films 2019, 685, 81–87. [Google Scholar] [CrossRef] [Scilit]
  288. Latini, A.; Rau, J.V.; Ferro, D.; Teghil, R.; Albertini, V.R.; Barinov, S.M. Superhard rhenium diboride films preparation and characterization. Chem. Mater. 2008, 20, 4507–4511. [Google Scholar] [CrossRef] [Scilit]
  289. Chrzanowska, J.; Hoffman, J.; Denis, P.; Giżyński, M.; Mościcki, T. The effect of process parameters on rhenium diboride films deposited by PLD. Surf. Coat. Technol. 2015, 277, 15–22. [Google Scholar] [CrossRef] [Scilit]
  290. Hörnström, S.E.; Lin, T.; Thomas, O.; Fryer, P.M.; Harper, J.M.E. Tungsten-rhenium alloys as diffusion barriers between aluminum and silicon. J. Vac. Sci. Technol. A 1988, 6, 1650–1655. [Google Scholar] [CrossRef] [Scilit]
  291. Hai, Z.; Su, Z.; Guo, M.; Chen, J.; Lin, R.; Chen, Y.; Zhang, Y.; Zhu, H.; Liang, R.; Gong, S.; et al. Utilizing screen printing technology to fabricate tungsten-rhenium thick film thermocouples with a maximum temperature limit of 1600 °C. Measurement 2025, 239, 115454. [Google Scholar] [CrossRef] [Scilit]
  292. Salakhova, E.; Tagiyev, D.; Kalantarova, P.; Ibrahimova, K.; Alizada, Y.; Huseynova, R.; Cabbarova, I. Electrochemical obtaining of rhenium-molybdenum alloys. J. Electrochem. Sci. Eng. 2023, 13, 563–573. [Google Scholar] [CrossRef] [Scilit]
  293. Singh, V.; Schneider, B.H.; Bosman, S.J.; Merkx, E.P.; Steele, G.A. Molybdenum-rhenium alloy based high-Q superconducting microwave resonators. Appl. Phys. Lett. 2014, 105, 222601. [Google Scholar] [CrossRef] [Scilit]
  294. Mitu, A.; Dumitru, M.; Șuvăilă, R.; Oprea, A.; Gheorghe, I.; Mereuță, P.; Brajnicov, S.; Burducea, I.; Florea, N.M.; Mărginean, N.; et al. Refractory osmium targets for accelerator based nuclear activation experiments prepared by pulsed laser deposition technique. Vacuum 2019, 161, 162–167. [Google Scholar] [CrossRef] [Scilit]
  295. Akahori, H.; Handa, M.; Yoshida, H.; Kozuka, Y. Osmium-metal coating device using hollow-cathode plasma CVD method. J. Electron Microsc. 2000, 49, 735–744. [Google Scholar] [CrossRef] [Scilit]
  296. Hayakawa, Y.; Fukuzaki, K.; Kohiki, S.; Shibata, Y.; Matsuo, T.; Wagatsuma, K.; Oku, M. X-ray photoelectron spectroscopy of highly conducting and amorphous osmium dioxide thin films. Thin Solid Films 1999, 347, 56–59. [Google Scholar] [CrossRef] [Scilit]
  297. Cumberland, R.W.; Weinberger, M.B.; Gilman, J.J.; Clark, S.M.; Tolbert, S.H.; Kaner, R.B. Osmium diboride, an ultra-incompressible, hard material. J. Am. Chem. Soc. 2005, 127, 7264. [Google Scholar] [CrossRef] [Scilit]
  298. Gong, Y.; Wang, C.; Shen, Q.; Zhang, L. Low-temperature deposition of iridium thin films by pulsed laser deposition. Vacuum 2008, 82, 594–598. [Google Scholar] [CrossRef] [Scilit]
  299. El Khakani, M.A.; Drogoff, B.L.; Chaker, M. Effect of the deposition temperature on the properties of iridium thin films grown by means of pulsed laser deposition. J. Mater. Res. 1999, 14, 3241–3246. [Google Scholar] [CrossRef] [Scilit]
  300. Galeazzi, M.; Chen, C.; Cohn, J.L.; Gundersen, J.O. Iridium thin films deposited via pulsed laser deposition for future applications as transition-edge sensors. Nucl. Instrum. Methods Phys. Res. Sect. A Accel. Spectrom. Detect. Assoc. Equip. 2004, 520, 293–295. [Google Scholar] [CrossRef] [Scilit]
  301. El Khakani, M.A.; Chaker, M. Reactive pulsed laser deposition of iridium oxide thin films. Thin Solid Films 1998, 335, 6–12. [Google Scholar] [CrossRef] [Scilit]
  302. Thanawala, S.; Georgiev, D.G.; Baird, R.J.; Auner, G. Characterization of iridium oxide thin films deposited by pulsed-direct-current reactive sputtering. Thin Solid Films 2007, 515, 7059–7065. [Google Scholar] [CrossRef] [Scilit]
  303. Coy, L.E.; Ventura, J.; Ferrater, C.; Langenberg, E.; Polo, M.C.; García-Cuenca, M.V.; Varela, M. Synthesis and characterization of platinum thin film as top electrodes for multifunctional layer devices by PLD. Thin Solid Films 2010, 518, 4705–4709. [Google Scholar] [CrossRef] [Scilit]
  304. Aaltonen, T.; Ritala, M.; Sajavaara, T.; Keinonen, J.; Leskelä, M. Atomic layer deposition of platinum thin films. Chem. Mater. 2003, 15, 1924–1928. [Google Scholar] [CrossRef] [Scilit]
  305. Hämäläinen, J.; Munnik, F.; Ritala, M.; Leskela, M. Atomic layer deposition of platinum oxide and metallic platinum thin films from Pt(acac)2 and ozone. Chem. Mater. 2008, 20, 6840–6846. [Google Scholar] [CrossRef] [Scilit]
  306. Gontad, F.; Caricato, A.P.; Manera, M.G.; Colombelli, A.; Resta, V.; Taurino, A.; Cesaria, M.; Leo, C.; Convertino, A.; Klini, A.; et al. 3D plasmonic transducer based on gold nanoparticles produced by laser ablation on silica nanowires. Appl. Phys. A 2016, 122, 539. [Google Scholar] [CrossRef] [Scilit]
  307. Khaleeq-ur-Rahman, M.; Bhatti, K.A.; Rafique, M.S.; Anjum, S.; Latif, A.; Anjum, M.; Ahsan, A.; Ozair, H. Morphological and structural analysis of nano-structured gold thin film on silicon by pulsed laser deposition technique. Vacuum 2010, 85, 353–357. [Google Scholar] [CrossRef] [Scilit]
  308. Cesaria, M.; Caricato, A.P.; Beccaria, M.; Perrone, A.; Martino, M.; Taurino, A.; Catalano, M.; Resta, V.; Klini, A.; Gontad, F. Physical insight in the fluence-dependent distributions of Au nanoparticles produced by sub-picosecond UV pulsed laser ablation. Appl. Surf. Sci. 2019, 480, 330. [Google Scholar] [CrossRef] [Scilit]
  309. Irissou, E.; Le Drogoff, B.; Chaker, M.; Trudeau, M.; Guay, D. Nanostructured gold thin films prepared by pulsed laser deposition. J. Mater. Res. 2004, 19, 950–958. [Google Scholar] [CrossRef]
  310. Makela, M.; Hatanpaa, T.; Mizohata, K.; Raisanen, J.; Ritala, M.; Leskela, M. Thermal atomic layer deposition of continuous and highly conducting gold thin films. Chem. Mater. 2017, 29, 6130–6136. [Google Scholar] [CrossRef] [Scilit]
  311. Irissou, E.; Denis, M.C.; Chaker, M.; Guay, D. Gold oxide thin film grown by pulsed laser deposition in an O2 atmosphere. Thin Solid Films 2005, 472, 49–57. [Google Scholar] [CrossRef] [Scilit]
  312. Tanigaki, S.; Murata, D.; Kitamura, M.; Hattori, Y. Photomask-driven selective oxidation and optical imaging of ultrathin gold oxide films on antireflective substrates. Jpn. J. Appl. Phys. 2025, 64, 055501. [Google Scholar] [CrossRef] [Scilit]
  313. Appleyard, E.; Misener, A. Superconductivity of thin films of mercury. Nature 1938, 142, 474. [Google Scholar] [CrossRef] [Scilit]
  314. Wu, H.P. Nature and stability of mercury thin films on glassy carbon electrodes under fast-scan anodic stripping voltammetry. Anal. Chem. 1994, 66, 3151–3157. [Google Scholar] [CrossRef] [Scilit]
  315. Moreno-Close, E.R.; Martínez-Benítez, A.; Meléndez-Lira, M.; Ceja-Andrade, I.; Chávez-Chávez, A.; Pérez-Centeno, A.; Quiñones-Galván, J.G.; Santana-Aranda, M.A. Mercury sulfide thin film deposition using [HgI4]2− complex ions. J. Mater. Sci. Mater. Electron. 2020, 31, 4611–4617. [Google Scholar] [CrossRef] [Scilit]
  316. Patil, R.S.; Lokhande, C.D.; Mane, R.S.; Pathan, H.M.; Joo, O.-S.; Han, S.-H. Successive ionic layer adsorption and reaction (SILAR) trend for nanocrystalline mercury sulfide thin films growth. Mater. Sci. Eng. B 2006, 129, 59–63. [Google Scholar] [CrossRef] [Scilit]
  317. Rath, S.; Paramanik, D.; Sarangi, S.N.; Varma, S.; Sahu, S.N. Surface characterization and electronic structure of HgTe nanocrystalline thin films. Phys. Rev. B 2005, 72, 205410. [Google Scholar] [CrossRef] [Scilit]
  318. Zozime, A.; Vermeulin, C. Properties of sputtered mercury telluride contacts on p-type cadmium telluride. Rev. Phys. Appl. 1988, 23, 1825–1835. [Google Scholar] [CrossRef] [Scilit]
  319. Ugucioni, J.C.; Mulato, M. Influence of deposition temperature, solvent, and solute concentration on the deposition mechanisms and final structure of mercury iodide fabricated using the spray pyrolysis technique. J. Appl. Phys. 2006, 100, 043506. [Google Scholar] [CrossRef] [Scilit]
  320. Nolan, M.A.; Kounaves, S.P. Effects of chloride ion concentration on mercury(I) chloride formation during ex situ and in situ mercury deposition with selected electrode substrates and electrolytes. Anal. Chem. 1999, 71, 1176–1182. [Google Scholar] [CrossRef] [Scilit]
  321. Vignolo, M.F.; Duhalde, S.; Bormioli, M.; Quintana, G.; Cervera, M.; Tocho, J. Structural and electrical properties of lanthanum oxide thin films deposited by laser ablation. Appl. Surf. Sci. 2002, 197–198, 522–526. [Google Scholar] [CrossRef] [Scilit]
  322. Cahay, M.; Garre, K.; Wu, X.; Poitras, D.; Lockwood, D.J.; Fairchild, S. Physical properties of lanthanum monosulfide thin films grown on 100 silicon substrates. J. Appl. Phys. 2006, 99, 123502. [Google Scholar] [CrossRef] [Scilit]
  323. Fairchild, S.; Jones, J.; Cahay, M.; Garre, K.; Draviam, P.; Boolchand, P.; Wu, X.; Lockwood, D.J. Pulsed laser deposition of lanthanum monosulfide thin films on silicon substrates. J. Vac. Sci. Technol. B 2005, 23, 318–321. [Google Scholar] [CrossRef] [Scilit]
  324. Balakrishnan, G.; Panda, A.K.; Raghavan, C.M.; Singh, A.; Prabhakar, M.N.; Mohandas, E.; Kuppusami, P.; Song, J.I. Microstructure, optical and dielectric properties of cerium oxide thin films prepared by pulsed laser deposition. J. Mater. Sci. Mater. Electron. 2019, 30, 16548–16553. [Google Scholar] [CrossRef] [Scilit]
  325. Mao, W.; Gong, W.; Gu, Z.; Wilde, M.; Chen, J.; Fukutani, K.; Matsuzaki, H.; Fugetsu, B.; Sakata, I.; Terai, T. Hydrogen diffusion in cerium oxide thin films fabricated by pulsed laser deposition. Int. J. Hydrogen Energy 2024, 50, 969–978. [Google Scholar] [CrossRef] [Scilit]
  326. Maniammal, K.; Navas, I.; Kumar, R.V.; Nissamudeen, K.M.; Gopchandran, K.G.; Biju, V. Optical properties of nanostructured cerium oxide thin films by pulsed laser deposition. Int. Res. J. Eng. Technol. 2017, 4, 266–270. [Google Scholar]
  327. Wolfframm, D.; Ratzke, M.; Kouteva-Arguirova, S.; Reif, J. Praseodymium oxide growth on Si100 by pulsed-laser deposition. Mater. Sci. Semicond. Process. 2002, 5, 429–434. [Google Scholar] [CrossRef] [Scilit]
  328. Ratzke, M.; Wolfframm, D.; Arguirov, T. Pulsed laser deposition of praseodymium oxide films on silicon (100). Appl. Phys. A 2004, 79, 1247–1249. [Google Scholar] [CrossRef] [Scilit]
  329. Reséndiz, R.; Gallardo-Montejano, L.; Alonso-Núñez, G.; Meneses-Nava, M.A.; García-Ramírez, P.J.; Rangel, Y.; Ortega, A.; Castillejos, A. Neodymium Oxide Thin Films Deposited by PLD: Optical and Structural Evolution Analysis. In Proceedings of the Conference on Surfaces, Materials and Vacuum XVII-ICSMV, Ensenada, Mexico, 23–27 September 2024. [Google Scholar]
  330. Elkina, V.; Kurushkin, M. Promethium to Strive, to Seek, to Find and Not to Yield. Front. Chem. 2020, 8, 588. [Google Scholar] [CrossRef] [Scilit]
  331. Perrone, A.; Aziz, M.R.; Gontad, F.; Vainos, N.A.; Caricato, A.P. A Practical Guide Paper on Bulk and PLD Thin-Film Metals Commonly Used as Photocathodes in RF and SRF Guns. Chemistry 2025, 7, 123. [Google Scholar] [CrossRef] [Scilit]
  332. Constantinescu, C.; Ion, V.; Galca, A.C.; Dinescu, M. Morphological, optical and electrical properties of samarium oxide thin films. Thin Solid Films 2012, 520, 6393–6397. [Google Scholar] [CrossRef] [Scilit]
  333. Yang, D.; Xue, L. Synthesis of Samarium Oxide Films by Pulsed Laser Deposition. MRS Online Proc. Libr. (OPL) 2003, 780, Y1.3. [Google Scholar] [CrossRef] [Scilit]
  334. Kumar, S.; Prakash, R.; Singh, V.K. Synthesis, Characterization, and Applications of Europium Oxide: A Review. Rev. Adv. Sci. Eng. 2015, 4, 247–257. [Google Scholar] [CrossRef] [Scilit]
  335. Mariscal, A.; Quesada, A.; Tarazaga, A.; García, M.A.; Bonanni, A.; Fernández, J.F. Europium monoxide nanocrystalline thin films with high near-infrared transparency. Appl. Surf. Sci. 2018, 456, 980–984. [Google Scholar] [CrossRef] [Scilit]
  336. Aime, S.; Caravan, P. Biodistribution of gadolinium-based contrast agents, including gadolinium deposition. J. Magn. Reson. Imaging 2009, 30, 1259–1267. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  337. Zhang, L.; Heng, C.L.; Zhao, C.N.; Su, W.Y.; Gao, Y.K.; Pin, G.Y.; Finstad, T.G. On the structure and ultraviolet emission of terbium doped zinc oxide thin films on silicon after high temperature treatment. Results Phys. 2022, 32, 105121. [Google Scholar] [CrossRef] [Scilit]
  338. Hile, D.D.; Swart, H.C.; Motloung, S.V.; Motaung, T.E.; Ahemen, I.; Koao, L.F. Effects of terbium ions on the structural, morphological and optical properties of zinc selenide thin films prepared by photo-assisted chemical bath method. Thin Solid Films 2023, 781, 140001. [Google Scholar] [CrossRef] [Scilit]
  339. Belaya, S.V.; Bakovets, V.V.; Boronin, A.I.; Koshcheev, S.V.; Lobzareva, M.N.; Korolkov, I.V.; Stabnikov, P.A. Terbium oxide films grown by chemical vapor deposition from terbium(III) dipivaloylmethanate. Inorg. Mater. 2014, 50, 379–386. [Google Scholar] [CrossRef] [Scilit]
  340. Antić, Ž.; Dramićanin, M.D.; Prashanthi, K.; Jovanović, D.; Kuzman, S.; Thundat, T. Pulsed Laser Deposited Dysprosium-Doped Gadolinium–Vanadate Thin Films for Noncontact, Self-Referencing Luminescence Thermometry. Adv. Mater. 2016, 28, 7745–7752. [Google Scholar] [CrossRef] [Scilit]
  341. Nazabal, V.; Němec, P.; Jedelský, J.; Duverger, C.; Le Person, J.; Adam, J.L.; Frumar, M. Dysprosium doped amorphous chalcogenide films prepared by pulsed laser deposition. Opt. Mater. 2006, 29, 273–278. [Google Scholar] [CrossRef] [Scilit]
  342. Lo, F.Y.; Ting, Y.C.; Chou, K.C.; Hsieh, T.C.; Ye, C.W.; Hsu, Y.Y.; Chern, M.Y.; Liu, H.L. Paramagnetic dysprosium-doped zinc oxide thin films grown by pulsed-laser deposition. J. Appl. Phys. 2015, 117, 213911. [Google Scholar] [CrossRef] [Scilit]
  343. Al-Kuhaili, M.F.; Durrani, S.M.A. Structural and optical properties of dysprosium oxide thin films. J. Alloys Compd. 2014, 591, 234–239. [Google Scholar] [CrossRef] [Scilit]
  344. Goswami, A.; Varma, R.R. Dielectric behaviour of dysprosium oxide films. Thin Solid Films 1975, 28, 157–165. [Google Scholar] [CrossRef] [Scilit]
  345. Wiktorczyk, T. Preparation and optical properties of holmium oxide thin films. Thin Solid Films 2002, 405, 238–242. [Google Scholar] [CrossRef] [Scilit]
  346. Hu, D.; Li, X.; Snetkov, I.; Yakovlev, A.; Balabanov, S.; Ivanov, M.; Liu, X.; Liu, Z.; Tian, F.; Xie, T.; et al. Fabrication, microstructure and optical characterizations of holmium oxide (Ho2O3) transparent ceramics. J. Eur. Ceram. Soc. 2021, 41, 759–767. [Google Scholar] [CrossRef] [Scilit]
  347. Wu, D.; Yao, J.; Zhao, H.; Chang, A.; Li, F. Leakage current mechanisms of ultrathin high-k Er2O3 gate dielectric film. J. Semicond. 2009, 30, 103003. [Google Scholar]
  348. Li, X.; Wu, P.; Qiu, H.; Chen, S.; Song, B. Crystallization behavior and mechanical properties of erbium oxide coatings fabricated by pulsed magnetron sputtering. Thin Solid Films 2012, 520, 2316–2320. [Google Scholar] [CrossRef] [Scilit]
  349. Soderholm, L.; Skanthakumar, S.; Wilson, R.E. Structures and energetics of erbium chloride complexes in aqueous solution. J. Phys. Chem. A 2009, 113, 6391–6397. [Google Scholar] [CrossRef] [Scilit]
  350. Su, W.T.; Li, B.; Liu, D.Q.; Zhang, F.S. Structure and infrared optical properties of evaporated erbium fluoride films. Phys. Status Solidi (A) 2007, 204, 569–575. [Google Scholar] [CrossRef] [Scilit]
  351. Zdanowicz, T. Electrical properties of thulium oxide thin films. Thin Solid Films 1988, 164, 175–182. [Google Scholar] [CrossRef] [Scilit]
  352. Mitrovic, I.Z.; Hall, S.; Althobaiti, M.; Hesp, D.; Dhanak, V.R.; Santoni, A.; Schamm-Chardon, S. Atomic-layer deposited thulium oxide as a passivation layer on germanium. J. Appl. Phys. 2015, 117, 214104. [Google Scholar] [CrossRef] [Scilit]
  353. Larruquert, J.I.; Aznárez, J.A.; Méndez, J.A.; Calvo-Angós, J. Optical properties of ytterbium films in the far and the extreme ultraviolet. Appl. Opt. 2003, 42, 4566–4572. [Google Scholar] [CrossRef] [Scilit]
  354. Chander, R.; Kumar, R. Optical absorption in vacuum-evaporated ytterbium films. Phys. Status Solidi (A) 1973, 20, 739–744. [Google Scholar] [CrossRef] [Scilit]
  355. Losego, M.D.; Maria, J.P. Synthesis of polycrystalline ytterbium monoxide thin films by molecular beam deposition. J. Vac. Sci. Technol. B Microelectron. Nanometer Struct. Process. Meas. Phenom. 2006, 24, 2111–2114. [Google Scholar] [CrossRef] [Scilit]
  356. Xu, N.; Liu, Z.; Liu, W.; Shen, Y. Deposition ytterbium oxide thin films by RF magnetron sputtering. Rare Met. Mater. Eng. 2007, 36, 82–85. [Google Scholar]
  357. Darmawan, P. Lutetium Oxide (Lu2O3) Gate Dielectric Fabricated by Pulsed Laser Deposition. Ph.D. Thesis, Nanyang Technological University, Singapore, 2010. [Google Scholar]
  358. Kaminaga, K.; Oka, D.; Hasegawa, T.; Fukumura, T. New lutetium oxide: Electrically conducting rock-salt LuO epitaxial thin film. ACS Omega 2018, 3, 12501–12504. [Google Scholar] [CrossRef] [Scilit] [PubMed]
  359. Atourki, L.; Ezahri, M.; Bouabid, K.; Ihlal, A.; Villain, S.; Benlhachemi, A. Novel synthesis, characterization and optical properties of Lu2O3 deposited by electrochemical method. Mater. Lett. 2015, 160, 415–418. [Google Scholar] [CrossRef] [Scilit]
  360. Bagnall, K.W.; d’Eye, R.W.M. The preparation of polonium metal and polonium dioxide. J. Chem. Soc. (Resumed) 1954, 4295–4299. [Google Scholar] [CrossRef] [Scilit]
  361. Cultrera, L.; Gatti, G.; Tazzioli, F.; Perrone, A.; Miglietta, P.; Ristoscu, C.; Orlanducci, S.; Fiori, A. Mg based photocathodes for high brightness RF photoinjectors. Appl. Surf. Sci. 2007, 253, 6531–6534. [Google Scholar] [CrossRef] [Scilit]
  362. Pereira, A.; Cultrera, L.; Dima, A.; Susu, M.; Perrone, A.; Du, H.; Volkov, A.; Cutting, R.; Datta, P. Pulsed laser deposition and characterization of textured Pd-doped-SnO2 thin films for gas sensing applications. Thin Solid Films 2006, 497, 142–148. [Google Scholar] [CrossRef] [Scilit]
Figure 1. Schematic apparatus of a PLD and RPLD system. MS: mass spectrometer, L: lens; T: target; S: substrate; W: laser window; M: mirror; O: optical window (reproduced with permission of ref. [5]).
Figure 1. Schematic apparatus of a PLD and RPLD system. MS: mass spectrometer, L: lens; T: target; S: substrate; W: laser window; M: mirror; O: optical window (reproduced with permission of ref. [5]).
Surfaces 09 00044 g001
Figure 2. Periodic table heatmap showing PLD/RPLD feasibility. Color coding denotes ablation feasibility: green represents high feasibility, yellow indicates moderate feasibility and red highlights elements that are challenging to ablate.
Figure 2. Periodic table heatmap showing PLD/RPLD feasibility. Color coding denotes ablation feasibility: green represents high feasibility, yellow indicates moderate feasibility and red highlights elements that are challenging to ablate.
Surfaces 09 00044 g002
Table 1. Typical experimental conditions applied in PLD and RPLD.
Table 1. Typical experimental conditions applied in PLD and RPLD.
Target–Substrate Distance2–6 cm
Target Rotation1–3 Hz
Substrate Temperature300 K
Laser Spot SizeAround 1.0 mm2
Base Pressure in PLD Experiments10−5–10−3 Pa
Reactive Gas Ambient Pressure in RPLD ExperimentsIn the range tenths-hundreds Pa
Total Number of Laser Pulses
  • Target Surface Cleaning
Thousands
  • Film Deposition
Tens of thousands
Laser Fluence1–10 J/cm2 in ns regime
a few J/cm2 in ps regime
tenths of J/cm2 in fs regime
Laser Repetition Rate5–10 Hz
Film Thickness0.01–1 μm
Film Diameter5–10 mm
Table 2. Metallic thin films grown by PLD: Properties and applications.
Table 2. Metallic thin films grown by PLD: Properties and applications.
Ablated MetalResidual GasDeposited Thin FilmPropertiesMain ApplicationsRef.
MgHVMgGood mechanical and optical properties, high biocompatibility, high quantum efficiency.Smart windows, switchable solar absorbers, optical switching, reflective coatings, photocathodes.[48,50,51]
TiHVTiHigh corrosion resistance, thermally resistant.Spacecraft, missiles, bicycles.[107]
CoHVCoLow resistivity, high Curie temperature, variable optical properties.High density data storage, bio-sensing, drug delivery, catalyst.[139]
NiHVNiChemical stability, good electrical conductor.Spintronics, storage devices, protective coatings.[143,144]
CuHVCuExcellent electrical and thermal conductivity, thermal stability.Photocathode in RF cavities, microelectronics, solar cells, sensors.[152,153,154,155]
SeHVSeTunable band gap, high refractive index.Optical devices and sensing.[92,93,94]
YHVYLow work function, high quantum efficiency.Photocathodes for RF cavities.[212,213,214,215]
ZrUHVZrCorrosion and high-heat resistance, low absorption neutron, biocompatible.Dental implants, catalysis, nuclear plants, ceramics.[218,219]
NbUHVNbGood photo-emissive performance, low thermal expansion and high thermal stability.Photocathodes for SRF cavities, aerospace industry.[225,226,227]
MoHVMoHeat and wear resistance, chemically inert.Protective coatings, optoelectronic devices.[233,234]
RuHVRuChemically and thermally stable, good catalyst.Data storage, electrical contacts.[243]
RhHeRhHigh hardness, corrosion resistance, catalytic activity.Protective coatings, decoration for jewelry, electrical contacts.[249]
RhHVRh[250]
PdHVPdHydrogen absorber, corrosion-resistant.Material for hybrid vehicles as catalytic converter, hydrogen technologies.[251,252,253]
AgHVAgHuge electrical and thermal conductivity, high reflectivity.Biosensors, antimicrobial coatings, good biocompatibility.[254,255,256]
InHVInHigh optical transparency, good electrical conductivity.Display for smartphone and tablet.[181]
TaHVTaExtremely high melting point, excellent corrosion resistance, superconductor, biocompatible.Reaction turbines, tools, biocompatible material.[265,266]
WUHVWHigh electrical and thermal conductivity, very high hardness.Electrodes, heating elements, field emitters.[275]
WArW[276,277]
OsHVOsExcellent tribological properties.Electric contacts, wear-resistant alloys.[294]
IrHVIrCorrosion resistance, very high melting point.High-temperature apparatuses, OLED devices, crucibles.[298,299,300]
PtHVPtCorrosion resistance, chemically inert.Cancer drugs, pacemakers, stents, jewelry, electronics.[303]
AuHVAuExcellent thermal and electrical conductivity,
chemically inert.
Aerospace components, jewelry, connectors and printed circuits, dental material.[306,307]
AuUHVAu[308]
AuAr, He, N2Au[309]
PbHVPbCorrosion-resistant, relatively high quantum efficiency.Photocathodes for SRF cavities, X radiation shield[199]
BiHVBiVery low thermal conductivity, high electrical resistivity, diamagnetic metal.Sensors, electronic devices, cosmetic ingredient.[207]
BiUHVBi[208,209]
Table 3. Thin films of binary metallic chemical compounds prepared by PLD and RPLD techniques.
Table 3. Thin films of binary metallic chemical compounds prepared by PLD and RPLD techniques.
Ablated MaterialReactive Gas AmbientDeposited Thin FilmDeposition TechniquePropertiesMain ApplicationsRef.
MgO2MgORPLDExcellent electrical insulation, good thermal conductivity, high chemical inertness.Electrical insulation,
refractory material.
[52]
Sc2O3O2Sc2O3PLDHigh melting point, high thermal and optical properties, good resistance to corrosion.High-reflectance coatings, electronics, fuel cells.[106]
TiNN2TiNPLDHigh hardness, low electrical resistivity, thermal and chemical stability.Microelectronics, protective coatings[108]
TiN2TiNRPLD[109]
TiCHVTiCPLDHigh hardness, excellent wear resistance, good thermal and chemical stability.Cutting tools, good biocompatibility, corrosion-resistant coatings.[110]
TiCH4TiCRPLD[111]
TiO2O2TiO2PLDGood mechanical, chemical, and thermal stability, high transparency.Optical coatings, solar cells, gas sensing, good biocompatibility.[112]
TiO2TiO2RPLD[113]
VO2HVV2O5PLDMetal–insulator transition, good corrosion resistance.Infrared detectors, chemical sensors, resistive switching devices.[114]
VO2VO2RPLD[115,116]
VNN2VNPLDHigh hardness, thermal stability, superconducting behavior.Protective coatings, micro-supercapacitors, microelectronics.[117]
VN2VNRPLD[118]
Cr2O3O2CrOxPLDHighly resistant to heat, corrosion, and wear.Resonant tunneling diodes, field effect transistors, electronic devices.[127]
MnO2MnOxRPLDCatalyst, energy storage, biocompatibility.Photovoltaic cells, catalysis, biomaterial.[128]
MnOO2MnOxPLD[129]
FeO2FeOxRPLDVariable refractive index and extinction coefficient, high spin polarization.Spintronic, gas sensors, magnetic and electrical devices.[137,138]
CoO2CoOxRPLDRedox properties, p-type semiconductor.Pigments for ceramics, catalysts, electrochemical devices.[142]
NiO2NiORPLDHigh electrical resistivity, p-type conductivity, high chemical and mechanical stability.Optoelectronic devices, solar cells, gas sensors.[147,148,149]
CuO2CuOxRPLDHigh optical absorption, antibacterial performance.Oxygen and humidity sensors, antibacterial applications.[159,160,161,162,163,164]
ZnOO2ZnOPLDGood
piezoelectrical, photoelectrical and optical performance.
Electric
transducers, gas sensors, ultrasonic oscillators and low-
loss optical waveguides.
[166]
ZnO2ZnORPLD[167,168]
GaN2GaNRPLDHigh electron mobility, good thermal conductivity, excellent chemical and thermal stability.Semiconductor for optoelectronic applications, laser diodes, solar cells.[175,176]
GaNH3GaNRPLD[175,177]
Ga2O3O2Ga2O3PLDExcellent electrical breakdown resistance, high optical transparency, good chemical stability.High-voltage power devices, gas sensors, UV photodetectors.[178]
Y2O3O2Y2O3PLDHigh melting point, chemical stability, high dielectric constant.Oxygen sensors, high temperature coatings, cutting tools.[216]
YO2Y2O3RPLD[217]
ZrO2ZrO2RPLDChemical inertness, low thermal conductivity, biocompatible.Orthopedic implants, cutting tools, refractory material.[221]
ZrO2O2ZrO2PLD[220]
ZrN2ZrNRPLDCeramic material, biocompatible.Cutting tools, medical devices, superconductor.[222]
ZrNN2ZrNPLD[223]
ZrCCH4ZrCPLDHigh melting point, excellent high-temperature stability, good corrosion and wear resistance.Hard resistant coatings, nuclear fuel particles coatings, field emitter coatings.[224]
NbO2NbOxRPLDHigh dielectric constant and refractive index, transparent in the visible range.Oxygen sensors, optical glasses, material for nuclear plants.[228,229]
NbN2NbNxRPLDHigh hardness, high melting point and oxidation resistance.Photon detectors, coatings for superconductive cables, protective coatings.[230,231]
NbCHVNbCPLDHigh hardness, good wear resistance, thermal conductivity.Protective coatings in nuclear plants, cutting tools, composite materials.[232]
MoO2MoOxRPLDWide band gap, high work function.Gas sensors, protective coatings.[235]
MoO3O2MoOxPLD[236]
MoH2SMoSxRPLDLubricating material.Dry lubricant, catalyst.[237,238]
MoN2MoNxRPLDChemical and thermal stability, hardness and wear resistance.Optical and anti-reflective coatings, energy storage.[239,240]
RuO2O2RuOxPLDGood thermal and chemical stability, high specific capacitance.Thin-film resistors, positive electrode in supercapacitors.[245]
AgO2AgOxRPLDOptical band gap, high electrical conductivity.Optical response,
biomedicine, energy storage.
[257,258]
CdO2CdORPLDTunable band gap, high photoconductivity, chemical stability.Solar cells, flat panel display, photodetectors.[259]
InO2In2O3RPLDTransparent conducting
oxide, high electrical conductance.
Gas sensors, solar cells, panel displays, organic
light-emitting diodes.
[182,183]
In-SnO2ITORPLDLarge band gap, transparent to visible light, low electrical resistivity.Optoelectronic devices, automobile and aircraft windows, antireflection coatings.[184,185]
SnO2SnO2RPLDThermal and chemical stability.Displays, solar cells, ceramic glazes.[186,187]
SnO2O2SnO2PLD[188]
Al-SnArAl-SnPLDCorrosion and fatigue resistance.Bearings.[191]
Cu + SnArCu-SnPLDWear and corrosion resistance, good thermal and electrical properties.Structural engineering applications, home appliances.[193]
HfO2HfO2RPLDExceptional thermal stability, high melting point.Optical coatings, high-temperature aerospace material.[261]
HfO2O2HfO2PLD[261]
HfCHVHfCPLDExcellent hardness, high melting point, good wear resistance and chemical stability.Devices needing high temperature resistance, rocket engine components.[262]
HfN2HfNRPLDExcellent corrosion resistance, good thermal and electrical stability.Wear-resistant coating for cutting tools, high temperature components.[263]
TaO2TaOxRPLDVery high dielectric properties, high refractive index, wide optical band gap.Anti-reflective coatings, optical waveguides, electronic components.[267]
Ta2O5O2TaOxPLD[268]
TaN2TaNxRPLDTunable electrical properties, excellent corrosion resistance, good thermal stability, chemical inertness.Hard coatings, integrated circuits,
microelectronic devices.
[269,270]
TaCHVTaCPLDVery high melting point, corrosion-resistant, good electrical and thermal conductivity.High temperature cutting tools, coatings, turbines and jet engine nozzles.[271]
WO2WOxRPLDWide band gap semiconductor, near-infrared absorption.Gas sensors, smart windows, thermal insulation coatings.[278]
WO3HVWO3PLD[279]
WN2WNxRPLDVery high hardness, good electrical conductivity, ceramic material.Microelectronics, semiconductor devices, component for fusion reactors, turbine blades.[240,280]
WCH4WCxRPLDHigh electrical and thermal conductivity, low coefficient of thermal expansion, high melting point.Industrial cutting tools, wear parts, high-temperature applications, durable jewelry.[281,282]
ReN2ReNxRPLDHigh elastic modulus, huge hardness.Electronic components, protective coatings.[285]
ReS2HVReS2PLDGood electric conductivity,
catalytic activity.
Microelectronics, optoelectronics, energy storage, catalytic hydrogen production.[287]
ReB2HVReB2PLDHigh melting point, excellent hardness.Cutting tools, wear-resistant coatings.[288,289]
IrO2IrO2RPLDCorrosion resistance, high electrical conductivity, thermally stable.Fuel cells, sensors, electrodes.[301]
AuO2AuOxRPLDChemically inert but thermally instable.Catalyst, electronics, nanotechnology.[311]
BiO2Bi2O3RPLDWide band gap, high refractive index, high dielectric permittivity.Optical coatings, high-quality optical fiber, fuel cells, sensor technology.[210]
Bi2O3HVBi2O3PLD[211]
Table 4. Thin films of metalloids prepared by PLD technique.
Table 4. Thin films of metalloids prepared by PLD technique.
Ablated MetalloidResidual GasDeposited Thin FilmPropertiesMain ApplicationsRef.
BHVBHigh absorption cross-section of thermal neutrons.Thermal neutron detectors.[62,63]
SiHVSiSemiconducting properties.High-technology semiconductor devices, thin-film solar cells.[77,78,79]
GeUHVGeTransparent to infrared radiation, chemically stable.Transistors and integrated circuits, infrared lenses, solar cells.[87,88]
SeHVSeTunable band gap, high refractive index.Optical devices, photocells, solar cells.[92,93,94]
SbArSbHigh optical absorption coefficient, high carrier mobility.Opaque material, dopant in electronic semiconductors.[95]
TeHVTeHigh infrared transmission, tunable electrical performance and band gap energy.Optoelectronics, transistors, gas sensors.[101]
Table 5. Thin films of binary metalloid chemical compounds prepared by PLD and RPLD techniques.
Table 5. Thin films of binary metalloid chemical compounds prepared by PLD and RPLD techniques.
Ablated MaterialReactive Gas AmbientDeposited Thin FilmDeposition TechniquePropertiesMain ApplicationsRef.
BN2BNRPLDHigh hardness, thermal and chemical refractory compound.Electronics, super-hard coatings, refractory material.[64,65]
SiO2SiO2RPLDHigh hardness, chemically stable, insulating.Anti-reflective coatings, corrosion protection, surface passivation layers.[80]
SiO2HVSiO2PLDHigh hardness, chemically stable.Anti-reflective coatings, corrosion protection, surface passivation layers.[81]
SiCH4SiCRPLDHigh thermal conductivity, mechanical strength, chemical inertness.Sensors, actuators, protective coatings and cutting tools.[82]
SiCHVSiCPLD[83]
Si3N4N2SiNxPLDHigh electrical insulation, notable thermal stability, excellent mechanical properties.Anti-reflective coatings, waveguides, biomedical applications.[85]
SiNH3SiNRPLD[84,86]
GeO2GeO2RPLDHigh reflective index, low optical dispersion, transparent in the infrared region.Optical fibers, catalysis, energy storage.[89]
GeN2 + ArGeNxRPLDHigh dielectric constant, thermal stability.Suitable for high-temperature electronics, optoelectronics.[90]
Sb2Se3HVSb2Se3PLDBand gap and electrical conductivity tunable with thickness.Solar photovoltaic absorber material, optoelectronic devices.[97]
Sb2S3UHV
HV
Sb2S3PLDHigh absorption coefficient in the visible region, good photosensitivity.Solar absorbers photocathodes, microwave switching.[99]
Cd-TeAr + O2Cd-TePLDLow cost, high absorbing coefficient.Solar cells, gamma ray detectors.[102,103]
Table 6. Thin films of binary lanthanide compounds prepared by PLD and RPLD techniques.
Table 6. Thin films of binary lanthanide compounds prepared by PLD and RPLD techniques.
Ablated MaterialGas AmbientDeposited Thin FilmDeposition TechniquePropertiesMain ApplicationsRef.
LaO2La2O3RPLDHigh dielectric constant, high melting point, wide band gap.NOx gas sensors, optical glasses, ceramics.[321]
LaSUHVLaSPLDLow work function, low electric resistivity, high melting point.Field emission, display devices.[322,323]
CeO2O2CeO2PLDHigh thermal stability, good oxygen storage capacity, chemical inertness.Glass manufacturing, automotive industry, catalyst.[324,325,326]
Pr6O11O2PrOxPLDHigh chemical stability, good electrical and thermal conductivity, high magnetic susceptibility.Optical fibers, high-power magnets, colorant for glass.[327,328]
NdO2 + ArNd2O3RPLDVery high melting point, high dielectric constant.Solid-state lasers, color sunglasses, catalyst.[329]
Sm2O3O2Sm2O3PLDHigh resistivity, high dielectric constants, large band gap.Electronics, nuclear industry, glass manufacturing.[332,333]
Eu2O3O2EuOxPLDHigh melting point, thermal resistance, strong fluorescence.Lighting and displays, nuclear industry, ceramics.[335]
Er2O3UHVEr2O3PLDHuge band gap, high dielectric constant.Gate dielectrics in semiconductor devices, display monitors.[347]
Lu2O3O2Lu2O3PLDGood thermal stability, wide band gap, high k dielectric constant.Laser crystals, ceramics, glasses.[357]
Table 7. Carbon and chemical compounds containing carbon thin films prepared by PLD and RPLD techniques.
Table 7. Carbon and chemical compounds containing carbon thin films prepared by PLD and RPLD techniques.
Ablated MaterialGas AmbientDeposition TechniqueDeposited Thin FilmPropertiesMain ApplicationsRef.
CHVPLDCChemical inertness,
low friction coefficient.
Aircraft and spacecraft parts, sailboat masts, electrodes for energy, batteries.[66,67]
CHVPLDGrapheneExtremely high electric conductivity.Light sensors, molecular filter, energy storage.[76]
CHVPLDDLCHigh hardness, wear resistance, chemical inertness.Cutting tools, microelectronics and photoelectronic components, protective coatings.[68]
CNH3RPLDCNxThermal and chemical stability, good optical and semiconducting properties.Sensing, imaging, light-emitting diode (LED) fabrication, energy conversion.[69]
CN2RPLDCNx[70,71]
Table 8. Ablation threshold, laser fluence and reactive gas pressure for metals, metalloids and lanthanides.
Table 8. Ablation threshold, laser fluence and reactive gas pressure for metals, metalloids and lanthanides.
Chemical ElementsAblation ThresholdLaser Fluence
(J/cm2)
Reactive Gas Pressure (Pa)
MetalsHigh0.5–101–20
MetalloidsLow0.2–0.80.5–10
LanthanidesMedium-Low0.3–1.010–100
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Perrone, A.; Aziz, M.R.; Vainos, N.A.; Caricato, A.P. State of the Art on Thin Films of Metals, Metalloids and Lanthanides and Their Binary Compounds Prepared by PLD and RPLD Techniques. Surfaces 2026, 9, 44. https://doi.org/10.3390/surfaces9020044

AMA Style

Perrone A, Aziz MR, Vainos NA, Caricato AP. State of the Art on Thin Films of Metals, Metalloids and Lanthanides and Their Binary Compounds Prepared by PLD and RPLD Techniques. Surfaces. 2026; 9(2):44. https://doi.org/10.3390/surfaces9020044

Chicago/Turabian Style

Perrone, Alessio, Muhammad Rizwan Aziz, Nikolaos A. Vainos, and Anna Paola Caricato. 2026. "State of the Art on Thin Films of Metals, Metalloids and Lanthanides and Their Binary Compounds Prepared by PLD and RPLD Techniques" Surfaces 9, no. 2: 44. https://doi.org/10.3390/surfaces9020044

APA Style

Perrone, A., Aziz, M. R., Vainos, N. A., & Caricato, A. P. (2026). State of the Art on Thin Films of Metals, Metalloids and Lanthanides and Their Binary Compounds Prepared by PLD and RPLD Techniques. Surfaces, 9(2), 44. https://doi.org/10.3390/surfaces9020044

Article Metrics

Back to TopTop
