Abstract

:
This article presents results from a binding media survey of 61 Romano-Egyptian paintings. Most of the paintings (51) are the better-known funerary mummy portraits created using either encaustic or tempera paint medium. Samples from all the paintings (on wooden panels or linen shrouds) were analyzed with gas chromatography/mass spectrometry (GC/MS) to identify waxes, fatty acids, resins, oils, and proteins in one sample. Analytical protocols that utilized three separate derivatization techniques were developed. The first analysis identified free fatty acids, waxes, and fatty acid soaps, the second characterized oils and plant resins, and the third identified proteins. The identification of plant gums required a separate sample. Results showed that fatty acids in beeswax were present as lead soaps and dicarboxylic fatty acids in some samples was consistent with an oxidized oil. The tempera portraits were found to contain predominantly animal glue, revising the belief that egg was the primary binder used for ancient paintings. Degraded egg coatings were found on several portraits, as well as consolidation treatments using paraffin wax and animal glue. The unknown restoration history of the portraits caused uncertainty during interpretation of the findings and made the identification of ancient paint binders problematic. Also, deterioration of the wooden support, residues from mummification, biodegradation, beeswax alteration, metal soap formation, and environmental conditions before and after burial further complicated the analysis. The inherent problems encountered while characterizing ancient organic media in funerary portraits were addressed. The fourteen museums that participated in this study are members of APPEAR (Ancient Panel Paintings: Examination, Analysis, and Research), an international collaborative initiative at the J. Paul Getty Museum whose aim is to expand our understanding of ancient panel paintings through the examination of the materials and techniques used for their manufacture.
Keywords:
mummy portrait; Egypt; painting; tempera; beeswax; binding media; GC/MS

1. Introduction

1.1. Project Description

Mummy portraits were excavated after thousands of years of burial in Egyptian tombs and offer unique snapshots of ancient life as seen through the lens of the artisan. The individual in the portraits were members of the elite, with disproportionately large eyes that stare into the distance or straight at the viewer. The techniques used to create them offer a rare glimpse into the progression of portrait painting, as they precede Byzantine icon portraits by hundreds of years. Beeswax was used to create the encaustic portraits, and undoubtedly required skill and mastery of the media. Less is known about the tempera portraits because they have seldom been the subjects of scientific analysis. Identification of ancient paint media is complicated by several factors, including chemical and biological deterioration, the presence of ground layers, and the introduction of animal glue or beeswax in prior conservation treatments. Early published studies often cited by researchers were necessarily limited by the capabilities of the available analytical instrumentation. Technology has since vastly improved, thereby creating new avenues for binding media identification by using more sophisticated instrumentation.
The Ancient Panel Paintings: Examination, Analysis, and Research project (APPEAR) is an international collaboration spearheaded by the J. Paul Getty Museum to better understand the materials and techniques used to manufacture mummy portraits. The binding media of 61 paintings (51 mummy portraits and 10 panel paintings) from fourteen museums were studied in this survey. The method for binding media identification combined several protocols for characterizing a range of materials. As presented in the Materials and Methods section, waxes (beeswax and paraffin), proteins (egg, animal glue and casein), oils, and resins (pine resin and mastic) were analyzed in one paint sample using three sample preparation protocols. A second sample was analyzed with a fourth protocol for polysaccharides (plant gums). Encaustic paint samples were studied to determine if the beeswax contained additives that would have improved its working properties. Several of the portraits in this study had been previously reported in the literature as applied “cold” at room temperature or classified as egg tempera. It was anticipated that new insights into the technical art history of these paintings would be attained through the application of a reproducible analytical methodology to a large sample set.

1.2. History of Mummy Portraits

Mummy portraits show a combination of ancient Egyptian and Roman influences from the 1st through the 3rd centuries [1]. A number of important studies have provided art historical, technical, and information on their current state of preservation [2,3,4]. Portrait mummies were first discovered in an Egyptian Necropolis at Saqqara by Pietro Della Valle in 1615 AD. However, it was not until the late 19th century that a Viennese art dealer named Theodor Graf uncovered portraits from the er-Rubayat region in the Fayum and brought them to the public’s attention. Very little documentation exists from this period of discovery and exhibition [5]. At the turn of the 20th century, portraits were discovered by Grenfell and Hunt at Tanis and Tebtunis, but their record keeping was poor. Fortunately, excavations conducted by the British Egyptologist Sir William Flinders Petrie were systematically excavated and well-documented over two field seasons at Hawara. Petrie uncovered approximately 146 portraits in mass graves without markers, and described them as relatively rare (only attached to about 1 in 100 mummies). Some portraits were in fair-to-good condition, but others were so badly damaged by water or embalming oil that they were beyond repair [6]. They may have been displayed in homes or at banquets on festival days, which could have exposed them to harsh conditions before burial [7]. Of the more than 1000 portraits in existence today, except for those mentioned, little is known about their provenience because most were illicitly excavated.

1.3. Treatment and Interventions

Treatment documentation of the mummy portraits after excavation exists only because of Petrie’s meticulous record keeping. During his seasons in the field, he took on many roles, including that of field conservator. The records indicate that he stabilized flaking paint by warming the encaustic portraits and slightly melting the wax. Fragile painted surfaces were also faced with tissue and rice paste [5]. Emergency consolidation treatments were often accomplished with beeswax or paraffin [8,9]. For mummies in poor condition, their portraits were separated and framed [10]. Although Petrie’s salvage treatments can still be seen on some portraits today (and may be the reason why so many still exist), he was an advocate for minimal intervention and made every effort to keep the portraits attached to their mummies for context. In contrast, Theodor Graf came into contact with about 350 portraits during his lifetime, but condition and treatment information was not recorded.

1.4. Beeswax Paint and Modified Wax

The act of creating encaustic paintings with molten wax certainly required sophisticated skill, especially when producing the subtle color schemes and swift painterly methods of the ancient artists. Early researchers first postulated that to master encaustic painting, the artisan may have used cold paintable beeswax, which was initially described based on Pliny’s recipe for “Punic wax”. Also, evidence for the different encaustic painting techniques has routinely been identified in the literature based on visual appearance as well as chemical analysis, such as the formation of metal soaps and the reduction of wax ester components [11,12,13]. Today, it is generally accepted that the “Punic wax” recipe and terminology is a purification step that whitens the beeswax by extracting the yellow color caused by pollen along with various other impurities [14]. Stacey [15] showed that Pliny’s recipe resulted in the formation of fatty acid soaps, thereby changing the chemical signature of beeswax by removing or reducing the free fatty acid content. Thus, a cold paintable wax is best defined as a “modified wax”, it has been chemically altered to be fluid at room temperature. Even with modern instrumentation it has been extremely difficult to identify [16]. Although beeswax esters are very stable, hydrolysis can occur over long periods due to biodeterioration, high temperatures, and extreme pH conditions [17,18,19,20].

1.5. Tempera Paint

The portraits classified as tempera may have been produced at different workshops than the encaustic portraits [21]. In Egypt, numerous natural materials were available to artists for preparing tempera paint: animal glue, oils, milk, egg, honey and Acacia sp. gum [22]. Proteins may be identified by amino acid analysis; one example is the identification of animal glue in an Egyptian portrait painted on linen [23]. Limitations of amino acid analysis occur when mixtures of proteins are present and results should be interpreted with caution. For example, Mathews [24] reported egg and animal glue mixtures in several Romano-Egyptian paintings, solely based on amino acid analysis. Proteomics has been used for species identification of protein-based binding media and Mazurek [25] identified cow (bovine) skin glue as the species of animal used to prepare the glue binder in tryptic panels.
Plant gum exudates are protein/polysaccharide complexes in which the protein exists as a central core within gum molecules. Plant gums may be identified by the relative ratios of monosaccharides, although limitations exist when mixtures of gums are present [26]. A mixture of locust bean and Acacia sp. plant gums were identified on a mummy portrait on linen [27] by matrix-assisted laser desorption ionization mass spectrometry (MALDI).

2. Materials and Methods

Gas chromatography/mass spectrometry (GC/MS) methodologies were combined in order to identify a wide range of organic materials in paint samples. Chemical analysis of the ground layer was not always possible due to limited sample quantities and because of difficulties in separating paint layers. The techniques described in the method section were adapted to identify waxes, free fatty acids, oils, plant resins, fatty acid soaps, and proteins (egg, casein, or animal glue) in a single micro-sample of paint. Three subsequent derivatization procedures were carried out in an Agilent micro vial with a crimp top. First, the sample was tested for waxes and free fatty acids and fatty soaps (Butyl Prep protocol). Next, the sample was tested for oils and resins (Meth Prep protocol). Lastly, the sample was tested for proteins (amino acid protocol). Whenever possible, paint samples were weighed (20–300 µg) and deposited into 15 µL high recovery autosampler vials (Agilent #5184-3551) fitted with crimp tops (Agilent #8010-0051). Identification of plant gums by monosaccharide analysis required a separate paint sample; due to limited sample quantities, it was utilized less often.

2.1. Butyl Prep: Beeswax and Soap Analysis

Tert-butanol is a tertiary alcohol sterically hindered in transesterification reactions. The Butyl Prep method is a novel derivatization technique adapted from Van Kuijk [28] that utilizes 3-(trifluoromethyl)phenyl trimethylammonium hydroxide (TMTFTH) or Meth Prep reagent (TCI part # T0961) in t-butanol. It is used to analyze free fatty acids, fatty acid soaps, waxes, and alkyl esters in beeswax and oils.
1)
To make the Butyl Prep reagent, add 400 µL of Meth Prep reagent into a 2 mL autosampler vial and evaporate under nitrogen to dryness at 50 °C. Add 50 µL of toluene, evaporate to dryness, then add 100 µL of t-butanol. Mix contents until the salt is in solution, add 600 µL of chloroform, then mix until the solution is clear.
2)
Add between 20 and 50 µL of the Butyl Prep reagent to the paint sample in a high recovery autosampler vial, cover with a crimp top lid, and heat the vial for one hour at 60 °C in an oven.
3)
An Agilent 6890N/5973 inert GC/MS system was used for analysis with a Zebron™ ZB-5HT column (30 M x 0.25 mm x 0.10 µm) for separation. Helium gas 1.2 mL/min; splitless injection liner without glass wool at 300 °C; transfer line 320 °C. Oven program: 80 °C (2 min), 10 °C/min to 210 °C; 20°C/min to 360 °C (6 min); 40 °C/min to 380 °C (2 min). Total run time was 31 min in SCAN mode (50–550 m/z). Fatty acid standards were used for calibration.

2.2. Meth Prep: Oil Analysis

Following Butyl Prep analysis, natural plant resins such as pine resin, mastic, and oils were analyzed with Meth Prep. The reagent is used for the transesterification of lipids and the methylation of fatty acids, including dicarboxylic fatty acids formed by oxidation of drying oils. It measures the total amount of fatty acids, including free fatty acids, fatty acid soaps and glycerides. The Meth Prep protocol was described previously [29,30]. To get a complete pattern of mono and dicarboxylic fatty acids in beeswax portraits, Meth Prep results for dicarboxylic fatty acids and glycerol were combined with the Butyl Prep results using ESCAPE (Section 2.7).
1)
Prepare reagent by diluting (1:2) Meth Prep in toluene.
2)
Gently evaporate the Butyl Prep from the micro vials without heat, or allow the solution to evaporate at room temperature.
3)
Add between 20 and 50 µL of Meth Prep reagent to the vial, cap, and heat at 60 °C for 1 hour. Inject into GC/MS with the same final volume and instrumental parameters for Butyl Prep.

2.3. Amino Acid Analysis: Proteins (egg, animal glue, casein)

The protein identification method utilizes ethyl chloroformate, and has been described previously [31,32]. The percentage of protein is reported as (mg/mg) amino acids in paint sample. A perfect match to proteins in the reference library is a correlation coefficient (c. coeff.) of 1.0; for some degraded samples, 0.93 is an acceptable match.
1)
Evaporate Meth Prep solution in the sample micro vial with nitrogen at 50 °C. Add 100 µL of 6N HCL, cover with a crimp top lid, and heat at 105 °C for 24 h (or 4 h at 145 °C). Then follow the published amino acid protocol for sample preparation.
2)
An INNOWAX column (25 M × 0.2 mm × 0.2µm) was used for separation. Helium gas 1 mL/min, splitless injection at 240 °C; transfer line 240 °C. Oven program: 70 °C for 1 min; 20 °C/min to 250°C; isothermal for 3.5 min. The total run time was 12 min. SIM mode was used. The identification of proteins by GC/MS is accomplished by comparing the amino acids (building blocks of proteins) of each sample to those of standard reference materials using the method of correlation coefficients. Amino acid standards were used for calibration.

2.4. Monosaccharide Analysis: Plant Gums (Acacia sp. gums, monosaccharides, starch, and honey)

The procedure is described previously in two publications [26,33]. When the samples were large enough, they were weighed (approximately 100 µg) into 15 µL high-recovery crimp-top autosampler vials. Then a published protocol for sample preparation was followed. An INNOWAX column (25 M × 0.2 mm × 0.2µm) was used for separation. Helium carrier gas was set to a linear velocity of 29 cm/sec. Splitless injection was set to 240 °C. The MS transfer line was set to 260 °C. The GC oven temperature program was 105 °C for 1 min; 20 °C/min to 250 °C; isothermal for 10 min. The total run time is 18.25 min. SCAN mode was used. Monosaccharides standards were used for calibration.

2.5. Fourier-Transform Infrared Spectroscopy (FTIR)

A Bruker, Hyperion 3000 FTIR with Omnic 7.1 software was used to identify fatty acid soaps based on library match software. A representative sample particle was placed on a diamond window and analyzed by a transmitted infrared beam with an aperture of approximately 100 × 100 microns, using a 15X objective.

2.6. Enzyme-linked Immunosorbent Assay (ELISA)

Mazurek [34] described this method previously, and it was used with a few modifications. The paint samples were treated with 20 µL elution buffer and allowed to sit overnight for extraction of proteins. The elution buffer is composed of 10 mM tris-HCl, pH 7.4, 0.5 M EDTA, 6M Urea, 1% Sodium dodecyl sulfate (SDS) in deionized water. After extraction in 2 mL centrifuge tubes, 80 µL of 100 mM sodium bicarbonate. Egg ovalbumin antibody (#AB1225), with rabbit IgG (#AP132A). Sea block was utilized and PNPP (p-nitrophenyl phosphate detection read by a microplate spectrophotometer, Finstruments model #341.

2.7. ESCAPE Data Evaluation

GC/MS data from Meth Prep and Butyl Prep analysis were evaluated using ESCAPE (Expert System for Characterization using AMDIS Plus Excel) which was developed for interpreting Pyrolysis-GCMS data for decorative lacquers from Asia and Europe [35]. AMDIS (Automated Mass Spectral Deconvolution & Identification System) is part of the NIST MS Search version 2.3 software. AMDIS was used to automatically identify and measure peak areas for beeswax and oil components, including monocarboxylic, dicarboxylic, saturated and unsaturated fatty acids, alcohols, hydrocarbons, and wax esters. The AMDIS report was saved as a text file and exported to a customized EXCEL report template developed for data interpretation in this project. The EXCEL database contains all paint samples and the deconvoluted peak areas. The Butyl Prep and the Meth Prep data were combined to get the complete fatty acid profile.

2.8. Reference Materials

1)
An ancient beeswax writing tablet (6-20403), Roman Empire (27 BC–395 AD). 14 cm × 18 cm × 0.5 cm. Arthur S. Hunt and Bernard P. Grenfell. Roman tomb, Tebtunis, Faiyum region. Phoebe Hearst Museum
2)
19th C Beeswax, black color, Boston Museum of Fine Arts
3)
Fresh Beeswax from GCI reference collection
4)
Mummy portraits and panel paintings are described in Table 1

3. Results

3.1. Summary

Table 1 provides a summary of the results for 61 objects—mummy portraits on wooden panels and linen shrouds (51), portrait panels and hinged doors (9), and a Roman shield (1)—including the accession number, provenience, stylistic date, panel shape (rounded, angled or uncut), wood species and panel thickness. The provenience and provenance (collection history) of a portrait is reported when known, and when conjectured it is given in italics and parenthesis. The description of the paint application was defined as follows: heavy indicates a thickly applied paint layer, whereas lean indicates a matte or thin paint layer. Paint applied as impasto shows evidence of tool marks that sculpted the medium, whereas flat indicates paint with no obvious tool marks (which is often seen in tempera portraits). Cartwright [36,37] identified the majority of the species of wood used to manufacture the panels, and the results are included in Table 1. Panel thicknesses for beeswax portraits are typically very thin, 2 mm on average, and are identified as Tilia europaea, also known as lime or linden wood. Tempera portraits are most often on thicker panels, 11 mm on average, and are most often composed of Ficus sycomorus, a fig tree belonging to the Moraceae family or Cedrus libani, a cedar of Lebanon.
Sutherland’s [38] binding media terminology was applied in order to accurately describe the tempera technique. Table 1 shows the tempera identified using the protocols outlined in the Materials and Methods. If the proteinaceous binding media could not be positively identified, it was described as protein tempera. Further, if the binder was completely unknown, it was described as tempera. Some portraits have documentation describing past treatments, such as consolidation with heat or animal glue, and were noted as such. Other materials identified by GC/MS or ELISA, such as egg coatings and paraffin wax, are indicated with parentheses.

3.2. Beeswax Portraits

Figure 1 shows a typical result for paraffin wax in a mummy portrait from the Petrie Museum (UC 33971). Paraffin wax was identified by a characteristic pattern of odd- and even-numbered hydrocarbons that resembled a skewed bell-shaped curve. Eight portraits contained high amounts of paraffin wax used for consolidation; of these, three were from the Petrie Museum. This confirmed Petrie’s reported use of paraffin as an emergency consolidation treatment. Figure 2 shows the Butyl Prep GC/MS total ion chromatograms (TIC) for beeswax samples without lead-based pigments to illustrate aging behavior. The top chromatogram is beeswax from the 19th century and the bottom is from an Egyptian wax tablet from the 1st to 3rd centuries from the Phoebe Hearst Museum (6-20403). Beeswax is a relatively stable material, as shown by the consistent amounts of palmitic acid (C16), tetracosanoic acid (C24), and beeswax esters (C40-C48). Other than a reduction in hydrocarbons and fatty acids in the ancient sample, the chemical profile of the ancient wax tablet was still remarkably similar to the modern beeswax sample
Table 2 details the relative percent peak areas of palmitic acid, wax esters, dicarboxylic fatty acids, and monocarboxylic fatty acids in the beeswax portraits. The peak areas were quantified with ESCAPE and percent values were obtained by dividing each category (wax esters, saturated and unsaturated monocarboxylic fatty acids, and dicarboxylic fatty acids) by the total sum. Dicarboxylic fatty acids formed by the oxidation of lipids and oils were measured from the Meth Prep analysis. Hydrocarbons were not included in the beeswax analysis because they were common to both beeswax and paraffin wax. Pine resin was detected on several portraits, and likely originated from resin in the mummy wrappings.

3.3. FTIR: Beeswax and Metal Soaps

FTIR analysis was used on select samples to detect the presence of metal soaps. Figure 3 compares spectra from two portraits: a copper-based green paint (JPGM 79.AP.141) and a lead white paint (JPGM 71.AP.72). The spectrum from the white paint best matched lead soap and beeswax. The spectrum from green paint best matched copper soap and beeswax. GC/MS analysis identified 46% palmitic acid and 16% wax esters in the white paint and 11% palmitic acid and 30% wax esters in the green paint. Figure 4 is a detailed image of the white beeswax showing clean bristle marks and small particles present at the end of long strokes of paint, which is consistent with the application of melted wax by brush. GC/MS analysis of the white paint showed high amounts of palmitic acid and reduced wax esters, and FTIR confirmed the presence of lead soaps, all of which indicate that hydrolysis of wax esters occurred.

3.4. Meth Prep: Oil Analysis

Meth Prep reacts with oxidized oils by transesterification of triglycerides, resulting in a series of methylated dicarboxylic acids that were formed by autoxidation of the unsaturated fatty acids, and methyl ethers originating from glycerol. More than half of the beeswax portraits showed evidence of oxidized oil due to the presence of dicarboxylic acids, however, glycerol was rarely detected. Figure 5 shows results for a mummy portrait from the Petrie Museum of Egyptian Archaeology (UC19608) overlaid with the ancient wax tablet from the Phoebe Hearst Museum (6-20403). The portrait contains 43% palmitic acid, 9 % wax esters and 18% dicarboxylic fatty acids, whereas the tablet contains 0.4% palmitic acid, 80% wax esters and 0.2% dicarboxylic fatty acids. The portrait sample also contained trace amounts of erucic acid (C22:1), which is a marker for Brassicaceae (mustard family) oil, as well as oleic acid (C18:1).

3.5. Location of Oxidized Oil in Beeswax Paint Samples

The stratigraphy of three large samples were studied in order to pinpoint the location of oil in the beeswax paint. Two samples were red paint (JPGM 91.AP.6 and JPGM 81.AP.42) and one white paint sample from the tunic (AEIN 1426). Table 3 shows the relative amounts of dicarboxylic fatty acids in the top and bottom areas within the paint fragments. Dicarboxylic fatty acids were not localized on the surface of the paint, which means that oil was not a surface application in these cases.

3.6. Amino Acid Analysis

Table 4 shows stable amino acid data for selected reference proteins for comparison. Schilling [32] reported that the so-called “stable amino acids” were less sensitive to the effects of aging and pigments. There are many sources of amino acids, and not all could be included here. Relevant proteinaceous materials illustrate the fact that mixtures of proteins can complicate interpretation.
Table 5 presents a summary of all the objects tested for amino acids. Amino acids were found in a majority of beeswax portraits, and some were consistent with animal glue (correlation coefficient between 0.93 and 0.99). The amino acid composition occasionally matched skin epidermis, or egg (from coatings); some did not match a known reference material. Not all samples were tested by ELISA, as sample amounts were often limited. Relative amounts of protein content were included when sample weights were measured.
Samples from the tempera portraits contained between 1% and 3% protein that most closely matched animal glue (collagen). Animal glue was identified in a paint sample from a Petrie Museum portrait (UC 14768) that Ramer [39] identified as egg tempera on the basis of fatty acid profiles. This was one of the earliest studies of these paintings, and has been often cited in literature, even though Mills and White [40] reported that fatty acid profiles are not ideal for identifying egg tempera.
Three portrait panels and/or hinged doors from the Phoebe Hearst Museum (6-21384, -85, -86) were identified as glue tempera. Two tempera portrait panels (6-21387 and CA 5879) could not be characterized due to limited sample amounts. The Roman shield from Yale previously restored with PVA and beeswax contained glue tempera. Glue tempera was also identified in a portrait panel from Ny Carlsberg Glyptotek (AEIN 685).

3.7. Amino acid, ELISA, and Peptide Analysis: Egg Protein

Egg protein was identified by amino acid analysis as a final coating on two portraits (AEIN 681 and AEIN 684) that appeared as cracked islands on the surface. Also, immunological testing with enzyme-linked immunosorbent assay (ELISA) identified the presence of egg coatings on another beeswax portrait (JPGM 74.AP.11) and three glue tempera panel paintings (JPGM 74.AP.20–22). Figure 6 shows results for a mummy portrait (JPGM 74.AP.11) and details of an area showing the cracked coating on the vertical purple stripe of the tunic (clavi). The GC/MS amino acid results of the coating matched egg (0.98). A recent analysis by Kirby [41] utilizing Peptide Mass Fingerprint (PMF) on the egg coatings from mummy portraits (JPGM 74.AP.11 and JPGM 74.AP.20), further identified the coatings as whole egg from hen based on the observance of characteristic marker ions for hen egg glair and yolk. Some peptides showed a high degree of deamidation, which can be caused by time, temperature, and chemical processing [42]. Further research is planned to understand the presence of the coating in this condition.

3.8. Mixtures of Organic Materials

Difficulties in interpretation arose when mixtures of organic materials were present. For example, Figure 7 shows the fatty acid analysis of a glue tempera portrait on linen (JPGM 75.AP.87). A white paint sample from the tunic showed the presence of 34% high molecular weight dicarboxylic fatty acids and 7% azelaic acid, strongly suggesting the presence of oxidized oil. Additionally, erucic acid, an unsaturated fatty acid (13-docosenoic acid) labeled C22-1 was detected, that is a biomarker for Brassicaceae (mustard seed oil). Oxidized oil was not detected in samples of black paint from the background, although it was present in yellow paint from the bird, the white tunic, and flesh-colored paint from the face. These results indicate that embalming material was not the source of oil in this case, otherwise, it would have been detected in all the samples analyzed from the black background. Figure 8 shows that the amino acid acids identified in the white tunic sample closely matched animal glue (0.99 correlation coefficient).

3.9. Monosaccharide Analysis: Plant Gums

Plant gums were identified by monosaccharide ratios, and the results are summarized in Table 6. If the sample weight was not measured, a semi-quantitative value of carbohydrate content was reported based on the detected value of carbohydrates in parts per million (mg/L). As the analysis required a second sample, this limited the number of paintings that were tested. Plant gum was identified in the grey background from the mummy portrait (JPGM 79.AP.142); the best match was to Acacia sp. Gum, with an additional unknown source of glucose. The Acacia sp. gum was indicated by the presence of arabinose and galactose, whereas the more commonly-known gum Arabic (Acacia Senegal), harvested from Senegal, also contains rhamnose. Therefore, Acacia sp. gum, a genus of tree native to North Africa, was identified as a possible source. The green paint from portrait panel (AEIN 685) contained gum tempera (perhaps Acacia sp.) with a white-colored glue ground. Most portraits tested contained variable amounts of glucose and/or xylose which may originate from degraded monosaccharides migrating into the paint from the wood.

3.10. Sampling Strategies

Whenever possible, samples were selected to avoid areas with prior interventions. Figure 9 shows that restorations were visible in the ultraviolet-induced visible fluorescence image of a portrait (79.AP.142). In-painting is visible on the forehead, mustache, right ear lobe, around both lips, and the lower beard. Interestingly, the image also shows fluorescence characteristic of madder on the rose petal garland, wine glass, stitching on the tunic at the neckline and his face, and the rose color in the cheeks.

4. Discussion

4.1. Beeswax Characterization

Thirty-three portraits contained beeswax likely from Apis melifera, the most common North African honeybee that was harvested for thousands of years in ancient Egypt for its honey and beeswax [43]. Beeswax composition of A. melifera is well known and contains relatively high amounts of lignoceric acid (C24) when compared to other species such as Apis cerana [44,45]. In general, modern beeswax is composed of 14% hydrocarbons, 35% monoesters, 3% diesters, and 12% free fatty acids [46]. Beeswax contains several different types of wax esters including hydroxy monoesters and diesters with chain lengths of C54 and C64. The most abundant wax esters are composed of palmitic acid (C16) with long-chain alcohols that vary in chain length (C40, C42, C44, C46, and C48).
A GC/MS chromatogram of 19th century beeswax is shown in Figure 2 and the composition is remarkably similar to fresh beeswax. By comparison, samples of beeswax from the mummy portraits contain significant amounts of palmitic acid relative to other fatty acids such as lignoceric acid and wax esters. Figure 10 is a peak area percentage plot of total wax esters versus unesterified palmitic acid for various paint samples from the beeswax portraits, with data for modern beeswax and the ancient wax tablet included for reference. Modern beeswax and the ancient wax tablet group together at the top left of the graph because of relatively low content of unesterified palmitic acid (less than 10%) and high wax ester content (greater than 80%).
The data show a negative correlation between wax ester content and unesterified palmitic acid, which is consistent with the formation of palmitic acid by hydrolysis of the wax esters. Considering that free palmitic acid evaporates readily from paints, variation in the amount of unesterified palmitic acid in the portraits is likely correlated to the content of lead palmitate soaps formed by reaction with lead-based pigments. Hydrolysis of the wax esters and formation of lead palmitate may be affected by environmental conditions during burial, or exposure to humidity prior to burial. Also, the black paints (black circles) and reference samples of beeswax without pigment (clear circles) cluster together at the top left quadrant of the graph. Perhaps this is because the black paints do not contain significant amounts of lead and are less likely to form soaps.

4.2. Oxidized Oil

Over half of the beeswax portraits contained evidence of oxidized oil. Figure 11 gives the area percentages of high molecular weight dicarboxylic fatty acids versus azelaic acid in a scatter plot for paint samples that exhibit evidence for oil. Dicarboxylic fatty acids, often considered as marker compounds for drying oils in paintings, were identified in some of the beeswax portraits and in one tempera portrait. Pigment type did not correlate to the presence of oil.
High molecular weight dicarboxylic acids are composed of 10 to 15 carbons while azelaic acid contains 9 carbons. Azelaic acid is formed by oxidation of unsaturated fatty acids such as oleic acid (C18:1 fatty acid). In contrast, dicarboxylic acids above 9 carbons in length could come from many sources, and Evershed [47] reported they form in arid climates. High molecular weight dicarboxylic acids such as undecanedioic acid (DC11), dodecanedioic acid (DC12), and tridecanedioic acid (DC13) have been reported as markers for Brassicaceae oil or mustard seed oil [48]. Specifically, the identification of the fatty acid biomarker erucic acid (C22:1) further supports the presence of a Brassicaceae or mustard family seed oil.
The J. Paul Getty glue tempera portrait (JPGM 75.AP.87) contained 35% high molecular weight dicarboxylic acids. Oxidized oil was identified in the figure but not the black background, thus mummification unguents are not likely their source. Two portraits from the Menil collection, considered to be modern forgeries, were in fact oil paintings. They contained 45% azelaic acid which is typical of drying oils, and these portraits are not included in the data plotted in Figure 11. Erucic acid was identified in a glue portrait on linen (JPGM 75.AP.87), a beeswax portrait from the Petrie Museum (UC 19608), a beeswax portrait from the Walters Museum (32.4), and a beeswax portrait with egg coating (JPGM 74.AP.11). Additionally, the mummy portrait (JPGM 74.AP.11) contained oil in the flesh color from the face, the white background, and the tunic. The presence of erucic acid in these portraits is consistent with Brassicaceae or mustard family seed oil. Two beeswax portraits (73.AP.94 and AEIN 680), that were described as flat and lean, did not contain oil. Future research is necessary to correlate the appearance of beeswax paint with the presence or absence of oil.

4.3. Oil and Beeswax: Evidence for Additive or Restoration Treatment?

There are several possible explanations for the presence of oxidized oils: either it was added intentionally by the artists, or it is contamination from restoration treatments or embalming oils. The Greeks and Romans, acquainted with oil painting, mixed oil with wax to render the medium more flexible and easily applicable. The “ganosis” technique is described as wax melted and diluted with a little oil [49]. However, Petrie described his displeasure when discovering paintings “injured” due to oil from mummification soaking through the wood panel and darkening the paint. Some portraits became completely obscured due to the dark stains caused by the oil. Decay occurred due to damp conditions, presumably by biodeterioration, causing their destruction.
In one glue tempera portrait (JPGM 75.AP.87), the source of the oil did not appear to be from mummification materials because oil was not detected in several different areas of black paint from the background. Oil was present in the yellow paint from the bird, the white tunic, and flesh-colored paint from the face. These results indicate that the embalming oil was not the source of oil in this paint, otherwise, it would have been detected in the black background. Testing of the top and bottom of select paint fragments from different objects showed that, in those specific cases, the oxidized oil did not appear to be a coating localized on the surface because the amount of dicarboxylic acid did not decrease with depth (Table 4). Embalming material, not available for testing in this study, would be an important reference material to test for oils, animal fats, and other lipids. The sources of oil in the portraits require further investigation.

4.4. The Indicators for Modified Beeswax

The descriptions of beeswax portraits have been cited as evidence that the wax was modified. For example, a mummy portrait from the Ny Carlsberg Glyptotek (AEIN 1425) was described as “a rich oil-paint texture suggesting wax used cold” [4]. In this present study, oxidized oil was identified in this beeswax portrait. In this same publication (page 167), a mummy portrait from the Cleveland Museum of Art (1971.136) was described as painted on by brush and “having the effect of an oil painting.” Unfortunately, binding media results from this portrait showed that it was heavily restored and treated with paraffin wax, so oil could not be reliably identified. In this same publication (page 180), a beeswax mummy portrait from the J. Paul Getty Museum (JPGM 79.AP.141) was described as the “surface of the painting is covered with fine vertical cracks, suggesting the use of Punic wax mixed with oil.” In our study, this painting was found to contain a gum tempera ground layer and beeswax paint (21% palmitic acid, 33% wax esters) with no evidence for oxidized oil. The cracking beeswax paint is likely due to the incompatibility of the paint layers—the wax was applied over the gum tempera ground layer—and not due to the presence of oil.
An encaustic portrait from the Petrie Museum (UC 19612) was re-examined because it was previously identified as “modified” wax by White [12] due to the relatively low amounts of beeswax esters and the presence of brush marks. Results from this current study show that a sample from the background contained 24% palmitic acid, 39% wax esters, 2% dicarboxylic acids, and low amounts of animal glue. In contrast, white paint from mummy portrait (JPGM 71.AP.72), which had the appearance of being applied hot, contained fewer wax esters (10%), significantly more palmitic acid (50%), 5% dicarboxylic acids, and 0.9% unknown protein. These results support the assumption that “modified” beeswax (if present) is very difficult to identify by chemical methodologies.

4.5. Animal Glue Tempera and Protein

Amino acids are ubiquitous in beeswax portraits; most of the portraits examined had variable amounts of protein that matched animal glue. For a few samples, the amino acid compositions matched skin epidermis, or did not match known reference materials. Although glue may have been added intentionally to the wax, it may also have been applied as a preparation layer to seal the wood before painting or as a consolidant in restorations. Significantly, the amino acid data indicated that animal glue was the preferred tempera medium, as the vast majority of the tempera paintings were painted with glue, whereas egg paint medium has yet to be confirmed.
The identification of egg in coatings from five mummy portraits and three panel paintings was accomplished by amino acid and ELISA methods. Five of the paintings are presumed to be from the er-Rubayat region (Table 1), so it is possible that the egg coating could be a restoration treatment by Graf or others. However, the egg coatings appear to be very old and degraded, and many of the remaining portraits in this study were not examined with the attentiveness to identify coatings. The identification of additional portraits with egg coatings and the characterization of the species of bird egg by using proteomics would be an interesting subject of future research.

5. Conclusions

The binding media survey presented here summarized the results of 61 Romano-Egyptian paintings. It utilized GC/MS protocols capable of identifying the presence of beeswax, soaps, oils, and protein in single micro-samples of paint. The protocols enabled differentiation of modern and ancient beeswax, as well as paraffin wax. Beeswax mummy portraits showed a prevalence of lead soaps, likely due to the hydrolysis of wax esters over time. Oxidized oil was identified for the first time in more than half of the beeswax portraits and in one tempera portrait. The fatty acid analysis revealed the presence of oxidized oil due to the presence of high molecular weight dicarboxylic fatty acids, as well erucic acid, a biomarker fatty acid from the mustard family (Brassicaceae). Amino acid analysis was used to identify egg coatings, and the prevalence of animal glue in tempera paints. The results of the survey were enhanced by using consistent protocols for the study of ancient binding media, advanced technologies and collaborations fostered through the APPEAR project.

Author Contributions

Methodology, J.M.; software and editing, M.S. (Michael Schilling); formal analysis, J.M.; original draft preparation, J.M.; writing—review and editing, M.S. (Marie Svoboda) and M.S. (Michael Schilling).

Acknowledgments

Lin Spaabaek, conservator, for first discovering the visual indications of egg coatings on beeswax portraits from NY Carlsberg Glyptotek. Corina Rogge, Museum of Fine Arts Houston for supplying samples and materials. Giacomo Chiari and Tom Learner, Head of Science, GCI, for encouragement and support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Borg, B.E.; Most, G.W. The Face of the Elite. Arion 2000, 8, 63–96. [Google Scholar]
  2. Walker, S. Ancient Faces: Mummy Portraits from Roman; Egypt; Taylor & Francis: Didcot, UK, 2000. [Google Scholar]
  3. Freccero, A. Fayum Portraits: Documentation and Scientific Analyses of Mummy Portraits Belonging to Nationalmuseum in Stockholm; Acta Universitatis Gothoburgensis: Gothenburg, Sweden, 2000. [Google Scholar]
  4. Doxiadis, E. The Mysterious Fayum Portraits: Faces from Ancient Egypt; Harry, N., Ed.; Abrams: New York, NY, USA, 1995. [Google Scholar]
  5. Picton, J.; Quirke, S.; Roberts, P.C. LIVING Images: Egyptian Funerary Portraits in the Petrie Museum; Routledge: Abingdon, UK, 2018. [Google Scholar]
  6. Petrie, W.M.F. Hawara, Biahmu, and Arsinoe; Field & Tuer: London, UK, 1889. [Google Scholar]
  7. Borg, B. The Dead as a Guest at Table? Continuity and Change in the Egyptian Cult of the Dead. 1997. Available online: https://core.ac.uk/download/pdf/35120463.pdf (accessed on 1 March 2019).
  8. Petrie, W.M.F. Seventy Years in Archaeology; Cambridge University Press: Cambridge, UK, 2013. [Google Scholar]
  9. Thompson, D.L. Mummy Portraits in the J. Paul Getty Museum; Getty Publications: Los Angeles, CA, USA, 1982. [Google Scholar]
  10. Bagh, T. Archival photo of Petrie’s exhibition at University College London in 1911 showing the mummies and portraits from Hawara. In Finds from W.M.F Petrie’s Excavations in Egypt on the Nu Carlsberg Glyptotek; ISD LLC: Bristol, CT, USA, 2011; Volume 9. [Google Scholar]
  11. Cotte, M.; Checroun, E.; Susini, J.; Dumas, P.; Tchoreloff, P.; Besnard, M.; Walter, P. Kinetics of oil saponification by lead salts in ancient preparations of pharmaceutical lead plasters and painting lead mediums. Talanta 2006, 70, 1136–1142. [Google Scholar] [CrossRef]
  12. White, R. The application of gas-chromatography to the identification of waxes. Stud. Conserv. 1978, 23, 57–68. [Google Scholar] [CrossRef]
  13. Kühn, H. Detection and Identification of Waxes, Including Punic Wax, by Infra-red Spectrography. Stud. Conserv. 1960, 5, 71–81. [Google Scholar] [CrossRef]
  14. Regert, M.; Colinart, S.; Degrand, L.; Decavallas, O. Chemical Alteration and Use of Beeswax Through Time: Accelerated Ageing Tests and Analysis of Archaeological Samples from Various Environmental Contexts. Archaeometry 2003, 43, 549–569. [Google Scholar] [CrossRef]
  15. Stacey, R.J. The composition of some Roman medicines: Evidence for Pliny’s Punic wax? Anal. Bioanal. Chem. 2011, 401, 1749. [Google Scholar] [CrossRef]
  16. Stacey, R.J.; Dyer, J.; Mussell, C.; Lluveras-Tenorio, A.; Colombini, M.P.; Duce, C.; La Nasa, J.; Cantisani, E.; Prati, S.; Sciutto, G.; et al. Ancient encaustic: An experimental exploration of technology, ageing behaviour and approaches to analytical investigation. Microchem. J. 2018, 138, 472–487. [Google Scholar] [CrossRef]
  17. Leone, R.; Breuil, C. Filamentous fungi can degrade aspen steryl esters and waxes. Int. Biodeterior. Biodegrad. 1998, 41, 133–137. [Google Scholar] [CrossRef]
  18. Hunter, G.W. Laboratory preparation of cold cream to show saponification and emulsification. J. Chem. Educ. 1944, 21, 175. [Google Scholar] [CrossRef]
  19. Agoston, G.A. Acrylics, oils and encaustic: Experiences and opinions of an artist-chemical engineer. Leonardo 1971, 4, 211–219. [Google Scholar] [CrossRef]
  20. Vereshchagin, A.G. Occurrence of Lipophilic Micellae Formed by Fatty Alcohols and Fatty-Acid Sodium Salts in Jojoba-Wax Aqueous Hydrolyzate. Available online: http://www.dr-baumann.ca/science/Chemical%20composition%20of%20Jojba%20Oil.pdf (accessed on 1 March 2019).
  21. Salvant, J.; Williams, J.; Ganio, M.; Casadio, F.; Daher, C.; Sutherland, K.; Monico, L.; Vanmeert, F.; De Meyer, S.; Janssens, K.; et al. A Roman Egyptian Painting Workshop: Technical Investigation of the Portraits from Tebtunis, Egypt. Archaeometry 2017, 60, 815–833. [Google Scholar] [CrossRef]
  22. Henderson, J.; Morkot, R.; Peltenburg, E.; Quirke, S.; Serpico, M.; Tait, J.; White, R. Ancient Egyptian Materials and Technology; Cambridge University Press: Cambridge, UK, 2000. [Google Scholar]
  23. Sack, S.P.; Tahk, F.C.; Peters, T. A technical examination of an ancient Egyptian painting on canvas. Stud. Conserv. 1981, 26, 15–23. [Google Scholar] [CrossRef]
  24. Mathews, T.F.; Muller, N.E. The Dawn of Christian Art in Panel Paintings and Icons; J. Paul Getty Museum: Los Angeles, CA, USA, 2017. [Google Scholar]
  25. Mazurek, J.; Svoboda, M.; Maish, J.; Kawahara, K.; Fukakusa, S.; Nakazawa, T.; Taniguchi, Y. Characterization of Binding Media in Egyptian Romano Portraits Using Enzyme-Linked Immunosorbant Assay and Mass Spectrometry. e-Preserv Sci. 2014, 11, 76–83. [Google Scholar]
  26. Lluveras-Tenorio, A.; Mazurek, J.; Restivo, A.; Colombini, M.P.; Bonaduce, I. The Development of a New Analytical Model for the Identification of Saccharide Binders in Paint Samples. PLoS ONE 2012, 7, e49383. [Google Scholar] [CrossRef] [PubMed]
  27. Granzotto, C.; Arslanoglu, J. Revealing the binding medium of a Roman Egyptian painted mummy shroud. J. Cult. Herit. 2017, 27, 170–174. [Google Scholar] [CrossRef]
  28. Van Kuijk, F.; Thomas, D.; Konopelski, J.; Dratz, E. Transesterification of phospholipids or triglycerides to fatty acid benzyl esters with simultaneous methylation of free fatty acids for gas-liquid chromatographic analysis. J. Lipid Res. 1986, 27, 452–456. [Google Scholar]
  29. Drechsel, D.; Dettmer, K.; Engewald, W. Studies of thermally assisted hydrolysis and methylation-GC-MS of fatty acids and triglycerides using different reagents and injection systems. Chromatographia 2003, 57, 283–289. [Google Scholar] [CrossRef]
  30. Sutherland, K. Derivatisation using m-(trifluoromethyl) phenyltrimethylammonium hydroxide of organic materials in artworks for analysis by gas chromatography–mass spectrometry: Unusual reaction products with alcohols. J. Chromatogr. A 2007, 1149, 30–37. [Google Scholar] [CrossRef]
  31. Schilling, M.R.; Khanjian, H.P.; Souza, L.A. Gas chromatographic analysis of amino acids as ethyl chloroformate derivatives. Part 1, Composition of proteins associated with art objects and monuments. J. Am. Inst. Conserv. 1996, 35, 45–59. [Google Scholar] [CrossRef]
  32. Schilling, M.R.; Khanjian, H.P. Gas chromatographic analysis of amino acids as ethyl chloroformate derivatives. Part 2, Effects of pigments and accelerated aging on the identification of proteinaceous binding media. J. Am. Inst. Conserv. 1996, 35, 123–144. [Google Scholar] [CrossRef]
  33. Lluveras-Tenorio, A.; Mazurek, J.; Restivo, A.; Colombini, M.P.; Bonaduce, I. Analysis of plant gums and saccharide materials in paint samples: Comparison of GC-MS analytical procedures and databases. Chem. Cent. J. 2012, 6, 1–16. [Google Scholar] [CrossRef] [PubMed]
  34. Mazurek, J.; Heginbotham, A.; Schilling, M.; Chiari, G. Antibody assay to characterize binding media in paint. ICOM Comm. Conserv. 2008, 2, 678–685. [Google Scholar]
  35. Schilling, M.R.; Heginbotham, A.; van Keulen, H.; Szelewski, M. Beyond the basics: A systematic approach for comprehensive analysis of organic materials in Asian lacquers. Stud. Conserv. 2016, 61, 3–27. [Google Scholar] [CrossRef]
  36. Cartwright, C.R.; Bierbrier, M. Egyptian mummy portraits: Examining the woodworkers’ craft. In Portraits and Masks. Burial Customs in Roman Egypt; Taylor & Francis: Didcot, UK, 1997; pp. 106–111. [Google Scholar]
  37. Cartwright, C.; Spaabaek, L.R.; Svoboda, M. Portrait mummies from Roman Egypt: Ongoing collaborative research on wood identification. Br. Mus. Tech. Res. Bull. 2011, 5, 49–58. [Google Scholar]
  38. Sutherland, K.S.R.C.; Pozzi, F. Forthcoming publication: Challenges in the Characterization and Categorization of Binding Media in Mummy Portraits” in Romano-Egyptian Funerary Paintings: Emerging Research from the APPEAR Project. In Proceedings of the Getty publication of APPEAR conference, Los Angeles, CA, USA; 2018. [Google Scholar]
  39. Ramer, B. The Technology, Examination and Conservation of the Fayum Portraits in the Petrie Museum. Stud. Conserv. 1979, 24, 1–13. [Google Scholar] [CrossRef]
  40. Mills, J.S.; White, R. The gas-chromatographic examination of paint media. Part II. Some examples of medium identification in paintings by fatty acid analysis. Stud. Conserv. 1972, 17, 721–728. [Google Scholar] [CrossRef]
  41. Kirby, D. Peptide Mass Fingerprint (PMF) of Egg on JPGM Portraits. 2019; Unpublished data. [Google Scholar]
  42. Kirby, D.; Khandekar, N.; Arslanoglu, J.; Sutherland, K. Protein identification in artworks by peptide mass fingerprinting. In Proceedings of the Preprints of ICOMCC, 16th Triennial Conference, Lisbon, Portugal, 19–23 September 2011. [Google Scholar]
  43. Franck, P.; Garnery, L.; Loiseau, A.; Oldroyd, B.P.; Hepburn, H.R.; Solignac, M.; Cornuet, J.M. Genetic diversity of the honeybee in Africa: Microsatellite and mitochondrial data. Heredity 2001, 86, 420–430. [Google Scholar] [CrossRef] [PubMed]
  44. Aichholz, R.; Lorbeer, E. Investigation of combwax of honeybees with high-temperature gas chromatography and high-temperature gas chromatography–chemical ionization mass spectrometry: I. High-temperature gas chromatography. J. Chromatogr. A 1999, 855, 601–615. [Google Scholar] [CrossRef]
  45. Aichholz, R.; Lorbeer, E. Investigation of combwax of honeybees with high-temperature gas chromatography and high-temperature gas chromatography–chemical ionization mass spectrometry: II: High-temperature gas chromatography–chemical ionization mass spectrometry. J. Chromatogr. A 2000, 883, 75–88. [Google Scholar] [CrossRef]
  46. Jiménez, J.; Bernal, J.; Aumente, S.; del Nozal, M.J.; Martín, M.T.; Bernal, J., Jr. Quality assurance of commercial beeswax: Part, I. Gas chromatography–electron impact ionization mass spectrometry of hydrocarbons and monoesters. J. Chromatogr. A 2004, 1024, 147–154. [Google Scholar] [CrossRef]
  47. Evershed, R.P.; Heron, C.; Goad, J. Analysis of organic residues of archaeological origin by high-temperature gas chromatography and gas chromatography-mass spectrometry. Analyst 1990, 115, 1339–1342. [Google Scholar] [CrossRef]
  48. Colombini, M.P.; Modugno, F.; Ribechini, E. Organic mass spectrometry in archaeology: Evidence for Brassicaceae seed oil in Egyptian ceramic lamps. J. Mass Spectrom. 2005, 40, 890–898. [Google Scholar] [CrossRef] [PubMed]
  49. Freccero, A. Encausto and Ganosis: Beeswax as Paint and Coating during the Roman Era and its Applicability in Modern Art, Craft and Conservation; Acta Universitatis Gothoburgensis: Gothenburg, Sweden, 2002. [Google Scholar]

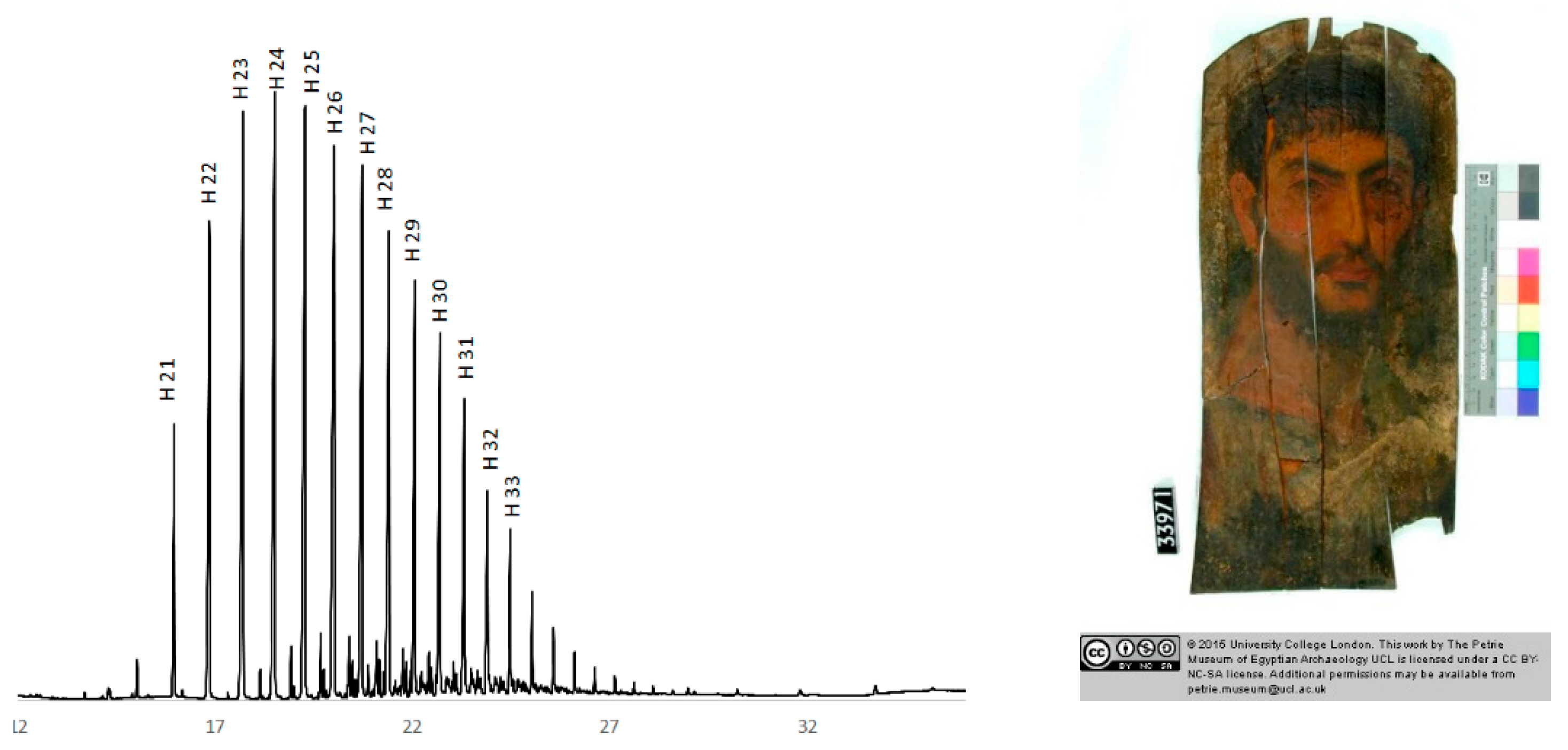

Figure 1. Butyl Prep partial chromatogram (TIC) showing paraffin wax in a mummy portrait from the Petrie Museum (UC 33971).
Figure 1. Butyl Prep partial chromatogram (TIC) showing paraffin wax in a mummy portrait from the Petrie Museum (UC 33971).
Heritage 02 00119 g001
Figure 2. Butyl prep analysis. Partial TIC for a 19th century beeswax (top). Ancient writing tablet from the Phoebe Hearst Museum (6-20403) (bottom). H = hydrocarbons and number of carbons.
Figure 2. Butyl prep analysis. Partial TIC for a 19th century beeswax (top). Ancient writing tablet from the Phoebe Hearst Museum (6-20403) (bottom). H = hydrocarbons and number of carbons.
Heritage 02 00119 g002

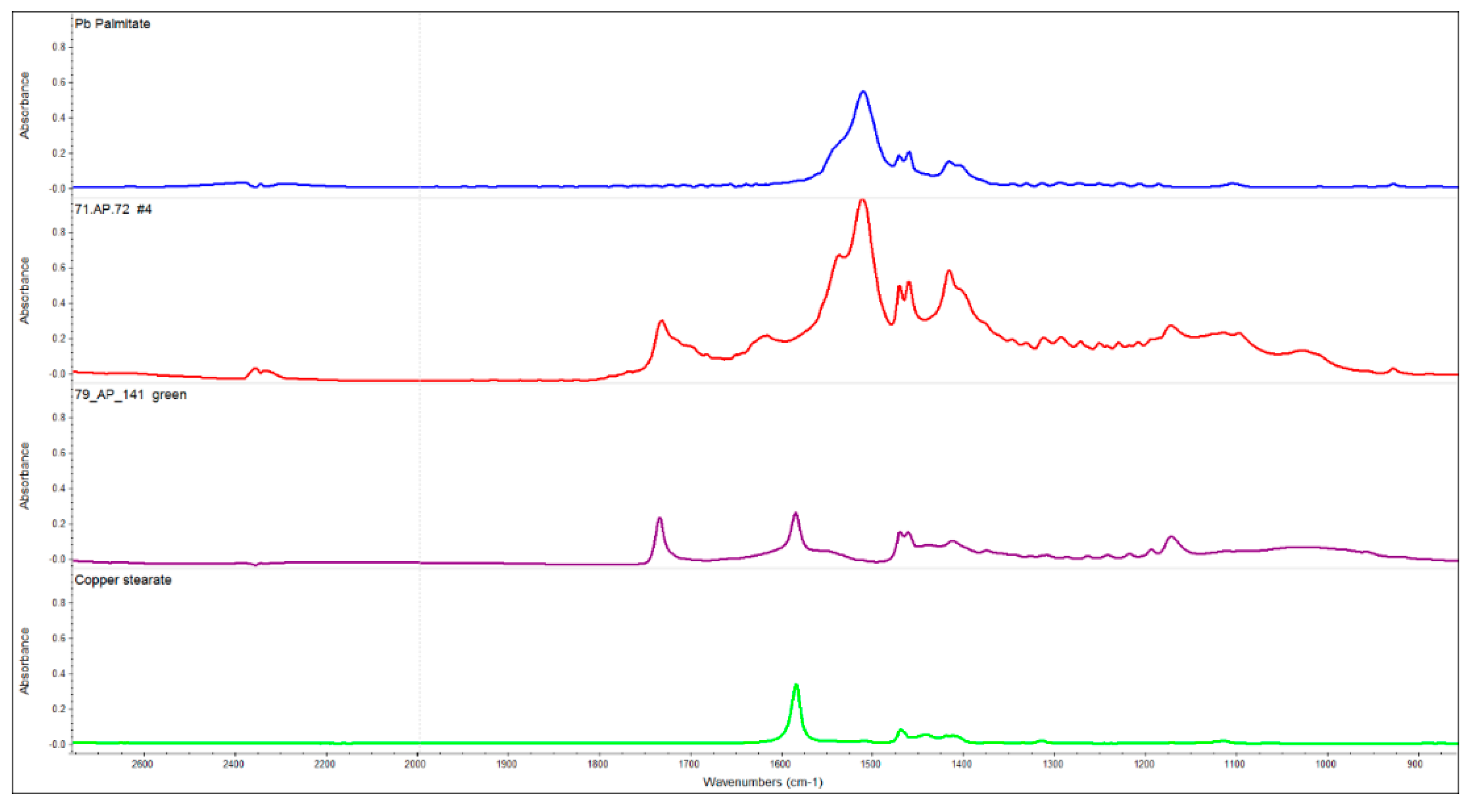

Figure 3. FTIR analysis results. The second spectrum is a white lead-based paint (JPGM 71.AP.72) and the third spectrum is a green copper-based paint (JPGM 79.AP.141). The top spectrum is lead palmitate and the bottom is copper stearate.
Figure 3. FTIR analysis results. The second spectrum is a white lead-based paint (JPGM 71.AP.72) and the third spectrum is a green copper-based paint (JPGM 79.AP.141). The top spectrum is lead palmitate and the bottom is copper stearate.
Heritage 02 00119 g003

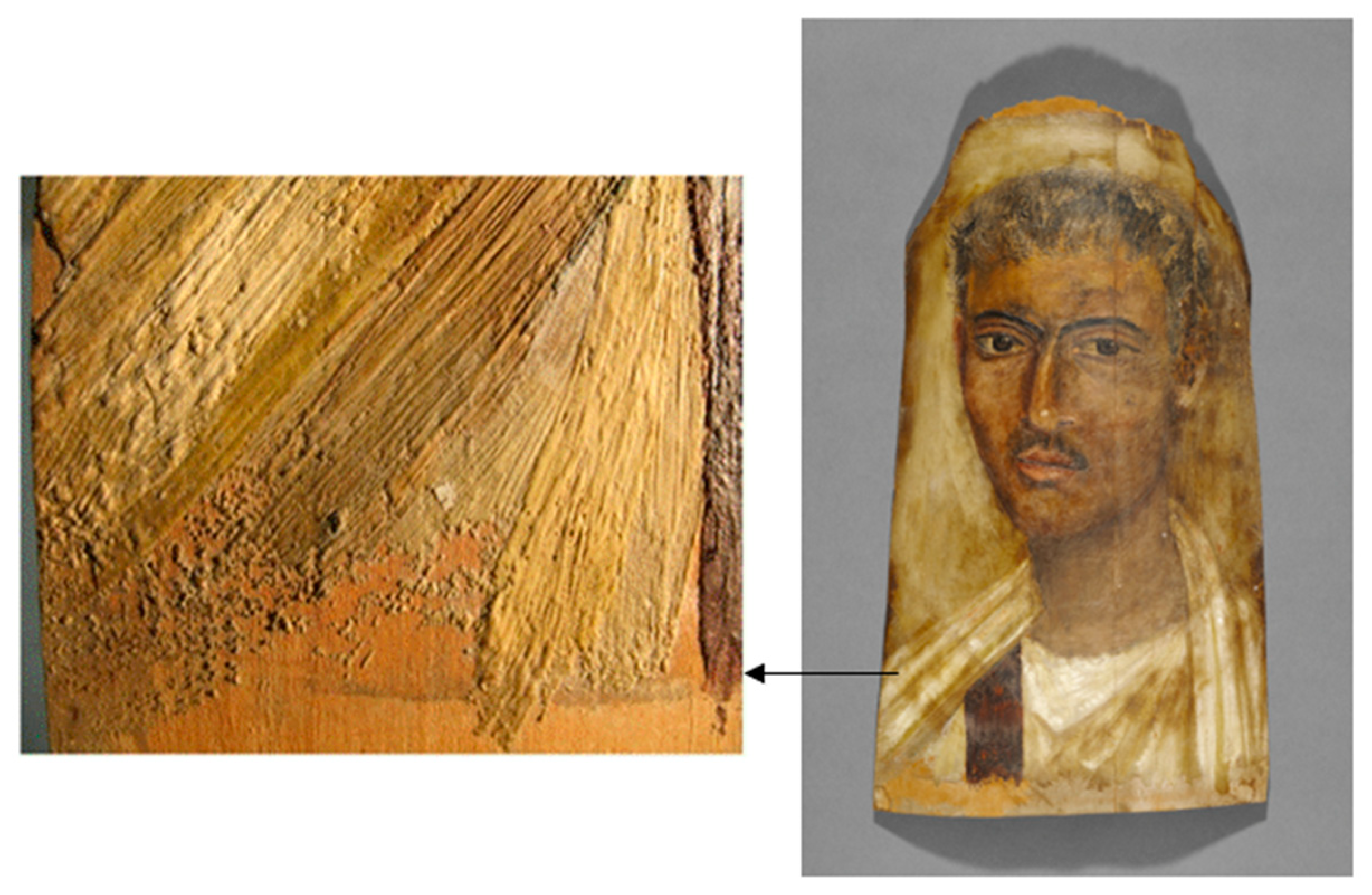

Figure 4. Mummy Portrait of a Man, A.D. 100–125 (JPGM 71.AP.72). The photo on the left shows the detail of the sample location. Image by Marie Svoboda.
Figure 4. Mummy Portrait of a Man, A.D. 100–125 (JPGM 71.AP.72). The photo on the left shows the detail of the sample location. Image by Marie Svoboda.
Heritage 02 00119 g004

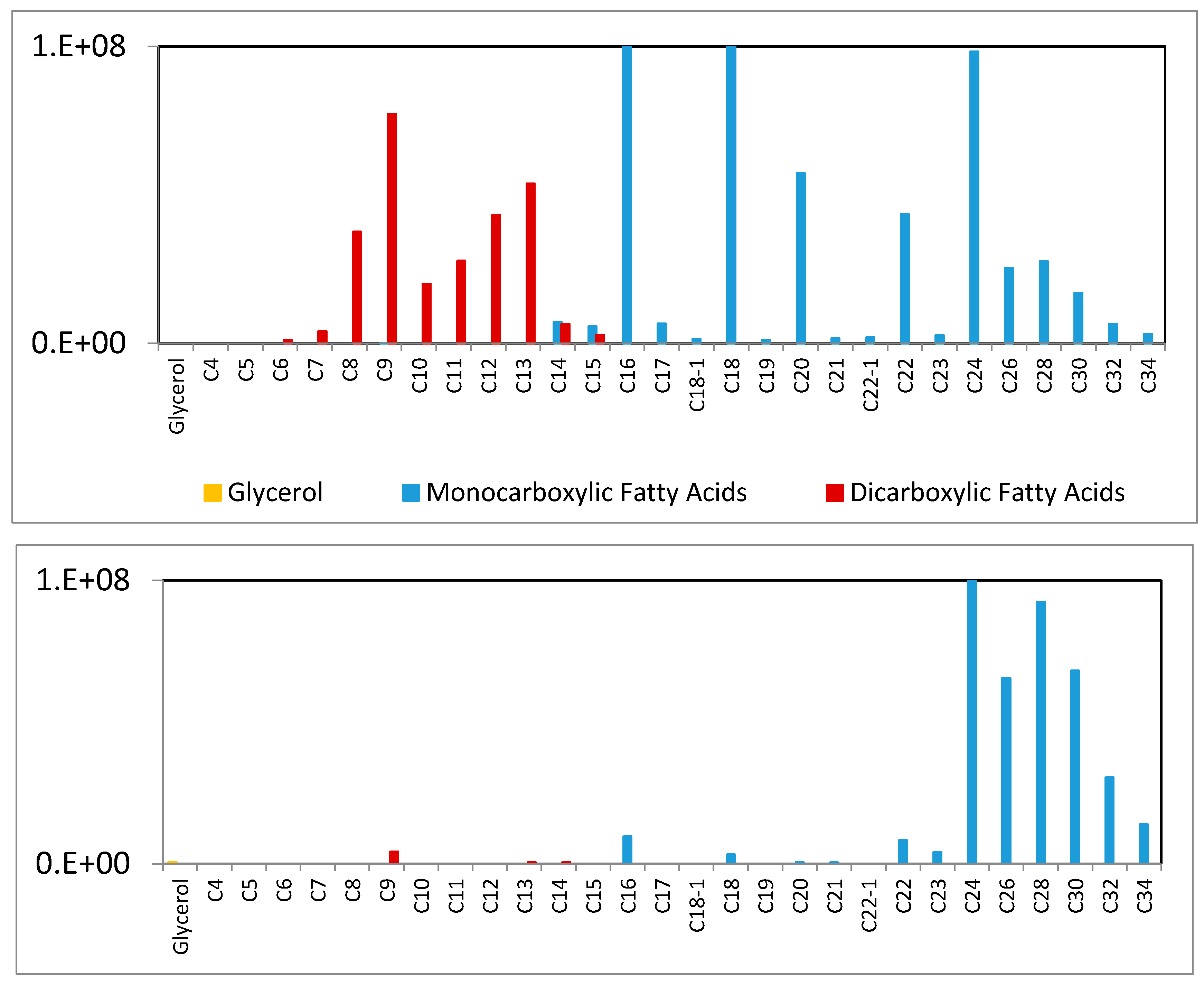

Figure 5. Peak area results for dicarboxylic fatty acids from Meth Prep (red), monocarboxylic fatty acids from Butyl Prep (blue), and glycerol from Meth Prep (yellow). The top graph shows a beeswax portrait from the Petrie Museum of Egyptian Archaeology (UC 19608) and the bottom graph shows beeswax from an ancient wax tablet, Phoebe Hearst Museum (6-20403).
Figure 5. Peak area results for dicarboxylic fatty acids from Meth Prep (red), monocarboxylic fatty acids from Butyl Prep (blue), and glycerol from Meth Prep (yellow). The top graph shows a beeswax portrait from the Petrie Museum of Egyptian Archaeology (UC 19608) and the bottom graph shows beeswax from an ancient wax tablet, Phoebe Hearst Museum (6-20403).
Heritage 02 00119 g005
Figure 6. Beeswax portrait of a man (JPGM 74.AP.11) bottom right image. The top image is a GC/MS partial TIC chromatogram showing that amino acid analysis of the coating matched egg (0.98). The coating is white, cracked and islands are visible (image bottom left). Detail shown is at 20X light microscope. Photo by Marie Svoboda.
Figure 6. Beeswax portrait of a man (JPGM 74.AP.11) bottom right image. The top image is a GC/MS partial TIC chromatogram showing that amino acid analysis of the coating matched egg (0.98). The coating is white, cracked and islands are visible (image bottom left). Detail shown is at 20X light microscope. Photo by Marie Svoboda.
Heritage 02 00119 g006

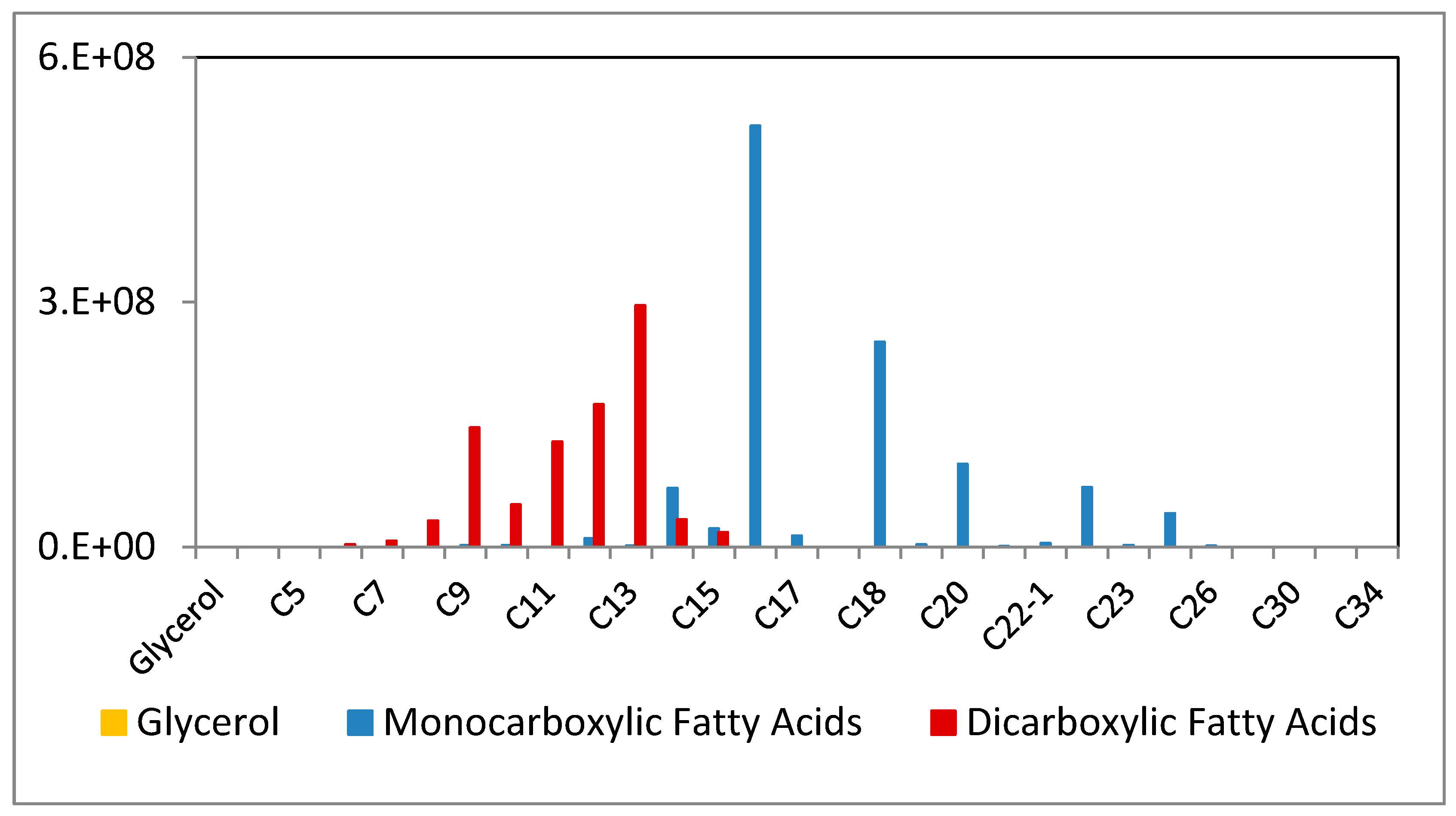

Figure 7. Peak area results from the portrait of a boy on linen (JPGM 75.AP.87).
Figure 7. Peak area results from the portrait of a boy on linen (JPGM 75.AP.87).
Heritage 02 00119 g007

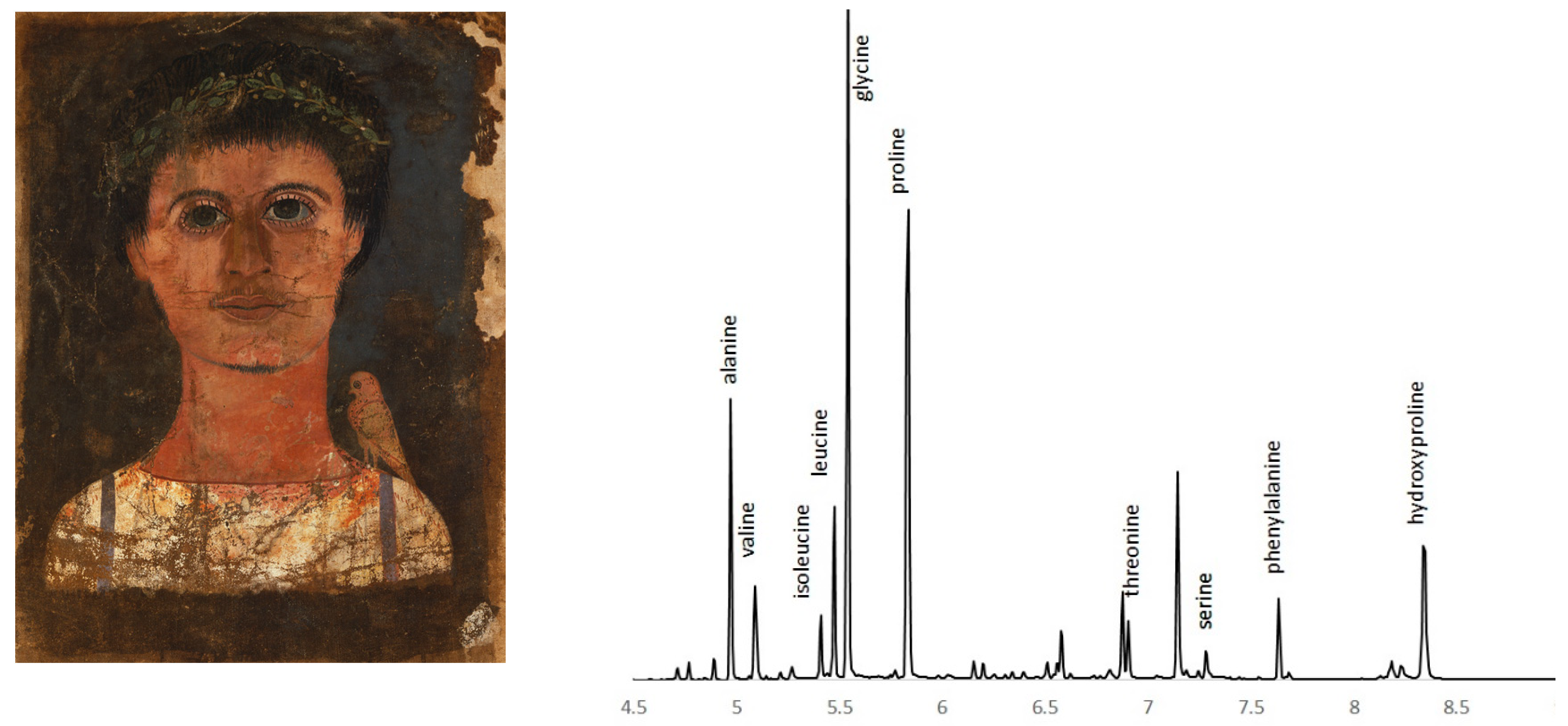

Figure 8. Portrait of a boy on linen (JPGM 75.AP.87). GC/MS partial chromatogram of amino acids from a white tunic paint sample matches animal glue (0.99).
Figure 8. Portrait of a boy on linen (JPGM 75.AP.87). GC/MS partial chromatogram of amino acids from a white tunic paint sample matches animal glue (0.99).
Heritage 02 00119 g008

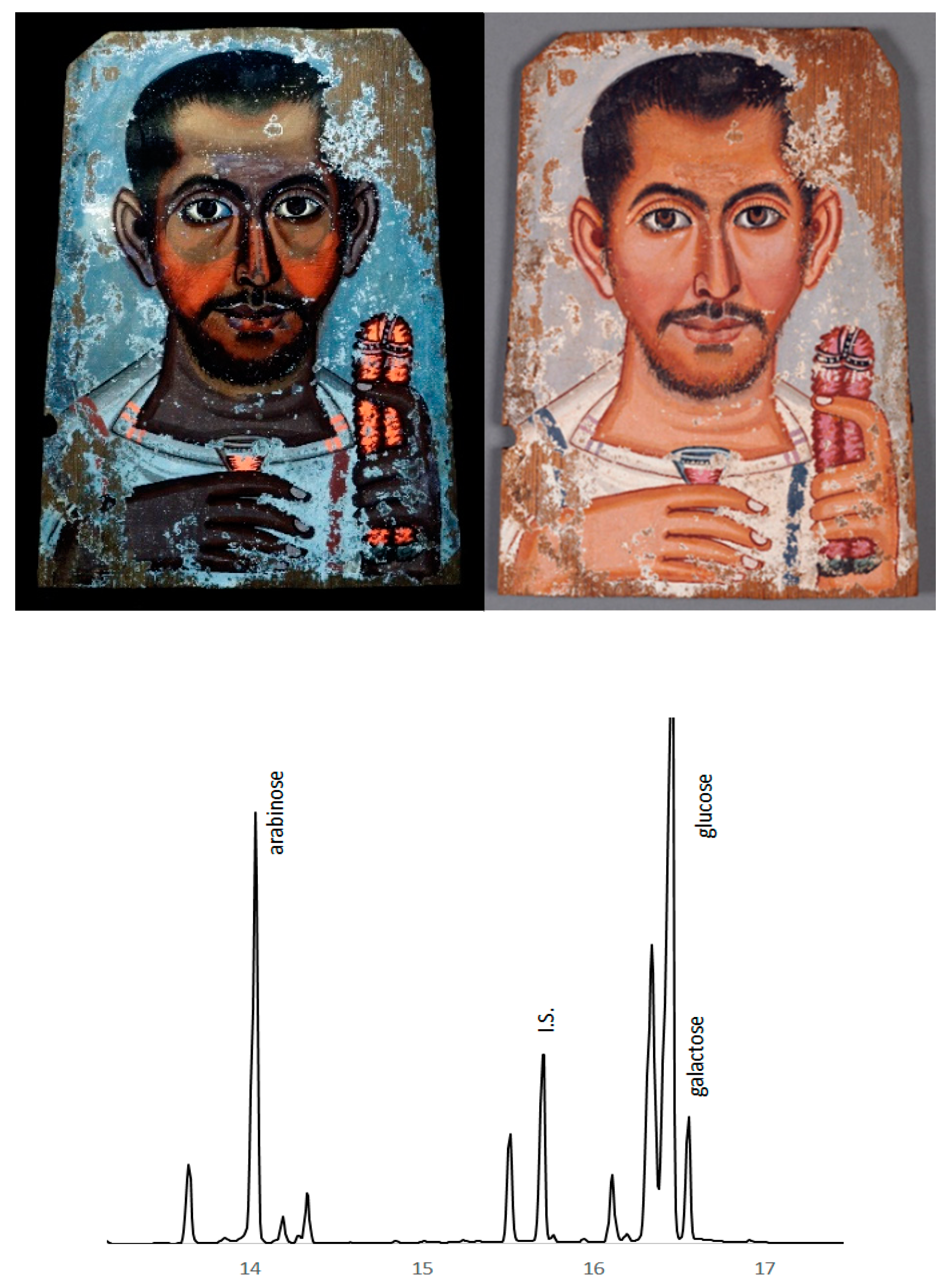

Figure 9. Top right shows visible image of portrait (JPGM 79.AP.142). The top left shows ultraviolet-induced visible fluorescence image. Light source: Wildfire Long throw series 365 nm. Camera: Canon Rebel EOS, Peca 916 filter, 2016 by Marie Svoboda. The bottom is a partial TIC of the monosaccharides from the grey background of the portrait. I.S.=internal standard (allose).
Figure 9. Top right shows visible image of portrait (JPGM 79.AP.142). The top left shows ultraviolet-induced visible fluorescence image. Light source: Wildfire Long throw series 365 nm. Camera: Canon Rebel EOS, Peca 916 filter, 2016 by Marie Svoboda. The bottom is a partial TIC of the monosaccharides from the grey background of the portrait. I.S.=internal standard (allose).
Heritage 02 00119 g009
Figure 10. Peak area percentage plot of total wax esters versus palmitic acid for paints from beeswax portraits. Paint color is indicated by the legend.
Figure 10. Peak area percentage plot of total wax esters versus palmitic acid for paints from beeswax portraits. Paint color is indicated by the legend.
Heritage 02 00119 g010

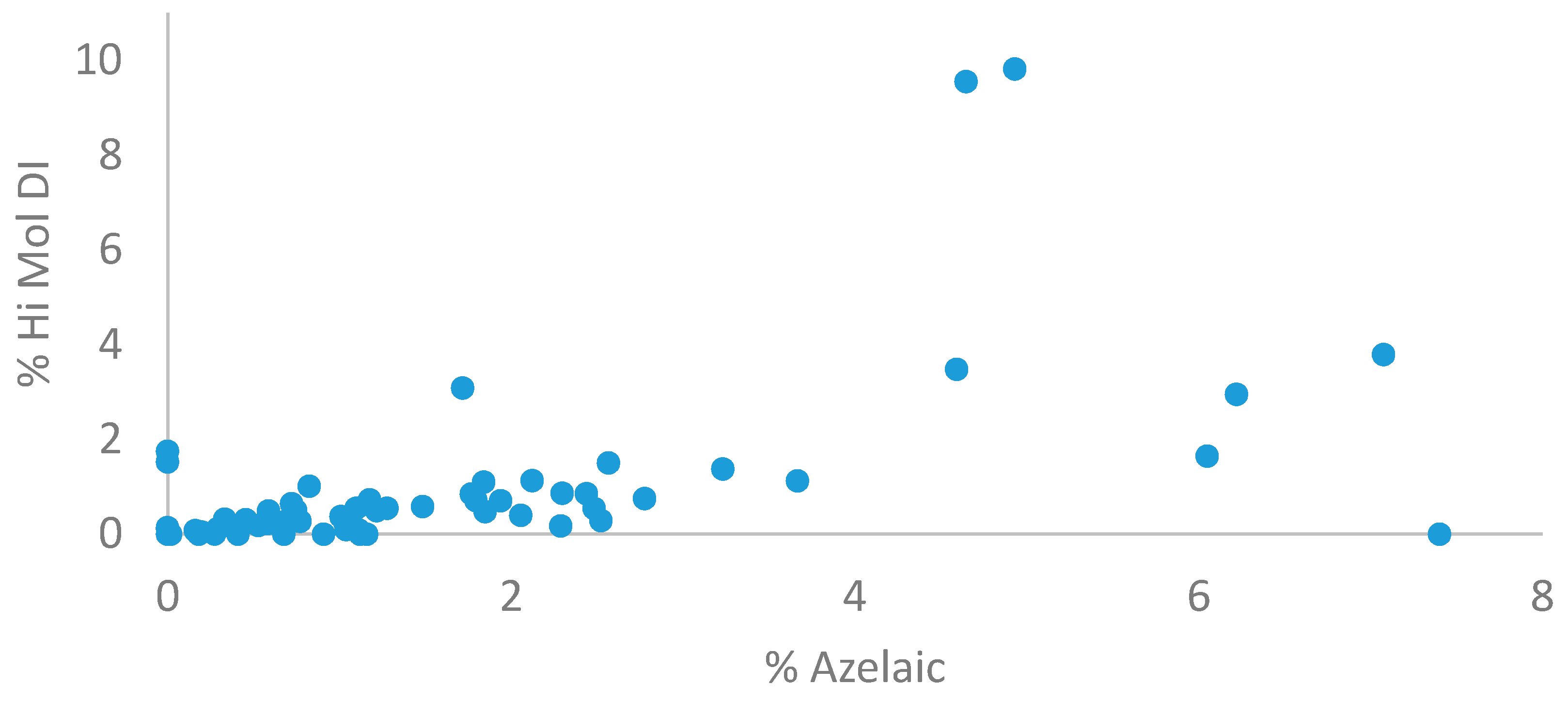

Figure 11. Scatter plot of dicarboxylic acids. Hi Mol DI=% dicarboxylic fatty acids with 10 to 15 carbons on y-axis and % azelaic acid with 9 carbons on x-axis.
Figure 11. Scatter plot of dicarboxylic acids. Hi Mol DI=% dicarboxylic fatty acids with 10 to 15 carbons on y-axis and % azelaic acid with 9 carbons on x-axis.
Heritage 02 00119 g011
Table 1. Summary of mummy portraits and panel paintings tested. Panel shape is described as follows: Ω = Round Top, Δ = Angled Edges, Π = uncut. Clib = Cedrus libani, cedar of Lebanon, Fsyc = Ficus sycomorus (sycomore fig), Tileu = Tilia europaea (lime/linden). The most likely provenience/provenance is shown in parenthesis and italics under Source.
Table 1. Summary of mummy portraits and panel paintings tested. Panel shape is described as follows: Ω = Round Top, Δ = Angled Edges, Π = uncut. Clib = Cedrus libani, cedar of Lebanon, Fsyc = Ficus sycomorus (sycomore fig), Tileu = Tilia europaea (lime/linden). The most likely provenience/provenance is shown in parenthesis and italics under Source.
Accession SourceDate
A.D.
Wood
(MM)
Technique
J Paul Getty Museum
71.AP.72(Hawara)100–125Ω Tileu (2)Beeswax, heavy, impasto
73.AP.91(Hawara)75–100Ω Tileu (2)Beeswax, lean, cracking, glue 1
73.AP.94--140–160Ω Tileu (2)Beeswax, flat, lean, restored
74.AP.11(er-Rubayat)150–170Δ Tileu (2)Beeswax, heavy, (egg coating)
74.AP.20--180–200Π Fsyc (3)Glue tempera, flat, (egg coating)
74.AP.21(er-Rubayat)100–200Π Fsyc (16)Glue tempera, flat, (egg coating)
74.AP.22(er-Rubayat)100–200Π Fsyc (16)Glue tempera, flat, (egg coating)
75.AP.87--150–250LinenGlue tempera, flat
78.AP.262--150–200Π Tileu (1.4)Beeswax, impasto, bubbles in wax
79.AP.129(er-Rubayat)/Graf175–200Π Clib (11)Glue tempera, flat, lean
79.AP.141--220–235Π Clib (11)Beeswax, lean, impasto, cracking glue ground
79.AP.142(er-Rubayat)220–250Δ Clib (11)Glue & gum tempera, flat, heavy
79.AP.219--220–250LinenGlue tempera
81.AP.29(er-Rubayat)/Graf170–200Δ Fsyc (11)Glue tempera
81.AP.42--100–110Ω Tileu (1.7)Beeswax, heavy, impasto
91.AP.6(el-Hibbeh)50–100Ω Tileu Glue tempera, flat, (egg coating)
Ny Carlsberg Glyptotek
AEIN680(er-Rubayat)Graf100–125Ω Tileu (2) Beeswax, lean, impasto, glue 1
AEIN681(er-Rubayat)Graf125–150Ω Tileu (1) Beeswax, lean, impasto, glue 1, (egg coating)
AEIN682(er-Rubayat)Graf140–160Δ Tileu (2)Beeswax, impasto, white bloom, glue 1
AEIN683(er-Rubayat)Graf125–150Ω Tileu (1.5)Beeswax, impasto
AEIN684(er-Rubayat)Graf140–200Δ Tileu (1)Beeswax, glue 1, (egg coating)
AEIN685----Π panelGum tempera, flat
AEIN686----Π (Fsyc) (12)Glue tempera, flat
AEIN1425Hawara, Petrie25–75LinenBeeswax, lean, heat 2
AEIN1426Hawara, Petrie100–125Ω Tileu (1.5)Beeswax, impasto, (paraffin)
AEIN1473Hawara, Petrie100–150Ω Tileu (2.5)Beeswax, impasto heat 2, (paraffin)
National Museum Demark
AS 3891er-Rubayat150–200Δ Tileu (1.5)Beeswax, impasto
AS 3892(er-Rubayat)150–200Ω Tileu (1.5)Beeswax, impasto
AS 8940er-Rubayat100–125Δ Fsyc (11)Glue tempera, flat
Santa Barbara Museum of Art
VL.2015.5--3–4th CΔ panel (6) Glue tempera, flat
Museum of Fine Art Houston
CA5879(Sheikh)150–200Linen Tempera 7, flat
1984-45DJ--200–250Π panel (10)Beeswax, impasto, (shellac)
1970 001DJ--ModernΔ pinus (2)Linseed oil, impasto
CA5878--ModernΠ fagus (1)Linseed oil, flat
CA7124(er-Rubayat)Graf150–200Δ Fsyc (10)Beeswax, flat
CA7013--150–200Δ Tileu (1.4)Beeswax, impasto
Museum of Fine Art Houston
TR:184-2013--1–200Ω Tileu (2.4) Beeswax, impasto
2009.16--1–100Ω Tileu (2.5) Beeswax, impasto
Los Angeles County Museum
M.71.73.62Graf3–4th CΔ panel (6)Glue tempera, flat
Walters Art Museum
32.4Antinoöpolis130–300Beech (6) 3,4Beeswax, (paraffin)
32.6(er-Rubayat)117–138Δ Tileu (2) 4 Beeswax, saliva cleaning
Ashmolean
AN188.342----Ω Tileu (1.5)Beeswax and glue tempera
Cantor Arts Center
JLS.22225--180–235Δ panel (2.4)Beeswax
JLS.22226----Δ panel Glue tempera (oil, mastic, paraffin)
Yale University Art Gallery
1935.551Europos, Hopkins256Round Glue tempera (beeswax, paraffin)
Phoebe Hearst Museum
5-2327Kerke, Graf300Fsyc (3) 5Glue tempera, flat
6-21377Tebtunis, Hunt 96–192Δ Fsyc (12)Beeswax, impasto, heavy
6-21384Tebtunis, Hunt1–395Π ZiziphusGlue tempera, flat, lean
6-21385Tebtunis, Hunt1–395Π ZiziphusGlue tempera, flat, lean
6-21386Tebtunis, Hunt1–395Π ZiziphusGlue tempera, flat, lean
6-21387Tebtunis, Hunt1–395Π CedarProtein tempera7, flat, lean
Petrie Museum
UC14768Kafr Ammar, Petrie160–180Fir 6 Glue tempera
UC19607Hawara, Petrie100–120Δ Tileu (4)Beeswax, (paraffin)
UC19608Hawara, Petrie70–100Δ Tileu (2)Beeswax
UC19610Hawara, Petrie140–160Δ Tileu (2)Beeswax
UC19612Hawara, Petrie160–170Δ Tileu (2)Beeswax
UC30081Hawara, Petrie100–120Δ Tileu (2)Beeswax, (paraffin)
UC33971Hawara, Petrie100–130Δ Tileu (4)Beeswax, (paraffin)
Cleveland Museum of Art
1971.135--138–192linenBeeswax, (paraffin)
1971.136--138–192linenBeeswax, (paraffin)
1 Consolidated with animal glue. 2 Consolidated with heat. 3 Stepped shape. 4 Wood ID by USDA forest service. 5 Panel cut in ogee shape. 6 Wood ID Royal Botanic Gardens. 7 No binder identified
Table 2. Peak area percentages for palmitic acid (P), wax esters (WE), dicarboxylic fatty acids (Di), and monocarboxylic fatty acids (FA). Sample locations designated as: BG = background, Bot = bottom, C = center, PR = proper right, PL = proper left. Monos = monosaccharides no match. Protein = no match. Skin = match epidermal skin. Glue = amino acids match animal collagen. Brassica = C22:1 or erucic acid (seed oil from the Mustard family). Pine = abietic acids from pine resin.
Table 2. Peak area percentages for palmitic acid (P), wax esters (WE), dicarboxylic fatty acids (Di), and monocarboxylic fatty acids (FA). Sample locations designated as: BG = background, Bot = bottom, C = center, PR = proper right, PL = proper left. Monos = monosaccharides no match. Protein = no match. Skin = match epidermal skin. Glue = amino acids match animal collagen. Brassica = C22:1 or erucic acid (seed oil from the Mustard family). Pine = abietic acids from pine resin.
IDLocationPWEDiFAOther
71.AP.72 Beeswax
whitetunic bot PR4616136protein, monos
white tunic bot PL5211532protein, monos, pine
73.AP.91 Beeswax
greyBG, C PL762518
purple shoulder PL6950.526pine
73.AP.94 Beeswax
whiteBG, C PR 919-72pine
74.AP.11 Beeswax with egg coating
fleshshoulder, PR5016332protein, pine
greyBG, top PR37131139protein, pine, brassica
fleshcheek, PL510.51534pine, brassica
75.AP.262 Beeswax
whiteBG, top, PR1728352
whitetunic, PL 29221039pine
79.AP.141 Beeswax on plant gum black ground
whitetunic, PR2470.468pine
greenbot, C1130256protein
81.AP.42 Beeswax
fleshshoulder, PL3180.261pine
rededge, bot PR1941336pine
AEIN 680 Beeswax
yellowclavi, bot L3015153pine
greyBG, C top1925155
blackhair, C top7300.563glue
AEIN 681 Beeswax
blackhair, PL241156pine
fleshneck, PR935255glue, pine
greyBG, C top1237448glue, pine
AEIN 682 Beeswax
fleshchest, PR4119436glue
blackhair, TL1637345protein
AEIN 683 Beeswax
yellowjewelry, C280116skin
blackhair, edge PR1329257
flesh forehead, C1331650
AEIN 684 Beeswax with egg coating
blackeyelid, PL854335protein
beigeedge, top PR3129337protein, pine
AEIN 1425 Beeswax
fleshneck, textile2627245protein, pine
fleshchin, PL559433pine
grey BG, bot PL3324637pine
AEIN 1426 Beeswax
greyBG, top PL3324637pine
blackshoulder, PR4330.463
whitetunic, top PL1328357protein
AEIN 1473 Beeswax
greyBG, C top3120247glue
blackhair, on crack1941239glue
whiteedge, bot PR3320146glue
AS 3891 Beeswax
greendress 747145protein
greygrey 1241145glue
AS 3892 Beeswax
blackhair 1034452protein, pine
whitedress 341155skin, pine
TR:184-2013 Beeswax
fleshchest, PR2219257glue
2009.16 Beeswax
browneye, PL331164monos
blackhair, C326270glue, pine
CA 7124 Beeswax
greyedge, top PR2319455glue, monos
CA 7013 Beeswax
fleshchest4011544monos, pine
32.4 Beeswax
blackedge, top PL3417643glue, pine, brassica
whitetunic, C22231937pine
32.6 Beeswax
blackhair456040glue
whiteBG13300.157pine
JLS22225 Beeswax
greyBG19201249pine
orangetunic2318356pine
6-21377 Beeswax
whitetunic2043235
grey BG1352134protein
flesh 2630540
UC 19607 Beeswax
whiteBG, C PL834-58glue
UC 19608 Beeswax
brownBG, top C4391831glue, pine, brassica
UC 19610 Beeswax
greyBG, C PL644725pine
UC 19612 Beeswax
white BG, PL2439235
UC 30081 Beeswax
whiteBG, PR195-77
UC 33971 Beeswax
brownBG, edge, PR3721-42glue
References Beeswax
6-20403 tablet0.4800.220
GCIbeeswax3470.548
Table 3. Analysis of oil based on stratigraphy. Red lead paint from mummy (JPGM 91.AP.6 and JPGM 81.AP.42) and white paint from tunic, Ny Carlsberg Glyptotek (AEIN 1426).
Table 3. Analysis of oil based on stratigraphy. Red lead paint from mummy (JPGM 91.AP.6 and JPGM 81.AP.42) and white paint from tunic, Ny Carlsberg Glyptotek (AEIN 1426).
IDLocationPWEDiFA
91.AP.6 Beeswax
redtop3251557
middle15251347
bottom19182141
81.AP.42 Beeswax
redtop286561
bottom295660
AEIN 1426 Beeswax
whitetop 732753
bottom1233352
Table 4. The stable amino acids (mole %) for selected reference proteins. Ala = alanine, val = valine, ile = isoleucine, leu = leucine, gly = glycine, pro = proline, ohp = hydroxyproline.
Table 4. The stable amino acids (mole %) for selected reference proteins. Ala = alanine, val = valine, ile = isoleucine, leu = leucine, gly = glycine, pro = proline, ohp = hydroxyproline.
SampleALAVALILELEUGLYPROOHP
Egg231614211970
Human, skin161110223460
Isinglass, AG18324471510
Collagen, AG16324471712
Mummy Skin20751034167
Saliva11851227350.7
Casein111713229290
Egyptian Fungus22117133882
Table 5. Summary of stable amino acids (mol %). bot = bottom, C = center, BG = Background, PR = proper right, PL = proper left. Stable amino acid values given in mole %. Ala = alanine, val = valine, ile = isoleucine, leu = leucine, gly = glycine, pro = proline, ohp = hydroxyproline. Low = 1 to 5 ppm, med = 5 to 20 ppm, high = 20 to 50 ppm, vhigh = 50 to 200 ppm. C. Coef. = Correlation coefficient. Protein = protein does not match references. Skin = matches the epidermal layer of skin. Glue = matches animal glue collagen. ELISA results are reported as OD (optical density) reading.
Table 5. Summary of stable amino acids (mol %). bot = bottom, C = center, BG = Background, PR = proper right, PL = proper left. Stable amino acid values given in mole %. Ala = alanine, val = valine, ile = isoleucine, leu = leucine, gly = glycine, pro = proline, ohp = hydroxyproline. Low = 1 to 5 ppm, med = 5 to 20 ppm, high = 20 to 50 ppm, vhigh = 50 to 200 ppm. C. Coef. = Correlation coefficient. Protein = protein does not match references. Skin = matches the epidermal layer of skin. Glue = matches animal glue collagen. ELISA results are reported as OD (optical density) reading.
Sample and LocationalavalileleuglyproohpC. Coef.% Protein
[ELISA (OD)]
71.AP.72 Beeswax
whitetunic bot PR1598153798protein 0.9%
white tunic bot PL121071836153protein0.6%
resinear PR1375145380.9protein0.1%
74.AP.11 Beeswax with egg coating
greyBG, top PL171310222981skin, 0.991.3%
coatingneck, PR231592419100egg, 0.98high [egg (0.8)]
skinshoulder, PR211210193080skin, 0.960.2%
79.AP.141 Beeswax on plant gum black ground
woodedge, C PR141392032121skin, 0.97low
greenC bot181615929131proteinlow
81.AP.42 Beeswax
woodshoulder, PL191161628137proteinlow
fleshshoulder, PL14538441413glue, 0.99low [egg (0.5)]
AEIN 680 Beeswax
blackhair, C top18741046132glue, 0.96low
AEIN 681 Beeswax with egg coating
fleshneck, PR12448491310glue, 0.986%
greyBG, C top18107144380glue, 0.97med
coatingunknown25158162781egg, 0.94med
AEIN 682 Beeswax
fleshchest, PR1953653140glue, 0.970.4%
blackhair, TL17106144085proteinlow
AEIN 683 Beeswax
yellowjewelry, C11107164871skin, 0.93low
AEIN 684 Beeswax with egg coating
blackeyelid, PL22107163691proteinlow
beigeedge, top PR27127172881proteinlow
coatingnose, PL24149242080egg, 0.96high
AEIN 1425 Beeswax
fleshneck, textile18961334173protein0.3%
AEIN 1426 Beeswax
whitetunic, top PL17851641140proteinhigh
AEIN 1473 Beeswax
greyBG, C top211001339116glue, 0.930.03%
blackhair2095114384glue, 0.930.5%
whitebot PR218494793glue, 0.950.2%
AS 3891 Beeswax
greendress 17961636133proteinmed
greyBG 16426362018glue, 0.97high
AS 3892 Beeswax
resinunknown2284104772glue, 0.92med
blackhair 1785134782proteinmed
whitedress 21128173391skin, 0.95med
TR:184-2013 Beeswax
fleshchest, PR16334481412glue, 0.99med
2009.16 Beeswax
blackhair, C1776134774glue, 0.92low
CA 7124 Beeswax
greytop PR13436491311glue, 0.990.4%
32.4 Beeswax
blacktop PL206485472glue, 0.95med
redresin206410251123proteinvhigh
blackresin1398144682proteinlow
32.6 Beeswax
blackhair1475849135glue, 0.97low
resinwrapping1454754106glue, 0.97med
blackBG, edge bot1454944169glue, 0.98med
6-21377 Beeswax
grey BG19961536115protein1%
UC19607 Beeswax
whiteBG, C PL166410401311glue, 0.99med
UC19608 Beeswax
brownBG, top C17426501111glue, 0.99med
UC19612 Beeswax
whiteBG, C PL16539461110glue, 0.99low
UC33971 Beeswax
brownBG, edge, PR15651544105glue, 0.93med
74.AP.20 Glue tempera with egg coating
redmace, PL19851238135glue, 0.96 3%
[egg (0.3) glue (0.3)]
greytunic, PR 1753844158glue, 0.992%
whitetunic, PR19741140127glue, 0.971%
74.AP.21 Glue tempera with egg coating
blacktunic, PL20851039127glue, 0.975%
[egg (0.4) glue (0.4)]
74.AP.22 Glue tempera with egg coating
yellowtop, PL1864942139glue, 0.993% [egg (0.24)]
75.AP.87 Glue tempera
whitetunic, bot PL15426441614glue, 0.99med
blackBG, center PR177410381510glue, 0.99low [glue (0.4)]
Fleshcheek, PL18425461311glue, 0.99med
79.AP.129 Glue tempera
greyBG, C top1664946118glue, 0.98med
whitetunic, bot PR15641049106glue, 0.96med
pinkbot PR1832553108glue, 0.99high
79.AP.142 Glue tempera
fleshhand, bot PL17537431510glue, 0.992%
greyBG, top PR1853746148glue, 0.991%
blueclavi, bot PL1964940139glue, 0.991%
79.AP.129 Glue tempera
greyBG, C top1664946118glue, 0.98med
whitetunic, bot C15641049106glue, 0.96med
pinkclavi, bot PL1832553108glue, 0.99low
81.AP.29 Glue tempera
greyside, bot PL184255588glue, 0.990.8%
91.AP.6 Glue tempera
blackhair, top PR14971635181protein2%
[egg (0.7) glue (0.4)]
fleshneck, bot PR12547421515glue, 0.990.6%
whiteground 1575134597glue, 0.94 3%
AS 8940 Glue tempera
flesh 18961833123skin, 0.94high
blackhair 19851340143glue, 0.93high
AEIN 685 Gum tempera with glue ground
whiteground16614441810glue, 0.99high
AEIN 684 Glue tempera
reddress21413471510glue, 0.99high
VL.2015.5 Glue tempera
dk.greyedge, top PL1585943128glue, 0.98 1%
lt.greyedge, C bot15851141127glue, 0.97 0.7%
M.71.73.62 Glue tempera
redclavi16537461211glue, 0.99med
JLS.22226 Glue tempera
flesheye1874746107glue, 0.98med
greyBG17424511110glue, 0.99med
1935.551 Glue tempera
blueBG14327501013glue, 0.98high
redBG14438481013glue, 0.97low
5-2327 Glue tempera
greyBG, C PR20961037108glue, 0.96high
redtunic9449421219glue, 0.95high
6-21384 Glue tempera
redsleeve, PL14436512011glue, 0.985%
whitesleeve, PL12336471116glue, 0.98high
6-21385 Glue tempera
whitenimbus, PR18971234128glue, 0.972%
6-21386 Glue tempera
bluetunic, PL20961235126glue, 0.95high
woodtunic, PL171291626156proteinhigh
6-21387 Tempera
greenbot PR11891732176proteinmed
woodbot PR12891537164proteinmed
UC 14768 Glue tempera
whitetunic, C1643749139glue, 0.99high
greyBG, PL16426471411glue, 0.99high
Table 6. Monosaccharide analysis results. % monos = percent monosaccharides in paint sample (mg/mg). Gum content based on parts per million monosaccharides: low = 1 to 5 ppm, med = 5 to 20 ppm, high = 20 to 50 ppm, vhigh = 50 to 200 ppm. Rha = rhamnose, fuc = fucose, ara = arabinose, xyl = xylose, man = mannose, glu = glucose, gal = galactose.
Table 6. Monosaccharide analysis results. % monos = percent monosaccharides in paint sample (mg/mg). Gum content based on parts per million monosaccharides: low = 1 to 5 ppm, med = 5 to 20 ppm, high = 20 to 50 ppm, vhigh = 50 to 200 ppm. Rha = rhamnose, fuc = fucose, ara = arabinose, xyl = xylose, man = mannose, glu = glucose, gal = galactose.
IDLocationrhafucaraxylmanglugal% monosMatch
71.AP.72 Beeswax
whiteBot P.R.1-514762120.3%None
whiteBot P.L.0.50.12948040.3%None
resinear P.R.0.60.24847760.1%None
75.AP.87 Glue tempera
whitetunic, bot., PL-----964mednone
blackBG, C PR0.2-20.70.9933vhighnone
79.AP.141 Beeswax on plant gum black ground
whitetunic, PR
blackBG edge, PR--686--26medAcacia1
woodedge, C. PR--1387---lowwood
71.AP.142 Glue and gum tempera
fleshhand, bot. PL0.1-31-92420%starch
greyBG, top PR0.2-202-681012%gum
blueclavi, bot PL0.4-42-867Highstarch
71.AP.142 Glue and gum tempera
Greyside, B PL--1157-2380.1%wood
81.AP.42 Beeswax
linen shoulder, PL10.20.5651293vhighwood
91.AP.6 Glue tempera
fleshneck, bot PR30.215371320highwood
AEIN 685 Gum tempera
green --47--944highAcacia1
2009.16 Beeswax
browneye, PL--611-4131lownone
CA 7124 Beeswax
greyedge, top PR--1418-4325lownone
CA 7013 Beeswax
fleshchest---45-3917lownone
32.4 Beeswax
blackresin4-1129-452vhighnone
AN1888.342 Beeswax
blackBG, edge bot--1288---highwood
woodBG, edge bot--694---highwood
6-21385 Glue tempera
whitenimbus, PR---13-7720lowstarch
6-21386 Glue tempera
woodtunic, PL---2-971highwood
6-21387 Glue tempera
woodbot, PR-----99-vhighwood
1Acacia sp. gum

© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
Back to TopTop
