Thermogravitational Cycles: Theoretical Framework and Example of an Electric Thermogravitational Generator Based on Balloon Inflation/Deflation

1
Licence de Physique, 4 place Jussieu, UPMC Université Paris 6, 75005 Paris, France
2
LCPO, UMR 5629, ENSCBP 16 avenue Pey Berland, Univ. Bordeaux, 33607 Pessac, France
3
Laboratoire de Chimie des Polymères Organiques, UMR 5629, ENSCBP 16 avenue Pey Berland, CNRS, 33607 Pessac, France
4
Department of Mechanical Engineering, University College London, Torrington Place, London WC1E 7JE, UK
5
Department of Physics and Astronomy, University College London, Gower Street, London WC1E 6BT, UK
6
Department of Chemical Engineering, University College London, Torrington Place, London WC1E 7JE, UK
*
Author to whom correspondence should be addressed.
Inventions 2018, 3(4), 79; https://doi.org/10.3390/inventions3040079
Received: 26 October 2018 / Revised: 22 November 2018 / Accepted: 27 November 2018 / Published: 30 November 2018
(This article belongs to the Special Issue Thermodynamics in the 21st Century)

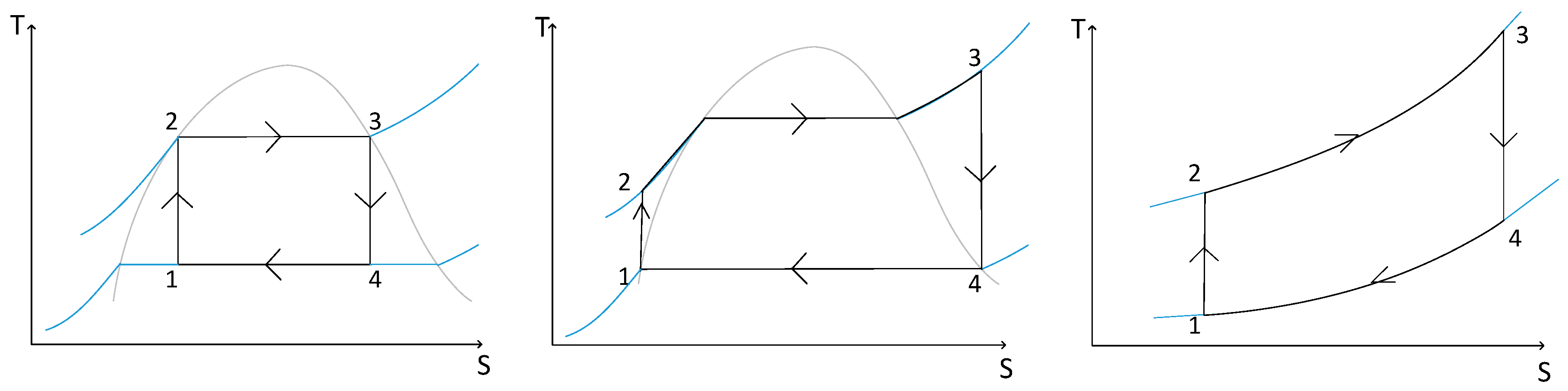

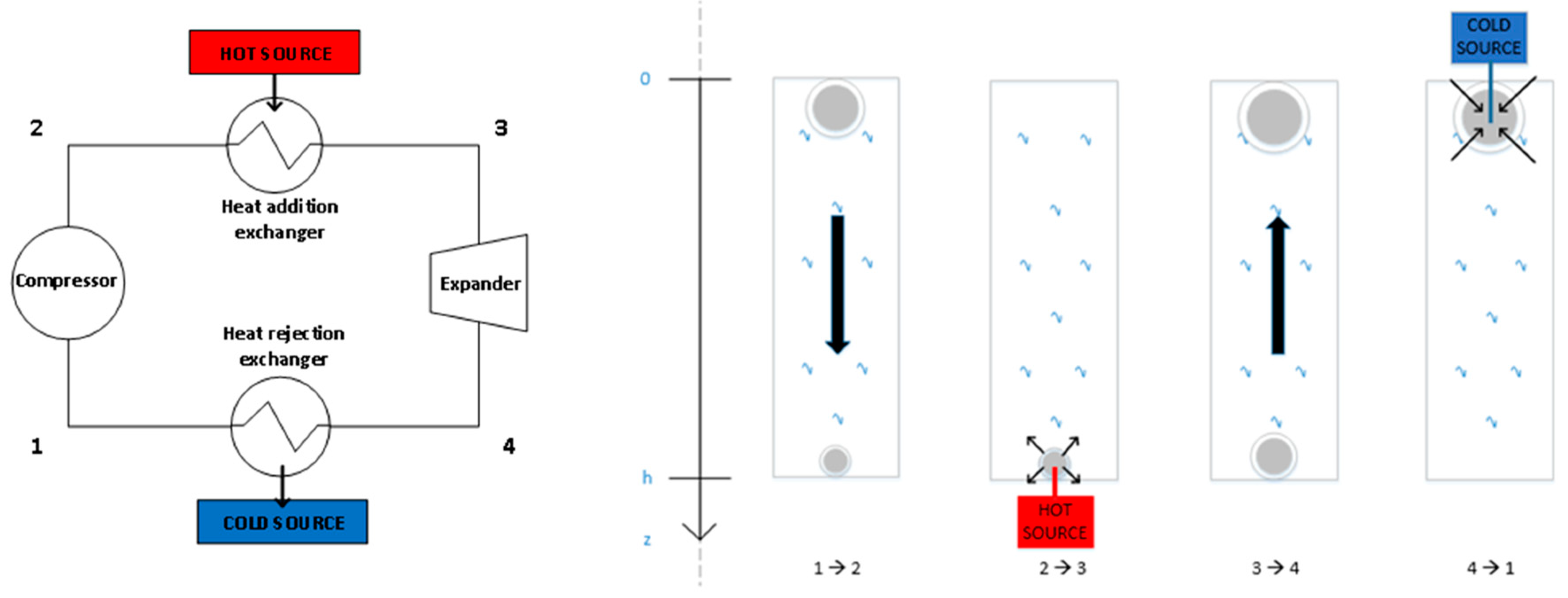

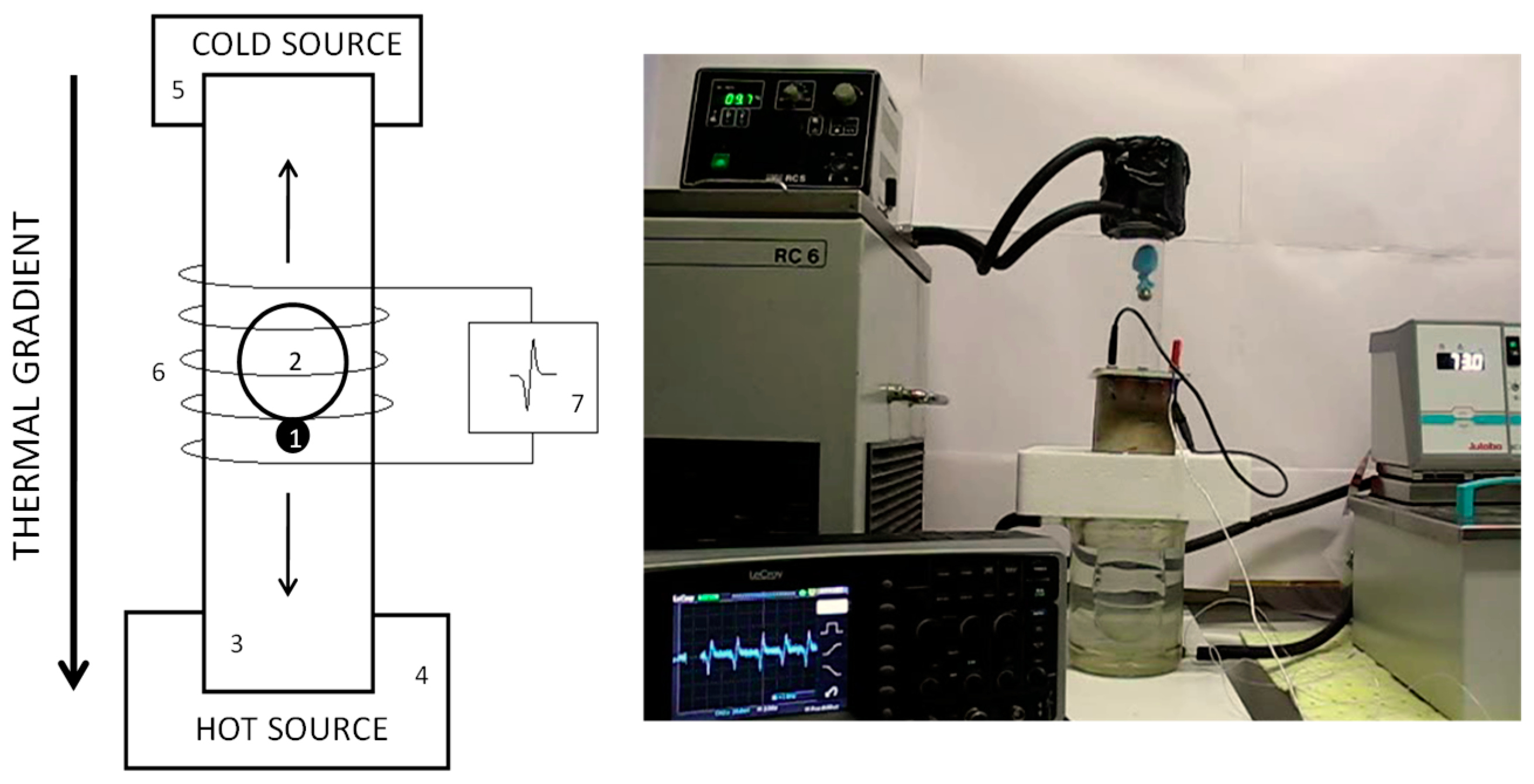

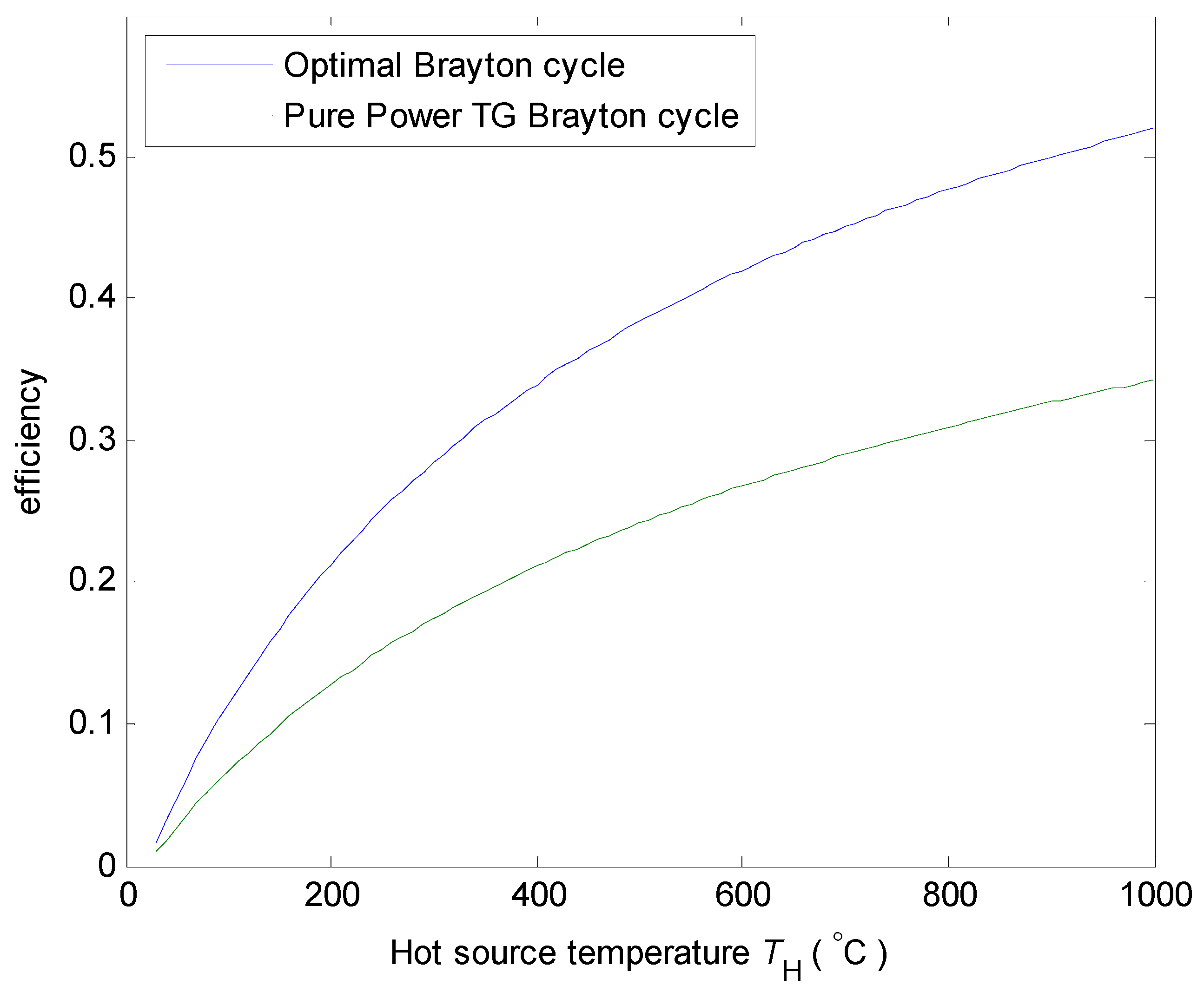

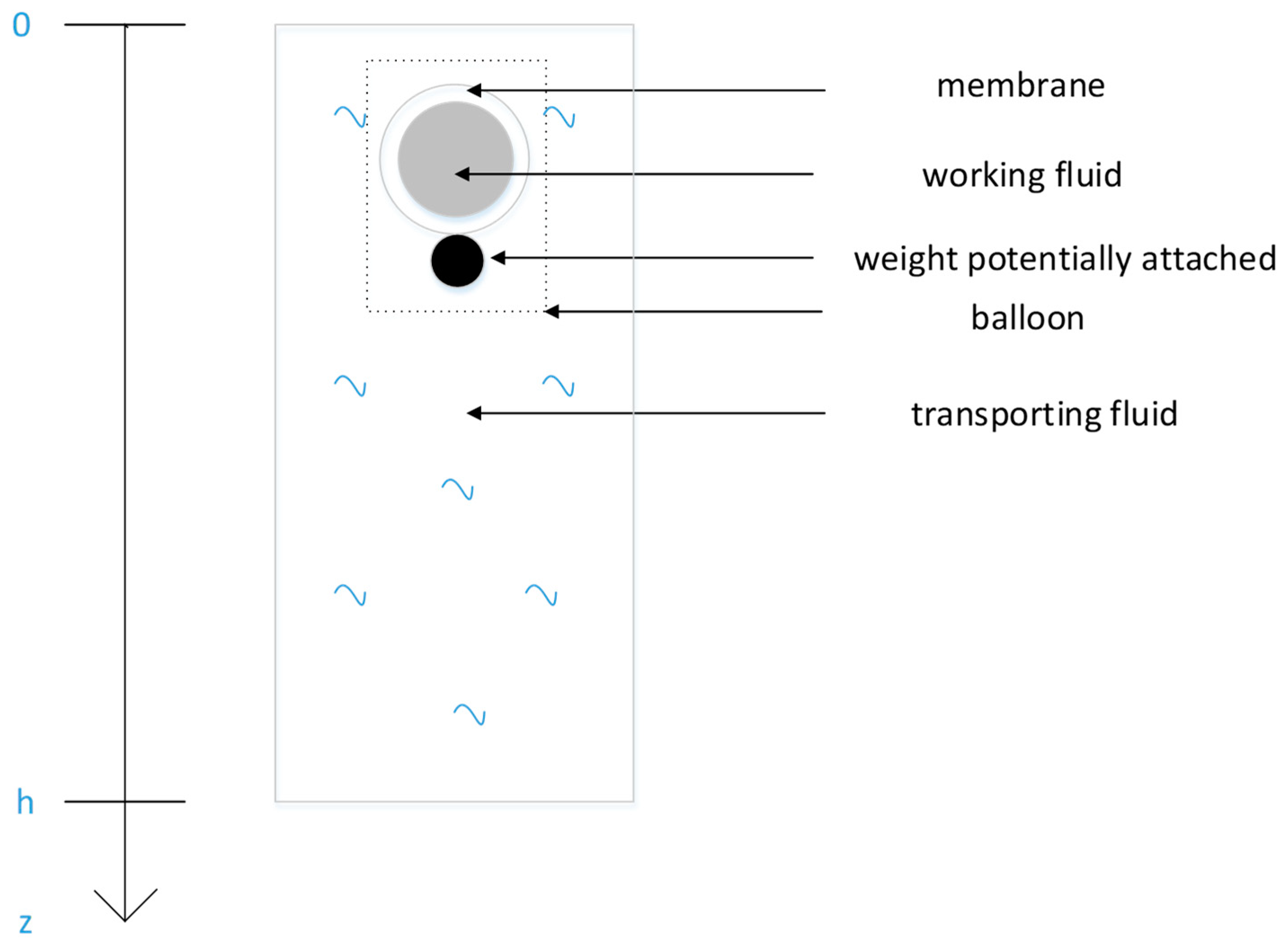

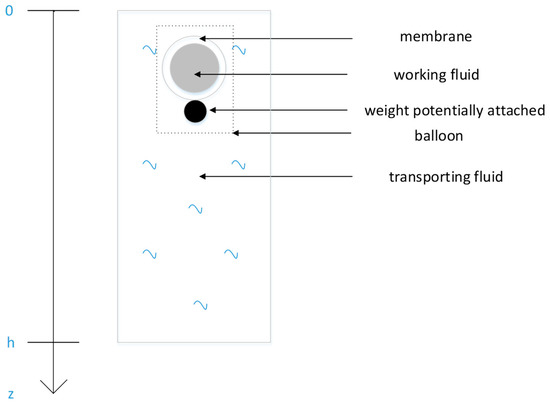

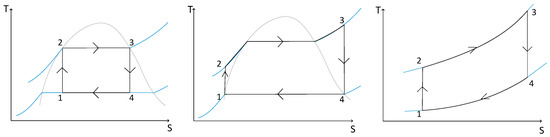

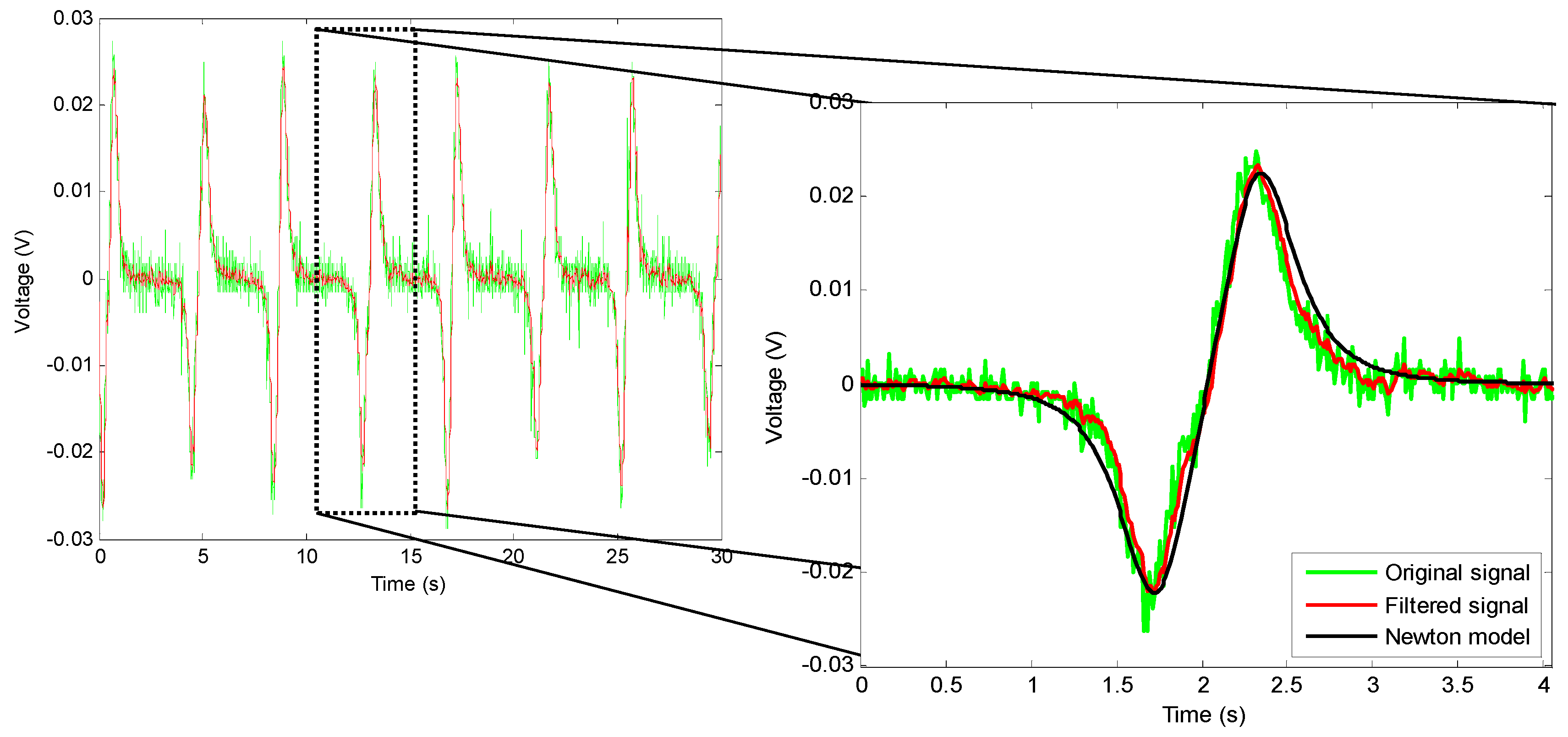

Several studies have involved a combination of heat and gravitational energy exchanges to create novel heat engines. A common theoretical framework is developed here to describe thermogravitational cycles which have the same efficiencies as the Carnot, Rankine, or Brayton cycles. Considering a working fluid enclosed in a balloon inside a column filled with a transporting fluid, a cycle is composed of four steps. Starting from the top of the column, the balloon goes down by gravity, receives heat from a hot source at the bottom, then rises and delivers heat to a cold source at the top. Unlike classic power cycles which need external work to operate the compressor, thermogravitational cycles can operate as a “pure power cycle” where no external work is needed to drive the cycle. To illustrate this concept, the prototype of a thermogravitational electrical generator is presented. It uses a hot source of average temperature near 57 °C and relies on the gravitational energy exchanges of an organic fluorinated fluid inside a balloon attached to a magnetic marble to produce an electromotive force of 50 mV peak to peak by the use of a linear alternator. This heat engine is well suited to be operated using renewable energy sources such as geothermal gradients or focused sunlight. View Full-Text
Keywords: thermogravitational cycle; thermogravitational electric generator; pure power cycle; Carnot; Rankine; and Brayton cycles; gravitational force; compression and expansion; waste heat; geothermal or solar energy harvesting thermogravitational cycle; thermogravitational electric generator; pure power cycle; Carnot; Rankine; and Brayton cycles; gravitational force; compression and expansion; waste heat; geothermal or solar energy harvesting
