Infectivity and Transmissibility of Acute Hepatopancreatic Necrosis Disease Associated Vibrio parahaemolyticus in Frozen Shrimp Archived at −80 °C

by
Chorong Lee
1,†,
Hye Jin Jeon
1,†,
Bum Keun Kim
1,
Seong-Kyoon Choi
2,3,
Sumi Kim
4,
Gwang Il Jang
4,
Ji Hyung Kim
5,* and
Jee Eun Han
1,*
1
College of Veterinary Medicine, Kyungpook National University, Daegu 41566, Korea
2
Core Protein Resources Center, DGIST, Daegu 42988, Korea
3
Division of Biotechnology, DGIST, Daegu 42988, Korea
4
Aquatic Disease Control Division, National Fishery Products Quality Management Service (NFQS), Busan 46083, Korea
5
Department of Food Science and Biotechnology, Gachon University, Seongnam 13120, Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Fishes 2022, 7(3), 125; https://doi.org/10.3390/fishes7030125
Submission received: 27 April 2022 / Revised: 27 May 2022 / Accepted: 27 May 2022 / Published: 30 May 2022
(This article belongs to the Special Issue Diseases in Fish and Shellfish)
Browse Figures
Review Reports Versions Notes

Abstract

:
Acute hepatopancreatic necrosis disease (AHPND) caused by Vibrio parahaemolyticus (VpAHPND) has been reported in commodity shrimp, but the potential risk of its global spread via frozen shrimp in the shrimp trade is yet to be fully explored. We hypothesized that frozen shrimp with AHPND could be a source of VpAHPND transmission; thus, the infectivity of frozen shrimp with AHPND was evaluated using a shrimp bioassay. To prepare infected frozen shrimp, 12 Penaeus vannamei (average weight, 2 g) were exposed to VpAHPND by immersion in water with a VpAHPND concentration of 1.55 × 107 CFU mL−1; once dead, the shrimp were stored at −80 °C for further analysis. After two weeks, a PCR assay was used to confirm AHPND positivity in frozen shrimp (n = 2), and VpAHPND was reisolated from the hepatopancreases of these shrimp. For the infectivity test, 10 P. vannamei (average weight, 4 g) were fed with the hepatopancreases of VpAHPND -infected frozen shrimp (n = 10). After feeding, 70% of the shrimp died within 118 h, and the presence of VpAHPND was confirmed using a PCR assay and histopathology examination; moreover, VpAHPND was successfully reisolated from the hepatopancreases of the dead shrimp. We are the first to evaluate the potential transmissibility of VpAHPND in frozen shrimp, and our results suggest that frozen shrimp with AHPND are a potential source of disease spreading between countries during international trade.

1. Introduction

Loss of shrimp production due to infectious diseases is a major problem in shrimp aquaculture [1,2]. Nevertheless, millions of tons of frozen or processed commodity shrimp are traded internationally, despite the prevalence of disease in shrimp-producing areas that could be spread to other countries [3].
Acute hepatopancreatic necrosis disease (AHPND) is one of the most pathogenic and devastating bacterial diseases that affect global shrimp aquaculture. The virulence factor of AHPND is a binary toxin that is homologous with the Photorhabdus insect-related (pir) toxin; the toxin genes (pirA and pirB) are located in a large plasmid (69–73 kb) in Vibrio parahaemolyticus strains [4,5,6]. AHPND, which has been listed as a notifiable disease by the World Organization for Animal Health [7], has caused significant economic losses in the global shrimp aquaculture industry [8]. The pathogen can be detected in various sample types, although mainly in the hepatopancreas of infected shrimp; feces and pond water are also sources of disease transmission on shrimp farms [9]. The possible transmission of AHPND-associated V. parahaemolyticus (VpAHPND) via the transboundary movement of infected broodstock or postlarvae has been reported [10], and live feeds, such as Artemia spp., rotifers, and polychaetes, are also known to be carriers and spreaders in farm environments [11,12].
In general, commodity shrimp are imported as frozen stocks and thawed before sale [13]. Freezing has been considered an efficient method for reducing the potential risk of seafood-borne zoonotic pathogen transmission, and frozen shrimp with AHPND have been considered noninfectious; therefore, such shrimp have not been a focus of the global industry, especially in relation to quarantine and disease surveillance [14,15,16]. Nevertheless, the occurrence of zoonotic bacteria (e.g., Aeromonas spp. and methicillin-resistant Staphylococcus aureus) in frozen shrimp has been reported [13,17,18]. Recently, we provided evidence that frozen commodity Pacific white shrimp (Penaeus vannamei) imported into Korea can be contaminated (or infected) with VpAHPND [9]. However, the infectivity of VpAHPND in frozen shrimp with AHPND has yet to be examined. Therefore, we investigated the infectivity of VpAHPND in frozen shrimp as well as its transmissibility to live Pacific white shrimp.

2. Materials and Methods

2.1. Preparation of Frozen Shrimp with AHPND

For the VpAHPND bacteria culture, the VpAHPND strain (13-028/A3) [14] was cultured overnight at 28 °C in tryptic soy broth (Difco, Franklin Lakes, NJ, USA) containing 2.5% NaCl (hereafter referred to as TSB+) with shaking at 200 rpm. To prepare frozen shrimp with AHPND, specific-pathogen-free Pacific white shrimp (n = 12, average weight: 2 g) were purchased at a local shrimp farm (Tamla Shrimp, Jeju, Korea) and divided into two 12-L tanks. Water quality was maintained within a standard range for Pacific white shrimp as follows: temperature, 28–30 °C; pH, 7–8; and salinity, 25–26 ppt. In shrimp ponds, contaminated water is a primary source of AHPND infection, and we used the immersion method for the infection. The shrimp were inoculated with VpAHPND via immersion in water with a VpAHPND concentration of 1.55 × 107 CFU mL−1. After immersion for 18 h, all shrimp (n = 12) died. Subsequently, frozen shrimp samples (n = 2) and hepatopancreas samples, which were aseptically collected from the remaining dead shrimp (n = 10), were stored at −80 °C until use. For a negative control, experimental shrimp (n = 20) that did not challenge with VpAHPND were maintained in a 96 L acrylic tank and fed twice a day (5% of body weight) for three weeks. In those shrimp we confirmed that AHPND was negative by duplex PCR [5] and further used them for the VpAHPND infectivity test (Section 2.3). The primer sets (VpPirA–284F/R and VpPirB–392F/R) were designed based on the virulence plasmid pVPA3–1 (GenBank No. KM067908). For detection of VpAHPND, PCR was performed as follows: 1 cycle of initial denaturation at 94 °C for 3 min, followed by 35 cycles of 94 °C for 30 s, 60 °C for 30 s, and 72 °C for 30 s, and a final extension at 72 °C for 7 min.

2.2. AHPND Polymerase Chain Reaction (PCR) Assay and VpAHPND Bacterial Isolation from Frozen Shrimp

After being frozen for two weeks, the frozen shrimp samples (n = 2) were thawed at room temperature for 5 min. The hepatopancreases (average weight: 80 mg) were then collected under aseptic conditions from each shrimp. To detect VpAHPND, a portion of the frozen hepatopancreas (average weight: 30 mg) from each shrimp was pooled and used for DNA extraction, which was achieved using a DNeasy Blood & Tissue Kit (Qiagen, Hilden, Germany) according to the manufacturer’s instructions. Extracted DNA was amplified using a duplex PCR assay [5]. The positive PCR amplicons were sequenced by Bioneer Inc. (Daejeon, Korea).
To isolate VpAHPND, the remaining portion of the frozen hepatopancreases (average weight: 50 mg) was homogenized and streaked on thiosulfate citrate bile salts sucrose (TCBS) agar (Difco, Franklin Lakes, NJ, USA) using a wooden stick. Five representative green colonies were randomly chosen from the TCBS plates and inoculated in 20 mL of TSB+. After overnight incubation at 28 °C with shaking at 200 rpm, the enriched bacterial broth (1 μL) was used directly as a template for the duplex PCR assay [5]. The positive PCR amplicons were then sequenced by Bioneer Inc. (Daejeon, Korea).

2.3. Infectivity Test for VpAHPND in Frozen Shrimp

Before the VpAHPND infectivity test, three experimental shrimp were randomly selected and confirmed that the tested shrimp (hepatopancreas) did not carry other pathogens (white spot syndrome virus, infection hypodermal and hematopoietic necrosis virus and Enterocytozoon hepatopenaei) by PCR as described previously [19,20,21].
For the VpAHPND infectivity test in frozen shrimp, Pacific white shrimp (n = 20, average weight: 4 g) were divided into two groups (group 1: VpAHPND challenged; group 2: no challenge) containing 10 shrimp each. The shrimp in each group were subdivided into duplicate groups of five shrimp in each 22 L tank. The infectivity test was conducted by feeding frozen hepatopancreas tissue because it was difficult to produce a large amount of contaminated water from frozen shrimp. We fed a total of 10 hepatopancreases of VpAHPND-infected frozen shrimp to group 1 shrimp (n = 10). Thus, one shrimp was fed with one hepatopancreas (average weight of 80 mg) once. We also checked that all the shrimp in the tank consume the supplied hepatopancreas.
Experimental shrimp in group 1 (VpAHPND challenged; n = 10) were immediately fed with the frozen hepatopancreases (n = 10), prepared as described in Section 2.1. The negative control shrimp in group 2 (no challenge; n = 10) were not exposed to VpAHPND; they were fed with commercial shrimp feed at 5% of shrimp biomass. Shrimp survival was monitored and recorded for 224 h after feeding.
In this study, shrimp mortality started 46 h after feeding the frozen VpAHPND-infected hepatopancreas, and so shrimp was monitored every 24 h (46, 70, 94, 142, 166, 214 and 224 h) from that time point. Moribund shrimp samples (n = 2, 46 h) were fixed in Davidson’s AFA (alcohol, formaldehyde, acetic acid) fixative in preparation for histopathology analysis, and the hepatopancreases of dead shrimp samples (n = 5) were used for VpAHPND reisolation, which was confirmed using a PCR assay according to the method described above [5]. For the histopathological examination, hepatopancreas tissue sections were prepared using a standard method [22]. After staining with hematoxylin and eosin, the sections were analyzed using light microscopy.

3. Results

3.1. Isolation of VpAHPND from Frozen Shrimp

After two weeks, frozen shrimp (n = 2) stored at −80 °C, were confirmed to be positive for VpAHPND via a PCR assay (Figure 1). More than 100 green colonies, i.e., presumptive V. parahaemolyticus isolates, were obtained from the frozen hepatopancreases after 48 h incubation at 28 °C on TCBS plates. According to colony PCR and sequencing analysis, the presence of VpAHPND was confirmed in two selected single green colonies (Figure 1). The nucleotide sequences showed 100% identities to the known sequences of the pirA and pirB (accession no. KM067908). In addition, as a result of checking the hepatopancreas streaking plate after incubation, there were no colonies other than Vibrio.

3.2. Infectivity of VpAHPND in Frozen Shrimp

A laboratory shrimp bioassay was performed to determine the infectivity of frozen shrimp with AHPND. After feeding on frozen hepatopancreases that had been stored at −80 °C for two weeks, all experimental shrimp in group 1 (VpAHPND challenged, n = 10) showed typical clinical symptoms of AHPND including pale hepatopancreases, softshells, and abnormal swimming behavior; in contrast, all shrimp in group 2 (no challenge, n = 10) showed normal appearance and behavior.
On the last day of the experiment, the experimental shrimp in group 1 (VpAHPND challenged) had a 30% survival rate (Figure 2). Although the live shrimp showed typical AHPND symptoms at 118 h, those shrimp became healthy and showed normal external appearances and feeding behaviors on the termination day, shrimp. Duplex PCR analysis of the dead shrimp confirmed the presence of the toxin genes (pirA and pirB) (Figure 1), and VpAHPND was reisolated from these shrimp (n = 11) (data not shown). In contrast, the survival rate in group 2 (no challenge) was 100% and the presence of toxin genes or VpAHPND was not detected.
For histopathological examination, the moribund shrimp in group 1 (VpAHPND challenged) were collected at 46 h postinfection. Overall, their epithelial cells were thinned and few vacuoles were observed in the hepatopancreas. Additionally, a typical AHPND infection region was observed in which the tubular structure of the cell was disrupted and combined with the surrounding debris (Figure 3A,B). However, abnormal tissue morphology was not observed in group 2 (no challenge) (Figure 3C,D).

4. Discussion

Shrimp is one of the most widely traded seafood products globally; thus, the global spread of disease through the international movement of frozen shrimp has become a serious problem [23,24,25]. Several studies have emphasized the risk of disease spreading among countries, especially for viral diseases such as infectious hypodermal and hematopoietic necrosis virus (IHHNV), white spot syndrome virus (WSSV), yellow head disease, and Taura syndrome virus [3,9,25,26,27].
In seafood, V. parahaemolyticus is of particular interest because it is consistently involved in seafood-borne disease outbreaks [28]. Interestingly, V. parahaemolyticus can be induced into a viable-but-nonculturable (VBNC) state under low temperature and salinity conditions; bacteria, including VpAHPND, are highly sensitive to freezing and refrigeration, both of which can lead to reductions in culture cells or non-detectable levels after several weeks [16,29]. Indeed, freezing at −18 to −24 °C reportedly kills Vibrio spp. due to its physical and chemical effects and possibly through induced genetic changes [30]. Additionally, the bacteria in shrimp are thought to become inactivated by freezing and thawing [31]. Moreover, frozen shrimp prepared and packaged for retail and wholesale stores or block frozen shrimp are considered unlikely to a pose threat to the international spread of disease [10].
However, several studies on the VBNC state of V. parahaemolyticus have reported the potential risks of revival and international transmission with elevated disease burden. First, bacteria in the VBNC state can retain their plasmids and virulence properties [32]. These characteristics are of great importance in relation to VpAHPND because the pirA/B toxin genes are located in the plasmid; thus, plasmid retention in the VBNC cells of frozen shrimp with AHPND will increase the likelihood of disease spread and transmission. Second, V. parahaemolyticus VBNC cells can be resuscitated by increasing temperature; the resuscitation period is generally around two weeks after becoming unculturable [33,34]. Third, the possible presence of culturable VBNC cells from V. parahaemolyticus has been confirmed in frozen commodity shrimp that tested negative for V. parahaemolyticus using the ISO 21872-1 method [32]. Therefore, VpAHPND cells in frozen shrimp with AHPND have the potential for resuscitation and consecutive infection.
Based on the aforementioned characteristics, we hypothesized that frozen shrimp with AHPND could be a source of VpAHPND transmission, and we tested this hypothesis using a shrimp bioassay. We found that shrimp fed with VpAHPND-infected shrimp previously stored at −80 °C for two weeks became moribund and showed the typical clinical symptoms of AHPND at 46 h postinfection. Additionally, the VpAHPND strain was successfully reisolated from shrimp frozen at −80 °C and dead shrimp. Thus, we demonstrated the infectivity of VpAHPND in frozen shrimp with AHPND, which could therefore be a source of disease transmission between countries. This finding is inconsistent with the results of Thiamadee et al. [10], who suggested that low temperatures reduce Vibrio viability and that VpAHPND cannot be transmitted via traded frozen shrimp. We agree that the riskiest activity for the geographical spread of VpAHPND is the transboundary movement of living shrimp broodstock or their offspring from an area affected by VpAHPND to an unaffected area for aquaculture [10]. However, our results also suggest that the uncontrolled movement of frozen shrimp with AHPND could increase the risk of spreading AHPND from an area with an outbreak to an unaffected area.
In Korea, IHHNV and WSSV have been detected in frozen commodity shrimp and crayfish imported from Vietnam, Indonesia, and China (the major exporters of cultured crustaceans), and the infectivity of these viruses as well as the risk of disease transmission into healthy shrimp have been examined [35,36]. Additionally, the pirA/B toxin genes of VpAHPND were detected in frozen shrimp imported from Vietnam and Indonesia to Korea [9]. If frozen commodity shrimp with AHPND retain viable or resuscitable VpAHPND that could infect other shrimp, quarantine of frozen shrimp will be important for the prevention of AHPND spread, particularly as those imported shrimp could lead to serious economic losses in the domestic shrimp farms of Korea. Therefore, to prevent AHPND transmission, frozen shrimp importers should be more aware of the risks and develop stricter quarantine policies. Moreover, it will be necessary to examine the infectivity of other important bacterial diseases in cultured shrimp in future research.

Author Contributions

Writing-original draft preparation, C.L. and H.J.J.; formal analysis, B.K.K.; methodology, S.-K.C.; investigation, S.K. and G.I.J.; writing—review and editing and supervision, J.H.K. and J.E.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Research Foundation of Korea (NRF) grants [NRF-2018R1C1B5086350, NRF2019R1C1C1006212, NRF-2020R1I1A2068827, and NRF2021R1I1A1A01040303], and DGIST R&D Program [2020010096] of the Ministry of Trade, Industry. This research was supported by the project titled “Development of quarantine & disease control program for aquatic life” funded by the National Fishery Products Quality Management Service. This research was also supported by Development of technology for biomaterialization of marine fisheries by-products of the Korea institute of Marine Science & Technology Promotion (KIMST) funded by the Ministry of Oceans and Fisheries (KIMST-20220128).

Institutional Review Board Statement

The animal study protocol was approved by the Ethics Committee of Kyungpook National University (KNU 2021-0066 and 29 April 2021).

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Velázquez-Lizárraga, A.E.; Juárez-Morales, J.L.; Racotta, I.S.; Villarreal-Colmenares, H.; Valdes-Lopez, O.; Luna-González, A.; Rodriguez-Jaramillo, C.; Estrada, N.; Ascencio, F. Transcriptomic analysis of Pacific white shrimp (Litopenaeus vannamei, Boone 1931) in response to acute hepatopancreatic necrosis disease caused by Vibrio parahaemolyticus. PLoS ONE 2019, 14, e0220993. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Thornber, K.; Verner-Jeffreys, D.; Hinchliffe, S.; Rahman, M.M.; Bass, D.; Tyler, C.R. Evaluating antimicrobial resistance in the global shrimp industry. Rev. Aquac. 2020, 12, 966–986. [Google Scholar] [CrossRef] [Green Version]
  3. Karunasagar, I.; Ababouch, L. Shrimp viral diseases, import risk assessment and international trade. Indian J. Virol. 2012, 23, 141–148. [Google Scholar] [CrossRef] [Green Version]
  4. Yang, Y.T.; Chen, I.T.; Lee, C.T.; Chen, C.Y.; Lin, S.S.; Hor, L.I.; Tseng, T.C.; Huang, Y.T.; Sritunyalucksana, K.; Thiamadee, S.; et al. Draft genome sequences of four strains of Vibrio parahaemolyticus, three of which cause early mortality syndrome/acute hepatopancreatic necrosis disease in shrimp in China and Thailand. Genome Announc. 2014, 2, e00816-14. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Han, J.E.; Tang, K.F.; Tran, L.H.; Lightner, D.V. Photorhabdus insect-related (Pir) toxin-like genes in a plasmid of Vibrio parahaemolyticus, the causative agent of acute hepatopancreatic necrosis disease (AHPND) of shrimp. Dis. Aquat. Org. 2015, 113, 33–40. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Dhar, A.K.; Mai, H.N. Acute hepatopancreatic necrosis disease (AHPND) and hepatopancreatic microsporidiosis (HPM): Two threats to sustainable shrimp aquaculture. In Proceedings of the International Workshop on the Promotion of Sustainable Aquaculture, Aquatic Animal Health, and Resource Enhancement in Southeast Asia; Aquaculture Department, Southeast Asian Fisheries Development Center: Tigbauan, Philippines, 2021; pp. 200–216. [Google Scholar]
  7. OIE (World Organisation for Animal Health). Chapter 9.1 Acute Hepatopancreatic Necrosis Disease. In Manual of Diagnostic Tests for Aquatic Animals; 2021; Available online: https://www.oie.int/fileadmin/Home/eng/Health_standards/aahm/current/chapitre_ahpnd.pdf (accessed on 6 September 2021).
  8. Shinn, A.P.; Pratoomyot, J.; Griffiths, D.; Trong, T.Q.; Vu, N.T.; Jiravanichpaisal, P.; Briggs, M. Asian shrimp production and the economic costs of disease. Asian Fish Sci. 2018, 31, 29–58. [Google Scholar] [CrossRef]
  9. Han, J.E.; Lee, S.C.; Park, S.C.; Jeon, H.J.; Kim, K.Y.; Lee, Y.S.; Park, S.; Han, S.; Kim, J.H.; Choi, S.K. Molecular detection of Enterocytozoon hepatopenaei and Vibrio parahaemolyticus-associated acute hepatopancreatic necrosis disease in Southeast Asian Penaeus vannamei shrimp imported into Korea. Aquaculture 2020, 517, 734812. [Google Scholar] [CrossRef]
  10. Thitamadee, S.; Prachumwat, A.; Srisala, J.; Jaroenlak, P.; Salachan, P.V.; Sritunyalucksana, K.; Flegel, T.W.; Itsathitphaisarn, O. Review of current disease threats for cultivated penaeid shrimp in Asia. Aquaculture 2016, 452, 69–87. [Google Scholar] [CrossRef]
  11. Desrina, J.V.; Verdegem, M.C.J.; Vlak, J.M. Polychaetes as potential risks for shrimp Pathogen transmission. Asian Fish Sci. 2018, 31, 155–167. [Google Scholar] [CrossRef]
  12. Tang, K.F.; Bondad-Reantaso, M.G.; Arthur, J.R.; MacKinnon, B.; Hao, B.; Alday-Sanz, V.; Liang, Y.; Dong, X. Shrimp Acute Hepatopancreatic Necrosis Disease Strategy Manual; Food and Agriculture Organization: Rome, Italy, 2020. [Google Scholar]
  13. De Silva, B.C.; Hossain, S.; Dahanayake, P.S.; Heo, G.J. Frozen white-leg shrimp (Litopenaeus vannamei) in Korean markets as a source of Aeromonas spp. harboring antibiotic and heavy metal resistance genes. Microb. Drug Resist. 2018, 24, 1587–1598. [Google Scholar] [CrossRef]
  14. Tran, L.; Nunan, L.; Redman, R.M.; Mohney, L.L.; Pantoja, C.R.; Fitzsimmons., K.; Lightner, D.V. Determination of the infectious nature of the agent of acute hepatopancreatic necrosis syndrome affecting penaeid shrimp. Dis. Aquat. Org. 2013, 105, 45–55. [Google Scholar] [CrossRef] [PubMed]
  15. Kim, N.E.; Kim, D.H. Acute hepatopancreatic necrosis disease of shrimp and import health measures. Fish Pathol. 2015, 28, 1–7. [Google Scholar] [CrossRef] [Green Version]
  16. Zorriehzahra, M.J.; Banaederakhshan, R. Early mortality syndrome (EMS) as new emerging threat in shrimp industry. Adv. Anim. Vet. Sci. 2015, 3, 64–72. [Google Scholar] [CrossRef] [Green Version]
  17. Consumer Reports. Consumer Reportsfinds Potentially Harmful Bacteria Andillegal Antibiotic Residues in Tests of Frozen Shrimp. 2015. Available online: http://pressroom.consumerreports.org/pressroom/2015/04/consumer-reports-finds-potentially-harmful-bacteria-and-illegal-antibiotic-residues-in-tests-of-frozen-shrimp.html (accessed on 8 December 2021).
  18. Elbashir, S.; Parveen, S.; Schwarz, J.; Rippen, T.; Jahncke, M.; DePaola, A. Seafood pathogens and information on antimicrobial resistance: A review. Food Microbiol. 2018, 70, 85–93. [Google Scholar] [CrossRef] [PubMed]
  19. Nunan, L.M.; Lightner, D.V. Optimized PCR assay for detection of white spot syndrome virus (WSSV). J. Virol. Methods 2011, 171, 318–321. [Google Scholar] [CrossRef] [PubMed]
  20. Tang, K.F.; Lightner, D.V. Infectious hypodermal and hematopoietic necrosis virus (IHHNV)-related sequences in the genome of the black tiger prawn Penaeus monodon from Africa and Australia. Virus Res. 2006, 118, 185–191. [Google Scholar] [CrossRef]
  21. Jaroenlak, P.; Sanguanrut, P.; Williams, B.A.; Stentiford, G.D.; Flegel, T.W.; Sritunyalucksana, K.; Itsathitphaisarn, O. A nested PCR assay to avoid false positive detection of the microsporidian Enterocytozoon hepatopenaei (EHP) in environmental samples in shrimp farms. PLoS ONE 2016, 11, e0166320. [Google Scholar] [CrossRef] [Green Version]
  22. Lightner, D.V. A Handbook of Shrimp Pathology and Diagnostic Procedures for Diseases of Cultured Penaeid Shrimp; World Aquaculture Society: Baton Rouge, LA, USA, 1996. [Google Scholar]
  23. Lightner, D.V.; Redman, R.M.; Poulos, B.T.; Nunan, L.M.; Mari, J.L.; Hasson, K.W. Risk of spread of penaeid shrimp viruses in the Americas by the international movement of live and frozen shrimp. Rev. Sci. Tech. 1997, 16, 146–160. [Google Scholar] [CrossRef]
  24. Durand, S.V.; Tang, K.F.J.; Lightner, D.V. Frozen commodity shrimp: Potential avenue for introduction of white spot syndrome virus and yellow head virus. J. Aquat. Anim. Health 2000, 12, 128–135. [Google Scholar] [CrossRef]
  25. Walker, P.J.; Mohan, C.V. Viral disease emergence in shrimp aquaculture: Origins, impact and the effectiveness of health management strategies. Rev. Aquac. 2009, 1, 125–154. [Google Scholar] [CrossRef]
  26. Hasson, K.W.; Fan, Y.; Reisinger, T.; Venuti, J.; Varner, P.W. White-spot syndrome virus (WSSV) introduction into the Gulf of Mexico and Texas freshwater systems through imported, frozen bait-shrimp. Dis. Aquat. Org. 2006, 71, 91–100. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Flegel, T.W. Review of disease transmission risks from prawn products exported for human consumption. Aquaculture 2009, 290, 179–189. [Google Scholar] [CrossRef]
  28. Yoon, J.H.; Lee, S.Y. Characteristics of viable-but-nonculturable Vibrio parahaemolyticus induced by nutrient-deficiency at cold temperature. Crit. Rev. Food Sci. Nutr. 2020, 60, 1302–1320. [Google Scholar] [CrossRef] [PubMed]
  29. OIE (World Organisation for Animal Health). Acute Hepatopancreatic Necrosis Disease Etiology Epidemiology Diagnosis Prevention and Control OIE Technical Disease Cards. 2013. Available online: http://www.oie.int/fileadmin/Home/eng/Internationa_Standard_Setting/docs/pdf/Aquatic_Commission/AHPND_DEC_2013.pdpf (accessed on 4 December 2013).
  30. Archer, D.L. Freezing: An underutilized food safety technology? Int. J. Food Microbiol. 2004, 90, 127–138. [Google Scholar] [CrossRef]
  31. Devadas, S.; Banerjee, S.; Yusoff, F.M.; Bhassu, S.; Shariff, M. Experimental methodologies and diagnostic procedures for acute hepatopancreatic necrosis disease (AHPND). Aquaculture 2019, 499, 389–400. [Google Scholar] [CrossRef]
  32. Wagley, S.; Morcrette, H.; Kovacs-Simon, A.; Yang, Z.R.; Power, A.; Tennant, R.K.; Love, J.; Murray, N.; Titball, R.W.; Butler, C.S. Bacterial dormancy: A subpopulation of viable but non-culturable cells demonstrates better fitness for revival. PLoS Pathog. 2021, 17, e1009194. [Google Scholar] [CrossRef]
  33. Wong, H.C.; Wang, P. Induction of viable but nonculturable state in Vibrio parahaemolyticus and its susceptibility to environmental stresses. J. Appl. Microbiol. 2004, 96, 359–366. [Google Scholar] [CrossRef]
  34. Wong, H.C.; Wang, P.; Chen, S.Y.; Chiu, S.W. Resuscitation of viable but non-; culturable Vibrio parahaemolyticus in a minimum salt medium. FEMS Microbiol. Lett. 2004, 233, 269–275. [Google Scholar] [CrossRef]
  35. Park, S.C.; Choi, S.K.; Han, S.H.; Park, S.; Jeon, H.J.; Lee, S.C.; Kim, K.Y.; Lee, Y.S.; Kim, J.H.; Han, J.E. Detection of infectious hypodermal and hematopoietic necrosis virus and white spot syndrome virus in whiteleg shrimp (Penaeus vannamei) imported from Vietnam to South Korea. J. Vet. Sci. 2020, 21, e31. [Google Scholar] [CrossRef] [Green Version]
  36. Lee, C.; Kim, J.H.; Choi, S.K.; Jeon, H.J.; Lee, S.H.; Kim, B.K.; Kim, Y.K.; Kee, K.J.; Han, J.E. Detection of infectious white spot syndrome virus in red claw crayfish (Cherax quadricarinatus) and red swamp crayfish (Procambarus clarkii) imported into Korea. Aquaculture 2021, 544, 737117. [Google Scholar] [CrossRef]
Fishes 07 00125 g001 550
Figure 1. Duplex PCR assay was conducted to identify VpAHPND. Lane M: 100-bp DNA ladder; lane 1: negative control; lane 2: VpAHPND positive control (from a shrimp farm in Vietnam); lane 3: hepatopancreas of shrimp frozen at −80 °C for two weeks; lanes 4 and 5: VpAHPND isolates from frozen hepatopancreas; lane 6: dead shrimp after feeding on frozen hepatopancreas. Representative samples of each analysis are shown.
Figure 1. Duplex PCR assay was conducted to identify VpAHPND. Lane M: 100-bp DNA ladder; lane 1: negative control; lane 2: VpAHPND positive control (from a shrimp farm in Vietnam); lane 3: hepatopancreas of shrimp frozen at −80 °C for two weeks; lanes 4 and 5: VpAHPND isolates from frozen hepatopancreas; lane 6: dead shrimp after feeding on frozen hepatopancreas. Representative samples of each analysis are shown.
Fishes 07 00125 g001
Fishes 07 00125 g002 550

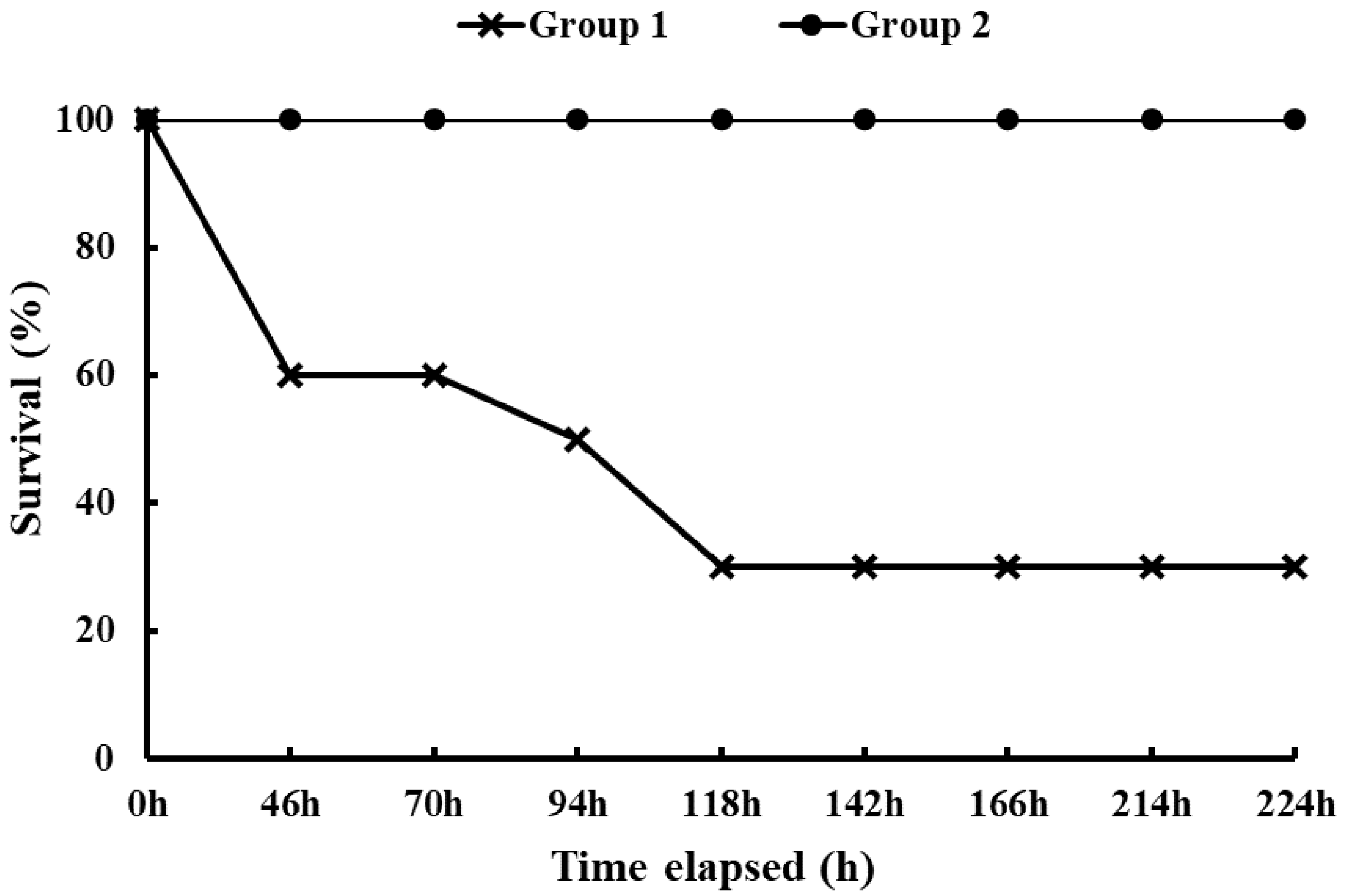

Figure 2. This Survival rate of Pacific white shrimp (P. vannamei) in an infectivity test involving feeding on frozen hepatopancreases infected with AHPND (group 1: VpAHPND challenged; group 2: no challenge).
Figure 2. This Survival rate of Pacific white shrimp (P. vannamei) in an infectivity test involving feeding on frozen hepatopancreases infected with AHPND (group 1: VpAHPND challenged; group 2: no challenge).
Fishes 07 00125 g002
Fishes 07 00125 g003 550
Figure 3. Histopathology examination using Davidson’s AFA-fixed tissue sections from experimental shrimp fed on frozen hepatopancreas at 46-h postinfection. Histological signs in group 1 (VpAHPND challenged) including tubular necrosis and cell debris are observed (A,B) (black arrows). Thin tubular epithelium is observed (white arrows). The hepatopancreases of group 2 (no challenge) had a normal appearance with normal cell functions (C,D).
Figure 3. Histopathology examination using Davidson’s AFA-fixed tissue sections from experimental shrimp fed on frozen hepatopancreas at 46-h postinfection. Histological signs in group 1 (VpAHPND challenged) including tubular necrosis and cell debris are observed (A,B) (black arrows). Thin tubular epithelium is observed (white arrows). The hepatopancreases of group 2 (no challenge) had a normal appearance with normal cell functions (C,D).
Fishes 07 00125 g003
