A Novel Method for Safety Analysis of Cyber-Physical Systems—Application to a Ship Exhaust Gas Scrubber System

1
Maritime Safety Research Centre, Department of Naval Architecture, Ocean and Marine Engineering, University of Strathclyde, Glasgow G4 0LZ, UK
2
DNV GL Group Technology & Research, Maritime Transport, DNV GL AS, 1363 Høvik, Norway
3
DNV GL Regulatory affairs, DNV GL SE, 20457 Hamburg, Germany
*
Author to whom correspondence should be addressed.
Safety 2020, 6(2), 26; https://doi.org/10.3390/safety6020026
Received: 21 February 2020 / Revised: 23 April 2020 / Accepted: 12 May 2020 / Published: 19 May 2020
(This article belongs to the Special Issue Maritime Safety and Operations)

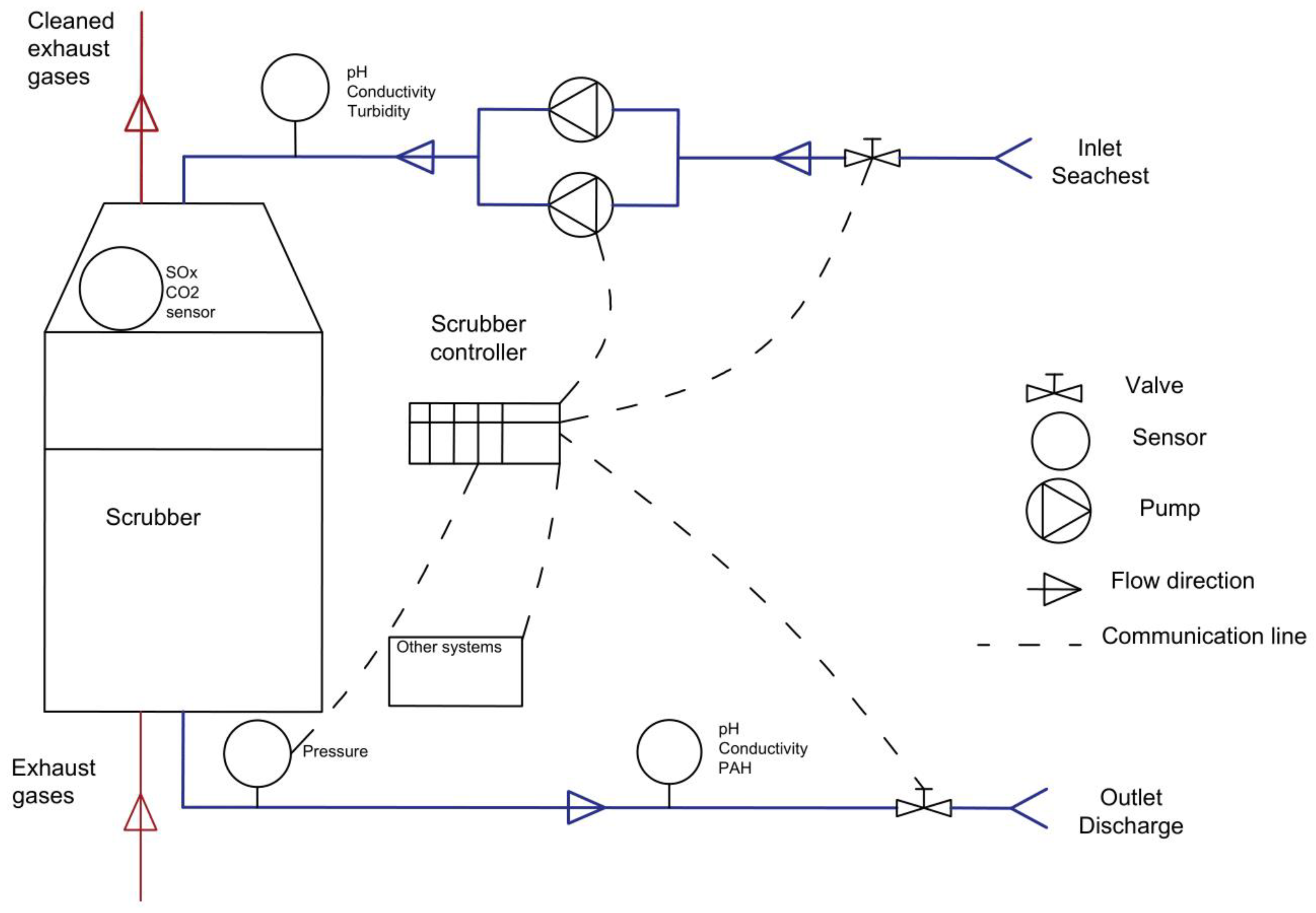

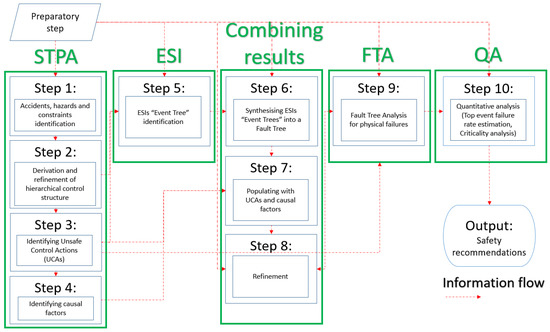

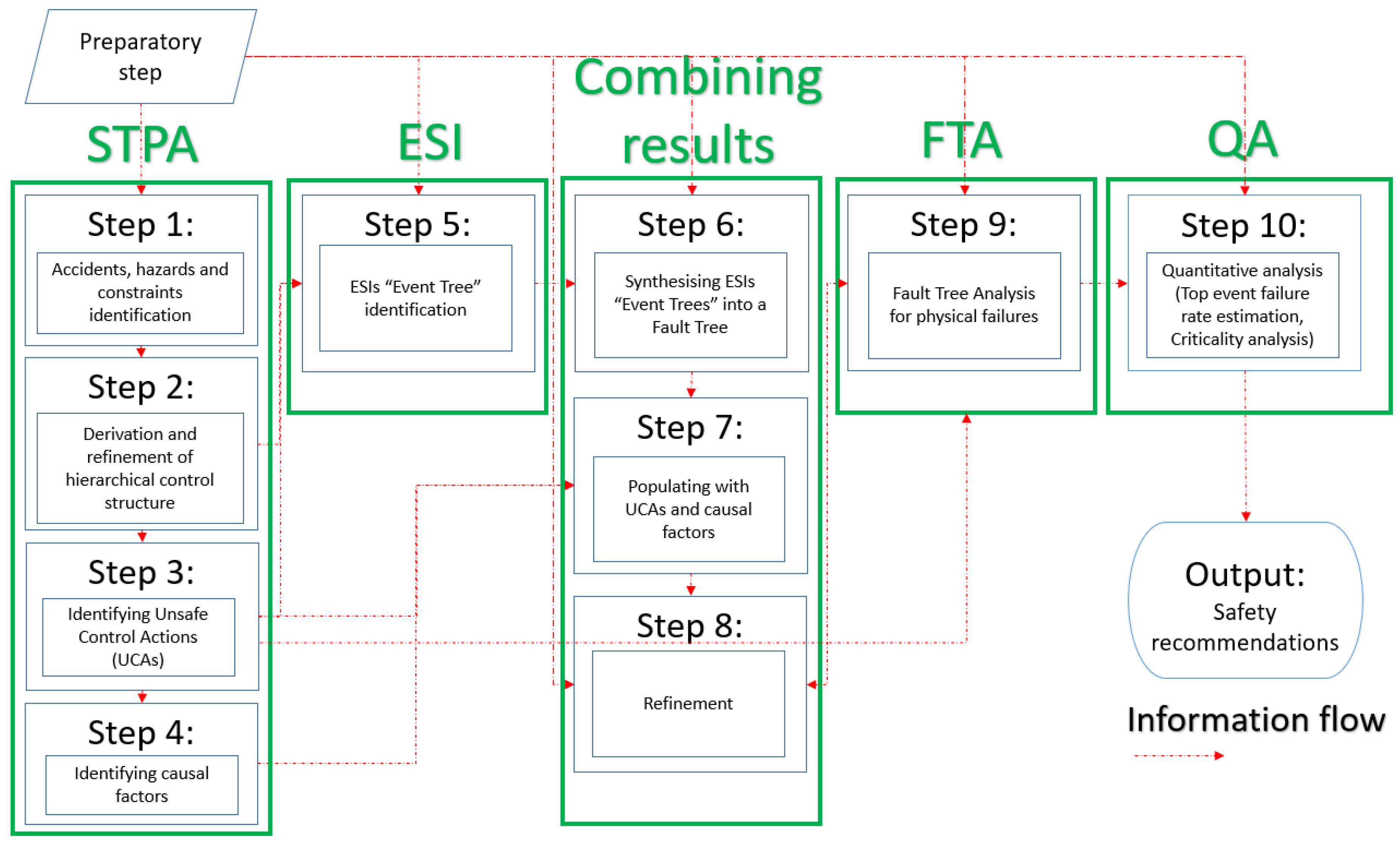

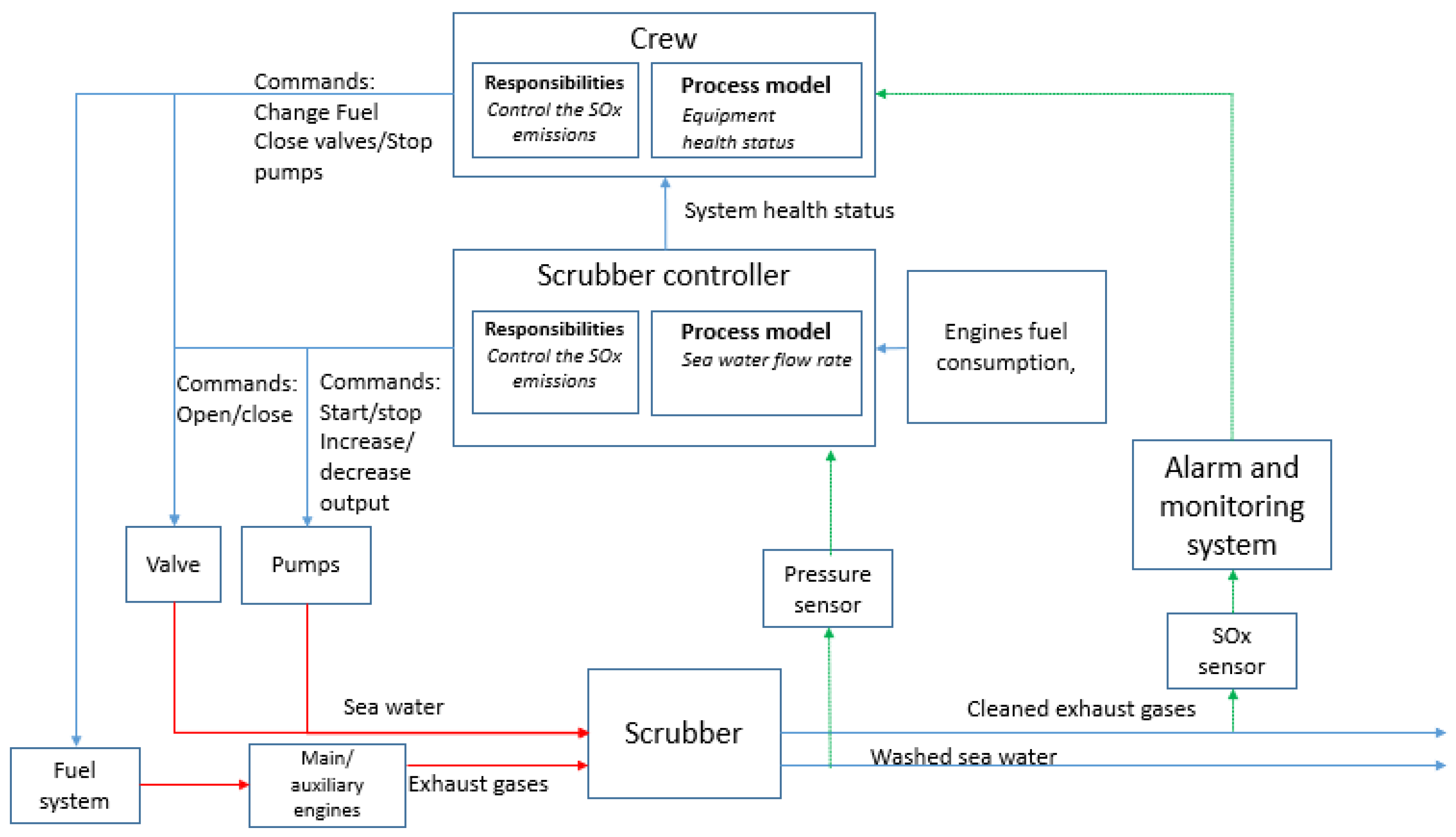

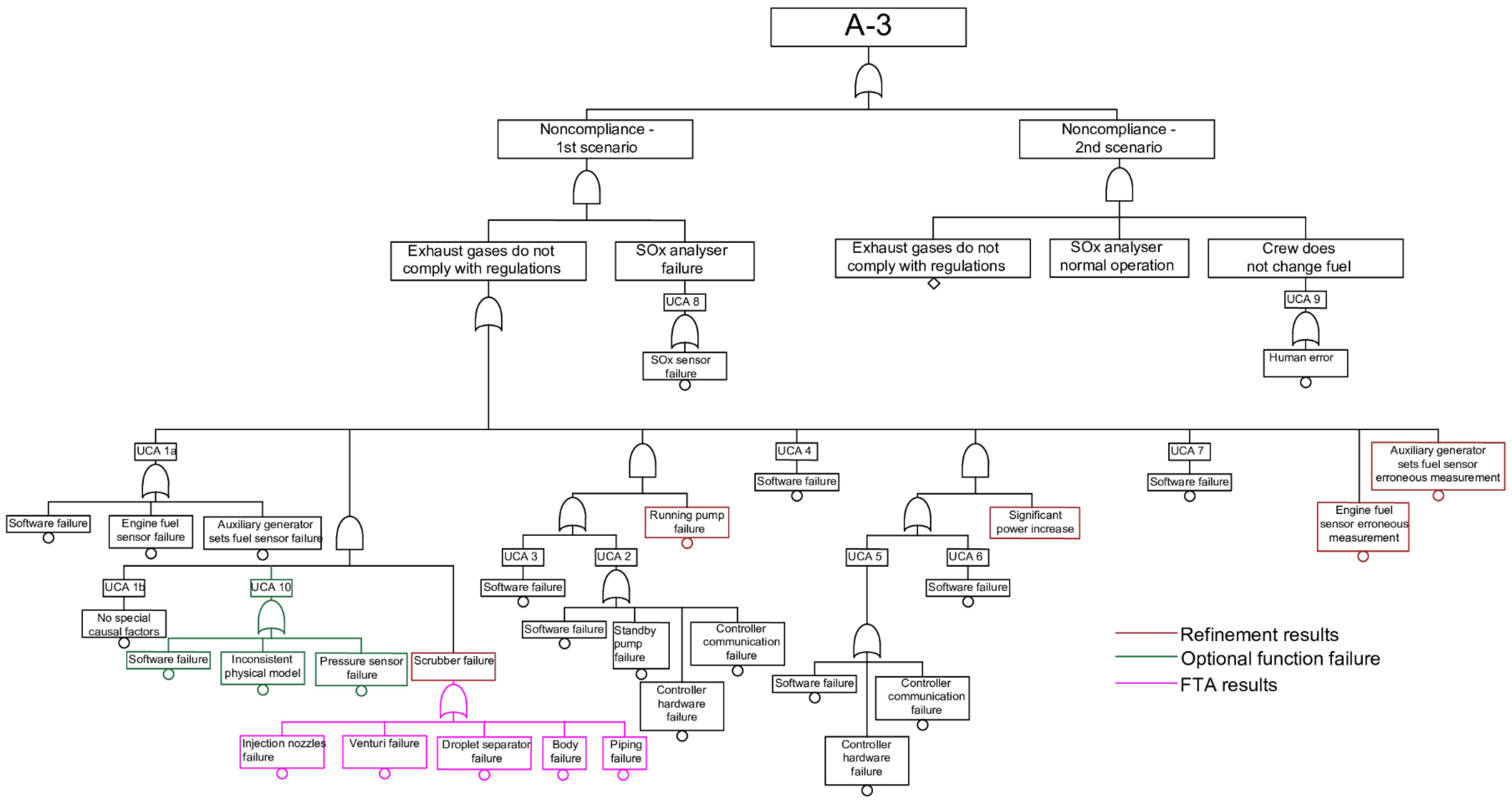

Cyber-Physical Systems (CPSs) represent a systems category developed and promoted in the maritime industry to automate functions and system operations. In this study, a novel Combinatorial Approach for Safety Analysis is presented, which addresses the traditional safety methods’ limitations by integrating System Theoretic Process Analysis (STPA), Events Sequence Identification (ETI) and Fault Tree Analysis (FTA). The developed method results in the development of a detailed Fault Tree that captures the effects of both the physical components/subsystems and the software functions’ failures. The quantitative step of the method employs the components’ failure rates to calculate the top event failure rate along with importance metrics for identifying the most critical components/functions. This method is implemented for an exhaust gas open loop scrubber system safety analysis to estimate its failure rate and identify critical failures considering the baseline system configuration as well as various alternatives with advanced functions for monitoring and diagnostics. The results demonstrate that configurations with SOx sensor continuous monitoring or scrubber unit failure diagnosis/prognosis lead to significantly lower failure rate. Based on the analysis results, the advantages/disadvantages of the novel method are also discussed. This study also provides insights for better safety analysis of the CPSs. View Full-Text
Keywords: cyber-physical systems; system-theoretic process analysis; events sequence identification; fault tree analysis; exhaust gas open loop scrubber system cyber-physical systems; system-theoretic process analysis; events sequence identification; fault tree analysis; exhaust gas open loop scrubber system
Show Figures

Figure 1

MDPI and ACS Style

Bolbot, V.; Theotokatos, G.; Boulougouris, E.; Psarros, G.; Hamann, R. A Novel Method for Safety Analysis of Cyber-Physical Systems—Application to a Ship Exhaust Gas Scrubber System. Safety 2020, 6, 26.
