Counterintuitive Single-Molecule Magnet Behaviour in Two Polymorphs of One-Dimensional Compounds Involving Chiral BINOL-Derived Bisphosphate Ligands

Abstract

The coordination reaction of the [Dy(hfac)₃(H₂O)₂] units (hfac⁻ = 1,1,1,5,5,5-hexafluoroacetylacetonate) with the [8′-(Diphenoxylphosphinyl)[1,1′-binaphthalen]-8-yl]diphenoxylphosphine oxide ligand (L) followed by a crystallisation in a 1:3 CH₂Cl₂:n-hexane solvent mixture led to the isolation of a new polymorph of formula [(Dy(hfac)₃((S)-L))₃]_n (1). The X-ray structure on single crystal of 1 revealed the formation of a mono-dimensional coordination polymer with three crystallographically independent Dy^III centres, which crystallised in the polar chiral P2₁ space group. Ac magnetic measurements highlighted single-molecule magnet behaviour under both zero and 1000 Oe applied magnetic field with magnetic relaxation through quantum tunneling of the magnetisation (QTM, zero field only) and Raman processes. Despite the three crystallographically independent Dy^III centres adopting a distorted D_4d coordination environment, a single slow magnetic relaxation contribution was observed at a slower rate than its previously studied [(Dy(hfac)₃((S)-L))]_n (2) polymorph.

1. Introduction

Single-molecule magnets (SMMs) have fascinated communities of chemists and physicists for the last 30 years because they display slow magnetic relaxation with magnetic bistability and quantum behaviours at low temperatures [1,2]. The latter opens the door to potential applications in molecular spintronics [3,4,5,6,7], quantum computing [8,9,10,11,12] and magneto-optics [13]. The discovery of lanthanide SMMs [14] with blocking temperatures for the reversal magnetisation up to 80 K [15], push back SMMs into the race of applications in high-density data storage [16,17].

To magnetism, another physical property can be added to achieve multi-property materials [18,19,20,21,22,23,24,25]. In this context, the addition of the chirality is probably the most popular choice because it leads to the observation of multiferroic materials [26,27,28,29], for instance when ferromagnetism cohabits with ferroelectricity and magneto-chiral anisotropy [30,31,32,33]. In the particular case of SMM behaviour, the addition of chirality could lead to the observation of circularly polarised luminescent SMMs [34,35,36,37], ferroelectric SMMs [38,39,40,41,42], magnetoelectric coupling in SMMs [43] and magneto-chiral SMMs [44,45]. A few years ago, some of us demonstrated that chirality can indirectly modulate the SMM behaviour through the change of dipolar interaction due to different crystal packings in the racemic SMM mixture and enantiopure SMM [46].

Polymorphism could also play a crucial role in the modulation of the SMM behaviour because it could induce changes in the intermolecular interaction (dipolar magnetic interaction), and local environment of the metal (crystal field) [47,48].

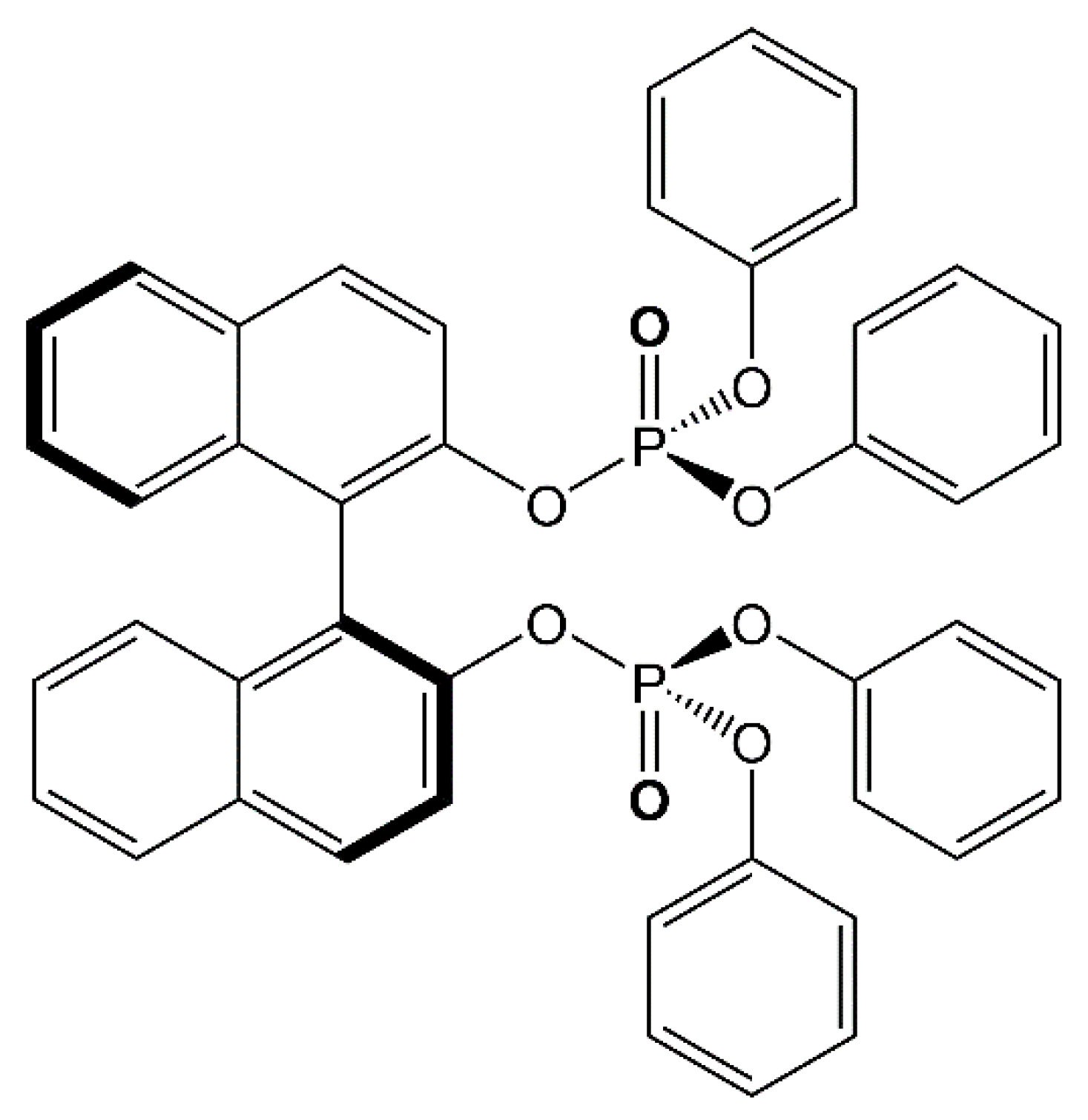

Recently, the (chir)optical and magnetic properties of [Dy(hfac)₃((S)-L)]_n (2) (L = Diphenoxylphosphinyl)[1,1′-binaphthalen]-8-yl]diphenoxylphosphine oxide) (Scheme 1) were studied [49,50]. A new polymorph of formula [(Dy(hfac)₃((S)-L))₃]_n (1) was then isolated, and its magnetic properties are presented here and compared to those of 2.

2. Results and Discussion

2.1. Synthesis

The coordination reaction between the ligand (S)-L and the precursor Dy(hfac)₃(H₂O)₂ led to the formation of a mono-dimensional polymer of formula [Dy(hfac)₃((S)-L)]_n (2) [49]. The polycrystalline powder of the latter polymer was obtained by slow diffusion of a large excess of n-hexane into a CH₂Cl₂ solution of 2 (CH₂Cl₂/n-hexane 1:40), while a slow evaporation from a solution of the reagents in CH₂Cl₂ quantitatively yielded the new polymorph of formula [(Dy(hfac)₃((S)-L))₃]_n (1) as single crystal suitable for X-ray diffraction study and confirmed by PXRD studies.

2.2. X-ray Structures

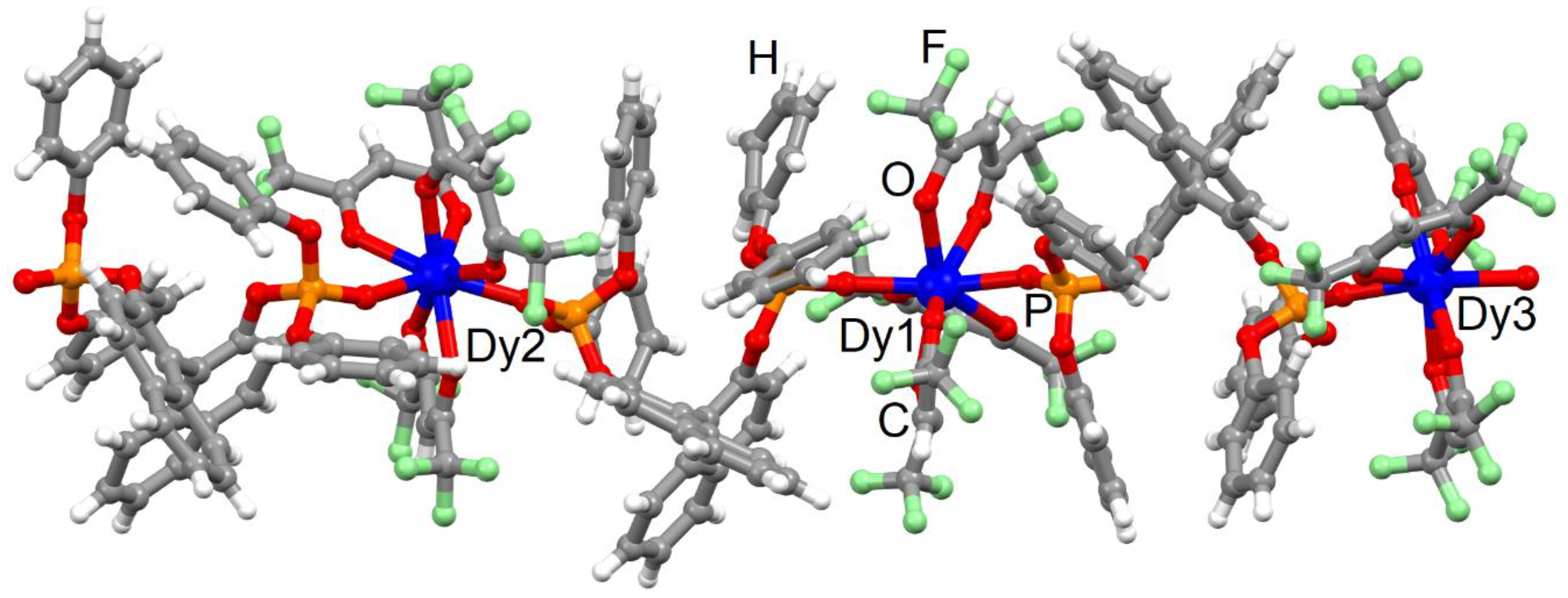

XRD studies on single crystal revealed that the $S$ form of this further product crystallises in the space group P2₁ (No. 4) with formula [(Dy(hfac)₃((S)-L))₃]_n (1) (Table S1), while our previous work concluded that the mono-dimensional polymorph 2 crystallised in the chiral orthorhombic space group C222₁ (N°20)⁴⁹. It is worthwhile to note that the P2₁ space group is polar and chiral, which is a prerequisite for magnetoelectric coupling due to the combination of ferroelectric behaviour with magnetostrictive effects [43]. Three (S)-L ligands and three Dy(hfac)₃ fragments compose the asymmetric unit (Figure 1).

Each Dy^III centre is octa-coordinated by six oxygen atoms from three hfac⁻ ligands and two oxygen atoms from two phosphate groups of two different (S)-L ligands. The repetition of the asymmetric unit gives rise to a mono-dimensional coordination polymer. SHAPE [51] analysis suggests that all the first metal coordination spheres significantly deviate from the closest D_4d coordination polyhedra, although with different degrees of distortion (Table S2). Indeed, the Dy1 and Dy3 centres, respectively, show distortion degree values of 0.469 and 0.657, while Dy2 adopts a D_4d surrounding with a distortion degree of 0.814 close to the deviation from the C_2v symmetry (0.997) (Table S2). The average bond and angle values are similar for each Dy(hfac)₃((S)-L) fragment. Around each Dy^III centre, the Dy-O_P=O lengths (2.31(2) Å) are found to be slightly shorter than the Dy-O_hfac distances (2.34(7) Å). The average Dy-O_P=O length (range from 2.34(9) to 2.38(7) Å) and _P=OO-Dy-O_P=O angle values (range from 141.9(8) to 146.3(7)°) are similar between the [Dy(hfac)₃((S)-L)] fragments. The dihedral angle between the naphthyl groups have an average value of 85.6(4)°. The shortest intra- and inter-chain Dy-Dy distances have values of 12.144(2) Å and 11.296(2) Å, respectively. The crystal packing is driven by the formation of π-CH, F⋯F (2.718 Å) and F⋯H (2.493 Å) interactions between the polymeric chains (Figure S1). Since it was not possible to obtain 2 crystals of satisfactory quality for XRD structural determination [49], the straight relationship between structure and magnetic properties drives us to deeply compare two polymorphic structures with Dy^III and Eu^III centres. Therefore, the data at 150 K for the isostructural [Eu(hfac)₃((S)-L)]_n were used. In the latter, the coordination environment is similar, with an identical bridging mode of the (S)-ligand. SHAPE analysis supported a more regular D_4d symmetry of the coordination sphere (SAPR-8 = 0.300) than what has been observed in 1. The _P=OO-Dy-O_P=O angle values (145.3(3)°) and dihedral angle between the naphthyl groups (77.3°) are similar in both polymorphs. The crystal packing of the 2 polymorph is also driven by very similar π-CH, F⋯F (2.718 Å) and F⋯H (2.545 Å) interactions, leading to the shortest intra- and inter-molecular Dy⋯Dy distances, respectively, equal to 12.647(2) and 11.466(2) Å, which are values close to those observed in the 1 polymorph. In summary, on one side, the SHAPE analysis demonstrated a distortion degree of the dysprosium coordination spheres stronger in 1 than for 2, while on the other side, both crystal packings are comparable. Therefore, neither the symmetry of the coordination spheres nor the crystal packing can reasonably explain the difference of magnetic behaviour. A deeper analysis of the coordination sphere of the Dy^III ion in both polymorphs shows (i) close values for the angles between the plans formed by the hfac⁻ ligand (blue one depicted in Figure S2) and the _P=OO-Dy-O_P=O fragment (drawn in orange in the Figure S2) for both polymorphs 2 (20.6(3)°) and 1 (18.6(7)°) and (ii) significant difference of angle values calculated between the two plans formed by the two “face-to-face” hfac⁻ ligands (drawn in green on Figure S2) for both polymorphs 2 (12.3(5)°) and 1 (26.2(9)°). In other words, the closest ideal symmetry for coordination sphere in both polymorphs is the same regardless of whether the arrangements of the ligands around the Dy^III centre are different, leading to different electronic distribution, and then modification in the magnetic properties could be expected.

Finally, the phase purity for the 1 polymorph was checked by powder X-ray diffraction (PXRD) at room temperature. This study confirmed that the single crystal structure of 1 corresponds to the bulk material and its phase purity. Both PXRD patterns of 2 and 1 were compared together with their calculated ones (from single crystal data), showing that no trace of 2 polymorph was detected in the sample of 1 (Figure S3).

2.3. Magnetic Properties

2.3.1. Static Magnetic Measurements

In Figure S4, the experimental temperature dependence of χ_MT is reported for both 2 and 1 polymorphs for comparison. It should be noted that the magnetic data are reported for 3 Dy^III centres for 1 to be in agreement with the proposed formula [(Dy(hfac)₃((S)-L))₃]_n. For 1, the room temperature value of 43.22 cm³ K mol⁻¹ is close to the expected one of 42.51 cm³ K mol⁻¹ for three isolated Dy^III ions in ⁶H_15/2 ground multiplets [52]. On cooling down the system, the χ_MT curve decreases monotonically down to 36.93 cm³ K mol⁻¹ at 2 K. No increase in the χ_MT product is observed at low temperatures, conversely to the 2 case. This highlights the presence of different dipolar interactions in the two compounds even if the shortest intra- and inter-molecular Dy⋯Dy distances were found to be similar in both polymorphs. Indeed, relative orientation of the main component of the magnetic anisotropy has a crucial role in the intensity and nature of the dipolar magnetic interaction. The field-dependence of magnetisation were measured at 2 K between 0 and 5 T for both polymorphs (Figure S5). At high fields, the magnetisation value of 1 is 15.93 Nβ, about three times the value for 2, and far from the expected saturated value for three Dy^III ions of 30 Nβ, a sign of significant magnetic anisotropy.

2.3.2. Dynamic Magnetic Measurements

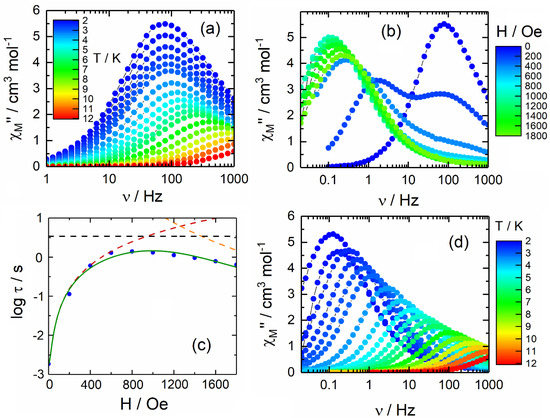

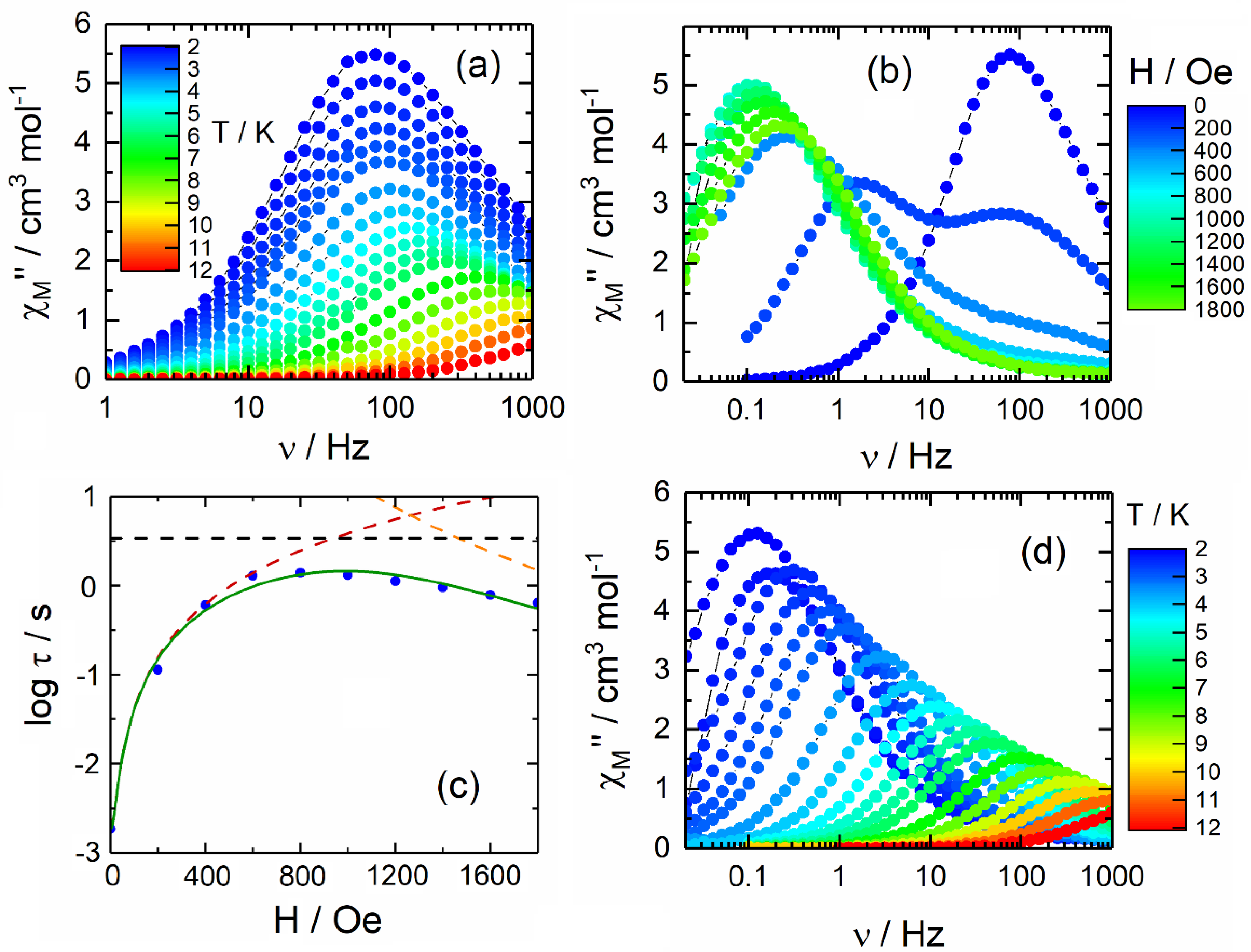

The 1 polymorph exhibits slow relaxation of the magnetisation in zero applied field (Figure 2a and Figure S6). The complex 1 relaxes about 100 times slower than 2, which was previously published at 2 K. The normalised Argand plot for 1 indicates that the observed slow magnetisation relaxation represents approximately all the signal detected in the static measurements (Figure S7). The dynamic data can be fitted with an extended Debye model (Figure S8 and Table S3). The observed thermal dependence of the extracted relaxation times (τ) could be fitted (Equation (1)) with a combination of QTM and Orbach processes using τ_TI = 1.57(4) × 10⁻³ s, τ_{0 =} 1.7(2) × 10⁻⁵ s and Δ = 23.6(6) K (Figure S9).

$${\tau }^{-1}=\underset{Orbach}{\underbrace{{\tau }_0^{-1}\exp \left(\frac{\mathsf{\Delta }}{T}\right)}}+\underset{Raman}{\underbrace{C{T}^n}}+\underset{{\tau }_{TI}^{-1},QTM}{\underbrace{\frac{B_1}{1+B_2{H}^2}}}+\underset{Direct}{\underbrace{AT{H}^m}}$$

(1)

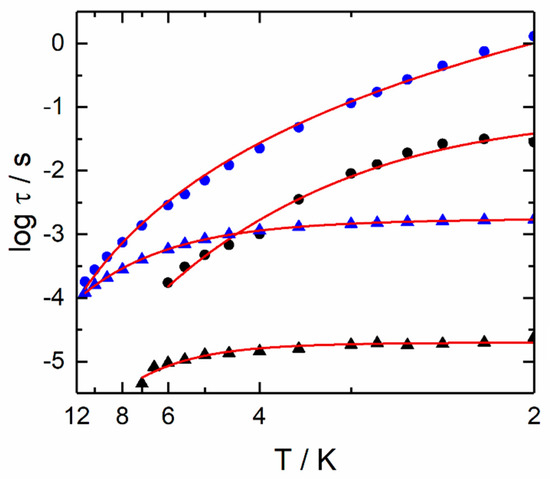

However, the thermal energy of the system for temperatures ≤12 K does not appear sufficient for activating this Orbach relaxation pathway. A more reasonable fitting procedure could consider a combination of QTM and Raman processes (Figure 3 and Figure S10). The best fit parameters are τ_TI = 1.57(4) × 10⁻³ s, C = 4.0(3) s⁻¹ K⁻ⁿ and n = 3.16(3). In the case of a pure acoustic phonons (lattice vibrations) Raman process, the expected n value is 9 for Kramers ions [53], but the involvement of optical phonons (molecular vibrations) [8,15] can induce the diminution of n between 2 and 7 [54,55,56].

Under a static magnetic field (Figure 2b and Figure S11), the out-of-phase maxima start to move to lower frequencies. While 2 displays a complicated relaxation dynamic, for the polymorph 1, the field dependence of the magnetic susceptibility displays a classic behaviour. Two contributions can be distinguished for the low magnetic field values usually attributed to the presence of dipolar magnetic interactions between the Dy^III magnetic centres [57]. By applying field values higher than 500 Oe, only one contribution is significant. Thus, despite the presence of three independent Dy^III centres, only one contribution to the magnetisation relaxation is detected once the dipolar magnetic interactions are destroyed. The relaxation times are extracted from the χ_M curves using two contributions for low magnetic field values (0–400 Oe) and a single contribution for the highest magnetic field values (600–1800 Oe) (Figure S12 and Table S4). The fit output is superimposed on the argand plot in Figure S13. The field dependence of the extracted $\tau$ can be fit by Equation (2) (Figure 2c) [58,59].

$${\tau }^{-1}=\frac{B_1}{1+B_2{H}^2}+A{H}^4+k\left(T\right)$$

(2)

The fit parameters are B₁ = 5(1) × 10² s⁻¹, B₂ = 2.1(6) × 10⁻³ Oe⁻², A = 3.2(7) × 10⁻¹⁴ s⁻¹ K⁻¹ Oe⁻⁴ and k(T) = 3(1) × 10⁻¹ s⁻¹. The value of 1000 Oe was selected to study the in-field temperature-dependent behaviour of 1 (Figure 2d and Figure S14) because it is close to the optimal field and analogous to the field used in the studies for polymorph 2 [49]. Under 1000 Oe at 2 K, the complex 1 relaxes about $100$ times slower than the slowest contribution of the polymorph 2. Such difference has already been observed under zero applied field. Thus, the two polymorphs appear to respond in a similar way to the applied field (Figure 3). The normalised Argand plot for 1 indicates that the observed slow magnetization relaxation under an applied magnetic field represents approximately all the signal detected in the static measurements (Figure S15). The data for 1 can be interpreted with an extended Debye model (Figure S16, Table S5), accounting for only one contribution to the magnetisation relaxation in the temperature range of 2–11 K (Figure 3).

The fit output is superimposed on the normalised argand plot (Figure S15). Based on the fit of the log(τ) vs. H curve (Figure 2c), no remaining QTM nor Direct processes are expected to play a major role in the magnetic relaxation. Thus, only k(T) (thermally activated Raman and Orbach processes) (Equation (2)) should be involved in the magnetic relaxation mechanism. Moreover, as previously mentioned for ac study under zero applied magnetic field, the thermal energy of the system cannot activate a similar Orbach mechanism in the studied temperatures range. Conversely, a Raman process can be satisfactorily employed to interpret the experimental log(τ) vs. T plot (Figure 3). The best fit parameters are C = 2.6(3) s⁻¹ K⁻ⁿ and n = 5.22(8). Therefore, the tunnelling phenomena observed at zero field are efficiently suppressed by applying a static dc magnetic field of 1000 Oe. The values for the Raman process is similar in both zero and applied field for temperature ranging from 612 K. Conversely to 2, no direct pathways seem to significantly participate in the magnetisation relaxation dynamic.

3. Conclusions

In this article, a new polymorph was isolated from the reaction between Dy(hfac)₃(H₂O)₂ and [8′-(Diphenoxylphosphinyl)[1,1′-binaphthalen]-8-yl]diphenoxylphosphine oxide ligand (L). The single crystal X-ray structure of [(Dy(hfac)₃(L))₃]_n (1) revealed that three crystallographically independent Dy^III centres composed the asymmetric unit. 1 displayed slow magnetic relaxation in both zero and applied dc magnetic field. Despite the high level of distortion for the D_4d coordination sphere around the Dy^III ions, the polymorph 1 displayed a slower relaxation of its magnetisation compared to the polymorph 2 which involves a more regular D_4d surrounding. This observation was attributed to different arrangement of the coordinated ligands and a more favorable electronic distribution for 1 than 2, demonstrating once more that the electronic distribution is more decisive than the coordination symmetry. Surprisingly, the polymorph 1 displayed one contribution for the slow magnetisation relaxation, whereas 2 displayed multi-contributions under the same applied magnetic field and this despite the presence of three different crystallographic Dy^III centres for 1. The observed magnetic behaviour appears counterintuitive, and currently it cannot be fully justified. However, different magnetic dynamic properties as a consequence of differences in the dipolar interactions for similar systems were already documented [46]. This work underlines the effect of subtle structural variations on SMM behaviour.

Interestingly, the polymorph 1 crystallised in the polar chiral space group P2₁ and involves the hfac⁻ ligands, which could display keto-enol transformation, allowing the switching of molecular polarity. In other words, all the needed prerequisites to observe ferroelectricity are reached [60,61,62]. Thus, 1 appears to be a promising candidate to the exhibition of magnetoelectric coupling [43].

4. Materials and Methods

4.1. Synthesis, General Procedures and Materials

The precursor [Dy(hfac)₃(H₂O)₂] (hfac⁻ = 1,1,1,5,5,5-hexafluoroacetylacetonate anion) [63] and [8′-(Diphenoxylphosphinyl)[1,1′-binaphthalen]-8-yl]diphenoxylphosphine oxide (L) [64] were synthesised following previously reported methods. All other reagents were commercially available and used without further purification.

4.2. Synthesis of the Ligand [8′-(Diphenoxylphosphinyl)[1,1′-binaphthalen]-8-yl]diphenoxylphosphine Oxide (L)

Phenol in a quantity of 1.12 g (11.9 mmol) and 4.7 mL (33.7 mmol) of Et₃N were added to a solution containing 0.52 mL (5.96 mmol) of PCl₃ in 100 mL of anhydrous toluene at 0 °C under argon atmosphere. After stirring the mixture for 30 min, 0.85 g (2.97 mmol) of (S)-BINOL were added at −10 °C. The mixture was stirred for 1 h at room temperature, then filtered over Celite. The solvent was removed at reduced pressure. The residue was dissolved in EtOAc, washed with H2O, an aqueous 5% NaOCl solution and brine. The organic phase was dried with MgSO₄, then the solvent was removed at reduced pressure. The residue was purified by column chromatography on silica gel using petroleum ether/EtOAc (7:3) as the eluent. 0.84 g, 38% yield for (S)-L. ¹H-NMR (300 MHz, CDCl₃): δ = 7.93 (d, J = 9.0 Hz, 2 H), 7.87 (d, J = 8.1 Hz, 2 H), 7.78 (d, J = 9.0 Hz, 2 H), 7.43–7.37 (m, 2 H), 7.25–7.06 (m, 10 H), 7.00–6.98 (m, 6 H), 6.88–6.85 (m, 4 H), 6.57–6.54 (m, 4 H). ¹³C-NMR (75 MHz, CDCl₃): δ = 150.3 (d, J_CP = 8.2 Hz), 150.1 (d, J_CP = 7.5 Hz), 146.7 (d, J_CP = 6.7 Hz), 133.6, 131.2, 130.5, 129.7, 129.5, 128.1, 127.3, 126.2, 125.8, 125.4 (d, J_CP = 1.5 Hz), 125.2 (d, J_CP = 1.5 Hz), 121.7 (d, J_CP = 9.0 Hz), 120.0 (d, J_CP = 5.2 Hz), 119.6 (d, J_CP = 5.2 Hz), 119.2 (d, J_CP = 1.5 Hz). ${\left[\alpha \right]}_D^{25}=+1.2$ for (S)-L (c = 1.0, CHCl₃).

4.3. Synthesis of Complex [(Dy(hfac)₃(L))₃]_n (1)

[Dy(hfac)₃(H₂O)₂$] \mathrm{in} \mathrm{a} \mathrm{quantity} \mathrm{of}$16.4 mg (0.02 mmol) was added to a solution containing 15 mg (0.02 mmol) of (S)-L in 2 mL of CH₂Cl₂. After $15$ min of stirring, the solution was slowly evaporated, leading to a colourless and microcrystalline residue. 28.8 mg, 94% yield for 1. I.R. (KBr, range 1800–400 cm⁻¹): 1654 (s), 1591 (m), 1556 (m), 1528 (m), 1490 (s), 1476 (m), 1459 (m), 1254 (s), 1222 (s), 1208 (s), 1194 (s), 1160 (s), 1145 (s), 1102 (m), 1078 (m), 1029 (m), 1015 (m), 1002 (m), 994 (m), 968 (m), 952 (w), 903 (w), 871 (w), 849 (w), 815 (w), 809 (w), 797 (m), 777 (m), 762 (w), 752 (m), 742 (w), 704 (w), 687 (m), 661 (m), 616 (w), 586 (m), 560 (w), 549 (w), 526 (w), 526(w), 513 (w), 500(w), 495 (w), 482 (w), 469 (w) cm⁻¹. Slow evaporation from a solution in CH₂Cl₂/n-hexane (1:3) led to single crystals suitable for structural X-ray studies. Anal. Calcd (%) for C₁₇₇H₁₀₄Dy₃F₅₄O₄₂P₆: C 46.15, H 2.26; found: C 46.32, H 2.35.

4.4. Crystallography

A single crystal of 1 was mounted on a D8 VENTURE Bruker-AXS diffractometer for data collection (MoK_α radiation source, λ = 0.71073 Å) at 150 K, from the Diffractometric Centre X (CDIFX), University of Rennes 1, France (Table S1). The SHELXT program [65] was used to solve the structures with a direct method and refinements were done with the SHELXL-14/7 program [66] using a full matrix least-squares method on F². The CCDC number is 2112160 for compound 1. X-ray diffraction (XRD) patterns were recorded at room temperature in the 2θ range of 5–30° with a step size of 0.026° and a scan time per step of 600 s using a PANalytical X’Pert Pro diffractometer (Cu-L2,L3 radiation, λ = 1.5418 Å, 40 kV, 40 mA, PIXcel 1D detector). Data collector and HighScore Plus softwares were used, respectively, for recording and analysis of the patterns.

4.5. Physical Measurements

The elemental analyses of the compounds were performed at the Centre Régional de Mesures Physiques de l’Ouest, Rennes. The static susceptibility measurements were performed on solid polycrystalline samples with a Quantum Design MPMS-XL SQUID magnetometer. The following values of magnetic field were used: 0.2 kOe, 2 kOe and 10 kOe, respectively, for the temperature range of 2–20 K, 20–80 K and 80–300 K in order to prevent any saturation effect. The ac magnetic susceptibility measurements were both performed on a Quantum Design MPMS-XL SQUID magnetometer (1–1000 Hz frequency range). Immobilised selected and crunched single crystals were employed to realize the magnetic measurements, and the latter were all corrected for the diamagnetic contribution as calculated with Pascal’s constants.
