Assessing the Potential of the Terrestrial Cyanobacterium Anabaena minutissima for Controlling Botrytis cinerea on Tomato Fruits

Abstract

Cyanobacteria are oxygenic phototrophs that have an essential role in soil N₂ fixation, fertility, and water retention. Cyanobacteria are also natural sources of bioactive metabolites beneficial to improve plant vigor and potentially active against fungal plant pathogens. Therefore, we studied the antifungal activity of water extract (WE) and phycobiliproteins (PBPs) from Anabaena minutissima strain BEA 0300B against the fungal plant pathogen Botrytis cinerea on tomato fruits and in vitro. The water extract and PBPs were characterized by using FT-IR and FT-Raman spectroscopies. Both water extract (5 mg/mL) and PBPs (ranged from 0.3 to 4.8 mg/mL) reduced disease incidence and disease severity on tomato fruits and mycelium growth and colony forming units in vitro. For mycelium growth, a linear PBP dose-response was found. Tomato fruits were also characterized by FT-IR and FT-Raman spectroscopies in order to evaluate structural modifications induced by pathogen and PBP treatment. PBPs preserved cutin and pectin structures by pathogen challenge. In conclusion, A. minutissima can be considered a potential tool for future large-scale experiments for plant disease control.

1. Introduction

Botrytis cinerea Pers., teleomorph Botryotinia fuckeliana (de Bary) Whetzel, is a worldwide Ascomycota pathogenic fungus with a necrotrophic lifestyle causing grey mold disease on a vast number of plant species. Based on its scientific and economic importance, B. cinerea is ranked second in the world Top 10 fungal plant pathogens list [1], affecting 586 genera, including several vegetables and fruits [2], such as tomatoes in the field, greenhouse, and during post-harvest [3,4].

Tomato red ripe fruits are highly susceptible to grey mold disease; indeed, in this ripening stage, B. cinerea produces many toxins, cell wall degrading enzymes (CWDEs), reactive oxygen species (ROS), and other virulence factors that induce rapid death and decay of the fruit tissues [5,6]. Fruit infection by B. cinerea originates in the field, and the disease can remain quiescent for some time in tissues until favorable conditions allow sporulation and spread. Botrytis cinerea can be present in a broad range of environmental conditions [7], such as cold temperatures in the fridge, where it can grow successfully. During post-harvest, the spread of fungus infections is promoted by an abundant production of aerial mycelia and spores. Under suitable environmental conditions such as high humidity, free moisture on fruit surfaces and moderate temperatures, spores can germinate, developing a grey mycelium that makes the fruits non-marketable and edible.

Nowadays, the application of synthetic fungicides is the most efficient option for the control of grey mold during tomato cultivation. However, their use is a major concern for both human health and environmental safety that are the purpose of the European Regulation 1107/2009 and the Directive 2009/128. Therefore, following the principles of integrated pest management, these rules prioritize nonchemical and natural alternatives wherever possible for plant disease control.

Alternative pest management practices are gaining increased attention as organic agricultural practices are of increasing interest. In particular, the use of cyanobacteria and other microbes are of interest as they are a source of bioactive metabolites, including antibiotics or antimicrobials [8,9,10,11]. Cyanobacteria are prokaryotes that occur in various environments such as fresh and brackish water, oceans, soil, and glaciers. They are autotrophic microorganisms able to photosynthesize and make symbioses with plants and lichens [12]. In agriculture, they are mostly known for their nitrogen fixation capacity and for their plant biostimulant activities, but few studies have examined their antifungal activity against fungal plant pathogens. For example, on the tomato plant, substrate application of new cultures of A. variabilis and A. laxa showed efficacy against plant wilt caused by F. oxysporum f.sp. lycopersici [13]. In addition, an aqueous extract from A. minutissima (formerly named Anabaena sp.) inhibited B. cinerea growth in vitro [14] and reduced infected areas by Podosphaera xanthii, and fungal sporulation on cucumber detached cotyledons and seedlings by inducing the expression of several PR genes correlated to plant-induced resistance [15]. Furthermore, several species of Anabaena also showed antifungal activity against other plant pathogens such as Alternaria solani, Fusarium moniliforme, Pythium aphanidermatum, P. debaryanum, and Rhizoctonia bataticola [16,17].

Among cyanobacterial bioactive compounds, the authors in [18] reported that phycobiliproteins extracted from Arthrospira platensis controlled gray mold disease on tomato fruit and fungal mycelial growth and spore germination in an artificial substrate. In addition, polysaccharides from Anabaena minutissima applied on strawberry fruits in pre-harvest reduced fruit infected area and pathogen sporulation [14].

Enhancement of non-destructive analytical techniques, such as spectroscopic methods, are key objectives for quantifying the severity of stress or disease in plants and crops. FT-IR and FT-Raman techniques are classified as vibrational spectroscopies. Both techniques are sensible to chemical bonds, which can vibrate by changing the bond length (stretching vibrations, indicated by the Greek letter ν) or changing the bond angle (bending vibrations, indicated by the Greek letter δ). The energy of vibrations (measured in cm⁻¹) is typical of each chemical functional group, thus allowing a qualitative identification of chemical compounds. The difference between the two techniques relies on the physical mechanism of interaction between light and matter: FT-IR is an absorption technique; therefore, the bands in the spectrum correspond to frequencies absorbed by the sample. On the other side, Raman spectroscopy is an emission technique in which the bands in the spectrum correspond to the inelastic scattering of monochromatic radiation (generated by a laser source): the frequency of each band again corresponds to functional groups. These differences allow the techniques to be complementary [19].

Under these considerations, this research aimed to study: (i) the chemical structure of water extract (WE) and phycobiliproteins (PBPs) from the cyanobacterium Anabaena minutissima by using FT-IR and FT-Raman spectroscopies, (ii) the antifungal activity against Botrytis cinerea on tomato fruits and in vitro; and (iii) the structural changes in the fruit cell wall and pulp components as a consequence of PBP treatment.

2. Materials and Methods

2.1. Anabaena minutissima Cultivation

Anabaena minutissima (Lemmermann, 1898) BEA 0300B, isolated from a coastal humid basaltic wall in Ajuy, Gran Canaria, Spain, by the Spanish Bank of Algae BEA (Canary Islands, Spain), was cultivated outdoors at the BEA greenhouse facilities in polypropylene open tanks (90 L) with BG11 media [20] under continuous aeration supplied with CO₂ pulses at a rate of 1 min every hour (Figure S1). Growth was monitored daily by measuring optical density at 680 nm in a spectrophotometer. Maximum irradiance levels reached 1800 µmol photon m⁻² s⁻¹, and the water temperature fluctuated between 20 and 24 °C. Weekly, the biomass was harvested by filtration, washed with distilled water, and dehydrated using a B. Master Plus dehydrator (Tauro Essicatori).

2.2. Water Extract, Phycobiliproteins, and Pathogen

Dried biomass of A. minutissima was used for water extract (WE) preparation and phycobiliproteins (PBPs) extraction. For WE, the biomass was suspended in sterile distilled water in a beaker at 5 mg/mL concentration under continuous stirring at 50 °C, 300 rpm magnetic stirrer with heater (Arex Digital, Velp Scientifica, Italy). After 12 h, the solution was filtered through a Whatman sterile filter paper, grade 1, particle retention 11 μm [21]. PBPs were extracted by suspending 7.5 g of dried biomass in 100 mL of phosphate buffer 0.2 M, pH = 7 [18]. The suspensions were stirred for 4 h at room temperature in the dark and then centrifuged for 20 min at 13 °C, 5000 rpm. The PBPs were desalted and separated from the cyanobacterial cell residues using Amicon^® Ultra-4 (Millipore Corporation, Burlington, MA, USA) centrifugal filtering devices. Water extract and PBPs were then filtered with a GV Millex^® Syringe Filter Unit (pore diameter 0.45 µm, Millipore Corporation, Burlington, MA, USA). After purification, PBPs and WE were lyophilized and subsequently stored at −80 °C until use.

Botrytis cinerea 06 belongs to the DISTAL collection, and it was previously isolated from tomato fruits showing grey mold symptoms. The pathogen was maintained on potato dextrose agar (PDA, 4%, Difco, Laboratories, Detroit, MI, USA) at 25 °C until use.

2.3. Antifungal Activity of WE and PBPS against B. cinerea on Tomato Fruit

Tomato fruits Cherry of Pachino (Moncada, Soc. Agr. Coop. O.P., Ispica (RG), Italy) were firstly surface sterilized by immersion in a solution of sodium hypochlorite (2.5%, v/v) for 3 min. Then, fruits were rinsed three times in sterile distilled water and air-dried under a sterile flow cabinet. Five fruits were placed in plastic boxes on wet sterilized paper and wounded (5 mm deep) for treatment and pathogen inoculation on the blossom end with a sterile needle [18]. Ten µL-drop of WE (5 mg/mL) or PBPs at the concentrations of 0.3, 0.6, 1.2, 2.4, and 4.8 mg/mL was pipetted in each wound, and 30 min after treatment, a 10 µL-drop of spore suspension (10⁶ spores/mL) was inoculated. Fruits treated with sterile distilled water and inoculated with spore suspension were considered as the negative control. Fruits treated with 20 µL-drop of sterile distilled water were used for positive control. Three boxes (n = 3) were considered for each treatment and control. The boxes were closed in plastic bags to maintain the humidity, and they were incubated at 24 °C in a growth chamber with a 12 h/12 h day/night photoperiod. Disease symptoms were evaluated after ten days as disease incidence and disease severity. For the disease incidence, diseased fruits were counted on the total of inoculated fruits. For disease severity, images of fruits with disease symptoms were taken, and the diseased area (mm²) was measured with the software Image Processing and Analysis (ImageJ 1.51j8, National Institute of Health, Bethesda, MD, USA). Portions of fruits (5 × 5 × 5 mm) that received treatment, treatment and inoculation, and water (control) were sampled in the area of treatment/inoculation, then lyophilized and stored at −80 °C for processing with FT-IR and FT-Raman Spectroscopies. The experiment was repeated thrice under the same experimental conditions.

2.4. Antifungal Activity of WE and PBPs against B. cinerea Colony Growth and Spore Germination

The activity of WE and PBPs on fungal colony growth was assessed through the submerged colony technique [22]. Portions (Ø 6 mm) from the edge of a 14 day-old-colony were treated for 6 h at 24 °C by immersion in a sterile test tube containing 1 mL of WE (5 mg/mL) and the PBPs at the five concentrations (0.3, 0.6, 1.2, 2.4, and 4.8 mg/mL). For the control, colony portions of B. cinerea were immersed in sterile distilled water. After treatment, colony portions were transferred in the center of Petri dishes on PDA medium and incubated at 24 °C in the dark. Three dishes (n = 3) were considered for each treatment and control. Fungal colony growth was measured daily along two mutually perpendicular diameters. The experiment was repeated thrice under the same experimental conditions.

The activity of WE and PBPs on spore germination was carried out by preparing in a sterile test tube a mixture of the WE, PBPs at each concentration or water (control) and a spore suspension of B. cinerea at the final concentration of 10⁵ spores/mL. From each mixture, 20 µL were taken and gently spread on PDA medium in a Petri dish. Three dishes (n = 3) were considered for each treatment and the control. Dishes were incubated at 24 °C in the dark, and, after 48 h, the CFU number was counted.

2.5. FT-IR and FT-Raman Spectroscopies

FT-IR spectra of WE, PBPs, and portions of lyophilized fruits (control, infected control, and treated with PBPs) were performed by using a Bruker Tensor FT-IR instrument (Bruker Optics, Ettlingen, Germany) provided with an accessory for analysis in total reflectance attenuated (ATR), single reflection, and angle of 45° angle of incidence (Specac Quest ATR, Specac Ltd., Orpington, Kent, UK). The spectra were acquired from 4000 to 400 cm⁻¹, with a spectral resolution of 4 cm⁻¹ and 32 scans. In addition, background spectra against air were recorded under the same conditions before each sample. In an effort to highlight major structural changes, fruit spectra with the highest dose of PBP are presented and discussed.

By considering the fruits’ analyses, each piece of fruit was placed on the diamond crystal fixed on a flat platform and pressure was applied by a compression clamp. Isopropyl alcohol was used for cleaning the diamond crystal before each measurement. Measurements were taken at five spots on both the outer and inner sides, and then the spectra of each side were averaged. Spectra were processed using the Grams/386 spectroscopic software (version 6.00, Galactic Industries Corporation, Salem, NH, USA).

The region from 1800 to 1500 cm⁻¹ was resolved using a peak fitting analysis with the Grams/386 software (version 6.00, Galactic Industries Corporation, Salem, NH, USA). The bands were resolved with Gaussian functions, and the best-fit parameters were achieved by minimizing the reduced Chi-square. Good agreement between experimental and calculated profiles was obtained, with coefficients of determination, ranging from 0.990 to 0.980 and the standard error, SE, from 0.001 to 0.005. All data are expressed as percentage areas.

FT-Raman spectra were performed by using Bruker MultiRam FT-Raman spectrometer equipped with a cooled Ge-diode detector. The excitation source was an Nd³⁺-YAG laser (1064 nm) in the backscattering (180°) configuration. The focused laser beam diameter was about 100 μm, the spectral resolution 4 cm⁻¹, and the laser power at the sample about 100 mW. Each Raman spectrum was an average of 5000 spectra.

2.6. Statistical Analysis

All experiments were arranged in a complete randomized design. Data obtained with WE were analyzed with t-Student test (p < 0.05); data obtained with PBPs were analyzed by ANOVA, and, if the p-value was less than 0.05, means were separated by Tukey’s test (p < 0.05). Percentage data of disease incidence for both WE and PBPs were arcsine transformed before analysis. A dose–response curve was calculated and slopes were compared for the effect of different doses of PBPs on colony growth over time. All analyses were performed with GraphPad Prism software, San Diego, CA, USA, v. 4.03, 2005.

3. Results

3.1. Antifungal Activity of WE and PBPs against B. cinerea on Tomato Fruit

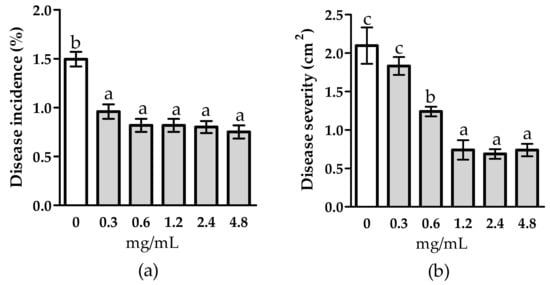

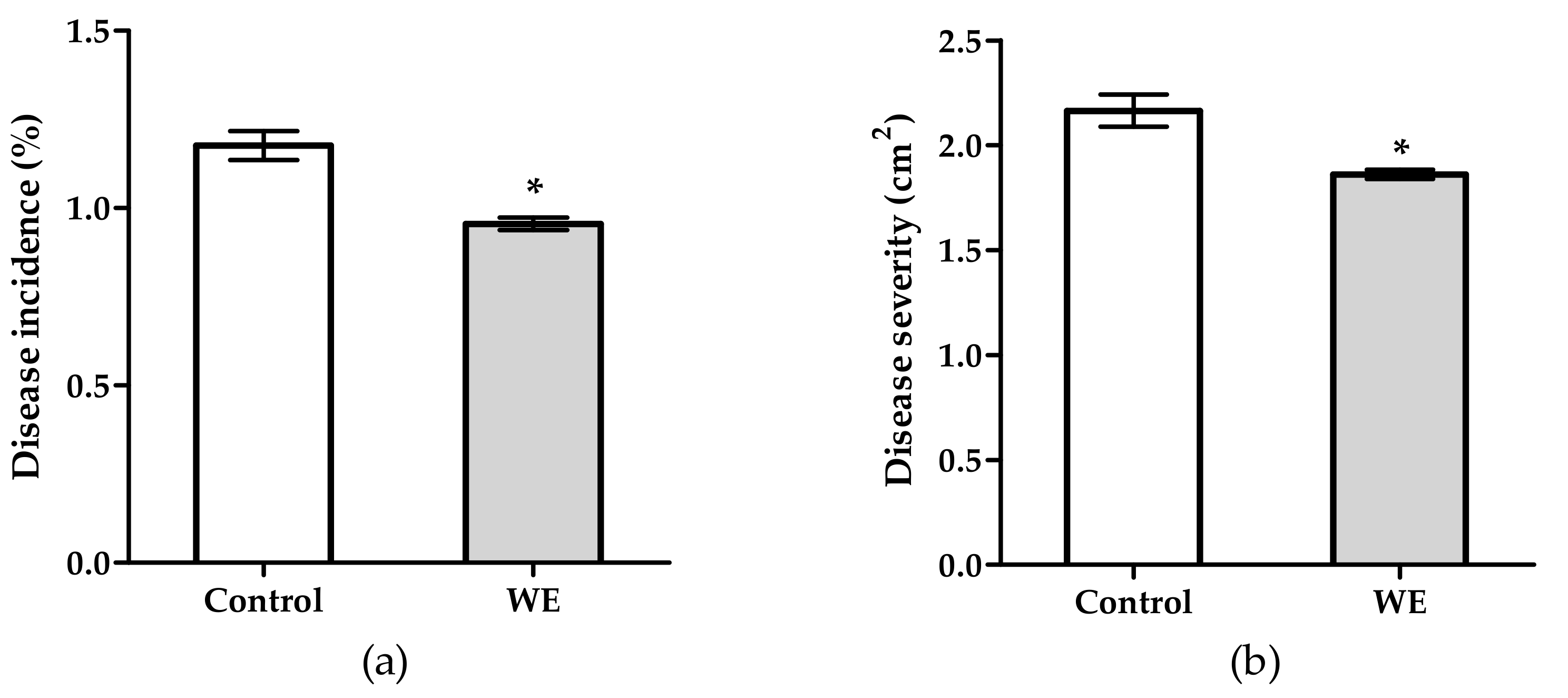

Figure 1 shows the effect of tomato fruit treatment with WE on gray mold disease. Treatment significantly reduced disease incidence by 18.8% (Figure 1a) and severity by 14.0% (Figure 1b) compared to the control. Likewise, disease reduction was also achieved by treating tomato fruits with PBPs (Figure 2). Most strikingly, all doses of PBPs significantly reduced disease incidence by 44.5% (Figure 2a) compared with the control. No relationship between doses and disease incidence and severity was shown. However, disease severity was significantly reduced by 40.8% at the 0.6 mg/mL dose, and also by 65.5% at 1.2–4.8 mg/mL (Figure 2b).

3.2. Antifungal Activity of WE and PBPs against B. cinerea Colony Growth and Spore Germination

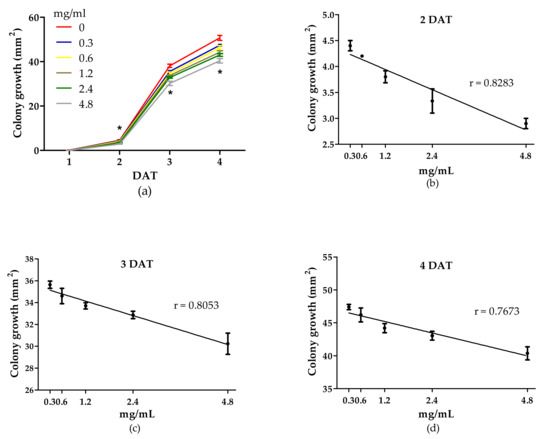

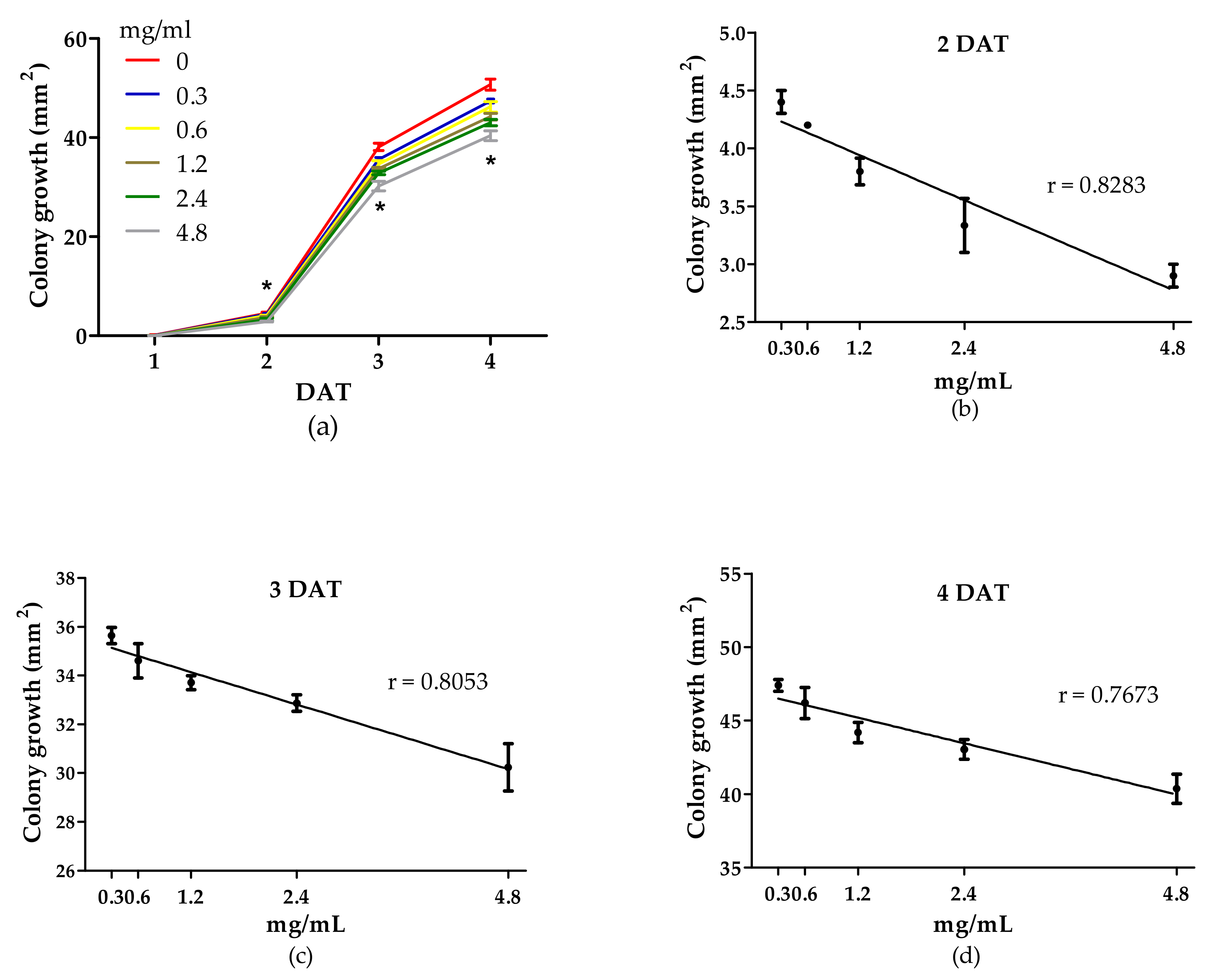

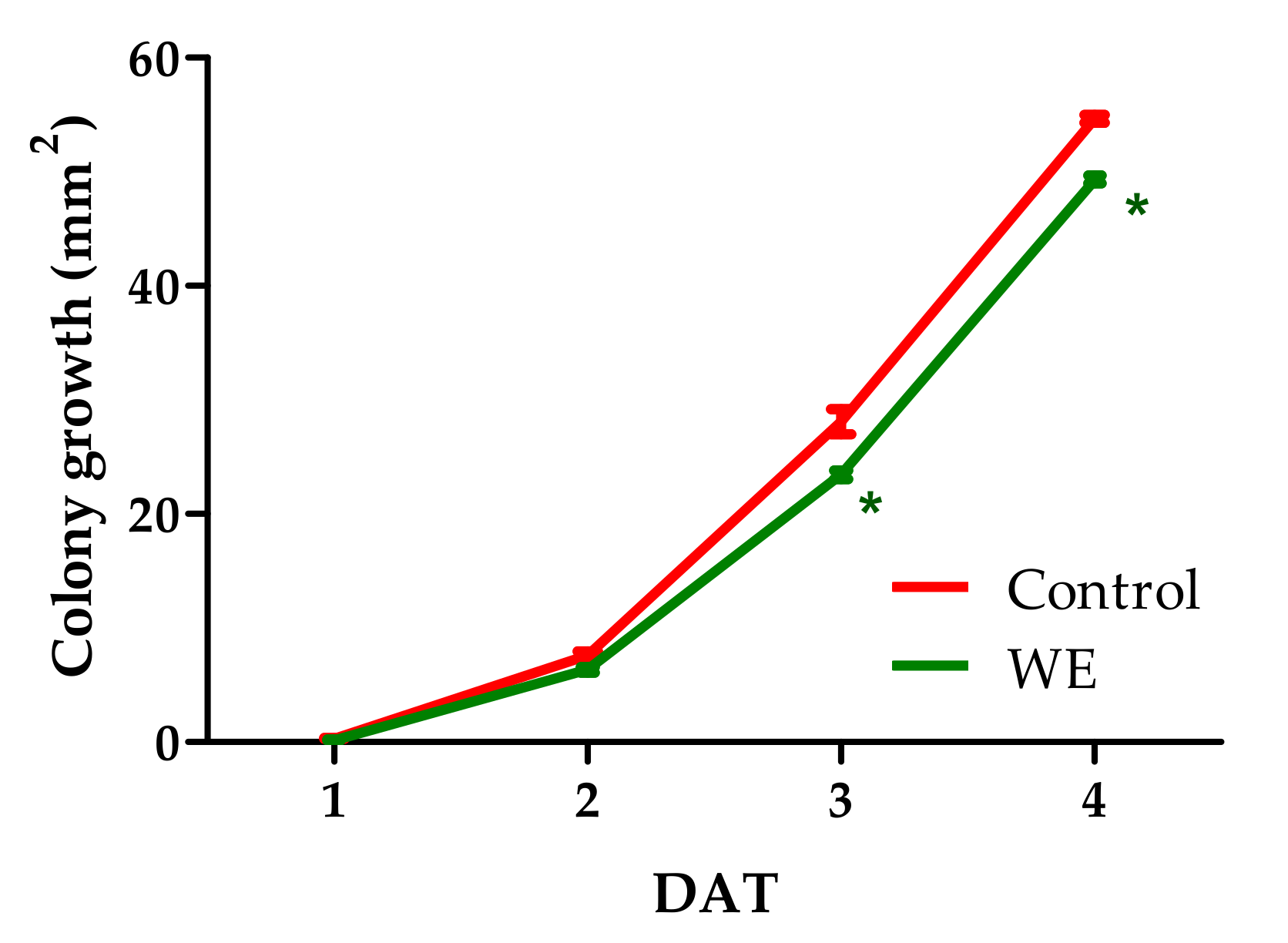

Botrytis cinerea colony growth was significantly reduced by WE on days 2, 3, and 4 after treatment (DAT) compared with the control (Figure 3). The different doses of PBPs reduced colony growth from 2 to 4 DAT (Figure 4a). We have found a linear fitting between doses and colony growth in each DAT (Figure 4b–d). The doses showed a different effect on colony growth in each DAT, as demonstrated by the statistical difference of the three slopes F_(2,39) = 13.5945, p < 0.0001. Moreover, the Tukey’s multiple comparison test revealed that the dose at the 4.8 mg/mL more efficiently reduced fungal growth than the control by 36.9%, 20.8%, and 20.4% at 2, 3, and 4 DAT, respectively.

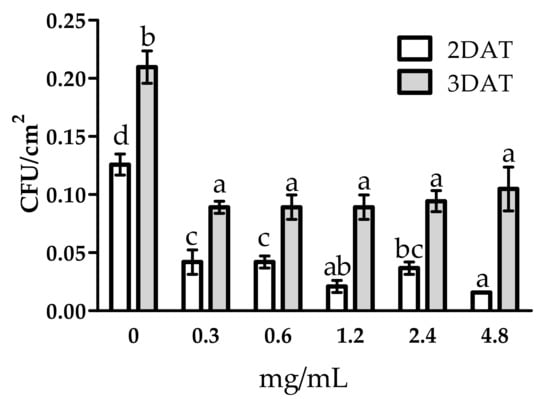

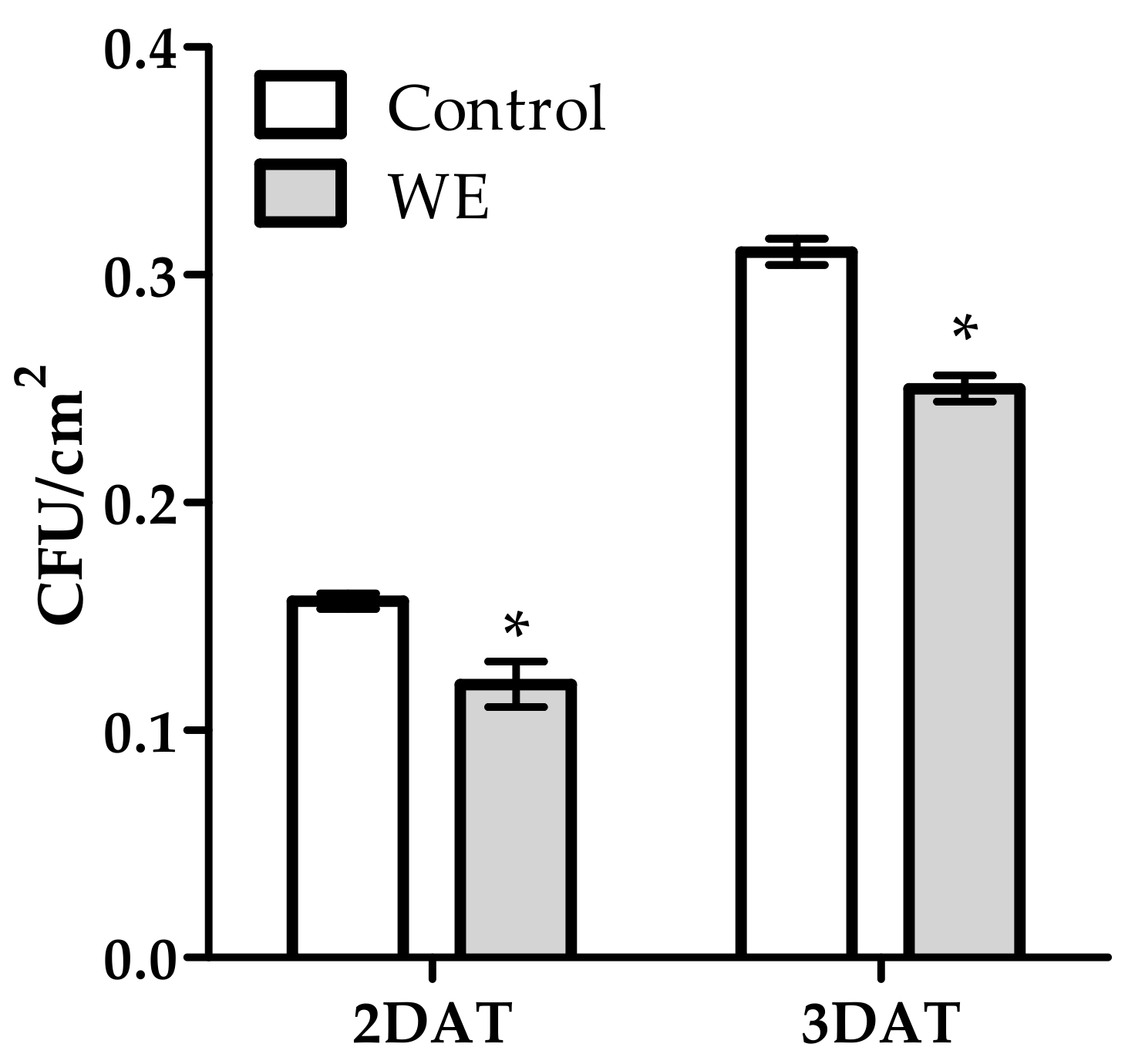

The antifungal effect of WE and PBPs was also observed on spore germination evaluated as colony forming units (CFUs) per Petri dish area (mm²) (Figure 5 and Figure 6). The WE significantly reduced CFUs by 25.0% and 19.2% at 2 and 3 DAT, respectively, compared to the control (Figure 5). All PBP doses obtained a high CFUs reduction in both DATs (Figure 6). At 2 DAT, PBPs reduced CFUs by a range from 66.7% to 87.5% (0.3 mg/mL–4.8 mg/mL), while, at 3 DAT, all PBPs doses similarly reduced CFUs by an average of 55.5%, towards the controls.

Taken together, these results show that PBPs were more effective than WE and mainly against spore germination.

3.3. FT-IR and FT-Raman Characterization of WE and PBPs

FT-IR and FT-Raman spectroscopies were performed to identify the principal functional groups of PBPs and WE. As mentioned in paragraph 2.5, IR and Raman spectroscopies can give helpful information on the chemical composition of samples by studying the frequency of absorbed (in the case of IR) or scattered (Raman) radiation [19]. Each frequency can be attributed to a typical vibration of a functional group, i.e., CONH (amide) group in proteins. Based on their frequencies, Amide bands are classified with a progressive number (from Amide I around 1650 cm⁻¹ to Amide V below 600 cm⁻¹) and have a different intensity in the two techniques (i.e., Amide II band is visible in IR spectra while being absent in Raman). This last chemical group gives rise to different types of vibrations sensitive to the chemical environment, particularly the secondary structure adopted by proteins. The physical mechanism of interaction between light and matter in Raman spectroscopy (inelastic scattering) renders it very sensitive to aromatic (such as tyrosine amino acid) and conjugated (such as carotenoids) compounds.

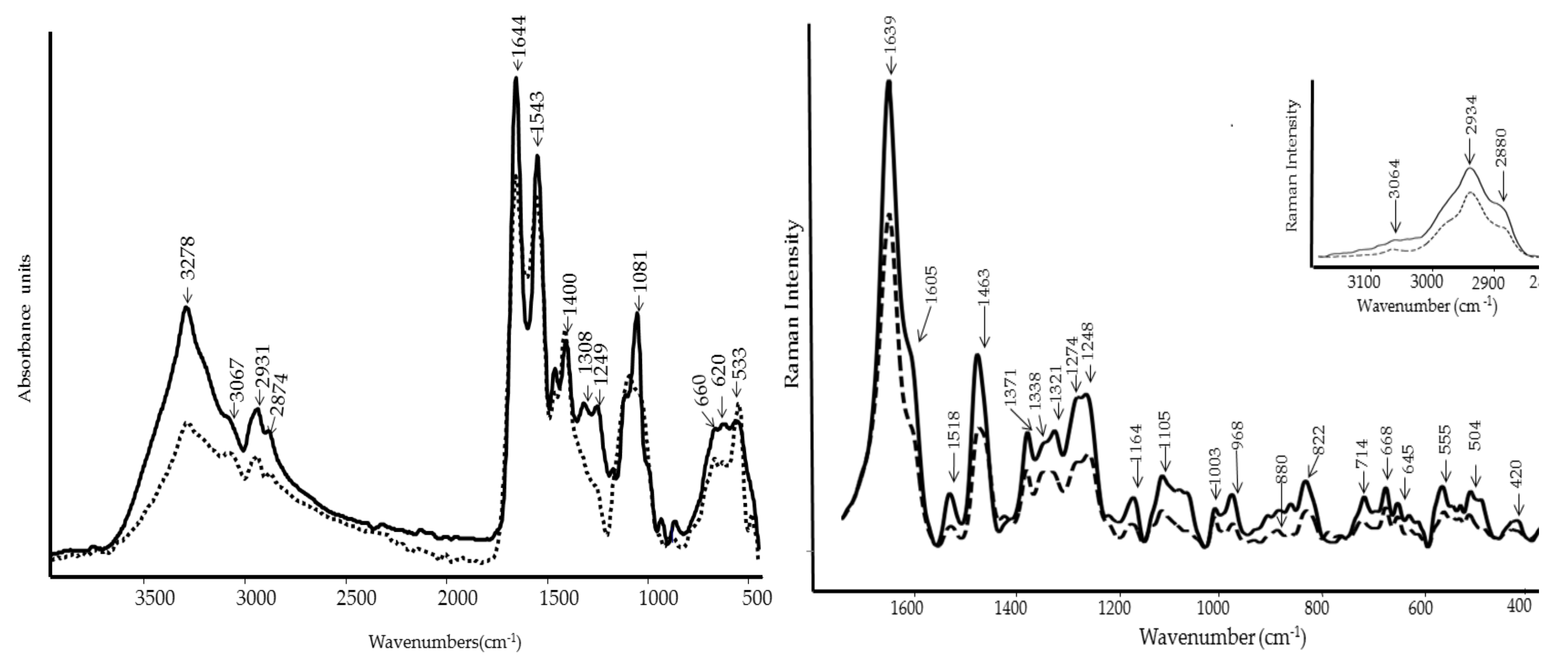

The FT-IR spectra of PBPs and WE (Figure 7) showed specific functional groups of proteins [23,24]. Specifically, the shoulder at 3067 cm⁻¹ is also known as Amide A, and it is typical in secondary amides [25]. The most prominent peaks at 1644 cm⁻¹ and 1543 cm⁻¹ are assigned to the Amide I and Amide II bands, respectively [25,26]. The other bands between 1249–1300 cm⁻¹ are attributed to Amide III [25]. Secondary amides are also characterized by the presence of Amide V, at around 620 cm⁻¹, Amide IV, and 535–600 cm⁻¹ assigned to Amide VI. Moreover, the band at around 660 cm⁻¹ may be assigned to the –C≡C–H stretching vibrations in alkynes [25]. PBPs and WE differed in the relative intensity of the amide bands, which were particularly stronger in PBPs (Figure 7 left).

FT-Raman spectroscopy (Figure 7 right) confirmed that the main bands of PBP and WE are associated with proteins and conjugated compounds present as pigments in the alga [18]. In the 2800–3200 cm⁻¹ spectral region, the 2934 and 2880 cm⁻¹ peaks are attributed to aliphatic side chains and the 3064 cm⁻¹ peak to aromatic amino acids. Other peaks typical of proteins are the following: 1639 cm⁻¹ (amide I band), the shoulder at 1605 cm⁻¹ (aromatic aminoacid such as Phe and Tyr), 1463 cm⁻¹ (deformation of aminoacidic CH₂ groups), 1371 and 1321 cm⁻¹ (Trp bands), 1327 and 1105 cm⁻¹ (CC and CN deformation bands) and 1248–1274 cm⁻¹ (amide III band), and 822 and 645 cm⁻¹ (Tyr bands). The amide bands gave interesting information about the secondary structure adopted by the algal proteins that is mainly helix/random as already observed in Hydropuntia cornea and Arthrospira platensis and further confirmed by the presence of the peaks at 1338 and 1105 cm⁻¹ [27]. The typical bands of carotenoid pigments were detected at 1518, 1164, and 1003 cm⁻¹ [18].

3.4. FT-IR and FT-Raman Characterization of Tomato Fruits

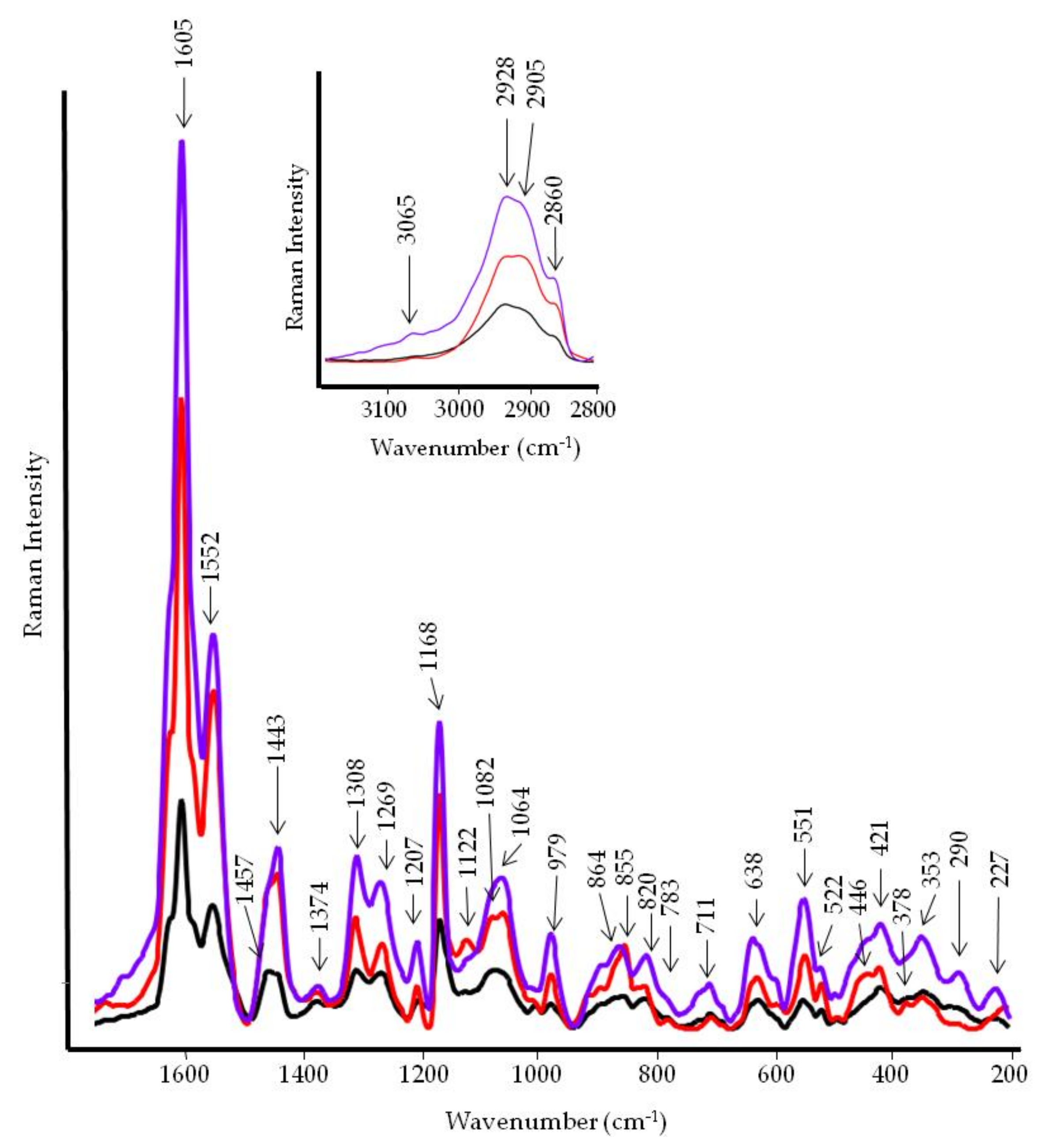

The spectra were performed on the ‘fruits’ outer and inner layers to detect possible structural changes. The prominent peaks present in the spectra of the outer side are associated with the main functional groups of the components of the cell wall of tomato (Figure 8).

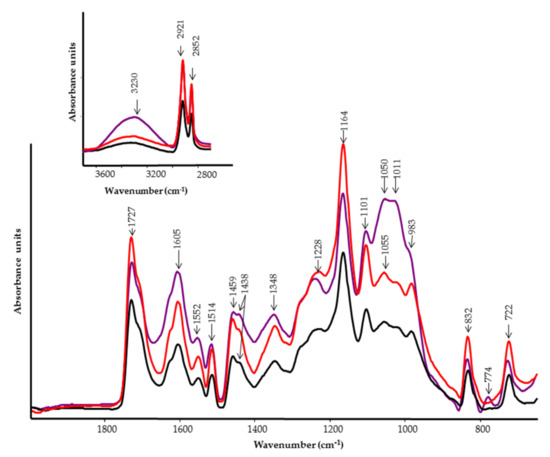

The first region of the IR spectra, displayed on the top of Figure 8, showed a broad band located at 3230 cm⁻¹ that is assigned to the OH stretching vibration of polysaccharides and the nonesterified hydroxyl groups of cutin [28]. Two strong peaks at 2921 cm⁻¹ and 2852 cm⁻¹ are due to CH₂ antisymmetric and symmetric stretching vibrations. Similar bands were observed in the Raman spectra at 2928 and 2860 cm⁻¹ (Figure 9). These bands are coupled to the C-H deformation vibrations occurring at 1459 cm⁻¹ (1457 cm⁻¹ in Raman) and 1438 cm⁻¹ (1443 cm⁻¹ in Raman) of paraffinic chains. It is evident that the intensity of these bands increases with the number of methylene groups [25]. This is visible in the spectrum of PBP-treated tomatoes. Additionally, the band at 722 cm⁻¹, attributed to CH₂ rocking vibration, corroborates the presence of n-paraffins [25]. This band is also positively related to the number of methylene groups in the paraffin chains. The reduced intensity of the above bands in both the IR and Raman spectra of tomato with the pathogen suggests a change in the length of the methylene chains of cutin (Figure 8, black line). Moreover, the weak band around 770 cm⁻¹, appearing in the tomato spectrum treated with PBP, suggests that –(CH₂)₄- units are attached to oxygen or nitrogen [25]. Other bands associated with cutin are those of pectin at 1727 cm⁻¹ (C=O stretching motion of alkyl ester), 1605 cm⁻¹ (COO⁻ antisymmetric stretching in polygalcturonic acid), 1348 cm⁻¹ (COO⁻ symmetric stretching), 1228 cm⁻¹ (C-O stretching), 1164 cm⁻¹ (C-O-C stretching in glycosidic bond and C-C stretching in pectin ring), 1101 cm⁻¹ (C-O-C stretching, C-O stretching, C-C stretching), 1050 cm⁻¹ (C-O and C-C stretching in uronic acid and neutral sugar), 1011 cm⁻¹ (C–O and C–C stretching, pectin C₂-C₃, C₂-O₂, C₁-O₁.), 983 cm⁻¹ (CO bending), and 832 cm⁻¹ (ring vibration) [29]. In the Raman spectra (Figure 9), the 1124 and the 1080 cm⁻¹ bands are attributed to C-O-C stretching vibrations of polysaccharides, and the 1376 and 522 cm⁻¹ bands to hemicellulose [30]. The band located in the 850–865 cm⁻¹ spectral region (C-O-C stretching vibration) is diagnostic of the esterification degree of pectins: the shift from 855 (control) to 864 cm⁻¹ (infected and PBP-treated) indicates a lower esterification degree. A higher pectin content in PBP-treated tomatoes can be inferred by the intensification of 1082, 822, 711, and 638 cm⁻¹ Raman bands [31]. Significant intensification of the region between 900–1100 cm⁻¹ can be seen in the tomato treated with PBP. Other bands observed at 1552 cm⁻¹ (also observed in Raman) and 1514 cm⁻¹ are assigned to different aromatic and C=C chemical groups present in phenolic compounds [32,33]. In the Raman spectrum, other bands attributed to phenolic compounds appeared at 1605 and 1168 cm⁻¹ [18]. The Raman spectra of the outer layer provided very little information about proteins’ conformational changes: amide I band is almost absent in the 1630–1670 cm⁻¹ spectral region, while the amide III band at 1269 cm⁻¹ was a typical turn structure [27].

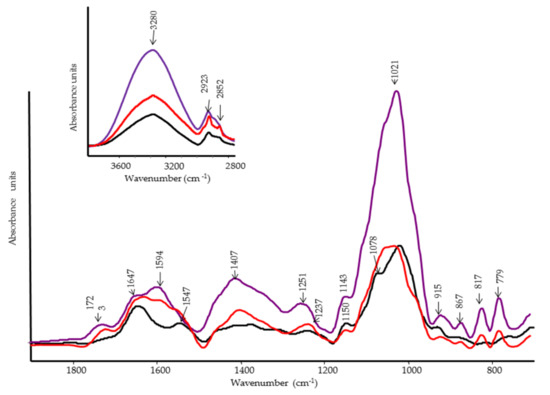

The FT-IR spectra of inner layer pulp fruit identify the major functional groups of this component (Figure 10). In general, there is a similar pattern in the main functional groups already displayed in Figure 8. However, some differences are due to variations in relative intensity between the external and internal components of the tomato fruit. For instance, in pulp spectra, the peak at 3280 cm⁻¹ (OH stretching) is more intense than at 2923 cm⁻¹ and 2852 cm⁻¹ (Figure 10, top).

The low intensity of the methylene groups combined with the band’s absence at 722 cm⁻¹ would imply a lower paraffin chain content, further confirmed by the disappearance of the 2860 cm⁻¹ (CH₂ symmetric stretching) and 1459 cm⁻¹ bands in the Raman spectrum.

The band’s appearance at 779 cm⁻¹ in the control and in the PBP-treated tomato, meanwhile, indicates that the -CH₂- units are close to oxygen as already remarked on the outer side spectrum (Figure 10, violet line). In pulp, the bands assigned to pectin are: 1723 cm⁻¹, 1594 cm⁻¹, 1407 cm⁻¹, 1237 cm⁻¹, 1143–1150 cm⁻¹, 1021 cm⁻¹, 915 cm⁻¹, and 867 cm⁻¹ (rocking CH₂ and bending in-plane CH). The Raman bands of pectin appeared at 822, 708, 629, and 345 cm⁻¹ [31]. All of these bands are present in the control and PBP. In this last sample, the intensity is amplified, as in the Raman spectrum (Figure 11). A considerable structural modification in the pulp from the tomato infected (Figure 10, black line) is observed. The bands at 1723 cm⁻¹ (C=O stretching of ester), 1595 cm⁻¹ and 1407 cm⁻¹ (COO⁻ asymmetric and symmetric stretching, respectively), and 1237 cm⁻¹ (C–O stretching) markedly decrease. Accordingly, the ‘pectins’ esterification degree marker band shifted from 855 to 862 cm⁻¹ in the Raman spectrum, as previously observed in the outer layer.

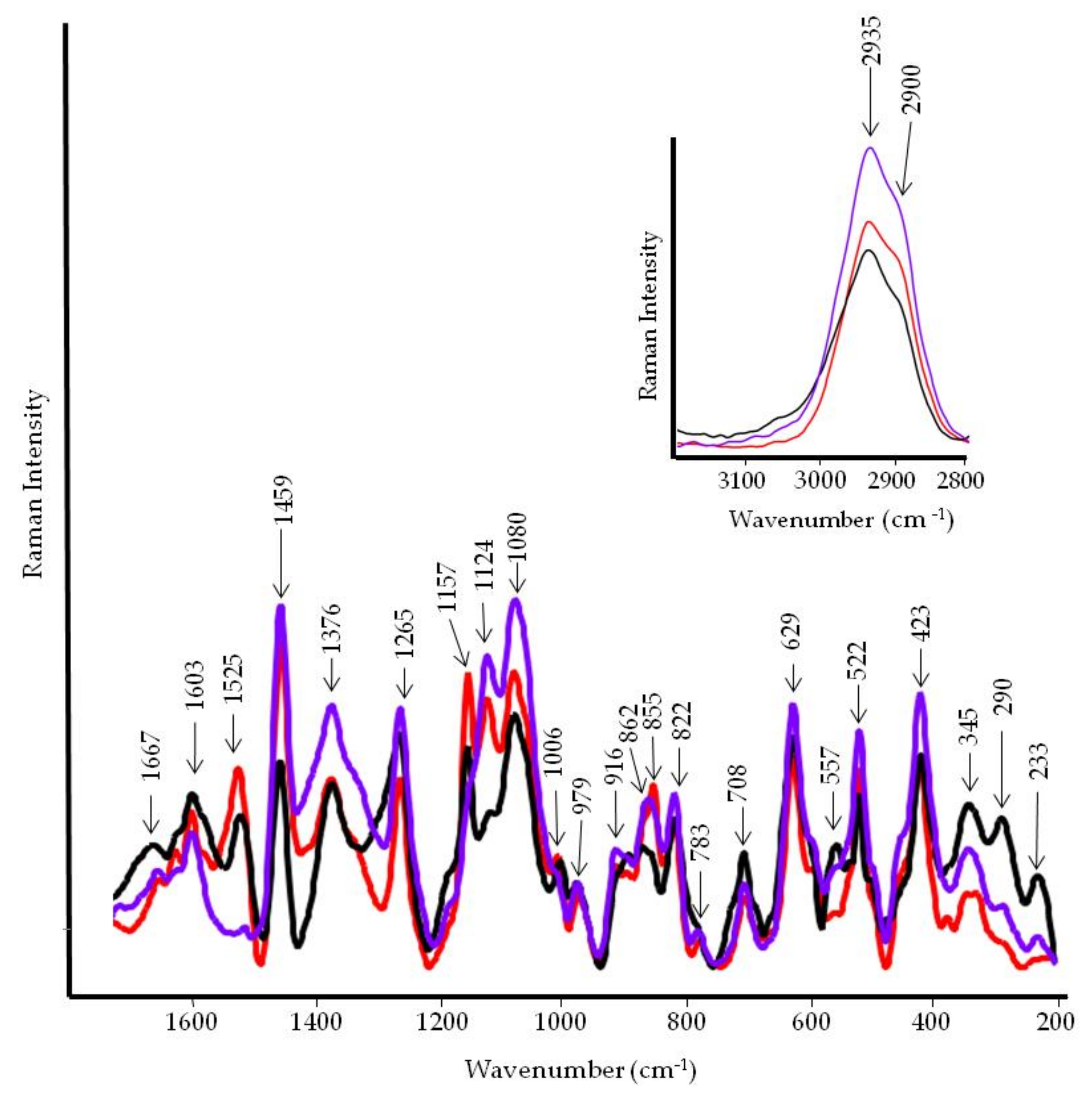

Other bands at 1647 cm⁻¹, 1547 cm⁻¹, and 1250 cm⁻¹ may be attributed to Amide I, Amide II, and Amide III, respectively. In the Raman spectrum (Figure 11), the Amide I band appeared at 1667 cm⁻¹, while the Amide III at 1265 cm⁻¹. Moreover, the aromatic ring vibration between 1650 cm⁻¹ and 1500 cm⁻¹ coupled with the band at 817 cm⁻¹ (out-of-plane C-H bending) cannot be ruled out [28]. In the Raman spectrum, this finding was confirmed by the low intensity of the 1603 cm⁻¹ band. Similarly, carotenoids bands at 1525, 1157, and 1006 cm⁻¹ showed a reduced intensity and almost disappeared in the PBP treated tomato.

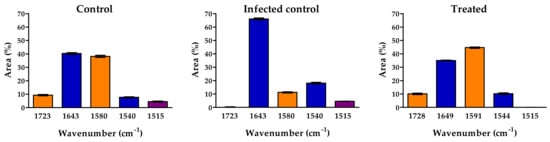

A Gaussian curve fitting procedure that applied to the region between 1500–1800 cm⁻¹ of pulp provided more detailed spectral information (Figure 12).

In tomato pulp control, the percentage area of pectin at 1723 cm⁻¹ and 1580 cm⁻¹ accounted for 9.3% and 38%, respectively. In contrast, after infection, the percent area (1587 cm⁻¹) decreased significantly to 11%. With the highest dose of PBP pretreatment and subsequent infection, the pectin accounted for 10% (1728 cm⁻¹) and 45% (1591 cm⁻¹), respectively. As for protein, it amounted to 40% to 38% for amide I (~1640 cm⁻¹) and 8% to 10% for amide II (~1540 cm⁻¹) in the control and highest PBP pretreatment dose, respectively. In contrast, with infection, amide I was 66%, and amide II was 18%.

For phenolic compounds (1515 cm⁻¹), the percentage area was 4.5% in control and infected plants. No band was detected in PBP treatment.

4. Discussion

The post-harvest losses of fresh tomato fruits are largely due to Botrytis spp. infections. Management of Botrytis cinerea is extremely complex, given the ability of this pathogen to infect the tomato crop in all parts of the plant. Economically, the losses are considerable because the value of fresh produce increases significantly as it is transferred from farm to fork [34].

Biocontrol is an appealing alternative or supplement to the conventional approaches for disease control. In addition, microbial biocontrol agents are recognized to be environmentally friendly, and their mode of action reduces the risk of resistance development. In that context, cyanobacteria are promising biocontrol agents of plant pathogens for their antimicrobial properties already shown on tomato, turnip, and strawberry [35,36,37].

This study examined the potential of water extract (WE) and PBPs from the terrestrial strain Anabaena minutissima against Botrytis cinerea artificially inoculated on tomato fruits.

WE and PBPs showed antifungal activity against the pathogen on fruits, CFUs, and mycelium. An earlier study demonstrated the effectiveness of the same WE against Podosphaera xanthii pathogen fungus on cucumber [15]. Its efficacy was correlated to a high content of several components such as proteins, PBPs, chlorophylls and carotenoid, and high antioxidant activity. Thereby, the protein content of WE was confirmed by FT-IR and FT-Raman spectroscopy (Figure 7). Other substances present in the form of carotenoid pigments were also associated with proteins [18]. Given the similarity between the FT-IR and FT-Raman spectra of WE and PBPs, it may be inferred that the protein component is only active against B. cinerea. The main variation may be related to the concentration being higher in PBPs. The effectiveness of PBPs by another cyanobacterium, Arthrospira platensis, against B. cinerea on tomato fruits was already shown [18]. The PBP antifungal activity of Synechocystis sp. and Arthrospira fusiformis against Candida albicans, a human fungal pathogen, was investigated [38]. How PBPs work against B. cinerea is a tricky question. PBPs of Anabaena minutissima have a typical helix-like structure, and they are the most abundant transmembrane proteins of the helix class [39]. It may be assumed that they interact with the fungal cell wall and consequently perturb the cellular activity, as was also assumed for PBPs of A. platensis [37]. The abundance of aromatic amino acids (Phe, Trp, and Tyr) implies that PBPs possess distinct hydrophobic and hydrophilic domains which interact differently with the cell wall of B. cinerea [37].

Interestingly, the antifungal activity against spore germination and mycelium growth was dose-dependent at 2, 3, and 4 DAT. The greatest efficiency was achieved at the highest dose (4.8 mg/mL). The use of PBPs with antifungal activity to prevent and treat fungal infections opens new perspectives for biocontrol.

Micro ATR-FTIR and FT-Raman made it possible to examine the outer epidermal and inner pulp layers of tomato fruits in less than one mm. Therefore, an overview of the biochemical changes in tomato fruits following treatments was provided. Both the IR and Raman spectra of the tomato with the pathogen showed significant changes in the outer layer regarding a decrease in the length of the cutin methylene chains (Figure 8). It is well established that cutin is the main component of the plant cuticle, covering external surfaces of herbaceous organs, including fruits [40]. The cuticle provides plant protection against abiotic and biotic stresses such as pathogenic fungal attack. It is degraded by cutinases considered pathogenicity factors for necrotrophic fungi that directly penetrate the host surface.

Interestingly, both techniques showed the structural modification of cutin due to the infection. Cutin is chemically stable and resistant to decomposition. It is composed of ester-bound monomers; however, it is unknown if an ordered organization of the entire polymer exists [41]. During pathogen–plant interactions, certain fungal and bacterial phytopathogens are known to secrete cutinases capable of depolymerizing cutin facilitating the infection of the pathogens [42]. The expression of cutinase is activated by plant components such as fatty acids of the cuticle acting as signals for recognition by pathogen as shown for Botrytis cinerea conidia incubated on a fruit apple wax-coated surface to mimic the properties of natural plant surfaces [43]. The reduction in methylene ‘chains’ length confirmed the action of cutinases produced by B. cinerea [42]. In contrast, tomato fruit treated with the highest PBPs dose (4.8 mg/mL) exhibited structural integrity of cutin. As the fruit cuticle plays a key role in resistance to biotic and abiotic stresses, its integrity allows fruit quality to be maintained after harvesting. The inner pulp layers’ spectra (FT-IR and FT-Raman) highlighted structural changes in the pectin and protein components due to the infection and PBP treatment. In infected tomato fruits, the spectral profile was dramatically changed. In particular, the FT-IR bands of pectin at 1723 cm⁻¹ (C=O stretching of ester), 1595 cm⁻¹ and 1407 cm⁻¹ (COO⁻ asymmetric and symmetric stretching, respectively), 1237 cm⁻¹ (C–O stretching) markedly decreased. Raman spectra confirmed this trend. By semi-quantitative evaluation of the region using peak fitting (Figure 12), the percent area at 1587 cm⁻¹ was significantly decreased by 11% compared with 38% of the control. Particularly notable was the absence of the band at 1723 cm⁻¹. In support of this outcome, we find that the degradation of pectin by B. cinerea results from several enzymes, including pectin methylesterase [44]. As a consequence of PBP treatment, we obtained an increase in the pectin region and, in particular, the percentage of band area at 1591 cm⁻¹ was 45%.

There was only a minor difference between control and treated with PBPs for the protein region, whereas a significant increase in the infected tomato was found. However, the protein contribution of the fungal mycelium cannot be excluded.

In the case of phenolic compounds, the percentage area at 1515 cm⁻¹ was 4.5% in both control and infected plants; therefore, no phenolic accumulation is shown in infected tomatoes compared with the control. Therefore, it is possible to assume that B. cinerea does not apparently affect the phenylpropanoid pathway. In contrast, in PBP treatment, no band was detected in the IR spectrum, and only a weak band was detected at 1603 cm⁻¹ in the Raman spectrum (Figure 11). In the same spectrum, carotenoid bands (1525, 1157 and 1006 cm⁻¹) almost disappeared. Similarly, carotenoid contents of bean plants decreased by 28.3% and 35% during the 8th and 12th day after infection [45]. A sensible reduction of carotenoids (mainly lycopene and carotenoids) was observed after a prolonged exposition of human skin to UV irradiation [46], indicating a particular time response to oxidative stress, thus confirming the protective role of these compounds induced by the presence of PBPs against the fungal attack.

5. Conclusions

Cyanobacteria are microorganisms with biological potential for high CO₂ fixation efficiency and production of biomedicinals but are also useful for improving the quality of fruits in post-harvest and controlling fungal diseases. Efficient applications of cyanobacteria and their extracts have been reported in agricultural practices to effectively manage pests and reduce global warming by decreasing CO₂ gas emission [47]. Cyanobacteria produce an abundance of proteins, many bioactive compounds such as beta-carotene, and PBPs with a range of antifungal activity. Global regulations for plant disease control have changed and now encourage the use of natural alternative means to synthetic pesticides. Our studies have shown that cyanobacteria utilization could be considered for pest management and as a biotechnological challenge for optimization of protein production in the near future. However, more experimental work is required to optimize cyanobacterial cultivation parameters including organismal strain, temperature, culture density or biomass production, the choice of culture media, and the extraction process in order to maximize the yield of PBPs as natural products.
