Extractive Fermentation for Recovery of Bacteriocin-Like Inhibitory Substances Derived from Lactococcus lactis Gh1 Using PEG2000/Dextran T500 Aqueous Two-Phase System

Abstract

This work aimed to optimize the parameters affecting partitioning of a bacteriocin-like inhibitory substances (BLIS) from Lactococcus lactis Gh1 in extractive fermentation using polyethylene glycol (PEG)/dextran aqueous two-phase system (ATPS). This system was developed for the simultaneous cell cultivation and downstream processing of BLIS. Results showed that the molecular weight of PEG, PEG concentration, and dextran T500 affect the partition coefficient (K), purification factor (PF), and yield of BLIS partitioning. ATPS composed of 10% (w/w) PEG2000 and 8% (w/w) dextran T500, provided the greatest conditions for the extractive BLIS production. The K (1.00 ± 0.16), PF (2.92 ± 0.37) and yield (77.24 ± 2.81%) were increased at selected orbital speed (200 rpm) and pH (pH 7). Sustainable growth of the cells in the bioreactor and repeated fermentation up to the eighth extractive batch were observed during the scale up process, ensuring a continuous production and purification of BLIS. Hence, the simplicity and effectiveness of ATPS in the purification of BLIS were proven in this study.

1. Introduction

Globally, foodborne illness is still uncontrolled, and outbreaks can result in both health and economic losses [1]. Lactic acid bacteria (LAB) have a long history of use in the food and have a reputation of being ‘generally recognized as safe’ (GRAS). Due to their potential to inhibit or limit contamination by spoilage and/or disease microorganisms through the synthesis of diverse antimicrobial chemicals such as organic acid, hydrogen peroxide, ethanol, diacetyl, carbon dioxide, bacteriocin or antibiotic-like substances, LAB are extensively being used in the food industry [2]. Bacteriocins/bacteriocin-like inhibitory substances (BLIS) (unclassified bacteriocin with similar activity that can be identified using the same quantification methods as bacteriocin) are proteinaceous antimicrobial compounds with a variety of genetic origins that can aid the producer organism in outcompeting other bacterial species, whether post-translationally changed or not [3,4]. Bacteriocins have been used as bio preservatives against Listeria monocytogenes in foods and being studied as natural inhibitors of bacteria in the treatment of systemic diseases; in fact, bacteriocins are potential candidates to replace antibiotics as agents active against multidrug-resistant pathogens [5] via prevention/reduction of biofilm formation.

Among the LAB, Lactococcus lactis has evolved into an industrial cell factory for the production of bio-economically valuable items and is well recognized as a nisin-producing bacteria [6]. At present, only nisin has been approved by the Food and Drug Administration (FDA) for use in the food industry. It is active against Gram-positive bacteria including highly pathogenic and food spoilage microorganisms including Staphylococcus aureus and Listeria monocytogenes [7]. The global food additives market is expected to grow at a compound annual growth rate (CAGR) of 6% between 2021 and 2026, reaching US$ 131,040 million by the end of 2026 [8]. In our previous work, the BLIS activity produced by L. lactis Gh1 was in the range of 632.21 ± 69.05 AU/mL to 834.15 ± 28.55 AU/mL, when grown in BHI medium at 30 °C. The BLIS activity of L. lactis Gh1 was more stable in BHI as compared to other media [9].

In biomanufacturing of any fermented product, over 80% of production costs are attributed for by downstream processing [10]. Extraction and purification of biomolecules such as protein needs to be economically viable and industrially proficient. The current practices, unfortunately, are both expensive, and labor- and time-intensive [11]. Aqueous two-phase system (ATPS) was listed as one of the possible state-of-the-art alternatives that are more cost-effective as compared to conventional purification methods such as ammonium sulphate precipitation, solvent-based precipitation, and chromatography-based techniques [12]. This system also offers a mild working condition, cost-effective, short-time consumption, and high recovery percentage of the final product [13]. The selective partitioning of the ATPS enabling biomolecular extraction in one step in contrast to conventional extraction techniques requiring several steps of operation with substantial loss of the target molecule in each step [14].

ATPS has environmentally safe, cheap, easy scaling, quick and effective techniques for biomolecules recovery and purification [14]. The polymers used in ATPS are nontoxic, biodegradable, and approved by the Food and Drug Administration (FDA) [15]. The use of an ATPS could be extended to the spontaneous purification in the fermentation process, namely extractive fermentation. Extractive fermentation in ATPS integrates both product formation and purification into a single step process, which facilitates instant recovery of the target biomolecules as it is formed [16]. ATPS has been broadly applied in downstream processing of compounds such as protein, enzymes, biopharmaceuticals products and natural products. The use of ATPS in the recovery and purification of bacteriocin has been previously described [11]. However, extractive fermentation for bacteriocin using ATPS so far have been reported only by Li et al. [17], who exploited the cultivation Lactococcus lactis in PEG/Na₂SO₄ and PEG/MgSO₄.7H₂O aqueous two-phase medium, respectively.

Basically, ATPS can be formed by combining aqueous solutions of two incompatible polymers or from a mixing solution of polymer and salt above critical concentration. ATPS biomolecules are more evenly distributed between the phases and affected by many parameters relating to the phase system, physio-chemical properties of biomolecule and their interaction [18] and the partition behavior of target products is complex and difficult to predict. Poorly understood partition behavior is a major barrier in widely adaptation of ATPS on commercial levels for the purification of biomolecules [19]. Several approaches have been explored to assess the most important parameters determining partitioning behavior such as molecular weight of polymer, pH, presence of neutral salts, and surface properties of biomolecules [20].

For the purification of BLIS from LAB using ATPS, a large number of works has been dedicated to the study of alternative constituents to form the phases. Yet, limited consideration has been given to extractive fermentation using PEG/dextran (polymer/polymer) as two-phase forming components. ATPS possess the required characteristic for process integration to improve its efficiency. In this study, in situ retrieval of BLIS using PEG/dextran based ATPS aptly integrates upstream and downstream process for continuous production and recovery of BLIS from the fermentation culture, thus reducing the time quotient of the whole process. Extractive fermentation also supports rapids exclusion of BLIS into separate phase, thus circumventing product inhibition and degradation during the fermentation. Moreover, the phase formation of a polymer-based component can be recycled and reused for further extraction, and this reduces the cost of polymers phase-forming component [21]. This study aims to establish an in situ continuous production and extraction approaches of BLIS by L. lactis Gh1 using the ATPS with PEG2000 and dextran T500.

2. Materials and Methods

2.1. Media and Culture Conditions

The strain used in this study was bacteriocins-like-inhibitory substance (BLIS) producing lactic acid bacterium (LAB), namely Lactococcus lactis Gh1, obtained from Bioprocessing and Biomanufacturing Research Centre, Universiti Putra Malaysia. This strain was a newly isolated LAB from a milk by-product of an Iranian traditional fermented milk by Abbasiliasi et al. [22] and it has been well characterized as probiotic strain in our previous work [23]. The cultivation of L. lactis Gh1 was carried out in 250 mL Erlenmeyer flask. About 1% (v/v) of overnight pre-grown inoculum was added to the 50 mL of brain heart infusion (BHI) (Merck, Darmstadt, German) broth and the culture was then maintained at agitation speed of 150 rpm for 15 h at 30 °C in an incubator shaker (Certomat^® BS-1, Sartorius, Goettingen, Germany). For the fermentation that includes aqueous two-phase system (ATPS) top (PEG polymers), or bottom phase-forming reagents (ammonium sulphate, sodium citrate, sodium phosphate, and dextran T500), the fermentation broth was prepared by adding a single ATPS phase-forming additive (w/w basis) at different concentrations into the above-mentioned basic medium. Extractive fermentations were conducted in 250 mL Erlenmeyer flasks with 50 g of sterilized ATPS-containing fermentation medium or control (medium without phase-forming reagents). After the completion of fermentation, the culture was allowed to settle down at room temperature for 30 min or was centrifuged at 13,751× g for 10 min at 4 °C. The volumes of both phases (top and bottom) were measured and recorded. Samples from each phase were appropriately diluted and analyzed for cell concentration, total protein, and BLIS activity.

2.2. Effect of Different Phase-Forming Reagents on BLIS Production and Bacterial Cell Growth

In ATPS phase-forming reagents, the viability of L. lactis Gh1 is critical. To measure cell survival and ability to secrete BLIS, the cell was cultured in various PEG molecular weights (2000, 4000, 6000, and 8000) and various bottom phase components (ammonium sulphate, sodium citrate, sodium phosphate, and dextran T500). Statistical analysis of the data was constructed using SPSS version 25.0 (SPSS Inc. Software, Chicago, IL, USA). A one-way analysis of variance (ANOVA) was employed to determine the significance of the mean of data (BLIS, protein concentration and cell concentration) at significance level of 0.05% corresponding to confidence level of 95% by using Duncan’s multiple range test. Multivariate analysis of variance (MANOVA) was used to evaluate the interaction between two factors (type of PEG/bottom phase components and concentration). Results were presented as the mean ± standard deviation of three values.

2.3. Partitioning Behavior of BLIS in ATPS

Preliminary screening of PEG molecular weights (2000, 4000, 6000 and 8000) (Sigma–Aldrich, St. Louis, MO, USA) and dextran T500 (average mol. wt. of 500,000 gmol⁻¹) (Sigma–Aldrich, St. Louis, MO, USA) on the growth stability and BLIS stability was investigated using one-variable-at a-time approach (OVAT). The influence of PEG molecular weight, PEG concentrations, and dextran T500 concentrations (independent variables) on the BLIS partition coefficient (K) was then optimized using a 2² central composite design. The variables used were evaluated each at five coded levels (−α, −1, 0, +1, +α). A set of 13 experiments, which contained a factorial matrix, with five center points and star points to allow the estimation of the curvature, was performed. The range and levels of the components evaluated in this study are given in

Table 1. Factor levels of the 2² central composite design to study the partitioning of BLIS in ATPS.

Variable (%, w/v)	Symbol	Coded Values
		−α	−1	0	+1	+α
PEG	X1	7.0	8.0	10.0	12.0	13.0
Dextran T500	X2	5.0	6.0	8.0	10.0	11.0

Note: PEG molecular weight: 2000, 4000, 6000 and 8000.

. The mean squares values were calculated by dividing the sum of the squares of each variation source by their degrees of freedom, and a 95% confidence level (α = 0.05) was used to determine the statistical significance in all analyses.

Design Expert^® software version 12 (Stat-ease Inc., Minneapolis, MN, USA) was utilized to conduct the regression analysis and graphical trials. The quality of fit of the polynomial model equation expressed by the coefficient of determination R² and analysis of variance (ANOVA) was also determined. The significance of the model, an optimum value of parameters was assessed by the determination coefficient, correlation coefficient and statistical testing of the model was made by Fisher’s test [19].

2.4. Effect of Orbital Agitation and pH on Partitioning Performance of BLIS

To evaluate the effect of orbital speed and pH on partition behavior, purification factor and production of BLIS in extractive fermentation, the orbital speed was varied from 100 to 250 rpm. The pH of the medium was adjusted at a range between pH 5 to 9, using either 1 molarity of hydrochloric acid (HCl) or 1 molarity of sodium hydroxide (NaOH) solution.

2.5. Scale-Up of ATPS Extractive Fermentation to 2 L Stirred Tank Bioreactor

ATPS extractive fermentation was scaled up to a 2 L stirred tank bioreactor (BIOSTAT, B. Braun Biotech International, Melsungen, Germany) with a working volume of 1 L. During the fermentation, agitation speed was fixed at 200 rpm without air sparging. The culture pH was monitored online using in situ sterilizable pH electrode (Mettler Toledo, Greifensee, Switzerland). Antifoam reagent (Silicon antifoam, Sigma–Aldrich, St. Louis, MO, USA) was added manually to suppress foaming during the fermentation. Temperature within the bioreactor vessel was controlled at 30 °C.

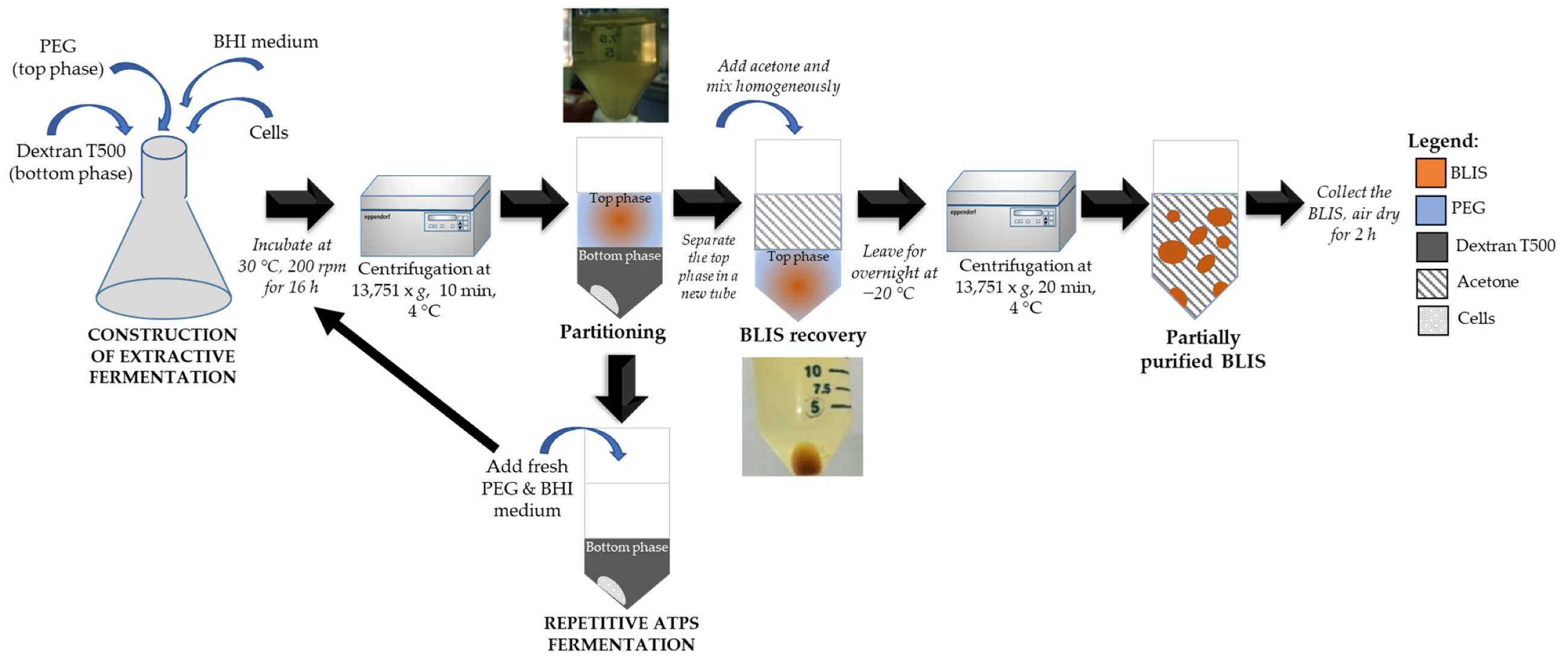

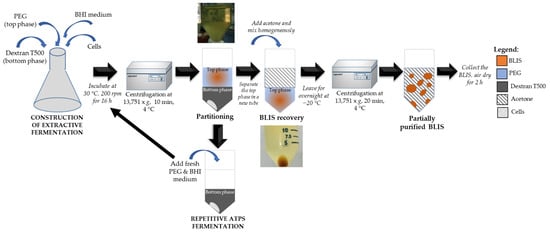

2.6. Repetitive Batch of ATPS Extractive Fermentation

In ATPS extractive fermentation, BLIS separation and cell removal can both be done at the same time. BLIS was partitioned to the PEG-rich top phase after extraction and centrifugation, and the cells were precipitated in the dextran-rich bottom phase of the tube. Repetitive batch of ATPS extractive fermentation was carried out by recycling the phase-forming polymer and microbial cells, in an attempt to develop a fermentation system that fulfils long-term BLIS production and purification. As a result, this approach could be a cost-effective method for large-scale BLIS recovery. The cell-free top extraction phase was replaced with the fresh top phase for every 15 h. The optimized formulation of PEG/dextran T500, pH, orbital agitation and pH of the medium were used in this study. Top phase replacement is 10 mL of PEG2000 with 30 mL of fresh BHI broth at pH 7 (pH of medium was adjusted using either 1 molarity of HCl or 1 molarity of NaOH) up to 8th cycle. Further then 8 batches of ATPS leads to reduced cell viability. The repetitive batch fermentation using only BHI broth (without PEG and dextran; only the cells being repeatedly recycled) was used as a control. Cell viability was checked using spread plate method every 4th cycle to ensure the survivability of the cells. Overall idea of this study was reflected in Figure 1. Basically, to separate the partially purified BLIS from the system, the BLIS in top phase was precipitated using an acetone precipitation method [24] by adding 80% (v/v) of cold acetone and maintaining the sample at −20 °C overnight. The precipitate was collected by centrifugation at 13,751× g for 20 min at 4 °C, then air dry under the laminar air flow for 2 h and resuspended in deionized water at ratio of 1:1.

2.7. Analytical Methods

The cell viability was evaluated according to method as that defined in Jawan et al. [25]. Briefly, cell viability was examined using spread plate method and reported as colony forming units (CFU/mL). The surface of BHI agar plates was equally dispersed with decimal serial dilutions (ranging from 10¹ to 10⁹) of each suspension in 100 milimolar sodium phosphate buffer (pH 6.5) in triplicates. After incubation at 30 °C for 24 h, the number of viable cells was determined according to Equation (1):

$$\mathrm{CFU}/\mathrm{mL}=\frac{\mathrm{Number}\mathrm{of}\mathrm{colony}\times \mathrm{dilution}\mathrm{factor}}{\mathrm{Volume}\mathrm{of}\mathrm{sample}\left(\mathrm{in}\mathrm{mL}\right)}$$

(1)

Meanwhile, the optical density and the antimicrobial activity (AU/mL) of the cell free supernatant against Listeria monocytogenes ATCC 15, 313 was the same as that described in Jawan et al. [23]. After centrifugation at 13,751× g for 10 min at 4 °C, the cell pallets were washed and resuspended twice with 0.85%, (w/v) NaCl. Then, the turbidity was determined at 600 nm using a spectrophotometer (Biochrom Libra S12, Cambridge, UK). The optical density (OD) was converted into dry cell weight (DCW) from a standard curve using an experimentally predetermined factor of 0.26 where one OD unit was equivalent to 0.26 of DCW per volume (g/L). The antimicrobial activity (AU/mL) was quantitatively performed by the agar well diffusion method. Briefly, the supernatant (100 μL) of L. lactis Gh1 was added in 6-mm agar plate wells that were previously seeded (1%, v/v) with an active-growing L. monocytogenes ATCC 15313. The plates were then placed at 4 °C for 2 h to allow for good diffusion of the sample into the agar media prior to incubation at 37 °C for 24 h. The inhibition zone of the supernatant against the indicator bacteria was measured using an electronic caliper. The quantification of the antimicrobial activity was expressed as arbitrary units (AU) per milliliter (mL) and calculated using Equation (2):

$$\mathrm{BLIS}\mathrm{activity}\left(\mathrm{AU}/\mathrm{mL}\right)=\frac{{\mathrm{A}}_{\mathrm{z}}-{\mathrm{A}}_{\mathrm{w}}}{\mathrm{V}}$$

(2)

where, A_z = clear zone area (mm²), A_w = well area (mm²), V = volume of sample (mL).

Quantification of total protein was performed as explained by Abbasiliasi et al. [24]. A total of 20 μL of the sample was added to 200 μL of Bradford reagent in a microtitre plate and incubated at 37 °C for 15 min. The absorbance was measured at 595 nm.

2.8. Determination of Relative Value, Volume Ratio, Partition Coefficient, Specific Activity, Selectivity, and Yield

The relative values of BLIS activity or cell concentration were determined as the ratio of the BLIS activity (AU/mL) or cell concentration in the sample solution to that of control system (fermentation system without ATPS components). The partition coefficients of the BLIS (K_Bacteriocin) or cell (K_Cell) were calculated as the ratio of the BLIS activity in the top phase (C_T) to the bottom phase (C_B), respectively using Equation (3):

K = C_T/C_B

(3)

Specific activity (SA), defined as the ratio between BLIS activity (AU) in the phase sample and the total protein concentration (µg), was calculated using Equation (4):

$$\mathrm{SA}\left(\frac{\mathrm{AU}}{\mu \mathrm{g}}\right)=\mathrm{BLIS}\mathrm{activity}(\mathrm{AU})/[\mathrm{Protein}](\mathrm{mg})$$

(4)

Purification factor (PF) described as the ratio of the BLIS specific activity (SA) in the top phase to the initial SA in the crude feedstock before partitioning using Equation (5) as suggested by Abbasiliasi et al. [26].

PF = SA of phase sample/SA of crude feedstock

(5)

Selectivity (S), defined as the ratio of BLIS partition coefficient (k_e) to the protein partition coefficient (k_p), was calculated using Equation (6) as described by Abbasiliasi et al. [26].

S = k_e/k_p

(6)

Volume ratio (V_R), defined as the ratio of volume in the top phase (V_T) to bottom phase (V_B) was calculated using Equation (7):

V_R = V_T/V_B

(7)

In order to assess the recovery operation, the BLIS yield (Y_T) in the top phase was calculated using Equation (8):

Y_T (%) = 100/(1 + [1/(V_R × K_Bacteriocin)])

(8)

where V_R is the volume ratio of the top phase to the bottom phase.

3. Results

3.1. Selection of Polymer and Salt for Construction of ATPS and Their Influence on BLIS Production and Bacterial Cell Growth

The growth compatibility of Lactococcus lactis Gh1 and bacteriocins-like-inhibitory substance (BLIS) production in different types and concentrations of polymer and salts/dextran are shown in

Table 2. Growth of L. lactis Gh1 and production of BLIS in shake flask culture using BHI broth added with different types and concentrations of PEG. Temperature was maintained at 30 °C and pH was not controlled.

Type of PEG	Concentration (%, w/w)	BLIS Activity (AU/mL)	Protein Concentration (μg/mL)	Cell Concentration (g/L)
Control (BHI medium)		552.00 ± 34.34 cd	83.65 ± 0.122 a	0.33 ± 0.002 a
PEG2000	5	577.15 ± 17.43 abcd	32.00 ± 0.032 cde	0.26 ± 0.003 e
	10	580.40 ± 8.15 abcd	10.59 ± 0.013 hi	0.27 ± 0.003 d
	15	580.39 ± 1.16 abcd	6.77 ± 0.020 i	0.22 ± 0.008 h
	20	553.56 ± 27.50 cd	6.91 ± 0.018 i	0.19 ± 0.002 j
PEG4000	5	556.73 ± 16.07 cd	34.07 ± 0.016 cd	0.30 ± 0.002 c
	10	538.76 ± 64.70 d	23.58 ± 0.026 efg	0.23 ± 0.002 g
	15	568.93 ± 12.72 bcd	17.15 ± 0.030 gh	0.21 ± 0.001 h
	20	580.42 ± 15.13 abcd	19.44 ± 0.024 fgh	0.18 ± 0.001 k
PEG6000	5	590.60 ± 45.66 abcd	39.86 ± 0.082 c	0.25 ± 0.008 f
	10	585.50 ± 33.85 abcd	36.21 ± 0.056 cd	0.22 ± 0.001 h
	15	611.31 ± 37.91 abcd	35.89 ± 0.043 cd	0.20 ± 0.001 i
	20	622.92 ± 16.69 abc	27.40 ± 0.083 def	0.18 ± 0.001 k
PEG8000	5	638.12 ± 7.21 ab	55.96 ± 0.036 b	0.31 ± 0.002 b
	10	645.97 ± 37.43 a	49.36 ± 0.030 b	0.27 ± 0.003 d
	15	626.60 ± 50.17 abc	35.93 ± 0.053 cd	0.23 ± 0.004 g
	20	622.04 ± 3.58 abc	26.35 ± 0.031 defg	0.20 ± 0.001 i
Effect of type		F = 8.94 (S)	F = 90.14 (S)	F = 307.08 (S)
Effect of concentration		F = 0.14 (NS)	F = 47.42 (S)	F = 1509.89 (S)
Interaction		F = 0.61 (NS)	F = 4.46 (S)	F = 74.78 (S)

Note: Data were obtained from three replicates. Data with same superscript alphabets were not differ with significant level at p < 0.05 based on Duncan’s multiple range test. S: significant; NS: not significant.

and

Table 3. Growth of L. lactis Gh1 and production of BLIS in shake flask culture using BHI added with different types and concentrations of salt/dextran T500. Temperature was maintained at 30 °C and pH was not controlled.

Type of Bottom Phase Components	Concentration (%, w/w)	BLIS Activity (AU/mL)	Protein Concentration (μg/mL)	Cell Concentration (g/L)
Control (BHI medium)		624.57 ± 4.77 d	73.68± 0.010 acbd	0.34 ± 0.005 b
Ammonium sulphate	5	618.67 ± 3.57 e	73.93 ± 0.058 abcd	0.37 ± 0.002 a
	10	602.84 ± 23.58 de	55.58 ± 0.106 cdef	0.17 ± 0.003 g
	15	711.80 ± 6.25 bc	50.42 ± 0.028 def	0.17 ± 0.001 g
	20	216.05 ± 7.08 g	40.24 ± 0.029 f	0.002 ± 0.001 k
Sodium citrate	5	558.31 ± 2.30 e	73.86 ± 0.140 acbd	0.22 ± 0.003 e
	10	342.05 ± 15.84 f	54.66 ± 0.070 cdef	0.01 ± 0.0002 i
	15	385.50 ± 17.41 f	46.98 ± 0.066 ef	0.01 ± 0.0003 j
	20	0.00 ± 0.00 h	74.38 ± 0.161 abcd	0.00 ± 0.00 k
Sodium phosphate	5	629.66 ± 14.36 d	77.72 ± 0.136 abc	0.27 ± 0.004 c
	10	729.56 ± 8.82 d	90.70 ± 0.188 a	0.19 ± 0.001 f
	15	805.81 ± 6.54 a	76.70 ± 0.165 abc	0.17 ± 0.001 g
	20	0.00 ± 0.00 h	90.66 ± 0.244 a	0.00 ± 0.0003 k
Dextran T500	5	565.94 ± 45.01 e	89.61 ± 0.135 ab	0.22 ± 0.001 d
	10	694.40 ± 38.39 c	69.75 ± 0.052 abcde	0.22 ± 0.001 d
	15	730.55 ± 30.27 bc	66.14 ± 0.076 bcde	0.17 ± 0.001 g
	20	749.42 ± 36.91 b	67.54 ± 0.015 abcde	0.13 ± 0.0002 h
Effect of type		F = 392.83 (S)	F = 11.58 (S)	F = 14868.54 (S)
Effect of concentration		F = 202.19 (S)	F = 5.61 (S)	F = 36171.86 (S)
Interaction effect		F = 289.63 (S)	F = 1.59 (NS)	F = 6241.57 (S)

Note: Data were obtained from 3 replicates. Data with same superscript alphabets were not differ with significant level at p < 0.05 based on Duncan’s multiple range t S: significant; NS: not significant.

, respectively. In construction of aqueous two-phase system (ATPS), selecting an ideal molecular weight polymer is generally the crucial step. In this study, type and concentration of PEG markedly influence the cell concentration. While BLIS production significantly affected by molecular weight of polyethylene glycol (PEG).

Among the PEG, PEG8000 at 10% (w/w) recorded the highest BLIS activity (645.97 ± 37.43 AU/mL), while the highest protein concentration (55.96 ± 0.036 μg/mL) and cell concentration (0.31 ± 0.002 g/L) was detected at 5% (w/w). All PEG at 5–15% (w/w) exhibited comparable cell concentration with only 6.06–33.33% reduction as compared to control (BHI medium), while the cell concentration was markedly reduced at 20% (w/w). As the molecular weight of PEG has significant effect on all independent factors, therefore all PEGs were chosen for the subsequent response surface study to find out the optimal formulation for BLIS partitioning.

All types and concentrations of salts/dextran T500 significantly influenced the protein concentration, cell concentration and BLIS production of L. lactis Gh1, while interaction between type and concentration of salts has no effect on protein concentration. The highest BLIS activity (805.81 ± 6.54 AU/mL) and protein concentration (90.70 ± 0.188 μg/mL) was achieved with sodium phosphate at 15 and 10% (w/w), respectively. On the other hand, the highest cell concentration (0.37 ± 0.002 g/L) was obtained with ammonium sulphate at 5% (w/w). However, cell concentration was significantly reduced or inhibited up to 4.12–100% as compared to control (BHI medium) at concentration higher than 5% (w/w) in all salts (sodium phosphate, sodium citrate, and ammonium sulphate) tested in this study. Remarkably, BLIS production (565.94–749.42 AU/mL) and cell concentration (0.13–0.22 g/L) were preserved at all concentrations of Dextran T500 indicating the compatibility of dextran T500 for BLIS production and cell concentration. Therefore, this polymer was used in the subsequent experiments.

3.2. Influencing Factors on Partitioning Behavior of BLIS in ATPS

Effect of three factors which are PEG molar mass, PEG concentrations, and dextran T500 concentrations, and their interactions on BLIS partition coefficient (K) were evaluated using Central Composite Design (CCD). A total number of 13 experiments were employed for the response surface modelling, and the order of experiments was arranged randomly. The observed and predicted responses for the K are depicted in

Table 4. Central composite design for optimization of partition coefficient (K) of extractive fermentation of L. lactis Gh1 using RSM.

PEG (X1) (%, w/w)		Dextran (X2) (%, w/w)	Partition Coefficient (K)
			Experimental	Predicted by RSM (% Difference) *
	10	8	1.37	1.39 (−1.46)
	10	5	1.27	1.25 (1.57)
	10	8	1.47	1.39 (5.44)
	10	8	1.35	1.39 (−2.96)
	10	11	1.22	1.22 (0.82)
2000	10	8	1.40	1.39 (0.71)
	13	8	1.05	1.04 (0.95)
	12	10	1.05	1.07 (−1.90)
	10	8	1.36	1.39 (−2.21)
	12	6	1.19	1.19 (0.000
	8	6	1.23	1.21 (1.63)
	7	8	1.15	1.16 (−0.87)
	8	10	1.22	1.23 (−0.82)
	10	8	0.42	0.46 (−9.44)
	10	5	0.55	0.57 (−2.95)
	10	8	0.46	0.46 (0.12)
	10	8	0.46	0.46 (0.44)
	10	11	0.42	0.38 (9.22)
4000	10	8	0.52	0.46 (11.97)
	13	8	0.56	0.56 (0.55)
	12	10	0.44	0.47 (−5.97)
	10	8	0.45	0.46 (−2.24)
	12	6	0.55	0.53 (3.13)
	8	6	0.73	0.73 (0.36)
	7	8	0.77	0.74 (3.72)
	8	10	0.48	0.52 (−9.30)
	10	8	0.39	0.36 (8.37)
	10	5	0.44	0.46 (−4.11)
	10	8	0.36	0.36 (−0.64)
	10	8	0.34	0.36 (−7.43)
	10	11	0.41	0.40 (1.38)
6000	10	8	0.37	0.36 (1.53)
	13	8	0.34	0.34 (−1.05)
	12	10	0.37	0.38 (−1.36)
	10	8	0.36	0.36 (1.22)
	12	6	0.39	0.38 (2.47)
	8	6	0.49	0.48 (2.26)
	7	8	0.43	0.43 (−0.88)
	8	10	0.39	0.39 (−1.23)

Note: * Percentages of differences was calculated by minus the observed K with predicted by RSM and divided by observed K value.

. The second-order polynomial equation derived by the Design Expert software were expressed by Equations in

Table 5. Equations derived RSM for the prediction of the dependent variables for partition coefficient (K) in term of coded factors.

Dependent Variables	Equation
PEG2000: dextran	+1.39 − 0.045X1 − 0.026X2 − 0.15X12 − 0.071X22 − 0.033X1X2
PEG4000: dextran	+0.46 − 0.064X1 − 0.069X2 + 0.095X22 + 4.969 x 103X22 + 0.038X1X2
PEG6000: dextran	+0.36 − 0.030X1 − 0.021X2 + 0.011X12 + 0.032X22 + 0.023X1X2

Note: X₁ is PEG of respective weigh; X₂ is dextran T500.

.

Results were assessed with various descriptive statistics such as the p-value, F-value, degree of freedom (DF), and the MS, mean square; the determination coefficient (R²) of each coefficient was determined by Fisher’s F-test and values of probability >F (

Table 6. ANOVA for quadratic model of PEG: dextran T500.

Source	SS	DF	MS	F-Value	Prob (p) > F
PEG 2000
Model	0.19	5	0.038	26.04	0.0002 **
Residual	0.010	7	1.474 × 103
Lack of fit	1.023 × 103	3	3.409 ×104	0.15	0.9266 *
Pure error	9.294 × 103	4	2.323 × 103
Total	0.20	12
R2	0.9490
Adj-R2	0.9126
Pred-R2	0.8922
CV	3.05
PEG 4000
Model	0.14	5	0.028	17.43	0.0008 **
Residual	0.011	7	1.596 × 103
Lack of fit	5.630 × 103	3	1.877 × 103	1.35	0.3762 *
Pure error	5.544 × 103	4	1.386 × 103
Total	0.15	12
R2	0.9257
Adj-R2	0.8726
Pred-R2	0.6760
CV	7.62
PEG 6000
Model	0.020	5	4.088 × 103	11.66	0.0027 **
Residual	2.454 × 103	7	3.506 × 104
Lack of fit	7.465 × 104	3	2.488 × 104	0.58	0.6572 *
Pure error	1.708 × 103	4	4.270 × 104
Total	0.023	12
R2	0.8928
Adj-R2	0.8162
Pred-R2	0.6516
CV	4.80

Note: SS = sum of squares; DF = degrees of freedom; MS = mean square; ** significant at p < 0.001; * not significant at p < 0.05.

). A small probability value (p < 0.001) indicates that the model was highly significant and could be used to predict the response function accurately. Goodness-of-fit for the model was also evaluated by coefficients of determination R² (correlation coefficient) and adjusted coefficients of determination R²_adj. The large value of the correlation coefficient R² = 0.9490 (PEG2000), R² = 0.9257 (PEG4000), and R² = 0.8928 (PEG6000) respectively, indicated a high reliability of the model in predicting of partition coefficient (K), by which 94.9, 92.6 and 89.3% of the response variability can be explained by the model. In all PEG sizes, p-value is less than the significance level and F-value indicating sufficient evidence to conclude that the regression model fits the data better than the model with no independent variables. In PEG8000/dextran T500 the BLIS tends to move to the dextran-rich bottom phase of the system producing low K value (data not shown).

The highest experimental K value (1.40) were recorded in PEG2000/8% (w/v) of dextran T500 indicating the BLIS desirable in top phase of the system. In addition, the combination of PEG2000 and dextran T500 showed the highest R² as compared to other two PEG molecular weight demonstrating smaller differences between the observed data and the fitted values. Therefore, PEG2000/8% (w/v) of dextran T500 was chosen for the further studies.

3.3. Effects of Model Parameters and Their Interactions

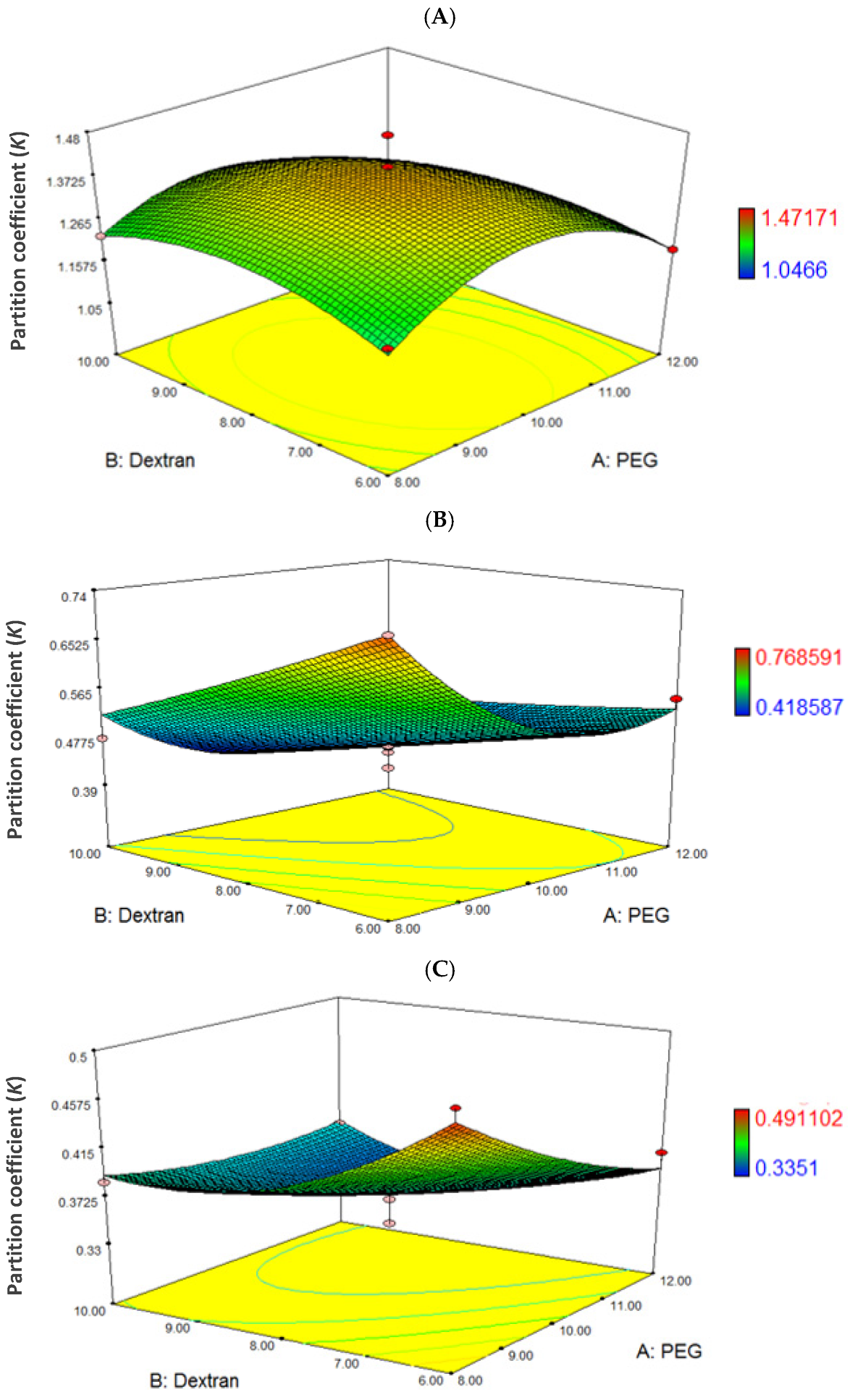

The significance of each model parameter was determined by means of Fischer’s F-value and p-value. The Design Expert software was used to produce three-dimensional (3D) response surfaces contour plots. The 3D-surfaced contour plots demonstrate the regression equation in order to improve reaction conditions and are the most useful way of showing the reaction system conditions.

In these diagrams, two factors have their response functions, while all other factors are at fixed levels. The results of the interactions between two independent variables (PEG molecular weight and dextran T500) and the dependent variable (partition coefficient, K) are shown in Figure 2. In PEG2000/dextran T500 ATPS, the response surface and contour plot show a surface with a maximum point, in which the K increased when PEG concentration and dextran T500 increased up to a certain level and decreased with further increase of these variables. Maximum K value (1.47) in these conditions as predicted, corresponding to PEG2000 at 10% (w/w) and dextran T500 at 8%, (w/w) (Figure 2A). Differently, the maximal K value was obtained at the lowest concentration of PEG (8%, w/w) and dextran T500 (6%, w/w) in response surface of PEG4000/dextran T500 (K = 0.77), and PEG6000/dextran T500 (K = 0.49) (Figure 2B,C).

3.4. The Prediction of the Optimum Condition of Partition Coefficient (K)

To confirm the model’s adequacy for predicting the maximum K (response function), a new experiment based on the optimum levels, were carried out and the results were compared with the predicted results generated by the RSM as shown in

Table 7. Comparison of the predictive and the experimental result optimum values of partition coefficient (K).

Parameters	Predicted by RSM	Experimental	% of Difference
Purification factor (PF)	1.78	2.15	−0.21
Partition coefficient (K)	1.39	1.07	0.23
Recovery/yield (%)	73.97	76.28	−0.03
Cell concentration (g/L)	0.37	0.22	0.40

. The predictive and experimental results at optimum levels are well agreed, which gives the model a great validity. Under the optimized condition which comprised of PEG2000 (10%, w/w)/dextran T500 (8%, w/w) at pH 7 and agitated at 200 rpm the predicted K value was 1.39. The validation of the predicted model was done by conducting the experiment using the suggested condition resulting K of 1.07, close to the predicted value. Although the result shows the robustness of the model to predict the BLIS partitioning behavior in ATPS, a minimal difference (0.23) was still observed between experimental and predicted values, suggesting the model used in RSM can be further improved. Hence, to improve the prediction capability of the model, additional experiments such as refining the range of PEG2000/dextran T500 are required to cover the entire experimental space.

3.5. Effect of Orbital Agitation and pH on Partitioning of BLIS

The effect of orbital agitation speed and pH on BLIS partitioning behavior are shown in

Table 8. Influence of orbital speed on BLIS partitioning behavior in extractive ATPS using PEG2000 (10%, w/w)/dextran T500 (8%, w/w).

Orbital Speed	Specific Activity (SA)	Partition Coefficient (K)	Purification Factor(PF)	Selectivity (S)	Yield (%)	Cell Concentration (g/L)
150	16,741.63 ± 1079.75 a	0.87 ± 0.017 ab	1.76 ± 0.11 a	2.55 ± 0.26 a	75.03 ± 0.37 ab	0.15 ± 0.02 b
200	16,899.88 ± 951.29 a	0.94 ± 0.040 a	2.02 ± 0.11 a	1.76 ± 0.29 ab	76.46 ± 0.77 a	0.16 ± 0.01 b
250	19,530.09 ± 2173.03 a	0.80 ± 0.032 b	1.72 ± 0.19 a	1.38 ± 0.33 b	73.34 ± 0.78 b	0.22 ± 0.01 a

Note: Data were obtained from 3 replicates. Data with same superscript alphabets were not differ with significant level at p < 0.05 based on Duncan’s multiple range test.

and

Table 9. Influence of pH on BLIS partitioning behavior in extractive ATPS using PEG2000 (10%, w/w)/dextran T500 (8%, w/w).

pH	Specific Activity (SA)	Partition Coefficient (K)	Purification Factor (PF)	Selectivity (S)	Yield (%)	Cell Concentration (g/L)
* Control	16707.71 ± 1352.99 bc	0.83 ± 0.10 a	2.38 ± 0.19b c	1.08 ± 0.45 ab	74.05 ± 2.24 a	0.13 ± 0.02 c
5	21820.84 ± 1900.45 a	0.79 ± 0.07 a	3.11 ± 0.27 a	0.38 ± 0.26 b	72.97 ± 1.72 a	0.11 ± 0.01 c
6	19775.51 ± 1306.68 ab	0.81 ± 0.02 a	2.82 ± 0.19 ab	0.96 ± 0.16 ab	73.61 ± 0.56 a	0.13 ± 0.00 c
7	20442.98 ± 2606.24 ab	1.00 ± 0.16 a	2.92 ± 0.37 ab	2.06 ± 1.34 a	77.24 ± 2.81 a	0.12 ± 0.02 c
8	15535.43 ± 1087.32 c	0.91 ± 0.15 a	2.22 ± 0.16 c	0.93 ± 0.28 ab	75.55 ± 3.05 a	0.24 ± 0.00 b
9	12697.92 ± 1215.92 c	0.85 ± 0.01 a	1.81 ± 0.17 c	1.20 ± 0.38 ab	74.62 ± 0.13 a	0.29 ± 0.03 a

Note: * Control is BHI broth without any pH changes (pH value of BHI broth: 7.36). Data were obtained from three replicates. Data with same superscript alphabets were not differ with significant level at p < 0.05 based on Duncan’s multiple range test.

, respectively. There was no significant difference (p < 0.05) in specific activity (SA) and purification factor (PF) between orbital speed tested. However, the highest SA (19,530.09 ± 2173.03) was recorded in 250 rpm. The highest K (0.94 ± 0.040), PF (2.02 ± 0.11) and yield (76.46 ± 0.77%) were observed in 200 rpm. Selectivity, S was decreased with increasing orbital speed. Orbital speed at 150 rpm attained the highest S (2.55 ± 0.26) value. Differently, cell concentration value was increased with the increment of orbital speed. Cell concentration in 250 rpm produced the maximum cell concentration (0.22 ± 0.01 g/L) and significantly higher (p < 0.5) than those obtained by other orbital speeds. Oxygen mass transfer rate was enhanced at high agitation speed, which in turn, enhanced cell concentration. As the highest K, PF and yield was achieved at 200 rpm, this orbital speed was selected for the subsequent experiments.

In influence of pH on BLIS partitioning, there were no significant difference (p < 0.05) in K and yield. The highest K (1.00 ± 0.16), S (2.06 ± 1.34) and yield (77.24 ± 2.81%) values were noted in pH 7. SA and PF were greatly affected by pH, where the value decreased with increasing pH. The highest SA (21820.84 ± 1900.45) and PF (3.11 ± 0.27) were obtained in lowest pH value (pH 5). Moreover, the concentration of cells is substantially affected by pH variation. The maximum cell concentration (0.29 ± 0.03 g/L) was found at the highest pH value (pH 9), which was significantly higher (p < 0.5) than other pH values. The pH 7 was chosen for the subsequent experiment as it contributed the highest K, S and yield among the range of pH so far tested.

3.6. Scale-Up of ATPS in 2 L Stirred Tank Bioreactor

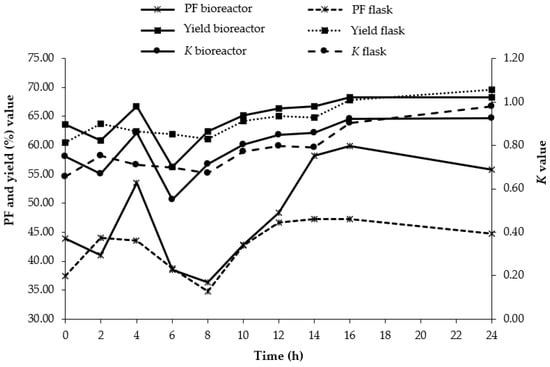

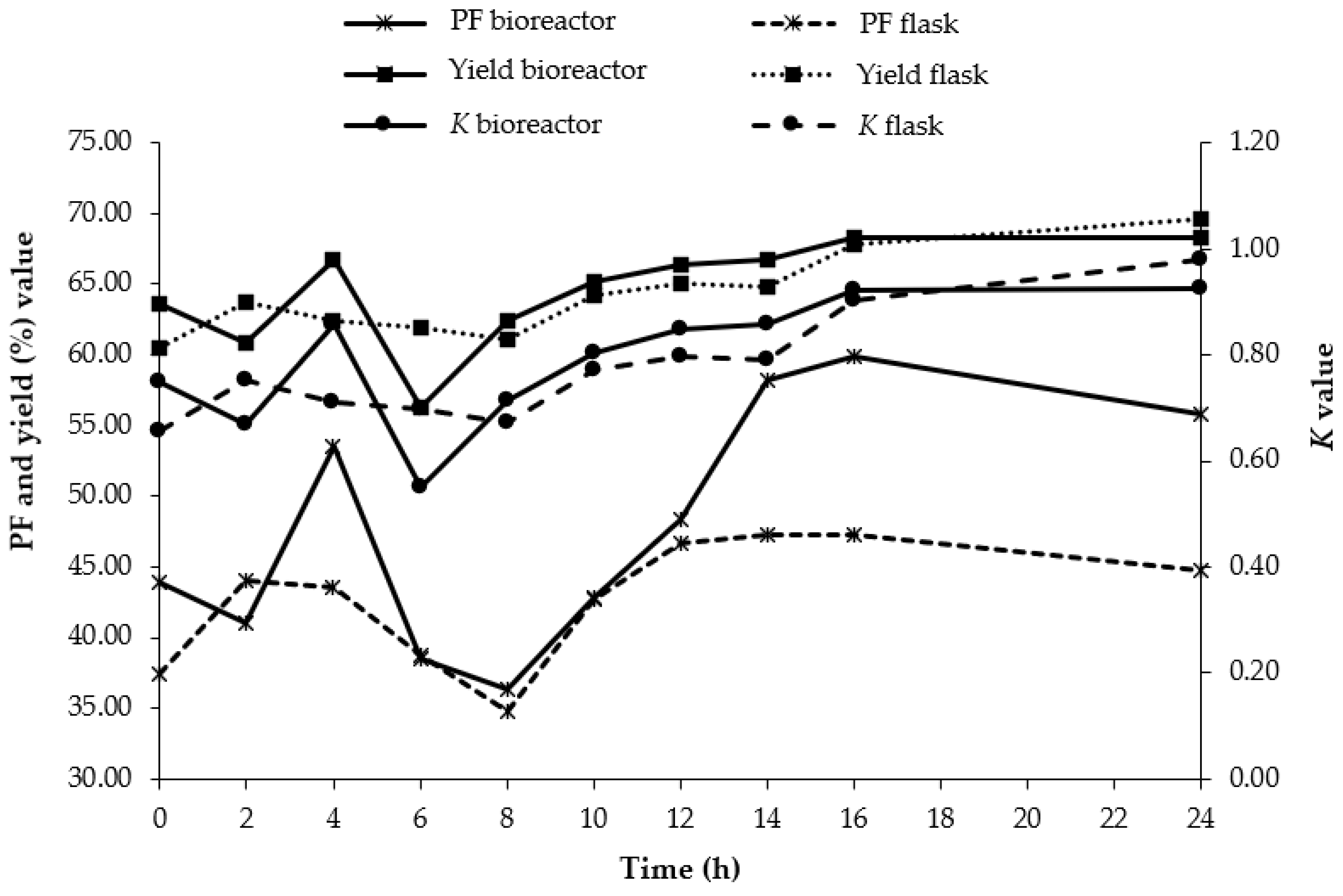

The comparison of K value, PF, and yield of BLIS from L. lactis Gh1 for aqueous two-phase fermentation in an Erlenmeyer flask and 2 L bioreactor are shown in Figure 3. To understand the production profile of BLIS in greater detail and to confirm the validity of the optimization study, an attempt was made for the possibility to scale-up the process. The effectiveness of the operation was confirmed in a 2 L stirred tank bioreactor under conditions similar to the optimal pH (pH 7) and orbital agitation speed (200 rpm) obtained in the shake flask. The overall K, PF and yield value of extractive fermentation obtained in the bioreactor were higher than those obtained in shake flask fermentation. The maximum K, PF and yield values of both extractive fermentation in Erlenmeyer flask (K = 0.98, PF = 1.23, and yield = 69.60%) and 2 L bioreactor (K = 0.93, PF = 1.93, and yield = 68.34%) were not much different.

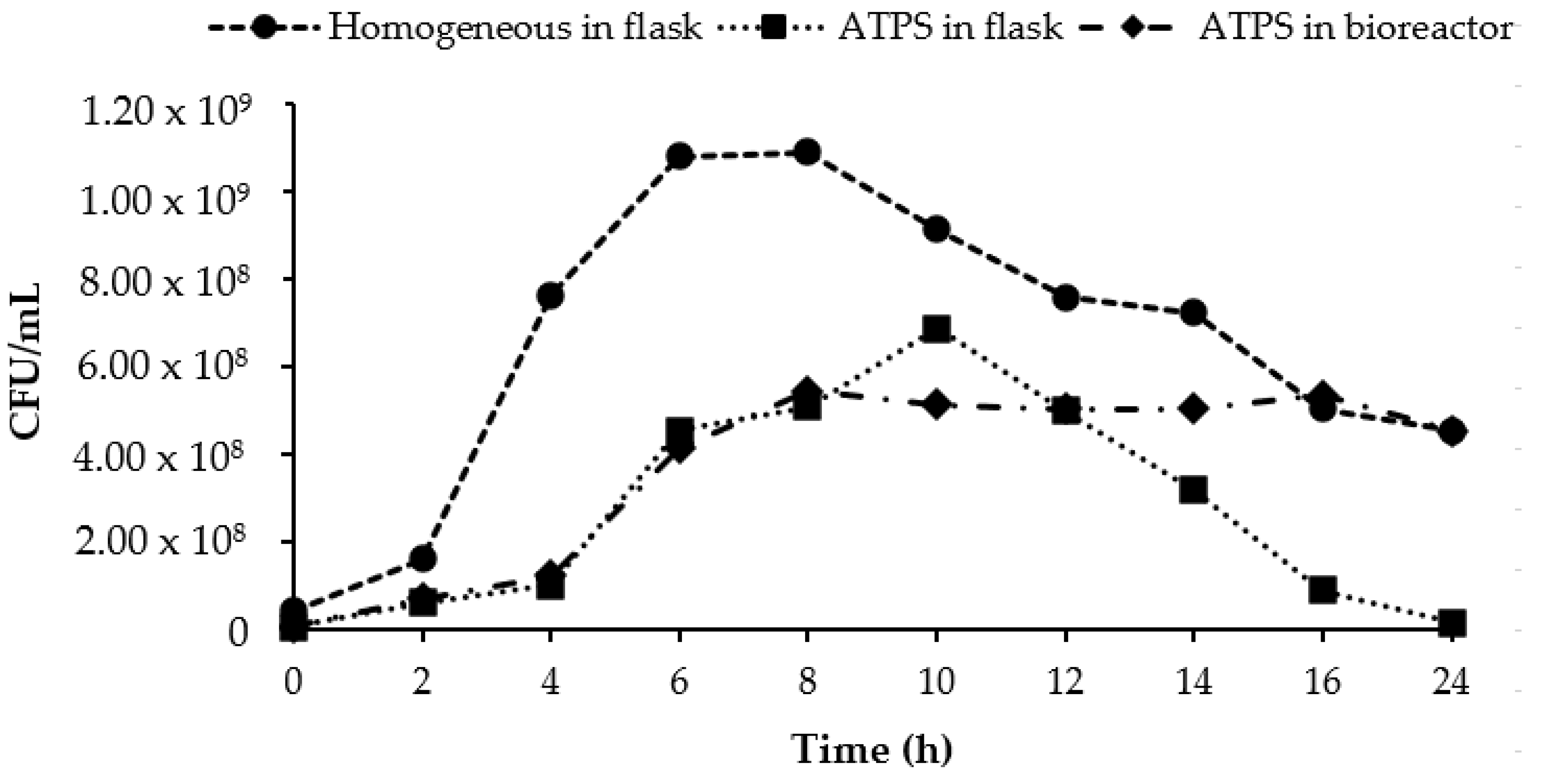

The cell viability of L. lactis Gh1 during homogeneous, and aqueous two-phase fermentation both in an Erlenmeyer flask and a bench-scale bioreactor were compared (Figure 4). A higher cell viability was obtained from homogeneous fermentation compared to that of extractive fermentation in both Erlenmeyer flask and a bench-scale bioreactor. The presence of polymers (i.e., PEG and dextran) reduced the growth rate of L. lactis Gh1. However, the sustainable cells growth was obtained in aqueous two-phase fermentation in bioreactor make the repetitive fermentation in a large scale possible.

The growth pattern of L. lactis Gh1 in extractive fermentation exhibited the same pattern as homogeneous culture in both bioreactor and shake flask. The exponential phase was started after 2 h to 6 h of fermentation and the maximum viability was observed after 8 h while in flask the highest cell number shifted to h−10. Prolonged ATPS-fermentation in the bioreactor preserves the high concentration of cells, while the cells enter the phase of death both in the flask ATPS and in the flask homogeneous culture. Maximum cell number of L. lactis Gh1 (1.09 × 10⁹ CFU/mL) obtained in the homogeneous culture in flask was about 36–50% higher as compared to both ATPS fermentation in flask (6.87 × 10⁸ CFU/mL) and in bioreactor (5.43 × 10⁸ CFU/mL).

3.7. Repetitive ATPS Fermentation in an Erlenmeyer Flask

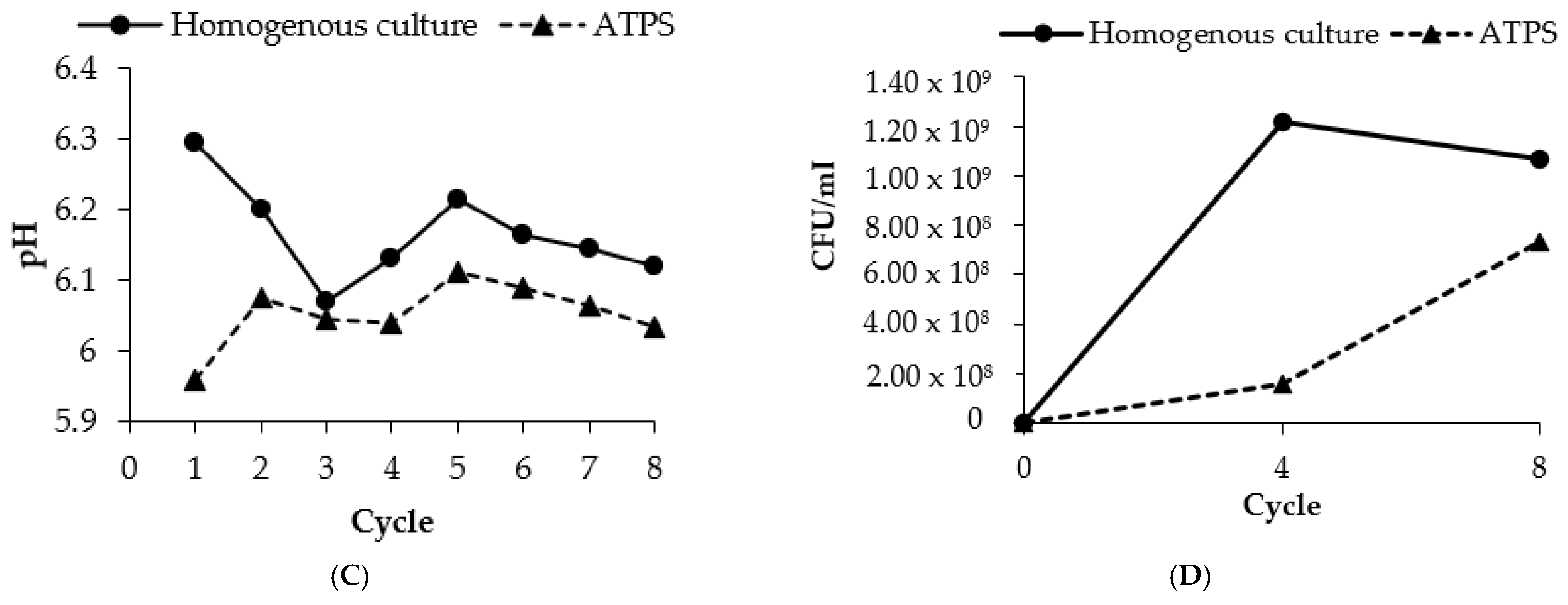

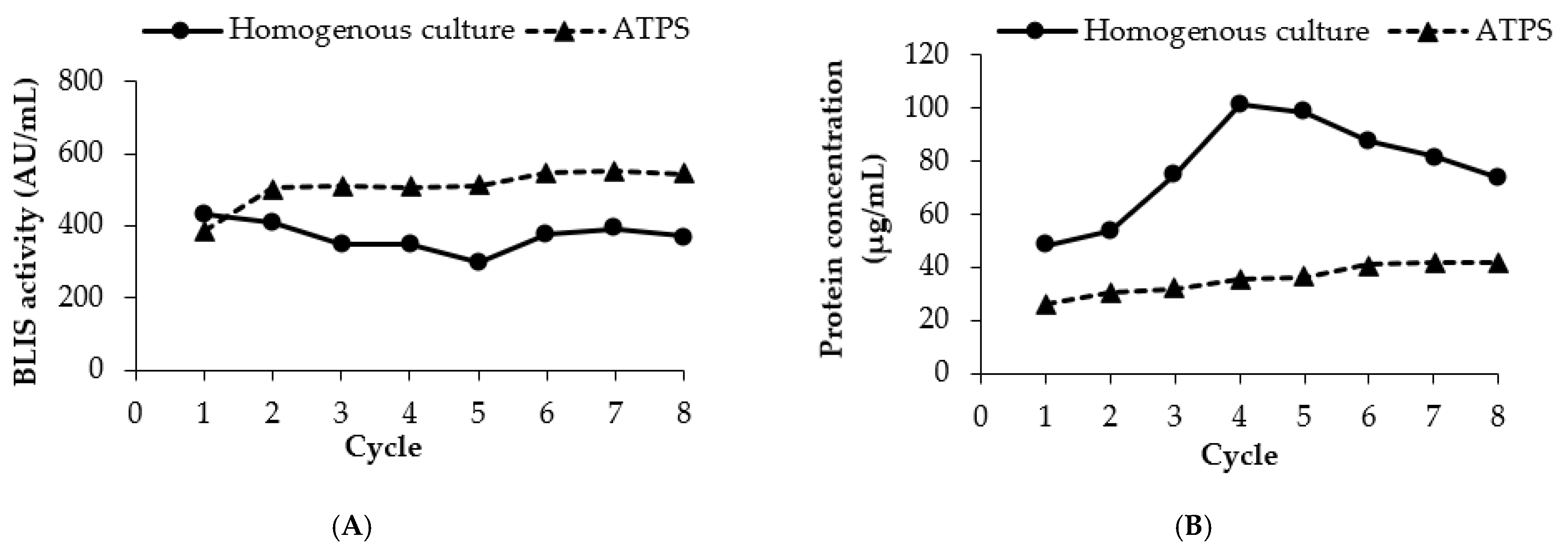

The results of repetitive batch of extractive fermentation of ATPS are shown in Figure 5. Eight cycles of consecutive batch fermentations were conducted at conditions based on the previous optimized partitioning parameters. The viability of the cells was remained after the 8th batch (7.35 × 10⁸ CFU/mL) of the repetitive ATPS fermentation. The number of cells in homogenous culture was reduced after four cycles of repetitive fermentation at 1.06 × 10⁹ CFU/mL. This result evidenced the benefit of ATPS in protecting the cells during the production and partitioning of BLIS and showed that the long-term L. lactis Gh1 cell growth could be supported by the ATPS extractive fermentation. BLIS was steadily produced during the entire course of repetitive batch fermentation up to 8th cycle in both ATPS and homogenous culture. The maximum BLIS activity obtained in ATPS was 1.47 times higher than that obtained in homogenous culture.

4. Discussion

Purified bacteriocins can reduce the number of pathogens or change the composition of intestinal microbiota in animal models. The ability of pure nisin was proven to influence the composition of intestinal microbiota in human flora-associated rats [27]. Another report shows that purified BLIS from Lactobacillus bulgaricus FTDC 1211 is necessary to inhibit Staphylococcus aureus. In terms of disease control, the use of purified bacteriocin is superior to the use of bacteria to produce bacteriocins. Hence, purification of bacteriocin is mandatory for food and medical application [28].

Extractive fermentation or in situ product recovery is the process in which aqueous two-phase system (ATPS) is integrated with bioconversion to overcome the low product yield. Low productivity is one of the most commonly observed issue in biotechnological processes because of inhibition, toxicity and instability of the end-product [29]. Therefore, about 60–90% cost of a biological process is expended in downstream processing. However, a high end-product concentration is feasible by extractive fermentation, because of low interfacial tension, continuous mode, selective separation and biocompatibility of ATPS. This strategy involves the continuous removal of product from its site of production/fermentation broth to the opposite phase simultaneously during production. Thus, the product of interest can be extracted from the system in a single step without performing biomass recovery or cell disruption [30]. The composition of ATPS depended on the type of phase system constituents and their concentration, polymer molecular weight, and pH [26].

One of the strategies to maximize the large-scale use of ATPS is the use of optimization techniques at bench scale level in order to select the system with the best-desired performance. The most common optimization strategies employed before for ATPS include the use of univariate optimization, response surface methodology (RSM), and genetic algorithms [31]. The modern statistical and mathematical technique such as RSM offers most reliable results and been applied with a smaller number of experiments as compared to one-factor-at-a-time (OFAT) [32]. In searching optimum condition of factors for desirable responses via RSM, the F-value is the test for comparing the curvature variance with residual variance and probability > F (p-value) is the probability of seeing the observed F-value if the null hypothesis is true. Small probability values call for rejection of the null hypothesis and the curvature is not significant. Therefore, the larger the value of F and the smaller the value of p, indicating that the corresponding coefficient is more significant [33].

The selection of an ideal molecular weight polymer to promote cell sustainability is primary step in extractive ATPS application. Molecular weight of PEG affects the composition of phases and the number of polymer-protein interactions via hydrophobic interactions between the chains of PEG and the hydrophobic area of the biomolecule (Abbasiliasi et al. [26]. In the present study, the growth of L. lactis Gh1 was not affected by molecular weight of all PEGs at 5–15% (w/w) and reduced at 20% (w/w). This finding contrary with Li et al. [17], who found that the growth rate of L. lactis was increased continuously with increasing molecular weight of PEG at 10% (w/w). Moreover, in our study the fact that all PEG at 20% (w/w) inhibits growth may be due to a high osmotic pressure.

In bottom phase components (salts/dextran) selection, results of this study indicated that the growth of L. lactis Gh1 was greatly affected at concentration higher than 5% (w/w) in all salts (ammonium sulphate, sodium citrate, and sodium phosphate). This finding was in line with Li et al. [17] who stated that the high salt concentration in ATPS is likely to inhibit growth of microbial cells. Gandhi and Shah [34] stated that reduced viable count of lactic acid bacteria was observed on increased exposure to salt stress, possibly owing to the injury caused by salt to the integrity of the bacterial membrane. Sensitivity of bacterial cultures to salt addition is strongly dependent on bacterial species and strain, and therefore the salt concentration can have stimulating or inhibiting effects on bacterial metabolic activity [35].

In the current investigation, the partitioning coefficients, K decrease with the increase in molecular weight of PEG. The highest experimental K value (1.40) was recorded in PEG2000/dextran T500 indicating the BLIS desirable in top phase of the system. This is in accordance with a study on cyclodextrins (CDs) in a PEG2000/dextranT500 system by Ng et al. [36], who reported that high concentration of PEG and dextran in an ATPS will cause the formation of precipitant at interphase that complicates the recovery of CDs. Although PEG/dextran ATPS has been applied for in situ retrieval of β-carotene [30], lipase [37], cyclodextrins [36] and pullulan [38], it has not been used in bacteriocin recovery. Furthermore, the advancement of ATPS to extractive fermentation was rarely reported for in situ bacteriocin partitioning except in two reported studies by Li et al. [39] and Li et al. [17]. The aim of using polymer-based compositions is to achieve a non-ionic composition compatible with ionic biomolecules with a low ionic strength. Dextran has many health benefits, and it is widely used in food industry for making bakery products, confectionery, ice cream, and frozen and dried foods [40]. Generally, PEG and dextran are preferably employed in ATPSs preparation among polymers because they perform desirable physical properties with non-toxicity [41].

In this study, reduced partitioning efficiency was observed at high orbital speed (250 rpm) due to the intermixing of both the nutrient broth and the polymer, which acts like a homogenous fermentation process during shaking as highlighted by Pandey and Banik [42]. Similar behaviors were observed in extractive fermentation for lipase production by Burkholderia cepacia where the orbital speed has significant adverse influence on the partition behaviors [43]. Additionally, the current findings highlighted the notable effect of pH 7 on K value. It is well known the change in pH will influence the partitioning of the target protein which alter the phase polymer concentration, as the polymer loses/gains charge from functional groups that induce repulsion/attraction and expansion/contraction of the materials [44]. The net charge of the protein turns negative in case of higher pH than the isoelectric point (pI) and positive if lesser than pI. If the pH is equal to pI, net charge will be zero [20].

The results of this study suggest agitation in extractive fermentations plays a crucial role, especially in the presence of high-viscosity agents, such as PEG and dextran. Sufficient agitation and homogeneity of the phase system obtained in bioreactor as compared to shake flask may be one of the possible reasons. These properties may allow better control of environmental parameters and more efficient transportation of nutrient materials, especially oxygen [45]. Appropriate impeller speed is important because excessive agitation could have caused mechanical stress on the cells, disrupting cell morphology [46].

The overall manufacturing cost of the extraction solvents in a reusable and recyclable cycle will be reduced [47]. As regards to application as food and pharmaceutics, it includes alternative non-toxic and eco-friendly solvents [48]. Repetitive ATPS fermentation was less discussed and the data from this study provide a chance to explore this approach for production and purification of BLIS.

5. Conclusions

Results from this study have demonstrated that extractive fermentation using ATPS approach has the potential to improve recovery of BLIS from fermentation culture using polymers/polymers. The proposed approach significantly integrates the upstream and downstream processes for continuous production and recovery of BLIS from biomass, thus reducing the time proportion of the entire process. In addition, the versatility of ATPS and its simplicity, as only PEG and dextran T500 were used, can have an enormous industry potential to recover BLIS from fermentation broth. BLIS from L. lactis Gh1 was successfully produced and purified using a single step-extractive fermentation. The yield of BLIS increased by 0.91 times, i.e., 77.13%, for ATPS composed of PEG 2000 (10%, w/w)/dextran T500 (8%, w/w), optimally performed at pH 7 and agitated at 200 rpm. During the scale-up process, sustainable repetitive fermenting of cell growth up to eight times was observed in the bioreactor. Integration of L. lactis Gh1 fermentation with the downstream of BLIS purification in repetitive batch of ATPS extractive fermentation is ideally effective in terms of cost (recycling of cell for subsequent fermentation) and processing time (instant purification after each fermentation batch). In the future recommendation, Tricine SDS-PAGE can be performed to check the purity and also for the estimation of the molecular weight (MW) of the partially purified BLIS.
