# Frequency Power Spectra of Global Quantities in Unsteady Magnetoconvection

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Governing Equations

## 3. Direct Numerical Simulations

- (i)
- Real space variables $\mathsf{v}(x,y,z)=({\mathrm{v}}_{1},{\mathrm{v}}_{2},{\mathrm{v}}_{3})$ and $\theta (x,y,z)$ are computed at a given time t using inverse FFT of $\mathsf{v}\left(\mathsf{k}\right)$ and $\theta \left(\mathsf{k}\right)$, where $\mathsf{k}=l{k}_{c}{\mathsf{e}}_{1}+m{k}_{c}{\mathsf{e}}_{2}+n\pi {\mathsf{e}}_{3}.$
- (ii)
- The multiplication of field variables ${\mathrm{v}}_{i}(x,y,z){\mathrm{v}}_{j}(x,y,z)$ and ${\mathrm{v}}_{i}(x,y,z)\theta (x,y,z)$ for ($i,j=1,2,3$) are done at each grid point of the simulation box.
- (iii)
- FFT[${\mathrm{v}}_{i}(x,y,z){\mathrm{v}}_{j}(x,y,z)$] and FFT[${\mathrm{v}}_{i}(x,y,z)\theta (x,y,z)$] are computed using the package FFTW.
- (iv)
- Subsequently, the terms $i{k}_{j}\times FFT\left[{\mathrm{v}}_{i}(x,y,z){\mathrm{v}}_{j}(x,y,z)\right]$ and $i{k}_{j}\times FFT\left[{\mathrm{v}}_{i}(x,y,z)\theta (x,y,z)\right]$ with $j=1,2$ as well as $i{k}_{j}\times FFT\left[{\mathrm{v}}_{i}(x,y,z){\mathrm{v}}_{j}(x,y,z)\right]$ and $i{k}_{j}\times FFT\left[{\mathrm{v}}_{i}(x,y,z)\theta (x,y,z)\right]$ with $j=3$ are computed.

## 4. Results and Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Institutional Review Board Statement

## Informed Consent Statement

## Data Availability Statement

## Conflicts of Interest

## References

- Botet, R.; Ploszajczak, M. Universal Fluctuations (The Phenomenology of Hadronic Matter): World Scientific Lecture Notes in Physics; World Scientific: Singapore, 2002. [Google Scholar]
- Boubnov, B.M.; Golitsyn, G.S. Temperature and velocity field regimes of convective motions in a rotating plane fluid layer. J. Fluid Mech.
**1990**, 219, 215–239. [Google Scholar] [CrossRef] - Fauve, S.; Laroche, C.; Castaing, B. Pressure fluctuations in swirling turbulent flows. J. Phys. II
**1993**, 3, 271–278. [Google Scholar] [CrossRef] - Niemela, J.J.; Skrbek, L.; Sreenivasan, K.R.; Donnelly, R.J. Turbulent convection at very high Rayleigh numbers. Nature
**2000**, 404, 837–840. [Google Scholar] [CrossRef] [PubMed] - Aumaître, S.; Fauve, S. Statistical properties of the fluctuations of the heat transfer in turbulent convection. Europhys. Lett.
**2003**, 62, 822–828. [Google Scholar] [CrossRef] - Tanriverdi, V.; Tilgner, A. Global fluctuations in magnetohydrodynamic dynamos. New J. Phys.
**2011**, 13, 033019. [Google Scholar] [CrossRef] - Gerolymos, G.; Vallet, I. Pressure, density, temperature and entropy fluctuations in compressible turbulent plane channel flow. J. Fluid Mech.
**2014**, 757, 701–746. [Google Scholar] [CrossRef] [Green Version] - Kakac, S.; Pramuanjaroenkij, A. Review of convective heat transfer enhancement with nanofluids. Int. J. Heat Mass Transf.
**2009**, 52, 3187–3196. [Google Scholar] [CrossRef] - Tsimring, L.S. Noise in biology. Rep. Prog. Phys.
**2014**, 77, 026601. [Google Scholar] [CrossRef] [Green Version] - Deco, G.; Kringelbach, M.L.; Jirsa, V.K.; Ritter, P. The dynamics of resting fluctuations in the brain: Metastability and its dynamical cortical core. Sci. Rep.
**2017**, 7, 3095. [Google Scholar] [CrossRef] [Green Version] - Damon, P.E.; Lerman, J.C.; Long, A. Temporal fluctuations of atmospheric
^{14}C: Causal factors and implications. Ann. Rev. Earth Planet Sci.**1978**, 6, 457–494. [Google Scholar] [CrossRef] - Tyler, R.H.; Boyer, T.P.; Minami, T.; Zweng, M.M.; Reagan, J.R. Electrical conductivity of the global ocean. Earth Planet Space
**2017**, 69, 156. [Google Scholar] [CrossRef] [Green Version] - Mobilia, M.; Georgiev, I.T.; Täuber, U.C. Phase Transitions and Spatio-Temporal Fluctuations in Stochastic Lattice Lotka–Volterra Models. J. Stat. Phys.
**2007**, 128, 447–483. [Google Scholar] [CrossRef] [Green Version] - Brennecke, F.; Mottl, R.; Baumann, K.; Landig, R.; Donner, T.; Esslinger, T. Real-time observation of fluctuations at the driven-dissipative Dicke phase transition. Proc. Natl. Acad. Sci. USA
**2013**, 110, 11763–11767. [Google Scholar] [CrossRef] [Green Version] - Das, S.; Kumar, K. Thermal flux in unsteady Rayleigh-Bénard magnetoconvection. Int. J. Heat Mass Transf.
**2019**, 142, 118413. [Google Scholar] [CrossRef] [Green Version] - Pharasi, H.K.; Kumar, K.; Bhattacharjee, J.K. Frequency spectra of turbulent thermal convection with uniform rotation. Phys. Rev. E
**2014**, 90, 041004. [Google Scholar] [CrossRef] [Green Version] - Burr, U.; Müller, U. Rayleigh–Bénard convection in liquid metal layers under the influence of a vertical magnetic fieldn. Phys. Fluids
**2001**, 13, 3247–3257. [Google Scholar] [CrossRef] - Chandrasekhar, S. Hydrodynamic and Hydromagnetic Stability; Oxford University Press: London, UK, 1961. [Google Scholar]
- Fauve, S.; Laroche, C.I.; Libchaber, A.; Perrin, B. Chaotic Phases and Magnetic Order in a Convective Fluid. Phys. Rev. Lett.
**1984**, 52, 1774–1777. [Google Scholar] [CrossRef] - Weiss, N.O.; Proctor, M.R.E. Magnetoconvection; Cambridge University Press: Cambridge, UK, 2014. [Google Scholar]
- Basak, A.; Raveendran, R.; Kumar, K. Rayleigh-Bénard convection with uniform vertical magnetic field. Phys. Rev. E
**2014**, 90, 033002. [Google Scholar] [CrossRef] [Green Version] - Maxwell, J. A Treatise on Electricity and Magnetism; Oxford University Press: London, UK, 1873. [Google Scholar]
- Selimefendigil, F.; Öztop, H.F. Numerical study of MHD mixed convection in a nanofluid filled lid driven square enclosure with a rotating cylinder. Int. J. Heat Mass Transf.
**2014**, 78, 741–754. [Google Scholar] [CrossRef] - Brinkman, H. The viscosity of concentrated suspensions and solutions. J. Chem. Phys.
**1952**, 20, 571–581. [Google Scholar] [CrossRef] - Canuto, C. Spectral Methods in Fluid Dynamics: Springer Series in Computational Physics; Springer: Berlin/Heidelberg, Germany, 1988. [Google Scholar]
- Olson, P.; Glatzmaier, G.A. Magnetoconvection and thermal coupling of the Earth’s core and mantle. Phil. Trans. R. Soc. Lond. A
**1996**, 354, 1413–1424. [Google Scholar] - Lan, C.W.; Kou, S. Heat transfer, fluid flow and interface shapes in floating-zone crystal growth. J. Crystal Growth
**1991**, 108, 351–366. [Google Scholar] [CrossRef] - Bak, P.; Tang, C.; Wiesenfeld, K. Self-organized criticality. Phys. Rev. A
**1988**, 38, 364–374. [Google Scholar] [CrossRef] [PubMed]

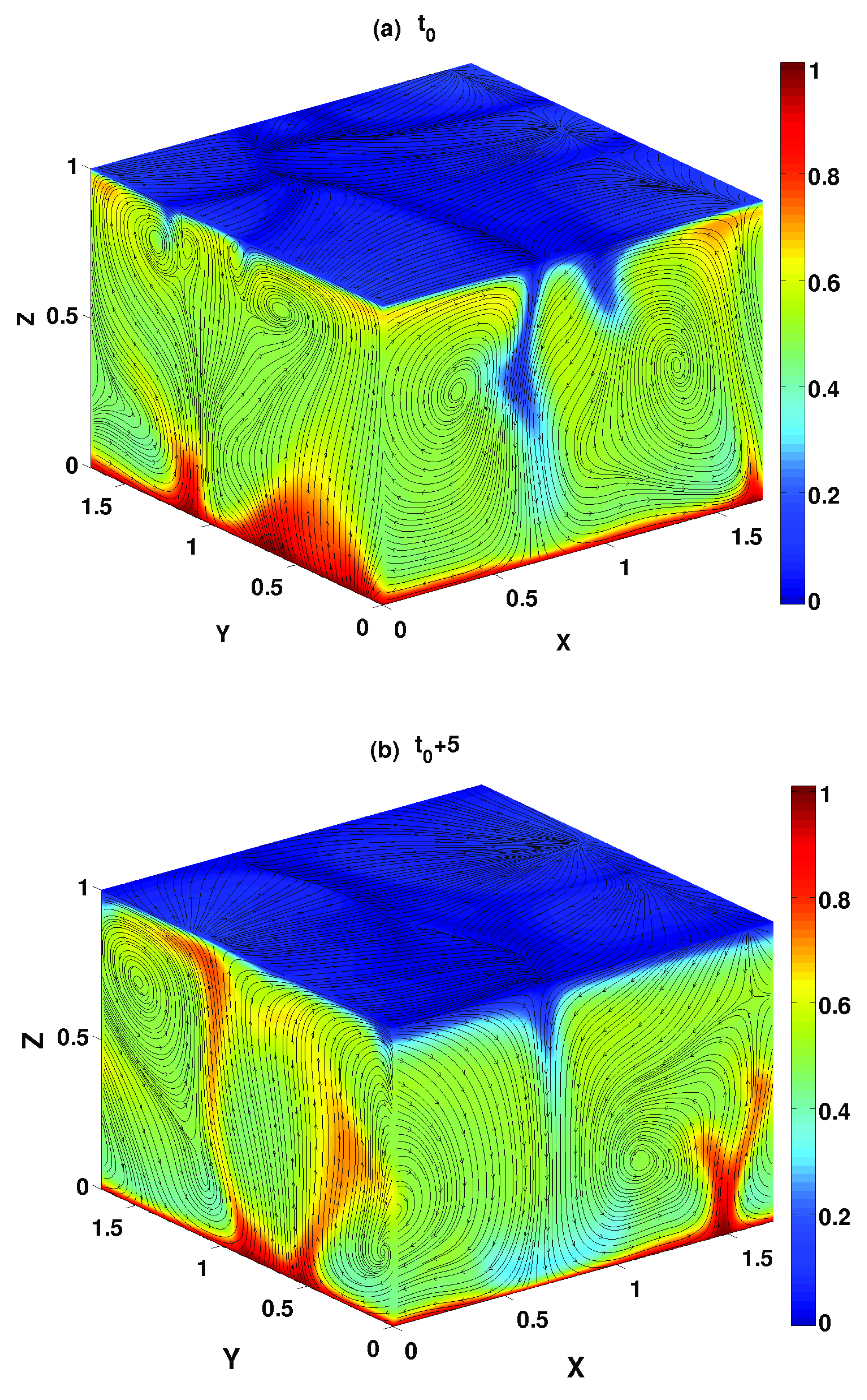

**Figure 1.**Plot of the total temperature field [$T(x,y,z,t)$] and velocity field [$\mathbf{v}(x,y,z,t)$] at dimensionless time (

**a**) $t={t}_{0}$ and (

**b**) $t={t}_{0}+5$ in the simulation box for a water-based nanofluid [${\mathrm{Ra}}_{nf}=5.0\times {10}^{5}$, ${\mathrm{Pr}}_{nf}=6.4$ and ${\mathrm{Q}}_{nf}=100$]. Colour bars describe the temperature distributions in the convecting fluid. Arrows show the directions of the fluid flow.

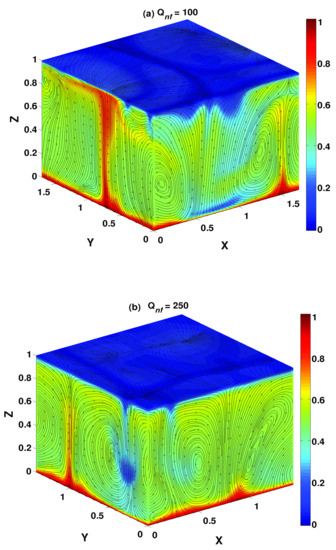

**Figure 2.**Plot of the total temperature field [$T(x,y,z,t)$] and velocity field [$\mathbf{v}(x,y,z,t)$] for different values of Chandrasekhar’s number: (

**a**) ${\mathrm{Q}}_{nf}=100$ and (

**b**) ${\mathrm{Q}}_{nf}=250$ in the simulation box for a water-based nanofluid [${\mathrm{Ra}}_{nf}=5.0\times {10}^{5}$ and ${\mathrm{Pr}}_{nf}=6.4$. Colour bars and arrows describe the distribution of total temperature field ($\tilde{T}$) and fluid velocity ($\mathrm{v}$), respectively, at a given time t.

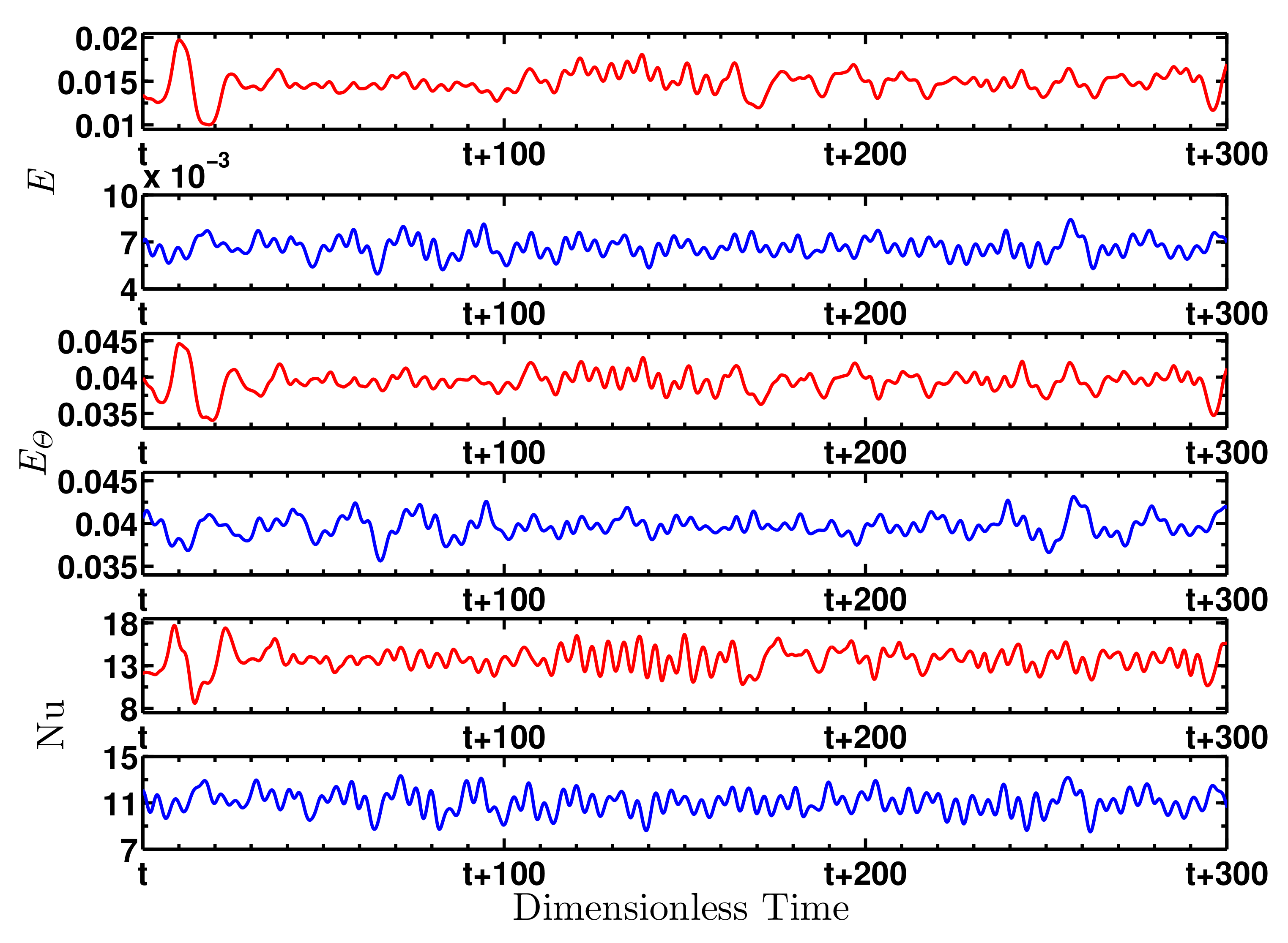

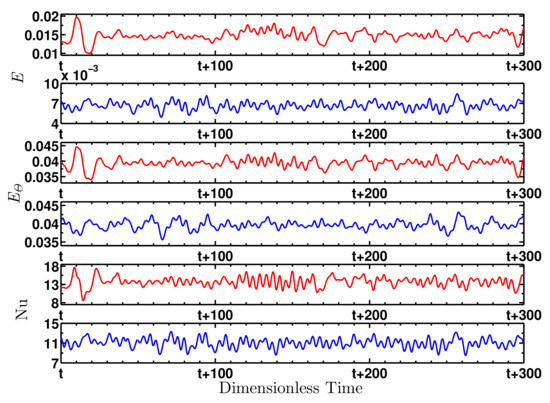

**Figure 3.**Temporal variations of the kinetic energy (E), entropy (${E}_{\mathrm{\Theta}}$) and Nusselt number ($\mathrm{Nu}$) in a water-based nanofluid of Prandtl number ${\mathrm{Pr}}_{nf}=4.0$ for the Rayleigh number ${\mathrm{Ra}}_{nf}=5.0\times {10}^{5}$. The red curves are for the Chandrasekhar number ${\mathrm{Q}}_{nf}=100$, while the blue curves are for ${\mathrm{Q}}_{nf}=400$.

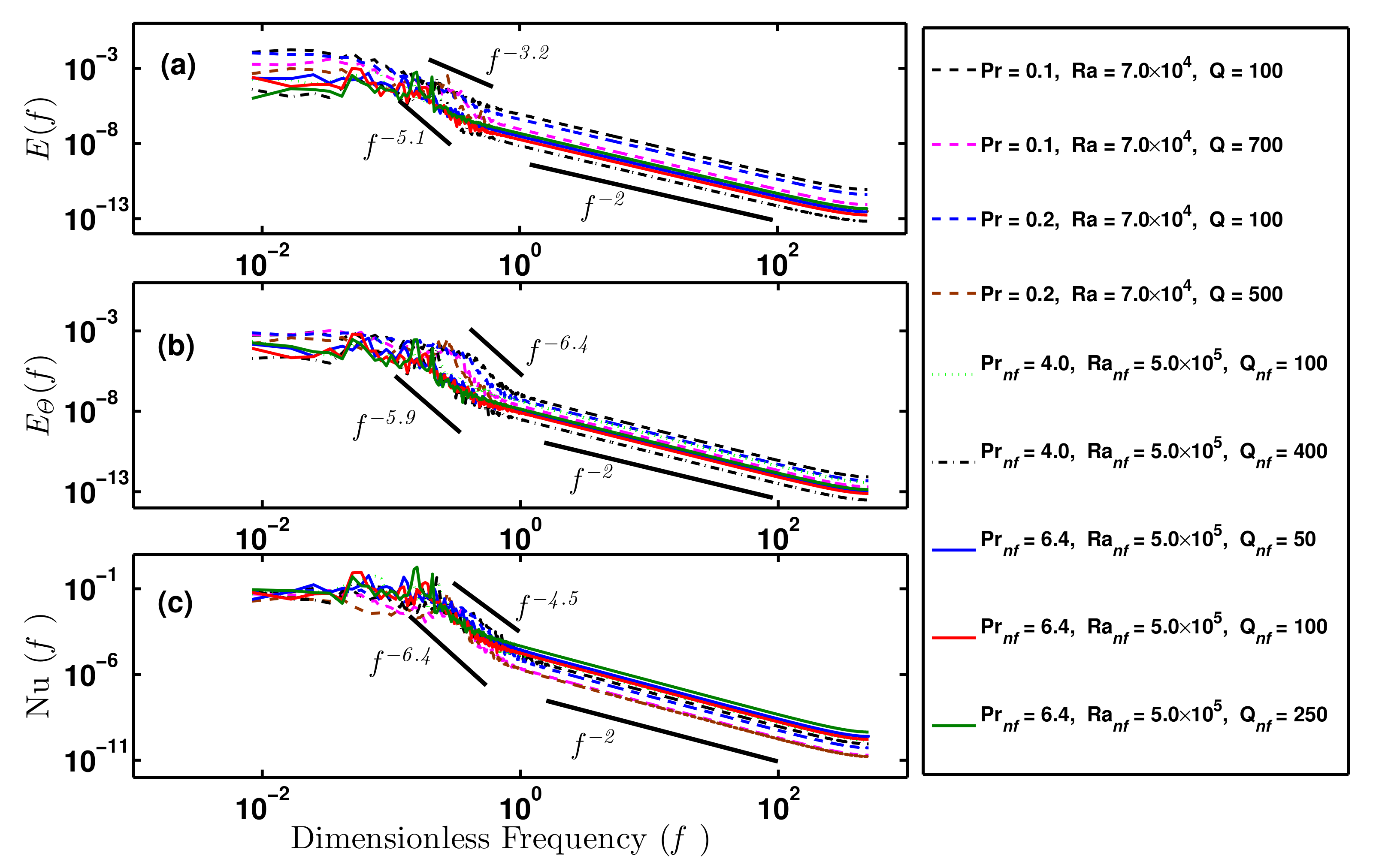

**Figure 4.**Frequency power spectral densities (PSD) of (

**a**) the energy per unit mass [$E\left(f\right)={\left|\mathrm{v}\left(f\right)\right|}^{2}$], (

**b**) the convective entropy per unit mass [${E}_{\mathrm{\Theta}}\left(f\right)={\left|\theta \left(f\right)\right|}^{2}$], and (

**c**) thermal flux [$\mathrm{Nu}\left(f\right)$] in the frequency space for Earth’s liquid outer core ($\mathrm{Pr}\sim 0.1,0.2$ ) and for water-based nanofluids with less than $8\%$ of spherical copper nanoparticles (${\mathrm{Pr}}_{nf}\sim 4.0,6.4$) of for different values of $\mathrm{Ra}$, $\mathrm{Q}$, and $\mathrm{Pr}.$

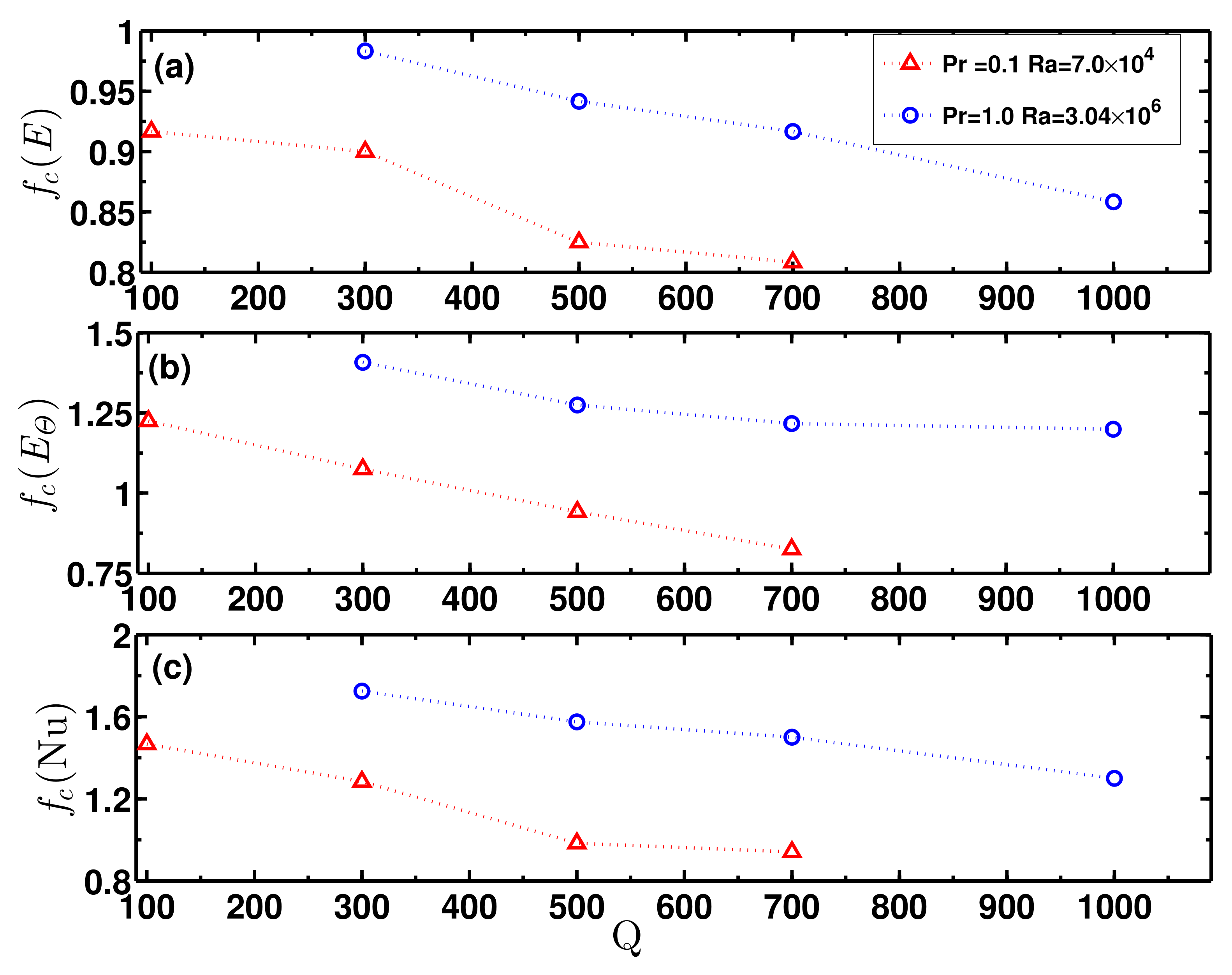

**Figure 5.**Variation of critical values of the dimensionless frequencies: (

**a**) ${f}_{c}\left(E\right)$, (

**b**) ${f}_{c}\left({E}_{\mathrm{\Theta}}\right)$, and (

**c**) ${f}_{c}\left(\mathrm{Nu}\right)$ for the frequency spectra of kinetic energy [$E\left(f\right)$], entropy spectra [${E}_{\mathrm{\Theta}}\left(f\right)$], and thermal flux [$\mathrm{Nu}\left(f\right)$], respectively, with the Chandrasekhar number [$\mathrm{Q}$] for Prandtl number ($\mathrm{Pr}$) =$0.1$ [red triangles] and $1.0$ [blue circles].

**Table 1.**List of Prandtl number $\mathrm{Pr}$, Chandrasekhar number $\mathrm{Q}$, Rayleigh number $\mathrm{Ra}$, exponents of Kinetic energy$\left(\alpha \right)$, exponents of Entropy $\left(\beta \right)$, and exponents of Nusselt number $\left(\gamma \right)$.

$\mathbf{Pr}$ | $\mathbf{Ra}$ | $\mathbf{Q}$ | Exponent $\mathit{\alpha}$ | Exponent $\mathit{\beta}$ | Exponent $\mathit{\gamma}$ |
---|---|---|---|---|---|

$0.1$ | $7.0\times {10}^{4}$ | 100 | $1.97$ | $1.97$ | $1.96$ |

300 | $1.97$ | $1.97$ | $1.97$ | ||

500 | $1.96$ | $1.96$ | $1.97$ | ||

700 | $1.96$ | $1.97$ | $1.97$ | ||

$0.2$ | $7.0\times {10}^{4}$ | 100 | $1.96$ | $1.97$ | $1.96$ |

300 | $1.97$ | $1.97$ | $1.96$ | ||

500 | $1.96$ | $1.96$ | $1.96$ | ||

$1.0$ | $3.04\times {10}^{6}$ | 300 | $1.96$ | $1.97$ | $1.96$ |

500 | $1.96$ | $1.97$ | $1.96$ | ||

700 | $1.97$ | $1.96$ | $1.96$ | ||

1000 | $1.96$ | $1.97$ | $1.97$ | ||

$2.0$ | $3.04\times {10}^{6}$ | 500 | $1.96$ | $1.96$ | $1.96$ |

700 | $1.96$ | $1.96$ | $1.96$ | ||

1000 | $1.96$ | $1.97$ | $1.96$ | ||

$4.0$ | $5.0\times {10}^{5}$ | 100 | $1.96$ | $1.97$ | $1.96$ |

200 | $1.96$ | $1.97$ | $1.97$ | ||

400 | $1.96$ | $1.97$ | $1.97$ | ||

$6.4$ | $5.0\times {10}^{5}$ | 50 | $1.96$ | $1.97$ | $1.96$ |

100 | $1.97$ | $1.97$ | $1.96$ | ||

250 | $1.97$ | $1.96$ | $1.97$ |
