# Mass Transport and Turbulent Statistics within Two Branching Coral Colonies

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Materials and Methods

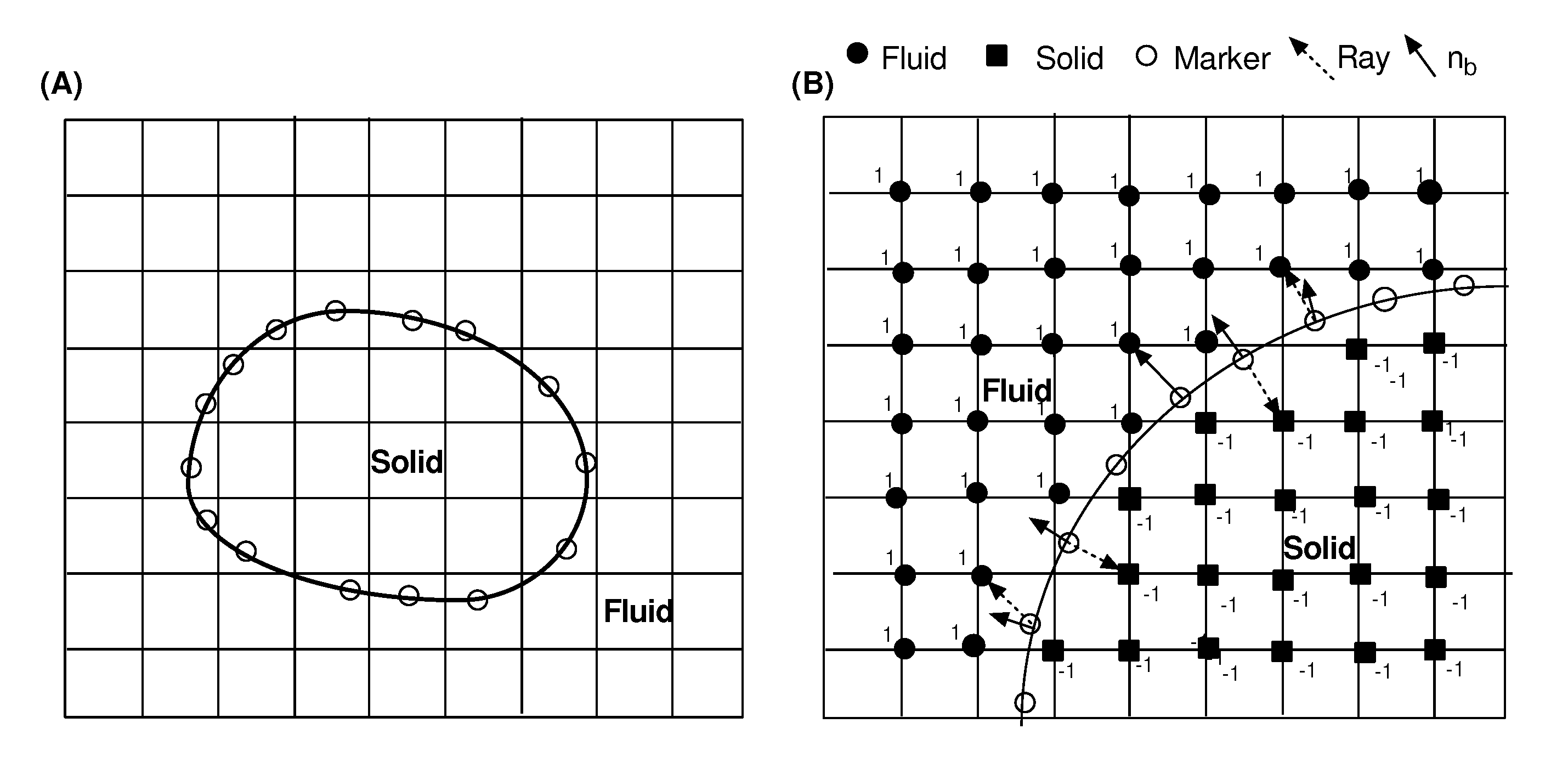

#### 2.1. Immersed Boundary Method with Large Eddy Simulation

#### 2.2. Coral Geometries

## 3. Results

#### 3.1. Validation of the Simulation Results

#### 3.2. Comparison of Flow Profiles and Transport Mechanism between Pocillopra Geometries

#### 3.3. Turbulent Momentum Flux

## 4. Discussion

## 5. Conclusions

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest

## References

- Fabricius, K.E.; Genin, A.; Benayahu, Y. Flow-dependent herbivory and growth in zooxanthellae-free soft corals. Limnol. Oceanogr.
**1995**, 40, 1290–1301. [Google Scholar] [CrossRef] - Mass, T.; Genin, A.; Shavit, U.; Grinstein, M.; Tchernov, D. Flow enhances photosynthesis in marine benthic autotrophs by increasing the efflux of oxygen from the organism to the water. Proc. Natl. Acad. Sci. USA
**2010**, 107, 2527–2531. [Google Scholar] [CrossRef] [Green Version] - Hondzo, M. Dissolved oxygen transfer at the sediment-water interface in a turbulent flow. Water Resour. Res.
**1998**, 34, 3525–3533. [Google Scholar] [CrossRef] - Chamberlain, J.A., Jr.; Graus, R.R. Water flow and hydromechanical adaptations of branched reef corals. Bull. Mar. Sci.
**1975**, 25, 112–125. [Google Scholar] - Sebens, K.P.; Witting, J.; Helmuth, B. Effects of water flow and branch spacing on particle capture by the reef coral Madracis mirabilis (Duchassaing and Michelotti). J. Exp. Mar. Biol. Ecol.
**1997**, 211, 1–28. [Google Scholar] [CrossRef] - Hunter, T. Suspension feeding in oscillating flow: The effect of colony morphology and flow regime on plankton capture by the hydroid Obelia longissima. Biol. Bull.
**1989**, 176, 41–49. [Google Scholar] [CrossRef] - Mass, T.; Genin, A. Environmental versus intrinsic determination of colony symmetry in the coral Pocillopora verrucosa. Mar. Ecol. Prog. Ser.
**2008**, 369, 131–137. [Google Scholar] [CrossRef] - Kaandorp, J.A.; Kübler, J.E. The Algorithmic Beauty of Seaweeds, Sponges and Corals; Springer: Berlin, Germany, 2001. [Google Scholar]
- Patterson, M.R.; Sebens, K.P.; Olson, R.R. In situ measurements of flow effects on primary production and dark respiration in reef corals. Limnol. Oceanogr.
**1991**, 36, 936–948. [Google Scholar] [CrossRef] - Shashar, N.; Kinane, S.; Jokiel, P.; Patterson, M. Hydromechanical boundary layers over a coral reef. J. Exp. Mar. Biol. Ecol.
**1996**, 199, 17–28. [Google Scholar] [CrossRef] - Larkum, A.W.; Koch, E.M.; Kühl, M. Diffusive boundary layers and photosynthesis of the epilithic algal community of coral reefs. Mar. Biol.
**2003**, 142, 1073–1082. [Google Scholar] [CrossRef] - Bruno, J.F.; Edmunds, P.J. Metabolic consequences of phenotypic plasticity in the coral Madracis mirabilis (Duchassaing and Michelotti): The effect of morphology and water flow on aggregate respiration. J. Exp. Mar. Biol. Ecol.
**1998**, 229, 187–195. [Google Scholar] [CrossRef] - Jimenez, I.M.; Kühl, M.; Larkum, A.W.; Ralph, P.J. Heat budget and thermal microenvironment of shallow-water corals: Do massive corals get warmer than branching corals? Limnol. Oceanogr.
**2008**, 53, 1548–1561. [Google Scholar] [CrossRef] [Green Version] - Chan, N.; Wangpraseurt, D.; Kühl, M.; Connolly, S.R. Flow and coral morphology control coral surface pH: Implications for the effects of ocean acidification. Front. Mar. Sci.
**2016**, 3, 10. [Google Scholar] [CrossRef] - Reidenbach, M.A.; Koseff, J.R.; Monismith, S.G. Laboratory experiments of fine-scale mixing and mass transport within a coral canopy. Phys. Fluids
**2007**, 19, 075107. [Google Scholar] [CrossRef] - Stocking, J.B.; Rippe, J.P.; Reidenbach, M.A. Structure and dynamics of turbulent boundary layer flow over healthy and algae-covered corals. Coral Reefs
**2016**, 35, 1047–1059. [Google Scholar] [CrossRef] - Hench, J.L.; Rosman, J.H. Observations of spatial flow patterns at the coral colony scale on a shallow reef flat. J. Geophys. Res. Ocean.
**2013**, 118, 1142–1156. [Google Scholar] [CrossRef] [Green Version] - Pomeroy, A.W.; Lowe, R.J.; Ghisalberti, M.; Storlazzi, C.; Symonds, G.; Roelvink, D. Sediment transport in the presence of large reef bottom roughness. J. Geophys. Res. Ocean.
**2017**, 122, 1347–1368. [Google Scholar] [CrossRef] - Sous, D.; Bouchette, F.; Doerflinger, E.; Meulé, S.; Certain, R.; Toulemonde, G.; Dubarbier, B.; Salvat, B. On the small-scale fractal geometrical structure of a living coral reef barrier. Earth Surf. Process. Landf.
**2020**. [Google Scholar] [CrossRef] - Asher, S.; Niewerth, S.; Koll, K.; Shavit, U. Vertical variations of coral reef drag forces. J. Geophys. Res. Ocean.
**2016**, 121, 3549–3563. [Google Scholar] [CrossRef] [Green Version] - Chang, S.; Elkins, C.; Alley, M.; Eaton, J.; Monismitha, S. Flow inside a coral colony measured using magnetic resonance velocimetry. Limnol. Oceanogr.
**2009**, 54, 1819–1827. [Google Scholar] [CrossRef] - Chang, S.; Iaccarino, G.; Ham, F.; Elkins, C.; Monismith, S. Local shear and mass transfer on individual coral colonies: Computations in unidirectional and wave-driven flows. J. Geophys. Res. Ocean.
**2014**, 119, 2599–2619. [Google Scholar] [CrossRef] - Shapiro, O.H.; Fernandez, V.I.; Garren, M.; Guasto, J.S.; Debaillon-Vesque, F.P.; Kramarsky-Winter, E.; Vardi, A.; Stocker, R. Vortical ciliary flows actively enhance mass transport in reef corals. Proc. Natl. Acad. Sci. USA
**2014**, 111, 13391–13396. [Google Scholar] [CrossRef] [PubMed] [Green Version] - Hossain, M.M.; Staples, A.E. Passive vortical flows enhance mass transport in the interior of a coral colony. Phys. Fluids
**2019**, 31, 061701. [Google Scholar] [CrossRef] - Atkinson, M.; Bilger, R. Effects of water velocity on phosphate uptake in coral reef-hat communities. Limnol. Oceanogr.
**1992**, 37, 273–279. [Google Scholar] [CrossRef] - Bilger, R.; Atkinson, M. Anomalous mass transfer of phosphate on coral reef flats. Limnol. Oceanogr.
**1992**, 37, 261–272. [Google Scholar] [CrossRef] - Chang, S.; Elkins, C.; Eaton, J.K.; Monismith, S. Local mass transfer measurements for corals and other complex geometries using gypsum dissolution. Exp. Fluids
**2013**, 54, 1563. [Google Scholar] [CrossRef] - Reidenbach, M.A.; Koseff, J.R.; Monismith, S.G.; Steinbuckc, J.V.; Genin, A. The effects of waves and morphology on mass transfer within branched reef corals. Limnol. Oceanogr.
**2006**, 51, 1134–1141. [Google Scholar] [CrossRef] - Reidenbach, M.A.; Monismith, S.G.; Koseff, J.R.; Yahel, G.; Genin, A. Boundary layer turbulence and flow structure over a fringing coral reef. Limnol. Oceanogr.
**2006**, 51, 1956–1968. [Google Scholar] [CrossRef] - Asher, S.; Shavit, U. The effect of water depth and internal geometry on the turbulent flow inside a coral reef. J. Geophys. Res. Ocean.
**2019**, 124, 3508–3522. [Google Scholar] [CrossRef] - Nepf, H.; Vivoni, E. Flow structure in depth-limited, vegetated flow. J. Geophys. Res. Ocean.
**2000**, 105, 28547–28557. [Google Scholar] [CrossRef] - Finnigan, J. Turbulence in plant canopies. Annu. Rev. Fluid Mech.
**2000**, 32, 519–571. [Google Scholar] [CrossRef] - Moltchanov, S.; Bohbot-Raviv, Y.; Shavit, U. Dispersive stresses at the canopy upstream edge. Bound.-Layer Meteorol.
**2011**, 139, 333–351. [Google Scholar] [CrossRef] - Rosman, J.H.; Hench, J.L. A framework for understanding drag parameterizations for coral reefs. J. Geophys. Res. Ocean.
**2011**, 116. [Google Scholar] [CrossRef] [Green Version] - Stocking, J.B.; Laforsch, C.; Sigl, R.; Reidenbach, M.A. The role of turbulent hydrodynamics and surface morphology on heat and mass transfer in corals. J. R. Soc. Interface
**2018**, 15, 20180448. [Google Scholar] [CrossRef] [Green Version] - Osorio-Cano, J.D.; Osorio, A.F.; Alcérreca-Huerta, J.C.; Oumeraci, H. Drag and inertia forces on a branched coral colony of Acropora palmata. J. Fluids Struct.
**2019**, 88, 31–47. [Google Scholar] [CrossRef] - Kaandorp, J.A.; Koopman, E.A.; Sloot, P.M.; Bak, R.P.; Vermeij, M.J.; Lampmann, L.E. Simulation and analysis of flow patterns around the scleractinian coral Madracis mirabilis (Duchassaing and Michelotti). Philos. Trans. R. Soc. Lond. Ser. B Biol. Sci.
**2003**, 358, 1551–1557. [Google Scholar] [CrossRef] [Green Version] - Kaandorp, J.A.; Sloot, P.M.; Merks, R.M.; Bak, R.P.; Vermeij, M.J.; Maier, C. Morphogenesis of the branching reef coral Madracis mirabilis. Proc. R. Soc. B Biol. Sci.
**2005**, 272, 127–133. [Google Scholar] [CrossRef] [Green Version] - Chindapol, N.; Kaandorp, J.A.; Cronemberger, C.; Mass, T.; Genin, A. Modelling growth and form of the scleractinian coral Pocillopora verrucosa and the influence of hydrodynamics. PLoS Comput. Biol.
**2013**, 9, e1002849. [Google Scholar] [CrossRef] [Green Version] - Meneveau, C.; Lund, T.S.; Cabot, W.H. A Lagrangian dynamic subgrid-scale model of turbulence. J. Fluid Mech.
**1996**, 319, 353–385. [Google Scholar] [CrossRef] [Green Version] - Bailey, B.N.; Stoll, R. Turbulence in sparse, organized vegetative canopies: A large-eddy simulation study. Bound.-Layer Meteorol.
**2013**, 147, 369–400. [Google Scholar] [CrossRef] - Peskin, C.S. The immersed boundary method. Acta Numer.
**2002**, 11, 479–517. [Google Scholar] [CrossRef] [Green Version] - Mohd-Yusof, J. methods for complex geometries. Annu. Res. Briefs
**1998**, 325. [Google Scholar] - Fadlun, E.; Verzicco, R.; Orlandi, P.; Mohd-Yusof, J. Combined immersed-boundary finite-difference methods for three-dimensional complex flow simulations. J. Comput. Phys.
**2000**, 161, 35–60. [Google Scholar] [CrossRef] - Balaras, E. Modeling complex boundaries using an external force field on fixed Cartesian grids in large-eddy simulations. Comput. Fluids
**2004**, 33, 375–404. [Google Scholar] [CrossRef] - Yang, J.; Balaras, E. An embedded-boundary formulation for large-eddy simulation of turbulent flows interacting with moving boundaries. J. Comput. Phys.
**2006**, 215, 12–40. [Google Scholar] [CrossRef] [Green Version] - Lowe, R.J.; Koseff, J.R.; Monismith, S.G.; Falter, J.L. Oscillatory flow through submerged canopies: 2. Canopy mass transfer. J. Geophys. Res. Ocean.
**2005**, 110. [Google Scholar] [CrossRef] [Green Version] - Jørgensen, B.B.; Revsbech, N.P. Diffusive boundary layers and the oxygen uptake of sediments and detritus 1. Limnol. Oceanogr.
**1985**, 30, 111–122. [Google Scholar] [CrossRef] - Hossain, M.M.; Staples, A.E. Effects of coral colony morphology on turbulent flow dynamics. bioRxiv
**2019**, 839902. [Google Scholar] [CrossRef] - Lowe, R.J.; Shavit, U.; Falter, J.L.; Koseff, J.R.; Monismith, S.G. Modeling flow in coral communities with and without waves: A synthesis of porous media and canopy flow approaches. Limnol. Oceanogr.
**2008**, 53, 2668–2680. [Google Scholar] [CrossRef] - Pokrajac, D.; Finnigan, J.; Manes, C.; McEwan, I.; Nikora, V. On the definition of the shear velocity in rough bed open channel flows. River Flow
**2006**, 1, 89–98. [Google Scholar] - Jiro. GRABIT. Available online: https://www.mathworks.com/matlabcentral/fileexchange/7173-grabit (accessed on 3 September 2020).
- Langdon, C.; Takahashi, T.; Sweeney, C.; Chipman, D.; Goddard, J.; Marubini, F.; Aceves, H.; Barnett, H.; Atkinson, M.J. Effect of calcium carbonate saturation state on the calcification rate of an experimental coral reef. Glob. Biogeochem. Cycles
**2000**, 14, 639–654. [Google Scholar] [CrossRef] - Poggi, D.; Katul, G. The ejection-sweep cycle over bare and forested gentle hills: A laboratory experiment. Bound.-Layer Meteorol.
**2007**, 122, 493–515. [Google Scholar] [CrossRef] - Finnigan, J.J.; Shaw, R.H.; Patton, E.G. Turbulence structure above a vegetation canopy. J. Fluid Mech.
**2009**, 637, 387–424. [Google Scholar] [CrossRef] [Green Version] - Nepf, H.M. Flow and transport in regions with aquatic vegetation. Annu. Rev. Fluid Mech.
**2012**, 44, 123–142. [Google Scholar] [CrossRef] [Green Version] - Pacherres, C.O.; Ahmerkamp, S.; Schmidt-Grieb, G.M.; Holtappels, M.; Richter, C. Ciliary vortex flows and oxygen dynamics in the coral boundary layer. Sci. Rep.
**2020**, 10, 1–10. [Google Scholar] [CrossRef]

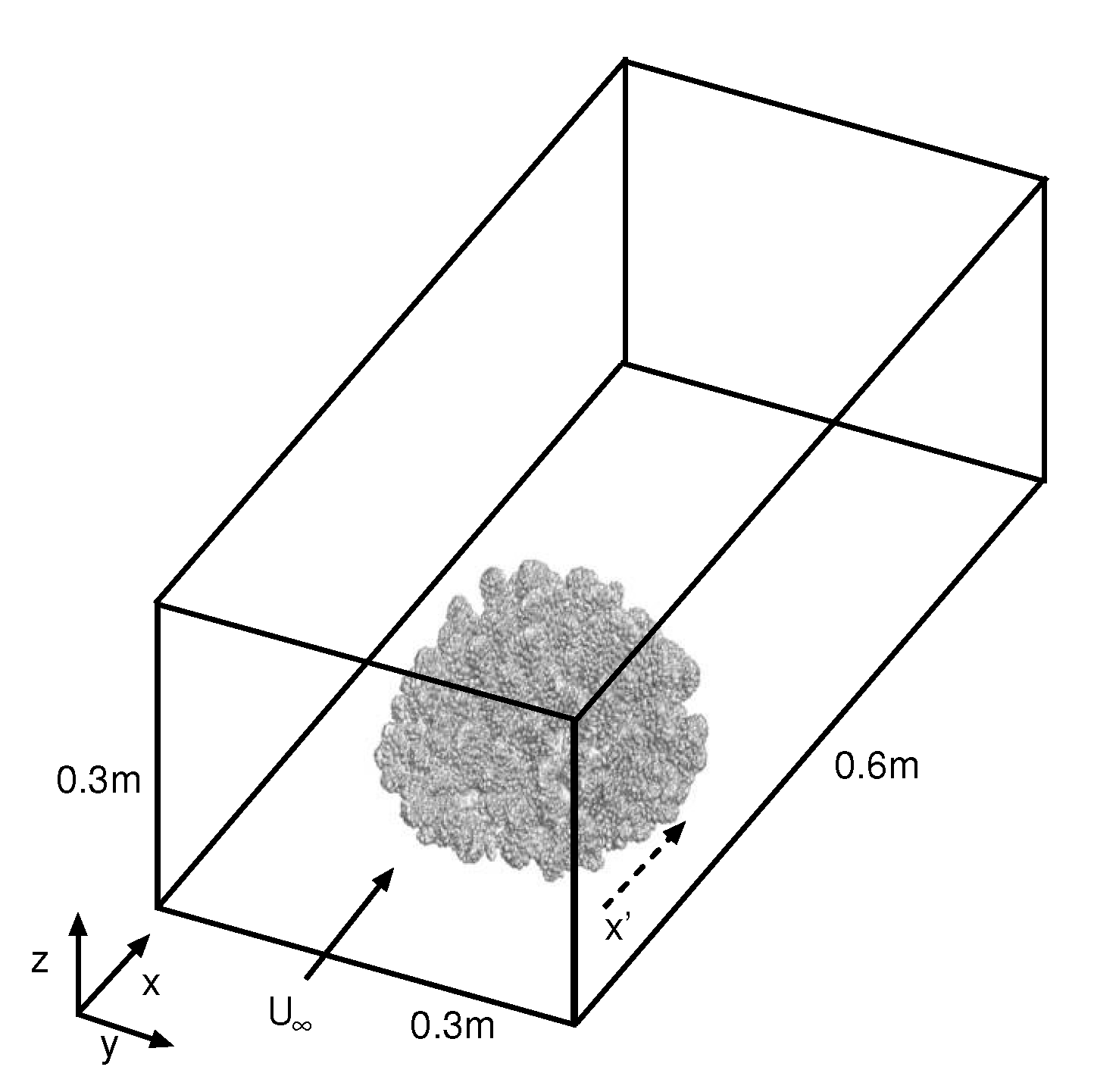

**Figure 2.**Schematic of flow domain used in the simulation (not to scale). $x=0$ indicates the beginning of the flow domain, while ${x}^{\prime}=0$ represents the beginning (front edge) of the coral in the flow domain.

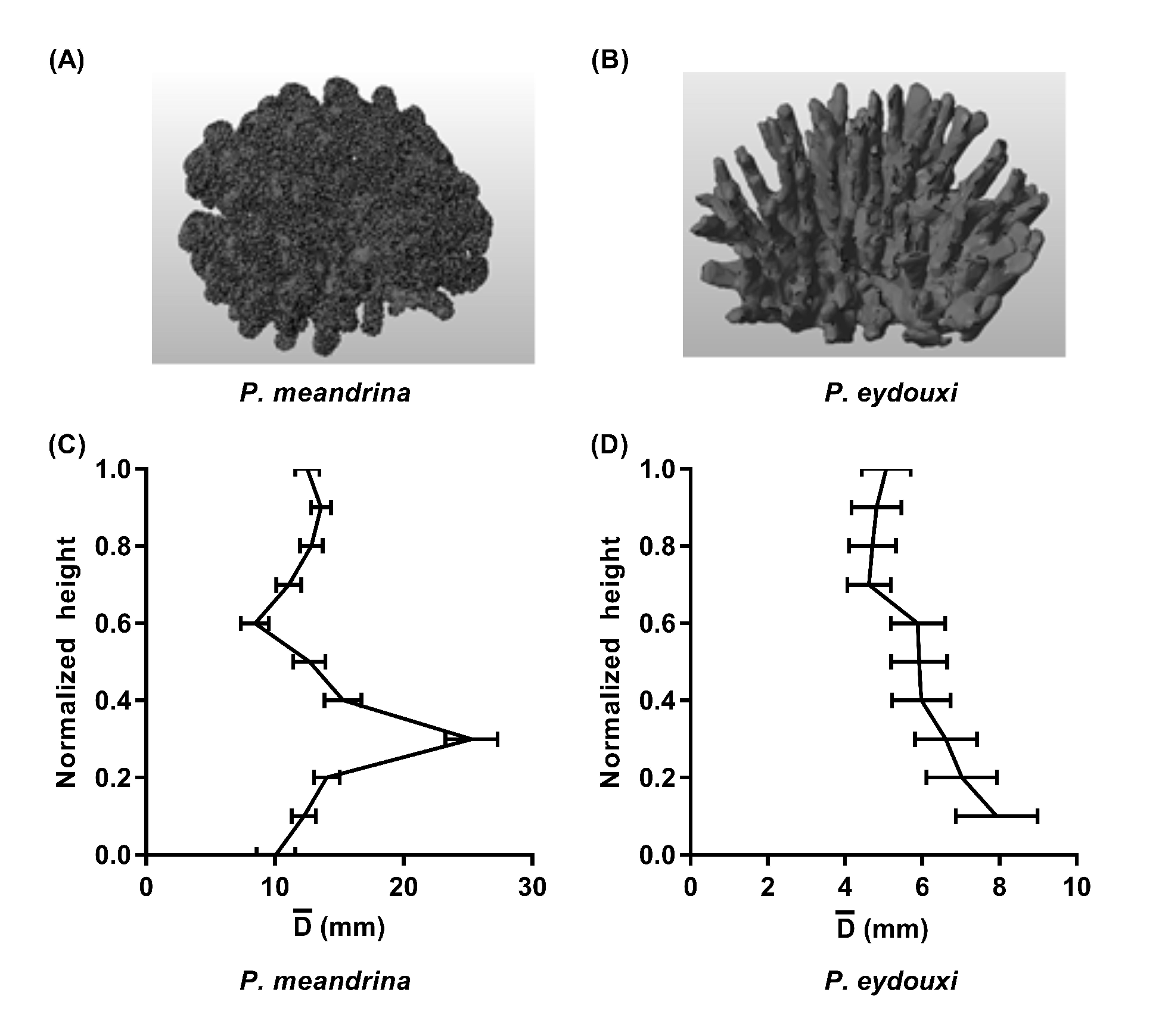

**Figure 3.**(

**A**,

**B**) Rendered stereolithography files of the P. meandrina and P. eydouxi colony geometries used in the simulations. (

**C**,

**D**) Mean branch diameter at normalized height from the base of the Pocillopora colonies. Horizontal bars indicate the variance.

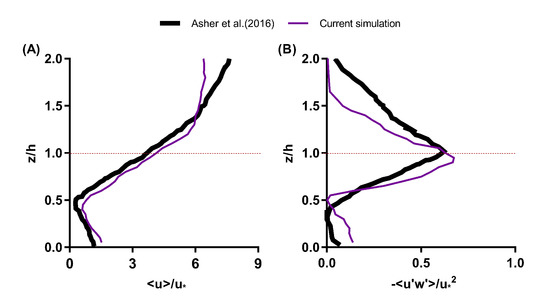

**Figure 4.**Comparison of (

**A**) the normalized streamwise velocity and (

**B**) Reynolds stress over a single P. meandrina colony from the current simulation with the experimental results over 81 P. meandrina colonies at $Re=23,513$ by Asher et al. [20]. The dotted line represents the top of the colony. The experimental data were obtained using GRABIT in MATLAB [52] and reproduced with permission from Asher et al. Vertical variations of coral reef drag forces. Journal of Geophysical Research: Oceans

**2016**, 121, 3549–3563. For both data sets, the mean velocity and Reynolds stress were normalized by the friction velocity.

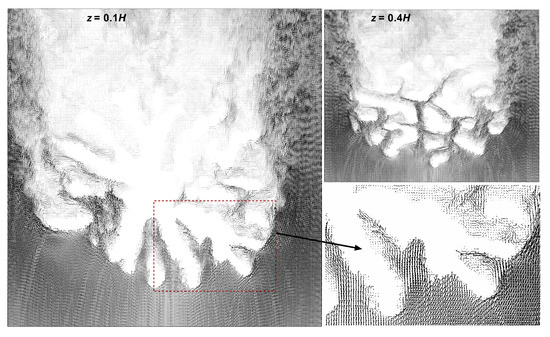

**Figure 5.**Top view of the instantaneous velocity vector fields at two different heights ($z=0.1H$ and $0.4H$, where H is the height of the colony) inside the P. meandrina colony. These vector fields show the detailed interaction of the oncoming flow with the individual branches of the colony. The lower right figure shows a zoomed-in view of the velocity vectors at the frontal section of the colony at $z=0.1H$. The difference in vector fields at the front and rear halves of the densely branched coral, P. menadrina is clearly observable from the figure.

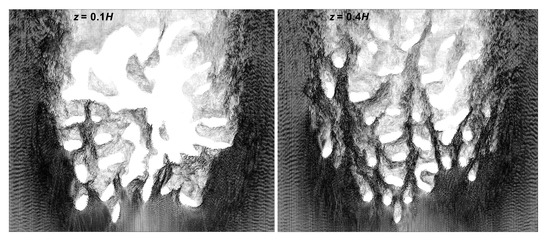

**Figure 6.**Top view of the instantaneous velocity vector fields at two different heights ($z=0.1H$ and $0.4H$, where H is the height of the colony) inside the P. eydouxi colony. In comparison to P. meandrina, the velocity vector field demonstrates relatively higher flow penetration into the P. eydouxi colony because of the openness of the structure. The formation of wakes can be observed behind individual branches.

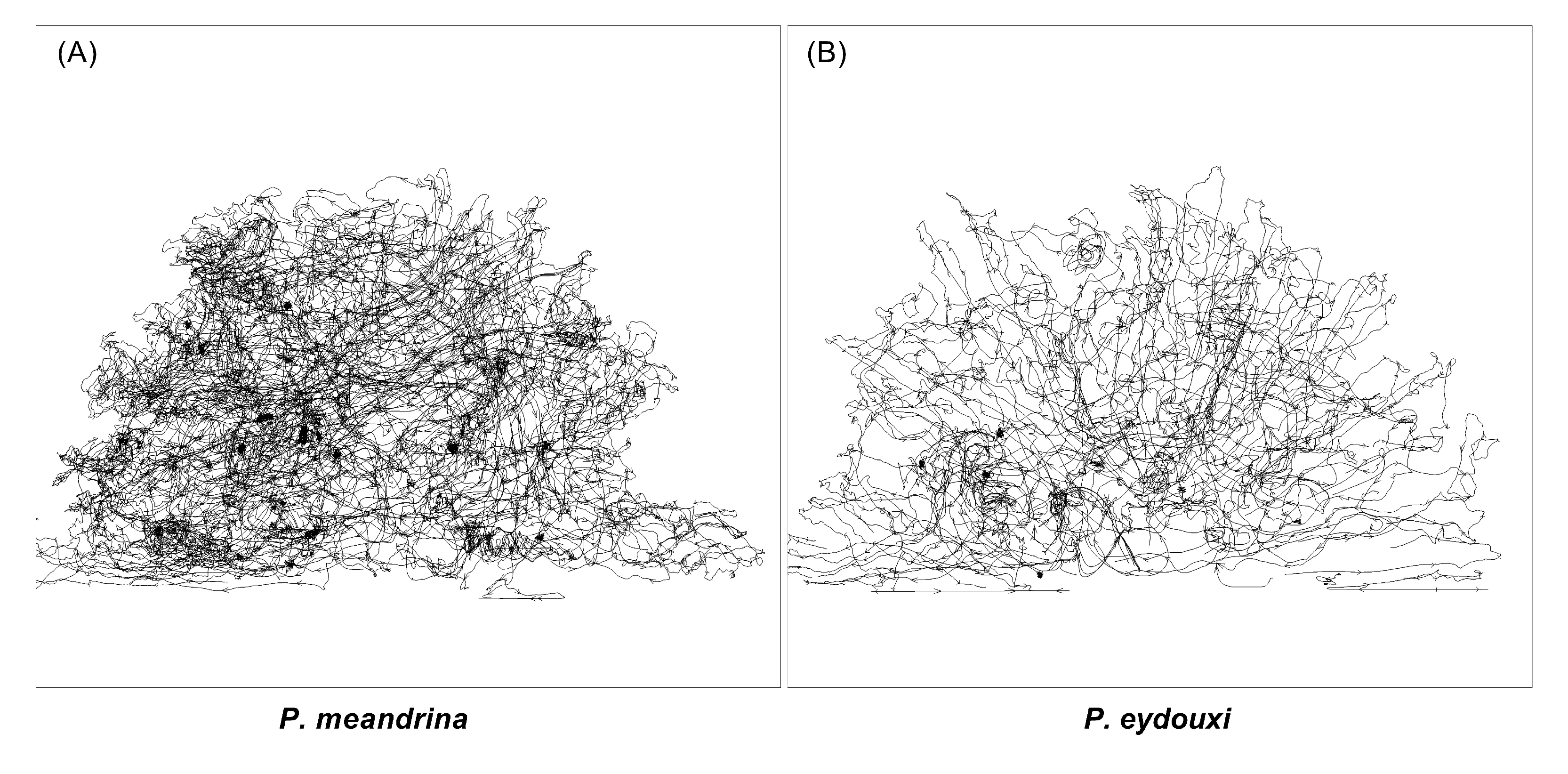

**Figure 7.**Front-view streamline sections plotted at ${x}^{\prime}=0.5$ L for both Pocillopora colonies. The formation of vortices can clearly be seen in the inter-branch velocity field of P. meandrina in (

**A**), whereas relatively few vortices are formed around the branches of P. eydouxi, as seen in (

**B**).

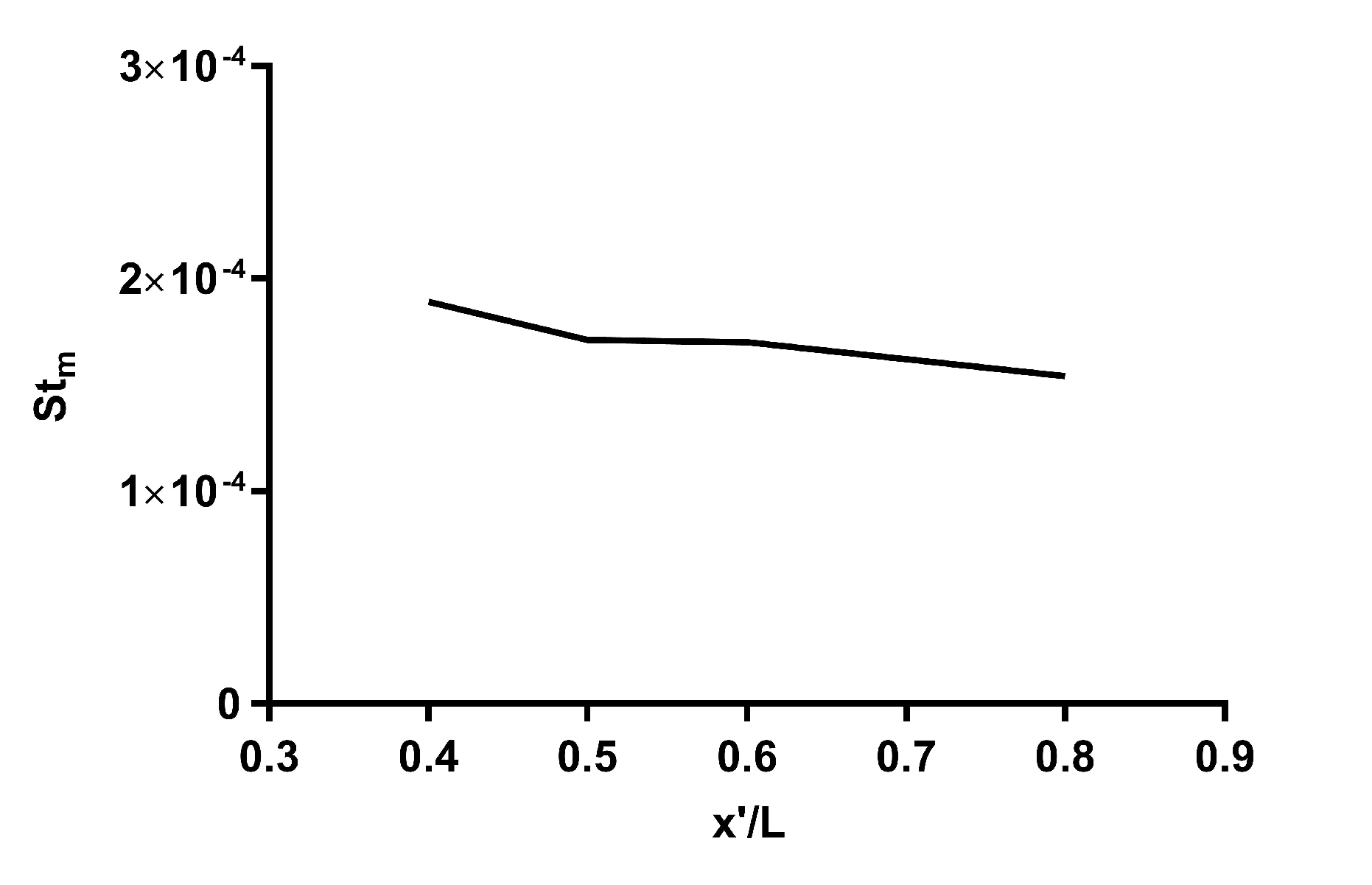

**Figure 8.**The Stanton number calculated in the interior of the P. meandrina colony based on the mean flow magnitude and advection time scale at Reynolds number 15,000. Here, the advection time scale was calculated based one the mean vortex diameter at different sections of P. meandrina perpendicular to the flow direction, and the mean velocity value in those sections.

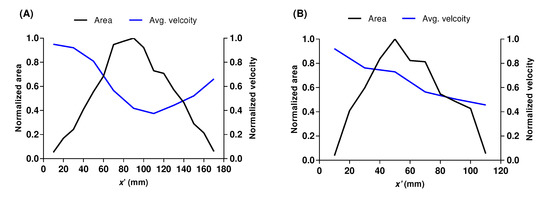

**Figure 9.**Mean velocity profile and internal cross-sectional area (y-z plane) along the length of (

**A**) the densely branched P. meandrina colony and (

**B**) the loosely branched P. eydouxi colony. Here, the area and velocity are normalized by the maximum cross-sectional area and oncoming velocity magnitude, respectively.

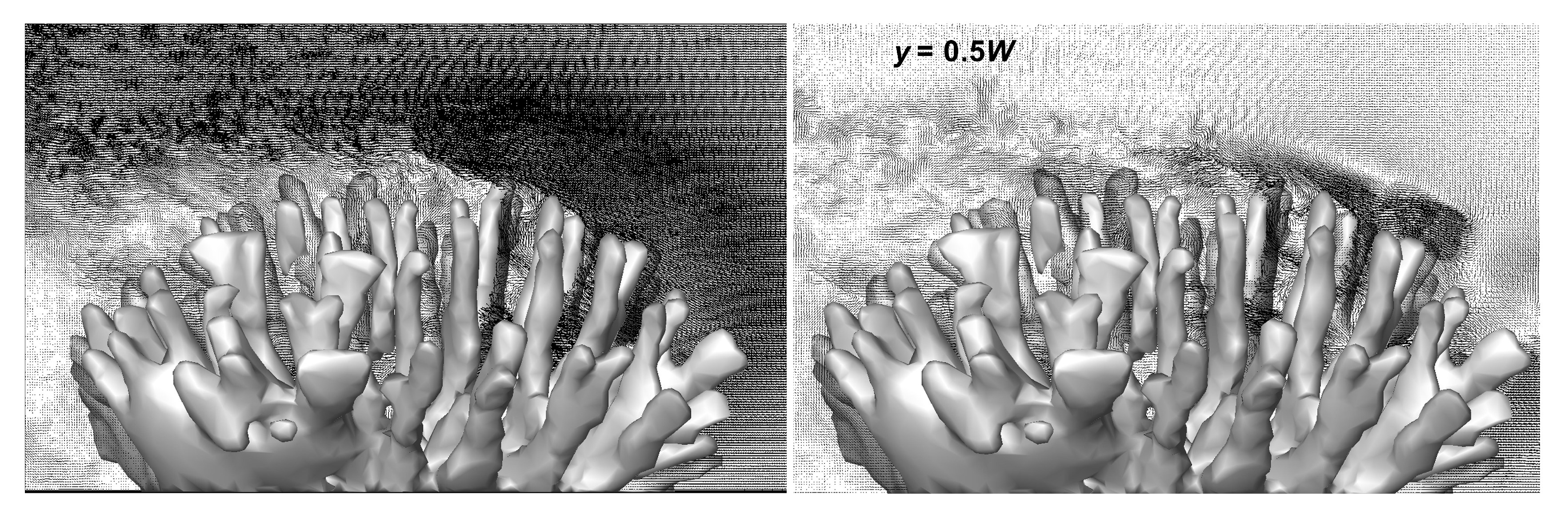

**Figure 10.**Side view of instantaneous mean (

**left**) and fluctuating (

**right**) velocity vector components above P. eydouxi at $y=0.5W$, where W is the width of the colony. Here, the flow is moving from right to left. The instantaneous mean vector field (

**left**) shows a higher concentration of velocity vectors above the colony as most of the flow is diverted to the top and sides of the colony. The fluctuating vector field was obtained by subtracting mean velocity from the instantaneous velocity field. These fluctuating velocity components also appear denser at the top surface of colony and contribute, to the Reynolds stress which controls mass transport to and from the top surface of the colony.

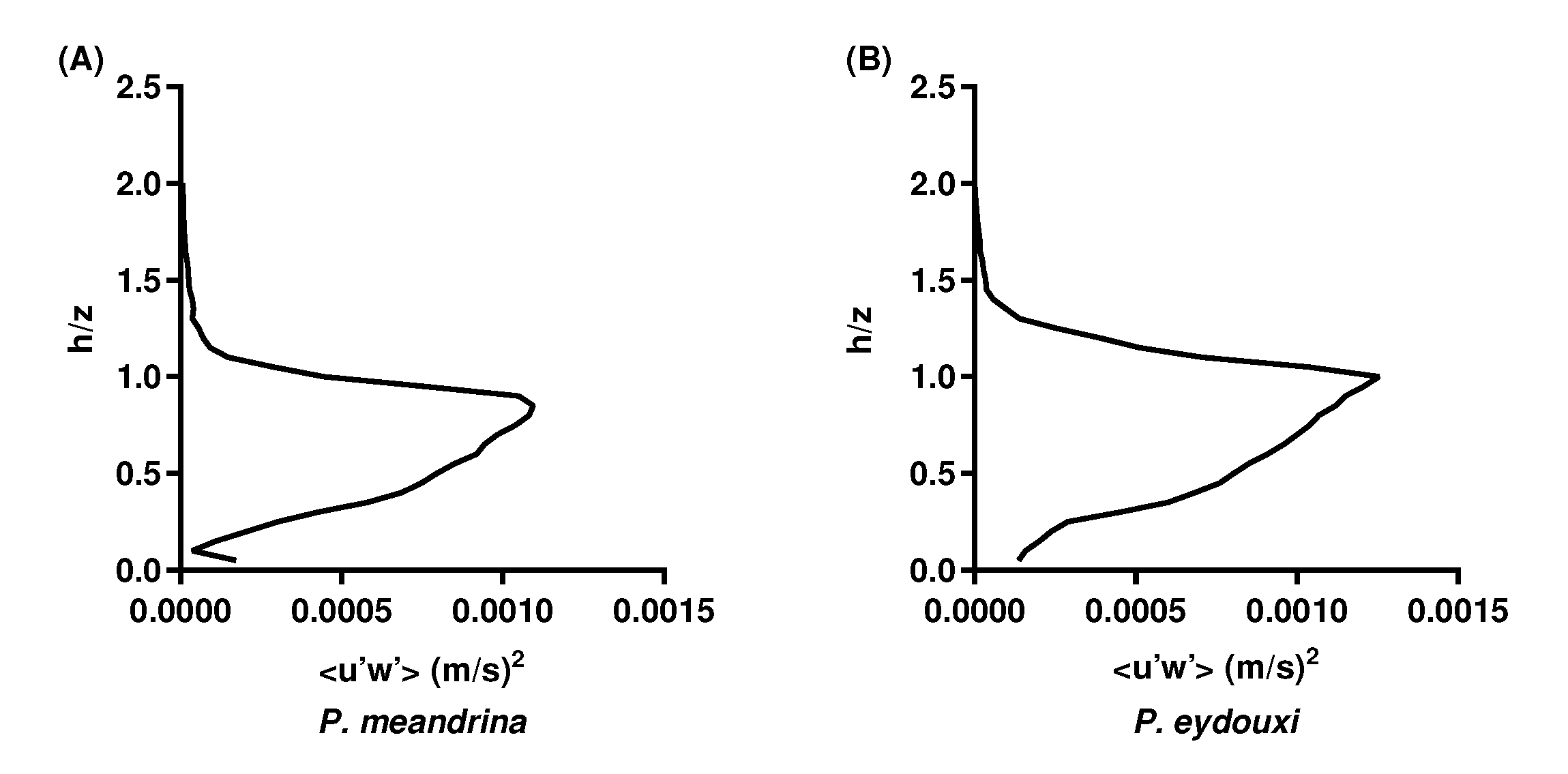

**Figure 11.**Mean Reynolds stress plotted as a function of normalized height above the top surface of the colony for (

**A**) P. meandrina and (

**B**) P. eydouxi at a Reynolds number of 15,000. Similar Reynolds stresses were observed above both colonies, despite their differences in branching patterns.

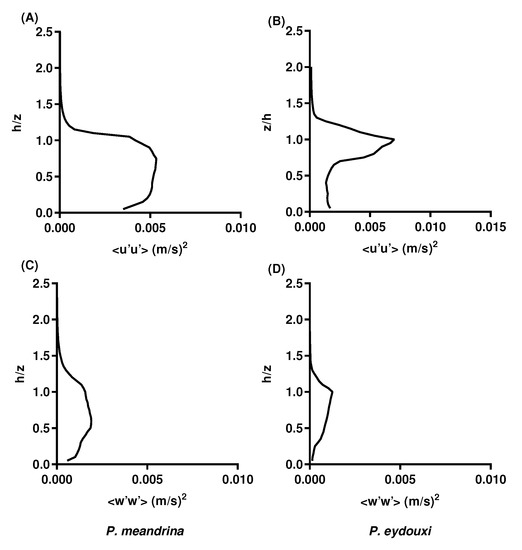

**Figure 12.**(

**A**,

**B**) streamwise, and (

**C**,

**D**), vertical velocity variance computed over P. meandrina and P. eydouxi, respectively. In both cases, the magnitude of the variance was found to be higher for P. meandrina where the inter-branch distance was smaller than for P. eydouxi.

Colony | Length (m) | Width (m) | Height (m) | Volume/Surface Area | Interbranch Distance/Diameter |
---|---|---|---|---|---|

P. meandrina | $0.172$ | $0.172$ | $0.100$ | $2.060$ | $2.8$ to $4.0$ |

P. eydouxi | $0.120$ | $0.110$ | $0.100$ | $2.090$ | 8 |

**Table 2.**Stanton number calculated along the length of the P. meandrina colony in the flow direction using two different methods (top and middle values) and the Stanton number calculated along the length of the P. eydouxi colony using the first method only (bottom values). Key: * The mean branch diameter was used as a length scale to calculate these values. † The mean diameter of the vortices was used as a length scale to calculate these values.

Colony | ${\mathit{x}}^{\prime}$ (m) | $\overline{\mathit{u}}$ (m/s) | Diameter (m) | ${\mathit{\tau}}_{\mathit{a}\mathit{d}\mathit{v}}$ (s) | St | Increase (%) |
---|---|---|---|---|---|---|

P. meandrina (*) | ${x}^{\prime}=0.2$ L | $0.142$ | $0.013$ | $0.091$ | $5.92\times {10}^{-5}$ | |

P. meandrina (†) | ${x}^{\prime}=0.4$ L | $0.084$ | $0.004$ | $0.048$ | $1.89\times {10}^{-4}$ | $219\%$ |

${x}^{\prime}=0.5$ L | $0.0675$ | $0.0045$ | $0.066$ | $1.70\times {10}^{-4}$ | $187\%$ | |

${x}^{\prime}=0.6$ L | $0.057$ | $0.0045$ | $0.079$ | $1.54\times {10}^{-4}$ | $160\%$ | |

${x}^{\prime}=0.8$ L | $0.066$ | $0.0050$ | $0.075$ | $1.71\times {10}^{-4}$ | $189\%$ | |

P. eydouxi (*) | ${x}^{\prime}=0.2$ L | $0.138$ | $0.00585$ | $0.0423$ | $2.84\times {10}^{-4}$ |
