# Conjugate Heat Transfer and Fluid Flow Modeling for Liquid Microjet Impingement Cooling with Alternating Feeding and Draining Channels

^{1}

^{2}

^{*}

## Abstract

**:**

_{d}< 4000, compared with the reference LES model. For the experimental measurements in the range of 130 < Re

_{d}< 1400, the LES model, transition SST model and $k$-$\omega $ SST model all show less than 25% prediction error. Moreover, it is shown that the validity of the unit cell assumption for the temperature and flow distribution depends on the flow rate.

## 1. Introduction

^{2}-f (V2F) model. In [20], John Maddox compared the transition SST and the V2F turbulence models, and finally selected the transition SST model for the 3 × 3 jet array with common outlet flow based on the computational cost considerations. Subrahmanyam et al. [21] used Large Eddy Simulations (LES) to study the unsteady flow and heat transfer characteristics of a single impinging jet at Reynolds number of 20,000 at four normalized nozzle-to-impinging plate distances (0.5 ≤ z/d ≤ 2). Sung [22] used the standard two-equation k-ε turbulence model to study the effects of the jet pattern on single-phase cooling performance of hybrid micro-channel/micro-circular-jet-impingement.

## 2. Conjugate Heat Transfer and Fluid Flow Model

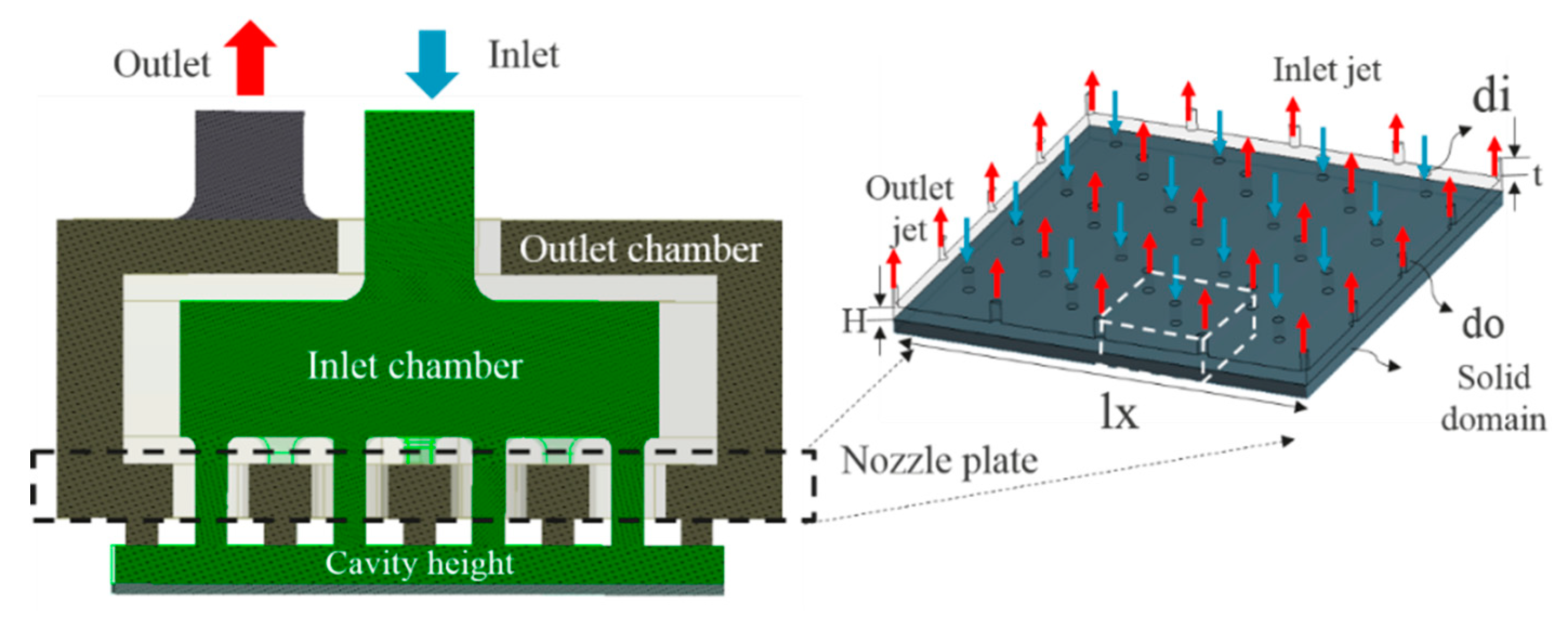

#### 2.1. Miroject Cooling Test Case

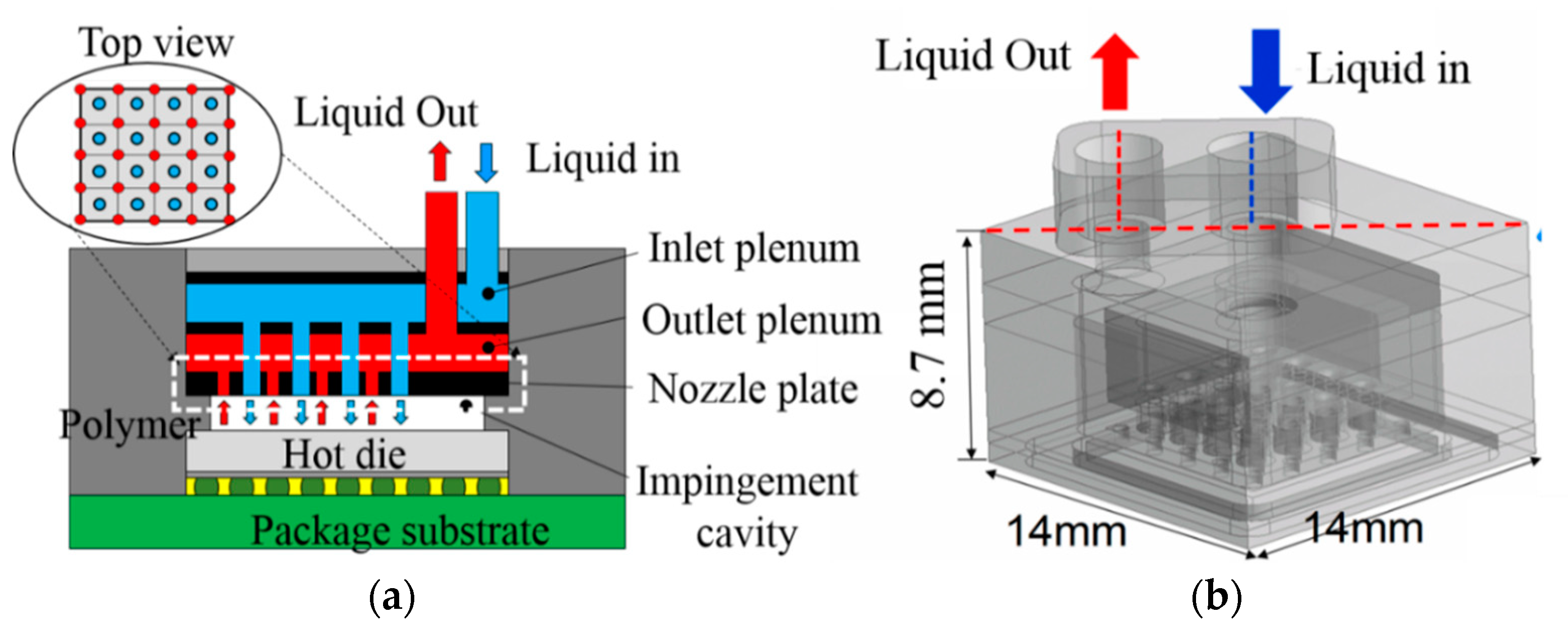

^{2}. The chip thickness is 0.2 mm. In order to study the flow impact on the chip temperature distribution, the conjugate heat transfer model within the CFD approach should include the fluidic part of the cooler, as well as the chip heat conduction part. In the next part, the details of the conjugate CFD model will be introduced and discussed.

#### 2.2. CFD Model Introduction

#### 2.3. Grid Sensitivity Study

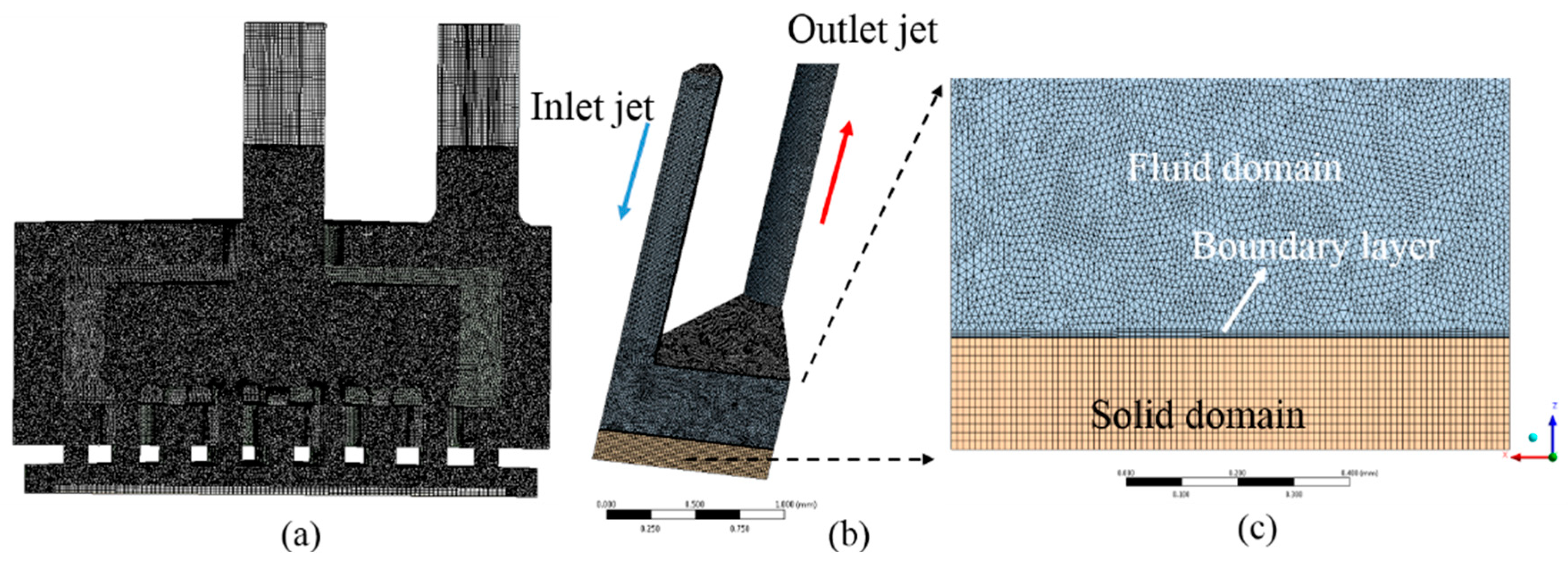

^{+}in the viscous sublayer. For the solid domain mesh prism cells are used with a 20 µm mesh size. The grid convergence index (GCI) is used for the meshing sensitivity analysis.

_{23}and GCI

_{12}are the values of GCI computed by considering, respectively, ${f}_{2}$; ${f}_{3}$ and ${f}_{1}$; ${f}_{2}$.

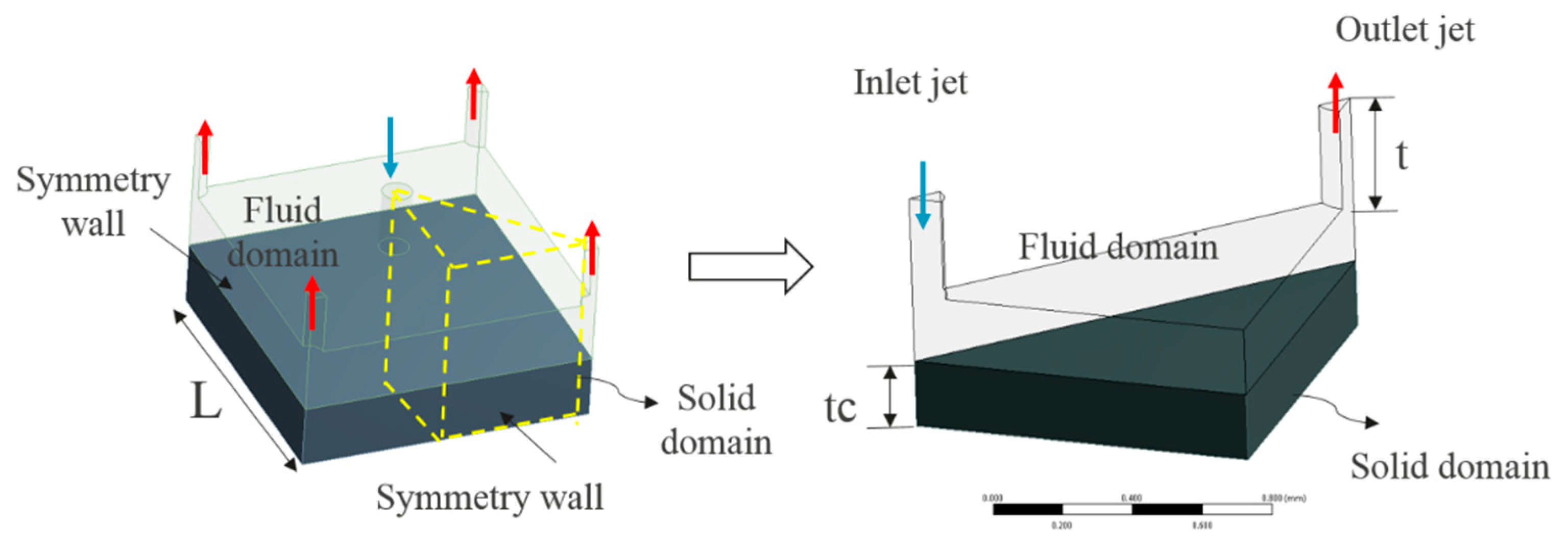

#### 2.4. Modeling Methodology

^{2}is applied on the chip bottom to represent the power generation in the heating elements of the test chip. The fluid and solid interface is set as a flow-thermal coupled boundary condition. Since the cooler material is plastic with low thermal conductivity, the boundary walls of the fluid domain are set as adiabatic walls.

^{−5}for continuity, 10

^{−6}for energy and 10

^{−6}for k, ω and momentum (x, y and z components of velocity), respectively. For all the simulations, the net imbalance of overall mass, momentum and energy is kept below 0.02% [33,34]. In order to characterize the thermal and hydraulic performance of the cooler, the overall thermal performance and pressure drop are defined as dimensionless Nusselt and friction numbers, Nu and k, respectively. They are primarily a function of the Reynolds number Re:

## 3. Numerical Modeling Analysis

#### 3.1. Unit Cell Modeling Analysis

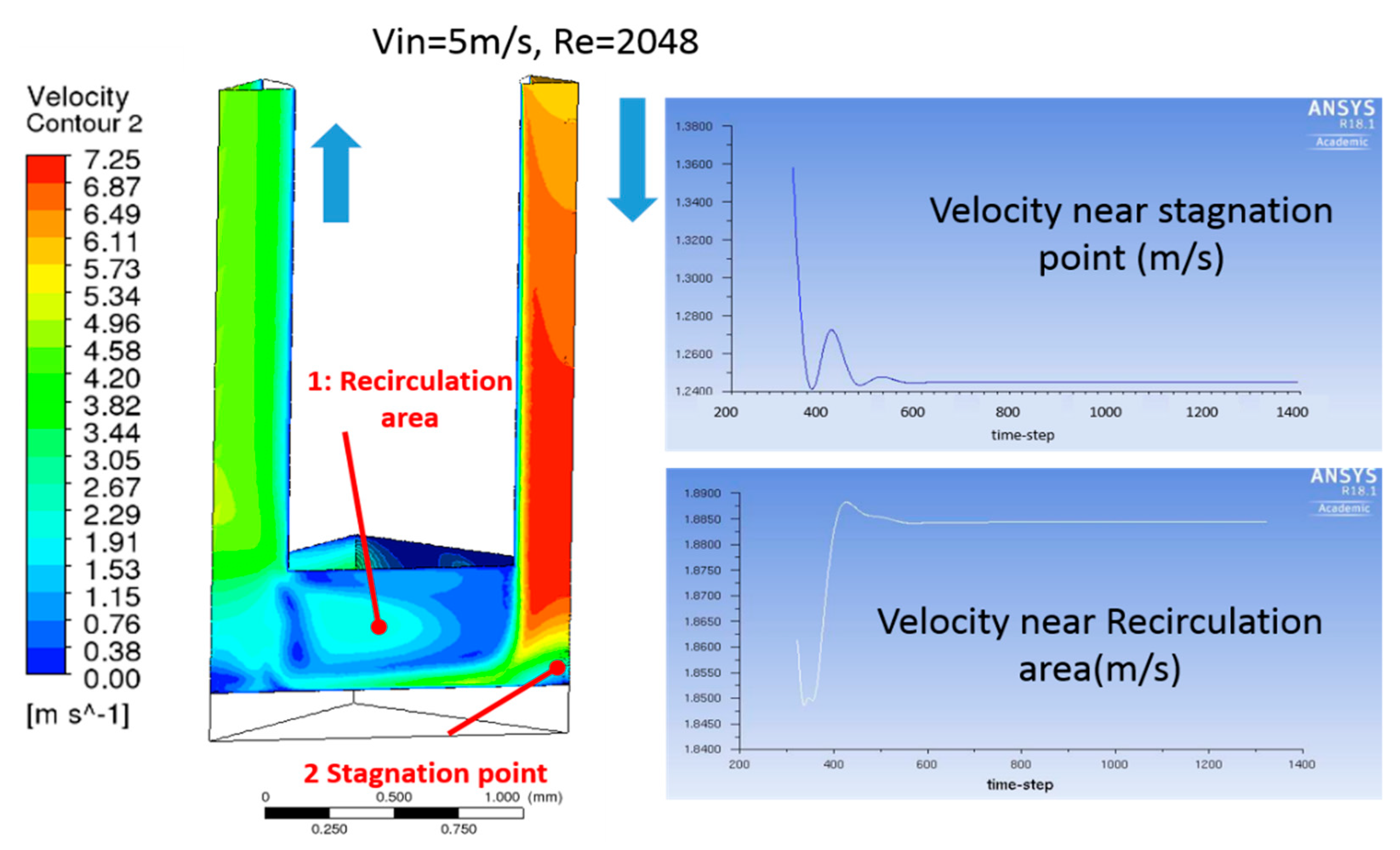

^{−7}s in this case, is calculated based on the cell size and inlet velocity. Two velocity points with the stagnation point and recirculation point are monitored during the URANS modeling. As shown in Figure 5, after 600 time steps, the flow is fully developed, and from then on, there is no velocity fluctuation observed, which reveals the steady phenomenon. Therefore, this flow problem is steady at Re = 2048. So, for all the following simulations, we choose the RANS solver instead of URANS solver.

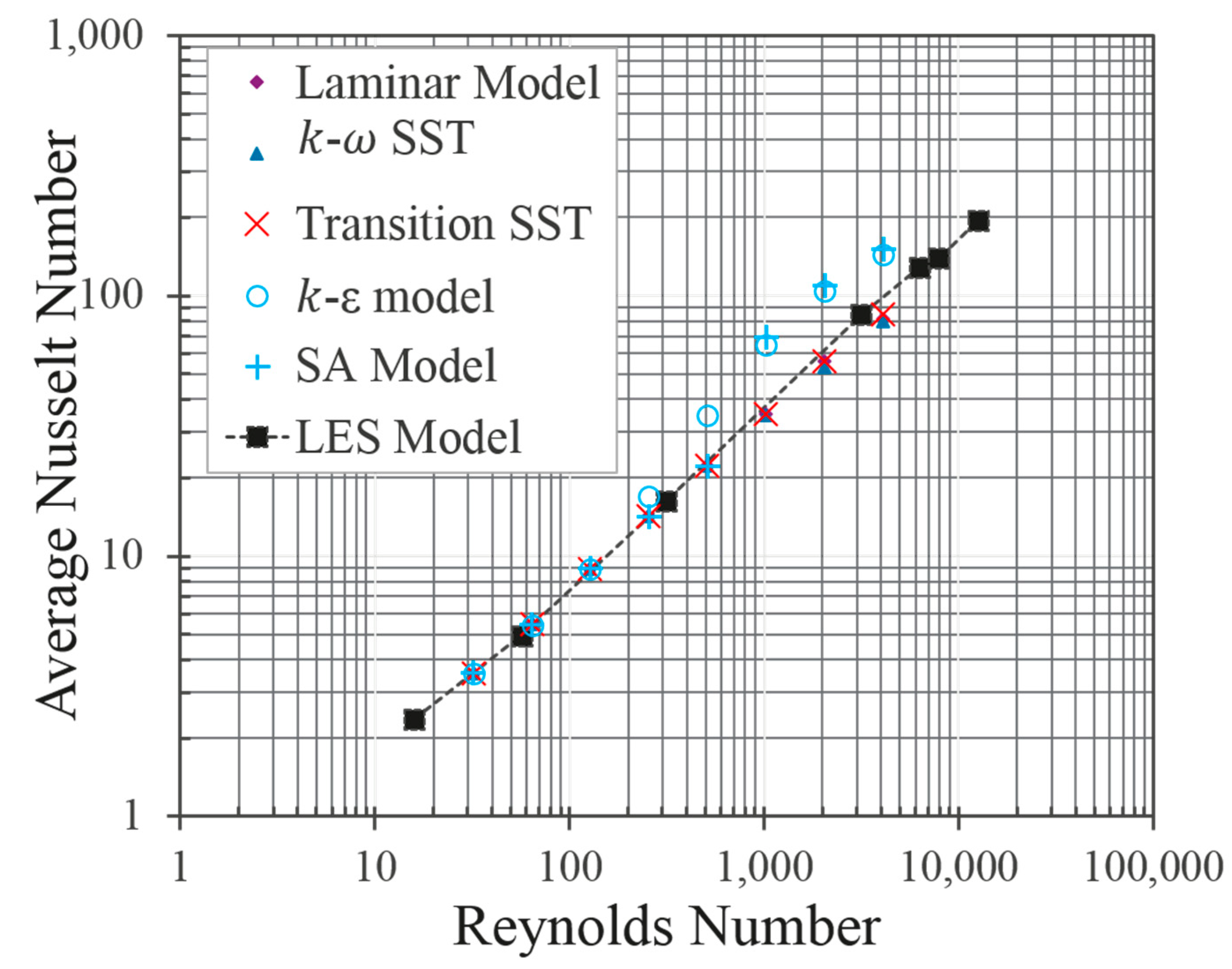

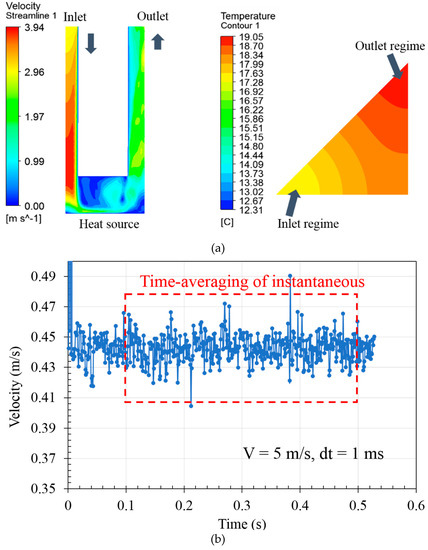

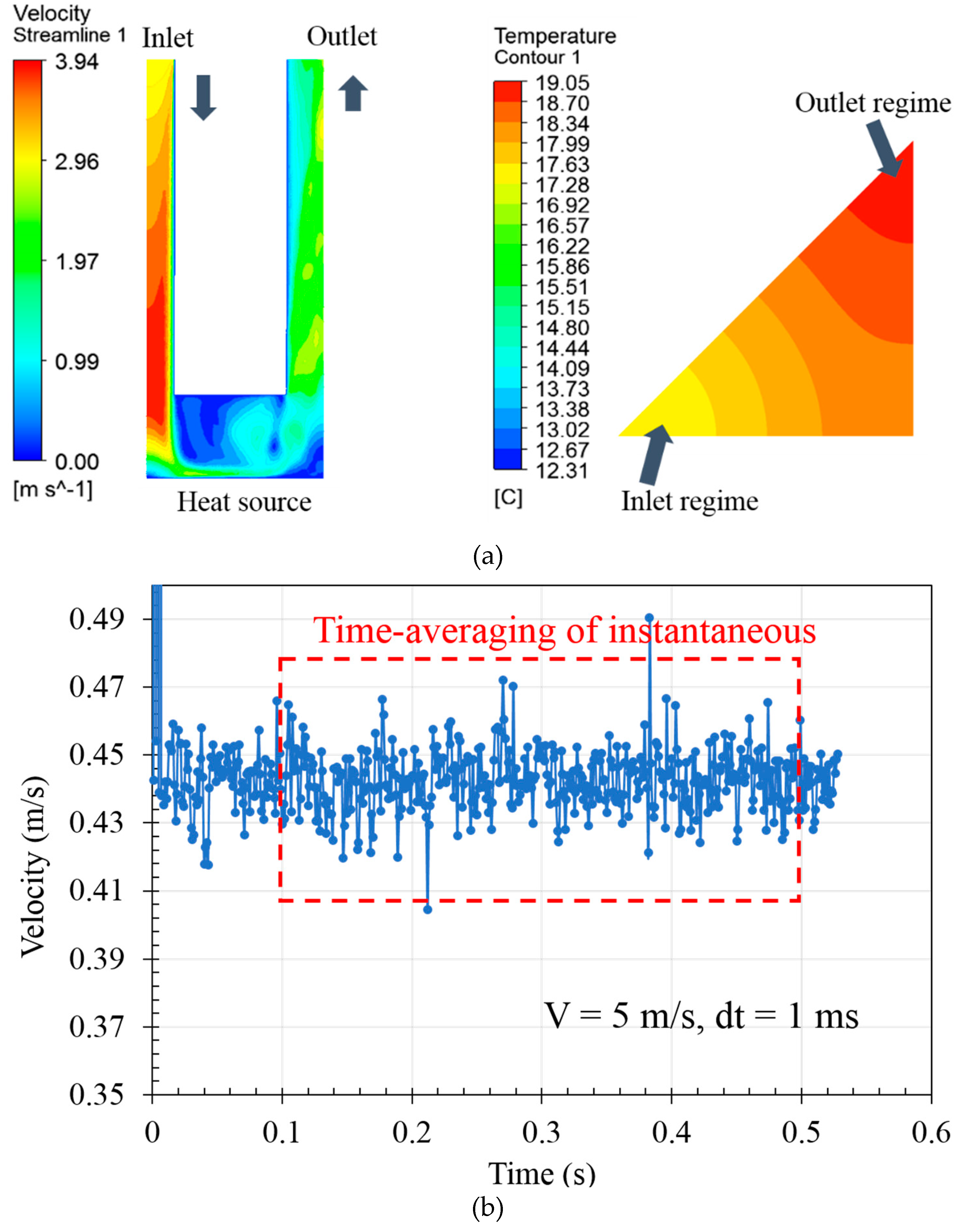

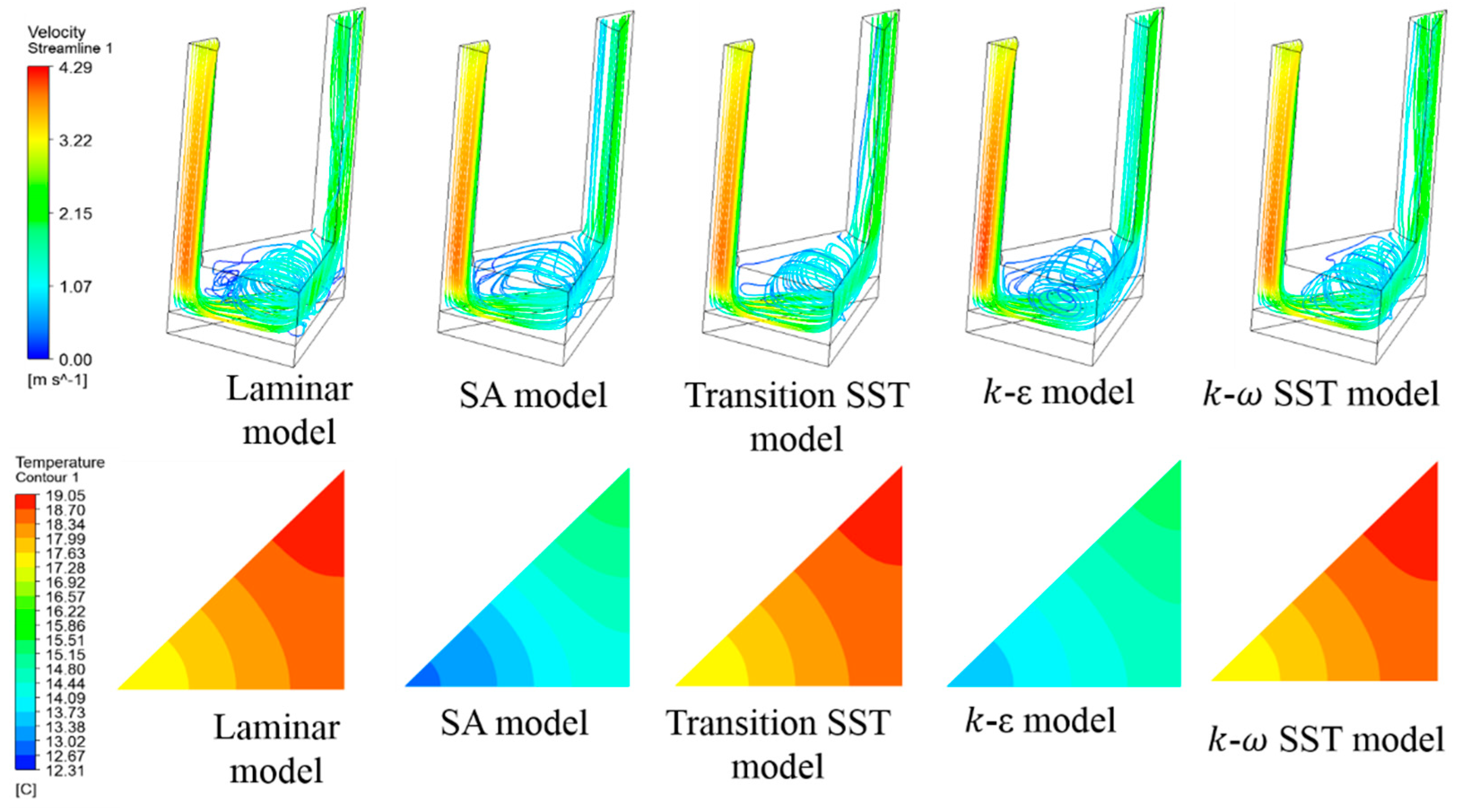

^{−3}s. As shown in Figure 7, the flow is fully developed after around 10 iterations. In order to compare with the RANS model, the mean values of the variable are calculated by time-averaging of instantaneous results from 0.1 s to 0.5 s. The velocity and temperature simulation results with the LES model are shown in Figure 7. By using the LES model, the smaller scale flow behavior can also be captured. The simulated $N{u}_{\mathrm{avg}}$ and $N{u}_{0}$ for different RANS models are compared with the LES model at ${\mathrm{Re}}_{d}$ = 1024, as listed in Table 3. It can be seen that, on the one hand, the laminar model, $k$-$\omega $ SST and Transition SST model can produce better results than any of the high-Re models, matching $N{u}_{\mathrm{avg}}$ and $N{u}_{0}$ within 1% compared to the LES model, however by reducing the calculation time by a factor of 6. On the other hand, $k$-ε model and SA model show large $N{u}_{\mathrm{avg}}$ prediction errors up to 80%, and the $N{u}_{0}$ prediction errors are above 100%.

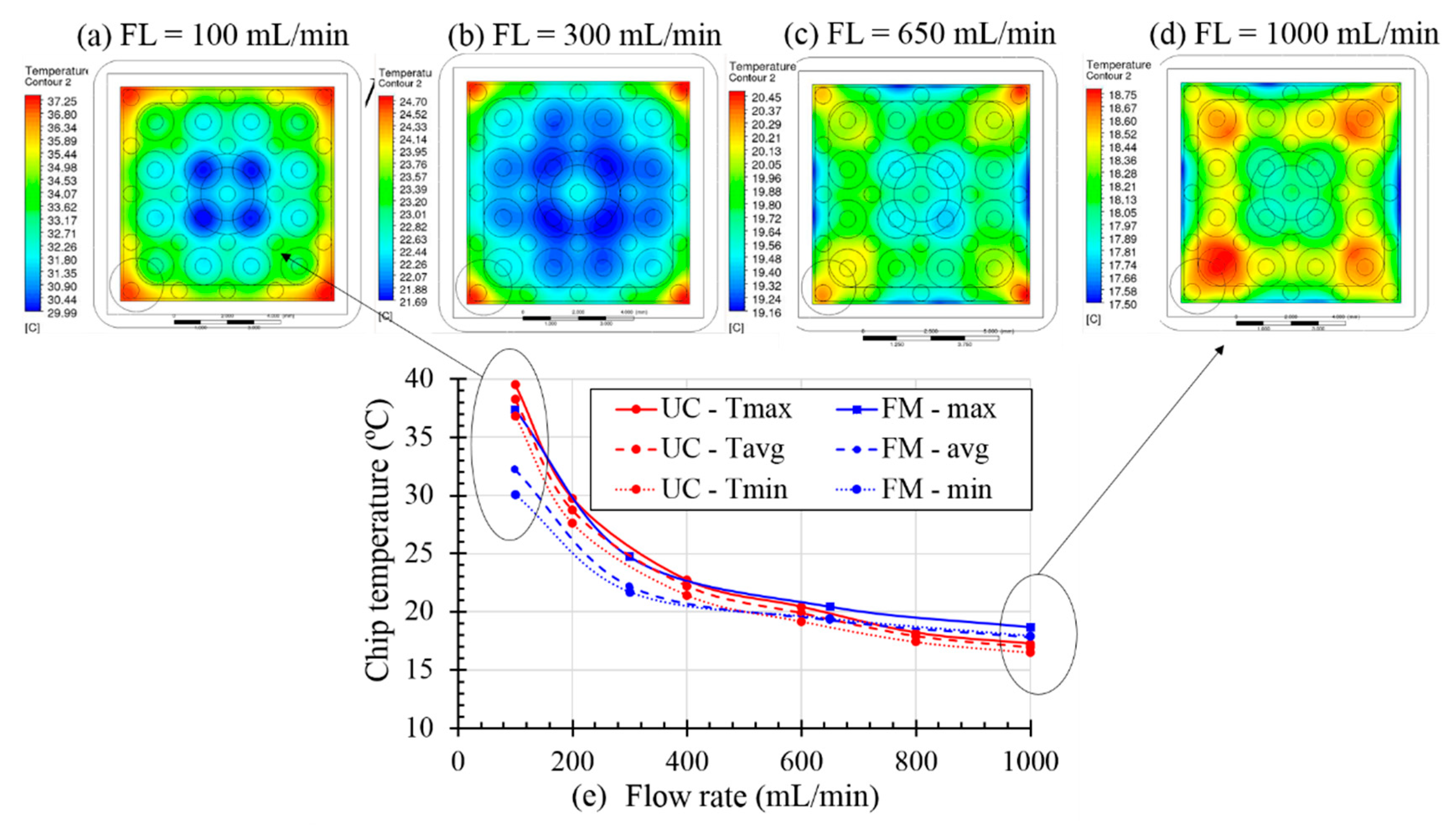

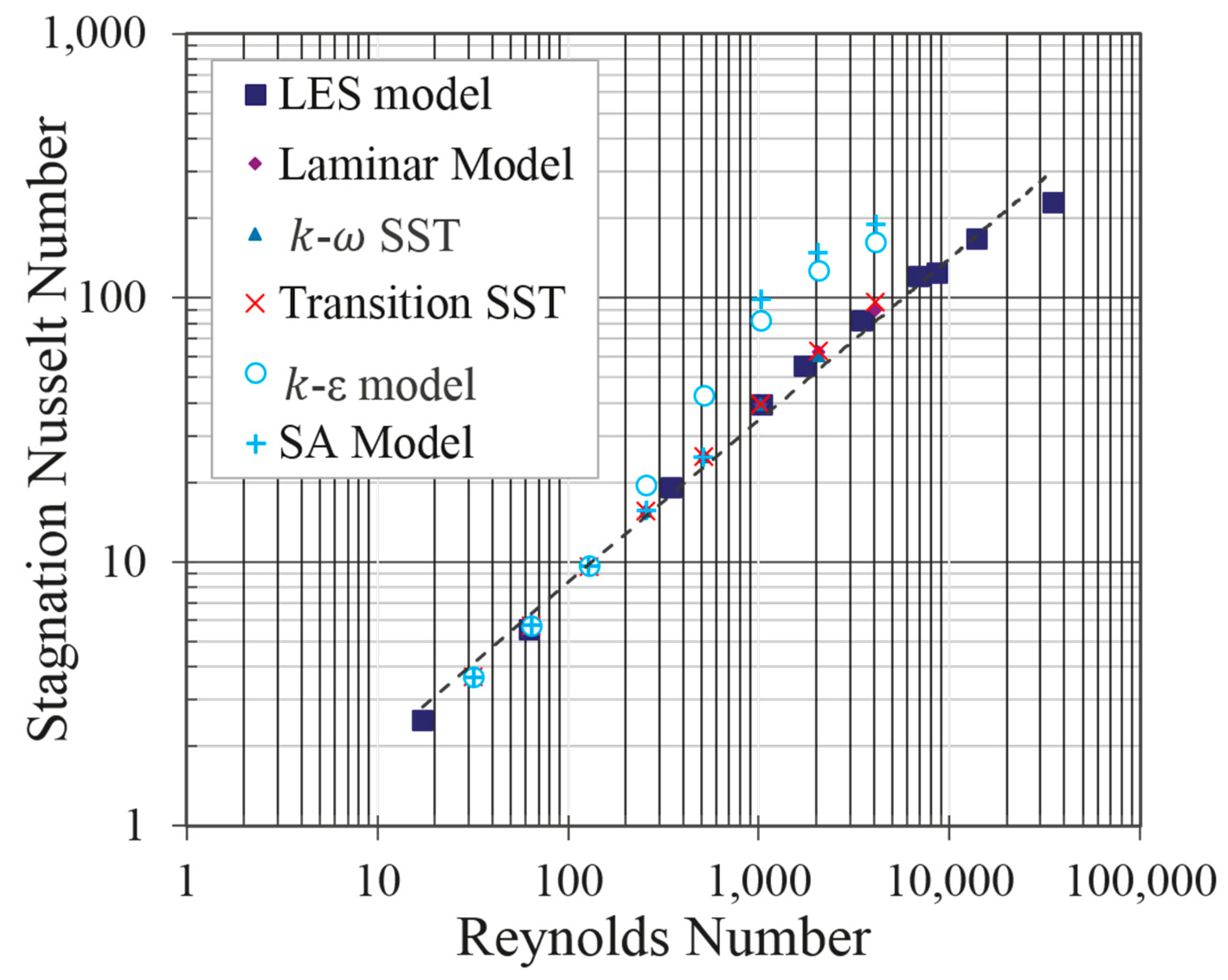

#### 3.2. Full Cooler Level Modeling Analysis

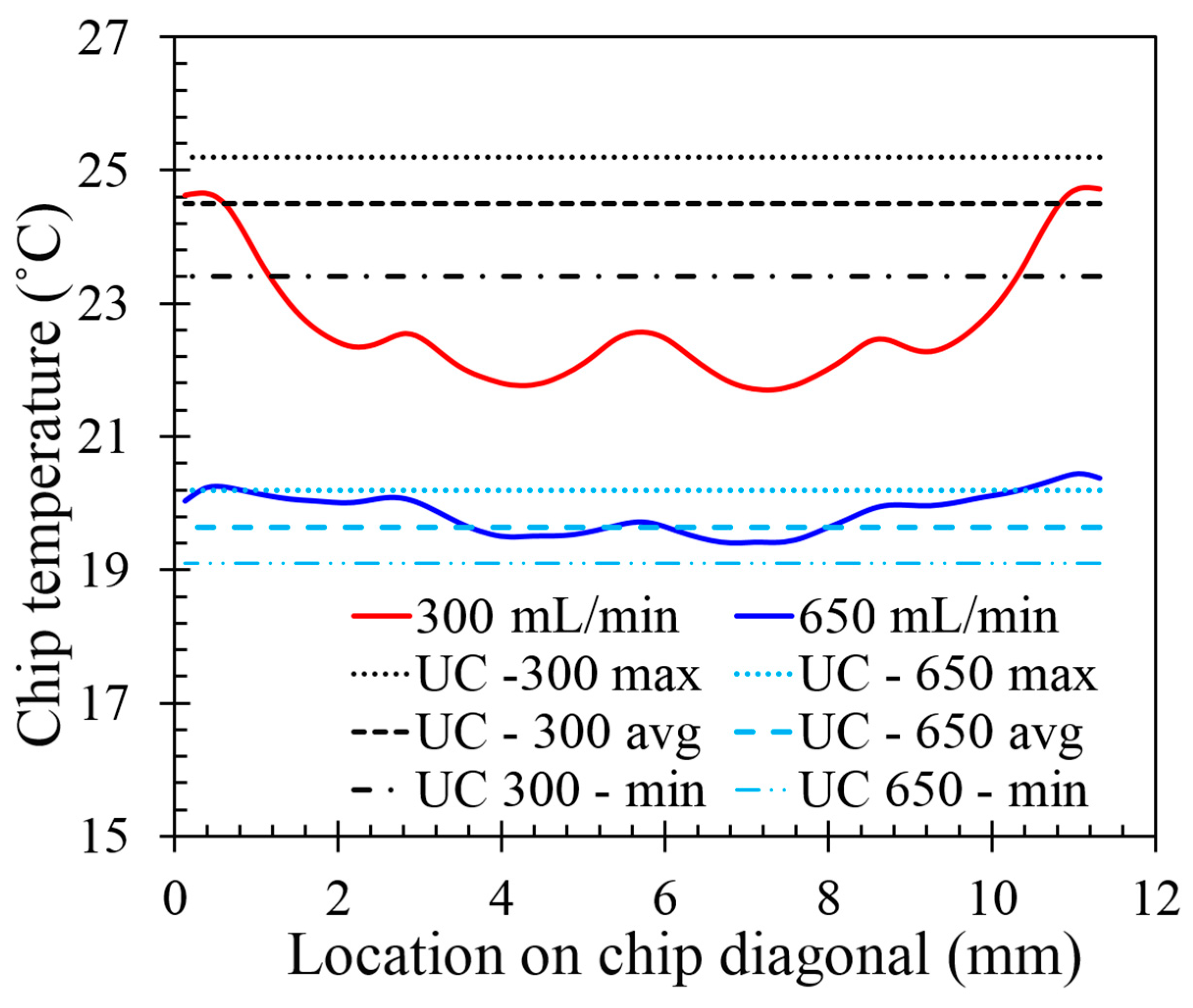

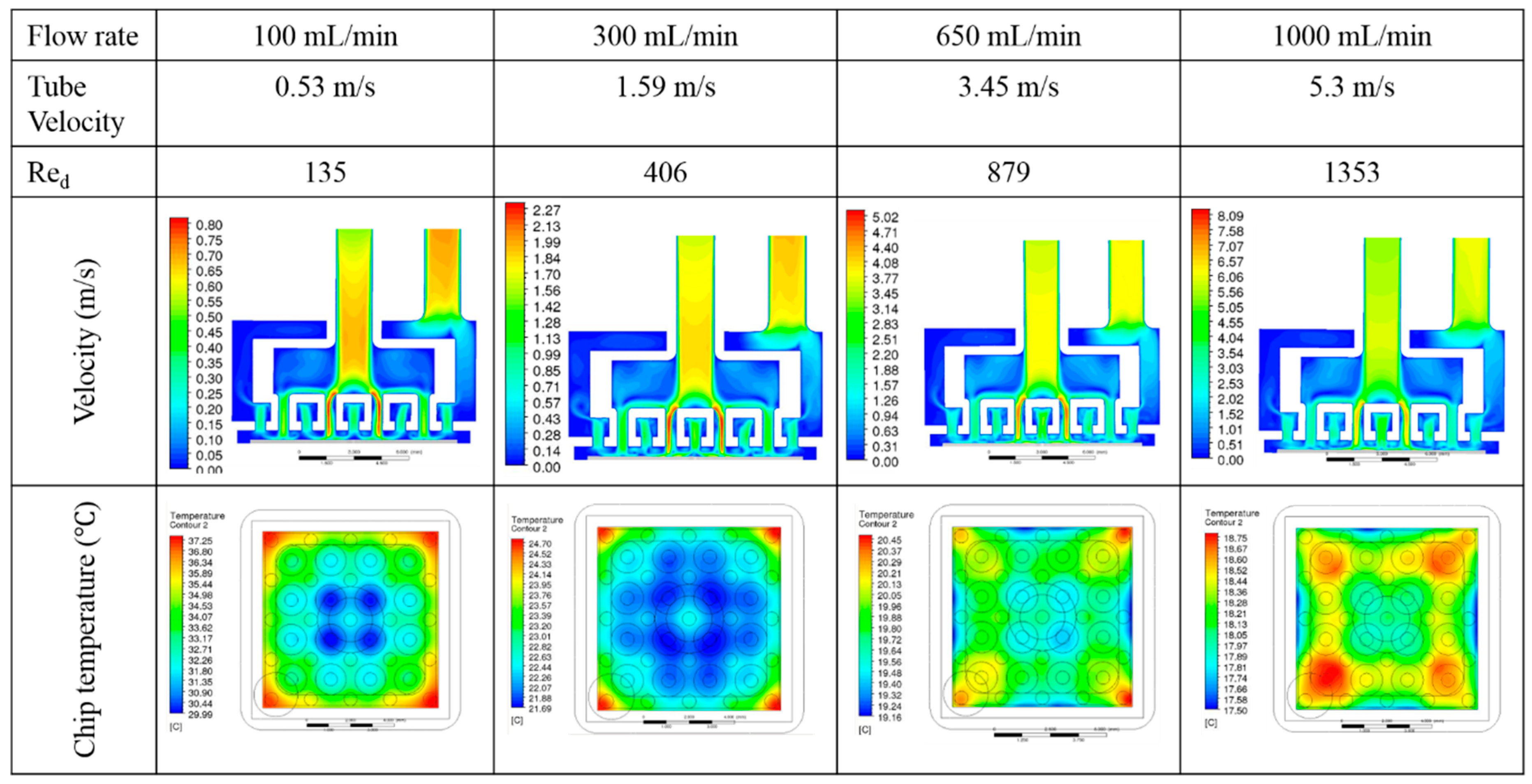

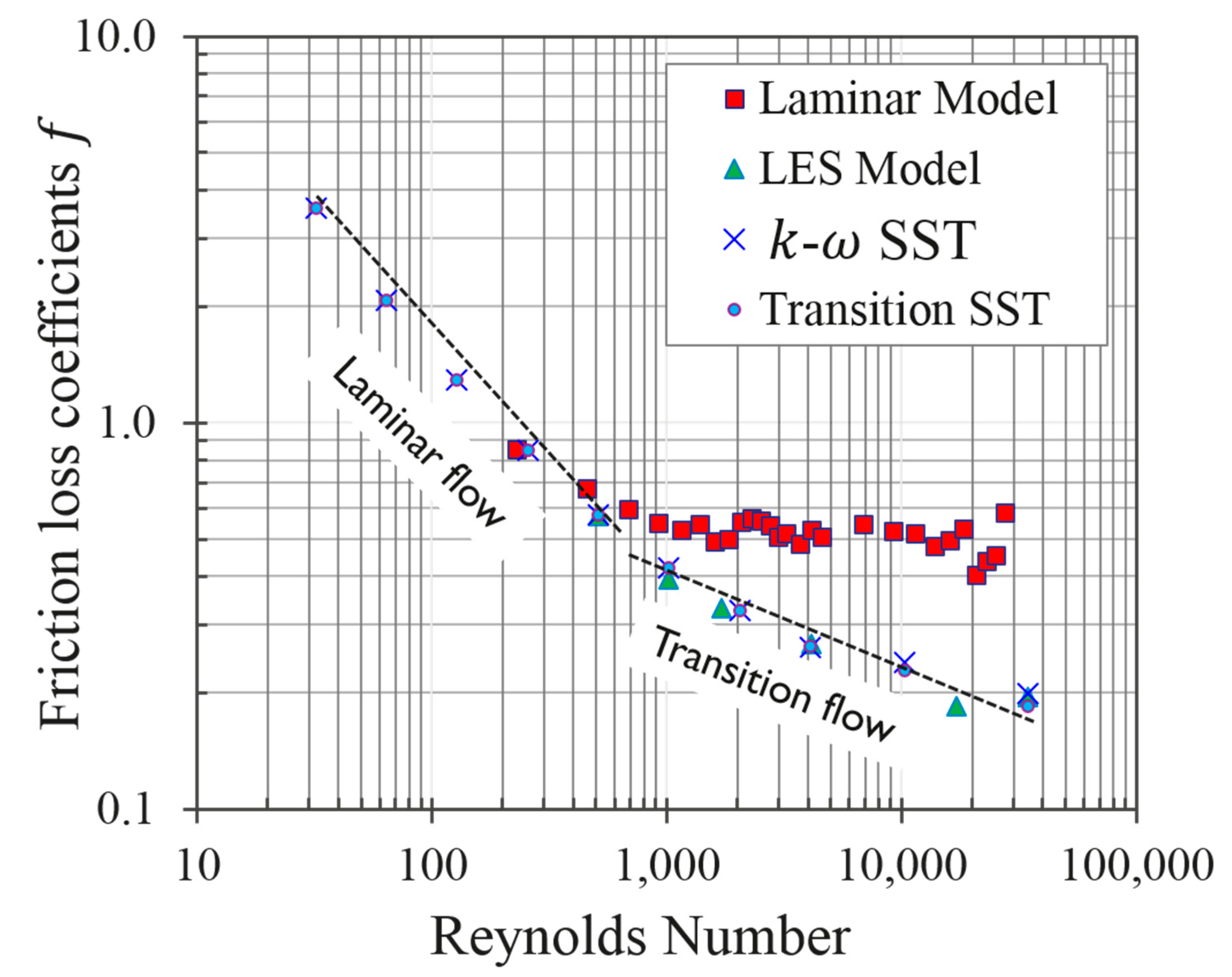

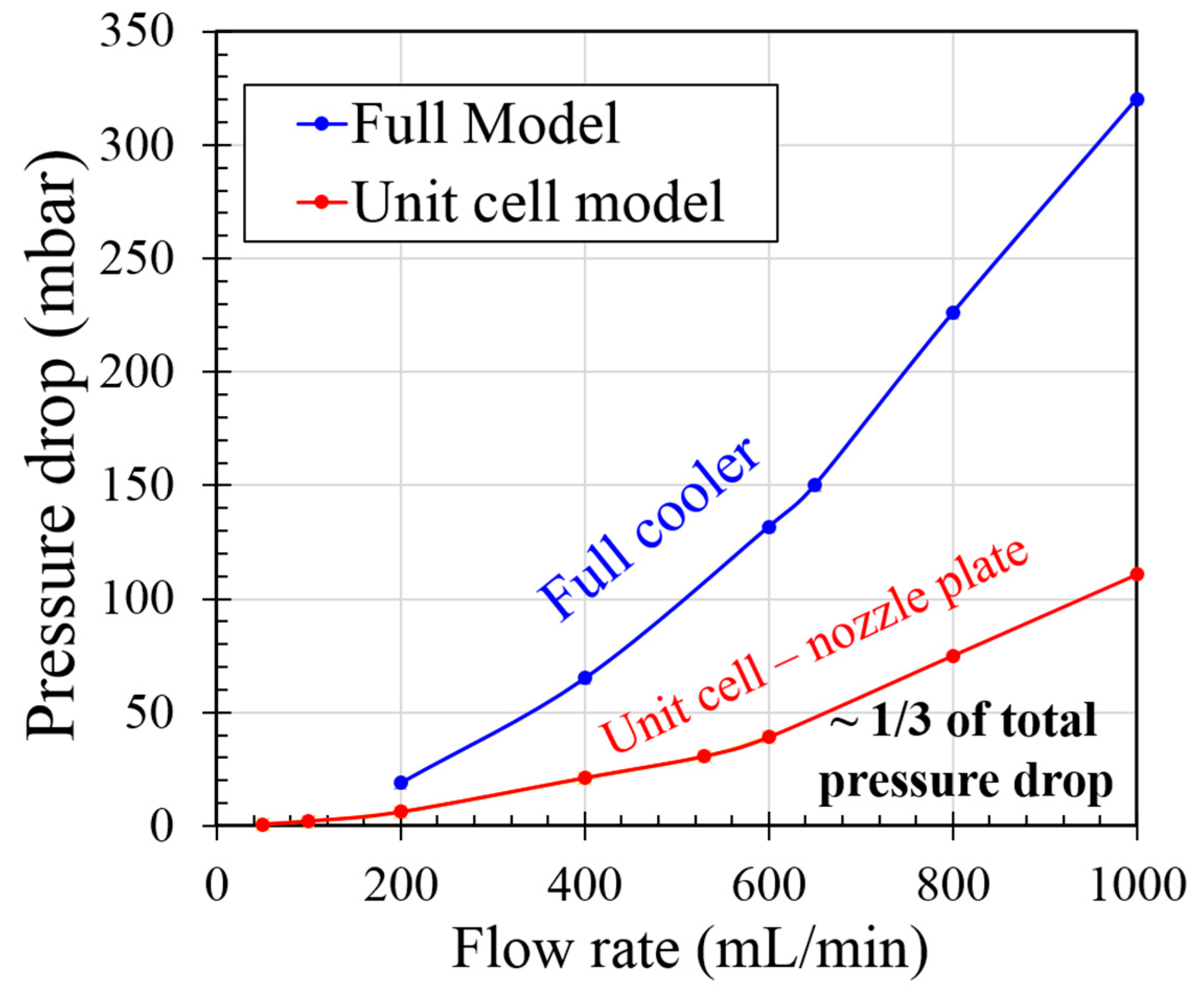

#### 3.3. Unit Cell versus Full Level Model

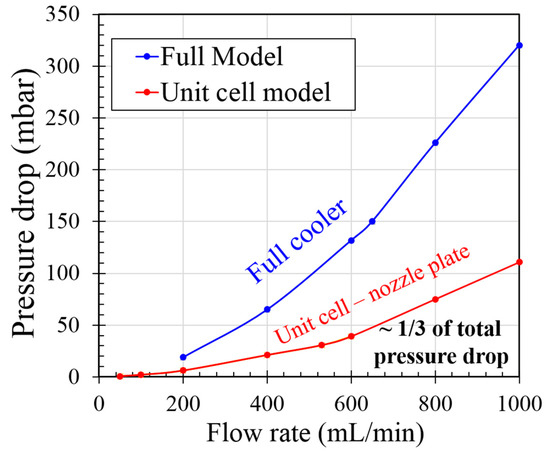

## 4. Experimental Validation

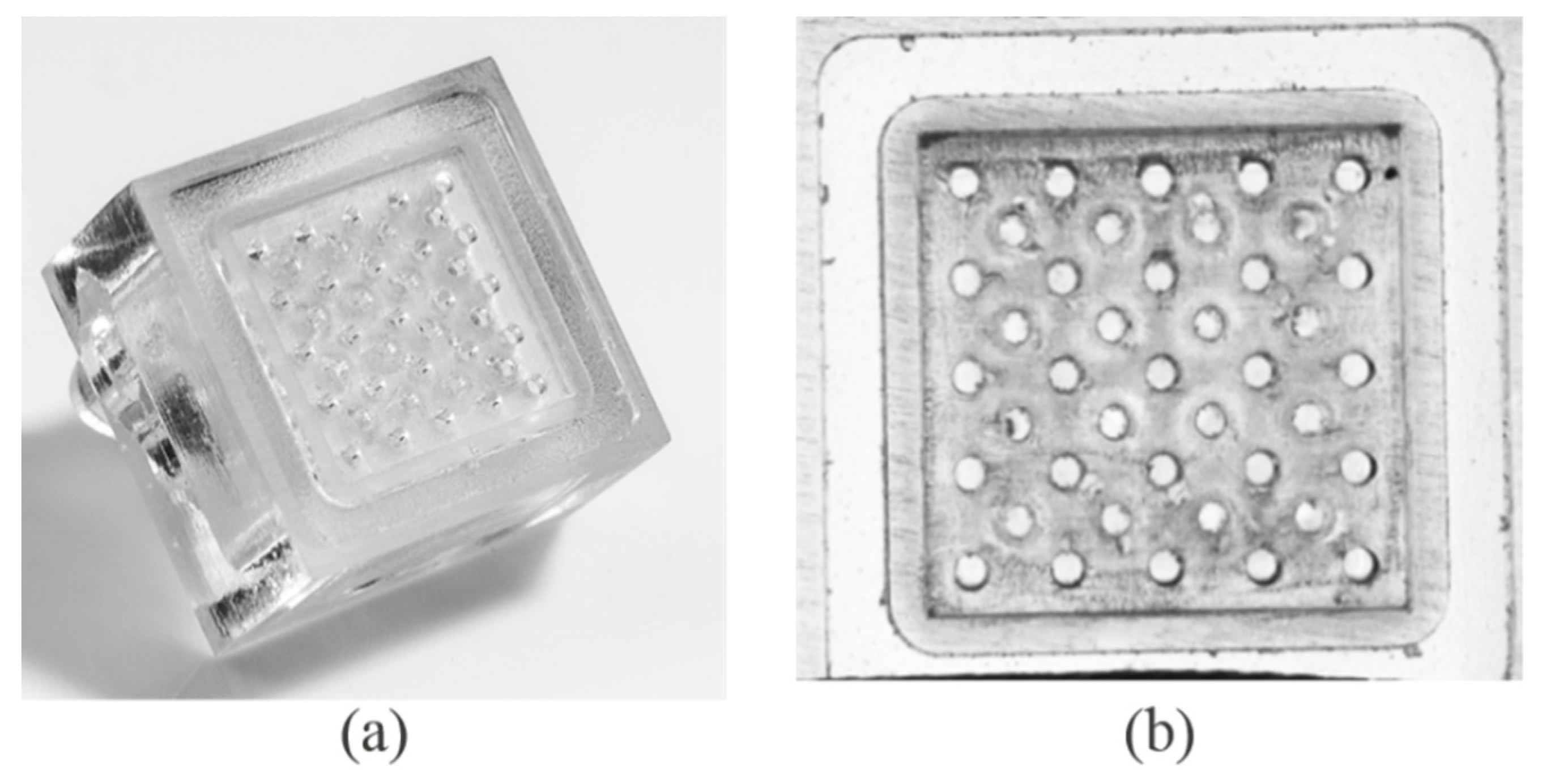

#### 4.1. Test Case Demonstration

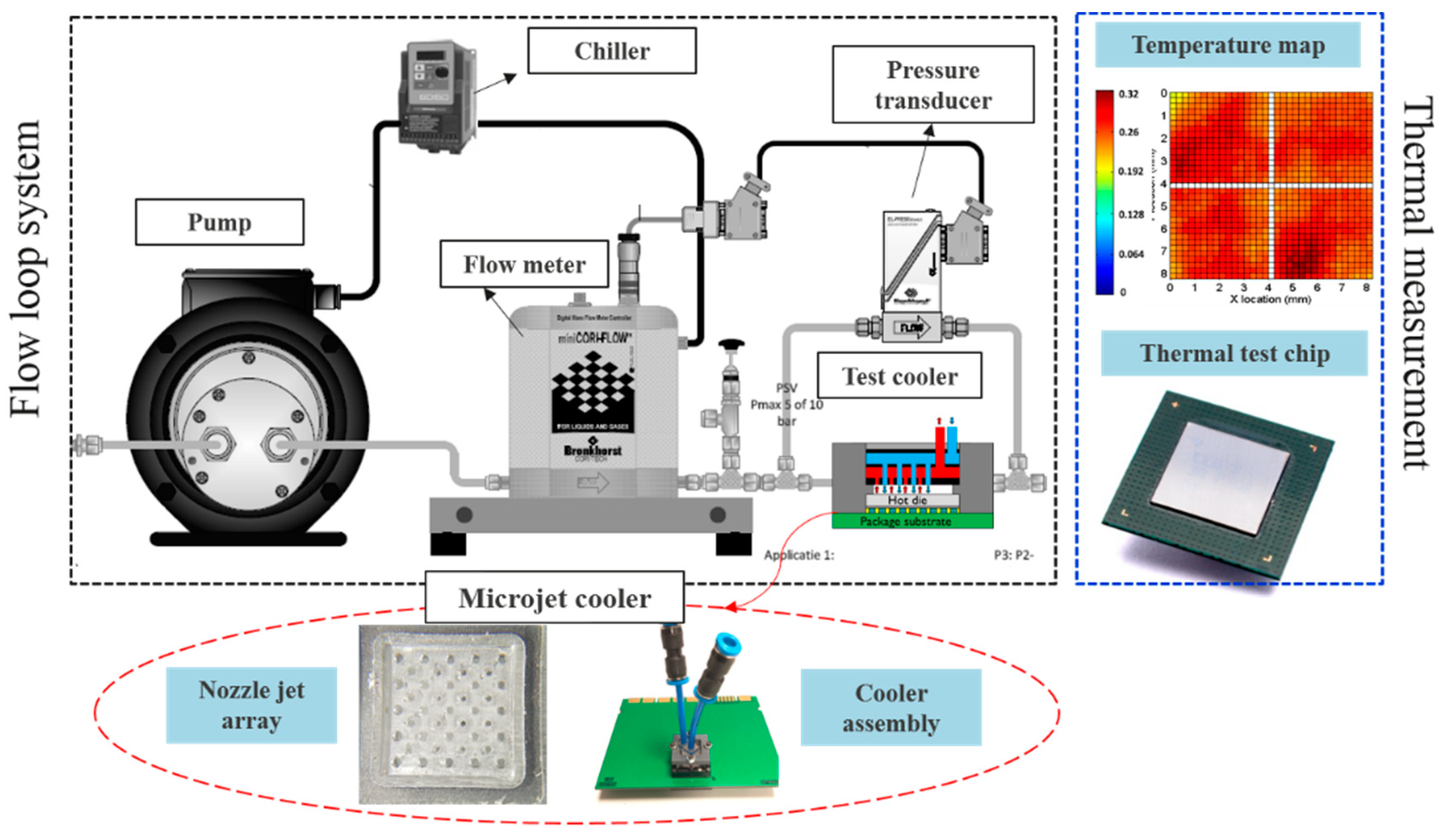

#### 4.2. Experimental Set-Up

^{2}. All these cells contain a diode in the center of the cell as a temperature sensor, resulting in a detailed temperature map measurement with 32 × 32 ‘thermal pixels’ across the die surface. The voltage drop across the diode for a constant current is used as the temperature sensitive parameter of the sensor. The 95% confidence interval of the calibrated sensitivity is −1.55 ± 0.02 mV/°C for a current of 5 μA in the temperature range between 10 and 75 °C. The chip temperature sensors allow absolute temperature measurements with an accuracy of ± 2 °C.

#### 4.3. Results and Discussions

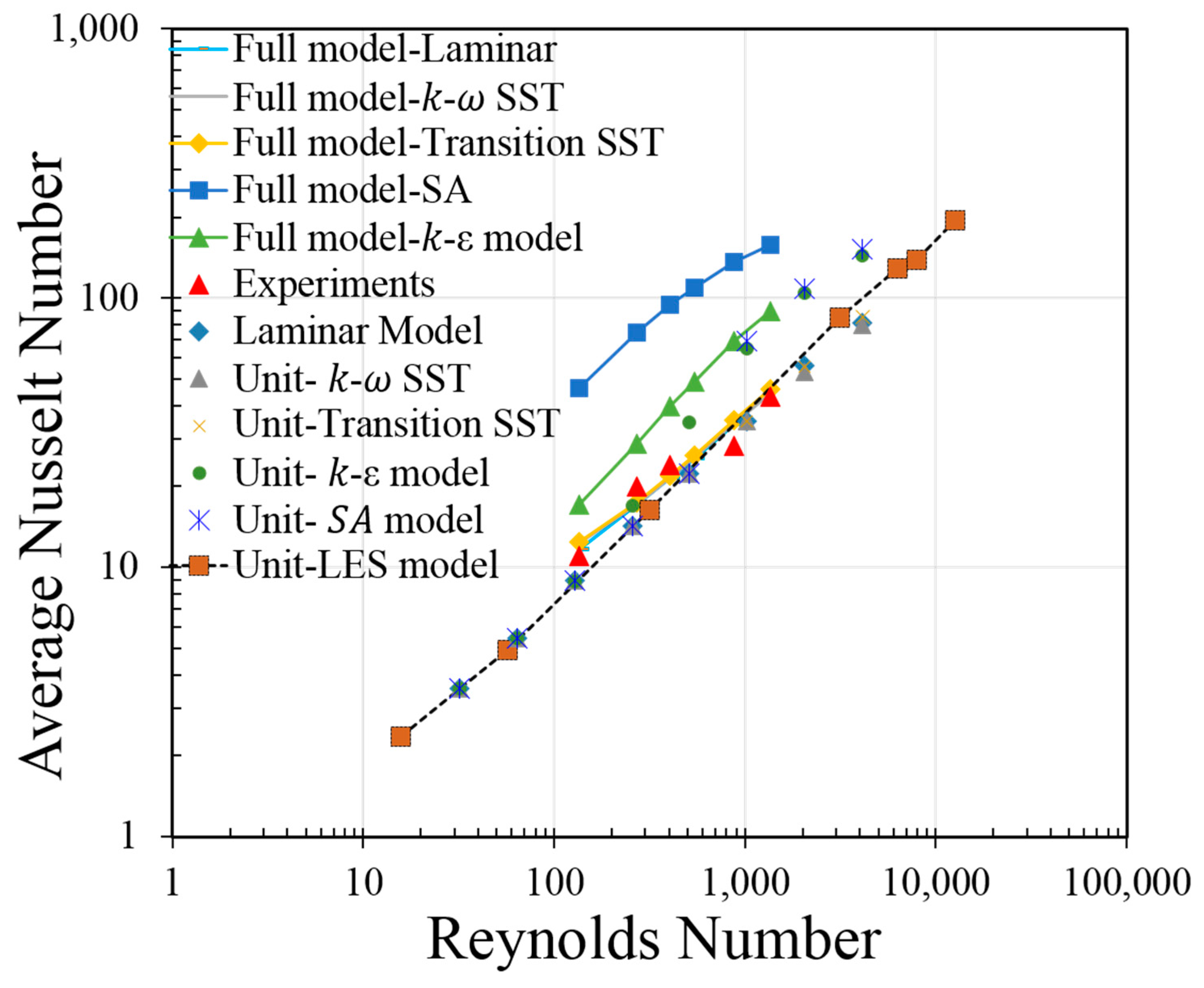

^{2}. Similar with the unit cell model analysis, different turbulence models are used for the full cooler level model, including laminar model, $k$-ε model, $k$-$\omega $ model, Transition SST model and SA model. It can be seen that the full CFD model with SA model overestimates the Nusselt number by a factor of 4 comparing with the experimental result. Moreover, the full model with $k$-ε model also shows very high prediction errors compared with the experiments. As expected, the LES model shows good agreement with the measurements. In general, the comparison shows that the laminar model, the $k$-$\omega $ model and the transition SST model show good agreement with the measured chip temperature, for the ${\mathrm{Re}}_{d}$ number from 130 to 1400.

## 5. Conclusions

_{d}< 4000, compared with the reference LES model. For the comparison with experimental measurements, the LES model, transition SST model and $k$-$\omega $ SST model all show less than 25% prediction error as the ${\mathrm{Re}}_{d}$ number ranging from 130 to 1400.

## Author Contributions

## Funding

## Acknowledgments

## Conflicts of Interest
