Thermal Conductivity in Nanoporous Aerogels: A Critical Review of Gas and Solid Conduction Models and Structure-Property Relations

and
1
Department of Mechanical Engineering, University of Tennessee at Chattanooga, Chattanooga, TN 37403, USA
2
UTC Nanoengineering Center, University of Tennessee at Chattanooga, Chattanooga, TN 37403, USA
*
Author to whom correspondence should be addressed.

Abstract

Sol–gel processing provides an unusually controllable route to nanoporous solids, making silica aerogels the leading reference systems for extremely low thermal conductivity due to their high porosity, nanoscale pore sizes, and tunable solid frameworks. Under near-ambient conditions, thermal transport is multi-scale and multiphase, arising primarily from coupled solid conduction through the skeletal network and gas conduction within the pore space. Accordingly, aerogel design has emphasized suppressing solid-phase transport by reducing network connectivity, increasing tortuosity, and enhancing boundary scattering, while also limiting gaseous conduction through the control of pore size and gas pressure. This critical review provides an integrated overview of these mechanisms and the theory-to-experiment toolbox used to quantify the separate and combined contributions of the solid and gas phases to the effective thermal conductivity. We link key structural and environmental parameters (porosity, pore size distribution, density, backbone morphology, and pressure) to dominant transport regimes and the assumptions embedded in common models. Classical approaches, including effective-medium and percolation-based models, are assessed alongside phonon-scaling descriptions that incorporate characteristic length scales. Particular attention is given to the Knudsen effect and pressure-sensitive gas-conduction models, which are central to interpreting performance at atmospheric conditions and under vacuum or low-pressure operation. This review highlights inconsistencies across datasets and modeling practices, identifies persistent knowledge gaps, and outlines practical directions toward processable structure–property guidelines for manufacturing aerogels with targeted thermal performance, with regard to conduction-dominated heat transport mechanisms.

1. Introduction

Thermal insulation is crucial for saving energy worldwide, since a lot of the energy we use is lost as unwanted heat from buildings, factories, and cold storage systems. Out of all the new insulation materials, nanoporous aerogels stand out for their ability to block heat flow better than almost anything else. Silica aerogels are more than 90% empty space, and their pores (just 10 to 100 nanometers across) and their fragile, web-like solid backbone act together to impede heat flow through virtually every available pathway. This unusual combination allows aerogels to suppress conduction through both the solid and the gas phase, as well as radiative transfer. Yet, despite decades of research, there has not been a coherent predictive framework. Some models overestimate solid-phase conduction, while others mischaracterize gas conduction, especially when confined in tight spaces, and radiative transport is treated inconsistently across the literature. Recent studies have explored data-driven and hybrid physics-informed approaches to predict thermal transport [1] and conductivity in aerogels [2,3,4], although their physical interpretability remains limited. Combining all these requirements into a single, reliable framework is still an open problem.
Nanoporous aerogels [5,6,7,8,9,10] are some of the best insulator materials available today. Recent advances have further expanded aerogel research into hierarchical [11], fibrous [12], and hybrid [13] architectures with enhanced thermal insulation performance, and wettability that depends on the volume of water droplets in contact with their surfaces [14]. They are exceptionally good at stopping heat from propagating, thanks to their super-high porosity, tiny pores on the nanometer scale, and a solid structure that is a tortuous, interconnected network. All these features work together to block heat, whether conducted through the solid phase, gas phase, or radiative transfer. Because we always need better ways to save energy, researchers are actively investigating exactly how these unusual materials block heat and how we can make them even better.
The thermal conductivity of porous materials can generally be expressed in the following manner:
κ e f f = κ s + κ g + κ r + κ c
where the solid conduction through the aerogel backbone is represented by κ s ; κ g is the gaseous conduction through the pore space, κ r represents radiative heat transfer, and κ c stands for the gas–solid coupling effects arising from interactions between gas molecules and the solid framework. At near-ambient conditions, heat transport is often dominated by either the solid matrix or the gas phase. However, in nanoporous aerogels, the situation is more complex as it involves the complexity of the characteristic pore dimensions (typically 10–100 nm), which approach the mean free path of gas molecules (~60–70 nm for air at room temperature) [15,16,17]. Gas permeability is a factor in thermal transport through nanoporous systems and can be increased through rarefaction [18,19,20]. Under these conditions, collisions of gas molecules with the pore walls are more frequent than with one another, thereby reducing the gaseous thermal conductivity through the well-known Knudsen effect. This phenomenon is one of the main reasons as to why aerogels exhibit thermal conductivity values that are considerably lower than that of still air. A comprehensive investigation of gaseous conduction in nanoporous material systems at the molecular level has been done by Ghasemi and Barisik [21]. While the decomposition of the effective thermal conductivity in Equation (1) is widely adopted, it is rather a literature convention and not a physically independent decomposition. The individual terms are not uniquely measurable and lack strict independence in nanoporous aerogels, especially under atmospheric conditions, where confinement and gas–solid interactions occur together rather than in isolation.
In the early experimental studies, silica aerogels demonstrated the ability to achieve room-temperature thermal conductivities as low as 0.01–0.02 Wm−1 K−1, far below that of most conventional insulation materials [22,23]. Such results sparked extensive research into the mechanisms governing heat transport in highly porous nanostructures. The experimental work that followed revealed that the overall thermal conductivity of aerogels is controlled by a delicate balance between multiple interacting transport processes. Solid conduction occurs through the tenuous network of interconnected nanoparticles that form the aerogel skeleton, while gas conduction depends on the type of gas, pore size, and gas pressure. Radiative heat transfer becomes increasingly important at elevated temperatures or when the solid density is extremely low [24,25,26]. These mechanisms interact with one another to create a complicated thermal transport landscape, as illustrated in Figure 1, that is strongly dependent on the aerogel’s microstructure.

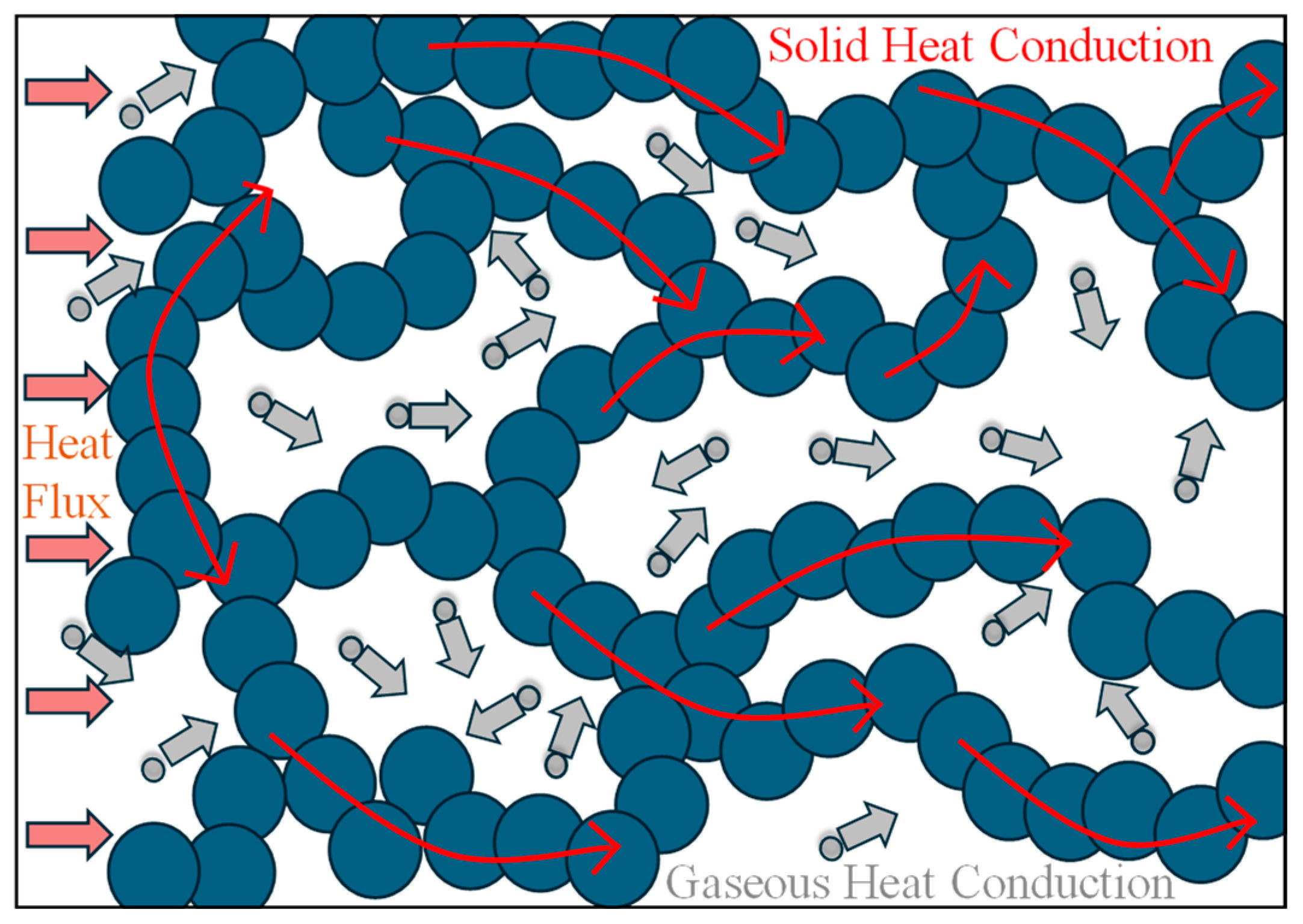

Figure 1. A pictorial representation of a silica aerogel structure showing the different mechanisms of heat conduction in it. The red arrows represent heat conduction through the solid part of the aerogel, and the gray arrows represent the gaseous heat conduction. The off-red arrows represent the heat source direction.
Over the past several decades, numerous theoretical and experimental models have been developed to describe heat transfer in nanoporous aerogels. Classical approaches typically treated the total conductivity as a simple superposition of independent solid and gas contributions. However, this assumption often proved insufficient when it came to highly porous materials, as demonstrated by later studies. Solid–gas coupling mechanisms, in particular, where heat transfer occurs through interactions between gas molecules and the solid skeleton, were observed to significantly affect the effective thermal conductivity [27,28,29]. These coupling effects become especially important when pore sizes approach the molecular mean free path, leading to deviations from classical continuum heat-transfer models. As a result, several theoretical frameworks, such as Knudsen-based gas conduction models, effective medium theories, fractal and percolation models, and pore-network simulations, have been proposed to describe thermal transport in aerogels [16,30,31,32]. In spite of the progress so far, the accurate prediction and control of thermal conductivity in nanoporous aerogels continue to pose challenges. The complex hierarchical structure of these materials is a major contributor in this regard. The properties of aerogels include broad pore size distributions, fractal-like solid networks, and heterogeneous connectivity, making it difficult to characterize them using a single characteristic length scale that governs heat transfer [33,34,35,36]. In addition, experimental measurements of thermal conductivity considerably depend on the measurement technique, sample preparation, and environmental conditions. These uncertainties complicate the validation process of theoretical models and the establishment of viable structure–property relationships. Another key challenge lies in identifying the most effective strategies for engineering aerogels with even lower thermal conductivity. While early research primarily focused on reducing density and increasing porosity, it has become increasingly clear that microstructural design parameters such as pore size, particle connectivity, skeletal thickness, and hierarchical architecture play equally important roles in determining thermal transport behavior. Advances in synthesis techniques, such as sol–gel processing [37], freeze casting [38,39], templating approaches [40,41], and additive manufacturing methods [42,43], have enabled more precise control over aerogel microstructures and over aerogel thermal transport through deliberate design.
In recent years, different aerogel systems, such as hybrid and composite systems incorporating fibers, opacifiers, polymers, and nanostructured additives, have been investigated, with additives to further suppress heat conduction. Recent advances have also extended aerogel design beyond nanoparticle-based networks to include fibrous, nanosheet-based, and hierarchical architectures. The aim of these modifications is to decrease radiative heat transfer, disrupt solid conduction pathways, or modify gas transport within the pores. In parallel, emerging computational methods, including molecular dynamics simulations [44,45,46], lattice Boltzmann modeling [47], and pore-network analysis [48], have facilitated the understanding of nanoscale heat-transfer mechanisms, which are often inaccessible through experimental methods alone. Based on the literature so far, there is a clear need for a critical synthesis that integrates the diverse experimental observations, theoretical models, and structural design principles that govern thermal transport in nanoporous aerogels. The lack of understanding of the interaction of different mechanisms across multiple length scales, from molecular gas–solid interactions to macroscopic heat conduction, remains to be resolved in order to guide the development of next-generation ultra-low-conductivity materials. The discrepancy between the theoretical predictions and the experimental results is still prominent despite decades of research. These gaps are not just a reflection of the limitations of the existing models, since a significant part of the problem stems from how experiments are conducted and reported in the first place. Across the aerogel literature, there are inconsistent methodologies that create significant challenges in enabling meaningful comparisons of thermal conductivity data [49].
This review, therefore, provides a comprehensive and critical examination of the mechanisms, models, and design strategies underlying ultra-low thermal conductivity in nanoporous aerogels. The discussion begins with the fundamental heat-transfer mechanisms in aerogels, including solid conduction, gas conduction, and gas–solid coupling. This is followed by a review and critical evaluation of the major theoretical and computational models that describe these processes. Finally, key structure–property design parameters, such as pore-size engineering, hierarchical architecture, and compositional modification, are evaluated and scrutinized in the context of emerging approaches to design engineering aerogels. Through this integrated perspective, this review aims to clarify the current understanding of thermal transport in nanoporous aerogels and identify viable pathways for designing the next generation of superinsulating materials.
While existing reviews [50,51,52] have made important contributions to understanding thermal conductivity in aerogels, including modeling approaches for individual transport mechanisms and systematic characterizations of silica-based systems, a unified treatment that addresses gas–solid coupling as a primary topic in its own right remains limited. Most prior works discuss coupling effects as a secondary consideration within broader frameworks, without dedicated experimental and theoretical analysis. The present review fills this gap by treating solid, gaseous, and gas–solid coupling conductivity as distinct, equally important contributions, with each examined through both its theoretical basis and the experimental approaches used to probe it. It also points out the discrepancies associated with characterizing thermal conductivity using the density of aerogels. Furthermore, by extending coverage beyond silica aerogels to encompass a wider class of aerogel materials, this review enables cross-material comparisons that single-material-focused reviews are not positioned to offer. Together, these features define the distinct scope and contribution of the present work relative to the existing literature. Our review focuses mainly on the solid, gas, and gas–solid coupling conduction mechanisms in aerogels, especially under ambient conditions where the radiative thermal conduction is minimal.

2. Structural Characteristics of Nanoporous Aerogels

2.1. Three-Dimensional Nanoparticle Network Architecture

Aerogels derived from sol–gel processing exhibit hierarchical morphology. Primary silica particles, typically of 2–5 nm sizes, aggregate into chain-like structures that form a three-dimensional fractal backbone. Neck regions between particles form constrictions that act as thermal bottlenecks. The resulting network encloses a network of mesopores with diameters ranging from approximately 10 to 100 nm. The fractal dimension of silica aerogels commonly lies between 1.7 and 2.3, depending on synthesis and aging conditions. Hence, aerogels constitute a distinctive class of solid materials characterized by a highly interconnected three-dimensional (3D) solid framework surrounded by extensive air-filled pores. This structure spans from nanoscale constituents to macroscopic dimensions [53,54]. The nanoparticles of these materials randomly aggregate to form chain skeletons, which interconnect to form a complex three-dimensional network structure [51]. This network geometry is not merely structural in nature, but it is the structural origin of virtually every functional property the aerogel possesses, including its extraordinarily low thermal conductivity.
Based on their morphology, aerogels can be classified as particle-aggregated and fibrillar. Inorganic aerogels and some organic aerogels, such as resorcinol-formaldehyde (RF), melamine-formaldehyde (MF), and carbon aerogels, exhibit particle-aggregated morphology, while biopolymer aerogels, in particular, polysaccharides, show fibrillar morphology. Although particle-aggregated aerogels have similar network structures, they exhibit different characteristics; for instance, silica aerogels have fractal morphology due to the formation of bonds from nucleation and growth [55]. This fractal character has been confirmed by small-angle scattering studies, where small-angle neutron scattering (SANS) has been employed to characterize aerogel structures, examine fractal behavior at specific length scales, and study changes in structure with respect to processing variables [56].

2.2. Porosity, Pore Size Distribution, and Specific Area

In aerogels, heat conduction is governed by key structural parameters such as porosity, density, ligament diameter, pore size distribution, surface chemistry, and connectivity. Isolating their individual effects on thermal conductivity requires careful experimental and modeling approaches since these parameters are interdependent. This interplay between structural geometry and phonon physics is a key underlying factor as to why aerogels achieve thermal conductivities well below that of still air. Silica aerogels are defined by a set of distinct properties, including low density (0.003–0.5 g/cm3), large porosity (80–99.8%), low thermal conductivity (0.005–0.1 W/mK), an ultra-low dielectric constant ( κ = 1.0–2.0), and a low refractive index (1.05) [57], all derived from their unique nanostructure consisting of a three-dimensional network of nanoparticles and submicron pores [58]. The pore network framework of silica aerogels has been illustrated in Figure 2. Most aerogel pores fall within the mesopore range, between 2 and 50 nm, though they often contain smaller micropores and larger macropores also. This complexity poses a significant challenge in determining the exact mean pore size and pore size distribution [56]. Accurate characterization of this distribution remains challenging. The applications of aerogels depend on their pore structure, but characterization of porosity is complicated by the compliance of the network. Standard methods such as mercury intrusion porosimetry (MIP), thermoporometry (TPM), and even nitrogen adsorption/desorption (NAD) can cause significant compression of the aerogel, leading to underestimation of pore volume and pore size [59]. The BET (Brunauer–Emmett–Teller) [60,61] method remains the standard for specific surface area measurement, while the Barrett–Joyner–Halenda (BJH) [61] method is widely used for mesopore size distribution, though BJH-derived pore sizes of 10–16 nm between samples are often smaller than calculated mean pore dimensions of 25–64 nm from geometric models, since BET analysis primarily reflects surface area contributions from mesopores and smaller macropores [56].
Figure 2. (a) Simulated pore network structure and (b) SEM images of silica aerogel. Adapted from open-access source [62].

2.3. Density, Skeletal Connectivity, and Tortuosity

Two key parameters are commonly used to characterize silica aerogels: bulk density and skeletal density. Bulk density is the mass-to-volume ratio of the aerogel, ranging from 3 to 300 kg/m3, while the latter, which is the density of the solid framework itself, is approximately 2200 kg/m3, compared with the air density of approximately 1.2 kg/m3 [63]. The large disparity between these two values reflects the fact that the solid phase constitutes only a small fraction of the total volume. Accordingly, porosity is defined as
ϕ = 1 − ρ b ρ s
where ρ b is the bulk aerogel density and ρ s is the skeletal density. Beyond porosity, the spatial connectivity and tortuosity of the solid backbone critically govern thermal transport. Models for solid conduction through aerogel skeletons must account for the tortuosity of the skeleton as well as clusters that are not connected to the solid network. These clusters do not contribute to the heat transfer. The contact area between secondary nanoparticles and the overall porosity of the secondary aerogel nanoparticles significantly influence the aerogel microstructure for a given density and, thereby, impact the total thermal conductivity of silica aerogels [64]. These structural descriptors, such as the nanoparticle size, neck contact area between adjacent particles, and network tortuosity, therefore, serve as key design levers. As the solid framework decreases in size to the nanoscale, phonon scattering increases, leading to a substantial reduction in solid-state thermal conduction, a phenomenon known as the size effect in the solid structure of aerogels [65].

2.4. Beyond Nanoparticle-Based Aerogels: Emerging Architectures

While classical aerogels are typically formed from aggregated nanoparticles (0D building units) arranged in necklace-like fractal networks, recent advances in synthesis have enabled a broader range of aerogel architecture based on different dimensional building blocks. These include one-dimensional (1D) nanofiber-based aerogels, such as cellulose [66], polymer [67,68], and ceramic [69] nanofiber networks, two-dimensional (2D) nanosheet-based aerogels, including graphene [70] and MXene [71] assemblies, and hierarchical composite structures [72] that combine multiple length scales and building-unit types. These emerging architectures exhibit distinct structural characteristics compared to traditional particle-based aerogels. Fibrous aerogels typically display higher connectivity and anisotropic networks with reduced thermal constriction resistance along fiber pathways, while nanosheet-based aerogels introduce layered structures with enhanced scattering and interfacial resistance. Hierarchical and hybrid systems further enable independent tuning of pore size distribution, connectivity, and mechanical properties across multiple length scales. From a thermal transport perspective, these structural differences significantly influence heat conduction mechanisms. One-dimensional networks can reduce phonon scattering along continuous pathways while increasing tortuosity at larger scales, whereas two-dimensional assemblies enhance interfacial scattering and can modify radiative transport through increased absorption and scattering of infrared radiation. These effects highlight that thermal conductivity in aerogels cannot be understood within a single structural paradigm, but must instead be interpreted within a broader, structure-dependent framework that encompasses multiple architectural classes.

2.5. Anisotropic Aerogels and Directional Thermal Transport

In addition to isotropic nanoparticle-based aerogels, recent developments have enabled the fabrication of anisotropic aerogels with directionally aligned pore structures, often inspired by natural materials such as wood [73,74,75]. These structures are commonly produced using techniques such as freeze casting [39,76], directional solidification [77], or templating [78,79], resulting in lamellar or channel-like architectures with distinct axial and transverse directions. Such anisotropic architectures give rise to strongly direction-dependent thermal conductivity. In the direction parallel to aligned channels or fibers, heat can propagate more efficiently due to enhanced connectivity, whereas in the perpendicular direction, increased tortuosity and scattering lead to significantly reduced thermal conductivity. As a result, anisotropic aerogels can exhibit exceptionally low thermal conductivity in one direction while maintaining structural integrity in another.

4. Conclusions

This review examines the structural features, heat transfer mechanisms, and modeling approaches that enable ultra-low thermal conductivity in nanoporous aerogels. Their superior insulation arises from the coupled action of the interacting processes of solid-phase phonon conduction, Knudsen-suppressed gas conduction, and gas–solid coupled conduction. These mechanisms cannot be fully isolated either experimentally or theoretically. Solid conduction is strongly reduced below bulk values by phonon constriction at inter-particle necks and nanoscale effects. However, analytical models typically account for fractal geometries and single representative pore sizes while ignoring the effect of polydispersity. Gaseous conduction follows the Knudsen regime. Even though modeling has improved from single-pore approximations to pore-size-distribution-aware frameworks, there has been no resolution for the incorporation of accommodation coefficients, gas-specific effects, and gas–solid coupling. Experimentally, reliance on indirect pressure-dependent subtraction methods introduces systematic errors, and interlaboratory variability largely reflects methodological differences rather than material differences. Gas–solid coupling remains the least characterized term, since it is not directly measured or validated, and is geometrically oversimplified in models. Therefore, it requires particular scrutiny. Rather than representing a distinct heat transfer channel, it frequently compensates for deficiencies in the solid and gas models. This occurs especially where confinement, interfacial scattering, and gas–surface interactions act simultaneously and cannot be correctly partitioned. These modeling limitations are compounded by poor experimental standardization, and discrepancies between models and experiments cannot be attributed to theory alone [49]. Total effective conductivity shows a characteristic non-monotonic dependence on density due to competing trends among the individual mechanisms. Density alone does not capture pore connectivity, neck geometry, tortuosity, or pore-size distribution, which are all strongly involved in heat conduction through aerogels. In future studies, multi-scale models linking atomistic phonon transport to realistic mesoscale networks would be required in order to determine the gas–solid coupling contribution to the total effective thermal conductivity. Along with this, standardized experimental protocols with comprehensive structural characterization are necessary to make reliable comparisons.
  • The widespread use of an additive thermal conductivity decomposition in aerogels has outpaced the physical justification for treating its individual terms as independent and separately measurable.
  • The persistent introduction of a third “coupling” contribution is a symptom that current solid and gas models are incomplete, not proof that the conductivity can always be partitioned into three clean channels.
  • Density and porosity are useful screening parameters, but they fail as general predictive variables because they do not encode pore connectivity, neck geometry, or pore-size polydispersity.

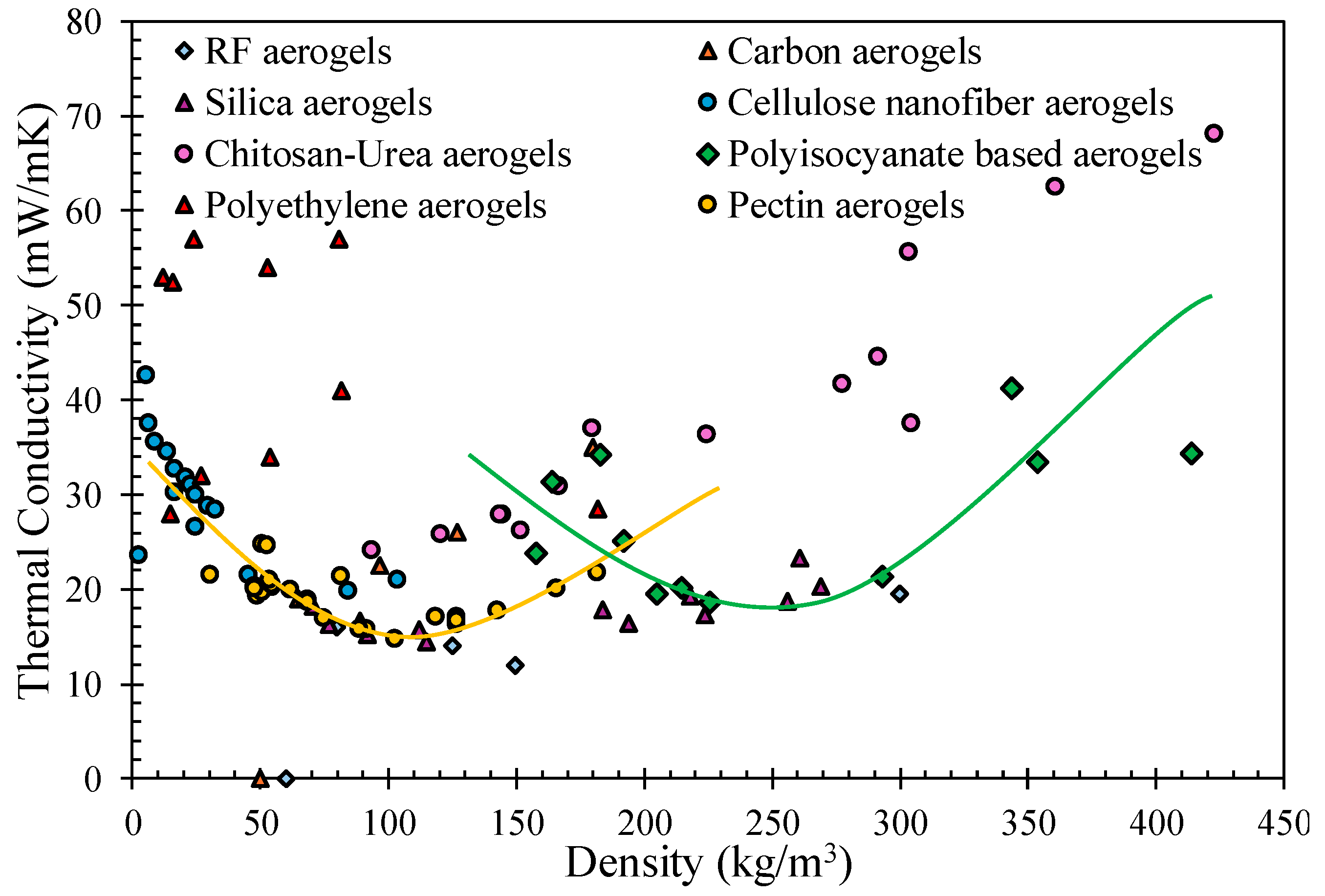

  • The observed V-shaped conductivity–density behavior across aerogel families is direct evidence that one-parameter descriptions are inadequate.
  • A physically meaningful design framework must treat aerogel conductivity as a structure-sensitive, multi-scale transport problem rather than a fitted sum of nominal phase contributions.
The mechanisms and models reviewed here were developed predominantly within the silica aerogel literature, which provides the most mature experimental and modeling foundation. However, the underlying physics, Knudsen-suppressed gas conduction, phonon constriction at inter-particle contacts, and gas–solid interfacial energy exchange are not silica-specific. Gas-phase models transfer most directly across aerogel families, as they depend on pore geometry rather than solid chemistry. Solid-phase models transfer qualitatively to other particle-aggregated systems such as RF and carbon aerogels but require re-parameterization for fibrillar systems. Coupling models occupy an intermediate position: the Bi-Tang framework has been validated across silica, carbon, and RF aerogels, but its geometric assumptions limit direct application to fibrillar morphologies. Where conclusions in this review are drawn from silica-dominated datasets, they should be interpreted as establishing the framework rather than universal quantitative predictions. As highlighted by Malfait et al. [49], the lack of standardized measurement and reporting protocols introduces systematic uncertainty into the literature, meaning that discrepancies between models and experiments cannot be attributed to theory alone.
Emerging aerogel architecture based on 1D and 2D building units further reinforces the need for structure-aware models, as they introduce fundamentally different transport pathways compared to classical nanoparticle networks. The emergence of anisotropic aerogels further underscores that thermal transport must be treated as a direction-dependent, structure-sensitive phenomenon rather than a scalar material property. Unreported environmental factors such as humidity further contribute to the variability and limited comparability of thermal conductivity data across the literature. Ultimately, next-generation aerogel insulators will require moving beyond density optimization to simultaneous targeted engineering of pore-size distribution, backbone connectivity, and surface chemistry, guided by the structure–property relationships outlined here, to minimize all heat transfer pathways in concert. Radiative heat transfer, while important under high-temperature conditions, is not treated in detail here, as the present review focuses on conduction-dominated transport mechanisms.
