Template-Free Wet-Spinning of Multifunctional Sodium Alginate Hollow Hydrogels

Abstract

Hollow hydrogels are promising for flexible electronics and bioengineering, yet their fabrication is limited by sacrificial templates, specialized equipment, and complex engineering processes. Herein, a facile wet-spinning strategy is developed to fabricate sodium alginate (SA) hollow hydrogels. Extruding SA/CaCO₃ precursor suspension into an acidic coagulation bath induces simultaneous ionic cross-linking and in situ CO₂ generation, driving the self-formation of hollow tubular architectures with tunable morphologies, mechanical performance, macroscopic architecture, and functional properties. Moreover, the introduction of secondary cross-linking enhances the SA hydrogels’ water retention and resistance to freezing conditions. Utilizing their intrinsic ionic conductivity, the hollow hydrogels demonstrate outstanding sensing performance, enabling reliable detection of both large-amplitude limb motions and subtle muscle activity in the human body. Furthermore, hollow hydrogel tubes with diverse geometries can be readily fabricated by simply modifying the spinning mold, thereby broadening their potential applications. In vitro cytotoxicity assessments further confirm that the SA hollow hydrogels exhibit excellent biocompatibility with minimal cytotoxicity, satisfying the fundamental criteria for bioengineering applications. The combination of a simple yet controllable fabrication strategy with the intrinsic multifunctionality of the SA hollow tubes confers substantial potential for their deployment in bioengineering and flexible electronic applications.

1. Introduction

Hydrogels are three-dimensional, hydrophilic polymeric networks characterized by high water content, pronounced hygroscopicity, mechanical compliance, and exceptional extracellular matrix (ECM)-mimicking characteristics [1,2,3]. These attributes have positioned hydrogels as highly attractive materials for a wide range of applications, including soft actuators, robotic systems, flexible electronic devices such as strain sensors, and wearable platforms, as well as biomedical technologies, notably drug delivery and tissue engineering [4,5,6,7]. The architectural configuration and geometric design of hydrogels play a critical role in governing their physicochemical properties and functional performance. In particular, hollow tubular hydrogels have attracted growing interest owing to their vessel-like architectures, inherent permeability, geometrical tunability, and programmable functionality, rendering them highly attractive for advanced applications [8,9,10,11]. However, fabricating hollow hydrogels with well-defined architectures and integrated multifunctionality remains challenging, thereby constraining their practical implementation and large-scale application.

At present, extensive efforts have been devoted to the fabrication of hollow hydrogel structures. Among the available approaches, co-axial microfluidic spinning has emerged as a simple and versatile strategy for producing hydrogel microtubes, encompassing alginate-based and composite systems as well as gelatin methacryloyl (GelMA)-based hydrogel microtubular architectures [9,12,13,14,15,16,17,18]. Despite these advances, the resulting hydrogel microtubes generally exhibit insufficient mechanical robustness, which severely restricts their long-term stability and performance in biological environments. Alternatively, direct extrusion of highly concentrated prepolymer solutions through co-axial nozzles can produce high-strength hydrogel tubes. However, this strategy is inherently limited in its ability to produce complex, branched, hollow architectures. In contrast, three-dimensional (3D) printing has emerged as an effective technique for precisely fabricating uniform hollow hydrogel structures with controlled geometries [19,20,21]. However, the stringent demands for sophisticated instrumentation, complex printing protocols, and tightly controlled material formulations frequently impede the facile, scalable production of hollow hydrogel structures [22]. Template-assisted fabrication strategies, such as layer-by-layer assembly, electrodeposition, photopolymerization, thermal polymerization, and micromolding, have also been employed to construct hydrogel tubular structures [23,24,25,26,27,28]. However, the subsequent removal of sacrificial templates often induces structural damage, thereby weakening the integrity and reliability of the resulting hollow hydrogels [26,27,28].

Despite their widespread adoption, these fabrication strategies continue to encounter fundamental scientific and technical limitations, including: (i) achieving precise control over tubular dimensions and geometries; (ii) imparting high mechanical strength while maintaining adequate elasticity; (iii) enabling the straightforward construction of complex 3D hydrogel tubular ensembles; and (iv) realizing the integration of multiple functional attributes within a single structure. Accordingly, there is a strong need for a simple, scalable fabrication strategy for multifunctional hollow hydrogels, which requires careful selection of suitable precursor materials and an innovative processing approach.

Sodium alginate (SA), a naturally occurring anionic polysaccharide extracted from brown algae, has emerged as a highly attractive hydrogel precursor owing to its excellent biocompatibility and biodegradability, thereby avoiding the cytotoxicity concerns commonly associated with synthetic polymer systems [29,30]. The rapid ionic cross-linking of SA (e.g., via Ca²⁺ coordination) facilitates in situ gelation. At the same time, its abundant carboxyl functionalities impart high ionic conductivity, collectively providing a robust platform for multifunctional integration [31,32]. In addition, SA-based hydrogels offer readily tunable mechanical properties and cost-effectiveness, further reinforcing their suitability for practical applications across diverse fields.

In previous research, Zhang et al. fabricated SA tubes via a template-free film-to-tube conversion route in a CuSO₄/H₂O₂/Tris–HCl system. While effective, this method inevitably introduces cytotoxic Cu²⁺ ions and relies on a two-step film-to-tube transformation process [33,34]. To address these issues and fully exploit the intrinsic properties of SA, we herein develop a simple, one-step, and template-free approach for constructing hollow SA tubes. This fundamental innovation in chemical implementation not only completely avoids the use of heavy metal ions but also eliminates the need for the pre-fabrication of films, significantly streamlining the fabrication process while ensuring biocompatibility. Specifically, our method involves immersing the spun precursor mixture into an external acid medium, where coupled external ionic cross-linking and internal gas evolution synergistically drive the formation of hollow tubular structures. The morphology and wall thickness of the hollow tubes can be readily modulated by tuning the solution pH and CaCO₃ content, while their mechanical performance can be systematically adjusted to satisfy the demands of specific application scenarios. Furthermore, the hollow hydrogels display multiple integrated functionalities (including anti-drying, anti-freezing, and sensing capabilities), and enable the construction of increasingly complex hollow architectures, such as tortuous single-channel, bifurcating, and quadrifurcate vasculature-like networks. Together, this combination of methodological innovation and multifunctional integration emphasizes their considerable potential in flexible electronics and advanced biomedical engineering.

2. Results and Discussion

2.1. Fabrication and Characterization of the SA Hollow Hydrogel

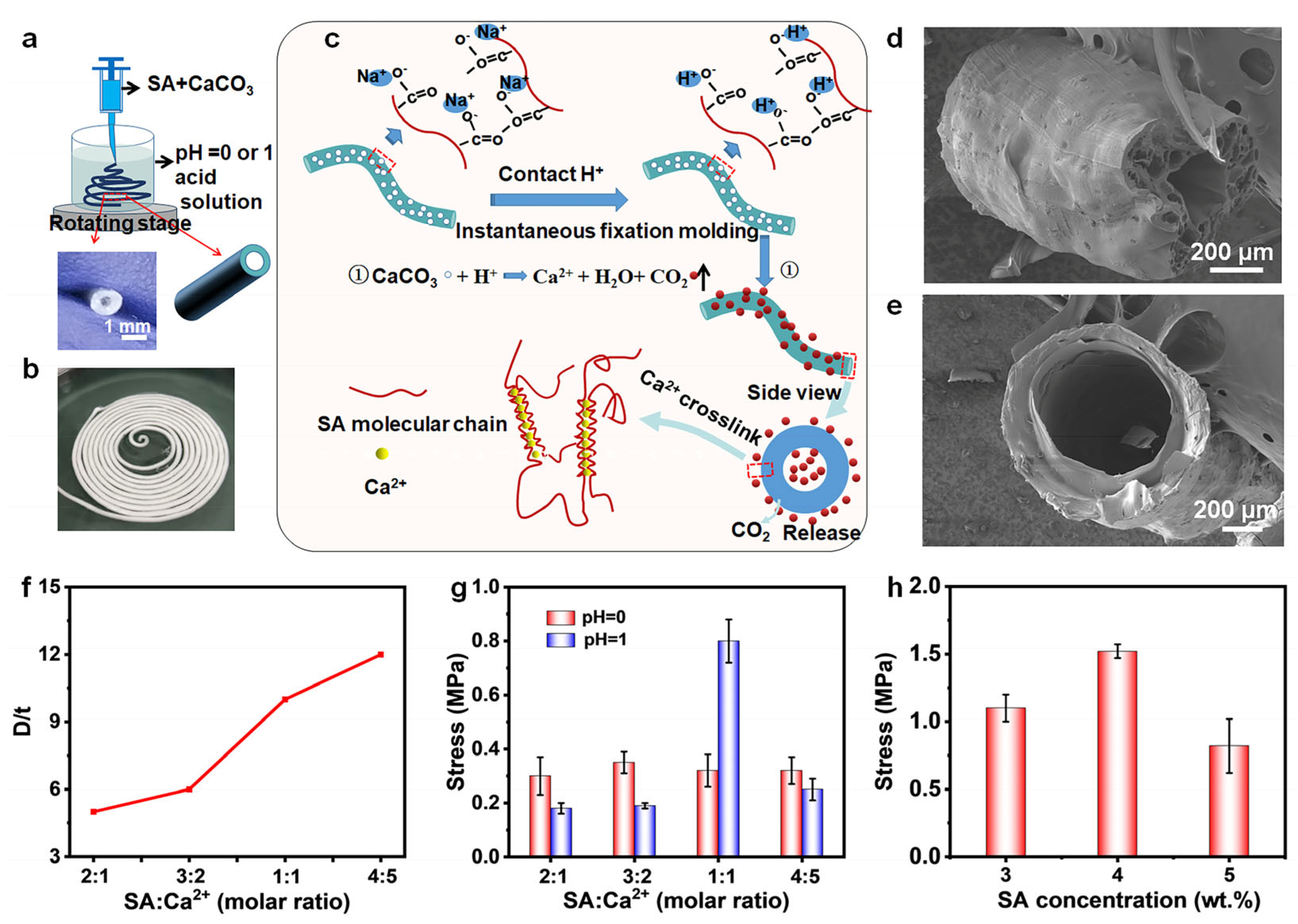

As schematically depicted in Figure 1a, SA hollow hydrogels were fabricated by extruding an SA/CaCO₃ spinning mixture into hydrochloric acid coagulation baths at theoretical pH 0 and 1. Following extrusion, the samples were maintained in the acidic gelation medium, allowing their transformation into interconnected hollow tubular structures, as confirmed by the corresponding optical images. Consequently, this approach is readily scalable and well suited for the large-scale production of hollow SA hydrogels (Figure 1b). Notably, the underlying formation mechanism of the hollow structures differs fundamentally from those of conventional 3D printing and co-axial microfluidic techniques. In the present strategy, hollow architecture generation proceeds through two distinct yet coupled processes, as schematically illustrated in Figure 1c. Upon contact between the spinning mixture and the acidic coagulation bath, rapid interfacial cross-linking occurs through protonation of the carboxyl groups of SA by H⁺ ions, effectively suppressing alginate dissolution in the aqueous medium. Notably, the pH values of the acidic solutions employed are lower than the pKa values of the SA constituent monomers, namely (β-D)-mannuronic acid (pK_a ≈ 3.38) and (α-L)-guluronic acid (pK_a ≈ 3.65), thereby ensuring efficient proton-mediated gelation [35,36]. In the strong acids (HCl), rigid shapes are obtained at pH values below 2. At higher pH values (2, 3, 4, 5), insufficient protons are available to liberate calcium ions, inhibiting the cross-linking of the hydrogel (Figure S1). Under these conditions, the carboxylate groups along the SA backbone undergo protonation, leading to the formation of SA gels stabilized by extensive intermolecular hydrogen bonding. This protonation-induced network formation further promotes and reinforces the cross-linking of the hydrogel matrix. Subsequently, H⁺ ions react with CaCO₃ within the hydrogel matrix, generating Ca²⁺ ions and CO₂ gas in situ. The released Ca²⁺ ions further ionically cross-link the SA chains, while the concurrent evolution and outward diffusion of CO₂ bubbles drive the formation of internal voids, ultimately giving rise to hollow tubular structures. Consequently, gas generation within the hydrogel plays a critical role in directing and stabilizing tube formation [9,33,34,37].

To further elucidate the internal microstructure of the hollow tubes formed by injecting the spinning precursor into gelation baths of varying pH, cross-sectional morphologies of the hydrogels were examined using scanning electron microscopy (SEM). As shown in Figure 1d,e, a well-defined central hollow cavity is clearly observed, confirming the successful formation of hollow tubular architectures. Although hollow hydrogel fabricated under different pH conditions exhibit distinct internal microstructures, all samples maintain a circular cross-sectional geometry. SEM analysis of the hollow hydrogels prepared at pH 0 (Figure 1d) reveals a porous wall morphology with pore sizes ranging from approximately 10 to 75 µm and an average pore size of 25 µm. The pore wall thickness is about 110 µm, while the inner hollow core diameter is approximately 225 µm. In contrast, the hollow hydrogels formed at pH 1 exhibit a comparatively dense wall structure with an average thickness of approximately 130 µm, as shown in Figure 1e. The observed differences in wall microstructure can be attributed to variations in CO₂ generation and release behavior under different pH conditions. Specifically, the more vigorous gas evolution within the hydrogel matrix at pH 0 leads to extensive pore formation, resulting in highly porous SA tube walls. In addition to pH, the inner diameter (ID) and outer diameter (OD) of the hollow tubes are strongly governed by the molar ratio of calcium ions to carboxyl groups in the precursor system. The results reveal that the tube wall thickness decreases approximately linearly with increasing SA/Ca²⁺ ratio, as illustrated in Figure 1f. Increasing the CaCO₃ content enhances the extent of CO₂ generation during the acid–carbonate reaction, thereby promoting expansion of the inner cavity and resulting in a larger inner diameter. Simultaneously, the elevated release of Ca²⁺ ions increases the ionic cross-linking density of the SA network, leading to greater gel contraction and, consequently, a reduction in tube wall thickness.

As anticipated, the molar ratio of SA/Ca²⁺ strongly influences the mechanical strength of the hydrogels. As shown in Figure 1g, at low CaCO₃ loadings (molar ratio 2:1 and 3:2), the pH 0 samples consistently exhibit higher stress values than their pH 1 counterparts. This behavior arises because the pH 0 environment contains approximately an order of magnitude higher H⁺ concentration, which accelerates CaCO₃ dissolution and leads to a greater release of Ca²⁺ ions. The resulting higher Ca²⁺ availability promotes the formation of denser “egg-box” ionic cross-linking networks between Ca²⁺ and SA carboxyl groups [38], thereby enhancing the mechanical strength of the hydrogel. At a molar ratio of 1:1, the pH 1 samples display a pronounced increase in mechanical strength, reaching a peak stress of approximately 0.8 MPa and surpassing that of the pH 0 group. At this higher CaCO₃ content, sufficient Ca²⁺ ions are available to achieve extensive cross-linking, while the relatively moderate H⁺ concentration in the pH 1 environment allows for a more controlled Ca²⁺ release. This balanced ion release promotes the formation of a uniform, densely packed cross-linked network, ultimately resulting in superior mechanical performance. In contrast, the excessively rapid release of Ca²⁺ in the pH 0 environment leads to localized over-crosslinking, resulting in the formation of brittle domains that compromise the mechanical integrity of the hydrogel. At a molar ratio of 4:5, a decline in stress is observed in both pH conditions, as the excessive availability of Ca²⁺ induces non-uniform over-crosslinking within the SA network, thereby deteriorating overall mechanical performance. Such an excessively dense network structure increases material brittleness, reflecting the well-known trade-off between cross-linking density and toughness in polysaccharide-based hydrogels, and ultimately leads to reduced mechanical strength. Overall, the mechanical performance of SA/CaCO₃ hydrogel is synergistically governed by both the kinetics of Ca²⁺ release and the total availability of Ca²⁺ ions.

In addition, the effect of C_SA content on the mechanical performance was systematically investigated. As the C_SA concentration increased to 4 wt.%, the hydrogel strength initially rose to approximately 1.5 MPa and then decreased (Figure 1h). This behavior can be attributed to the excessive increase in solution viscosity at higher C_SA loadings (Figure S2), which compromises the homogeneity of the SA/CaCO₃ precursor mixture and leads to non-uniform cross-linking density within the resulting hydrogel network. Given the tunable mechanical properties achieved via optimized preparation conditions, a comparative evaluation with other reported systems was conducted to assess the performance of the hollow hydrogel tubes. As shown in Table S1, the hollow hydrogel exhibited excellent mechanical performance, surpassing that of most existing biopolymer-based hollow fibers or tubes. This superior mechanical advantage endows the hollow hydrogel tubes with promising applications as structural biomaterials.

2.2. Enhanced Water Retention, Freeze Resistance, and Mechanical Properties of the SA Hollow Hydrogel

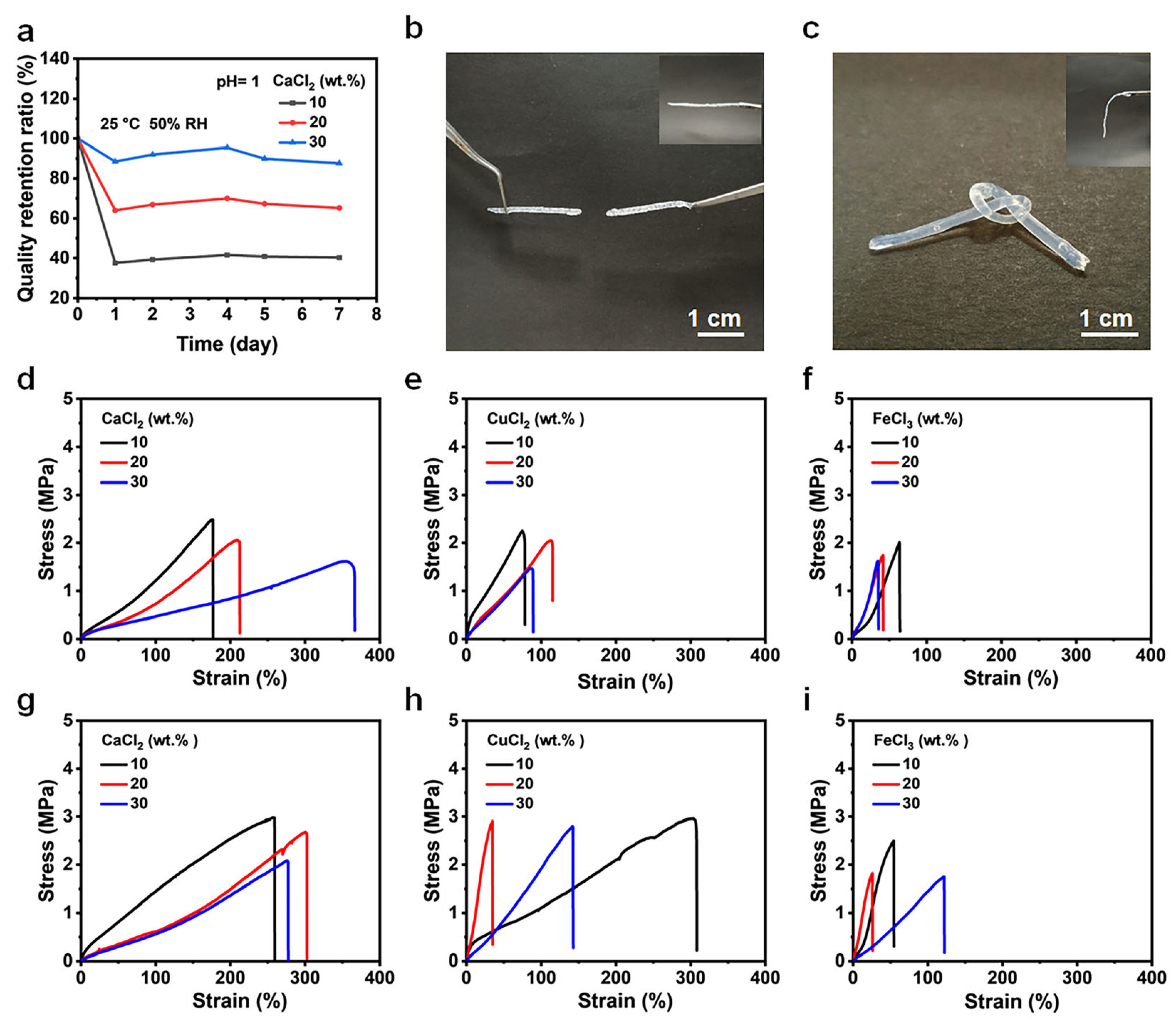

Owing to residual, uncoordinated carboxylate groups, the as-fabricated hollow hydrogels can undergo secondary ionic cross-linking upon immersion in CaCl₂ solutions of varying concentrations. This post-treatment markedly improves their water retention capability, antifreezing performance, and overall mechanical properties. Progressively increasing the CaCl₂ concentration from 10% to 30% led to a steady improvement in the water retention capacity of the hydrogels, reaching a maximum value of approximately 87% after 7 days at 30% CaCl₂ treatment, as shown in Figure 2a. The improved water retention performance can be attributed to the formation of calcium alginate ‘egg-box’ architectures, in which Ca²⁺ ions ionically bridge neighboring alginate chains, thereby restricting water diffusion, as well as to additional hydrogen bond interactions between Ca²⁺ ions and hydroxyl groups within the polymer matrix. To further clarify the origin of water retention, the leaching behavior of free CaCl₂ was evaluated by electrical conductivity measurements. The initial electrical conductivity was determined to be 3.18 S/m (Figure 3a), and a conductivity decrease of approximately 41% was observed after immersion into water, verifying that free CaCl₂ leached out from the hydrogel. Despite the leaching of free CaCl₂, the hydrogel still maintained a low swelling ratio of about 8.3% (Figure S3) and excellent structural stability. These results clearly confirm that the outstanding water retention mainly originates from the stable egg-box cross-linked network and hydrogen-bonding interactions.

Furthermore, secondary cross-linking imparts pronounced antifreezing capability to the as-fabricated hydrogel. As illustrated in Figure 2b,c, hydrogels lacking secondary cross-linking undergo rapid brittle fracture upon knotting at −20 °C, whereas the secondarily cross-linked hydrogels maintain structural integrity, tolerate knot deformation without failure, and preserve remarkable flexibility under subzero conditions. In addition to markedly enhancing freezing resistance, Ca²⁺ incorporation significantly improves the mechanical robustness of the hydrogel. To substantiate this effect, secondarily cross-linked hollow hydrogels were subjected to tensile testing using a universal mechanical testing system both before and after freezing at −20 °C. At ambient temperature, hydrogels immersed in 10, 20, and 30 wt.% CaCl₂ solutions exhibit comparable tensile stress–strain profiles, with the highest tensile strength (2.5 MPa) observed for the 10 wt.% CaCl₂-treated sample. Notably, all secondarily cross-linked hydrogels demonstrate superior mechanical strength relative to the hydrogel without secondary cross-linking (Figure 2d). The improvement in mechanical performance induced by secondary cross-linking is predominantly attributed to strong coordination interactions between Ca²⁺ ions and the residual carboxylate groups along the SA chains. These coordination interactions generate additional ionic cross-linking nodes, resulting in a denser, more compact polymer network with enhanced chain entanglement and load-bearing capacity. Free Ca²⁺ ions from the 10 wt.% CaCl₂ solutions diffuse uniformly throughout the hydrogel matrix and coordinate with previously uncross-linked carboxylate groups, forming additional stable ionic cross-linking points. This homogeneous increase in cross-linking density effectively reinforces the mechanical strength of the hydrogel while avoiding excessive over-crosslinking that could otherwise lead to brittleness.

In contrast, when the CaCl₂ concentration exceeds 10 wt.% (i.e., 20 and 30 wt.%), non-uniform ionic cross-linking and localized over-densification of the polymer network are likely to occur. This structural heterogeneity progressively compromises mechanical performance relative to the optimal 10 wt.% condition, although the resulting strength remains higher than that of the hydrogel without secondary cross-linking. Figure 2g presents the tensile strength of hydrogels treated with varying CaCl₂ concentrations, which was tested after freezing treatment at −20 °C, revealing a 20–30% increase in strength relative to measurements conducted at room temperature. This enhancement in mechanical performance is attributed to the formation of a low-temperature “slurry-like” microstructure, which improves load transfer and structural integrity [39]. In addition, Cu²⁺ and Fe³⁺ ions are capable of forming coordination cross-links with SA [40], thereby further reinforcing the mechanical performance of the hollow hydrogel while simultaneously conferring antifreezing functionality, as evidenced in Figure 2e,f,h,i and Figure S4. However, hydrogels cross-linked with Cu²⁺ or Fe³⁺ ions display reduced ductility compared with their Ca²⁺-cross-linked counterparts. From a practical standpoint, the salt type and concentration can be carefully tailored to balance stretchability and fracture toughness within the intended operating temperature range.

2.3. Sensing Properties of the SA Hollow Hydrogel

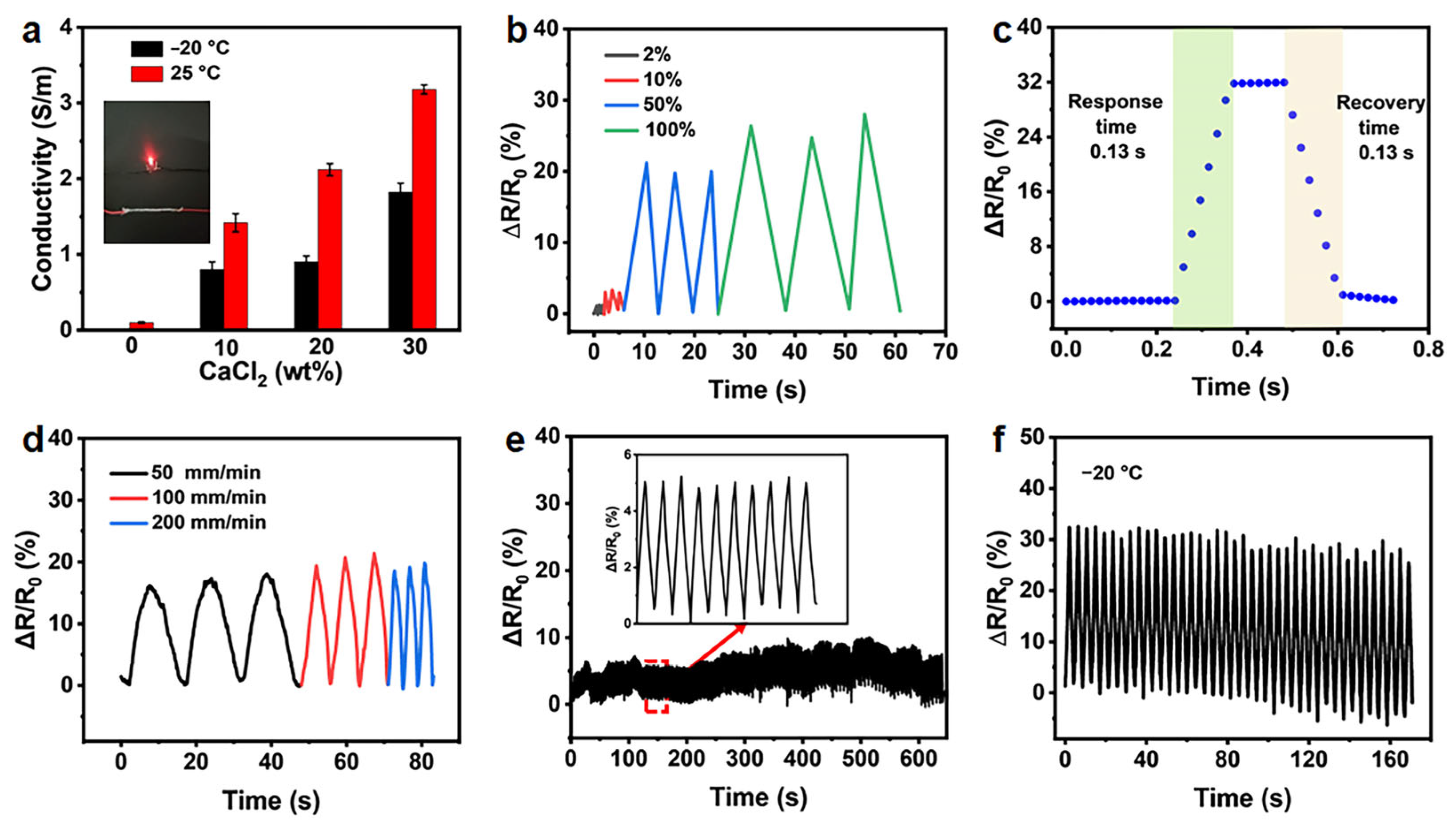

The hydrogels exhibit appreciable ionic conductivity of 0.1 S m⁻¹ at 25 °C (Figure 3a). Utilizing this intrinsic ionic conduction, the SA hollow hydrogel shows strong potential as a flexible sensing material. Upon exposure to external mechanical stimuli, hydrogel deformation induces measurable variations in electrical resistance or conductivity, enabling reliable signal transduction. The relative change in electrical resistance was employed as the sensing signal to quantify strain variation, defined as ΔR/R₀ = (R − R₀)/R₀, where ΔR represents the resistance change induced by deformation, R denotes the resistance under applied strain, and R₀ corresponds to the initial resistance of the undeformed hydrogel.

Figure 3b illustrates the characteristic electrical response of the SA hydrogel sensor under small and large applied strains. The results reveal a monotonic increase in relative electrical resistance with increasing tensile strain, confirming that the fabricated hydrogels exhibit a clear, reproducible electromechanical response to mechanical deformation. The hydrogel sensor exhibits a rapid response time of approximately 0.13 s during both loading and unloading cycles (Figure 3c), which outperforms most currently reported SA-based hydrogels [32,41,42,43]. This short response time demonstrates the material’s ability to respond to external stimuli swiftly, enabling real-time monitoring of dynamic sensing signals. As depicted in Figure 3d, the SA hydrogel sensor delivers stable, reproducible signal amplitudes at identical strain levels across stretching rates of 50, 100, and 200 mm min⁻¹, demonstrating rate-independent sensing behavior. Signal stability is a critical criterion for assessing the practical applicability of hydrogel-based sensors. As shown in Figure 3f, the hydrogel sensor maintains stable, repeatable electrical responses over 300 consecutive stretching–relaxation cycles at a tensile strain of 20%, demonstrating high strain-sensing sensitivity, excellent operational stability, and fatigue resistance. Moreover, the secondary cross-linked hydrogels retain effective ionic conductivity at temperatures well below the freezing point of water (Figure 3a). Coupled with their preserved stretchability and mechanical toughness under subzero conditions, the electromechanical loading−unloading curves of the secondary cross-linked hydrogel after freezing treatment at −20 °C, are stable over 40 cycles at a small strain of 20%. This capability broadens their applicability for sensing and functional operations in cold environments.

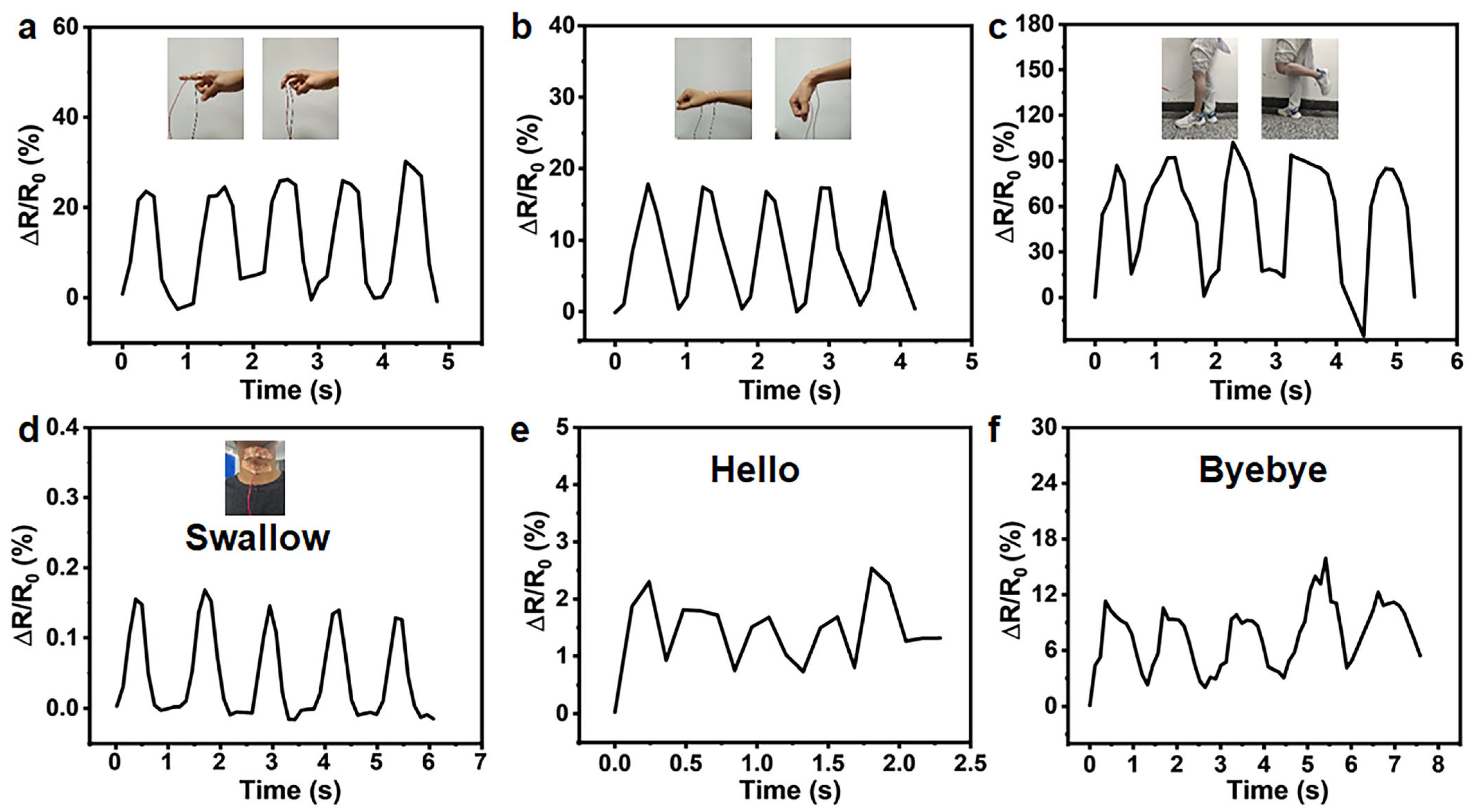

Owing to its broad strain-sensing range, the fabricated SA hollow hydrogel can be directly integrated onto human skin for motion detection. As illustrated in Figure 4, progressive bending of body joints, including fingers, wrists, knees, and the neck, during stepwise grasping and movement induces distinct, incremental increases in relative electrical resistance, demonstrating the sensor’s ability to transduce diverse human motions into measurable electrical signals reliably. The relative resistance variations are fully synchronized with the repetitive motions of the fingers, wrists, knees, and neck, indicating reliable, real-time motion tracking. Furthermore, the SA hollow hydrogel can detect subtle physiological activities, such as swallowing and speech-related movements, as demonstrated in Figure 4d–f. Upon three consecutive repetitions of identical words by the same individual, the time-resolved relative resistance responses display highly consistent peak-valley patterns, indicating excellent signal repeatability. These results demonstrate that the SA hollow hydrogel possesses robust human motion sensing capabilities and holds strong promise for advanced wearable sensing applications.

2.4. SA Hollow Hydrogel with Complicated Shape

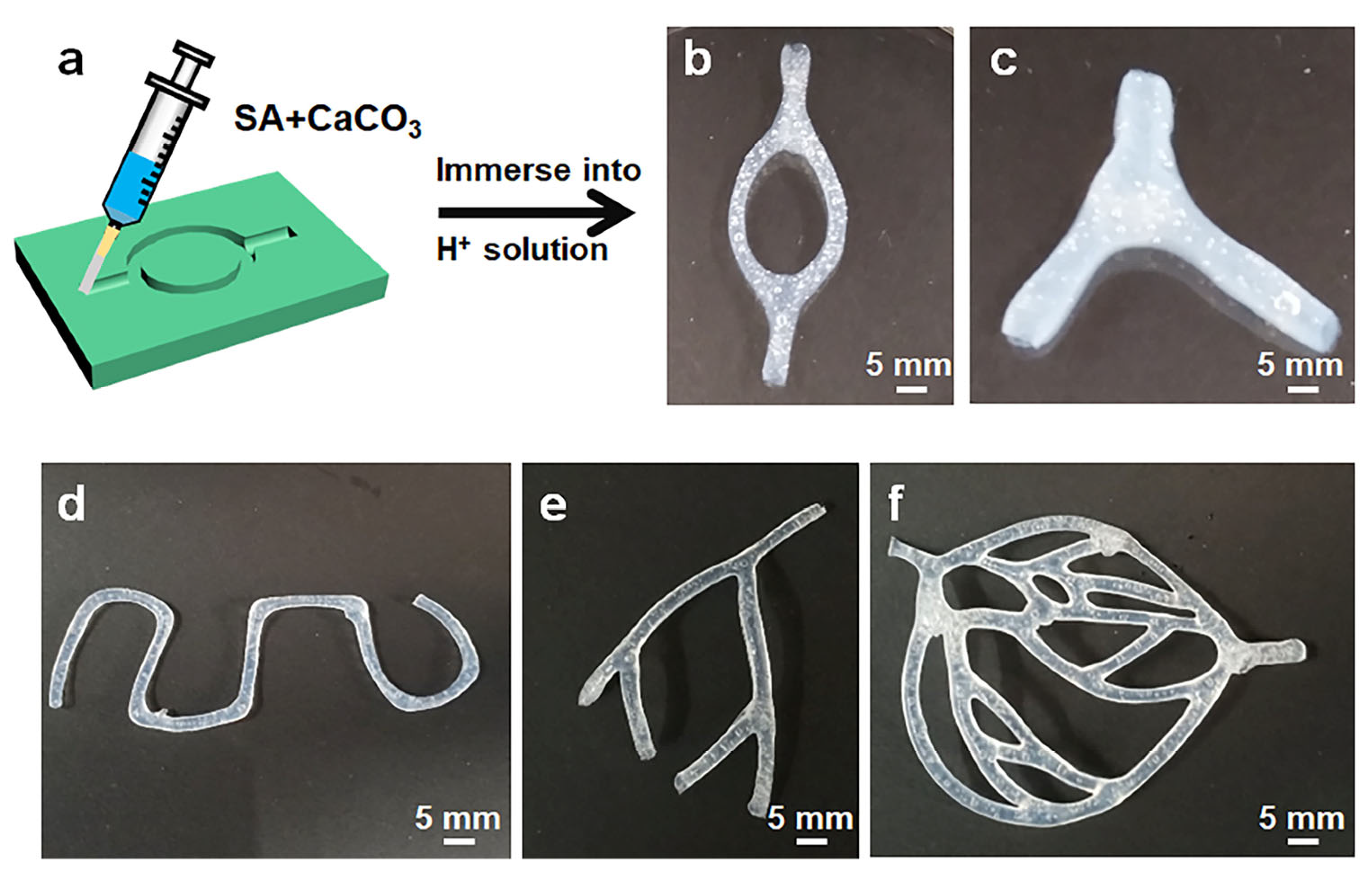

Beyond the facile fabrication of individual hollow hydrogels, the present strategy is highly versatile for constructing SA hollow hydrogels with complex 3D architectures. As illustrated in Figure 5a, a straightforward, scalable preparation process is used to generate these hollow hydrogel structures. A controlled volume of the spinning precursor was injected into the prefabricated mold and subsequently immersed in hydrochloric acid for several hours. During this process, a Ca-alginate physical hydrogel was formed within the mold via ionic cross-linking induced by Ca²⁺ ions. The resulting cross-linked hollow hydrogel can be readily removed from the mold while preserving the mold-defined geometry. From a fabrication standpoint, virtually any hydrogel architecture can be realized provided an appropriate mold is available, including interconnected tubular networks, bifurcating networks, tortuous single-channel networks, quadrifurcate vasculature-like structures and even sophisticated circulatory system of blood vessels, as demonstrated in Figure 5b–f. These findings clearly demonstrate the versatility of the proposed strategy for fabricating diverse, complex-shaped, 3D freestanding hydrogel architectures.

2.5. Biocompatibility of the SA Hollow Hydrogel

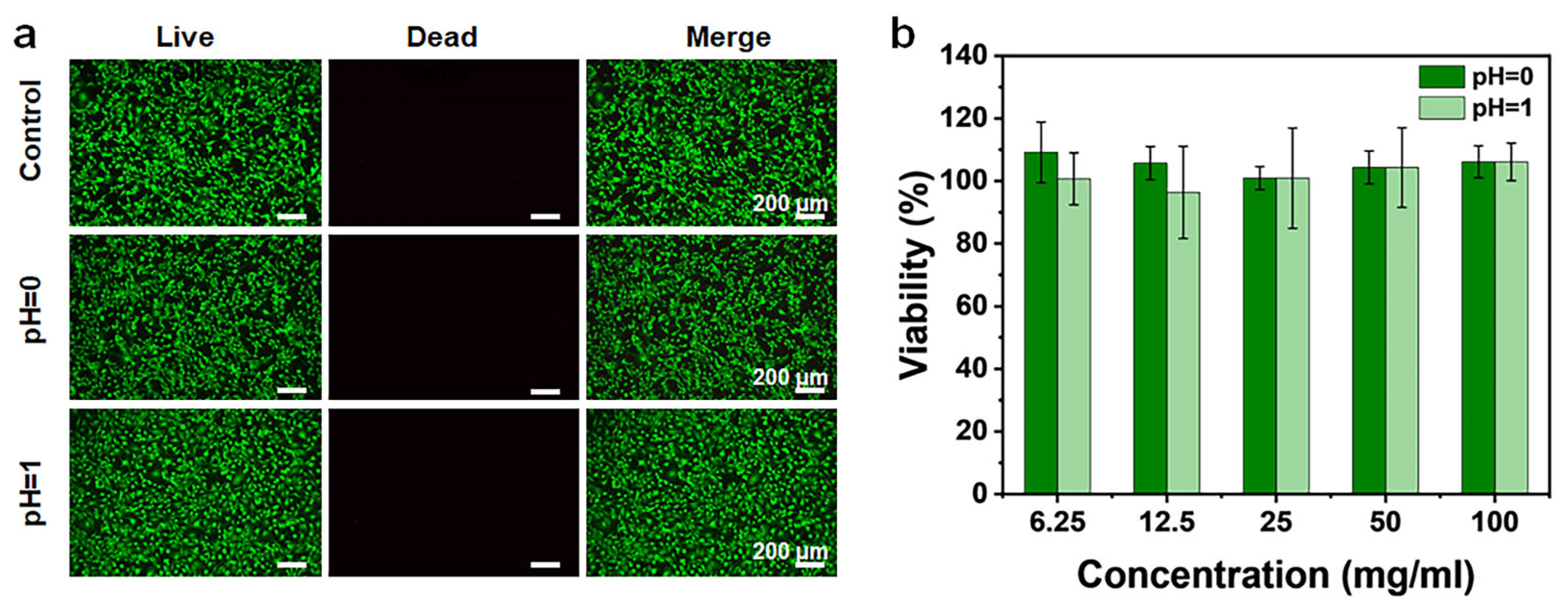

Alginate hydrogels are among the most widely used biomaterials for biomedical applications due to their high permeability, excellent biocompatibility and biodegradability, low cytotoxicity, and capability for in situ ionic cross-linking [44,45]. Accordingly, the in vitro cytocompatibility of the SA hollow hydrogel was systematically assessed using a 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay. Fluorescence microscopy images revealed that after 24 h of incubation, cells maintained high viability, characterized by a uniform distribution of green-fluorescent live cells and only occasional red-fluorescent dead cells (Figure 6a). Consistently, MTT assay results showed that cell viability remained high (≥95%) across all tested extracts at different concentrations (Figure 6b), indicating negligible cytotoxicity of the SA hollow hydrogel. These findings confirm that the hydrogel tubes exhibit excellent biocompatibility and minimal cytotoxicity. In addition to cytocompatibility, the physiological stability of the hollow hydrogel tubes was further evaluated under simulated biological conditions. The swelling behavior, which is fundamental for tissue engineering performance, showed that water uptake increased progressively during the first 6 h and then reached equilibrium (Figure S5a,b). Specifically, after 6 h of immersion in phosphate-buffered solution (PBS), the hydrogels prepared at pH 0 and pH 1 exhibited swelling ratios of approximately 480% and 670%, respectively. More importantly, after immersion in PBS (pH 7.4) at 37 °C for up to one week, the hollow hydrogels retained their tubular structure and structural integrity with no obvious dissolution, collapse, or degradation, while their diameters increased to about 2.0-fold and 2.3-fold of the original values (Figure S6a,b). These results demonstrate that the hollow hydrogels possess sufficient structural stability for short-to-medium term applications under physiological conditions, despite undergoing significant initial swelling. Owing to their tunable physicochemical properties and well-defined hollow architecture, the hydrogel tubes developed in this study show strong potential for use as artificial blood vessels, emphasizing the critical role of hollow hydrogel systems in the engineering of tubular tissues.

3. Conclusions

In summary, a facile wet-spinning approach was developed to fabricate SA hollow hydrogels without reliance on complex processing steps. The resulting hollow hydrogels exhibit precisely controllable dimensions and a combination of outstanding properties, including tunable morphology and enhanced mechanical performance. These key properties can be readily tuned by modulating the pH of the coagulation bath and the concentrations of SA and CaCO₃. Notably, the hollow hydrogel platform is highly versatile and can be easily functionalized to impart diverse functionalities. Secondary cross-linking endows the fabricated hollow hydrogels with enhanced water retention and antifreezing capabilities. At the same time, their excellent ionic conductivity enables reliable detection of both large-amplitude limb motions and subtle muscle activities in the human body. These attributes position the hydrogels as promising platforms for applications in skin-inspired electronics, human–machine interfaces, and artificial prosthetic systems. Moreover, a wide variety of 3D branched hollow architectures can be readily fabricated by simply modifying the mold design. In addition, the SA hollow hydrogels demonstrate excellent biocompatibility and minimal cytotoxicity, further highlighting their suitability for bioengineering applications. Overall, this work presents a versatile and scalable strategy for the rational design and fabrication of multifunctional hollow hydrogels, offering new opportunities for their widespread implementation in flexible electronics and advanced biomedical engineering.

4. Materials and Methods

4.1. Materials

Sodium alginate (SA powder, Mw = 1,171,546 Da; 60 mesh; dynamic viscosity of 450–550 mPa·s (1 wt.% aqueous solution at 25 °C) was provided by Qingdao Hyzlin Biology Development Co., Ltd. (Qingdao, China). Calcium carbonate (CaCO₃) and hydrochloric acid (HCl) were purchased from a commercial supplier (Sinopharm Chemical Reagent Co., Ltd., Shanghai, China).

4.2. Preparation of Spinning Mixture

SA powder was added to deionized water stirring for 4 h at room temperature and then stirred at 50 °C for 0.5 h. After SA dissolved completely, CaCO₃ was added under continuous stirring. The mixture was stirred 1 h to obtain a homogeneous spinning mixture. The detailed compositions of the mixtures are listed in the

Table 1. The compositions of the spinning mixtures.

SA Mass Concentration	Molar Ratio SA:CaCO3	SA/g	CaCO3/g	H2O/g
2 wt.%	2:1	2.00	0.51	97.49
2 wt.%	3:2	2.00	0.67	97.33
2 wt.%	1:1	2.00	1.01	96.99
2 wt.%	4:5	2.00	1.26	96.74
3 wt.%	1:1	3.00	1.52	95.48
4 wt.%	1:1	4.00	2.02	93.98
5 wt.%	1:1	5.00	2.53	92.47

.

4.3. Preparation of SA Hollow Hydrogel

Hollow hydrogels were prepared by extruding the spinning mixture into solutions of hydrochloric acid at a pH of 0 (theoretical, 1 mol/L HCl) or 1 (theoretical, 0.1 mol/L HCl). After extrusion, the samples were immersed in the acid solution, resulting in the formation of SA hollow hydrogels. The secondary cross-linked hydrogels were prepared by immersing the above hydrogel (prepared at 4 wt.% SA, SA/Ca²⁺ = 1:1 and pH 1) into the 10, 20, 30 wt.% CaCl₂ solutions for 24 h, respectively.

4.4. Characterizations

4.4.1. Morphological Characterization

The scanning electron microscopy (SEM) images of hydrogels were acquired by Zeiss Ultra 55 apparatus (Carl Zeiss AG, Oberkochen, Baden-Württemberg, Germany) using the freeze-dried sample at an acceleration voltage of 3 kV. The cross-section of the hydrogel was sprayed with a layer of gold before the test.

4.4.2. Mechanical Strength Test

Tensile tests were performed on a universal mechanical tester (WDW-5T, Jinan, China) with a 250 N load cell at a strain rate of 5 mm/min at room temperature.

4.4.3. Rheological Measurement

Rheological measurement of the SA solution viscosity was implemented on a rotational rheometer (MCR301, Anton Paar Instrument, Anton-Paar-Straße 20, 8054 Graz, Austria), utilizing a 25 mm-diameter cone-and-plate accessory with a 2° cone angle and a truncated gap of 0.05 mm. The shear rate was varied within the range of 0.01–1000 s⁻¹ during the test, and the zero-shear viscosity was computed automatically by the software bundled with the instrument.

4.4.4. Water Retention Capacity Characterization

The water retention tests were conducted at a constant temperature of 25 °C and a relative humidity (RH) of 50%, maintained using a climate chamber. The weight retention ratio (W_Ri) is calculated using the following formula W_Ri = W_i/W₀. Herein, W_i and W₀ correspond to the hydrogel weight at the i-th day and the initial weight (day 0), respectively.

4.4.5. Water Uptake Test

The water uptake behavior of the hydrogels was evaluated by gravimetric analysis.

For the secondarily cross-linked hydrogels, the samples were immersed in deionized water at 25 °C. At predetermined time intervals, the samples were retrieved, gently blotted with filter paper to remove excess surface water, and immediately weighed using an analytical balance. The process was repeated until the sample weight reached a constant value, indicating equilibrium.

For the SA hollow hydrogels, the procedure was similar, except that the immersion medium was PBS (pH 7.4) and the temperature was maintained at 37 °C using a thermostatic water bath.

The water uptake ratio at each time point was calculated using the following equation: Water uptake (%) = (W_t − W₀/W₀) × 100%, where W₀ is the initial weight of the hydrogel, and W_t is the weight at time. All measurements were performed in triplicate.

4.4.6. Conductivity Measurement

The conductivity of hydrogels was measured by Keithley 2450 digital meter (Keithley Instruments, Inc., Cleveland, OH, USA). The conductivity (σ) was calculated using the following equation, σ = L/RS, in which R is the resistance, and L and S are the materials’ length and effective annular cross-sectional area, respectively.

4.4.7. Characterization of SA Hollow Hydrogel Strain Sensors

The SA hydrogel sample was clamped with two copper sheets and fixed on a universal mechanical tester (WDW-5T, China) for stretching, while the electrical signals of the strain sensors were recorded at the same time by a Keithley 2450. For monitoring the human movement, the strain sensors were attached onto various joints of the human body, including fingers, wrist, knees, and throat. The relative change of the resistance was calculated as follows: ∆R/R₀ = (R − R₀)/R₀, where R₀ and R are the resistance without and with applied strain, respectively.

4.4.8. Cytocompatibility Test

The hydrogel extracts were obtained by soaking sterilized hydrogel in Dulbecco’s modified Eagle medium (DMEM) culture medium at 37 °C for 24 h, followed by filtration through a 0.22 μm filter. NIH-3T3 mouse fibroblast cells were seeded in a 96-well plate at 104 cells/well in 100 μL of culture medium, and maintained at 37 °C in a 5% CO₂ environment for 12 h. Then, the medium was replaced with hydrogel extracts (6.25, 12.5, 25, 50, 100 mg/mL), using the culture medium as a control. After 24 h of incubation, cells were treated with MTT (10 μL/well, 5 mg/mL) and incubated for an additional 4 h. Subsequently, the MTT solution was removed, and dimethyl sulfoxide (150 μL/well) was added to each well. The plates were then shaken gently for 20 min. The absorbance at 490 nm was recorded with a microplate reader for the calculation of cell viability (CV). CV was calculated using the following formula: CV (%) = Atest/Acontrol × 100%, Atest represents the absorbance of the hydrogel sample group, and Acontrol represented the control group. Additionally, cells were stained with calcein-AM/PI and imaged using an inverted fluorescence microscope.
