Modelling Bovine Granuloma Formation In Vitro upon Infection with Mycobacterium Avium Subspecies Paratuberculosis

Department of Microbiology, University of Tennessee Knoxville, Knoxville, TN 37996, USA
Department of Immunology, University of Texas Southwestern Medical Center, Dallas, TX 75390, USA
Office of Vital Statistics, Division of Vital Records and Statistics, Tennessee Department of Health, Nashville, TN 37243, USA
Department of Forestry, Wildlife and Fisheries, University of Tennessee Institute of Agriculture, 1231 Joe Johnson Drive, Knoxville, TN 37996, USA
Author to whom correspondence should be addressed.
Vet. Sci. 2019, 6(4), 80;
Received: 29 August 2019 / Revised: 30 September 2019 / Accepted: 8 October 2019 / Published: 12 October 2019
(This article belongs to the Special Issue Mycobacterial Diseases in Animals)


Mycobacterium avium subspecies paratuberculosis (Map) causes chronic granulomatous disease in cattle and ruminant livestock, causing substantial economic losses. Current vaccines delay clinical signs but cannot train the immune system to fully eradicate latent Map. During latency, Map uses host defenses, cage-like macrophage clusters called granuloma, as incubators for months or years. We used an in vitro model to investigate the early coordination of macrophages into granuloma upon Map infection over ten days. We found that at multiplicities of infection (MOI; Map:macrophages) of 1:2 and below, the macrophages readily form clusters and evolve pro-inflammatory cytokines in keeping with a cell-mediated immune response. At higher MOIs, viability of host macrophages is negatively impacted. At 1:4 MOI, we quantified viable Map in our model and confirmed that intracellular Map reproduced over the first five days of infection. Host cells expressed Type 1-specific cytokines, and Map-infected macrophages displayed reduced motility compared to Map-exposed, uninfected macrophages, suggesting an important role for uninfected macrophages in the early aggregative response. Reported is the first in vitro JD granuloma model capturing Map and macrophage viability, size distribution of resulting clusters, motility of monocyte-derived macrophages, and cytokine response during clustering, allowing quantitative analysis of multiple parameters of the Map-specific granulomatous response.

1. Introduction

Johne’s disease (JD) is a chronic wasting illness of cattle and wild ruminants originally associated with Mycobacterium avium subspecies paratuberculosis (Map) in the early 20th century [1]. Map belongs to a genus of recalcitrant bacterial pathogens and shares a common strategy for cellular invasion and proliferation with the human pathogen M. tuberculosis. Like other mycobacteria, Map possesses a thick waxy cell wall and a slow growth rate, conferring a natural phenotypic resistance to antibiotics and host immune defenses [2,3]. The microbe’s hardy nature further contributes to its epidemiological success by enabling it to persist for up to one year in soil samples [4]. Because of this, and despite the long history of studying mycobacteria and Map in particular, global control measures have not successfully curtailed Map prevalence in this century since the discovery of its veterinary significance. The prevalence of JD in cattle in Australia, New Zealand, Europe and the U.S. in some studies was estimated to range from 10% to 60% [1,5,6]. In recent decades, it has been possible to calculate the financial toll of JD on the dairy industry in the US, specifically where the USDA reported that 68.1% of dairy herds in the U.S. are contaminated with Map, and the most recent report concluded that actual herd-level prevalence of Map may be higher than 90% [7]. Here, the annual economic impact of JD on the dairy industry alone has been estimated at 220 million US dollars [8], while damages to the agricultural industry as a whole may be in excess of 1.5 billion [9].
Current control efforts rely on rapid serological tests to identify infected animals before they are euthanized [10,11,12,13]. Unfortunately, there is no cost-effective treatment for JD-affected cattle [14]. Vaccination is a promising alternative for widespread low-cost prophylaxis, but recent studies of whole-cell attenuated vaccines indicate they have questionable efficacy at preventing new infections and intermittent bacterial shedding [15,16]. Furthermore, because of the unique method by which Map invades and colonizes its host, attenuated whole-cell and subunit vaccines often fail to illicit the cell-mediated response required to control the early infection, inducing a dominant humoral response instead [17,18]. Not only does this fail to control the pathogen, the humoral response may damage the host and lead to Map spread.
Proliferation in macrophages is a commonality shared by most pathogenic mycobacteria and is central to their immunopathology. Map is unique in that it invades the terminal portion of the bovine small intestine, where it is taken up into mucosal macrophages [19,20,21]. Unable to efficiently degrade the bacilli, infected macrophages sequester Map into closed microenvironments called granuloma, which are persistent clusters of macrophages joined by tight junctions and surrounded by a cortex of uninfected macrophages and activated lymphocytes. Recently, a subset of T-lymphocyte with helper and effector roles called a γδ T cell has been implicated in the development and maintenance of granuloma induced by pathogenic mycobacteria. Here, they are early responders to the site of granuloma development and release interferon (IFN)-γ, a pro-inflammatory cytokine that specifically favors induction of a Type 1 (cell-mediated) immune response [22,23]. Separate studies have demonstrated that animals capable of inducing such a Type 1 response to Map without concurrent induction of a humoral (Type 2) response could control, if not clear, the infection [24,25]. These findings suggest an immunological paradigm for successful defense against Map invasion, and to better understand the events that lead to clearance, a modelling approach is required.
Selecting a model system for studying immunopathology ultimately requires a tradeoff between the realism of an in vivo system and the efficiency, tractability, and reproducibility of an in vitro system. Mycobacterial pathogens pose additional challenges to in vivo approaches in that (1) granulomatous responses vary widely between model organisms [26], (2) granulomas display great heterogeneity, even within the same animal [27], and (3) time-scales for mycobacterial infection are significantly longer than for those of other bacterial pathogens. For these reasons, in vitro models and macrophage infection assays have gained interest as tools for dissecting the Map-specific host-pathogen interaction, inspired largely by work done previously on M. tuberculosis [28,29,30]. However, we believe that previous in vitro attempts have failed to capture aspects of the progression of granuloma development that occurs in natural Map exposure. In this study, we isolated the chemotactic, aggregative behavior of Map-exposed macrophages as a reporter for successful establishment of an infection tightly controlled by a Type 1 cell-mediated immune response. We propose this model not only as a tool for interrogation of early Map immunopathology, but also as a potential screening system for exogenous immunomodulators affecting cell-mediated, innate immunity to Map.

2. Materials and Methods

2.1. Blood Sample Collection

Blood samples were obtained by venipuncture from young female calves (less than 2 months old) at the University of Tennessee Little River Animal and Environmental Unit. The farm has no history of JD. The protocol was approved by the University of Tennessee Institutional Animal Care Use Committee (Protocol: #2288-0714).

2.2. Preparation and Separation of PBMC Culture

Assays of granuloma formation were conducted using bovine monocyte-derived-macrophages (MDMs). Blood collected using ethylenediaminetetraacetic acid (EDTA) (Fisher Bioreagents, Pittsburgh, PA, USA) as anticoagulant was subjected to discontinuous gradient centrifugation with iodixanol solution OptiPrep™ (1.320 g/mL) from Axis-Shield (Dundee, Scotland) and Hank’s Balanced Salt Solution (HBSS) (GE Healthcare, Chicago, IL, USA) as diluent, according to the manufacturer’s instruction. The density of the blood was adjusted with a working solution of OptiPrep in HBSS (1.205 g/mL final) to 1.095 g/mL and layered under a barrier solution (OptiPrep in HBSS, 1.078 g/mL final). At the top of the column, 2 mL HBSS (1.006 g/mL) was layered to prevent cells sticking to the tube along the meniscus. The column was spun at 700× g for 20 min with minimum acceleration, after which the buffy coat was collected from the interface between the barrier and the HBSS layer. Peripheral blood mononuclear cells (PBMCs) were washed three times with HBSS, then suspended in Roswell Park Memorial Institute 1640 medium (MP Biomedicals, Santa Ana, CA, USA) with 10% fetal bovine serum (GE Healthcare, Chicago, IL, USA) (RPMI-FBS) and 2 ng/mL granulocyte-macrophage colony-stimulating factor (GM-CSF) (Corning, Tewksbury, MA, USA). Cells were incubated in an untreated T-75 culture flask (Corning, Tewksbury, MA, USA) overnight at 37 °C, 5% CO2 to allow for macrophage differentiation and adherence.
After incubation, the medium was removed along with non-adherent PBMCs, which were pelleted at 300× g and suspended in fresh RPMI-FBS. Adherent cells were washed twice with phosphate-buffered saline (PBS; pH 7.6) before being treated with 5 mL of the trypsin-alternative Accutase (Life Technologies, Carlsbad, CA, USA) for 15 min at 37 °C. Once cells were detached, they were diluted in an equal volume of RPMI-FBS supplemented with 1 mM EDTA to delay reattachment. After centrifugation at 300× g, the pellet was suspended in 1 mL RPMI-FBS and the adherent cells were quantified using a hemocytometer before being diluted to a concentration of 2 × 105 cells/mL. MDMs in this state were used directly in model setup.
Non-adherent PBMCs were quantified and placed in the same T-75 flask (where a minority of adherent MDMs remained), and a volume of Map was added to achieve a multiplicity of infection of 1:1 (Map:non-adherent cells). These cells were incubated at 37 °C, 5% CO2 for 24 h, then removed and centrifuged at 300× g. The supernatant was collected, passed through a 0.22 µm filter, and labeled as conditioned medium of Map-exposed non-adherent cells.

2.3. Culturing and Preparation of Map Strains

Map strain K-10 was cultured at 37 °C in Middlebrook 7H9 broth supplemented with 10% oleic acid-albumin-dextrose complex and 1 g/L Mycobactin J (Allied Monitor, Fayette, MO, USA), with sub-culturing every 2 weeks. Map grew as a pellicle along the surface of the culture medium.
For the infection study, a 1 mL aliquot of homogeneous Map culture was collected and treated for aggregates by sonication, subjecting the suspension to 30 repetitions of impulses less than 1 s in duration on the lowest power setting. Remaining aggregates were spun down at 2000× g and the supernatant was taken. The Map concentration was estimated by optical density measurement (in-house comparison of optical density at 600 nm and colony forming unit (CFU) of Map K10 shows a linear relationship between optical densities of 0.01 and 1.0) before being diluted to the appropriate concentrations for infection.
For cytokine expression analysis, Map enumeration, and macrophage viability and motility analysis, Map was added to RPMI-FBS at a final concentration of 5 × 104 cells/mL. For cluster counting experiments and for the calculation of the ratio of infected to uninfected macrophages, Map concentrations of 5 × 104, 105, 2 × 105, and 4 × 105 cells/mL were used.

2.4. Setup and Maintenance of In Vitro Model

The wells of a Costar® tissue culture treated 24-well plate (Corning, Tewksbury, MA, USA) were inoculated with 1 mL of the adherent cell suspension, and the cells were left to acclimate overnight. After the macrophages were allowed to adhere, the medium from the wells was removed along with contaminating lymphocytes and replaced with 1 mL of fresh RPMI-FBS with concentrations of Map bacilli corresponding to an MOI of 1:4, 1:2, 1:1, or 2:1 (Map: MDMs).
Every three days, 900 µL of the 1 mL culture medium was removed from the wells and exchanged for conditioned media harvested from non-adherent lymphocytes cultured with Map (MOI of 1:1) for 24 h. Medium from wells serving as negative controls was changed with medium conditioned by lymphocytes from the original PBMC populations before GM-CSF exposure and cultured without Map.
To visualize the interaction of lymphocytes directly with MDMs in early granuloma-like clusters, preliminary iterations of the model involved reintroduction of non-adherent PBMCs into the granuloma assay on day 0 at a 1:1 ratio with MDMs. Before model setup, MDMs and non-adherent lymphocytes were separately stained with fluorescent membrane dyes 1,1′-dioctadecyl-3,3,3′,3′-tetramethylindocarbocyanine perchlorate (DiI) (Thermo Fisher Scientific, Waltham, MA, USA) and DiI-derivative DiB (Biotium, Freemont, CA, USA), respectively. Map cells were stained with cytoplasmic dye carboxyfluorescein succinimidyl ester (CFSE) (BioLegend, San Diego, CA, USA) before infection.

2.5. Monitoring Rate of Aggregation

Each day post-infection, 10% of the center of each well (containing approximately 2 × 104 host MDMs on day 0) was imaged using an EVOS FL auto scanning microscope (Thermo Fisher Scientific, Waltham, MA, USA) to create a scanned image at 10× magnification. These images were then analyzed using the software ImageJ [31] by subtracting the background, converting the image to binary, and sorting the clusters of cells by size, circularity, and number. The result was used to quantify the number of cells still adherent, the differences in morphology between infected and uninfected cells, and the number of larger, granuloma-like clusters present.

2.6. RNA Isolation and Quantification

Cells were harvested for reverse transcriptase-quantitative polymerase chain reaction (RT-qPCR) from uninfected and infected wells on days 0, 2, 5, and 7. The 1 mL volume was removed from each well and replaced with 150 µL RNAlater (Qiagen, Valencia, CA, USA). The plate containing the harvested wells was then wrapped in parafilm and stored at 4 °C until day 7 post-infection. On day 7, cells in RNAlater were lysed by adding 450 µL RNeasy lysis buffer and pipetting to homogenization. Total RNA was isolated using an RNeasy Plus Kit (Qiagen, Valencia, CA, USA) and quantified via Nanodrop spectroscopy (Thermo Fisher Scientific, Waltham, MA, USA). A normalized mass of RNA was transferred to an RNA-to-cDNA reaction mix (Life Technologies, Carlsbad, CA, USA), and cDNA synthesis carried out in a C1000 Thermocycler (BioRad, Hercules, CA, USA) at 37 °C for 2 h. The resulting ss-cDNA was used for SYBR-green qPCR (Life Technologies, Carlsbad, CA, USA), and the relative change in cytokine expression was determined by Δ-Δ- C t analysis using actin as internal control [32]. Primers used for RT-qPCR are summarized in Table S1.

2.7. Measuring Viability of Host Cells

On days 0, 2, 5, and 7, cells were stained using a LIVE/DEAD cell imaging kit (Life Technologies, Eugene, OR, USA). Using the EVOS FL auto microscope, 10% of the center of each well was scanned with green and red fluorescence channels for live and dead stains, respectively. The scanned image was analyzed using the ImageJ software by separating the color channels, converting to binary, and calculating the number of stained particles per channel. The results were used to calculate the viability of adherent macrophages.

2.8. Map Enumeration and Viability

On days 0, 2, 5, and 7, internalized Map bacilli were harvested from infected wells and subjected to propidium monoazide (PMA)-qPCR to quantify live and total bacteria, as described previously [33,34,35]. To remove extracellular bacilli, the total 1 mL volume of the well was removed, and the adherent cells were washed once with PBS. MDMs were then lysed with 1 mL 0.2% Triton X-100 in PBS followed by a 30-min incubation at room temperature. Next, the lysate was removed to a 1.5 mL tube and centrifuged at 9300× g for 5 min, after which the supernatant was replaced with PBS and the suspension homogenized.
Each of the 1 mL samples was separated into two aliquots of 500 µL. One aliquot was subjected to treatment with 12.5 µL PMA, while the other followed the same incubation pattern without the addition of PMA. All samples were incubated in the dark for 5 min, then placed on ice under a 650-watt lamp at 20 cm for two minutes. The incubation pattern was repeated after the addition of another 12.5 µL PMA for a final concentration of 50 µM.
Bacilli were pelleted at 9300× g for 5 min, washed, and subjected to genomic DNA purification using a DNeasy kit and protocol (Qiagen, Valencia, CA, USA), with a bead-beating step added for initial lysis and homogenization of Map [36]. qPCR on Map samples was conducted using a VetAlert Johne’s disease detection kit (Tetracore, Rocksville, MD, USA) with TaqMan probe targeting the Map-specific hspX gene. To estimate the concentration of Map genome copies in samples, a standard curve was constructed from serial dilutions of the supplied hspX positive control, and the resulting trendline was used to convert C t values of samples into the number of copies/µL.

2.9. Host Cell Motility and Infection Rate

MDMs were infected with CFSE-stained Map at a concentration of 5 × 104, 105, 2 × 105, or 4 × 105 cells/mL. On days 0, 2, 5, and 7, six randomly localized 40× images were taken with the EVOS FL auto microscope at each Map concentration using green fluorescence and phase-contrast channels (30–50 MDMs per field). Using the superimposed image of these two channels, the total number of macrophages and the number of infected macrophages was calculated to find the ratio of infected to uninfected host cells.
MDMs exposed to CFSE-stained Map at MOI of 1:4 were also used to calculate the motility rates of both infected and uninfected MDMs. On day 2 post-infection, a time lapse video was compiled from microscope images taken at 40× magnification from randomly localized areas of the well. Infected cells were distinguished from uninfected cells based on the presence of fluorescent bacteria. The time-lapse image sequences were then analyzed using the ImageJ plugin wrMTrck, originally developed to monitor the velocity and displacement of Caenorhabditis elegans [37].

3. Results

3.1. Host Cell Cluster Formation in the Presence of Lymphocyte-Specific Signaling Factors

Clusters of bovine MDMs (termed granuloma-like cell clusters [GLCC] in this paper) began to appear by day 2 post-infection in Map-exposed wells while background GLCC in Map-free wells remained low throughout the experimental time-course. To confirm that the clusters observed were persistent cellular superstructures rather than transient spatial associations of cells, several individual GLCCs were tagged and tracked throughout the time course (representative shown in Figure 1b–g). In MDM cultures supplemented with non-adherent PBMCs, GLCCs were composed of infected and uninfected MDMs and a small number of lymphocytes surrounding the macrophage cluster (representative shown in Figure 1a,a′).
The number of GLCCs formed over ten days was enumerated by analyzing images capturing 10% of the total MDM population (Figure 2). In wells infected at Map MOIs of 1:4 and 1:2, there was a lag in cluster formation from day 2 until day 5, after which persistent clusters began forming rapidly until they peaked at day 8 post-infection. Both the rate of formation and total count of GLCCs was higher at MOI of 1:4 than at 1:2 (Figure 2A,B)
At MOI of 1:1, the GLCC count remained relatively steady throughout the experiment, however, GLCCs from these wells possess a different appearance compared to those infected at lower MOI. Individual and GLCC-incorporated MDMs appear necrotic (darkened cytoplasm with indistinct/irregular cell membranes). At the highest MOI of 2:1, the necrotic appearance of cells is more apparent, and the viability of cells declines rapidly to the point the accumulation of cellular debris prevented quantification of living cells past day 7 (Figure 3). Thus, an MOI of 1:4 was selected for cytokine profiling and motility experiments due to the robust clustering response that occurred at this Map concentration as well as the increased stability of GLCCs and prolonged viability of MDMs.

3.2. Viability of Host Mdms and Infection Rate

The numbers of MDMs remaining adherent across the time-course are shown in Figure 3. Live/Dead staining of MDMs indicate that about 95% of adherent cells were viable at each time point (Figure S1). Interestingly, cells infected at the two lower MOIs displayed increased longevity compared to uninfected cells, which saw a population reduction of 50% within seven days post-infection. Cells infected with an MOI of 1:1 experienced a death rate over the ten-day period comparable to uninfected cells, while those infected at 2:1 died significantly more quickly.
Moreover, interestingly, the prolonged viability of cells in Map-exposed wells appears to be a property of both uninfected and infected populations from within the same well. The proportion of host cells infected with Map by day is shown in Figure 4. These data indicate the proportion of infected cells does not change significantly across the time-course for any of the wells except at a Map MOI of 1:1, which experienced a small but significant increase in infection rate by day 7. Based on the result from MDMs infected at an MOI of 1:4, both the infected and uninfected populations from within the same well must have similar death rates, even as the death rate varies significantly between different MOIs.

3.3. Host-Cell Behavior and Growth of Intracellular

3.3.1. Cytokine Expression Profile Changes in Infected Mdms

MDMs infected at a Map multiplicity of 1:4 display transcription-level shifts in cytokine expression marked by upregulation of TNF-α by 15-fold by day 5 post-infection with concurrent downregulation of IL-10 (Figure 5). Intermittent upregulation of IL-1 was observed over the time course. The expression analysis also picked up late induction of T-cell-produced IL-4 and IFN-γ by day 7 post-infection. MDMs infected at 1:1 MOI show similar trends in cytokine expression but increase the production of IL-10 (Figure S2; data in duplicate).

3.3.2. Host-Cell Motility

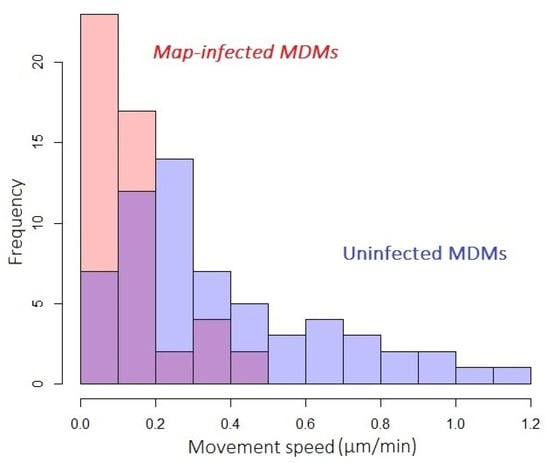

The distribution of movement speeds displayed by populations of infected or uninfected cells exposed to Map at an MOI of 1:4 is shown in Figure 6. Observations were made on day 2 post-infection, whereupon infected MDMs displayed significantly lower motility compared to uninfected. Motility data from infected and uninfected populations fell into non-parametric, positively skewed distributions (Shapiro–Wilk p-values of 1.7 × 10−5 and 1.1 × 10−4, respectively) that were statistically distinct by the Kolmogorov–Smirnov test (p-value of 7.1 × 10−8).

3.3.3. Map Viability

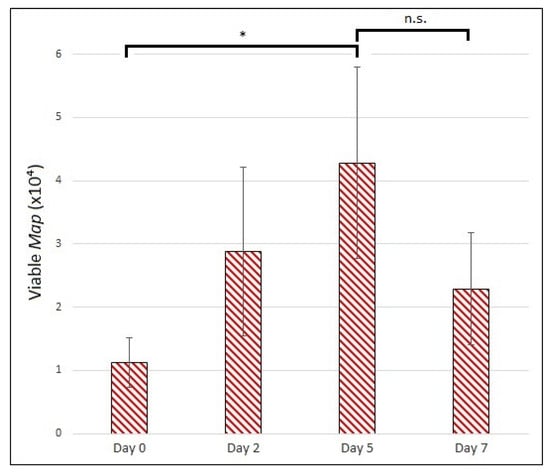

Using the established technique for PMA-modified qPCR of Map, we were able to detect viable bacilli growing intracellularly within the MDMs in our model (Figure 7). We observed a statistically significant increase in viable Map from day 0 to day 5 post-infection (p-value of 0.025), indicating the intracellular population of Map can reproduce under the conditions of our model. The mean number of viable Map dropped between day 5 and day 7, but this difference was not significant (p-value of 0.12).

4. Discussion

One of the major hurdles to understanding Map (and by extension, mycobacterial) infection lies in discriminating immune effects that benefit the host from those that benefit the pathogen. The problem is greatest at the onset of latency, during which the generation of a granuloma may be interpreted as either host-interest-oriented, intended to prevent the spread of infection by containing a foreign agent, or pathogen-interest-oriented, intended to provide the ideal host environment for bacterial proliferation. Assays of inflammatory cytokine production provide insufficient data to distinguish the two over time periods relevant to Map pathology and may even underestimate the timescale required by Map to subvert innate immune functions that might otherwise impede Map latency. Misinterpretation of cytokine responses meant to aid in Map resuscitation as instead being host-protective, or vice-versa, may confound efforts to understand both the order of events necessary to establish latent infection as well as the optimal target for disruption of this process. Our model employs a secondary output that correlates the protective or detrimental effects of cytokine signaling events with infection progression temporally. Such a model, while lacking the degree of realism achieved in vivo, offers far more information than a cytokine assay alone. To this end, our simple in vitro model of GLCC formation provides tractable tools for interrogating the early host-pathogen interaction during Map infection.
Basic Map-infection studies of bovine MDMs have helped elucidate the variety of natural immunological responses to the bacterium [38]. Pro-inflammatory cytokines interleukin (IL)-1 [39,40,41] and tumor necrosis factor (TNF)-α [42,43,44], anti-inflammatory cytokines IL-10 [40,43,44,45] and IL-6 [40,41,45,46], and chemokine macrophage inflammatory protein (MIP)-1 [45] have all been demonstrated to be differentially regulated upon Map-exposure. However, these assays have been performed at MOIs ranging from 2:1 up to 10:1 Map bacilli per host cell, and it is questionable whether that high an environmental load of mycobacteria represents the start of a natural infection. Furthermore, a study of Map infectious dose observed increased rates of apoptosis and necrosis among macrophages exposed at 10:1 MOI and above, while exposure at 1:1 saw no significant increase [47], indicating that somewhere between multiplicities of 1 and 10 lies an inflection point at which the Map dose overwhelms the response of the primary host cell. MDM-infection assays using 2:1 or higher MOIs report upregulation of IL-10, IL-6, and tumor growth factor (TGF)-β, cytokines associated with suppression of cell mediated immunity [40,42,43,44,45,46]. Accordingly, IL-12, TNF-α, and TNF receptor, important signaling molecules in transduction of a Type 1 response, are routinely downregulated. These results contradict the observations made of this model, where TNF-α and IL-1 were upregulated, but IL-10 was downregulated. Thus, the in vitro model described here captures features of a host-interest-oriented Type 1 response that would lead to granuloma formation and maintenance in vivo.
It is worth noting the late upregulation of IL-4 and IFN-γ in our model, however, as we witnessed their induction in populations subjected to selection for MDMs, and both IL-4 and IFN-γ are primarily produced by T lymphocytes [48,49,50]. Our model likely contains a small proportion of contaminating lymphocytes, also indicated by the fact that RNA for these T-cell-specific cytokines was present at average concentrations of 2.7 (IFN-γ) and 4.6 (IL-4) orders of a lower magnitude on day 0 than that of the next lowest-transcribed cytokine, TNF-α (average Ct = 24.8). Expression of these cytokines usually accompanies activation of naïve T cells by dendritic cells (DCs) in the lymph nodes [51]. However, recent evidence indicates that activation of naïve T cells may occur ectopically at the site of inflammation in mucosal tissues [52,53,54] and that non-DC antigen-presenting macrophages play a greater role in T cell activation than previously thought [55,56]. Given the late timing of IL-4 and IFN-γ regulation, it is possible that this shift occurred as a result of T cell activation within the in vitro system.
In contrast, the period allowed for Map exposure of non-adherent PBMCs to generate conditioned medium was too short (24 h) to expect robust T cell activation through the classical route. The shorter incubation specifically targets activation of innate lymphoid populations like γδ T cells, which represent a significantly larger proportion of circulating PBMCs in calves than in humans of any age (34% measured at 2 months old [57]). These T cell variants possess a restricted T cell receptor repertoire with activity toward mycobacterial phosphoantigens [58] and may begin effector functions without the need for MHC-dependent antigen presentation or clonal expansion [59], reducing their response time from days to hours. In JD, Map-antigen responsiveness of γδ T cells is more robust in subclinical compared to active infection, suggesting a role in Map constraint [60]. Like CD4+ T cells, γδ variants may develop to produce either Type 1 (IFN-γ) or Type 2 (IL-4, IL-10, TGF-β) cytokines in response to different stimuli [61], adding to the complexity of their interaction with Map.
IFN-γ and IL-4 are major signaling intermediates in the development of opposing immune responses and lead to divergent outcomes in Map pathology. IFN-γ expressed by helper and γδ T cells stimulates cell-mediated inflammation and induces macrophages to undergo autocrine and paracrine TNF-α signaling required for granuloma development [62]. Conversely, IL-4 produced by innate and adaptive T cells stimulates a Type 2 response and has been implicated as a costimulatory cytokine along with IL-10 to suppress Type 1 immunity during Map infection [63,64]. These T cell responses have parallels in macrophage subtypes, with Type 1 cytokines driving classical (M1) activation of macrophages while Type 2 cytokines favor alternative (M2) activation. M1 polarization primes macrophages for a variety of pro-inflammatory cell-mediated responses, among them granuloma formation. M2 polarization, meanwhile, accompanies humoral immunity, is favored by IL-10 stimulation, and redirects uninfected MDMs from granuloma formation to wound repair [65]. GLCCs formed under conditions favoring M2 polarization more closely model activation of latent Map than they do the early stages of latency, while the latter is what we aim to simulate. Moreover, an investigation of granulomatous intestinal lesions of JD-positive cattle found that macrophages associated with focal paucibacillary granuloma were predominantly of M1 subtype, while diffuse, multibacillary granuloma had higher proportions of M2 macrophages, suggesting that M1 macrophages are more effective in spatial control of granuloma and containment of Map [66]. It remains to be seen if this paradigm extends to Map eradication, or if a downstream M1–>M2 switch may result in re-emergence even from well maintained, M1-predominating granuloma.
The timing and magnitude of signaling events underlying macrophage differentiation are likely controlling factors in granuloma development and curation, so it is also worth noting that TNF-α and IL-10, key regulators in this balance, did not experience their differential regulation until day 5 post-infection, when viable Map number peaked. This is significantly longer than the duration of previous Map-infection assays, most of which tested host cell expression at or before 24 h post-infection [39,40,44,45,46,67]. Based on these findings, it seems the immediate immunological response to Map provides insufficient data to relate cytokine expression with granuloma outcomes. For mycobacterial pathogens, in vitro models of granuloma formation offer a promising alternative to macrophage-infection studies because they convert a complex process into a simple output (cluster formation) for monitoring the progress of the infection. In this way, researchers hope to characterize the immunopathological changes consistent with productive infection leading to latency. In vitro granuloma models have been developed to study M. tuberculosis [29,68,69,70,71,72,73,74,75,76], M. leprae [77], M. bovis [78], M. massiliense [79], and Map [44]. Unique iterations of the M. tuberculosis model were used to investigate resuscitation from latency [69,76], consequences of macrophage polarization [71], and effects of cytokine suppression on granuloma development [74]. Granuloma models of other mycobacterial pathogens provide useful comparisons to M. tuberculosis with respect to bacterial survival, host response, and optimum MOI for cluster formation. Predictably, the MOI required to induce expression of Type 2-specific cytokines associated with reemergence is smaller in vitro with M. tuberculosis than other mycobacteria, as is the MOI associated with granuloma induction (1:200 [76]). Modelling M. bovis, a zoonotic cause of tuberculosis, researchers used MOIs of 1:1 to 5:1 to induce granuloma formation, seeming to contradict the observation that more virulent mycobacteria require lower MOI in these model systems [78]. However, the authors noted that they were unable to see clusters form on tissue culture plates using ultra-low attachment surfaces for cluster counting. If the rate of cluster formation in their model is as dependent on recruitment of uninfected MDMs as it appears to be in our model, the high multiplicity of M. bovis may have delayed cluster formation on tissue culture plates by depleting these highly motile, exposed-but-uninfected MDMs, as we observed at higher Map multiplicities.
Dependence of both aggregation rate and Type 2 signaling on MOI illustrates the influence of bacterial burden on the M1/M2 balance in these model systems. Furthermore, this suggests that the conditions of the in vitro model may be manipulated to reproduce aspects of either latent or active Map infection. For this reason, we chose to replace non-adherent lymphocytes with their soluble signaling factors, as we observed lymphocyte populations to be less robust in vitro regardless of Map exposure and did not want their higher death rate to affect the M1/M2 balance of MDMs. A previous model of granuloma induction by Map-infection of PBMCs [44] observed aggregative behavior between 1:33 and 1:8 MOI (Map: total PBMCs; about 1:6 and 1:1.5 Map: MDMs, respectively, if monocytes account for ~18% of PBMCs [80]). However, expression analysis of macrophages was performed at an MOI of 10:1 (Map: MDMs), whereupon macrophages increase the production of cytokines TGF-β1 and IL-10. Expression of TNF-α was not seen to rise over the time course. Overall, this indicates an M2-expression phenotype similar to that observed upon M. tuberculosis exposure but does not correlate the M2 profile with in vitro aggregation. Our model identifies an upper limit to MOI under which MDMs form persistent clusters while evolving pro-inflammatory cytokines. This threshold represents the tipping point between diverging immunopathogenic routes, the point at which deficiencies in Map virulence will have the greatest effect on model outcomes. Therefore, model designs targeting MOI directly above or below this point have the most promise discriminating subtle differences between virulent Map and attenuated strains possessing vaccine or research potential.
In the management of JD, the need for a low-cost high-efficacy prophylactic option like a prophylactic vaccine cannot be overstated. However, and keeping with its similarity to tuberculosis, vaccines to Map do not provide complete and lasting protection. This may be in part due to the unique strategy of mycobacterial pathogens; sequences encoding T-cell specific epitopes of M. tuberculosis are among the most conserved within its genome, suggesting a strong induction of adaptive immunity plays an integral role in its pathogenesis [81]. Because mycobacterial vaccines aim to induce immune memory by the same route, they are unlikely to result in complete eradication of latent bacilli. However, innate immunity appears particularly effective at clearing M. tuberculosis infection in its early stage, before an adaptive response may be engaged at all [82], and it is reasonable to believe a similar route for immune cell activation, circumnavigating the pathogens adaptation to adaptive immunity, may lead to clearance of a greater proportion of infecting Map as well. Therefore, augmentation of intracellular processes influencing innate immunity poses a promising supplement or alternative to traditional vaccination when it comes to clearance of latent mycobacteria. Our model is uniquely suited for testing exogenous immunomodulators for influence on either the bactericidal or bacteriostatic activity of macrophages.
Finally, the dynamics of granuloma formation have not been explored in Map infection with the resolution reported here. Mathematical modelling presents an emerging opportunity to investigate influences of known intermediates in the granulomatous response on rates of aggregation and viability of internalized Map. However, realism in virtual model systems suffers when model parameters must be estimated from multiple unrelated sources. In vitro models offer a wealth of information for the characterization of a diverse set of quantifiable parameters of host and pathogen behavior, making them ideal sources for parameterization of math models of infection. A summary of the findings in this study is depicted in Figure 8. For our future work, we intend to develop an in silico model of granuloma induction to evaluate and rank the contribution of parameters taken from the in vitro model on in silico outcomes.

Supplementary Materials

The following are available online at, Table S1: Primer sequences for RT-qPCR, Figure S1: Viability of adherent MDMs by day by LIVE/DEAD fluorescent assay, Figure S2. Cytokine profile shift of MDMs infected with 1:1 MOI of Map.

Author Contributions

Conceptualization, S.E.; methodology, J.H.R. and S.E.; investigation, J.H.R., M.M.M., A.H. and S.E.; resources, S.E.; data curation, J.H.R., M.M.M., A.H. and S.E.; writing-original draft preparation, J.H.R.; writing-review & editing, J.H.R. and S.E.; visualization, J.H.R. and S.E.; supervision, J.H.R. and S.E.; project administration, S.E.; funding acquisition, S.E.


This research was funded by Seed Grant Programs of the University of Tennessee AgResearch and Center for Wildlife Health.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Harris, N.B.; Barletta, R.G. Mycobacterium Avium Subsp. Paratuberculosis in Veterinary Medicine. Clin. Microbiol. Rev. 2001, 14, 489–512. [Google Scholar] [CrossRef] [PubMed]
  2. Ghazaei, C. Mycobacterium Tuberculosis and Lipids: Insights into Molecular Mechanisms from Persistence to Virulence. J. Res. Med. Sci. 2018, 23, 63. [Google Scholar] [CrossRef] [PubMed]
  3. Cook, G.M.; Berney, M.; Gebhard, S.; Heinemann, M.; Cox, R.A.; Danilchanka, O.; Niederweis, M. Physiology of Mycobacteria. Adv. Microb. Physiol. 2009, 55, 81–182, 318–319. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Whittington, R.J.; Begg, D.J.; De Silva, K.; Plain, K.M.; Purdie, A.C. Comparative Immunological and Microbiological Aspects of Paratuberculosis as a Model Mycobacterial Infection. Vet. Immunol. Immunopathol. 2012, 148, 29–47. [Google Scholar] [CrossRef]
  5. Kennedy, D.J.; Benedictus, G. Control of Mycobacterium Avium Subsp. Paratuberculosis Infection in Agricultural Species. Rev. Sci. Tech. 2001, 20, 151–179. [Google Scholar] [CrossRef]
  6. Linnabary, R.D.; Meerdink, G.L.; Collins, M.T.; Stabel, J.R.; Sweeney, R.W.; Washington, M.K.; Wells, S.J. Johne’s Disease in Cattle; Council for Agricultural Science and Technology: Ames, IA, USA, 2001; pp. 1–10. [Google Scholar]
  7. Lombard, J.E.; Gardner, I.A.; Jafarzadeh, S.R.; Fossler, C.P.; Harris, B.; Capsel, R.T.; Wagner, B.A.; Johnson, W.O. Herd-level prevalence of Mycobacterium avium subsp. paratuberculosis infection in United States dairy herds in 2007. Prev. Vet. Med. 2012, 108, 234–238. [Google Scholar] [CrossRef]
  8. Ott, S.L.; Wells, S.J.; Wagner, B.A. Herd-level economic losses associated with Johne’s disease on US dairy operations. Prev. Vet. Med. 1999, 40, 179–192. [Google Scholar] [CrossRef]
  9. Stabel, J.R. Johne’s Disease: A Hidden Threat. J. Dairy Sci. 1998, 81, 283–288. [Google Scholar] [CrossRef]
  10. Collins, M.T.; Gardner, I.A.; Garry, F.B.; Roussel, A.J.; Wells, S.J. Consensus Recommendations on Diagnostic Testing for the Detection of Paratuberculosis in Cattle in the United States. J. Am. Vet. Med. Assoc. 2006, 229, 1912–1919. [Google Scholar] [CrossRef]
  11. Sweeney, R.W.; Collins, M.T.; Koets, A.P.; McGuirk, S.M.; Roussel, A.J. Paratuberculosis (Johne’s Disease) in Cattle and Other Susceptible Species. J. Vet. Intern. Med. 2012, 26, 1239–1250. [Google Scholar] [CrossRef]
  12. Verteramo Chiu, L.J.; Tauer, L.W.; Al-Mamun, M.A.; Kaniyamattam, K.; Smith, R.L.; Grohn, Y.T. An Agent-Based Model Evaluation of Economic Control Strategies for Paratuberculosis in a Dairy Herd. J. Dairy Sci. 2018, 101, 6443–6454. [Google Scholar] [CrossRef] [PubMed]
  13. Smith, R.L.; Al-Mamun, M.A.; Grohn, Y.T. Economic Consequences of Paratuberculosis Control in Dairy Cattle: A Stochastic Modeling Study. Prev. Vet. Med. 2017, 138, 17–27. [Google Scholar] [CrossRef] [PubMed]
  14. Gardner, I.A.; Nielsen, S.S.; Whittington, R.J.; Collins, M.T.; Bakker, D.; Harris, B.; Sreevatsan, S.; Lombard, J.E.; Sweeney, R.; Smith, D.R.; et al. Consensus-Based Reporting Standards for Diagnostic Test Accuracy Studies for Paratuberculosis in Ruminants. Prev. Vet. Med. 2011, 101, 18–34. [Google Scholar] [CrossRef] [PubMed]
  15. Patton, E.A. Paratuberculosis Vaccination. Vet. Clin. N. Am. Food Anim. Pract. 2011, 27, 573–580. [Google Scholar] [CrossRef] [PubMed]
  16. Bastida, F.; Juste, R.A. Paratuberculosis Control: A Review with a Focus on Vaccination. J. Immune Based Ther. Vaccines 2011, 9, 8. [Google Scholar] [CrossRef]
  17. Park, H.T.; Yoo, H.S. Development of Vaccines to Mycobacterium Avium Subsp. Paratuberculosis Infection. Clin. Exp. Vaccine Res. 2016, 5, 108–116. [Google Scholar] [CrossRef]
  18. Vrieling, M.; Santema, W.; Vordermeier, M.; Rutten, V.; Koets, A. Hsp70 Vaccination-Induced Primary Immune Responses in Efferent Lymph of the Draining Lymph Node. Vaccine 2013, 31, 4720–4727. [Google Scholar] [CrossRef]
  19. Sigurethardottir, O.G.; Valheim, M.; Press, C.M. Establishment of Mycobacterium Avium Subsp. Paratuberculosis Infection in the Intestine of Ruminants. Adv. Drug Deliv. Rev. 2004, 56, 819–834. [Google Scholar] [CrossRef]
  20. Sigur-Dardottir, O.G.; Press, C.M.; Evensen, O. Uptake of Mycobacterium Avium Subsp. Paratuberculosis Through the Distal Small Intestinal Mucosa in Goats: An Ultrastructural Study. Vet. Pathol. 2001, 38, 184–189. [Google Scholar] [CrossRef]
  21. Momotani, E.; Whipple, D.L.; Thiermann, A.B.; Cheville, N.F. Role of M Cells and Macrophages in the Entrance of Mycobacterium Paratuberculosis into Domes of Ileal Peyer’s Patches in Calves. Vet. Pathol. 1988, 25, 131–137. [Google Scholar] [CrossRef]
  22. Plattner, B.L.; Doyle, R.T.; Hostetter, J.M. Gamma-Delta T Cell Subsets are Differentially Associated with Granuloma Development and Organization in a Bovine Model of Mycobacterial Disease. Int. J. Exp. Pathol. 2009, 90, 587–597. [Google Scholar] [CrossRef] [PubMed]
  23. Plattner, B.L.; Huffman, E.L.; Hostetter, J.M. Gamma-Delta T-Cell Responses During Subcutaneous Mycobacterium Avium Subspecies Paratuberculosis Challenge in Sensitized or Naive Calves Using Matrix Biopolymers. Vet. Pathol. 2013, 50, 630–637. [Google Scholar] [CrossRef] [PubMed]
  24. Begg, D.J.; De Silva, K.; Carter, N.; Plain, K.M.; Purdie, A.; Whittington, R.J. Does a Th1 Over Th2 Dominancy Really Exist in the Early Stages of Mycobacterium Avium Subspecies Paratuberculosis Infections? Immunobiology 2011, 216, 840–846. [Google Scholar] [CrossRef] [PubMed]
  25. Alonso-Hearn, M.; Magombedze, G.; Abendano, N.; Landin, M.; Juste, R.A. Deciphering the Virulence of Mycobacterium Avium Subsp. Paratuberculosis Isolates in Animal Macrophages Using Mathematical Models. J. Theor. Biol. 2019, 468, 82–91. [Google Scholar] [CrossRef] [PubMed]
  26. Guirado, E.; Schlesinger, L.S. Modeling the Mycobacterium Tuberculosis Granuloma-The Critical Battlefield in Host Immunity and Disease. Front. Immunol. 2013, 4, 98. [Google Scholar] [CrossRef] [PubMed]
  27. Lenaerts, A.; Barry, C.E.; Dartois, V. Heterogeneity in Tuberculosis Pathology, Microenvironments and Therapeutic Responses. Immunol. Rev. 2015, 264, 288–307. [Google Scholar] [CrossRef] [PubMed]
  28. Seitzer, U.; Gerdes, J. Generation and Characterization of Multicellular Heterospheroids Formed by Human Peripheral Blood Mononuclear Cells. Cells Tissues Organs 2003, 174, 110–116. [Google Scholar] [CrossRef]
  29. Birkness, K.A.; Guarner, J.; Sable, S.B.; Tripp, R.A.; Kellar, K.L.; Bartlett, J.; Quinn, F.D. An In Vitro Model of the Leukocyte Interactions Associated with Granuloma Formation in Mycobacterium Tuberculosis Infection. Immunl. Cell Biol. 2007, 85, 160–168. [Google Scholar] [CrossRef]
  30. Puissegur, M.P.; Botanch, C.; Duteyrat, J.L.; Delsol, G.; Caratero, C.; Altare, F. An In Vitro Dual Model of Mycobacterial Granulomas to Investigate the Molecular Interactions between Mycobacteria and Human Host Cells. Cell Microbiol. 2004, 6, 423–433. [Google Scholar] [CrossRef]
  31. Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH Image to ImageJ: 25 Years of Image Analysis. Nat. Methods 2012, 9, 671–675. [Google Scholar] [CrossRef]
  32. Livak, K.J.; Schmittgen, T.D. Analysis of Relative Gene Expression Data Using Real-Time Quantitative PCR and the 2(-Delta Delta C(T)) Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  33. Kralik, P.; Nocker, A.; Pavlik, I. Mycobacterium Avium Subsp. Paratuberculosis Viability Determination Using F57 Quantitative PCR in Combination with Propidium Monoazide Treatment. Int. J. Food Microbiol. 2010, 141, S80–S86. [Google Scholar] [CrossRef] [PubMed]
  34. Kralik, P.; Babak, V.; Dziedzinska, R. Repeated Cycles of Chemical and Physical Disinfection and Their Influence on Mycobacterium Avium Subsp. Paratuberculosis Viability Measured by Propidium Monoazide F57 Quantitative real Time PCR. Vet. J. 2014, 201, 359–364. [Google Scholar] [CrossRef] [PubMed]
  35. Ricchi, M.; De Cicco, C.; Kralik, P.; Babak, V.; Boniotti, M.B.; Savi, R.; Cerutti, G.; Cammi, G.; Garbarino, C.; Arrigoni, N. Evaluation of Viable Mycobacterium Avium Subsp. Paratuberculosis in Milk Using Peptide-Mediated Separation and Propidium Monoazide qPCR. FEMS Microbiol. Lett. 2014, 356, 127–133. [Google Scholar] [CrossRef]
  36. Odumeru, J.; Gao, A.; Chen, S.; Raymond, M.; Mutharia, L. Use of the Bead Beater for Preparation of Mycobacterium Paratuberculosis Template DNA in Milk. Can. J. Vet. Res. 2001, 65, 201–205. [Google Scholar]
  37. Nussbaum-Krammer, C.I.; Neto, M.F.; Brielmann, R.M.; Pedersen, J.S.; Morimoto, R.I. Investigating the Spreading and Toxicity of Prion-Like Proteins Using the Metazoan Model Organism C. Elegans. J. Vis. Exp. 2015. [Google Scholar] [CrossRef]
  38. Abendano, N.; Juste, R.A.; Alonso-Hearn, M. Anti-Inflammatory and Antiapoptotic Responses to Infection: A Common Denominator of Human and Bovine Macrophages Infected with Mycobacterium Avium Subsp. Paratuberculosis. Biomed. Res. Int. 2013, 2013, 908348. [Google Scholar] [CrossRef]
  39. Kabara, E.; Kloss, C.C.; Wilson, M.; Tempelman, R.J.; Sreevatsan, S.; Janagama, H.; Coussens, P.M. A large-Scale Study of Differential Gene Expression in Monocyte-Derived Macrophages Infected with Several Strains of Mycobacterium avium Subspecies Paratuberculosis. Brief. Funct. Genom. 2010, 9, 220–237. [Google Scholar] [CrossRef]
  40. Machugh, D.E.; Taraktsoglou, M.; Killick, K.E.; Nalpas, N.C.; Browne, J.A.; DE Park, S.; Hokamp, K.; Gormley, E.; Magee, D.A. Pan-Genomic Analysis of Bovine Monocyte-Derived Macrophage Gene Expression in Response to In Vitro Infection with Mycobacterium Avium Subspecies Paratuberculosis. Vet. Res. 2012, 43, 25. [Google Scholar] [CrossRef]
  41. Abendano, N.; Sevilla, I.A.; Prieto, J.M.; Garrido, J.M.; Juste, R.A.; Alonso-Hearn, M. Mycobacterium Avium Subspecies Paratuberculosis Isolates from Sheep and Goats Show Reduced Persistence in Bovine Macrophages than Cattle, Bison, Deer and Wild Boar Strains Regardless of Genotype. Vet. Microbiol. 2013, 163, 325–334. [Google Scholar] [CrossRef]
  42. Weiss, D.J.; Evanson, O.A.; Moritz, A.; Deng, M.Q.; Abrahamsen, M.S. Differential Responses of Bovine Macrophages to Mycobacterium Avium Subsp. Paratuberculosis and Mycobacterium Avium Subsp. Avium. Infect. Immun. 2002, 70, 5556–5561. [Google Scholar] [CrossRef] [PubMed]
  43. Janagama, H.K.; Jeong, K.; Kapur, V.; Coussens, P.; Sreevatsan, S. Cytokine Responses of Bovine Macrophages to Diverse Clinical Mycobacterium Avium Subspecies Paratuberculosis Strains. BMC Microbiol. 2006, 6, 10. [Google Scholar] [CrossRef] [PubMed]
  44. Abendano, N.; Tyukalova, L.; Barandika, J.F.; Balseiro, A.; Sevilla, I.A.; Garrido, J.M.; Juste, R.A.; Alonso-Hearn, M. Mycobacterium Avium Subsp. Paratuberculosis Isolates Induce In Vitro Granuloma Formation and Show Successful Survival Phenotype, Common Anti-Inflammatory and Antiapoptotic Responses within Ovine Macrophages Regardless of Genotype or Host of Origin. PLoS ONE 2014, 9, e104238. [Google Scholar] [CrossRef]
  45. Weiss, D.J.; Evanson, O.A.; Deng, M.; Abrahamsen, M.S. Gene Expression and Antimicrobial Activity of Bovine Macrophages in Response to Mycobacterium Avium Subsp. Paratuberculosis. Vet. Pathol. 2004, 41, 326–337. [Google Scholar] [CrossRef] [PubMed]
  46. Murphy, J.T.; Sommer, S.; Kabara, E.A.; Verman, N.; Kuelbs, M.A.; Saama, P.; Halgren, R.; Coussens, P.M. Gene Expression Profiling of Monocyte-Derived Macrophages Following Infection with Mycobacterium Avium Subspecies Avium and Mycobacterium Avium Subspecies Paratuberculosis. Physiol. Genom. 2006, 28, 67–75. [Google Scholar] [CrossRef] [PubMed]
  47. Periasamy, S.; Tripathi, B.N.; Singh, N. Mechanisms of Mycobacterium Avium Subsp. Paratuberculosis Induced Apoptosis and Necrosis in Bovine Macrophages. Vet. Microbiol. 2013, 165, 392–401. [Google Scholar] [CrossRef] [PubMed]
  48. Le Gros, G.; Ben-Sasson, S.Z.; Seder, R.; Finkelman, F.D.; Paul, W.E. Generation of Interleukin 4 (IL-4)-Producing Cells In Vivo and In Vitro: IL-2 and IL-4 are Required for In Vitro Generation of IL-4-Producing Cells. J. Exp. Med. 1990, 172, 921–929. [Google Scholar] [CrossRef]
  49. Choi, P.; Reiser, H. IL-4: Role in Disease and Regulation of Production. Clin. Exp. Immunol. 1998, 113, 317–319. [Google Scholar] [CrossRef]
  50. Raphael, I.; Nalawade, S.; Eagar, T.N.; Forsthuber, T.G. T cell Subsets and Their Signature Cytokines in Autoimmune and Inflammatory Diseases. Cytokine 2015, 74, 5–17. [Google Scholar] [CrossRef]
  51. Cose, S. T-cell Migration: A Naive Paradigm? Immunology 2007, 120, 1–7. [Google Scholar] [CrossRef]
  52. Karlsson, M.; Linton, L.; Lampinen, M.; Karlen, P.; Glise, H.; Befrits, R.; Janczewska, I.; Carlson, M.; Winqvist, O.; Eberhardson, M. Naive T cells Correlate with Mucosal Healing in Patients with Inflammatory Bowel Disease. Scand. J. Gastroenterol. 2014, 49, 66–74. [Google Scholar] [CrossRef] [PubMed]
  53. Carragher, D.M.; Rangel-Moreno, J.; Randall, T.D. Ectopic Lymphoid Tissues and Local Immunity. Semin. Immunol. 2008, 20, 26–42. [Google Scholar] [CrossRef] [PubMed]
  54. Weninger, W.; Carlsen, H.S.; Goodarzi, M.; Moazed, F.; Crowley, M.A.; Baekkevold, E.S.; Cavanagh, L.L.; Von Andrian, U.H. Naive T cell Recruitment to Nonlymphoid Tissues: A Role for Endothelium-Expressed CC Chemokine Ligand 21 in Autoimmune Disease and Lymphoid Neogenesis. J. Immunol. 2003, 170, 4638–4648. [Google Scholar] [CrossRef] [PubMed]
  55. Pozzi, L.A.; Maciaszek, J.W.; Rock, K.L. Both deNdritic Cells and Macrophages Can Stimulate Naive CD8 T Cells In Vivo to Proliferate, Develop Effector Function, and Differentiate into Memory Cells. J. Immunol. 2005, 175, 2071–2081. [Google Scholar] [CrossRef] [PubMed]
  56. Hume, D.A. Macrophages as APC and the Dendritic Cell Myth. J. Immunol. 2008, 181, 5829–5835. [Google Scholar] [CrossRef] [PubMed][Green Version]
  57. Wilson, R.A.; Zolnai, A.; Rudas, P.; Frenyo, L.V. T-Cell Subsets in Blood and Lymphoid Tissues Obtained from Fetal Calves, Maturing Calves, and Adult Bovine. Vet. Immunol. Immunopathol. 1996, 53, 49–60. [Google Scholar] [CrossRef]
  58. Fournie, J.J.; Bonneville, M. Stimulation of Gamma Delta T Cells by Phosphoantigens. Res. Immunol. 1996, 147, 338–347. [Google Scholar] [CrossRef]
  59. Paul, S.; Lal, G. Regulatory and Effector Functions of Gamma-Delta (Gammadelta) T Cells and Their Therapeutic Potential in Adoptive Cellular Therapy for Cancer. Int. J. Cancer 2016, 139, 976–985. [Google Scholar] [CrossRef]
  60. Albarrak, S.M.; Waters, W.R.; Stabel, J.R.; Hostetter, J.M. WC1(+) Gammadelta T Cells from Cattle Naturally Infected with Mycobacterium Avium Subsp. Paratuberculosis Respond Differentially to Stimulation with PPD-J. Vet. Immunol. Immunopathol. 2017, 190, 57–64. [Google Scholar] [CrossRef]
  61. Guzman, E.; Hope, J.; Taylor, G.; Smith, A.L.; Cubillos-Zapata, C.; Charleston, B. Bovine Gammadelta T Cells are a Major Regulatory T Cell Subset. J. Immunol. 2014, 193, 208–222. [Google Scholar] [CrossRef]
  62. Silva, D.; Silva, M.V.D.; Barros, C.C.O.; Alexandre, P.B.D.; Timoteo, R.P.; Catarino, J.S.; Sales-Campos, H.; Machado, J.R.; Rodrigues, D.B.R.; Oliveira, C.J.; et al. TNF-Alpha Blockade Impairs In Vitro Tuberculous Granuloma Formation and Down Modulate Th1, Th17 and Treg Cytokines. PLoS ONE 2018, 13, e0194430. [Google Scholar] [CrossRef]
  63. Gerber, D.J.; Azuara, V.; Levraud, J.P.; Huang, S.Y.; Lembezat, M.P.; Pereira, P. IL-4-Producing Gamma Delta T Cells that Express a Very Restricted TCR Repertoire are Preferentially Localized in Liver and Spleen. J. Immunol. 1999, 163, 3076–3082. [Google Scholar] [PubMed]
  64. Magombedze, G.; Eda, S.; Stabel, J. Predicting the Role of IL-10 in the Regulation of the Adaptive Immune Responses in Mycobacterium Avium Subsp. Paratuberculosis Infections Using Mathematical Models. PLoS ONE 2015, 10, e0141539. [Google Scholar] [CrossRef] [PubMed]
  65. Khan, A.; Singh, V.K.; Hunter, R.L.; Jagannath, C. Macrophage Heterogeneity and Plasticity in Tuberculosis. J. Leukoc. Biol. 2019. [Google Scholar] [CrossRef]
  66. Fernandez, M.; Benavides, J.; Castano, P.; Elguezabal, N.; Fuertes, M.; Munoz, M.; Royo, M.; Ferreras, M.C.; Perez, V. Macrophage Subsets Within Granulomatous Intestinal Lesions in Bovine Paratuberculosis. Vet. Pathol. 2017, 54, 82–93. [Google Scholar] [CrossRef]
  67. Coussens, P.M.; Colvin, C.J.; Rosa, G.J.; Perez Laspiur, J.; Elftman, M.D. Evidence for a Novel Gene Expression Program in Peripheral Blood Mononuclear Cells from Mycobacterium Avium Subsp. Paratuberculosis-Infected Cattle. Infect. Immun. 2003, 71, 6487–6498. [Google Scholar] [CrossRef]
  68. Puissegur, M.P.; Lay, G.; Gilleron, M.; Botella, L.; Nigou, J.; Marrakchi, H.; Mari, B.; Duteyrat, J.L.; Guerardel, Y.; Kremer, L.; et al. Mycobacterial Lipomannan Induces Granuloma Macrophage Fusion Via a TLR2-Dependent, ADAM9-And Beta1 Integrin-Mediated Pathway. J. Immunol. 2007, 178, 3161–3169. [Google Scholar] [CrossRef]
  69. Kapoor, N.; Pawar, S.; Sirakova, T.D.; Deb, C.; Warren, W.L.; Kolattukudy, P.E. Human Granuloma In Vitro Model, for TB Dormancy and Resuscitation. PLoS ONE 2013, 8, e53657. [Google Scholar] [CrossRef]
  70. Parasa, V.R.; Rahman, M.J.; Ngyuen Hoang, A.T.; Svensson, M.; Brighenti, S.; Lerm, M. Modeling Mycobacterium Tuberculosis early Granuloma Formation in Experimental Human Lung Tissue. Dis. Model. Mech. 2014, 7, 281–288. [Google Scholar] [CrossRef]
  71. Huang, Z.; Luo, Q.; Guo, Y.; Chen, J.; Xiong, G.; Peng, Y.; Ye, J.; Li, J. Mycobacterium Tuberculosis-Induced Polarization of Human Macrophage Orchestrates the Formation and Development of Tuberculous Granulomas In Vitro. PLoS ONE 2015, 10, e0129744. [Google Scholar] [CrossRef]
  72. Guirado, E.; Mbawuike, U.; Keiser, T.L.; Arcos, J.; Azad, A.K.; Wang, S.H.; Schlesinger, L.S. Characterization of Host and Microbial Determinants in Individuals with Latent Tuberculosis Infection Using a Human Granuloma Model. mBio 2015, 6, e02537-14. [Google Scholar] [CrossRef] [PubMed]
  73. Reyes, N.; Bettin, A.; Reyes, I.; Geliebter, J. Microarray Analysis of the In Vitro Granulomatous Response to Mycobacterium Tuberculosis H37Ra. Colomb. Med. 2015, 46, 26–32. [Google Scholar] [CrossRef] [PubMed]
  74. Agrawal, N.; Bhattacharyya, C.; Mukherjee, A.; Ullah, U.; Pandit, B.; Rao, K.V.S.; Majumder, P.P. Dissecting Host Factors that Regulate the Early Stages of Tuberculosis Infection. Tuberculosis 2016, 100, 102–113. [Google Scholar] [CrossRef] [PubMed]
  75. Tezera, L.B.; Bielecka, M.K.; Chancellor, A.; Reichmann, M.T.; Shammari, B.A.; Brace, P.; Batty, A.; Tocheva, A.; Jogai, S.; Marshall, B.G.; et al. Dissection of the Host-Pathogen Interaction in Human Tuberculosis Using a Bioengineered 3-Dimensional Model. eLife 2017, 6. [Google Scholar] [CrossRef]
  76. Agrawal, N.; Streata, I.; Pei, G.; Weiner, J.; Kotze, L.; Bandermann, S.; Lozza, L.; Walzl, G.; Du Plessis, N.; Ioana, M.; et al. Human Monocytic Suppressive Cells Promote Replication of Mycobacterium Tuberculosis and Alter Stability of In Vitro Generated Granulomas. Front. Immunol. 2018, 9, 2417. [Google Scholar] [CrossRef]
  77. Wang, H.; Maeda, Y.; Fukutomi, Y.; Makino, M. An In Vitro Model of Mycobacterium Leprae Induced Granuloma Formation. BMC Infect. Dis. 2013, 13, 279. [Google Scholar] [CrossRef]
  78. Garza-Cuartero, L.; McCarthy, E.; Brady, J.; Cassidy, J.; Hamilton, C.; Sekiya, M.; NcNair, J.; Mulcahy, G. Development of an In Vitro Model of the Early-Stage Bovine Tuberculous Granuloma Using Mycobacterium Bovis-BCG. Vet. Immunol. Immunopathol. 2015, 168, 249–257. [Google Scholar] [CrossRef]
  79. Je, S.; Quan, H.; Na, Y.; Cho, S.N.; Kim, B.J.; Seok, S.H. An In Vitro Model of Granuloma-Like Cell Aggregates Substantiates Early Host Immune Responses Against Mycobacterium Massiliense Infection. Biol. Open 2016, 5, 1118–1127. [Google Scholar] [CrossRef]
  80. Hussen, J.; Duvel, A.; Sandra, O.; Smith, D.; Sheldon, I.M.; Zieger, P.; Schuberth, H.J. Phenotypic and Functional Heterogeneity of Bovine Blood Monocytes. PLoS ONE 2013, 8, e71502. [Google Scholar] [CrossRef][Green Version]
  81. Comas, I.; Chakravartti, J.; Small, P.M.; Galagan, J.; Niemann, S.; Kremer, K.; Ernst, J.D.; Gagneux, S. Human T Cell Epitopes of Mycobacterium Tuberculosis are Evolutionarily Hyperconserved. Nat. Genet. 2010, 42, 498–503. [Google Scholar] [CrossRef]
  82. Verrall, A.J.; Netea, M.G.; Alisjahbana, B.; Hill, P.C.; Van Crevel, R. Early Clearance of Mycobacterium Tuberculosis: A New Frontier in Prevention. Immunology 2014, 141, 506–513. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Formation of granuloma-like cell clusters (GLCCs) in vitro. (a) GLCC of macrophages and lymphocytes exposed to Map. (a′) Same GLCC with superimposed fluorescence channels showing macrophages (red), lymphocytes (blue), and internalized Map (green). (b–g) Phase-contrast images of a single GLCC across the time-course at 1-day intervals (3–8 days post-infection; lymphocyte-free model). The scale is 100 µm.
Figure 1. Formation of granuloma-like cell clusters (GLCCs) in vitro. (a) GLCC of macrophages and lymphocytes exposed to Map. (a′) Same GLCC with superimposed fluorescence channels showing macrophages (red), lymphocytes (blue), and internalized Map (green). (b–g) Phase-contrast images of a single GLCC across the time-course at 1-day intervals (3–8 days post-infection; lymphocyte-free model). The scale is 100 µm.
Vetsci 06 00080 g001

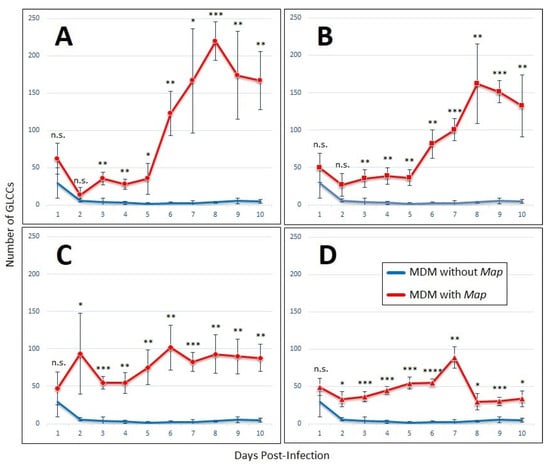

Figure 2. GLCCs form in the presence of lymphocyte-specific signaling factors alone. Graphs of GLCC formation over ten-day experiment with MDMs cultured without non-adherent PBMCs, with conditioned medium from Map-exposed lymphocytes, after exposure to Map at an MOI of (A) 1:4, (B) 1:2, (C) 1:1, or (D) 2:1. The bars are standard deviation. * p < 0.05; ** p < 0.01; *** p < 0.001; **** p < 0.0001; n.s. = not significant by student’s t-test (n = 4).
Figure 2. GLCCs form in the presence of lymphocyte-specific signaling factors alone. Graphs of GLCC formation over ten-day experiment with MDMs cultured without non-adherent PBMCs, with conditioned medium from Map-exposed lymphocytes, after exposure to Map at an MOI of (A) 1:4, (B) 1:2, (C) 1:1, or (D) 2:1. The bars are standard deviation. * p < 0.05; ** p < 0.01; *** p < 0.001; **** p < 0.0001; n.s. = not significant by student’s t-test (n = 4).
Vetsci 06 00080 g002

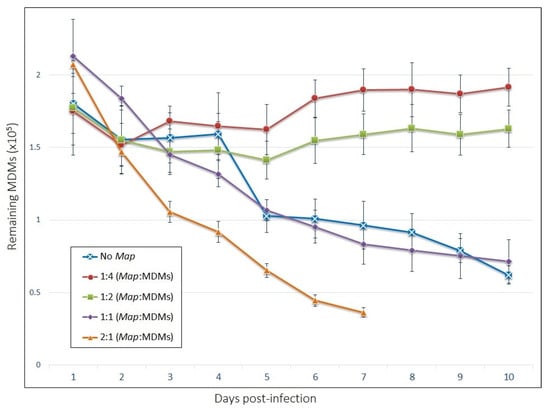

Figure 3. The viability of host MDMs in our model depends on the multiplicity of Map exposure. The number of adherent cells remaining by day post-infection. The bars are standard deviation (n = 4).
Figure 3. The viability of host MDMs in our model depends on the multiplicity of Map exposure. The number of adherent cells remaining by day post-infection. The bars are standard deviation (n = 4).
Vetsci 06 00080 g003

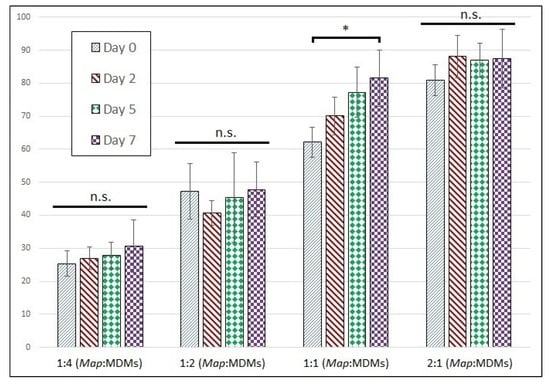

Figure 4. Proportion of infected MDMs remains stable across time-course. Proportion of infected MDMs with intracellular CFSE-stained Map expressed as a percentage of total cells. The bars are standard deviation. * p < 0.05; n.s. = not significant by student’s t-test (n = 6).
Figure 4. Proportion of infected MDMs remains stable across time-course. Proportion of infected MDMs with intracellular CFSE-stained Map expressed as a percentage of total cells. The bars are standard deviation. * p < 0.05; n.s. = not significant by student’s t-test (n = 6).
Vetsci 06 00080 g004

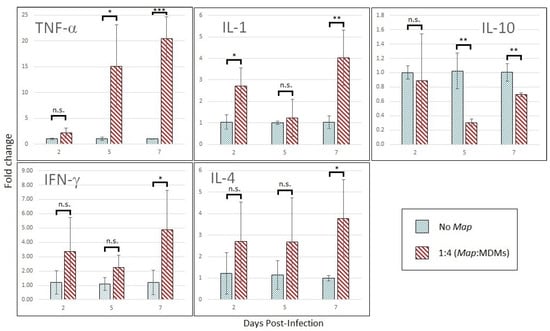

Figure 5. Cytokine profile shift of Map-infect MDMs across the time-course. Cytokine expression of MDMs infected with Map at an MOI of 1:4 compared to same-day uninfected MDMs. RT-qPCR was run using actin as internal control, and the data was converted to fold-change by Δ-Δ- C t method. The bars are standard deviation. * p < 0.05; ** p < 0.01; *** p < 0.001; n.s. = not significant by student’s t-test (n = 3).
Figure 5. Cytokine profile shift of Map-infect MDMs across the time-course. Cytokine expression of MDMs infected with Map at an MOI of 1:4 compared to same-day uninfected MDMs. RT-qPCR was run using actin as internal control, and the data was converted to fold-change by Δ-Δ- C t method. The bars are standard deviation. * p < 0.05; ** p < 0.01; *** p < 0.001; n.s. = not significant by student’s t-test (n = 3).
Vetsci 06 00080 g005
Figure 6. Map-infected MDMs show decreased movement speed. Histograms describing the motility of populations of Map-infected (red) and uninfected (blue) MDMs exposed to Map at MOI of 1:4. Overlap of histograms in purple.
Figure 6. Map-infected MDMs show decreased movement speed. Histograms describing the motility of populations of Map-infected (red) and uninfected (blue) MDMs exposed to Map at MOI of 1:4. Overlap of histograms in purple.
Vetsci 06 00080 g006
Figure 7. Enumeration of viable, internalized Map from in vitro granuloma model. Viable Map bacilli harvested and quantified on days 0, 2, 5, and 7 p.i. MOI of 1:4. The bars are standard deviation. * p < 0.05; n.s. = not significant by student’s t-test (n = 3).
Figure 7. Enumeration of viable, internalized Map from in vitro granuloma model. Viable Map bacilli harvested and quantified on days 0, 2, 5, and 7 p.i. MOI of 1:4. The bars are standard deviation. * p < 0.05; n.s. = not significant by student’s t-test (n = 3).
Vetsci 06 00080 g007

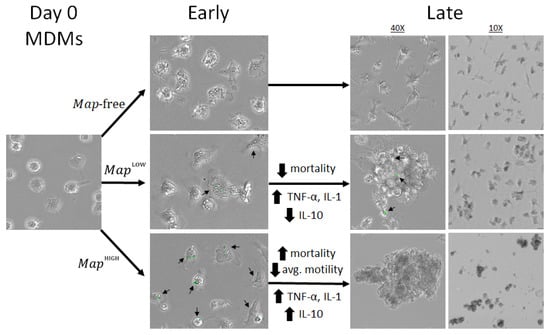

Figure 8. Schematic summary of the findings of this model. Map bacilli stained with CFSE (green) and marked with arrows.
Figure 8. Schematic summary of the findings of this model. Map bacilli stained with CFSE (green) and marked with arrows.
Vetsci 06 00080 g008

Share and Cite

MDPI and ACS Style

Rice, J.H.; McDaniel, M.M.; Holland, A.; Eda, S. Modelling Bovine Granuloma Formation In Vitro upon Infection with Mycobacterium Avium Subspecies Paratuberculosis. Vet. Sci. 2019, 6, 80.

AMA Style

Rice JH, McDaniel MM, Holland A, Eda S. Modelling Bovine Granuloma Formation In Vitro upon Infection with Mycobacterium Avium Subspecies Paratuberculosis. Veterinary Sciences. 2019; 6(4):80.

Chicago/Turabian Style

Rice, J. Hunter, Margaret M. McDaniel, Alyson Holland, and Shigetoshi Eda. 2019. "Modelling Bovine Granuloma Formation In Vitro upon Infection with Mycobacterium Avium Subspecies Paratuberculosis" Veterinary Sciences 6, no. 4: 80.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
