Land Cover Data for the Mississippi–Alabama Barrier Islands, 2010–2011

Abstract

Land cover on the Mississippi–Alabama barrier islands was surveyed in 2010–2011 as part of continuing research on island geomorphic and vegetation dynamics following the 2005 impact of Hurricane Katrina. Results of the survey include sub-meter GPS location, a listing of dominant vegetation species and field photographs recorded at 375 sampling locations distributed among Cat, West Ship, East Ship, Horn, Sand, Petit Bois and Dauphin Islands. The survey was conducted in a period of intensive remote sensing data acquisition over the northern Gulf of Mexico by federal, state and commercial organizations in response to the 2010 Macondo Well (Deepwater Horizon) oil spill. The data are useful in providing ground reference information for thematic classification of remotely-sensed imagery, and a record of land cover which may be used in future research.

Data Set: https://dx.doi.org/10.18785/geo.landcover.ds.1 for .gdb file; ds.2 for .xml metadata file, or ds.3 for .kmz file. Also at http://aquila.usm.edu/ms_al_island_landcover_2010_2011/1/.

Data Set License: CC-BY

1. Summary

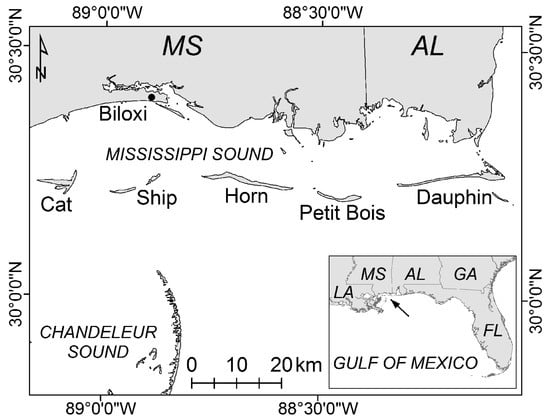

The data described herein were collected in a May 2010, through July 2011, field survey that recorded land cover features on Cat, West and East Ship, Horn, Sand and Petit Bois Islands in Mississippi and western and central Dauphin Island in Alabama, U.S.A., northern Gulf of Mexico (Figure 1). The survey was conducted 5–6 years after the islands were impacted severely by Hurricane Katrina on 29 August 2005. On its northerly path, the eye of the storm passed 50–150 km due west of the islands, subjecting them to hurricane-force winds and storm tidal depths which decreased eastward from 7 to 9 m on Cat and Ship, respectively [1], and up to 12 m on W. Ship [2], to 3.5 m on western and central Dauphin [1]. Island geomorphic features were substantially altered by erosion and sand overwash [2,3,4,5,6,7], while vegetation was further affected by wind damage, salt spray, saltwater flooding and a post-storm drought of several months [6,7]. Also prior to the 2010–2011 field survey, the Gulf shorelines of Ship, Horn and Petit Bois Islands were eroded in Hurricane Gustav on 1 September 2008 [8]. Furthermore, the survey was in-progress during the 2010 Macondo Well (Deepwater Horizon platform) oil spill.

In the years since Hurricane Katrina, and particularly following the oil spill, remotely-sensed data have been acquired extensively over the northern Gulf of Mexico by government and commercial organizations. The resulting availability of high-spatial-resolution data from aircraft and satellites has facilitated quantitative assessments of vegetation re-growth and change in habitat-types on the Mississippi–Alabama (MS–AL) islands [7]. In such studies, on-the-ground observations greatly improve the ability of investigators to interpret remotely-sensed data and thus map features of interest over extensive geographic areas. To date, the 2010–2011 MS–AL island field survey data have been used in combination with remotely-sensed data in several studies which addressed post-Katrina changes in geomorphic features and vegetation, and decadal-scale resiliency of the islands to coastal subsidence and eustatic sea-level rise [9,10,11]. A World-Wide-Web link is provided to allow users to download the survey data for access in ArcMap (ESRI) or Open Geospatial Consortium (OGC) viewers such as Google Earth and ArcGIS Earth.

2. Data Description

The dataset is available in two different file formats: (1) an ArcGIS v10.3 [12] geodatabase file (.gdb) with one feature dataset containing seven individual island feature classes with sample point information, field photographs attached as binary large objects (BLOBS), relationship classes, and attachment tables; and (2) a compressed keyhole markup language file (.kmz) for each island containing sample point information and attached field photographs.

Data

Each island feature class in the geodatabase has its own accompanying attribute table organized by object identification number and includes fields for comments (sample point name), GPS date, projection northing and easting, latitude and longitude, primary species and secondary species (

Table 1. Attribute table field properties for the ArcGIS geodatabase feature classes.

Attribute	Type	Stored as	Length	Description
OBJECTID	Object ID	-	-	-
SHAPE	Geometry	Point	-	Point data for sample locations
Comment	Text	String	32	Sample point name
GPS_Date	Date	mm/dd/yyyy	-	Date collected
Northing	Double	meter	8 bytes	Location WGS 84 UTM 16N
Easting	Double	meter	8 bytes	Location WGS 84 UTM 16N
Latitude_DD	Double	degree	8 bytes	Location GCS WGS 84
Longitude_DD	Double	degree	8 bytes	Location GCS WGS 84
Primary_Species	Text	String	50	Dominant vegetation
Secondary_Species	Text	String	50	Less dominant vegetation
Notes	Text	String	250	Additional site information

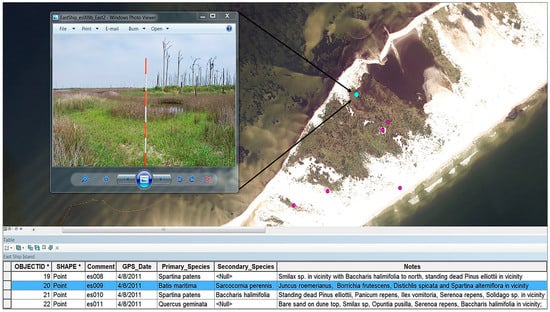

). It also includes field notes identifying other plant species in the vicinity, or a brief description of the soil surface if no vegetation was present. Photographs in the geodatabase feature classes can be viewed from the ArcMap Identify function as attachments (Figure 2). The photograph filenames are comprised of island name, sample-point name, and an indication of view direction given as cardinal magnetic compass direction (N, E, S, or W). Attribute data in the .kmz files are identical to the data provided in the ArcGIS geodatabase. However, due to the large file size, and to ensure full functionality, the .kmz files must be uncompressed into .kml files. With either the .gdb or .kml formats, photograph extraction enables access to technical specifications, such as the type of camera used, via photo-viewing software. Data files are organized by island name. The compressed OGC .kmz files range in size from 96 MB for Sand Island to 1.23 GB for Cat. The ArcGIS v10.3 .gdb file is compressed to 3.6 GB and includes the data for all islands.

3. Methods

Ground point locations for surveying land cover on each island were selected randomly from georectified digital imagery at an approximate specific sampling area (reciprocal of sampling density) of 6 ha per point (

Table 2. Chronology of sampling land cover on the Mississippi–Alabama barrier islands in 2010–2011.

Sampling Period	Island	Land Area (ha) *	Num. of Points	Num. of Photos	Specific Sampling Area (ha per Point) †	Num. of Sampling Days ‡
6 May–8 October 2010	Horn	680	111	355	6.1	13
20 October–19 November 2010	Dauphin	334	50	200	6.7	5
22 November 2010–20 January 2011	Petit Bois	377	61	243	6.2	4
14 December 2010	Sand	66	10	40	6.6	1
28 January–6 May 2011	Cat	725	101	552	7.2	9
8 April 2011	East Ship	66	11	63	6.0	1
18 May–19 July 2011	West Ship	180	31	121	5.8	3
6 May 2010–19 July 2011	Islands Combined	2428	375	1574	6.5	36

* Land area sampled by random positioning. Of Horn Island’s 1265 ha total land area, approximately 585 ha were predominantly bare sand and generally not sampled. Only western and central Dauphin Island, the uninhabited portion of the island west of 88.2 deg. W. longitude, was sampled. This island segment is referred to as West Dauphin in the downloadable .kml and .gdb files; ^† Specific sampling area was determined by dividing land area by number of points sampled; ^‡ The number of sampling days was the number of field-days required to survey a given island.

). Sampling density was based on earlier studies which utilized randomly-positioned line transects in assessing plant species richness and habitat change on Horn Island [7,13,14]. The present survey employed the geographic centers of those transects as the Horn sampling points, along with new randomly-positioned points which were added in order to sample vegetated areas that were not considered in the earlier studies. Generally, the large expanse of bare sand on Horn was not field-sampled. At a density of one point per 6 ha of land area, this would have required nearly a doubling of ground point locations, whereas bare sand could be mapped with relative ease from aerial or satellite image data. For the remaining islands, sampling points were positioned randomly using ENVI software [15] from SPOT-5, 10-m multispectral coverage [16]. In contrast with methods for Horn Island, bare sand areas were included in the randomized sampling of all other islands because they were much less extensive.

In the field, a GPS unit with sub-meter-accuracy (Trimble, Geo Explorer 2003 Series) [17] was used to navigate to a given randomly-prepositioned point where field GPS location (WGS-84 datum, UTM 16N projection) and date were recorded. If the prepositioned point happened to fall in standing water, it was moved to the nearest above-water area unless emergent vegetation was present. Submerged aquatic vegetation was not sampled. After the initial sampling day (6 May 2010), a fiberglass range pole with alternating 0.3 m (1 ft.) orange and white segments was used to mark point location. If vegetation was present, primary and secondary dominant plant species were determined by visual estimations of abundance within approximately 10 m to 20 m of the point. Also noted were any additional species which might have been found within the same vicinity of the point. The pole and vicinity were photographed using a Nikon model D-60 SLR digital camera with Nikon 18–55 mm f/3.5–5.6G VR AF-S DX lens set at the 18 mm focal length to achieve a wide field-of-view. Beginning on Horn Island, 16 June 2010, and with improved methodological consistency thereafter, the pole and vicinity were photographed first with a view toward magnetic north, then east, south, and west; i.e., clockwise beginning with the view northward. Where tree canopies or other tall objects were present near the point, more than one photograph was taken in a given compass direction to capture mid-canopy to upper-canopy features such as greenness and structure. In the laboratory, the photos were associated with sampling-point GPS coordinates utilizing ArcGIS attachment functions.

A total of 375 points were surveyed in 2010–2011 over a span of approximately 15 months (Table 2). The survey began on Horn Island, where 111 points were sampled during 6 May through 8 October 2010. Based on estimates derived from the SPOT-5 imagery, bare sand was the dominant surface feature on approximately 585 ha of Horn. Thus, of Horn’s 1265 ha total land area, 680 ha were sampled at the approximate specific area of 6 ha per point. Western and central Dauphin Island and Sand Island also were surveyed in 2010. Dauphin Island east of longitude 88.2 degrees, the only significantly-inhabited portion of the island chain, was not included in the field survey. Sampling of the 61 points on Petit Bois began in November 2010, and was completed in January, 2011. Cat Island was surveyed from 28 January through 6 May 2011. Specific sampling area on Cat was slightly greater than on the other islands (Table 2) because some privately-owned areas on the island were not surveyed. Field sampling was completed with surveys of East Ship in April and West Ship in May–July 2011.
