Article

Degradation Studies of Air-Exposed Black Phosphorous and Black Arsenic Phosphorous

by
Usman O. Abu
1,
Dinushika Vithanage
2,
Ashan Vitharana
2,
Jacek B. Jasinski
1,* and
Gamini Sumanasekera
2,*
1
Conn Center for Renewable Energy Research, University of Louisville, Louisville, KY 40292, USA
2
Department of Physics and Astronomy, University of Louisville, Louisville, KY 40292, USA
*
Authors to whom correspondence should be addressed.
ChemEngineering 2023, 7(2), 18; https://doi.org/10.3390/chemengineering7020018
Submission received: 9 November 2022 / Revised: 15 February 2023 / Accepted: 28 February 2023 / Published: 3 March 2023
(This article belongs to the Special Issue Feature Papers in Chemical Engineering)

Abstract

:
This work investigates the effects of oxygen and humidity on black phosphorous (BP) and black arsenic phosphorous ( As x P 1 x ) flakes using Raman spectroscopy and in situ electric transport measurements (four-probe resistance and thermoelectric power, TEP). The results show that the incorporation of arsenic into the lattice of BP renders it more stable, with the degradation times for BP, As 0.2 P 0.8 , and As 0.4 P 0.6 being 4, 5, and 11 days, respectively. The P-P Raman peak intensities were determined to decrease with exposure to oxygen and moisture. The TEP measurements confirmed that both BP and As x P 1 x   are p-type semiconductors with the TEP of As 0.4 P 0.6 stabilizing more slowly than that of BP. In addition, the four-probe resistance of BP and As x P 1 x stabilized significantly faster when exposed to air after being degassed in a vacuum. This was attributed to the charge transfer between the oxygen redox potential of air and the Fermi energy (EF) of the semiconductors.

1. Introduction

Environmental stability is one of the key issues in the development of functional materials, especially when these materials are designed for applications and devices requiring direct environmental exposure. The importance of material stability cannot be overstated as it directly affects the reliability and lifetime of devices they are used in. Understanding of the processes that occur at the interface between materials and the environment, i.e., the processes that are potentially responsible for material degradation is therefore essential. Among such processes are the phenomena occurring at the surface of the material during its exposure to humid air. While in metals this often can lead to a corrosion, such exposure can also significantly affect semiconductors, which are another technologically important class of materials.
The exceptional properties exhibited by black phosphorous (BP) have motivated research into mitigating the effects of its instability [1]. The surface of BP is reactive in air due to the lone pair of electrons a phosphorous atom possesses [2,3,4]. A photo-assisted reactive oxygen species (ROS) forms and bonds on BP surface upon exposure to ambient environment in the presence of light [5]. A thin layer of hydrophilic oxidized phosphorous ( P x O y ) is formed on the surface as it is oxidized [2]. Oxidized regions on the surface of BP appear as small bumps [6] which further react with moisture in air to form etching phosphoric acids [2,4,5,6,7] that appear as large droplets [6]. Favron et al. reported that visible light alone induces no degradation on BP [6]; rather, the photo-induced degradation is activated by air or the mixture of air and water. Passivation strategies that have been proposed and tested for the inhibition of degradation in BP can broadly be classified into encapsulation methods and covalent modification methods [4,8,9]. Encapsulation involves coating BP sheets with non-covalent environmentally stable materials that isolate BP from interacting with air. Atomic layer deposition (ALD) is an encapsulation method where Al2O3, SiO2, TiO2 have been used to coat BP layers resulting in long-term stability upon exposure [8,10,11,12]. In addition, dry transfer methods involving stacking up BP layers with other Table S2 materials such as graphene, hexagonal boron nitride (h-BN), MoS2, etc. [4,9,13], yield stable BP heterostructures with impressive stability. Nevertheless, this method is expensive, sophisticated, and requires a long time to complete.
Covalent modifications or functionalization of BP is achieved when functional groups react with the lone pairs of electrons in phosphorous atoms to yield P-X bonds [4]. The newly formed surface is thus immune from oxygen attacks. Covalent modification can be complicated as they require a trade-off between ensuring stability and preserving the desired properties of phosphorene [8]. Selection of elements from the same group as P or adjacent in the periodic table can help to mitigate this limitation. Yang et al. stabilized BP for 21 days by doping it with Te [14]. They reported that Te doping induced a shift of the conduction band minimum (CBM) of BP so that it approached or went below the redox potential of O 2 / O 2 . In addition, such doping reduced the light-induced O2 generation; thus, it inhibits the oxidation process. Recently, exceptional electrical transport properties have been reported for As-dopped BP [15]. Based on those previous reports, we hypothesize that the doping (isovalent substitution) of P with much more stable As which can have the same orthorhombic crystal structure as BP [16,17] will yield a more stable alloy with the same structure and similar properties as phosphorene. The As doping not only preserves BP’s orthorhombic crystal structure and in-plane anisotropy, but also tunes electronic and optical properties of the material for more applications. The resulting black arsenic–phosphorous ( As x P 1 x ), like BP, also has a puckered honeycomb crystal structure with its lattice parameters following approximately the Vegard’s law [18], i.e., changing almost linearly with alloy’s composition [15,16]. The lattice parameters of As x P 1 x are relatively larger compared to those of BP because the As−As bond length is larger than that of the P-P bond (2.48 Å vs. 2.21 Å in elemental arsenic compared to elemental phosphorous) and substituted As atoms in BP are slightly displaced outwards resulting in the increase in rectangular primitive cell constants of As x P 1 x [19].
Here, we present direct experimental evidence based on Raman spectroscopy and in situ environmental electrical measurements that the introduction of arsenic atoms into BP lattice can enhance its stability. In addition, we discuss and compare the stability of these materials, i.e., BP and As x P 1 x , using a similar mechanism to the one proposed previously for diamond [20] and other semiconductor-type carbon materials [21], where electrochemical charge transfer occurs between the adsorbed water and the surface of semiconductor material exposed to humid air. Better understanding of such processes in BP and As x P 1 x can lead to better protection strategies, as well as to designs of more durable materials.

2. Materials and Methods

2.1. Synthesis of Black Phosphorous and A s x P 1 x

BP and As x P 1 x (x = 0.2, 0.4 and 0.6) were synthesized via the chemical vapor transport route (CVT). For the synthesis of BP, red phosphorous (500 mg, Sigma, > 97%) was used as the precursor, while Sn (20 mg, Alfa Aesar, 99.8%) and SnI4 (20 mg, Alfa Aesar, 95%) served as transport agents. Red phosphorous, Sn, and SnI4 were loaded in a quartz ampoule that was sealed at 10−6 Torr. The sealed ampoule was then annealed at 615 °C in two-zone furnace where a temperature gradient of 50 °C was maintained and starting materials were placed at the hot end. Detailed steps for this process have been provided [22,23,24]. At the same time, stoichiometric amounts of red phosphorus and gray arsenic (Sigma, >97%) were measured into quartz ampoules alongside transport agents, sealed at the same vacuum as BP and annealed at 650 °C with the same temperature gradient maintained in the furnace for the synthesis of As x P 1 x compounds.

2.2. Raman Spectroscopy

BP and two compositions of As x P 1 x (x = 0.2 and 0.6) were crushed to approximately 10 µm and placed on marked glass slides. Before the Raman spectra of crushed samples were quickly measured, the Raman shift of silicon (520 cm−1) was used to calibrate the equipment. This was performed for subsequent measurements to avoid shifts in the spectra caused by poor calibration. The glass slides bearing the samples were then placed in an open bath that had a digital hygrometer placed beside it. The average relative humidity and temperature for this experiment were 35   ±   5% and 25 °C, respectively. The Raman spectrum for each sample was measured every day to study their systematic degradation until they ultimately degraded. While the total degradation of the samples occurred at different times, it required 19 days to conclude this experiment.

2.3. Electrical Transport Measurements

The in situ thermoelectric power (TEP) and four-probe resistance of BP were measured by positioning two small thermocouples (Chromel (KP)/Alumel) and two current leads on a 4 mm by 4 mm2 BP sample with the aid of small silver epoxy [15,25]. An edge of the sample was fitted on an aluminum plate with a resistive heater (∼100 Ω) beneath. The sample holder carrying the sample and electrical leads were put in a quartz reactor and pumped with a turbomolecular pump down to 10−7 Torr. TEP and resistance were measured carefully in real time as the sample was heated gently from room temperature up to 560 K and kept at this temperature for 12 h. The sample was then cooled to room temperature for 3 h and exposed to ambient conditions for 72 h. This procedure was replicated for As 0.4 P 0.6 and obtained results were analyzed. The setup for the explained process is illustrated in Figure 1.

3. Results and Discussion

3.1. Raman Spectroscopy

The Raman spectra of unexposed synthesized samples are shown in Figure 2. BP shows its signature vibration modes centered at 357, 432 and 460 cm−1 and are assigned the notations A g 1 , B 2 g and A g 2 [22,24,25,26], respectively. As x P 1 x alloys typically exhibit three regimes of Raman vibration modes [15]. There are three As–As vibration modes detected between 200 and 300 cm−1, two As–P modes that appear between 300– and 30 cm−1 while, similar to BP, three P–P vibration modes appear between approximately 330 and 500 cm−1. The notations for the As–As modes are also A g 1 , B 2 g and A g 2 , respectively.
The Raman spectra for BP and As x P 1 x alloys measured after continuous exposure to air are presented in Figure 3. BP (Figure 3a), expectedly, degraded faster relative to As x P 1 x alloys (Figure 3b,c). Similarly, Figure S1 shows that the P-P vibration modes for BP quenched faster than those of As 0.2 P 0.8 . BP is susceptible to photo-assisted oxidation which causes it to degrade and adversely affects its electronic and optical properties. The degradation of BP is only mildly inhibited by low concentrations of As in As 0.2 P 0.8 (Figure 3b). On the other hand, As 0.6 P 0.4 (Figure 3c) showed much better stability as it was able to inhibit oxygen attacks for a much longer period. While it required BP 9 days to degrade totally, As 0.2 P 0.8 and As 0.6 P 0.4 fully degraded after 11 and 19 days, respectively. It is noteworthy to mention that the samples studied in this experiment were all multi-layered. One of the evidences of degradation in multi-layered BP is the blueshift of its Raman peak positions [27] (Figure S3) as a result of the loss of layers as phosphoric acids etch the material top-down [6,8]. The kinetics of oxidation of BP and As x P 1 x were further analyzed by fitting the normalized total Raman intensity for each sample as shown in Figure 3d. The fitted curves correspond to a monoexponential decay function, e x p ( t τ ) . The decay function parameters are presented in Table S1. It can be inferred that BP decays almost three times faster than As 0.6 P 0.4 .
Since the oxidation of BP is a chemical process, it makes sense to use a chemical approach to inhibit it. Figure S2 shows the relatively fast quenching of P-P Raman peak intensities for BP and As 0.2 P 0.8 relative to As 0.6 P 0.4 . This shows that alloying BP with high concentration of As limits the possibility of light-induced O2 generation and abating the oxidation process [8,14].

3.2. In situ Transport Property Measurements of BP and A s 0.4 P 0.6

The normalized TEP for As 0.4 P 0.6 shows better stability in ambient environment than BP (Figure 4a) after over 10 h of annealing and cooling in a vacuum. The degradation kinetics for BP and As 0.4 P 0.6 correspond to a monoexponential model, ( 1 e x p ( t τ ) ) . The coupling between the thermal and electrical phenomena in BP deteriorates relatively faster because of the photo-assisted oxygen degradation of the P-P bond [6]. After over 500 min of exposure to ambient conditions, the TEP of As 0.4 P 0.6 demonstrated stability, settling approximately 1.4 times slower than BP (Table S2). Chemically modifying BP with As atoms to ensure oxygen sequestration has proven to ensure better stability in transport properties of interest. Figure 4b also shows the sustained stability of the four-probe resistance of As 0.4 P 0.6 over BP after exposure to air. The normalized resistance for BP shows a rapid drop after approximately 40 min of exposure while the resistance of As 0.4 P 0.6 decreases much slower. The resistance of BP and As 0.4 P 0.6 also fitted well with a monoexponential decay function as shown in Figure 4a. The metallic character of As also contributes to the stabilized electrical transport properties of As x P 1 x . The normalized resistance for BP decays approximately four times faster than BP as shown in Table S3.
The difference in degradation characteristics in Raman spectroscopy and electrical transport measurement data originates from the difference in experimental procedures. Raman studies were performed on samples that were already exposed to air (oxygen and moisture) and it reflects the long-term degradation properties showing longer time constants (days) shown in Table S1. However, TEP and resistance were studied right after they were exposed to air from their degassed states and the transport properties reflect changes in thermal and electrical properties with shorter time constants (minutes) shown in Tables S2 and S3. The discrepancy in the time constant values observed in resistance (Table S2) and TEP (Table S3) data is due to the grain boundary effects and other scattering events that only influence the resistance. The room temperature TEP for BP and As 0.4 P 0.6 were of 250 μV/K and 145 μV/K, respectively (Figure S4a). This confirms the dominance of hole concentrations (p-type) in these semiconductors. The corresponding room temperature four-probe resistances for BP and As 0.4 P 0.6 were 0.27 Ω and 0.085 Ω, respectively (Figure S4b).
In general, whenever a semiconductor is exposed to humid air, a charge transfer is expected between the adsorbed water film and the solid in a direction that tends to bring the Fermi energy (EF) of the material to an equilibrium with the electrochemical potential of the film. This is based on the electron exchange between the material and the aqueous redox couple O2 + 4H+ + 4e ⇌ 2H2O [28]. All key components originate from normal humid air: the water film provides both a medium for the electrochemical reaction as well as the O2 and the H+ (the protons arise from acidity generated by CO2 that is present in air). Previously, this mechanism has been proposed and used to explain a long-standing problem of a curious phenomenon—undoped diamond—an exceedingly good insulator, showing substantial conductivity when exposed to air [20]. This mechanism has also been shown to play an important role in other carbon materials [29,30,31,32], as well as in inorganic materials, such as GaN and ZnO [33,34]. Reported values of the Fermi energy (EF) of carbon solids, such as graphite, diamond, carbon nanotubes, and graphene are all well above the electrochemical potential of the oxygen redox couple in air (−5.3 eV) [28]. Therefore, the redox couple can serve as an external acceptor and be responsible for EF pinning and modified electrical properties of these materials [34,35].
Previous studies have reported the work function for BP to range from ~5.17 eV for monolayer to ~4.58 eV for tri-layer. This varies inversely with the number of BP layers [36]. The valence band edges of BP are above the O 2 / O 2 redox couple in air [6,14,27], alloying with As causes a shift in the Fermi level so that it approaches the redox potential of O 2 / O 2 as shown in Figure 5, which is consistent with the prediction that band bending (and charge transfer) will be minimal and the Fermi energy throughout the solid will be pinned close to that of the redox couple in the adsorbed water film. Yang et al. observed this phenomenon (i.e., Fermi level pinning) with Te-doped BP where ambient degradation was inhibited and Te-doped devices demonstrated impressive retained mobility of over 200 cm2 v−1 s−1 [14].

4. Conclusions

The environmental stability of BP and As x P 1 x was studied by evaluating their optical and electrical transport properties under controlled conditions. The Raman analysis of BP and As x P 1 x when exposed to air indicated that BP degraded nearly three times faster than As 0.6 P 0.4   . This emphasizes that increasing the concentration of As atoms in BP improves its stability. The degradation times for BP, As 0.2 P 0.8 , and As 0.4 P 0.6 were recorded as 4, 5, and 11 days, respectively. Additionally, the electrical transport properties of As 0.4 P 0.6   and BP after being exposed to air showed that the thermal and electrical coupling between P-P in BP was improved through alloying with As atoms. The kinetics of the charge transfer-related evolution of electrical transport parameters followed exponential growth (TEP) and exponential decay (resistance) models, respectively. The TEP of As 0.4 P 0.6   stabilized slower than BP by 1.4 times, while BP’s resistance decayed faster than As 0.4 P 0.6   by four times after being exposed to ambient conditions. The redox potential of As x P 1 x   is closer to the O 2 / O 2 (−4.5 eV) compared to BP, leading to reduced charge transfer effects and degradation at the surface–water interface. Furthermore, when cooled and annealed samples of As 0.4 P 0.6   and BP were exposed to ambient conditions, it was determined that the normalized TEP and four-probe resistance of As 0.4 P 0.6   were relatively stable compared to BP.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/chemengineering7020018/s1, Figure S1: Degradation color maps highlighting the vanishing Raman modes of BP and As 0.2 P 0.8 as time progresses. (a) BP (b) As 0.2 P 0.8 ; Figure S2: Degradation of the peak intensities of P–P Raman vibration modes. (a) A g 1 (b) B 2 g (c) A g 2 ; Figure S3: Peak positions for P–P Raman vibration modes. (a) A g 1 (b) B 2 g (c) A g 2 ; Table S1: Decay function parameters for Raman spectra; Table S2: Growth function parameters for normalized thermoelectric power (TEP); Table S3: Decay function parameters for normalized resistance; Figure S4: Response of the electrical transport properties of BP and As0.4P0.6 to heating and cooling. (a) TEP and (b) resistance.

Author Contributions

Conceptualization, J.B.J. and G.S.; methodology, U.O.A., D.V. and A.V; validation, J.B.J., G.S. and U.O.A.; formal analysis, U.O.A. and D.V; investigation, U.O.A.; data curation, U.O.A., D.V and A.V.; writing—original draft preparation, U.O.A.; writing—review and editing, J.B.J. and G.S; visualization, U.O.A.; supervision, J.B.J. and G.S; project administration, J.B.J. and G.S.; funding acquisition, J.B.J. and G.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the U.S. Department of Energy, Office of Science, Basic Energy Sciences, under Award # DE-SC0019348.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Artel, V.; Guo, Q.; Cohen, H.; Gasper, R.; Ramasubramaniam, A.; Xia, F.; Naveh, D. Protective molecular passivation of black phosphorus. NPJ 2D Mater. Appl. 2017, 1, 6. [Google Scholar] [CrossRef]
  2. Yau, S.-L.; Moffat, T.P.; Bard, A.J.; Zhang, Z.; Lerner, M.M. STM of the (010) surface of orthorhombic phosphorus. Chem. Phys. Lett. 1992, 198, 383–388. [Google Scholar] [CrossRef]
  3. Castellanos-Gomez, A.; Vicarelli, L.; Prada, E.; Island, J.O.; Narasimha-Acharya, K.; Blanter, S.I.; Groenendijk, D.J.; Buscema, M.; Steele, G.A.; Alvarez, J. Isolation and characterization of few-layer black phosphorus. 2D Mater. 2014, 1, 025001. [Google Scholar] [CrossRef]
  4. Sang, D.K.; Wang, H.; Guo, Z.; Xie, N.; Zhang, H. Recent developments in stability and passivation techniques of phosphorene toward next-generation device applications. Adv. Funct. Mater. 2019, 29, 1903419. [Google Scholar] [CrossRef]
  5. Hyun, C.; Kim, J.H.; Lee, J.-Y.; Lee, G.-H.; Kim, K.S. Atomic scale study of black phosphorus degradation. RSC Adv. 2020, 10, 350–355. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Favron, A.; Gaufrès, E.; Fossard, F.; Phaneuf-L’Heureux, A.-L.; Tang, N.Y.W.; Lévesque, P.L.; Loiseau, A.; Leonelli, R.; Francoeur, S.; Martel, R. Photooxidation and quantum confinement effects in exfoliated black phosphorus. Nat. Mater. 2015, 14, 826–832. [Google Scholar] [CrossRef]
  7. Gamage, S.; Li, Z.; Yakovlev, V.S.; Lewis, C.; Wang, H.; Cronin, S.B.; Abate, Y. Nanoscopy of black phosphorus degradation. Adv. Mater. Interfaces 2016, 3, 1600121. [Google Scholar] [CrossRef]
  8. Li, Q.; Zhou, Q.; Shi, L.; Chen, Q.; Wang, J. Recent advances in oxidation and degradation mechanisms of ultrathin 2D materials under ambient conditions and their passivation strategies. J. Mater. Chem. A 2019, 7, 4291–4312. [Google Scholar] [CrossRef]
  9. Abate, Y.; Akinwande, D.; Gamage, S.; Wang, H.; Snure, M.; Poudel, N.; Cronin, S.B. Recent progress on stability and passivation of black phosphorus. Adv. Mater. 2018, 30, 1704749. [Google Scholar] [CrossRef]
  10. Wood, J.D.; Wells, S.A.; Jariwala, D.; Chen, K.-S.; Cho, E.; Sangwan, V.K.; Liu, X.; Lauhon, L.J.; Marks, T.J.; Hersam, M.C. Effective Passivation of Exfoliated Black Phosphorus Transistors against Ambient Degradation. Nano Lett. 2014, 14, 6964–6970. [Google Scholar] [CrossRef] [Green Version]
  11. Kim, J.-S.; Liu, Y.; Zhu, W.; Kim, S.; Wu, D.; Tao, L.; Dodabalapur, A.; Lai, K.; Akinwande, D. Toward air-stable multilayer phosphorene thin-films and transistors. Sci. Rep. 2015, 5, 8989. [Google Scholar] [CrossRef] [Green Version]
  12. Uk Lee, H.; Lee, S.C.; Won, J.; Son, B.-C.; Choi, S.; Kim, Y.; Park, S.Y.; Kim, H.-S.; Lee, Y.-C.; Lee, J. Stable semiconductor black phosphorus (BP)@ titanium dioxide (TiO2) hybrid photocatalysts. Sci. Rep. 2015, 5, srep08691. [Google Scholar] [CrossRef] [Green Version]
  13. Avsar, A.; Vera-Marun, I.J.; Tan, J.Y.; Watanabe, K.; Taniguchi, T.; Castro Neto, A.H.; Ozyilmaz, B. Air-stable transport in graphene-contacted, fully encapsulated ultrathin black phosphorus-based field-effect transistors. ACS Nano 2015, 9, 4138–4145. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Yang, B.; Wan, B.; Zhou, Q.; Wang, Y.; Hu, W.; Lv, W.; Chen, Q.; Zeng, Z.; Wen, F.; Xiang, J. Te-doped black phosphorus field-effect transistors. Adv. Mater. 2016, 28, 9408–9415. [Google Scholar] [CrossRef] [PubMed]
  15. Karki, B.; Rajapakse, M.; Sumanasekera, G.U.; Jasinski, J.B. Structural and Thermoelectric Properties of Black Arsenic–Phosphorus. ACS Appl. Energy Mater. 2020, 3, 8543–8551. [Google Scholar] [CrossRef]
  16. Han, R.; Feng, S.; Sun, D.-M.; Cheng, H.-M. Properties and photodetector applications of two-dimensional black arsenic phosphorus and black phosphorus. Sci. China Inf. Sci. 2021, 64, 140402. [Google Scholar] [CrossRef]
  17. Liang, J.; Hu, Y.; Zhang, K.; Wang, Y.; Song, X.; Tao, A.; Liu, Y.; Jin, Z. 2D layered black arsenic-phosphorus materials: Synthesis, properties, and device applications. Nano Res. 2021, 15, 3737–3752. [Google Scholar] [CrossRef]
  18. Tsai, Y.-C.; Bayram, C. Structural and electronic properties of hexagonal and cubic phase AlGaInN alloys investigated using first principles calculations. Sci. Rep. 2019, 9, 6583. [Google Scholar] [CrossRef] [Green Version]
  19. Xu, Y.; Shi, Z.; Shi, X.; Zhang, K.; Zhang, H. Recent progress in black phosphorus and black-phosphorus-analogue materials: Properties, synthesis and applications. Nanoscale 2019, 11, 14491–14527. [Google Scholar] [CrossRef]
  20. Chakrapani, V.; Angus, J.C.; Anderson, A.B.; Wolter, S.D.; Stoner, B.R.; Sumanasekera, G.U. Charge transfer equilibria between diamond and an aqueous oxygen electrochemical redox couple. Science 2007, 318, 1424–1430. [Google Scholar] [CrossRef] [Green Version]
  21. Desai, S.; Rivera, J.; Jalilian, R.; Hewaparakrama, K.; Sumanasekera, G. Studies of electronic distribution in potassium-doped mats of single-walled carbon nanotubes, double-walled carbon nanotubes, and peapods. J. Appl. Phys. 2008, 104, 013707. [Google Scholar] [CrossRef] [Green Version]
  22. Akhtar, M.; Zhang, C.; Rajapakse, M.; Musa, M.R.K.; Yu, M.; Sumanasekera, G.; Jasinski, J.B. Bilayer phosphorene under high pressure: In situ Raman spectroscopy. Phys. Chem. Chem. Phys. 2019, 21, 7298–7304. [Google Scholar] [CrossRef]
  23. Köpf, M.; Eckstein, N.; Pfister, D.; Grotz, C.; Krüger, I.; Greiwe, M.; Hansen, T.; Kohlmann, H.; Nilges, T. Access and in situ growth of phosphorene-precursor black phosphorus. J. Cryst. Growth 2014, 405, 6–10. [Google Scholar] [CrossRef] [Green Version]
  24. Rajapakse, M.; Musa, R.; Abu, U.O.; Karki, B.; Yu, M.; Sumanasekera, G.; Jasinski, J.B. Electrochemical Li intercalation in black phosphorus: In situ and ex situ studies. J. Phys. Chem. C 2020, 124, 10710–10718. [Google Scholar] [CrossRef]
  25. Abu, U.O.; Musa, M.R.K.; Rajapakse, M.; Karki, B.; Vithanage, D.; Yu, M.; Sumanasekera, G.; Jasinski, J.B. Vapor-Phase Intercalation of Cesium into Black Phosphorous. J. Phys. Chem. C 2021, 125, 27440–27448. [Google Scholar] [CrossRef]
  26. Abu, U.O.; Akter, S.; Nepal, B.; Pitton, K.A.; Guiton, B.S.; Strachan, D.R.; Sumanasekera, G.; Wang, H.; Jasinski, J.B. Ultra-Narrow Phosphorene Nanoribbons Produced by Facile Electrochemical Process. Adv. Sci. 2022, 9, 2203148. [Google Scholar] [CrossRef] [PubMed]
  27. Gómez-Pérez, J.; Barna, B.; Tóth, I.Y.; Kónya, Z.; Kukovecz, A.K. Quantitative tracking of the oxidation of black phosphorus in the few-layer regime. ACS Omega 2018, 3, 12482–12488. [Google Scholar] [CrossRef] [Green Version]
  28. Lide, D.R. CRC Handbook of Chemistry and Physics; CRC Press: Boca Raton, FL, USA, 2004; Volume 85. [Google Scholar]
  29. Qi, D.; Chen, W.; Gao, X.; Wang, L.; Chen, S.; Loh, K.P.; Wee, A.T. Surface transfer doping of diamond (100) by tetrafluoro-tetracyanoquinodimethane. J. Am. Chem. Soc. 2007, 129, 8084–8085. [Google Scholar] [CrossRef] [PubMed]
  30. Sque, S.J.; Jones, R.; Briddon, P.R. The transfer doping of graphite and graphene. Phys. Status Solidi 2007, 204, 3078–3084. [Google Scholar] [CrossRef]
  31. Suzuki, S.; Bower, C.; Watanabe, Y.; Zhou, O. Work functions and valence band states of pristine and Cs-intercalated single-walled carbon nanotube bundles. Appl. Phys. Lett. 2000, 76, 4007–4009. [Google Scholar] [CrossRef] [Green Version]
  32. Suzuki, S.; Watanabe, Y.; Homma, Y.; Fukuba, S.-Y.; Heun, S.; Locatelli, A. Work functions of individual single-walled carbon nanotubes. Appl. Phys. Lett. 2004, 85, 127–129. [Google Scholar] [CrossRef]
  33. Wang, Q.; Puntambekar, A.; Chakrapani, V. Co-adsorption of water and oxygen on GaN: Effects of charge transfer and formation of electron depletion layer. J. Chem. Phys. 2017, 147, 104703. [Google Scholar] [CrossRef] [PubMed]
  34. Chakrapani, V.; Pendyala, C.; Kash, K.; Anderson, A.B.; Sunkara, M.K.; Angus, J.C. Electrochemical pinning of the Fermi level: Mediation of photoluminescence from gallium nitride and zinc oxide. J. Am. Chem. Soc. 2008, 130, 12944–12952. [Google Scholar] [CrossRef]
  35. Chandel, M.; Thakur, M.; Sharma, A.; Pathania, D.; Kumar, A.; Singh, L. Chlorophyll sensitized (BiO)2CO3/CdWO4/rGO nano-hybrid assembly for solar assisted photo-degradation of chlorzoxazone. Chemosphere 2022, 305, 135472. [Google Scholar] [CrossRef] [PubMed]
  36. Cai, Y.; Zhang, G.; Zhang, Y.-W. Layer-dependent band alignment and work function of few-layer phosphorene. Sci. Rep. 2014, 4, 6677. [Google Scholar] [CrossRef] [Green Version]

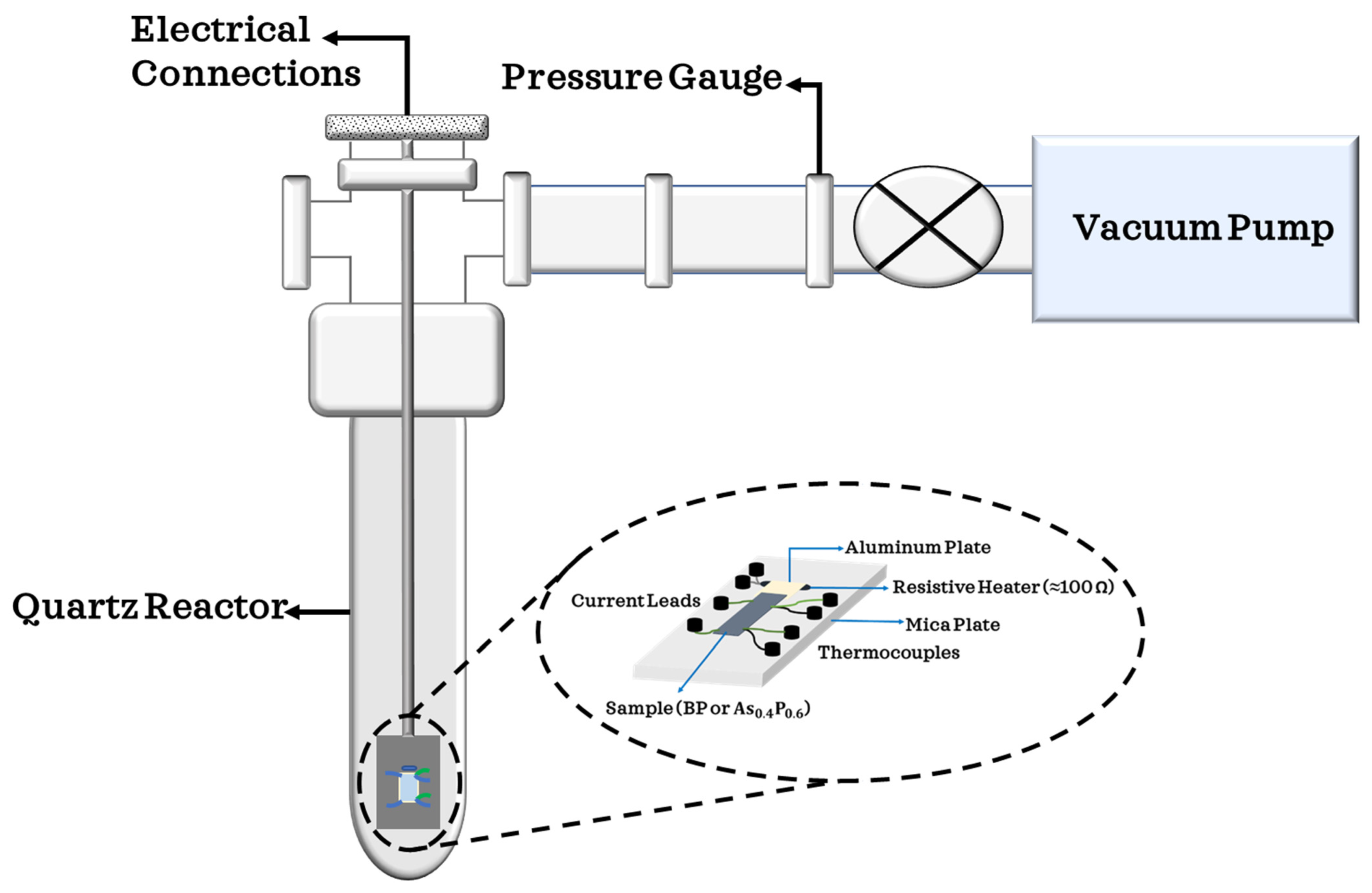

Figure 1. Experimental set-up for electrical transport measurements showing the reactor with provisions for pumping and air exposures and the sample probe and the electrical contacts.
Figure 1. Experimental set-up for electrical transport measurements showing the reactor with provisions for pumping and air exposures and the sample probe and the electrical contacts.
Chemengineering 07 00018 g001

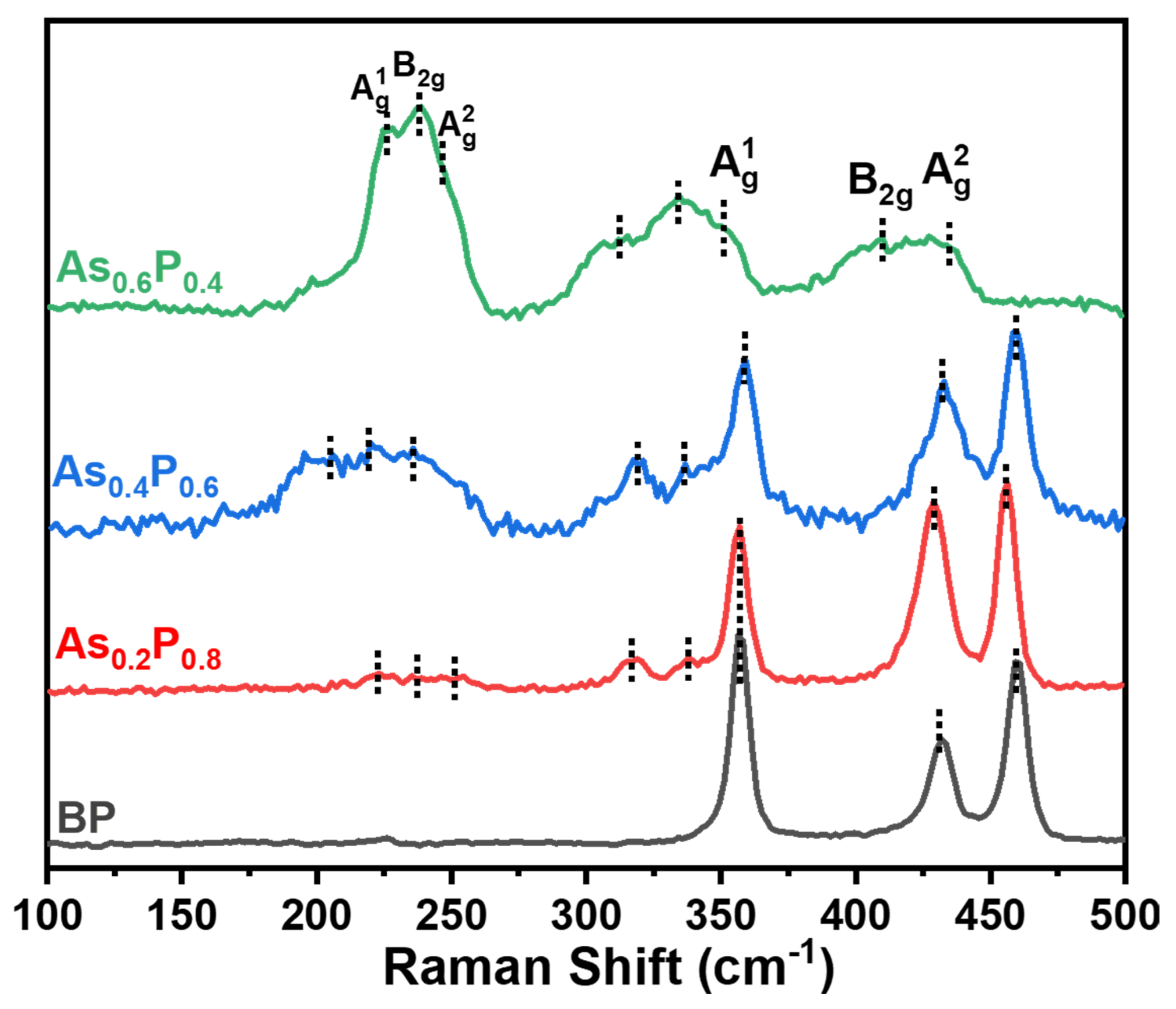

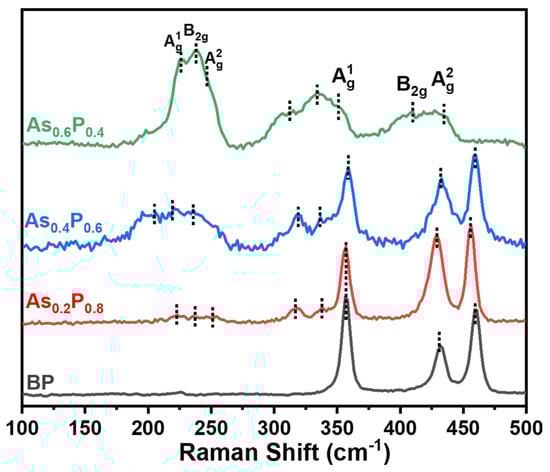

Figure 2. Raman spectra of unexposed synthesized pristine BP and AsxP1−x alloys with three different chemical compositions.
Figure 2. Raman spectra of unexposed synthesized pristine BP and AsxP1−x alloys with three different chemical compositions.
Chemengineering 07 00018 g002

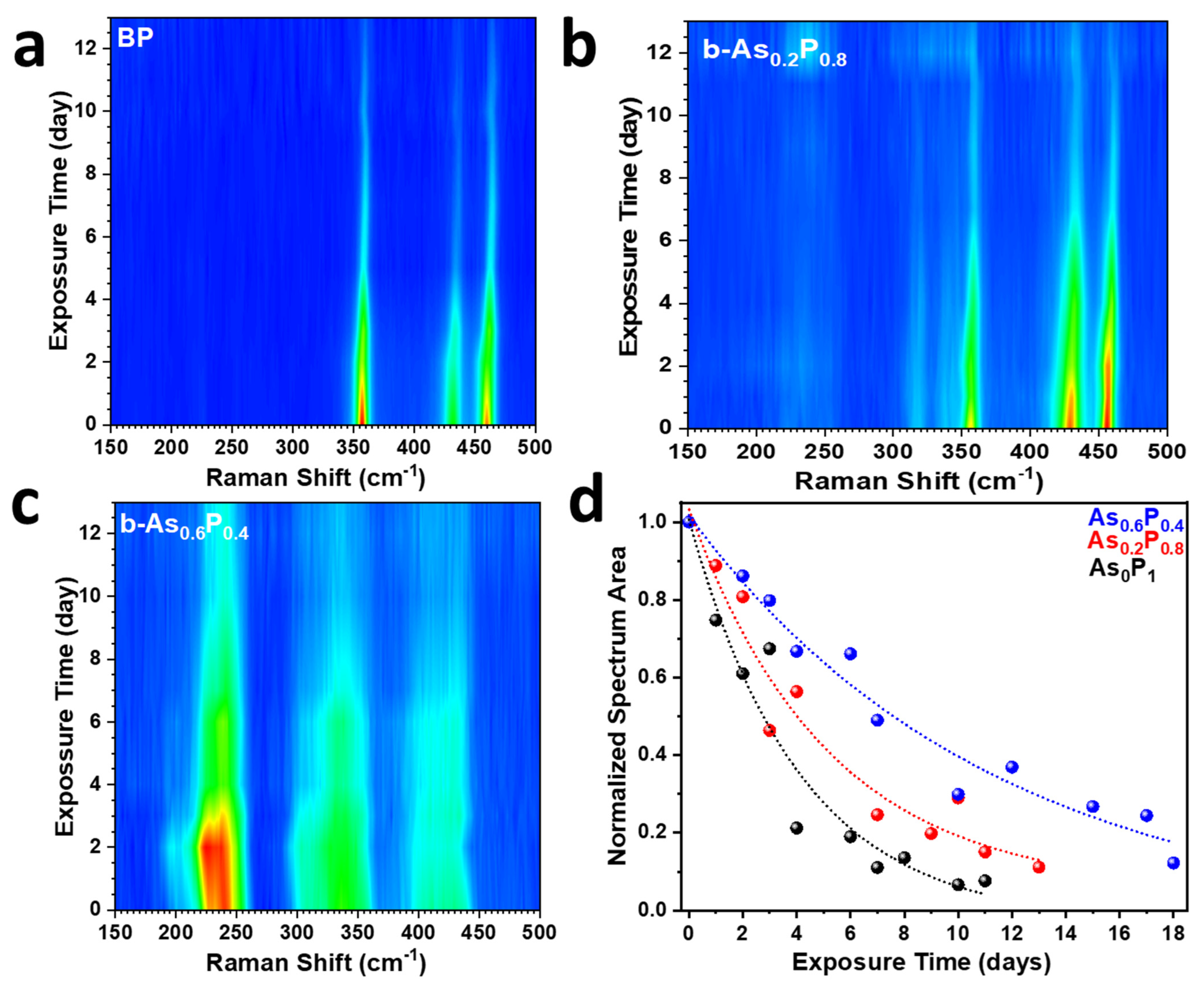

Figure 3. Results derived from Raman spectroscopy. (ac) Degradation maps showing time evolution of Raman spectra upon exposure to ambient environment for BP, As 0.2 P 0.8 , and As 0.6 P 0.4 , respectively. (d) The total Raman intensity as a function of exposure time for BP ( As 0 P 1 ), As 0.2 P 0.8 and As 0.6 P 0.4 . The initial (t = 0) total intensity for all three samples was normalized to 1.
Figure 3. Results derived from Raman spectroscopy. (ac) Degradation maps showing time evolution of Raman spectra upon exposure to ambient environment for BP, As 0.2 P 0.8 , and As 0.6 P 0.4 , respectively. (d) The total Raman intensity as a function of exposure time for BP ( As 0 P 1 ), As 0.2 P 0.8 and As 0.6 P 0.4 . The initial (t = 0) total intensity for all three samples was normalized to 1.
Chemengineering 07 00018 g003

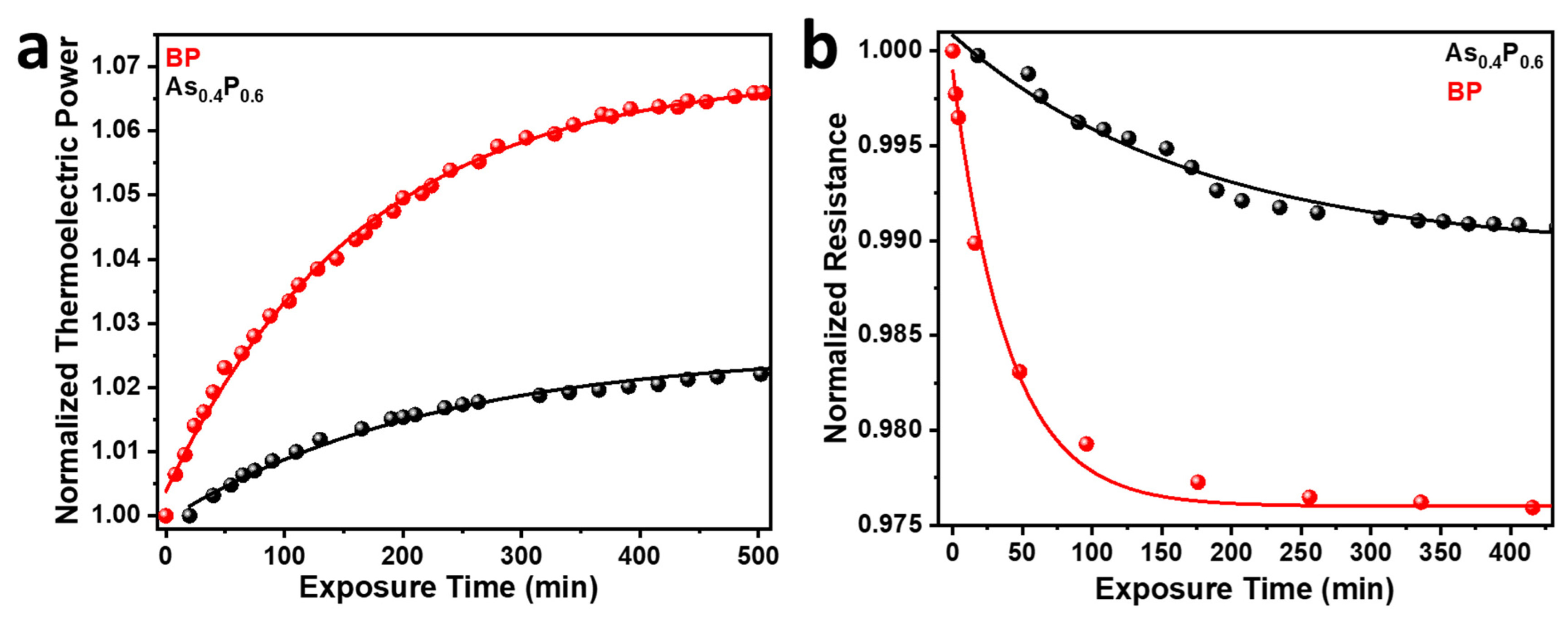

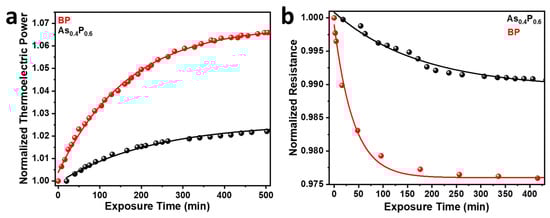

Figure 4. Results derived from electrical transport measurements of exposed samples after annealing. (a) Normalized TEP for As 0.4 P 0.6 and BP. (b) Normalized resistance for As 0.4 P 0.6 and BP.
Figure 4. Results derived from electrical transport measurements of exposed samples after annealing. (a) Normalized TEP for As 0.4 P 0.6 and BP. (b) Normalized resistance for As 0.4 P 0.6 and BP.
Chemengineering 07 00018 g004

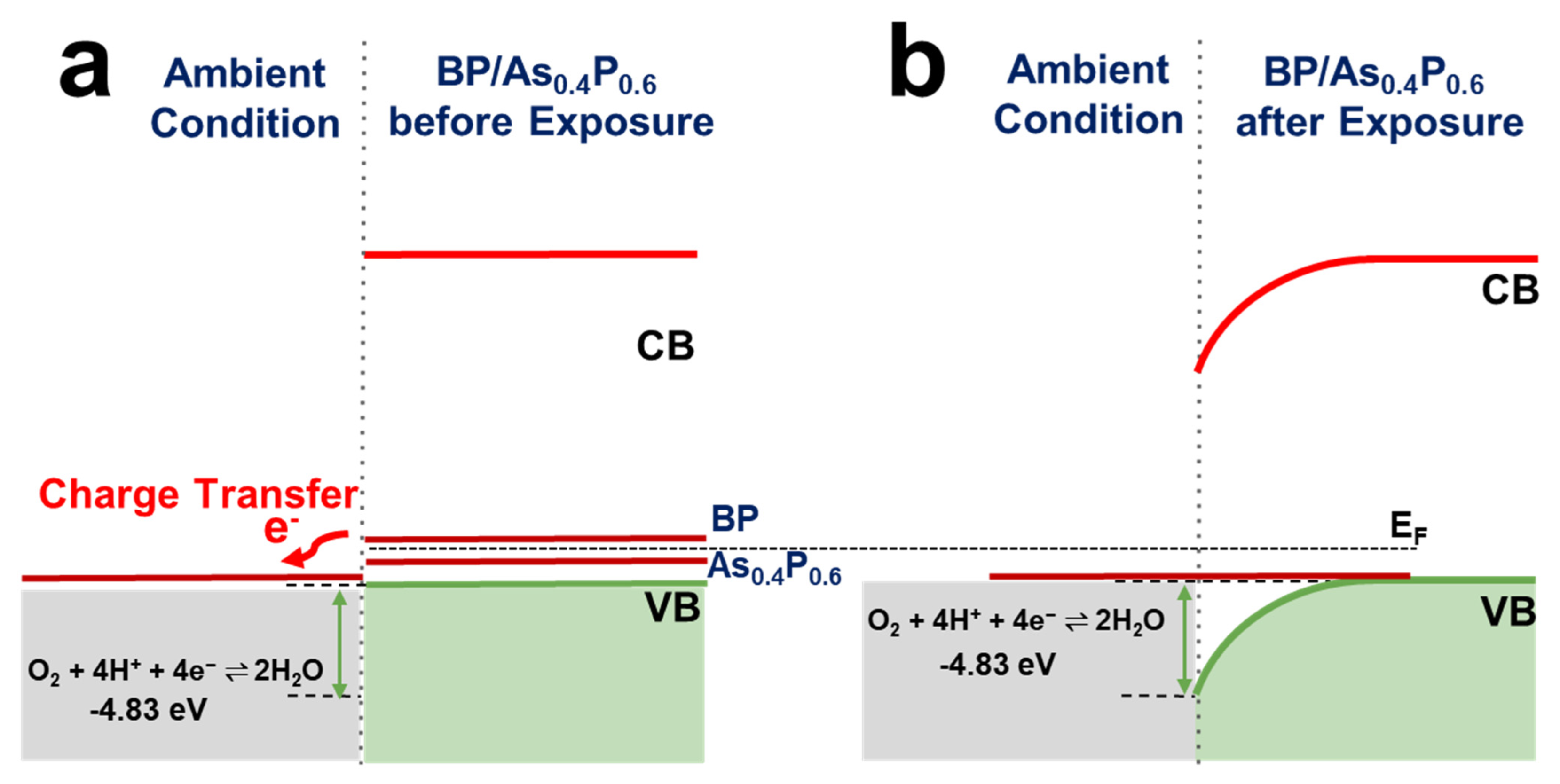

Figure 5. Band diagrams explaining the electron exchange between BP/ As x P 1 x As x P 1 x material systems and the aqueous redox couple (a) before and (b) after exposure to ambient conditions.
