Correction: Ränger, L.-M., et al. Robust Initialization of Rigorous Process Simulations of Multiple Dividing Wall Columns via Vmin Diagrams. ChemEngineering 2018, 2, 25

Lena-Marie Ränger; Ulrich Preißinger; Thomas Grützner

doi:10.3390/chemengineering5010010

,

and

Institute of Chemical Engineering, Ulm University, 89081 Ulm, Germany

^*

Author to whom correspondence should be addressed.

ChemEngineering2021, 5(1), 10;https://doi.org/10.3390/chemengineering5010010

Version Notes

Order Reprints

Equation Correction

There was an error in the original article []. The expression (1-q)∙F was positioned at a wrong location in Sections 4.2 and 4.3. Note that this expression usually cancels out for a liquid boiling feed stream. It is only important in the case of a different feed state. A correction was made to Equations (19), (21), (22) and (23) and to Figure 8.

V_{m i n, B C} = V^{T, C_{21}} - V^{B, C_{21}} = \sum_{i = 1}^{n} \frac{α_{i} \cdot z_{i} \cdot F}{α_{i} - θ_{A}^{’}} \cdot r_{i}^{T, C_{1}} = \frac{α_{A} \cdot F \cdot z_{A} \cdot r_{A}^{T, C_{1}}}{α_{A} - θ_{A}^{’}} + \frac{α_{B} \cdot F \cdot z_{B} \cdot r_{B}^{T, C_{1}}}{α_{B} - θ_{A}^{’}}

(19)

- V_{m i n, B C} + (1 - q) \cdot F = V^{T, C_{22}} - V^{B, C_{22}} = \sum_{i = 1}^{n} \frac{α_{i} \cdot z_{i} \cdot F}{α_{i} - θ_{C}^{’}} \cdot r_{i}^{B, C_{1}} = \frac{α_{C} \cdot F \cdot z_{C} \cdot (1 - r_{C}^{T, C_{1}})}{α_{C} - θ_{C}^{’}} + \frac{α_{D} \cdot F \cdot z_{D} \cdot (1 - r_{D}^{T, C_{1}})}{α_{D} - θ_{C}^{’}}

(21)

V_{m i n, C D}^{’} = V^{B, C_{22}} + (1 - q) \cdot F = V^{T, C_{22}} + V_{m i n, B C} - (1 - q) \cdot F + (1 - q) \cdot F = \frac{α_{C} \cdot F \cdot z_{C} \cdot r_{C}^{T, C_{22}}}{α_{C} - θ_{C}^{’}} + V_{m i n, B C}

(22)

V^{T, C_{1}} = \frac{α_{A} \cdot F \cdot z_{A} \cdot r_{A}^{T, C_{1}}}{α_{A} - Φ^{C_{1}}} + \frac{α_{B} \cdot F \cdot z_{B} \cdot r_{B}^{T, C_{1}}}{α_{B} - Φ^{C_{1}}} = V_{m i n, B C}

(23)

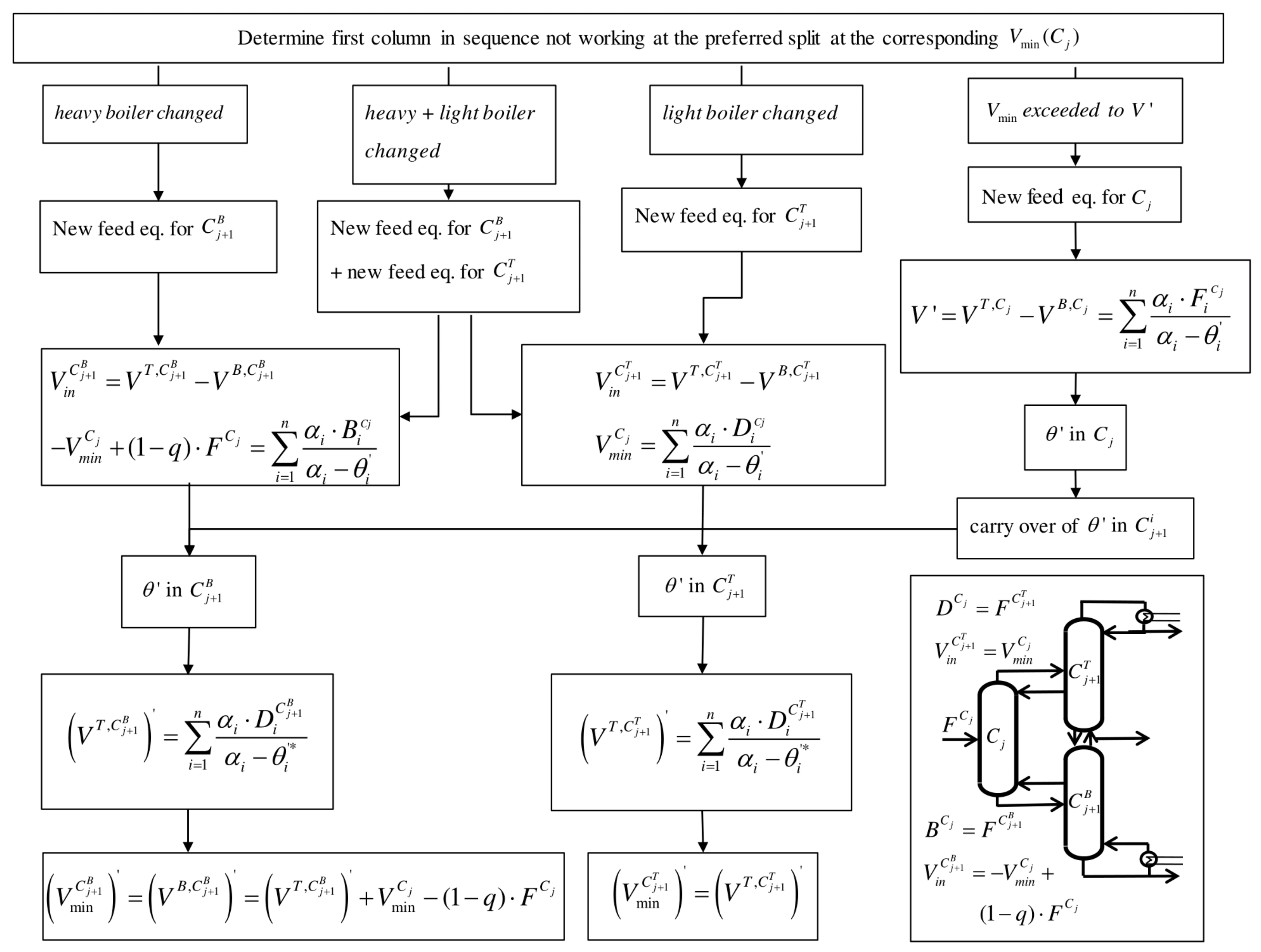

In addition, in Figure 8, a modification had to be made (see Figure 1).

Figure 1. Updated version of Figure 8.

The authors apologize for any inconvenience caused and state that the scientific conclusions are unaffected. The original article has been updated.
