Medicines 2018, 5(2), 37; https://doi.org/10.3390/medicines5020037

Article
Anti-Parasitic Activities of Allium sativum and Allium cepa against Trypanosoma b. brucei and Leishmania tarentolae
Institute of Pharmacy and Molecular Biotechnology, Heidelberg University, Im Neuenheimer Feld 364, 69120 Heidelberg, Germany
*
Authors to whom correspondence should be addressed.
Received: 29 March 2018 / Accepted: 17 April 2018 / Published: 21 April 2018

Abstract

:
Background: Garlics and onions have been used for the treatment of diseases caused by parasites and microbes since ancient times. Trypanosomiasis and leishmaniasis are a concern in many areas of the world, especially in poor countries. Methods: Trypanosoma brucei brucei and Leishmania tarentolae were used to investigate the anti-parasitic effects of dichloromethane extracts of Allium sativum (garlic) and Allium cepa (onion) bulbs. As a confirmation of known antimicrobial activities, they were studied against a selection of G-negative, G-positive bacteria and two fungi. Chemical analyses were performed using high-performance liquid chromatography (HPLC) and electrospray ionization-mass spectrometry (LC-ESI-MS/MS). Results: Chemical analyses confirmed the abundance of several sulfur secondary metabolites in garlic and one (zwiebelane) in the onion extract. Both extracts killed both types of parasites efficiently and inhibited the Trypanosoma brucei trypanothione reductase irreversibly. In addition, garlic extract decreased the mitochondrial membrane potential in trypanosomes. Garlic killed the fungi C. albicans and C. parapsilosis more effectively than the positive control. The combinations of garlic and onion with common trypanocidal and leishmanicidal drugs resulted in a synergistic or additive effect in 50% of cases. Conclusion: The mechanism for biological activity of garlic and onion appears to be related to the amount and the profile of sulfur-containing compounds. It is most likely that vital substances inside the parasitic cell, like trypanothione reductase, are inhibited through disulfide bond formation between SH groups of vital redox compounds and sulfur-containing secondary metabolites.
Keywords:
garlic; onion; Allium sativum; Allium cepa; anti-parasitic activity; trypanothione; trypanothione reductase

1. Introduction

Humans have cultivated garlics and onions since ancient times. They are well-known as food ingredients; however, because of their abundance in phytochemicals, they have also found usage in traditional folk medicine for the treatment of medical conditions like hypertension, coronary heart disease, hypercholesterolemia, cancer and infections [1,2]. Their anticancer, antioxidant, antimicrobial, antiplatelet and other biological potentials have been scientifically confirmed [3,4,5,6]. Several studies have revealed the potential of garlic (Allium sativum) and onion (Allium cepa) extracts against Leishmania sp. [7,8,9]. Gallwitz et al. (1999) assumed that ajoene is at least partly the source of the trypanocidal potential of Allium sativum [10].
The odor, as well as the biological activity, of garlic and onion are attributed to their sulfur-containing secondary metabolites (SM). The major precursor of these compounds is the odorless non-protein amino acid alliin. In the intact tissue, sulfoxides like alliin and the enzyme alliinase are sequestered in different microcompartments, which are separated by thin biomembranes from the cytoplasm. Upon crushing or damaging the bulbs, the microcompartments break down, the enzyme alliinase is released and comes into contact with alliin, consequently producing volatile sulfides, which are responsible for the pungent aroma (Figure 1) [5,11,12]. Allicin and degradation products then react with each other and with intracellular thiols, generating other sulfur-containing compounds, such as derivatives and residues of cysteine [13]. In contrast, in onions the reaction starts from isoalliin. Upon cutting the tissue, the enzymatic reaction starts in analogy to garlic, producing sulfur-containing products like lachrymatory factor, cis-/trans-zwiebelanes and other thiosulfinates (Figure 2) [1,14].
Parasitic infections are a major concern, globally, especially in poor countries. Trypanosoma brucei is a parasite that causes, if not treated, a deadly sleeping sickness in Africa, Human African Trypanosomiasis (HAT) [15]. Leishmaniasis is a disease caused by the protozoan parasite Leishmania, which results in up to 30,000 deaths each year [16].
Living organisms require a reducing intracellular environment. Low molecular weight thiol-containing compounds are responsible for maintaining these conditions. Glutathione is a thiol-containing compound responsible for regulating the intracellular redox status in almost all living organisms. However, in the class Kinetoplastida, to which trypanosomes and leishmanias belong, trypanothione—an analogue of glutathione—is uniquely present and therefore serves as an interesting drug target [17,18].
In this study, we investigated the ability of dichloromethane extracts of A. sativum and A. cepa (which contain sulfur compounds) to kill trypanosomes and leishmanias. In addition, we confirmed their already-known antibacterial and antifungal activities. We additionally investigated whether the extracts could exert a synergistic or at least additive effect in combinations with common trypanocidal/leishmanicidal drugs. We provide evidence that the mode of action in parasites involves the trypanothione system.

2. Materials and Methods

2.1. Chemicals

Minimum Essential Medium (MEM), Dulbecco´s Modified Eagle´s Medium with Glutamax (DMEM), non-essential amino acids (NEAA), penicillin, streptomycin, L-glutamine and trypsin-EDTA (ethylenediaminetetraacetic acid) were purchased from Gibco® Invitrogen, Darmstadt, Germany. Hemin chloride (90%) came from Merck Millipore, Darmstadt, Germany. Doxorubicin hydrochloride was acquired from the Heidelberg University Hospital. Nystatin and ampicillin were bought from AppliChem, Darmstadt, Germany. The rest of the material was obtained from Sigma-Aldrich GmbH, Steinheim, Germany.

2.2. Cell Lines

Trypanosoma brucei brucei (T. b. brucei) blood-stream cell line was originally obtained from Prof. Peter Overath (Max-Planck-Institut für Biologie, Tübingen, Germany). Immortalized human keratinocytes, HaCaT, were acquired in collaboration with Prof. Stefan Wölfl, Institute for Pharmacy and Molecular Biotechnology, Heidelberg, Germany. Leishmania tarentolae, was kindly provided by Prof. Marcel Deponte (Zentrum für Infektiologie, Parasitologie Universitätsklinikum Heidelberg, Heidelberg, Germany). In our experiments, cell lines of Trypanosoma and Leishmania were used that are not infectious for humans.

2.3. Standard Methods

For extract preparation, HPLC-MS/MS analyses, cell culture, MTT viability assay, antimicrobial tests and determination of Trypanosoma brucei trypanothione reductase (TbTR) inhibition, we followed a protocol already described in [19].

2.4. Reversal of Anti-Parasitic Activity

We assumed that sulfur compounds from garlic and onion could establish disulfide (-S-S-) bonds with free thiol (-SH) groups at active sites inside the parasites and therefore inhibit different vital reactions and eventually kill the parasite. Adding 2.5–250 μM of β-mercaptoethanol to the cells, newly formed disulfide bonds should be cleaved and probably reverse the cytotoxicity. MTT viability assay was carried out and the changes in the IC50 values were monitored.

2.5. Mitochondrial Membrane Potential Assay

The experiment followed a protocol already described in [20,21]. Briefly, 2 × 106 T. b. brucei cells/mL were incubated with 3, 4 and 5 μg/mL of garlic and onion extracts for 6 h. Afterwards, cells were incubated with 10 μg/mL Rh123 at 37 °C for 15 min to measure the alterations in mitochondrial membrane potential (ΔΨm). Data acquisition and analysis were performed using FACSCaliburTM flow cytometer equipped with CellQuestTM software. Changes in Rh123 fluorescence were quantified as percentage of fluorescence in comparison to the negative control. Negative controls were set as 100% fluorescence. Values lower than 100% correspond to depolarization of the mitochondrial membrane. CCCP (100 μM) was used as a positive control.

2.6. Drug Combinations

In order to detect whether the addition of garlic/onion extract to common trypanocidal (suramin, diminazene, pentamidine) and leishmanicidal (amphotericin B and pentamidine) drugs exerts a synergistic, additive or no effect at all, fixed concentrations of garlic and onion extracts were added to the serial dilutions of common trypanocidal and leishmanicidal drugs. The MTT assay was then conducted under normal conditions. Then, the combination index (CI) was calculated as follows:
C I = C ( A , X ) I C ( X , A ) + C ( B , X ) I C ( X , B )
C (A,X) and C (B,X) are the concentrations of drug A and drug B used in combination to produce a mean effect X (IC50). IC (X,A) and IC (X,B) are the median effect values (IC50) for single drug A and B. Combination index (CI) quantitatively describes synergism (CI < 0.90), additive effect (CI = 0.90–1.10), and no effect (CI > 1.10) [22,23].

2.7. Statistical Analysis

The results of experiments are shown as means ± standard deviation of at least three replicates for each measurement. Using a four-parameter logistic regression (SigmaPlot® 11.0, San Jose, CA, USA), a sigmoidal curve was fitted, and the IC50, which represents 50% reduction in viability compared to non-treated cells, was calculated. Column graph data analysis was performed with Graphpad Prism 5.0 (Graphpad Software, San Diego, CA, USA). Statistical tests were performed using a Student´s t-test. Differences between controls and treatments were considered significant when p-value was smaller than 0.05.

3. Results

Chemical analysis of the A. sativum extract by LC-ESI-MS/MS confirmed the presence of sulfur compounds, with ajoene being the most abundant. The analysis of onion extract revealed the sulfur-containing compound zwiebelane (Table 1 and Table 2, Figure 3 and Figure 4).
Both garlic and onion extract inhibited the growth of trypanosomes and leishmanias. We determined the trypanocidal, leishmanicidal and cytotoxic properties of the extracts using the MTT assay (Figure 5, Table 3). The garlic extract was more powerful than onion extract in all cell lines. Both extracts exerted a strong anti-parasitic activity, with IC50 values below 10 μg/mL—and that of garlic even below 1 μg/mL—and a moderate cytotoxic activity against human HaCaT cells (Table 3). The garlic extract exhibited a SI index of 23, indicating that the trypanocidal activity is more pronounced than toxicity towards human cells.
β-Mercaptoethanol reversed the anti-parasitic activity of both extracts in a concentration-dependent manner (Figure 6). At the highest concentration of β-mercaptoethanol (250 μM), the IC50 values of garlic and onion in T. b. brucei were 33.28 and 15.48 μg/mL, meaning the IC50 values were increased 35- and 3-fold, respectively.
In the inhibition assay of Trypanosoma brucei trypanothione reductase, garlic extract showed a substantial irreversible inhibition of the TbTR, inhibiting the activity by 55% and 47% after 4 h incubation at concentrations of 50 and 20 μg/mL, respectively. Allium cepa exerted a milder effect, inhibiting 35% and 20% of enzyme activity after 4 h incubation at concentrations of 50 and 20 μg/mL, respectively (Figure 7).
The garlic extract decreased the mitochondrial membrane potential significantly in a dose-dependent manner in trypanosomes. Figure 8 shows a decrease in total Rh123 fluorescence intensity after 6 h of incubation with 3, 4, and 5 μg/mL of garlic. The onion extract failed to affect the mitochondrial membrane potential (data not shown). CCCP, which makes mitochondrial membranes leaky, was used as a positive control.
As shown in the Table 4, garlic killed the fungi C. albicans and C. parapsilosis more efficiently than the onion extract and even stronger than the positive control nystatin, with minimal inhibitory concentration (MIC) and minimal microbicidal concentration (MMC) values of 5 μg/mL. The same pattern was observed with Gram-negative bacteria, where a MIC of 40 μg/mL against E. coli and P. aeruginosa was observed. Against Gram-positive bacteria MRSA, B. subtilis and S. epidermidis, a similar activity was measured, although Allium cepa extract was more bactericidal for Streptococus pyogenes than garlic extract.
Addition of a fixed concentration of garlic to the trypanocidal drugs diminazene and pentamidine resulted in synergistic/additive effects and no effect when combined with suramin (Table 5). However, the application of 0.5 μg/mL of onion extract to a serial dilution of suramin could exert a mild synergistic effect with a CI value of 0.89. The leishmanicidal effect of amphotericin B could not be increased, no matter what extract was included in the combination. On the other hand, both extracts affected the Leishmania tarentolae parasites—in most cases additively—when combined with the leishmanicidal drug pentamidine.

4. Discussion

As expected, the phytochemical analysis of the garlic extract showed the presence of sulfur compounds, such as allicin and ajoene, to which the biological activity of garlic has been attributed [5,11,12]. On the other hand, the analysis of Allium cepa revealed one sulfur-containing compound, zwiebelane, which has been detected in onion extracts previously [14,28,29]. The fact that garlic produces more sulfur compounds than onion could be the explanation for the stronger activity of garlic in our study [29].
We found that garlic and onion bulb extracts have a strong anti-parasitic activity against T. b. brucei and L. tarentolae, with garlic being almost 5 times more potent against trypanosomes. We assume that the ability of these extracts to kill parasites is mediated by sulfur compounds, which are produced in the alliinase pathway after the bulb tissue was damaged. Sulfur-containing compounds can probably establish disulfide bonds (-S-S-) with free thiol groups (-SH), and thus inhibit enzymes or other proteins, which are important for survival. In trypanosomes and leishmanias, trypanothione reductase (which regulates an intracellular reducing environment) and trypanothione itself (which plays a major role in the redox system) contain thiol groups, which could be affected. Trypanothione—uniquely present in Trypanosomatidae—is responsible for detoxifying hydroperoxides and plays an important role in defense against reactive oxygen species (ROS). It contains two molecules of glutathione, connected via a molecule of spermidine. Trypanothione can be found in the parasitic cell in its disulfide (TS2) and dihydrotrypanothione (T[SH)z) form, but for the antioxidant activity, the reduced form is essential. Trypanothione reductase is an enzyme responsible for keeping trypanothione in its reduced form. Both trypanothione and trypanothione disulfide have a net charge of +1, while glutathione (GSH) and glutathione disulfide (GSSG) have a net charge of −2, which is probably the reason for the high specificity of the two enzymes [17,30]. We already showed in our previous study that dichloromethane extracts from Allium ursinum and Tulbaghia violacea are capable of inhibiting trypanothione reductase and consequently mediate a growth inhibition of the parasites [19]. By adding β-mercaptoethanol, which can reduce disulfide bonds, we managed to reverse the cytotoxic effect. We postulate that β-mercaptoethanol can split newly formed disulfide bonds between trypanothione (and/or trypanothione reductase) and sulfur compounds from the extracts; trypanothione becomes consequently active again, leading to a higher survival of the parasite. To further corroborate our hypothesis, we show that the activity of trypanothione reductase is irreversibly reduced in the presence of garlic, while only moderately in the presence of onion extract. The results confirm our hypothesis that the sulfur-containing compounds produced in the alliinase pathway are responsible for the anti-parasitic activity.
Concerning the antimicrobial activity, Allium sativum was more active than Allium cepa, which agrees with the literature [31]. In our study we could confirm the known antibacterial and antifungal activity of both extracts [32,33].
Furthermore, we evaluated the cytotoxic activity of both extracts against human keratinocytes, to determine whether these extracts have a potential to be used therapeutically as topical agents for skin infections. Onion extract exerted a milder cytotoxicity; however, the selectivity index is more favorable for the garlic extract, meaning that garlic extract would probably have less side effects.
Garlic extract decreased the mitochondrial membrane potential in trypanosomes. This result could indicate that apoptosis-like processes are also triggered by garlic, based on the fact that the decrease could be initiating apoptosis, or could be one of the consequences of the apoptosis [34]. This process was also demonstrated in protozoa, and not only in metazoa [35]. Our combination experiments of the plant extracts with established therapeutics shows that 50% of the tested combinations resulted in a synergistic/additive effect. This means that garlic and onion could potentially be used in combination therapies with common trypanocidal/leishmanicidal drugs in order to enhance their anti-parasitic activity.

5. Conclusions

In conclusion, our results confirmed that garlic can kill bacteria and fungi. Both extracts showed a potent trypanocidal and leishmanicidal activity. The activity is most likely mediated via an inhibition of vital redox compounds such as trypanothione and/or trypanothione reductase inside the parasites. We assume that disulfide bonds are formed between the thiols of garlic and onions and trypanothione and TR, consequently decreasing the level of free thiol groups and inhibiting the redox system, thereby leading to the death of parasites. Further studies using multivariate methods relating the activity results and the spectroscopic data can aid to elucidate which compounds from extracts are responsible for the activities. The promising synergistic activities of garlics and onions with trypanocidal/leishmanicidal drugs need to be corroborated in animal experiments. If confirmed, they might be relevant in a therapeutic context.

Acknowledgments

We acknowledge financial support from the Deutsche Forschungsgemeinschaft within the funding program Open Access Publishing, by the Baden-Württemberg Ministry of Science, Research and the Arts and by Ruprecht-Karls-Universität Heidelberg. We would like to thank Prof. Luise Krauth-Siegel (Heidelberg University) for giving us the opportunity to perform the TbTR inhibition assay in her laboratory.

Author Contributions

S.K. designed and performed the experiments, analyzed the results and wrote the manuscript. M.S. performed the LC-MS analysis of the extracts and analyzed the data. M.S.B. designed and performed the antimicrobial activity assay. M.W. revised the paper, conceived and designed the project.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lanzotti, V. The analysis of onion and garlic. J. Chromatogr. A 2006, 1112, 3–22. [Google Scholar] [CrossRef] [PubMed][Green Version]
  2. Van Wyk, B.-E.; Wink, M. Phytomedicines, Herbal Drugs and Poisons; University of Chicago Press: Chicago, IL, USA, 2015. [Google Scholar]
  3. Mnayer, D.; Fabiano-Tixier, A.S.; Petitcolas, E.; Hamieh, T.; Nehme, N.; Ferrant, C.; Fernandez, X.; Chemat, F. Chemical composition, antibacterial and antioxidant activities of six essentials oils from the Alliaceae family. Molecules 2014, 19, 20034–20053. [Google Scholar] [CrossRef] [PubMed]
  4. Munday, R.; Munday, C.M. Relative activities of organosulfur compounds derived from onions and garlic in increasing tissue activities of quinone reductase and glutathione transferase in rat tissues. Nutr. Cancer 2001, 40, 205–210. [Google Scholar] [CrossRef] [PubMed]
  5. Sendl, A. Allium sativum and Allium ursinum: Part 1 Chemistry, analysis, history, botany. Phytomedicine 1995, 1, 323–339. [Google Scholar] [CrossRef]
  6. Suleria, H.A.; Butt, M.S.; Anjum, F.M.; Saeed, F.; Khalid, N. Onion: Nature protection against physiological threats. Crit. Rev. Food Sci. Nutr. 2015, 55, 50–66. [Google Scholar] [CrossRef] [PubMed]
  7. Sadeghi-Nejad, B.; Saki, J. Effect of aqueous Allium cepa and Ixora brachiata root extract on Leishmania major promastigotes. Jundishapur J. Nat. Pharm. Prod. 2014, 9, e15442. [Google Scholar] [CrossRef] [PubMed]
  8. Saleheen, D.; Ali, S.A.; Yasinzai, M.M. Antileishmanial activity of aqueous onion extract In Vitro. Fitoterapia 2004, 75, 9–13. [Google Scholar] [CrossRef] [PubMed]
  9. Wabwoba, B.W.; Anjili, C.O.; Ngeiywa, M.M.; Ngure, P.K.; Kigondu, E.M.; Ingonga, J.; Makwali, J. Experimental chemotherapy with Allium sativum (Liliaceae) methanolic extract in rodents infected with Leishmania major and Leishmania donovani. J. Vector Borne Dis. 2010, 47, 160–167. [Google Scholar] [PubMed]
  10. Gallwitz, H.; Bonse, S.; Martinez-Cruz, A.; Schlichting, I.; Schumacher, K.; Krauth-Siegel, R.L. Ajoene is an inhibitor and subversive substrate of human glutathione reductase and Trypanosoma cruzi trypanothione reductase: Crystallographic, kinetic, and spectroscopic studies. J. Med. Chem. 1999, 42, 364–372. [Google Scholar] [CrossRef] [PubMed]
  11. Sendl, A.; Elbl, G.; Steinke, B.; Redl, K.; Breu, W.; Wagner, H. Comparative pharmacological investigations of Allium ursinum and Allium sativum. Planta Med 1992, 58, 1–7. [Google Scholar] [CrossRef] [PubMed]
  12. Weiner, L.; Shin, I.; Shimon, L.J.; Miron, T.; Wilchek, M.; Mirelman, D.; Frolow, F.; Rabinkov, A. Thiol-disulfide organization in alliin lyase (alliinase) from garlic (Allium sativum). Protein Sci. 2009, 18, 196–205. [Google Scholar] [CrossRef] [PubMed]
  13. Munchberg, U.; Anwar, A.; Mecklenburg, S.; Jacob, C. Polysulfides as biologically active ingredients of garlic. Org. Biomol. Chem. 2007, 5, 1505–1518. [Google Scholar] [CrossRef] [PubMed]
  14. Benkeblia, N.; Lanzotti, V. Allium thiosulfinates: Chemistry, biological properties and their potential utilization in food preservation. Food 2007, 1, 193–201. [Google Scholar]
  15. Neglected Tropical Diseases, World Health Organization (WHO). Available online: http://www.who.int/neglected_diseases/diseases/en/ (accessed on 6 June 2016).
  16. Leishmaniasis, World Health Organization (WHO). Available online: http://www.who.int/mediacentre/factsheets/fs375/en/ (accessed on 8 June 2016).
  17. Leroux, A.E.; Krauth-Siegel, R.L. Thiol redox biology of trypanosomatids and potential targets for chemotherapy. Mol. Biochem. Parasitol. 2015, 206, 67–74. [Google Scholar] [CrossRef] [PubMed]
  18. Wink, M. Medicinal plants: A source of anti-parasitic secondary metabolites. Molecules 2012, 17, 12771–12791. [Google Scholar] [CrossRef] [PubMed]
  19. Krstin, S.; Sobeh, M.; Braun, M.S.; Wink, M. Tulbaghia violacea and Allium ursinum extracts exhibit anti-parasitic and antimicrobial activities. Molecules 2018, 23, 313. [Google Scholar] [CrossRef] [PubMed]
  20. Divo, A.A.; Patton, C.L.; Sartorelli, A.C. Evaluation of rhodamine 123 as a probe for monitoring mitochondrial function in Trypanosoma brucei spp. J. Eukaryot. Microbiol. 1993, 40, 329–335. [Google Scholar] [CrossRef] [PubMed]
  21. Krstin, S.; Mohamed, T.; Wang, X.; Wink, M. How do the alkaloids emetine and homoharringtonine kill trypanosomes? An insight into their molecular modes of action. Phytomedicine 2016, 23, 1771–1777. [Google Scholar] [CrossRef] [PubMed]
  22. Chou, T.C. Drug combination studies and their synergy quantification using the Chou-Talalay method. Cancer Res. 2010, 70, 440–446. [Google Scholar] [CrossRef] [PubMed]
  23. Zhao, L.; Wientjes, M.G.; Au, J.L. Evaluation of combination chemotherapy: Integration of nonlinear regression, curve shift, isobologram, and combination index analyses. Clin. Cancer Res. 2004, 10, 7994–8004. [Google Scholar] [CrossRef] [PubMed]
  24. Ferary, S.; Auger, J. What is the true odour of cut Allium? Complementarity of various hyphenated methods: Gas chromatography-mass spectrometry and high-performance liquid chromatography-mass spectrometry with particle beam and atmospheric pressure ionization interfaces in sulphenic acids rearrangement components discrimination. J. Chromatogr. A 1996, 750, 63–74. [Google Scholar]
  25. Arnault, I.; Christides, J.P.; Mandon, N.; Haffner, T.; Kahane, R.; Auger, J. High-performance ion-pair chromatography method for simultaneous analysis of alliin, deoxyalliin, allicin and dipeptide precursors in garlic products using multiple mass spectrometry and UV detection. J. Chromatogr. A 2003, 991, 69–75. [Google Scholar] [CrossRef]
  26. Mondy, N.; Naudin, A.; Christides, J.P.; Mandon, N.; Auger, J. Comparison of GC-MS and HPLC for the analysis of Allium volatiles. Chromatographia 2001, 53, 356–360. [Google Scholar] [CrossRef]
  27. Calvey, E.M.; White, K.D.; Matusik, J.E.; Sha, D.; Block, E. Allium chemistry: Identification of organosulfur compounds in ramp (Allium tricoccum) homogenates. Phytochemistry 1998, 49, 359–364. [Google Scholar] [CrossRef]
  28. Calvey, E.M.; Matusik, J.E.; White, K.D.; DeOrazio, R.; Sha, D.; Block, E. Allium chemistry: Supercritical fluid extraction and LC-APCI-MS of thiosulfinates and related compounds from homogenates of garlic, onion, and ramp. Identification in garlic and ramp and synthesis of 1-propanesulfinothioic acid S-allyl ester. J. Agric. Food Chem. 1997, 45, 4406–4413. [Google Scholar] [CrossRef]
  29. Aoyagi, M.; Kamoi, T.; Kato, M.; Sasako, H.; Tsuge, N.; Imai, S. Structure and bioactivity of thiosulfinates resulting from suppression of lachrymatory factor synthase in onion. J. Agric. Food Chem. 2011, 59, 10893–10900. [Google Scholar] [CrossRef] [PubMed]
  30. Fairlamb, A.H.; Cerami, A. Metabolism and functions of trypanothione in the Kinetoplastida. Annu. Rev. Microbiol. 1992, 46, 695–729. [Google Scholar] [CrossRef] [PubMed]
  31. Elnima, E.I.; Ahmed, S.A.; Mekkawi, A.G.; Mossa, J.S. The antimicrobial activity of garlic and onion extracts. Pharmazie 1983, 38, 747–748. [Google Scholar] [PubMed]
  32. Benmalek, Y.; Yahia, O.A.; Belkebir, A.; Fardeau, M.L. Anti-microbial and anti-oxidant activities of Illicium verum, Crataegus oxyacantha ssp monogyna and Allium cepa red and white varieties. Bioengineered 2013, 4, 244–248. [Google Scholar] [CrossRef] [PubMed]
  33. Li, G.; Ma, X.; Deng, L.; Zhao, X.; Wei, Y.; Gao, Z.; Jia, J.; Xu, J.; Sun, C. Fresh garlic extract enhances the antimicrobial activities of antibiotics on resistant strains in vitro. Jundishapur J. Microbiol. 2015, 8, e14814. [Google Scholar] [CrossRef] [PubMed]
  34. Ly, J.D.; Grubb, D.R.; Lawen, A. The mitochondrial membrane potential (deltapsi(m)) in apoptosis; An update. Apoptosis 2003, 8, 115–128. [Google Scholar] [CrossRef] [PubMed]
  35. Rosenkranz, V.; Wink, M. Alkaloids induce programmed cell death in bloodstream forms of trypanosomes (Trypanosoma b. brucei). Molecules 2008, 13, 2462–2473. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Alliinase pathway: Production of sulfur-containing secondary metabolites upon cutting garlic tissue.
Figure 1. Alliinase pathway: Production of sulfur-containing secondary metabolites upon cutting garlic tissue.
Medicines 05 00037 g001
Figure 2. Chemical structures of sulfur-containing secondary metabolites commonly found in onion.
Figure 2. Chemical structures of sulfur-containing secondary metabolites commonly found in onion.
Medicines 05 00037 g002aMedicines 05 00037 g002b

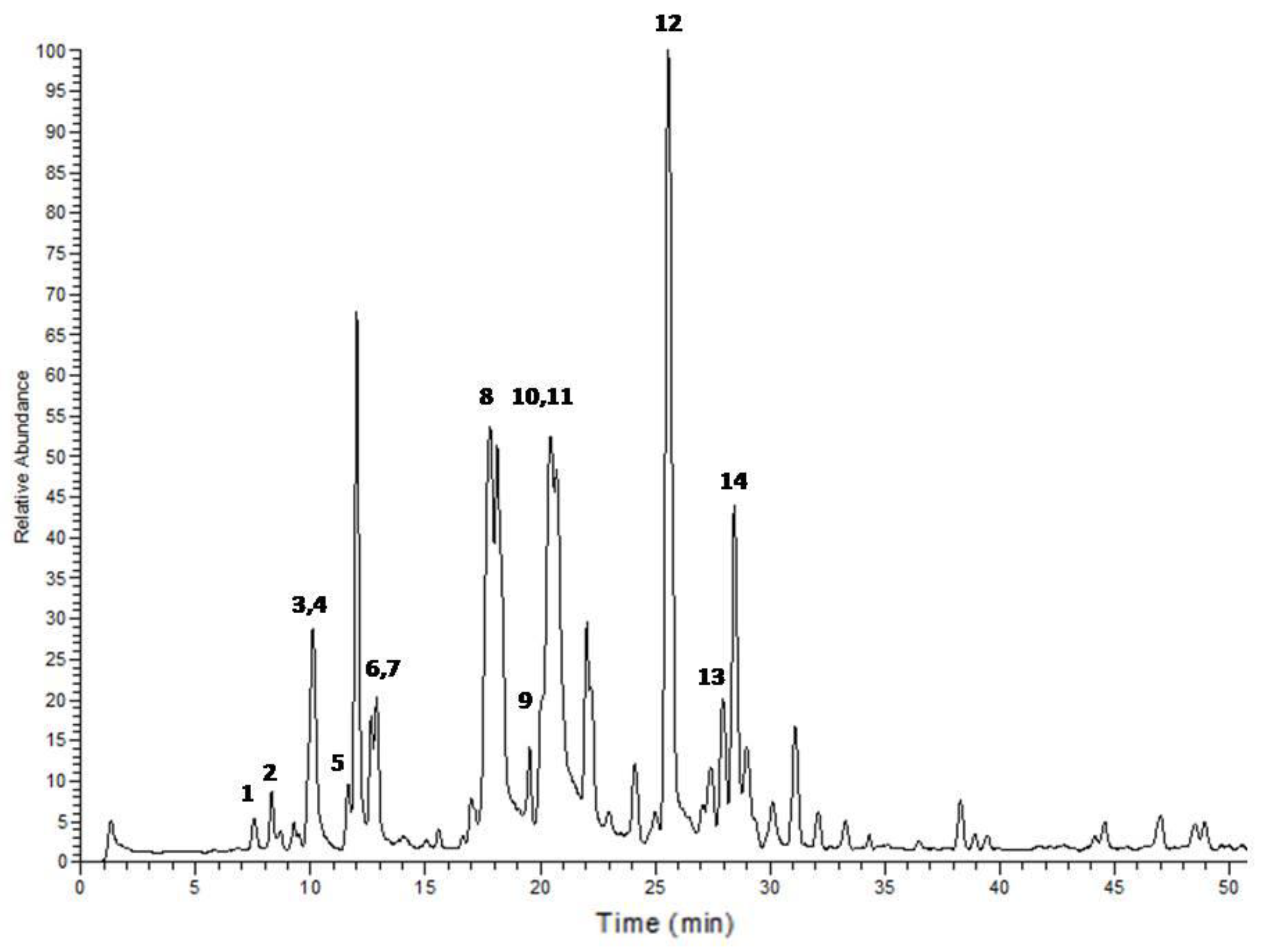

Figure 3. LC-ESI-MS/MS profile of the dichloromethane extract from Allium sativum. Peak numbers correspond to compounds listed in Table 1.
Figure 3. LC-ESI-MS/MS profile of the dichloromethane extract from Allium sativum. Peak numbers correspond to compounds listed in Table 1.
Medicines 05 00037 g003

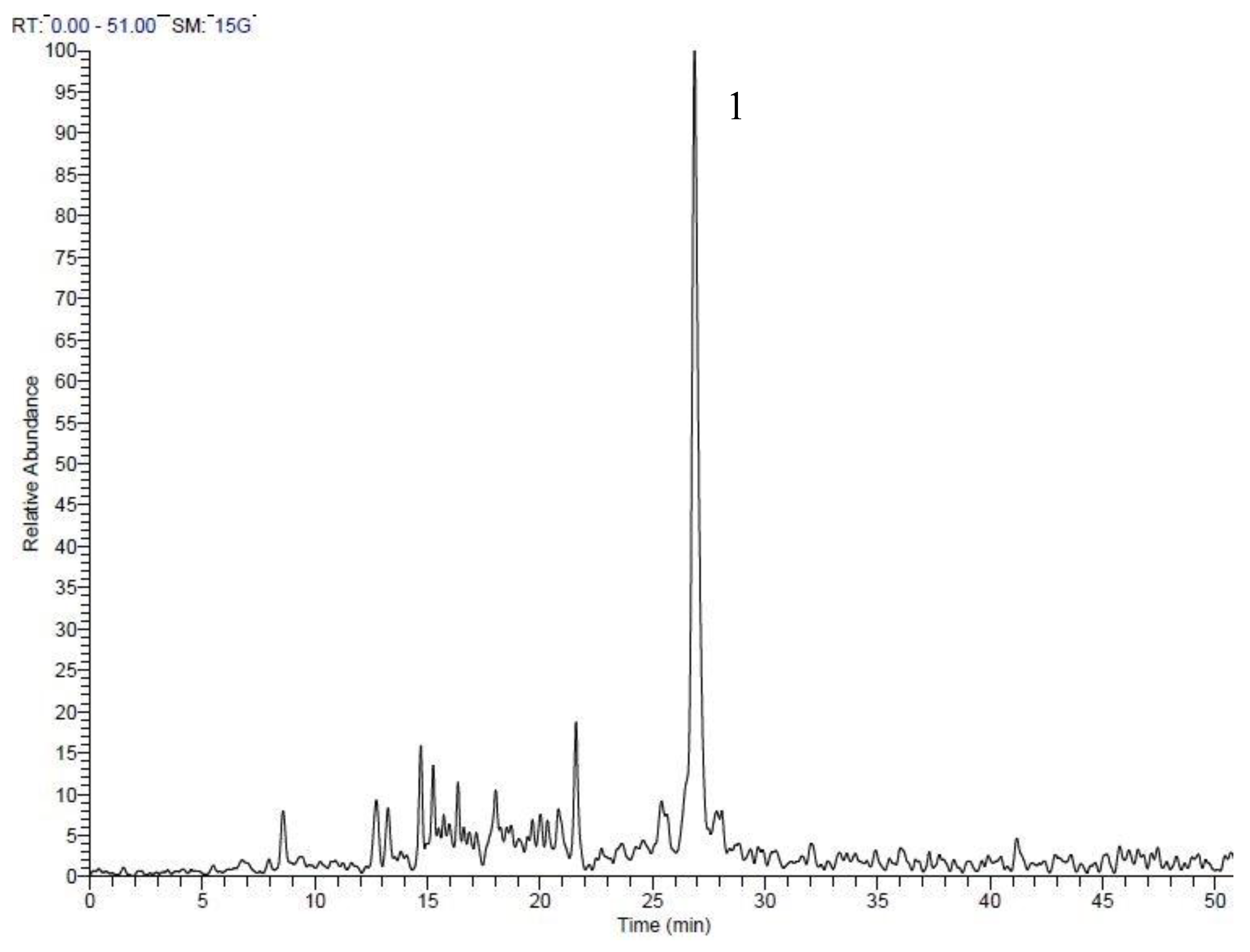

Figure 4. Reconstructed ion chromatogram (RIC) obtained from LC-MS in the positive ionization mode ESI (+) of the Allium cepa extract. Peak number corresponds to the compound in Table 2.
Figure 4. Reconstructed ion chromatogram (RIC) obtained from LC-MS in the positive ionization mode ESI (+) of the Allium cepa extract. Peak number corresponds to the compound in Table 2.
Medicines 05 00037 g004

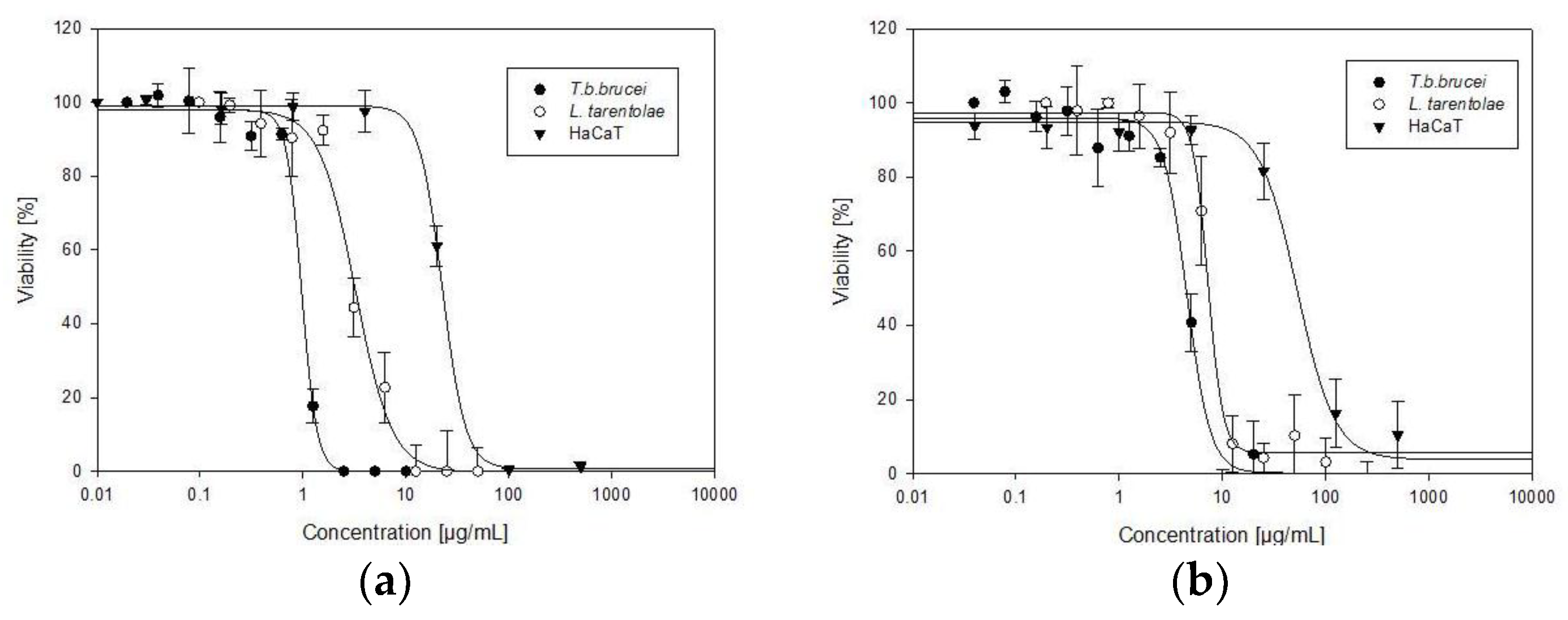

Figure 5. Dose-dependent trypanocidal, leishmanicidal and cytotoxic effects of (a) Allium sativum, (b) Allium cepa against Trypanosoma brucei brucei (T. b. brucei), Leishmania tarentolae (L. tarentolae) and human HaCaT cells. Data are expressed as mean of three individual experiments ± SD.
Figure 5. Dose-dependent trypanocidal, leishmanicidal and cytotoxic effects of (a) Allium sativum, (b) Allium cepa against Trypanosoma brucei brucei (T. b. brucei), Leishmania tarentolae (L. tarentolae) and human HaCaT cells. Data are expressed as mean of three individual experiments ± SD.
Medicines 05 00037 g005

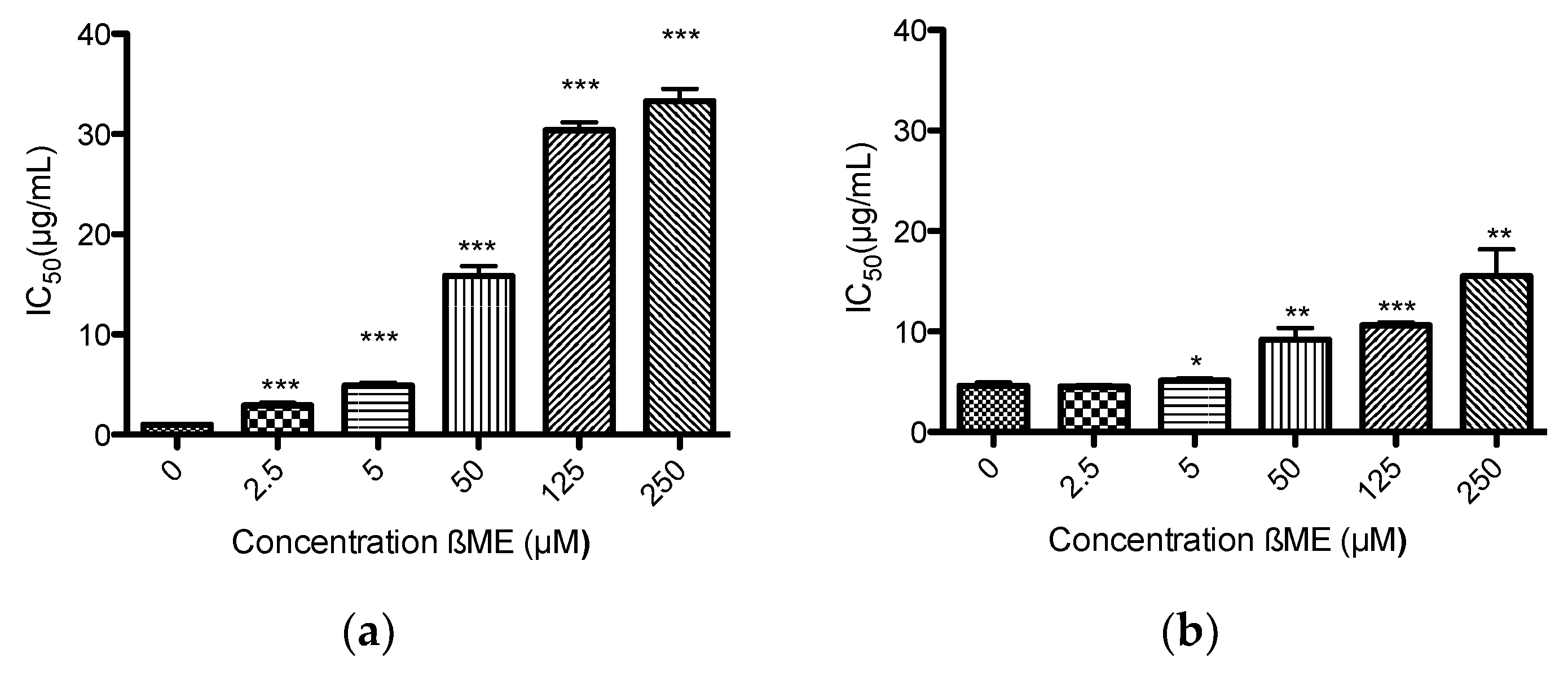

Figure 6. The reversal of trypanocidal effect in Trypanosoma brucei brucei by (a) garlic and (b) onion extracts after addition of β-mercaptoethanol. The values are expressed as mean IC50 (μg/mL) ± SD. P values are interpreted as: * p ≤ 0.05; ** p ≤ 0.01; *** p ≤ 0.001.
Figure 6. The reversal of trypanocidal effect in Trypanosoma brucei brucei by (a) garlic and (b) onion extracts after addition of β-mercaptoethanol. The values are expressed as mean IC50 (μg/mL) ± SD. P values are interpreted as: * p ≤ 0.05; ** p ≤ 0.01; *** p ≤ 0.001.
Medicines 05 00037 g006

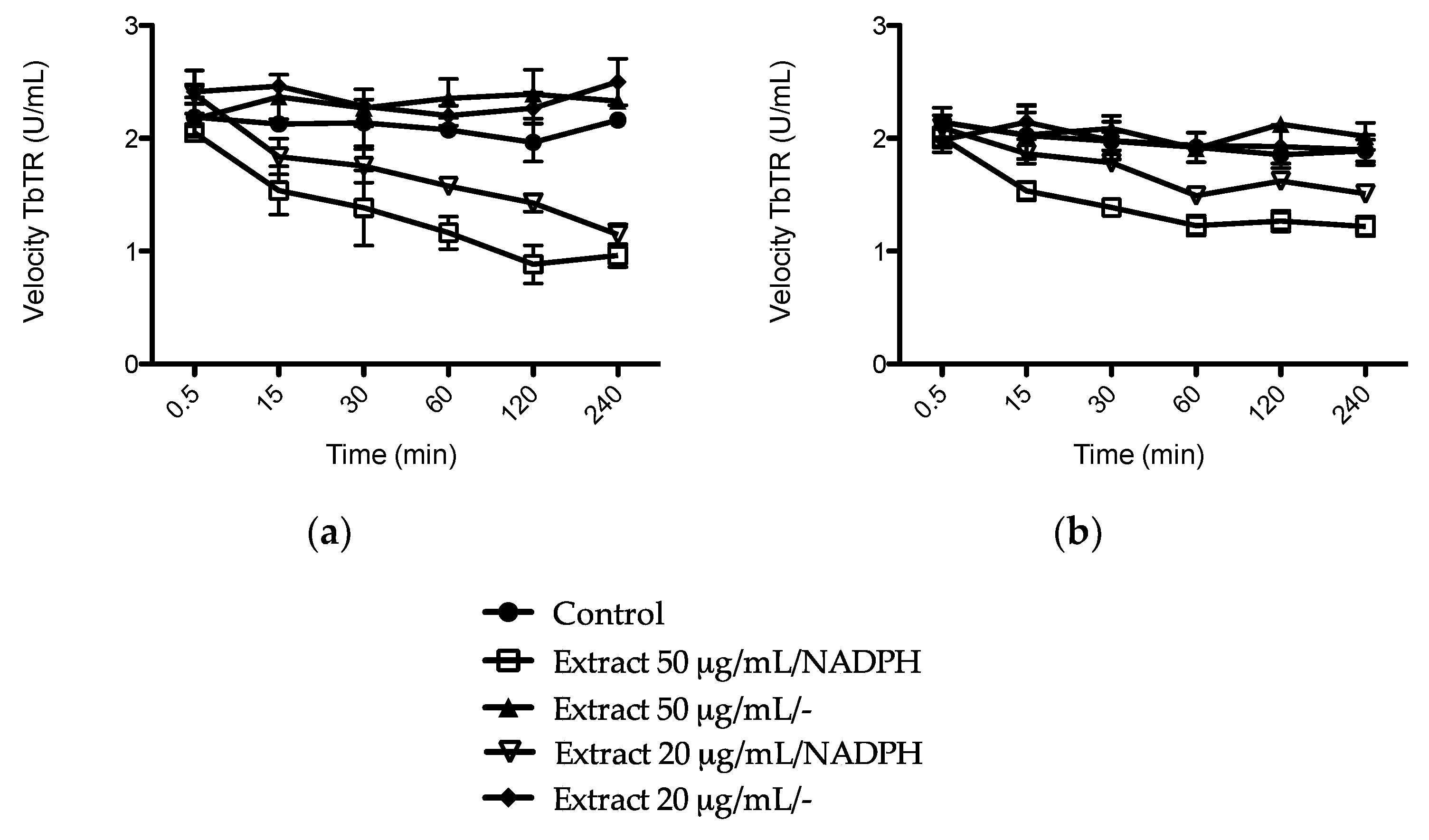

Figure 7. Irreversible inhibition of Trypanosoma brucei trypanothione reductase (TbTR) flavoenzyme by 50 and 20 μg/mL of (a) Allium sativum and (b) Allium cepa extracts. Data are shown as mean of three independent experiments ± SD.
Figure 7. Irreversible inhibition of Trypanosoma brucei trypanothione reductase (TbTR) flavoenzyme by 50 and 20 μg/mL of (a) Allium sativum and (b) Allium cepa extracts. Data are shown as mean of three independent experiments ± SD.
Medicines 05 00037 g007

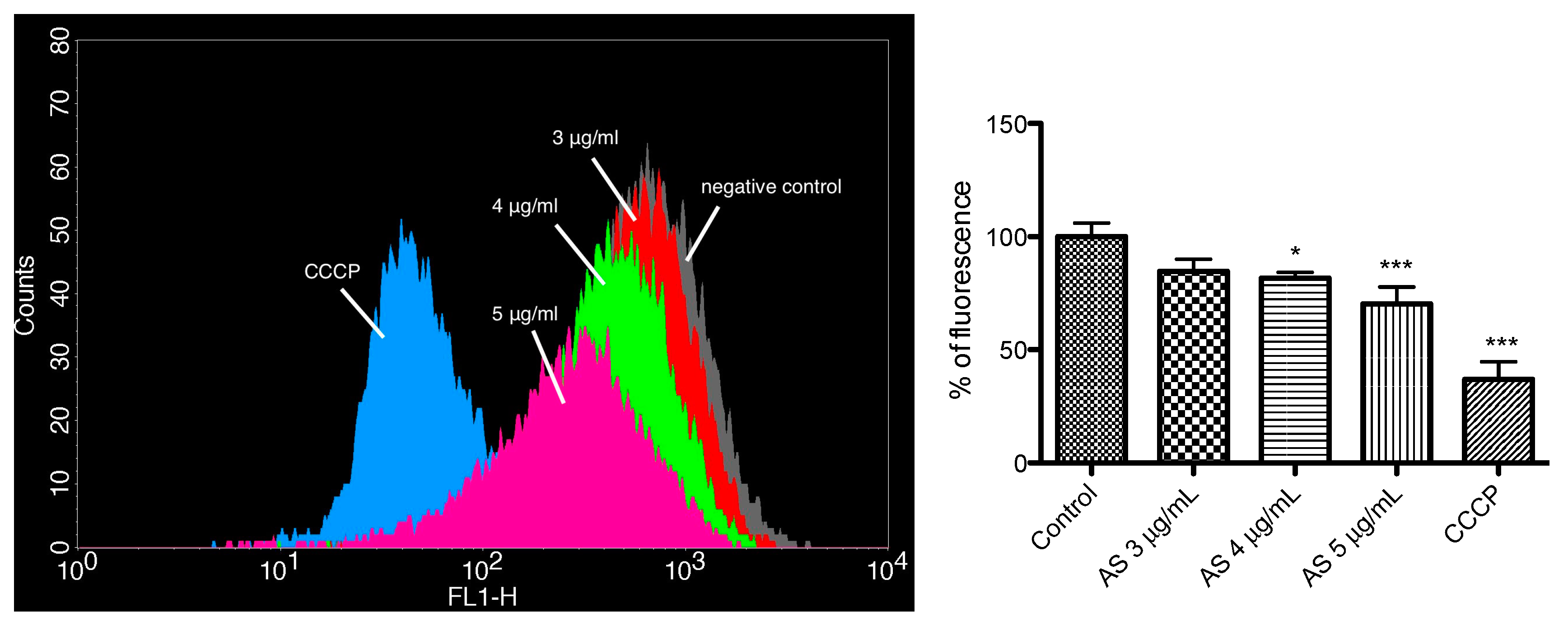

Figure 8. Mitochondrial membrane potential of T. b. brucei treated with 3, 4 and 5 μg/mL of garlic extract (AS) for 6 h and stained with Rh123. Typical histograms of three independent experiments are depicted. * p ≤ 0.05, significant difference relative to the control group (untreated cells). P values are interpreted as: * p ≤ 0.05; *** p ≤ 0.001.
Figure 8. Mitochondrial membrane potential of T. b. brucei treated with 3, 4 and 5 μg/mL of garlic extract (AS) for 6 h and stained with Rh123. Typical histograms of three independent experiments are depicted. * p ≤ 0.05, significant difference relative to the control group (untreated cells). P values are interpreted as: * p ≤ 0.05; *** p ≤ 0.001.
Medicines 05 00037 g008
Table 1. Identification of sulfur-containing compounds in Allium sativum extract by LC-ESI-MS/MS.
Table 1. Identification of sulfur-containing compounds in Allium sativum extract by LC-ESI-MS/MS.
Peak No.tRArea %[M + H]+Tentative identificationReference
17.540.692271-Ethyl-2-(3-(propylsulfinyl)propyl)disulfaneTentative
28.311.122491-Allyl-2-((1E,3E)-4-(vinyldisulfanyl)buta-1,3-dien-1-yl)disulfaneTentative
39.890.64137Methanesulfinothioic acid S-(E)-1-propenyl ester[24]
410.086.34137Methanesulfinothioic acid S-(Z)-1-propenyl ester[24]
511.681.29137S-methyl 1-propenesulfinothioate/S-1-propenyl methanesulfinothioate[24]
612.642.08251Gamma-l-glutamyl-l-cysteine[25]
712.923.06251Gamma-l-glutamyl-l-cysteine [25]
817.8823.66163Allicin[25]
920.121.25209(E)-1-allyl-2-(3-(methylesulfinyl)prop-1-en-1-yl)disulfaneTentative
1020.3711.781632-Propene-1-sulfinothioic acid S-(E)-1-propenyl ester [24]
1120.5312.89163Propene-1-sulfinothioic acid S-(Z)-1-propenyl ester[24]
1225.5923.39235Ajoene[26]
1327.953.31237(E)-1-Propenyl 1-(1-propenylsulfinyl)propyl disulfide[27]
1428.458.492372-Propenyl 1-(2-propenylsulfinyl) propyl disulfide [27]
Table 2. Identification of sulfur-containing compounds in Allium cepa extract by LC-ESI-MS/MS.
Table 2. Identification of sulfur-containing compounds in Allium cepa extract by LC-ESI-MS/MS.
Peak No.tR[M + H]+Proposed CompoundReference
126.87163(cis/trans)-zwiebelane[28]
Table 3. Trypanocidal, leishmanicidal and cytotoxic activity of Allium sativum and Allium cepa extracts against Trypanosoma brucei brucei (T. b. b.), Leishmania tarentolae (L. t.) and HaCaT cells. The values are expressed as mean IC50 (μg/mL) ± SD; NT: not tested.
Table 3. Trypanocidal, leishmanicidal and cytotoxic activity of Allium sativum and Allium cepa extracts against Trypanosoma brucei brucei (T. b. b.), Leishmania tarentolae (L. t.) and HaCaT cells. The values are expressed as mean IC50 (μg/mL) ± SD; NT: not tested.
SampleIC50T. b. b.IC50L. t.IC50 HaCaTSelectivity Index
HaCaT/T. b. b.HaCaT/L. t.
Allium sativum0.95 ± 0.042.89 ± 0.422.27 ± 1.61238
Allium cepa4.59 ± 0.347.23 ± 0.7844.56 ± 3.06106
Suramin0.13 ± 0.01NTNT//
Amphotericin BNT0.13 ± 0.02NT//
DoxorubicinNTNT1.04 ± 0.35//
Table 4. Antimicrobial activity of Allium sativum and Allium cepa extracts against different G-positive, G-negative bacteria and Candida yeasts in microdilution assays. Data are given in μg/mL of minimal inhibitory concentration (MIC) and minimal microbicidal concentration (MMC) values. Positive controls were ciprofloxacin, ampicillin and nystatin; NT: not tested.
Table 4. Antimicrobial activity of Allium sativum and Allium cepa extracts against different G-positive, G-negative bacteria and Candida yeasts in microdilution assays. Data are given in μg/mL of minimal inhibitory concentration (MIC) and minimal microbicidal concentration (MMC) values. Positive controls were ciprofloxacin, ampicillin and nystatin; NT: not tested.
Gram TypeSampleA. sativumA. cepaCiprofloxacinAmpicillinNystatin
Indicator Strain
MICMMCMICMMCMICMICMIC
+Bacillus subtilis4016040>320≤0.03≤0.03NT
+MRSA40>320320>3200.0316NT
+MRSA CI80>320160>320416NT
+Staphylococcus epidermidis40>32080>3200.030.5NT
+Enterococcus faecalis160>320>320>3200.51NT
+VRE320>320>320>3200.51NT
+Streptococcus pyogenes8016040400.13<0.03NT
-Escherichia coli40160>320>320≤0.034NT
-Escherichia coli EHEC40>320>320>320≤0.034NT
-Klebsiella pneumoniae80>320>320>3200.125>64NT
-Klebsiella pneumoniae CI80>320>320>320<0.0332NT
-Pseudomonas aeruginosa40>320160>320≤0.03>64NT
FCandida albicans55160160NTNT10
FCandida parapsilosis55160160NTNT10
Table 5. Combinations of Allium sativum (garlic) and Allium cepa (onion) extracts with common trypanocidal (diminazene, pentamidine and suramin) and leishmanicidal (amphotericin B and pentamidine) drugs.
Table 5. Combinations of Allium sativum (garlic) and Allium cepa (onion) extracts with common trypanocidal (diminazene, pentamidine and suramin) and leishmanicidal (amphotericin B and pentamidine) drugs.
ExtractIC50 ± SD Extract Alone (μg/mL)DrugIC50 ± SD Drug Alone (μM)Fixed Concentration of the Extract (μg/mL)IC50 ± SD Drug in Combination (μM)CI Value at IC50Interpretation
T. b. brucei
Allium cepa4.59 ± 0.34Diminazene0.24 ± 0.010.50.19 ± 0.090.90Additive
10.24 ± 0.041.22No effect
Pentamidine0.07 ± 0.010.50.11 ± 0.011.68No effect
10.09 ± 0.011.50No effect
Suramin0.09 ± 0.010.50.07 ± 0.010.89Synergism
10.07 ± 0.011.00Additive
L. tarentolae
7.23 ± 0.78Amphotericin B0.14 ± 0.020.750.15 ± 0.021.17No effect
1.50.15 ± 0.021.28No effect
Pentamidine4.01 ± 0.860.753.82 ± 0.811.06Additive
1.53.71 ± 0.941.13No effect
T. b. brucei
Allium sativum0.95 ± 0.04Diminazene0.24 ± 0.010.10.20 ± 0.050.94Additive
0.20.19 ± 0.031.00Additive
Pentamidine0.07 ± 0.010.10.05 ± 0.020.82Synergism
0.20.05 ± 0.020.92Additive
Suramin0.09 ± 0.010.10.1 ± 0.011.22No effect
0.20.1 ± 0.011.32No effect
L. tarentolae
2.89 ± 0.4Amphotericin B0.14 ± 0.020.320.14 ± 0.021.11No effect
0.640.13 ± 0.011.15No effect
Pentamidine4.01 ± 0.860.323.5 ± 0.450.98Additive
0.643.18 ± 0.461.01Additive
