1. Introduction
Par-baked bread is a convenient technology that interrupts the baking process after crumb formation but before forming a crispy and coloured crust. This minimizes the staling process, resulting in an increased shelf life and providing consumers with freshly baked products [
1]. However, these products are still prone to microbiological spoilage, thereby having an economic impact and affecting food safety [
2].
Spoilage of par-baked bread is dominated by
Penicillium and
Aspergillus species [
3,
4,
5,
6,
7,
8] and to a lesser extent by
Alternaria species,
Eurotium species and chalk moulds [
4,
5,
9,
10]. By implementing modified atmosphere packaging and addition of synthetic preservatives, the shelf life of par-baked bread is prolonged from several days to several weeks [
11]. However, a trend in consumer’s behaviour towards products free from synthetic preservatives has been observed [
12]. To ensure food safety and reduce food waste, replacement of synthetic preservatives by natural antifungal compounds is explored.
An interesting source of natural preservatives are plant secondary metabolites, especially essential oils. These compounds are involved in host defence mechanisms against pathogen infections [
13,
14]. Essential oils are a mixture of many essential oil compounds that can be divided in four different groups of compounds: terpenes, terpenoids, phenylpropenes and others [
13]. The composition of essential oils varies according to the growth conditions, the part of the plant and the extraction method, making it difficult to compare research findings [
14]. The lipophilic character of essential oil (compounds) facilitates passage through the cell membrane and enables membrane permeabilization and inhibition of intracellular targets [
15].
Growth inhibition by essential oils results from the combined activity of multiple compounds acting on the microbial cell, often leading to membrane disruption. Their mode of action cannot be attributed to one single mechanism but rather to a combination of effects on multiple targets [
16]. The specific mode of action depends on the functional groups present in each compound. For example, compounds such as carvacrol and thymol possess an aliphatic chain that enables interaction with the cell membrane, while the phenolic hydroxyl group functions as a proton exchanger [
17]. This interaction increases membrane permeability, disrupts the proton motive force and impairs ATP synthesis [
17]. Compounds lacking the methyl, isopropyl or hydroxyl group have been reported to be less active than carvacrol, likely due to a reduced amphipathic character or decreased acidity [
18]. Compounds with an isothiocyanate group, such allyl and benzyl isothiocyanate, can interact with thiol groups. Isothiocyanates have been found to alter protein structure and function by interacting with the thiol group of cysteine, thereby affecting the metabolism, electron transport and stress response of the microbial cell [
19]. Combining compounds with different mode of actions may result in a synergistic antimicrobial effect. Synergy can result from the complementary actions of two compounds on multiple targets within a biochemical pathway, their simultaneous action on the cell membrane, or the interaction of one compound enhancing the uptake of the other compound by increasing membrane permeability or decreasing drug efflux [
20,
21].
Depending on the method of application within the food matrix, it can be useful to assess the in vitro antimicrobial activity using diffusion or dilution assays. In vitro dilution assays provide insight into the antimicrobial activity of a compound when it is dispersed within the medium, which is relevant for its incorporation into the dough [
13]. When antimicrobials are incorporated into an active packaging system, their efficacy depends on the activity in the vapour phase and can therefore be evaluated through in vitro diffusion assays. Spray application, on the other hand, relies on both diffusion and dilution behaviour, and information obtained from both types of assays can be relevant [
13].
Despite considerable research efforts to develop a natural preservation strategy for bread products, these efforts have not yet resulted in a commercially applied strategy. On the one hand, this can be attributed to the insufficient validation of promising in vitro results in a real food matrix. On the other hand, studies on the validation in real food matrices report a reduced antimicrobial efficacy in complex food systems, requiring higher concentrations than those effective during in vitro experiments. Consequently, these higher concentrations negatively affect the physicochemical and sensorial properties of the final product [
22,
23,
24]. A possible solution to eliminate or minimize this impact is by combining compounds with a synergistic effect. Synergism would allow the addition of a lower dosage of the compound while maintaining its antimicrobial activity [
20].
In addition, the method of application can influence the impact on the product’s properties. Most studies report the validation of antimicrobial compounds through incorporation into the dough. This is a straightforward method that does not require additional equipment. However, incorporating antimicrobials into the dough can affect the leavening capacity of the baker’s yeast
Saccharomyces cerevisiae, resulting in a reduced bread volume [
22]. Furthermore, volatile or heat-sensitive compounds may evaporate or degrade during the baking process. Alternatively, antimicrobial compounds can be applied on the bread’s surface through spray application or incorporated into an active packaging system. In spray application, antimicrobials are applied directly on the bread’s surface instead of being dispersed throughout the bread matrix. Consequently, less material is required compared to dough incorporation, and the compounds are directly applied on the area of concern. Application of essential oils via spray application has been reported to be more effective than incorporation into the dough [
25]. When incorporated into an active packaging system, the antimicrobial effect depends on the diffusion of volatile compounds from the packaging material to the food product, unless the system is in direct contact with the product [
26]. The efficacy of an active packaging system greatly depends on the specific system and production process. Ideally, the system should allow a high loading capacity, good storage stability and a controlled, gradual release of the active compound. The processing method should be non-thermal to prevent the evaporation and degradation of volatile and heat-sensitive compounds and should preferably avoid the use of organic solvents [
26].
In this research, the goal was to identify plant secondary metabolites active against bread moulds isolated from spoiled par-baked bread. By using pure plant secondary metabolites, rather than essential oils or plant extracts, it was possible to identify the compounds responsible for antimicrobial activity. All plant secondary metabolites included in this study are allowed to be used in food according to the European Food Safety Authority (EFSA). Nine different Penicillium and one Aspergillus species were included to ensure broad-spectrum activity, and antifungal activity was evaluated in both agar-based and liquid-based methods. The antifungal effect of the most interesting compounds was further explored to unravel the minimal inhibitory concentration and possible synergistic effects. The most interesting combination, benzyl isothiocyanate combined with carvacrol, was further validated in a par-baked bread matrix. The antifungal efficacy was assessed through spray application of the compounds on the surface of par-baked bread. In addition, the impact of benzyl isothiocyanate and carvacrol on the colour parameters of the surface of the bread, as well as the sensorial quality, was evaluated.
2. Materials and Methods
2.1. Fungal Isolates
The moulds used in this research were isolated from spoiled par-baked bread, which were packaged under modified atmosphere and produced in Western Europe [
8].
Penicillium polonicum (AL_01),
Penicillium crustosum (AL_03),
Penicillium brevicompactum (AL_04),
Aspergillus westerdijkiae (AL_10),
Penicillium chrysogenum (AL_17),
Penicillium palitans (AL_37),
Penicillium bialowiezense (AL_57),
Penicillium glabrum (AL_67),
Penicillium corylophilum (AL_72) and
Penicillium hordei (AL_75) are part of the culture collection of the Laboratory of Molecular Cell Biology, Department of Biology (KU Leuven, Leuven, Belgium). All strains are stored at −80 °C.
2.2. Plant Secondary Metabolites
Supplementary Table S1 lists the plant secondary metabolites used in this research and their supplier. Plant secondary metabolites were selected based on their approval for use in food products, according to the European Food Safety Authority (EFSA). In addition, the selection aimed to cover a wide range of chemical classes by including both compounds with reported antimicrobial activity, which are often major constituents of plant extracts, as well as compounds occurring in lower concentrations within the extracts. The importance of including both major and minor constituents of plant extracts was motivated by earlier findings reported by Feyaerts et al. [
27]. All compounds were stored in the dark, at either room temperature, 4 °C or −20 °C, according to the information provided by the supplier.
2.3. Media Preparation
To maintain the moulds and to perform the agar disc diffusion assay, potato dextrose agar (PDA) plates were used. The PDA plates contained 4 g/L potato extract (Formedium, Norfolk, England), 15 g/L Difco agar (BD, Biosciences, NJ, U.S.) and 20 g/L glucose (Sigma-Aldrich, St. Louis, MO, U.S.). The medium was autoclaved for fifteen minutes at 121 °C and poured into Petri dish plates. In the agar disc diffusion assay, each plate contained 20 mL of PDA.
Semi-solid yeast extract sucrose (YES) medium was used in an antifungal susceptibility test in liquid medium, the minimal inhibitory concentration (MIC) assay and the checkerboard assay. The preparation of the medium was based on Debonne et al. [
22] and contained 20 g/L yeast extract (Merck, Darmstadt, Germany), 150 g/L sucrose (Sigma-Aldrich), 1 g/L magnesium sulphate (Sigma-Aldrich) and 1.2 g/L Difco agar (BD, Biosciences). The medium was prepared per 300 mL and autoclaved for fifteen minutes at 121 °C.
2.4. Inoculum Preparation
The method used for the inoculum preparation was based on Debonne et al. [
23]. All strains were plated and maintained on PDA plates during the experiments. One week before each experiment, the fungal spores were transferred to a fresh PDA plate and incubated at 26 °C. After seven days, 5 mL of cold sterile deionized water with 0.1% Tween 80 (Sigma-Aldrich) was added to the plate and the fungal material was scraped loose. Then, the solution was transferred to a sterile cotton filter and collected in a sterile falcon tube. This step was repeated three times. Then, the cotton filter was discarded, and the filtrate solution was centrifuged (Allegra X-15R) for fifteen minutes at 3273 g and 4 °C. After removing the supernatant, the pellet was resuspended in 25 mL cold sterile PBS (10×) (80 g/L NaCl (Sigma-Aldrich), 2 g/L (VWR, Radnor, PA, U.S.), 14.4 g/L Na
2HPO
4 (Merck), 2.4 g/L KH
2PO
4 (Merck)) with 0.1% Tween 80. Again, the solution was centrifuged for fifteen minutes at 3273×
g and 4 °C and the supernatant was removed. Then, the pellet was resuspended in PBS (1×) and the spore concentration was determined microscopically using a Bürker chamber.
2.5. Agar Disc Diffusion Assay
The agar disc diffusion method was performed according to the protocol published by the Clinical and Laboratory Standards Institute (M44-A) [
28], with some slight modifications. All plant secondary metabolites listed in
Supplementary Table S1 were tested. Fresh PDA plates with a diameter of 90 mm and an agar depth of 4 mm were inoculated with 10
5 spores. A Whatman filter paper disc with 6 mm diameter was placed at the centre of the inoculated PDA plates, and 5 µL of a plant secondary metabolite (1% solution, diluted in ethanol) was administered onto the paper disc. Dilutions were prepared in microcentrifuge tubes, which were vortexed thoroughly before applying the compound to the filter paper. After application, the plates were closed immediately and incubated for 48 h at 26 °C. After incubation, images of the plates were made using a flatbed scanner, and the diameter of the inhibition zones was measured using ImageJ version 1.53k [
29].
2.6. Antifungal Susceptibility Testing
All plant secondary metabolites listed in
Supplementary Table S1 were tested for antifungal activity in liquid broth against the ten bread moulds included in this research. This screening was performed according to the protocol published by the European Committee on Antimicrobial Susceptibility Testing [
30], with some modifications. In this experiment, the compounds were tested at one fixed concentration. Both the compounds and the spores were diluted in semi-solid YES medium and added to 96-well plates to obtain a final concentration of 500 µg/mL and 1000 spores/well, respectively, with a total volume of 200 µL in each well. Every compound was tested in duplicate and a control containing only inoculated semi-solid YES medium was taken along, as well as a control with ethanol (2.5%). The outer wells of the 96-well plates were filled with 200 µL semi-solid YES medium to minimize evaporation of the inner wells during incubation. The plates were sealed using a Breathe-Easy™ film (Sigma-Aldrich) and incubated for 48 h at 26 °C. Due to the volatile and hydrophobic character, dilutions were prepared in microcentrifuge tubes and vortexed thoroughly before being added to 96-well plates. No more than three minutes passed between the addition of the first and the last compound, and the plate was immediately sealed afterwards. The same procedure was applied for the MIC and checkerboard assays. Every 24 h, the optical density (OD) was measured at 595 nm. During the first 24 h, the increase in OD was due to evaporation of the medium on the seal, as a similar increase was also measured in wells containing blank semi-solid YES medium. After 24 h, no further increase in OD due to evaporation was observed. The absence of growth in the first 24 h was confirmed by growth curves (
Supplementary Figure S1). Antifungal activity was expressed as the mean percentage of growth inhibition of the two technical repeats, relative to the control containing only inoculated semi-solid YES medium. The effect of the medium and evaporation on the OD was taken into account by subtracting the OD
595 measured at 24 h (Equation (1)). For each compound, two technical replicates were included against each mould strain. It was observed that, at the tested concentration, ethanol did not affect the growth of the moulds. Therefore, this control was not taken along in the minimal inhibitory concentration assay and checkerboard assay.
Equation (1): Calculation of growth inhibition percentage.
2.7. Determination of Minimal Inhibitory Concentration (MIC)
Based on the results of the agar disc diffusion method and the screening in liquid medium, eight compounds were selected for further testing. The minimal inhibitory concentration of octanoic acid, allyl isothiocyanate, hexanoic acid, 2,3-butanedione, E-cinnamaldehyde, carvacrol, acetaldehyde and benzyl isothiocyanate was determined against
A. westerdijkiae,
P. hordei and
P. palitans. These three species were selected based on their prevalence in spoiled par-baked bread and phylogenetic distance to ensure the selection of compounds with broad-spectrum activity [
8]. The method for the determination of the MIC was based on the protocol published by Eucast [
30], with some slight modifications. For each compound, a two-fold dilution series starting from 1024 µg/mL was tested. First, a two-fold dilution series was prepared in microcentrifuge tubes, using ethanol as a diluent. Then, the compound was further diluted using semi-solid YES medium to twice the desired final concentration, and 100 µL was added to a 96-well plate. The wells with 0 µg/mL of the tested compound contained 100 µL semi-solid YES medium.
Then, 100 µL semi-solid YES medium inoculated with 10,000 spores/mL was added to obtain a final concentration of 1000 spores per well. The outer wells of the 96-well plates were filled with 200 µL semi-solid YES medium to minimize evaporation of the inner wells. The plates were sealed using a Breathe-Easy® film (Sigma-Aldrich) and incubated for 48 h at 26 °C. Every 24 h, the optical density (OD) was measured at 595 nm. For each compound, two biological replicates, each consisting of three technical replicates, were included against each mould species. Antifungal activity was expressed as the mean relative percentage of growth inhibition of the six technical replicates, compared to the growth in absence of a compound. The minimal inhibitory concentration was determined as the minimal concentration needed to obtain 90% growth inhibition (MIC90).
2.8. Synergy Testing: Checkerboard Assay
To study possible synergies between compounds, the checkerboard assay was performed. The protocol was based on the paper published by Bellio et al. [
31], with some adaptations. Combinations of octanoic acid, allyl isothiocyanate, hexanoic acid, 2,3-butanedione, E-cinnamaldehyde, carvacrol, acetaldehyde and benzyl isothiocyanate were tested against
A. westerdijkiae,
P. hordei and
P. palitans. First, stock solutions of the two compounds were made, based on the previously determined MIC
90. Of compound 1, a solution of 4× MIC
90 and 8× MIC
90 was made, as well as a 4× MIC
90 solution of compound 2. The outer wells of the 96-well plates were filled with 200 µL semi-solid YES medium to minimize evaporation of the inner wells. To the inner wells, 100 µL of semi-solid YES medium was added. Then, 100 µL of the 4× MIC
90 solution of compound 1 was added to well B2 to B10, while 100 µL of the 8× MIC
90 solution was added to well B11. Compound 1 was two-fold diluted from row B to row F using a multichannel pipette by transferring 100 µL to each executive row and discarding 100 µL after reaching row F. Then, 100 µL of the 4× MIC
90 solution of compound 2 was added to wells B11 to G11, and compound 2 was two-fold diluted from column 11 to 3 by transferring 100 µL to each executive column. Again, 100 µL was discarded after reaching column 3. Finally, 100 µL of inoculated semi-solid YES medium was added to each inner well, resulting in a final volume of 200 µL and 1000 spores in each well. The plates were sealed using a Breathe-Easy film (Sigma-Aldrich) and incubated for 48 h at 26 °C. Every 24 h, the optical density (OD) was measured at 595 nm. For each combination, at least one biological replicate with three technical replicates was included. If a potentially interesting synergistic interaction was observed, the experiment was repeated with a second biological replicate, also including three technical replicates. This was the case for acetaldehyde combined with either benzyl isothiocyanate, 2,3-butanedione or carvacrol, benzyl isothiocyanate combined with 2,3-butanedione, carvacrol or octanoic acid, 2,3-butanedione combined with carvacrol, hexanoic acid or octanoic acid, carvacrol combined with allyl isothiocyanate, and E-cinnamaldehyde combined with allyl isothiocyanate. The synergistic potency was calculated based on the MuSyC principle [
32] by using the average relative growth of three or six technical replicates after 48 h. The synergistic potency (α) indicates the change in potency of one compound in the presence of the other compound. If the 95% confidence interval (CI) includes 1, the effect is indifferent. When all values of the 95% CI are greater or less than 1, it indicates synergistic or antagonistic potency, respectively.
2.9. Validation in Bread Matrix
The effect of benzyl isothiocyanate and carvacrol was further validated in par-baked bread. In case of the shelf life test, determination of colour parameters and sensorial validation, the breads were surface treated with the compounds using an airbrush system and packaged under modified atmosphere. The challenge test included an additional step in which the surface was inoculated with mould spores in between the surface treatment with the compounds and packaging. Calcium propionate served as a positive control and was added to the dough instead of spray application.
2.9.1. Bread-Making Procedure
All experiments were performed using a single batch of commercial wheat flour EPI B type 55 (Paniflower, Merksem, Belgium). Water absorption and malt falling number were experimentally determined using Farinograph-E (Brabender, Duisburg, Germany) and were 58.9% and 0.27%, respectively. A total of 100 g of flour, 58.9 g of water, 1.5 g of table salt, 0.27 g of malt flour, 1 g of instant dry baker’s yeast (Algist Bruggeman, Ghent, Belgium) and 0.005 g of ascorbic acid was weighed, and the ingredients were mixed for six minutes in a De Danieli spiral mixer (Verhoest Machinery, Izegem, Belgium). To obtain breads with 0.15% propionic acid, 0.63 g calcium propionate (Sigma-Aldrich) per 100 g flour was added as well.
After mixing, the dough was placed in a proving cabinet (Panimatic, Souppes-sur-Loing, France) for ten minutes at 30 °C and 80% to 90% relative humidity. After ten minutes, the dough was divided into pieces of 65 g (±1 g) and shaped manually. The dough pieces were then placed on a perforated plate, greased to prevent the dough from sticking, and placed in the proving cabinet (Panimatic) for 60 min at 30 °C and 80% to 90% relative humidity. Then, the dough pieces were baked in the oven (MIWE Aeromat FB12, type 4.64) in two phases. The first phase consisted of two minutes of baking at 170 °C and 200 mL steam injection, in which the steam valve was closed. In the second phase, the steam valve was open and there was no steam injection. This phase consisted of eight minutes of baking at 150 °C. The par-baked breads were cooled to room temperature and then transported in sterile bags.
2.9.2. Treatment and Packaging
Based on the results of the MIC and checkerboard assay, different concentrations of benzyl isothiocyanate and carvacrol were tested.
Table 1 summarizes all combinations of concentrations of the active compounds in the spraying solution that were tested. In both the shelf life and challenge tests, ten technical repeats were included for each combination of concentrations. Calcium propionate was included as a positive control, containing fourteen technical repeats, while par-baked breads without treatment were included as a negative control (T0), containing twelve technical repeats. As the compounds were diluted in ethanol, a control with ethanol was included as well (T1) with ten technical repeats. The compounds were sprayed on the surface of the par-baked bread using an airbrush system, with a total of 1 mL sprayed on each par-baked bread, holding the airbrush system at a distance of 15 cm, moving it up and down, while rotating the sample. After a full rotation, the samples were placed two per PP/EVOH/PP (PP: polypropylene, EVOH: ethylene vinylalcohol) transparent tray (Deca Pack) and packaged under modified atmosphere using a Tray Sealer (DECA Packaging Group, Herentals, Belgium) at a gas composition of 50% CO
2 and 50% N
2, using a OPA/PE/EVOH/PE/PP (OPA: orientated polyamide, PE: polyethylene) cover film (Opalen HB 65 AF peel 430 mm, Amcor). In case of the challenge test, the surface of the par-baked breads was inoculated with mould spores before packaging.
2.9.3. Antifungal Validation in Bread Matrix
To determine the antifungal effect of benzyl isothiocyanate and carvacrol in the bread matrix, both a shelf life test and challenge test were performed. In case of the shelf life test, the par-baked breads were packaged after treatment and stored for 30 days at 22 °C. Visible mould growth was checked every other day. In the challenge test, a spot containing 200 spores/10 µL of P. palitans was applied in the centre of the bread’s surface after spraying and right before packaging. Similar to the shelf life test, the samples were stored for 30 days at 22 °C and checked for visible mould growth every other day. In case of the challenge test, only growth due to inoculation of spores was taken into account and not mould growth due to environmental contamination. To assess differences in antifungal activity between two treatments, statistical analysis was performed using GraphPad Prism version 10.5.0 (GraphPad Software, San Diego, CA, USA). Normality was checked by performing a Shapiro–Wilk test. In cases of normal distribution, an unpaired t test was performed, while a Mann–Whitney U test was used when data was not normally distributed.
2.9.4. Determination of Colour Parameters
After two days of storage at 22 °C, the par-baked breads were fully baked in two phases. The first phase consisted of two minutes at 220 °C and 200 mL steam, while the second phase was eight minutes of baking at 200 °C. The CM700d/600d spectrophotometer (Konica Minolta) was used to the determine the crust’s colour parameters (lightness (L*), green–red axis (a*), blue–yellow axis (b*)), standardized with a white calibration plate. Colour parameters were measured of samples containing 300 µg/mL benzyl isothiocyanate and 1000 µg/mL carvacrol, based on the results of the shelf life and challenge test, untreated samples and samples containing calcium propionate. Two biological repeats were included for the treated samples, while four biological repeats were included for the untreated samples and samples containing calcium propionate. To assess differences in colour parameters between two treatments, statistical analysis was performed using GraphPad Prism version 10.5.0 (GraphPad Software, San Diego, CA, USA). Normality was checked by performing a Shapiro–Wilk test. In cases of normal distribution, an unpaired t test was performed, while a Mann–Whitney U test was used when data was not normally distributed.
2.9.5. Sensorial Validation in Bread Matrix
Based on the results of the shelf life and challenge tests, it was decided to investigate the effect of 300 µg/mL benzyl isothiocyanate and 1000 µg/mL carvacrol on the sensorial quality of par-baked bread by performing a triangle test. In this test, each participant received three samples of fully baked bread, in which two samples were identical and one sample was different. Water was provided throughout the test. Combinations and order of untreated par-baked bread and treated par-baked bread were randomized using EyeQuestion 5.4.7 software (Logic8 BV, Elst, The Netherlands). The test was carried out in the sensory lab facilities (SensoLab) of Ghent University and included 91 participants. These were employees and students present at the faculty of Bioscience Engineering (Campus Coupure, UGent) and who had no former experience in sensory tasting. Every participant was asked whether they tasted a difference in the samples and to indicate the different sample. In case no difference was tasted, participants were obliged to guess which sample was different. Statistical analysis was carried out using EyeQuestion 5.4.7 software (Logic8 BV, Elst, The Netherlands) by performing a binomial test.
3. Results
3.1. Antifungal Activity of Plant Secondary Compounds
As part of the plant defence mechanism, plant secondary metabolites (PSMs) are considered as a valuable source for natural antimicrobials. In this study, 218 compounds were screened for their activity against ten bread moulds collected from spoiled par-baked bread. Each compound was evaluated for its growth-inhibiting effect in an agar disc diffusion assay and an antifungal susceptibility test in liquid medium.

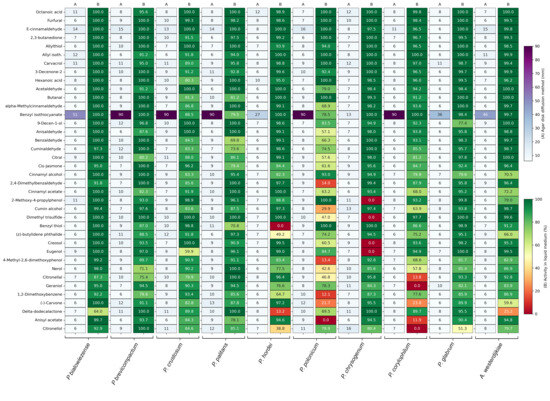

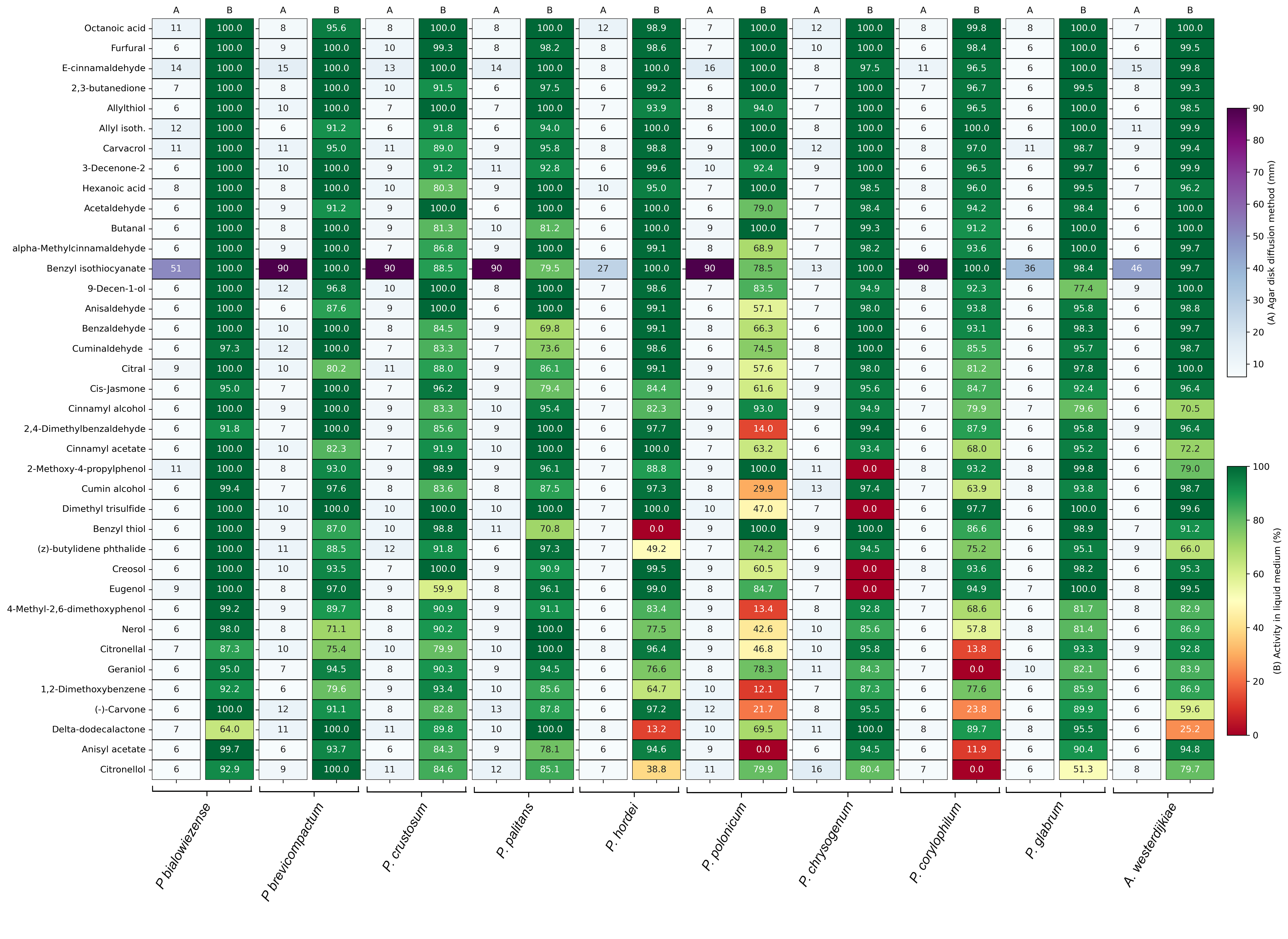

In the agar disc diffusion assay, inoculated plates were exposed to a filter disc containing 5 µL of a 1% compound solution. The inhibition zone was measured after 48 h of incubation. The inhibition zones of the best-performing compounds are displayed in
Figure 1A and are expressed in mm.
Supplementary Table S2A contains the inhibition zones of all 218 tested compounds. The majority of the compounds had an inhibition zone of 6 mm and were considered as non-inhibitory, as the inhibition zone did not exceed the diameter of the filter disc. Benzyl isothiocyanate had the strongest antifungal activity in the agar disc diffusion assay, with complete inhibition against
Penicillium brevicompactum,
P. crustosum,
P. palitans,
P. polonicum and
P. corylophilum. It was the only compound in the screening collection capable of completely inhibiting fungal growth at the tested concentration. It also showed strong inhibition against
P. bialowiezense (51 mm),
Aspergillus westerdijkiae (46 mm),
P. glabrum (36 mm) and
P. hordei (37 mm).
Penicillium chrysogenum was the most resistant to benzyl isothiocyanate, with an inhibition zone of 13 mm. Although less strong than benzyl isothiocyanate, E-cinnamaldehyde also showed broad-spectrum activity, inhibiting the growth of six of the tested species with an inhibition zone of 12 mm or greater.
The agar disc diffusion assay is a good method to test a large collection of compounds, as it is simple and low in cost; however, due to its qualitive and not quantitative nature, it does not allow minimal inhibitory concentration (MIC) determination [
33]. Moreover, the compound’s concentration within the agar is dependent on the compound’s characteristics, including the molecular weight, solubility and the diffusion rate [
34]. As plant secondary metabolites, and especially essential oil compounds, are more hydrophobic compounds, these compounds will not easily diffuse throughout the water-based agar. Therefore, we performed an antifungal susceptibility test in liquid medium in parallel.
When testing the antifungal activity in liquid medium, all compounds were tested against the ten bread moulds at one fixed concentration, 500 µg/mL, and evaluated for their ability to inhibit growth after 48 h of incubation.
Figure 1B summarizes the percentage of relative growth inhibition of the best-performing compounds, while
Supplementary Table S2B contains the percentage relative growth inhibition of the entire plant secondary metabolite collection. More compounds were able to inhibit mould growth in the liquid medium compared to the agar disc diffusion assay. Of the 218 compounds tested against ten moulds, total growth inhibition was reached 5 times (0.23%) in the agar disc diffusion assay and 125 times (5.73%) in the screening in liquid medium. Besides benzyl isothiocyanate, many plant secondary metabolites showed weak or no inhibition in the agar disc diffusion assay, while being good to strong inhibitors in the liquid medium, with 14.31% and 19.27% of the compounds having relative growth inhibition above 90% and 80%, respectively.
The best-performing compounds in the antifungal susceptibility test in liquid medium were dominated by aldehydes, followed by alcohols, acids, isothiocyanates, phenols and ketones. Octanoic acid, furfural and E-cinnamaldehyde had the best broad-spectrum activity, with a relative growth inhibition of 95% or higher against all tested species. Based on these results, octanoic acid, E-cinnamaldehyde, 2,3-butanedione, allyl isothiocyanate, carvacrol, hexanoic acid, acetaldehyde and benzyl isothiocyanate were selected for further testing.
3.2. Minimal Inhibitory Concentration of Selected PSM
The minimal inhibitory concentration (MIC) of octanoic acid, E-cinnamaldehyde, 2,3-butanedione, allyl isothiocyanate, carvacrol, hexanoic acid, acetaldehyde and benzyl isothiocyanate was determined against
P. palitans,
P. hordei and

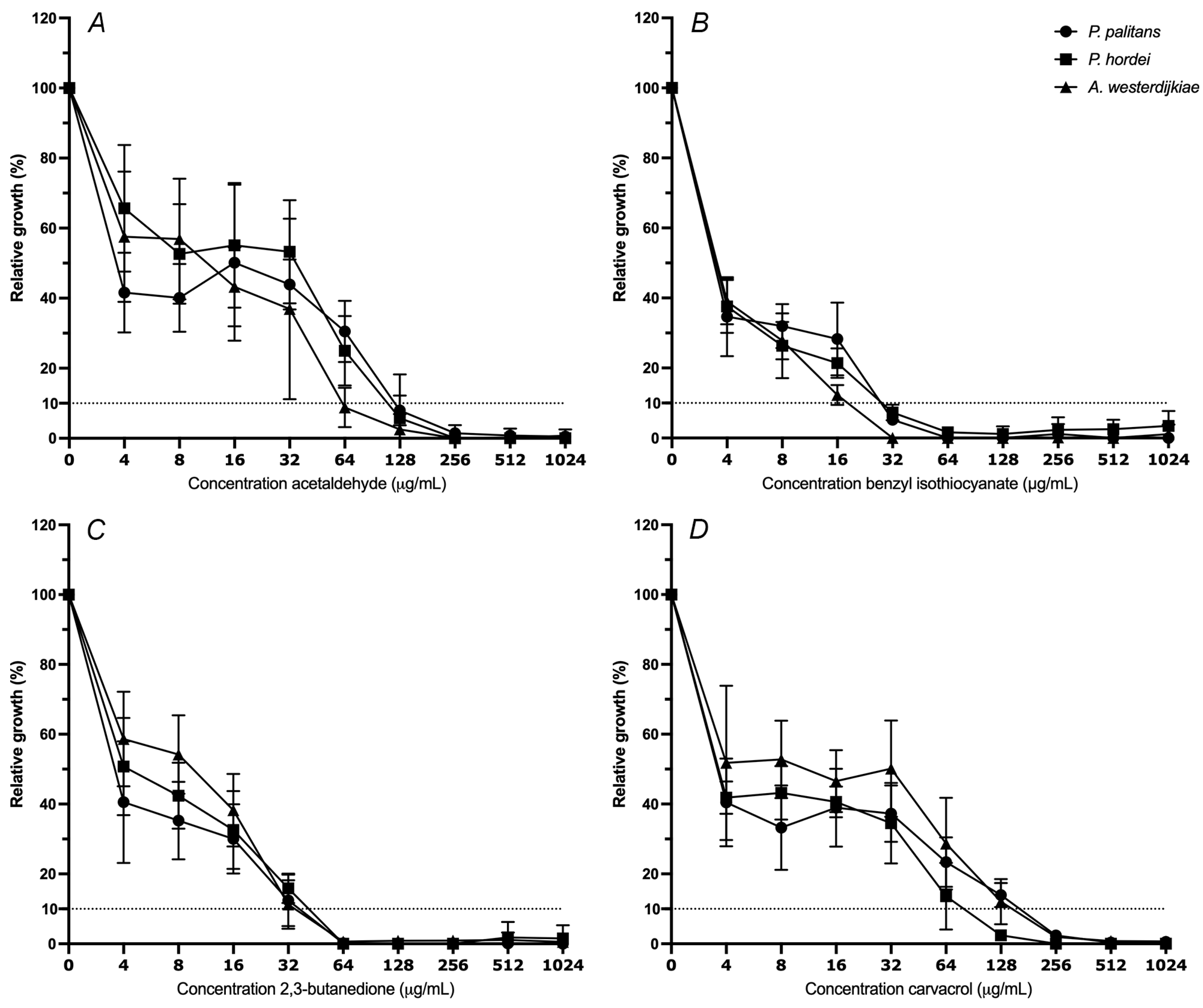

A. westerdijkiae. The MIC at 90% of relative growth inhibition after 48 h of incubation was determined. The moulds were exposed to a ½ dilution series starting from 1024 µg/mL. The decrease in percentage of relative growth with increasing concentration of acetaldehyde (A), benzyl isothiocyanate (B), 2,3-butanedione (C) and carvacrol (D) is reported in

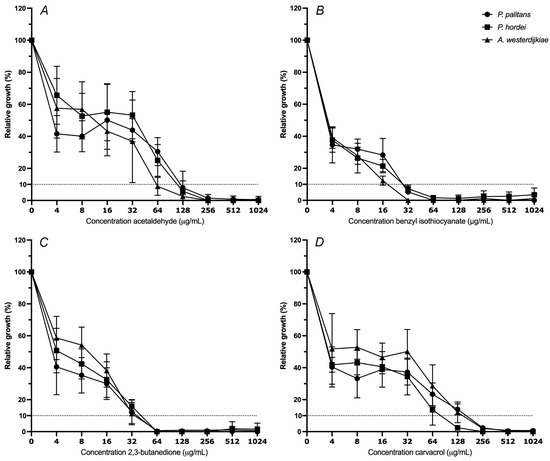

Figure 2. The MIC
90 of octanoic acid, allyl isothiocyanate, hexanoic acid and E-cinnamaldehyde can be found in
Supplementary Table S3.
The isothiocyanates exerted the strongest antifungal activity. MIC90 of A. westerdijkiae, P. palitans and P. hordei was obtained at 16, 16 and 32 µg/mL allyl isothiocyanate, respectively, while 32 µg/mL of benzyl isothiocyanate was required for 90% growth inhibition of all tested species. At 64 µg/mL, the two aldehydes and ketone—acetaldehyde, E-cinnamaldehyde and 2,3-butanedione—all had the same inhibiting effect on A. westerdijkiae. Penicillium palitans was slightly more resistant to acetaldehyde, and E-cinnamaldehyde and P. hordei to acetaldehyde, requiring 128 µg/mL to obtain 90% growth inhibition. In case of carvacrol, a reduction of fifty percent of growth was already achieved at 4 µg/mL; however, further reduction to 90% growth inhibition was obtained at 128 µg/mL for P. hordei and 256 µg/mL for P. palitans and A. westerdijkiae. Together with carvacrol, hexanoic acid and octanoic acid were the least active of the tested compounds.
3.3. Synergy of Selected PSMs
By performing checkerboard assays, combinations of octanoic acid, E-cinnamaldehyde, 2,3-butanedione, allyl isothiocyanate, carvacrol, hexanoic acid, acetaldehyde and benzyl isothiocyanate were tested for synergistic interactions against
P. palitans,
P. hordei and
A. westerdijkiae. We calculated the synergistic potency based on the MuSyC principle [
32] by using the relative growth after 48 h. The synergistic potency (α) indicates the change in potency of one compound in the presence of the other compound. An indifferent effect is found when the 95% confidence interval (CI) includes 1. When all values of the 95% CI are greater or less than 1, it indicates synergistic or antagonistic potency, respectively.

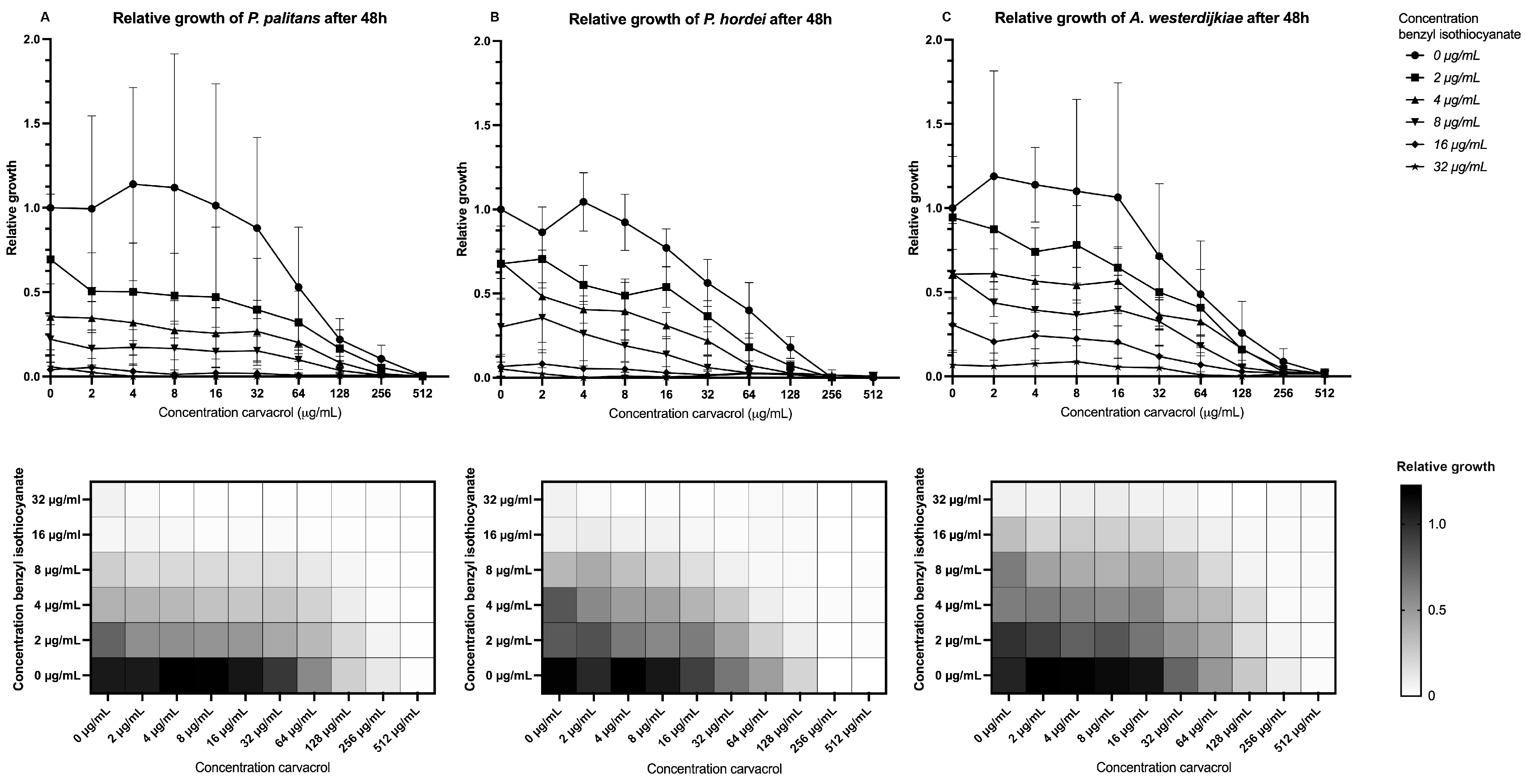

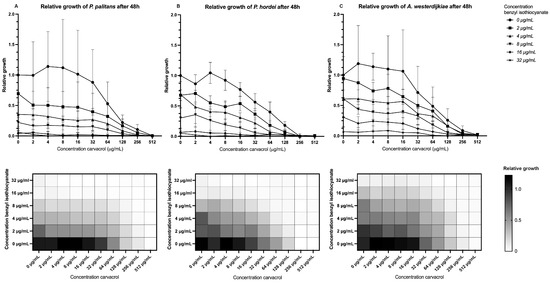

When combining benzyl isothiocyanate with carvacrol, a relative growth below 0.1, or growth inhibition of 90%, was found when combining 8 µg/mL benzyl isothiocyanate and 64 µg/mL carvacrol for
P. palitans (
Figure 3A), 8 µg/mL benzyl isothiocyanate and 32 µg/mL carvacrol for
P. hordei (
Figure 3B), and 16 µg/mL benzyl isothiocyanate and 64 µg/mL carvacrol for
A. westerdijkiae (
Figure 3C). This effect was confirmed using the MuSyc framework [
32], and we found that benzyl isothiocyanate had a positive effect on carvacrol by increasing the latter’s potency with a magnitude of 131.8 and 15.22 against
P. palitans and
P. hordei, respectively. An additive effect was found against
A. westerdijkiae. Carvacrol had a synergistic effect on benzyl isothiocyanate’s potency against
P. hordei and an additive effect against
P. palitans and
A. westerdijkiae.

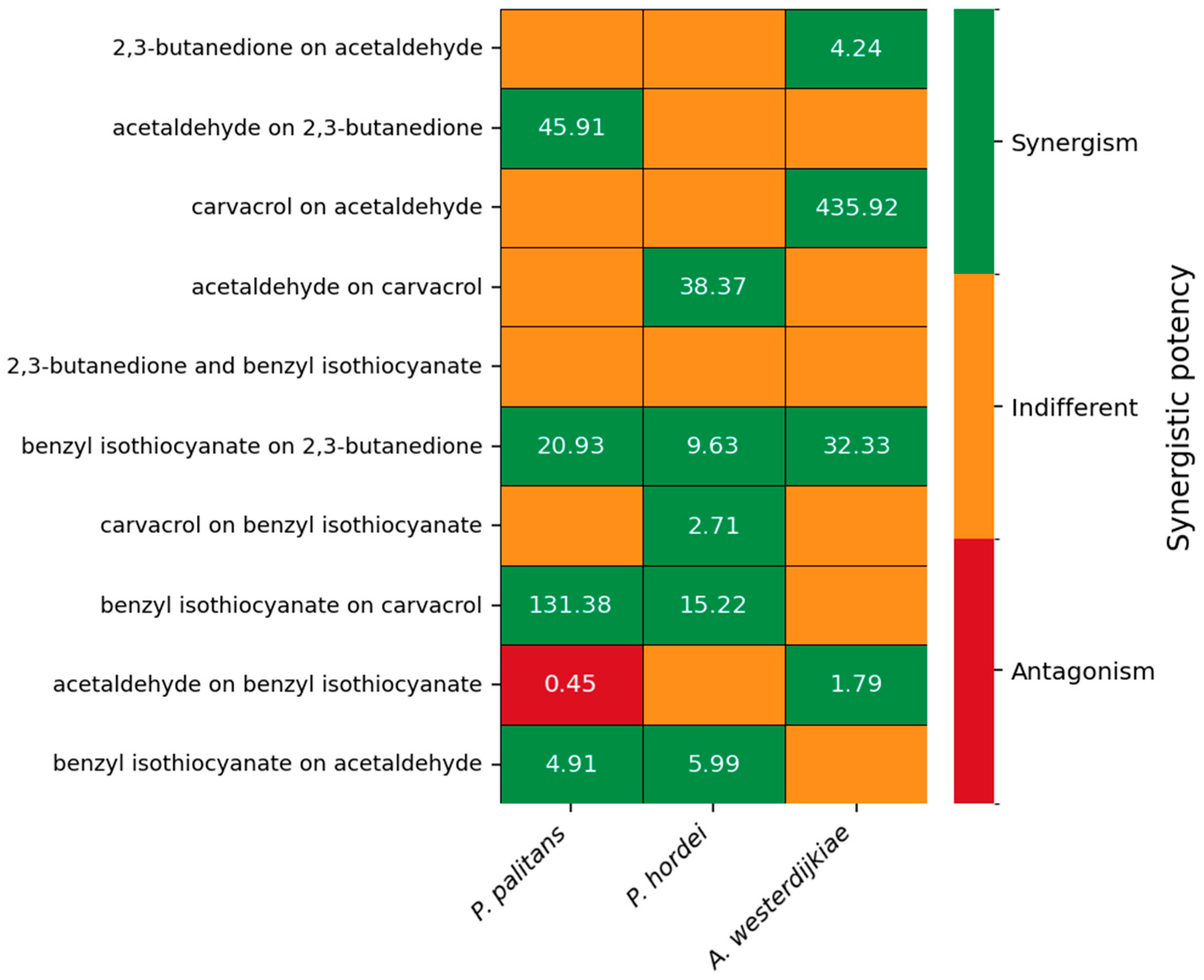

The synergistic potency of the five most interesting combinations is depicted in
Figure 4. Synergistic potency and the confidence interval of all combinations can be found in
Supplementary Table S4. Benzyl isothiocyanate was able to increase the potency of 2,3-butanedione against
P. palitans,
P. hordei and
A. westerdijkiae. When combining aldehydes with carvacrol, synergistic interactions occurred as well. 2,3-butanedione increased carvacrol’s potency against
P. palitans and
P. hordei; however, 2,3-butanedione’s activity was negatively affected by carvacrol when tested against
P. hordei. Acetaldehyde improved the activity of carvacrol against
P. hordei while carvacrol had a positive effect on acetaldehyde against
A. westerdijkiae. Combinations with hexanoic acid, octanoic acid or allyl isothiocyanate resulted in no synergy or synergy against only one of the three tested species.
It was decided to further validate the antifungal activity of benzyl isothiocyanate and carvacrol in a par-baked bread matrix. Essential oils rich in these compounds are widely available, making industrial application of these compounds, or essential oils rich in these compounds, more feasible. Benzyl isothiocyanate can be found in plants of the Brassicaceae family, while carvacrol is a major component in essential oils obtained from plants of the genus
Thymus,
Satureja and
Origanum [
35,
36].
3.4. Validation of Benzyl Isothiocyanate and Carvacrol in a Bread Matrix
3.4.1. Impact on the Shelf Life of Par-Baked Bread
Based on the results obtained in the MIC and checkerboard assays, different combinations of concentrations of benzyl isothiocyanate and carvacrol were validated for the antifungal activity in a par-baked bread matrix. A total of eight combinations were tested (T2–T9), going from 100 µg/mL to 400 µg/mL benzyl isothiocyanate combined with 2000 µg/mL to 3000 µg/mL carvacrol in a shelf life and challenge test, and these treatments all contained ten repeats. A control with no treatment (T0) and a control containing 0.15% propionic acid were included, with twelve and fourteen repeats, respectively. As the compounds were dissolved in ethanol, a control containing only ethanol (T1) was included as well, containing ten repeats. The compounds were sprayed on the surface of par-baked bread using an airbrush system and packaged under modified atmosphere using a gas mixture of 50% CO
2 and 50% N
2. In the challenge tests, spores of
P. palitans were applied on the bread surface between spraying and packaging. In previous research, spoilage of par-baked bread was dominated by
P. palitans [
8]. After packaging under modified atmosphere, the samples were stored at 22 °C and followed daily for visible mould growth. The days until spoilage for each condition can be found in

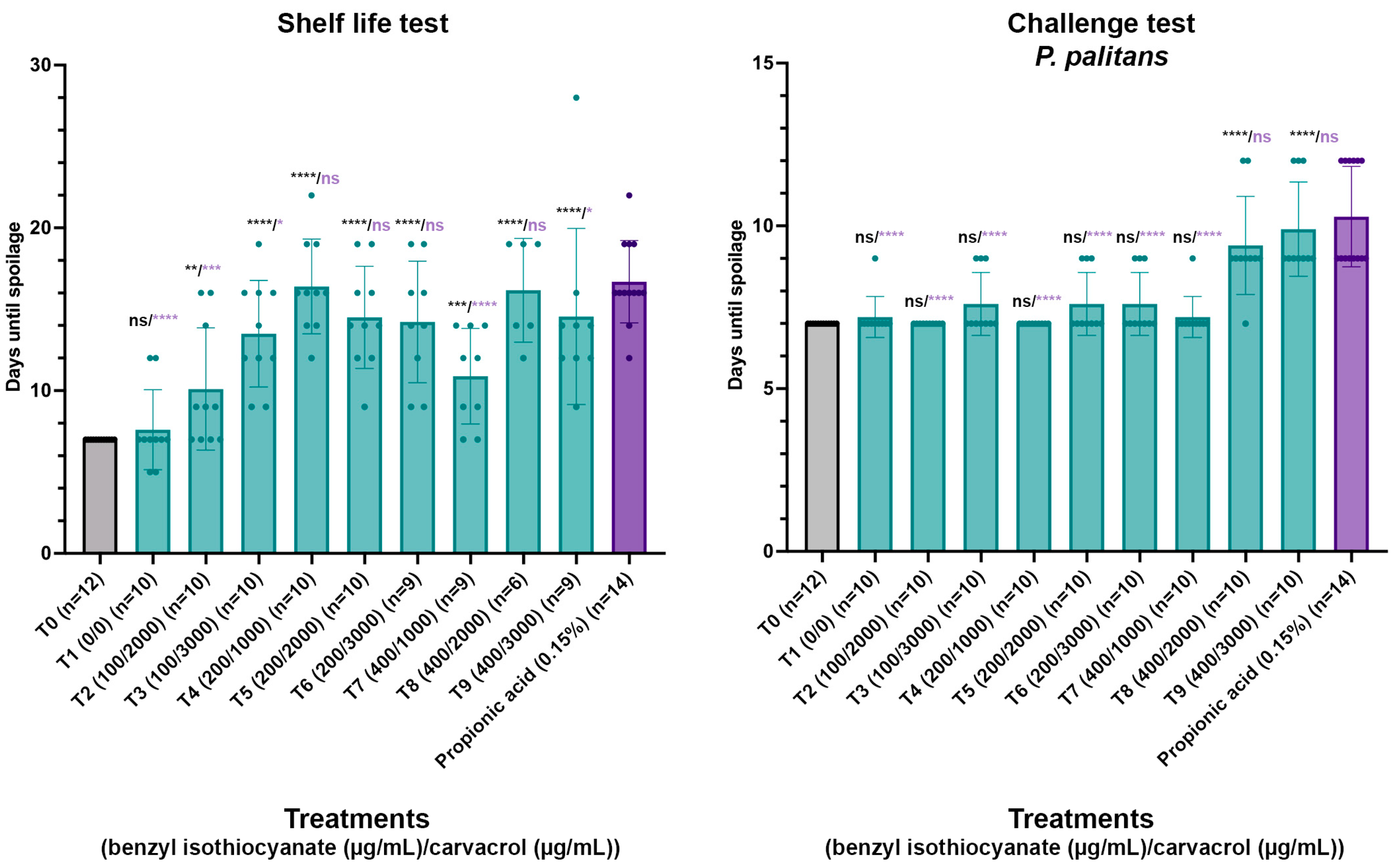

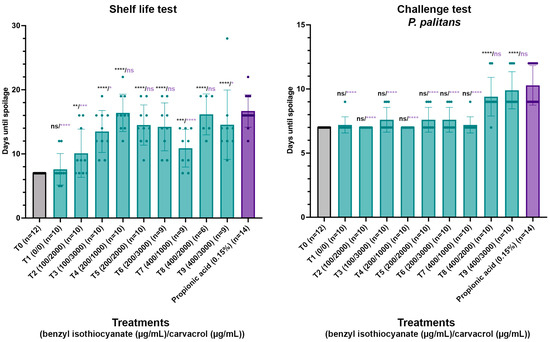

Figure 5, and the performance of each treatment is statistically compared to the condition with no treatment and the condition containing 0.15% propionic acid.
In both the shelf life test and challenge tests, ethanol had no significant effect compared to no treatment. In the shelf life test, all treatments worked significantly better than no treatment, while T4, T5, T6 and T8 worked as good as 0.15% propionic acid. Furthermore, not all samples of T6, T7, T8 and T9 were spoiled within 30 days incubation, while all samples with propionic acid were spoiled within 22 days since packaging. The uncontaminated samples were kept and monitored daily until the packaging collapsed. As these samples remained free from visible mould, it appears that treatments T6, T7, T8 and T9 worked even better than 0.15% propionic acid. However, the shelf life test relies on environmental contamination and results in great variability throughout the test, which makes it difficult to draw sound conclusions. The challenge test serves as a good alternative to diminish this variability by inoculating the bread surface with a known number of spores and allows us to observe the response in a worst-case scenario where all samples are contaminated. In the challenge test, T8 and T9 acted significantly better than no treatment and as good as propionic acid (0.15%).
Application of 200 to 400 µg/mL benzyl isothiocyanate and 1000 to 2000 µg/mL carvacrol significantly increased the time until visible spoilage compared to untreated samples in both the shelf life and challenge tests while performing comparably to 0.15% propionic acid. Based on these results, it was decided to validate the impact of the spray application of 300 µg/mL benzyl isothiocyanate and 1000 µg/mL carvacrol on the colour parameters and sensorial quality of the par-baked bread.
3.4.2. Impact on the Colour Parameters of Par-Baked Bread
To assess the impact of the compounds on the colour parameters of the bread’s surface, 300 µg/mL benzyl isothiocyanate and 1000 µg/mL carvacrol were applied on par-baked bread through spray application. Then, the samples were packaged under modified atmosphere and fully baked after two days of storage at 22 °C. Application of 300 µg/mL benzyl isothiocyanate and 1000 µg/mL carvacrol did not significantly affect the colour parameters, compared to untreated samples and samples treated with propionic acid.
Table 2 lists the average L*, a* and b* values and the standard deviation.
3.4.3. Impact on the Sensorial Quality of Par-Baked Bread
Sensorial impact was evaluated by performing a triangle test with treated and untreated par-baked bread. The treated par-baked bread contained 300 µg/mL benzyl isothiocyanate and 1000 µg/mL carvacrol, applied through spray application. Both treated and untreated samples were packaged under modified atmosphere and fully baked after two days of storage at 22 °C. Of the 91 participants, 44 participants correctly indicated the different sample. When alpha, the risk of concluding that a difference exists while the products are the same is below 0.05, no more than 39 participants can indicate the correct answer, meaning that our treated and untreated samples are significantly different. Some participants reported perceiving a slight difference in saltiness or a more pronounced herbal taste. Despite these minor sensory differences, the treatment was generally well accepted.
