Preparation, Characterization, In Vitro Release, and Antibacterial Activity of Oregano Essential Oil Chitosan Nanoparticles

Key Laboratory of Food Biotechnology of Sichuan Province, School of Food and Bioengineering, Xihua University, Chengdu 610039, China
Author to whom correspondence should be addressed.
These authors contributed equally to this manuscript.
Foods 2022, 11(23), 3756;
Submission received: 8 October 2022 / Revised: 11 November 2022 / Accepted: 18 November 2022 / Published: 22 November 2022
(This article belongs to the Section Food Packaging and Preservation)


Essential oils have unique functional properties, but their environmental sensitivity and poor water solubility limit their applications. Therefore, we encapsulated oregano essential oil (OEO) in chitosan nanoparticles (CSNPs) and used tripolyphosphate (TPP) as a cross-linking agent to produce oregano essential oil chitosan nanoparticles (OEO-CSNPs). The optimized conditions obtained using the Box–Behnken design were: a chitosan concentration of 1.63 mg/mL, TPP concentration of 1.27 mg/mL, and OEO concentration of 0.30%. The OEO-CSNPs had a particle size of 182.77 ± 4.83 nm, a polydispersity index (PDI) of 0.26 ± 0.01, a zeta potential of 40.53 ± 0.86 mV, and an encapsulation efficiency of 92.90%. The success of OEO encapsulation was confirmed by Fourier transform infrared spectroscopy (FT-IR) and thermogravimetric analysis (TGA). The scanning electron microscope (SEM) analysis showed that the OEO-CSNPs had a regular distribution and spherical shape. The in vitro release profile at pH = 7.4 showed an initial burst release followed by a sustained release of OEO. The antibacterial activity of OEO before and after encapsulation was measured using the agar disk diffusion method. In conclusion, OEO can be used as an antibacterial agent in future food processing and packaging applications because of its high biological activity and excellent stability when encapsulated.

1. Introduction

In recent years, there has been widespread concern regarding the health benefits of functional bioactive ingredients and the rise in negative perceptions of artificial food additives [1]. Plant essential oils (EOs) are commonly found in various plant parts, such as roots, trunks, barks, stems, leaves, flowers, and fruits, and contain numerous terpenes, aromatic, aliphatic, sulfur, and nitrogen compounds. EOs have a variety of biological activities, including those of antioxidants, sterilization, and disinfection [2]. OEO is a natural, transparent, pale-yellow liquid extracted from oregano leaves; it has excellent antibacterial activity (antibacterial, antifungal, and antiviral) [3] and antioxidant properties [4] and is used widely in the medicine and food preservation fields [5]. Its primary components, carbaldehyde, and thymol can cause irreversible damage by affecting the permeability of microbial cell membranes and inhibiting cell respiration and metabolism [6], resulting in a bacteriostatic effect. However, the disadvantages of oregano essential oil, including its high volatility, pungent odor, and insolubility in water, restrict its application [7]. Nanoencapsulation is a promising strategy for increasing the value of OEO by extending their validity period, enhancing their physicochemical stability, and achieving controlled release despite these obstacles [8].
The delivery of bioactive compounds found in essential oils through nanoparticles not only protects the bioactive compounds of essential oils from potential degradation caused by direct exposure to different environmental factors (light, heat, pH, humidity, and oxygen) [9]. In addition, the unpleasant odor of essential oils is masked, their release is regulated, their solubility and stability are enhanced, and they have an inherent antibacterial effect [10] that enhances their effectiveness [9]. Studies have shown that nanoparticle delivery systems can deliver essential oils to the surface of bacterial cell membranes and enhance their absorption, whereas pure essential oils (low water solubility) do not readily contact the cell membrane [11]. Chitosan nanoparticles containing essential oils had antibacterial activity compared to essential oils alone [11].
Chitosan (CS) is a naturally occurring cationic alkaline polysaccharide derived from the deacetylation of chitin, which is abundant in shrimp, crabs, silkworms, algae, and other substances [12]. Due to its biocompatibility, biodegradability, near-non-toxicity, and inexpensive production [13], the use of CS in pharmaceutical and food applications has increased dramatically in recent years [14]. Chitosan is the most studied and suitable nanocarrier for essential oil delivery. Chitosan nanoparticles can enhance the thermal stability of essential oils, preserve their phenolic content, ensure prolonged release profiles, and enhance their antioxidant and antibacterial activities for numerous applications. Studies have shown that encapsulation of oregano essential oil in nanoparticles derived from chitosan significantly enhanced its antifungal activity [15]. The most classic method for preparing chitosan nanoparticles is ionic cross-linking. Chitosan can also interact electrostatically with certain polyanionic substances in addition to being combined with negatively charged macromolecules, thereby further forming nanoparticles as a result of intramolecular and exo-molecular cross-linking that occurs in the presence of polyanions [16]. The method has the advantages of simple operation, a high drug-loading capacity, the absence of organic solvents, the avoidance of toxic and side-effects caused by the cross-linking agent, and the capacity to maintain the integrity and biological activity of the nanostructure after freeze-drying and storage [17].
The essential oils of cinnamon [18], clove [19], and Heracleum persicum fruit [20] were encapsulated in chitosan nanoparticles, and their properties and antibacterial activities were studied, laying the foundation for their application. The genus Pseudomonas comprises a heterogeneous group of Pseudomonadaceae microorganisms. Members of the genus Pseudomonas are frequently associated with the degradation and spoilage of a wide variety of foods derived from plants or animals, as their very simple nutritional requirements and metabolic diversity enable them to thrive in a variety of environments [21]. Few reports have described the encapsulation of OEO into chitosan nanoparticles, and even fewer have optimized their preparation process, characterized and evaluated the sustained release properties of the optimized nanoparticles, or assessed their Pseudomonas-inhibiting activity. These studies contribute to solving the poor stability of oregano essential oil while improving its environment tolerance and slow release, thereby substantially expanding its application in preservation and food preservation.
In this study, to determine the optimal conditions for preparing nanoparticles with the highest encapsulation efficiency and the smallest particle size, OEO was encapsulated in CSNPs using ionic cross-linking of three independent variables and TTP as a cross-linking agent (CS concentration, three effects of TPP concentration, and the addition amount of OEO). FT-IR, TGA, and SEM were used to study the encapsulation of optimally produced OEO-CSNPs. In addition, the in vitro release abilities of OEO-CSNPs were examined using the three Pseudomonas strains: the bacteriostatic ability of bacteria (Pseudomonas fluorescens (MN578148.1), Pseudomonas gessardii (MN069032.1), and Pseudomonas jessenii (MN758767.1).

2. Materials and Methods

2.1. Chemicals and Reagents

OEO was purchased from Ji’an Huashuo Fragrance Oil Co., Ltd. (Jian, China). CS (degree of deacetylation 90%) was provided by Shanghai Yuanye Bio-Technology Co., Ltd. (Shanghai, China). TPP was purchased from Shandong Yousu Chemical Technology Co., Ltd. (Linyi, China). Sodium hydroxide, disodium hydrogen phosphate, dodecahydrate, and sodium chloride were purchased from Chengdu Kelong Chemical Co., Ltd. (Chengdu, China). Nutrient agar was purchased from Beijing Auboxing Biotechnology Co., Ltd. (Beijing, China). All chemicals were used as received without further purification. All of the reagents and solvents listed above, and others, were of analytical grade.

2.2. Preparation of OEO-CSNPs

The ion cross-linking method was used to prepare nanoparticles, as reported by Zeinab et al. [22]. To obtain a chitosan solution, an appropriate quantity of chitosan powder was weighed (BSA224S-CW, Sartorius, Beijing, China), dissolved in 1% acetic acid solution at room temperature, and stirred (RH digital, Ai Card Instrument Equipment Co., Ltd., Guangzhou, China) at 600 r/min for 12 h. Before filtering through a 0.45 μm microporous membrane, the pH was adjusted to 4 with a 5 mol/L sodium hydroxide solution. The essential oil emulsifier Tween-80 was added, and the mixture was stirred and thoroughly mixed. Oregano essential oil was added to the filtered chitosan solution, and the mixture was stirred at 600 r/min for 60 min while remaining at room temperature. To obtain the OEO-CSNPs suspension, chitosan and TPP solution were combined (TPP was dissolved in ultrapure water and thoroughly dissolved before filtering through a 0.45 μm microporous membrane) at a volume ratio of 5:2, and the mixture was gently stirred for 60 min. The inner layer of an ultrafiltration centrifuge tube (Millipore, MA, USA) was removed after centrifugation (5810 R, Eppendorf Company, Hamburg, Germany) at 8000 r/min for 30 min, washed several times with ultrapure water, and then ultrasonicated (KH3200E, Jintan Medical Center, Changzhou, China). OEO-CSNPs were dispersed (Instrument Factory, China) for 5 min, pre-frozen at −76 °C (ULTS1386, Thermo Fisher, Waltham, MA, USA) for 3 h, and then vacuum-lyophilized (FDU-1200, Shanghai Ailang Instrument Co., Ltd., Shanghai, China). It was stored at 4 °C until use. The formation process of OEO-CSNPs is shown in Figure 1.

2.3. Optimization of the Preparation of OEO-CSNPs Using BBD

Various crucial process parameters affecting the encapsulation efficiency (%EE) and particle size of oregano essential oil chitosan nanoparticles were investigated in the preliminary experiments. The encapsulation efficiency and particle size of OEO-CSNPs were significantly affected by the CS concentration, TPP concentration, and the amount of OEO added (with CS solution as the control, v/v). The volume ratio, stirring speed, and stirring time are fixed parameters. Utilizing the BBD design principle, a 3-factor, 3-level complete factorial design was implemented. The coded and actual values of the independent and dependent variables are shown in Table 1. By analyzing the effect of independent variables (A-CS concentration, B-TPP concentration, and C-essential oil addition amount) on dependent variables (Y1-%EE, Y2-Size), the Design-expert software was used to optimize oregano essential oil chitosan nanoparticles (Design-expert, 8.0.6). Fitting oregano essential oil chitosan nanoparticles with the second-order polynomial equation revealed that the independent variable was correlated with the dependent variable, and the general form was (1):
Y i = b 0 + b 1 A + b 2 Β + b 3 C + b 12 A Β + b 13 A C + b 23 Β C + b 11 A 2 + b 22 Β 2 + b 33 C 2
where Yi represents the observed dependent variable response for each factor level, b0 is the intercept, and b1 to b33 are the regression coefficients obtained from the observed response values during the experiment. The terms A, B, and C are independent variables, whereas (AB, AC, and BC) and (A2, B2, and C2) are interaction and quadratic effects, respectively [23]. The experimental design included a total of 17 experiments. For each of the 17 experiments, the midpoint experiment was repeated 5 times to ensure reliability. Analysis of variance (ANOVA) was used to verify the mathematical model fitting the data. The sufficiency of the second-order polynomial model was determined by examining the significance of the regression coefficients, the coefficient of determination (R2), and the absence of fit for each investigated response. Three-dimensional response surface plots were used to show the interaction and influence of variables on responses [24]. Following the development and validation of the model, the optimal formulation with the highest encapsulation efficiency and smallest particle size was selected, and evaluation experiments were conducted, including characterization and physicochemical properties.

2.4. Maximum Absorption Wavelength and Standard Curve of OEO

The OEO was diluted with absolute ethanol to a predetermined concentration, and then a full-wavelength scan in the 200–800 nm wavelength range was conducted with a Shimadzu dual-beam UV-Vis spectrophotometer (UV-1900, Shimadzu, Kyoto, Japan). The maximum absorption wavelength of OEO was determined using ethanol as a blank control. OEO has a maximum absorption peak at the wavelength of 276 nm, which can be used to determine the entrapment rate of OEO-CSNPs, according to experimental findings.
At the wavelength of maximum OEO absorption, OEO was diluted in absolute ethanol to various concentration gradients (0.005, 0.01, 0.02, 0.04, and 0.06 mg/mL), and the absorbance was measured at each concentration. A standard curve was drawn with the equation y = 16.984x + 0.0085, R2 = 0.999 for the blank control.

2.5. Determination of Encapsulation Efficiency and Loading Capacity

A MercMillipore ultrafiltration centrifuge tube (UFC901096, Shanghai Bitai Biotechnology Co., Ltd., Shanghai, China) was used to centrifuge the OEO-CSNPs at high speed (8000 r/min) for 30 min at 4 °C [25]. The free essential oil was then transferred to the outer centrifuge tube. An ultraviolet spectrophotometer (UV2400, Shanghai Sunny Hengping Scientific Instruments, Shanghai, China) set to a detection wavelength of 276 nm was used to analyze the supernatant in the outer centrifuge tube, yielding information about the concentration of free essential oil. From the inner centrifuge tube, nanoparticles were extracted, separated, washed, freeze-dried, and weighed. The EE and DL of OEO-CSNPs were calculated using Formulas (2) and (3), respectively:
E E ( % ) = T o t a l   a m o u n t   o f   O E O F r e e   a m o u n t   o f   O E O T o t a l   a m o u n t   o f   O E O × 100
D L ( % ) = T o t a l   a m o u n t   o f   O E O F r e e   a m o u n t   o f   O E O W e i g h t   o f   n a n o p a r t i c l e s   a f t e r   f r e e z e   d r y i n g   O E O × 100

2.6. Particle Size, PDI, and Zeta Potential

The particle size, polydispersity coefficient (PDI), and zeta potential of nanoparticles were measured by a Zeta Potentiometer-Laser Particle Size Analyzer (ZEN-3600) from Malvern, UK, using the method of Kalam et al. [26]. A certain quantity of prepared OEO-CSNPs was dispersed in ultrapure water. The fixed angle of scattered light was 90°, and the measured temperature was 25 ± 1 °C.

2.7. Scanning Electron Microscopy (SEM)

The microscopic morphology of freeze-dried oregano essential oil chitosan nanoparticles was examined using a German ZEISS Gemini SEM 300 scanning electron microscope. The sample should be secured to the sample stage with double-sided tape, and gold should be observed and sprayed [27].

2.8. Fourier Transformed Infrared Spectroscopy (FT-IR)

The ATR method was used to analyze the liquids, whereas the tableting method was used to analyze the powder samples (after grinding with dry KBr (1/100, m/m), tableting was performed). At room temperature, the tablets were scanned on a Fourier transform infrared spectrometer from 4000 cm−1 to 400 cm−1 for 32 consecutive scans with a resolution of 4 cm−1 (Nicolet AVATAR 380, Thermo Fisher Scientific Inc., Waltham, MA, USA).

2.9. Thermal Characterization by Thermogravimetric Analysis (TGA)

A thermogravimetric analyzer was used to assess the thermal stability of the nanoparticles in a 3–5 mg sample (DTG-60, Shimadzu, Japan). The tests were performed in an atmosphere of nitrogen at a gas flow rate of 30 mL/min and a temperature increase heating rate of 10 °C/min from 30 to 600 °C [28].

2.10. In Vitro Release Studies

A mass of 20 mg of nanoparticles was placed in 30 mL of phosphate buffer (pH 7.4) and shaken (ZWY-100II, Shanghai Zhicheng Analytical Instrument Manufacturing, Shanghai, China) at 37 ± 0.5 at 120 rpm, according to the reported method [29]. Aliquots of 3 mL were removed and replaced with an equal volume of fresh dissolution medium at a specific time intervals (0.25, 0.50, 0.75, 1.0, 1.5, 2.0, 3.0, 5.0, and 24.0 h, once a day for 8 days). UV-Vis spectrophotometry at 276 nm was used to examine the samples against a PBS reference solution. All experiments were conducted at 25 °C, and all measurements were repeated three times.
Cumulative   release   percentage = t   =   0 t M t M 0 × 100
where Mt is the cumulative amount of OEO released to each sampling time point, t is the release time of OEO-loaded, and M0 is the initial weight of OEO-loaded in the sample.

2.11. Determination of Antimicrobial Activity

First, OEO-CSNPs were diluted with sterile water at a ratio of 1:100 (w/v), according to the concentrations of chitosan nanoparticles and essential oil in the particle solution. Pseudomonas fluorescens (MN578148.1), Pseudomonas gessardii (MN069032.1), and Pseudomonas jessenii (MN758767.1) were the three most common strains found in the previous screening, as reported by Esmaeili et al. [30]. The filter paper diffusion method was used to evaluate antibacterial activity after cultivating the selected strains to the logarithmic growth phase. A sterile spreader bar was used to evenly distribute the bacterial suspension on nutrient agar (LB) plates at a concentration of 106–107 CFU/mL (0.5 McFarland turbidity standard). Subsequently, filter paper pieces (6 mm in diameter) were impregnated with 20 μL of the above sample solution and placed on the plate. Controls consisted of sterile water and absolute ethanol. All dishes were then incubated at 30 °C for 24 h. The size of the inhibition zone should be observed.

2.12. Statistical Analysis

All experiments were repeated three times. Data were processed and analyzed in Excel 2010 and SPSS 24 software and graphs were created in Origin 8.5, respectively. Analysis of variance (ANOVA) and significant differences (Duncan’s multiple comparison procedure) were performed (p < 0.05).

3. Results

3.1. BBD Experimental Results and Analysis

The benefit of BBD is that it excludes combinations of all factors that simultaneously appear at the highest or lowest levels, thereby preventing experiments conducted under extreme conditions from yielding unsatisfactory results [23]. BBD analysis was used to examine the main effect, interaction effect, and quadratic effect of three independent variables (A, B, and C) on the response value (Y1 and Y2). The 17 obtained test results are shown in Table 2. The particle size values varied significantly, from 684.37 nm to 186.63 nm, and the encapsulation efficiencies ranged from 77.54% to 92.18%. This result is similar to previous results where chitosan nanoparticles and different amounts of Carum copticum EO were encapsulated with their average size ranging from 721.0 nm to 236.0 nm [30]. Wu et al. [31] studied the similar encapsulation rate of essential oils when they were encapsulated into nanoparticles. It was determined, through analysis of experimental data in Design-Expert V8.0.6 software, that the encapsulation efficiency (Y1) and particle size (Y2) are related to CS concentration (A), TPP concentration (B), and the amount of OEO added (C). The equation of the multinomial regression model is as follows:
Y 1 = 92.59 + 0.39 A 3.75 Β + 2.05 C 0.50 A Β + 0.67 A C + 1.19 Β C 3.73 A 2 3.62 Β 2 3.73 C 2
Y 2 = 202.13 95.66 A + 22.47 Β + 20.15 C + 35.56 A Β 43.37 A C + 113.80 Β C + 165.92 A 2 + 62.77 Β 2 + 156.13 C 2
Positive values in the regression equation for response values indicate synergistic optimization effects, whereas negative values indicate antagonistic effects between factors and response values [26].
Significant parameters influencing encapsulation efficiency and particle size were identified using ANOVA (Table 3). All of the obtained regression models were highly significant (p < 0.01), and the lack of fit was not significant (p > 0.05), indicating that the models were effective and had high predictive values. The coefficients of determination R2 for packaging efficiency and particle size were 0.9915 and 0.9864, respectively, and the adjusted R2 was 0.9805 and 0.9690, respectively. Generally, the higher the R2 value, the better a quadratic polynomial model can represent the fitting effect of the quadratic model on the data under experimental conditions. The p-value of each coefficient indicates its significance. Values (p > 0.05) indicate significant variables. Optimizing the experimental factors facilitates the development of nanoparticles with high encapsulation efficiency and small particle size (Table 3).
The three-dimensional surface representation of the experiment is shown in Figure 2. The curved surface shows that the two factors interacted strongly. Figure 2a–c show that, when one was held constant, the encapsulation efficiency was affected by the other two factors. When the CS concentration was 1.5~1.8 mg/mL and the TPP concentration was 1~1.4 mg/mL, increasing the amount of essential oil added from 0.25% to 0.40% resulted in a higher EE%. Due to chitosan and TPP, the EE% decreased as the chitosan concentration, TPP concentration, and essential oil addition amount increased continuously, and the EE% decreased, due to chitosan and TPP. The saturation of the binding sites in the medium and increasing the amount of essential oil can reduce the EE%. Similar results have been obtained in encapsulation of eugenol [32] and Satureja hortensis essential oil [33] in particles. The particle size decreased from 1 mg/mL to approximately 1.8 mg/mL of CS concentration, as shown in Figure 2d–f, before increasing at approximately 1.8 mg/mL of CS concentration. Molecular weight and chitosan concentration can be adjusted to change particle size: higher chitosan concentrations are more conducive to small particle formation [17]. However, because many CS molecules are involved in the cross-linking of individual particles at higher CS concentrations, the intermolecular hydrogen bond attraction is stronger, and the electrostatic repulsion is insufficient, leading to the formation of larger particles upon the addition of TPP. This phenomenon can be explained by the fact that as the CS concentration increases, intermolecular distance decreases, resulting in an increase in intermolecular crosslinks between CS molecules. Reduced cross-linking density between CS and TPP caused particle aggregation and the formation of larger particles [34]. The particle size begins to increase when the TPP concentration exceeds 1.5. Encapsulation of herbal galactagogue extract obtained comparable results [17]. A possible reason is that an increase in TPP concentration results in greater electrostatic interaction between it and chitosan, which increases particle size [17].
The maximum encapsulation efficiency and smallest particle size were achieved at a CS concentration of 1.63 mg/mL and TPP concentration of 1.27 mg/mL, respectively, using the regression equation to determine the ideal conditions for optimally preparing OEO-CSNPs. The amount of added essential oil was 0.30%. The model validation was confirmed by preparing nanoparticles in duplicate under these conditions three times and comparing the results to the values predicted by the model. The experimental results are shown in Table 4. The prepared nanoparticles had an average particle size of 182.77 nm, encapsulation efficiency of 92.90%, and drug loading of 27.63%. The errors between predicted and experimental values were all less than 5%, indicating that the model can predict optimal conditions within the horizontal domain defined by the independent variables. Therefore, the response surface regression model is capable of accurately predicting nanoparticle particle size and encapsulation efficiency [35], and compared to the study by Cai et al. [36], nanoparticles with high EE and LC and low particle size were obtained after optimizing the preparation conditions by BBD experiments.

3.2. Characterization of OEO-CSNPs

Essential evaluation criteria for nanoparticle performance include particle size, zeta potential, and PDI. The CS concentration was 1.63 mg/m, under optimal preparation conditions, the TTP concentration was 1.27 mg/mL, the essential oil concentration was 0.30%, the pH was 4.0, and the stirring time was 60 min. Figure 3 shows that the average particle size of OEO-CSNPs was 182.77 ± 4.83 nm, with a typical size distribution curve, and the size distribution was narrow (polydispersity coefficient PDI was 0.26 ± 0.01, PDI was correlated with molecular stability). Mohammadi et al. [37] studied the average size of 100–190 nm after the Cinnamomum zeylanicum essential oil was encapsulated into nanoparticles. Cai et al. [36] found that the PDI values of chitosan nanoparticles with Ocimum basilicum EO ranged from 0.222 to 0.425. The smaller the value, the more effectively and uniformly nanoparticles are dispersed throughout the solution [38]. The electrostatic interaction between the surface charges of the particles will result in particle aggregation, dispersion, and flocculation. Therefore, to detect the size of the charge and then evaluate the stability of the nanoparticles, the zeta potential was determined. If the zeta potential value of a suspension is higher than +30 mV, it is considered physically stable [39]. The zeta potential of the prepared OEO-CSNPs was +40.53 ± 0.86 mV, indicating that they were remarkably stable (Figure 4). López-Meneses et al. showed that the zeta potential of chitosan nanoparticles after the addition of Schinus molle EO was +40.2 ± 7.5 mV [39]. Hesami et al. [40] found that the zeta potential value of CNPs containing Chelidonium majus EO was in the range of +26.46 to +33.1 mV. Due to the cationic nature of CS and the presence of residues that do not interact with TPP molecules, the zeta potential was positive. These amino groups inhibit the adsorption of anions, resulting in the formation of stable nanoparticles through the maintenance of a thick electric double layer [23].

3.3. SEM Analysis

The morphology of the nanoparticles was observed by a scanning electron microscope. The SEM images of CSNPs (A) and OEO-CSNPs (B) in Figure 5 show that the nanoparticles exhibited a spherical regular distribution and stability during the preparation process. The shape of chitosan nanoparticles was the same before and after the addition of OEO, and Kbaa et al. [35] also found that Cymbopogon citratus EO incorporation did not alter the particle shape. Comparing the size of chitosan nanoparticles before and after OEO addition reveals that the new particles were marginally larger. However, Sotelo-Boyas et al. found [41] that the nanoparticle size differed depending on the preparation method and experimental conditions and that the increase in nanoparticle size was associated with CEO adsorption or interaction with each CSNP component [39].

3.4. FT-IR Analysis

Figure 6 shows the FT−IR spectra of chitosan powder (a), CSNPs (b), OEO (c), and OEO−CSNPs (d).
The overlap of the -OH stretching vibration absorption peak of hydrogen bonds and -NH2 stretching vibration absorption peak at 3413 cm−1 indicates the formation of the stretching vibration. Chitosan contains numerous distinct hydrogen bonds: a broad peak range at 2809 cm−1 (-CH stretching), and three characteristic absorption peaks of amino polysaccharides: 1634 cm−1 (amide I, C=O stretching), 1600 cm−1 (amide II, N-H bending), and 1350 cm−1 (amide III, N-H bend) (Figure 6a) [30]. As shown in Figure 6c, the cross-linking of chitosan and TPP is expected to shift some of the amide group-related peaks, with the peak at 1634 cm−1 shifting to 1630 cm−1 and the peak at 1600 cm−1 shifting to 1591 cm−1, confirming the occurrence of ionic cross-linking reaction [30]. Similar results were obtained by Matshetshe et al. [29] studying the interaction between chitosan and TPP. In addition, the appearance of 1249 cm−1 (C-O-C stretching), 1456 cm−1 (amide II), and 1733 cm−1 (C=O stretching) may be attributed to electrostatic interaction [15]. The absorption peaks of oregano essential oil (Figure 6d) are 2959 cm−1 (-OCH2 stretching), 1589 cm−1 (N-H bending), 1458 cm−1 (CH2, bending), 1254 cm−1 (C-O-C stretching), 1117 cm−1 (C-O-C stretching), and 937 cm−1 (-CH bending) [42]. The above characteristic absorption peaks appear at the same wavenumber, and the OEO significantly increases the intensity of the C-H stretch peak at 2867–2955 cm−1, as shown in Figure 3e at 2923 cm−1. Strong C-H stretching vibration peaks indicate that the OEO ester functional groups are encapsulated within the nanoparticles [36]. These findings are in agreement with the results of Esmaeili et al. [30], Seyed et al. [34], and Hesami et al. [40]. The results showed that OEO was encapsulated in CSNPs without changing its structure or function, indicating that its antibacterial and antioxidant properties remained intact.

3.5. TGA Analysis

TGA analysis is a thermal analysis technique that measures the relationship between the mass of the test sample and the change in temperature at a specific program-controlled temperature [36]. The TGA thermograms in Figure 7 revealed mass loss as a function of temperature for the chitosan powder (a), CSNPs (b), OEO (c), and OEO−CSNPs (d). OEO begins to decompose at approximately 68 °C in the nitrogen environment and loses approximately 92.54% of its mass by 170 °C, which fully reflects the volatile characteristics of essential oil core material [43]. This is similar to the results of Seyed et al. [42] studying the weight loss of OEO. In contrast, the wall material has higher stability. At 243 °C, chitosan undergoes its initial degradation, resulting in a mass loss of approximately 8% due to the evaporation of adsorbed water associated with the hydrophilic group of the polymer. Dehydration of the hydro-glycosidic ring, deacetylation, depolymerization, and decomposition of acetylated chitosan units resulted in the second degradation at 327 °C [30]. CSNPs exhibited different thermal properties than chitosan due to the reaction between CS and TPP. The initial degradation of CSNPs occurred at 230 °C, whereas the second occurred at 385 °C, thereby increasing the degradation temperature of CS. The CEO−CSNPs were degraded at 230 °C and 400 °C, respectively. In conclusion, the chitosan and TPP cross-linking reaction occurred, resulting in the encapsulation of OEO. The OEO−CSNPs shifted the first OEO degradation event from 68 °C to 230 °C and the second from 170 °C to 400 °C, resulting in increased stability [44]. Hosseini et al. [33] and Esmaeili et al. [30] also reported similar findings.

3.6. In Vitro Release Analysis

Figure 8 shows that OEO-CSNPs can be released continuously for several days, with a biphasic release pattern consisting of a burst release and a subsequent slow release. This corroborates the findings of Sotelo-Boyas et al. [41]. The burst release exhibited a release amount of 41.27 ± 0.56% at the 5th hour, and the subsequent 8 days of continuous release resulted in 82.73 ± 1.53%. Rapid dissolution of the initial burst could have caused the instant burst of molecules of essential oil molecules adsorbed to the surface of the polymer [35]. Studies suggest that polymer degradation is the primary mechanism by which CSNPs release essential oils into the external environment [45]. The slower release phase is caused by the diffusion of encapsulated essential oil molecules from the nanoparticle core to the dissolution medium through interconnected pores and channels in the polymer matrix. When combined with the hydrophobic behavior of essential oils, they exhibit a slower water absorption rate, thereby decreasing the polymer degradation rate, which is similar to other results concerning hydrophobic materials [46]. Therefore, the chitosan nanoparticles found in oregano essential oil lengthen its duration of action and allow for sustained release [47]. Esmaeili et al. [30] and Yin et al. [48] reported that encapsulation effectively reduced the loss and volatilization of essential oils and their migration rate into the external environment. Encapsulating the essential oil and using it as an antibacterial agent ensures that the initial stage is not too slow to achieve a suitable antibacterial concentration and that the slow stage can maintain activity for an extended time. In contrast, the essential oil becomes ineffective if the initial phase is too rapid [49].

3.7. Antibacterial Activity Analysis

The antibacterial activity of CSNPs before and after OEO encapsulation was investigated using the agar disk diffusion method (Table 5). Chitosan nanoparticles exhibited antibacterial activity against the tested strains, and when observed under a microscope, chitosan nanoparticles had a spherical microstructure, which caused the surface of CSNPs to have stronger positive charges, as is typical with bacteria. Additionally, due to the enhanced charge interactions and increased surface area, chitosan can be tightly absorbed into the bacterial surface, destroying the structural integrity of the cell membrane and resulting in intracellular leakage and subsequent cell death. This may be due to the ionic reaction of chitosan with anionic groups on the bacterial cell surface, which changes the bacterial surface morphology, increases membrane permeability, and ultimately results in intracellular substance leakage and cell death [50]. The primary components of OEO, thymol, and carvacrol exhibited antibacterial activity against all three Pseudomonas strains attributed [6]. The OEO encapsulated by CSNPs showed the highest antibacterial activity, with average inhibition zones of 6.86 ± 0.05, 8.30 ± 0.05, and 9.35 ± 0.04 mm against P. fluorescens, P. gessardii, and P. jessenii, respectively. Yilmaz et al. [51] reported that chitosan could enhance the antibacterial ability of essential oils. The antibacterial activity varied between various strains. The difference is a manifestation of the strain specificity. The results showed that encapsulation of OEO in CSNPs improved its antibacterial activity, which is consistent with Feyzioglu et al. [1], Cui et al. [6], and Yilmaz et al. [51].

4. Conclusions

In this experiment, the conditions for the preparation of OEO-CSNPs were optimized and characterized using three factors and three concentrations of BBD by an ionic cross-linking method. OEO-CSNPs with high EE and small average particle size and stability were obtained. The FI-TR and TGA results showed that OEO was encapsulated successfully in nanoparticles with good thermal stability. OEO-CSNPs showed a significant sustained release effect and enhanced the antibacterial activity of OEO against Pseudomonas. In conclusion, encapsulating OEO in CSNPs showed its antibacterial utility and active packaging potential application. It serves as a reference for the future development of bactericidal preservatives derived from plant essential oils on green aquatic products, fruits, and vegetables.

Author Contributions

Conceptualization, P.L.; methodology, P.L.; software, P.L. and K.Y; validation, K.Y., Y.H. and S.C.; formal analysis, P.L.; investigation, Y.M.; resources, Y.M.; data curation, P.L.; writing—original draft preparation, P.L. and Y.M.; writing—review and editing, K.Y., Y.H., S.C. and A.Y.; visualization, F.C.; supervision, W.Y.; project administration, Y.M.; funding acquisition, Y.M. All authors have read and agreed to the published version of the manuscript.


This research was funded by the Sichuan Provincial Science and Technology Program (2020YFN0151) and the Xihua University Graduate Student Innovation Fund Project (YCJJ2021102).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Feyzioglu, G.C.; Tornuk, F. Development of chitosan nanoparticles loaded with summer savory (Satureja hortensis L.) essential oil for antimicrobial and antioxidant delivery applications. LWT—Food Sci. Technol. 2016, 70, 104–110. [Google Scholar] [CrossRef]
  2. Jiang, Y.; Wang, D.; Li, F.; Li, D.; Huang, Q. Cinnamon essential oil Pickering emulsion stabilized by zein-pectin composite nanoparticles: Characterization, antimicrobial effect and advantages in storage application. Int. J. Biol. Macromol. 2019, 148, 1280–1289. [Google Scholar] [CrossRef]
  3. Leyva-López, N.; Gutiérrez-Grijalva, E.P.; Vazquez-Olivo, G.; Heredia, J.B. Essential Oils of Oregano: Biological Activity beyond Their Antimicrobial Properties. Molecules 2017, 22, 989. [Google Scholar] [CrossRef] [Green Version]
  4. Jaspal, M.H.; Ijaz, M.; Haq, H.A.U.; Yar, M.K.; Asghar, B.; Manzoor, A.; Badar, I.H.; Ullah, S.; Islam, M.S.; Hussain, J. Effect of oregano essential oil or lactic acid treatments combined with air and modified atmosphere packaging on the quality and storage properties of chicken breast meat. LWT—Food Sci. Technol. 2021, 146, 111459. [Google Scholar] [CrossRef]
  5. Stefanakisa, M.K.; Touloupakisa, E.; Anastasopoulosb, E.; Ghanotakisa, D.; Makridisc, P. Antibacterial activity of essential oils from plants of the genus origanum. Food Control. 2013, 34, 539–546. [Google Scholar] [CrossRef]
  6. Cui, H.; Zhang, C.; Li, C.; Lin, L. Antibacterial mechanism of oregano essential oil. Ind. Crop. Prod. 2019, 139, 111498. [Google Scholar] [CrossRef]
  7. Kwon, S.-J.; Chang, Y.; Han, J. Oregano essential oil-based natural antimicrobial packaging film to inactivate Salmonella enterica and yeasts/molds in the atmosphere surrounding cherry tomatoes. Food Microbiol. 2017, 65, 114–121. [Google Scholar] [CrossRef]
  8. Plati, F.; Paraskevopoulou, A. Micro- and Nano-encapsulation as Tools for Essential Oils Advantages’ Exploitation in Food Applications: The Case of Oregano Essential Oil. Food Bioprocess Technol. 2022, 15, 949–977. [Google Scholar] [CrossRef]
  9. Abdollah, H.S.; Amir, M. Feeding broilers with thyme essential oil loaded in chitosan nanoparticles: An efficient strategy for successful delivery. British Poultry Sci. 2018, 59, 669–678. [Google Scholar]
  10. Bazana, M.T.; Codevilla, C.F.; de Menezes, C.R. Nanoencapsulation of bioactive compounds: Challenges and perspectives. Curr. Opin. Food Sci. 2019, 26, 47–56. [Google Scholar] [CrossRef]
  11. Mohammadi, A.; Hosseini, S.M.; Hashemi, M. Emerging chitosan nanoparticles loading-system boosted the antibacterial activity of Cinnamomum zeylanicum essential oil. Ind. Crop. Prod. 2020, 155, 112824. [Google Scholar] [CrossRef]
  12. Ferreira, L.M.; dos Santos, A.M.; Boni, F.I.; dos Santos, K.C.; Robusti, L.M.G.; de Souza, M.P.; Ferreira, N.N.; Carvalho, S.G.; Cardoso, V.M.; Chorilli, M.; et al. Design of chitosan-based particle systems: A review of the physicochemical foundations for tailored properties. Carbohydr. Polym. 2020, 250, 116968. [Google Scholar] [CrossRef] [PubMed]
  13. Weißpflog, J.; Vehlow, D.; Müller, M.; Kohn, B.; Scheler, U.; Boye, S.; Schwarz, S. Characterization of chitosan with different degree of deacetylation and equal viscosity in dissolved and solid state—Insights by various complimentary methods. Int. J. Biol. Macromol. 2021, 171, 242–261. [Google Scholar] [CrossRef] [PubMed]
  14. Wang, W.; Meng, Q.; Li, Q.; Liu, J.; Zhou, M.; Jin, Z.; Zhao, K. Chitosan Derivatives and Their Application in Biomedicine. Int. J. Mol. Sci. 2020, 21, 487. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Shetta, A.; Kegere, J.; Mamdouh, W. Comparative study of encapsulated peppermint and green tea essential oils in chitosan nanoparticles: Encapsulation, thermal stability, in-vitro release, antioxidant and antibacterial activities. Int. J. Biol. Macromol. 2018, 126, 731–742. [Google Scholar] [CrossRef] [PubMed]
  16. Plucinski, A.; Lyu, Z.; Schmidt, B.V.K.J. Polysaccharide nanoparticles: From fabrication to applications. J. Mater. Chem. B 2021, 9, 7030–7062. [Google Scholar] [CrossRef]
  17. My, A.; Nk, A.; Amm, B.; Kd, C. Preparation optimization and characterization of chitosan-tripolyphosphate microcapsules for the encapsulation of herbal galactagogue extract. Int. J. Biol. Macromolecules. 2019, 140, 920–928. [Google Scholar]
  18. Nouri, A. Chitosan nano-encapsulation improves the effects of mint, thyme, and cinnamon essential oils in broiler chickens. Br. Poult. Sci. 2019, 60, 530–538. [Google Scholar] [CrossRef] [PubMed]
  19. Hadidi, M.; Pouramin, S.; Adinepour, F.; Haghani, S.; Jafari, S.M. Chitosan nanoparticles loaded with clove essential oil: Characterization, antioxidant and antibacterial activities. Carbohydr. Polym. 2020, 236, 116075. [Google Scholar] [CrossRef]
  20. At, A.; Mb, A.; Sd, B.; Rk, A. Shelf life extension of bell pepper by application of chitosan nanoparticles containing heracleum persicum fruit essential oil. Postharvest Biol. Technol. 2020, 170, 111313. [Google Scholar]
  21. Caldera, L.; Franzetti, L.; Van Coillie, E.; De Vos, P.; Stragier, P.; De Block, J.; Heyndrickx, M. Identification, enzymatic spoilage characterization and proteolytic activity quantification of Pseudomonas spp. isolated from different foods. Food Microbiol. 2016, 54, 142–153. [Google Scholar] [CrossRef]
  22. Zeinab, A.; Moosa, S.; Ali, A.; Reza, M.G. Encapsulation of Satureja Hortensis L. (lamiaceae) in chitosan/tpp nanoparticles with enhanced acaricide activity against tetranychus urticae koch (acari: Tetranychidae). Ecotoxicol. Environ. Saf. 2018, 161, 111–119. [Google Scholar]
  23. Shah, B.; Khunt, D.; Misra, M.; Padh, H. Application of Box-Behnken design for optimization and development of quetiapine fumarate loaded chitosan nanoparticles for brain delivery via intranasal route*. Int. J. Biol. Macromol. 2016, 89, 206–218. [Google Scholar] [CrossRef] [PubMed]
  24. Fachel, F.N.S.; Medeiros-Neves, B.; Prá, M.D.; Schuh, R.S.; Veras, K.S.; Bassani, V.L.; Koester, L.S.; Henriques, A.T.; Braganhol, E.; Teixeira, H.F. Box-Behnken design optimization of mucoadhesive chitosan-coated nanoemulsions for rosmarinic acid nasal delivery—In vitro studies. Carbohydr. Polym. 2018, 199, 572–582. [Google Scholar] [CrossRef]
  25. Ghaderi-Ghahfarokhi, M.; Barzegar, M.; Sahari, M.; Gavlighi, H.A.; Gardini, F. Chitosan-cinnamon essential oil nano-formulation: Application as a novel additive for controlled release and shelf life extension of beef patties. Int. J. Biol. Macromol. 2017, 102, 19–28. [Google Scholar] [CrossRef] [PubMed]
  26. Kalam, M.A.; Khan, A.A.; Khan, S.; Almalik, A.; Alshamsan, A. Optimizing indomethacin-loaded chitosan nanoparticle size, encapsulation, and release using Box–Behnken experimental design. Int. J. Biol. Macromol. 2016, 87, 329–340. [Google Scholar] [CrossRef] [PubMed]
  27. Qiu, C.; Chang, R.; Yang, J.; Ge, S.; Xiong, L.; Zhao, M.; Li, M.; Sun, Q. Preparation and characterization of essential oil-loaded starch nanoparticles formed by short glucan chains. Food Chem. 2017, 221 Pt 2, 1426–1433. [Google Scholar] [CrossRef] [PubMed]
  28. Zhang, S.; Xia, C.; Dong, Y.; Yan, Y.; Li, J.; Shi, S.Q.; Cai, L. Soy protein isolate-based films reinforced by surface modified cellulose nanocrystal. Ind. Crop. Prod. 2016, 80, 207–213. [Google Scholar] [CrossRef]
  29. Matshetshe, K.I.; Parani, S.; Manki, S.M.; Oluwafemi, O.S. Preparation, characterization and in vitro release study of β-cyclodextrin/chitosan nanoparticles loaded Cinnamomum zeylanicum essential oil. Int. J. Biol. Macromol. 2018, 118, 676–682. [Google Scholar] [CrossRef] [PubMed]
  30. Esmaeili, A.; Asgari, A. In vitro release and biological activities of Carum copticum essential oil (CEO) loaded chitosan nanoparticles. Int. J. Biol. Macromol. 2015, 81, 283–290. [Google Scholar] [CrossRef] [PubMed]
  31. Wu, Y.; Luo, Y.; Wang, Q. Antioxidant and antimicrobial properties of essential oils encapsulated in zein nanoparticles pre-pared by liquid–liquid dispersion method. LWT—Food Sci. Technol. 2012, 48, 283–290. [Google Scholar] [CrossRef]
  32. Woranuch, S.; Yoksan, R. Eugenol-loaded chitosan nanoparticles: I. Thermal stability improvement of eugenol through en-capsulation. Carbohydr. Polym. 2013, 96, 578–585. [Google Scholar] [CrossRef] [PubMed]
  33. Hosseini, S.M.; Hosseini, H.; Mohammadifar, M.A.; Mortazavian, A.M.; Mohammadi, A.; Khosravi-Darani, K.; Shojaee-Alibadi, S.; Dehghan, S.; Khaksar, R. Incorporation of essential oil in alginate microparticles by multiple emulsion/ionic gelation process. Int. J. Biol. Macromol. 2013, 62, 582–588. [Google Scholar] [CrossRef]
  34. Shadab, M.D.; Kumar, M.; Baboota, S.; Sahni, J.K.; Ali, J. Preparation, Characterization and Evaluation of Bromocriptine Loaded Chitosan Nanoparticles for Intranasal Delivery. Sci. Adv. Mater. 2012, 4, 949–960. [Google Scholar] [CrossRef]
  35. Almeida, K.B.; Ramos, A.S.; Nunes, J.B.; Silva, B.O.; Ferraz, E.R.; Fernandes, A.S.; Felzenszwalb, I.; Amaral, A.C.F.; Roullin, V.G.; Falcao, D.Q. PLGA nanoparticles optimized by box-behnken for efficient encapsulation of therapeutic Cymbopogon citratus essential oil. Colloids Surf. B Biointerfaces 2019, 181, 935–942. [Google Scholar] [CrossRef] [PubMed]
  36. Cai, M.; Wang, Y.; Wang, R.; Li, M.; Zhang, W.; Yu, J.; Hua, R. Antibacterial and antibiofilm activities of chitosan nanoparticles loaded with Ocimum basilicum L. essential oil. Int. J. Biol. Macromol. 2022, 202, 122–129. [Google Scholar] [CrossRef] [PubMed]
  37. Mohammadi, A.; Hashemi, M.; Hosseini, S.M. Chitosan nanoparticles loaded with Cinnamomum zeylanicum essential oil enhance the shelf life of cucumber during cold storage. Postharvest Biol. Technol. 2015, 110, 203–213. [Google Scholar] [CrossRef]
  38. Liew, S.N.; Utra, U.; Alias, A.K.; Tan, T.B.; Tan, C.P.; Yussof, N.S. Physical, morphological and antibacterial properties of lime essential oil nanoemulsions prepared via spontaneous emulsification method. LWT—Food Sci. Technol. 2020, 128, 109388. [Google Scholar] [CrossRef]
  39. López-Meneses, A.K.; Plascencia-Jatomea, M.; Lizardi-Mendoza, J.; Fernández-Quiroz, D.; Rodríguez-Félix, F.; Mouriño-Pérez, R.R.; Cortez-Rocha, M.O. Schinus molle L. essential oil-loaded chitosan nanoparticles: Preparation, characterization, antifungal and anti-aflatoxigenic properties. LWT—Food Sci. Technol. 2018, 96, 597–603. [Google Scholar] [CrossRef]
  40. Hesami, G.; Darvishi, S.; Zarei, M.; Hadidi, M. Fabrication of chitosan nanoparticles incorporated with Pistacia atlantica subsp. kurdica hulls’ essential oil as a potential antifungal preservative against strawberry grey mould. Int. J. Food Sci. Technol. 2021, 56, 4215–4223. [Google Scholar] [CrossRef]
  41. Sotelo-Boyás, M.E.; Correa-Pacheco, Z.N.; Bautista-Baños, S.; Corona-Rangel, M.L. Physicochemical characterization of chitosan nanoparticles and nanocapsules incorporated with lime essential oil and their antibacterial activity against food-borne pathogens. LWT—Food Sci. Technol. 2017, 77, 15–20. [Google Scholar] [CrossRef]
  42. Seyed, F.H.; Mojgan, Z.; Masoud, R.; Farhid, F. Two-step method for encapsulation of oregano essential oil in chitosan nanoparticles: Preparation, characterization and in vitro release study. Carbohydr. Polym. 2013, 95, 50–56. [Google Scholar]
  43. Da Costa, R.C.; Daitx, T.S.; Mauler, R.S.; da Silva, N.M.; Miotto, M.; Crespo, J.S.; Carli, L.N. Poly(hydroxybutyrate-co-hydroxyvalerate)-based nanocomposites for antimicrobial active food packaging containing oregano essential oil. Food Packag. Shelf Life 2020, 26, 100602. [Google Scholar] [CrossRef]
  44. Martelli-Tosi, M.; Masson, M.M.; Silva, N.C.; Esposto, B.S.; Barros, T.T.; Assis, O.B.; Tapia-Blácido, D. Soybean straw nanocellulose produced by enzymatic or acid treatment as a reinforcing filler in soy protein isolate films. Carbohydr. Polym. 2018, 198, 61–68. [Google Scholar] [CrossRef] [PubMed]
  45. Dupuis, V.; Cerbu, C.; Witkowski, L.; Potarniche, A.V.; Timar, M.C.; Żychska, M.; Sabliov, C.M. Nanodelivery of essential oils as efficient tools against antimicrobial resistance: A review of the type and physical-chemical properties of the delivery systems and applications. Drug Deliv. 2022, 29, 1007–1024. [Google Scholar] [CrossRef]
  46. Pereira, M.C.; Hill, L.E.; Rui, C.Z.; Mertens-Talcott, S.; Talcott, S.; Gomes, C.L. Nanoencapsulation of hydrophobic phyto-chemicals using poly (dl-lactide-co-glycolide) (PLGA) for antioxidant and antimicrobial delivery applications: Guabiroba fruit (Campomanesia xanthocarpa o. berg) study. LWT—Food Sci. Technol. 2015, 63, 100–107. [Google Scholar] [CrossRef] [Green Version]
  47. Barbosa, R.F.D.S.; Yudice, E.D.C.; Mitra, S.K.; Rosa, D.D.S. Characterization of Rosewood and Cinnamon Cassia essential oil polymeric capsules: Stability, loading efficiency, release rate and antimicrobial properties. Food Control 2020, 121, 107605. [Google Scholar] [CrossRef]
  48. Yin, H.; Wang, C.; Yue, J.; Deng, Y.; Jiao, S.; Zhao, Y.; Zhou, J.; Cao, T. Optimization and characterization of 1,8-cineole/hydroxypropyl-β-cyclodextrin inclusion complex and study of its release kinetics. Food Hydrocoll. 2021, 110, 106159. [Google Scholar] [CrossRef]
  49. Van Long, N.N.; Joly, C.; Dantigny, P. Active packaging with antifungal activities. Int. J. Food Microbiol. 2016, 220, 73–90. [Google Scholar] [CrossRef]
  50. Li, Z.; Yang, F.; Yang, R. Synthesis and characterization of chitosan derivatives with dual-antibacterial functional groups. Int. J. Biol. Macromol. 2015, 75, 378–387. [Google Scholar] [CrossRef]
  51. Yilmaz, M.T.; Yilmaz, A.; Akman, P.K.; Bozkurt, F.; Dertli, E.; Basahel, A.; Al-Sasi, B.; Taylan, O.; Sagdic, O. Electrospraying method for fabrication of essential oil loaded-chitosan nanoparticle delivery systems characterized by molecular, thermal, morphological and antifungal properties. Innov. Food Sci. Emerg. Technol. 2018, 52, 166–178. [Google Scholar] [CrossRef]

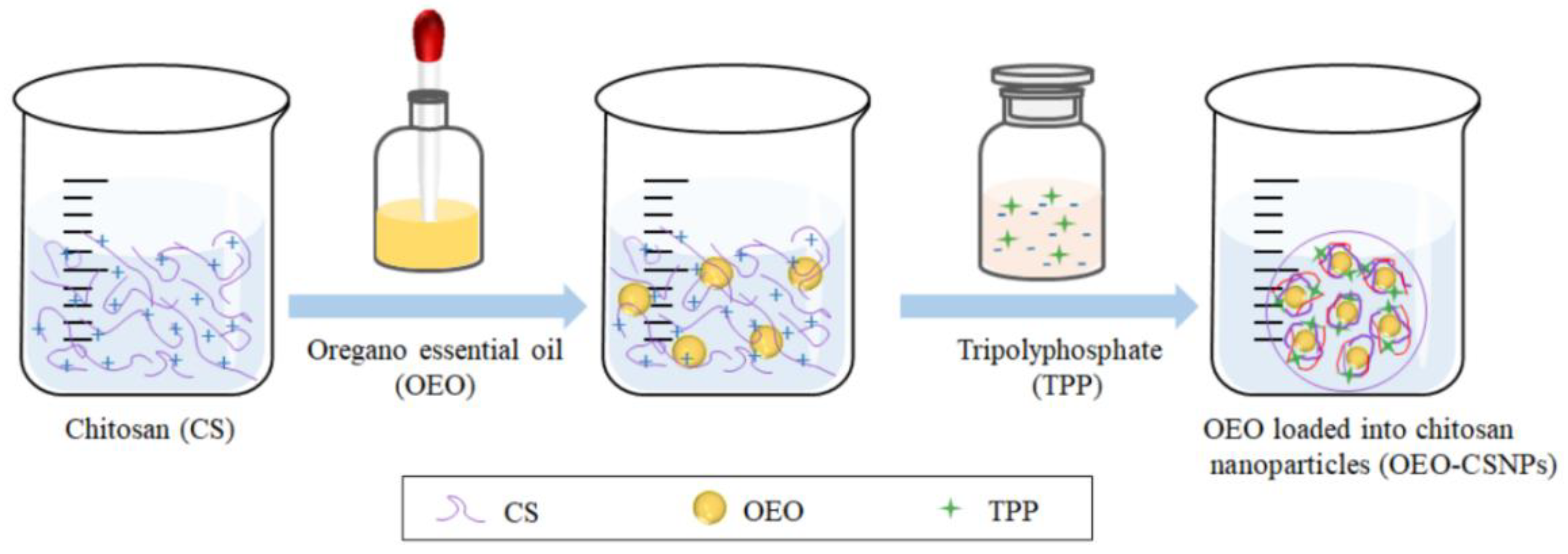

Figure 1. The formation process of OEO-CSNPs.
Figure 1. The formation process of OEO-CSNPs.
Foods 11 03756 g001

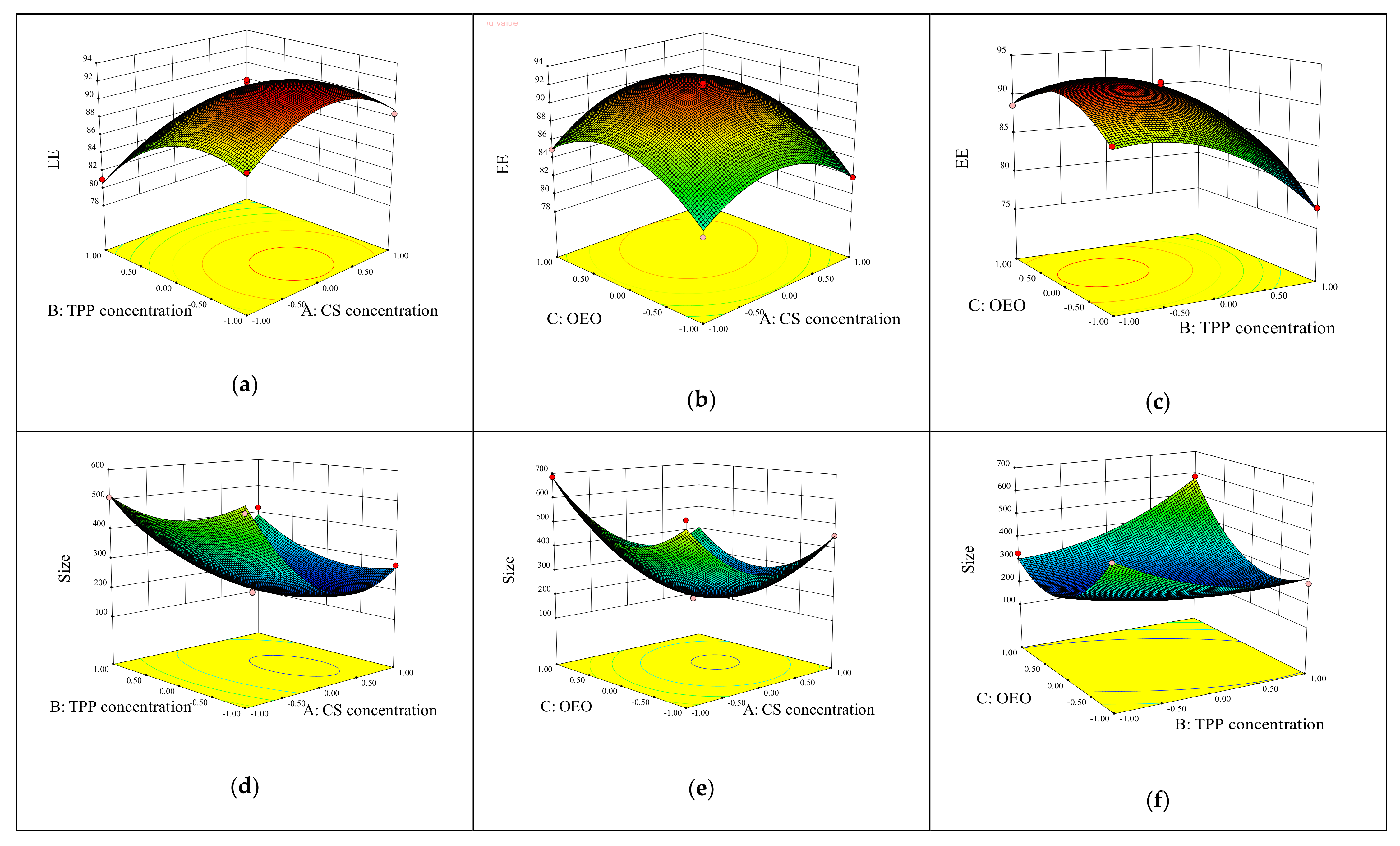

Figure 2. The three-dimensional surface representation of the experiment. Plots (ac) and (df) show the effects of CS concentration (A), TPP concentration (B), and OEO addition (C) on the EE% and particle size of OEO-CSNPs, respectively.
Figure 2. The three-dimensional surface representation of the experiment. Plots (ac) and (df) show the effects of CS concentration (A), TPP concentration (B), and OEO addition (C) on the EE% and particle size of OEO-CSNPs, respectively.
Foods 11 03756 g002

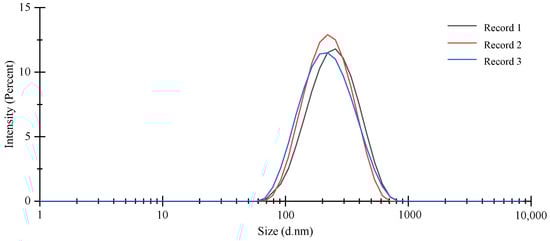

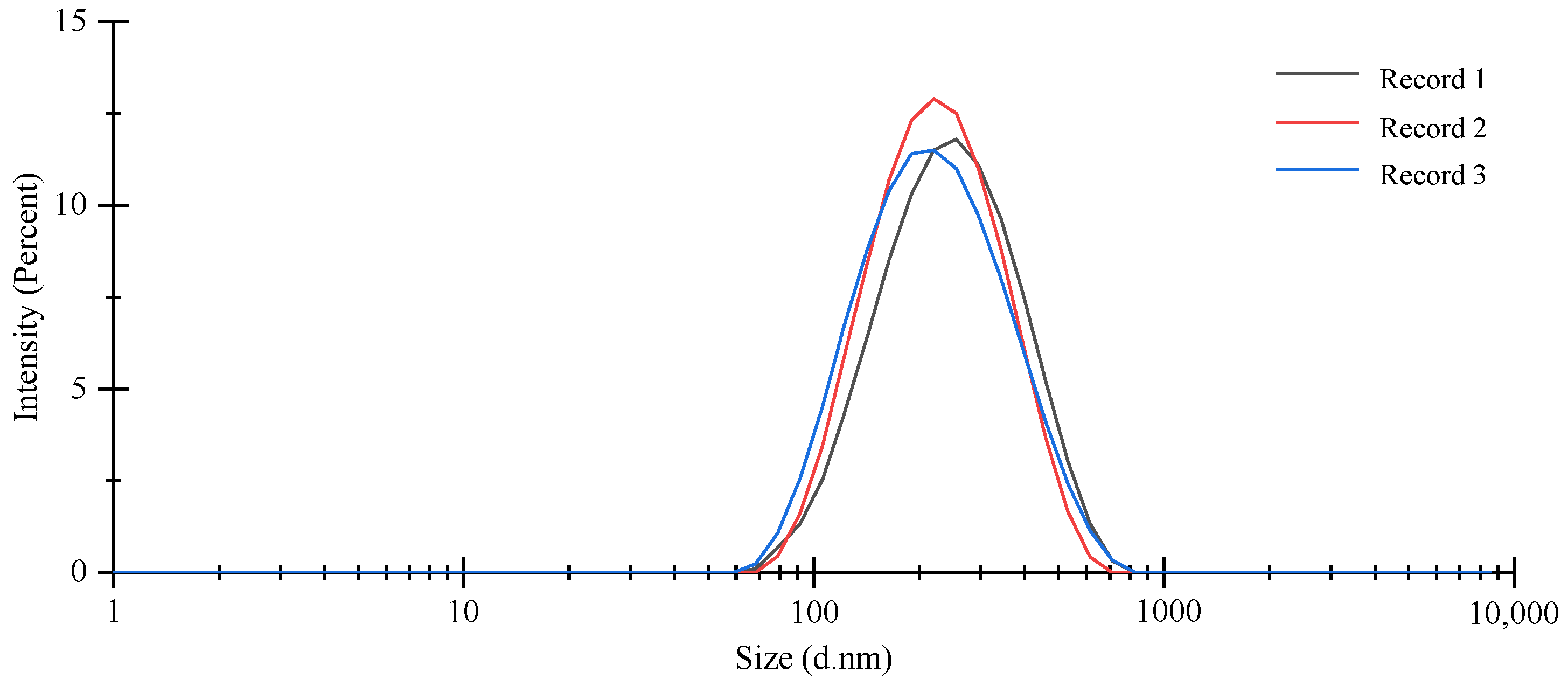

Figure 3. Particle size of OEO-CSNPs. Records 1−3 represent the first few repetitions of the experiment.
Figure 3. Particle size of OEO-CSNPs. Records 1−3 represent the first few repetitions of the experiment.
Foods 11 03756 g003

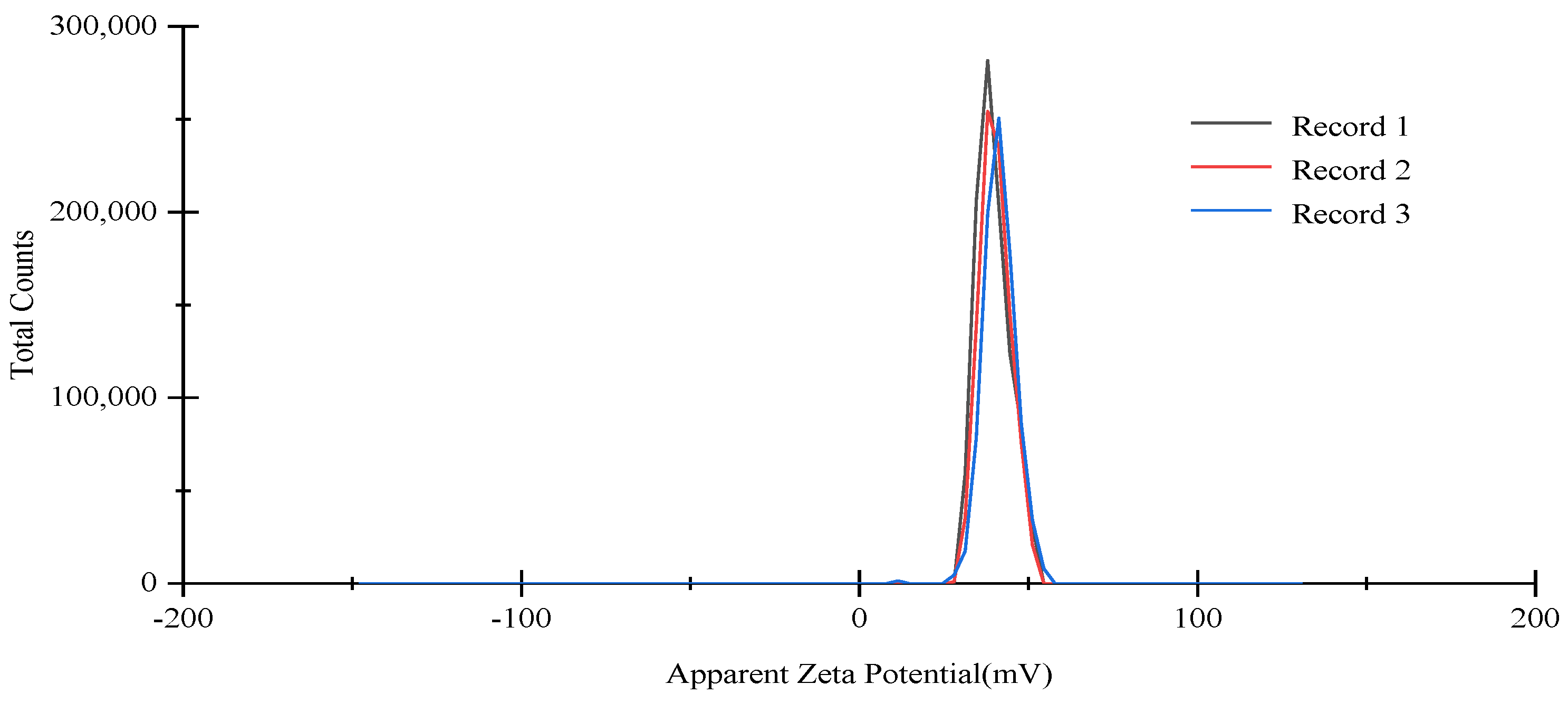

Figure 4. OEO-CSNPs zeta potential. Records 1−3 represent the first few repetitions of the experiment.
Figure 4. OEO-CSNPs zeta potential. Records 1−3 represent the first few repetitions of the experiment.
Foods 11 03756 g004
Figure 5. SEM images of (A) CSNPs and (B) OEO−CSNPs.
Figure 5. SEM images of (A) CSNPs and (B) OEO−CSNPs.
Foods 11 03756 g005

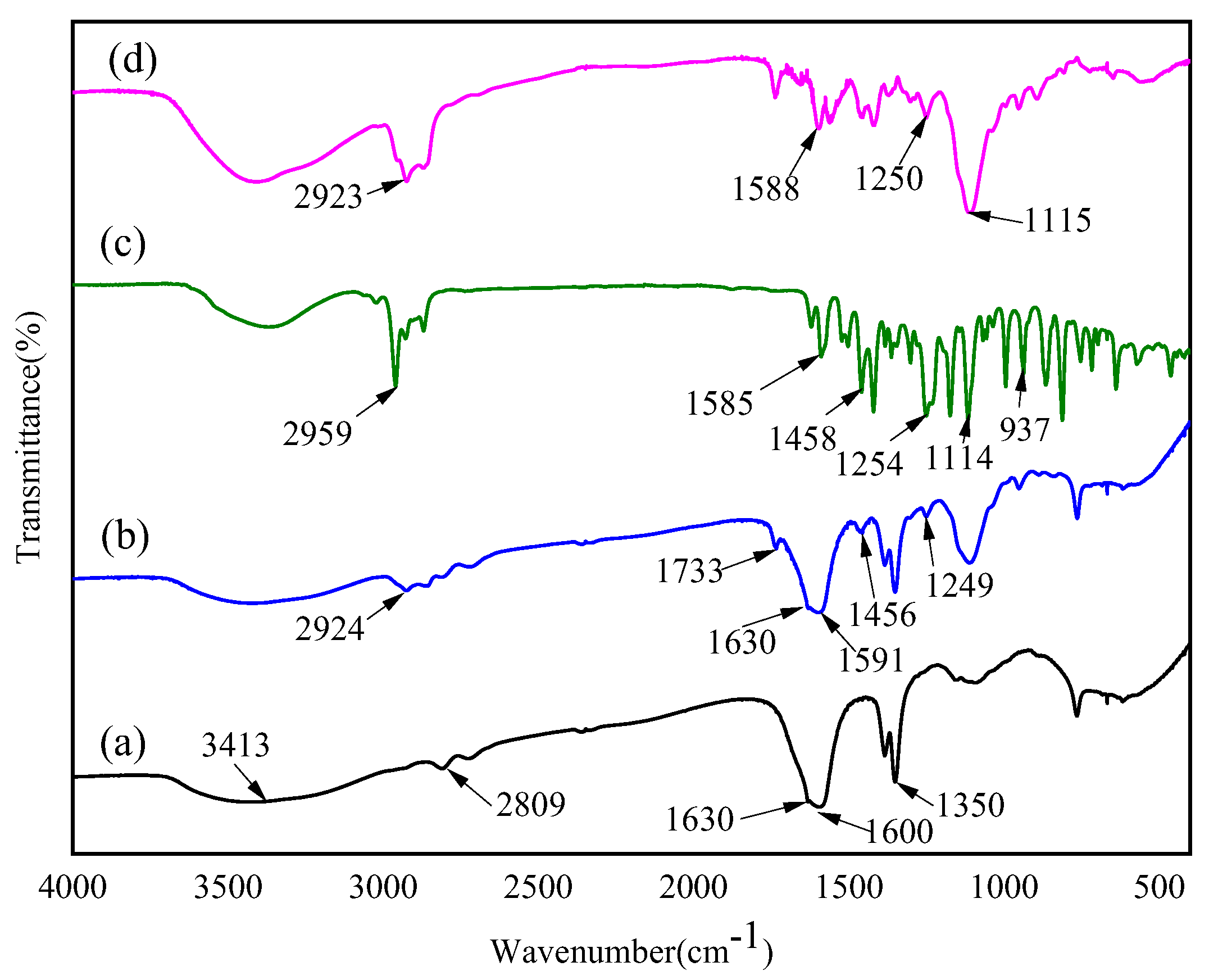

Figure 6. FT-IR spectra of chitosan powder, (a), CSNPs (b), pure OEO (c), and OEO-CSNPs (d).
Figure 6. FT-IR spectra of chitosan powder, (a), CSNPs (b), pure OEO (c), and OEO-CSNPs (d).
Foods 11 03756 g006

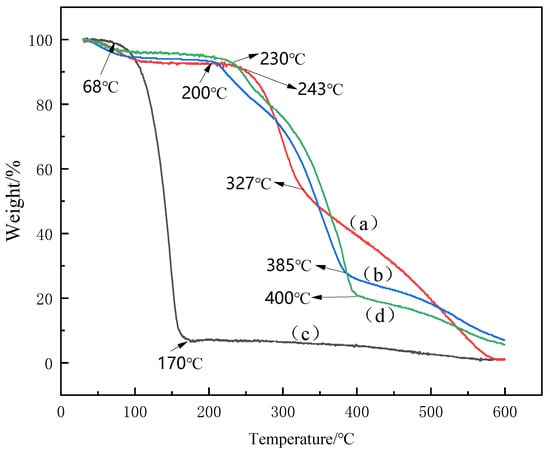

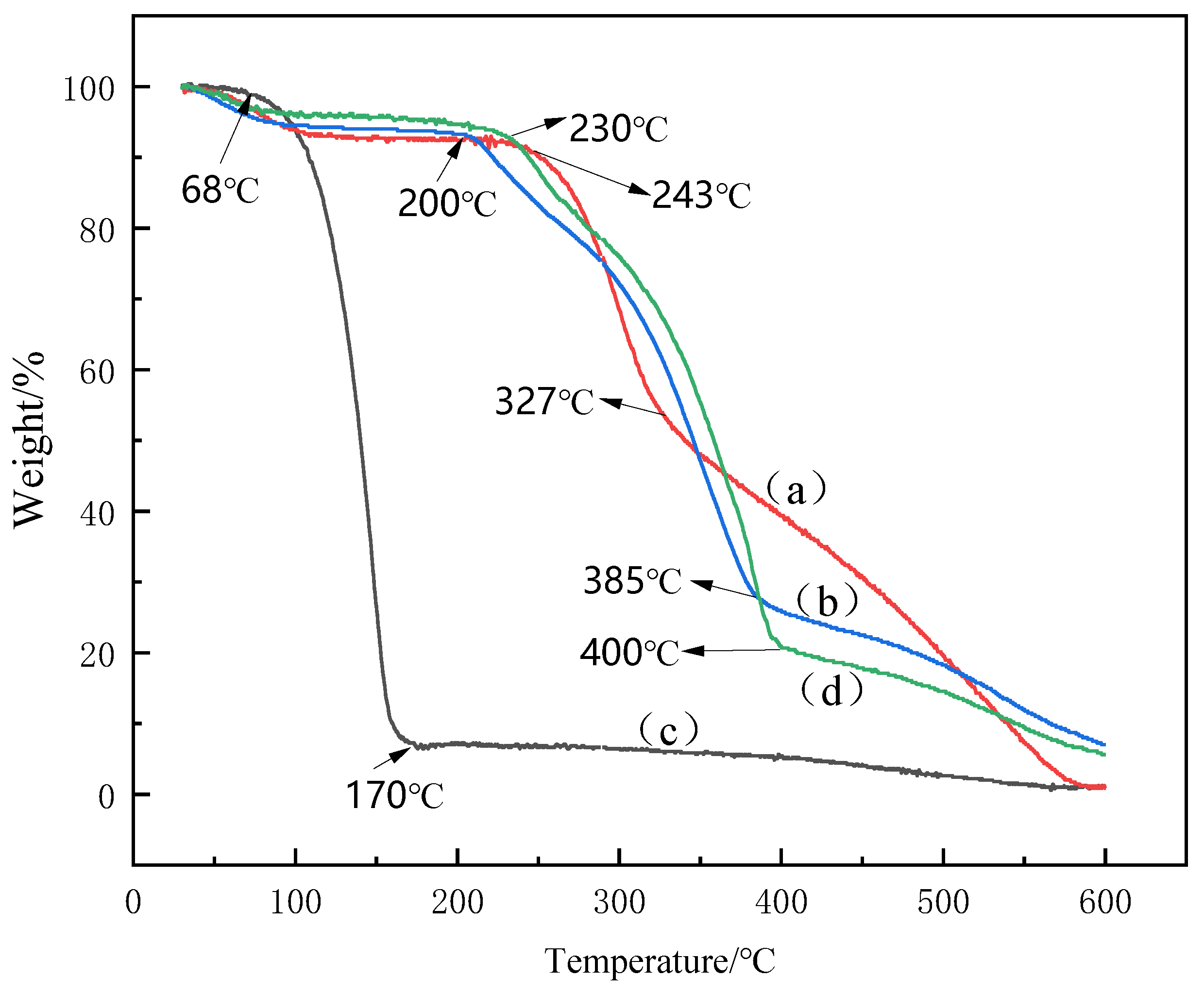

Figure 7. TGA of chitosan powder (a), CSNPs (b), pure OEO (c), and OEO- CSNPs (d).
Figure 7. TGA of chitosan powder (a), CSNPs (b), pure OEO (c), and OEO- CSNPs (d).
Foods 11 03756 g007

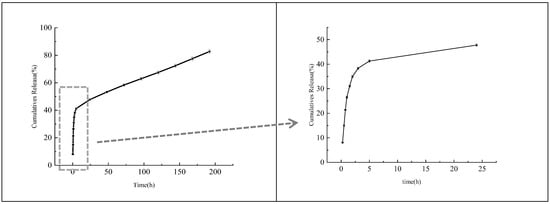

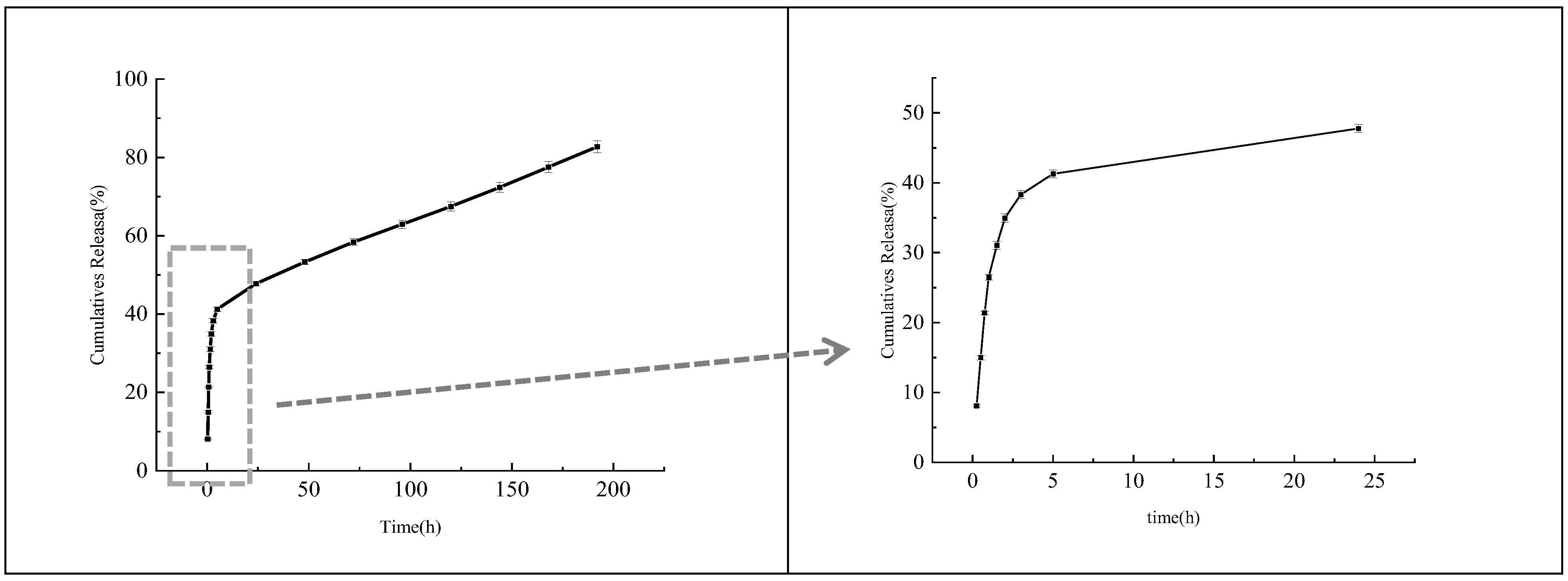

Figure 8. In vitro release profile in saline-phosphate buffer with sodium lauryl sulfate, pH 7.4, from optimized OEO-CSNPs. Data were represented as mean ± SD, n = 3.
Figure 8. In vitro release profile in saline-phosphate buffer with sodium lauryl sulfate, pH 7.4, from optimized OEO-CSNPs. Data were represented as mean ± SD, n = 3.
Foods 11 03756 g008
Table 1. The code and level of independent variables used in response surface design.
Table 1. The code and level of independent variables used in response surface design.
Independent VariablesCodeLevel
CS concentration (mg/mL)A11.52
TPP concentration (mg/mL)B11.52
OEO (%)C0.1250.250.5
Dependent variablesApplied constrains
Y1 = %EEMaximize
Y2 = Size (nm)Minimize
Table 2. Coding factor levels and response values for Box–Behnken design.
Table 2. Coding factor levels and response values for Box–Behnken design.
RunA ChitosanB TPPC OEOY1 EEY2 Size
Table 3. Analysis of variance (ANOVA) of independent variable response surface model.
Table 3. Analysis of variance (ANOVA) of independent variable response surface model.
Sum of SquaresdfMean
Prob > F
Sum of SquaresdfMean
Prob > F
Model348.28938.790.23<0.0001 **4.03 × 105944,789.0256.58<0.0001 **
   A1.2411.242.890.132873,199.03173,199.0392.47<0.0001 **
   B112.651112.65262.67<0.0001 **4039.6614039.665.10.0584
   C33.5133.578.11<0.0001 **3248.5813248.584.10.0824
   AB1112.330.17065057.3415057.346.390.0394 *
   AC1.8111.814.220.07917522.9617522.969.50.0177 **
   BC5.7115.7113.320.0082 **51,801.76151,801.7665.44<0.0001 **
   A258.59158.59136.61<0.0001 **1.16 × 10511.16 × 105146.44<0.0001 **
   B255.11155.11128.5<0.0001 **16,591.9116,591.920.960.0025 **
   C258.43158.43136.25<0.0001 **1.03 × 10511.03 × 105129.66<0.0001 **
Residual370.43 5540.947791.56
Lack of Fit2.0930.73.050.15464193.4231397.814.150.1014
Pure Error0.9140.23 1347.524336.88
Cor Total351.2816 4.09 × 10516
R20.9915 0.9864
Adjusted R20.9805 0.9690
Note: * p < 0.05 indicates a significant difference; ** p < 0.01 indicates a highly significant difference.
Table 4. Predicted and experimental values obtained from the response optimization of BBD.
Table 4. Predicted and experimental values obtained from the response optimization of BBD.
ResponsesPredicted ValueExperimental ValuePercentage Prediction Error (%)
EE (%)92.6592.90 ± 0.350.58
Size (nm)184.83182.77 ± 4.830.78
Results reported are mean ± SD, n = 3.
Table 5. Antimicrobial activities of OEO before and after encapsulated in CSNPs.
Table 5. Antimicrobial activities of OEO before and after encapsulated in CSNPs.
CSNPsOEOOEO-CSNPsAnhydrous EthanolSterile Water
P. fluorescens6.09 ± 0.03 Bb6.69 ± 0.11 Ab6.86 ± 0.05 Ac0.000.00
P. gessardii6.63 ± 0.20 Ba6.07 ± 0.01 Cc8.30 ± 0.05 Ab0.000.00
P. jessenii6.12 ± 0.02 Cb8.85 ± 0.10 Ba9.35 ± 0.04 Aa0.000.00
Results reported are mean ± SD, n = 3; values with different letters within the column are statistically different at p < 0.05. Uppercase letters indicate differences between bacteria treated differently, whereas lowercase letters indicate differences between bacteria treated similarly.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Ma, Y.; Liu, P.; Ye, K.; He, Y.; Chen, S.; Yuan, A.; Chen, F.; Yang, W. Preparation, Characterization, In Vitro Release, and Antibacterial Activity of Oregano Essential Oil Chitosan Nanoparticles. Foods 2022, 11, 3756.

AMA Style

Ma Y, Liu P, Ye K, He Y, Chen S, Yuan A, Chen F, Yang W. Preparation, Characterization, In Vitro Release, and Antibacterial Activity of Oregano Essential Oil Chitosan Nanoparticles. Foods. 2022; 11(23):3756.

Chicago/Turabian Style

Ma, Yuan, Ping Liu, Kunyue Ye, Yezheng He, Siqi Chen, Anqi Yuan, Fang Chen, and Wanli Yang. 2022. "Preparation, Characterization, In Vitro Release, and Antibacterial Activity of Oregano Essential Oil Chitosan Nanoparticles" Foods 11, no. 23: 3756.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
