Article

Synergistic Antimicrobial Activities of Combinations of Vanillin and Essential Oils of Cinnamon Bark, Cinnamon Leaves, and Cloves

by
Rita Cava-Roda
1,
Amaury Taboada-Rodríguez
1,
Antonio López-Gómez
2,3,
Ginés Benito Martínez-Hernández
2,3 and
Fulgencio Marín-Iniesta
1,*
1
Group of Research Food Biotechnology-BTA, Department of Food Science, Nutrition and Bromatology, University of Murcia, Campus de Espinardo, 30100 Murcia, Spain
2
Food Safety and Refrigeration Engineering Group, Department of Agricultural Engineering, Universidad Politécnica de Cartagena, Paseo Alfonso XIII 48, Cartagena, 30203 Murcia, Spain
3
Biotechnological Processes Technology and Engineering Lab, Instituto de Biotecnología Vegetal, Universidad Politécnica de Cartagena, Edif I + D + I, Campus Muralla del Mar, Cartagena, 30202 Murcia, Spain
*
Author to whom correspondence should be addressed.
Foods 2021, 10(6), 1406; https://doi.org/10.3390/foods10061406
Submission received: 25 May 2021 / Revised: 8 June 2021 / Accepted: 12 June 2021 / Published: 17 June 2021
(This article belongs to the Special Issue Plant Bioactive Compounds in Foods and Food Packages)
Browse Figures
Review Reports Versions Notes

Abstract

:
Plant bioactive compounds have antimicrobial and antioxidant activities that allow them to be used as a substitute for synthetic chemical additives in both food and food packaging. To improve its sensory and bactericidal effects, its use in the form of effective combinations has emerged as an interesting possibility in the food industry. In this study, the antimicrobial activities of essential oils (EOs) of cinnamon bark, cinnamon leaves, and clove and the pure compounds vanillin, eugenol, and cinnamaldehyde were investigated individually and in combination against Listeria monocytogenes and Escherichia coli O157:H7. The possible interactions of combinations of pure compounds and EOs were performed by the two-dimensional checkerboard assay and isobologram methods. Vanillin exhibited the lowest antimicrobial activity (MIC of 3002 ppm against L. monocytogenes and 2795 ppm against E. coli O157:H7), while clove and cinnamon bark EOs exhibited the highest antimicrobial activity (402–404 against L. monocytogenes and 778–721 against E. coli O157:H7). For L. monocytogenes, pure compound eugenol, the main component of cinnamon leaves and clove, showed lower antimicrobial activity than EOs, which was attributed to the influence of the minor components of the EOs. The same was observed with cinnamaldehyde, the main component of cinnamon bark EO. The combinations of vanillin/clove EO and vanillin/cinnamon bark EO showed the most synergistic antimicrobial effect. The combination of the EOs of cinnamon bark/clove and cinnamon bark/cinnamon leaves showed additive effect against L. monocytogenes but indifferent effect against E. coli O157:H7. For L. monocytogenes, the best inhibitory effects were achieved by cinnamon bark EO (85 ppm)/vanillin (910 ppm) and clove EO (121 ppm)/vanillin (691 ppm) combinations. For E. coli, the inhibitory effects of clove EO (104 ppm)/vanillin (1006 ppm) and cinnamon leaves EO (118 ppm)/vanillin (979 ppm) combinations were noteworthy. Some of the tested combinations increased the antimicrobial effect and would allow the effective doses to be reduced, thereby offering possible new applications for food and active food packaging.

1. Introduction

Food safety is an issue of great concern on a global scale as foodborne illnesses continue to be one of the main causes of morbidity and mortality [1]. Natural antimicrobials are considered an alternative to chemical additives, which are increasingly associated with negative health consequences, such as carcinogenicity, teratogenicity, and toxicity, as well as environmental problems related to their long periods of degradation [2,3].
Aromatic plants, spices, and more specifically their essential oils (EOs) have a high content of bioactive compounds and have been widely used for their bactericidal, virucidal, and fungicidal applications in various fields, including food technology (food and food packaging), medical, pharmaceutical, public health, and environmental [4]. The complex structure of EOs and the variety of chemical nature of their components are responsible for a broad range of biological interactions, many of which are of increasing interest regarding the subject of food preservation [5,6]. However, the application of EOs in food can be limited by the following factors: (a) the need for high concentrations to achieve bacteriostatic (the inhibition of bacterial growth without killing cells) or bactericidal (the destruction of bacterial cells) effects; (b) adverse effects after EO treatment (e.g., changes to the physicochemical and sensory characteristics of the subject of application); and (c) increase in costs due to higher concentrations of essential oils [7]. New ways of applying EOs are currently being studied to overcome these problems. The application of EOs in food packaging materials and coating films has been studied, along with their use directly in the food matrix as emulsions or nanoemulsions among other solutions [8].
The majority of studies regarding antibacterial complexes have aimed to achieve synergistic effects through combined treatments. Generally, drug combinations have proven to be an essential feature of antimicrobial and antioxidant treatment due to a number of important considerations: (1) they increase activity through the use of compounds with synergistic or additive activity; (2) they thwart drug resistance; (3) they decrease required doses, thereby reducing both cost and adverse/toxic side effects; and (4) they increase the spectrum of activity [9]. However, combinations of EOs can lead to synergistic, additive, or antagonistic effects. Such knowledge could contribute to designing new, safer, and more effective novel natural antimicrobial and antioxidant blends for preserving foods [10].
Listeria monocytogenes and Escherichia coli O157:H7 are two foodborne pathogens responsible for causing a great number of diseases with significant effects on human health and the economy [11,12,13]. Vanillin and EOs of cinnamon and clove have shown antimicrobial activity in vitro and in food products against L. monocytogenes [14,15,16] and E. coli O157:H7 [17,18,19,20]. Vanillin has been applied in several foods as an antimicrobial against E. coli and Listeria innocua [7]. Vanillin has also applied in combination with thermal treatment in milk against L. monocytogenes [21] and in infant formulas against Cronobacter sakazakii and Salmonella enterica subsp. enterica serovar. Typhimurium [7]. Vanillin has also been studied in apple juice to control L. monocytogenes and E. coli O157:H7 [22,23] and L. innocua. EOs of cinnamon bark and leaves in combination have been used as antimicrobials in several broths against E. coli O157:H7, Salmonella enterica subsp. enterica serovar. Typhimurium, and L. monocytogenes [7]. Clove EOs have been applied as antimicrobials in several foods, such as meat and cheese [7] or salmon burger [24]. The antimicrobial activity of the combination of clove and cinnamon essential oils against L. monocytogenes has been studied in celery against L. monocytogenes and Salmonella enterica subsp. enterica serovar. Typhimurium [14] and in pasteurized milk against L. monocytogenes [16]. EOs of cinnamon leaves have been applied as antimicrobials in orange and pomegranate juices [25]. Moreover, EOs of cinnamon bark and leaves and CA have been used as antimicrobials in films for active food packaging [7,26]. VA and cinnamon EOs have been applied to edible films for food packaging [27].
There have been precedent studies on the application of a combination of EOs of cinnamon and vanillin in milk [17] and combination of EOs of cinnamon bark/cinnamon leaves in celery [14]. However, no comprehensive study has been conducted to evaluate the antimicrobial properties of binary combinations of vanillin and cinnamon EOs. This work was designed to investigate whether there are synergistic antibacterial interactions of binary combinations between the EOs of cinnamon bark (CBEO), cinnamon leaves (CLEO), and clove (CLOEO) and pure plant compounds vanillin (VA), eugenol (EU), and cinnamaldehyde (CA) against L. monocytogenes and E. coli O157:H7.

2. Materials and Methods

2.1. Microorganisms and Culture Conditions

The L. monocytogenes Scott A strain, a human epidemic isolate, was supplied by the FDA (USA), and the E. coli O157:H7 5947 strain (nontoxigenic) was supplied by the Spanish Type Culture Collection, University of Valencia, Spain. All strains were kept at −80 °C in MicrobankTM vials (PRO-LAB Diagnostics, Neston, Wirrall, UK). Every two months, one of the vials was opened, and the stock culture was grown in Trypticase soy broth (TSB) (Cultimed, Barcelona, Spain) for 24 h at 35 °C and streaked onto PALCAM agar plates (Merck, Darmstadt, Germany), which were incubated for 48 h at 35 °C. One colony obtained in PALCAM agar was transferred to TSB and incubated for 28 h at 35 °C before being stored at −20 °C in a solution of 40% TSB and 60% glycerol until use. The fresh cultures for the experiments were made by incubating one loopful of pure culture in TSB for 24 h at 35 °C. The inocula were standardized in TSB until an optical density (OD) of 0.1 at 595 nm was reached and then diluted in TSB to obtain a bacterial concentration between 5 and 5.7 log CFU/mL. The inocula bacterial populations were counted by spreading suitable diluted aliquots onto Trypticase soy agar (TSA) plates, followed by incubation at 37 °C for 24 h.

2.2. Stock Antimicrobial Solutions

Vanillin (VA), eugenol (EU), and cinnamaldehyde (CA) were assayed as plant antimicrobial pure compound. Clove EO (CLOEO), cinnamon bark EO (CBEO), and cinnamon leaf EO (CLEO) were assayed as plant EOs with antimicrobial properties. VA, EU, and CA were obtained from Aldrich (Steinheim, Germany). CLOEO, CBEO, and CLEO were obtained from Destilerías Muñoz Gálvez (Murcia, Spain). The main compounds in CBEO were CA (70.6%) and EU (4.2%), those in CLEO were CA (1.2%) and EU (75.9%), and those in CLOEO were EU (76.0%) and CA (<1%).
Stock solutions were prepared by adding suitable amount of antimicrobial VA, EU, CA, CLOEO, CBO, or CLEO to TSB with Tween 80 0.5% (volume (v) (Aldrich Steinheim, Germany). In the case of VA, TSB was previously warmed at 50 °C according to Delaquis et al. [28]. The pH was adjusted to 7 with NaOH 0.1 N, prior to sterilization by filtration through 0.22 μm membranes.

2.3. Determination of the Minimum Inhibitory Concentration (MIC) and the Minimal Bactericidal Concentration (MCB)

The effect of different concentrations of VA, CA, EU, CLOEO, CBEO, and CLEO on the growth of L. monocytogenes and E. coli O157:H7 was evaluated by the broth microdilution method [29]. The optical density (OD) values were obtained in TSB adjusted to pH 7 and amended with 0.15% agar as suggested by Mann and Markham (1998) [30] using a microplate OD reader (Multiskan Ascent, Thermo Fisher Scientific, Madrid, Spain) and 96-well microplates (12 columns and 8 rows A to H). The bacterial growth was associated with changes in the OD.
Five stock solutions with different concentrations were prepared in TSB + 0.30% agar for each antimicrobial as indicated above. Five wells of column one of the microplate received 300 μL of TSB + 0.30% agar as sterile control, and the other five wells of column two received 150 μL TSB + 0.30% agar and 150 μL of inoculum as positive control. To the last wells (row H) of each remaining column 3–12, 300 μL of each stock solution was added as duplicate (two columns for each stock solution). All other wells of columns 3–12 (rows E to A) received 150 μL TSB + 0.30% agar, while 150 μL of each stock solution was added to the next well in the appropriate column and mixed, thus obtaining a two-fold dilution series. Each well, except for the controls, received 150 μL of the standardized inoculum to provide an initial population close to 5 log CFU/mL. The microplate was then incubated at 35 °C for 24 h, and the OD of each well was registered every hour. The initial OD value was subtracted from the new OD values of the same well in order to only correlate the OD variation with the microorganism growth. The MIC was defined as the lowest concentration of the antimicrobial agent that produced an OD variation lower than 0.1. Each microplate was made in triplicate.
To determine the MBC of the antimicrobials, dilutions above their previously calculated MIC were prepared in test tubes containing TSB and tested against E. coli O157:H7 and L. monocytogenes populations about 5 log CFU/mL. The test tubes were incubated at 35 °C for 24 h, and 100 μL of each tube was plated on TSA plates after incubation. The MBC was defined as the lowest concentration at which no growth was observed when 0.1 mL of the sample was plated (<10 CFU/mL) [30].

2.4. Evaluation of Interaction between the Antimicrobials Tested

Interactions of EOs were determined using a checkerboard microdilution test as described by Nikkhah et al. [31]. The checkerboard assays were performed by mixing two compounds to determine what antimicrobial interactions could be observed if different concentrations (different proportions at MICs) were combined. Seven treatments comprising CLOEO/CLEO, CLEO/CBEO, CLOEO/CBEO, CLOEO/VA, CLEO/VA, CBEO/VA, and EU/CA were set up for the dual combinations and tested against L. monocytogenes and E. coli O157:H7. The evaluated concentrations were in the range of 10 dilutions below the MIC to twice the MIC (see Table 1). Growth control wells (medium with inoculum but without EOs) were included in each microplate. Each test was done in duplicate.
The fractional inhibitory concentration (FIC) was calculated for the first clear well in each row of the microtiter plate using the following formula:
F I C A = M I C ( A   i n   t h e   p r e s e n c e   o f   B ) M I C ( A   a l o n e )
F I C B = M I C ( B   i n   t h e   p r e s e n c e   o f   A ) M I C ( B   a l o n e )
Subsequently, the FIC index (FICi) was calculated with the FIC for individual antimicrobials as follows:
F I C i = FIC A + FIC B
The FICi of each combination of antimicrobials was obtained by calculating the FIC of the most effective concentrations of antimicrobials [32]. The obtained results were interpreted as follows: synergistic effect (FICi ≤ 0.5), additive effect (0.5 < FICi ≤ 1), no interactive effect (1 < FICi ≤ 4), and antagonistic effect (FICi > 4) [33,34].
The isobologram method is a graphical representation of interactions and is formed by selecting a desired FIC and plotting the individual antimicrobial doses required to generate that FIC on their respective x- and y-axes. A straight line is then drawn to connect the points. Data points below or equal to the 0.5 line in the isobologram are regarded as synergistic (area A), points between 0.5 and including 1.0 are regarded as additive (area B), points above 1.0 and including 4.0 are regarded as indifferent (area C), and points above 4.0 are regarded as antagonistic (area D) (Figure 1) [35,36].

3. Results

3.1. MIC and MBC of EOs and Vanillin

The antimicrobial activity of the CBEO, CLEO, and CLOEO and the pure compounds EU and CA against L. monocytogenes and E. coli O157:H7, which were studied using the broth microdilution method, is shown in Table 1.
The pure compound that showed the highest antimicrobial activity was CA with MICs of 449 ppm against L. monocytogenes and 455 ppm against E. coli O157:H7. Hawkins [36] found a lower MIC against L. monocytogenes (250 ppm), which could be attributed to the different strains of L. monocytogenes used. The MIC of CA against E. coli found by other authors was between 400 [37,38] and 500 [39] ppm.
EU presented MICs of 562 ppm for L. monocytogenes and 766 ppm for E. coli O157:H7, values that correspond to those found by other authors [40,41,42]. Although the MIC of CA was similar to that of EU for both microorganisms, the bactericidal activity of CA, which had MBC values of 1400 ppm for L. monocytogenes and E. coli O157:H7, was much lower than for EU, which had MBCs of 1000 ppm for L. monocytogenes and 1200 ppm for E. coli. The same effect was found by Gill and Holley [41], who attributed it to the mechanisms of CA and EU involved in the inhibition of energy generation and membrane permeability at bactericidal concentrations.
One of the EOs with the highest antimicrobial activity against L. monocytogenes was CBEO with a MIC of 404 ppm. The MIC values reported by other researchers for this EO and against this microorganism were 250 [39], 500 [19,42,43,44], 640 [45], and 1250 [46] ppm. The MIC of the CBEO found in this work for L. monocytogenes was somewhat lower than the MIC of CA (449 ppm), its majority component. The same effect was also found by Chang et al. [39], which was attributed to a synergistic effect between the minority components present in the CBEO. In the same way, this EO exhibited greater bactericidal activity than CA, with MBC values of 1200 versus 1400 ppm, respectively, which could also be attributed to interaction with the minor components of CBEO.
The MIC value found for the CBEO against E. coli O157:H7 (720 ppm) was between the range found by other authors of 250 [39,47], 500 [19], and 1000 [48] ppm. The MBC value for CBEO was also in the range (1000–1500 ppm) found in the literature [44,49]. However, the effect of minority compounds of CBEO was probably antagonistic against E. coli O157:H7 as the MIC (720 ppm) and the MBC (1500 ppm) were greater than that of CA, its main component (454 and 1400 ppm, respectively).
The MICs of CLEO (508 ppm) and CLOEO (402 ppm) against L. monocytogenes were both lower than the MICs of EU (562 ppm), the main compound of both EOs. CLEO and CLOEO exhibited MICs in the range of concentrations found by others authors for L. monocytogenes (400–500 ppm) [19,44,48,50,51] and E. coli (500–1000 ppm) [19,52]. The CLOEO presented greater antimicrobial activity than CLEO despite both having the same percentage of EU. This effect was attributed to a potential synergy between the minor components of EOs, which are present in a higher proportion in CLOEO (β-caryophyllene 17.76% or α-caryophyllene 1.94%) than in CLEO (β-caryophyllene 3.48%, benzyl benzoate 2.89%, and eugenyl acetate 1.89%). In the case of E. coli O157:H7, the minority components of both EOs apparently had no effect on the antimicrobial activity of CLOEO and CLEO as their MICs (843 and 778 ppm, respectively) were very similar to the MIC of the pure compound EU (766 ppm). The values were also in the range found by other authors (500–1000 ppm) [43,51]. Possible synergistic and antagonistic effects between the minor compounds of CLOEO and CLEO were also found when the MBC of both oils was studied. The MBC of CLOEO for L. monocytogenes (800 ppm) was lower than the MBC of EU (1000 ppm), which could be explained by a synergistic effect with the minor components of CLOEO. However, the MBC of CBEO against E. coli O157:H7 (1500 ppm) was higher than the MBC of EU (1200 ppm), which could be explained by an antagonistic effect with minor components of this EO.
Among the compounds tested, VA had the lowest antimicrobial activity against E. coli O157:H7 and L. monocytogenes. However, E. coli O157:H7 was more susceptible than L. monocytogenes, with MICs of 3000 and 2800 ppm, respectively. Fitzgerald et al. [53], Moon et al. [48], and Corte et al. [49] also found that E. coli O157:H7 was more susceptible to VA than some Listeria strains. The higher sensitivity of E. coli O157:H7 could be explained by the presence of certain proteins in the external membrane, which create channels for the penetration of compounds with low molecular weight [54].
The MBCs for VA were 8000 ppm for L. monocytogenes and 6000 ppm for E. coli O157:H7, and these values were much higher than their respective MICs. Fitzgerald et al. [55] found bactericidal activity of VA against E. coli O157:H7 and L. innocua of 6600 and 9240 ppm, respectively. According to them, the high difference between MIC and MBC can be attributed to the fact that VA has a bacteriostatic and nonbactericidal action, which is in contrast to the more potent phenolic antimicrobials such as EU, carvacrol, and thymol, which are bactericidal.

3.2. FICi of Binary Combinations Using Two-Dimensional Checkerboard Method

The FICi of selected dual combinations of the antimicrobial compounds tested in this study against L. monocytogenes and E. coli O157:H7 are presented in Table 2 and Table 3, respectively.
The mixtures CBEO/CLEO and CBEO/CLOEO showed FICi minimal values against L. monocytogenes of 0.66 and 0.70, respectively (Table 2), which qualifies these combinations as additive. The isobolograms of both mixtures (Figure 2b,c) were located in the B area. Purkait et al. [56] found even more synergistic effects in the combinations of CBEO and CLOEO with FICi = 0.42 for these EOs, which could be attributed to the different composition of the EOs used.
The minimal FICi of the EU/CA mixture against L. monocytogenes was 0.75 (Table 2). The pure compounds EU and CA are the major components of the mixtures of CBEO with CLOEO and CLEO and also proved to have an additive effect with an isobologram located in the B area (Figure 2g).
The mixtures of CBEO/CLOEO and CBEO/CLEO presented FICi minimal values of 1.11 and 1.00, respectively, against E. coli O157:H7 (Table 3), with the position in the C area of the isobologram, qualifying these combinations as indifferent (Figure 3b,c). These FICi values indicate lower antimicrobial activity of these combinations against E. coli O157:H7 than L. monocytogenes. They were also higher than the FICi values found for the mixtures of EU and CA against E. coli O157:H7 (Figure 3g), whose interaction was additive and was located in the B area of the graph. Pei et al. [37] found similar results when testing mixtures of EU and CA against E. coli.
According to these results, the interactions between the minority compounds of the EOs had a different effect on the antimicrobial activity of the mixtures CBEO/CLOEO and CBEO/CLEO against E. coli O157:H7 (antagonism) and L. monocytogenes (synergy). Similar results were found by Lu et al. [57] with mixtures of CBEO and CLOEO, which presented an additive effect for Gram-positive bacteria such as Bacillus cereus, B. subtilis, and Staphylococcus aureus and an indifferent effect against Gram-negative bacteria such as E. coli and S. enterica subsp. enterica serovar. Typhimurium. The combination of CLEO/CLOEO for L. monocytogenes produced an additive effect due to its minimal FICi of 0.85 (Table 2), and its isobologram (Figure 2a) was positioned in area B of the graph. The same combination presented a minimal FICi of 0.92 against E. coli O157:H7 (Table 3), which was higher than that of L. monocytogenes but would still qualify the mix as additive although less inhibitory. The isobologram was also located in the B area (Figure 3a). The composition of both EOs is similar, with a high content in EU and very low content of CA, which might explain why the CLOEO/CLEO mixtures had less antimicrobial activity than the CLOEO/CBEO and CLEO/CBEO mixtures. The lower activity of the CLOEO/CLEO mixtures against E. coli O157:H7 could be explained by the fact that this microorganism is more resistant to EU than L. monocytogenes as well as the fact that minor components of both EOs can interact antagonistically to decrease the antimicrobial activity of EU.
The combinations of CLOEO/VA, CLEO/VA, and CBEO/VA presented minimal FICi values for L. monocytogenes of 0.53, 0.67, and 0.51, respectively, which would qualify them as additive, although the mixtures of VA with CLOEO or CBEO were very close to synergy (Table 2). The isobolograms were located in the B area (Figure 2d–f).
The combinations of CLOEO/VA, CLEO/VA, and CBEO/VA against E. coli O157:H7 were all synergistic with minimal FICi values between 0.48 and 0.49 (Table 2), and the isobolograms were located in the C area (Figure 3d–f). These results agree with those obtained in the individual MIC tests as E. coli O157:H7 was also somewhat more sensitive to VA than L. monocytogenes.

4. Discussion

The antimicrobial activity displayed by CLEO, CLOEO, and CBEO can be assigned to their high content in EU or CA, as reported by some authors [58,59,60] but influenced by the minor components and the microorganism target.
The high antimicrobial activity of CA has been demonstrated by some authors [36,61,62] and is fundamentally attributed to the aldehyde group of the molecule that is reactive and has the ability to cross-link covalently with DNA and proteins through amino groups, thereby interfering with normal cell function. It is believed that there are three reactions that potentially occur. At small concentrations, CA inhibits various enzymes involved in cytokinesis or less important cell function. At larger but sublethal concentrations, CA acts as an ATPase inhibitor. At larger but lethal concentrations, CA disrupts the cell membrane [9]. The antimicrobial activity of the EU is due to its phenol group, which coagulates protein and disrupts cell walls and cell membranes [42,60].
The antimicrobial activity of VA is due to the aldehyde group and the side group of the benzene ring. Due to its hydrophobic nature, the antimicrobial mechanisms of VA are mainly based exclusively on its ability to destroy the cytoplasmic membrane of microbial cells through interaction with lipids and proteins or with both structures, with the subsequent loss of gradient ionic and inhibition of respiratory activity [51].
Numerous studies have shown that the interaction between the components of EOs is complex and has a decisive influence on the final activity of the EO. Although the final antimicrobial activity is very close to the activity of the main component in some cases, it has been shown that a high number of compounds exhibit different antimicrobial properties when tested separately [59]. The interaction of multiple antimicrobial agents (not only within an EO but in various combinations) can result in various combined effects according to the composition and concentration of the components: (1) synergistic effect, where the antimicrobial activity of the blend of antimicrobial is greater than the sum of the effects of the individual components; (2) additive effect, where the antimicrobial activity is equal to the sum of the effects of the individual components; and (3) antagonistic effect, where the antimicrobial activity is less than the sum of the effects of the individual components [7].
Most studies attribute additive and synergistic effects to the combination of phenolic compounds such as EU and CA, which enhance their antimicrobial activity in mixtures mainly because they have different sites of action in the microbial cell [35,56]. The mechanisms of interaction that produce synergism include sequential inhibition of a common biochemical pathway, inhibition of different protective enzymes, combination with active agents in the cell wall that allow the entry of other antimicrobials, or interaction with the plasmatic membrane [60]. Furthermore, the main mechanism of action can be enhanced by others that are less effective and vice versa.
In this study, the strong antimicrobial effect of CBEO/CLOEO, CBEO/CLEO, and CLOEO/CLEO mixtures is mainly attributed to the interaction between their main constituents EU (which acts at the membrane level) and CA (which inhibits the mechanisms aimed at obtaining energy), with both compounds interacting with different enzymes or proteins [61]. The greater antimicrobial effect of the mixtures in relation to the individual compounds is also explained by the presence of minor antimicrobial compounds, which together can enhance or complement their effect.
For many plant species, there is a great difference in the chemical composition between various organs of the same plant. For this reason, the authors of [35] suggest the investigation of possible synergies combining plant extracts obtained from different parts of the same plant. Antimicrobial combinations of cinnamon bark and leaves (CBEO/CLEO) have been applied in several broths [7] and celery [14]. In our study, using the checkerboard and isobologram methods, we successfully assayed the combination EOs of CBEO/CLEO, which have very different chemical compositions. Thus, we were able to improve the antimicrobial effect because the variety of bioactive compounds provided more possibilities for synergistic interactions. In general, when plants have a similar composition, their combination has an additive effect rather than a synergistic one because they have similar sites of action, as in the case of mixtures of CLOEO and CLEO, whose main component is EU. Likewise, the combination of aromatic compounds with different chemical structures can improve their antimicrobial effect by attacking different target sites in the bacterial cell at the same time [62,63,64]. For this reason, the mixtures of VA with the EOs or the combination between CLOEO with CBEO exhibited the highest antimicrobial activity in this research.
The mixtures CBEO/CLOEO and CBEO/CLEO showed some antagonistic effect against E. coli O157:H7. The mechanisms that produce antagonism are less well known, although they include combinations of bacteriostatic and bactericidal agents that act on the same target site of the microorganisms and neutralize the interactive effect between the active components of the fractions. This may block active groups of fractional components and enhance antagonism [65]. The different morphology between L. monocytogenes and E. coli O157:H7 also affect the mechanism of action of the EOs because the absence of the additional outer membrane and porins on the external peptidoglycan layer makes L. monocytogenes less resistant to antimicrobial agents than E. coli O7:H157. Generally, Gram-negative bacteria are less sensitive to antimicrobials because of the lipopolysaccharide outer membrane of this group, which restricts diffusion of hydrophobic compounds [66].
Combinations of VA and EOs (CLOEO/VA, CLEO/VA, and CBEO/VA) with synergistic antimicrobial effect (FICi values less than 0.5) or FICi values close to 0.5 have potential food applications as they allow an increase in antimicrobial activity of the VA and a decrease in its sensory impact. These combinations may be applied in various types of food and food packaging. For example, in milk, they can be used to improve the results obtained in inhibiting growth of L. monocytogenes and E. coli O157:H7 [17] or combined with heat treatment to control L. monocytogenes [21]. VA has been applied in apple juices to control L. monocytogenes, E. coli O157:H7, and L. innocua [22,23], so the application of CLOEO/VA, CLEO/VA, and CBEO/VA combinations of greater antimicrobial effect can be used to increase its effectiveness without negative sensory effect. VA can be used in food packaging [26], so the combinations of VA with the EOs studied herein (CLOEO/VA, CLEO/VA, and CBEO/VA) can be used in active packaging that is in direct contact with food. VA has also been used in edible packaging for apple cuts [27], so CLOEO/VA, CLEO/VA, and CBEO/VA combinations can have potential applications in this field.
Regarding the studied combinations of CLEO/CLEO, CLEO/CLEO, and CLEO/CLEO with FICi values greater than 0.5 and less than 1 or close to 1, they can be used in various foods and food packaging. CBEO and CLEO have been used as antimicrobials in films for food packaging [7], so some of the combinations studied, such as CLEO/CBEO and CLEO/CLOEO, can also be applied in active packaging due to their greater antimicrobial effect than EOs alone. Applications of the studied combinations are also possible in pomegranate and orange juices [25] as well as in fish products [24], which are discussed below due to their importance to the sensory aspect.
The high sensory impact of plant EOs in food products often limits their application to typically spicy or flavored foods. Therefore, synergistic interactions should be used to reduce the organoleptic impact and thus facilitate application to a wider range of foods [9]. VA is used as a flavoring in numerous foods [26]. In previous studies, VA has been applied to milk at sensory acceptable concentrations of 900, 1400, and 1800 ppm with a partially inhibitory antimicrobial effect but with good results in combination with thermal treatment against L. monocytogenes [21]. The combinations of VA with CLEO and CBEO studied in the current work will make it possible to increase the antimicrobial effect in combination with heat treatment, thus maintaining its sensory acceptance. In addition, certain combinations of VA, CLEO, CBEO, and CLOEO have been tested in milk [17], and the binary combinations of VA (1250 ppm)/CBEO (500 ppm) and VA (725 ppm)/CBEO (500 ppm) had a particularly good antimicrobial effect and good sensory acceptance. In the current study, the best inhibitory effects were achieved by CBEO (85 ppm)/VA (910 ppm) with FICi of 51 for L. monocytogenes and by CBEO (144 ppm)/VA (784 ppm) with FICi of 49 for E. coli O157:H7. These combinations would allow a reduction of the concentrations of EOs. The sensory impact would be much lower, but the inhibitory capacity against these microorganisms would be maintained. It should also be noted that cinnamon and vanilla spice mixes have a flavor that is appreciated in many dessert recipes. Sanchez et al. [25] studied the sensory effect of CLEO in pomegranate and orange juices. They determined that a dose of 40 ppm of CLEO was rejected by all the panelists, with these observations related to significantly negative changes in aroma and flavor of both juices. The maximum concentration accepted by panelists (20 ppm) was a subinhibitory dose, but it was used successfully in combination with mild heat and ultrasound for the control of Saccharomyces cerevisiae in these two juices. The results of the current study open the possibility of using CLOEO/CLEO, CLEO/CBEO, and CLOEO/CBEO combinations below the sensory threshold in this type of juices, accompanied by mild heat treatment and ultrasound to achieve an improvement of the antimicrobial effect. Jonusaite et al. [24] applied CLEO for the preservation of salmon burgers at a sensory accepted limit dose of 100 ppm, so it would be possible to use combinations of CLEO/CBEO and CLEO/CLOEO to increase the antimicrobial and antioxidant effect while reducing sensory impact.
Cho et al. [7] recommended the application of combinations of essential oils with a synergistic antimicrobial effect in order to reduce the dose of essential oils applied to food. This would not only lower the sensory impact but also lower the cost of essential oils applied to achieve the same preservative effect in food.

5. Conclusions

The antimicrobial activity of CBEO, CLEO, CLOEO, and VA and the pure compounds EU and CA were tested individually and in combination against L. monocytogenes and E coli O157:H7. Based on the MIC values, the CBEO and CLOEO exhibited the highest antimicrobial activity against both microorganisms, but E. coli O157:H7 was more resistant than L. monocytogenes. VA was the antimicrobial with the lowest activity, with MIC values very similar for both microorganisms. For L. monocytogenes, pure compound EU, the main component of CLEO and CLOEO, showed lower antimicrobial activity than EOs, which was attributed to the influence of the minor components of the EOs. The same was observed with CA, the main component of CBEO. Checkerboard assays for the combination of EOs showed additive effect against L. monocytogenes. However, the combination of CBEO/CLOEO and CBEO/CLEO exhibited an indifferent effect against E. coli O157:H7, which was attributed to the influence of the minor components of the EOs. The FICi indicated that the combination of VA/CLOEO and VA/CBEO showed the most synergistic antimicrobial effect on L. monocytogenes and E. coli O157:H7. This study demonstrates that a combination of compounds from different areas of the plant, and especially from different plants, increases the antimicrobial effect and allows the effective antimicrobial dose to be reduced. For this reason, this field of synergistic studies on the combinations of plant antimicrobials must be encouraged, including a broader scope involving other microorganisms with possible new applications in food and active food packaging.

Author Contributions

Conceptualization, R.C.-R., A.T.-R. and F.M.-I.; methodology, R.C.-R. and F.M.-I.; software, R.C.-R. and A.T.-R.; validation, R.C.-R., A.T.-R., A.L.-G., G.B.M.-H. and F.M.-I.; formal analysis, R.C.-R., A.T.-R., A.L.-G., G.B.M.-H. and F.M.-I.; investigation, R.C.-R.; resources, A.L.-G. and F.M.-I.; data curation, R.C.-R., A.T.-R., A.L.-G., G.B.M.-H. and F.M.-I.; writing—original draft preparation, R.C.-R., A.T.-R. and F.M.-I.; writing—review and editing, R.C.-R., A.T.-R., A.L.-G., G.B.M.-H. and F.M.-I.; visualization, R.C.-R., A.T.-R., A.L.-G., G.B.M.-H. and F.M.-I.; supervision, A.L.-G. and F.M.-I.; project administration, A.L.-G. and F.M.-I.; funding acquisition, A.L.-G. and F.M.-I. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. W.H.O. Food Safety. World Health Organization, Geneva, Switzerland. 30 April 2020. Available online: https://www.who.int/news-room/fact-sheets/detail/food-safety (accessed on 10 August 2010).
  2. Arshad, M.S.; Batool, S.A. Natural Antimicrobials, their Sources and Food Safety. In Food Additives; Karunaratne, D.N., Pamunuwa, G., Eds.; IntechOpen: London, UK, 2017; pp. 87–102. [Google Scholar] [CrossRef] [Green Version]
  3. Quinto, E.J.; Caro, I.; Villalobos-Delgado, L.H.; Mateo, J.; De-Mateo-Silleras, B.; Redondo-Del-Río, M.P. Food Safety through Natural Antimicrobials. Antibiotics 2019, 8, 208. [Google Scholar] [CrossRef] [Green Version]
  4. Reddy, D.N. Essential Oils Extracted from Medicinal Plants and Their Applications. In Natural Bio-active Compounds; Akhtar, M.S., Swamy, M.K., Sinniah, U.R., Eds.; Springer: Singapore, 2019; Volume 1, pp. 237–283. [Google Scholar] [CrossRef]
  5. Mancianti, F.; Ebani, V.V. Biological Activity of Essential Oils. Molecules 2020, 25, 678. [Google Scholar] [CrossRef] [Green Version]
  6. Shaaban, H.A. Essential Oil as Antimicrobial Agents: Efficacy, Stability, and Safety Issues for Food Application. In Essential Oils—Bioactive Compounds, New Perspectives and Applications; Santana de Oliveira, M., Almeida da Costa, W., Gomes Silva, S., Eds.; IntechOpen: London, UK, 2020; pp. 1–33. [Google Scholar] [CrossRef]
  7. Cho, T.J.; Park, S.M.; Yu, H.; Seo, G.H.; Kim, H.W.; Kim, S.A.; Rhee, M.S. Recent Advances in the Application of Antibacterial Complexes Using Essential Oils. Molecules 2020, 25, 1752. [Google Scholar] [CrossRef] [PubMed]
  8. Fernández-López, J.; Viuda-Martos, M. Introduction to the Special Issue: Application of Essential Oils in Food Systems. Foods 2018, 7, 56. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Hyldgaard, M.; Mygind, T.; Meyer, R.L. Essential Oils in Food Preservation: Mode of Action, Synergies, and Interactions with Food Matrix Components. Front. Microbiol. 2012, 3, 1–24. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Sonam, K.S.; Guleria, S. Synergistic Antioxidant Activity of Natural Products. Ann. Pharmacol. Pharm. 2017, 2, 1–6. [Google Scholar]
  11. Bintsis, T. Foodborne pathogens. AIMS Microbiol. 2017, 3, 529–563. [Google Scholar] [CrossRef] [PubMed]
  12. W.H.O. E. coli. World Health Organization, Geneva, Switzerland. 7 February 2018. Available online: https://www.who.int/es/news-room/fact-sheets/detail/e-coli (accessed on 17 October 2020).
  13. Control Disease Center. Reports of E. coli Outbreak Investigations from 2020. Control Disease Center. 26 February 2020. Available online: https://www.cdc.gov/ecoli/2020-outbreaks.html (accessed on 17 October 2020).
  14. Brnawi, W.I.; Hettiarachchy, N.S.; Horax, R.; Kumar-Phillips, G.; Ricke, S. Antimicrobial activity of leaf and bark cinnamon essential oils against Listeria monocytogenes and Salmonella typhimurium in broth system and on celery. J. Food Process. Preserv. 2019, 43. [Google Scholar] [CrossRef]
  15. Khaleque, M.A.; Keya, C.A.; Hasan, K.N.; Hoque, M.M.; Inatsu, Y.; Bari, M.L. Use of cloves and cinnamon essential oil to inactivate Listeria monocytogenes in ground beef at freezing and refrigeration temperatures. LWT Food Sci. Technol. 2016, 74, 219–223. [Google Scholar] [CrossRef]
  16. Cava, R.; Nowak, E.; Taboada-Rodríguez, A.; Marin-Iniesta, F. Antimicrobial Activity of Clove and Cinnamon Essential Oils against Listeria monocytogenes in Pasteurized Milk. J. Food Prot. 2007, 70, 2757–2763. [Google Scholar] [CrossRef] [PubMed]
  17. Cava-Roda, R.M.; Taboada-Rodríguez, A.; Valverde-Franco, M.T.; Marín-Iniesta, F. Antimicrobial Activity of Vanillin and Mixtures with Cinnamon and Clove Essential Oils in Controlling Listeria monocytogenes and Escherichia coli O157:H7 in Milk. Food Bioprocess Technol. 2012, 5, 2120–2131. [Google Scholar] [CrossRef]
  18. Gilling, D.H.; Ravishankar, S.; Bright, K.R. Antimicrobial efficacy of plant essential oils and extracts against Escherichia coli. J. Environ. Sci. Heath Part A 2019, 54, 608–616. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Mith, H.; Duré, R.; Delcenserie, V.; Zhiri, A.; Daube, G.; Clinquart, A. Antimicrobial activities of commercial essential oils and their components against food-borne pathogens and food spoilage bacteria. Food Sci. Nutr. 2014, 2, 403–416. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Burt, S.; Reinders, R. Antibacterial activity of selected plant essential oils against Escherichia coli O157:H7. Lett. Appl. Microbiol. 2003, 36, 162–167. [Google Scholar] [CrossRef] [Green Version]
  21. Cava-Roda, R.M.; Taboada-Rodríguez, A.; Palop, A.; López-Gómez, A.; Marín-Iniesta, F. Heat resistance of Listeria monocytogenes in semi-skim milk supplemented with vanillin. Int. J. Food Microbiol. 2012, 157, 314–318. [Google Scholar] [CrossRef] [PubMed]
  22. Moon, K.-D.; Delaquis, P.; Toivonen, P.; Stanich, K. Effect of vanillin on the fate of Listeria monocytogenes and Escherichia coli O157:H7 in a model apple juice medium and in apple juice. Food Microbiol. 2006, 23, 169–174. [Google Scholar] [CrossRef]
  23. Corte, F.V.; Fabrizio, S.V.; Salvatori, D.M.; Alzamora, S.M. Survival of Listeria Innocua in Apple Juice as Affected by Vanillin or Potassium Sorbate. J. Food Saf. 2004, 24, 1–15. [Google Scholar] [CrossRef]
  24. Jonušaite, K.; Venskutonis, P.; Martínez-Hernández, G.; Taboada-Rodríguez, A.; Nieto, G.; López-Gómez, A.; Marín-Iniesta, F. Antioxidant and Antimicrobial Effect of Plant Essential Oils and Sambucus nigra Extract in Salmon Burgers. Foods 2021, 10, 776. [Google Scholar] [CrossRef]
  25. Sánchez-Rubio, M.; Taboada-Rodríguez, A.; Cava-Roda, R.; Lopez-Gomez, A.; Marín-Iniesta, F. Combined use of thermo-ultrasound and cinnamon leaf essential oil to inactivate Saccharomyces cerevisiae in natural orange and pomegranate juices. LWT Food Sci. Technol. 2016, 73, 140–146. [Google Scholar] [CrossRef]
  26. Carpena, M.; Nuñez-Estevez, B.; Soria-Lopez, A.; Garcia-Oliveira, P.; Prieto, M.A. Essential Oils and Their Application on Active Packaging Systems: A Review. Resources 2021, 10, 7. [Google Scholar] [CrossRef]
  27. Parreidt, T.S.; Müller, K.; Schmid, M. Alginate-Based Edible Films and Coatings for Food Packaging Applications. Foods 2018, 7, 170. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Delaquis, P.; Stanich, K.; Toivonen, P. Effect of pH on the Inhibition of Listeria spp. by Vanillin and Vanillic Acid. J. Food Prot. 2005, 68, 1472–1476. [Google Scholar] [CrossRef]
  29. CLSI. Performance Standards for Antimicrobial Susceptibility Testing; Twenty-Fourth Informational Supplement. CLSI Document M100-S24; Clinical and Laboratory Standards Institute: Wayne, PA, USA, 2014. [Google Scholar]
  30. Mann, C.; Markham, J. A new method for determining the minimum inhibitory concentration of essential oils. J. Appl. Microbiol. 1998, 84, 538–544. [Google Scholar] [CrossRef]
  31. Nikkhah, M.; Hashemi, M.; Najafi, M.B.H.; Farhoosh, R. Synergistic effects of some essential oils against fungal spoilage on pear fruit. Int. J. Food Microbiol. 2017, 257, 285–294. [Google Scholar] [CrossRef]
  32. Hsieh, M.H.; Yu, C.M.; Yu, V.L.; Chow, J.W. Synergy assessed by checkerboard a critical analysis. Diagn. Microbiol. Infect. Dis. 1993, 16, 343–349. [Google Scholar] [CrossRef]
  33. Odds, F.C. Synergy, antagonism and what checkerboard puts between them. J. Antimicrob. Chemother. 2003, 52. [Google Scholar] [CrossRef]
  34. Suliman, S.; Van Vuuren, S.; Viljoen, A. Validating the in vitro antimicrobial activity of Artemisia afra in polyherbal combinations to treat respiratory infections. S. Afr. J. Bot. 2010, 76, 655–661. [Google Scholar] [CrossRef] [Green Version]
  35. Van Vuuren, S.; Viljoen, A. Plant-Based Antimicrobial Studies—Methods and Approaches to Study the Interaction between Natural Products. Planta Medica 2011, 77, 1168–1182. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Hawkins, S.G. Antimicrobial Activity of Cinnamic Acid, Citric Acid, Cinnamaldehyde, and Levulinic Acid Against Foodborne Pathogens. Honors Senior Thesis Dissertation, University of Tennessee, Knoxville, TN, USA, 2014. Available online: https://trace.tennessee.edu/utk_chanhonoproj/1701 (accessed on 10 August 2020).
  37. Pei, R.S.; Zhou, F.; Ji, B.P.; Xu, J. Evaluation of Combined Antibacterial Effects of Eugenol, Cinnamaldehyde, Thymol, and Carvacrol against Escherichia coli with an Improved Method. J. Food Sci. 2009, 74, 379–383. [Google Scholar] [CrossRef] [PubMed]
  38. Visvalingam, J.; Holley, R. Temperature-dependent effect of sublethal levels of cinnamaldehyde on viability and morphology of Escherichia coli. J. Appl. Microbiol. 2012, 113, 591–600. [Google Scholar] [CrossRef] [PubMed]
  39. Chang, S.-T.; Chen, P.-F.; Chang, S.-C. Antibacterial activity of leaf essential oils and their constituents from Cinnamomum osmophloeum. J. Ethnopharmacol. 2001, 77, 123–127. [Google Scholar] [CrossRef]
  40. Kim, J.; Marshall, M.R.; Wei, C.-I. Antibacterial activity of some essential oil components against five foodborne pathogens. J. Agric. Food Chem. 1995, 43, 2839–2845. [Google Scholar] [CrossRef]
  41. Gill, A.O.; Holley, R.A. Inhibition of membrane bound ATPases of Escherichia coli and Listeria monocytogenes by plant oil aromatics. Int. J. Food Microbiol. 2006, 111, 170–174. [Google Scholar] [CrossRef]
  42. Oyedemi, S.O.; Okoh, A.I.; Mabinya, L.V.; Pirochenva, G.; Afolayan, A.J. The proposed mechanism of bactericidal action of eugenol, terpineol and g-terpinene against Listeria monocytogenes, Streptococcus pyogenes, Proteus vulgaris and Escherichia coli. Afr. J. Food Biotechnol. 2009, 8, 1280–1286. [Google Scholar]
  43. Gill, A.; Holley, R.A. Mechanisms of Bactericidal Action of Cinnamaldehyde against Listeria monocytogenes and of Eugenol against L. monocytogenes and Lactobacillus sakei. Appl. Environ. Microbiol. 2004, 70, 5750–5755. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Ojagh, S.M.; Rezaei, M.; Razavi, S.H.; Hosseini, S.M.H. Investigation of antibacterial activity cinnamon bark essential oil (Cinnamomum zeylanicum) in vitro antibacterial activity against five food spoilage bacteria. J. Food Sci. Technol. 2012, 9, 67–76. [Google Scholar]
  45. Saraf, S.; Mishra, M.S.; Sharma, K. Antibacterial Activity of commercial and wild cinnamon species. J. Phytol. 2011, 3, 102–106. [Google Scholar]
  46. Gupta, G.; Garg, A.P.; Uniyal, R.C.; Kumari, A. Comparative analysis of the antimicrobial activity of cinnamon oil and cinnamon extract on some food-borne microbes. Afr. J. Microbiol. Res. 2008, 2, 247–251. [Google Scholar]
  47. Kim, H.-O.; Park, S.-W.; Park, H.-D. Inactivation of Escherichia coli O157:H7 by cinnamic aldehyde purified from Cinnamomum cassia shoot. Food Microbiol. 2004, 21, 105–110. [Google Scholar] [CrossRef]
  48. Oussalah, M.; Caillet, S.; Lacroix, M. Mechanism of action of spanish oregano, chinese cinnamon and savory essential oils against cell membranes and walls of Escherichia coli O157:H7 and Listeria monocytogenes. J. Food Prot. 2006, 69, 1046–1055. [Google Scholar] [CrossRef]
  49. Si, W.; Gong, J.R.; Tsao, T.; Zhou, H.; Yu, C.; Poppe, R.; Johnson, Z. Antimicrobial activity of essential oils and structurally related synthetic food additives towards selected pathogenic and beneficial gut bacteria. J. Appl. Microbiol. 2005, 100, 296–305. [Google Scholar] [CrossRef] [PubMed]
  50. Ayoola, G.A.; Lawore, F.M.; Adelowotan, T.; Aibinu, I.E.; Adenipekun, E.; Coker, H.A.B.; Odugbemi, T.O. Chemical analysis and antimicrobial activity of the essential oil of Syzigium aromaticum (clove). Afr. J. Microbiol. Res. 2008, 2, 162–166. [Google Scholar]
  51. Fu, Y.; Zu, Y.; Chen, L.; Shi, X.; Wang, Z.; Sun, S.; Efferth, T. Antimicrobial activity of clove and rosemary essential oils alone and in combination. Phytother. Res. 2007, 21, 989–994. [Google Scholar] [CrossRef] [PubMed]
  52. Senhaji, O.; Faid, M.; Kalalou, I. Inactivation of Escherichia coli O157:H7 by essential oil from Cinnamomum zeylanicum. Braz. J. Infect. Dis. 2007, 11, 234–236. [Google Scholar] [CrossRef] [Green Version]
  53. Fitzgerald, D.J.; Stratford, M.; Gasson, M.J.; Narbad, A. Structure−Function Analysis of the Vanillin Molecule and Its Antifungal Properties. J. Agric. Food Chem. 2005, 53, 1769–1775. [Google Scholar] [CrossRef]
  54. Evrendilek, G.A. Survival of Escherichia coli O157:H7 in yogurt drink, plain yogurt and salted (tuzlu) yogurt: Effects of storage time, temperature, background flora and product characteristics. Int. J. Dairy Technol. 2007, 60, 118–122. [Google Scholar] [CrossRef]
  55. Fitzgerald, D.; Stratford, M.; Gasson, M.; Ueckert, J.; Bos, A.; Narbad, A. Mode of antimicrobial action of vanillin against Escherichia coli, Lactobacillus plantarum and Listeria innocua. J. Appl. Microbiol. 2004, 97, 104–113. [Google Scholar] [CrossRef]
  56. Purkait, S.; Bhattacharya, A.; Bag, A.; Chattopadhyay, R.R. Synergistic antibacterial, antifungal and antioxidant efficacy of cinnamon and clove essential oils in combination. Arch. Microbiol. 2020, 202, 1439–1448. [Google Scholar] [CrossRef] [PubMed]
  57. Lu, Y.F.; Ding, Y.; Ding, T. Antibacterial Effect of Cinnamon Oil Combined with Thyme or Clove Oil. J. Integr. Agric. 2011, 10, 1482–1487. [Google Scholar] [CrossRef]
  58. López-Malo, A.; Palou, E.; Alzamora, S.M. Naturally occurring compounds-plant sources. In Antimicrobials in Food, 3rd ed.; Davidson, P.M., Sofos, J.N., Branen, A.L., Eds.; CRC Press: New York, NY, USA, 2005; pp. 429–451. [Google Scholar]
  59. Siddiqua, S.; Anusha, B.A.; Ashwini, L.S.; Negi, P.S. Antibacterial activity of cinnamaldehyde and clove oil: Effect on selected foodborne pathogens in model food systems and watermelon juice. J. Food Sci. Technol. 2014, 52, 5834–5841. [Google Scholar] [CrossRef] [Green Version]
  60. Marchese, A.; Barbieri, R.; Coppo, E.; Orhan, I.E.; Daglia, M.; Nabavi, S.M.; Izadi, M.; Abdollahi, M.; Ajami, M. Antimicrobial activity of eugenol and essential oils containing eugenol: A mechanistic viewpoint. Crit. Rev. Microbiol. 2017, 43, 668–689. [Google Scholar] [CrossRef]
  61. Nzeako, B.C.; Al-Kharousi, Z.S.N.; Al-Mahrooqui, Z. Antimicrobial activities of clove and thyme extracts. Sultan Qaboos Univ. Med. J. 2006, 6, 33–39. [Google Scholar]
  62. Bassolé, I.H.N.; Juliani, H.R. Essential Oils in Combination and Their Antimicrobial Properties. Molecules 2012, 17, 3989–4006. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Santiesteban-Lopez, A.; Palou, E.; Lopez-Malo, A. Susceptibility of food-borne bacteria to binary combinations of anti-microbials at selected aw and pH. J. Appl. Microbiol. 2007, 102, 486–497. [Google Scholar] [CrossRef]
  64. Gill, A.; Delaquis, P.; Russo, P.; Holley, R. Evaluation of antilisterial action of cilantro oil on vacuum packed ham. Int. J. Food Microbiol. 2002, 73, 83–92. [Google Scholar] [CrossRef]
  65. Mourey, A.; Canillac, N. Anti-Listeria monocytogenes activity of essential oils components of conifers. Food Control 2002, 13, 289–292. [Google Scholar] [CrossRef]
  66. Tamgue, O.; Louis, B.; Nguefack, J.; Do, J.B.L.; Dako, C.D. Synergism and Antagonism of Essential Oil Fractions of Cymbopogon citratus, Ocimum gratissimum and Thymus vulgaris against Penicillium expansum. Int. J. Plant Pathol. 2011, 2, 51–62. [Google Scholar] [CrossRef]
Foods 10 01406 g001 550

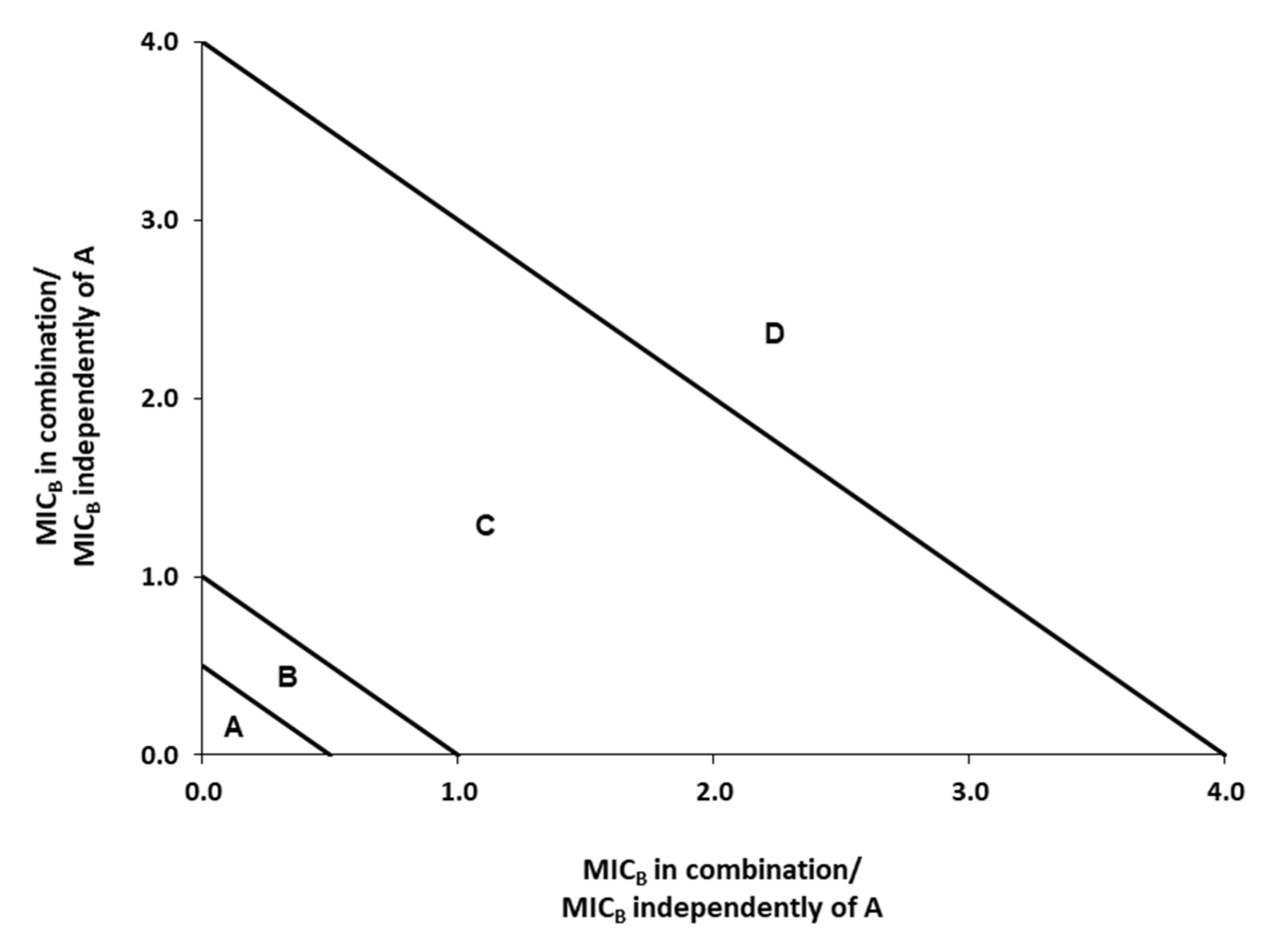

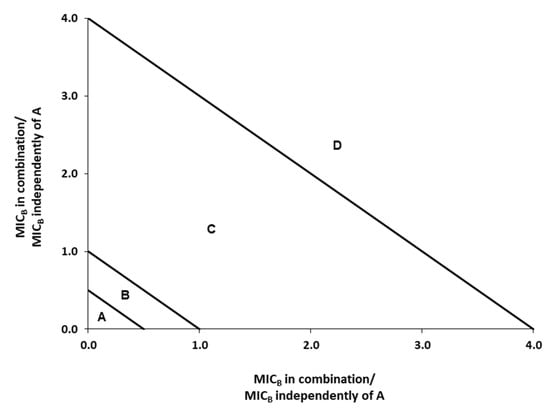

Figure 1. Interpretation of an isobologram. Depending on the area where the CIF values of the mixture are located, the effect is A: synergistic, B: additive, C: indifferent, or D: antagonistic [28].
Figure 1. Interpretation of an isobologram. Depending on the area where the CIF values of the mixture are located, the effect is A: synergistic, B: additive, C: indifferent, or D: antagonistic [28].
Foods 10 01406 g001
Foods 10 01406 g002a 550Foods 10 01406 g002b 550Foods 10 01406 g002c 550

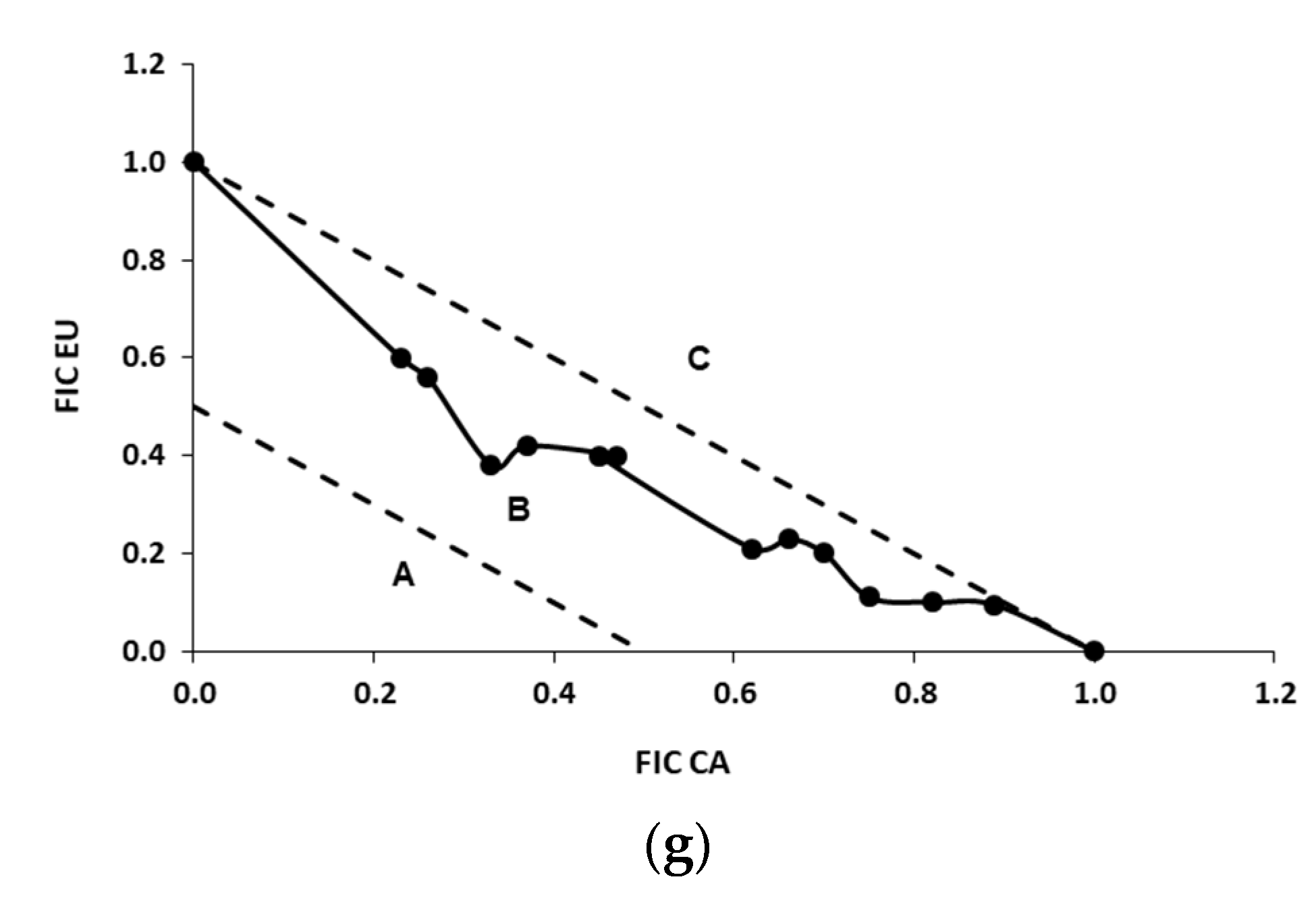

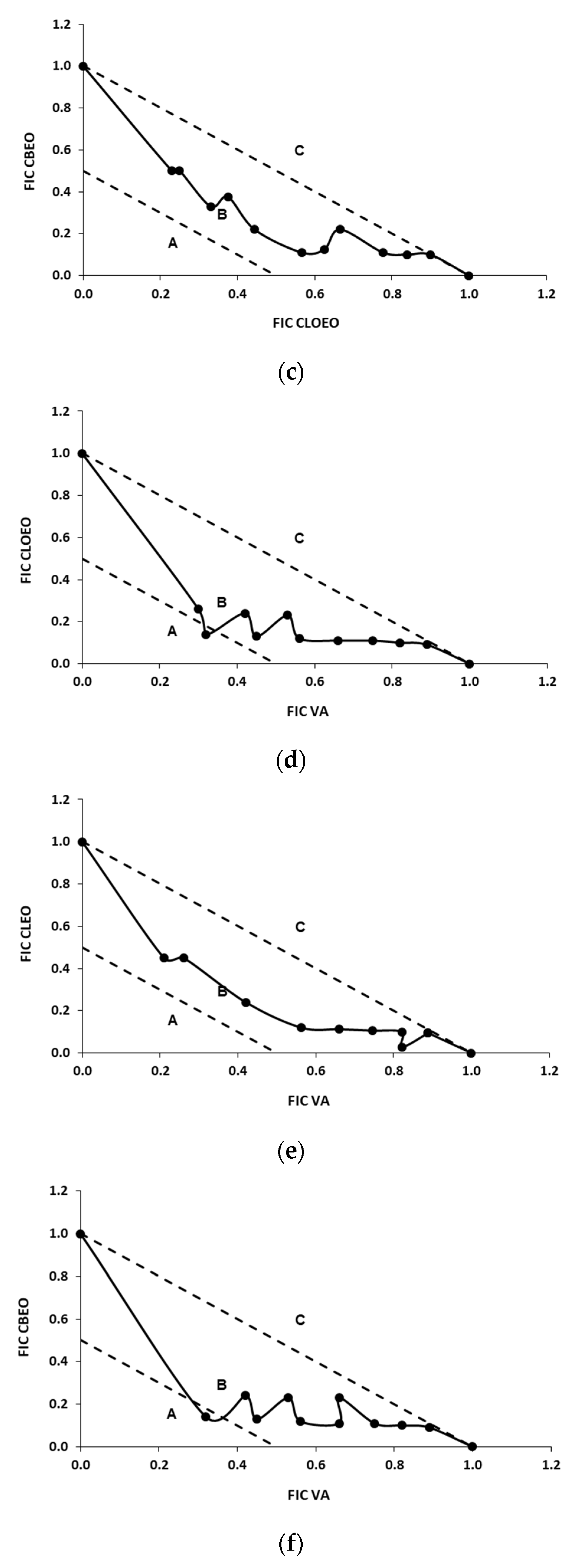

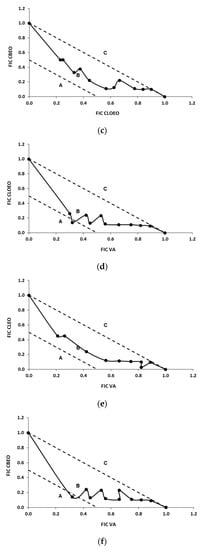

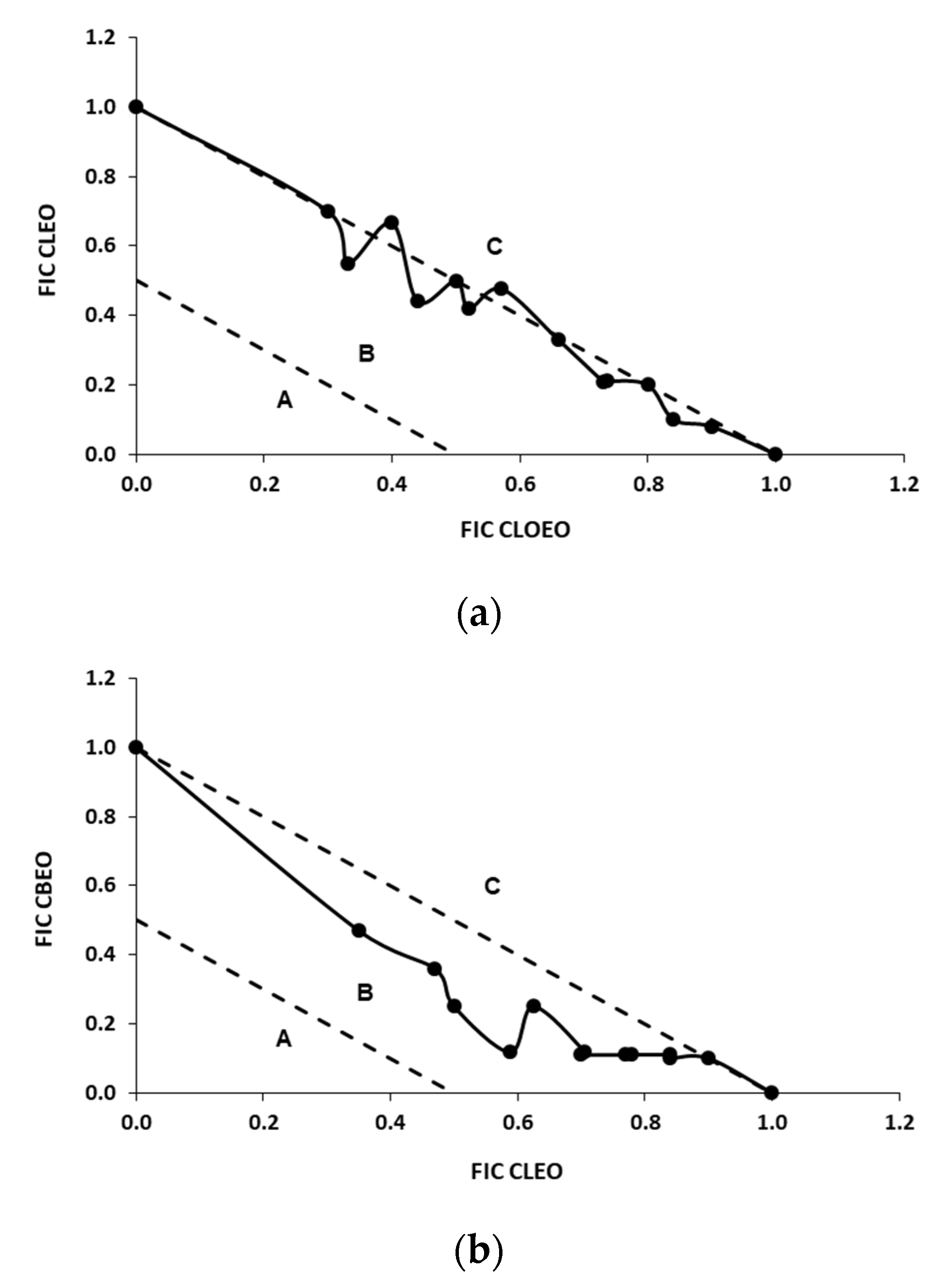

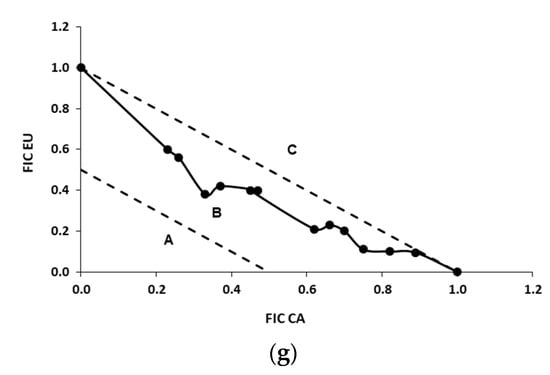

Figure 2. Isobolograms of selected combinations of EOs (CLEO, CBEO, and CLOEO) and pure compounds (VA, CA, and EU) against L. monocytogenes. (a) CLEO/CLOEO; (b) CBEO/CLEO; (c) CBEO/CLOEO; (d) CLOEO/VA; (e) CLEO/VA; (f) CBEO/VA; (g) EU/CA. See Figure 1 for the interpretation of the isobolograms.
Figure 2. Isobolograms of selected combinations of EOs (CLEO, CBEO, and CLOEO) and pure compounds (VA, CA, and EU) against L. monocytogenes. (a) CLEO/CLOEO; (b) CBEO/CLEO; (c) CBEO/CLOEO; (d) CLOEO/VA; (e) CLEO/VA; (f) CBEO/VA; (g) EU/CA. See Figure 1 for the interpretation of the isobolograms.
Foods 10 01406 g002aFoods 10 01406 g002bFoods 10 01406 g002c
Foods 10 01406 g003a 550Foods 10 01406 g003b 550Foods 10 01406 g003c 550

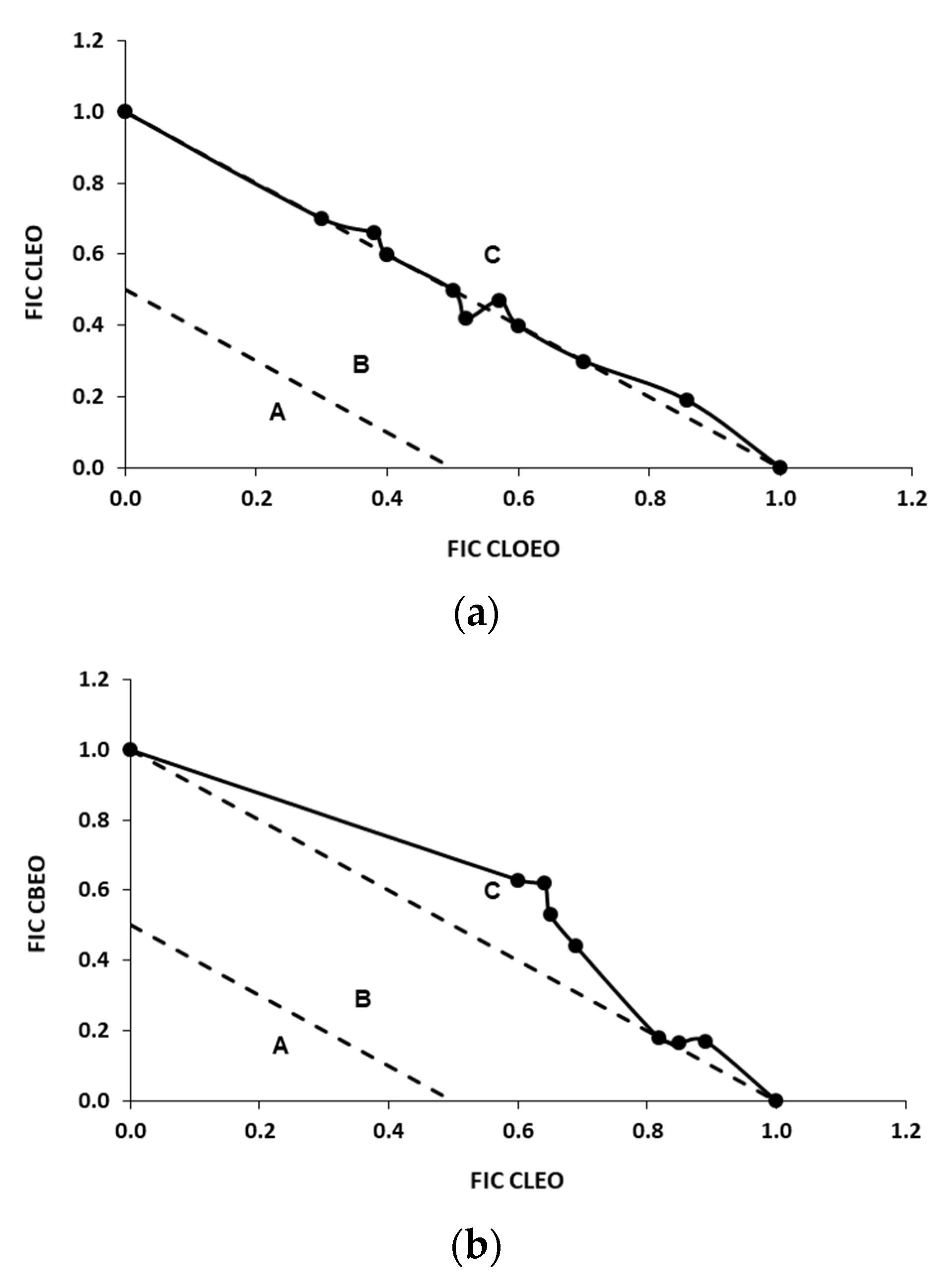

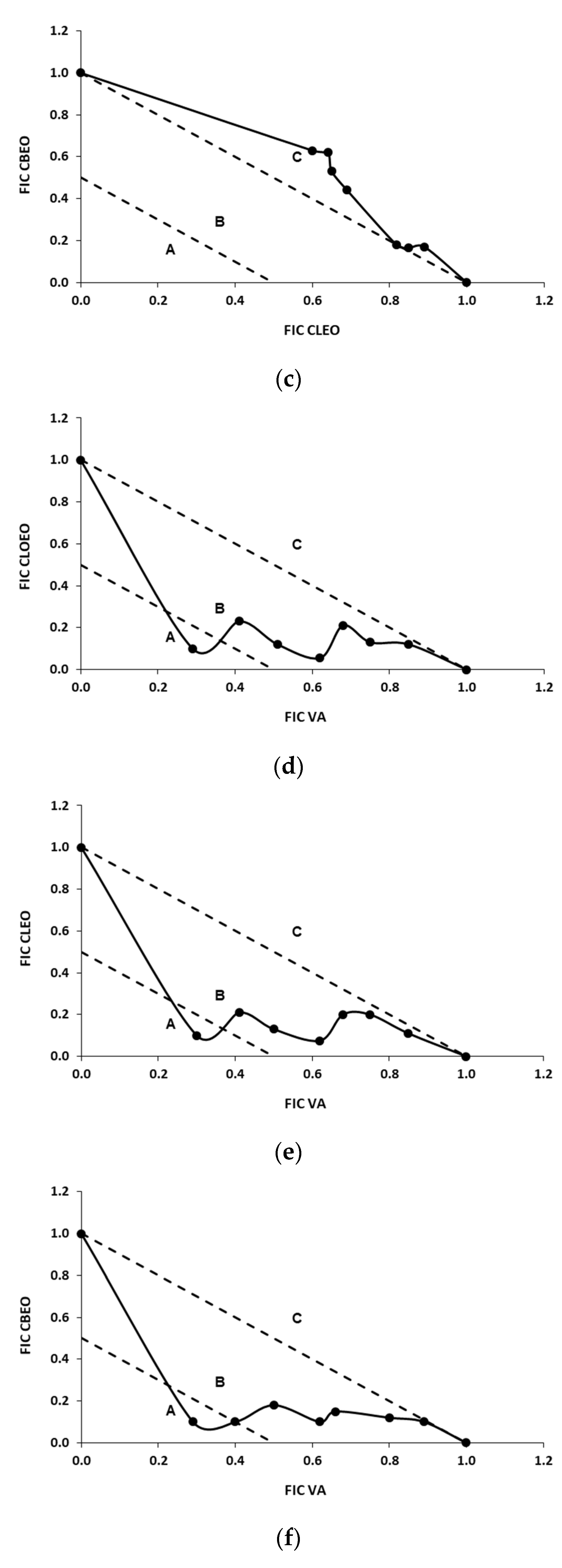

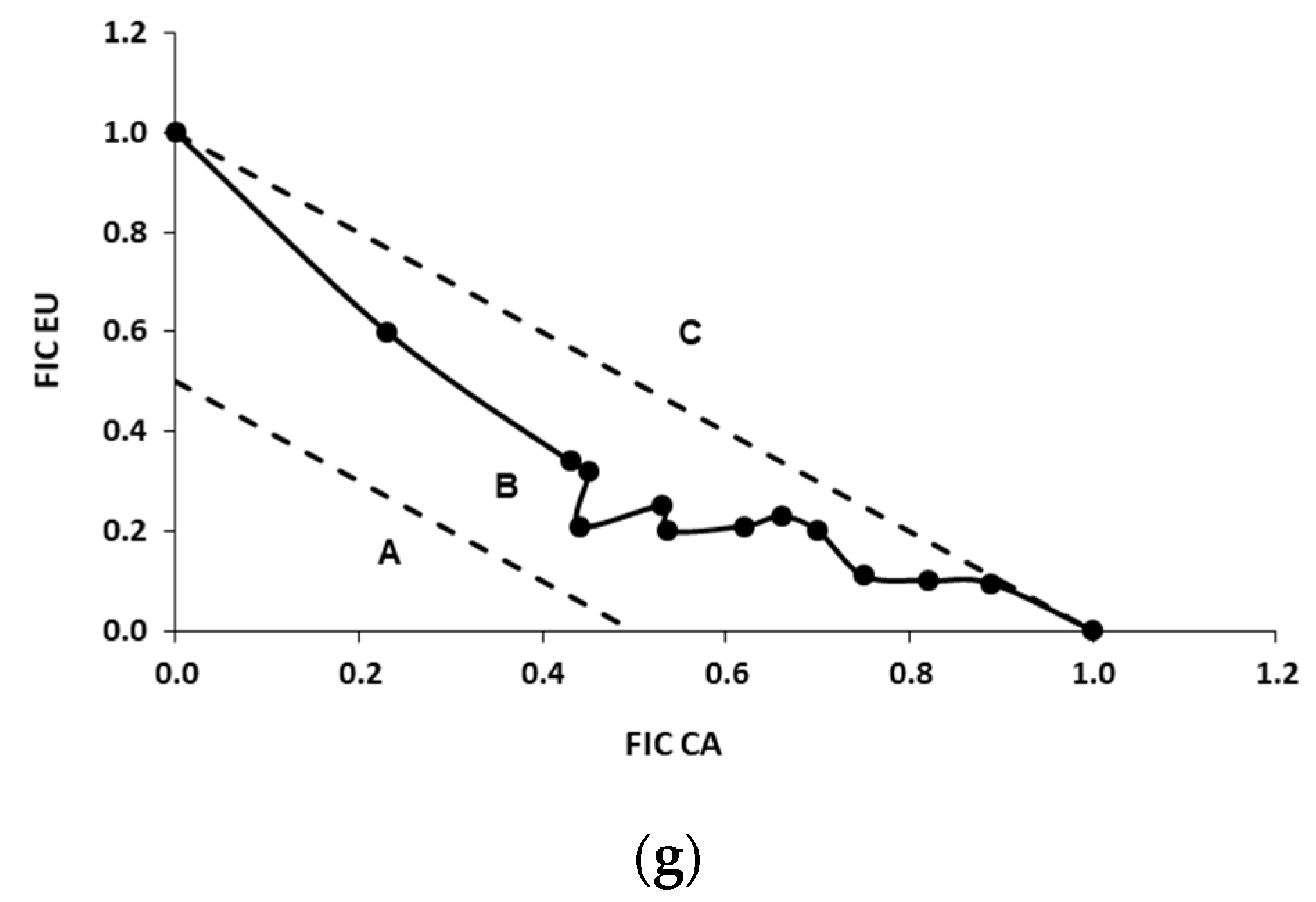

Figure 3. Isobolograms of combinations of EOs (CLEO, CBEO, and CLOEO) and pure compounds (VA and CA) against E. coli O157:H7. (a) CLEO/CLOEO; (b) CBEO/CLEO; (c) CBEO/CLOEO; (d) CLOEO/VA; (e) CLEO/VA; (f) CBEO/VA; (g) EU/CA. See Figure 1 for the interpretation of the isobolograms.
Figure 3. Isobolograms of combinations of EOs (CLEO, CBEO, and CLOEO) and pure compounds (VA and CA) against E. coli O157:H7. (a) CLEO/CLOEO; (b) CBEO/CLEO; (c) CBEO/CLOEO; (d) CLOEO/VA; (e) CLEO/VA; (f) CBEO/VA; (g) EU/CA. See Figure 1 for the interpretation of the isobolograms.
Foods 10 01406 g003aFoods 10 01406 g003bFoods 10 01406 g003c
Table
Table 1. Antimicrobial activity of the tested antimicrobials against L. monocytogenes and E. coli O157:H7. MIC and MBC values are expressed in ppm.
Table 1. Antimicrobial activity of the tested antimicrobials against L. monocytogenes and E. coli O157:H7. MIC and MBC values are expressed in ppm.
L. monocytogenesE. coli O157:H7
MICMBCMICMBC
CLEO50810008431200
CLOEO4028007781200
CBEO40412007211500
EU56210007661200
CA44914004551400
VA3002800027956000
Table
Table 2. FIC index (FICi) and interaction of selected binary combinations of antimicrobial compounds against L. monocytogenes. MIC values are expressed in ppm.
Table 2. FIC index (FICi) and interaction of selected binary combinations of antimicrobial compounds against L. monocytogenes. MIC values are expressed in ppm.
Combinations A/BMIC(A alone)MIC(B alone)MIC(A in the presence of B)MIC(B in the presence of A)FICi
CLOEO/CLEO4025081212800.85
CLEO/CBEO5084041531620.70
CLOEO/CBEO4024041211450.66
CLOEO/VA40230031216910.53
CLEO/VA40230031896910.67
CBEO/VA4043003859100.51
EU/CA5634491861890.75
Table
Table 3. FIC index (FICi) and interaction of selected binary combinations of antimicrobial compounds against E. coli O157:H7. MIC values are expressed in ppm.
Table 3. FIC index (FICi) and interaction of selected binary combinations of antimicrobial compounds against E. coli O157:H7. MIC values are expressed in ppm.
Combinations A/BMIC(A alone)MIC(B alone)MIC(A in the presence of B)MIC(B in the presence of A)FICi
CLOEO/CLEO7798443354140.92
CLEO/CBEO8447216581661.00
CLOEO/CBEO7797212185991.11
CLOEO/VA799279610410060.49
CLEO/VA84427961189790.49
CBEO/VA72127961447840.48
EU/CA767455421450.65
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Cava-Roda, R.; Taboada-Rodríguez, A.; López-Gómez, A.; Martínez-Hernández, G.B.; Marín-Iniesta, F. Synergistic Antimicrobial Activities of Combinations of Vanillin and Essential Oils of Cinnamon Bark, Cinnamon Leaves, and Cloves. Foods 2021, 10, 1406. https://doi.org/10.3390/foods10061406

AMA Style

Cava-Roda R, Taboada-Rodríguez A, López-Gómez A, Martínez-Hernández GB, Marín-Iniesta F. Synergistic Antimicrobial Activities of Combinations of Vanillin and Essential Oils of Cinnamon Bark, Cinnamon Leaves, and Cloves. Foods. 2021; 10(6):1406. https://doi.org/10.3390/foods10061406

Chicago/Turabian Style

Cava-Roda, Rita, Amaury Taboada-Rodríguez, Antonio López-Gómez, Ginés Benito Martínez-Hernández, and Fulgencio Marín-Iniesta. 2021. "Synergistic Antimicrobial Activities of Combinations of Vanillin and Essential Oils of Cinnamon Bark, Cinnamon Leaves, and Cloves" Foods 10, no. 6: 1406. https://doi.org/10.3390/foods10061406

APA Style

Cava-Roda, R., Taboada-Rodríguez, A., López-Gómez, A., Martínez-Hernández, G. B., & Marín-Iniesta, F. (2021). Synergistic Antimicrobial Activities of Combinations of Vanillin and Essential Oils of Cinnamon Bark, Cinnamon Leaves, and Cloves. Foods, 10(6), 1406. https://doi.org/10.3390/foods10061406

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
