Soft Mango Firmness Assessment Based on Rayleigh Waves Generated by a Laser-Induced Plasma Shock Wave Technique

by
Nayuta Arai
1,
Masafumi Miyake
1,
Kengo Yamamoto
1,
Itsuro Kajiwara
2 and
Naoki Hosoya
3,*
1
Division of Mechanical Engineering, Shibaura Institute of Technology, 3-7-5 Toyosu, Koto-ku, Tokyo 135-8548, Japan
2
Division of Human Mechanical Systems and Design, Hokkaido University, N13, W8, Kita-ku, Sapporo-shi, Hokkaido 060-8628, Japan
3
Department of Engineering Science and Mechanics, Shibaura Institute of Technology, 3-7-5 Toyosu, Koto-ku, Tokyo 135-8548, Japan
*
Author to whom correspondence should be addressed.
Foods 2021, 10(2), 323; https://doi.org/10.3390/foods10020323
Submission received: 17 December 2020 / Revised: 23 January 2021 / Accepted: 29 January 2021 / Published: 3 February 2021
(This article belongs to the Section Food Engineering and Technology)
Browse Figures
Versions Notes

Abstract

:
Many methods based on acoustic vibration characteristics have been studied to indirectly assess fruit ripeness via fruit firmness. Among these, the frequency of the 0S2 vibration mode measured on the equator has been examined, but soft-flesh fruit do not show the 0S2 vibration mode. In this study, a Rayleigh wave is generated on a soft mango fruit using the impulse excitation force generated by a laser-induced plasma shock wave technique. Then, the flesh firmness of mangoes is assessed in a non-contact and non-destructive manner by observing the Rayleigh wave propagation velocity because it is correlated with the firmness (shear elasticity), density, and Poisson’s ratio of an object. If the changes in the density and Poisson’s ratio are small enough to be ignored during storage, then the Rayleigh wave propagation velocity is strongly correlated to fruit firmness. Here, we measure the Rayleigh wave propagation velocity and investigate the effect of storage time. Specifically, we investigate the changes in firmness caused by ripening. The Rayleigh wave propagation velocity on the equator of Kent mangoes tended to decrease by over 4% in 96 h. The Rayleigh wave measured on two different lines propagated independent distance and showed a different change rate of propagation velocity during 96-h storage. Furthermore, we consider the reliability of our method by investigating the interaction of a mango seed on the Rayleigh wave propagation velocity.

Graphical Abstract

1. Introduction

People who work in agriculture assess fruit ripeness based on a variety of indexes such as size, color, shape, and aroma prior to harvest. Moreover, the soluble solid content, acidity, and firmness, which are related to fruit ripeness, are often used as ripeness indexes [1,2,3,4,5,6,7,8,9]. These indexes are classified using optical, biochemical, or mechanical methods.
Many approaches based on an optical method have been proposed to assess the soluble solid content or acidity of the fruit by irradiating with visible or near-infrared light [2,3,6,7,9,10,11,12,13,14,15]. Although these methods have practical applications, they are difficult to apply to fruit whose peel does not change color or does not transmit light during the ripening stage.
Biochemical methods detect aromatic volatiles and assess ripeness by gas chromatography or an electric nose [16,17,18,19,20,21]. This approach is not suitable to assess the ripeness of fruit that emits a weak odor. In addition, neither optical nor biochemical methods can assess the ripeness of fruit such as avocado, which show low soluble solid content or acidity. Consequently, many mechanical methods to assess the firmness of fruit as a ripeness index have been proposed [22,23,24,25,26,27,28,29,30,31].
In mechanical methods, dynamic characteristics such as the natural frequencies or vibration modes are assessed by contact devices such as an impact hammer, pendulum, or vibrator because the natural frequency, which is called the 0S2 mode, is strongly correlated to fruit firmness [32]. However, traditional contact devices are not suitable to excite soft fruit because the excitation damages the fruit flesh. Furthermore, it is assumed that the strong viscoelastic feature of soft fruit limits excitation of the 0S2 mode frequency.
Previously, we demonstrated a non-contact and non-destructive firmness assessment system by applying a shock wave generated by laser-induced plasma (LIP) as an impulse excitation force [33]. The changes to the firmness of apples during storage were assessed by monitoring the shift in the 0S2 mode frequency. As the firmness decreases, the 0S2 mode frequency shifts to a lower frequency band. In our LIP shock wave excitation technique, a plasma is formed by condensing a laser beam from a high-output neodymium: yttrium aluminum garnet (Nd:YAG) pulsed laser to a point near the excitation point. A shock wave is generated when the plasma expands at an ultrasonic speed. This shock wave is applied to a test piece as an impulse excitation force. The LIP shock wave excitation technique has been widely developed for assessments or non-destructive inspections of the dynamic characteristics of mechanical structures as well as for the generation of a point sound source [34,35,36,37].
Laser ablation (LA) can generate a larger excitation force than a LIP shock wave. In LA, a plasma plume with a high temperature and high density is formed by directly irradiating a high-output pulsed laser to the excitation point of a target object (solid surface). When mass Δm is emitted from the object at velocity v, the momentum, which is given by Δmv, acts as the impulse to the object. Many studies have applied LA to vibration or acoustic tests for mechanical structure assessments [38,39], bolt loosening detection [40], infrastructure inspection [41], damage detection [42], and mechanical property measurement in hydrogels [43]. Because LA causes sub-millimeter-sized damage on the object’s surface, it is difficult to assess its firmness via LA and maintain commercial value.
One firmness assessment for apples uses thermoelastic wave propagation on the apple surface by a laser ultrasonic (LU) technique [44]. LU uses a lower laser fluence (laser pulse energy) than LA. LU and LA both irradiate a laser beam to a target structure directly. LU is often used to inspect mechanical structures or composite materials [45,46] because it can produce a non-contact and non-destructive excitation force. However, LU has three main drawbacks. It produces a measured elastic wave with a small amplitude. It has a low signal-to-noise ratio, and it requires numerous measurements. Additionally, it can also generate LA, depending on the material of the target object, wavelength of the pulsed laser, and laser fluence. The threshold to generate LU or LA is difficult to determine, which limits the practicality of this method to assess fruit firmness.
In this paper, a Rayleigh wave is generated on the surface of a soft fruit peel using an impulse excitation force generated by a LIP shock wave technique. The flesh firmness of soft fruit is assessed in a non-contact and non-destructive manner by observing the Rayleigh wave propagation velocity. A Rayleigh wave is a type of surface elastic wave that propagates on a target object and is commonly used for the non-destructive assessment of Young’s modulus [47] or defect inspection [48,49,50]. In addition, Rayleigh wave propagation on soft gels and flesh fruit has been investigated [51,52]. The Rayleigh wave velocity is correlated to the shear elasticity (firmness) of an object, density, and Poisson’s ratio. If the changes in the density and Poisson’s ratio of the fruit can be ignored during the storage period, only shear elasticity (firmness) changes. According to a previous study [52], shear elasticity is correlated to fruit flesh firmness. We can infer that the Rayleigh wave propagation velocity decreases as shear elasticity decreases. The LIP shock wave excitation technique can improve the signal-to-noise ratio because it produces a larger excitation force compared to LU. An assessment of the firmness of soft fruit by generating a Rayleigh wave via a LIP shock wave excitation technique has yet to be reported.
Herein, we report such an assessment using mangoes as a soft fruit. First, we demonstrate that a Rayleigh wave is generated on a mango fruit by applying a LIP shock wave as an impulse excitation force. We obtain the vibration responses on each measurement point by a laser Doppler vibrometer (LDV). Then, the propagation velocity is calculated from those time responses. Second, the change in the Rayleigh wave propagation velocity is regarded as the change in firmness during storage. We assess the firmness of a mango fruit by monitoring the decreased Rayleigh wave velocity. Finally, we examine the location of the mango fruit where the Rayleigh wave should be generated to assess firmness to avoid possible bias from the large mango seed.

2. Materials and Methods

2.1. LIP Shock Wave Excitation Technique

LIP is a phenomenon where plasma with a high temperature and high density is formed by condensing a high-output pulsed laser in air with a laser fluence exceeding 1015 (W/m2). As the plasma expands to the surroundings at ultrasonic speed, a shock wave is generated. This shock wave acts on the fruit as an impulse excitation force [53].
Figure 1 shows the firmness assessment system for mangoes based on the LIP shock wave excitation technique. A laser beam from a Nd:YAG pulsed laser (Surelite III-10, Continuum Inc., Milpitas, CA, USA, wavelength 1064 nm, laser beam radius: 4.75 mm, pulse width: 5 ns, maximum output: 850 mJ, and radial divergence angle: 0.25 mrad) installed on an optical bench was condensed with a plano-convex lens (SLB-20–100P, SIGMAKOKI Co., LTD., Sumida-Ku, Tokyo, Japan, focal length: 100 mm) to generate a LIP shock wave near the excitation point on mangoes. The pressure Psh(d) (Pa) generated by a LIP shock wave is given by [54]:
P sh d = 2 5 2 2 ζ 0 5 γ + 1 E d − 3
where d (m) is a distance from the LIP generation point, ζ0 is a constant (ζ0 = 0.93), γ is the specific heat ratio (γ = 1.41), and E (J) is the laser pulsed energy. In this experiment, the pressure Psh(d) generated by the LIP shock wave is estimated as 2.9 MPa because we set the distance d (hereinafter referred to as the standoff distance) between the excitation point on the mango peel and the LIP generation point to 3 mm.
The vibration responses on a mango are measured by LDV (NLV-2500-5, Polytec GmbH, Waldbronn, Baden-Württemberg, Germany) in a non-contact manner and recorded by a spectrum analyzer (A/D: NI PXI-4462, National Instruments Co., Austin, TX, USA, Software: CAT-System, CATEC Inc. Taito-Ku, Tokyo, Japan). In the experiment, we placed reflection seals (approximately 3 mm × 3 mm) at each measurement point. We set the sampling frequency, the number of sampling points, and the number of trials to 204.8 kHz, 32,768 points, and 5, respectively. The mango was seated on an air cushion to ensure free support.

2.2. Storage Time and Measurement Paths of Mangoes

The experiment used 20 Kent mangoes as test material (Table 1). The average mass, density, and circumference (Line A, see Figure 2) were 0.457 kg, 1094 kg/m3, and 27 cm, respectively. Table 2 shows the storage time and measurement paths of the mangoes.
First, we considered the storage time and storage method. Mangoes 1–5 and 9–20 were used to observe the changes in the Rayleigh wave propagation velocity excited on the mango surface at 0, 48, and 96 h of storage. Mango 6 was used to observe the changes in the Rayleigh wave propagation velocity over 216 h of storage measured in 24 h increments. Here, “0 h” represents the starting time of the experiment for each mango. During the experiments, mangoes were stored at a constant temperature of 19 °C.
Next, we considered the measurement points on mangoes. Figure 2 depicts the measurement points on a mango fruit. Line A was on the equator of the mango, while Line B was orthogonal to the equator. We measured a Rayleigh wave on the equator because a fruit firmness was assessed by vibration tests to obtain the 0S2 frequency [33]. We also determined Line B, which is orthogonal to the equator. In a previous study where the flesh firmness of watermelon was assessed by measuring the Rayleigh wave propagation velocity [52], the flesh thickness was shown to be correlated to the Rayleigh wave propagation velocity. The fruit flesh thickness is small on Line B because mangoes contain large seeds.
Mangoes 1–20 were assessed on Line A, and mangoes 9–20 were assessed on Line B also. Line A consisted of 24 points set in the equatorial direction on the semi-equator in 7.5° intervals (Figure 2). Line B consisted of 24 points in the orthogonal direction to the equator in 7.5° intervals, where point 0 is in the opposite direction of the stem end. For both Lines A and B, we set point 0 as the excitation point and points 1–24 as the measurement points. Laser beam from LDV was installed in the normal direction to the tangent plane containing each measurement point.

3. Results and Discussion

3.1. Measured Time History Responses and Their Power Spectra

Figure 3 shows the time history responses and the power spectra of the displacement on mango 6 measured by our system. We compared points 1, 12 (90° away from point 0), and 24 (180° from point 0). The Rayleigh wave was excited with an approximately 10 μm amplitude (Figure 3a). The amplitudes of the measured Rayleigh wave at points 12 and 24 were approximately one-tenth of the amplitude of the measured Rayleigh wave at point 1 (Figure 3b,c). In addition, the mangoes used in this experiment showed a strong viscoelastic feature because they were damped a few milliseconds after the excitation. The power spectra showed a 12.5 Hz peak frequency at points 12 and 24. This frequency was the so-called “rigid body mode”, where the mango vibrated without showing elastic deformation because it was seated on an air cushion. Additionally, the 50 Hz peak frequency appeared at points 1, 12, and 24 due to the power supply noise. For the above reasons, our system can generate a Rayleigh wave on a mango in a non-contact and non-destructive manner. On the other hand, the 0S2 mode frequency, which has traditionally been used as a flesh firmness index for fruit, was not excited on the mangoes used in this experiment.

3.2. Detection of the Rayleigh Wave Propagation Velocity

We calculated the Rayleigh wave propagation velocity generated by our system. To show how the Rayleigh wave propagates, Figure 4 plots the time history responses of the measured displacement at points 1–24 on the mango peel arranged in order of the measurement points. The horizontal line shows the time, while the vertical line shows measurement points, and the color describes the amplitude of the Rayleigh wave. The slope of a line is the Rayleigh wave propagation velocity, which was calculated by the least-squares method.
Figure 5 shows the Rayleigh wave propagation on mango 6 (Line A, 0 h). The line had two slopes, which were calculated as 330 and 37 m/s. Therefore, one LIP shock wave propagated on the mango peel, while the other was the Rayleigh wave generated on the mangoes.

3.3. Shift in the Rayleigh Wave Velocity of Mangoes during Storage

The Rayleigh wave propagation velocity V [m/s] is given by:
V = 0.87 σ + 1.12 σ 1 + σ G ρ
where G (Pa), σ, and ρ (kg/m3) are the shear elasticity, Poisson’s ratio, and density, respectively. The changes in V can be regarded as the changes in G if the changes in the density and Poisson’s ratio of mangoes are sufficiently small that they can be ignored during the storage period. According to [52], shear elasticity of fruit flesh is strongly correlated to firmness. Here, we consider the change in the firmness of mangoes as the change in the Rayleigh wave propagation velocity.
Figure 6 shows the relationship between the Rayleigh wave propagation velocity and the storage time of mango 6 at Line A (Figure 2). The Rayleigh wave propagation velocity decreased during storage. The reduction rates of the Rayleigh wave propagation velocity after 96 and 216 h were approximately 10% and 1.2%, respectively. Therefore, we assumed that the changes in the firmness of mango 6 were nearly complete after 96 h of storage. Comparing the Rayleigh wave propagation velocities at 96 and 168 h revealed that the velocity increased by around 3% although the storage time increased. The increased velocity is attributed to the error related to installation of the LDV and the measurement points. Since we put reflection seals (approximately 3 mm × 3 mm) at each measurement point, the average circumference (270 mm) contained approximately ±6 mm error, indicating that the Rayleigh wave propagation velocity contained an approximately ±4% measurement error. In this experiment, mangoes with a change rate in the Rayleigh wave velocity within ±4% were not considered to have a change in the firmness as the threshold in the Rayleigh wave propagation velocity was ±4%.
Figure 7 shows the Rayleigh wave propagation velocity on mangoes 1–20 measured around Line A at 0, 48, and 96 h. In addition, Figure 8 plots the change rate of the Rayleigh wave propagation velocity from 0 to 96 h, where the ±4% threshold is added as a reference. Almost all mangoes showed the same trend, where the Rayleigh wave propagation velocity decreased every 48 h (Figure 7). Although mangoes 1 and 14 slightly increased their Rayleigh wave propagation velocities, these were attributed to measurement error because the reduction rates of the Rayleigh wave propagation velocity for both mangoes were within the threshold (Figure 8). The Rayleigh wave propagation velocity increased by over 10% in 96 h for mangoes 16 and 18. Figure 9 shows cross-sectional pictures of mango 16, which were taken after the experiment. Mango 16 contained a cavity and showed some decay. Therefore, it is assumed that the Rayleigh wave propagation velocities of mangoes 16 and 18 increased due to the existence of the cavity near the measurement point or potential internal decay.

3.4. Effect of a Seed on Measuring the Rayleigh Wave Propagation Velocity

We investigated the effect of a seed on the measurement of the Rayleigh wave propagation velocity to consider the reliability of our method. The Rayleigh wave velocities that propagated on Lines A and B (Figure 2b) of mangoes 9–20 were measured. Figure 10 shows the Rayleigh wave propagations on Lines A and B of mango 12 at 0 h. The Rayleigh wave propagated to point 24 on Line A, although it only propagated up to point 10 on Line B (Figure 10). Furthermore, the Rayleigh wave propagation velocities on Lines A and B were calculated as 36.8 and 41.6 m/s, respectively.
Figure 11 shows the Rayleigh wave propagation velocities on Lines A and B of mangoes 9–20 at 0 h. The propagation velocities on Line B were larger than those on Line A, except for mangoes 10 and 18. The propagation velocities of mangoes 10 and 18 on Line B were smaller than those on Line A, which can be explained by the measurement error because they are within the 4% threshold. A previous study found that the Rayleigh wave propagation velocity depended on the fruit flesh thickness [52]. Therefore, the mango seed might have affected the propagation velocity on Line B.
Next, Figure 12 shows the change rate of the Rayleigh wave propagation velocities of mangoes 9–20 on Lines A and B. In Figure 12, the change rate of the propagation velocity was calculated using 0 and 96 h. The Rayleigh wave propagation velocities on Lines A and B showed the same trend, where the velocity decreased during storage. We could not detect a shift in the firmness of mangoes 12 and 15 on Line B because their change rates of the Rayleigh wave propagation velocity were within the 4% threshold. Nevertheless, the shifts in firmness of mangoes 12 and 15 were detected based on Line A. Mangoes 16 and 18 increased their propagation velocities on Lines A and B during storage, indicating that they might have had a cavity near the measurement point or potential decay inside. These results imply that the Rayleigh wave along Line A is less susceptible to seed-related effects and is better suited for the firmness assessment than Line B. In the future, we will investigate the locations of the measurement area for firmness assessment of mangoes in detail.

4. Conclusions

This work realized a firmness assessment for soft-flesh mangoes using a LIP shock wave excitation technique. LIP is generated near the excitation point on mangoes by condensing a high-output Nd:YAG pulsed laser.
The experiment, which employed 20 Kent mangoes as test materials, confirmed that our system can generate a Rayleigh wave on a mango fruit by applying an impulse excitation force based on the LIP shock wave excitation technique. Next, Rayleigh waves were generated on the mangoes during storage and their propagation velocity was investigated. The Rayleigh wave propagation velocity decreased as the storage time increased. The Rayleigh wave propagation velocity on the equator of Kent mangoes tended to decrease by over 4% in 96 h. The Rayleigh wave measured on two different lines propagated an independent distance and showed a different change rate of propagation velocity during 96-h storage.
The 0S2 mode frequency, which is traditionally used for flesh fruit firmness assessments, was not excited on the mangoes used in the experiment. These results demonstrate that our system is effective for non-contact and non-destructive firmness assessments for fruit such as mangoes, which do not show the 0S2 mode frequency.
We investigated the suitable measurement location for firmness assessment of mangoes. One was set on the equator, which is where the 0S2 mode frequency is traditionally measured in fruit firmness assessments. The other was set on the orthogonal direction to the equator. If the firmness is assessed on the orthogonal direction to the equator, a mango may estimate more firmly than an actual state. This is because the Rayleigh wave propagation velocity on the orthogonal to the equator was larger than that on the equator. The reduction rate of the Rayleigh wave propagation velocity on the equator during storage tended to be greater than that on the orthogonal line to the equator. Hence, the Rayleigh wave propagation velocity should be measured on the equator for the firmness assessment of mangoes. In the future, we will consider in detail the point where a Rayleigh wave is excited (excitation point) and the measurement area where the wave propagates.

Author Contributions

Conceptualization, N.H.; methodology, N.H.; software, N.A.; validation, N.H., N.A. and I.K.; formal analysis, N.A., M.M. and K.Y.; investigation, N.H. and N.A.; resources, N.A., M.M. and K.Y.; data curation, N.A. and N.H.; writing—original draft preparation, N.A. and N.H.; writing—review and editing, N.H., N.A. and I.K.; visualization, N.A.; supervision, N.H.; project administration, N.H.; funding acquisition, N.H. All authors have read and agreed to the published version of the manuscript.

Funding

This research was partly supported by the Tojuro Iijima Foundation for Food Science and Technology, grant number 25, and the Japan Society for the Promotion of Science for their support under Grants-in-Aid for Scientific Research Programs (Grants-in-Aid for Scientific Research (B), Project No. JP 19H02088).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Nordey, T.; Lechaudel, M.; Genard, M.; Joas, J. Factors affecting ethylene and carbon dioxide concentrations during ripening: Incidence on final dry matter, total soluble solids content and acidity of mango fruit. J. Plant Physiol. 2016, 196–197, 70–78. [Google Scholar] [CrossRef] [PubMed]
  2. Guo, Z.; Huang, W.; Peng, Y.; Chen, Q.; Ouyang, Q.; Zhao, J. Color compensation and comparison of shortwave near infrared and long wave near infrared spectroscopy for determination of soluble solids content of ‘Fuji’ apple. Postharvest Biol. Technol. 2016, 115, 81–90. [Google Scholar] [CrossRef]
  3. Fan, S.; Zhang, B.; Li, J.; Huang, W.; Wang, C. Effect of spectrum measurement position variation on the robustness of NRI spectroscopy models for soluble solids content of apple. Biosyst. Eng. 2016, 143, 9–19. [Google Scholar] [CrossRef]
  4. Zude, M.; Herold, B.; Roger, J.; Bellon-Maurel, V.; Landahl, S. Non-destructive tests on the prediction of apple fruit flesh firmness and soluble solids content on tree and in shelf life. J. Food Eng. 2006, 77, 254–260. [Google Scholar] [CrossRef]
  5. Peng, Y.; Lu, R. Prediction of apple fruit firmness and soluble solids content using characteristics of multispectral scattering images. J. Food Eng. 2007, 82, 142–152. [Google Scholar] [CrossRef]
  6. Kawano, S.; Watanabe, H.; Iwamoto, M. Determination of sugar content in intact peaches by near infrared spectroscopy with fiber optics in interactance mode. J. Jpn. Soc. Hort. Sci. 1992, 61, 445–451. [Google Scholar] [CrossRef] [Green Version]
  7. Ma, T.; Li, X.; Inagaki, T.; Yang, H.; Tsuchikawa, S. Noncontact evaluations of soluble solids content in apples by near-infrared hyperspectral imaging. J. Food Eng. 2018, 224, 53–61. [Google Scholar] [CrossRef]
  8. Perez-Marin, D.; Sanchez, M.; Paz, P.; Soriano, M.; Guerrero, J.; Garrido-Varo, A. Non-destructive determination of quality parameters in nectarines during on-tree ripening and postharvest storage. Postharvest Biol. Technol. 2009, 52, 180–188. [Google Scholar] [CrossRef]
  9. Mendoza, F.; Lu, R.; Ariana, D.; Cen, H.; Bailey, B. Integrated spectral and image analysis of hyperspectral scattering data for prediction of apple fruit firmness and soluble solids content. Postharvest Biol. Technol. 2011, 62, 149–160. [Google Scholar] [CrossRef]
  10. Munera, S.; Amigo, J.M.; Blasco, J.; Cubero, S.; Talens, P.; Aleixos, N. Ripeness monitoring of two cultivars of nectarine using VIS-NIR hyperspectral reflectance imaging. J. Food Eng. 2017, 214, 29–39. [Google Scholar] [CrossRef]
  11. Rungpichayapichet, P.; Mahayothee, B.; Nagle, M.; Khuwijitjaru, P.; Muller, J. Robust NIRS models for non-destructive prediction of postharvest fruit ripeness and quality in mango. Postharvest Biol. Technol. 2016, 111, 31–40. [Google Scholar] [CrossRef]
  12. Minas, I.S.; Blanco-Cipollone, F.; Sterle, D. Accurate non-destructive prediction of peach fruit internal quality and physiological maturity with a single scan using near infrared spectroscopy. Food Chem. 2021, 335, 127626. [Google Scholar] [CrossRef] [PubMed]
  13. Ventura, M.; Jager, A.; Putter, H.; Roelofs, F.P.M.M. Non-destructive determination of soluble solids in apple fruit by near infrared spectroscopy (NIRS). Postharvest Biol. Technol. 1998, 14, 21–27. [Google Scholar] [CrossRef]
  14. Schmilovitch, Z.; Mizrach, A.; Hoffman, A.; Egozi, H.; Fuchs, Y. Determination of mango physiological indices by near-infrared spectrometry. Postharvest Biol. Technol. 2000, 19, 245–252. [Google Scholar] [CrossRef]
  15. Saranwong, S.; Sornsrivichai, J.; Kawano, S. Prediction of ripe-stage eating quality of mango fruit from its harvest quality measured nondestructively by near infrared spectroscopy. Postharvest Biol. Technol. 2004, 31, 137–145. [Google Scholar] [CrossRef]
  16. Liu, H.; An, K.; Su, S.; Yu, Y.; Wu, J.; Xiao, G.; Xu, Y. Aromatic characterization of mangoes (Mangifera indica L.) using solid phase extraction coupled with gas chromatography-mass spectrometry and olfactometry and sensory analysis. Foods. 2020, 9, 75. [Google Scholar] [CrossRef] [Green Version]
  17. Fernandez-Trujillo, J.P.; Dos-Santos, N.; Martinez-Alcaraz, R.; Bleis, I.L. Non-destructive assessment of aroma volatiles from a climacteric near-isogenic line of melon obtained by headspace stir-bar sorptive extraction. Foods. 2013, 2, 401–414. [Google Scholar] [CrossRef] [Green Version]
  18. Wei, Z.; Wang, J.; Zhang, W. Detecting internal quality of peanuts during storage using electronic nose responses combined with physicochemical methods. Food Chem. 2015, 177, 89–96. [Google Scholar] [CrossRef]
  19. Lebrun, M.; Plotto, A.; Goodner, K.; Ducamp, M.; Baldwin, E. Discrimination of mango fruit maturity by volatiles using the electric nose and gas chromatography. Postharvest Biol. Technol. 2008, 48, 122–131. [Google Scholar] [CrossRef]
  20. Kendra, P.E.; Roda, A.L.; Montgomery, W.S.; Schnell, E.Q.; Niogret, J.; Epsky, N.D.; Heath, R.R. Gas chromatography for detection of citrus infestation by fruit fly larvae (Diptera: Tephritidae). Postharvest Biol. Technol. 2011, 59, 143–149. [Google Scholar] [CrossRef]
  21. Zhang, B.; Xi, W.; Wei, W.; Shen, J.; Ferguson, I.; Chen, K. Changes in aroma-related volatiles and gene expression during low temperature storage and subsequent shelf-life of peach fruit. Postharvest Biol. Technol. 2011, 60, 7–16. [Google Scholar] [CrossRef]
  22. Landahl, S.; Terry, L.A. Non-destructive discrimination of avocado fruit ripeness using laser Doppler vibrometry. Biosyst. Eng. 2020, 194, 251–260. [Google Scholar] [CrossRef]
  23. Fathizadeh, Z.; Aboonajmi, M.; Beygi, S.R.H. Nondestructive firmness prediction of apple fruit using acoustic vibration response. Sci. Hortic. 2020, 262, 109073. [Google Scholar] [CrossRef]
  24. Kim, K.; Lee, S.; Kim, M.; Cho, B. Determinatino of apple firmness by nondestructive ultrasonic measurement. Postharvest Biol. Technol. 2009, 52, 44–48. [Google Scholar] [CrossRef]
  25. Vasighi-Shojae, H.; Gholami-Parashkouhi, M.; Mohammadzamani, D.; Soheili, A. Ultrasonic based determination of apple quality as a nondestructive technology. Sens. Bio-Sens. Res. 2018, 21, 22–26. [Google Scholar] [CrossRef]
  26. Baltazar, A.; Aranda, J.I.; Gonzalez-Aguilar, G. Bayesian classification of ripening stages of tomato fruit using acoustic impact and colorimeter sensor data. Comput. Electron. Agric. 2008, 60, 113–121. [Google Scholar] [CrossRef]
  27. Schotte, S.; Belie, N.D.; Baerdemaeker, J.D. Acoustic impulse-response technique for evaluation and modelling of firmness of tomato fruit. Postharvest Biol. Technol. 1999, 17, 105–115. [Google Scholar] [CrossRef]
  28. Shmulevich, I.; Galili, N.; Howarth, M.S. Nondestructive dynamic testing of apples for firmness evaluation. Postharvest Biol. Technol. 2003, 29, 287–299. [Google Scholar] [CrossRef]
  29. Gomez, A.H.; Wang, J.; Pereira, A.G. Impulse response of pear fruit and its relation to Magness-Taylor firmness during storage. Postharvest Biol. Technol. 2005, 35, 209–215. [Google Scholar] [CrossRef]
  30. Ketelaere, B.D.; Howarth, M.S.; Crezee, L.; Lammertyn, J.; Viaene, K.; Bulens, I.; Baerdemaeker, J.D. Postharvest firmness changes as measured by acoustic and low-mass impact devices: A comparison of techniques. Postharvest Biol. Technol. 2006, 41, 275–284. [Google Scholar]
  31. Duprat, F.; Grotte, M.; Pietri, E.; Loonis, D. The Acoustic Impulse Response Method for Measuring the Overall Firmness of Fruit. J. Agric. Eng. Res. 1997, 66, 251–259. [Google Scholar] [CrossRef]
  32. Cooke, J.R. An Interpretation of the Resonant Behavior of Intact Fruits and Vegetables. ASABE 1972, 15, 1075–1080. [Google Scholar] [CrossRef]
  33. Hosoya, N.; Mishima, M.; Kajiwara, I.; Maeda, S. Non-destructive firmness assessment of apples using a non-contact laser excitation system based on a laser-induced plasma shock wave. Postharvest Biol. Technol. 2017, 128, 11–17. [Google Scholar] [CrossRef]
  34. Kajiwara, I.; Akita, R.; Hosoya, N. Damage detection in pipes based on acoustic excitations using laser-induced plasma. Mech. Syst. Sig. Process. 2018, 111, 570–579. [Google Scholar] [CrossRef]
  35. Hosoya, N.; Yoshinaga, A.; Kanda, A.; Kajiwara, I. Non-contact and non-destructive Lamb wave generation using laser-induced plasma shock wave. Int. J. Mech. Sci. 2018, 140, 486–492. [Google Scholar] [CrossRef]
  36. Huda, F.; Kajiwara, I.; Hosoya, N. Damage detection in membrane structures using non-contact laser excitation and wavelet transformation. J. Sound Vib. 2014, 333, 3609–3624. [Google Scholar] [CrossRef]
  37. Hosoya, N.; Nagata, M.; Kajiwara, I. Acoustic testing in a very small space based on a point sound source generated by laser-induced breakdown: Stabilization of plasma formation. J. Sound Vib. 2013, 332, 4572–4583. [Google Scholar] [CrossRef]
  38. Hosoya, N.; Kajiwara, I.; Inoue, T.; Umenai, K. Non-contact acoustic tests based on nanosecond laser ablation: Generation of a pulse sound source with a small amplitude. J. Sound Vib. 2014, 333, 4254–4264. [Google Scholar] [CrossRef]
  39. Hosoya, N.; Kajiwara, I.; Umenai, K.; Maeda, S. Dynamic characterizations of underwater structures using noncontact vibration tests based on nanosecond laser ablation in water: Evaluation of passive vibration suppression with damping materials. J. Vib. Control. 2018, 24, 3714–3725. [Google Scholar] [CrossRef]
  40. Huda, F.; Kajiwara, I.; Hosoya, N.; Kawamura, S. Bolt loosening analysis and diagnosis by non-contact laser excitation vibration tests. Mech. Syst. Sig. Process. 2013, 40, 589–604. [Google Scholar] [CrossRef]
  41. Kurahashi, S.; Mikami, K.; Kitamura, T.; Hasegawa, N.; Okada, H.; Kondo, S.; Nishikino, M.; Kawachi, T.; Shimada, Y. Demonstration of 25-Hz-inspection speed laser remote sensing for internal concrete defects. J. Appl. Remote Sens. 2018, 12, 015009. [Google Scholar] [CrossRef] [Green Version]
  42. Hosoya, N.; Umino, R.; Kanda, A.; Kajiwara, I.; Yoshinaga, A. Lamb wave generation using nanosecond laser ablation to detect damage. J. Vib. Control. 2018, 24, 5842–5853. [Google Scholar] [CrossRef]
  43. Hosoya, N.; Terashima, Y.; Umenai, K.; Maeda, S. High spatial and temporal resolution measurement of mechanical properties in hydrogels by non-contact laser excitation. AIP Adv. 2016, 6, 095223. [Google Scholar]
  44. Hitchman, S.; Wijk, K.; Davidson, Z. Monitoring attenuation and the elastic properties of an apple with laser ultrasound. Postharvest Biol. Technol. 2016, 121, 71–77. [Google Scholar] [CrossRef]
  45. Podymova, N.B.; Kalashnikov, I.E.; Bolotova, L.K.; Kobeleva, L.I. Laser-ultrasonic nondestructive evaluation of proposity in particulate reinforced metal-matrix composites. Ultrasonics 2019, 99, 105959. [Google Scholar] [CrossRef] [PubMed]
  46. Ji, B.; Zhang, Q.; Cao, J.; Li, H.; Zhang, B. Non-contact detection of delamination in stainless steel/carbon steel composites with laser ultrasonic. Optik 2021, 26, 165893. [Google Scholar] [CrossRef]
  47. Cao-Rial, M.T.; Moreno, C.; Quintela, P. Determination of Young modulus by using Rayleigh waves. Appl. Math. Modell. 2020, 77, 439–455. [Google Scholar] [CrossRef]
  48. Yue, Z.; Qiu, P.; Yang, R.; Yang, G. Experimental study on a Mach cone and trailing Rayleigh waves in a stress wave chasing running crack problem. Theor. Appl. Fract. Mech. 2019, 104, 102371. [Google Scholar] [CrossRef]
  49. Na, J.K.; Blackshire, J.L. Interaction of Rayleigh surface waves with a tightly closed fatigue crack. NDT&E Int. 2010, 43, 432–439. [Google Scholar]
  50. Pfeifer, D.; Kim, J.; Jacobs, L.J. Nonlinear Rayleigh waves to evaluate plasticity damage in X52 pipeline material. Mech. Syst. Sig. Process. 2020, 143, 106794. [Google Scholar] [CrossRef]
  51. Onodera, Y.; Choi, P.-K. Surface-wave models on soft gels. J. Acoust. Soc. Am. 1998, 104, 3358–3363. [Google Scholar] [CrossRef]
  52. Ikeda, T.; Choi, P.K.; Ishii, T.; Arai, I.; Osawa, M. Firmness evaluation of watermelon flesh by using surface elastic waves. J. Food Eng. 2015, 160, 28–33. [Google Scholar] [CrossRef] [Green Version]
  53. Hosoya, N.; Nagata, M.; Kajiwara, I.; Umino, R. Nano-second Laser induced Plasma shock wave in Air for non-contact Vibration Tests. Exp. Mech. 2016, 56, 1305–1311. [Google Scholar] [CrossRef]
  54. Georgiev, V.B.; Krylov, V.V.; Qin, Q.; Attenborough, K. Generation of flexural waves in plates by laser- initiated airborne shock waves. J. Sound Vib. 2011, 330, 217–228. [Google Scholar] [CrossRef] [Green Version]
Foods 10 00323 g001 550

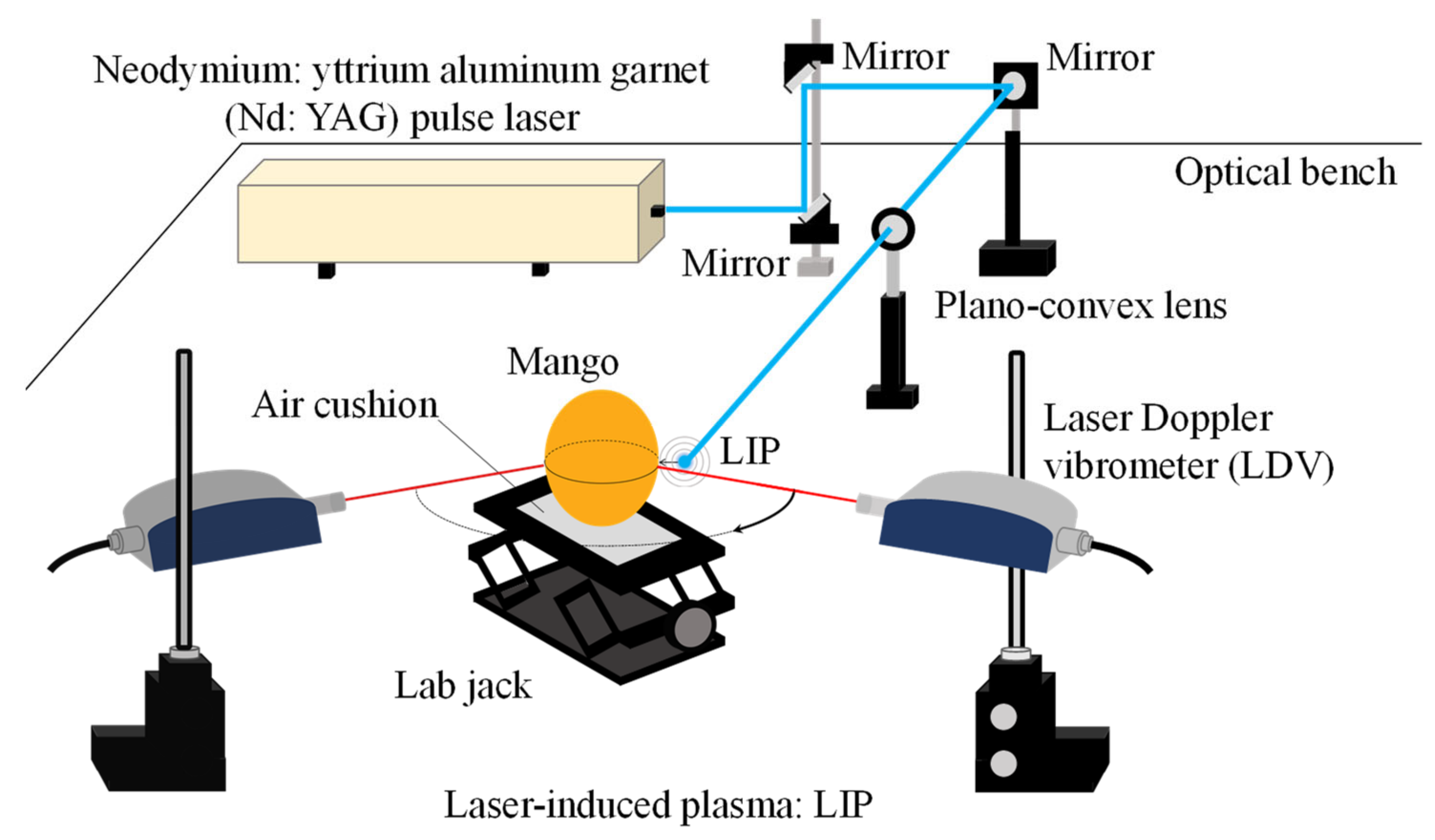

Figure 1. Firmness assessment system for mangoes using a LIP shock wave as a non-contact and non-destructive excitation method.
Figure 1. Firmness assessment system for mangoes using a LIP shock wave as a non-contact and non-destructive excitation method.
Foods 10 00323 g001
Foods 10 00323 g002 550

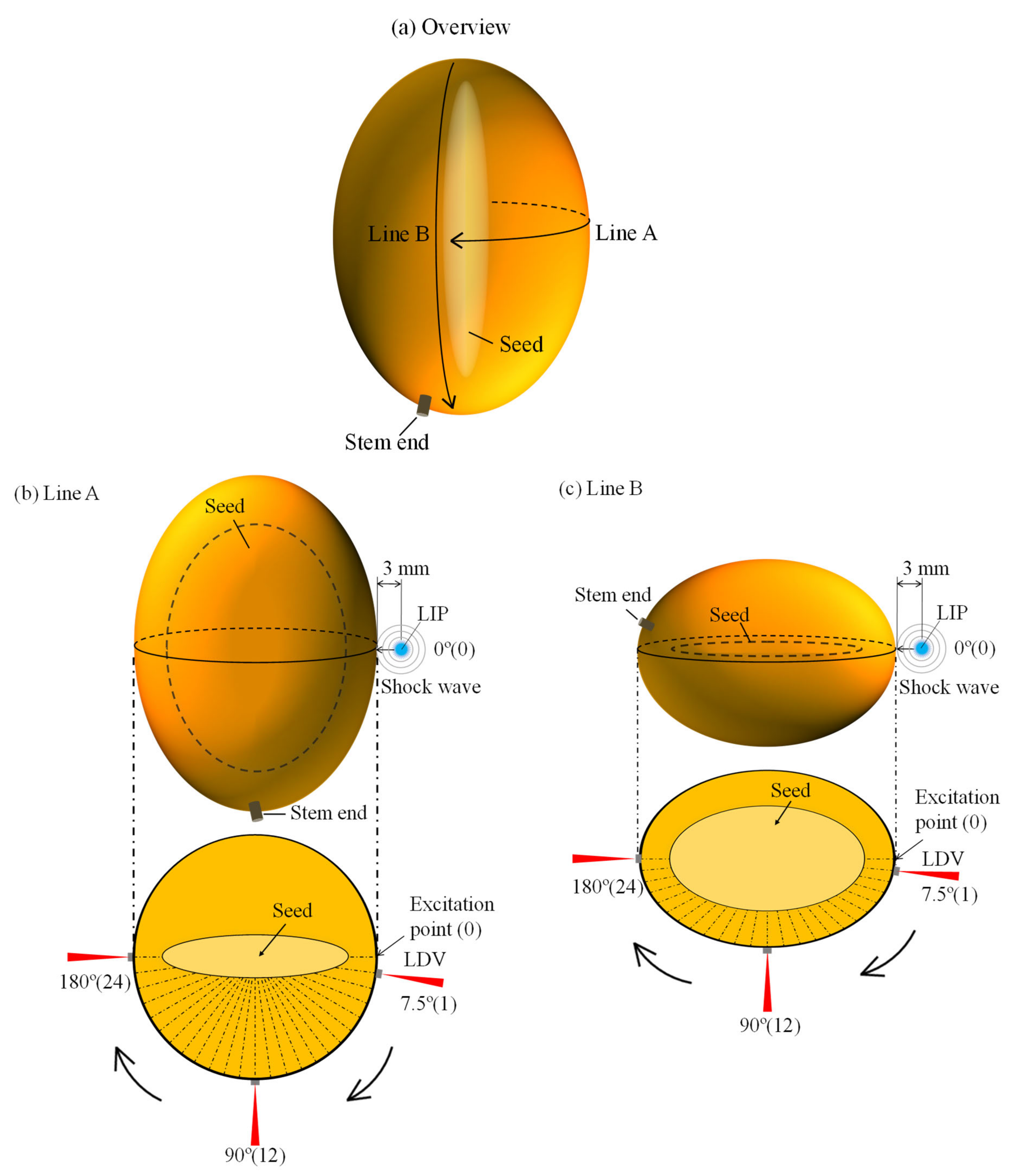

Figure 2. Measurement paths of the Rayleigh wave on a mango. (a) Overview of a mango. (b) Line A represents the measurement points on the equator. (c) Line B represents the measurement points orthogonal to the equator.
Figure 2. Measurement paths of the Rayleigh wave on a mango. (a) Overview of a mango. (b) Line A represents the measurement points on the equator. (c) Line B represents the measurement points orthogonal to the equator.
Foods 10 00323 g002
Foods 10 00323 g003a 550Foods 10 00323 g003b 550

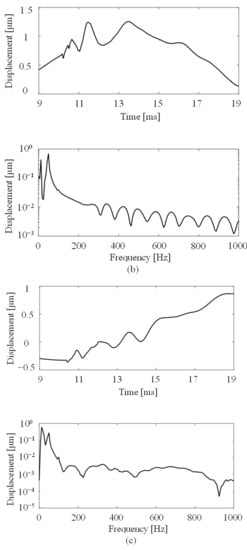

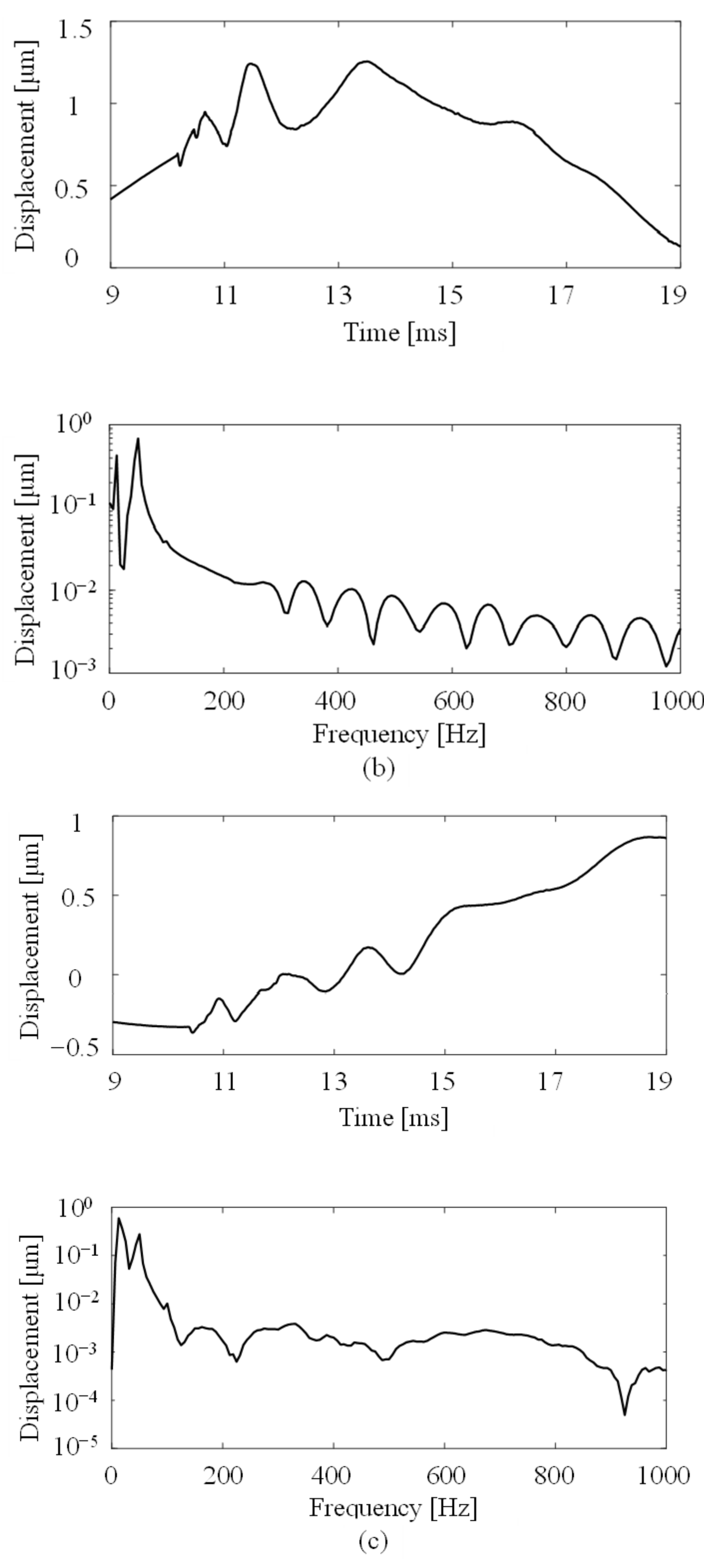

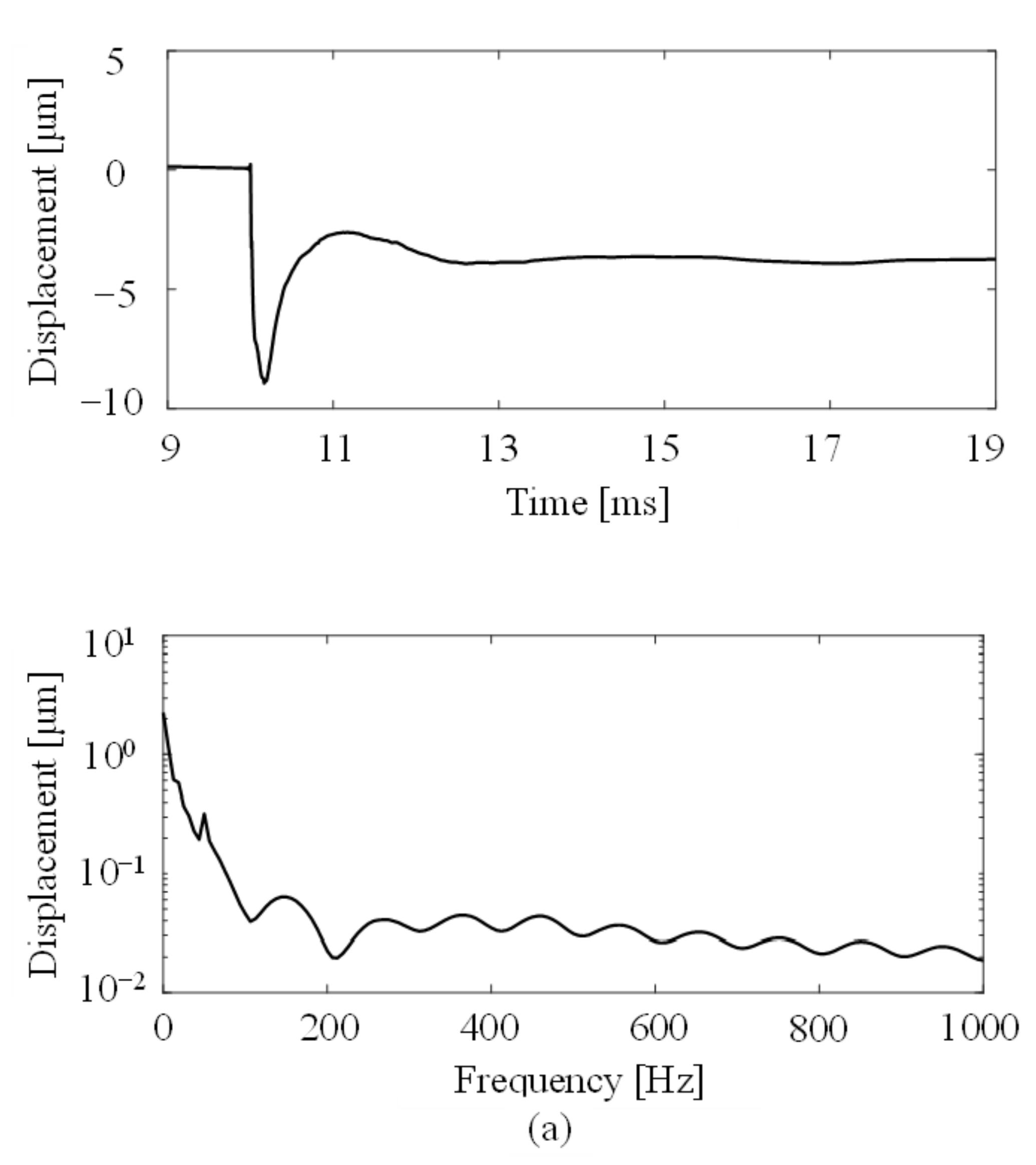

Figure 3. Time history responses and Fourier spectra of the measured displacement on mango 6 at (a) point 1, (b) point 12, and (c) point 24. (Measurement path: Line A).
Figure 3. Time history responses and Fourier spectra of the measured displacement on mango 6 at (a) point 1, (b) point 12, and (c) point 24. (Measurement path: Line A).
Foods 10 00323 g003aFoods 10 00323 g003b
Foods 10 00323 g004 550

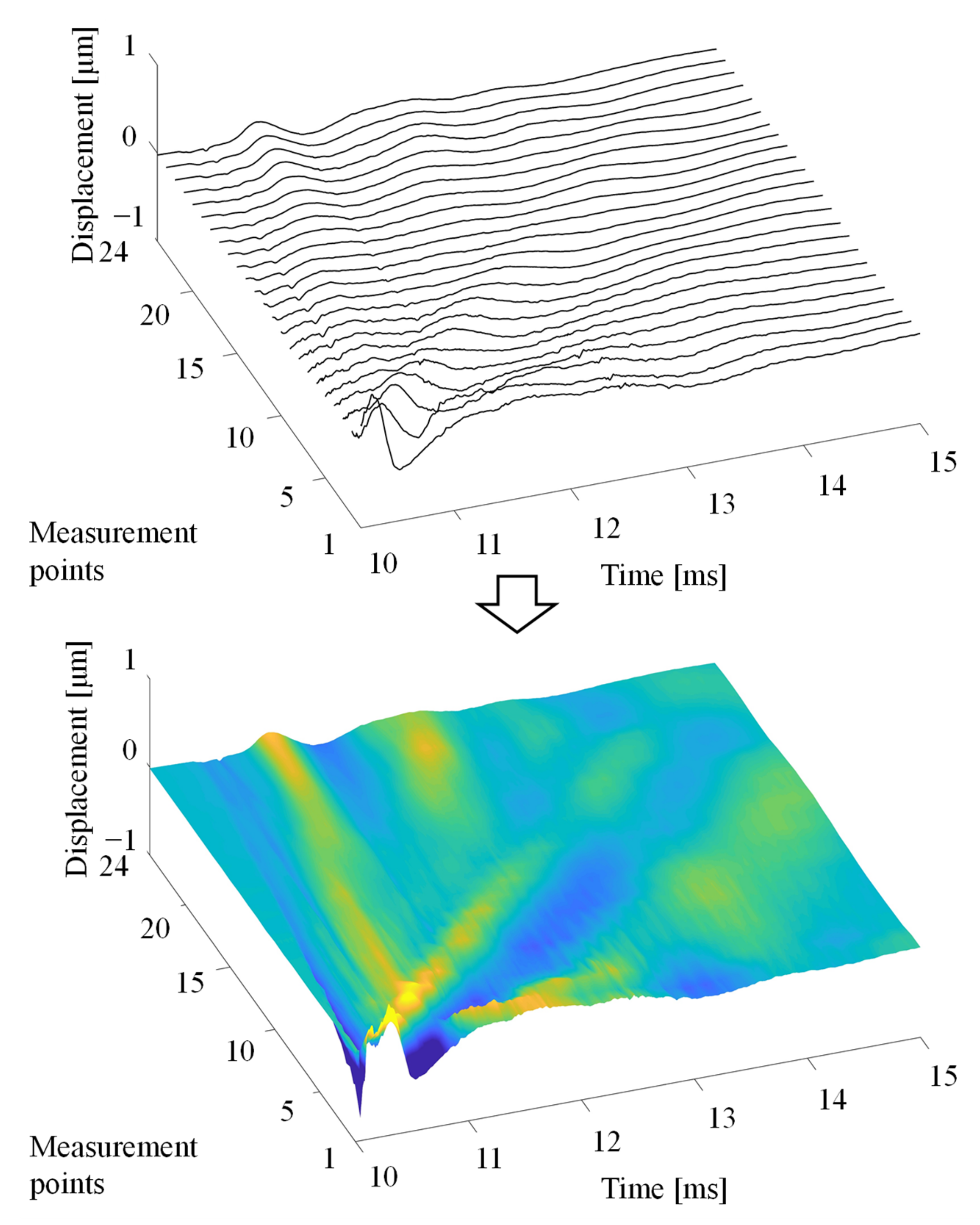

Figure 4. Visualization of Rayleigh wave propagation by arranging the time history responses of the measured displacement.
Figure 4. Visualization of Rayleigh wave propagation by arranging the time history responses of the measured displacement.
Foods 10 00323 g004
Foods 10 00323 g005 550

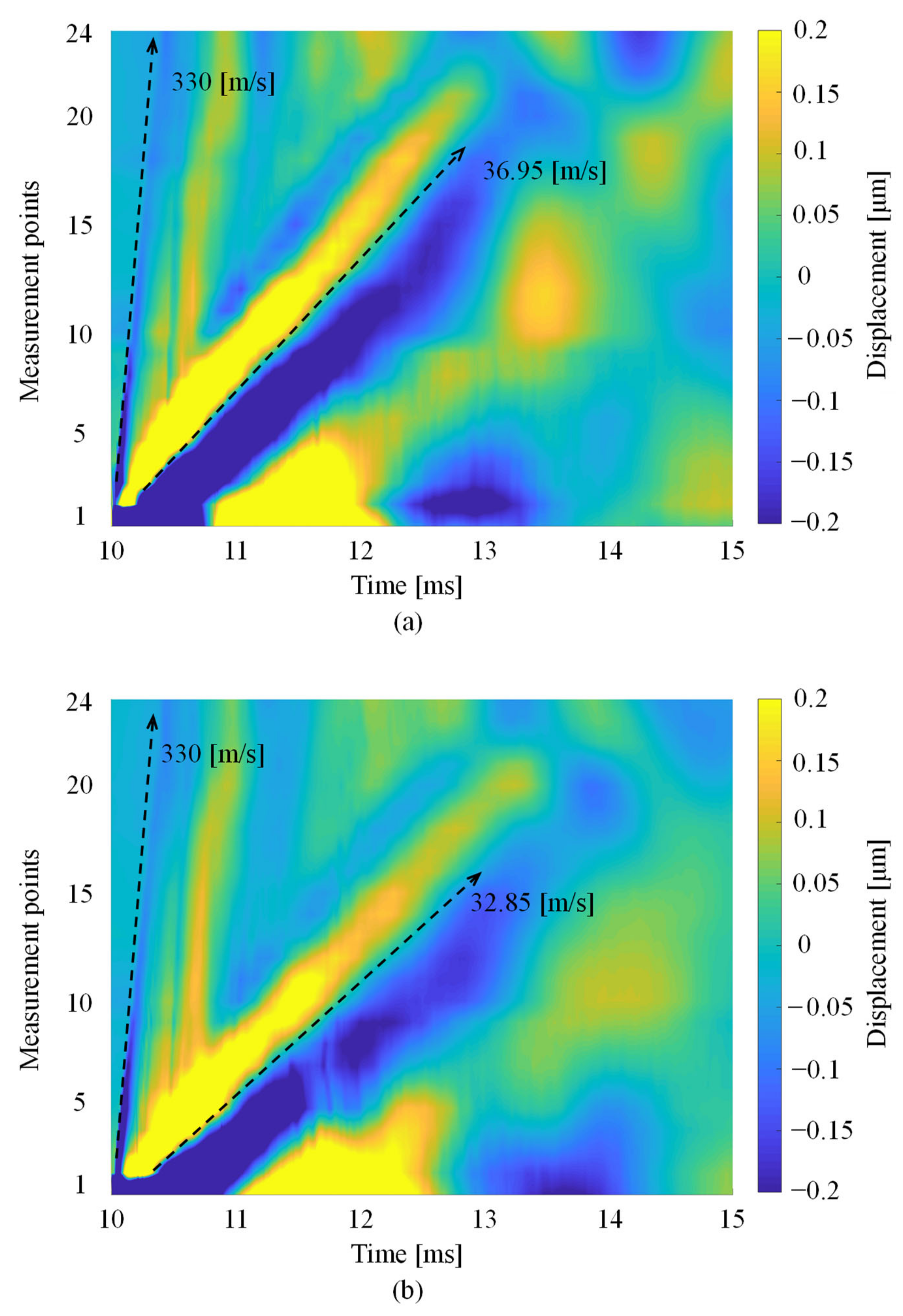

Figure 5. Rayleigh wave propagation on mango 6 on (a) Line A at 0 and (b) 216 h.
Figure 5. Rayleigh wave propagation on mango 6 on (a) Line A at 0 and (b) 216 h.
Foods 10 00323 g005
Foods 10 00323 g006 550

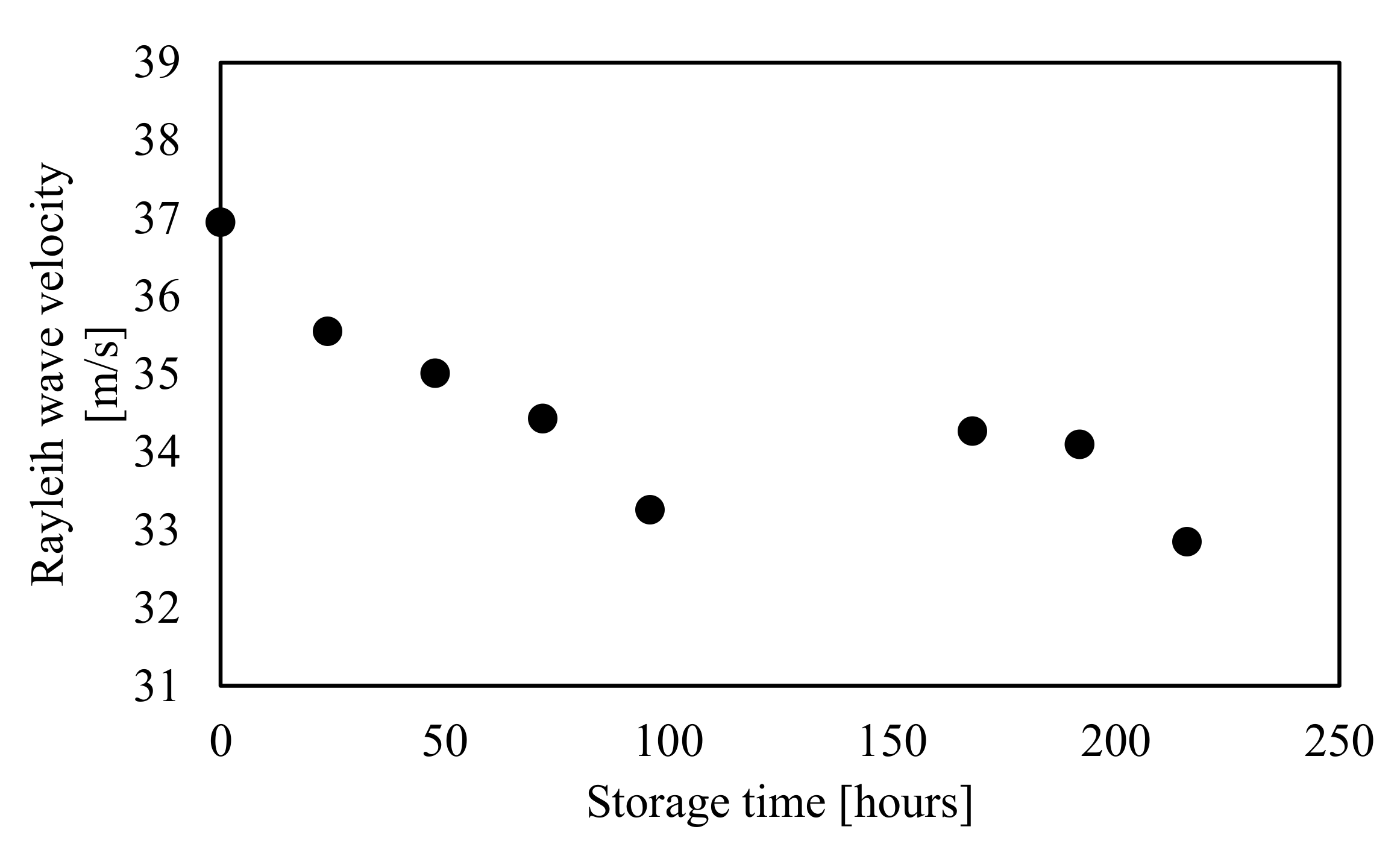

Figure 6. Relationship between the Rayleigh wave velocity and storage time of mango 6 (Measurement path: Line A).
Figure 6. Relationship between the Rayleigh wave velocity and storage time of mango 6 (Measurement path: Line A).
Foods 10 00323 g006
Foods 10 00323 g007 550

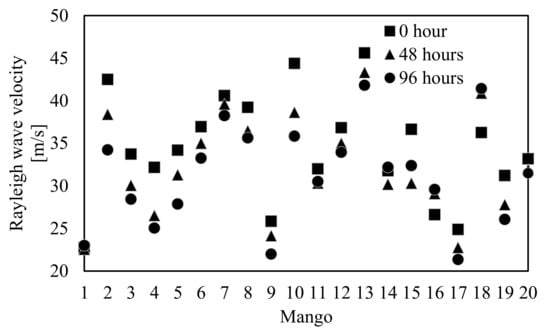

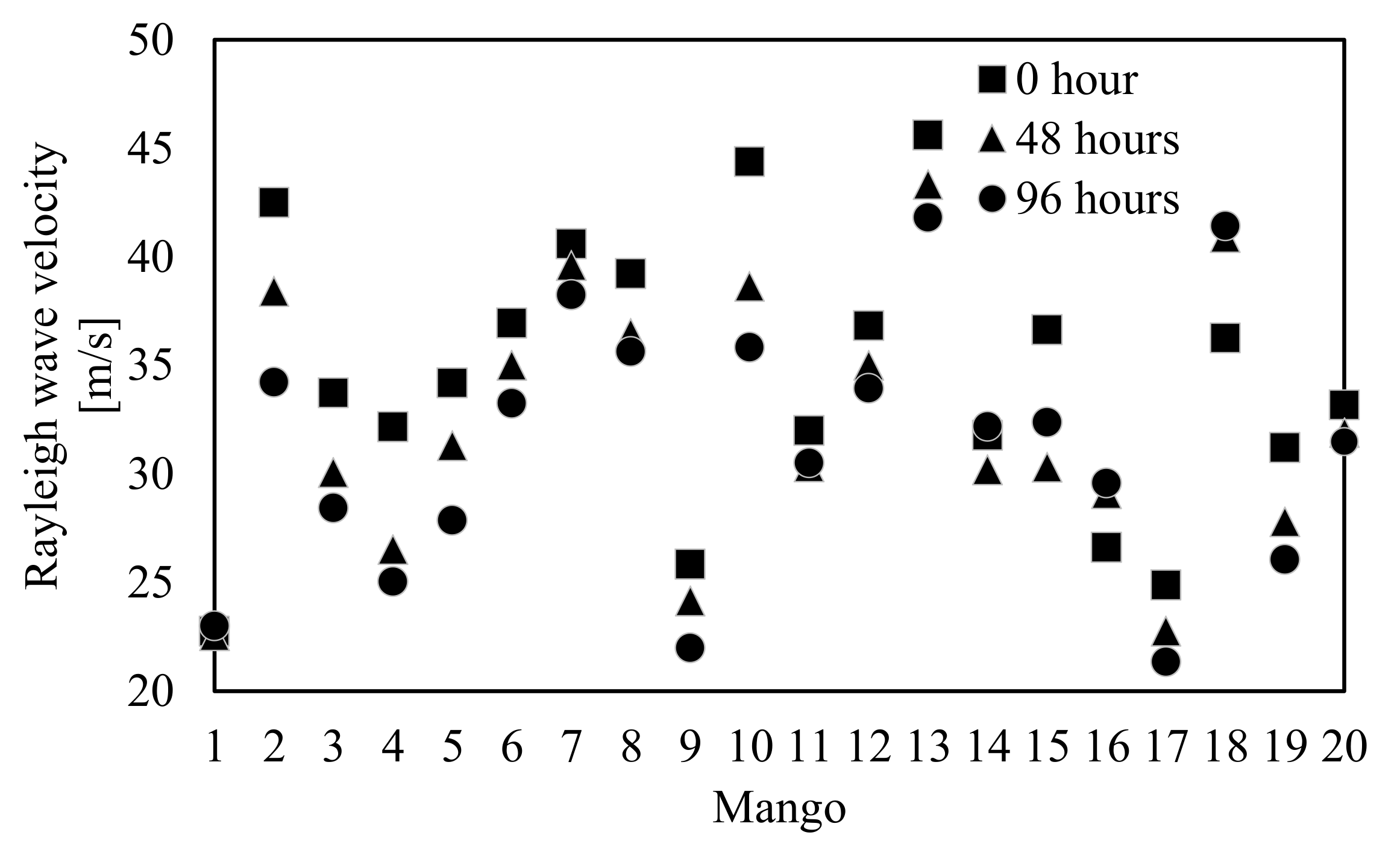

Figure 7. Shift in the Rayleigh wave velocity measured around Line A for mangoes 1–20 at 0, 48, and 96 h.
Figure 7. Shift in the Rayleigh wave velocity measured around Line A for mangoes 1–20 at 0, 48, and 96 h.
Foods 10 00323 g007
Foods 10 00323 g008 550

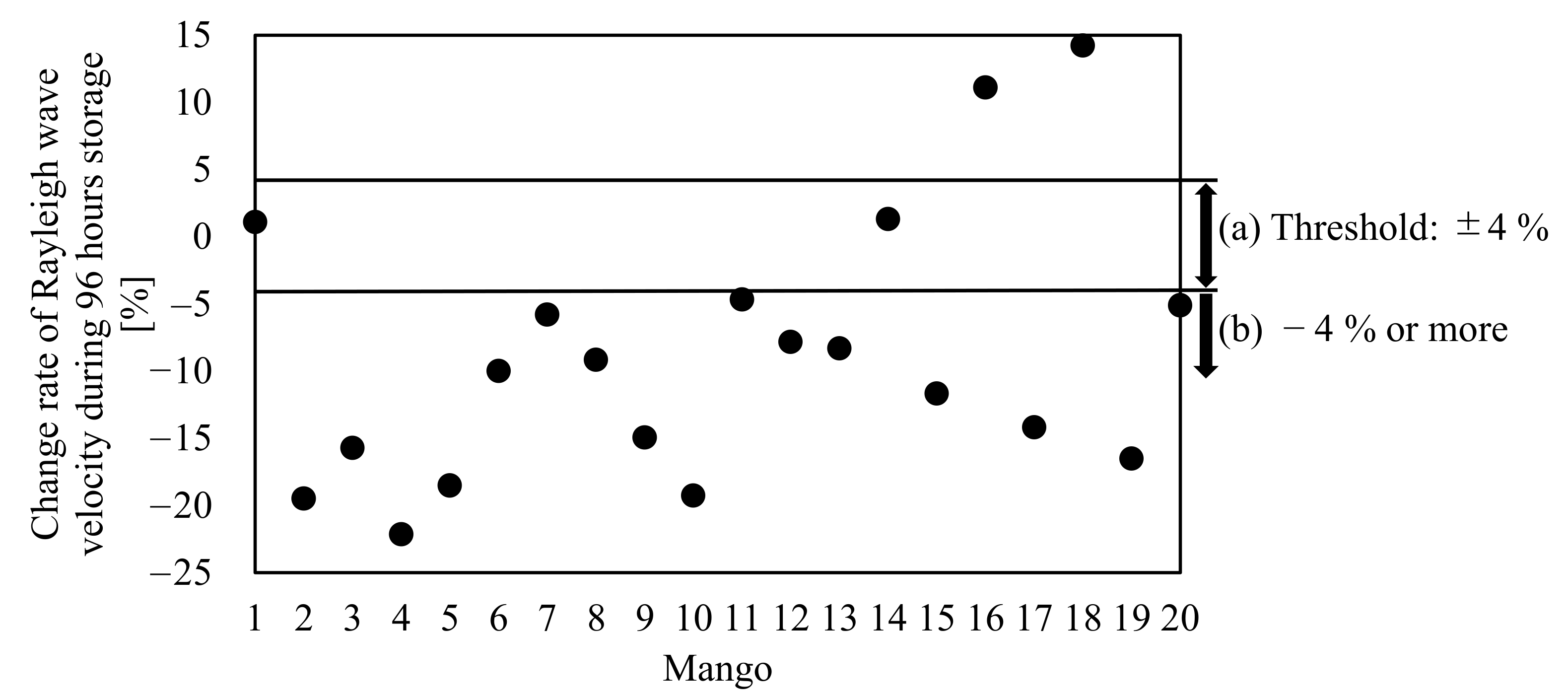

Figure 8. Change rate of the Rayleigh wave velocity measured around Line A of mangoes 1–20 after 96 h of storage. (a) Change rate of the Rayleigh wave is within the threshold. (b) Change rate of the Rayleigh wave exceeds the threshold.
Figure 8. Change rate of the Rayleigh wave velocity measured around Line A of mangoes 1–20 after 96 h of storage. (a) Change rate of the Rayleigh wave is within the threshold. (b) Change rate of the Rayleigh wave exceeds the threshold.
Foods 10 00323 g008
Foods 10 00323 g009 550
Figure 9. Cross-section picture that shows cavity decay (mango 16).
Figure 9. Cross-section picture that shows cavity decay (mango 16).
Foods 10 00323 g009
Foods 10 00323 g010 550

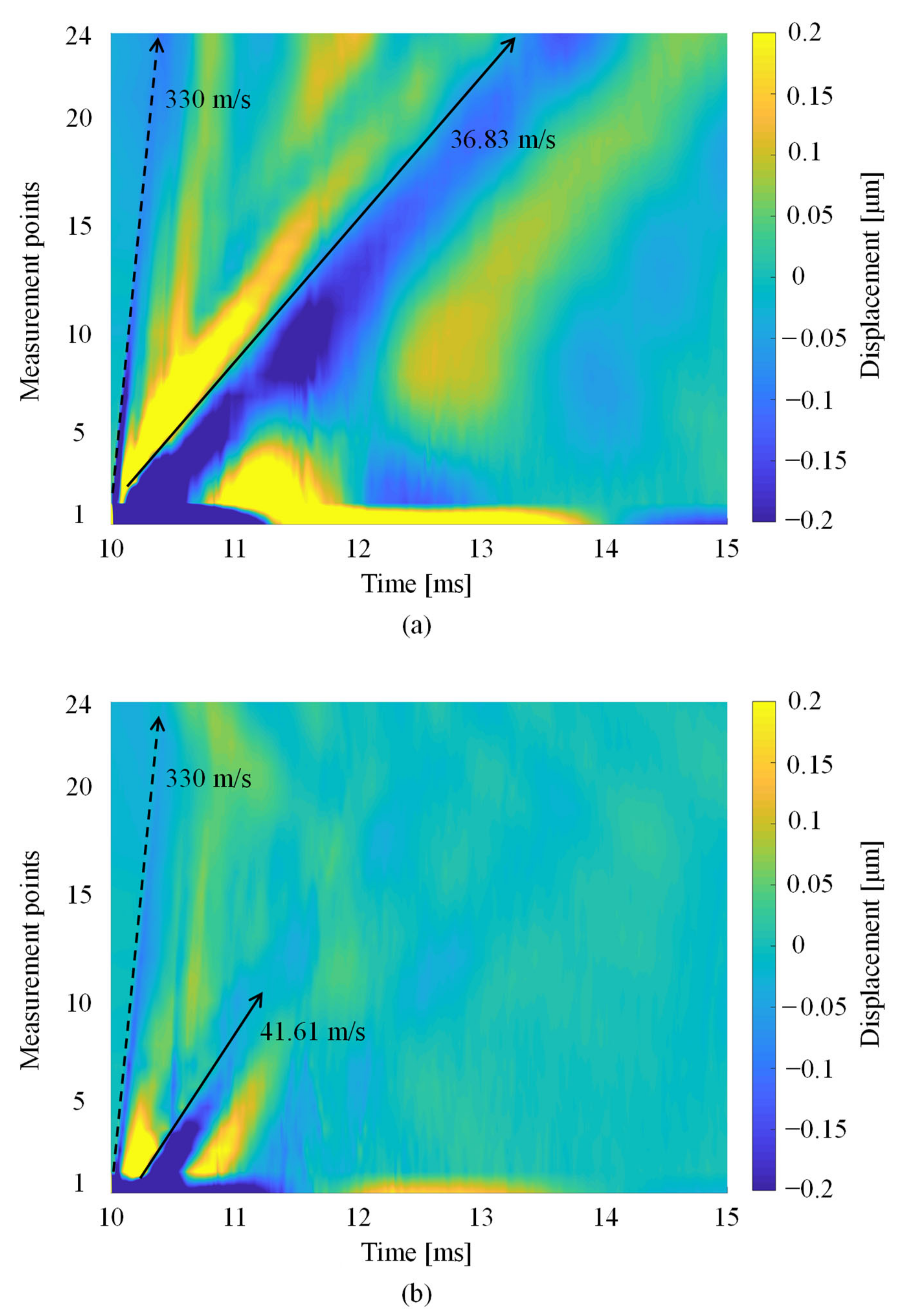

Figure 10. Rayleigh wave propagation on mango 12 at 0 h. (a) Line A where the measurement points are on the equator, (b) Line B where the measurement points are orthogonal to the equator.
Figure 10. Rayleigh wave propagation on mango 12 at 0 h. (a) Line A where the measurement points are on the equator, (b) Line B where the measurement points are orthogonal to the equator.
Foods 10 00323 g010
Foods 10 00323 g011 550

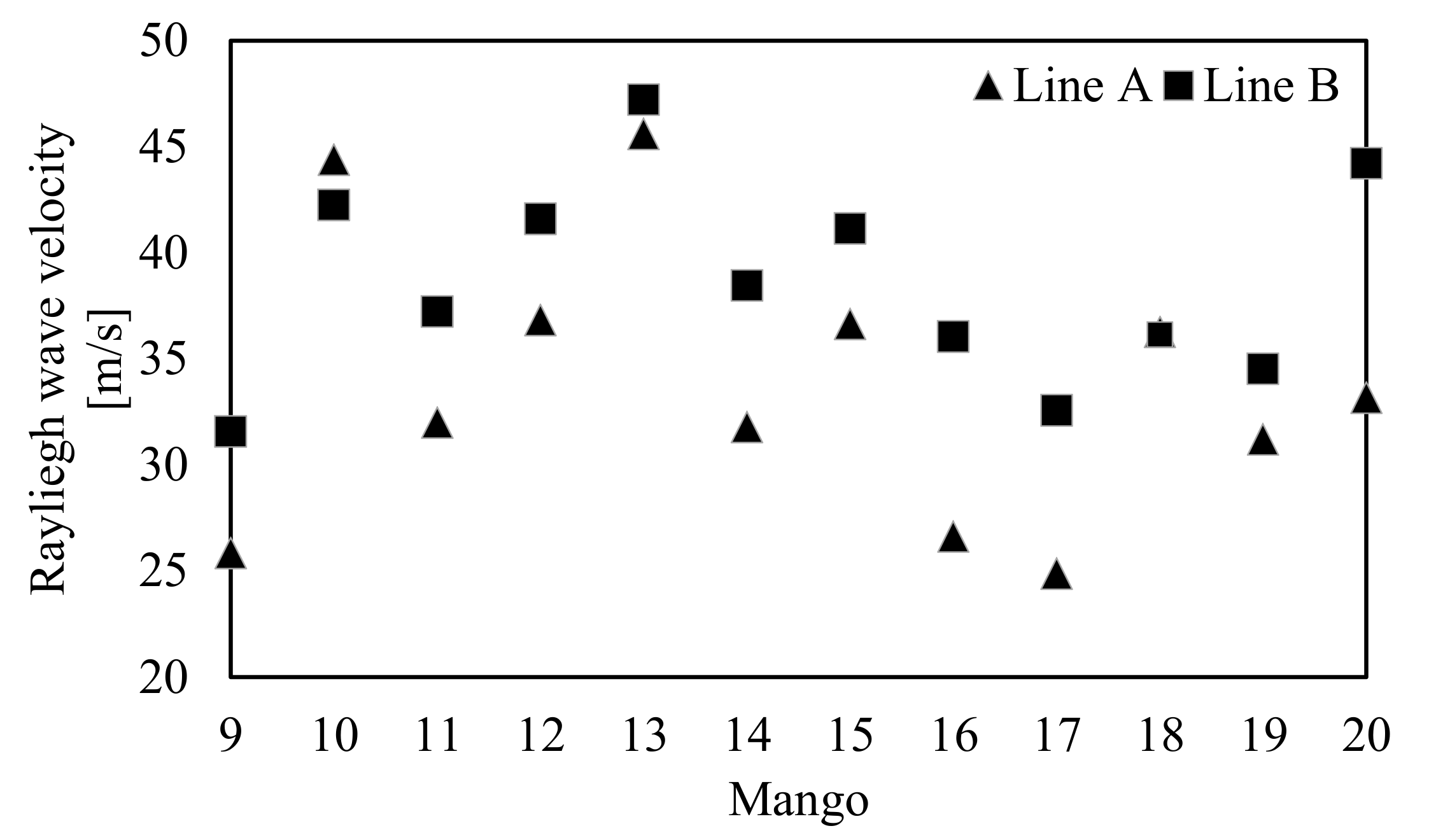

Figure 11. Rayleigh wave velocity measured around Line A and Line B of mangoes 9–20 at 0 h.
Figure 11. Rayleigh wave velocity measured around Line A and Line B of mangoes 9–20 at 0 h.
Foods 10 00323 g011
Foods 10 00323 g012 550

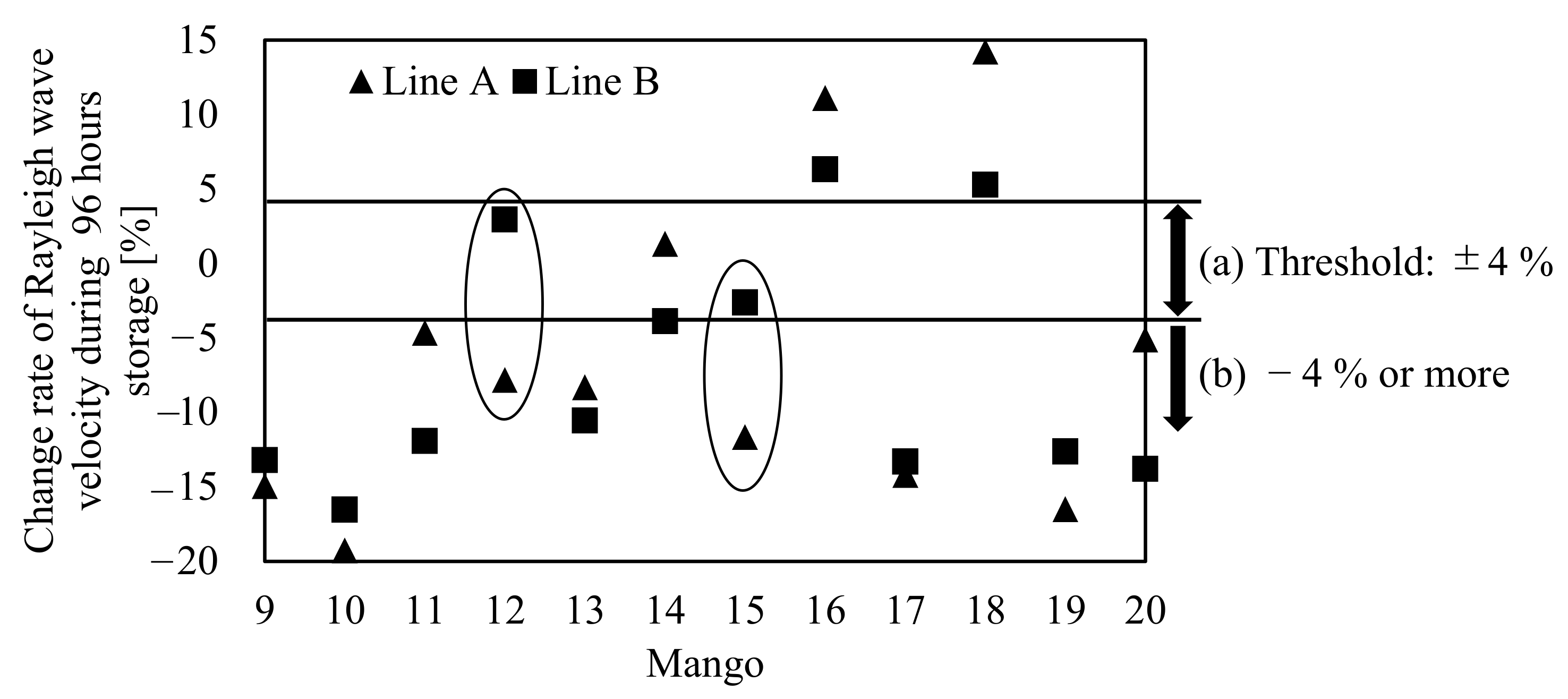

Figure 12. Change rate of Rayleigh wave velocity measured around Line A and Line B of mangoes 9–20 during 96-h storage. (a) Change rates of Rayleigh wave are within threshold. (b) Change rate of Rayleigh wave exceeds threshold.
Figure 12. Change rate of Rayleigh wave velocity measured around Line A and Line B of mangoes 9–20 during 96-h storage. (a) Change rates of Rayleigh wave are within threshold. (b) Change rate of Rayleigh wave exceeds threshold.
Foods 10 00323 g012
Table
Table 1. Mass, density, and circumference of mangoes.
Table 1. Mass, density, and circumference of mangoes.
Sample No.Mass (g)Density (kg/m3)Circumference (m)
Average457.010940.270
1531.9978.00.240
2510.210010.300
3493.910260.280
4495.410640.298
5493.1990.00.300
6496.711580.284
7490.011740.284
8501.8741.00.277
9437.610200.281
10435.9815.00.280
11371.810390.253
12371.710390.242
13391.410940.262
14401.211210.250
15426.511920.240
16438.912270.280
17465.113000.300
18398.311130.284
19480.613430.281
20519.614520.280
Table
Table 2. Measurement paths and storage times of mangoes.
Table 2. Measurement paths and storage times of mangoes.
Sample No.Measurement PathStorage Time (h)
1–5, 7, 8Line A0, 48, 96
6Line A0, 24, 48, 72, 96, 168, 192, 216
9–20Lines A and B0, 48, 96
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Arai, N.; Miyake, M.; Yamamoto, K.; Kajiwara, I.; Hosoya, N. Soft Mango Firmness Assessment Based on Rayleigh Waves Generated by a Laser-Induced Plasma Shock Wave Technique. Foods 2021, 10, 323. https://doi.org/10.3390/foods10020323

AMA Style

Arai N, Miyake M, Yamamoto K, Kajiwara I, Hosoya N. Soft Mango Firmness Assessment Based on Rayleigh Waves Generated by a Laser-Induced Plasma Shock Wave Technique. Foods. 2021; 10(2):323. https://doi.org/10.3390/foods10020323

Chicago/Turabian Style

Arai, Nayuta, Masafumi Miyake, Kengo Yamamoto, Itsuro Kajiwara, and Naoki Hosoya. 2021. "Soft Mango Firmness Assessment Based on Rayleigh Waves Generated by a Laser-Induced Plasma Shock Wave Technique" Foods 10, no. 2: 323. https://doi.org/10.3390/foods10020323

APA Style

Arai, N., Miyake, M., Yamamoto, K., Kajiwara, I., & Hosoya, N. (2021). Soft Mango Firmness Assessment Based on Rayleigh Waves Generated by a Laser-Induced Plasma Shock Wave Technique. Foods, 10(2), 323. https://doi.org/10.3390/foods10020323

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
