A Quasi-Intramolecular Solid-Phase Redox Reaction of Ammonia Ligands and Perchlorate Anion in Diamminesilver(I) Perchlorate

Research Centre for Natural Sciences, Institute of Materials and Environmental Chemistry, Magyar Tudósok krt 2, H-1117 Budapest, Hungary
Department of Inorganic and Analytical Chemistry, Budapest University of Technology and Economics, Muegyetem rakpart 3, H-1111 Budapest, Hungary
Faculty of Natural Sciences and Mathematics, Ss. Cyril and Methodius University, 1000 Skopje, North Macedonia
Department of Chemistry, Biochemistry and Environmental Protection, Faculty of Sciences, University of Novi Sad, Trg Dositeja Obradovi´ca 3, Novi Sad 21000, Serbia
Szentagothai Research Centre, Environmental Analytical and Geoanalytical Research Group, University of Pécs, Ifjúság útja 20, H-7624 Pécs, Hungary
Deuton-X Ltd., Selmeci u. 89, H-2030 Érd, Hungary
Author to whom correspondence should be addressed.
Inorganics 2021, 9(5), 38;
Received: 3 April 2021 / Revised: 3 May 2021 / Accepted: 7 May 2021 / Published: 9 May 2021
(This article belongs to the Special Issue Redox-Active Ligand Complexes)


The reaction of ammoniacal AgNO3 solution (or aq. solution of [Ag(NH3)2]NO3) with aq. NaClO4 resulted in [Ag(NH3)2]ClO4 (compound 1). Detailed spectroscopic (correlation analysis, IR, Raman, and UV) analyses were performed on [Ag(NH3)2]ClO4. The temperature and enthalpy of phase change for compound 1 were determined to be 225.7 K and 103.04 kJ/mol, respectively. We found the thermal decomposition of [Ag(NH3)2]ClO4 involves a solid-phase quasi-intramolecular redox reaction between the perchlorate anion and ammonia ligand, resulting in lower valence chlorine oxyacid (chlorite, chlorate) components. We did not detect thermal ammonia loss during the formation of AgClO4. However, a redox reaction between the ammonia and perchlorate ion resulted in intermediates containing chlorate/chlorite, which disproportionated (either in the solid phase or in aqueous solutions after the dissolution of these decomposition intermediates in water) into AgCl and silver perchlorate. We propose that the solid phase AgCl-AgClO4 mixture eutectically melts, and the resulting AgClO4 decomposes in this melt into AgCl and O2. Thus, the final product of decomposition is AgCl, N2, and H2O. The intermediate (chlorite, chlorate) phases were identified by IR, XPS, and titrimetric methods.

Graphical Abstract

1. Introduction

Continuing our research on thermally initiated solid-phase, quasi-intramolecular redox reactions of compounds containing redox-active cationic and anionic parts [1,2,3,4], including ammonia complexes of transition metal with tetraoxometallate anions [5,6,7,8,9,10], we prepared some diamminesilver(I) complexes (e.g., [Ag(NH3)2]XO4, X = Mn and Cl) and studied them in detail. In this paper, we present our results on the investigation of monoclinic and orthorhombic diamminesilver(I) perchlorate polymorphs (1-M and 1-O).
The hydrated [Ag(NH3)2]ClO4.H2O (1-H2O) complex was described by Scagliari and Marangoni [11], but Bruni and Levi [12] raised issues against its existence. The occurrence of [Ag(NH3)3]ClO4 (compound 2) in the solid state and the quantum-chemical results about [Ag(NH3)2(H2O)]+ ion [13] prompted us to study the existence of hydrated forms of compound 1 [Ag(NH3)2(H2O)]ClO4 (compound 3) and [Ag(NH3)2]ClO4.H2O (1-H2O)).
Diamminesilver(I) perchlorate has two known polymorphs [14], a low-temperature monoclinic (1-M) and a high-temperature orthorombic one (1-M); however, the enthalpy of phase transition between them has not been studied yet. Furthermore, no spectroscopic data are available about the low-temperature polymorph. Although IR spectroscopic data are available for 1-O, their peak assignments are questionable. Furthermore, the thermal decomposition of compound 1 (1-O) has not been investigated previously. Therefore, in our present work, we supplied the available spectroscopic data about polymorph 1-O with low-temperature Raman results, compared their measured Raman spectroscopic data, and performed a correlation analysis for both polymorphs. The thermal analysis data, including DSC and TG-MS, were also evaluated to follow the thermal decomposition characteristics of compound 1 (1-O). Based on these results, we propose the possibility of solid-phase quasi-intramolecular redox reactions between ammonia ligand and perchlorate anion.

2. Results and Discussion

2.1. Efforts to Synthesize of Compound 1 and Its Hydrate(s)

Diamminesilver(I) perchlorate was first prepared by E. Mitscherlich [15] as a colorless crystalline material, when silver perchlorate was dissolved in ammonia, and the solution was left to evaporate. He did not determine the composition of the product. However, Miles et al. [16], and later Nockeman and Meyer [14], used the same procedure and identified the crystallized compounds as [Ag(NH3)2]ClO4 (compound 1). Scagliari and Marangoni reacted an ammoniacal silver nitrate solution with aq. sodium perchlorate at +5 °C [11] and analyzed the resulting crystalline mass as [Ag(NH3)2]ClO4.H2O (compound 1-H2O). Bruni and Levi repeated this experiment [12] and found that the product of the reaction was anhydrous compound 1. To solve this controversy, we performed a series of experiments to study the effect of reaction conditions (ammonia concentration, temperature) on the composition of products prepared in the reactions of AgClO4 and ammonia or [Ag(NH3)2]NO3 and NaClO4. In all cases, only anhydrous compound 1 was formed. Figure 1 shows the XRD of the reaction products according to the original methods of Mitscherlich and Bruni. The XRD patterns of the products of the two reactions were the same; thus, the formation of compound 1-H2O or compound 2 in these reactions can be excluded (Figure 2). However, several researchers managed to prepare compound 2 from AgClO4 and dry ammonia [12,17].
Quantum chemical calculations showed that there was no stable [Ag(NH3)2(OH2)]+ structure [3 + 0] (three coordinated and zero non-coordinated ligands), and this species always converges into a linear [Ag(NH3)2]+ ... OH2 hydrogen-bound structure [2 + 1] (two coordinated and one non-coordinated ligands), although a small interaction between the oxygen (in water) lone pair and the silver cation was detected [13]. The [Ag(NH3)3]+ [3 + 0] cation, however, has stable configurations [13,18].
[Ag(NH3)2(OH2)]+ = [Ag(NH3)2]+ ... OH2
[Ag(NH3)2]+ + NH3 = [Ag(NH3)3]+
Comparison of the Gibbs energy changes during the substitution of one of the ammonia molecules with water in the [Ag(NH3)3]+ cation (+7.5 kJ/mol [13]) (Equation (1)) and the addition of the third ammonia to an [Ag(NH3)2]+ cation (−30.5 kJ/mol [19]) (Equation (2)) suggest that the formation of hydrated diamminesilver(I) complexes is unfavorable.
We managed to isolate [Ag(NH3)3]ClO4 in the solid phase. The heat that formed in the solid phase (−363.7 kJ/mol) and in the aqueous solutions (−318.5 kJ/mol) did not differ much, but the hydration of liberated ammonia in the aqueous solution may change the Gibbs energy of the reaction to be positive, which prevents the direct formation of the hydrated diamminesilver(I) perchlorate (1-H2O) [20,21].

2.2. Phase Transition of Compound 1

Compound 1 has two polymorphs (monoclinic and orthorhombic), and the phase transition point was between 200 and 210 K [14]. The cryogenic DSC tests performed on the sample (Figure S1) showed that the phase transition temperature was 226 K, and the transition enthalpy was 103.04 kJ/mol.

2.3. General Spectroscopic Characterization and Correlation Analysis of Compounds 1-M and 1-O

The solid-state IR and the solid and aqueous solution-phase Raman spectra of the high-temperature orthorhombic polymorph of compound 1 (1-O) have already been discussed [14,16]. However, the spectral characteristics of the low-temperature monoclinic form (1-M) and the factor group analysis of the modifications have not been done yet. Therefore, correlation analyses were performed for perchlorate-ion, ammonia ligand, and silver ion (site groups were Cs and C2h, and factor groups were C2h and D2h, for all three species in monoclinic (P2/m) and orthorhombic (Pnmn) polymorphs, respectively). The correlation analysis showed the number of bands belonging to normal modes and distinguished them from combination or overtone bands of the spectra. The vibrational spectra of crystals may be quite difficult to interpret in the case of bands due to second-order (and higher-order) transitions. One of the problems is that although the total wave vector of the combined transition, k, must be 0 (k = k1 + k2 = 0), the individual values of the component vectors could be anywhere within the first Brillouin zone, which prevents the use of the terminology we are familiar with. In order to simplify things (and keeping in mind that this is not a paper that deals with solid-state physics primarily), we will continue to talk about “overtones” and “combinations” in the sense we use these terms for isolated molecules/ions. However, in reality, things are far more complicated.

2.4. Perchlorate Anion Modes

The isolated tetrahedral perchlorate ion has four normal modes, symmetric stretching (ν1(A1) (R)) and bending (ν2(E) (R)), and antisymmetric stretching (ν3(F2) (IR, R)) and bending (ν4(F2) (IR, R)). The total number of factor group modes due to internal perchlorate vibrations is 2 × 18 = 36 (2 × 9(IR) + 2 × 9 (R)) and 36 (18(IR) + 18(R)) vibrational degrees of freedom, for 1-M and 1-O, respectively (the monoclinic polymorph contains 2 crystallographically distinguishable perchlorate ions; thus, two sets of modes are available) (Figure 3). The hindered rotations (Rxyz)(F1) and translations (Txyz (F2)) of perchlorate ions result in 2 × 12 = 24 (2 × 6(IR) + 2 × 6(R)) and 24 (12(IR) + 12(R)) vibrational degrees of freedom, respectively (Figure S2a,b).

2.5. Ammonia Ligand Modes

The C3v ammonia ligand has two symmetric (ν1(A1) (IR, R) stretching and ν2(A1) (IR, R) bending) and two antisymmetric (ν3(E) (IR, R) stretching and ν4(E) (IR, R) bending) internal normal modes. The total number of factor group modes due to internal vibrations is 4 × 12 = 48(4 × 6(IR) + 4 × 6(R)) (four crystallographically distinguishable ammonia molecules) and 2 × 24 = 48 (2 × 12(IR) + 2 × 12(R)) (two crystallographically distinguishable ammonia molecules) (Figure 4).
The external vibrational modes (Tz(A1), Rz(A2) and Txy(E) or Rxy(E)) must be quadrupled due to four different ammonia molecules in the structure, which results in 4 × 12 = 48 (4 × 6(IR) + 4 × 6(R)) and 2 × 24 = 48 (2 × 12(IR) + 2 × 12(R)) vibrational degrees of freedom (Figure S3a,b).
Silver cations, four and two crystallographic types in the 1-M and 1-O polymorphs, have 4 × 3 (Tz (Au), Tx, Ty (2Bu)) and 2 × 6 (Tz(Au), Tz(B1u), Tx,Ty(2B2u), and (Tx,Ty (2B3u)) vibrational degrees of freedom, respectively. All of these are only infrared active modes. For both monoclinic and orthorhombic polymorphs, among 48 modes of translational origin, there are 3 acoustic modes that belong to Au + 2Bu modes, and the further 45 are optical modes (Figure 5). There are also 36 and 84 optical modes of rotational origin and due to internal vibrations, respectively.

2.6. Assignation of Vibrational Modes in Compound 1 Polymorphs

2.6.1. Anion Modes

The assignation of perchlorate IR bands and Raman shifts found in IR and Raman spectra of compound 1 can be seen in Table 1. The IR data were measured only at room temperature (O-1), but Raman shifts were recorded at 123 K (M-1) and 298 K (O-1) as well. The IR inactive symmetric stretching mode of perchlorate ion (ν1) appears as a single peak at 933 cm−1 in the spectrum of 1-O, which unambiguously shows the distortion of symmetric Td geometry. The antisymmetric stretching mode, as the most intense Cl–O band, is centered around 1050 cm−1. This band has a strongly asymmetric shape, and the shoulder detected on the left side shows the splitting of triple (F2) degeneracy as the consequence of the distortion of the geometry. The doubly and triply degenerated relatively weak ν2(Cl−O)(E)(450 cm−1) and ν4(Cl−O)(F2) bands (615 cm−1), respectively, were not split in the room temperature spectrum. The band system between 2050 and 1950 cm−1 contains ν1 + ν3a,b,c combinations and 2ν3a,b,c type (a,b,c—each of three bands set from F2 (Au, 2B1u, 2B2u, and B3u)) first overtones (Figure S2).
We recorded the Raman spectra at three different temperatures (123, 223, and 298 K) to study the effect of temperature and phase transformation on the numerical value/splitting of Raman shifts of 1-O (298 and 223 K) and 1-M (123 K). The spectra in the Cl–O stretching/bending modes range (1200–300 cm−1) can be seen in Figure 6. At room temperature and at 223 K, the Raman spectra of 1-O show a similar pattern. There is no pronounced splitting of bands, but a shoulder evolves into a band at 910 cm−1, on the right at the bottom of the very intensive ν1(A1) Raman band (933 cm−1 and 929 cm−1 for 1-O and 1-M, respectively). This small intensity band (shoulder) might be the first overtone of ν2(Cl−O) (E)(457 cm−1 at 223 K). This overtone is a wideband system that may contain several components for 1-O and a band consisting of two components for 1-M. It is also plausible that isotopomers (35Cl and 37Cl) may also contribute to this band [22]. Overtones of 2δas(ClO)(F2)(Ag, Bg) for 1-M appears together with band(s) of δs(NH).
The combined effect of low temperature and phase transformation causes the splitting/appearance of new bands in the Raman spectrum of 1-M at 223 K. The symmetric ν2(Cl−O)(E) appears as a four-component band system, including a shoulder, which proves that two different types of perchlorate ions exist. The intensive and sharp ν1(Cl−O)(A1) band did not split. Overlapping (* in Table 1 and Table 2) of the ν3(Cl−O)(F2) bands with the combination band system of ν4a,b,c(Cl−O)(F2) (2Ag and Bg for 1-M, or 2Ag, B1g, B2g and 2B3g for 1-O) and ν2a,b(Cl−O)(E) (Ag, Bg for 1-M and Ag, B1g, B2g and B3g for 1-O) components resulted in a wide band, which appears at room temperature. There was a poorly separated band system (1107, 1098, 1089, 1084, 1072, 1058, 1054, and 1044 cm−1) at 273 and 223 K for 1-O and 1-M, respectively. Combinations of ν2 + ν4 type seem to be located at the higher Raman shift side of the obtained range, while the ν3(Cl−O)(F2) bands are probably located in the lower or medium Raman shift range. The ν2(Cl−O)(E) band system contains two bands at 624 and 611 cm−1, which might be attributed to the two types of perchlorate ion and the doublet nature of the bands as well.

2.6.2. Cation Modes

The normal modes that belong to ammonia and the Ag–N linkages of compounds 1-O and 1-M are summarized in Table 2. The antisymmetric and symmetric N–H stretching (3364 and 3286 cm−1, respectively) modes in the IR spectrum of 1-O partly overlap the first overtone of the δas(NH) (~2 × 1653 cm−1, wide). The antisymmetric deformation of ammonia (ν4) is a doubly degenerated mode, and for four different ammonias one could expect 4 bands in the IR spectrum. In the Raman spectrum, this band is located at 3370 cm−1 (Ag, Bg), which decomposes into three components at 123 K (1-M, Ag, B1g, B2g, B3g, Table 2). The symmetric stretching band has a higher intensity in the Raman spectra than the antisymmetric one (3297 cm−1 for 1-O (Ag, B3g), and 3299 and 3291 sh cm−1 (Ag, Bg) for 1-M). The first overtone bands of δas(NH) gave two IR (3212 and 3185 cm−1, (B1u, B2u)) and two Raman bands (3191 and 3183 cm−1 (Ag,Bg)) for 1-M.
The symmetric δs(NH) Raman bands for 1-O and 1-M appear as a singlet band at 1259 cm−1 and 1219 cm−1, respectively. Since the 2δs(NH) has only one overtone band at 2439 cm−1, only one band may be associated with this mode, and this is probably the band located at 1219 cm−1. The other two bands located close to this mode (1263 and 1239 cm−1) belonged to 2δas(ClO)(F2) (2Ag, Bg) overtones. Due to the singlet nature of this mode, two IR bands (1244 and 1210 cm−1) (B1u and B2u) found in the IR spectrum of compound 1-O belong to the two different ammonia environments.
The wide IR band with the antisymmetric shape at 654 cm−1 belongs to ρ(NH) mode, and one of its higher wavenumber components may result in the wide but weak overtone centered at 1353 cm−1. In the Raman spectrum, this mode was found at 658 cm−1 for 1-O, and a doublet appeared in the Raman spectrum of 1-M (679, 666 cm−1).
The silver-nitrogen vibrational modes are in the far-IR region. The far-IR spectra of compound 1-O can be seen in Figure S4. There was a very wide band at 136 assigned as a mixed band of δ(OAgO), δ(OAgN), and δ(NAgN) modes, and a lower intensity and less wide band belonging to a lattice mode at 67 cm−1.

2.7. UV Spectroscopic Studies of Complex 1

Both the perchlorate and diamminesilver ions are colorless, thus no absorption is expected in the visible spectral region. Due to the closed d10 shell of the silver+ ion, there are no d-d transitions, but there is a weak Ag4d–5s transition at 250 nm, and the wide band at 310 nm may be an O–Ag or N–Ag LMCT band (Figure S5) [22,23,24]. The perchlorate ion in itself is UV silent [10,24]).

2.8. Non-Isothermal Decomposition of Compound 1 in an Inert Atmosphere and Air

Due to the strong oxidation power of the perchlorate anion and the reducing ability of ammonia ligands, there are two possible thermal decomposition routes of diamminesilver(I) perchlorate: (1) a solid-phase redox reaction between the perchlorate anion and the ammonia ligand, as was found in the case of permanganate [23], and (2) the loss of the ammonia ligand without any redox reaction, as was observed in the case of sulfate [25].
The decomposition process in an inert atmosphere starts with a slow mass decrease from about 50 °C. The process turns more intensive around 125 °C and results in a saw-tooth like DTG curve, with at least four decomposition processes, distinguished by their peak maxima at peak temperatures of 132, 173, 207, 251, and 408 °C. The character of the decomposition process is similar in both atmospheres (inert and air, Figure 7), but the mass decrease in argon is significantly higher than in air. The DTG peak maxima in air are also shifted below 300 °C by about 10 °C, and at higher temperatures by about 20 °C toward higher temperatures, compared to peak maxima in argon. This result suggests that oxygen in the air hinders the thermal decomposition of 1. The small mass loss of 0.7% in argon and 0.5% in air atmosphere up to ~125 °C most probably corresponds to adsorbed water and ammonia loss. Above this temperature, the decomposition processes overlap. In argon, in the next two steps (DTG maxima at 173 and 207 °C), complex 1 loses 7.6% and 7.8% of its mass, which is somewhat more than a molecule of NH3 per step (7.06%). It suggests that not only ammonia loss occurs up to ~270 °C. An additional mass loss of 6.7% with a DTG peak at 251 °C is also in accordance with this. In air, the decomposition processes overlap more with DTG peaks at 181 and 219 °C and corresponding mass losses of 11.8% and 4.5%. The overall mass decrease up to ~270 °C in air (16.8%) is significantly less than in argon (22.8%). In argon, based on the TG results, a part of the ammonia evaporates, and the other part reacts with the oxygens of the perchlorate even in the solid phase. As the result of the decomposition reaction, the intermediate (AgClO2.5) is formally the mixture of AgClO3 and AgClO2, in a ratio of approximately 1:1. The decomposition temperatures of supposed intermediates (AgClO2, AgClO3, AgClO4) do not agree with the decomposition temperatures we found for the decomposition intermediates of compound 1. First, AgClO4 does not decompose at 220 °C into lower chlorine oxyacid salts because the thermal stability of AgClOx (x = 2–4) salts increases with an increasing oxidation degree of chlorine in the oxyacid residue [26,27,28]. According to this result, the thermal decomposition temperatures of these chlorine oxyacid salts, AgClO2, AgClO3, and AgClO4 are 156 °C, 270 °C, and 476 °C, respectively [26]. It means that the formal AgClO2.5 composition, which decomposes at 441 °C, cannot be a mixture of AgClO2 and AgClO3, but only a mixture of AgCl and AgClO4. On the other hand, in air, the mass of the intermediate at ~285 °C is 83.3%, which is in good agreement with the calculated value for AgClO4 (85.89%). A possible explanation is that the aerial oxygen takes a role in ammonia oxidation instead of the ClO4 ion. The mass of the final residue in argon is very low, only 47.2%, somewhat higher than the metallic silver content of 1, while in air, it is 60.3% at 500 °C. This is in good agreement with the theoretical value for AgCl (59.38%).
In an inert atmosphere, the first two decomposition processes are followed by endothermic heat effects (DSC minima at 174 and 211 °C), and the third process by an exothermic effect with a DSC maximum at 256 °C. In air, the tendency of the DSC curve is the same, but with higher peak temperatures and lower enthalpy changes (Figure S6). These heat effects support the theory of partial ammonia oxidation discussed above.
The last decomposition step with a DTG maximum at 408 °C is an exothermic process, with a mass loss of 30.1%.

2.9. The Nature of the Final Decomposition Product Formed in the Thermal Decomposition of Compound 1

To solve the problems listed above, we studied the final decomposition product (P-480, prepared by heating the sample at 480 °C for 2 h) by XRD. The powder X-ray diffractogram of the P-480 sample showed the absence of metallic silver and the presence of silver chloride (Figure S7). Thus, the last decomposition step that produces AgCl is a thermal decomposition reaction of silver(I) perchlorate into silver(I) chloride and oxygen.
[AgClO4, AgCl](l) → AgCl(s) + 2O2(g)
This reaction can explain the unexpected mass loss in the last decomposition step, because silver chloride melts at 452 °C (Figure S6) and its vapor pressure above the liquid and the inert gas stream results in a partial evaporation of AgCl [29]. The decomposition peak temperature (Tdec = 441 °C) of AgClO4 is lower than expected (Tdec = 476 °C) [26], because AgCl (Mp. = 452 °C) and AgClO4 (Mp. = 476 °C) form a eutectic melt (Mp. 325 °C, 1:1 AgCl:AgClO4), and the decomposition temperature of AgClO4 in this melt is lower than the decomposition point of pure AgClO4. The silver perchlorate decomposes in the liquid melt phase in an autocatalytic process at a lower temperature than in the solid phase [26]. The reaction heat was measured to be −85.68 kJ/mol.

2.10. Redox Interactions in the Thermal Decomposition Steps of Compound 1

The presence of AgCl in the decomposition intermediate formed at 300 °C—deeply below the thermal decomposition temperature of AgClO4—confirms that AgCl was formed in the solid phase quasi-intramolecular redox reaction of [Ag(NH3)2]ClO4 (compound 1). The TG-MS results (Figure 8 and Figure S8) show that in an inert atmosphere, redox reactions take place between 180 and 300 °C, when N2 (m/z = 28 (N2+) and H2O (18 (H2O+)) as ammonia oxidation products are formed. Supposing that ammonia is only oxidized into N2 and H2O, the six hydrogens of two molecules of ammonia in compound 1 can convert the perchlorate ion into formal “AgClO” (AgClO, AgCl + AgClO2 = 1:1, 2AgCl + AgClO3 or 3AgCl + AgClO4). This shows that 3/4 of the overall perchlorate ion content can only be reduced into AgCl. (Figure 9).
In an inert atmosphere, a small amount of nitric oxide (m/z = 30, NO), oxygen (m/z = 16, O+), and HCl (m/z = 36, HCl+) were also detected. Nitrous oxide (m/z = 44, N2O+) was not produced. The peak at m/z = 16 cannot be an NH2+ fragment of ammonia, because then, a much more intensive m/z = 17 (NH3 +) peak would be observed; instead of that, only a weak m/z = 17 (OH+) peak was found (Figure S8) [3].
In air, NO is the main oxidation product. HCl did not form, and a small amount of N2O (m/z = 44, N2O+) was also detected (Figure S9). The lack of HCl and the appearance of N2O might be attributed to the concurrent oxidation reaction with aerial oxygen instead of the perchlorate ion. The solid-state reaction product at 300 °C in air contains AgCl, AgClO4 (cubic and tetragonal), and AgClO4.H2O, together with a minor amount of metallic Ag (Figure 10). Since AgClO4 is extremely hygroscopic, AgClO4.H2O forms during the preparation of the samples for XRD by taking up humidity from the air.
With the use of stoichiometric relations, the formal reaction equations for the main and by-reactions (redox and non-redox) can be summarized according to Figure 9.

2.11. The Nature of Decomposition Intermediates Formed at 240 °C

Compound 1 gradually transforms into its decomposition intermediate between 200 and 300 °C (Figure 10). The peaks that belong to compound 1 can be seen in the curve of the I-240 sample (blue) with smaller intensity, together with new peaks of compounds. These newly formed compound peaks are also present in the I-300 sample, but with the peaks of the new products of consecutive decomposition reactions.
The composition of I-240 changed during storage in air for 3 days. The XRD of I-240 recorded as a function of time (Figure 11) showed that the peak intensities of silver perchlorate monohydrate increased, whereas the peak intensities belonging to the anhydrous polymorphs almost completely disappeared with increasing storage time. It means the changes in phase composition can be attributed to the hygroscopic nature of AgClO4; the transformation of the primary decomposition product is fast and decomposes easily into AgClO4 and AgCl even at 240 °C. However, there are some unassigned XRD peaks of the I-240 intermediate, which belong to a compound that contains coordinated ammonia (see the IR spectrum in Figure S10).
There are important differences in the shape of the perchlorate νas(ClO) bands, and band positions belong to the coordination-sensitive ammonia modes (δ(NH) and ρ(NH)) in the IR spectra of I-240 and compound 1 (Figure 12). Aqueous extraction of I-240 and the evaporation of the solution resulted in silver perchlorate monohydrate and an unknown phase. The IR (Figure 12) spectrum showed an important shift (60 cm−1) of peak positions and the shape of νas(Cl–O). The δs(NH) and ρ(NH) bands can be assigned to a more strongly coordinated NH3 ligand, as in compound 1 (shifting the δ(NH) towards the higher wavenumber range [30]). The unknown phase may be a silver salt of a chlorine oxyacid, which contains fewer than 2 ammonia per silver (e.g., a polymeric monoammine). This intermediate can decompose into the same compounds (N2, H2O, AgCl, AgClO4) as compound 1. We attributed the change in the shape of the antisymmetric Cl–O IR band to the presence of two different chlorine oxyacid compounds in the intermediate I-240. One is a perchlorate, the other is a chlorate compound. For the chlorate component, the νas(Cl–O) bands (AgClO3as(ClO) = 987,967) (Figure 12)) are expected to appear in the lower wavenumber range of the wide perchlorate νas(ClO) band. The presence of diamminesilver(I) chlorate cannot be expected because it melts and decomposes at 100 °C with the formation of AgClO3 [31].
The relative amount of perchlorate, chlorate, and chloride ions in the samples I-240 and aq. extract of I-240 were found to be 8.25:3.35:1 and 8.02:3.01:1, respectively. The chlorite intermediate contents of the two samples are close to each other, and ca. 1/4 of the compounds containing chlorine proved to be chlorate ions on both sample surfaces. The silver XPS signals (368.3 and 368.5 eV) are the same for all three expected component types (AgCl, AgClO3, and AgClO4 or their complexes with ammonia). The oxygen signals of chlorate and perchlorate ions could easily be distinguished (531.2–531.9 eV: chlorate, and 532.8 eV: perchlorate) (Figure 13).
Summarizing the IR, XRD, and XPS results, the reduction process is not a single-step process, but probably different parallel and consecutive reactions take place with intermediates like AgClO, AgClO2, and AgClO3, or their NH3 complexes. Taking into consideration the gaseous and solid reaction products, the relative amounts of these, the IR and XPS results of the intermediates, and the decomposition temperatures of AgClO, AgClO2, AgClO3, AgClO4, and their known ammonia complexes, we suggest the following general decomposition scheme (Figure 14). The stable intermediate complex formed at the beginning of decomposition (180–240 °C) may only be a material containing chlorate.
The decomposition reaction temperature of compound 1 is >180 °C; thus, the reactions on the left side of the scheme (decomposition routes/disproportionation of AgClO and AgClO2) may only be formed/decomposed in in situ processes. TG-MS shows the presence of O2 (m/z = 32, O2+) in the temperature range of the decomposition of compound 1, thus the evolution of oxygen below 235 °C (the melting point of AgClO3) probably belongs to the decomposition of AgClO/AgClO2, while above this temperature, it can only be a result of the decomposition of AgClO3 into AgCl and O2. The AgClO3 detected by IR and XPS may form directly (Figure 14) by the reduction of perchlorate ion, or from AgClO2 via disproportionation as well. The consecutive character of the first decomposition steps strongly suggests that the consecutive disproportionation steps (AgClO-AgClO2-AgClO3) are the main decomposition steps, and the decomposition with oxygen evolution, the redox reaction with HCl and Ag formation, and the non-redox thermal deammoniation of compound 1 are only by-reactions.

3. Materials and Methods

Deuton-X Ltd. supplied the chemical-grade compounds and analytical reagents (silver nitrate, sodium perchlorate monohydrate, 25% aq. ammonia solution, potassium carbonate, 70% aq. perchloric acid, ethanol, diethyl ether, 0.1 M standard NaOH and HCl, methyl red indicator).
All perchlorate complexes are potential explosives. Thus, they must be handled with great care.
Silver nitrate (3.4 g, 0.02 mol) was dissolved in 35 mL. of cc. NH3 solution, then 2.85 g (0.02 mol) sodium perchlorate monohydrate was added in 1.4 mL water. The mixture was left to evaporate, and the crystalline material was filtered off, then washed with a copious amount of cold water, ethanol, and diethyl ether. It was dried in air for 15 min in the dark and stored in a desiccator that contained CaO and a small amount of NH4Cl. We attempted to prepare compound 1-H2O in an analogous way, but by cooling the ammoniacal silver nitrate (prepared according to Mitscherlich [32]) and sodium perchlorate solutions to +5 °C.
Silver(I) perchlorate was prepared by dissolution of Ag2CO3 deposited in the reaction of silver(I) nitrate and potassium carbonate in perchloric acid. The solution of AgClO4 was evaporated to dryness in a drying oven at 140 °C [33]. Silver perchlorate was dissolved in aq. NH3 solution and compound 1 was crystallized in a fridge.
The elemental analysis for silver and ammonia content was performed with standard gravimetric (AgCl) and titrimetric (0.1 M NaOH solution added to form Ag2O and liberate ammonia, and measurement of ammonia after distillation with 0.1 M HCl in the presence of methyl red) methods.
Powder XRDs were measured on a PW-1050 Bragg-Brentano (Philips, Eindhoven, The Netherlands) parafocusing goniometer equipped with a copper tube. IR and far-IR spectra were recorded on a Bruker Alpha FT-IR spectrometer (Bruker, Ettingen, Germany) and a Biorad-Digilab FTS-30-FIR spectrometer (Biorad, Austin, TX, USA), respectively. Raman spectra and UV spectra were measured on a Horiba Jobin-Yvon LabRAM-type microspectrometer with external 532 nm Nd-YAG laser source (Horiba Jobin Yvon Gmbh, Bensheim, Germany) and a Jasco V-670 UV–Vis spectrometer (JASCO Co., Oklahoma City, OK, USA), respectively. TG-MS analysis was performed with a TA Instrument SDT Q600 thermal analyzer (TA Instrument, New Castle, DE, USA) coupled to a Hiden Analytical HPR-20/QIC mass spectrometer (Hiden Co., Warrington, UK), whereas DSC tests were performed with a Perkin Elmer DSC 7 instrument (Perkin-Elmer, Waltham, MA, USA), Measurement details were the same as in our previous publications [25,34].

4. Conclusions

The reaction of ammoniacal AgNO3 solution or [Ag(NH3)2]NO3 with aq. NaClO4 resulted in [Ag(NH3)2]ClO4. We did not find a monohydrated form described previously, and the hydration of the diamminesilver(I) cation cannot be expected based on thermochemical considerations.
The temperature and enthalpy of phase change were determined by DSC, and found to be 225.7 K and 103.04 kJ/mol, respectively. Detailed spectroscopic (correlation analysis, IR, Raman, and UV) analyses were performed on [Ag(NH3)2]ClO4, and all the vibrational modes in the IR and Raman spectra were assigned.
The thermal decomposition of [Ag(NH3)2]ClO4 involves a solid-phase quasi-intramolecular redox reaction between the perchlorate anion and the ammonia ligand, resulting in lower valence chlorine oxyacid (chlorite, chlorate) components.
The formal loss of ammonia and the formation of AgClO4 during heating is not a favored reaction route. The detected chlorate/chlorite intermediates disproportionate both in solid phase or in aqueous solutions (after dissolution of these decomposition intermediates in water) into AgCl and silver perchlorate.
The solid-phase AgCl-AgClO4 mixture eutectically melts, and the resulting AgClO4 decomposes in this melt into AgCl and O2; thus, the final product of decomposition is AgCl, N2, and H2O.
The intermediate (chlorite, chlorate) phases were detected by IR, XPS, and titrimetric methods.

Supplementary Materials

The following are available online at, Figure S1: Cryogenic DSC results of [Ag(NH3)2]ClO4; Figure S2a,b The hindered rotations (Rxyz)(F1) and translations (Txyz (F2)) of perchlorate ion in the polymorphs of [Ag(NH3)2]ClO4; Figure S3a,b: External vibrational modes (Tz(A1), Rz(A2) and Txy(E) or Rxy(E)) for ammonia in the polymorphs of [Ag(NH3)2]ClO4; Figure S4: The far-IR spectra of compound 1-O; Figure S5: The UV spectra of compound 1; Figure S6: TG-DTG-DSC results of compound 1 in air; Figure S7: The powder X-ray diffractogram of P-480; Figure S8: TG-MS of compound 1 in inert atmosphere, formation of m/z = 14, m/z = 16, m/z = 17, m/z = 18; Figure S9: TG-MS of compound 1 in air atmosphere, formation of m/z = 44; Figure S10: IR spectrum of I-240 intermediate.

Author Contributions

Methodology, formal analysis, V.M.P.; investigation, L.A.F., L.B., M.M., B.B.-H., K.A.B., I.E.S.; resources, I.M.S.; data curation, V.M.P., L.A.F., K.A.B., L.K.; writing—original draft preparation, L.A.F., L.K.; writing—review and editing, K.A.B., F.P.F., V.M.P., B.B.-H., L.K.; visualization, L.A.F.; supervision, V.M.P., B.B.-H., L.K.; project administration, L.A.F.; funding acquisition, I.M.S. All authors have read and agreed to the published version of the manuscript.


The research within project No. VEKOP-2.3.2-16-2017-00013 was supported by the European Union and the State of Hungary, co-financed by the European Regional Development Fund. I.M.Sz. thanks to the Hungarian Academy of Sciences for a János Bolyai Research Fellowship and acknowledges the ÚNKP-18-4-BME-238 grant supported by the New National Excellence Program of the Ministry of Human Capacities, Hungary. The research reported in this paper was supported by the Higher Education Excellence Program of the Ministry of Human Capacities in the frame of the Nanotechnology and Materials Science research area of Budapest University of Technology (BME FIKP-NAT). B.B.H. acknowledges financial support (Grant No. 451-03-68/2021-14/200125) of the Ministry of Education, Science, and Technological Development of the Republic of Serbia.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data sharing is not applicable to this article. The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest. The company had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.


  1. Sajó, I.E.; Bakos, L.P.; Szilágyi, I.M.; Lendvay, G.; Magyari, J.; Mohai, M.; Szegedi, Á.; Farkas, A.; Jánosity, A.; Klébert, S.; et al. Unexpected Sequential NH3/H2O Solid/Gas Phase Ligand Exchange and Quasi-Intramolecular Self-Protonation Yield [NH4Cu(OH)MoO4], a Photocatalyst Misidentified before as (NH4)2Cu(MoO4)2. Inorg. Chem. 2018, 57, 13679–13692. [Google Scholar] [CrossRef] [PubMed]
  2. Kótai, L.; Gács, L.; Sajó, I.E. Beliefs and Facts in Permanganate Chemistry—An Overview on the Synthesis and the Reactivity of Simple and Complex Permanganates. Trends Inorg. Chem. 2011, 11, 25–104. [Google Scholar] [CrossRef]
  3. Kocsis, T.; Magyari, J.; Sajó, I.E.; Pasinszki, T.; Homonnay, Z.; Szilágyi, I.M.; Farkas, A.; May, Z.; Effenberger, H.; Szakáll, S.; et al. Evidence of quasi-intramolecular redox reactions during thermal decomposition of ammonium hydroxodisulfitoferriate(III), (NH4)2[Fe(OH)(SO3)2]·H2O. J. Therm. Anal. Calorim. 2018, 132, 493–502. [Google Scholar] [CrossRef][Green Version]
  4. Górska, N.; Mikuli, E.; Kótai, L. Spectroscopic, structural and thermal characterization of crystalline [Cr(OC(NH2)2)6]X3 (X = ClO4, BF4 and Cl) complexes. Eur. Chem. Bull. 2014, 3, 474–481. [Google Scholar]
  5. Franguelli, F.P.; Barta-Holló, B.; Petruševski, V.M.; Sajó, I.E.; Klébert, S.; Farkas, A.; Bódis, E.; Szilágyi, I.M.; Pawar, R.P.; Kótai, L. Thermal decomposition and spectral characterization of di[carbonatotetraamminecobalt(III)] sulfate trihydrate and the nature of its thermal decomposition products. J. Ther. Anal. Calor. 2020, 57, 13679–13692. [Google Scholar] [CrossRef]
  6. Sajó, I.; Kótai, L.; Keresztury, G.; Gács, I.; Pokol, G.; Kristóf, J.; Soptrayanov, B.; Petrusevski, V.; Timpu, D.; Sharma, P. Studies on the Chemistry of Tetraamminezinc(II) Dipermanganate ([Zn(NH3)4](MnO4)2): Low-Temperature Synthesis of the Manganese Zinc Oxide (ZnMn2O4) Catalyst Precursor. Helv. Chim. Acta 2008, 91, 1646–1658. [Google Scholar] [CrossRef]
  7. Solt, H.E.; Nemeth, P.; Mohai, M.; Sajo, I.E.; Klébert, S.; Franguelli, F.P.; Fogaca, L.A.; Pawar, R.P.; Kótai, L. Temperature-limited synthesis of copper manganites along the borderline of the amorphous/crystalline state and their catalytic activity in CO oxidation. ACS Omega 2021, 6, 1523–1533. [Google Scholar] [CrossRef] [PubMed]
  8. Kotai, L.; Banerji, K.K.; Sajo, I. An unprecedented-type intramolecular redox reaction of solid tetraamminecopper(2+) bis(permanganate)-[Cu(NH3)4](MnO4)2)—A low- temperature synthesis of copper dimanganese tetraoxide-type (CuMn2O4) nanocrystalline catalyst precursors. Helvetica Chim. Acta 2002, 85, 2316–2327. [Google Scholar] [CrossRef]
  9. Kotai, L.; Sajo, I.; Jakab, E.; Keresztury, G.; Németh, C.; Gács, I.; Menyhárt, A.; Kristóf, J.; Hajba, L.; Petrusevski, V.M.; et al. Studies on the chemistry of [Cd(NH3)4](MnO4)2. A low temperature synthesis route of the CdMn2O4+x type NOx and CH3SH sensor. Z. Anorg. Allgemenien Chem. 2012, 638, 177–186. [Google Scholar] [CrossRef]
  10. Buck, R.P.; Singhadeja, S.; Roghers, L.B. Ultraviolet Absorption Spectra of Some Inorganic Ions In Aqueous Solutions. Anal. Chem. 1954, 26, 1240–1242. [Google Scholar] [CrossRef]
  11. Scagliari, G.; Marangoni, A. Isomorfismo fra perclorati e permanganati. Atti R. Accad. LinceiRend. Sci. FisischeMat. E Nat. Ser. Quinta 1914, 23, 12–14. [Google Scholar]
  12. Bruni, G.; Levi, G. Gli ammoniacati del sali d’argento I. Gazzetta Chim. Ital. 1916, 46, 17–41. [Google Scholar]
  13. Fox, B.S.; Beyer, M.K.; Bondybey, V.E. Coordination Chemistry of Silver Cations. J. Am. Chem. Soc. 2002, 124, 13613–13623. [Google Scholar] [CrossRef] [PubMed]
  14. Nockeman, P.; Meyer, G. [Ag(NH3)2]ClO4—Kristallstrukturen, Phasenumwandlung, Schwingungsspektren. Z. Anorg. Allgemenien Chem. 2002, 628, 1636–1640. [Google Scholar] [CrossRef]
  15. Mitscherlich, E. Ueber die Mangansaeure, Uebermangansaeure, Ueberchlorsaeure und die Salze dieser Saeuren. Ann. Physik Ser. 1832, 25, 287–302. [Google Scholar] [CrossRef]
  16. Miles, M.G.; Patterson, J.H.; Hobbs, C.W.; Hopper, M.J.; Overend, J.; Tobias, R.S. Raman and infrared spectra of isosteric diammine and dimethyl complexes of heavy metals. Normal-coordinate analysis of (X3Y2)2Z ions and molecules. Inorg. Chem. 1968, 9, 1721–1729. [Google Scholar] [CrossRef]
  17. Ephraim, F. Ueber die Natur der Nebenvalenzen. Berichte 1918, 51, 706–710. [Google Scholar]
  18. Shoeib, T.; Milburn, R.K.; Koyanagi, G.K.; Lavrov, V.V.; Bohme, D.K.; Siu, K.W.M.; Hopkinson, A.C. A study of complexes Mg(NH3)n+· and Ag(NH3)n+, where n = 1–8: Competition between direct coordination and solvation through hydrogen bonding. Int. J. Mass Spectrom. 2000, 201, 87–100. [Google Scholar] [CrossRef]
  19. Holland, P.M.; Castleman, A.W. The thermochemical properties of gas-phase transition metal ion complexes. J. Chem. Phys. 1982, 76, 4195–4205. [Google Scholar] [CrossRef]
  20. Bruni, G.; Levi, G. Gli ammoniacati del sali d’argento III. Gazzetta Chim. Ital. 1917, 47, 259–272. [Google Scholar]
  21. Rossini, F.D. Selected Values of Chemical Thermodynamic Properties; Technical Notes Series I; US Government Printing Office: Washington, DC, USA, 1969. [Google Scholar]
  22. Pejov, L.; Petruševski, V.M. Fourier transform infrared study of perchlorate ((ClO4)-Cl-35 and (ClO4)-Cl-37) anions isomorphously isolated in potassium permanganate matrix. Vibrational anharmonicity and pseudo-symmetry effects. J. Phys. Chem. Solids 2002, 63, 1873–1881. [Google Scholar] [CrossRef]
  23. Fogaca, L.A.; Kováts, E.; Németh, G.; Kamarás, K.; Béres, K.A.; Németh, P.; Petrusevski, V.; Bereczki, L.; Holló, B.B.; Sajó, I.E.; et al. A solid-phase quasi-intramolecular redox reaction of [Ag(NH3)2]MnO4:an easy way to prepare pure AgMnO2. Inorg. Chem. 2021, 60, 3749–3760. [Google Scholar] [CrossRef] [PubMed]
  24. Kovacs, G.B.; May, N.V.; Bombicz, P.A. An unknown component of a selective and mild oxidant: Structure and oxidative ability of a double salt-type complex having κ1O- coordinated permanganate anions and three- and four-fold coordinated silver cations. RSC Adv. 2019, 9, 28387–28398. [Google Scholar] [CrossRef][Green Version]
  25. Bereczki, L.; Fogaça, L.A.; Dürvanger, Z.s.; Harmat, V.; Kamarás, K.; Németh, G.; Barta Holló, B.; Petruševski, V.M.; Bódis, E.; Farkas, A.; et al. Dynamic disorder in the high-temperature polymorph of bis[diamminesilver(I)] sulfate—reasons and consequences of simultaneous ammonia release from two different polymorphs. J. Coord. Chem. 2021, in press. [Google Scholar]
  26. Solymosi, F. The Thermal Stability and Some Physical Properties of Silver Chlorite, Chlorate and Perchlorate. Z. Phys. Chem. 1968, 57, 1–18. [Google Scholar] [CrossRef]
  27. Bruni, G.; Levi, G. Acido chloroso e cloriti. Gazz. Chim. Ital. 1915, 1915, 161–179. [Google Scholar]
  28. Udupa, M.R. Thermal behaviour of morpholinium perchlorate. Thermoch. Acta 1980, 38, 241–243. [Google Scholar] [CrossRef]
  29. Tarasenkov, D.N.; Bogosovskaya, A.V. Vapor pressure of binary mixtures: PbCl2 + AgCl, Zh. Obshch. Khim. 1935, 5, 1687–1689. [Google Scholar]
  30. Grinberg, A.A.; Varshavskii, Y.S. The frequency of coordinated ammonia deformation mode and its relationship with the chemical properties of transition metal ammonia complexes. Primenenie Molekulyarnoi Spektroskopii v Khimii, Sbornik Dokladov., Akad. Nauk SSSR, Sibirskoe Otdelenie, Inst. Fiz., Izd. Nauka. 1966. [Google Scholar]
  31. Waechter, A. Ueber die chlorsauren Salze. J. Praktische Chem. 1843, 1834, 321–334. [Google Scholar] [CrossRef]
  32. Mitscherlich, C.G. Über die Verbindungen des Quecksilbers. Ann. Phys. Chem. 1827, 9, 387–415. [Google Scholar] [CrossRef]
  33. Maass, G.; Jander, G. Die Grundlagen der Chemie in wasserfreier Essigsäure. In Fortschritte Der Chemischen Forschung; Springer: Berlin, Germany, 1953; Volume 2. [Google Scholar]
  34. Majzik, E.; Franguelli, F.P.; Lendvay, G.; Trif, L.; Németh, C.s.; Farkas, A.; Klébert, S.; Fogaça, L.A.; Szilágyi, I.M.; Kótai, L. Vibrational spectroscopy of dimethylammonium paratungstate-B hydrates. Z. Anorg. Allgem. Chem. 2021. [Google Scholar] [CrossRef]

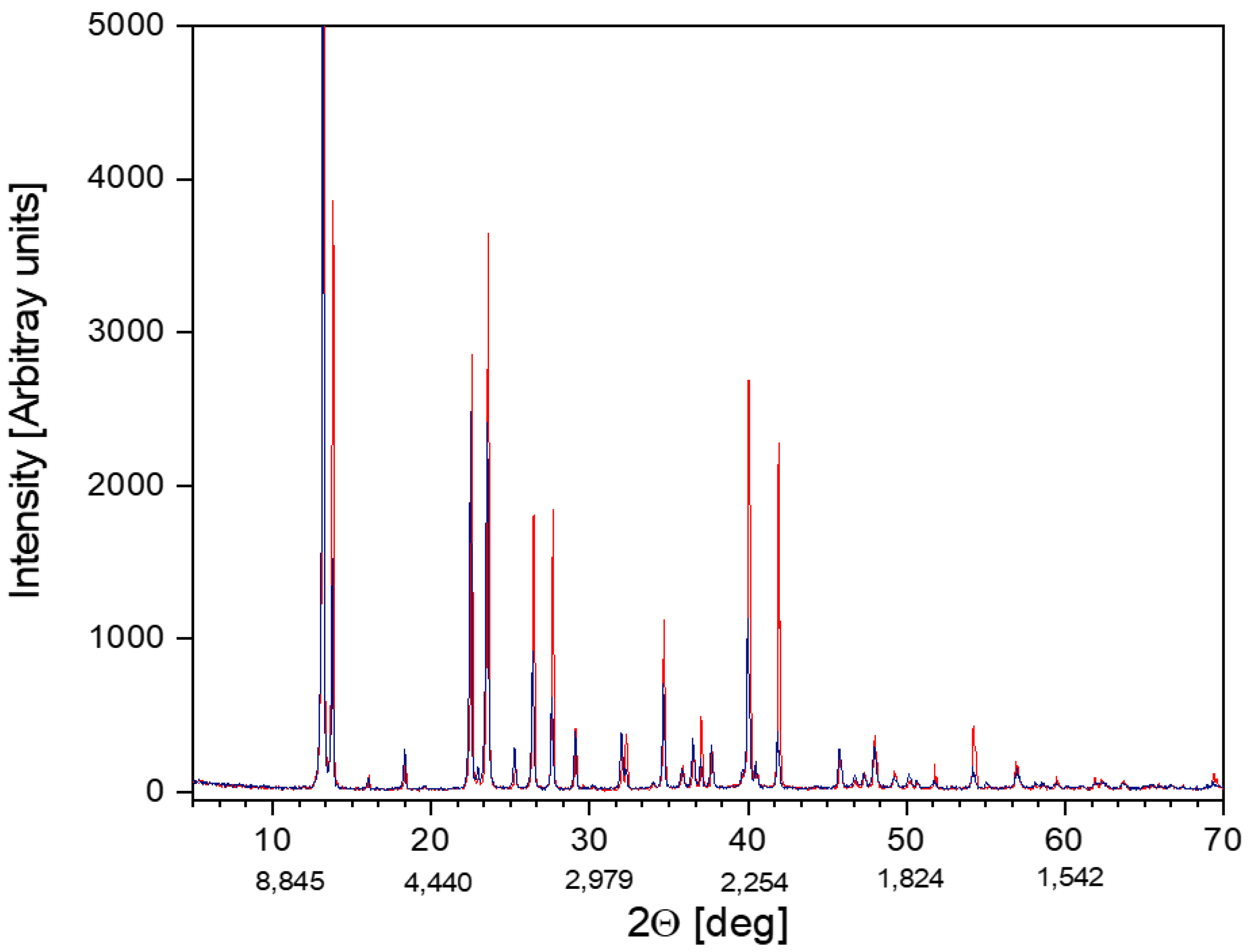

Figure 1. Comparison of the XRD curves of the reaction products prepared with the methods of Mitscherlich [15] (blue) and Scagliari [11] (red).
Figure 1. Comparison of the XRD curves of the reaction products prepared with the methods of Mitscherlich [15] (blue) and Scagliari [11] (red).
Inorganics 09 00038 g001

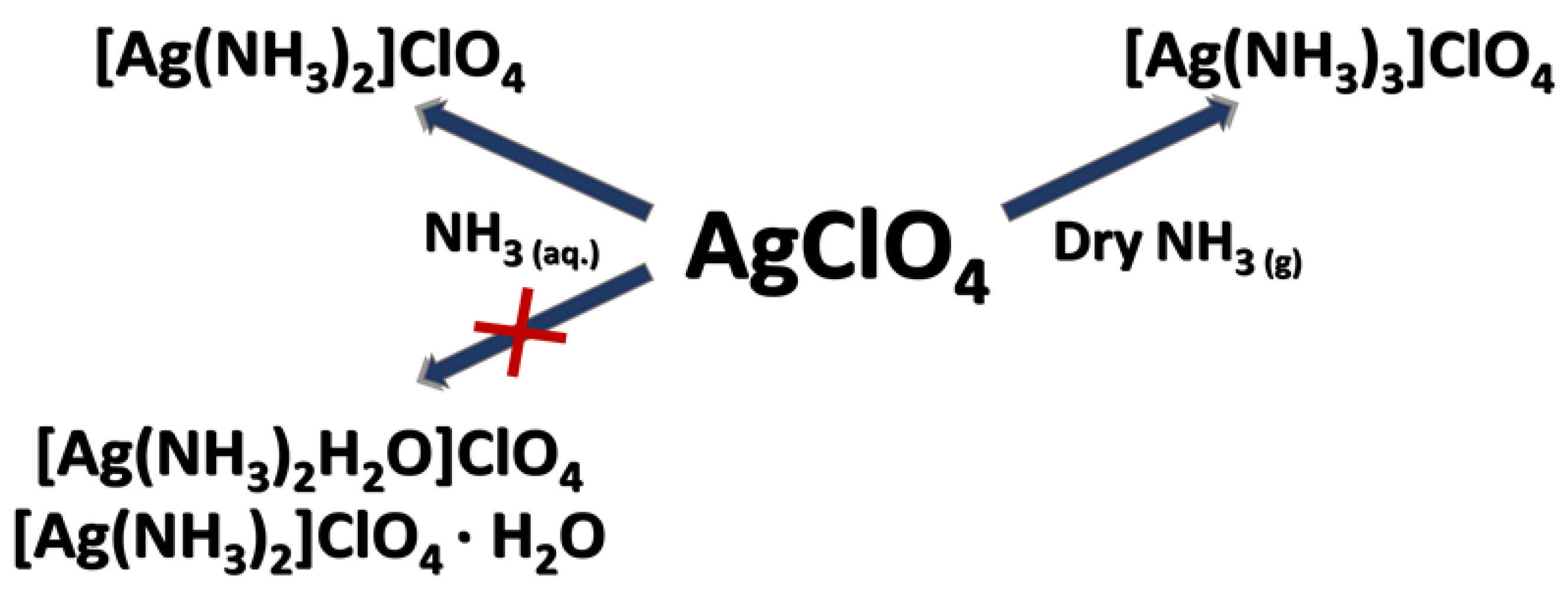

Figure 2. Schematic representation of phases formed in the AgClO4-NH3 and AgClO4-NH3-H2O systems.
Figure 2. Schematic representation of phases formed in the AgClO4-NH3 and AgClO4-NH3-H2O systems.
Inorganics 09 00038 g002

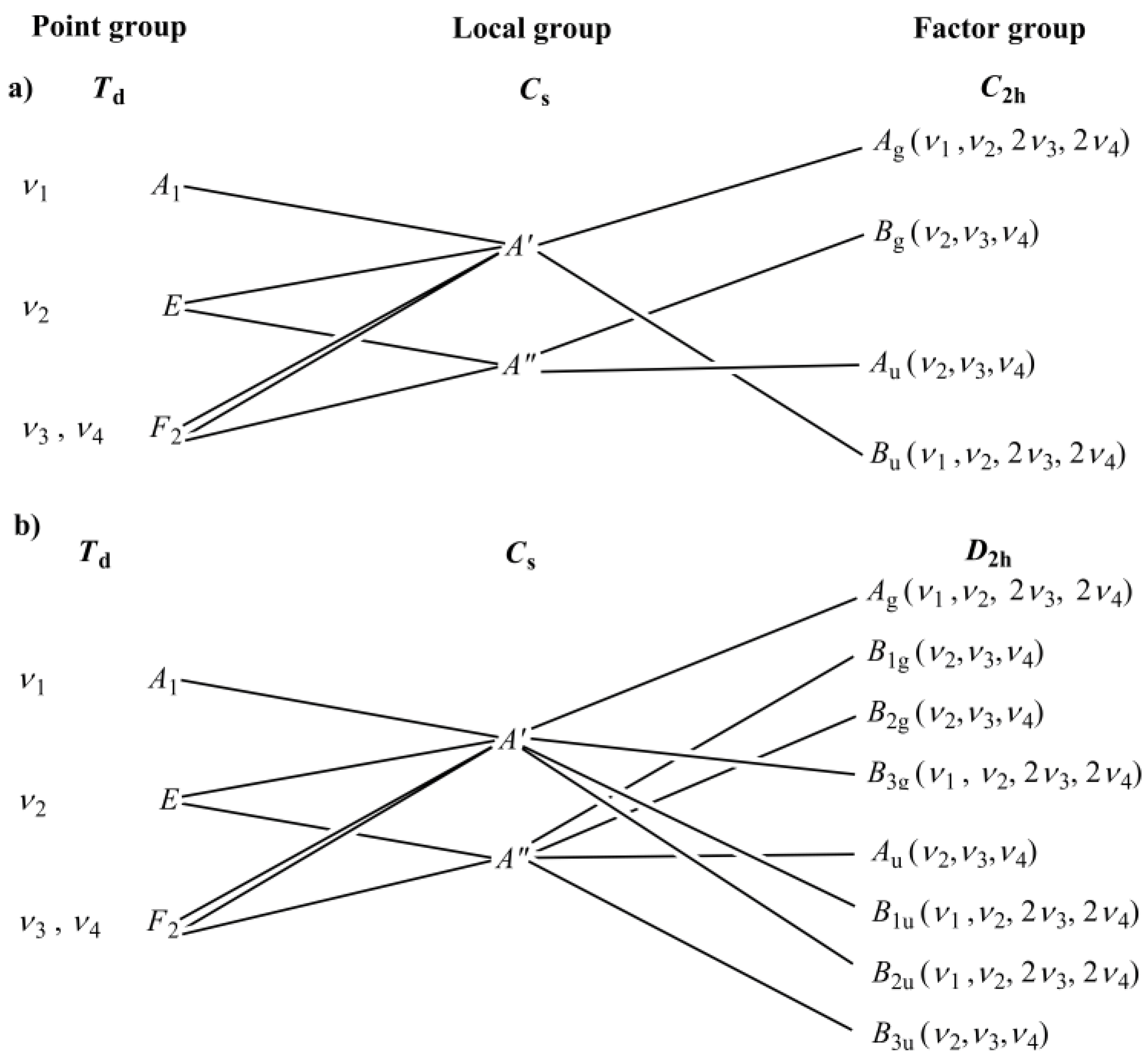

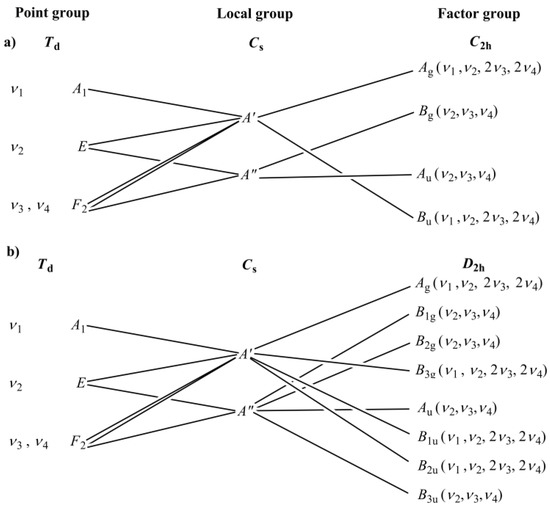

Figure 3. Correlation diagrams of perchlorate ions in (a) monoclinic (1-M) and (b) orthorhombic (1-O) polymorphs of [Ag(NH3)2]ClO4.
Figure 3. Correlation diagrams of perchlorate ions in (a) monoclinic (1-M) and (b) orthorhombic (1-O) polymorphs of [Ag(NH3)2]ClO4.
Inorganics 09 00038 g003

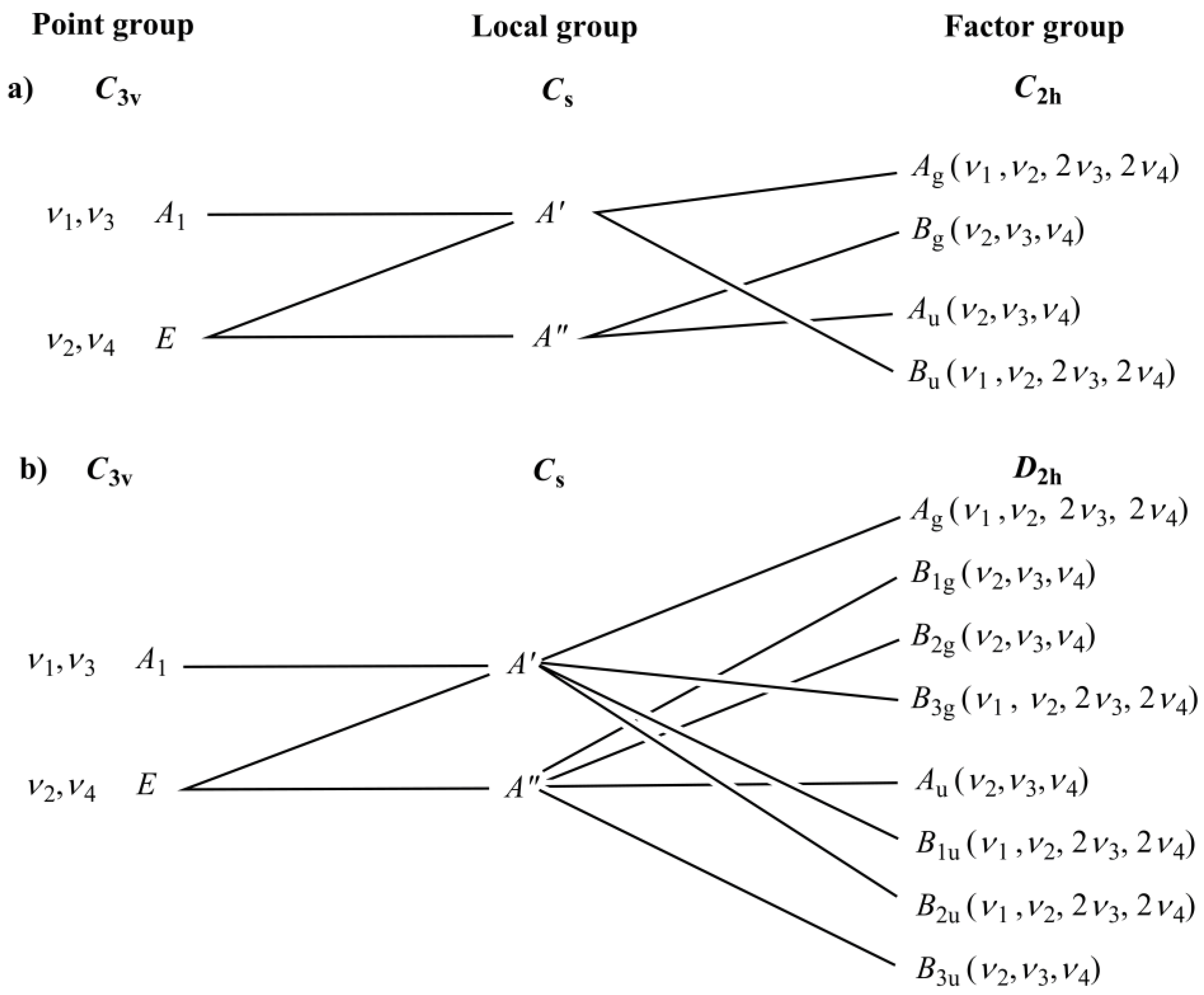

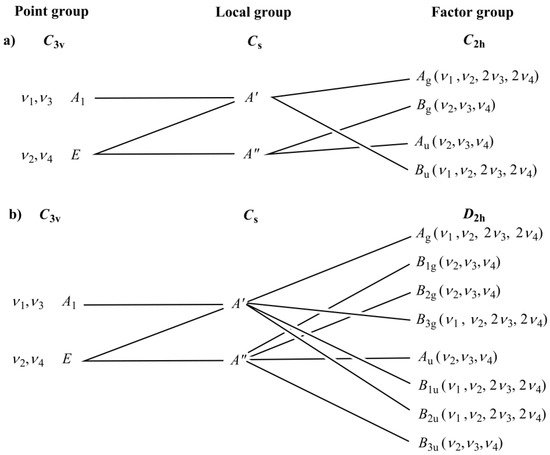

Figure 4. Correlation diagrams of ammonia ligand in (a) monoclinic (1-M) and (b) orthorhombic (1-O) polymorphs of [Ag(NH3)2]ClO4.
Figure 4. Correlation diagrams of ammonia ligand in (a) monoclinic (1-M) and (b) orthorhombic (1-O) polymorphs of [Ag(NH3)2]ClO4.
Inorganics 09 00038 g004

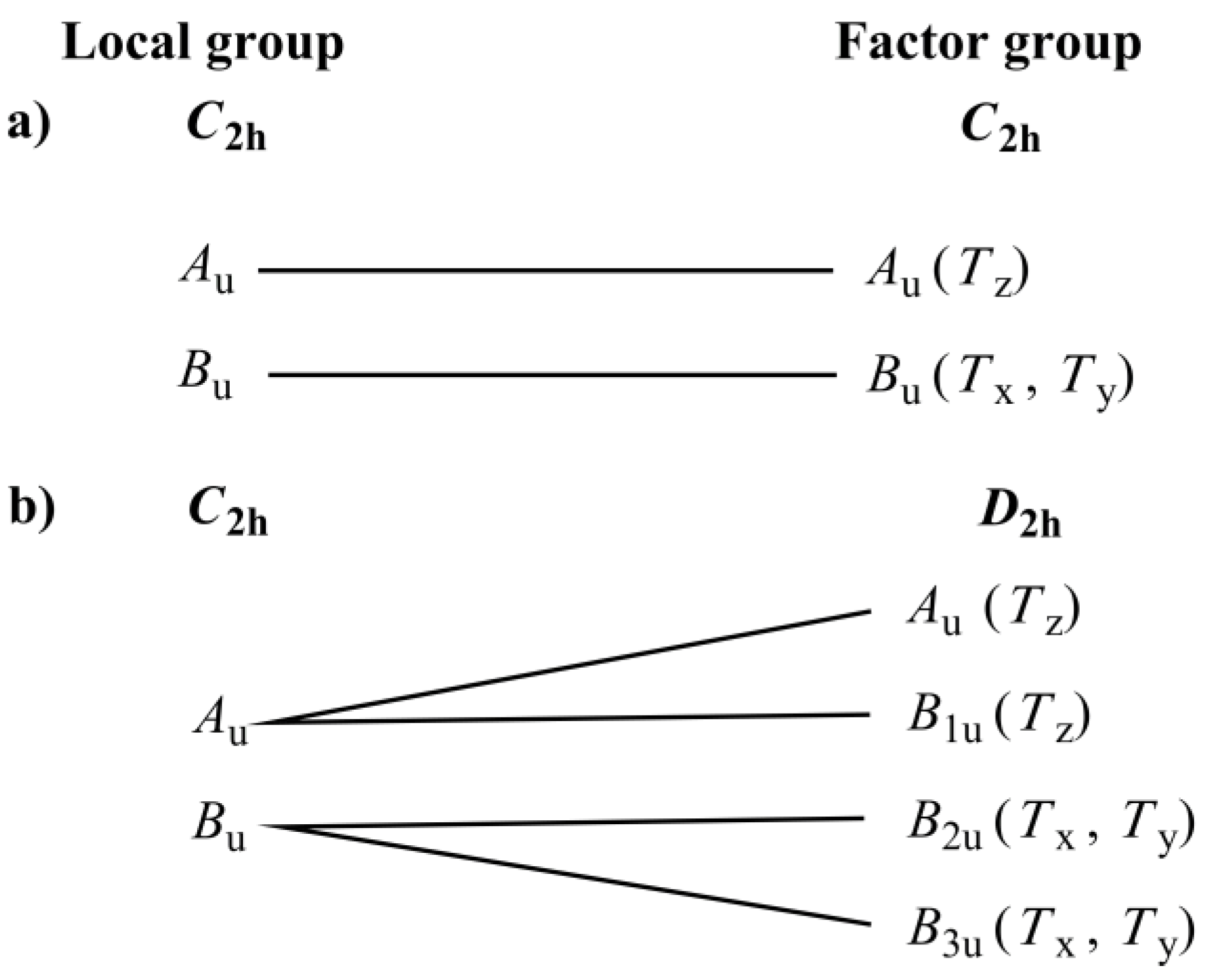

Figure 5. Correlation diagrams of silver in (a) monoclinic (1-M) and (b) orthorhombic (1-O) polymorphs of [Ag(NH3)2]ClO4.
Figure 5. Correlation diagrams of silver in (a) monoclinic (1-M) and (b) orthorhombic (1-O) polymorphs of [Ag(NH3)2]ClO4.
Inorganics 09 00038 g005

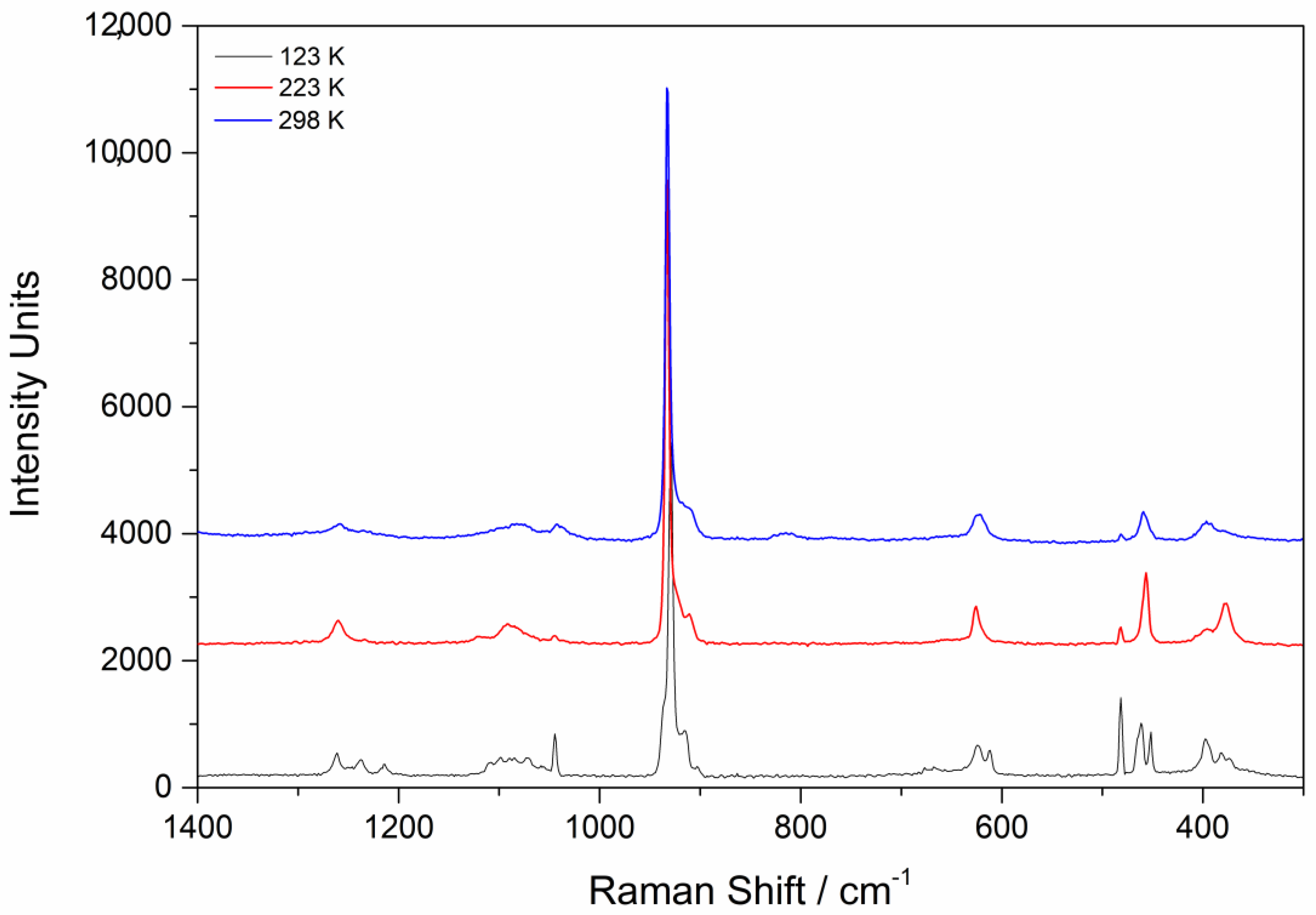

Figure 6. Raman spectra of compounds 1-O (223 and 298 K) and 1-M (123 K) in the Cl–O Raman shift range.
Figure 6. Raman spectra of compounds 1-O (223 and 298 K) and 1-M (123 K) in the Cl–O Raman shift range.
Inorganics 09 00038 g006

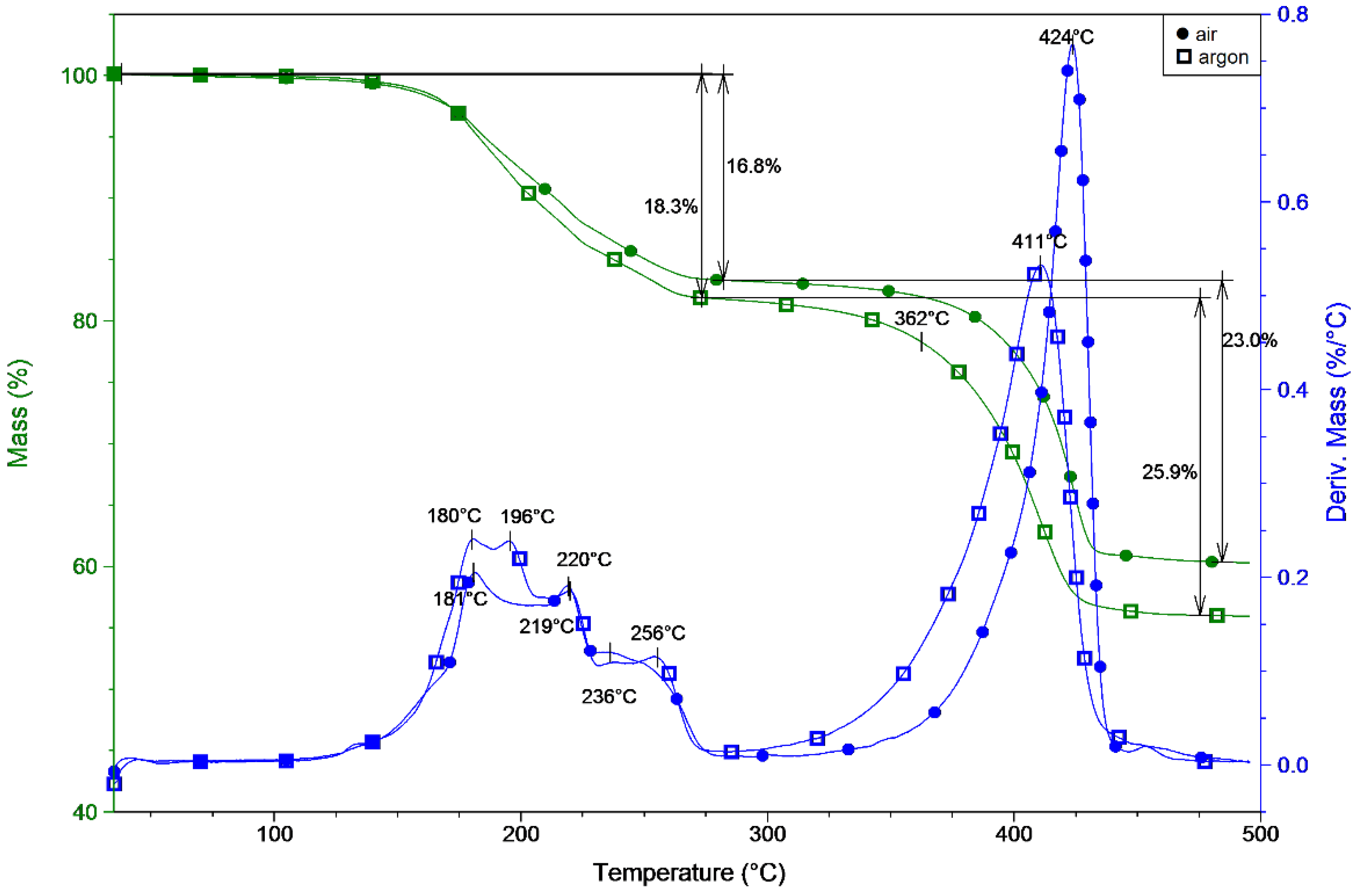

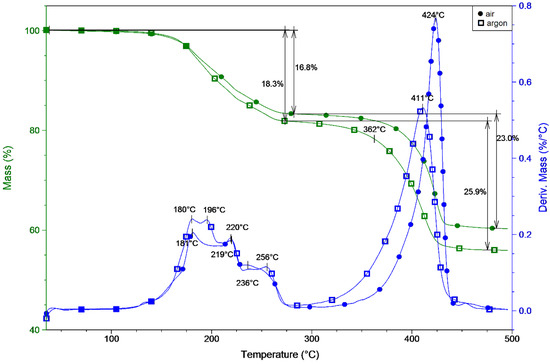

Figure 7. DTG curve of compound 1 in an inert () and air (•) atmosphere.
Figure 7. DTG curve of compound 1 in an inert () and air (•) atmosphere.
Inorganics 09 00038 g007
Figure 8. TG−MS of compound 1 in an inert atmosphere, the formation of m/z = 28 (N2+) and m/z = 18 (H2O+).
Figure 8. TG−MS of compound 1 in an inert atmosphere, the formation of m/z = 28 (N2+) and m/z = 18 (H2O+).
Inorganics 09 00038 g008

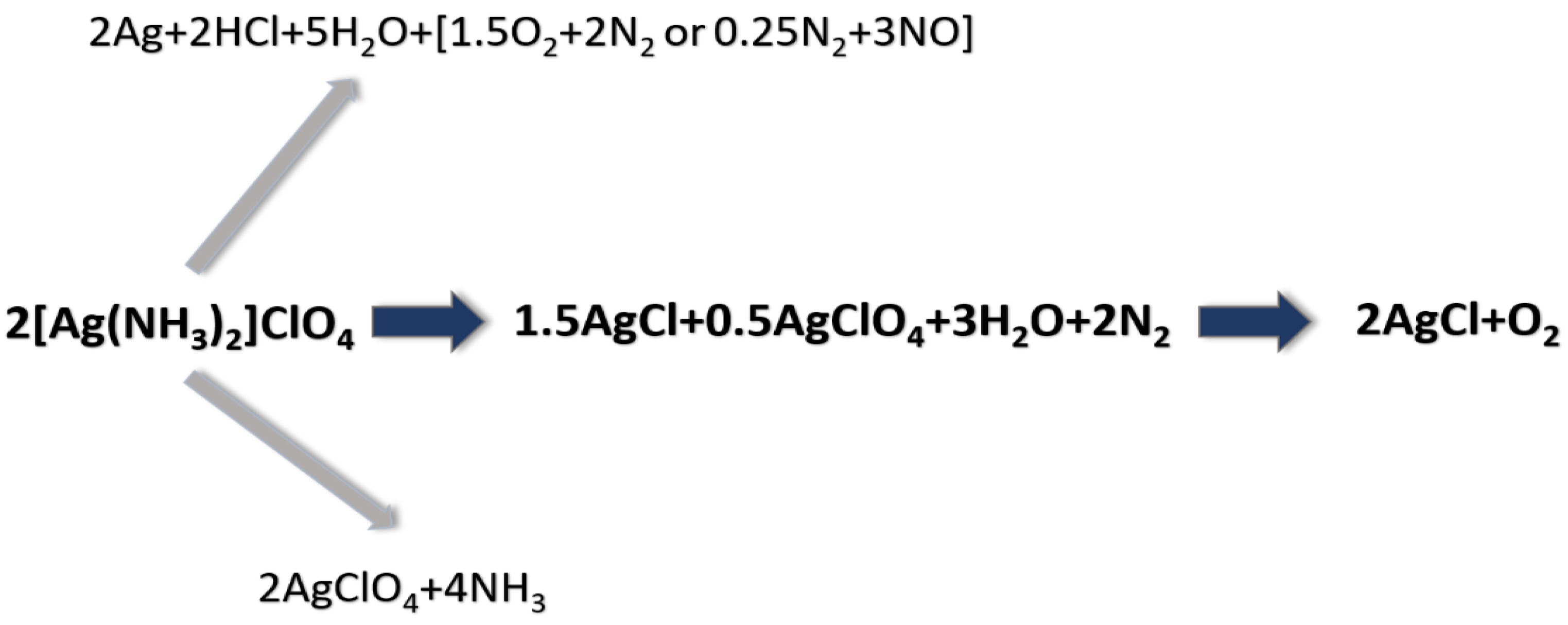

Figure 9. The presumed decomposition reactions of compound 1.
Figure 9. The presumed decomposition reactions of compound 1.
Inorganics 09 00038 g009

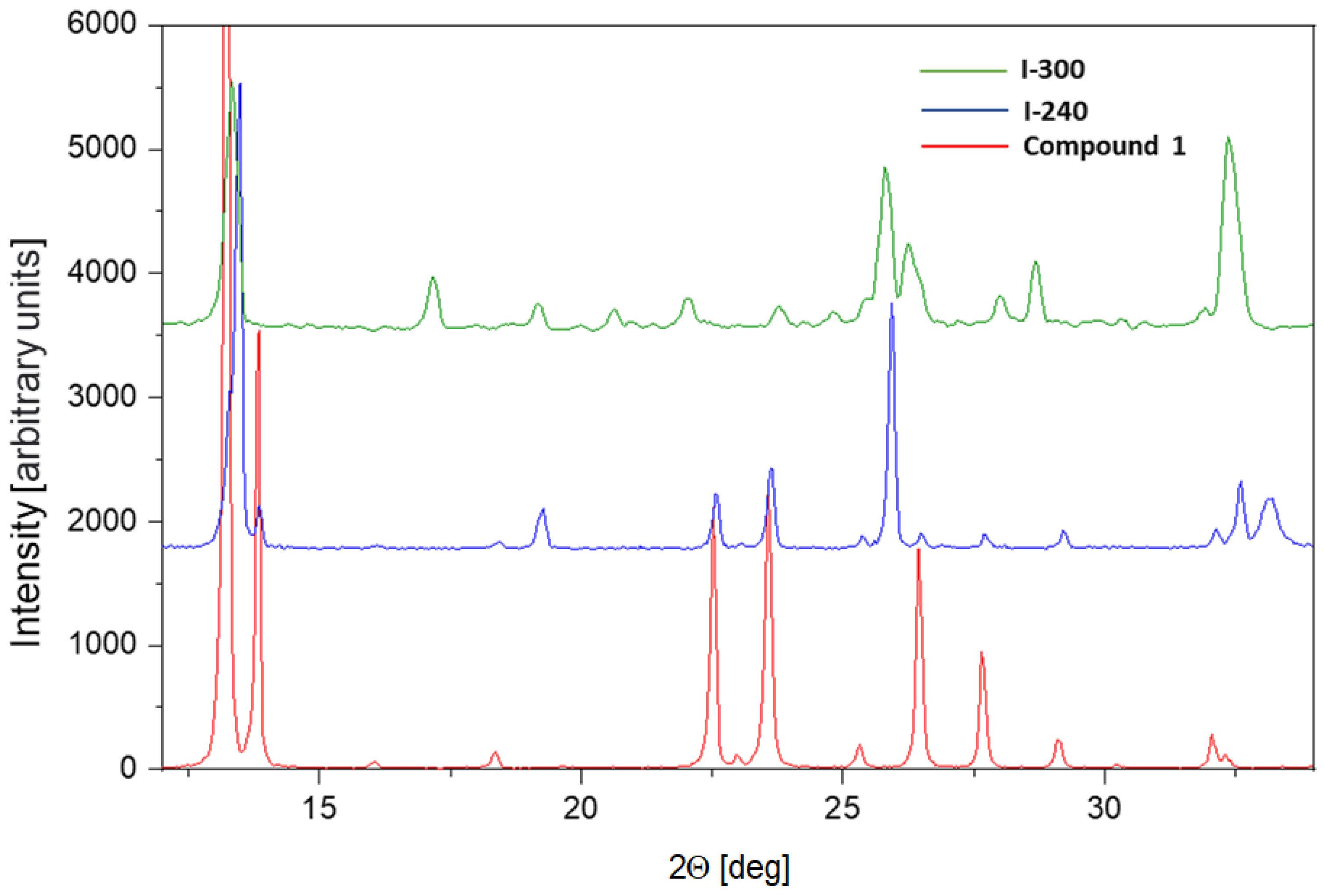

Figure 10. The powder X-ray diffractogram of compound 1 and decomposition intermediate 240 at 300 °C.
Figure 10. The powder X-ray diffractogram of compound 1 and decomposition intermediate 240 at 300 °C.
Inorganics 09 00038 g010

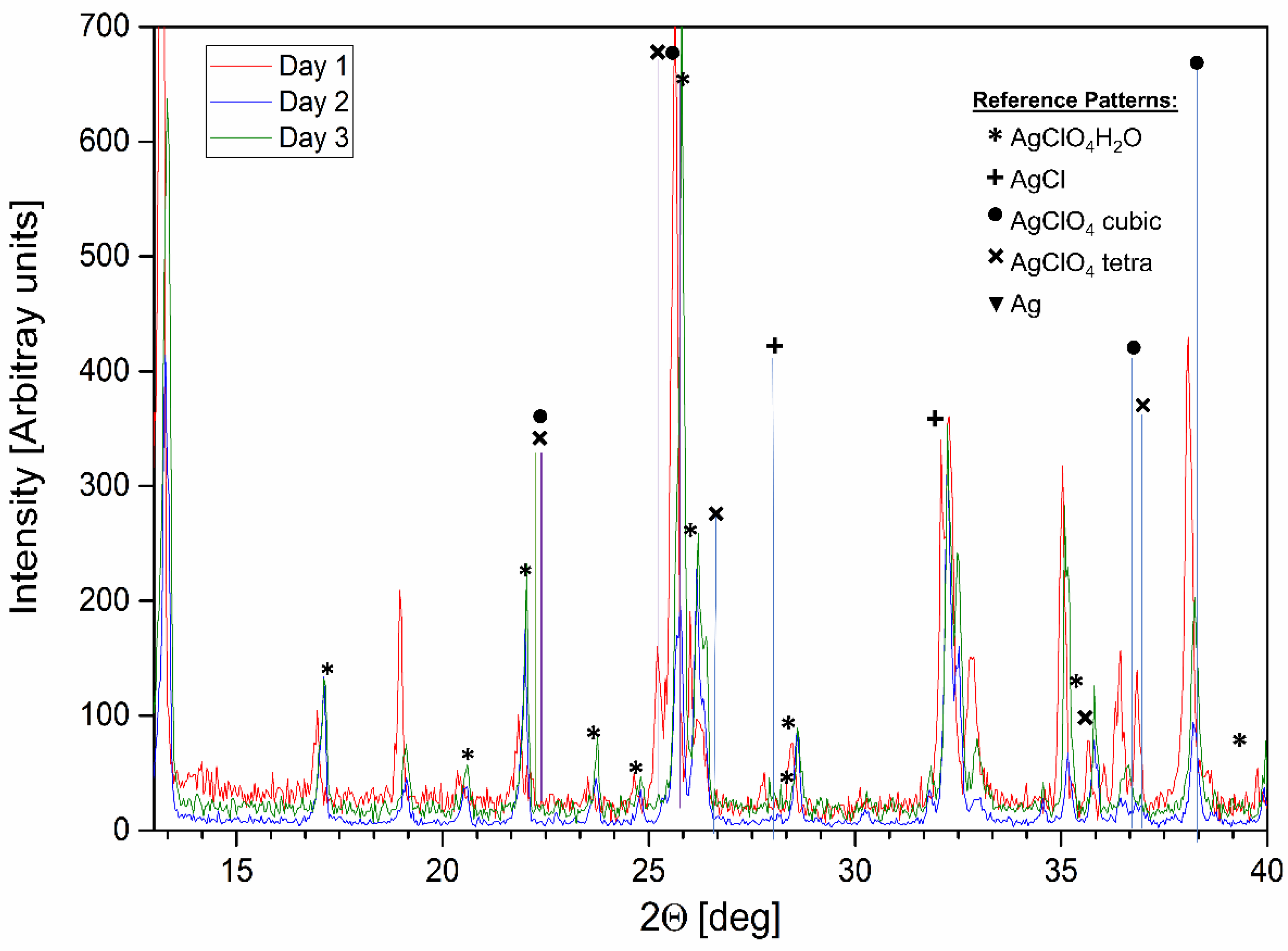

Figure 11. The powder X-ray diffractograms of the change of the composition of I-240.
Figure 11. The powder X-ray diffractograms of the change of the composition of I-240.
Inorganics 09 00038 g011

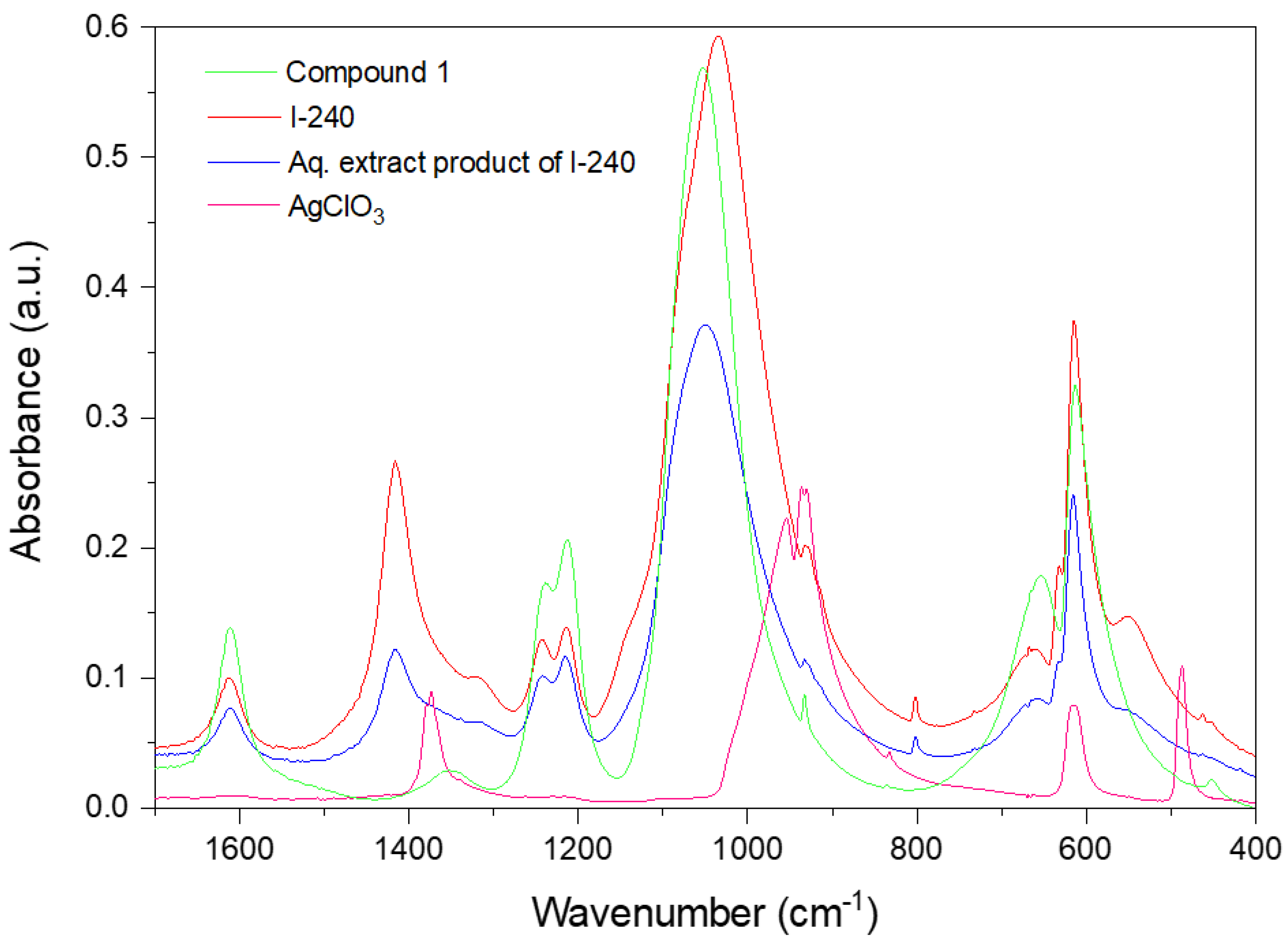

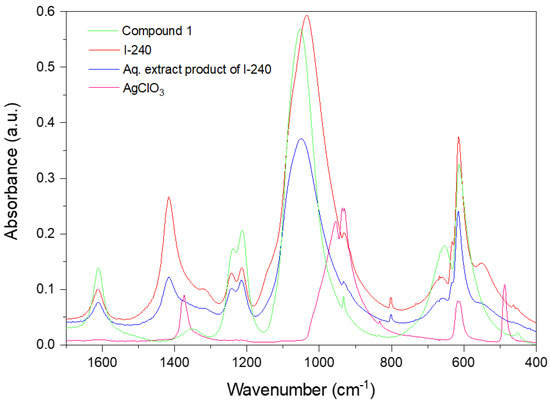

Figure 12. The IR spectroscopic study of the decomposition of the I-240
Figure 12. The IR spectroscopic study of the decomposition of the I-240
Inorganics 09 00038 g012

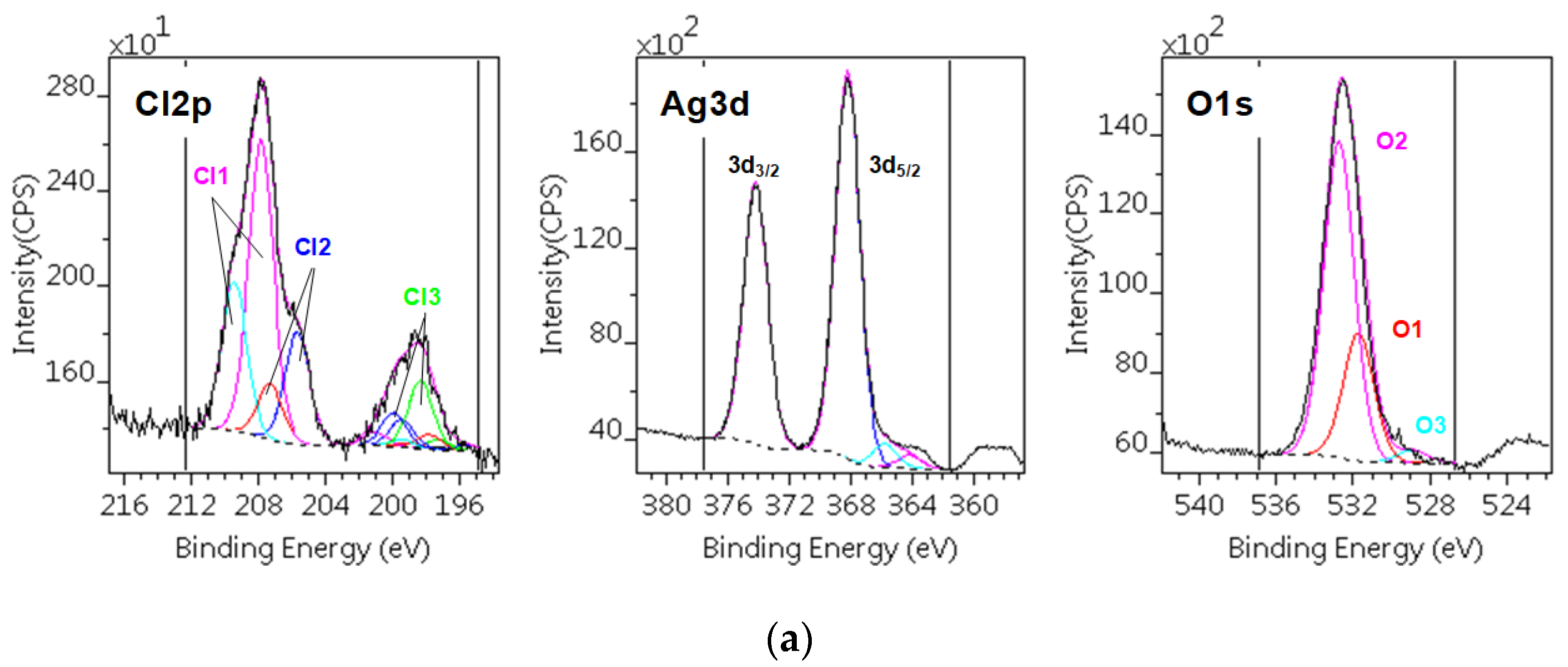

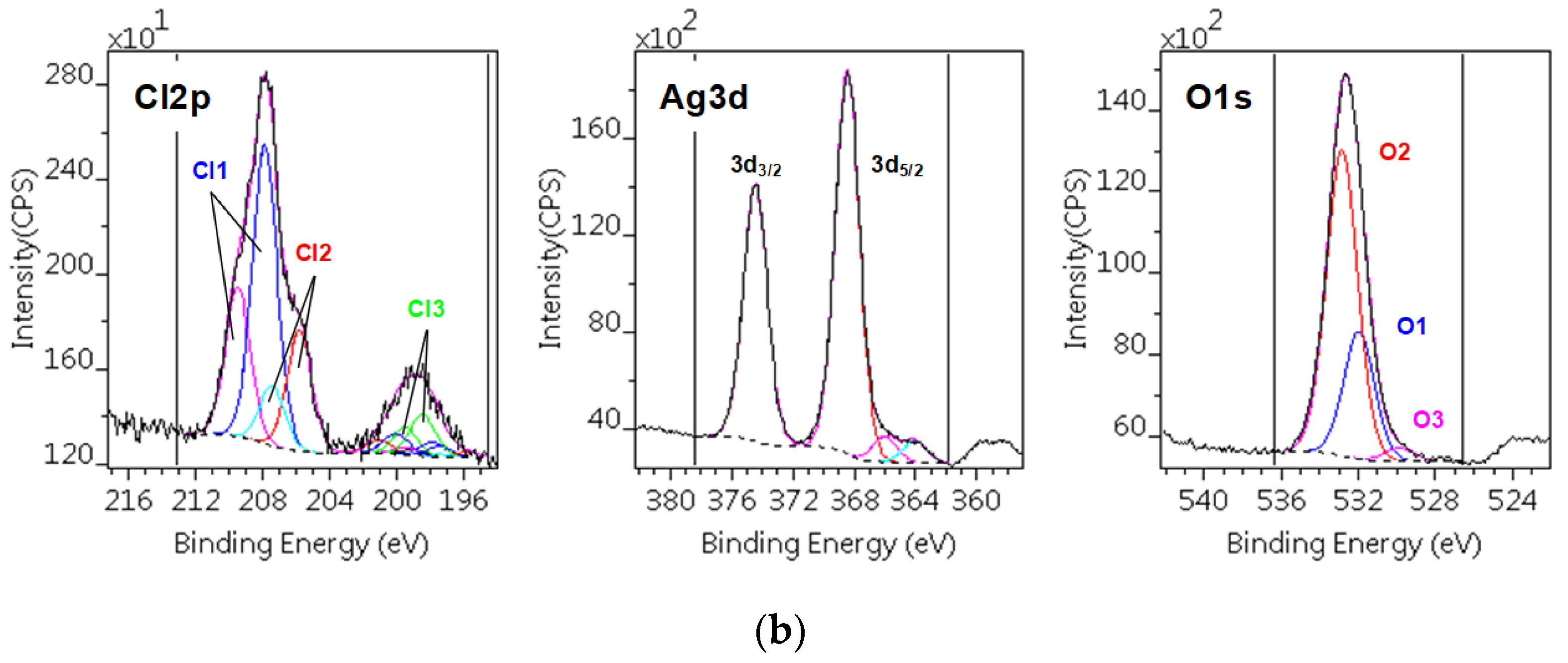

Figure 13. The XPS spectrum of the (a) I-240 and (b) the solid isolated from the aq. extract of I-240.
Figure 13. The XPS spectrum of the (a) I-240 and (b) the solid isolated from the aq. extract of I-240.
Inorganics 09 00038 g013aInorganics 09 00038 g013b

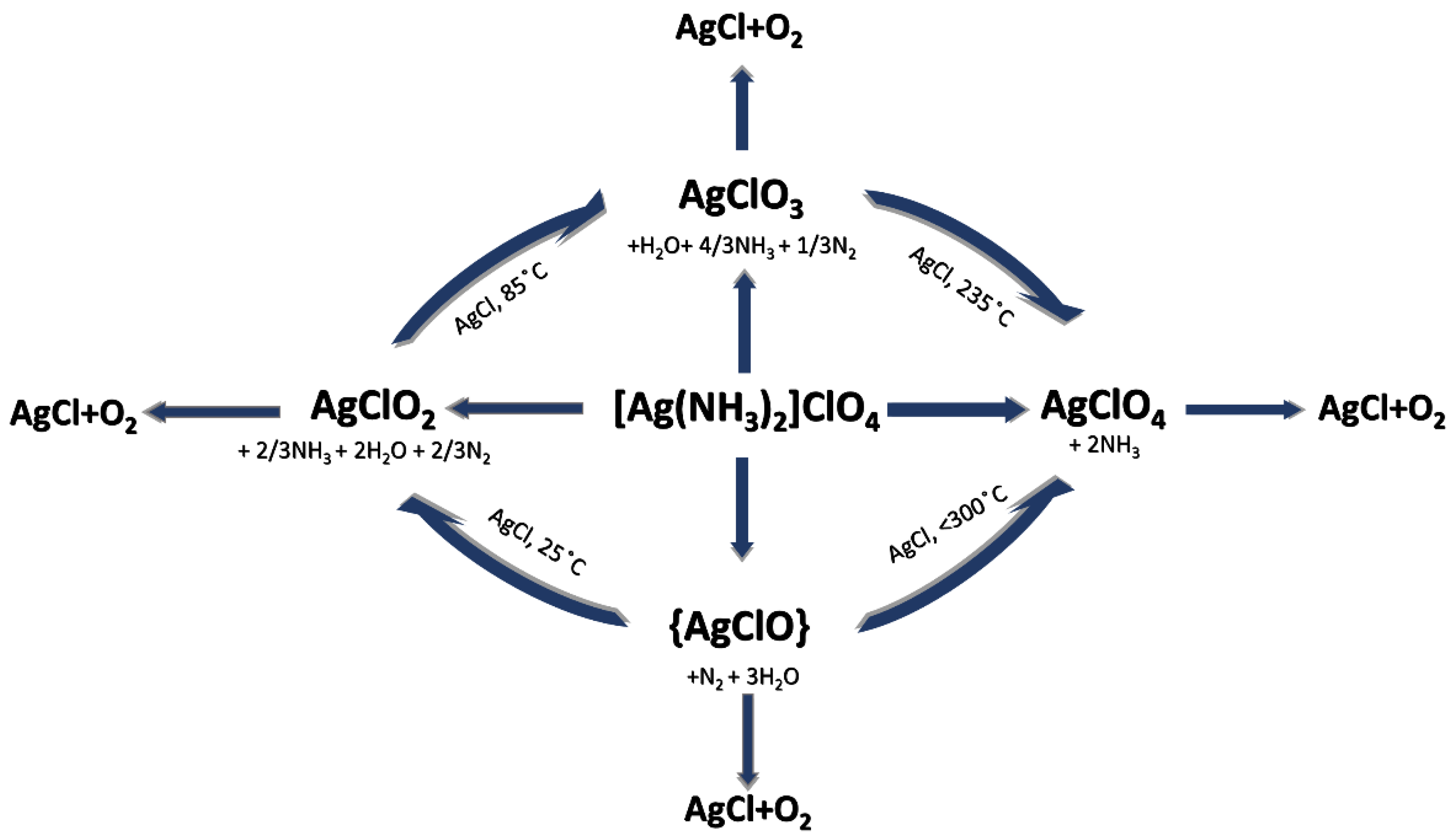

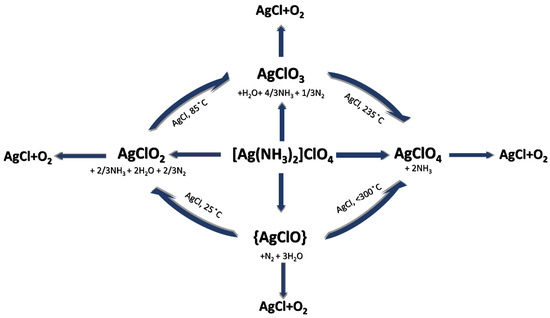

Figure 14. Summarized reaction scheme of compound 1.
Figure 14. Summarized reaction scheme of compound 1.
Inorganics 09 00038 g014
Table 1. Assignation of perchlorate bands in IR and Raman spectra of compound 1. (*—mixed bands).
Table 1. Assignation of perchlorate bands in IR and Raman spectra of compound 1. (*—mixed bands).
IR, cm−1 (298 K)Raman Shift, cm−1 (532 nm Excitation), Our MeasurementRaman Shift, cm−1Assignation
[16][14]123 K
223 K
298 K
aq. soln. [16]solid [14]
933940-929-933934926ν1(A1) (R)
450432-482,465 sh, 462, 452-459460460ν2(E) (R)
1073 sh, 1053109010841109–1044 *-1082, 10441107-ν3(F2) (IR, R)
615626626624, 612625625629-ν4(F2) (IR, R)
2050–1950 wide-------ν1 + ν3a,b,c and 2ν3a,b,c
--1109–1044 *-1080 wide--ν2a,b + ν4a,b,c
--919, 914915 sh, 910915–910 wide--2a,b
--12591263, 12391263, 1239, 1219--4a,b,c
Table 2. Assignment of bands belonging to cation modes in IR and Raman spectra of compound 1. (*—mixed bands).
Table 2. Assignment of bands belonging to cation modes in IR and Raman spectra of compound 1. (*—mixed bands).
IR Raman Assignation
Our, 1-O, 298K[14][16]Our,
1-O, 298K
1-M, 123K
[14]aq. solution [16]
3364 336033703389, 3362 -νas(NH)
32853285329032973299, 3291 3293νs(NH)
3193, 31823182318531853191, 3183 3203as(NH)
2439 s(NH)
161016121625, 1610 1658, 1634δas(NH)
1213, 1238125012441259121912191223δs(NH)
835 814--
653-650658679, 666679, 666 ρ(NH)
430 νas(AgN)
- 395 *397397
- 379 *383, 373372 νs(AgN)
- 269
-255 243 240 δ(NAgN)
196 -
136 Lattice, δ(NAgO), AgO2, 161 AgN2
67 Lattice?
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Fogaça, L.A.; Bereczki, L.; Petruševski, V.M.; Barta-Holló, B.; Franguelli, F.P.; Mohai, M.; Béres, K.A.; Sajó, I.E.; Szilágyi, I.M.; Kotai, L. A Quasi-Intramolecular Solid-Phase Redox Reaction of Ammonia Ligands and Perchlorate Anion in Diamminesilver(I) Perchlorate. Inorganics 2021, 9, 38.

AMA Style

Fogaça LA, Bereczki L, Petruševski VM, Barta-Holló B, Franguelli FP, Mohai M, Béres KA, Sajó IE, Szilágyi IM, Kotai L. A Quasi-Intramolecular Solid-Phase Redox Reaction of Ammonia Ligands and Perchlorate Anion in Diamminesilver(I) Perchlorate. Inorganics. 2021; 9(5):38.

Chicago/Turabian Style

Fogaça, Lara Alexandre, Laura Bereczki, Vladimir M. Petruševski, Berta Barta-Holló, Fernanda Paiva Franguelli, Miklós Mohai, Kende Attila Béres, Istvan E Sajó, Imre Miklós Szilágyi, and Laszlo Kotai. 2021. "A Quasi-Intramolecular Solid-Phase Redox Reaction of Ammonia Ligands and Perchlorate Anion in Diamminesilver(I) Perchlorate" Inorganics 9, no. 5: 38.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
