Crystal Structure and Thermal Behavior of SbC₂O₄OH and SbC₂O₄OD

Abstract

The order of OH groups in the crystal structure of SbC₂O₄OH, a potential precursor in the synthesis of ternary oxides, was debated. Neutron diffraction on the deuteride SbC₂O₄OD revealed disordered OD groups with half occupation for deuterium atoms on either side of a mirror plane (SbC₂O₄OD at T = 298(1) K: Pnma, a = 582.07(3) pm, b = 1128.73(5) pm, c = 631.26(4) pm). O–H stretching frequencies are shifted by a factor of 1.35 from 3390 cm⁻¹ in the hydride to 2513 cm⁻¹ in the deuteride as seen in infrared spectra. SbC₂O₄OH suffers radiation damage in a synchrotron beam, which leaves a dark amorphous residue. Thermal decomposition at 564 K yields antimony oxide, carbon dioxide, carbon oxide, and water in an endothermic reaction. When using SbC₂O₄OH as a precursor in reactions, however, ternary oxides are only formed at much higher temperatures.

1. Introduction

Metal oxalate hydroxides are a rather rare class of compounds. Some examples are Cd₂C₂O₄(OH)₂ [1], ZrC₂O₄(OH)₂ [2], BiC₂O₄OH [3] and the title compound. Due to their moderate thermal stability, they have been used as precursors in materials synthesis, for instance for the fabrication of metal/metal oxide composites [4]. Antimony oxalate hydroxide, SbC₂O₄OH, was reported to form by refluxing freshly prepared antimony(III) oxide in oxalic acid and was found as a colorless precipitate when oxalic acid was added to a solution of SbCl₃ in hydrochloric acid [5]. Its composition was established by chemical analysis, solid-state NMR, infrared spectroscopy, and ¹²¹Sb-Mössbauer spectroscopy [6]. It decomposes within one step at 563 K to antimony(III) oxide [7,8]. SbC₂O₄OH can be used for the preparation of antimony containing compounds, i.e., mixed crystal oxides such as BaBi_1/2Sb_1/2O₃ [9]. The low decomposition temperature, simple synthesis and stable composition seem to be attractive properties for usage as a precursor for antimony-based materials.

The crystal structure of SbC₂O₄OH was determined by X-ray powder diffraction to be isotypic to that of BiC₂O₄OH [3]. Pentagonal SbO₆ pyramids form zigzag chains linked by OH groups. Each oxalate anion coordinates two antimony cations, thus connecting the chains to build up a three-dimensional framework. Antimony ions are very close to the pentagonal base plane of the pyramids, leaving one side of the cation uncoordinated, which is not uncommon for ns² cations such as Sb³⁺. However, the question of hydrogen atom location remains unclear. In BiC₂O₄OH, hydrogen positions could not be located [3]. In SbC₂O₄OH, hydrogen atoms were placed on either side of a mirror plane (Pnma) with half occupancy. Hints for an ordering of hydrogen atoms in a lower symmetry (Pna2₁) were found by quantum-mechanical studies, but not from diffraction experiments [10]. Since hydrogen has a very low atomic form factor as compared to antimony, its contribution to X-ray diffraction patterns is very small, thus probably preventing a clear distinction between ordered and disordered crystal structure. In order to tackle the problem of hydrogen order in antimony oxalate hydroxide, we have synthesized SbC₂O₄OH and SbC₂O₄OD, characterized them by a variety of methods, and located hydrogen (deuterium) atoms by neutron diffraction data.

2. Results

2.1. Infrared Spectra

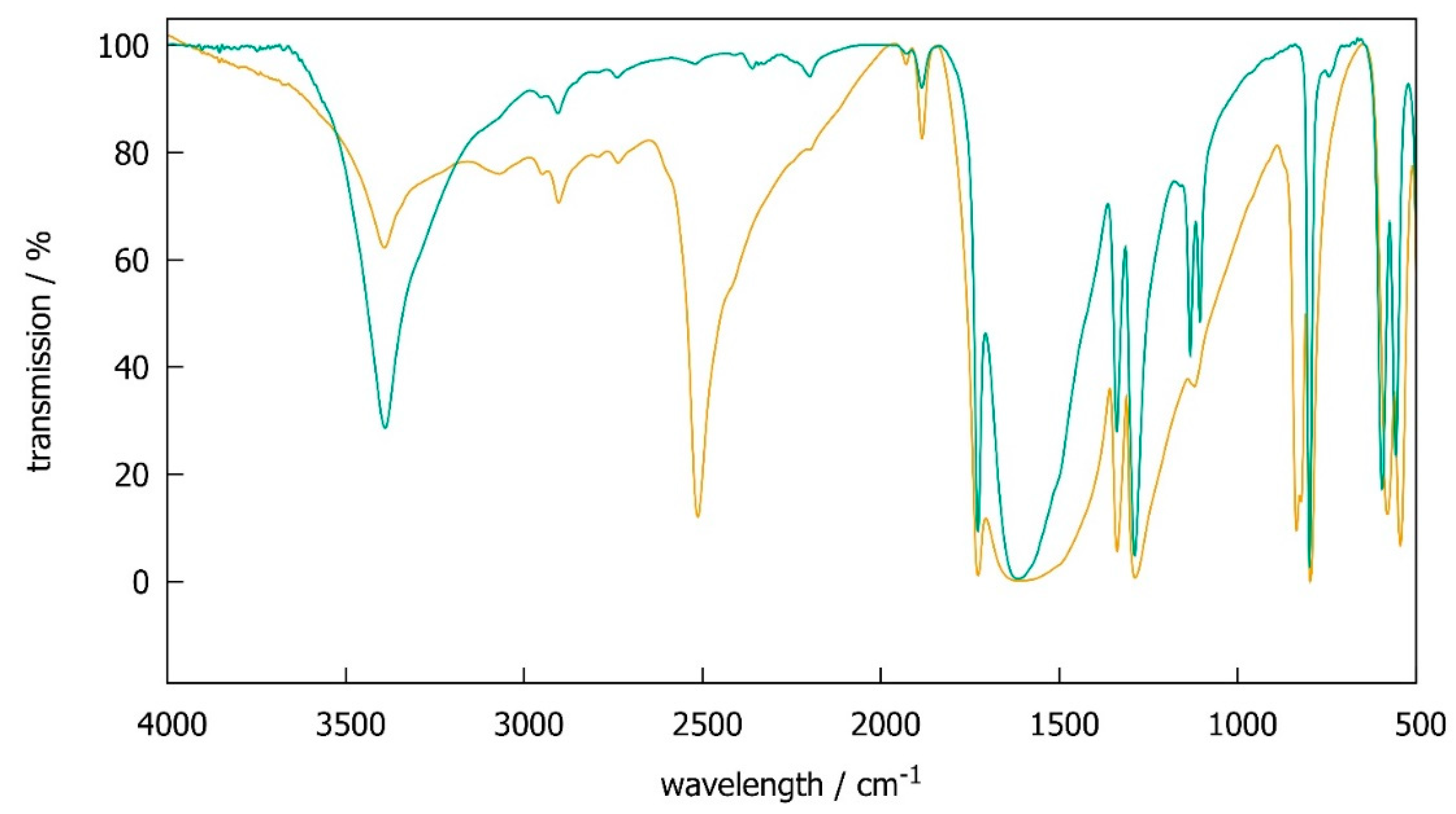

SbC₂O₄OH shows an O–H stretching frequency of 3390 cm⁻¹ in accordance with earlier results [6]. In the deuterated compound SbC₂O₄OD, this is shifted to 2513 cm⁻¹, i.e., by a factor of 1.35 with respect to ν(O–H), while other signals are hardly affected. This isotope effect is close to the theoretically expected value of $\sqrt{2}$ and in very good agreement with isotope shifts found in other inorganic hydroxides, e.g., 1.36 for Mg(OH)₂ and Mg(OD)₂ [11]. Infrared spectra thus prove the deuteration procedure to be successful, but also reveal some remaining hydrogen due to a small remaining signal at 3390 cm⁻¹. An estimation of integrated peak intensities leads to a deuteration degree of about 80%. This value may be regarded as a rough estimate only, because the base line of infrared spectra is ill defined (Figure 1).

2.2. X-Ray Powder Diffraction and Rietveld Analysis

X-ray powder diffraction and subsequent Rietveld analysis confirmed the crystal structure model for SbC₂O₄OH published before [10] and proved the single-phase character of the samples. The patterns showed a strong preferred orientation of crystallites in all samples along [010]. X-ray powder diffraction further proved the deuterated compound SbC₂O₄OD to be isotypic. Expectedly, X-ray data did not allow for a distinction between the hydrogen-disordered (Pnma) and the hydrogen-ordered model (Pna2₁), neither for SbC₂O₄OH nor for SbC₂O₄OD.

2.3. Neutron Powder Diffraction and Rietveld Analysis

Neutron powder diffraction was performed on a deuterated sample in order to avoid the huge incoherent scattering of ¹H [12]. Rietveld refinements were carried out using the disordered model in Pnma [10] as well as deuterium-ordered crystal structure models. Lowering the symmetry to Pna2₁ allows complete ordering of hydrogen (deuterium) atoms. However, refinement with such completely ordered models did not yield better agreement between measured and calculated neutron powder diffraction patterns, as indicated by residual values and graphical representation. A refinement of occupation numbers for both possible deuterium positions with the constraint occ(D1) + occ(D2) = 1 yielded occ(D1) = 0.67(5) and occ(D2) = 0.33(5), i.e., the difference between both, is only 3.4 combined standard uncertainties and thus, hardly significant. The 1:2 ratio in occupation numbers suggested a tripling of the unit cell, which would allow a sequence + + − (or up, up, down) for the orientation of –OD groups. Refinement attempts with such models did not yield better agreement between measured and calculated neutron powder diffraction patterns either. Another possible ordering is achieved for a deuterium position on a mirror plane, i.e., with y = ¼ instead of ≈ 0.28 (

Table 1. Refined crystal structure of SbC₂O₄OD at T = 298(1) K and residual values of the Rietveld refinement based on neutron powder diffraction; space group Pnma, a = 582.07(3) pm, b = 1128.73(5) pm, c = 631.26(4) pm; R_p = 3.0%, R_wp = 3.8%, R_Bragg = 6.2%, χ² = 1.2.

Atom	Wyckoff Position	x	y	z	Biso/104 pm2	Occupation
Sb	4c	0.1799(9)	¼	0.5064(8)	1.00(12)	1
C	8d	0.1066(6)	0.5245(3)	0.5531(5)	1.06(7)	1
O1	4c	0.5373(10)	¼	0.7105(10)	0.99(13)	1
O2	8d	0.2600(7)	0.4519(4)	0.6067(6)	1.73(9)	1
O3	8d	0.1203(7)	0.6353(3)	0.5827(6)	1.23(8)	1
D	8d	0.6431(16)	0.2844(8)	0.6076(13)	3.81(31)	0.468(5)
H	8d	x(D)	y(D)	z(D)	Biso(D)	½—occ(D)

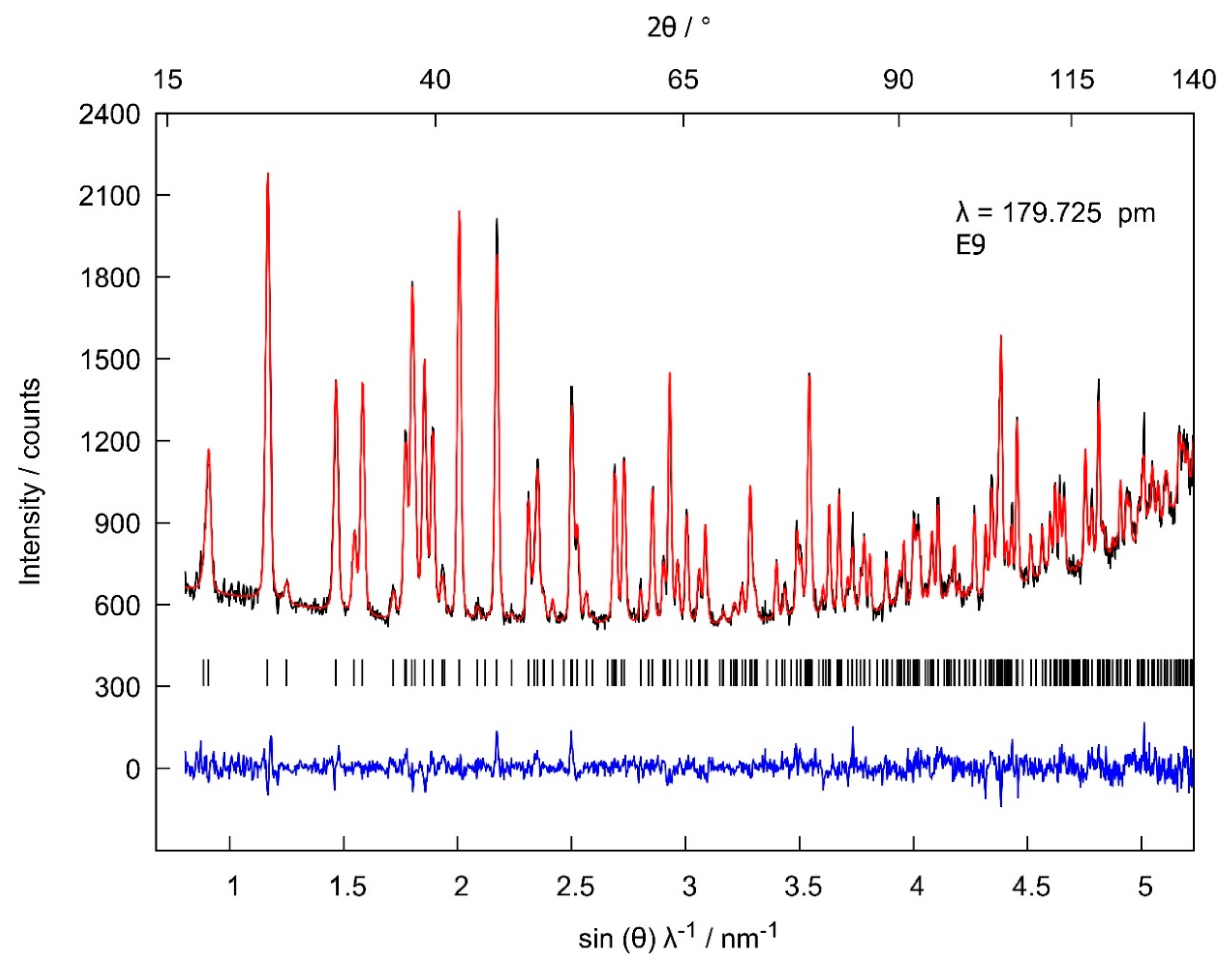

), however, agreement factors are worse compared to the disordered model and thermal displacement parameters of the deuterium atoms are very large (>8 × 10⁴ pm²). Therefore, the crystal structure of SbC₂O₄OD is described in the disordered Pnma model (half occupation by D/H on Wyckoff position 8d), which gives a very good agreement between measured and calculated neutron powder diffraction patterns (Figure 2, Table 1). As already determined from infrared spectroscopy (Section 2.1), deuteration did not reach completeness. A refinement of H/D occupation yielded 6.4(5)% H and 93.6(5)% D with the constraint occ(H) + occ(D) = ½, thus giving the composition SbC₂O₄D_0.936(5)H_0.064(5) for the sample used in neutron diffraction (Table 1). For reasons of simplicity, this is referred to as SbC₂O₄D in the following. Further details of the crystal structure investigations may be obtained from FIZ Karlsruhe, 76344 Eggenstein-Leopoldshafen, Germany (fax: (+49)7247-808-666; e-mail: [email protected]), on quoting the deposition number CSD-1969091.

2.4. Thermal Analysis: DSC-TG-MS

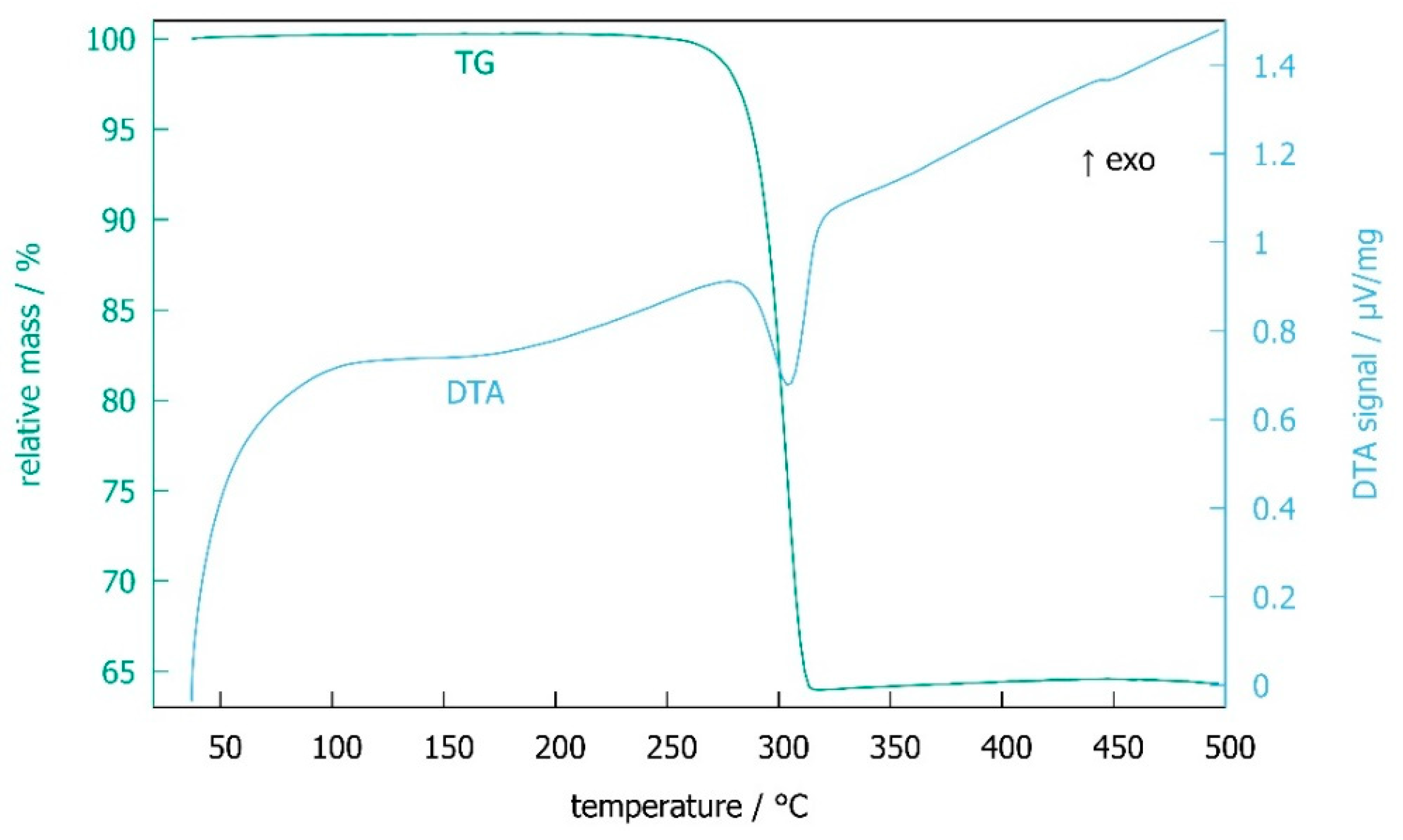

Thermal analysis for SbC₂O₄OH shows a single-step decomposition to Sb₂O₃ at 564 K (onset temperature of mass loss) in an endothermic reaction (Figure 3). The mass loss of 34.8% agrees well with a calculated value of 35.7% for the reaction 2 SbC₂O₄OH = Sb₂O₃ + H₂O + 2 CO₂ + 2 CO. Evolved gas analysis (EGA) by mass spectrometry (MS) confirms this hypothesis.

2.5. Radiation Damage

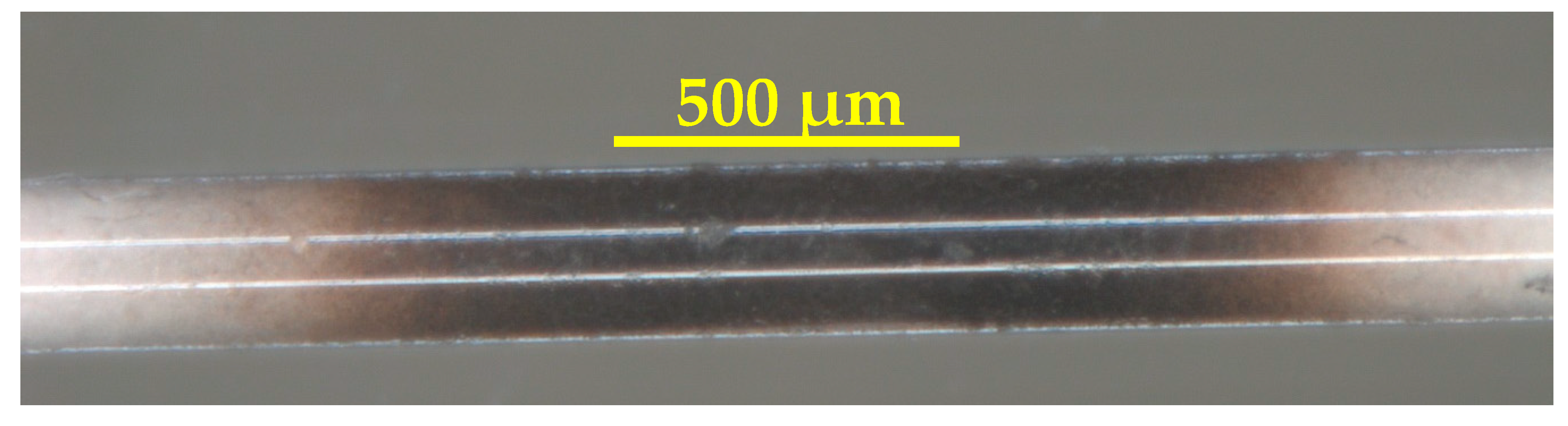

In an attempt to collect high-resolution diffraction data, synchrotron experiments were performed at the beamline PDIFF of ANKA (Ångströmquelle Karlsruhe) of the Karlsruhe Institute of Technology (KIT) at a wavelength of λ = 112.684(1) pm. The sample was contained in a thin-walled glass capillary with a 0.3 mm outer diameter. The diffraction experiment failed, because after exposure to the synchrotron beam for about 1 h, the intensity of Bragg reflections vanished almost completely, indicating that less crystalline material was in the synchrotron beam. Capillary and beam alignment were confirmed to be in the best order, and optical checking revealed a darkening of the irradiated area, indicating a decomposition of the sample (Figure 4). The black residue was most probably amorphous carbon due to decomposition. It is thus concluded that SbC₂O₄OH suffers radiation induced decomposition at λ = 112.684(1) pm, even for a beam of moderate intensity as present at beamline PDIFF of ANKA (Ångströmquelle Karlsruhe), whereas this effect does not occur at a laboratory X-ray diffractometer using CuKα radiation.

2.6. Chemical Reactions with SbC₂O₄OH as a Precursor

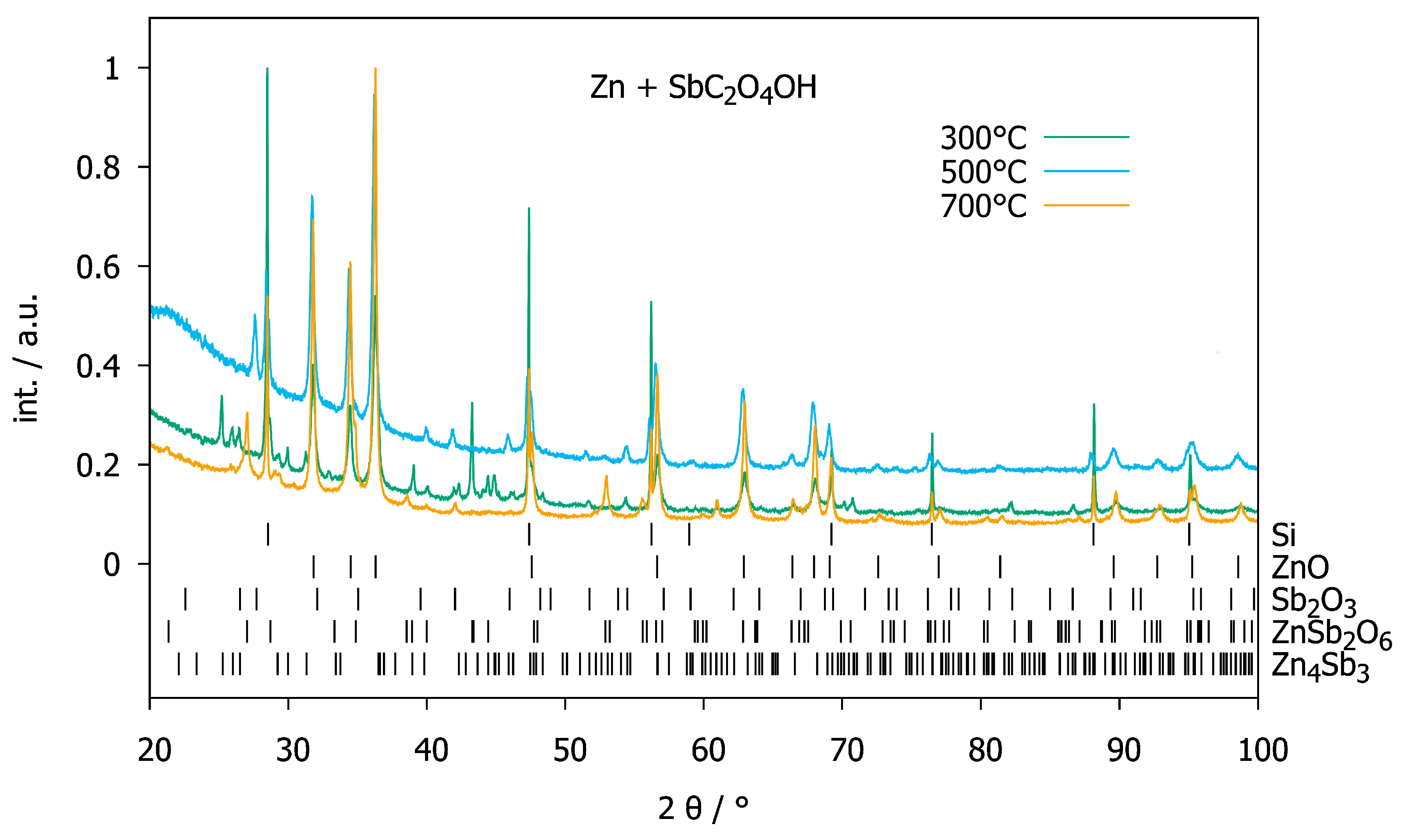

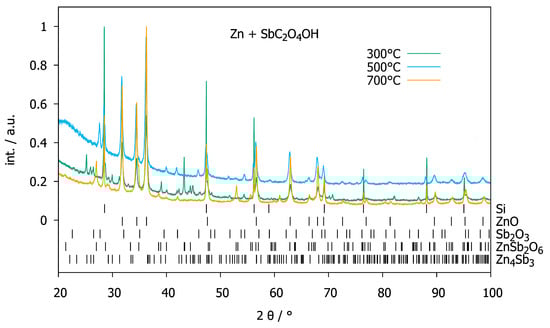

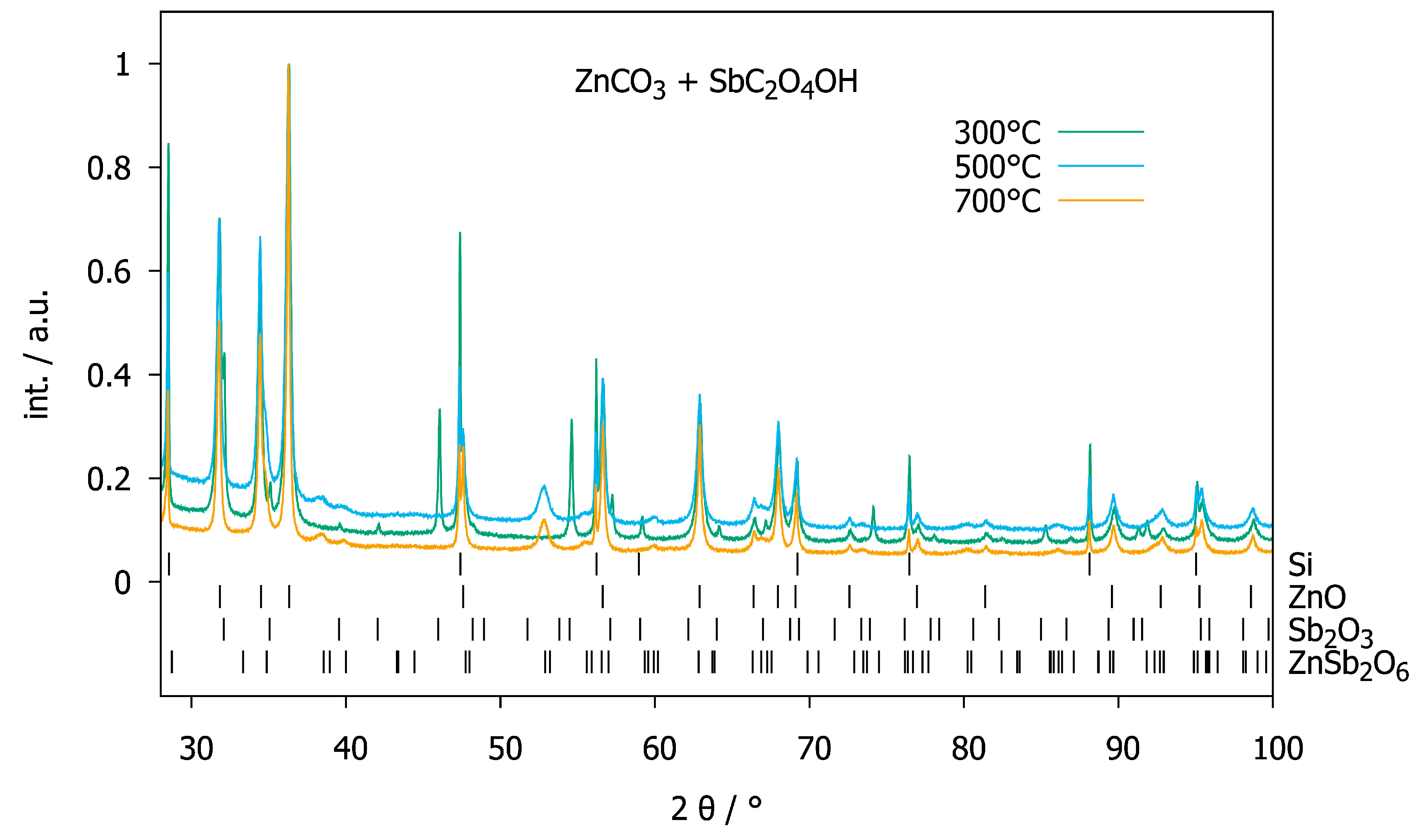

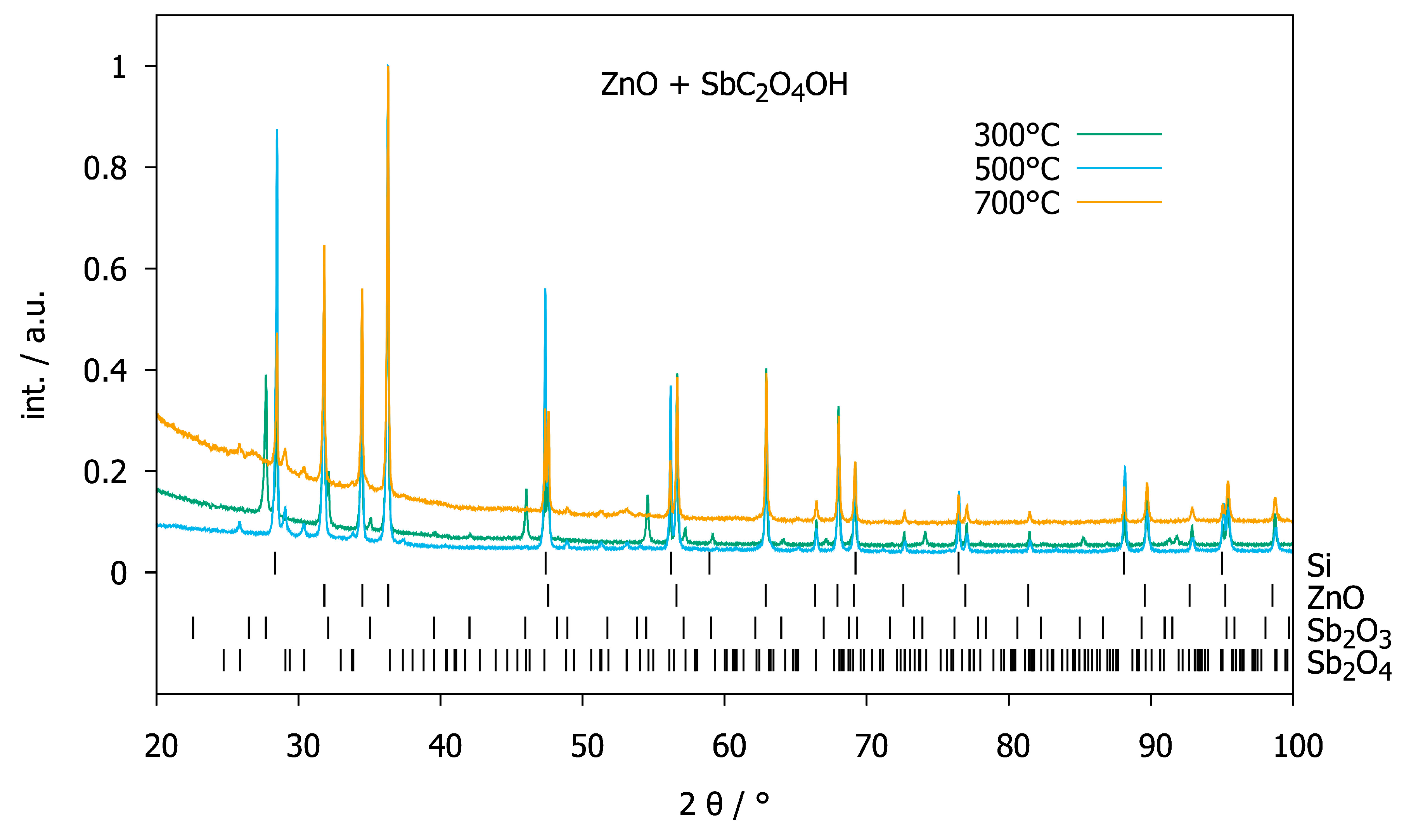

SbC₂O₄OH was reacted with Zn, ZnO or ZnCO₃ in order to prepare ternary zinc antimony oxides. Heating a mixture of Zn with SbC₂O₄OH with a 10:1 molar ratio to 573 K under air overnight yielded ZnO as well as Zn₄Sb₃ (Figure 5). Presumably, the carbon monoxide released during the decomposition of oxalate acts as a reducing agent for antimony. Further temperature treatment at 773 K yielded ZnO and Sb₂O₃ by oxidizing the previously formed Zn₄Sb₃. Higher temperatures (973 K, Figure 5) lead to the formation of ZnSb₂O₆. Mixtures of ZnO with SbC₂O₄OH show decomposition of the latter to Sb₂O₃ at 573 K. At higher temperatures (773 K and 973 K, Figure 6), Sb₂O₃ is further oxidized to Sb₂O₄. ZnO does not participate in the reaction. SbC₂O₄OH reacts with ZnCO₃ at 573 K to ZnO and Sb₂O₃ (Figure 7). At higher temperatures (773 K and 973 K, Figure 7), ZnO and Sb₂O₃ react to ZnSb₂O₆. Mixtures with higher content of SbC₂O₄OH (molar ratios of 4:3 and 1:2) behaved similarly.

3. Discussion

The deuteride SbC₂O₄OD can be synthesized by refluxing Sb₂O₃ and water-free oxalic acid in D₂O. It exhibits the same crystal structure as SbC₂O₄OH and shows the typical isotope effect, with a shift of the O–H stretching frequency by a factor of 1.35. Both SbC₂O₄OH and SbC₂O₄OD are rather inert considering H–D exchange. An SbC₂O₄OD sample may be stored in air for several months without any change in X-ray diffraction patterns and infrared spectra, with respect to one stored under argon. SbC₂O₄OH may even be refluxed in D₂O without deuteration of the hydroxide group. In order to get an accurate picture of both the heavy and the light atoms in the crystal structure, the complementary methods of X-ray and neutron diffraction were used. The crystal structure exhibits zigzag chains of pentagonal SbO₆ pyramids linked by OH groups as primary units. They are linked by oxalate groups to build up a three-dimensional framework (Figure 8). Antimony ions show the one-sided coordination typical for ns² cations [13,14,15]. Sb–O, C–C and C–O interatomic distances are in the typical ranges for antimony oxides and oxalate ions, respectively. D–O distances are 97.6(10) pm within the OD group, and 204(1) pm to the neighboring oxalate ion, indicating the possibility of hydrogen bonds in the crystal structure. The crystal structure is in good agreement with the one found before by X-ray diffraction [10]. In SbC₂O₄OD deuterium atoms are disordered and located on either side of a mirror plane (m perpendicular to [010] in Pnma) with half occupation (Figure 8, Table 1). Quantum-mechanical studies showed that a fully ordered structure in space group Pna2₁ has a lower energy than the disordered one [10]. However, no signs for any ordering of deuterium atoms can be found by neutron diffraction. Disordered hydrogen atoms are not unusual, and order–disorder transitions occur in a wide range of hydrogenous materials [16,17,18,19,20,21].

SbC₂O₄OH is not very stable with respect to heat and intense X-radiation. While the former gives antinomy oxide, carbon dioxide, carbon monoxide and water at 564 K in an endothermic reaction, the latter leads to the formation of a dark amorphous residue, probably antimony oxide and carbon. The low decomposition temperature and easy handling of SbC₂O₄OH seem to be advantageous properties for a precursor in the synthesis of ternary oxides. This is put into perspective, however, by the results reaction of SbC₂O₄OH with reactants such as zinc, zinc oxide, and zinc carbonate. They react to ternary compounds like ZnSb₂O₆, at about the same temperatures as the mixtures of the binary oxides (1073 K [22]) do, way above the decomposition temperature of SbC₂O₄OH. Similar behavior was observed for the reaction of SbC₂O₄OH, with barium oxalate hydrate and bismuth oxide to BaBi_1/2Sb_1/2O₃ [9]. The advantage of a low decomposition temperature is thus only an apparent one for the precursor-based synthesis of antimonates.

4. Materials and Methods

Synthesis: 5.00 g Sb₂O₃ (Riedel-de-Haën, Seelze, Germany, p.a.) and 4.40 g oxalic acid dehydrate (Riedel-de-Haën, Seelze, Germany, 98%) were refluxed in 60 mL deionized water for 3 h. The white residue of SbC₂O₄OH was filtered, washed with water, and dried at 388 K for 12 h. A deuterated sample SbC₂O₄OD was prepared in a similar way by using water-free oxalic acid and D₂O. Oxalic acid dihydrate (Riedel-de-Haën, Seelze, Germany, purum) was dried at 372 K for 2 h according to [23], ground, weighed and quickly transferred to a two-neck flask. There, 5.00 g Sb₂O₃ (Riedel-de-Haën, Seelze, Germany, p.a.) and 3.14 g of the dried oxalic acid were refluxed in 60 mL D₂O (Eurisotop, Saint-Aubin, France, 99%) for 3 h. The white residue of SbC₂O₄OD was filtered, washed with D₂O, dried at 388 K for 12 h and kept in a desiccator. Reactions of SbC₂O₄OH with other metal precursors (Section 2.6) were carried out in open alumina crucibles at various temperatures. Mixtures of SbC₂O₄OH and Zn, ZnO, or ZnCO₃ were intimately mixed and heated up to 1093 K for 12 h in order to investigate the behavior as a precursor for the synthesis of ternary zinc oxides. Resulting powders were analyzed by X-ray powder diffraction. Refluxing of SbC₂O₄OH in D₂O did not give any H-D exchange, probably due to the low solubility of SbC₂O₄OH.

Thermal analysis and emission gas analysis: Thermal analysis was carried out on a 15.0 mg sample of SbC₂O₄OH in an alumina crucible in air on an STA409/414 (differential scanning calorimetry, DSC, and thermogravimetry, TG) (Netzsch, Selb, Germany) coupled by a skimmer to a quadrupole mass spectrometer QMG422 (Balzers, Hudson, NH, USA).

Infrared spectroscopy: Infrared spectra were recorded on a Tensor 27 FT-IR spectrometer (Bruker, Ettlingen, Germany) for 400 cm⁻¹ ≤ ν ≤ 4000 cm⁻¹ using KBr pellets.

X-ray and synchrotron powder diffraction: X-ray powder diffraction data were collected either using flat reflection samples containing an internal silicon standard on a diffractometer X’Pert (PANalytical, Almelo, The Netherlands) in Bragg-Brentano geometry at T = 296(1) K with CuKα radiation, or using flat transmission samples on a Huber G670 diffractometer in Guinier geometry and with CuKα1 radiation. For the latter, samples were prepared by mixing the powders with an internal silicon standard and grease, and putting them between two sheets of capton foil. Rietveld refinements were carried out with the program FULLPROF [24,25,26] and pseudo-Voigt as the profile function. Synchrotron experiments were performed at the beamline PDIFF of ANKA (Ångströmquelle Karlsruhe) of the Karlsruher Institute of Technology (KIT) at a wavelength of λ = 112.684(1) pm. The samples were contained in thin-walled glass capillaries with a 0.3 mm outer diameter.

Neutron powder diffraction: Neutron powder diffraction was carried out at the E9 diffractometer (λ = 1.79725 Å) at Helmholtz-Zentrum Berlin für Materialien und Energie, Berlin, Germany [27]. Powdered samples were held in thin-walled vanadium containers with a 6 mm inner diameter. Deuterides instead of hydrides were used in order to avoid the high incoherent scattering of ¹H [12].

5. Conclusions

The synthesis of deuterated antimony oxalate hydroxide may be realized by slight modifications in the synthesis, i.e., use of water-free oxalic acid and D₂O. O–D stretching frequencies in SbC₂O₄OD are shifted by a factor of 1.35 with respect to O–H in SbC₂O₄OH. The crystal structure shows zigzag chains of pentagonal SbO₆ pyramids linked by OH (OD) groups as the main structural features. Hydrogen (deuterium) atoms are disordered, i.e., occupy a position on either side of a mirror plane with half occupation and no preference for either one. Synchrotron radiation induces decomposition to an amorphous dark powder, probably antimony oxide and carbon. SbC₂O₄OH decomposes at low temperatures of 564 K to form Sb₂O₃, CO₂, CO, and H₂O, which seems to be useful for synthesis of ternary oxides. This advantage is only an apparent one since the antimony oxide formed by the decomposition of SbC₂O₄OH reacts only at much higher temperatures to antimonates.
