Crystal Structures of DNA Intercalating Agents Dipyrido[3,2-f:2′,3′-h]quinoxaline (dpq), (Benzo[i]dipyrido[3,2-a:2′,3′c]phenazine (dppn), and [Ir(ppy)2(dppn)][PF6] (Where Hppy = 2-Phenylpyridine)

by
Marisa James
1,
Madelyn R. Shevlin
1,
Thomas B. Green
1,
Megan M. Smart
2,
Colin D. McMillen
2,* and
Jared A. Pienkos
1,*
1
Department of Chemistry & Physics, The University of Tennessee at Chattanooga, Chattanooga, TN 37403, USA
2
Department of Chemistry, Clemson University, Clemson, SC 29634, USA
*
Authors to whom correspondence should be addressed.
Inorganics 2023, 11(9), 353; https://doi.org/10.3390/inorganics11090353
Submission received: 31 July 2023 / Revised: 23 August 2023 / Accepted: 25 August 2023 / Published: 29 August 2023
(This article belongs to the Section Coordination Chemistry)
Browse Figures
Versions Notes

Abstract

:
Pyrazino-phenanthroline ligands are commonly used with transition metals as DNA intercalation agents. Herein, we report the characterization of two commonly utilized pyrazino-phenanthroline ligands, dipyrido[3,2-f:2′,3′-h]quinoxaline (dpq) and (benzo[i]dipyrido[3,2-a:2′,3′c]phenazine (dppn), by single-crystal X-ray diffraction. Additionally, the characterization of [Ir(ppy)2(dppn)][PF6], where Hppy = 2-phenylpyridine, by single-crystal X-ray diffraction is described. Both the dpq and dppn ligands crystallize as chloroform solvates where the chloroform molecule occupies the equivalent binding pocket of a metal in metal complexes of these ligands. These pyrazino-phenanthrolines are largely planar, with the dppn ligand displaying a slight twist. When the dppn ligand is coordinated to iridium(III), the dppn ligand on the resulting complex displays a significant degree of bending along the longitudinal direction of the ligand. This iridium (III) complex crystallizes as a CH2Cl2 and Et2O solvate and due to the volatility of these solvents these crystals are only stable for a few seconds outside of the mother liquor. The structures of the free ligands and the [Ir(ppy)2(dppn)][PF6] complex all display extensive π stacking interactions.

Graphical Abstract

1. Introduction

Polypyridyl ligands with extended conjugation have gained interest as DNA intercalation agents because of their planar structures [1]. One class of these molecules, the pyrazino-phenanthroline ligands, are commonly used intercalation agents that can be synthesized by a condensation reaction with 1,10-phenanthrolene-5,6-dione and an appropriate diamine (Scheme 1) [2,3,4]. Exploiting diamines with aromatic backbones can result in pyrazino-phenanthroline derivatives with more extended conjugation, which are commonly used in combination with transition metal compounds to provide species that can interact with DNA. Because DNA is negatively charged, cationic metal complexes are commonly utilized for advantageous electrostatic interactions [5].
For example, [Ru(bpy)2(dppz)]2+ serves as a luminescent DNA probe (Scheme 2) [6]. In aqueous environments, this compound’s luminescence is quenched by H2O through a proton transfer to the pyrazine moieties. Once [Ru(bpy)2(dppz)]2+ is intercalated into DNA, the compound luminesces as H2O is no longer able to quench this process. In addition to Ru(II) derivatives [7,8,9,10,11], other metal centers (e.g., Ir(III) [12], Os(II) [13], Re(I) [14,15,16], Rh(III) [17], Cr(III) [18], Co(III) [19], and Ni(II) [19]) with similar ligand structures have been exploited for their DNA binding properties. For example, Lo et al. demonstrated that the Ir(III) species [Ir(ppy)2(dppn)][PF6](where Hppy = 2-phenylpyridine) intercalates DNA (Scheme 2), which was determined through absorption and emission titration experiments [12].
Although the utility of dpq, dppz, and dppn as coordinating ligands in metal complexes has been described in the literature, in terms of the free ligands, only the crystal structure of the dppz ligand has been so far reported, as a CHCl3 [20] and MeOH solvate [21]. Herein, we present the crystal structure of the dpq and dppn ligands as chloroform solvates to provide comparative structures of these useful ligands in their non-coordinated form. We also synthesized the previously reported [Ir(ppy)2(dppn)][PF6]organometallic compound, for which no structure was previously reported [12], and determined its crystal structure as an Et2O and CH2Cl2 solvate.

2. Results and Discussion

2.1. Synthesis

The two investigated pyrazino-phenanthroline ligands were synthesized by heating the appropriate diamine in the presence of 1,10-phenanthroline-5,6-dione followed by solvent washings or recrystallization. Characterization by 1H NMR spectroscopy was utilized to confirm the purity of each species. The dpq ligand displayed four 1H resonances at 9.6, 9.4, 9.1, and 7.9 ppm and the dppn ligand displayed six 1H resonances at 9.6, 9.3, 8.9, 8.2, 7.8, and 7.6 ppm, which matched previously reported characterization (Supplementary Materials, Figures S1 and S2).
The Ir(III) species, [Ir(ppy)2(dppn)][PF6], was synthesized by heating a chloro-bridged iridium dimer, [Ir(ppy)2(μ-Cl)]2, in the presence of dppn and ethylene glycol. Upon addition of a saturated aqueous solution of NH4PF6, a precipitate formed that was collected and washed with H2O and Et2O to give [Ir(ppy)2(dppn)][PF6]. Characterization by 1H NMR spectroscopy was utilized to confirm the purity of this species, which matched the previously reported data (Supplementary Materials, Figure S3) [12].

2.2. Crystal Structure of dpq·CHCl3

The free dpq ligand crystallized as the chloroform solvate, dpq·CHCl3, in the monoclinic space group P21/c, with Z = 4. The asymmetric unit consists of one unique molecule each of dpq and CHCl3 (Figure 1a). The dpq molecule is planar, as indicated by the following key dihedral angles about the central benzene ring: N1-C5-C6-N2 = −1.0 (4)°, C9-C10-C11-N4 = 2.4 (4)°, and C3-C4-C12-N3 = −0.9 (4)°. These are of similar magnitude to the dihedral angles in the unbound dpq ligands that are cocrystallized in the structure of the bis(dihydrogen bis(pyrazolyl)borate-N,N′)-(pyrazino[2,3-f][1,10]phenanthroline-iron complex [22]. Planarity is also generally maintained among the numerous examples of dpq ligands that are coordinated to transition metals or lanthanide ions [20,22,23,24,25].
Neighboring dpq molecules form offset stacks along the b-axis (Figure 1b and Figure 2a), having a parallel plane-to-plane distance of 3.213 Å, supporting π···π interactions. The CHCl3 molecules provide important connectivity to form chains of alternating CHCl3 and dpq molecules propagating along the a-axis (Figure 2b). The hydrogen atom of the CHCl3 molecule forms bifurcated C-H···N interactions with the pyridyl nitrogen atoms (N1, N2) of one dpq molecule (H···N = 2.34 Å and 2.30 Å), while the Cl3 atom forms a Cl···N halogen bonding interaction (3.127 (3) Å) to the N3 atom of the pyrazine ring of a second dpq molecule. Through the bifurcated C-H···N interactions, the CHCl3 molecule occupies a similar binding pocket to transition metals that coordinate dpq.

2.3. Crystal Structure of dppn·CHCl3

The free dppn ligand also crystallized as the chloroform solvate, dppn·CHCl3, in the orthorhombic space group Pbca, with Z = 8. The asymmetric unit consists of one unique molecule each of dppn and CHCl3 (Figure 3a). Dihedral angles about the central benzene ring again indicate a largely planar molecule with a very slight twist (N1-C5-C10-N2 = −1.7 (2)°, C3-C4-C11-N3 = −1.1 (2)°, and C8-C9-C12-N4 = 5.2 (2)°). Similar twists up to about 7° have been observed in dppn ligands coordinated to metal centers [20,26,27,28,29,30,31,32,33,34,35].
Neighboring molecules stack in slightly off-parallel fashion (Figure 3b and Figure 4a), with their neighboring mean planes inclined at 8.7(3)° to one another. The stacking occurs approximately along the [1 28 2] direction, and the average distance between planes stacked in that direction is 3.305 Å. Similar to the dpq solvate, the CHCl3 molecule maintains bifurcated C-H···N interactions to the pyridyl nitrogen atoms (H···N = 2.36 Å and 2.27 Å), also occupying a similar binding pocket to metal ions in dppn complexes. However, the chlorine atoms in dppn·CHCl3 do not participate in any halogen bonding interactions as they do in dpq·CHCl3. Instead, chains of dppn molecules are formed through C-H···N interactions to the N3 atom of the pyrazine ring (H···N = 2.66 Å). These chains propagate along the a-axis (Figure 4b).

2.4. Crystal Structure of [Ir(ppy)2(dppn)][PF6] · 0.875 CH2Cl2, 0.25 C4H10O

The iridium(III) complex of dppn and 2-phenylpyridine (Hppy) (Figure 5a) was prepared as the [PF6]− salt and crystallized as a complex solvate involving disordered CH2Cl2 and C4H10O molecules, [Ir(ppy)2(dppn)][PF6] · 0.875 CH2Cl2, 0.25 C4H10O. The complex crystallizes in the triclinic space group P-1 with Z = 4, and two unique cationic complexes and two unique [PF6]− anions in the asymmetric unit, as well as the disordered solvent molecules as described in Section 3 below (Figure 5b). In [Ir(ppy)2(dppn)][PF6], the iridium(III) center is six-coordinate, with the ppy ligands each coordinating through one carbon and one nitrogen atom, and the dppn ligand coordinating through both of the pyridyl nitrogen atoms. The Ir-N bonds to dppn are oriented opposite the Ir-C bonds to ppy, leading to a measurable trans-effect elongating the Ir-N bonds to dppn (2.122 (9) Å to 2.184 (9) Å) compared to the Ir-N bonds to ppy (2.041 (9) Å to 2.065 (9) Å). This is similar to what is observed in the structures of [Ir(ppy)2(dppz)][PF6] [12] and [Ir(F2ppy)2(dpq)][PF6] [24] which have a similar coordination patterns, Ir-N distances, and trans-effects. Likewise, the Ir-C bond lengths of [Ir(ppy)2(dppn)][PF6] (1.993 (11) Å to 2.033 (12) Å) are in good agreement with those complexes.
The coordinated dppn ligands in the two unique [Ir(ppy)2(dppn)]+ complexes of [Ir(ppy)2(dppn)][PF6] exhibit similar C-C-C-N dihedral angles (up to 5.2 (17)°) to those in dppn·CHCl3, but rather than producing a slightly twisted effect along the longitudinal direction of the fused ring system, in [Ir(ppy)2(dppn)][PF6], the torsion leads to a meaningful flexible or bending effect. For example, using the N-C-C-N binding pocket formed by the pyridyl rings as a reference plane, the last carbon atoms of the longitudinal fused ring system depart from this plane by 0.35 Å and 0.41 Å in the unique Ir1 complex, and 1.88 Å and 1.95 Å in the unique Ir2 complex (Figure 6).
The complexes assemble in stacks along the a-axis via offset overlap of the dppn ligands on neighboring complexes (Figure 7). In this way, the average stacking distance between dppn ligands is 3.133 Å. The stacking interactions are complemented by C-H···π interactions between the dppn ligand of one complex and the ppy ligand of the next complex along the stack. Additional C-H···π interactions between the ppy ligands of complexes in neighboring stacks along the b-axis and c-axis create a three-dimensional network. The network is then reinforced by C-H···F interactions between the cationic complexes and the [PF6]− anions. The CH2Cl2 and Et2O solvent molecules fill the remaining space in the lattice. Due to the volatility of these solvents and the significant void space between complexes, crystals of [Ir(ppy)2(dppn)][PF6] · 0.875 CH2Cl2, 0.25 C4H10O are only stable outside of the mother liquor for a few seconds.
The potential for [Ir(ppy)2(dppn)][PF6] to intercalate into DNA may be understood in the context of the elegant structure determinations of cocrystals of Ru complexes of dppz with oligonucleotide sequences. In one study, the Λ-[Ru(TAP)2(dppz)]2+ complex (TAP = 1,4,5,8-tetraazaphenanthrene) cocrystallizes with the d(TCGGCGCCGA) sequence via intercalation of the dppz ligand and semiintercalation of the TAP ligands to produce a non-covalently cross-linked and kinked structure [36]. In that structure, the dppz ligand exhibits stacking interactions between its pyrazine ring and purine rings, while showing no interactions with solvated water molecules [36]. In another study, a Δ-[Ru(bpy)2(dppz)]2+ complex interacts with the mismatched d(CGGAAATTACCG)2 sequence via metalloinsertion and ejection of mismatched adenosines, metallointercalation, and end-capping [37]. In that study, various dppz intercalation depths are noted, involving the central and distal rings of the ligand [37]. The propensity of stacking interactions observed in the structure of [Ir(ppy)2(dppn)][PF6] (and for that matter, the free dpq or dppn ligands) in the present study suggests it has similar potential as a versatile intercalation complex. The similarity of the ppy ligands to TAP and bpy ligands in the cocrystallized compounds may also suggest that the ancillary ligand interactions that are prevalent and influential in the structures reported in [36,37] may also be operable for [Ir(ppy)2(dppn)][PF6].

3. Materials and Methods

3.1. Reagents and General Procedures

All reagents were purchased from Acros Organics (ethylenediamine), Alfa Aesar (IrCl3·H2O), Ambeed (1,10-phenanthroline-5,6-dione), Fisher Scientific (CH3OH), Oakwood Chemicals (2,3-diaminonaphthalene), TCI Chemicals (2-phenylpyridine), and VWR (CH3CH2OH) and used as received. [Ir(ppy)2(μ-Cl)]2 was synthesized according to a reported literature procedure [38]. All reactions were performed under a N2 atmosphere. NMR samples were prepared by dissolving ~10 mg of sample in the appropriate deuterated solvent. The 1H-NMR spectra were recorded on a Jeol-400 MHz spectrometer. The 1H-NMR chemical shifts are referenced to residual protons in the deuterated solvent. Elemental analysis was performed by Atlantic Microlab (Norcross, GA, USA).

3.2. Synthesis of dpq (Adapted from the Literature [3])

1,10-phenanthroline-5,6-dione (0.5 g, 2.381 mmol) and ethylenediamine (0.223 mL, 3.341 mmol) were heated in CH3CH2OH (175 mL) at 40 °C for 3 h, before stirring at room temperature for 17 h. The solvent was then removed under vacuum to afford a cream-colored product. The product was purified by recrystallization using CH3OH to yield 0.7521 g, 97% yield) a cream colored solid. Crystals were grown at room temperature using vapor-vapor diffusion in CHCl3/Et2O. Elemental Analysis for C14H8N4: Calculated (%): C, 72.40; H, 3.47; N, 24.12. Found (%): C, 72.11; H, 3.41; N, 24.32.

3.3. Synthesis of dppn (Adapted from the Literature [2])

1,10-phenanthroline-5,6-dione (0.4967 g, 2.365 mmol) and 2,3-diaminonaphthalene (0.4101 g, 2.596 mmol) were refluxed in CH3OH (75 mL). After 1 h, the bright orange precipitate that formed was filtered and washed with 25 mL each of H2O, CH3OH, and Et2O. The product (0.3489 g, 45% yield) was obtained as an orange solid. Crystals were grown at room temperature using vapor-vapor diffusion in CHCl3/Hexanes. Elemental Analysis for C22H12N4·1.5 H2O: Calculated (%): C, 73.53; H, 4.21; N, 15.59. Found (%): C, 73.88; H, 4.00; N, 15.83.

3.4. Synthesis of [Ir(ppy)2(dppn)][PF6] (Adapted from the Literature [12])

Ethylene glycol (5 mL) was added to [Ir(ppy)2(μ-Cl)]2 (0.1011g, 0.0944 mmol) and dppn (0.0677g, 0.2037 mmol) and the resulting mixture was heated at 150 °C under nitrogen. After 16 h, a saturated solution of NH4PF6 (4.575 g, 28.07 mmol) in H2O (10 mL) was added to the bright orange reaction mixture before performing a filtration with sequential washings of H2O (3 × 10 mL) and Et2O (3 × 10 mL). The product was obtained as an orange solid (0.181 g, 91% yield) and crystals were grown at room temperature using vapor-vapor diffusion in CH2Cl2/Et2O. Elemental Analysis for C44H28F6IrN6P·2 H2O: Calculated (%): C, 52.12; H, 3.18; N, 8.29. Found (%): C, 51.94; H, 2.97; N, 8.41.

3.5. X-ray Crystallography

Single crystal X-ray diffraction data were collected at 100 K using a Bruker D8 Venture diffractometer with Mo Kα radiation (λ = 0.71073 Å) from a microfocus source, and a Photon 2 detector. Data were collected using 0.5° oscillations of φ and ω. Data were integrated, scaled, and corrected for absorption (multi-scan) using SAINT and SADABS programs within the Apex 3 software suite. The initial structural model was determined by intrinsic phasing using SHELXT [39], and subsequently refined by full-matrix least squares techniques on F2 using SHELXL [40]. All non-hydrogen atoms were refined anisotropically. Hydrogen atoms attached to carbon atoms were refined in calculated positions using appropriate riding models. The CHCl3 solvent molecules cocrystallized in the structures of dpq·CHCl3 and dppn·CHCl3 were found to be fully occupied and well ordered. The solvent contribution to the structure of [Ir(ppy)2(dppn)][PF6] consisted of one fully occupied, well-ordered CH2Cl2 molecule, three quarter-occupied CH2Cl2 molecules, and one half-occupied Et2O molecule, in addition to the two unique iridium complexes and [PF6]− counterions, leading to a composition of [Ir(ppy)2(dppn)][PF6] · 0.875 CH2Cl2, 0.25 C4H10O. Due to the presence of these highly volatile solvent molecules in the crystalline lattice, the crystals were mounted under cold flowing nitrogen, and had to be immediately quenched to 100 K on the diffractometer. Without immediate quenching to 100 K the crystals decomposed after about 8–10 s, even under paratone oil. Crystallographic data are given in Table 1. CSD 2285801-2285803 contain the supplementary crystallographic data for this paper. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html (accessed on 30 July 2023) (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44 1223 336033; E-mail: [email protected]).

4. Conclusions

We were able to characterize the commonly utilized intercalating agents dpq and dppn by single-crystal X-ray diffraction. While these and similarly structured pyrazino-phenanthroline ligands are often exploited to generate transition metal intercalating agents [5,6,7,8,9,10,11,12,13,14,15,16,17,18,19], only the crystal structure of the dppz ligand has been previously reported [20,21]. Establishing the structures of the free ligands provides useful benchmarks for their metal coordination structural chemistry. The crystal structure of the dpq and dppn ligands indicate that these species are largely planar, with the dppn ligand displaying a slight twist. Upon coordination to iridium, as [Ir(ppy)2(dppn)][PF6], the dppn ligand exhibits longitudinal bending, as determined by single-crystal X-ray diffraction of this iridium(III) species.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/inorganics11090353/s1, Figure S1: 1H NMR of dipyrido[3,2-f:2′,3′-h]quinoxaline (dpq) in CDCl3; Figure S2: 1H NMR of benzo[i]dipyrido[3,2-a:2′,3′c]phenazine (dppn) in CDCl3; Figure S3: 1H NMR [Ir(ppy)2(dppn)][PF6] in (CD3)2CO.

Author Contributions

M.J.: Investigation, Formal analysis, Data curation, Writing—reviewing and editing. M.R.S.: Investigation, Data curation. T.B.G.: Investigation, Data Curation. M.M.S.: Investigation, Data Curation. C.D.M.: Investigation, Formal analysis, Data curation, Writing—original draft. J.A.P.: Conceptualization, Writing—original draft, Methodology, Supervision, Project administration. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Grote Research Fund at the University of Tennessee at Chattanooga.

Data Availability Statement

CSD 2285801-2285803 contain the supplementary crystallographic data for this paper. These data can be obtained free of charge via http://www.ccdc.cam.ac.uk/conts/retrieving.html (accessed on 30 July 2023) (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44 1223 336033; E-mail: [email protected]).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Georgiades, S.N.; Vilar, R. Interaction of metal complexes with nucleic acids. Annu. Rep. Sect. A (Inorg. Chem.) 2010, 106, 481–503. [Google Scholar] [CrossRef]
  2. Foxon, S.P.; Green, C.; Walker, M.G.; Wragg, A.; Adams, H.; Weinstein, J.A.; Parker, S.C.; Meijer, A.J.H.M.; Thomas, J.A. Synthesis, Characterization, and DNA Binding Properties of Ruthenium(II) Complexes Containing the Redox Active Ligand Benzo[i]dipyrido[3,2-a:2′,3′-c]phenazine-11,16-quinone. Inorg. Chem. 2012, 51, 463–471. [Google Scholar] [CrossRef]
  3. Deshpande, M.S.; Kumbhar, A.S.; Näther, C. Stabilization of acyclic water tetramer in a copper(ii) malonate framework structure. Dalton Trans. 2010, 39, 9146–9152. [Google Scholar] [CrossRef] [PubMed]
  4. Nagaraj, K.; Senthil Murugan, K.; Thangamuniyandi, P.; Sakthinathan, S. Synthesis, Micellization Behaviour, DNA/RNA Binding and Biological Studies of a Surfactant Cobalt(III) Complex With Dipyrido[3,2-a:2′,4′-c](6,7,8,9-tetrahydro)phenazine. J. Fluoresc. 2014, 24, 1701–1714. [Google Scholar] [CrossRef] [PubMed]
  5. Di Pietro, M.L.; La Ganga, G.; Nastasi, F.; Puntoriero, F. Ru(II)-Dppz Derivatives and Their Interactions with DNA: Thirty Years and Counting. Appl. Sci. 2021, 11, 3038. [Google Scholar] [CrossRef]
  6. Friedman, A.E.; Chambron, J.C.; Sauvage, J.P.; Turro, N.J.; Barton, J.K. A molecular light switch for DNA: Ru(bpy)2(dppz)2+. J. Am. Chem. Soc. 1990, 112, 4960–4962. [Google Scholar] [CrossRef]
  7. Greguric, I.; Aldrich-Wright, J.R.; Collins, J.G. A 1H NMR Study of the Binding of Δ-[Ru(phen)2DPQ]2+ to the Hexanucleotide d(GTCGAC)2. Evidence for Intercalation from the Minor Groove. J. Am. Chem. Soc. 1997, 119, 3621–3622. [Google Scholar] [CrossRef]
  8. Collins, J.G.; Sleeman, A.D.; Aldrich-Wright, J.R.; Greguric, I.; Hambley, T.W. A 1H NMR Study of the DNA Binding of Ruthenium(II) Polypyridyl Complexes. Inorg. Chem. 1998, 37, 3133–3141. [Google Scholar] [CrossRef]
  9. Collins, J.G.; Aldrich-Wright, J.R.; Greguric, I.D.; Pellegrini, P.A. Binding of the Δ- and Λ-Enantiomers of [Ru(dmphen)2dpq]2+ to the Hexanucleotide d(GTCGAC)2. Inorg. Chem. 1999, 38, 5502–5509. [Google Scholar] [CrossRef]
  10. O’Donoghue, K.A.; Kelly, J.M.; Kruger, P.E. Unusual photophysical switching in a Ru(ii) diimine DNA probe caused by amide functionalisation. Dalton Trans. 2004, 2004, 13–15. [Google Scholar] [CrossRef]
  11. O’Donoghue, K.; Penedo, J.C.; Kelly, J.M.; Kruger, P.E. Photophysical study of a family of [Ru(phen)2(Medpq)]2+ complexes in different solvents and DNA: A specific water effect promoted by methyl substitution. Dalton Trans. 2005, 2005, 1123–1128. [Google Scholar] [CrossRef] [PubMed]
  12. Lo, K.K.-W.; Chung, C.-K.; Zhu, N. Nucleic Acid Intercalators and Avidin Probes Derived from Luminescent Cyclometalated Iridium(III)–Dipyridoquinoxaline and –Dipyridophenazine Complexes. Chem. Eur. J. 2006, 12, 1500–1512. [Google Scholar] [CrossRef] [PubMed]
  13. Holmlin, R.E.; Yao, J.A.; Barton, J.K. Dipyridophenazine Complexes of Os(II) as Red-Emitting DNA Probes:  Synthesis, Characterization, and Photophysical Properties. Inorg. Chem. 1999, 38, 174–189. [Google Scholar] [CrossRef]
  14. Stoeffler, H.D.; Thornton, N.B.; Temkin, S.L.; Schanze, K.S. Unusual Photophysics of a Rhenium(I) Dipyridophenazine Complex in Homogeneous Solution and Bound to DNA. J. Am. Chem. Soc. 1995, 117, 7119–7128. [Google Scholar] [CrossRef]
  15. Metcalfe, C.; Webb, M.; Thomas, J.A. A facile synthetic route to bimetallic ReI complexes containing two dppz DNA intercalating ligands. Chem. Commun. 2002, 2002, 2026–2027. [Google Scholar] [CrossRef]
  16. Lo, K.K.-W.; Tsang, K.H.-K. Bifunctional Luminescent Rhenium(I) Complexes Containing an Extended Planar Diimine Ligand and a Biotin Moiety. Organometallics 2004, 23, 3062–3070. [Google Scholar] [CrossRef]
  17. Herebian, D.; Sheldrick, W.S. Synthesis and DNA binding properties of bioorganometallic (η5-pentamethylcyclopentadienyl)iridium(iii) complexes of the type [(η5-C5Me5)Ir(Aa)(dppz)]+ (dppz = dipyrido[3,2-a:2′,3′-c]phenazine, n = 1–3), with S-coordinated amino acids (Aa) or peptides. J. Chem. Soc. Dalton Trans. 2002, 2002, 966–974. [Google Scholar] [CrossRef]
  18. Barker, K.D.; Benoit, B.R.; Bordelon, J.A.; Davis, R.J.; Delmas, A.S.; Mytykh, O.V.; Petty, J.T.; Wheeler, J.F.; Kane-Maguire, N.A.P. Intercalative binding and photoredox behavior of [Cr(phen)2(dppz)]3+ with B-DNA. Inorg. Chim. Acta 2001, 322, 74–78. [Google Scholar] [CrossRef]
  19. Arounaguiri, S.; Maiya, B.G. Dipyridophenazine Complexes of Cobalt(III) and Nickel(II):  DNA-Binding and Photocleavage Studies. Inorg. Chem. 1996, 35, 4267–4270. [Google Scholar] [CrossRef] [PubMed]
  20. Kulmaczewski, R.; Shepherd, H.J.; Cespedes, O.; Halcrow, M.A. A Homologous Series of [Fe(H2Bpz2)2(L)] Spin-Crossover Complexes with Annelated Bipyridyl Co-Ligands. Inorg. Chem. 2014, 53, 9809–9817. [Google Scholar] [CrossRef]
  21. Phillips, T.; Haq, I.; Meijer, A.J.H.M.; Adams, H.; Soutar, I.; Swanson, L.; Sykes, M.J.; Thomas, J.A. DNA Binding of an Organic dppz-Based Intercalator. Biochemistry 2004, 43, 13657–13665. [Google Scholar] [CrossRef]
  22. Zhernakov, M.A.; Sedykh, A.E.; Becker, J.; Maxeiner, M.; Müller-Buschbaum, K.; Shtyrlin, V.G. Three ytterbium(III) complexes with aromatic N-donors: Synthesis, structure, photophysical properties and thermal stability. Z. Für Anorg. Und Allg. Chem. 2022, 648, e202200230. [Google Scholar] [CrossRef]
  23. Zhang, C.; Ma, X.; Cen, P.; Yang, H.; He, Z.; Guo, Y.; Tian, D.; Liu, X. Dual-sensitized Eu(III)/Tb(III) complexes exhibiting tunable luminescence emission and their application in cellular-imaging. Dalton Trans. 2022, 51, 3180–3187. [Google Scholar] [CrossRef] [PubMed]
  24. Gonzalez, I.; Dreyse, P.; Cortes-Arriagada, D.; Sundararajan, M.; Morgado, C.; Brito, I.; Roldan-Carmona, C.; Bolink, H.J.; Loeb, B. A comparative study of Ir(III) complexes with pyrazino[2,3-f][1,10]phenanthroline and pyrazino[2,3-f][4,7]phenanthroline ligands in light-emitting electrochemical cells (LECs). Dalton Trans. 2015, 44, 14771–14781. [Google Scholar] [CrossRef]
  25. Sarkar, T.; Kumar, A.; Sahoo, S.; Hussain, A. Mixed-Ligand Cobalt(III) Complexes of a Naturally Occurring Coumarin and Phenanthroline Bases as Mitochondria-Targeted Dual-Purpose Photochemotherapeutics. Inorg. Chem. 2021, 60, 6649–6662. [Google Scholar] [CrossRef]
  26. Travis, W.; Knapp, C.E.; Savory, C.N.; Ganose, A.M.; Kafourou, P.; Song, X.; Sharif, Z.; Cockcroft, J.K.; Scanlon, D.O.; Bronstein, H.; et al. Hybrid Organic-Inorganic Coordination Complexes as Tunable Optical Response Materials. Inorg. Chem. 2016, 55, 3393–3400. [Google Scholar] [CrossRef]
  27. Li, Z.; Leed, N.A.; Dickson-Karn, N.M.; Dunbar, K.; Turro, C. Directional charge transfer and highly reducing and oxidizing excited states of new dirhodium(II,II) complexes: Potential applications in solar energy conversion. Chem. Sci. 2014, 5, 727–737. [Google Scholar] [CrossRef]
  28. Chen, G.-J.; Zhou, Y.; Jin, G.-X.; Dong, Y.-B. [Dy(acac)3(dppn)]·C2H5OH: Construction of a single-ion magnet based on the square-antiprism dysprosium(III) ion. Dalton Trans. 2014, 43, 16659–16665. [Google Scholar] [CrossRef] [PubMed]
  29. Zhang, L.; Yue, S.; Li, B.; Fan, D. A series of [Cu(N-N)(P-P)]BF4 complexes: Luminescence quenching caused by electron-configuration transformation in excited state. Inorg. Chim. Acta 2012, 384, 225–232. [Google Scholar] [CrossRef]
  30. Kulmaczewski, R.; Halcrow, M.A. Structures and spin states of crystalline [Fe(NCS)2L2] and [FeL3]2+ complexes (L = an annelated 1,10-phenanthroline derivative). CrystEngComm 2016, 18, 2570–2578. [Google Scholar] [CrossRef]
  31. Lin, R.-K.; Chiu, C.-I.; Hsu, C.-H.; Lai, Y.-J.; Venkatesan, P.; Huang, P.-H.; Lai, P.-S.; Lin, C.-C. Photocytotoxic Copper(II) Complexes with Schiff-Base Scaffolds for Photodynamic Therapy. Chem. Eur. J. 2018, 24, 4111–4120. [Google Scholar] [CrossRef]
  32. Foxon, S.P.; Metcalfe, C.; Adams, H.; Webb, M.; Thomas, J.A. Electrochemical and Photophysical Properties of DNA Metallo-intercalators Containing Ruthenium(II) Tris(1-pyrazolyl)methane Unit. Inorg. Chem. 2007, 46, 409–416. [Google Scholar] [CrossRef] [PubMed]
  33. Lameijer, L.N.; Breve, T.G.; van Rixel, V.H.S.; Askes, S.H.C.; Siegler, M.A.; Bonnet, S. Effects of the Bidentate Ligand on the Photophysical Properties, Cellular Uptake, and (Photo)cytotoxicity of Glycoconjugates Based on the [Ru(tpy)(NN)(L)]2+ Scaffold. Chem. Eur. J. 2018, 24, 2709–2717. [Google Scholar] [CrossRef]
  34. Scharwitz, M.A.; Ott, I.; Geldmacher, Y.; Gust, R.; Sheldrick, W.S. Cytotoxic half-sandwich rhodium(III) complexes: Polypyridyl ligand influence on their DNA binding properties and cellular uptake. J. Organomet. Chem. 2008, 693, 2299–2309. [Google Scholar] [CrossRef]
  35. Yam, V.W.-W.; Lo, K.K.-W.; Cheung, K.-K.; Kong, R.Y.-C. Synthesis, photophysical properties and DNA binding studies of novel luminescent rhenium(I) complexes. X-ray crystal structure of [Re(dppn)(CO)3(py)](OTf). J. Chem. Soc. Chem. Commun. 1995, 1995, 1191–1193. [Google Scholar] [CrossRef]
  36. Hall, J.P.; O’Sullivan, K.; Naseer, A.; Smith, J.A.; Kelly, J.M.; Cardin, C.J. Structure determination of an intercalating ruthenium dipyridophenazine complex which kinks DNA by semiintercalation of a tetraazaphenanthrene ligand. Proc. Natl. Acad. Sci. USA 2011, 108, 17610–17614. [Google Scholar] [CrossRef]
  37. Song, H.; Kaiser, J.T.; Barton, J.K. Crystal structure of Δ-[Ru(bpy)2dppz]2+ bound to mismatched DNA reveals side-by-side metalloinsertion and intercalation. Nature Chem. 2012, 4, 615–620. [Google Scholar] [CrossRef] [PubMed]
  38. Skórka, Ł.; Filapek, M.; Zur, L.; Małecki, J.G.; Pisarski, W.; Olejnik, M.; Danikiewicz, W.; Krompiec, S. Highly Phosphorescent Cyclometalated Iridium(III) Complexes for Optoelectronic Applications: Fine Tuning of the Emission Wavelength through Ancillary Ligands. J. Phys. Chem. C 2016, 120, 7284–7294. [Google Scholar] [CrossRef]
  39. Sheldrick, G.M. SHELXT—Integrated space-group and crystal-structure determination. Acta Crystallogr. Sect. A Found. Adv. 2015, 71, 3–8. [Google Scholar] [CrossRef]
  40. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef]
Inorganics 11 00353 sch001

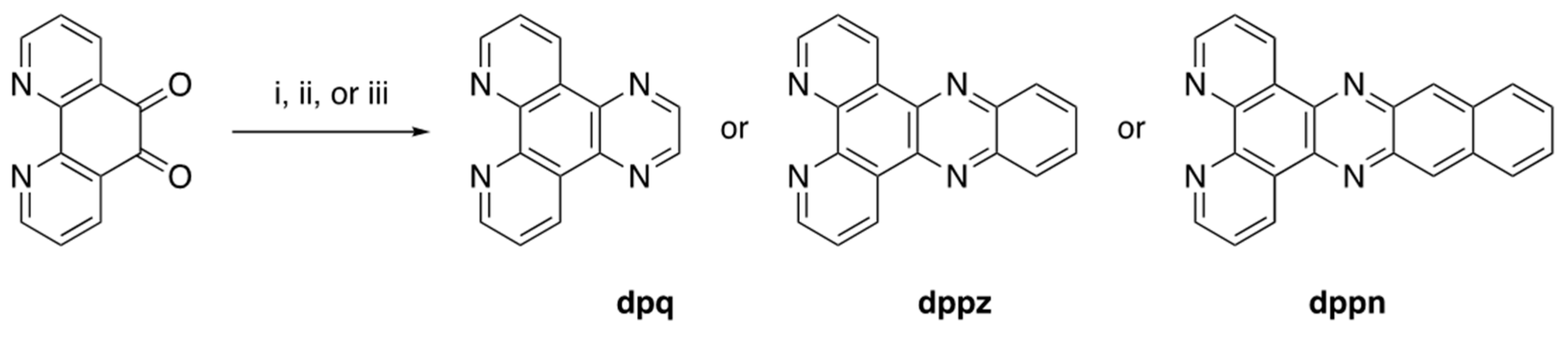

Scheme 1. Synthesis of the dipyrido[3,2-f:2′,3′-h]quinoxaline (dpq), dipyrido[3,2-a:2′,3′-c]phenazine (dppz), and (benzo[i]dipyrido[3,2-a:2′,3′c]phenazine (dppn). Conditions i = ethylenediamine, ii = o-phenylenediamine, iii = 2,3-diaminonaphthalene.
Scheme 1. Synthesis of the dipyrido[3,2-f:2′,3′-h]quinoxaline (dpq), dipyrido[3,2-a:2′,3′-c]phenazine (dppz), and (benzo[i]dipyrido[3,2-a:2′,3′c]phenazine (dppn). Conditions i = ethylenediamine, ii = o-phenylenediamine, iii = 2,3-diaminonaphthalene.
Inorganics 11 00353 sch001
Inorganics 11 00353 sch002

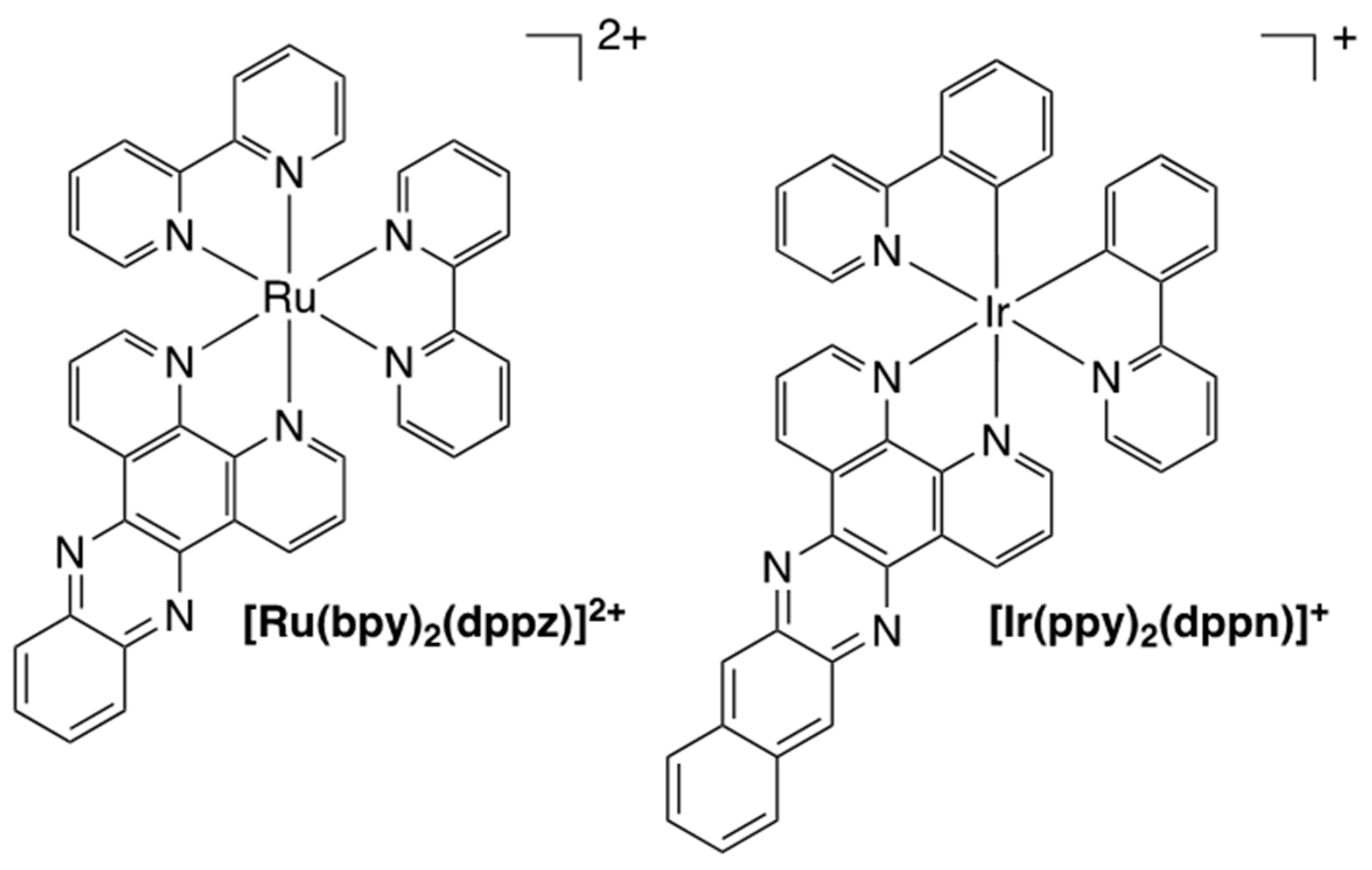

Scheme 2. Schematics of [Ru(bpy)2(dppn)]2+ and [Ir(ppy)2(dppn)]+ that are shown to participate in DNA intercalation.
Scheme 2. Schematics of [Ru(bpy)2(dppn)]2+ and [Ir(ppy)2(dppn)]+ that are shown to participate in DNA intercalation.
Inorganics 11 00353 sch002
Inorganics 11 00353 g001

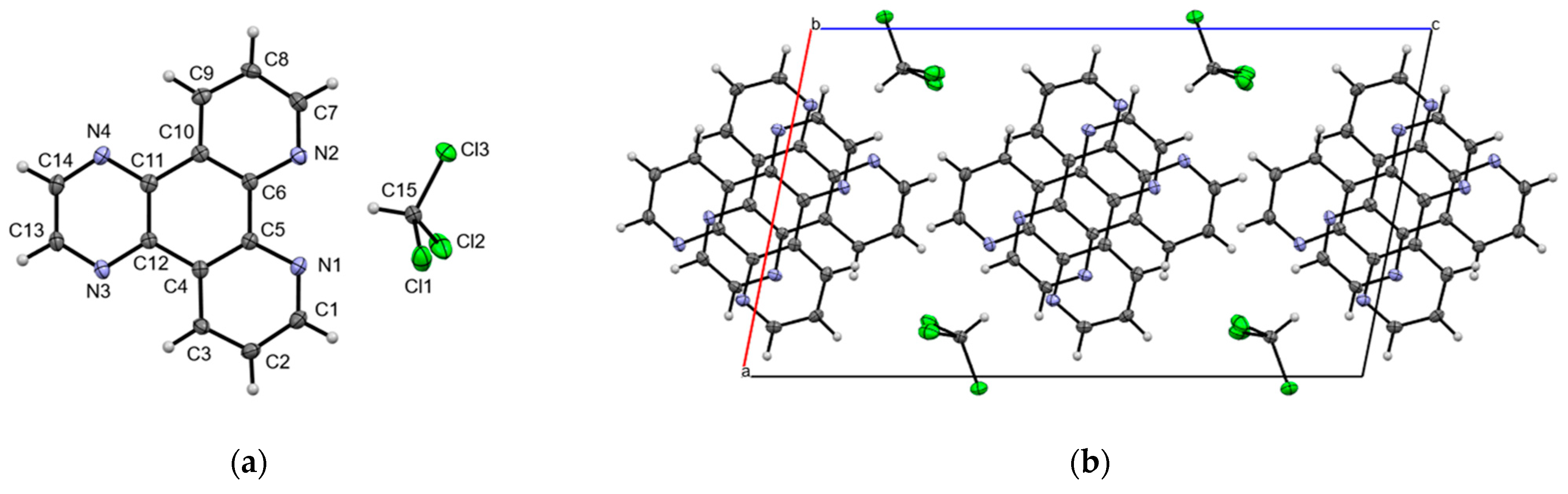

Figure 1. Crystal structure of dpq·CHCl3: (a) Molecular structure shown as 50% probability ellipsoids; (b) Packing diagram viewed along the b-axis showing the offset nature of the stacked dpq molecules.
Figure 1. Crystal structure of dpq·CHCl3: (a) Molecular structure shown as 50% probability ellipsoids; (b) Packing diagram viewed along the b-axis showing the offset nature of the stacked dpq molecules.
Inorganics 11 00353 g001
Inorganics 11 00353 g002

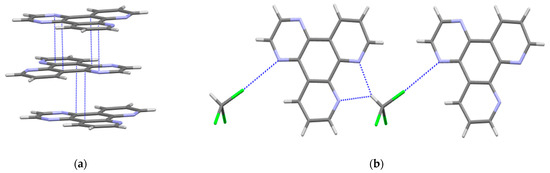

Figure 2. Intermolecular interactions in dpq·CHCl3: (a) Parallel stacked dpq molecules; (b) Chain formation facilitated by the CHCl3 solvent molecules through C-H···N and Cl···N interactions.
Figure 2. Intermolecular interactions in dpq·CHCl3: (a) Parallel stacked dpq molecules; (b) Chain formation facilitated by the CHCl3 solvent molecules through C-H···N and Cl···N interactions.
Inorganics 11 00353 g002
Inorganics 11 00353 g003

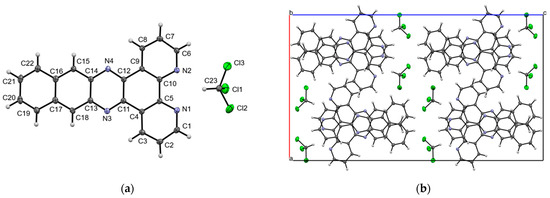

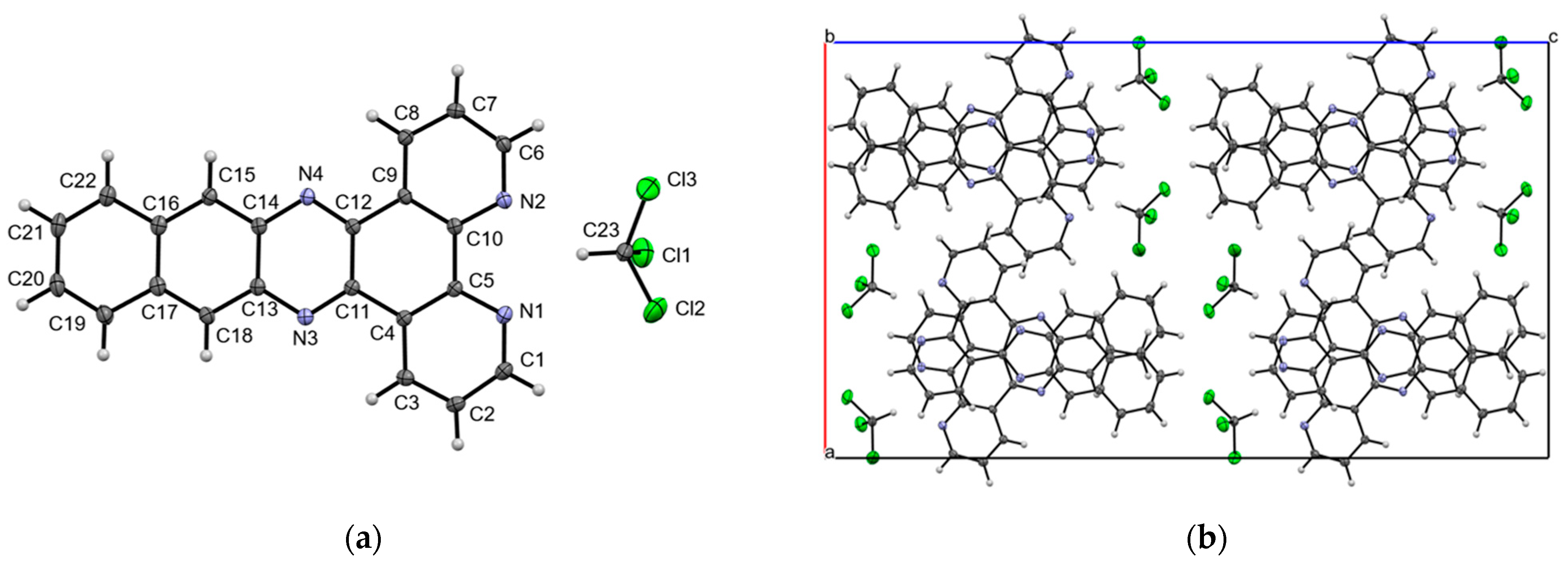

Figure 3. Crystal structure of dppn·CHCl3: (a) Molecular structure shown as 50% probability ellipsoids; (b) Packing diagram viewed along the b-axis showing the offset nature of the stacked dppn molecules.
Figure 3. Crystal structure of dppn·CHCl3: (a) Molecular structure shown as 50% probability ellipsoids; (b) Packing diagram viewed along the b-axis showing the offset nature of the stacked dppn molecules.
Inorganics 11 00353 g003
Inorganics 11 00353 g004

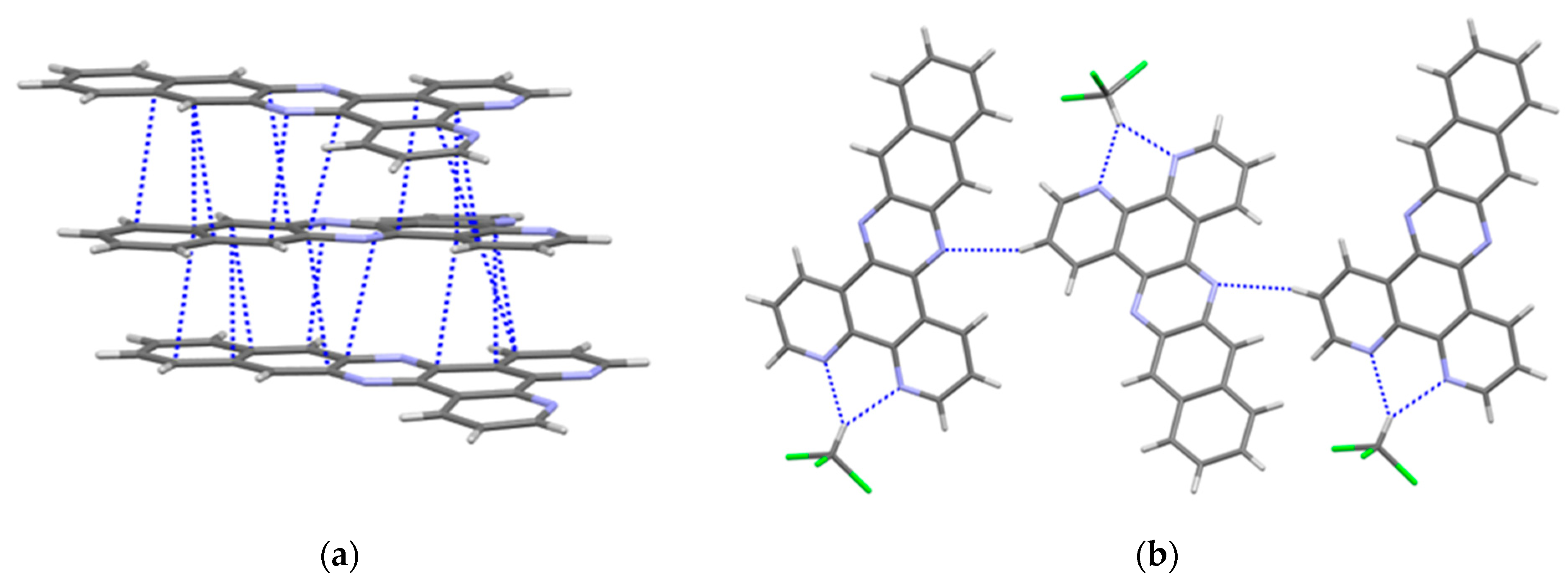

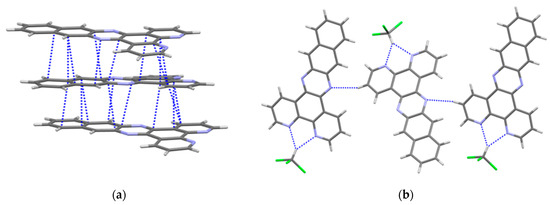

Figure 4. Intermolecular interactions in dppn·CHCl3: (a) Slightly off-parallel stacked dppn molecules; (b) Chain formation facilitated by C-H···N interactions of neighboring dppn molecules.
Figure 4. Intermolecular interactions in dppn·CHCl3: (a) Slightly off-parallel stacked dppn molecules; (b) Chain formation facilitated by C-H···N interactions of neighboring dppn molecules.
Inorganics 11 00353 g004
Inorganics 11 00353 g005

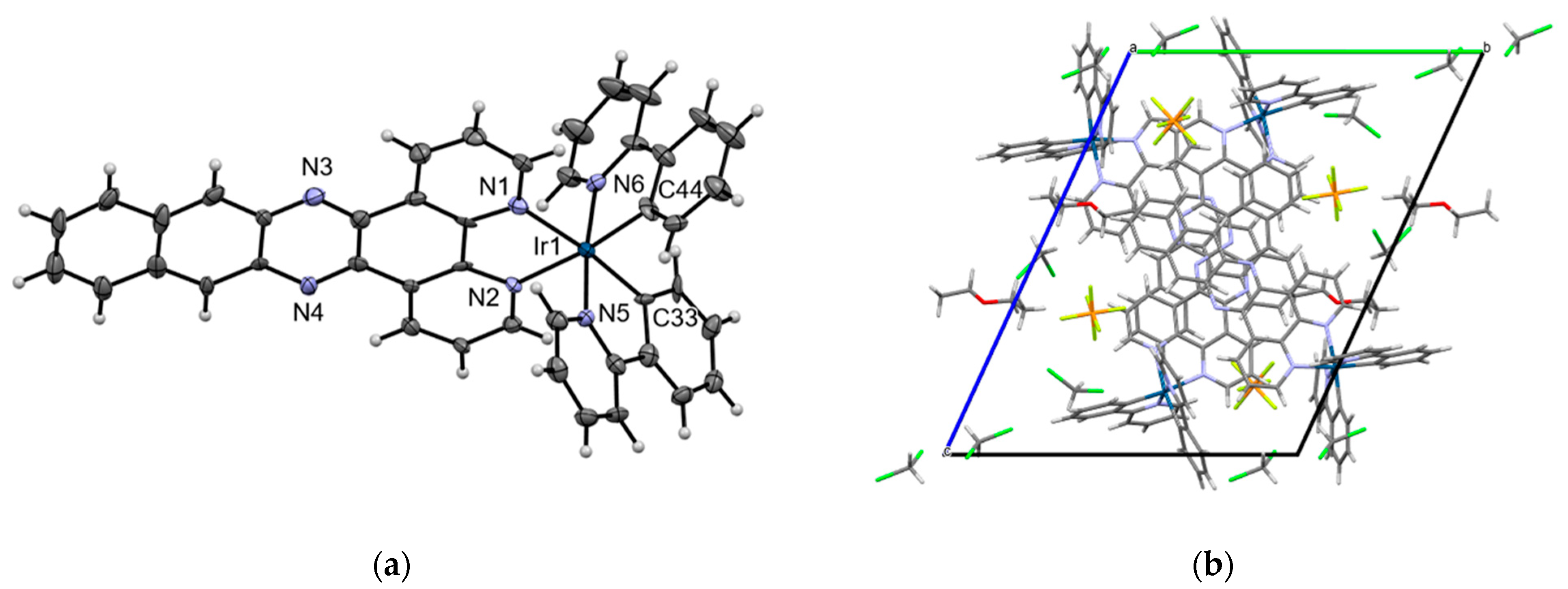

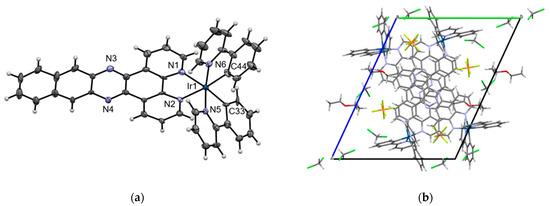

Figure 5. Crystal structure of [Ir(ppy)2(dppn)][PF6] · 0.875 CH2Cl2, 0.25 C4H10O: (a) Molecular structure of one of the unique complexes, shown as 50% probability ellipsoids; (b) Packing diagram viewed along the a-axis showing complexes stacking from offset overlap of their dppn ligands, with anions and solvent molecules assembling around the stacked complexes.
Figure 5. Crystal structure of [Ir(ppy)2(dppn)][PF6] · 0.875 CH2Cl2, 0.25 C4H10O: (a) Molecular structure of one of the unique complexes, shown as 50% probability ellipsoids; (b) Packing diagram viewed along the a-axis showing complexes stacking from offset overlap of their dppn ligands, with anions and solvent molecules assembling around the stacked complexes.
Inorganics 11 00353 g005
Inorganics 11 00353 g006

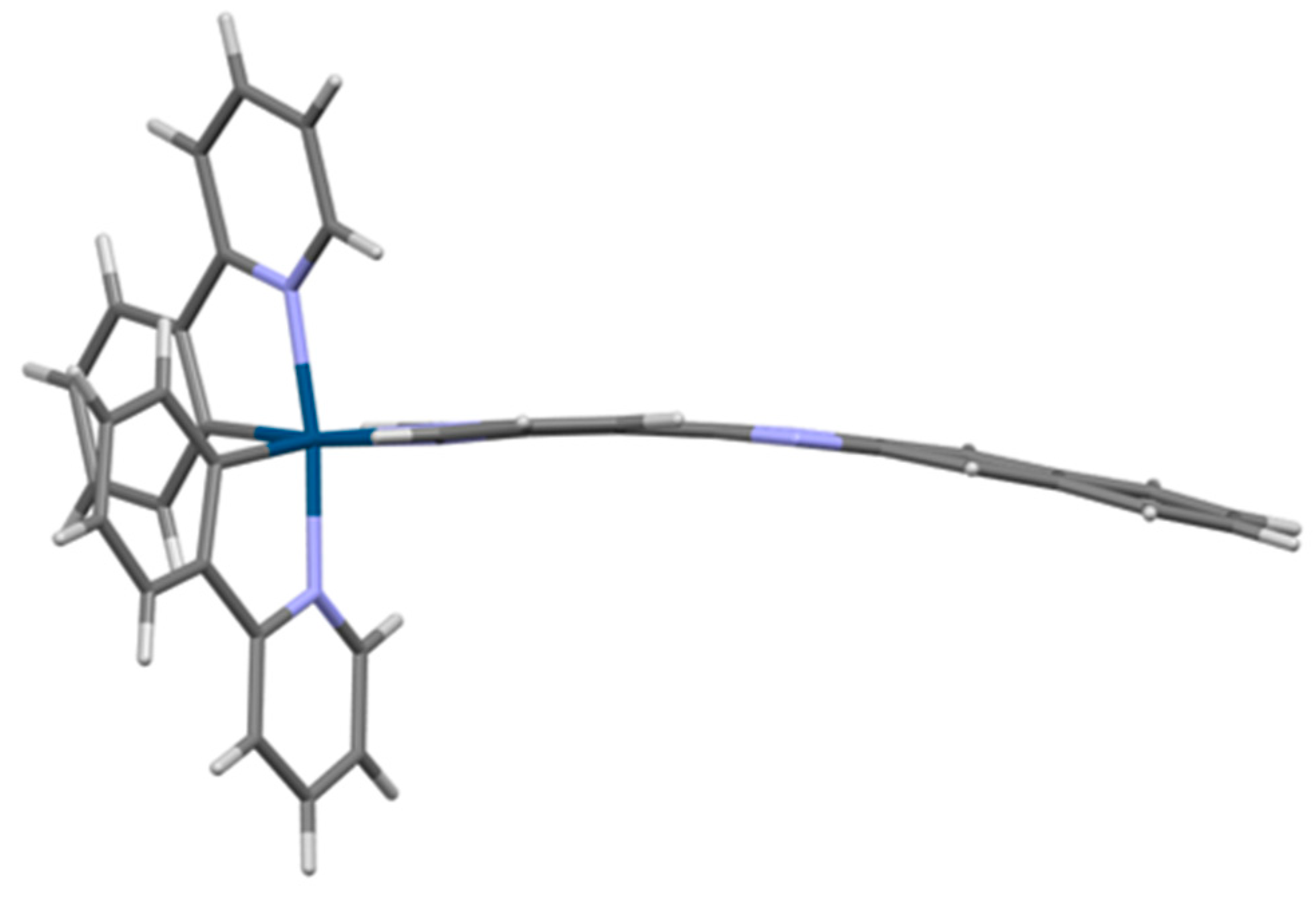

Figure 6. Flexibility of the coordinated dppn ligand in the [Ir(ppy)2(dppn)][PF6] complex in [Ir(ppy)2(dppn)][PF6] · 0.875 CH2Cl2, 0.25 C4H10O.
Figure 6. Flexibility of the coordinated dppn ligand in the [Ir(ppy)2(dppn)][PF6] complex in [Ir(ppy)2(dppn)][PF6] · 0.875 CH2Cl2, 0.25 C4H10O.
Inorganics 11 00353 g006
Inorganics 11 00353 g007

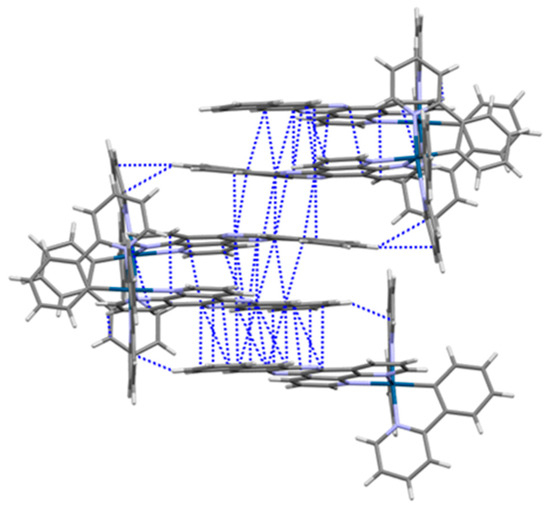

Figure 7. A stack of the [Ir(ppy)2(dppn)][PF6] complex supported by offset overlap of dppn ligands and C-H···π interactions in [Ir(ppy)2(dppn)][PF6] · 0.875 CH2Cl2, 0.25 C4H10O.
Figure 7. A stack of the [Ir(ppy)2(dppn)][PF6] complex supported by offset overlap of dppn ligands and C-H···π interactions in [Ir(ppy)2(dppn)][PF6] · 0.875 CH2Cl2, 0.25 C4H10O.
Inorganics 11 00353 g007
Table 1. Crystallographic data.
Table 1. Crystallographic data.
dpq·CHCl3dppn·CHCl3[Ir(ppy)2(dppn)][PF6]
· 0.875 CH2Cl2, 0.25 C4H10O
FormulaC15H9Cl3N4C23H13Cl3N4C45.88H32.25Cl1.75F6IrN6O0.25P
F. W. (g/mol)351.61451.721070.73
Temperature (K)100 (2)100 (2)100 (2)
Crystal SystemMonoclinicOrthorhombicTriclinic
Space groupP21/c (no. 14)Pbca (no. 61)P-1 (no. 2)
a (Å)11.3166 (7)18.1564 (5)12.5328 (8)
b (Å)6.6154 (4)6.93200 (10)18.0553 (11)
c (Å)19.8106 (12)31.6298 (7)22.0638 (15)
α (°)9090112.989 (2)
β (°)101.289 (2)9093.685 (2)
γ (°)9090103.869 (2)
Volume (Å3)1454.40 (15)3980.93 (15)4392.0 (5)
Z484
D (calcd) (mg/m3)1.6061.5071.619
μ, mm−10.6300.4793.249
F (000)71218402109
Cryst. Size (mm)0.02 × 0.03 × 0.110.09 × 0.10 × 0.410.02 × 0.08 × 0.23
θ range, °3.05 to 25.742.58 to 28.421.81 to 25.80
Reflns. collected39,39037,84785,424
Indep. Reflns.2758497116,732
No. of parameters1992711198
R indices (I > 2σ(I))R1 = 0.0412 a
wR2 = 0.0879 b		R1 = 0.0378 a
wR2 = 0.0895 b		R1 = 0.0719 a
wR2 = 0.1849 b
R indices
(all data)		R1 = 0.0725 a
wR2 = 0.1047 b		R1 = 0.0533 a
wR2 = 0.0986 b		R1 = 0.0968 a
wR2 = 0.2022 b
S1.0341.0221.105
aR1 = Σ||Fo| − |Fc||/Σ|Fo|. b wR2 = {Σ[w(Fo2 − Fc2)2]/Σ[wFo2]2}1/2.
