Review

Dispersion Stability of Carbon Nanotubes and Their Impact on Energy Storage Devices

by
Chunghyeon Choi
1,
Tae Gwang Yun
2,* and
Byungil Hwang
1,*
1
School of Integrative Engineering, Chung-Ang University, Seoul 06974, Republic of Korea
2
Department of Molecular Science and Technology, Ajou University, Suwon 16499, Republic of Korea
*
Authors to whom correspondence should be addressed.
Inorganics 2023, 11(10), 383; https://doi.org/10.3390/inorganics11100383
Submission received: 26 August 2023 / Revised: 19 September 2023 / Accepted: 21 September 2023 / Published: 25 September 2023
(This article belongs to the Special Issue Carbon Nanomaterials for Advanced Technology)
Browse Figures
Versions Notes

Abstract

:
Carbon nanotubes (CNTs), with their extraordinary combination of mechanical, electrical, and thermal properties, have emerged as a revolutionary class of nanomaterials with immense potential in energy storage and harvesting devices. Realizing this potential hinges on a fundamental challenge: the dispersion stability of CNTs within various matrices. This review paper provides a comprehensive exploration of the critical interplay between CNT dispersion stability and its far-reaching implications for the performance of energy storage and harvesting technologies. By delving into the underlying mechanisms of dispersion, the strategies to achieve stability, and the direct effects on device functionality, this review sheds light on the intricate relationship between nanotube dispersion and the advancement of energy-related applications.

1. Introduction

Efficient energy storage solutions are essential for meeting growing energy demands and reducing the environmental impact of human activities [1,2]. To achieve this goal, innovative materials and technologies are being explored and developed [3,4]. Among them, carbon nanotubes (CNTs) have attracted considerable attention due to their outstanding properties at the nanoscale [5,6,7,8]. CNTs are one-dimensional nanostructures composed of rolled up graphene sheets (Figure 1), which endow them with extraordinary electrical conductivity, mechanical strength, and thermal properties [6,7,8,9,10,11]. These qualities make them promising materials for enhancing the performance of various energy technologies.
CNTs have been widely applied in diverse energy applications, such as batteries, supercapacitors, solar cells, and thermoelectric generators [10,12,13,14,15]. Their unique electronic and mechanical properties, as well as their versatile structural configurations, enable them to improve the energy conversion and storage processes in these devices. However, a major challenge that hinders the full exploitation of CNTs is their dispersion stability [16,17,18]. CNTs tend to aggregate due to intermolecular forces, such as van der Waals interactions and π-π stacking, forming bundles and agglomerates that compromise their individual advantages [16,17,18,19]. Therefore, achieving and maintaining the stable dispersion of CNTs in various matrices is a critical prerequisite for harnessing their potential for energy applications.
The dispersion stability of CNTs is determined by the complex interplay of molecular forces and interactions between CNTs and their surrounding media [20,21,22]. Various factors, such as CNT type, size, shape, surface chemistry, and matrix composition, affect the dispersion behavior of CNTs [20,21,22]. To improve the dispersion stability of CNTs, different methods have been developed, such as surface functionalization, surfactant mediation, and novel matrix integration. These methods aim to tailor the interactions between CNTs and their matrices, enhancing both stability and compatibility. The dispersion quality of CNTs can be evaluated using various characterization techniques, such as microscopy, spectroscopy, rheology, and electrochemistry.
In this review paper, we provide a comprehensive overview of the current status and future prospects of CNT dispersion stability for energy applications. We discuss the fundamental mechanisms of CNT dispersion, the factors influencing their dispersion behavior, and the methods to improve their dispersion stability in various matrices. We also review the characterization techniques to assess the dispersion quality of CNTs and their impact on the performance of energy devices. Furthermore, we highlight the recent advances and challenges in applying CNTs for energy storage applications, such as lithium-ion batteries and supercapacitors. By elucidating the intricate relationship between CNT dispersion stability and energy device functionality, we hope to shed light on the state of the art and future directions of CNT-based energy technologies.

2. Dispersion Stability of Carbon Nanotubes

CNTs are one-dimensional nanomaterials that consist of rolled up graphene sheets [9]. They exhibit remarkable properties at the nanoscale, such as high electrical conductivity, mechanical strength, and thermal conductivity, which make them attractive for various applications in energy, electronics, and nanomedicine [9,15,23]. However, these properties are often compromised by the poor dispersion stability of CNTs in different matrices. Dispersion stability refers to the ability of CNTs to remain well-dispersed and avoid aggregation in a given medium, such as a solvent, a polymer, or a biological fluid. Dispersion stability is influenced by various forces and factors that affect the interactions between CNTs and the surrounding medium.
One of the key forces that affect the dispersion stability of CNTs is the van der Waals force, which is a weak attractive force between molecules that arises from the fluctuations of their electric dipoles. Van der Waals force is responsible for the formation of CNTs from graphene sheets, but it also causes CNTs to aggregate into bundles and ropes due to their high aspect ratio and surface area [17,18]. The strength of van der Waals force depends on the distance and orientation between the molecules, and it decreases rapidly with increasing distance. Another important force is the π-π stacking interaction, which is a specific type of van der Waals force that occurs between aromatic rings, such as those in CNTs [20,21,22]. π-π stacking interaction can either enhance or reduce the dispersion stability of CNTs, depending on their alignment, diameter, and chirality. Chirality refers to the twist angle of the graphene sheet that forms the CNT, and it determines whether the CNT is metallic or semiconducting.
Besides these forces, there are other factors that affect the dispersion stability of CNTs, such as hydrophobic effects and geometric factors [17,18,20,21,22,24]. Hydrophobic effects are related to the polarity of CNTs and the medium. Since CNTs are nonpolar and most solvents are polar, CNTs tend to avoid contact with the solvent molecules and aggregate together [17,18,20,21,22]. Nonpolar molecules tend to form clusters in a polar medium as a means to reduce the unfavorable interactions between nonpolar and polar molecules. Geometric factors are related to the shape and curvature of CNTs. The shape and curvature of CNTs can affect the strength of inter-tube interactions and the accessibility of solvent molecules to the CNT surface. For example, single-walled CNTs (SWCNTs) have higher curvature than multi-walled CNTs (MWCNTs), which makes them more prone to bending and twisting. This can reduce the inter-tube interactions and increase the solvation of SWCNTs compared to MWCNTs.
The solubility of CNTs in different solvents is a crucial determinant of their dispersion stability [17,18,20,21,22]. Solvents that can interact well with the CNT surface can solvate CNTs and prevent them from aggregating. Solvents that cannot interact well with the CNT surface may induce clustering and precipitation of CNTs [17,18,20,21,22]. The solubility of CNTs depends on the complex interplay between the CNT surface, solvent molecules, and environmental conditions, such as temperature, pressure, pH, and ionic strength [17,18,20,21,22]. Understanding the dynamics of dispersion stability is essential for developing strategies to improve and manipulate the dispersion of CNTs. Dispersion stability is not only important for preserving the intrinsic properties of CNTs, but also for enabling their applications in various energy devices, such as solar cells, fuel cells, batteries, supercapacitors, and thermoelectrics [6,12,17,18,20,21,22,25,26].

3. Mechanisms and Strategies for Enhancing Dispersion

The realm of enhancing the dispersion stability of CNTs unveils a fascinating landscape where a profound understanding of the underlying mechanisms converges with ingenious strategies, all orchestrated to overcome the challenge of agglomeration and enable the seamless integration of CNTs within various matrices [17,18,20,21,22]. This section embarks on an exploratory journey into the intricate world of dispersion engineering, unraveling the multifaceted approaches that scientists and engineers employ to tame the dispersion behavior of CNTs and maximize their potential in energy storage and harvesting applications.

3.1. Covalent and Non-Covalent Functionalization

Delving into the heart of dispersion stability strategies, the realm of functionalization emerges as a promising avenue that allows researchers to sculpt the surface properties of CNTs, thereby tailoring their interaction with surrounding media. Functionalization refers to the process of attaching functional groups or molecules to the CNT surface, either covalently or non-covalently, to modify its physical and chemical properties [17,18,20,21,22]. Functionalization can enhance the solubility, biocompatibility, and reactivity of CNTs, as well as facilitate their alignment, assembly, and integration with other materials. The summary of each functionalization method is presented in Table 1.

3.1.1. Covalent Functionalization

At the forefront of functionalization strategies stands the realm of covalent functionalization, where chemists and material scientists meticulously design strategies to graft functional groups onto the CNT surface (Figure 2) [27]. This approach not only bestows solubility upon the nanotubes in specific solvents, but also confers them with surface moieties that can engage in specific interactions with matrix materials. Through covalent bonds, nanotube surfaces undergo a metamorphosis, becoming more amenable to dispersion in various media. However, the art of covalent functionalization necessitates careful calibration, as excessive functionalization can disrupt the pristine electronic properties of CNTs, while insufficient modification might not yield the desired dispersion stability.
Covalent functionalization can be achieved through various methods, such as oxidation, cycloaddition, radical addition, and polymer grafting [17,18,20,21,22,28,29]. Oxidation is one of the most common methods for covalent functionalization, which involves treating CNTs with strong oxidizing agents, such as nitric acid or potassium permanganate, to introduce carboxylic acid groups on the CNT surface [17,18,20,21,22,28,29]. These groups can then be further modified by coupling reactions with various molecules, such as amines, alcohols, thiols, or biomolecules. Cycloaddition is another method for covalent functionalization, which involves adding cyclic molecules, such as aziridines or cyclooctynes, to the CNT surface through ring-opening reactions. These reactions can introduce various functional groups on the CNT surface, such as amides, esters, or ethers [17,18,20,21,22,28,29]. Radical addition is a method for covalent functionalization that involves generating radicals on the CNT surface using UV irradiation or plasma treatment [17,18,20,21,22,28,29]. These radicals can then react with various molecules, such as alkenes or alkynes, to form covalent bonds. Polymer grafting is a method for covalent functionalization that involves attaching polymer chains to the CNT surface by either “grafting from” or “grafting to” techniques [17,18,20,21,22,28,29]. “Grafting from” involves initiating polymerization from the CNT surface by using initiators that are covalently attached to the nanotubes. “Grafting to” involves coupling preformed polymer chains to the CNT surface by using reactive end groups.
Covalent functionalization can impart various benefits to CNTs, such as improving their solubility in water or organic solvents, enhancing their biocompatibility and bioavailability for biomedical applications, increasing their reactivity and selectivity for catalytic applications, and facilitating their alignment and assembly for device fabrication. However, covalent functionalization also has some drawbacks, such as altering the electronic structure and conductivity of CNTs, introducing defects and impurities on the CNT surface, and affecting the mechanical properties and thermal stability of CNTs.

3.1.2. Non-Covalent Functionalization

Non-covalent functionalization, in stark contrast, employs non-covalent forces to introduce molecular entities onto the CNT surface [17,18,20,21,22,28,29]. These forces include π-π stacking interactions, van der Waals forces, and hydrogen bonding [17,18,20,21,22,28,29]. By strategically designing functional molecules that can interact with the CNT surface through non-covalent interactions, researchers engineer a protective layer around the nanotubes, mitigating agglomeration forces. The versatility of non-covalent functionalization allows for a gentler modification of CNT surfaces while preserving their unique properties, making them amenable to dispersion without compromising their inherent attributes.
Non-covalent functionalization can be achieved through various methods, such as surfactant wrapping, polymer wrapping, DNA wrapping, and biomolecule adsorption [17,18]. Surfactant wrapping is one of the most common methods for non-covalent functionalization, which involves coating CNTs with surfactant molecules, such as sodium dodecyl sulfate (SDS) or Triton X-100 (Figure 3) [17,25]. These molecules can form micelle-like structures around the CNTs, stabilizing them in water or other polar solvents. Polymer wrapping is another method for non-covalent functionalization, which involves wrapping CNTs with polymer chains, such as polyvinylpyrrolidone (PVP) or polyethylene glycol (PEG). These polymers can form a thin layer around the CNTs, preventing their aggregation and enhancing their biocompatibility [12,17,18,25].
Non-covalent functionalization can impart various benefits to CNTs, such as preserving their electronic properties and conductivity, avoiding the introduction of defects and impurities on the CNT surface, maintaining their mechanical properties and thermal stability, and enabling their facile removal and recovery from the matrix [12,17,18,30]. However, non-covalent functionalization also has some drawbacks, such as providing weaker dispersion stability than covalent functionalization, being susceptible to environmental changes such as pH or temperature, and affecting the accessibility and availability of the CNT surface for further modification or interaction.

4. Impact on Energy Storage Devices

The profound influence of dispersion stability reverberates far and wide, reaching deep into the realm of energy storage devices, where the performance of critical components such as supercapacitors and batteries is intricately intertwined with the dispersion state of CNTs [31,32,33,34]. Within these devices, where efficiency, energy density, and cycle stability are paramount, the careful orchestration of CNT dispersion strategies assumes the role of a master conductor, orchestrating a symphony of performance-enhancing attributes. In this section, we will explore how CNT dispersion stability affects various aspects of electrode performance in supercapacitors and batteries, such as surface area, ion diffusion, charge storage, mechanical stability, electron transport, and energy density. We will also provide some examples of CNT-based electrodes that demonstrate the benefits of dispersion stability in energy storage devices.

4.1. Supercapacitors Enhance Electrode Performance through Dispersion Stability

Supercapacitors are electrochemical devices that store and release energy through the reversible adsorption and desorption of electrolyte ions on electrode surfaces [5,35,36]. They offer high power density, fast charge/discharge rates, and a long cycle life. However, their energy density is limited by the low capacitance of conventional electrode materials. To overcome this limitation, CNTs have been widely used as electrode materials or additives in supercapacitors, owing to their high surface area, electrical conductivity, and mechanical strength (Figure 4) [5,35,36,37]. However, the dispersion state of CNTs within the electrode matrix has a significant impact on their electrochemical performance. In this subsection, we will discuss how CNT dispersion stability influences three key factors that determine the capacitance of supercapacitor electrodes: electrode surface area and accessibility, ion diffusion kinetics, and charge storage capacity.
The capacitance of a supercapacitor electrode is proportional to its accessible surface area for electrolyte ion adsorption [38,39,40]. Therefore, maximizing the surface area and accessibility of CNTs within the electrode matrix is crucial for enhancing the capacitance. This can be achieved by ensuring the uniform dispersion of CNTs within the electrode matrix, avoiding agglomeration and entanglement that reduce the effective surface area and block the access of ions to nanotube surfaces. Well-dispersed CNTs engineer a microstructure replete with numerous nanotube–electrolyte contact points [38,39,40]. This intricate framework translates into a remarkably elevated accessible surface area, enabling an intensified interaction between the electrode material and the electrolyte ions. Consequently, the capacitance of the electrode escalates, laying the foundation for heightened energy storage capabilities. For example, Li et al. fabricated supercapacitor electrodes using well-dispersed MWCNTs with polyaniline (PANI) and bacterial cellulose (BC) [28]. The MWCNTs acted as a conductive scaffold for PANI deposition and provided a large surface area for ion adsorption. The well-dispersed MWCNTs also enhanced the contact between PANI and the electrolyte, improving the utilization efficiency of PANI. The MWCNT/PANI composite electrodes exhibited a high specific capacitance of 656 F/g at a current density of 10 A/g (Figure 5) [28].
The rate performance of a supercapacitor electrode depends on how fast the electrolyte ions can diffuse within the electrode matrix and reach the active sites for adsorption/desorption [38,39,40]. Therefore, optimizing the ion diffusion kinetics within the electrode matrix is essential for achieving fast charge/discharge cycles. This can be influenced by the dispersion state of CNTs within the electrode matrix, which determines the porosity and tortuosity of the electrode structure [38,39,40]. Uniform dispersion establishes an interconnected network of nanotubes, akin to a well-organized transport system. Ions navigate this network seamlessly, encountering minimal resistance and enabling swift charge/discharge kinetics. In contrast, agglomerates disrupt this coherent pathway, impeding ion diffusion and resulting in sluggish performance. For example, SWCNTs functionalized with sulfonic acid groups (-SO3H) showed an excellent dispersibility [29]. The -SO3H groups enhanced the dispersion stability of SWCNTs in water and increased their affinity with aqueous electrolytes. The well-dispersed SWCNTs formed a porous network structure with large pore volume and low tortuosity, facilitating ion diffusion within the electrode matrix.
The energy density of a supercapacitor electrode is determined by its charge storage capacity, which is related to the number and availability of sites for electrolyte ion adsorption [38,39,40]. Therefore, increasing the charge storage capacity of CNTs within the electrode matrix is vital for enhancing the energy density. This can be controlled by the dispersion state of CNTs within the electrode matrix, which affects the surface chemistry and morphology of nanotubes. Well-dispersed CNTs create a densely populated array of sites, elevating the overall charge storage capacity of the electrode. This not only enhances the energy storage potential, but also prolongs the operational life of the supercapacitor, as the mitigated agglomeration-induced degradation ensures sustained performance. For example, MWCNTs decorated with nickel oxide (NiO) nanoparticles displayed an excellent dispersion states in water [41]. The NiO nanoparticles were uniformly distributed on the surface of MWCNTs using a hydrothermal method, forming a core-shell structure. The well-dispersed MWCNTs provided a large surface area and a conductive backbone for NiO deposition and charge transport. The NiO nanoparticles contributed to the pseudocapacitance of the electrode by providing additional sites for redox reactions with electrolyte ions. The MWCNT/NiO composite electrodes exhibited a high specific capacitance of 1727 F/g at a current density of 5 mA/cm2 (Figure 6) [41].

4.2. Batteries

Batteries are electrochemical devices that store and release energy through reversible redox reactions between electrode materials and electrolyte ions [42,43,44,45,46]. They offer high energy density, a long cycle life, and environmental friendliness. However, their power density and durability are limited by the poor conductivity and mechanical stability of conventional electrode materials [42,43,44,45]. To overcome these limitations, CNTs have been widely used as electrode materials or additives in batteries, owing to their high conductivity, mechanical strength, and compatibility with various active materials [42,43,44,45]. However, the dispersion state of CNTs within the electrode matrix has a significant impact on their electrochemical performance. In this subsection, we will discuss how CNT dispersion stability influences three key factors that determine the performance of battery electrodes: mechanical stability, electron transport, and energy density. We will also provide some examples of CNT-based electrodes that demonstrate the benefits of dispersion stability in batteries.
As the energy landscape pivots toward sustainable solutions, batteries emerge as focal points for innovation. The dispersion state of CNTs within battery electrodes plays a crucial role in maintaining their structural integrity. During charge/discharge cycles, electrode materials undergo volume changes due to the intercalation/deintercalation of electrolyte ions [42,43,44,45,47]. These volume changes induce mechanical stress within the electrode matrix, leading to the cracking and pulverization of active materials and loss of contact with current collectors [42,43,44,45,47]. Agglomerates, acting as stress concentrators, exacerbate mechanical strain during charge/discharge cycles. On the other hand, well-dispersed CNTs distribute stress uniformly, curbing mechanical degradation and extending the lifespan of the electrode [42,43,44,45,47]. This resilience to mechanical stress translates to enhanced battery durability, a factor paramount in energy storage applications. For example, Zhang et al. fabricated lithium-ion battery electrodes using well-dispersed MWCNTs coated with silicon (Si) nanoparticles (Figure 7) [30]. The Si nanoparticles were uniformly dispersed on the surface of MWCNTs using a sol-gel method, forming a core-shell structure. The well-dispersed MWCNTs acted as a buffer layer to accommodate the large volume expansion of Si during lithiation/delithiation cycles. The MWCNT/Si composite electrodes showed excellent cycle stability, showing 937 mAh/g over 450 cycles [30]. In addition, surface functionalization of carbon nanotubes holds a specific significance in Li-S batteries, as it plays a pivotal role in shaping battery performance and ensuring long-term stability [48,49,50,51]. For example, Dorfler et al. conducted functionalization of CNTs with sulfur (S), resulting in a notably high capacity of 800 mAh/g [48]. In the work by Ma et al., the authors enveloped CNTs with a polyethylenimine (PEI) polymer, significantly enhancing dispersibility and leading to a remarkable capacity of 838 mAh/g [51]. Liang et al. chose to functionalize CNTs with oxygen, resulting in a capacity of 798.5 mAh/g [50]. Finally, Kim et al. performed functionalization of CNTs through oxygen thermal treatment, achieving an impressive capacity of 1239.8 mAh/g [49].
In the intricate dance of charge and discharge processes within batteries, electron transport takes center stage [42,43,44,45,47]. The rate performance and efficiency of battery electrodes depend on how fast electrons can transfer between active materials and current collectors [42,43,44,45,47]. Therefore, enhancing the electron transport within the electrode matrix is essential for optimizing charge/discharge efficiency and minimizing energy loss [42,43,44,45,47]. This can be influenced by the dispersion state of CNTs within the electrode matrix, which determines the electrical conductivity and percolation threshold of the electrode structure. Uniform dispersion of CNTs within the electrode matrix establishes an interconnected network that facilitates efficient electron transfer [42,43,44,45,47,52,53]. This unobstructed pathway for electrons reduces internal resistance, optimizing charge/discharge efficiency. The result is a battery that not only stores and releases energy effectively but does so with minimal energy loss.
The summary of energy storage performance using CNTs functionalized with various method is presented in Table 2. The dispersion stability of CNTs sets the stage for the overall energy density of batteries, a critical metric in energy storage. Agglomerates introduce inconsistencies in charge distribution, leading to non-uniform energy storage and reduced capacity utilization. Conversely, well-dispersed CNTs facilitate uniform energy distribution, enhancing energy density and capacity utilization. Moreover, the preservation of electrode integrity achieved through dispersion stability culminates in enhanced cycle stability. The ability of the electrode to endure prolonged charge/discharge cycles with minimal capacity fade positions the battery for long-term and reliable operation.

5. Future Trajectories and Navigating Challenges

The quest for optimizing CNT dispersion stability is an ongoing journey that reveals a spectrum of challenges and opportunities. The advancement of this field opens up new avenues for exploring the full potential of CNTs for energy storage and harvesting applications. In this section, we survey the landscape of future directions, highlighting the obstacles to be surmounted and the prospects that await. A key prerequisite for achieving optimal CNT dispersion stability is the accurate characterization of dispersion states [17,18]. This calls for the development of advanced analytical techniques that can provide a comprehensive understanding of dispersion dynamics. These techniques include state-of-the-art microscopy methods that can visualize nanoscale features and spectroscopic techniques that can probe intermolecular interactions. The integration of these techniques can reveal valuable insights into the mechanisms and factors that govern dispersion behavior. Another important aspect of CNT dispersion stability is its temporal evolution. Real-time monitoring techniques, capable of detecting changes in dispersion over time, are essential for elucidating the kinetics of agglomeration and stabilization processes [17,18]. These techniques can also enable dynamic feedback loops, allowing for the adjustment of stability strategies in situ.
A promising strategy for improving CNT dispersion stability is the tailoring of CNT surfaces with precision and purpose [2,6,12,16,20,25,27,31,32,33,36,43,47]. This involves the application of advanced functionalization strategies, driven by the synergy of chemistry and materials science, that can create surfaces that interact favorably with various matrices. These strategies include covalent and non-covalent approaches, guided by molecular engineering, that can introduce functional groups that enhance both stability and compatibility. Another innovative strategy for enhancing CNT dispersion stability is the incorporation of smart additives and the design of hybrid architectures [14,16,17,22,39,44,47]. These include novel dispersants and surface modifiers, endowed with responsive functionalities, that can modulate stability dynamically. They also include the integration of CNTs within polymer matrices, carefully designed to optimize dispersion, that can result in new materials that combine the advantages of both components.
The field of CNT dispersion stability is an evolving journey that presents a range of challenges and opportunities. Advanced analytical techniques, along with real-time monitoring, will reveal the details of dispersion dynamics. Ingenious strategies, such as tailored surface engineering and smart additives, will overcome the difficulties of enhancing stability. Collaborations among disciplines will integrate expertise, unleashing the potential of CNTs for energy storage and harvesting applications. The radiant future of CNT dispersion stability is one where the combination of scientific creativity, collaborative spirit, and continuous innovation leads to a new era of energy technologies. As current challenges inspire future advancements, the exploration of CNT dispersion stability will demonstrate the transformative power of multidisciplinary research, guiding us towards sustainable and efficient energy solutions that surpass the limits of possibility.

6. Conclusions

This review paper highlights the importance of CNT dispersion stability as a key factor that influences the performance of energy storage and harvesting devices. Dispersion stability is essential for maintaining and enhancing the intrinsic properties of CNTs, such as high surface area, electrical conductivity, and mechanical strength, that make them attractive for energy applications. Dispersion stability also enables the effective integration of CNTs within device architectures, facilitating the optimization of energy conversion processes, such as light absorption, charge separation and transport, and recombination suppression. Dispersion stability thus bridges the gap between theoretical potential and practical application, demonstrating its indispersibility in harnessing the nanoscale advantages of CNTs for energy technologies. Achieving dispersion stability requires overcoming the challenges posed by agglomeration, which degrades the performance and stability of CNTs. This calls for the development of multidisciplinary solutions that involve surface functionalization, surfactant mediation, and novel matrix integration, which can tailor the interactions between CNTs and their surrounding media. These solutions not only improve dispersion stability, but also create new opportunities for designing innovative materials and structures that combine the benefits of CNTs and other components. This synergy of scientific investigation and real-world implementation showcases dispersion stability’s transformative potential. As we explore the intersection of science and engineering, we envision an era in which dispersion stability evolves from a theoretical concept to a practical necessity, driving energy technologies towards new levels of efficiency and sustainability. This journey, a tribute to human innovation and perseverance, inspires the future, where energy storage and harvesting reach new heights of possibility, resonating with the harmony of scientific excellence, engineering skill, and the aspiration for a sustainable energy landscape.

Author Contributions

C.C., T.G.Y. and B.H. prepared the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the GRDC (Global Research Development Center) Cooperative Hub Program through the National Research Foundation of Korea (NRF), funded by the Ministry of Science and ICT (MSIT) (RS-2023-00257595). This research was supported by the Chung-Ang University Research Grants in 2023.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The datasets used and/or analyzed during the current study are available from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, C.; Li, F.; Ma, L.-P.; Cheng, H.-M. Advanced Materials for Energy Storage. Adv. Mater. 2010, 22, E28–E62. [Google Scholar] [CrossRef]
  2. Rahman, M.M.; Oni, A.O.; Gemechu, E.; Kumar, A. Assessment of energy storage technologies: A review. Energy Convers. Manag. 2020, 223, 113295. [Google Scholar] [CrossRef]
  3. Ibrahim, H.; Ilinca, A.; Perron, J. Energy storage systems—Characteristics and comparisons. Renew. Sustain. Energy Rev. 2008, 12, 1221–1250. [Google Scholar] [CrossRef]
  4. Goodenough, J.B. Energy storage materials: A perspective. Energy Storage Mater. 2015, 1, 158–161. [Google Scholar] [CrossRef]
  5. Kim, H.; Qaiser, N.; Hwang, B. Electro-mechanical response of stretchable pdms composites with a hybrid filler system. Facta Univ. Ser. Mech. Eng. 2023, 21, 51–61. [Google Scholar] [CrossRef]
  6. Sears, K.; Dumée, L.; Schütz, J.; She, M.; Huynh, C.; Hawkins, S.; Duke, M.; Gray, S. Recent Developments in Carbon Nanotube Membranes for Water Purification and Gas Separation. Materials 2010, 3, 127–149. [Google Scholar] [CrossRef]
  7. He, J.-H.; Elazem, N.Y.A. The carbon nanotube-embedded boundary layer theory for energy harvesting. Facta Univ. Ser. Mech. Eng. 2022, 20, 211–235. [Google Scholar] [CrossRef]
  8. Bhadra, R.; Jana, T.; Mitra, A.; Sahoo, P. Effect of CNT radius on flattening contact behaviour of CNT-Al nanocomposite: A numerical approch. Rep. Mech. Eng. 2023, 4, 121–130. [Google Scholar] [CrossRef]
  9. Avouris, P. Carbon nanotube electronics. Chem. Phys. 2002, 281, 429–445. [Google Scholar] [CrossRef]
  10. Hwang, B.; Han, Y.; Matteini, P. Bending fatigue behavior of Ag nanowire/Cu thin-film hybrid interconnects for wearable electronics. Facta Univ. Ser. Mech. Eng. 2022, 20, 553–560. [Google Scholar] [CrossRef]
  11. Hashemi Kachapi, S.H. Nonlinear vibration response of piezoelectric nanosensor: Influences of surface/interface effects. Facta Univ. Ser. Mech. Eng. 2023, 21, 259–272. [Google Scholar] [CrossRef]
  12. Venkataraman, A.; Amadi, E.V.; Chen, Y.; Papadopoulos, C. Carbon Nanotube Assembly and Integration for Applications. Nanoscale Res. Lett. 2019, 14, 220. [Google Scholar] [CrossRef]
  13. De Volder, M.F.L.; Tawfick, S.H.; Baughman, R.H.; Hart, A.J. Carbon Nanotubes: Present and Future Commercial Applications. Science 2013, 339, 535–539. [Google Scholar] [CrossRef] [PubMed]
  14. Hu, L.; Hecht, D.S.; Grüner, G. Carbon Nanotube Thin Films: Fabrication, Properties, and Applications. Chem. Rev. 2010, 110, 5790–5844. [Google Scholar] [CrossRef] [PubMed]
  15. Baughman, R.H.; Zakhidov, A.A.; de Heer, W.A. Carbon Nanotubes—The Route toward Applications. Science 2002, 297, 787–792. [Google Scholar] [CrossRef]
  16. Rastogi, R.; Kaushal, R.; Tripathi, S.K.; Sharma, A.L.; Kaur, I.; Bharadwaj, L.M. Comparative study of carbon nanotube dispersion using surfactants. J. Colloid Interface Sci. 2008, 328, 421–428. [Google Scholar] [CrossRef]
  17. Yoon, H.; Kim, H.; Matteini, P.; Hwang, B. Research Trends on the Dispersibility of Carbon Nanotube Suspension with Surfactants in Their Application as Electrodes of Batteries: A Mini-Review. Batteries 2022, 8, 254. [Google Scholar] [CrossRef]
  18. Yoon, H.; Thompson, R.; Hwang, B. Dispersibility study of carbon nanotubes using multiple light scattering: A mini-review. Colloid Interface Sci. Commun. 2023, 52, 100686. [Google Scholar] [CrossRef]
  19. Onyibo, E.C.; Safaei, B. Application of finite element analysis to honeycomb sandwich structures: A review. Rep. Mech. Eng. 2022, 3, 192–209. [Google Scholar] [CrossRef]
  20. Schneider, S.; Lefebvre, J.; Diercks, N.J.; Berger, F.J.; Lapointe, F.; Schleicher, J.; Malenfant, P.R.L.; Zaumseil, J. Phenanthroline Additives for Enhanced Semiconducting Carbon Nanotube Dispersion Stability and Transistor Performance. ACS Appl. Nano Mater. 2020, 3, 12314–12324. [Google Scholar] [CrossRef]
  21. Forney, M.W.; Poler, J.C. Significantly Enhanced Single-Walled Carbon Nanotube Dispersion Stability in Mixed Solvent Systems. J. Phys. Chem. C 2011, 115, 10531–10536. [Google Scholar] [CrossRef]
  22. Lee, J.; Kim, M.; Hong, C.K.; Shim, S.E. Measurement of the dispersion stability of pristine and surface-modified multiwalled carbon nanotubes in various nonpolar and polar solvents. Meas. Sci. Technol. 2007, 18, 3707. [Google Scholar] [CrossRef]
  23. Banerjee, S.; Sutradhar, G.; Sahoo, P. Design of experiment analysis of elevated temperature wear of Mg-WC nano-composites. Rep. Mech. Eng. 2021, 2, 202–211. [Google Scholar] [CrossRef]
  24. Lee, C.; Kim, H.; Hwang, B. Fracture behavior of metal oxide/silver nanowire composite electrodes under cyclic bending. J. Alloys Compd. 2019, 773, 361–366. [Google Scholar] [CrossRef]
  25. Soleimani Zohr Shiri, M.; Henderson, W.; Mucalo, M.R. A Review of The Lesser-Studied Microemulsion-Based Synthesis Methodologies Used for Preparing Nanoparticle Systems of The Noble Metals, Os, Re, Ir and Rh. Materials 2019, 12, 1896. [Google Scholar] [CrossRef]
  26. Ha, H.; Müller, S.; Baumann, R.-P.; Hwang, B. Peakforce quantitative nanomechanical mapping for surface energy characterization on the nanoscale: A mini-review. Facta Univ. Ser. Mech. Eng. 2023. [Google Scholar] [CrossRef]
  27. Rajendran, D.; Ramalingame, R.; Adiraju, A.; Nouri, H.; Kanoun, O. Role of Solvent Polarity on Dispersion Quality and Stability of Functionalized Carbon Nanotubes. J. Compos. Sci. 2022, 6, 26. [Google Scholar] [CrossRef]
  28. Li, S.; Huang, D.; Zhang, B.; Xu, X.; Wang, M.; Yang, G.; Shen, Y. Flexible Supercapacitors Based on Bacterial Cellulose Paper Electrodes. Adv. Energy Mater. 2014, 4, 1301655. [Google Scholar] [CrossRef]
  29. Li, Z.; Wang, L.; Li, Y.; Feng, Y.; Feng, W. Carbon-based functional nanomaterials: Preparation, properties and applications. Compos. Sci. Technol. 2019, 179, 10–40. [Google Scholar] [CrossRef]
  30. Zhang, W.; Chen, X.; Yong, T.; Xu, N.; Guan, R.; Yue, L. Multiwalled carbon nanotube webs welded with Si nanoparticles as high-performance anode for lithium-ion batteries. J. Alloys Compd. 2016, 688, 216–224. [Google Scholar] [CrossRef]
  31. Ren, J.; Li, L.; Chen, C.; Chen, X.; Cai, Z.; Qiu, L.; Wang, Y.; Zhu, X.; Peng, H. Twisting Carbon Nanotube Fibers for Both Wire-Shaped Micro-Supercapacitor and Micro-Battery. Adv. Mater. 2013, 25, 1155–1159. [Google Scholar] [CrossRef] [PubMed]
  32. Tang, Z.; Tang, C.-h.; Gong, H. A High Energy Density Asymmetric Supercapacitor from Nano-architectured Ni(OH)2/Carbon Nanotube Electrodes. Adv. Funct. Mater. 2012, 22, 1272–1278. [Google Scholar] [CrossRef]
  33. Obreja, V.V.N. On the performance of supercapacitors with electrodes based on carbon nanotubes and carbon activated material—A review. Phys. E Low-Dimens. Syst. Nanostruct. 2008, 40, 2596–2605. [Google Scholar] [CrossRef]
  34. Zakaria, M.R.; Omar, M.F.; Zainol Abidin, M.S.; Md Akil, H.; Abdullah, M.M.A.B. Recent progress in the three-dimensional structure of graphene-carbon nanotubes hybrid and their supercapacitor and high-performance battery applications. Compos. Part A: Appl. Sci. Manuf. 2022, 154, 106756. [Google Scholar] [CrossRef]
  35. Yang, Z.; Tian, J.; Yin, Z.; Cui, C.; Qian, W.; Wei, F. Carbon nanotube- and graphene-based nanomaterials and applications in high-voltage supercapacitor: A review. Carbon 2019, 141, 467–480. [Google Scholar] [CrossRef]
  36. Pan, H.; Li, J.; Feng, Y. Carbon Nanotubes for Supercapacitor. Nanoscale Res. Lett. 2010, 5, 654. [Google Scholar] [CrossRef]
  37. Kim, H.; Cheong, J.Y.; Hwang, B. Mini Review of Technological Trends of Flexible Supercapacitors Using Carbon Nanotubes. J. Nat. Fibers 2023, 20, 2204455. [Google Scholar] [CrossRef]
  38. Frackowiak, E.; Metenier, K.; Bertagna, V.; Beguin, F. Supercapacitor electrodes from multiwalled carbon nanotubes. Appl. Phys. Lett. 2000, 77, 2421–2423. [Google Scholar] [CrossRef]
  39. Hu, S.; Rajamani, R.; Yu, X. Flexible solid-state paper based carbon nanotube supercapacitor. Appl. Phys. Lett. 2012, 100, 104103. [Google Scholar] [CrossRef]
  40. Choi, C.; Lee, J.A.; Choi, A.Y.; Kim, Y.T.; Lepró, X.; Lima, M.D.; Baughman, R.H.; Kim, S.J. Flexible Supercapacitor Made of Carbon Nanotube Yarn with Internal Pores. Adv. Mater. 2014, 26, 2059–2065. [Google Scholar] [CrossRef]
  41. Gund, G.S.; Dubal, D.P.; Shinde, S.S.; Lokhande, C.D. Architectured Morphologies of Chemically Prepared NiO/MWCNTs Nanohybrid Thin Films for High Performance Supercapacitors. ACS Appl. Mater. Interfaces 2014, 6, 3176–3188. [Google Scholar] [CrossRef] [PubMed]
  42. de las Casas, C.; Li, W. A review of application of carbon nanotubes for lithium ion battery anode material. J. Power Sources 2012, 208, 74–85. [Google Scholar] [CrossRef]
  43. Xiong, Z.; Yun, Y.S.; Jin, H.-J. Applications of Carbon Nanotubes for Lithium Ion Battery Anodes. Materials 2013, 6, 1138–1158. [Google Scholar] [CrossRef] [PubMed]
  44. Kiebele, A.; Gruner, G. Carbon nanotube based battery architecture. Appl. Phys. Lett. 2007, 91, 144104. [Google Scholar] [CrossRef]
  45. Chen, W.X.; Lee, J.Y.; Liu, Z. The nanocomposites of carbon nanotube with Sb and SnSb0.5 as Li-ion battery anodes. Carbon 2003, 41, 959–966. [Google Scholar] [CrossRef]
  46. Guo, B.; Wang, X.; Fulvio, P.F.; Chi, M.; Mahurin, S.M.; Sun, X.-G.; Dai, S. Soft-Templated Mesoporous Carbon-Carbon Nanotube Composites for High Performance Lithium-ion Batteries. Adv. Mater. 2011, 23, 4661–4666. [Google Scholar] [CrossRef]
  47. Ng, S.H.; Wang, J.; Guo, Z.P.; Chen, J.; Wang, G.X.; Liu, H.K. Single wall carbon nanotube paper as anode for lithium-ion battery. Electrochim. Acta 2005, 51, 23–28. [Google Scholar] [CrossRef]
  48. Dörfler, S.; Hagen, M.; Althues, H.; Tübke, J.; Kaskel, S.; Hoffmann, M.J. High capacity vertical aligned carbon nanotube/sulfur composite cathodes for lithium–sulfur batteries. Chem. Commun. 2012, 48, 4097–4099. [Google Scholar] [CrossRef]
  49. Kim, P.J.H.; Kim, K.; Pol, V.G. Towards highly stable lithium sulfur batteries: Surface functionalization of carbon nanotube scaffolds. Carbon 2018, 131, 175–183. [Google Scholar] [CrossRef]
  50. Liang, W.; Tang, Y.; Liu, L.; Zhu, C.; Sheng, R. Effective Trapping of Polysulfides Using Functionalized Thin-Walled Porous Carbon Nanotubes as Sulfur Hosts for Lithium–Sulfur Batteries. Inorg. Chem. 2020, 59, 8481–8486. [Google Scholar] [CrossRef]
  51. Ma, L.; Zhuang, H.L.; Wei, S.; Hendrickson, K.E.; Kim, M.S.; Cohn, G.; Hennig, R.G.; Archer, L.A. Enhanced Li–S Batteries Using Amine-Functionalized Carbon Nanotubes in the Cathode. ACS Nano 2016, 10, 1050–1059. [Google Scholar] [CrossRef] [PubMed]
  52. Evanoff, K.; Khan, J.; Balandin, A.A.; Magasinski, A.; Ready, W.J.; Fuller, T.F.; Yushin, G. Towards Ultrathick Battery Electrodes: Aligned Carbon Nanotube—Enabled Architecture. Adv. Mater. 2012, 24, 533–537. [Google Scholar] [CrossRef] [PubMed]
  53. Bao, W.; Zhang, Z.; Zhou, C.; Lai, Y.; Li, J. Multi-walled carbon nanotubes @ mesoporous carbon hybrid nanocomposites from carbonized multi-walled carbon nanotubes @ metal–organic framework for lithium sulfur battery. J. Power Sources 2014, 248, 570–576. [Google Scholar] [CrossRef]
Inorganics 11 00383 g001
Figure 1. (a) Schematic of a carbon nanotube (CNT), (b) transmission electron microscopy (TEM) image of a CNT showing a number of concentric graphitic walls [6]. Reproduced from ref. [6] under the Creative Commons Attribution 4.0 International (CC BY 4.0) License.
Figure 1. (a) Schematic of a carbon nanotube (CNT), (b) transmission electron microscopy (TEM) image of a CNT showing a number of concentric graphitic walls [6]. Reproduced from ref. [6] under the Creative Commons Attribution 4.0 International (CC BY 4.0) License.
Inorganics 11 00383 g001
Inorganics 11 00383 g002

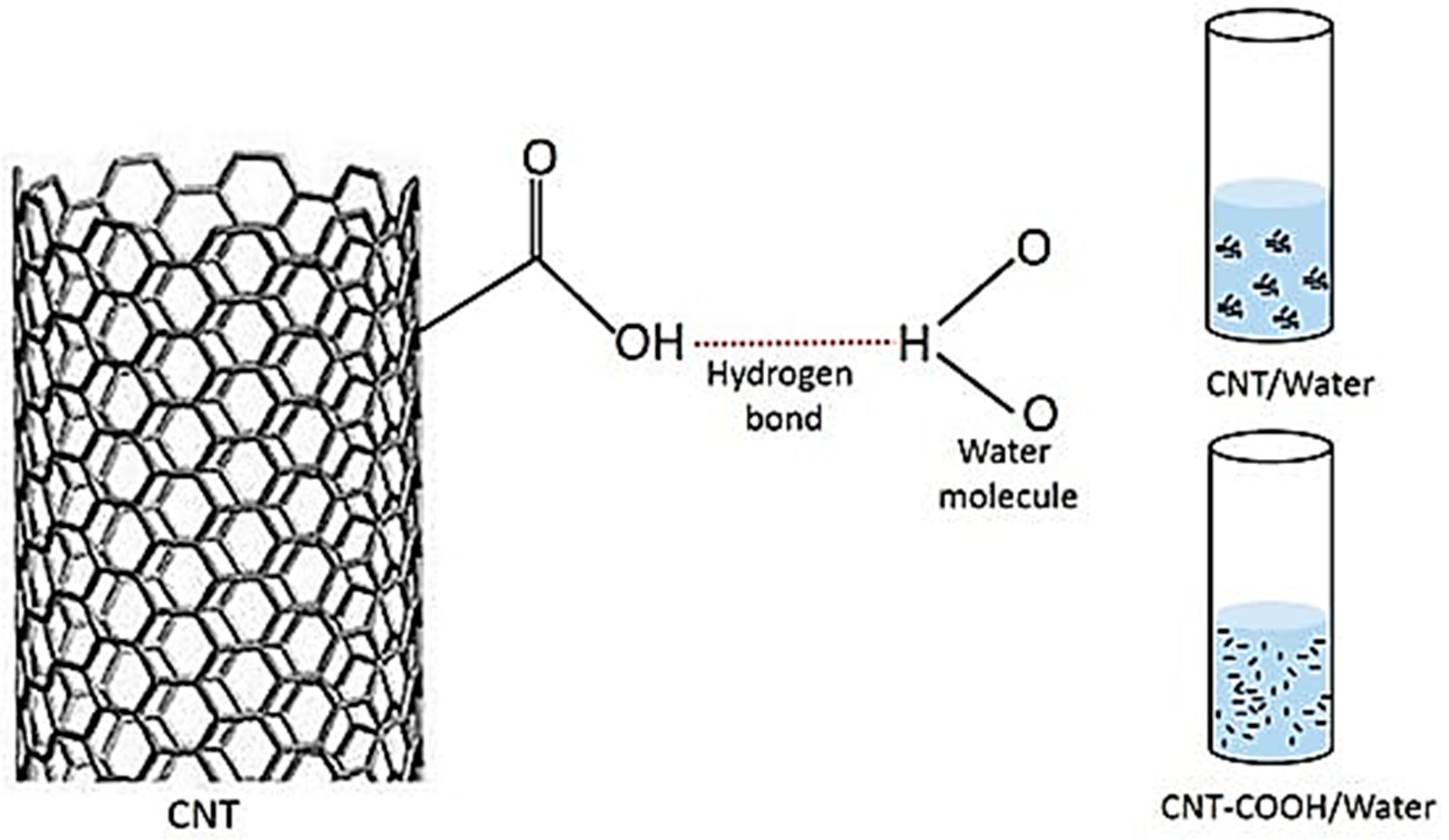

Figure 2. Covalent functionalization of CNTs [27]. Reproduced from ref. [27] under the Creative Commons Attribution 4.0 International (CC BY 4.0) License.
Figure 2. Covalent functionalization of CNTs [27]. Reproduced from ref. [27] under the Creative Commons Attribution 4.0 International (CC BY 4.0) License.
Inorganics 11 00383 g002
Inorganics 11 00383 g003

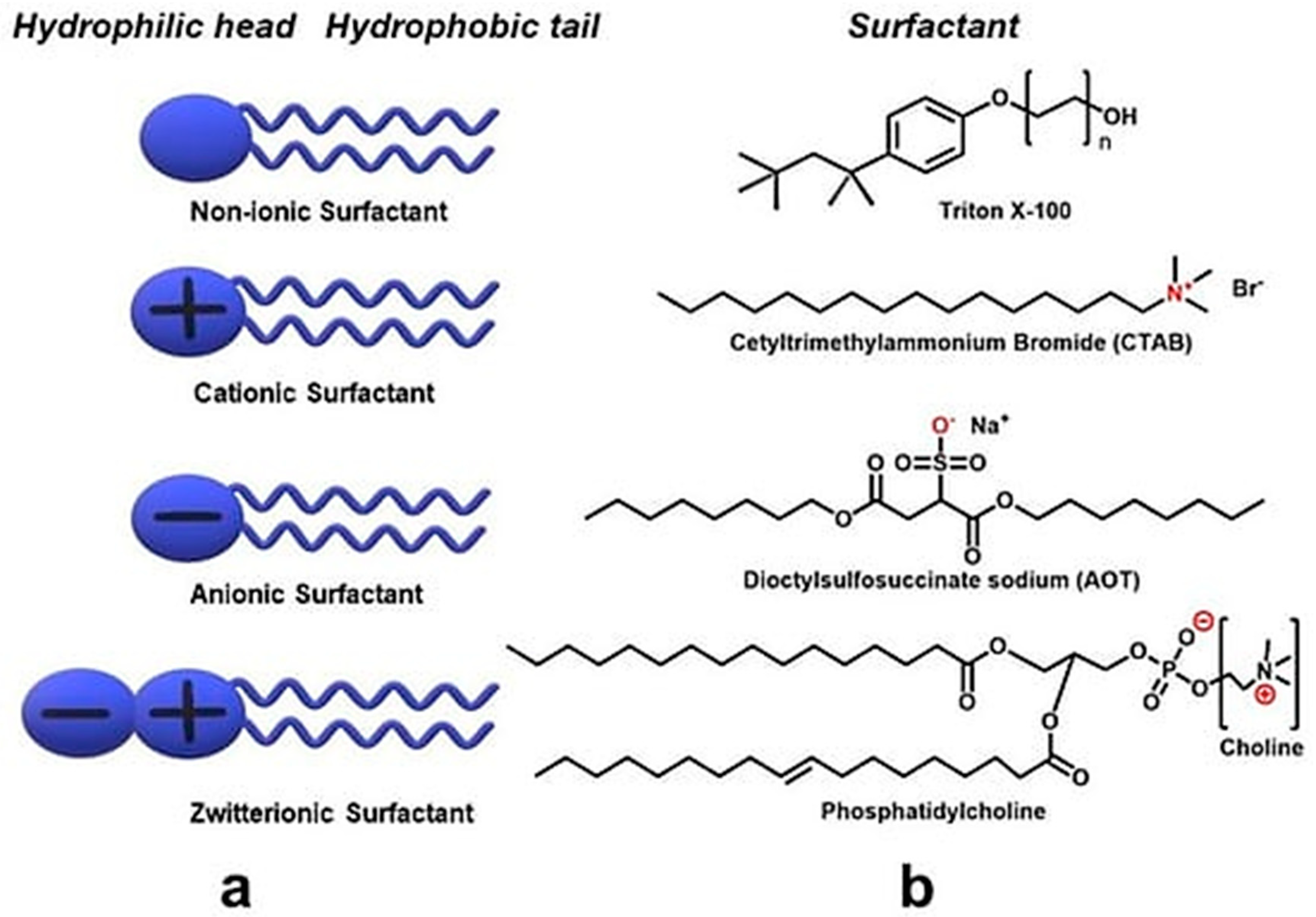

Figure 3. (a) A schematic of different type of surfactants and (b) chemical structures of some common surfactants that have been used in the non-covalent functionalization of CNTs [17,25]. Reproduced from ref. [17,25] under the Creative Commons Attribution 4.0 International (CC BY 4.0) License.
Figure 3. (a) A schematic of different type of surfactants and (b) chemical structures of some common surfactants that have been used in the non-covalent functionalization of CNTs [17,25]. Reproduced from ref. [17,25] under the Creative Commons Attribution 4.0 International (CC BY 4.0) License.
Inorganics 11 00383 g003
Inorganics 11 00383 g004

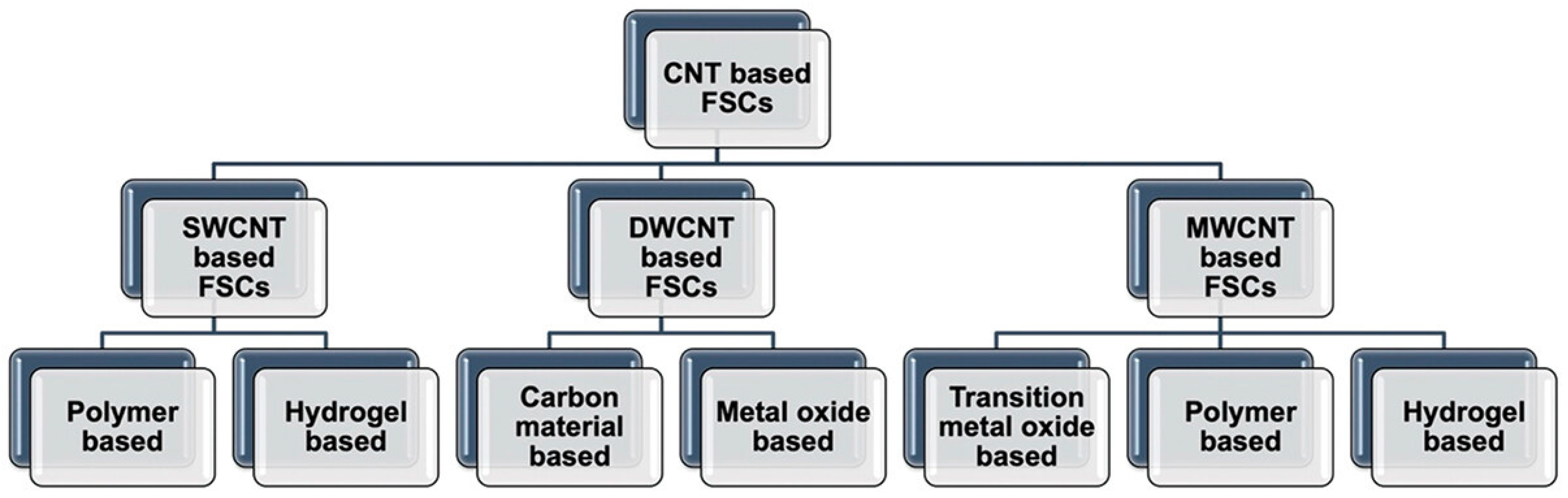

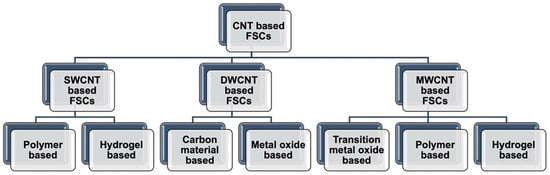

Figure 4. Types of CNT electrodes for producing flexible supercapacitors [37]. Reproduced from ref. [37] under the Creative Commons Attribution 4.0 International (CC BY 4.0) License.
Figure 4. Types of CNT electrodes for producing flexible supercapacitors [37]. Reproduced from ref. [37] under the Creative Commons Attribution 4.0 International (CC BY 4.0) License.
Inorganics 11 00383 g004
Inorganics 11 00383 g005

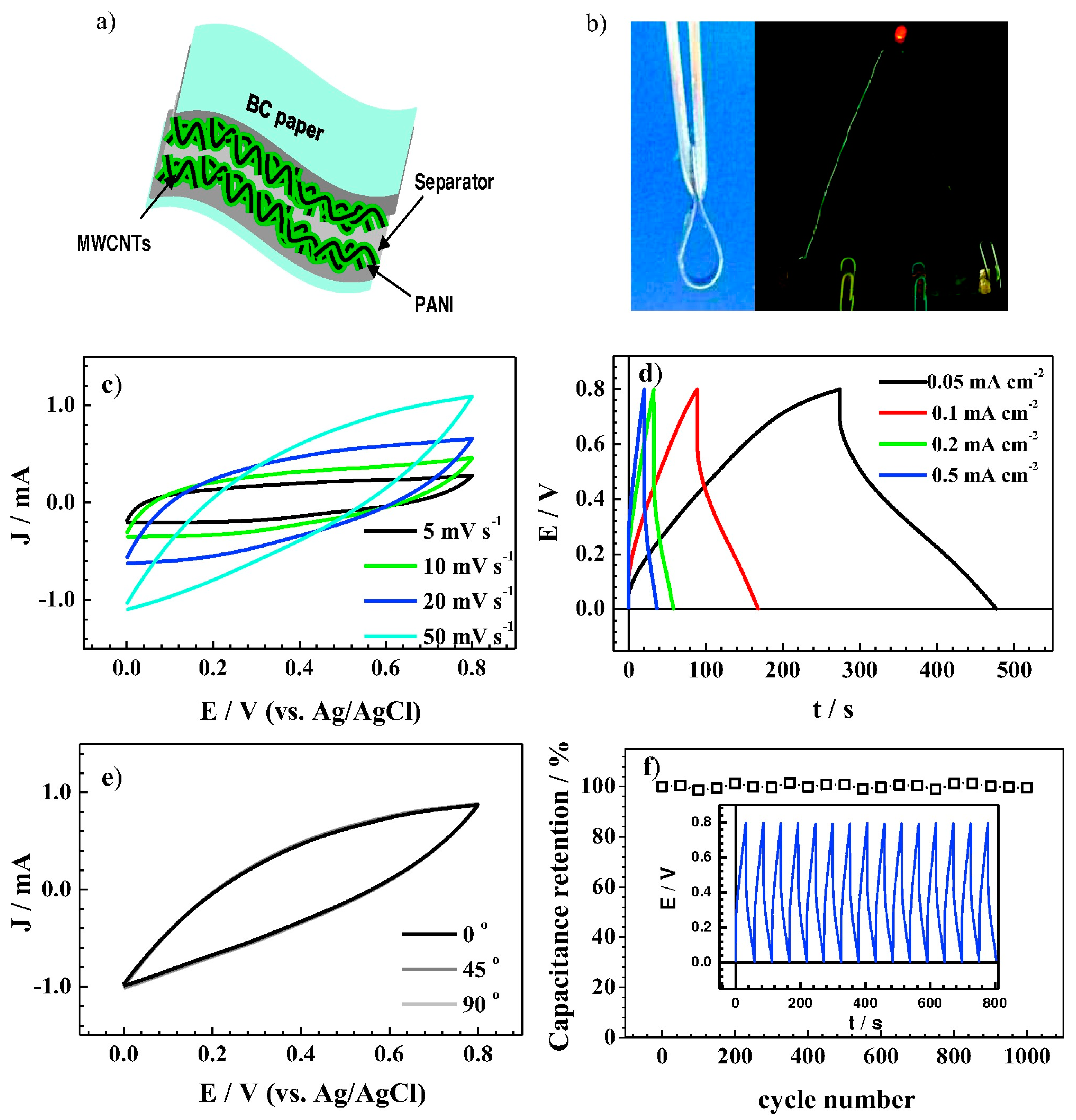

Figure 5. (a) A schematic structure of a solid-state supercapacitor device. (b) The optical images of a flexible supercapacitor device based on BC-MWCNTs-PANI10 (left) and a red LED lighted by such devices (right). (c) Capacitance/voltage (CV) curves at different scan rates, (d) galvanostatic charging/discharging curves at different discharge rates, and (e) CV scans at different curvature for solid-state devices based on BC-MWCNTs-PANI10 electrode. (f) Cycling stability of solid-state device over 1000 cycles. The inset shows the galvanostatic charge/discharge curves [28]. Reproduced with permission from ref. [28]. Copyright 2014 Wiley.
Figure 5. (a) A schematic structure of a solid-state supercapacitor device. (b) The optical images of a flexible supercapacitor device based on BC-MWCNTs-PANI10 (left) and a red LED lighted by such devices (right). (c) Capacitance/voltage (CV) curves at different scan rates, (d) galvanostatic charging/discharging curves at different discharge rates, and (e) CV scans at different curvature for solid-state devices based on BC-MWCNTs-PANI10 electrode. (f) Cycling stability of solid-state device over 1000 cycles. The inset shows the galvanostatic charge/discharge curves [28]. Reproduced with permission from ref. [28]. Copyright 2014 Wiley.
Inorganics 11 00383 g005
Inorganics 11 00383 g006

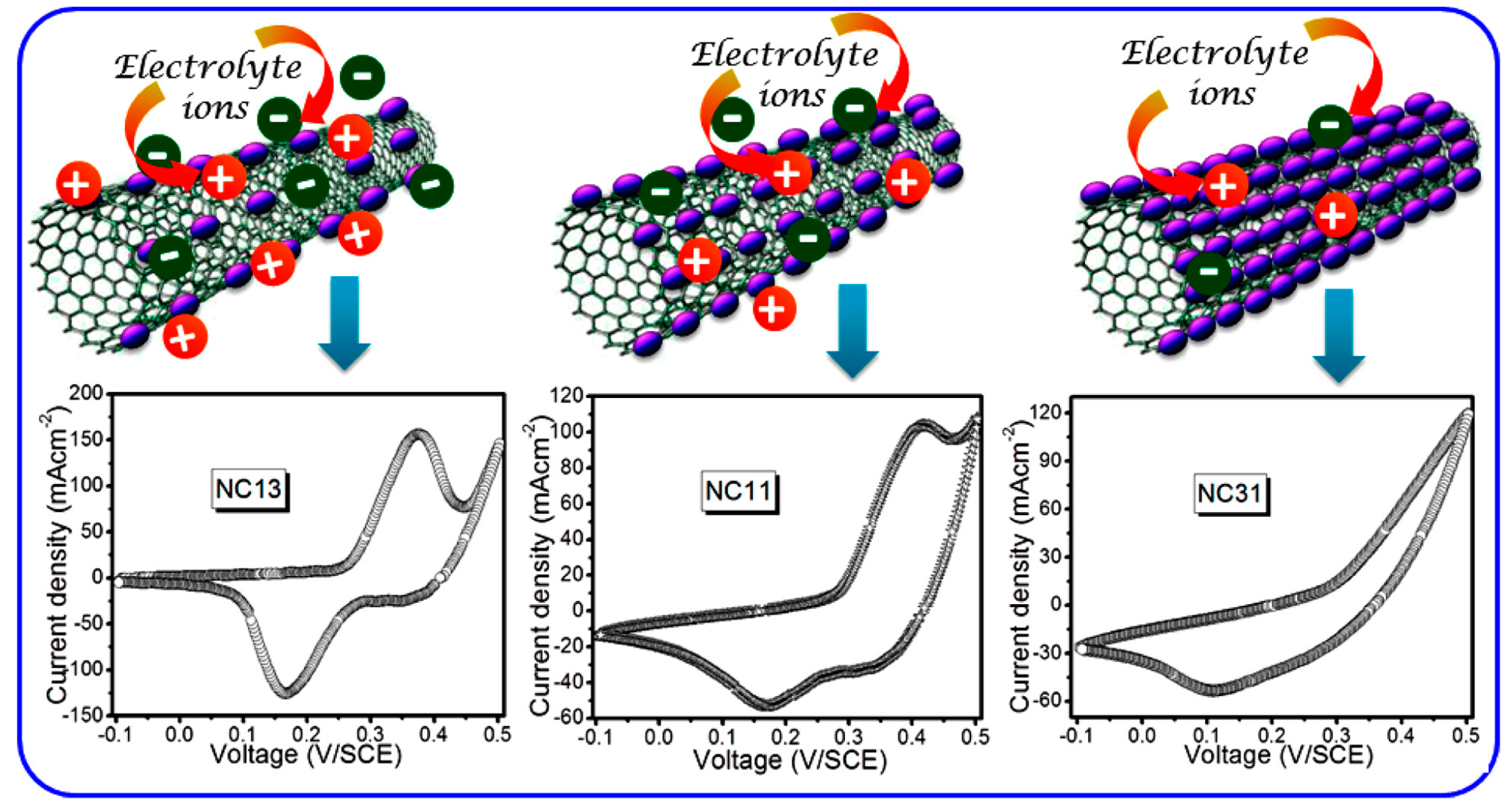

Figure 6. Schematic representation of impact of mass loading effect on the intercalation/deintercalation of ions and, subsequently, on CV curves [41]. Reproduced with permission from ref. [41]. Copyright 2014 American Chemical Society.
Figure 6. Schematic representation of impact of mass loading effect on the intercalation/deintercalation of ions and, subsequently, on CV curves [41]. Reproduced with permission from ref. [41]. Copyright 2014 American Chemical Society.
Inorganics 11 00383 g006
Inorganics 11 00383 g007

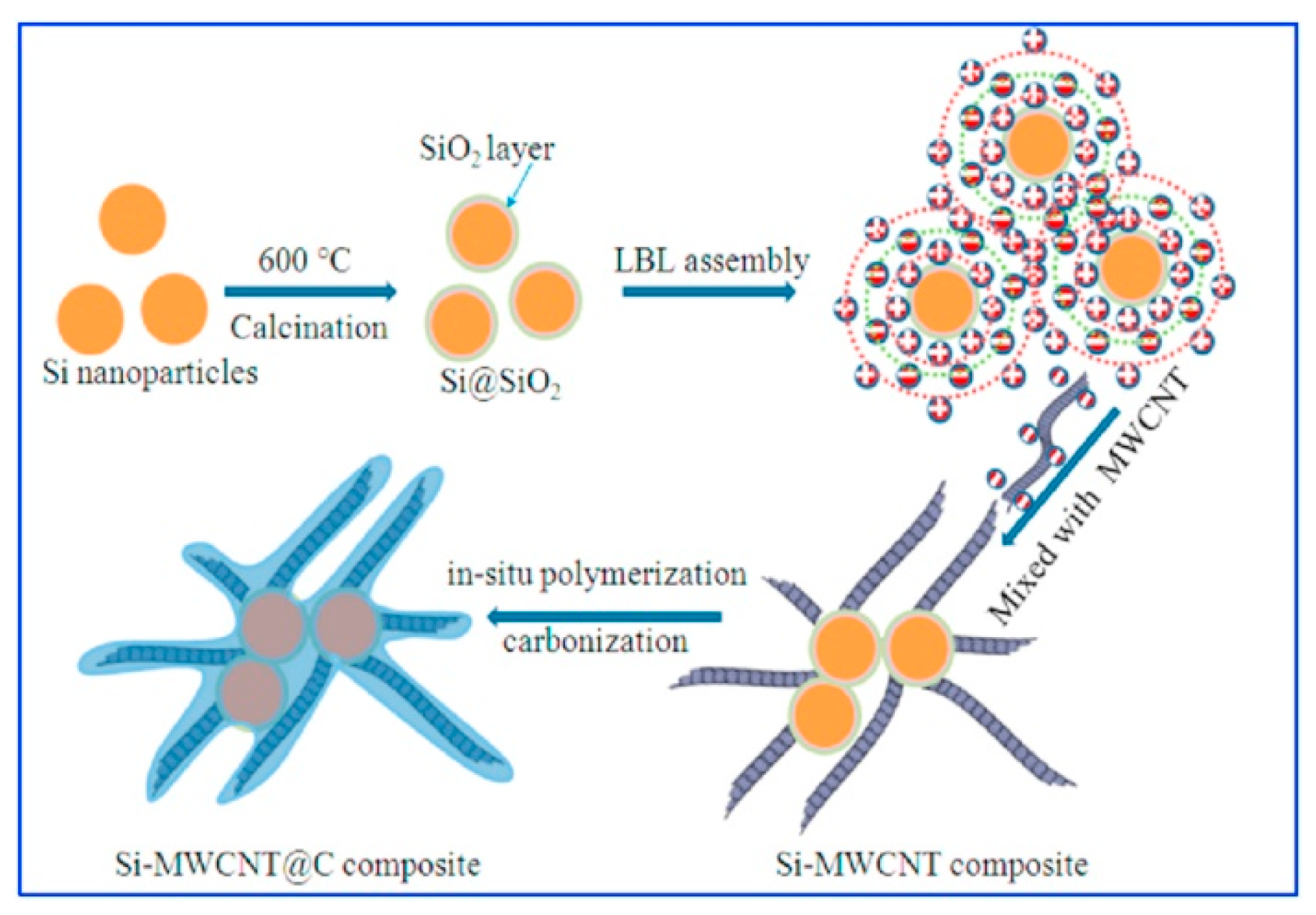

Figure 7. Schematic of the fabrication of Si-MWCNT@C composite [30]. Reproduced with permission from ref. [30]. Copyright 2016 Elsevier.
Figure 7. Schematic of the fabrication of Si-MWCNT@C composite [30]. Reproduced with permission from ref. [30]. Copyright 2016 Elsevier.
Inorganics 11 00383 g007
Table 1. Summary of CNT dispersion stability with various functionalization methods.
Table 1. Summary of CNT dispersion stability with various functionalization methods.
Functionalization TypeMaterialsAdvantagesDisadvantages
CovalentOxidationNitric acid or potassium permanganateExcellent dispersion stabilityToxic process
CycloadditionAziridines or cyclooctynesGood dispersion stabilitySensitive reaction results
Radical additionUV irradiation or plasma treatmentEasiness of processInsufficient dispersion stability
Polymer graftingPolyurethane, PMMA-OH, or polyvinyl alcoholExcellent dispersion stabilityComplex synthesis process
Non-covalentSurfactant wrappingSodium dodecyl sulfate (SDS) or Triton X-100Good dispersion stability, easiness of processSome chemicals are toxic, less stable than other methods
Polymer wrappingPolyvinylpyrrolidone (PVP) or polyethylene glycol (PEG)Excellent dispersion stabilityReducing electrical properties
DNA wrappingSingle-stranded DNA or double-stranded DNAGood dispersion stabilitySensitive synthesis, short shelf life
Table 2. Summary of energy storage performance using CNTs functionalized using various methods.
Table 2. Summary of energy storage performance using CNTs functionalized using various methods.
Application TypeFunctionalization MethodMaterialsRef.
SupercapacitorPANI-MWCNT/BC656 F/g at 10 A/g[28]
MWCNTs with NiO NPs1727 F/g at 5 mA/cm2[41]
SWCNTs functionalized with sulfonic acid groups1183 at 5 A/g[29]
BatteryMWCNTs coated with Si NPs937 mAh/g[30]
CNT-S functionalization800 mAh/g[48]
CNT- polyethylenimine (PEI)838 mAh/g[51]
CNT-oxygen functionalization798.5 mAh/g[50]
Oxygen treatment of CNT1239.8 mAh/g[49]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Choi, C.; Yun, T.G.; Hwang, B. Dispersion Stability of Carbon Nanotubes and Their Impact on Energy Storage Devices. Inorganics 2023, 11, 383. https://doi.org/10.3390/inorganics11100383

AMA Style

Choi C, Yun TG, Hwang B. Dispersion Stability of Carbon Nanotubes and Their Impact on Energy Storage Devices. Inorganics. 2023; 11(10):383. https://doi.org/10.3390/inorganics11100383

Chicago/Turabian Style

Choi, Chunghyeon, Tae Gwang Yun, and Byungil Hwang. 2023. "Dispersion Stability of Carbon Nanotubes and Their Impact on Energy Storage Devices" Inorganics 11, no. 10: 383. https://doi.org/10.3390/inorganics11100383

APA Style

Choi, C., Yun, T. G., & Hwang, B. (2023). Dispersion Stability of Carbon Nanotubes and Their Impact on Energy Storage Devices. Inorganics, 11(10), 383. https://doi.org/10.3390/inorganics11100383

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
