Advances in Visible Light Communication Technologies and Applications

by
Zuhang Geng
1,2,
Faisal Nadeem Khan
3,*,
Xun Guan
3 and
Yuhan Dong
1,2
1
Tsinghua Shenzhen International Graduate School, Tsinghua University, Beijing 100084, China
2
Department of Electronic Engineering, Tsinghua University, Beijing 100084, China
3
Tsinghua-Berkeley Shenzhen Institute, Tsinghua Shenzhen International Graduate School, Tsinghua University, Beijing 100084, China
*
Author to whom correspondence should be addressed.
Photonics 2022, 9(12), 893; https://doi.org/10.3390/photonics9120893
Submission received: 20 October 2022 / Revised: 13 November 2022 / Accepted: 18 November 2022 / Published: 23 November 2022
(This article belongs to the Special Issue Advances in Visible Light Communication)
Browse Figures
Review Reports Versions Notes

Abstract

:
With the development of light emitting diode (LED) lighting technology and its wide applications, visible light communication (VLC) technology has also seen significant advancements. VLC is regarded as a supplementary technology to radio frequency (RF) due to its unregulated spectrum and extraordinarily high communication rates. In this paper, the advantages, architectures, key technologies, application scenarios and machine learning (ML) applications of VLC are reviewed and summarized.

1. Introduction

In recent years, the number of mobile devices has increased exponentially. However, the existing radio frequency (RF) might not fully satisfy the communication requirements in some scenarios due to its limited bandwidth, where intense competition for available radio resources leads to degradation of communication performance.
To solve the contradiction between limited bandwidth and the increased number of mobile devices, visible light communication (VLC) becomes a potential supplementary technology to RF. As shown in Figure 1, the wavelengh range of visible light is from 380 nm to 780 nm and thus, it has abundant bandwidth. As a result, VLC devices are capable of reaching much greater transmission speeds than RF devices. Furthermore, the spectrum of VLC is unregulated and it results in lower costs.

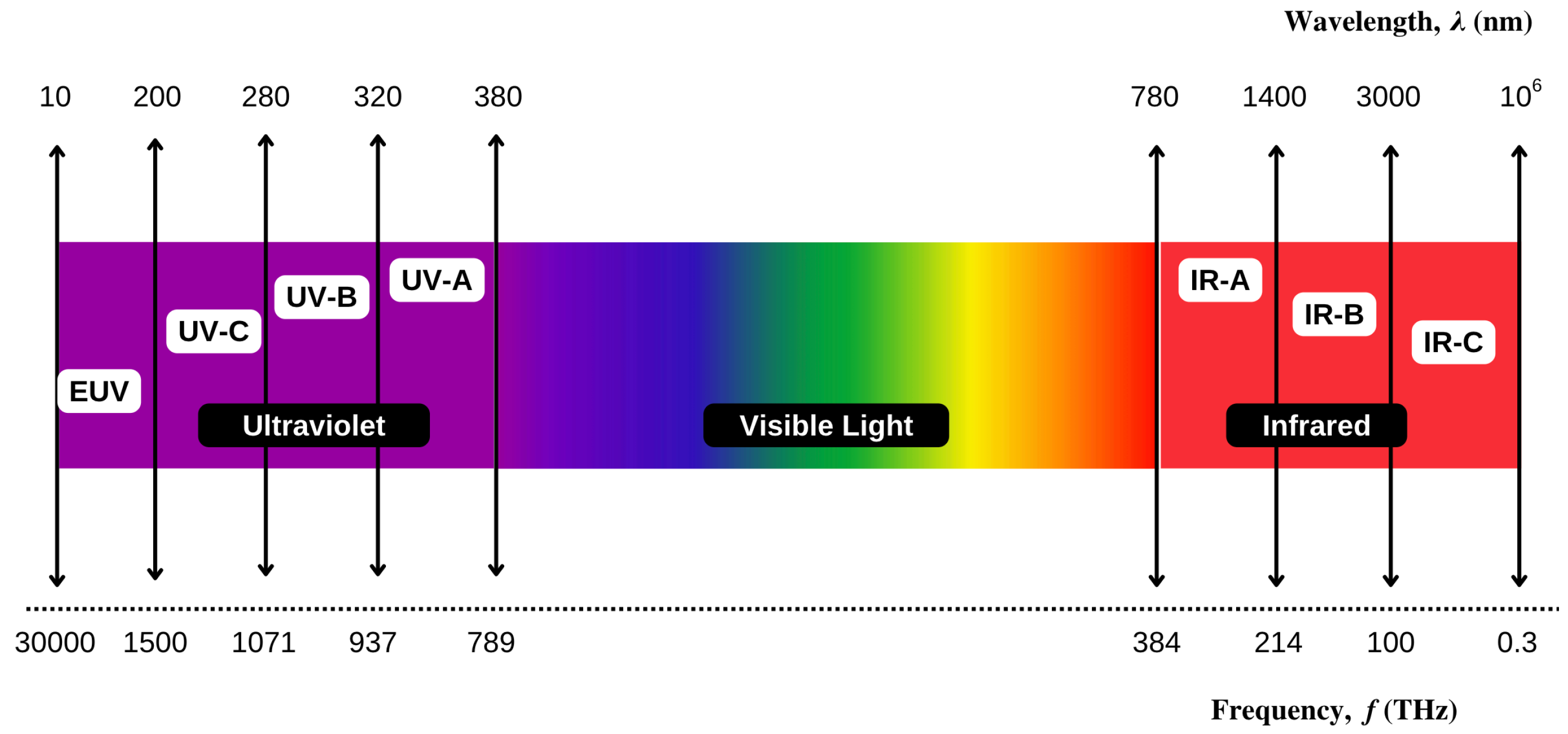

Another superiority of VLC over RF is the use of light emitting diode (LED) for data transmission. Residential LEDs have much higher power efficiency and longer lifespan than traditional incandescent light bulbs. VLC is regarded as a green communication technology with low energy consumption as it could satisfy the requirements of both illumination and communication simultaneously [1]. The wide employment of LED further reduces the cost of devices in VLC networks.
Due to the superiorities mentioned above, researches in VLC has exponentially increased in both theoretical techniques and practical applications. Several surveys in the past few years have been noted as well. For instance, H. Haas et al. review key advancements in physical layer techniques which significantly improve the transmission speeds of LEDs and discuss the challenges in achieving Tbps LiFi systems in [2]. L. E. M. Matheus et al. [3] discuss the main characteristics and future directions of VLC-based applications and the research platforms of VLC. An overview of optimization techniques to improve the performance of VLC networks is presented in [4] and it mainly focuses on how to apply the new technologies for RF networks to VLC networks. Additionally, the key performance metrics and recent achievements of hybrid LiFi and WiFi networks (HLWNets) are presented in [5], which focuses on network architectures, cell deployments, multiple access and modulation schemes, illumination requirements and backhaul. A. Al-Kinani et al. [6] investigate the main optical channel characteristics and present a comprehensive overview of optical wireless communication (OWC) channel models. Furthermore, the channel models are compared in terms of computation complexity and accuracy. J. Luo et al. [7] discuss VLC-based indoor positioning and propose a novel taxonomy method. The VLC usage in vehicular communication applications is reviewed in [8,9], while the technology shortcomings and challenges are also presented. M. A. Arfaoui et al. [10] summarize the relevant technologies from the perspective of physical layer security (PLS) and point out the future research directions for PLS-VLC systems. Table 1 summarizes the surveys mentioned above and demonstrates the topics of the existing surveys and this paper.
However, most of the previous articles focus mainly on one of the research areas in VLC, which is not comprehensive enough. Additionally, to the best of our knowledge, none of the previous surveys deals with machine learning (ML). In this paper, we present a comprehensive survey on VLC as well as investigating the latest research progress of VLC and its applications in various emerging fields. The remainder of this paper is organized as follows. The architecture of VLC systems is presented in Section 2, while in Section 3, several key technologies of VLC are discussed, including channel modeling, light modulation, PLS and non-orthogonal multiple access (NOMA). Additionally, ML algorithms applied in VLC systems are discussed as well. Section 4 provides the latest advances in VLC applications. Then, Section 5 concludes the paper.

2. Architecture of VLC Systems

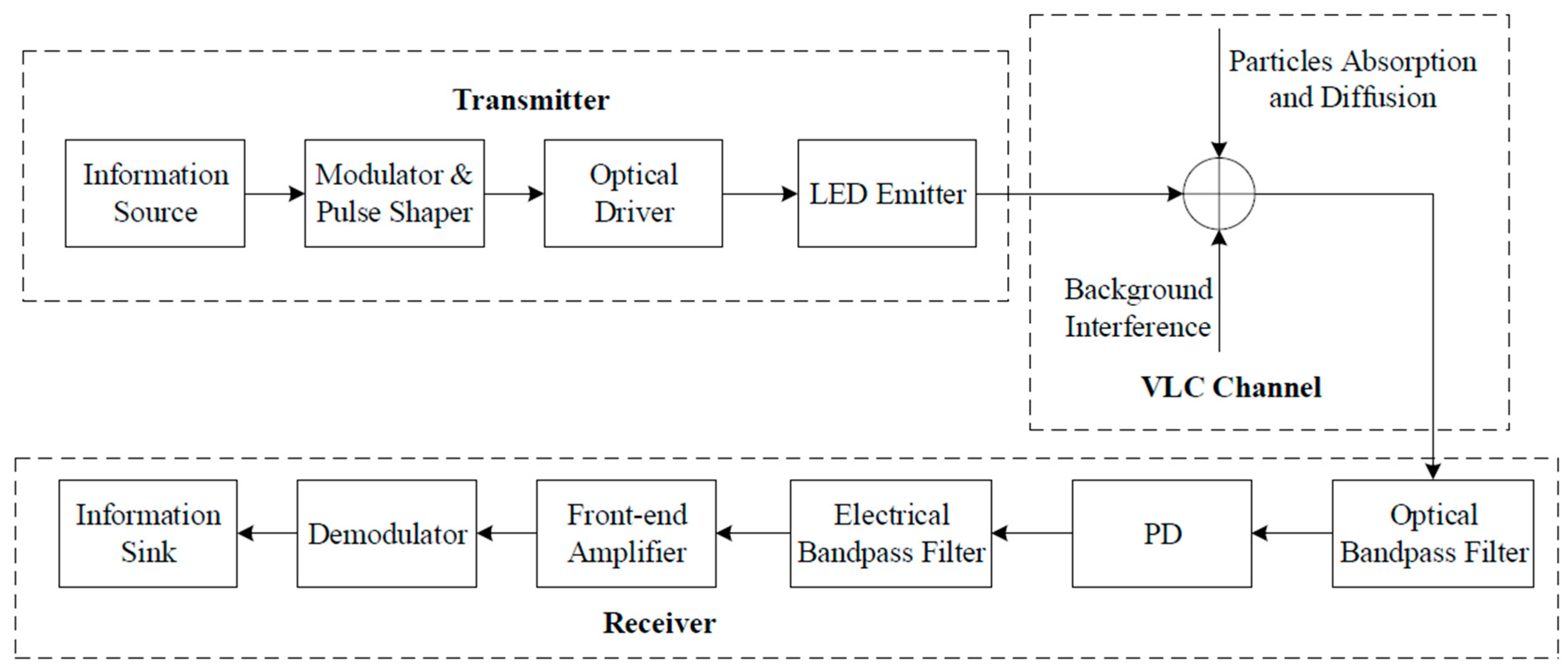

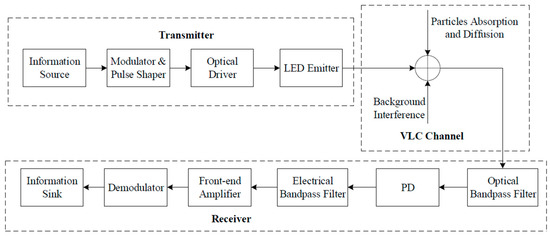

Intensity modulation with direct detection (IM/DD) is usually adopted in VLC systems and LEDs are usually utilized as transmitters [11]. The whole architecture of a VLC system is shown in Figure 2. After the modulator and pulse shaper, the transmitted information is loaded on an electrical signal, which is going to be converted into an optical signal at the transmitter. At the receiver side, the photodetector generates an electrical signal according to the intensity of the received optical signal. The inherent interference caused by the ambient light and the multi-path problem will lead to the reduction of transmission performance. As a result, bandpass filters and amplifiers are adopted to restore the time-domain signals. Then, the original information is recovered by the demodulator.
The visible light signals might be scattered by small particles in atmospheric or underwater channels due to its relatively low wavelengths. To solve this problem, a lens is adopted to collect and focus the received beam onto the photodiode (PD) at the receiver side [12,13]. Furthermore, multi-hop VLC is proposed to extend the communication range and it is regarded as a solution to the main issues including attenuation, scattering and divergence [14,15,16].
The transmission distance and data rate are limited by the channel conditions, light sources and photodetectors. In atmospheric channels, the transmission distance varies from few meters to few kilometers [16,17,18,19,20]. In contrast, the transmission distance is usually restricted to 500 meters in underwater channels as a result of the significant attenuation [21,22,23].

3. Key Technologies for VLC Systems

Considering the fact that the optical channel suffers from various noise and interference effects, techniques in physical and media access control (MAC) layers are proposed to ensure the desired communication quality. For example, research on channel characterization could help to reduce the influences caused by the noise and interference. Light modulation helps to utilize light intensity to convey data bits. Furthermore, research in physical layer security ensures the communication security of VLC systems. In the MAC layer, multiple access (MA) is adopted in many VLC scenarios to support multiple devices connected simultaneously and NOMA significantly improves the resource efficiency compared to traditional schemes. Furthermore, ML is proposed as a supplement of traditional algorithms in VLC systems.

3.1. Channel Characterization

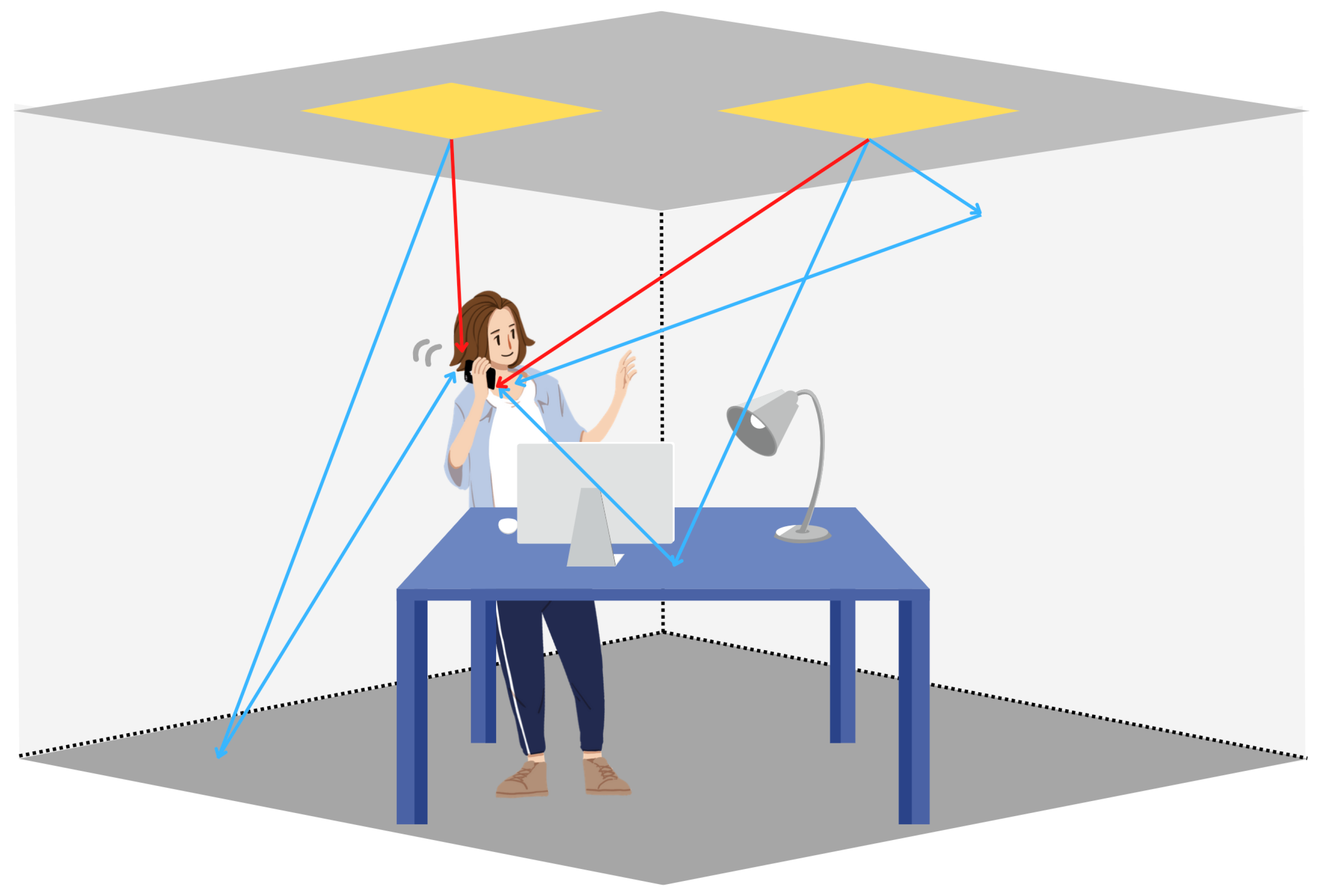

In some VLC scenarios, the complex link and the dynamically changing channel state lead to challenges in signal transmission and system design. To solve this problem, research in VLC channels is required to obtain real-time channel status. In VLC systems, geometrical optics is usually adopted for channel modeling due to the short wavelength of visible light [8] and the channel variation is mainly caused by the translation and rotation of the receiver, which is different from conventional RF channels. The indoor VLC propagation scenario including both line of sight (LOS) and non-LOS (NLOS) paths is shown in Figure 3.
As a key feature of VLC channel, the instantaneous impulse has been researched in [24,25]. However, VLC channels become time-varying with the movement or rotation of the receiver. As a result, methods for dynamic channel modeling are required to obtain the instantaneous channel state information (CSI), which is proved to be crucial to improving system throughput in [26,27].
J. Chen et al. proposed a movement–rotation (MR) correlation function to measure VLC channel variations for LOS channel in [28]. The MR correlation function could be utilized to measure VLC channel variations without time dependence as the receiver moves and rotates. Simulation results show that receiver rotations usually result in small channel fluctuations, while receiver movements lead to large-scale channel variations. The authors utilize the MR correlation function to approximate the correlation function of VLC channel gain and analyze the system performances for varying VLC channels, which is significant for the design and analysis of adaptive data transmission.
Another channel model for VLC is presented in [29], where X. Zhu et al. propose a novel three-dimensional (3D) space-time non-stationary geometry-based stochastic model (GBSM) for indoor multiple input multiple output (MIMO) VLC channels. This is one of the first VLC GBSM to support 3D translational and rotational motions, special radiation patterns of LEDs and space-time-frequency non-stationarity. The authors investigate several key statistical properties including channel DC gain, received power, channel 3dB bandwidth, space-time-frequency correlation function (STFCF) and root mean square (RMS) delay spread. The proposed GBSM is a better fit to the measured data than existing models, which confirms the accuracy and practicality of it.
It could be seen that the latest studies mainly focus on the dynamic changes of the channel state based on existing mathematical functions or models. It plays an important role in analyzing the dynamic characteristics of the channel, reducing the influence caused by noise and interference and designing new VLC systems.

3.2. Light Modulation

As mentioned above, one of the most significant differences between VLC and RF is that the transmitted data have to be encoded in the optical signals with different intensities. There are two main limitations for light modulation in VLC. Firstly, dimmer circuits are equipped on light bulbs to provide the ability to control light intensity. Secondly, no human-perceivable fluctuations are allowed in the modulated light waves in order to prevent serious detrimental physiological damage to humans [30].
The traditional light modulation schemes include on-off keying (OOK), pulse width modulation (PWM), pulse position modulation (PPM) and orthogonal frequency division multiplexing (OFDM). OOK mudulation turns the LED on and off to transmit the data bits 1 and 0, respectively. It is easy to implement yet it suffers from flickering and limited data rate. PPM loads the transmitted data on the position of the pulse while the length of the pulse corresponds to the value of the signal in PWM. As a result, PWM and PPM are capable of transmitting data without the variation of the pulse intensity.
Recently, several PWM schemes have been proposed for VLC systems. In order to increase the bandwidth usages for VLC, M. A. S. Sejan et al. [31] propose multilevel PWM (MPWM). The suggested modulation technique can impose additional bits by adopting pulse height and width modifications simultaneously. However, the increase of pulse height and width levels leads to higher BER performance than traditional schemes.
In previous studies, rectangular waves are usually assumed as the underlying received signal waveforms. However, uninterrupted on/off switching of electronic elements leads to non-rectangular waves, which is demonstrated in [32]. K. Yan et al. [33] propose a new precise PPM-VLC received-signal model considering the non-rectangular waves. Based on the PPM-VLC received-signal model, a new PPM-VLC demodulation scheme is proposed. Furthermore, a package-template of an L-PPM symbol is constructed and the new modulator evaluates the similarity between the package-template and the received signal waveform to recover the transmitted information. Therefore, it solves the problem of dynamic threshold adjustment, which implies better performance than a traditional demodulator.
Additionally, the four-level pulse amplitude modulation (PAM4) format has been extensively researched and experimentally proven to be an appealing technique to boost spectral efficiency. However, optical multipath interference (MPI) noises extremely decrease the transmission quality of IM/DD systems [34,35,36,37]. C. Huang et al. propose two algorithms for MPI noise elimination in [38] by removing the fluctuation of MPI-impaired PAM4 signals and estimating the MPI noise, respectively. Without altering the current IM/DD system design, these algorithms could be implemented in the receiver digital signal processing (DSP) module directly. Furthermore, the simulation and experimental results demonstrate their capacity for suppressing the MPI noise for IM/DD transmission systems with high-speed and high-order modulation formats.
Given that single-carrier modulation schemes suffer from high inter-symbol interference (ISI), OFDM is adopted in VLC with the advantage of high spectral efficiency and characteristics for resisting ISI and multipath fading [39]. However, the traditional OFDM time-domain signal in RF is complex-valued and bipolar, which is contradictory to IM/DD systems [11]. Generally, Hermitian symmetry is adopted to generate real-valued time-domain signals. In order to obtain unipolar signals, several optical OFDM (O-OFDM) schemes have been proposed, which are summarized in Table 2. The most popular O-OFDM schemes are asymmetrically clipped optical OFDM (ACO-OFDM) and direct-current (DC) biased optical OFDM (DCO-OFDM). ACO-OFDM only occupies odd subcarriers and clips the negative part of time-domain signals with no information lost [40]. Whereas, in DCO-OFDM, a DC bias is added to make the time-domain signal nonnegative [41]. Another O-OFDM scheme named pulse-amplitude-modulated discrete multitone (PAM-DMT) only utilizes the imaginary part of subcarriers and clips the negative part of time-domain signals as well as ACO-OFDM [42]. Based on the O-OFDM schemes mentioned above, several variants are proposed in succession. For instance, hybrid ACO-OFDM (HACO-OFDM) combines both ACO-OFDM and PAM-DMT [43], while layered ACO-OFDM (LACO-OFDM) transmits layers of ACO-OFDM simultaneously and recovers the transmitted data iteratively [44]. LACO-OFDM has much higher spectral efficiency and lower peak-to-average power ratio (PAPR) than ACO-OFDM and HACO-OFDM.
Asymmetrically clipped absolute value optical OFDM (AAO-OFDM) is proposed in [45], it utilizes two streams to send ACO-OFDM signal and absolute value optical OFDM (AVO-OFDM) signal, respectively. The signs of the AVO-OFDM signals are modulated to the frequency-domain symbols of ACO-OFDM. As a result, signals of AVO-OFDM do not require any DC bias to generate unipolar values. Furthermore, in [46], absolute value layered asymmetrically clipped optical OFDM (ALACO-OFDM) is proposed, and it reaches higher spectral efficiency by transmitting ACO-OFDM signals in the first L layers and absolute value optical OFDM (AVO-OFDM) signals on the remaining subcarriers simultaneously. Taking uncoded bit-error-ratio (BER) and achievable information rate into account, R. Bai et al. [46] designed two optimal optical power allocation schemes, respectively. Additionally, analysis shows that ALACO-OFDM achieves a higher information rate at moderate to high signal-to-noise ratios (SNRs) and has lower PAPR than ACO-, AAO- and LACO-OFDM.
Furthermore, signals are modulated using the indices of a medium in the index modulation (IM) approach to further enhance the spectral efficiency or power efficiency of O-OFDM systems [47]. By utilizing discrete Hartley transform (DHT), X. -Y. Xu et al. [48] propose a new O-OFDM-IM scheme with lower complexity and higher spectral efficiency than traditional O-OFDM schemes based on discrete Fourier transform (DFT). It is superior in SNR performance as well. However, the PAPR performance of this scheme is not satisfying compared with its traditional counterparts sometimes.
In this section, we discussed several modulation schemes, which generate unipolar real-valued signals and meet the requirements of IM/DD systems. OOK, PWM and PPM are simple to realize while OFDM could reduce ISI and is suitable for MIMO. The best scheme should be chosen according to the specific scenario.

3.3. Physical Layer Security

Considering the fact that light does not penetrate through walls, VLC has higher security than RF systems. However, unlike fiber-optic systems, security problems might occur in VLC systems owing to their open and broadcast nature [49]. PLS techniques have been fully studied and applied in RF systems [4,50]. The two main categories of PLS techniques are keyless security techniques and key-based security techniques. As a result of the differences between RF and VLC, PLS technologies developed for RF systems may not be directly applicable to VLC systems.
Keyless security techniques usually utilize the randomness of noise, channels and different resources to enhance the security of networks [50]. N. Su et al. [51] propose a novel spatial constellation design technique based on a multi-user generalized space shift keying for indoor multi-user MIMO-VLC (MU-MIMO-VLC) scenario to enhance the PLS. The authors adjust the transmission power of each transmitting LED by adjusting the CSI of legitimate users, which optimizes the received signal constellation for legitimate users in terms of BER and only generates interference for the eavesdroppers. Simulation results demonstrate that the BER of an eavesdropper declines significantly and the confidentiality improvement depends on the relative position between users.
Y. M. Al-Moliki et al. [52] propose a chaos-based physical-layer encryption method for OFDM-based VLC schemes. By using the position-sensitive and real-valued CSI of the VLC channel, a chaotic key creation approach is developed to create the secret key. However, based on floating-point arithmetic, chaotic systems have a significant resource and latency overhead, which is inappropriate for resource-limited VLC devices and high-data-rate VLC systems. Furthermore, in Y. M. Al-Moliki et al. [53] propose a key-based lightweight channel-independent (LCI) physical-layer encryption method, which generates dynamic keys and ciphertexts with the random nature of the input data and applies phase encryption of OFDM symbols in the frequency domain. The proposed method is suitable for resource-restricted scenarios and has relatively low complexity. Another lightweight cipher scheme for VLC systems is proposed in [54]. The proposed approach secures the underlying OFDM signals using straightforward substitution and phase shuffling techniques with low computational complexity and latency.
The key-based security techniques mentioned above are superior to keyless security techniques in design complexity. However, keyless security techniques could provide better security than key-based security techniques. Through advanced coding techniques at the physical layer, PLS has the potential to take advantage of elements of the environment around it [55], which can contribute to realizing the robust end-to-end security and satisfying the requirements of the next generation networks.

3.4. NOMA

In VLC systems, traditional MA techniques, including frequency division multiple access (FDMA), time division multiple access (TDMA) and code division multiple access (CDMA), suffer from low resource efficiency [56]. To solve this problem, orthogonal frequency division multiple access (OFDMA) is proposed to reuse subcarrier resources. H. Marshoud et al. [57] propose NOMA in order to further enhance resource efficiency and system capacity in VLC systems, aiming at increasing the throughput, reducing the latency and improving the fairness and connectivity. Multiple users’ signals are superimposed in the power domain and each user could utilize the entire time and frequency resources. In NOMA, users with poor channel conditions are assigned more signal power, while users with good channel conditions corresponds to less power. The transmitted information is recovered by successive interference cancellation (SIC) at the receiver side.
Considering uniformly distributed users, L. Yin et al. [56] derive the distribution function of the channel gain in a closed form. Additionally, the performance of NOMA is evaluated and compared with orthogonal multiple access (OMA) and a closed-form expression of the ergodic sum rate gain of NOMA over OMA is derived. In [58], the BER performance in a downlink NOMA-VLC network is analyzed and an exact, simple and generic analytic expression is derived for the BER performance, which is the first work to study the BER performance of NOMA-based systems. The performance of a hybrid NOMA-VLC-RF system with imperfect CSI and uniformly distributed users is evaluated in [59]. The authors derive closed-form expressions for the corresponding average sum-rate and average energy efficiency, which coincide with the simulation results. M. Le-Tran et al. [60] analyze the NOMA performance in a downlink VLC system with an optical backhauled link and derive the closed-form expressions of the user outage probability, the sum throughput, the average BER and the energy efficiency with guaranteed transmission rates. The theoretical and simulation results imply that NOMA systems provide significant performance gains for high-rate optical backhaul links compared with OMA systems at medium to high SNR ranges. The first non-OFDM-based NOMA scheme for VLC with arbitrary modulation order in multiple access and broadcast channel is proposed in [61], which is appropriate for high-SNR regimes and requires lower computational complexity than the existing schemes.
In NOMA, all time and frequency resources are shared by all users with different power. It offers a higher quality of service and better capacity for resisting interference, and it is regarded as a promising technique.

3.5. Machine Learning

In the past few years, ML has attracted intense interest of researchers and has been regarded as a potential technology to solve the various challenges in wireless communication systems. ML performs well in resources allocation, channel equalization, estimation and modeling [62]. As a result, the applications in VLC are exponentially increasingly proposed. For instance, M. Najla et al. [63] study the selection between RF and VLC bands for device-to-device (D2D) communication, assuming the condition that sudden drops in channel quality occur in VLC links. A deep neural network (DNN)-based framework to select RF or VLC for D2D pairs is proposed to obtain an initial band selection decision. The authors further present a low-complexity heuristic algorithm to improve the accuracy of the band selection and simulation results show the close-to-optimal performance of the proposed algorithm.
To overcome the deterioration in communication and positioning performance resulting from the long transmission distance in vehicular VLC (V-VLC), J. He et al. [64] propose and experimentally demonstrate an ML-assisted image sensor-based visible-light-based positioning (VLP) scheme. At the transmitter side, a new coding method is adopted to increase the data rate and adjust the LED lighting power according to the ambient light intensity. At the receiver side, a convolutional neural network (CNN) and an artificial neural network (ANN) are used for decoding and vehicle positioning, respectively, which help to realize long-distance communication, high-accuracy positioning and LED dimming simultaneously.
The issue of dynamically deploying unmanned aerial vehicles (UAVs) in VLC for improving the energy efficiency of UAV-enabled networks is investigated in [65]. In order to jointly maximize the usage of UAVs, user association and power efficiency while satisfying user lighting and communication needs, an approach is developed to address this issue by combining the ML framework of gated recurrent units (GRUs) with CNNs. The proposed method can forecast future light distributions by modeling long-term historical illumination distributions, which significantly reduces power consumption when compared to traditional methods, according to simulation results.
Collaborative constellation (CC) design is useful for enhancing performance while drastically lowering the total optical power in MIMO VLC systems. M. Le-Tran et al. [66] propose CCNet, a DL-based constellation design technique for MIMO VLC systems with CC that can drastically reduce complexity while preserving near-optimal performance when compared to previous schemes. CCNet is initially trained offline to decrease the mean square error (MSE) and the ordinary CSI is effectively preprocessed to further enhance the performance of CCNet.
In order to enable efficient resource management in VLC, Z.-Y. Wu et al. [67] proposed a data-driven ML-based approach to forecast LOS link outages and minimize severe signal degradation. Furthermore, a predictor is designed to learn the channel variation patterns and predict LOS link outages and recoveries by utilizing a deep recurrent neural network (RNN) with long-short-term-memory (LSTM) units. For both uplink and downlink, the proposed predictor achieves a 91% hit rate for outages and an 83% hit rate for signal recoveries when predicting the channel in the next one second. As a result, the development of effective resource management strategies in VLC networks could be greatly aided by this predictor.
Table 3 summarizes part of the latest research advances of ML in VLC systems. Research on ML has been growing exponentially recently and it will provide significant support for the advancement of VLC technology.

4. VLC Applications

VLC has a wide range of applications in various fields. Thanks to the characteristics of VLC, it could achieve many functions that cannot be realized by RF. For instance, VLC performs much better than RF in scenarios that require a high data rate, such as underwater high-speed video communication. Additionally, VLC is capable of meeting the demand for illumination and communication simultaneously, while RF is not applicable evidently.
In this section, we will discuss the research advances in the past few years that mainly focus on indoor communication, positioning, vehicular communication applications and underwater communication.

4.1. Indoor Communication

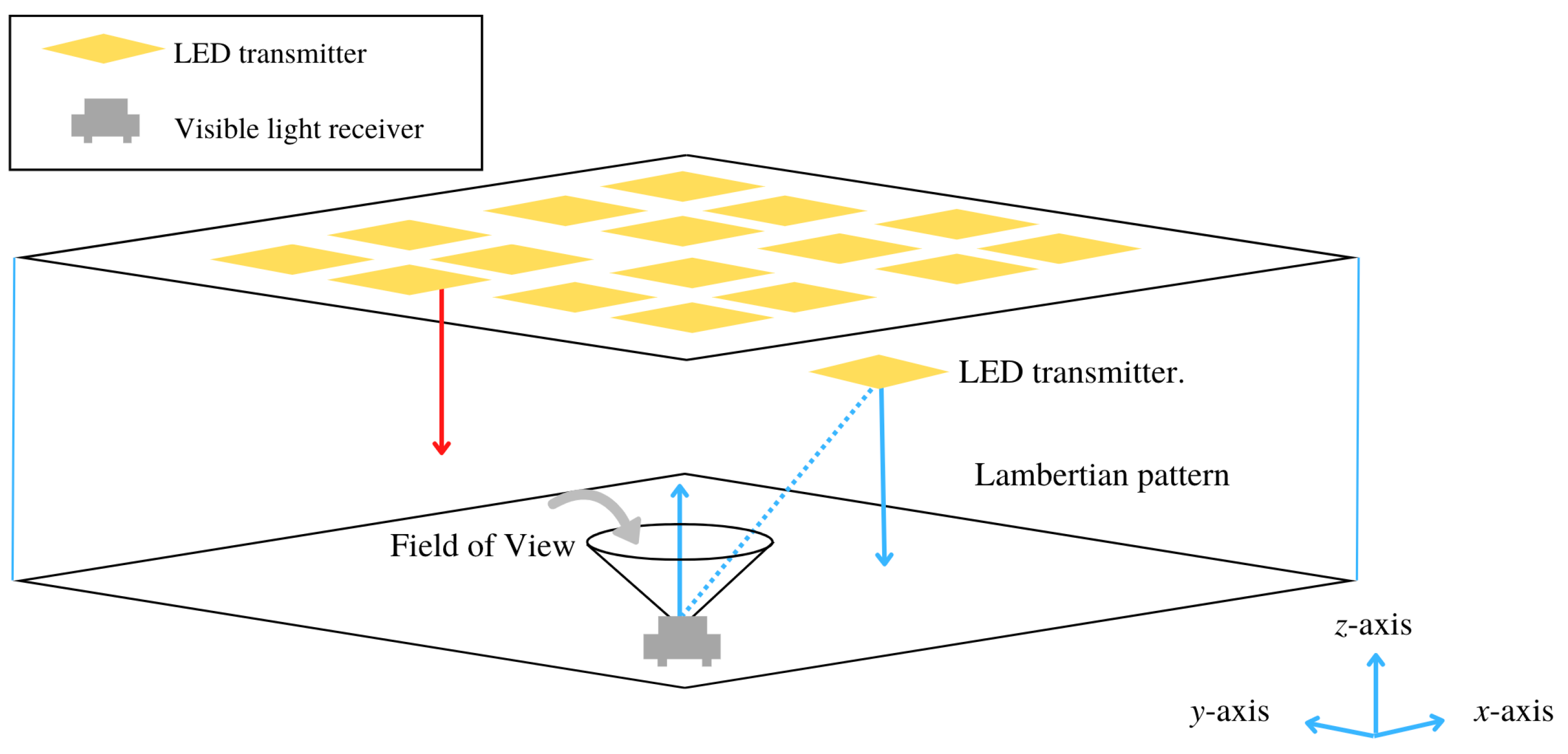

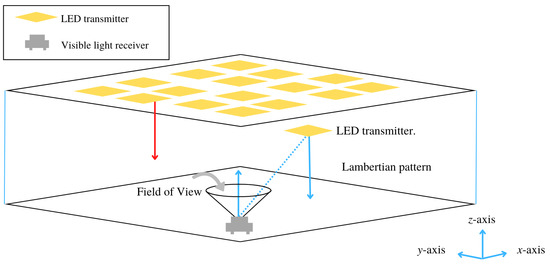

With the wide application of LED bulbs, more and more attention has been paid to the research of indoor VLC systems. M. A. Arfaoui et al. [68] propose realistic and measurement-based channel models for indoor VLC systems. The modified truncated Laplace (MTL) model and the modified Beta (MB) model are designed for stationary users, while the sum of modified truncated Gaussian (SMTG) model and the sum of modified Beta (SMB) model are proposed for mobile users.
Another significant issue is the orientation variation of terminals in VLC. A. A. Purwita et al. [69] propose a random process model for user equipment (UE) orientation variation and present how it affects the optical channel conditions. The results demonstrate that the blockage and diffuse connection have considerable consequences, particularly when the UE is situated far from an access point (AP).
In terms of system implementation, C. -H. Yeh et al. [70] achieve a data rate of 1.7 to 2.3 Gbps with a communication distance of 1 to 4 m. The illumination is extremely low and is set to be 6.9 to 136.1 lux. Two blue and two green LEDs are utilized and a 4 × 4 color-polarization-multiplexing method is proposed. Additionally, to maintain the improved signal performance, the measured BER of each LED is lower than the forward error correction objective of 3.8 × 10 − 3 .

4.2. Positioning

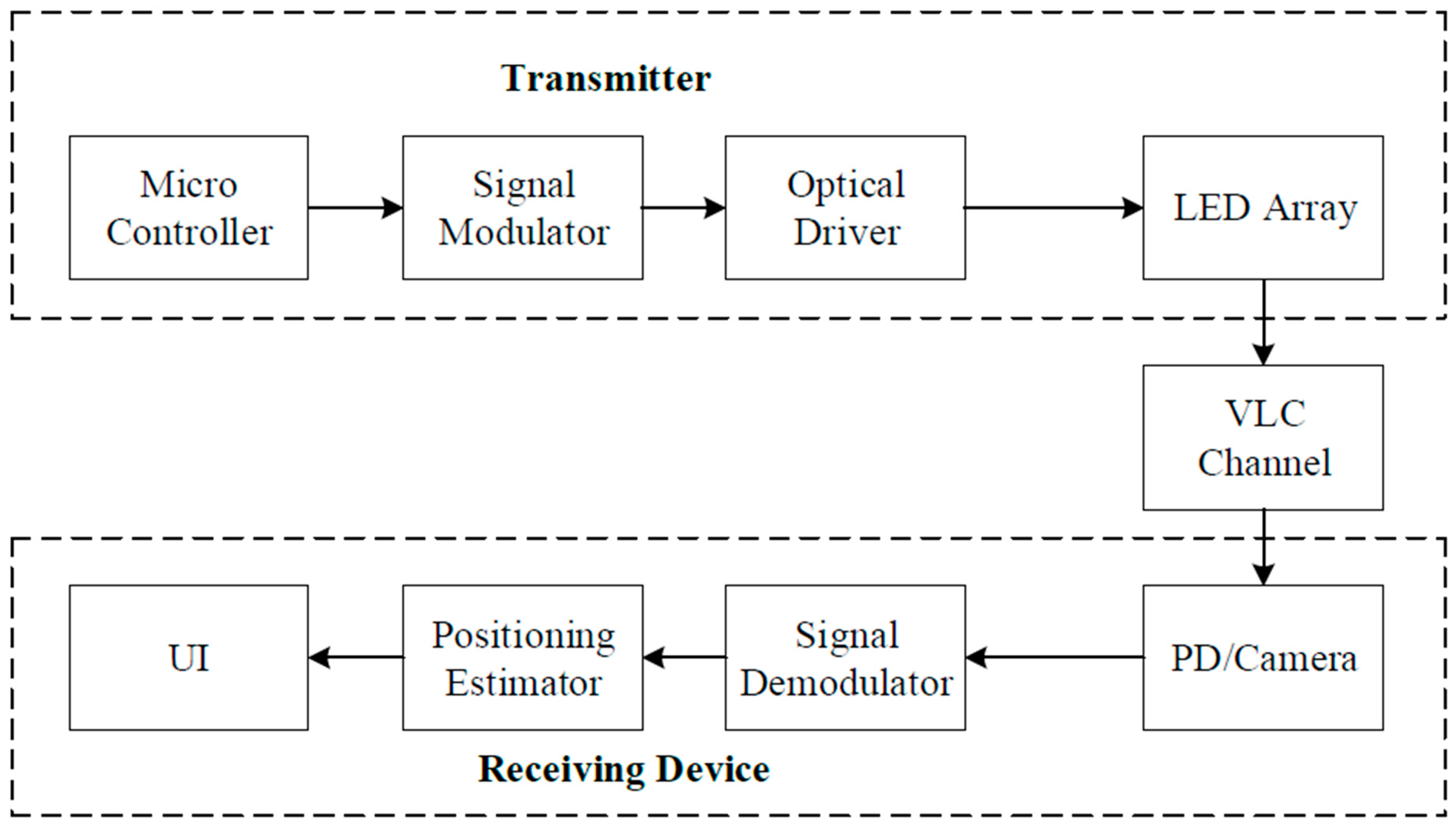

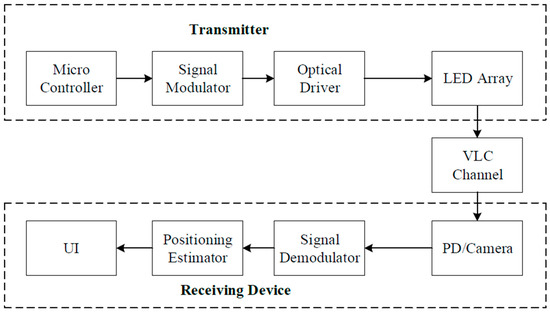

The Global Positioning System (GPS) has been widely used to provide real-time positioning and navigation. However, signals transmitted by satellites are usually weakened by obstacles, which reduces the accuracy of indoor positioning [71,72]. WiFi and Bluetooth positioning systems are usually adopted to improve the performance of indoor positioning in the previous works [73,74]. In recent years, positioning systems utilizing a visible light signal rather than RF are proposed. A typical prototype of an LED-based indoor positioning system is shown in Figure 4 where several LEDs are utilized as transmitters and provide lighting. Received signal strength (RSS), time-of-arrival (TOA), time difference of arrival (TDOA) or angle of arrival (AOA) information at the receiver side could be utilized to evaluate the localization. Moreover, the position coordinates could be obtained directly from captured images if the PDs are replaced by cameras [75]. The general architecture of a simplex VLC positioning system is presented in Figure 5.
B. Zhou et al. [76] propose a new VLC localization algorithm with the assumption of unknown LED emitting power, UE position and UE orientation. The joint optimization of all unknown parameters is adopted and a successive linear least square (SLLS)-based VLP algorithm is proposed. The authors derive the closed-form Cramer–Rao lower bound (CRLB) on each unknown parameter and analyze the performance limits of the proposed algorithm. Based on improved hybrid bat algorithm (IHBA), Y. Chen et al. [77] propose an indoor VLC 3D positioning system. The simulation results demonstrate higher positioning accuracy and shorter convergence time of IHBA compared with the existing VLC 3D positioning algorithm.
A position estimation DNN (PE-DNN)-aided receiver is proposed in [78], which utilizes the received pilot signals to extract the feature of the channel impulse response (CIR). Then, the coordinates are obtained from the CIR and an LED and a PD is sufficient to achieve centimeter-level positioning accuracy. Furthermore, it could achieve information transmission and positioning simultaneously, which ensures the compatibility and practicality of this VLC system.
Indoor positioning with VLC is regarded as a potential complement to GPS and it is capable of providing more accurate localization. Nevertheless, obstacles and reflection components might reduce the accuracy of positioning and these issues remain to be studied.

4.3. Vehicular Communication

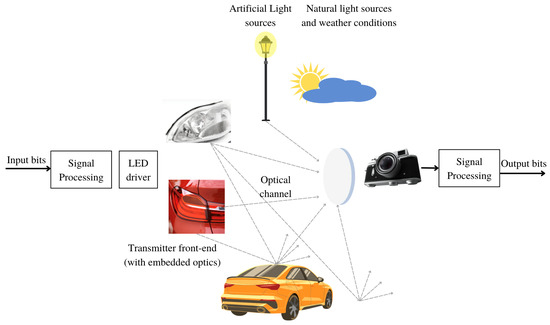

Transportation systems have recently been developing by leaps and bounds. Intelligent transportation systems (ITS) are discussed in [79] and information exchange between vehicles and with infrastructure is indispensable for achieving ITS, where RF communication plays an important role. However, with the wide range of LED adoption, V-VLC could be realized by utilizing the LED-equipped lighting modules and transportation infrastructure [8].

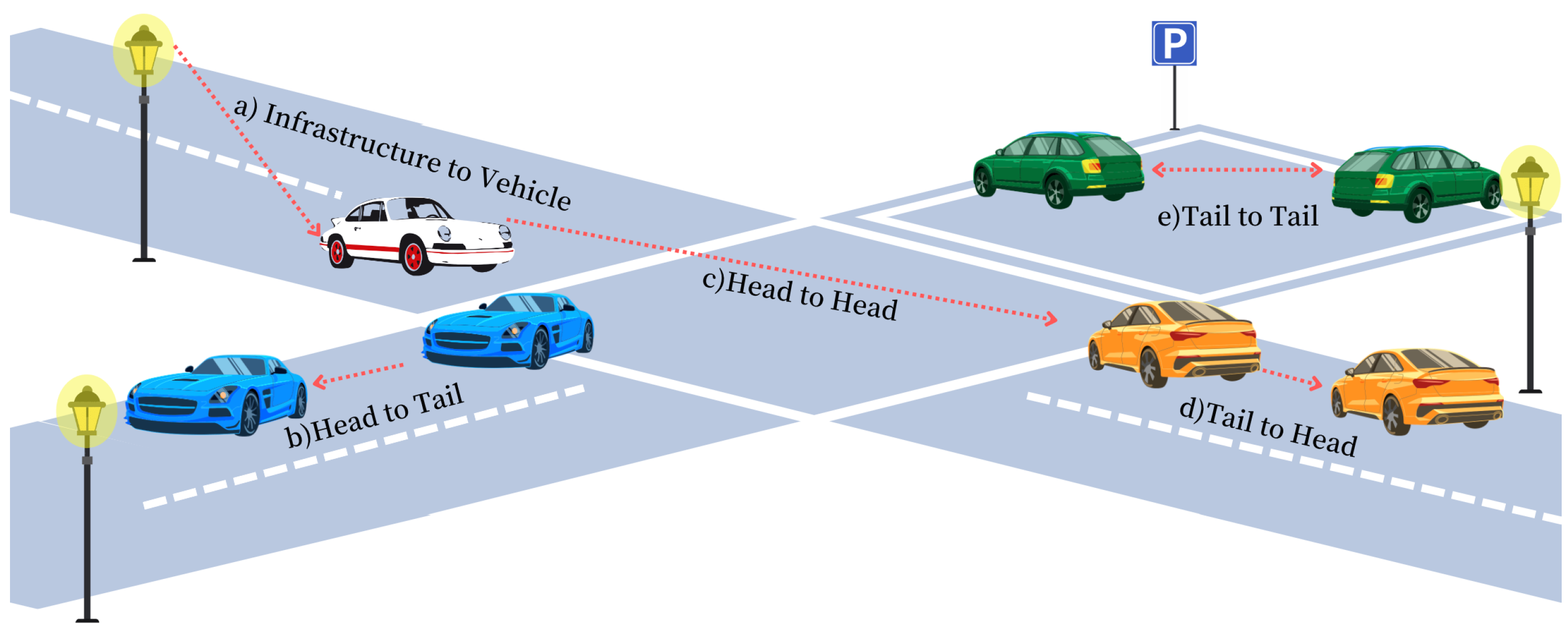

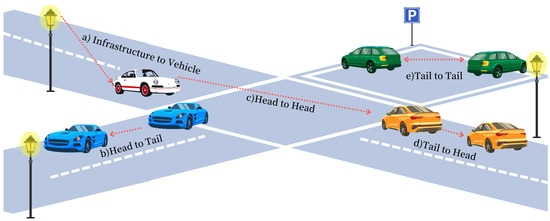

Figure 6 presents a typical V-VLC traffic scenario, which includes infrastructure to vehicle communication, head-to-tail, tail-to-head, head-to-head and tail-to-tail communication. The building blocks of a generic V-VLC system are shown in Figure 7. Encoder, modulator, LED driver and optical transmitter front-end are equipped at the transmitter side, while optical receiver front-end, demodulator and decoder are equipped at the receiver side, correspondingly. The optical channel is interfered by other light sources, weather conditions and reflections.
Platooning is a key scenario for autonomous driving, where vehicles utilize vehicle-to-vehicle (V2V) communication and distance sensors to automatically adjust their position. It has gained strong interest in realizing illumination, data transmission and range-finding simultaneously with the automotive lighting. In [80], a system named visible light communication rangefinder (VLCR) is proposed. The V2V distance is estimated by utilizing the phase-shift between the original signal and the received signal, where the Doppler effect is found to be neglected. Experimental results show that the range-finding function could work at up to 25 m and the system is able to support a 500 kbps link with a BER below 10 − 6 and a transmission distance of up to 30 m.
Based on GNU Radio, M. S. Amjad et al. [81] introduce a flexible IEEE 802.11 compliant system for outdoor V-VLC and a high-power LED headlight is adopted to support communication distances beyond 75 m even in broad daylight. The authors also study the impact of optics alignment on the receiver’s performance and analyze how the daylight influences the PD noise floor.
In [82], a vehicular MIMO VLC system based on two commercial headlights and a self-designed PIN array is presented and the strategy for selecting the best MIMO demultiplexing scheme by analyzing the rank and type of the channel matrix is discussed. Additionally, the authors proposed a modified pilot-aided phase recovery method based on polynomial curve fitting (PCF) and a record-breaking data rate of 3.08 Gbps at a 2 m indoor transmission link is realized. Furthermore, the overall data rates reach 336 Mbps and 362 Mbps in the day and at night, respectively, when the transmission distance is extended to 100 m, which are the highest transmission data rates of a vehicular MIMO VLC system for a 100 m transmission distance until now.
A major disadvantage of VLC is that the headlights and taillights are not capable of communicating directly with side-to-side vehicles, which demonstrates the lack of preventing blind-spot oversight [83]. Moreover, stringent latency and reliability are required for the security of vehicle driving in V-VLC and the performance of V-VLC is influenced by the outdoor environment, which bring challenges for V-VLC applications.

4.4. Underwater Communication

Underwater wireless communication (UWC) refers to data transmission via wireless carriers, i.e., RF waves, acoustic waves, and optical waves in unguided water environments. The characteristics of the underwater channel present many challenges compared to traditional wired and wireless communications through the atmosphere. Higher transmission bandwidth and data rates make underwater optical wireless communication (UOWC) more suitable than RF and acoustic counterparts for UWC systems [12]. Additionally, the turbulence of underwater environments results in changes in water density and salinity, which may reduce the performance of UOWC systems. It has been proved in [84] that flicker index and BER are significantly influenced by average temperature, average salinity concentration, temperature–salinity gradient ratio, temperature dissipation rate and energy dissipation rate.
Many researchers focus on improving transmission data rate and extending communication distance in UOWC experimental systems. For instance, X. Yang et al. [21] utilize the arrays consisting of series-connected monochromatic LEDs to reach a data rate of 130 Mbps over a 7 m underwater channel in LED-to-LED UOWC systems. Moreover, X. Chen et al. [22] realized a data rate of 500 Mbps with a transmission distance up to 150 m by combining partial response shaping and trellis-coded modulation (TCM) technology for the first time. Furthermore, H. Zhou et al. [23] propose a new mathematical model of UOWC. It could be used for water quality measurement and the proposed system could reach a 50 m link with the data rate of 80 Mbps.
With the exponentially increasing research in VLC, it will be utilized as a complement to RF in more and more scenarios to improve the performance of communication systems. However, challenges including flickering, dimming, noise and interference remain a significant impediment to the widespread adoption of VLC, which requires further research.

5. Conclusions

In this work, we thoroughly investigate the literature on VLC in recent years. With a high data rate and unlicensed spectrum, VLC is regarded as an excellent alternative to RF to satisfy the increasing demand for wireless resources. Related techniques are researched in physical and MAC layers to reduce the impact of interference and ensure desired communication performance. Additionally, ML has been adopted in VLC systems and the related research has increased exponentially, which shows a new direction for VLC research.
VLC has a wide range of applications in many short-range communication scenarios, such as indoor communication, indoor positioning, vehicular communication and underwater communication. However, there are still many issues and challenges in the application of VLC technology in multiple scenarios, such as flickering, long-distance transmission and interference. Many promising VLC technologies are not yet well developed, and this research area needs further investigation.

Author Contributions

Conceptualization, Z.G., F.N.K., X.G. and Y.D.; writing—original draft preparation, Z.G.; writing—review and editing, F.N.K., X.G. and Y.D.; supervision, F.N.K., X.G. and Y.D.; project administration, F.N.K.; funding acquisition, F.N.K., X.G. and Y.D. All authors have read and agreed to the published version of the manuscript.

Funding

The work was supported in part by the GuangDong Basic and Applied Basic Research Foundation under Grant 2022A1515010209 and Shenzhen Natural Science Foundation under Grant JCYJ20200109143016563. Faisal Nadeem Khan would like to acknowledge the support of Tsinghua Shenzhen International Graduate School and Tsinghua–Berkeley Shenzhen Institute under Scientific Research Startup Fund (Project number: 01010600001(CD2022004C)).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

The following abbreviations are used in this manuscript:
VLCVisible light communication
RFRadio frequency
MLMachine learning
LEDLight emitting diode
OWCOptical wireless communication
MACMedia access control
PLSPhysical layer security
MAmultiple access
NOMANon-orthogonal multiple access
IM/DDIntensity modulation with direct detection
LOSLine of sight
NLOSNon-line of sight
CSIChannel state information
MRMovement-rotation
GBSMGeometry-based stochastic model
MIMOMultiple input multiple output
STFCFSpace-time-frequency correlation function
RMSRoot mean square
OOKOn-off keying
PWM Pulse width modulation
PPM Pulse position modulation
OFDM Orthogonal frequency division multiplexing
PAM4 4-level pulse amplitude modulation
MPI Multipath interference
DSP Digital signal processing
SNR Signal-to-noise ratio
IM Index modulation
DHT Discrete Hartley transform
DFT Discrete Fourier transform
LCI Lightweight channel-independent
SIC Successive interference cancellation
OMA Orthogonal multiple access
DNN Deep neural network
CNN Convolutional neural network
ANN Artificial neural network
UAV Unmanned aerial vehicle
GRU Gated recurrent unit
CC Collaborative constellation
MSE Mean square error
RNN Recurrent neural network
LSTM Long-short-term-memory
GPS Global positioning system
RSS Received signal strength
TOA Time-of-arrival
TDOA Time difference of arrival
AOA Angle of arrival
PD Photodiode
UE User equipment
VLP Visible light-based positioning
CIR Channel impulse response
ITS Intelligent transportation systems
V-VLC Vehicular VLC
D2D Device-to-device
V2V Vehicle-to-vehicle
PCF Polynomial curve fitting

References

  1. Li, X.; Huo, Y.; Zhang, R.; Hanzo, L. User-Centric Visible Light Communications for Energy-Efficient Scalable Video Streaming. IEEE Trans. Green Commun. Netw. 2017, 1, 59–67. [Google Scholar] [CrossRef] [Green Version]
  2. Haas, H. Opportunities and Challenges of Future LiFi. In Proceedings of the 2019 IEEE Photonics Conference (IPC), San Antonio, TX, USA, 29 September–3 October 2019; pp. 1–12. [Google Scholar]
  3. Matheus, L.E.M.; Vieira, A.B.; Vieira, L.F.M.; Vieira, M.A.M.; Gnawali, O. Visible Light Communication: Concepts, Applications and Challenges. IEEE Commun. Surv. Tutor. 2019, 21, 3204–3237. [Google Scholar] [CrossRef]
  4. Obeed, M.; Salhab, A.M.; Alouini, M.-S.; Zummo, S.A. On Optimizing VLC Networks for Downlink Multi-User Transmission: A Survey. IEEE Commun. Surv. Tutor. 2019, 21, 2947–2976. [Google Scholar] [CrossRef] [Green Version]
  5. Wu, X.; Soltani, M.D.; Zhou, L.; Safari, M.; Haas, H. Hybrid LiFi and WiFi Networks: A Survey. IEEE Commun. Surv. Tutor. 2021, 23, 1398–1420. [Google Scholar] [CrossRef]
  6. Al-Kinani, A.; Wang, C.-X.; Zhou, L.; Zhang, W. Optical Wireless Communication Channel Measurements and Models. IEEE Commun. Surv. Tutor. 2018, 20, 1939–1962. [Google Scholar] [CrossRef]
  7. Luo, J.; Fan, L.; Li, H. Indoor Positioning Systems Based on Visible Light Communication: State of the Art. IEEE Commun. Surv. Tutor. 2017, 19, 2871–2893. [Google Scholar] [CrossRef]
  8. Căilean, A.-M.; Dimian, M. Current Challenges for Visible Light Communications Usage in Vehicle Applications: A Survey. IEEE Commun. Surv. Tutor. 2017, 19, 2681–2703. [Google Scholar] [CrossRef]
  9. Memedi, A.; Dressler, F. Vehicular Visible Light Communications: A Survey. IEEE Commun. Surv. Tutor. 2021, 23, 161–181. [Google Scholar] [CrossRef]
  10. Arfaoui, M.A.; Soltani, M.D.; Tavakkolnia, I.; Ghrayeb, A.; Safari, M.; Assi, C.M.; Haas, H. Physical layer security for visible light communication systems: A survey. IEEE Commun. Surv. Tutor. 2020, 22, 1887–1908. [Google Scholar] [CrossRef] [Green Version]
  11. Gancarz, J.; Elgala, H.; Little, T.D.C. Impact of lighting requirements on VLC systems. IEEE Commun. Mag. 2013, 12, 34–41. [Google Scholar] [CrossRef]
  12. Zeng, Z.; Fu, S.; Zhang, H.; Dong, Y.; Cheng, J. A Survey of Underwater Optical Wireless Communications. IEEE Commun. Surv. Tutor. 2017, 1, 204–238. [Google Scholar] [CrossRef]
  13. Khalighi, M.A.; Uysal, M. Survey on Free Space Optical Communication: A Communication Theory Perspective. IEEE Commun. Surv. Tutor. 2014, 4, 2231–2258. [Google Scholar] [CrossRef]
  14. Kazemi, H.; Safari, M.; Haas, H. A Wireless Optical Backhaul Solution for Optical Attocell Networks. IEEE Trans. Wireless Commun. 2019, 2, 807–823. [Google Scholar] [CrossRef] [Green Version]
  15. Eldeeb, H.B.; Yanmaz, E.; Uysal, M. MAC Layer Performance of Multi-Hop Vehicular VLC Networks with CSMA/CA. In Proceedings of the 12th International Symposium on Communication Systems, Networks and Digital Signal Processing (CSNDSP), Online, 20–22 July 2020. [Google Scholar]
  16. Shakil Sejan, M.A.; Habibur Rahman, M.; Chung, W.-Y. Optical OFDM Modulation in Multi-hop VLC for Long Distance Data Transmission Over 30 meters. In Proceedings of the IEEE Photonics Conference (IPC), Vancouver, BC, Canada, 28 September–1 October 2020. [Google Scholar]
  17. Bian, R.; Tavakkolnia, I.; Haas, H. 15.73 Gb/s Visible Light Communication with Off-the-Shelf LEDs. J. Light. Technol. 2019, 10, 2418–2424. [Google Scholar] [CrossRef] [Green Version]
  18. Lee, C.; Islim, M.S.; Das, S.; Spark, A.; Videv, S.; Rudy, P.; Raring, J. 26 Gbit/s LiFi System with Laser-Based White Light Transmitter. J. Light. Technol. 2022, 5, 1432–1439. [Google Scholar] [CrossRef]
  19. Fahs, B.; Chowdhury, A.J.; Hella, M.M. A 12-m 2.5-Gb/s Lighting Compatible Integrated Receiver for OOK Visible Light Communication Links. J. Light. Technol. 2016, 16, 3768–3775. [Google Scholar] [CrossRef]
  20. Wang, L.; Wang, X.; Kang, J.; Yue, C.P. A 75-Mb/s RGB PAM-4 Visible Light Communication Transceiver System with Pre- and Post-Equalization. J. Light. Technol. 2021, 5, 1381–1390. [Google Scholar] [CrossRef]
  21. Yang, X.; Tong, Z.; Zhang, H.; Zhang, Y.; Dai, Y.; Zhang, C.; Xu, J. 7-M/130-Mbps LED-to-LED Underwater Wireless Optical Communication Based on Arrays of Series-Connected LEDs and a Coaxial Lens Group. J. Light. Technol. 2022, 17, 5901–5909. [Google Scholar] [CrossRef]
  22. Chen, X.; Yang, X.; Tong, Z.; Dai, Y.; Li, X.; Zhao, M.; Xu, J. 150 m/500 Mbps Underwater Wireless Optical Communication Enabled by Sensitive Detection and the Combination of Receiver-Side Partial Response Shaping and TCM Technology. J. Light. Technol. 2021, 14, 4614–4621. [Google Scholar] [CrossRef]
  23. Zhou, H.; Zhang, M.; Wang, X.; Ren, X. Design and Implementation of More Than 50m Real-Time Underwater Wireless Optical Communication System. J. Light. Technol. 2022, 12, 3654–3668. [Google Scholar] [CrossRef]
  24. Al-Kinani, A.; Sun, J.; Wang, C.-X.; Zhang, W.; Ge, X.; Haas, H. A 2-D Non-Stationary GBSM for Vehicular Visible Light Communication Channels. Trans. Wirel. Commun. 2018, 12, 7981–7992. [Google Scholar] [CrossRef]
  25. Jani, M.; Garg, P.; Gupta, A. Performance Analysis of a Mixed Cooperative PLC–VLC System for Indoor Communication Systems. IEEE Syst. J. 2020, 1, 469–476. [Google Scholar] [CrossRef]
  26. Dehghani Soltani, M.; Wu, X.; Safari, M.; Haas, H. Bidirectional User Throughput Maximization Based on Feedback Reduction in LiFi Networks. IEEE Trans. Commun. 2018, 7, 3172–3186. [Google Scholar] [CrossRef] [Green Version]
  27. Feng, S.; Zhang, R.; Li, X.; Wang, Q.; Hanzo, L. Dynamic Throughput Maximization for the User-Centric Visible Light Downlink in the Face of Practical Considerations. Trans. Wirel. Commun. 2018, 8, 5001–5015. [Google Scholar] [CrossRef]
  28. Chen, J.; Tavakkolnia, I.; Chen, C.; Wang, Z.; Haas, H. The Movement-Rotation (MR) Correlation Function and Coherence Distance of VLC Channels. J. Light. Technol. 2020, 24, 6759–6770. [Google Scholar] [CrossRef]
  29. Zhu, X.; Wang, C.-X.; Huang, J.; Chen, M.; Haas, H. A Novel 3D Non-Stationary Channel Model for 6G Indoor Visible Light Communication Systems. Trans. Wirel. Commun. 2022. [Google Scholar] [CrossRef]
  30. Roberts, R.D.; Rajagopal, S.; Lim, S.-K. IEEE 802.15.7 physical layer summary. In Proceedings of the 2011 IEEE GLOBECOM Workshops (GC Wkshps), Houston, TX, USA, 5–9 December 2011; pp. 772–776. [Google Scholar]
  31. Sejan, M.A.S.; Naik, R.P.; Lee, B.-G.; Chung, W.-Y. A Bandwidth Efficient Hybrid Multilevel Pulse Width Modulation for Visible Light Communication System: Experimental and Theoretical Evaluation. IEEE Open J. Commun. Soc. 2022, 1991–2004. [Google Scholar] [CrossRef]
  32. Chitturi, M.V.; Benekohal, R.F.; Girianna, M. Turn-on and turn-off characteristics of incandescent and light-emitting diode signal modules. ITE J. 2005, 69, 69–73. [Google Scholar]
  33. Yan, K.; Li, Z.; Cheng, M.; Wu, H.-C. QoS Analysis and Signal Characteristics for Short-Range Visible-Light Communications. IEEE Trans. Veh. Technol. 2021, 7, 6726–6734. [Google Scholar] [CrossRef]
  34. Zhong, K.; Zhou, X.; Gui, T.; Tao, L.; Gao, Y.; Chen, W.; Lu, C. Experimental study of PAM-4 CAP-16 and DMT for 100 Gb/s short reach optical transmission systems. Opt. Exp. 2015, 2, 1176–1189. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Okuda, S.; Yamatoya, T.; Yamaguchi, T.; Azuma, Y.; Tanaka, Y. High-power low-modulating-voltage 1.5 μm-band CWDM uncooled EMLs for 800 Gb/s (53.125 Gbaud-PAM4) transceivers. In Proceedings of the 2021 Optical Fiber Communications Conference and Exhibition (OFC), San Francisco, CA, USA, 6–10 June 2021. [Google Scholar]
  36. Rahman, T.; Calabrò, S.; Stojanovic, N.; Hossein, M.S.B.; Wei, J.; Kuschnerov, M.; Xie, C. Blind adaptation of partial response equalizers for 200 Gb/s per lane IM/DD systems. In Proceedings of the 2021 European Conference on Optical Communication (ECOC), Bordeaux, France, 13–16 September 2021; pp. 1–3. [Google Scholar]
  37. Yamamoto, S.; Taniguchi, H.; Nakamura, M.; Kisaka, Y. O-Band 10-km PAM transmission using nonlinear-spectrum-shaping encoder and transition-likelihood-based decoder with symbol- and likelihood-domain feedbacks. In Proceedings of the 2021 European Conference on Optical Communication (ECOC), Bordeaux, France, 13–16 September 2021; pp. 1–4. [Google Scholar]
  38. Huang, C.; Song, H.; Dai, L.; Cheng, M.; Yang, Q.; Tang, M.; Deng, L. Optical Multipath Interference Mitigation for High-Speed PAM4 IMDD Transmission System. J. Light. Technol. 2022, 16, 5490–5501. [Google Scholar] [CrossRef]
  39. Elgala, H.; Mesleh, R.; Haas, H.; Pricope, B. OFDM visible light wireless communication based on white LEDs. In Proceedings of the 2007 IEEE 65th Vehicular Technology Conference—VTC2007-Spring, Dublin, Ireland, 22–25 April 2007; pp. 2185–2189. [Google Scholar]
  40. Armstrong, J. OFDM for optical communications. J. Light. Technol. 2009, 3, 189–204. [Google Scholar] [CrossRef]
  41. Carruthers, J.B.; Kahn, J.M. Multiple-subcarrier modulation for nondirected wireless infrared communication. IEEE J. Sel. Areas Commun. 1996, 3, 538–546. [Google Scholar] [CrossRef]
  42. Lee, S.C.J.; Randel, S.; Breyer, F.; Koonen, A.M.J. PAM-DMT for intensity-modulated and direct-detection optical communication systems. IEEE Photon. Technol. Lett. 2009, 23, 1749–1751. [Google Scholar] [CrossRef]
  43. Ranjha, B.; Kavehrad, M. Hybrid asymmetrically clipped OFDM-based IM/DD optical wireless system. J. Opt. Commun. Netw. 2014, 4, 387–396. [Google Scholar] [CrossRef]
  44. Wang, Q.; Qian, C.; Guo, X.; Wang, Z.; Cunningham, D.G.; White, I.H. Layered ACO-OFDM for intensity-modulated direct-detection optical wireless transmission. Opt. Express 2015, 9, 12382–12393. [Google Scholar] [CrossRef] [Green Version]
  45. Bai, R.; Wang, Q.; Wang, Z. Asymmetrically clipped absolute value optical OFDM for intensity-modulated direct-detection systems. J. Lightw. Technol. 2017, 17, 3680–3691. [Google Scholar] [CrossRef] [Green Version]
  46. Bai, R.; Hranilovic, S. Absolute Value Layered ACO-OFDM for Intensity-Modulated Optical Wireless Channels. IEEE Trans. Commun. 2020, 11, 7098–7110. [Google Scholar] [CrossRef]
  47. Basar, E.; Wen, M.; Mesleh, R.; Di Renzo, M.; Xiao, Y.; Haas, H. Index Modulation Techniques for Next-Generation Wireless Networks. IEEE Access 2017, 5, 16693–16746. [Google Scholar] [CrossRef]
  48. Xu, X.-Y.; Zhang, Q.; Yue, D.-W. Orthogonal Frequency Division Multiplexing with Index Modulation Based on Discrete Hartley Transform in Visible Light Communications. IEEE Photonics J. 2022, 3, 1–10. [Google Scholar] [CrossRef]
  49. Classen, J.; Chen, J.; Steinmetzer, D.; Hollick, M.; Knightly, E. The spy next door: Eavesdropping on high throughput visible light communications. In Proceedings of the 2nd International Workshop on Visible Light Communications Systems, Paris, France, 11 September 2015; pp. 9–14. [Google Scholar]
  50. Yang, N.; Wang, L.; Geraci, G.; Elkashlan, M.; Yuan, J.; Di Renzo, M. Safeguarding 5G wireless communication networks using physical layer security. IEEE Commun. Mag. 2015, 4, 20–27. [Google Scholar] [CrossRef]
  51. Su, N.; Panayirci, E.; Koca, M.; Yesilkaya, A.; Poor, H.V.; Haas, H. Physical Layer Security for Multi-User MIMO Visible Light Communication Systems with Generalized Space Shift Keying. IEEE Trans. Commun. 2021, 4, 2585–2598. [Google Scholar] [CrossRef]
  52. Al-Moliki, Y.M.; Alresheedi, M.T.; Al-Harthi, Y. Chaos-based physical-layer encryption for OFDM-based VLC schemes with robustness against Known/chosen plaintext attacks. IET Optoelectron. 2019, 13, 124–133. [Google Scholar] [CrossRef]
  53. Al-Moliki, Y.M.; Alresheedi, M.T.; Al-Harthi, Y.; Alqahtani, A.H. Robust Lightweight-Channel-Independent OFDM-Based Encryption Method for VLC-IoT Networks. IEEE Internet Things J. 2022, 6, 4661–4676. [Google Scholar] [CrossRef]
  54. Melki, R.; Noura, H.N.; Chehab, A. Efficient & Secure Physical Layer Cipher Scheme for VLC Systems. In Proceedings of the 2019 IEEE 90th Vehicular Technology Conference (VTC2019-Fall), Honolulu, HI, USA, 22–25 September 2019; pp. 1–6. [Google Scholar]
  55. Shiu, Y.-S.; Chang, S.Y.; Wu, H.-C.; Huang, S.C.-H.; Chen, H.-H. Physical layer security in wireless networks: A tutorial. IEEE Trans. Wirel. Commun. 2011, 2, 66–74. [Google Scholar] [CrossRef]
  56. Yin, L.; Popoola, W.O.; Wu, X.; Haas, H. Performance Evaluation of Non-Orthogonal Multiple Access in Visible Light Communication. IEEE Trans. Commun. 2016, 12, 5162–5175. [Google Scholar] [CrossRef] [Green Version]
  57. Marshoud, H.; Kapinas, V.M.; Karagiannidis, G.K.; Muhaidat, S. Non-orthogonal multiple access for visible light communications. IEEE Photon. Technol. Lett. 2016, 1, 51–54. [Google Scholar] [CrossRef] [Green Version]
  58. Marshoud, H.; Sofotasios, P.C.; Muhaidat, S.; Karagiannidis, G.K.; Sharif, B.S. Error performance of NOMA VLC systems. In Proceedings of the 2017 IEEE International Conference on Communications (ICC), Paris, France, 21–25 May 2017; pp. 1–16. [Google Scholar]
  59. Hammadi, A.A.; Sofotasios, P.C.; Muhaidat, S.; Al-Qutayri, M.; Elgala, H. Non-orthogonal multiple access for hybrid VLC-RF networks with imperfect channel state information. IEEE Trans. Veh. Technol. 2020, 5, 4238–4253. [Google Scholar] [CrossRef]
  60. Le-Tran, M.; Vu, T.-H.; Kim, S. Performance Analysis of Optical Backhauled Cooperative NOMA Visible Light Communication. IEEE Trans. Veh. Technol. 2021, 12, 12932–12945. [Google Scholar] [CrossRef]
  61. Uday, T.; Kumar, A.; Natarajan, L. NOMA for Multiple Access Channel and Broadcast Channel in Indoor VLC. IEEE Wirel. Commun. Lett. 2021, 3, 609–613. [Google Scholar] [CrossRef]
  62. Naser, S.; Bariah, L.; Muhaidat, S.; Sofotasios, P.C.; Al-Qutayri, M.; Damiani, E.; Debbah, M. Toward Federated-Learning-Enabled Visible Light Communication in 6G Systems. IEEE Wirel. Commun. 2022, 29, 48–56. [Google Scholar] [CrossRef]
  63. Najla, M.; Mach, P.; Becvar, Z. Deep Learning for Selection Between RF and VLC Bands in Device-to-Device Communication. IEEE Wirel. Commun. Lett. 2020, 10, 1763–1767. [Google Scholar] [CrossRef]
  64. He, J.; Zhou, B. A Deep Learning-Assisted Visible Light Positioning Scheme for Vehicles with Image Sensor. IEEE Photonics J. 2022, 4, 1–7. [Google Scholar] [CrossRef]
  65. Wang, Y.; Chen, M.; Yang, Z.; Luo, T.; Saad, W. Deep Learning for Optimal Deployment of UAVs with Visible Light Communications. IEEE Trans. Wirel. Commun. 2020, 11, 7049–7063. [Google Scholar] [CrossRef]
  66. Le-Tran, M.; Kim, S. Deep Learning-Based Collaborative Constellation Design for Visible Light Communication. IEEE Commun. Lett. 2020, 11, 2522–2526. [Google Scholar] [CrossRef]
  67. Wu, Z.-Y.; Ismail, M.; Serpedin, E.; Wang, J. Efficient Prediction of Link Outage in Mobile Optical Wireless Communications. IEEE Trans. Wirel. Commun. 2021, 2, 882–896. [Google Scholar] [CrossRef]
  68. Arfaoui, M.A.; Soltani, M.D.; Tavakkolnia, I.; Ghrayeb, A.; Assi, C.M.; Safari, M.; Haas, H. Measurements-Based Channel Models for Indoor LiFi Systems. IEEE Trans. Wirel. Commun. 2021, 2, 827–842. [Google Scholar] [CrossRef]
  69. Purwita, A.A.; Soltani, M.D.; Safari, M.; Haas, H. Terminal Orientation in OFDM-Based LiFi Systems. IEEE Trans. Wireless Commun. 2019, 8, 4003–4016. [Google Scholar] [CrossRef]
  70. Yeh, C.H.; Weng, J.H.; Chow, C.W.; Luo, C.M.; Xie, Y.R.; Chen, C.J.; Wu, M.C. 1.7 to 2.3 Gbps OOK LED VLC Transmission Based on 4 × 4 Color-Polarization-Multiplexing at Extremely Low Illumination. IEEE Photonics J. 2019, 4, 1–6. [Google Scholar] [CrossRef]
  71. Lan, H.; Yu, C.; Zhuang, Y.; Li, Y.; El-Sheimy, N. A novel Kalman filter with state constraint approach for the integration of multiple pedestrian navigation systems. Micromachines 2015, 6, 926–952. [Google Scholar] [CrossRef] [Green Version]
  72. Zhuang, Y.; El-Sheimy, N. Tightly-coupled integration of WiFi and MEMS sensors on handheld devices for indoor pedestrian navigation. IEEE Sens. J. 2016, 1, 224–234. [Google Scholar] [CrossRef]
  73. Zhuang, Y.; Syed, Z.; Li, Y.; El-Sheimy, N. Evaluation of two WiFi positioning systems based on autonomous crowdsourcing of handheld devices for indoor navigation. IEEE Trans. Mobile Comput. 2016, 8, 1982–1995. [Google Scholar] [CrossRef]
  74. Zhuang, Y.; Yang, J.; Li, Y.; Qi, L.; El-Sheimy, N. Smartphone-based indoor localization with Bluetooth low energy beacons. Sensors 2016, 16, 596. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  75. Zhuang, Y.; Hua, L.; Qi, L.; Yang, J.; Cao, P.; Cao, Y.; Haas, H. A Survey of Positioning Systems Using Visible LED Lights. IEEE Commun. Surv. Tutor. 2018, 3, 1963–1988. [Google Scholar] [CrossRef] [Green Version]
  76. Zhou, B.; Liu, A.; Lau, V. Joint user location and orientation estimation for visible light communication systems with unknown power emission. IEEE Trans. Wirel. Commun. 2019, 11, 5181–5195. [Google Scholar] [CrossRef]
  77. Chen, Y.; Zheng, H.; Liu, H.; Han, Z.; Ren, Z. Indoor High Precision Three-Dimensional Positioning System Based on Visible Light Communication Using Improved Hybrid Bat Algorithm. IEEE Photonics J. 2020, 5, 1–13. [Google Scholar] [CrossRef]
  78. Lin, X.; Zhang, L. Intelligent and Practical Deep Learning Aided Positioning Design for Visible Light Communication Receivers. IEEE Commun. Lett. 2020, 3, 577–580. [Google Scholar] [CrossRef]
  79. Siegel, J.E.; Erb, D.C.; Sarma, S.E. A survey of the connected vehicle landscape—Architectures enabling technologies applications and development areas. IEEE Trans. Tell. Transp. Syst. 2018, 8, 2391–2406. [Google Scholar] [CrossRef] [Green Version]
  80. Béchadergue, B.; Chassagne, L.; Guan, H. Simultaneous Visible Light Communication and Distance Measurement Based on the Automotive Lighting. IEEE Trans. Intell. Veh. 2019, 4, 532–547. [Google Scholar] [CrossRef]
  81. Amjad, M.S.; Tebruegge, C.; Memedi, A.; Kruse, S.; Kress, C.; Scheytt, J.C.; Dressler, F. Towards an IEEE 802.11 Compliant System for Outdoor Vehicular Visible Light Communications. IEEE Trans. Veh. Technol. 2021, 6, 5749–5761. [Google Scholar] [CrossRef]
  82. Li, G.; Niu, W.; Ha, Y.; Hu, F.; Wang, J.; Yu, X.; Chi, N. Position-Dependent MIMO Demultiplexing Strategy for High-Speed Visible Light Communication in Internet of Vehicles. IEEE Internet Things J. 2022, 13, 10833–10850. [Google Scholar] [CrossRef]
  83. Rapson, C.J.; Seet, B.-C.; Chong, P.H.J.; Klette, R. Safety Assessment of Radio Frequency and Visible Light Communication for Vehicular Networks. IEEE Wirel. Commun. 2020, 1, 186–192. [Google Scholar] [CrossRef]
  84. Ata, Y.; Kiasaleh, K. On the performance of wireless optical communication systems in underwater channels. In Proceedings of the 2022 IEEE International Conference on Communications Workshops (ICC Workshops), Seoul, Republic of Korea, 16–20 May 2022; pp. 634–639. [Google Scholar]
Photonics 09 00893 g001 550
Figure 1. The optical spectrum.
Figure 1. The optical spectrum.
Photonics 09 00893 g001
Photonics 09 00893 g002 550
Figure 2. Architecture of a VLC system.
Figure 2. Architecture of a VLC system.
Photonics 09 00893 g002
Photonics 09 00893 g003 550
Figure 3. Indoor VLC propagation scenario.
Figure 3. Indoor VLC propagation scenario.
Photonics 09 00893 g003
Photonics 09 00893 g004 550
Figure 4. Illustration of the VLC-based positioning system.
Figure 4. Illustration of the VLC-based positioning system.
Photonics 09 00893 g004
Photonics 09 00893 g005 550
Figure 5. The general architecture of a simplex VLC positioning system.
Figure 5. The general architecture of a simplex VLC positioning system.
Photonics 09 00893 g005
Photonics 09 00893 g006 550
Figure 6. A typical V-VLC traffic scenario.
Figure 6. A typical V-VLC traffic scenario.
Photonics 09 00893 g006
Photonics 09 00893 g007 550
Figure 7. Building blocks of a generic V-VLC system.
Figure 7. Building blocks of a generic V-VLC system.
Photonics 09 00893 g007
Table
Table 1. Surveys on Visible Light Communication.
Table 1. Surveys on Visible Light Communication.
Content ExploredH. Haas [2]L. E. M. Matheus [3]M. Obeed [4]X. Wu [5]A. Al-Kinani [6]J. Luo [7]A. -M. Căilean [8]A. Memedi [9]M. A. Arfaoui [10]This Survey
Superiorities of VLC✓✓✓✓✓✓✓✓✓✓
ArchitectureTransmitter✓✓✓✓✓✓✓✓✓✓
Receiver✓✓✓✓✓✓✓✓✓✓
Transmission distance ✓✓✓✓ ✓ ✓
Channel modeling✓✓✓ ✓ ✓✓✓✓
Light modulationOOK, PWM, PPM ✓✓✓ ✓ ✓
OFDM ✓✓✓ ✓ ✓
Physical layer securityKeyless security techniques ✓✓ ✓✓
Key-based security techniques ✓✓ ✓✓
NOMA ✓✓✓ ✓✓
Machine learning ✓
VLC applicationsIndoor communication✓✓✓✓✓ ✓
Positioning ✓ ✓ ✓✓ ✓
Vehicular communication ✓ ✓✓ ✓
Underwater communication ✓ ✓ ✓
Table
Table 2. Summary of Optical OFDM Schemes in VLC.
Table 2. Summary of Optical OFDM Schemes in VLC.
WorkO-OFDM SchemeUtilized Spectral ResourceSignal ProcessingFeatures
J. Armstrong et al. [40]ACO-OFDMOdd subcarriersClipping operationLow complexity, low spectral efficiency and high power efficiency
J. B. Carruthers et al. [41]DCO-OFDMAll subcarriersAdding a DC biasLow complexity, high spectral efficiency and low power efficiency
S. C. J. Lee, et al. [42]PAM-DMTThe imaginary part of subcarriersClipping operationLow complexity, low spectral efficiency and high power efficiency
B. Ranjha et al. [43]HACO-OFDMOdd subcarriers and the imaginary part of even subcarriersClipping operationHigher spectral efficiency than ACO-OFDM
Q. Wang et al. [44]LACO-OFDMLayers of the half of the remained subcarriersClipping operationHigher spectral efficiency than HACO-OFDM and an iterative receiver with higher complexity
R. Bai et al. [45]AAO-OFDMAll subcarriersClipping operation and absolute operationHigher spectral efficiency than ACO-OFDM
R. Bai et al. [46]ALACO-OFDMAll subcarriersClipping operation and absolute operationHigher spectral efficiency than AAO-OFDM and an iterative receiver with higher complexity
Table
Table 3. Summary of ML applications in VLC.
Table 3. Summary of ML applications in VLC.
WorkApplication ScenariosNeural NetworkAdvantages
Mehyar Najla et al. [63]The selection between RF and VLC bands for D2D communicationDNNClose-to-optimal performance
Jing He et al. [64]Long-distance transmission in V-VLCCNN and ANNLong-distance communication, high-accuracy positioning and LED dimming
Yining Wang et al. [65]Dynamically deploying UAVs in VLCCNNFuture light distribution forecast and low power consumption
Manh Le-Tran et al. [66]Collaborative constellation designDNNLow complexity and near-optimal performance
Zi-Yang Wu et al. [67]Prediction of LOS link outagedeep LSTM-based RNNsHigh hit rate for signal outages and recoveries
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Geng, Z.; Khan, F.N.; Guan, X.; Dong, Y. Advances in Visible Light Communication Technologies and Applications. Photonics 2022, 9, 893. https://doi.org/10.3390/photonics9120893

AMA Style

Geng Z, Khan FN, Guan X, Dong Y. Advances in Visible Light Communication Technologies and Applications. Photonics. 2022; 9(12):893. https://doi.org/10.3390/photonics9120893

Chicago/Turabian Style

Geng, Zuhang, Faisal Nadeem Khan, Xun Guan, and Yuhan Dong. 2022. "Advances in Visible Light Communication Technologies and Applications" Photonics 9, no. 12: 893. https://doi.org/10.3390/photonics9120893

APA Style

Geng, Z., Khan, F. N., Guan, X., & Dong, Y. (2022). Advances in Visible Light Communication Technologies and Applications. Photonics, 9(12), 893. https://doi.org/10.3390/photonics9120893

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
