High Operating Temperature InAs/GaSb Superlattice Based Mid Wavelength Infrared Photodetectors Grown by MOCVD

Zhu, He; Liu, Jiafeng; Zhu, Hong; Huai, Yunlong; Li, Meng; Liu, Zhen; Huang, Yong

doi:10.3390/photonics8120564

Open AccessCommunication

High Operating Temperature InAs/GaSb Superlattice Based Mid Wavelength Infrared Photodetectors Grown by MOCVD

by

He Zhu

^1,2,

Jiafeng Liu

^1,2,

Hong Zhu

^1,2,

Yunlong Huai

^1,2,

Meng Li

^2,3,

Zhen Liu

^2,4 and

Yong Huang

^1,2,*

¹

The School of Nano-Tech and Nano-Bionics, University of Science and Technology of China, Hefei 230026, China

²

The Key Lab of Nanodevices and Applications, Suzhou Institute of Nano-Tech and Nano-Bionics, Chinese Academy of Sciences, Suzhou 215123, China

³

The School of Physical Science and Technology, ShanghaiTech University, Shanghai 201210, China

⁴

Nano Science and Technology Institute, University of Science and Technology of China, Suzhou 215123, China

^*

Author to whom correspondence should be addressed.

Photonics 2021, 8(12), 564; https://doi.org/10.3390/photonics8120564

Submission received: 9 November 2021 / Revised: 3 December 2021 / Accepted: 6 December 2021 / Published: 10 December 2021

(This article belongs to the Special Issue Mid-Infrared Integrated Photonics)

Download

Browse Figures

Versions Notes

Abstract

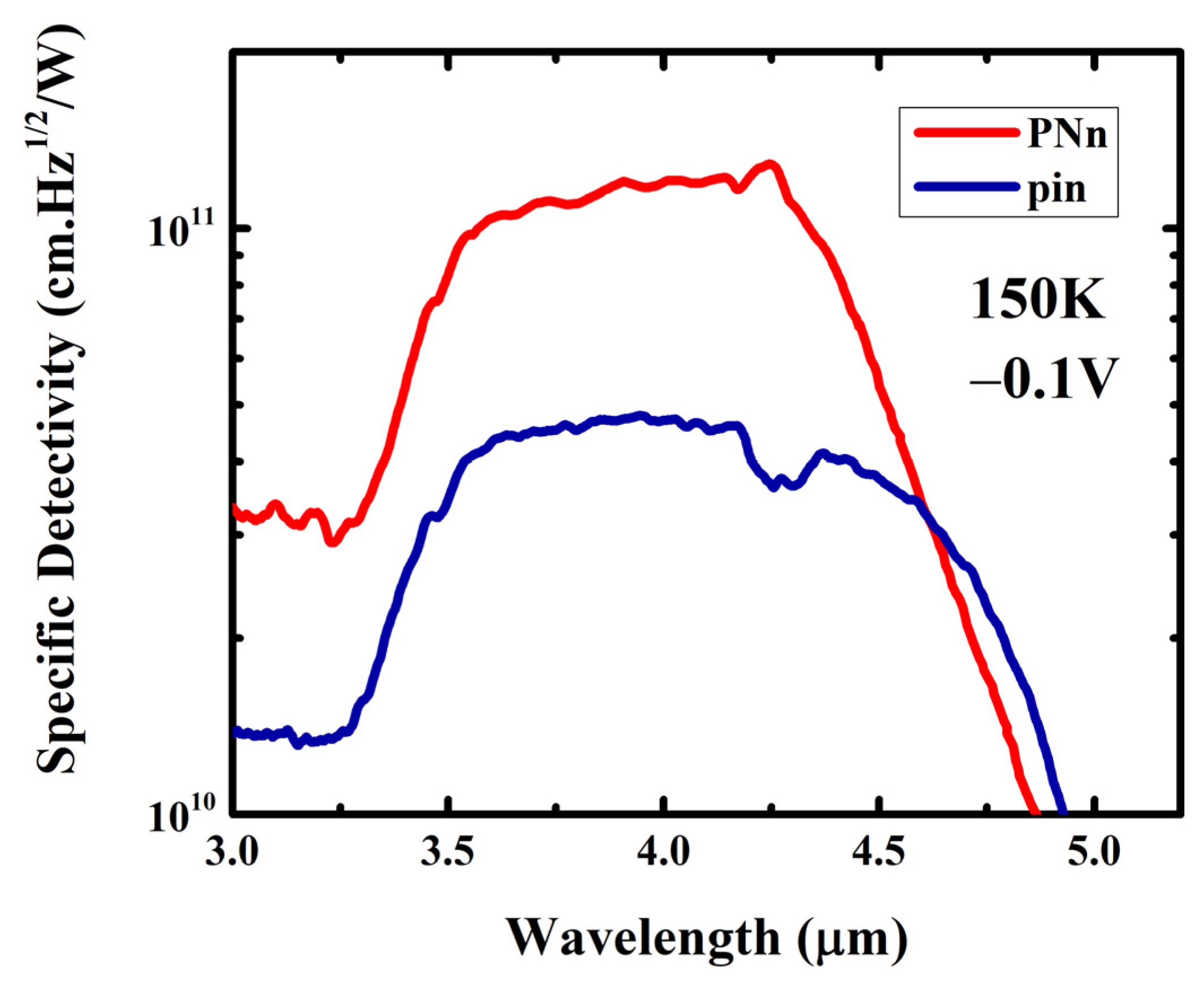

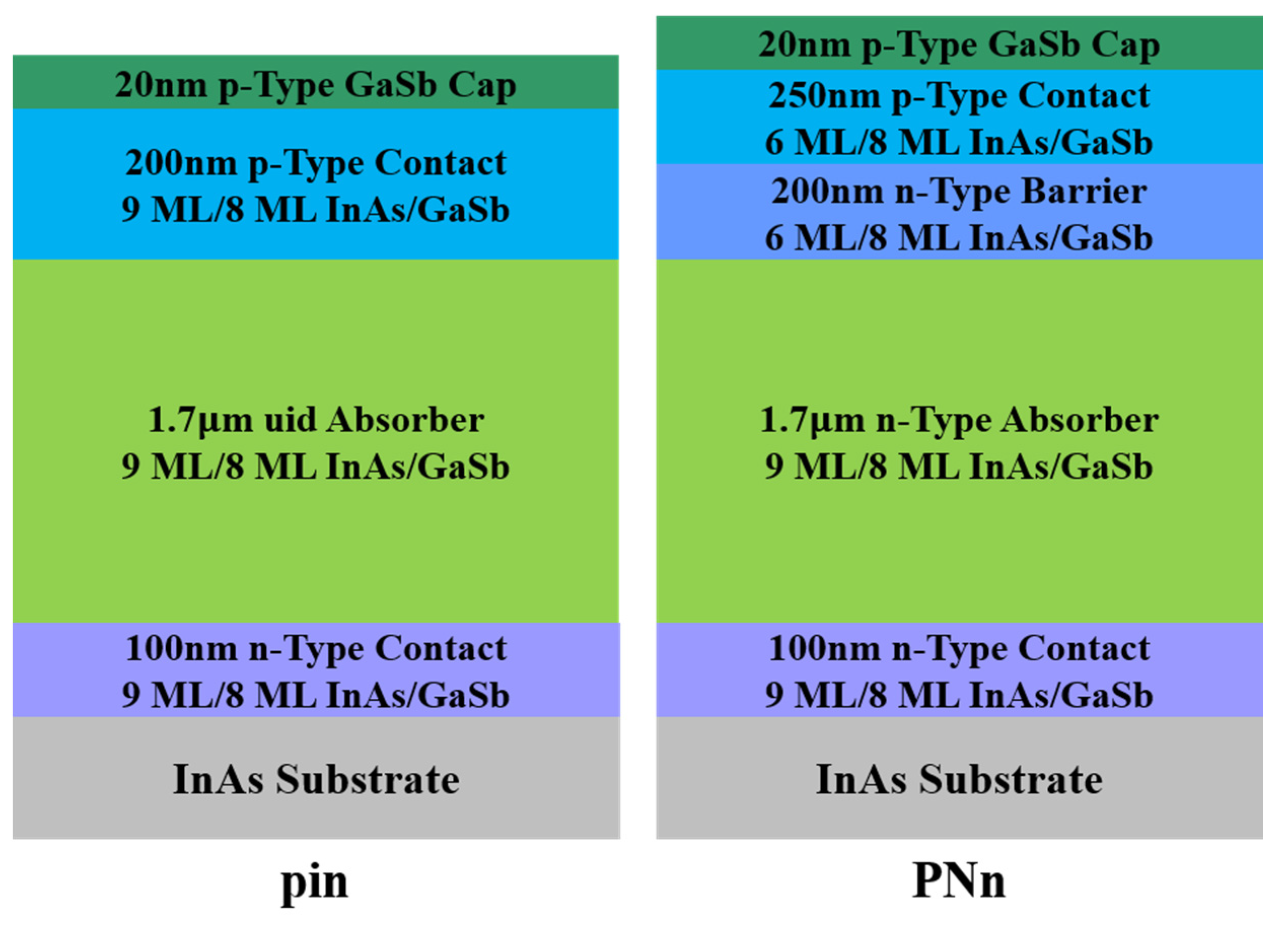

High operating temperature mid-wavelength InAs/GaSb superlattice infrared photodetectors with a single heterojunction structure grown by metal–organic chemical vapor deposition are reported. By inserting a fully-depleted wider-gap barrier layer between the absorber and the p-contact, “diffusion-limited” behavior has been achieved for the heterojunction “PNn” device, in contrast to the conventional pin homojunction device. The PNn device with a 50% cutoff wavelength of 4.5

μ m

exhibited a dark current of 2.05

\times

10⁻⁴ A/cm² and a peak specific detectivity of 1.28

\times

10¹¹

cm \cdot \sqrt{Hz} \cdot W^{- 1}

at 150 K and a reverse bias of −0.1 V.

Keywords: high operating temperature; mid-wavelength infrared; aluminum-free; inas/gasb superlattice; metal–organic chemical vapor deposition
