Article

Grating Lobes in Higher-Order Correlation Functions of Arrays of Quantum Emitters: Directional Photon Bunching Versus Correlated Directions

by
Iñigo Liberal
1,2,*,
Iñigo Ederra
1,2 and
Richard W. Ziolkowski
3
1
Electrical and Electronic Engineering Department, Universidad Pública de Navarra, Campus Arrosadía, 31006 Pamplona, Spain
2
Institute of Smart Cities, Universidad Pública de Navarra, Campus Arrosadía, 31006 Pamplona, Spain
3
Global Big Data Technologies Centre, University of Technology Sydney, Ultimo, NSW 2007, Australia
*
Author to whom correspondence should be addressed.
Photonics 2019, 6(1), 14; https://doi.org/10.3390/photonics6010014
Submission received: 14 January 2019 / Revised: 6 February 2019 / Accepted: 7 February 2019 / Published: 12 February 2019

Abstract

:
Recent advances in nanofabrication and optical manipulation techniques are making it possible to build arrays of quantum emitters with accurate control over the locations of their individual elements. In analogy with classical antenna arrays, this poses new opportunities for tailoring quantum interference effects by designing the geometry of the array. Here, we investigate the N th -order directional correlation function of the photons emitted by an array of N initially-excited identical quantum emitters, addressing the impact of the appearance of grating lobes. Our analysis reveals that the absence of directivity in the first-order correlation function is contrasted by an enhanced directivity in the N th -order one. This suggests that the emitted light consists of a superposition of directionally entangled photon bunches. Moreover, the photon correlation landscape changes radically with the appearance of grating lobes. In fact, the photons no longer tend to be bunched along the same direction; rather, they are distributed in a set of correlated directions with equal probability. These results clarify basic aspects of light emission from ensembles of quantum emitters. Furthermore, they may find applications in the design of nonclassical light sources.

1. Introduction

Collective light emission effects arising from ensembles of quantum emitters are of great relevance from both fundamental and technological points of view. From a theoretical standpoint, collective effects give rise to new phenomena that enhance our understanding of basic light–matter interaction processes. Some examples include superradiance [1,2], subradiance [3,4], collective Lamb shift [5,6], modification of temporal correlations [7,8], strengthening of the coupling to an optical mode [9], and the interplay between strong coupling and quenching [10]. From a more practical perspective, the emission properties of ensembles of quantum emitters are relevant for the design of nonclassical light sources, which are of general interest for quantum technologies [11,12,13].
Recently, there has been increasing attention to the fabrication of arrays of quantum emitters with control over the positions of their individual elements. In particular, very impressive advances have taken place in the field of optical manipulation of cold atoms. Nowadays, it is possible to deterministically build one-dimensional (1D) [14], two-dimensional (2D) [15], and even three-dimensional (3D) [16,17] arrays with quite arbitrary geometries and control of each individual position of several tens of elements. Fixing the positions of solid-state quantum emitters is more challenging. Nevertheless, there have been promising demonstrations of 2D array geometries based on diamond nanopillars containing silicon vacancy centers [18], the optical writing of quantum dots in hydrogenated quantum wells [19], and atomically thin semiconductors (tungsten diselenide WSe 2 ) stationed on top of patterned surfaces [20] and even coupled with on-site plasmonic cavities [21]. It is likely that future advances will provide even finer control over the position and emission properties of arrays of quantum emitters.
Explorations of emission phenomena induced by the geometry of an array of quantum emitters is facilitated by these fabrication advances. Motivated by the associated potential for discovering exotic physic phenomena and realizing practical engineering applications, we recently introduced the concept of quantum antenna arrays [22]. Instead of the standard focus on the interactions between the individual emitters, we took inspiration from classical antenna arrays and placed an emphasis on the interference phenomena arising from superpositions of the fields radiated by ensembles of quantum emitters. Particular interest was guided by the known fact that (classical) antenna arrays employ interference to enhance the directive properties of their individual elements by radiating their composite fields into one or more desired directions [23,24,25,26]. In an analogous but essentially different manner, the geometry of quantum antenna arrays can be designed to provide control over the directional properties of the correlations between their measured photons. The original analysis in [22] was restricted to first- and second-order directional correlation functions. Here, we extend that work and evaluate the N th -order directional correlation for an array of N initially excited quantum emitters. Previous works have studied the N th -order directional correlation function [27]. However, our analysis focuses on the appearance of grating lobes, and how their role impacts the characteristics of higher-order photon correlations. We note that other recent works have also pursued antenna array concepts for analyzing the emission from arrays of quantum emitters, either to shape the emission of a single photon [28,29] or to control two-photon correlations by either designing the initial state [30] or continuously driving one element and controlling the interactions [31].
The remainder of the manuscript is organized as follows. First, we introduce the theoretical framework in Section 2. We then use it in Section 3 to derive a tractable expression for the evaluation of the N th -order directional correlation function. Next, we make use of this expression in Section 4 to reveal different aspects of directional photon bunching with particular attention on the role of the grating lobes in the corresponding patterns. Examples are given to illustrate the main results. Finally, conclusions and future perspectives are presented in Section 5.

2. Theoretical Framework

We start by considering a generic array of N emitters located at positions r 1 , , r N (see Figure 1a). We assume that all emitters are identical and can be modelled as two-level systems, e , g , with an angular transition frequency ω 0 and dipole moment p = u z p . We also assume that all of the emitters are initially excited, i.e., the initial state of the quantum emitter’s subsystem can be written as follows:
ψ = e 1 e N = n = 1 N σ ^ n 0
More complex initial states could be considered to further understand how one might control photon correlations. However, this initial configuration is of particular interest from a practical standpoint. In particular, (1) is a factored state that does not require the emitters to interact during their preparation process nor preserve the long-range entanglement between them. Furthermore, the initial state (1) can be prepared by independently exciting each emitter with an initialization pulse. The main practical obstacles of this configuration are that all emitters must be identical and that the time uncertainty in the initialization of the emitters must be much smaller than the emitter’s lifetime.
The quantum emitters will decay from this initial state via spontaneous emission. By analyzing the fields generated during this process, we gain access to different photon correlations that predict the outcomes of relevant measurements. For example, the probability density per ( solid angle ) L per ( unit time ) L of measuring L photons along the u 1 , , u L directions at times t 1 , , t L is proportional to the following field correlation [32,33]:
p L u 1 , t 1 ; ; u L , t L r 2 L E ^ θ ( u 1 , t 1 ) E ^ θ ( u L , t L ) E ^ θ + ( u L , t L ) E ^ θ + ( u 1 , t 1 )
where E ^ θ + ( E ^ θ ) is the relevant positive (negative) frequency electric field operator [32,33]. In many experiments, one is interested in the directional properties of the emissions, irrespective of the times at which detection of the photons occurs. In order to gain insight into their directional correlations, we define the time-integrated field correlation:
g L u 1 , , u L = 0 d t 1 0 d t L p L u 1 , t 1 ; ; u L , t L
Specifically, the g L time-integrated correlation functions are proportional to the average number of L-photon coincidence measurements for any time delay [22,34]. Thus, they provide important information on whether or not the measurements of the emitted photons in different directions are correlated.
Finally, we note that if the emitters are weakly coupled, their interactions during their decay process can be neglected. The g L correlation functions can then be written as the product of sin 2 θ functions, which takes into account the directionality of the individual dipole emitters and a generalized quantum array factor that represents the overall interference pattern, and it also takes into account the impact of the geometry of the array [22].
g L u 1 , , u L l = 1 L sin 2 θ l f L u 1 , , u L
where we have introduced the generalized quantum array factor [22]:
f L u 1 , , u L = n 1 , , n L = 1 N m 1 , , m L = 1 N σ ^ n 1 σ ^ n L σ ^ m L σ ^ m 1 p = 1 L e i k 0 u p · r n p e i k 0 u p · r m p

3. Evaluation of the N th -Order Directional Correlation Function

Equations (4) and (5) provide a relatively simple theoretical framework for studying correlations between the directions in which the photons are measured. In addition, the introduction of the generalized array factor provides an immediate connection with the classical antenna theory [23,24,25,26]. This feature makes it possible to point out the most essential differences between classical and quantum antenna arrays, as well as to establish fundamental analogies. However, it becomes an increasingly complex task to examine the generalized array factor, as given by Equation (5) when the order L of the correlation increases. For this reason, previous analyses have been restricted to studying the 1st- and 2nd-order correlation functions [22]. Here, we explicitly evaluate the N th -order correlation function. Since our model assumes that the number of excitations is preserved, this is the highest-order nontrivial correlation function, i.e., g L = 0 for L > N . We will demonstrate that it is possible to derive a tractable expression for this extreme case.
To this end, let ζ n with n = 1 , , 2 N be a basis for all possible states of the array of N emitters. This basis can be arbitrary. Nevertheless, we define only for convenience the first state of this basis as all emitters being in their ground state, i.e.: ζ 1 = g 1 , g N . One then finds the identity:
ζ n p = 1 N σ ^ m p ψ = 1 if ζ n = ζ 1 and m i m j i , j 0 else
We then introduce the identity operator I ^ = n ζ n ζ n between the composite operator σ ^ n L σ ^ m L in Equation (5) for L = N . This step allows us to rewrite the generalized quantum array factor as:
f N u 1 , , u N = m 1 , , m N = 1 N ξ m 1 m N p = 1 N e i k 0 u p · r m p 2
where we have defined ξ m 1 m N = 1 for m i m j i , j and ξ m 1 m N = 0 in the rest of the cases. This definition of ξ m 1 m N = 1 implies that the sum in Equation (7) runs over all possible permutations of the r n position vectors in the associated product of exponentials:
e i k 0 u 1 · r 1 e i k 0 u 2 · r 2 e i k 0 u N · r N
Therefore, f N u 1 , , u N is given by the magnitude squared of a sum over the N ! permutations of the indices of Equation (8). For example, we would then have for N = 2 emitters:
f N = 2 u 1 , u 2 = e i k 0 u 1 · r 1 e i k 0 u 2 · r 2 + e i k 0 u 1 · r 2 e i k 0 u 2 · r 1 2
and for N = 3 emitters:
f N = 3 u 1 , u 2 , u 3 = e i k 0 u 1 · r 1 e i k 0 u 2 · r 2 e i k 0 u 3 · r 3 + e i k 0 u 1 · r 1 e i k 0 u 2 · r 3 e i k 0 u 3 · r 2
+ e i k 0 u 1 · r 2 e i k 0 u 2 · r 1 e i k 0 u 3 · r 3 + e i k 0 u 1 · r 2 e i k 0 u 2 · r 3 e i k 0 u 3 · r 1
+ e i k 0 u 1 · r 3 e i k 0 u 2 · r 2 e i k 0 u 3 · r 1 + e i k 0 u 1 · r 3 e i k 0 u 2 · r 1 e i k 0 u 3 · r 2 2
Intuitively, these results can be understood in terms of the "which-path" information that becomes available for any given state of the quantum emitter subsystem. After measuring a N-photon coincidence event, the emitter’s subsystem must necessarily be in the ground state, i.e., e 1 e N g 1 g N . Therefore, the state of the emitters contains no information as to which emitter radiated the photon measured at a given detector. This means there is no which-path information and, as a consequence, quantum interference can occur. In this manner, each of the permutations in (5) can be understood as a different path that connects the detection of a photon in each u p direction to the emitter at the r m p location.
This analysis indicates that the N th -order correlation function for an array of N initially excited emitters maximizes the quantum interference with respect to any lower-order correlation functions. Indeed, the other extreme effect corresponds to the first-order correlation function, studied in [22]. The first-order array factor is given by:
f 1 u 1 = n , m σ ^ n σ ^ m e i k 0 u 1 · r n e i k 0 u 1 · r m
with the initial state correlation functions: σ ^ n σ ^ m = δ n m given by Equation (1). This outcome leads to an absence of interference, i.e., the geometry of the array induces no directionality in the average number of photons measured as a function of direction giving f 1 u 1 = N 2 . Again, this effect can be intuitively understood in terms of the "which-path" information. The action of a single σ ^ m operator projects the initial state e 1 e N onto e 1 e m 1 g m e m + 1 e N . Thus, it is then possible to identify the emitter from which the photon originated. We further note that similar considerations of vanishing interference can be applied to the design of an isotropic single-photon source with emitters which have degenerate ground states [35].
Therefore, the directional correlations for an array of initially-excited emitters are characterized by the absence of interference in the 1st-order correlation function, i.e., in the average number of photons measured in a given direction, while there are directional effects in higher-order correlation functions [22,27]. In fact, the N th -order correlation function represents the maximal interference effects, which will lead to the directive phenomena. Physically, this feature implies that the photons are emitted as a superposition of photon bunches (see Figure 1b). Therefore, the measurement of a single array decay process will show that the emitted photons appear bunched along preferred directions (constructive interference), while avoiding other forbidden directions (destructive interference). At the same time, if one averages the measurements over many array decay processes, it will be found that there is an isotropic distribution of the number of photons measured per direction, following the first-order correlation function.

4. Directional Photon Bunching

Equation (7) provides a convenient theoretical framework for studying N th -order correlation effects and the characteristics of the expected photon bunches. We start by analyzing a limiting case before introducing more general photon correlation examples. It allows for a simple formulation, while at the same time providing some important insights into the characteristics of directional photon bunching in the emissions from ensembles of quantum emitters. Specifically, we consider a vertical linear array with emitters positioned along the Z-axis, i.e, r n = u z n d for n = 1 , N . Due to the rotational symmetry of this configuration about the Z-axis, only variations in the θ p elevation angles in the direction of the unit vector u p = u x cos ϕ p sin θ p + u y sin ϕ p sin θ p + u z cos θ p will impact the array factor. In addition, we assume that N 1 of the N evaluation directions are identical, i.e., θ 1 = θ 1 and θ 2 = = θ N = θ . Consequently, only the changes in the position of the u 1 index will affect the product of exponentials given by Equation (8). Under these conditions, the sum in Equation (7) is composed of N different addends repeated ( N 1 ) ! times. Thus, the generalized quantum array factor reduces to:
f N u 1 , u 2 = = u N = N 1 ! 2 n = 1 N e i n φ 1 e i N N + 1 2 n φ 2
with φ n = k 0 d cos θ n . Note that the phase factor that is independent of n can be taken outside the sum. This manipulation yields:
f N u 1 , u 2 = = u N = N 1 ! 2 n = 1 N e i n φ 1 φ 2
This interesting expression tells us that the array factor is proportional to the magnitude squared of the classical array factor of a linear array of classical time-harmonic emitters that are uniformly excited at the angular frequency ω 0 [23,24,25,26]. Therefore, although directional photon bunching is a quantum effect, this simple expression allows us to translate, by mathematical analogy, some results from the basic classical antenna array theory to the study of higher-order correlations in arrays of quantum emitters.
First, the classical array factor is maximized for φ 1 = φ . This can be understood quantum- mechanically as directional photon bunching. In particular, if we know that N 1 photons have been measured at the angle θ , the most likely direction in which the remaining photon will be measured must also be θ 1 = θ . This means that all of the photons tend to be bunched along the same direction.
Second, the directivity of a classical linear array increases along with the number of elements for a fixed separation distance. The analogous effect in terms of the photon correlation functions is that an increase in the size of the array and the number of photons measured along a given direction narrows down the range of angles along which the remaining photons are likely to be measured. We re-emphasize that these directive effects occur in the higher-order correlation functions even though there are none in the first-order correlation function. In contrast with a classical antenna array, an increase in the size of an array of initially-excited quantum emitters does not increase the directivity of the average number of photons.
Finally, if the separation between the emitters is sufficiently large, the classical antenna array theory has established that grating lobes will appear in the radiation patterns. The appearance of grating lobes means that the radiation is no longer concentrated into a single, well-defined direction; rather, it is split into different ones. It is clear for photon correlations that the evaluation of φ 1 and φ 1 + m 2 π in Equation (12) produces the same behaviors. However, this effect can only be observed if the separation between the emitters d is large enough so that φ 1 + m 2 π = k 0 d c o s θ 1 + m 2 π lies within the so-called "visible region": φ 1 k 0 d , k 0 d . Once this happens, the appearance of grating lobes dramatically affects the photon-bunching phenomena. Since there is no difference between the φ 1 and φ 1 + m 2 π directions, any distribution of the photons between those two directions will occur with the same probability. As schematically depicted in Figure 2, it is equally likely to measure one photon in φ 1 and N 1 photons in φ 1 + m 2 π , two photons in φ 1 and N 2 photons in φ 1 + m 2 π , ..., N 1 photons in φ 1 and one photon in φ 1 + m 2 π . Therefore, once grating lobes appear, the photons do not necessarily tend to appear together (to be bunched) around the same direction. They are distributed along a discrete set of correlated directions, i.e., the grating lobe directions. This conclusion emphasizes that photon bunching is ultimately an interference effect and not the result of interactions between the photons.
In order to shed more light on this effect, Figure 3 includes an extensive parametric analysis of the generalized quantum array factor for a linear vertical array of N = 3 uniformly-spaced elements. It is graphically presented as a function of the element separation distance, d, and the evaluation directions, ( θ 1 , θ 2 , θ 3 ). As anticipated, very different behaviors are observed as a function of the separation distance between the emitters. For a subwavelength separation, d = 0.1 λ 0 ( λ 0 being the wavelength at the transition frequency), the quantum array factor is always maximized at the points at which all three evaluation directions are identical, i.e., θ 1 = θ 2 = θ 3 . This means the photons tend to be bunched around the same direction for this subwavelength array. The beamwidth around the maximal direction decreases as the separation between the emitters increases.
Grating lobes begin to appear for sufficiently large separation distances between the array elements, d > λ 0 / 2 . The array factor in these cases is not maximized only at the points at which all of the evaluation directions are equal; there are multiple local maxima. Moreover, it has the same magnitude in those directions. Consequently, modulo the factor associated with the directivity of the individual emitters (element factor), this array factor feature represents the fact that measurement outcomes will occur with the same probability in those directions. In these grating-lobe cases, quantum interference no longer leads to pure directional photon-bunching, but rather to the existence of correlated directions. Much like in the classical antenna theory, the number of observed grating lobes increases monotonically along with the separation between the emitters. In fact, we note that for a separation of d = 2.5 λ 0 , one already observes 5 grating lobes when two evaluation directions are fixed (see third row in Figure 3).
Ultimately, the existence of too many grating lobes would hinder an experimental demonstration of these effects. Ideally, the evaluation of N-photon coincidence measurements requires a large number of photon counters with good angular resolution or a minimum of N photon counters and the ability to scan them over the entire direction space. A practical experimental demonstration of directional photon-bunching will have to be implemented by dividing the direction space into a relatively small number of angular sectors. On the other hand, since more than one grating lobe could lie within the same angular sector when the separation distance between the emitters is large, the associated directional correlations would be averaged out. Therefore, our parametric analyses suggest that separation distances comparable to the wavelength would be optimal for an experimental demonstration of directional photon-bunching and of the appearance of grating lobes with currently available technologies.

5. Conclusions

Linear arrays of initially-excited quantum emitters were considered in this paper. The main characteristic of these array systems was demonstrated to be its lack of directivity effects in the first-order correlation function (average number of photons) while exhibiting directivity in the N th -order correlation function. The results of our investigations demonstrated that this directivity can be designed by controlling the geometry of an array of initially-excited quantum emitters. It was illustrated that the characteristics of the higher-order photon correlations depends critically on the appearance of grating lobes. For small separation distances, there are no grating lobes and all emitted photons will appear to be bunched around a single direction. For larger distances, grating lobes appear and the photons will be distributed along multiple correlated directions.
We believe that an experimental demonstration of this effect is within reach of current cold atom technologies [14,15,16]. Furthermore, demonstrations based on solid-state emitters might be enabled by recent advances in controlling the position of defects in bulk and 2D semiconductors [18,20,21]. However, since indistinguishable photons are required for the requisite interference effects to take place, a remaining practical challenge in those solid-state systems remains. The properties of the emitters, e.g., their transition frequencies and the magnitude and orientation of their transition dipole moments, must be nearly identical. Nevertheless, we expect that further developments associated with arrays of solid-state quantum emitters might eventually facilitate practical implementations of the directional photon-bunching concept.
References

Author Contributions

I.L. and R.W.Z. conceived the idea; I.L. carried out the analytical derivations and numerical examples; I.L., I.E. and R.W.Z. analyzed the data, interpreted the results, and contributed to the preparation and writing of the manuscript.

Funding

This research was funded by Juan de la Cierva—Incorporación Fellowship and dotación adicional Caixa.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Dicke, R.H. Coherence in spontaneous radiation processes. Phys. Rev. 1954, 93, 99. [Google Scholar] [CrossRef]
  2. Gross, M.; Haroche, S. Superradiance: An essay on the theory of collective spontaneous emission. Phys. Rep. 1982, 93, 301–396. [Google Scholar] [CrossRef]
  3. Asenjo-Garcia, A.; Moreno-Cardoner, M.; Albrecht, A.; Kimble, H.J.; Chang, D.E. Exponential improvement in photon storage fidelities using subradiance and “Selective Radiance” in atomic arrays. Phys. Rev. X 2017, 7, 031024. [Google Scholar] [CrossRef]
  4. Liberal, I.; Engheta, N. Multiqubit subradiant states in N-port waveguide devices: epsilon-and-mu-near-zero waveguide hubs and nonreciprocal circulators. Phys. Rev. A 2018, 97, 022309. [Google Scholar] [CrossRef]
  5. Scully, M.O. Collective Lamb shift in single photon Dicke superradiance. Phys. Rev. Lett. 2009, 102, 143601. [Google Scholar] [CrossRef] [PubMed]
  6. Röhlsberger, R.; Schlage, K.; Sahoo, B.; Couet, S.; Rüffer, R. Collective Lamb shift in single-photon superradiance. Science 2010, 328, 1248–1251. [Google Scholar] [CrossRef] [PubMed]
  7. Milonni, P.W.; Knight, P.L. Retardation in the resonant interaction of two identical atoms. Phys. Rev. A 1974, 10, 1096. [Google Scholar] [CrossRef]
  8. Sáez-Blázquez, R.; Feist, J.; Fernández-Domínguez, A.I.; García-Vidal, F.J. Enhancing photon correlations through plasmonic strong coupling. Optica 2017, 4, 1363–1367. [Google Scholar] [CrossRef]
  9. Scully, M.O.; Zubairy, M.S. Quantum Optics; Cambridge University Press: Cambridge, UK, 1997. [Google Scholar]
  10. Delga, A.; Feist, J.; Bravo-Abad, J.; Garcia-Vidal, F.J. Quantum emitters near a metal nanoparticle: strong coupling and quenching. Phys. Rev. Lett. 2014, 112, 253601. [Google Scholar] [CrossRef] [PubMed]
  11. Awschalom, D.D.; Hanson, R.; Wrachtrup, J.; Zhou, B.B. Quantum technologies with optically interfaced solid-state spins. Nature Photonics 2018, 12, 516. [Google Scholar] [CrossRef]
  12. Senellart, P.; Solomon, G.; White, A. High-performance semiconductor quantum-dot single-photon sources. Nat. Nanotechnol. 2017, 12, 1026. [Google Scholar] [CrossRef] [PubMed]
  13. Aharonovich, I.; Englund, D.; Toth, M. Solid-state single-photon emitters. Nat. Photonics 2016, 10, 631. [Google Scholar] [CrossRef]
  14. Endres, M.; Bernien, H.; Keesling, A.; Levine, H.; Anschuetz, E.R.; Krajenbrink, A.; Senko, C.; Vuletic, V.; Greiner, M.; Lukin, M.D. Atom-by-atom assembly of defect-free one-dimensional cold atom arrays. Science 2016, aah3752. [Google Scholar] [CrossRef] [PubMed]
  15. Labuhn, H.; Barredo, D.; Ravets, S.; De Léséleuc, S.; Macrì, T.; Lahaye, T.; Browaeys, A. Tunable two-dimensional arrays of single Rydberg atoms for realizing quantum Ising models. Nature 2016, 534, 667–670. [Google Scholar] [CrossRef] [PubMed]
  16. Barredo, D.; Lienhard, V.; de Leseleuc, S.; Lahaye, T.; Browaeys, A. Synthetic three-dimensional atomic structures assembled atom by atom. Nature 2018, 561, 79–82. [Google Scholar] [CrossRef] [PubMed]
  17. Kumar, A.; Wu, T.Y.; Giraldo, F.; Weiss, D.S. Sorting ultracold atoms in a three-dimensional optical lattice in a realization of Maxwell’s demon. Nature 2018, 561, 83. [Google Scholar] [CrossRef] [PubMed]
  18. Zhang, J.L.; Lagoudakis, K.G.; Tzeng, Y.K.; Dory, C.; Radulaski, M.; Kelaita, Y.; Fischer, K.A.; Sun, S.; Shen, Z.X.; Melosh, N.A.; et al. Complete coherent control of silicon vacancies in diamond nanopillars containing single defect centers. Optica 2017, 4, 1317–1321. [Google Scholar] [CrossRef]
  19. Biccari, F.; Boschetti, A.; Pettinari, G.; La China, F.; Gurioli, M.; Intonti, F.; Vinattieri, A.; Sharma, M.; Capizzi, M.; Gerardino, A.; et al. Site-Controlled Single-Photon Emitters Fabricated by Near-Field Illumination. Adv. Mater. 2018, 30, 1705450. [Google Scholar] [CrossRef] [PubMed]
  20. Palacios-Berraquero, C.; Kara, D.M.; Montblanch, A.R.P.; Barbone, M.; Latawiec, P.; Yoon, D.; Ott, A.K.; Loncar, M.; Ferrari, A.C.; Mete, A. Large-scale quantum-emitter arrays in atomically thin semiconductors. Nat. Commun. 2017, 8, 15093. [Google Scholar] [CrossRef] [PubMed]
  21. Luo, Y.; Shepard, G.D.; Ardelean, J.V.; Rhodes, D.A.; Kim, B.; Barmak, K.; Hone, J.C.; Strauf, S. Deterministic coupling of site-controlled quantum emitters in monolayer WSe2 to plasmonic nanocavities. Nat. Nanotechnol. 2018, 561, 1137–1142. [Google Scholar] [CrossRef] [PubMed]
  22. Liberal, I.; Ederra, I.; Ziolkowski, R.W. Quantum antenna arrays: The role of quantum interference on direction-dependent photon statistics. Phys. Rev. A 2018, 97, 053847. [Google Scholar] [CrossRef]
  23. Balanis, C.A. Antenna Theory: Analysis and Design, 4th ed.; John Wiley & Sons: Hoboken, NJ, USA, 2005. [Google Scholar]
  24. Hansen, R.C. Phased Array Antennas; John Wiley & Sons: Hoboken, NJ, USA, 2009; Volume 213. [Google Scholar]
  25. Mailloux, R.J. Phased Array Antenna Handbook, 3rd ed.; Artech House: Boston, CT, USA, 2005. [Google Scholar]
  26. Kildal, P.S. Foundations of Antenna Engineering: A Unified Approach for Line-of-sight and Multipath; Artech House: Boston, CT, USA, 2015. [Google Scholar]
  27. Oppel, S.; Wiegner, R.; Agarwal, G.; von Zanthier, J. Directional superradiant emission from statistically independent incoherent nonclassical and classical sources. Phys. Rev. Lett. 2014, 113, 263606. [Google Scholar] [CrossRef] [PubMed]
  28. Grankin, A.; Vasilyev, D.; Guimond, P.; Vermersch, B.; Zoller, P. A’Few-Atom’Quantum Optical Antenna. arXiv, 2018; arXiv:1802.05592. [Google Scholar]
  29. Petrosyan, D.; Saffman, M.; Mølmer, K. A deterministic free-space source of single photons using Rydberg atoms. Phys. Rev. Lett 2018, 121, 123605. [Google Scholar] [CrossRef] [PubMed]
  30. Mikhalychev, A.; Mogilevtsev, D.; Slepyan, G.Y.; Karuseichyk, I.; Buchs, G.; Boiko, D.; Boag, A. Synthesis of Quantum Antennas for Shaping Field Correlations. Phys. Rev. Appl. 2018, 9, 024021. [Google Scholar] [CrossRef]
  31. Gulfman, Q.U.A.; Ficek, Z. Highly directional photon superbunching from a few-atom chain of emitters. Phys. Rev. A 2018, 98, 063824. [Google Scholar]
  32. Glauber, R.J. Photon correlations. Phys. Rev. Lett. 1963, 10, 84. [Google Scholar] [CrossRef]
  33. Glauber, R.J. The quantum theory of optical coherence. Phys. Rev. 1963, 130, 2529. [Google Scholar] [CrossRef]
  34. Kelley, P.; Kleiner, W. Theory of electromagnetic field measurement and photoelectron counting. Phys. Rev. 1964, 136, A316. [Google Scholar] [CrossRef]
  35. Liberal, I.; Ederra, I.; Li, Y. Isotropic single-photon sources. Opt. Lett. 2018, 43, 2736–2739. [Google Scholar] [CrossRef] [PubMed]

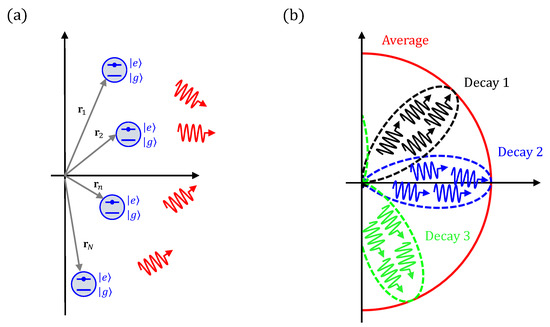

Figure 1. (a) Sketch of the geometry. An ensemble of N quantum emitters are located at positions r 1 , , r N . They are modelled as two-level systems e , g . All of these emitters are initially excited ψ = e 1 e N and decay by emitting photons. The photon emission occurs in correlated directions that depend on the geometry of the array. (b) Conceptual sketch of directional photon bunching. The average number of photons measured in a given direction has an isotropic emission pattern (solid red line), but each array decay process exhibits bunching of the photons along specific directions (dashed lines).
Figure 1. (a) Sketch of the geometry. An ensemble of N quantum emitters are located at positions r 1 , , r N . They are modelled as two-level systems e , g . All of these emitters are initially excited ψ = e 1 e N and decay by emitting photons. The photon emission occurs in correlated directions that depend on the geometry of the array. (b) Conceptual sketch of directional photon bunching. The average number of photons measured in a given direction has an isotropic emission pattern (solid red line), but each array decay process exhibits bunching of the photons along specific directions (dashed lines).
Photonics 06 00014 g001

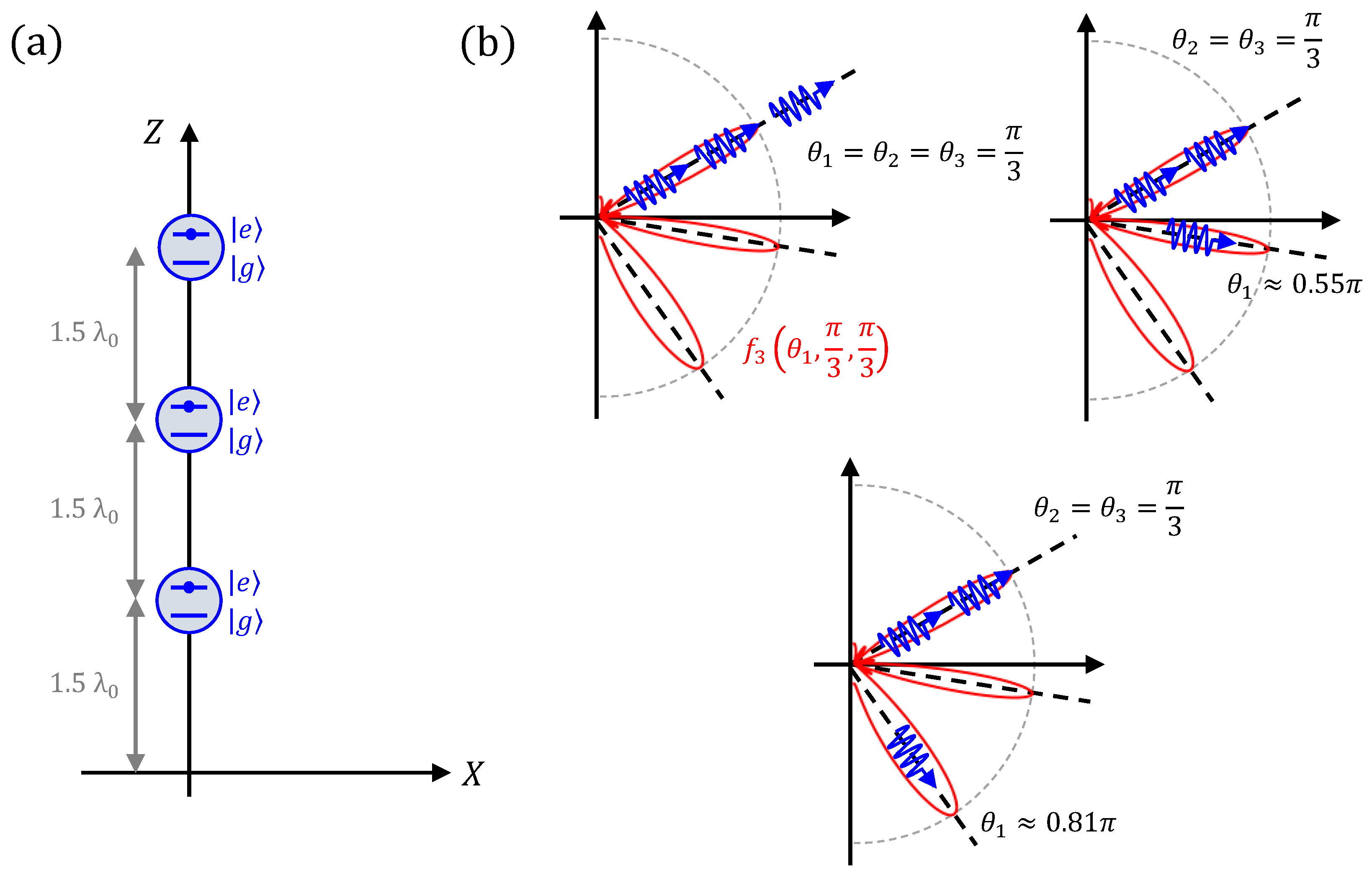

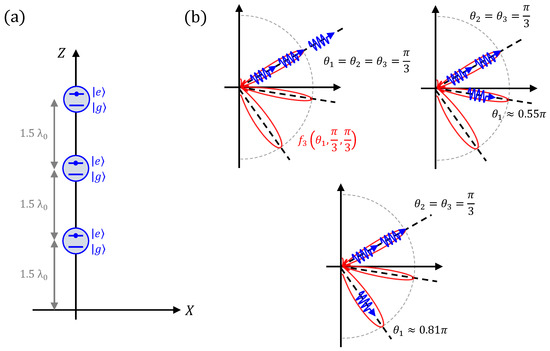

Figure 2. (a) Sketch of the geometry. A linear array of N = 3 uniformly spaced quantum emitters with position vectors r n = n d , n = 1 , 2 , 3 , and d = 1.5 λ 0 , λ 0 being the wavelength at their transition frequency, is oriented vertically along the Z-axis. (b) Sketch of three measurement outcomes with the same probability. Top-left: Three photons measured along the same direction θ 1 = θ 2 = θ 3 = π / 3 . Top-right: Two photons measured along this direction: θ 2 = θ 3 = π / 3 , and the remaining photon measured along the first grating lobe direction θ 1 = acos ( cos π 3 2 π k 0 d 0.55 π ) . Bottom-center: Two photons measured along the direction θ 2 = θ 3 = π / 3 , and the remaining photon measured along the second grating lobe direction, θ 1 = acos ( cos π 3 4 π k 0 d 0.81 π ) . For reference, the red line indicates the N th -order array factor f 3 ( θ 1 , θ 2 , θ 3 ) as a function of θ 1 and evaluated at θ 2 = θ 3 = π / 3 .
Figure 2. (a) Sketch of the geometry. A linear array of N = 3 uniformly spaced quantum emitters with position vectors r n = n d , n = 1 , 2 , 3 , and d = 1.5 λ 0 , λ 0 being the wavelength at their transition frequency, is oriented vertically along the Z-axis. (b) Sketch of three measurement outcomes with the same probability. Top-left: Three photons measured along the same direction θ 1 = θ 2 = θ 3 = π / 3 . Top-right: Two photons measured along this direction: θ 2 = θ 3 = π / 3 , and the remaining photon measured along the first grating lobe direction θ 1 = acos ( cos π 3 2 π k 0 d 0.55 π ) . Bottom-center: Two photons measured along the direction θ 2 = θ 3 = π / 3 , and the remaining photon measured along the second grating lobe direction, θ 1 = acos ( cos π 3 4 π k 0 d 0.81 π ) . For reference, the red line indicates the N th -order array factor f 3 ( θ 1 , θ 2 , θ 3 ) as a function of θ 1 and evaluated at θ 2 = θ 3 = π / 3 .
Photonics 06 00014 g002

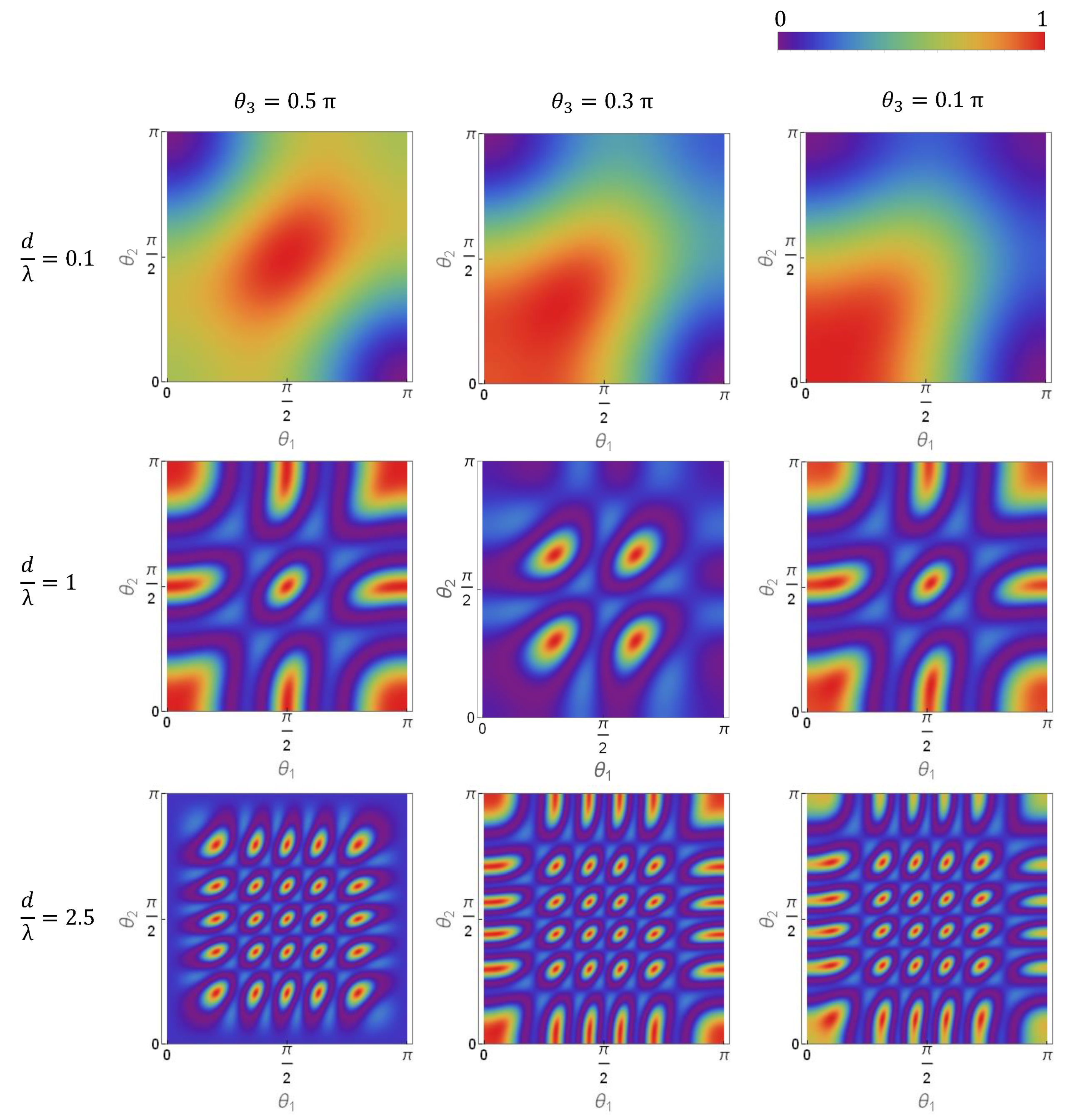

Figure 3. Quantum array factor (normalized to its maximum value) for different observation angles and emitter separation distances for a vertical linear array of N = 3 quantum emitters uniformly spaced along the Z-axis. The transition dipole moment of the emitters is assumed for the convenience to be oriented along the Z-axis, p = u z p , in order to make the quantum array factor depend only on the elevation angle θ . The normalized ( N = 3 ) -order quantum array factor, f 3 ( θ 1 , θ 2 , θ 3 ) , is explicitly shown as a function of θ 1 and θ 2 for different values of θ 3 : first column, θ 3 = 0.5 π ; second column, θ 3 = 0.3 π ; and third column, θ 3 = 0.1 π ; and as a function of the emitter separation distance d: first row, d = 0.1 λ 0 ; second row, d = 1.0 λ 0 ; and third row, d = 2.5 λ 0 , λ 0 being the wavelength at the transition frequency of the quantum emitters.
Figure 3. Quantum array factor (normalized to its maximum value) for different observation angles and emitter separation distances for a vertical linear array of N = 3 quantum emitters uniformly spaced along the Z-axis. The transition dipole moment of the emitters is assumed for the convenience to be oriented along the Z-axis, p = u z p , in order to make the quantum array factor depend only on the elevation angle θ . The normalized ( N = 3 ) -order quantum array factor, f 3 ( θ 1 , θ 2 , θ 3 ) , is explicitly shown as a function of θ 1 and θ 2 for different values of θ 3 : first column, θ 3 = 0.5 π ; second column, θ 3 = 0.3 π ; and third column, θ 3 = 0.1 π ; and as a function of the emitter separation distance d: first row, d = 0.1 λ 0 ; second row, d = 1.0 λ 0 ; and third row, d = 2.5 λ 0 , λ 0 being the wavelength at the transition frequency of the quantum emitters.
