Reexamination of Gain Theory for Intrinsic Photoconductive Devices

Abstract

The quantum efficiency $(QE)$ or gain $(G)$ of a photoconductive device is most commonly given in the literature as a ratio of carrier lifetime to transit time, allowing for a value much greater than unity. In this work, by assuming primary photoconductivity, we reexamine the photoconductive theory for the device with an intrinsic (undoped) semiconductor, with nearly zero equilibrium carrier densities. Analytic gain formula is obtained for arbitrary drift and diffusion parameters under a bias voltage and by neglecting the polarization effect due to the relative displacement in the electron and hole distributions. We find that the lifetime/transit-time ratio formula is only valid in the limit of weak field and no diffusion. Numerical simulations are performed to examine the polarization effect, confirming that it does not change the qualitative conclusions. We discuss the distinction between two $QE$ definitions used in the literature: accumulative $QE$ $\left({QE}_{acc}\right)$, considering the contributions of the flow of all photocarriers, regardless of whether they reach the electrode; and apparent $QE$ (${QE}_{app})$, measuring the photocurrent at the electrode. In general, ${QE}_{acc}>{QE}_{app}$, due to an inhomogeneous photocurrent in the channel; however, both approach the same unity limit for strong drift. We find that ${QE}_{acc} \ne { QE}_{app}$ is a deficiency of the commonly adopted constant-carrier-lifetime approximation in the recombination terms.

1. Introduction

A photoconductive device is a special type of photodetector that consists of a metal–semiconductor–metal (MSM) structure [1,2,3,4,5]. The quantum efficiency $(QE)$ or gain $(G)$ of a photoconductive device has been observed for over 150 years in a wide variety of materials [6]; however, the photoconductive gain theory still exhibits considerable controversy and ambiguity in the literature. The quantum efficiency is defined as $QE=N_c/N_{ph}$, where $N_c$ and $N_{ph}$ are the numbers of photogenerated carriers and absorbed photons per unit time, respectively. The gain is also commonly expressed as the ratio of the carrier recombination lifetime $\tau$ to the carrier transit time ${\tau }_t$ over the conductive channel [2,7,8,9,10,11,12,13,14].

$$G={\displaystyle \frac{\tau }{{\tau }_t}}.$$

(1a)

If both electrons and holes are considered, $G$ is then given as [2,8,12,13].

$$G={\displaystyle \frac{{\tau }_n}{{\tau }_{t,n}}}+{\displaystyle \frac{{\tau }_p}{{\tau }_{t,p}}},$$

(1b)

where ${\tau }_n$ and ${\tau }_p$ are the electron and hole lifetimes, respectively, whilst ${\tau }_{t,n}$ and ${\tau }_{t,p}$ are their respective transit times from one electrode to another. This simplistic equation implies that $G$ can be increased by increasing $\tau$ and/or by decreasing ${\tau }_t$. Since its initial appearance [11], Equation (1) has been widely used to explain the experimentally observed photoconductive gains for various devices: due to a long recombination lifetime [8,12,13], a short transit time by having a high carrier mobility [8,12], by increasing applied voltage [15], or by shortening channel length of the device [7,12,15]. Additionally, carrier trapping within the photoconductive channel (e.g., on the surface), thought to increase $\tau$, is often used as the mechanism for the observed high gain [8].

However, Equation (1) cannot be derived rigorously from the drift–diffusion equations with photoexcitation that govern the carrier motions. By adopting an ambipolar-transport approximation, approximate analytic solutions of the drift–diffusion equations can be obtained for cases with high background carriers from either doping or thermal excitation [3,16]. Furthermore, Equation (1) is obtained under two questionable assumptions: (1) when the detector is uniformly illuminated, the carrier distribution under an applied voltage remains uniform as in the zero bias; (2) all carriers, no matter where they are generated (i.e., at any location relative to the electrodes), contribute equally to the photocurrent. The first assumption is invalid when realistic boundary conditions (BCs), such as vanishing BCs, are applied to the MS contacts in solving the drift–diffusion equations [3,5,16,17]. More discussion on the BCs is given in the next section. The second assumption would be valid if the current of one carrier type alone could close the circuit without loss (e.g., all electrons exiting the anode return to the conduction band through the cathode). However, this assumption is inconsistent with the definition of primary photoconductivity [1,2,18,19], where one incident photon can create at most one electron–hole pair. In a steady state, an electron and a hole are needed together to close the circuit. This implicitly assumes that a conduction-band electron exiting from the anode can only return to the photoconductor through the cathode to the valence band, i.e., there is no carrier recycling within the same band. In this case, since electrons generated at a distance away from the collection electrode (i.e., anode) will decay in number while drifting toward the electrode, those generated at different distances from the electrode will contribute differently to the photocurrent. Specifically, for the carriers that either can or cannot reach the electrode, their contributions to the photocurrent are given by the ratio of their travel lengths toward collecting electrode to the channel length of the device [1,19,20,21].

To further understand the mechanism(s) of the photoconductive gain, we (re)examine a less well-studied case of the photoconductive gain theory of a MSM device, with an intrinsic or undoped semiconductor that has negligible equilibrium carrier densities, allowing for arbitrary drift and diffusion conditions [1,16,17,19]. On the one hand, this is the case closest to primary photoconductivity, but, perhaps surprisingly, has not been studied in a comprehensive manner. For instance, previous studies often neglected the effect of diffusion [1,17,19,21]. On the other hand, when diffusion was included, high equilibrium carrier densities were assumed, to adopt an ambipolar approximation [16]. However, the minimal equilibrium carrier densities have some unique advantages for certain applications. High equilibrium carrier densities lead to a high dark current. Besides the well-known drawbacks such as reduced signal-to-noise ratio, increased power consumption, dynamic range limitation, and cooling requirements, the high dark current also prevents the utilization of some of the unique effects of a photodetector with an exceptionally low dark current, for instance, recently reported optical logic and amplification functions under the illumination of two or more light beams [22,23]. For a photoconductive device with minimal equilibrium carrier densities, the key assumption, $\Delta n\left(x\right)\approx \Delta p(x)$, of the ambipolar transport approximation [24] is invalid, because the distributions of the excess electrons and holes can exhibit significant relative displacement, a polarization effect, under an external field. Thus, the treatment required for the device of interest to this work is distinctly different from the devices with high background carrier densities, because the ambipolar-transport approximation is not applicable for the former case. In fact, the theory for the intrinsic semiconductor with minimal equilibrium carrier densities has a few tricky aspects that have not been properly discussed. It could be viewed as a relaxation semiconductor with a very long dielectric relaxation time [25].

Furthermore, we note that in the literature, two subtly different $QE$ definitions have been used, but without being explicitly distinguished. One definition, which we refer to as apparent quantum efficiency (${QE}_{app}$), evaluates the photocurrent collected at the anode or cathode that should correspond to what is actually measured experimentally [19]. The other definition, which we refer to as accumulative quantum efficiency (${QE}_{acc}$), considers all photocurrents that ever flow in the device, regardless of whether they reach the electrodes [1,3,16,17,19,21].

Assuming uniform illumination, uniform electric field, constant carrier lifetime, negligible carrier diffusion and a BC of $\Delta p\left(x=0\right)=0$, the solution of the drift-only continuity equation for the excess distribution of holes (neglecting the label “p” in the subscripts of the parameters) is given below [17]

$$\Delta p\left(x\right)=g\tau \left[1-\mathit{exp}\left(-{\displaystyle \frac{x}{L_{dr}}}\right)\right],$$

(2)

where $g$ is the photogeneration rate of electron–hole pairs, $L_{dr}=\mu E\tau$ the drift length or carrier mean free path, $\mu$ the carrier mobility, and $E$ the applied electric field. By evaluating the drift current at $x=L$, where $L$ is the channel length of device, Equation (2) would lead to $QE$, equivalent to ${QE}_{app}$, given below

$${QE}_{app}={\displaystyle \frac{L_{dr}}{L}}\left[1-\mathit{exp}\left(-{\displaystyle \frac{L}{L_{dr}}}\right)\right].$$

(3)

In the limit of $L_{dr}\ll L$, one finds ${QE}_{app}\approx L_{dr}/L=\tau /{\tau }_t$; however, when $L_{dr}\gg L$, ${QE}_{app}\to 1$. Thus, if only the primary conductivity is considered, Equation (1a) appears to be an inappropriately generalized low-drift limit result of Equation (3). On the other hand, the carrier distribution given by Equation (2) can be used to calculate the photocurrent by averaging the carrier density over the channel length [17,21]. Based on this consideration, $QE$ for one type of carrier (e.g., holes), without considering carrier diffusion, is given below as [17]

$${QE}_{acc,p}={\displaystyle \frac{L_{dr}}{L}}\left\{1-{\displaystyle \frac{L_{dr}}{L}}\left[1-\mathit{exp}\left(-{\displaystyle \frac{L}{L_{dr}}}\right)\right]\right\}.$$

(4)

In fact, it can be shown that this spatial averaging scheme is equivalent to evaluate ${QE}_{acc}$ [1,19] (see Appendix A), which yields the $QE$ given by Equation (4). Only in the limiting case of $L_{dr}\ll L$, one finds ${QE}_{acc,p}\approx L_{dr}/L=\tau /{\tau }_t$. On the other hand, when $L_{dr}\gg L$, one has ${QE}_{acc,p}\to 1/2$. Therefore, if only the primary conductivity is considered, Equation (1a) appears to be an inappropriately generalized low-drift limit result of Equation (4). If both types of carriers have the same mobility and lifetime, or a mobility–lifetime product, they will contribute equally to the total ${QE}_{acc}$, given as ${QE}_{acc}={QE}_{acc,n}+{QE}_{acc,p}$, which is limited to unity when $L_{dr}\gg L$. Consequently, Equation (1b) appears to be an inappropriately generalized low conductivity limit result of Equation (4) when both types of carriers are considered.

In this work, we adopt a few common approximations, such as uniform generation of electron–hole pairs, constant electric field, as well as constant carrier mobilities and lifetimes, independent of the electric field, carrier density, and position, as commonly adopted [1,16,17,19,21]. By solving the drift–diffusion equations of electrons and holes, under arbitrary conditions of drift and diffusion, we find analytic distributions of excess electrons and holes, as well as photocurrent of an intrinsic photoconductive device with negligible equilibrium carrier densities. We further show that the gain formula given by Equation (1) is the low-drift limit result of the general expression, when the effect of diffusion is neglected. Additionally, we perform numerical simulations to examine the polarization effect, which confirms that the drift field, induced by the displaced electron and hole distributions, does not change the conclusions qualitatively. Our analytical and numerical results, consistent with the conclusion based on the simplified models in the literature [1,17,19,21,26], show a unity gain limit within the framework of primary photoconductivity. Finally, we compare the analytic results, using both $QE$ definitions, with the results of numerical simulations and discuss the deficiency and consequences of the commonly adopted constant-carrier-lifetime approximation.

2. Analytic Model

Most MSM-type photoconductive devices adopt a lateral structure, where the device is uniformly illuminated from the side, such as those in early literature [2,17,18,19,20], as well as in many recent publications using nanowire-type structures [8,27,28]. In this work, we consider lateral photoconductive devices illuminated uniformly from the top.

In a steady state, considering uniform generation, the total electron and hole carrier densities, $n\left(x\right)=n_0+\Delta n(x)$ and $p\left(x\right)=p_0+\Delta p(x)$, respectively, can be obtained by solving the drift–diffusion equations and the associated Poisson’s equation given below [12,13,16]

$$D_n{\displaystyle \frac{{\partial }^2[\Delta n(x)]}{\partial {\mathrm{x}}^2}}+{\mu }_{n}E{\displaystyle \frac{\partial [\Delta n(x)]}{\partial x}}+{\mu }_n\left[n_0+\Delta n\left(x\right)\right]{\displaystyle \frac{\partial E}{\partial x}}+G-R_n(x)=0,$$

(5a)

$$D_p{\displaystyle \frac{{\partial }^2[\Delta p(x)]}{\partial {\mathrm{x}}^2}}-{\mu }_{p}E{\displaystyle \frac{\partial [\Delta p(x)]}{\partial x}}-{\mu }_p\left[p_0+\Delta p\left(x\right)\right]{\displaystyle \frac{\partial E}{\partial x}}+G-R_p(x)=0,$$

(5b)

$${\displaystyle \frac{\partial E}{\partial x}}={\displaystyle \frac{\mathrm{q}\left[\Delta p\left(x\right)-\Delta n\left(x\right)\right]}{{\epsilon \epsilon }_0}},$$

(5c)

where $n_0$ and $p_0$ are the equilibrium carrier densities, $\Delta n(x)$ and $\Delta p(x)$ the photogenerated excess carrier densities, ${\mu }_n$ and ${\mu }_p$ the mobilities of electrons and holes, $D_n=(kT{\mu }_n)/q$ and $D_p=(kT{\mu }_p)/q$ their diffusion coefficients, $q$ the magnitude of the carrier charge, $k$ the Boltzmann’s constant, $T$ the temperature, and $G$ and $R(x)$ the generation and recombination rates of electron–hole pairs, respectively, whilst $\epsilon$ and ${\epsilon }_0$ are the relative dielectric constant of the semiconductor and the permittivity of the vacuum, respectively. For a particular case of interest to this work, we may assume $n_0=p_0=0$, and the corresponding photocurrent densities, $J_n\left(x\right)$ and $J_p\left(x\right)$ can be calculated, respectively, as below

$$J_n\left(x\right)=J_{dr,n}\left(x\right)+J_{di,n}\left(x\right)=q{\mu }_{n}E(x)\Delta n\left(x\right)+q{D}_n{\displaystyle \frac{\partial (\Delta n(x))}{\partial x}}.$$

(6a)

$$J_p\left(x\right)=J_{dr,p}\left(x\right)+J_{di,p}\left(x\right)=q{\mu }_{p}E\left(x\right)\Delta p\left(x\right)-q{D}_p{\displaystyle \frac{\partial (\Delta p(x))}{\partial x}},$$

(6b)

If the carrier recombination rates can be described by constant electron and hole lifetimes (${\tau }_n$ and ${\tau }_p$, respectively), i.e., $R_n(x)=n\left(x\right)/{\tau }_n$ and $R_p(x)=p\left(x\right)/{\tau }_p$, one can write $G-R_n(x)=g-\Delta n(x)/{\tau }_n$ and $G-R_p(x)=g-\Delta p(x)/{\tau }_p$, where $G=g_0+g$, whilst $g_0=n_0/{\tau }_n=p_0/{\tau }_p$ is the equilibrium rate of electron–hole pairs, respectively. Although the constant lifetime approximation has a few drawbacks, as discussed later, this is the only case for which analytic solutions of Equation (5) are obtainable. With this approximation, Equation (5) can be simplified as

$$L_{di,n}^2{\displaystyle \frac{{\partial }^2\Delta n(x)}{\partial {\mathrm{x}}^2}}+L_{dr,n}{\displaystyle \frac{\partial \Delta n(x)}{\partial x}}+{\mu }_n{\tau }_n\Delta n(x){\displaystyle \frac{\partial E}{\partial x}}-\Delta n(x)+g{\tau }_n=0,$$

(7a)

$$L_{di,p}^2{\displaystyle \frac{{\partial }^2\Delta p(x)}{\partial {\mathrm{x}}^2}}-L_{dr,p}{\displaystyle \frac{\partial \Delta p\left(x\right)}{\partial x}}-{\mu }_p{\tau }_p\Delta p(x){\displaystyle \frac{\partial E}{\partial x}}-\Delta p(x)+g{\tau }_p=0,$$

(7b)

$${\displaystyle \frac{\partial E}{\partial x}}={\displaystyle \frac{\mathrm{q}\left[\Delta p\left(x\right)-\Delta n\left(x\right)\right]}{{\epsilon \epsilon }_0}},$$

(7c)

where $L_{dr,n}=E{\mu }_n{\tau }_n$ and $L_{dr,p}=E{\mu }_p{\tau }_p$ are the drift lengths of electrons and holes, respectively, whilst $L_{di,n}=\sqrt{D_n{\tau }_n}$ and $L_{di,p}=\sqrt{D_p{\tau }_p}$ are the corresponding diffusion lengths. The $\partial \mathrm{E}/\partial \mathrm{x}$ term ∝ $\Delta p\left(x\right)-\Delta n\left(x\right)$ in the drift–diffusion equation describes a charge polarization effect associated with the relative displacement of the electron and hole distributions induced by the external bias. The relative displacement of the electron and hole distributions leads to a polarization effect that modifies the field within the channel, e.g., screening or weakening the field in the central part of the channel. However, it might enhance the field somewhere closer to the electrodes. It can be seen from Equation (7c) that the impact of the $\partial \mathrm{E}/\partial \mathrm{x}$ term is inversely scaled by the square of a normalized Debye length $l_D=L_D/L$, where $L_D=\sqrt{{\displaystyle \frac{\epsilon {\epsilon }_{0}kT}{{\mathrm{q}}^{2}g\tau }}}$ and $\tau =\sqrt{{{\tau }_n\tau }_p}$. Qualitatively, for a small $g\tau$ value or a large $l_D$, the polarization effect is negligible.

Further, we assume $\partial \mathrm{E}/\partial \mathrm{x}\approx 0$ or the external field being much stronger than this perturbation [1,3,5,16,17,19,27]. The impact of this assumption is later examined by numerical simulations. Under this approximation, Equation (7a,b) can be solved analytically and separately. However, despite that Equation (7a,b) can be solved independently for different mobilities and lifetimes of electrons and holes, i.e., ${\mu }_n\ne {\mu }_p$ and ${\tau }_n\ne {\tau }_p$, we note that the obtained solutions would be unphysical in two aspects: (1) the photocurrents at the anode (mostly the electron current) and the cathode (mostly the hole current) would be different, which disrupts the basic requirement of the current continuity in the external circuit and (2) the solutions for the carrier densities do not satisfy the overall charge neutrality within the photoconductive channel. These pitfalls have not been noticed previously in the literature. Since our focus is to determine the limiting value of the gain, we, therefore, first adopt additional assumptions of equal mobilities and equal lifetimes of electrons and holes, i.e., ${\mu }_n={\mu }_p$ and ${\tau }_n={\tau }_p$. Because ${\mu }_n{\tau }_n\ne {\mu }_p{\tau }_p$ tends to reduce the gain compared to that with the equal product of the larger one, this additional constraint does not affect the conclusion regarding the maximum gain value. Nevertheless, we later examine effects by removing these assumptions.

Depending on the assumption of the nature of the MS contacts, different BCs have been used in the literature. Solving the drift–diffusion equation typically requires two BCs. Often, the carrier densities at the electrodes are assumed to be equal to the thermal equilibrium values or to be zero [3,5,16,27]. However, we adopt a different set of BCs by assuming perfect carrier extraction at the electrodes. Mathematically, the carrier extraction by the electrode can be treated as equivalent to the surface recombination at the MS interface, with standard BCs [29]: $D_n{\displaystyle \frac{d\left(\Delta n\left(x\right)\right)}{dx}}=s\Delta n\left(x\right)$ at $x=0$ and $-D_n{\displaystyle \frac{d\left(\Delta n\left(x\right)\right)}{dx}}=s\Delta n\left(x\right)$ at $x=L$ for the electrons (and similarly for the holes), where $s$ is the electrode extraction velocity (resembling the surface recombination velocity). We take the limit of $s\to \infty$ for perfect extraction. These BCs are appropriate for a Schottky junction, with the metal work function $W$ significantly larger than the semiconductor electron affinity $\chi$, i.e., $W-\chi \gg kT$, where the electrons encounter a “cliff” at the contacts [1]. $s\to \infty$ implies that the carrier density goes to zero at the boundary, but the gradient is expected to be finite there. Thus, the solution will be the same as simply applying the vanishing BCs.

The solution of Equation (7b) (neglecting the label “p” in the subscripts of the parameters) is given below

$$\Delta p\left(x\right)=g\tau \left[1-c_1\mathit{exp}\left(-x{\lambda }_{+}\right)-c_2\mathit{exp}\left(-x{\lambda }_{-}\right)\right],$$

(8)

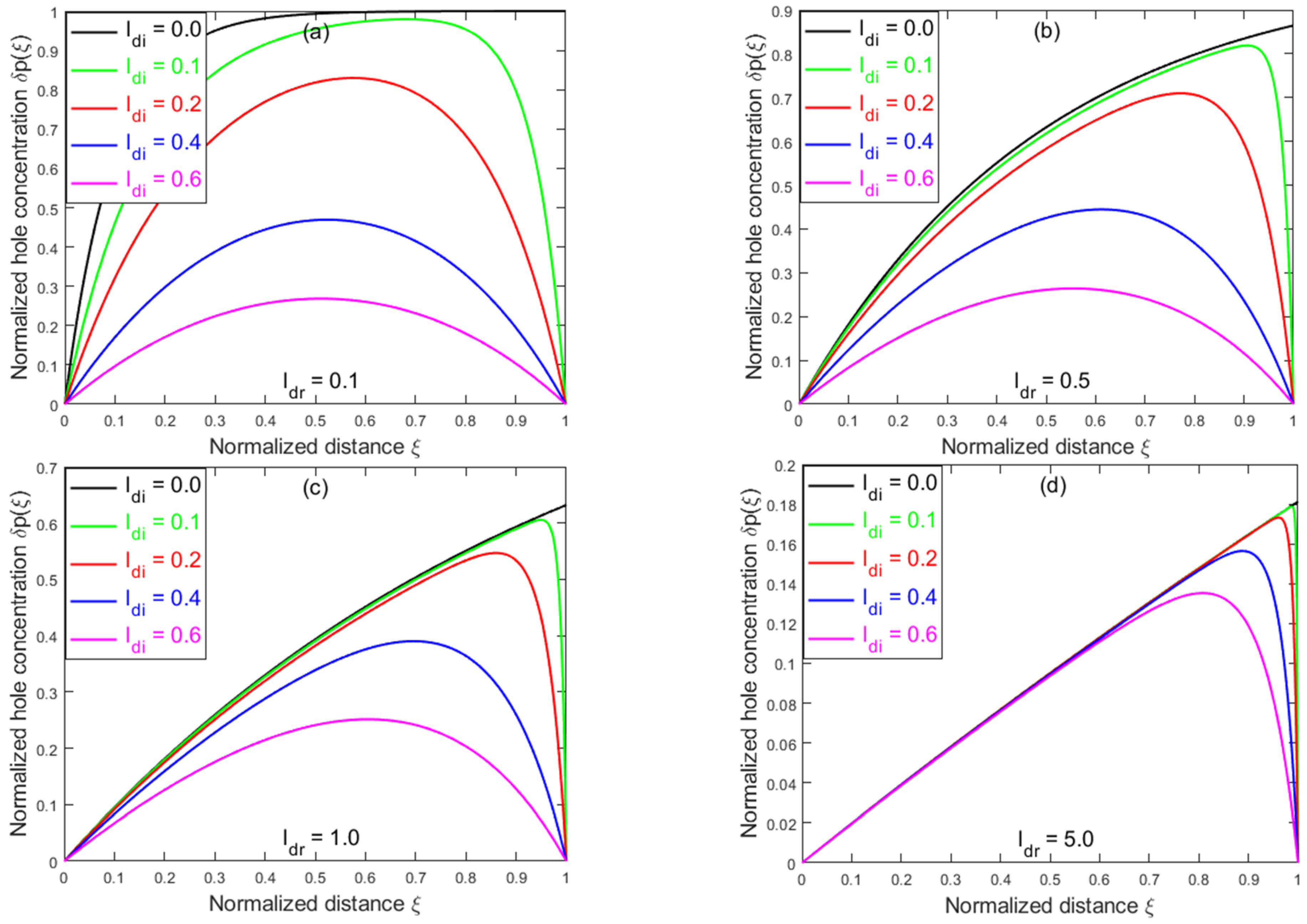

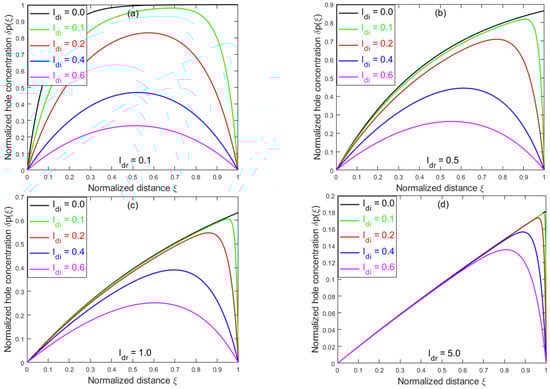

where ${\lambda }_{\pm }={\displaystyle \frac{-L_{dr}\pm \sqrt{L_{dr}^2+4L_{di}^2}}{2L_{di}^2}}$, $c_1={\displaystyle \frac{\mathit{exp}\left(-L{\lambda }_{-}\right)-1}{\mathit{exp}\left(-L{\lambda }_{-}\right)-\mathit{exp}\left(-L{\lambda }_{+}\right)}}>0$, $c_2={\displaystyle \frac{1-\mathit{exp}\left(-L{\lambda }_{+}\right)}{\mathit{exp}\left(-L{\lambda }_{-}\right)-\mathit{exp}\left(-L{\lambda }_{+}\right)}}>0$ [5,27]. The solution for electrons $\Delta n\left(\mathrm{x}\right)$ can be obtained by substituting $x$ with $L-x$ in Equation (8). As $L_{di}\to 0$, Equation (8) recovers the drift-only result of Equation (2) in $\left[x,\right.\left.L\right)$ [17]. Note that $\Delta n\left(\mathrm{x}\right)$ and $\Delta p\left(\mathrm{x}\right)$ depend only on two parameters: normalized drift length $l_{dr}=L_{dr}/L$ and normalized diffusion length $l_{di}=L_{di}/L$, when expressed as normalized densities $\delta n\left(\xi \right)=\Delta n\left(x\right)/\left(g\tau \right)$ and $\delta p\left(\xi \right)=\Delta p\left(x\right)/\left(g\tau \right)$, where $\xi =x/L$ is the normalized coordinate. Figure 1 plots the normalized carrier density $\delta p\left(\xi \right)$ for $\left(l_{dr}=0.1,0.5,1.0,5.0;l_{di}=0,0.1,0.2,0.4,0.6\right).$ Generally, $\delta p\left(\xi \right)$ is highly nonuniform and asymmetric in the photoconductive channel and it is more symmetric as diffusion becomes more dominant. Evidently, only in the low-drift and low-diffusion case (e.g., $l_{dr}=0.1 \mathrm{a}\mathrm{n}\mathrm{d} l_{di}=0.1$ in Figure 1a), $\delta p\to 1$ (i.e., $\Delta p\to g\tau$) on the cathode side. This is in stark contrast to the common assumption of $\Delta p=g\tau$, which leads to highly questionable Equation (1).

After being normalized to the maximum photocurrent $J_{max}=qgL$ and by introducing normalized coefficients, ${\Lambda }_{+}=L{\lambda }_{+}$ and ${\Lambda }_{-}=L{\lambda }_{-}$, the photocurrent density of the holes can be calculated by using Equation (7b) as given below

$$j_p\left(\xi \right)=J_p(\xi )/(qgL)=j_{dr,p}\left(\xi \right)+j_{di,p}\left(\xi \right),$$

(9)

where $j_{dr,p}\left(\xi \right)=l_{dr}\left[1-c_1\mathit{exp}\left(-\xi {\mathsf{\Lambda }}_{+}\right)-c_2\mathit{exp}\left(-\xi {\mathsf{\Lambda }}_{-}\right)\right]$ is the drift current with diffusion, whilst $j_{di,p}\left(\xi \right)=l_{di}^2\left[-c_1 {\mathsf{\Lambda }}_{+}\mathit{exp}\left(-\xi {\mathsf{\Lambda }}_{+}\right)-c_2 {\mathsf{\Lambda }}_{-}\mathit{exp}\left(-\xi {\mathsf{\Lambda }}_{-}\right)\right]$ is the diffusion current with drift. As $l_{di}\to 0$, it recovers the drift-only result in $\left[\xi ,\right.\left.1\right)$: $j_p\left(\xi \right)=l_{dr}\left[1-\mathit{exp}\left(-\xi /l_{dr}\right)\right]$ [19]. Again, the electron photocurrent density $j_n\left(\xi \right)$ can be obtained by substituting $\xi$ with $(1-\xi )$ in Equation (9). Both $j_p\left(\xi \right)$ and $j_n\left(\xi \right)$ are, in general, highly nonuniform. Figure 2 plots $j_p\left(\xi \right)$ using the same parameters (without $l_{di}=0.1$) as in Figure 1.

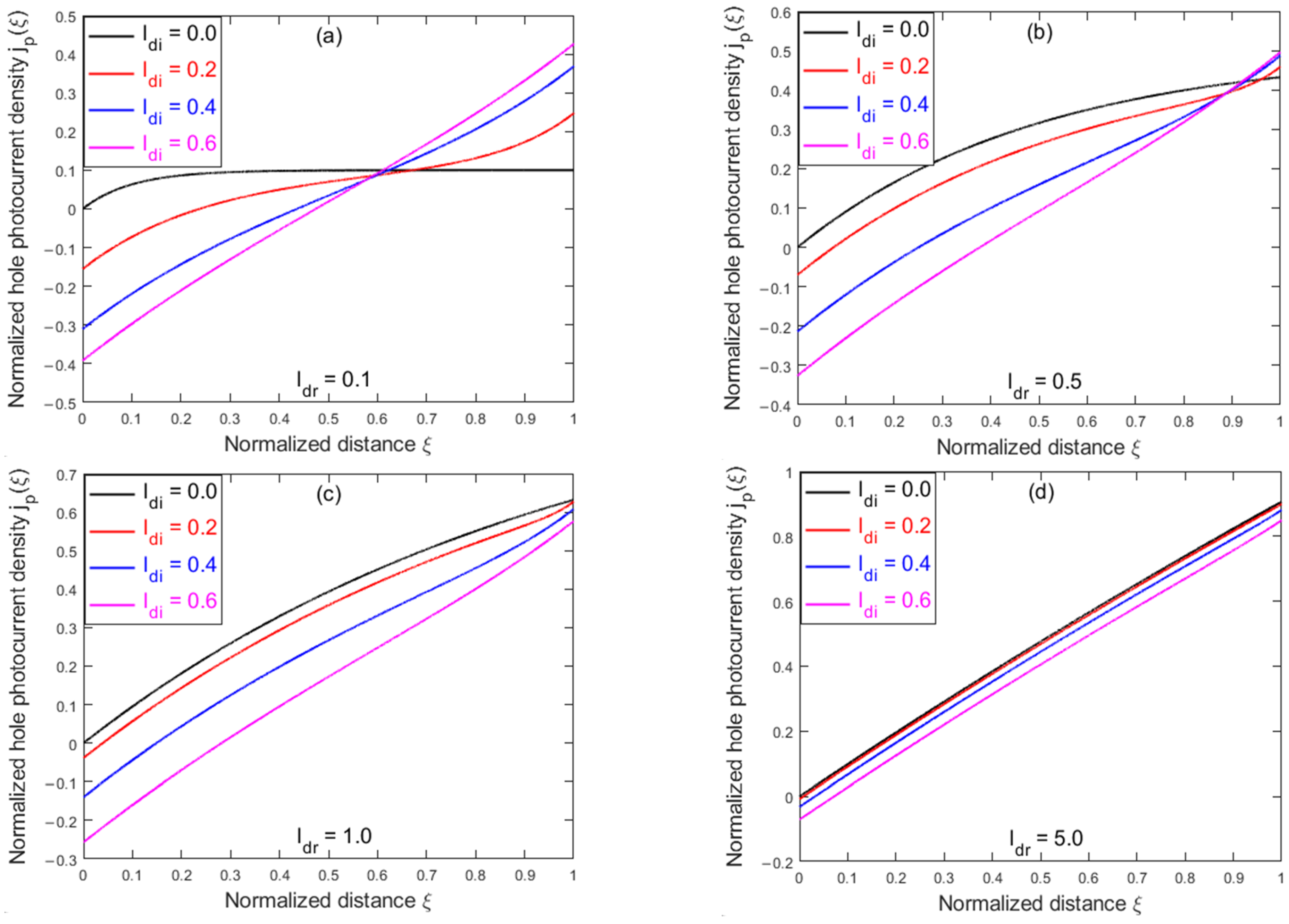

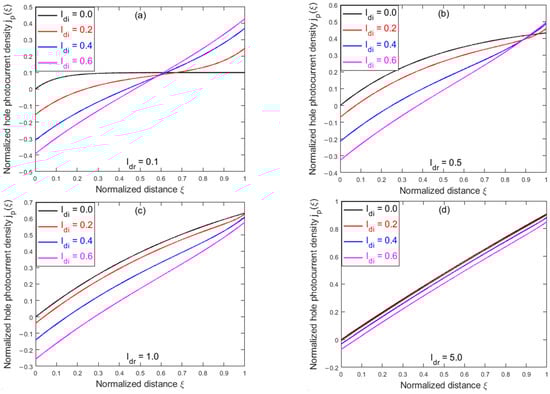

Due to the bidirectional nature of the carrier diffusion, a diffusion typically results in reduction in the net photocurrent. As shown in Figure 2a, with a fixed $l_{dr}$ while increasing $l_{di}$, $j_p(\xi =0)$ at the anode decreases (becoming more negative), whereas $j_p(\xi =1)$ at the cathode increases. For a small $l_{dr}$ and large $l_{di}$ (e.g., $l_{dr}=0.1$ and $l_{di}=0.6$ in Figure 2a), $j_p\left(\xi \right)$ is close to being anti-symmetric with respect to the center; thus, the average photocurrent is expected to be small (exactly zero for $l_{dr}=0$), as expected for the diffusion dominating case. However, the diffusion effect is suppressed with increasing drift length $l_{dr}$, i.e., for a fixed $l_{di}$, $j_p(\xi )$ increases with increasing $l_{dr}$ from Figure 2a–d. For a large $l_{dr}$ and small $l_{di}$ (e.g., $l_{dr}=5$.0 and $l_{di}=0.2$ in Figure 2d), $j_p\left(\xi \right)$ is positive in almost the whole channel and approaches unity at $\xi =1$, as expected for the drift-only case.

The total normalized photocurrent density, $j\left(\xi \right)=J(\xi )/(qgL)=j_n\left(\xi \right)+j_p\left(\xi \right)$, including the contributions of both electrons and holes, can be calculated as

$$j\left(\xi \right)=j_{dr}\left(\xi \right)+j_{di}\left(\xi \right),$$

(10)

With the drift term $j_{dr}\left(\xi \right)=2l_{dr}\left\{1-c_1\mathit{exp}\left(-{\displaystyle \frac{{\mathsf{\Lambda }}_{+}}{2}}\right)\mathit{cosh}\left[{\mathsf{\Lambda }}_{+}\left(\xi -{\displaystyle \frac{1}{2}}\right)\right]-c_2\mathit{exp}\left(-{\displaystyle \frac{{\mathsf{\Lambda }}_{-}}{2}}\right)\mathit{cosh}\left[{\mathsf{\Lambda }}_{-}\left(\xi -{\displaystyle \frac{1}{2}}\right)\right]\right\}$ and the diffusion term $j_{di}\left(\xi \right)=2l_{di}^2\left\{{-c}_1{\mathsf{\Lambda }}_{+}\mathit{exp}\left(-{\displaystyle \frac{{\mathsf{\Lambda }}_{+}}{2}}\right)\mathit{cosh}\left[{\mathsf{\Lambda }}_{+}\left(\xi -{\displaystyle \frac{1}{2}}\right)\right]-c_2{\mathsf{\Lambda }}_{-}\mathit{exp}\left(-{\displaystyle \frac{{\mathsf{\Lambda }}_{-}}{2}}\right)\mathit{cosh}\left[{\mathsf{\Lambda }}_{-}\left(\xi -{\displaystyle \frac{1}{2}}\right)\right]\right\}$. The photocurrent density, $j\left(\xi =0\right)$ or $j\left(\xi =1\right)$, at the anode or cathode, respectively, represents the actual photocurrent that goes through the external circuit and can be directly measured. A short-circuit condition is implicitly assumed in the calculation. Thus, $j\left(\xi =0\right)=j\left(\xi =1\right)$ or more generally $J\left(x=0\right)=J\left(x=L\right)$ is expected, as indeed yielded by Equation (10), which further constrains the selection of the BCs at the electrodes.

We then calculate ${QE}_{app}$ as given below

$${QE}_{app}=l_{dr}\left[1-\alpha csch\left(\alpha \beta \right)sinh\left(\beta \right)\right],$$

(11)

where $\alpha =\sqrt{1+4{\displaystyle \frac{l_{di}^2}{l_{dr}^2}}}$ and $\beta ={\displaystyle \frac{l_{dr}}{2l_{di}^2}}$. Note that Equation (10) yields $j_{dr}\left(\xi =0\right)=j_{dr}\left(\xi =1\right)=0$, as a direct result of adopting vanishing BCs. Thus, ${{QE}_{app}=j}_{di}\left(\xi =0\right)=j_{di}\left(\xi =1\right)$. Although Equation (11) is from the “diffusion part” of Equation (6b) or $j_{di}\left(\xi \right)$ in Equation (10), it recovers the result of drift-only current given by Equation (3) when $l_{di}\to 0$. When $l_{dr}\ll 1$, $Q{E}_{app}$ can be expanded to the first order in $l_{dr}$

$${QE}_{app}\approx l_{dr}\left[1-{\displaystyle \frac{1}{l_{di}}}\mathit{csch}\left({\displaystyle \frac{1}{l_{di}}}\right)\right].$$

(12)

When $l_{di}\to 0$ and $l_{dr}\ll 1$, ${QE}_{app}\approx l_{dr}$, the same as Equation (1a). As $l_{dr}\gg 1$, ${QE}_{app}\to 1$, as does Equation (3). By calculating the spatially averaged photocurrent density, we obtain the $Q{E}_{acc}$ for holes:

$$Q{E}_{acc,p}=l_{dr}\left\{1-l_{dr}\alpha \left[\coth \left(\alpha \beta \right)-csch\left(\alpha \beta \right)\mathrm{c}\mathrm{o}\mathrm{s}\mathrm{h}(\beta )\right]\right\}.$$

(13)

Note that the spatial average of the “diffusion term” in Equation (6b) is identically zero for any $l_{dr}$ and $l_{di}$; thus, only the “drift term” contributes to the photocurrent. For $l_{di}\to 0$, ${QE}_{acc,p}$ becomes Equation (4); when $l_{dr}\ll 1$, ${QE}_{acc,p}\approx l_{dr}$ and when $l_{dr}\gg 1$, ${QE}_{acc,p}\to 1/2$. The total ${QE}_{acc}$ is given by ${QE}_{acc}={QE}_{acc,n}+{QE}_{acc,p}$, which is simply $2{QE}_{acc,p}$ or $2{QE}_{acc,n}$, when ${\mu }_n={\mu }_p$ and ${\tau }_n={\tau }_p$. Thus, ${QE}_{acc}$ also has a unity limit. For a finite $l_{di}$, when $l_{dr}\ll 1$, $Q{E}_{acc,p}$ can be expanded to the first order in $l_{dr}$, yielding:

$$Q{E}_{acc,p}\approx l_{dr}\left[1-{2l}_{di}\mathit{tanh}\left({\displaystyle \frac{1}{{2l}_{di}}}\right)\right].$$

(14)

This result is consistent with [3], where the zero-field carrier density distribution is used for the calculation. When $l_{di}\to 0$ and $l_{dr}\ll 1$, ${QE}_{acc}\approx {2l}_{dr}$, consistent with Equation (1b).

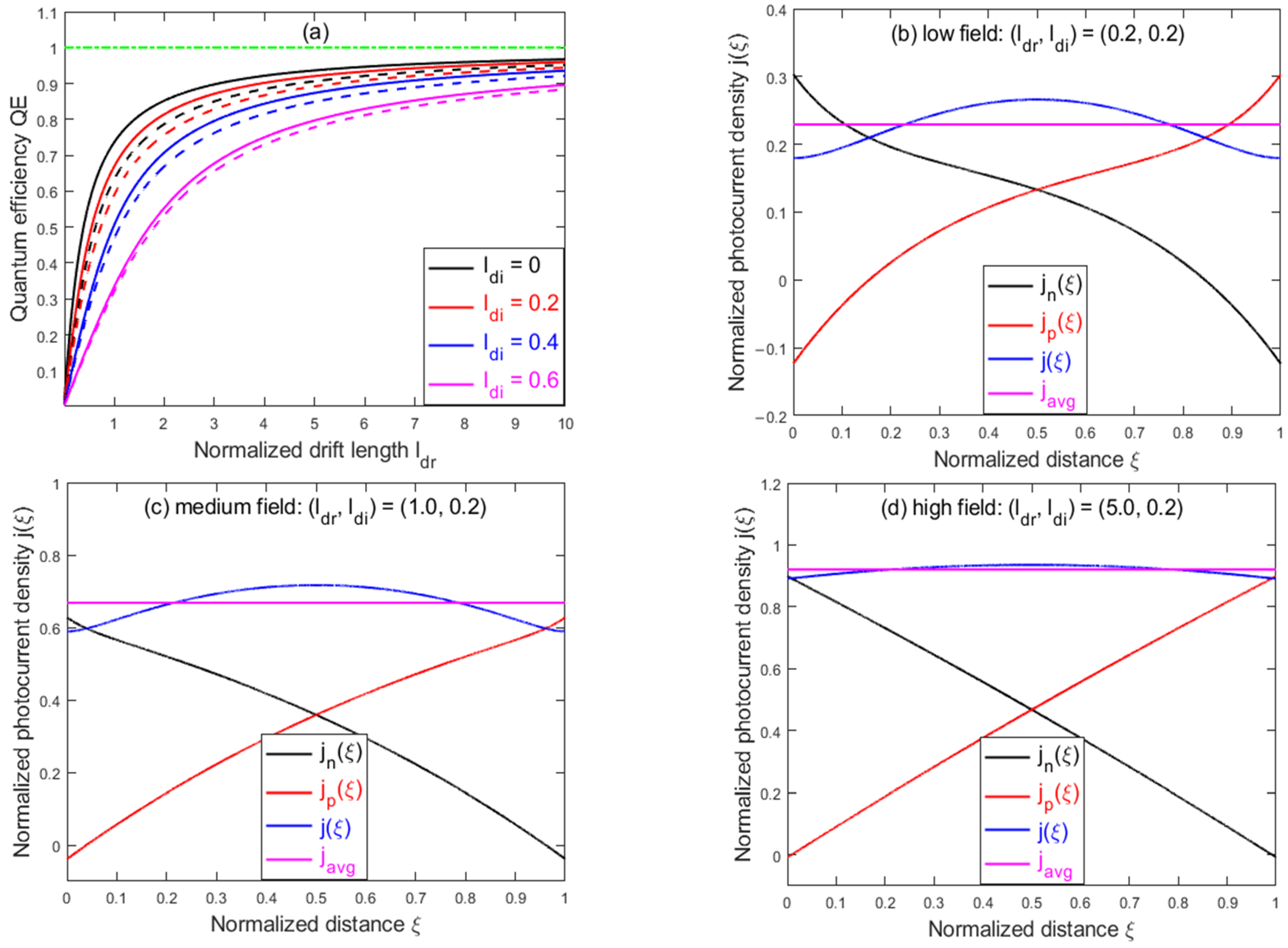

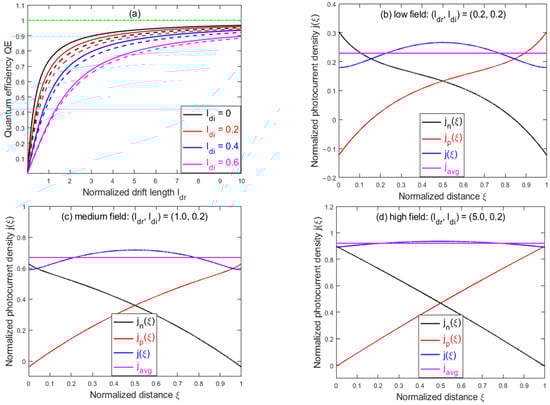

Figure 3a plots ${QE}_{app}$ and ${QE}_{acc}$ vs. $l_{dr}$ for $l_{di}=0, 0.2, 0.4$, and $0.6$, showing ${{QE}_{acc}>QE}_{app}$ in general. Both $QE$ approach the unity limit as $l_{dr}\gg 1$, which is true even as $l_{di}\to 0$, as also shown in Figure 3a. In the limit of $l_{di}\to 0$ and $l_{dr}\ll 1$, ${QE}_{acc}\to 2l_{dr}$, whereas $Q{E}_{app}\to l_{dr}$. Here, a factor of 2 difference is because of $j_p\left(\xi =1\right)\to l_{dr}$, but $j_n\left(\xi =1\right)\to 0$ or $j_n\left(\xi =0\right)\to l_{dr}$ and $j_p\left(\xi =0\right)\to 0$, whereas both $j_n(\xi )$ and $j_p(\xi )$ are averaged to $l_{dr}$. On the other hand, in the limit of $l_{dr}\gg 1$, $j_p\left(\xi =1\right)\to 1$ and $j_n\left(\xi =1\right)\to 0$, whilst $j_n\left(\xi =0\right)\to 1$ and $j_p\left(\xi =0\right)\to 0$, i.e., at each electrode only one type of carrier contributes to the photocurrent, which contradicts the commonly accepted Equation (1b), where both the electrons and holes contribute to the photocurrent at each electrode. The situation is like the short-circuit current calculation in a solar cell, where only one type of carrier is considered, even though a uniform carrier distribution is assumed [30]. It can also be seen from Figure 3a that the diffusion effect, which results in the bidirectional motion of the carriers, tends to reduce the photocurrent, compared to the drift-only case where the carrier motion is unidirectional under the applied field. Figure 3b–d compare $j_n\left(\xi \right)$, $j_p\left(\xi \right)$, and $j\left(\xi \right)=j_n\left(\xi \right)+j_p\left(\xi \right)$ with the spatially averaged value $j_{avg}$ (equivalent to ${QE}_{acc}$) for three representative ($l_{dr},l_{di}$) combinations: low field $\left(0.2, 0.2\right)$, medium field $\left(1.0, 0.2\right)$, and high field $\left(5.0, 0.2\right)$, respectively, and illustrate how each type of carrier contributes to the total photocurrent at different field strengths measured by $l_{dr}$. When diffusion is significant, as in Figure 3b, $j_n(\xi )$ and $j_p(\xi )$ tend to have opposite signs and partially cancel each other at the electrodes, yielding a smaller net photocurrent. However, when the drift is dominant, as in Figure 3d, one of $j_n(\xi )$ and $j_p(\xi )$ diminishes at the respective electrode, yielding a larger net photocurrent, approaching $j_{avg}$. Physically, the cancelation of the $j_n(\xi =0)$ and $j_p(\xi =0)$ can be understood as that some electrons reaching the anode may go back to the valence band directly, instead of flowing through the external circuit, which is equivalent to saying that some holes diffuse out from the anode. In the case with diminished diffusion, $\delta p\left(\xi =0\right)\to 0$, no empty state in the valance band is available for the electrons to fill. Thus, the whole electron current flows through the external circuit and is the total current at the anode.

Interestingly, under the commonly adopted assumption of constant lifetimes, the total photocurrent $j\left(\xi \right)$ is typically nonuniform, as shown in Figure 3b–d. The spatial modulation is more prominent in the case of low field or a small $l_{dr}$ as shown in Figure 3b, but as the applied field increases, $j\left(\xi \right)\to j_{avg}$, as shown in Figure 3d. This spatial nonuniformity of the current is inconsistent with the conventional wisdom that the current should be constant throughout the circuit under continuous and uniform illumination [31]. However, from Equations (6) and (7), one finds $dJ/dx=\left(q/\tau \right)\left[\Delta n\left(x\right)-\Delta p\left(x\right)\right]\ne 0$. The inhomogeneity decreases with increasing $l_{dr}$, since the significance of the recombination term diminishes. Fundamentally, this current inhomogeneity is caused by the deficiency of the constant-carrier-lifetime assumption for describing the carrier recombination. More generally, we should expect that $dJ\left(x\right)/dx={q[U}_n\left(x\right)-U_p\left(x\right)]=0$, since in the steady state, condition $U_n\left(x\right)=U_p\left(x\right)$ is required. This equality is obvious for the inter-band radiative recombination, usually expressed as $R=Bnp$, where $B$ is the radiative recombination coefficient. For the recombination through trap states, the Shockley–Read–Hall (SRH) model [32,33] automatically ensures equality. If $U_n\left(x\right)=U_p\left(x\right)$ is enforced in the drift–diffusion equations, we expect the two $QE$ definitions to be equivalent. Other non-desirable effects of the constant-carrier-lifetime approximation have also been discussed in the past [31]. Thus, a more comprehensive model should be developed to eliminate this deficiency, as shown as necessary for other problems [34,35]. However, the drift–diffusion equations become nonlinear where analytic solutions are not obtainable and even numerical solutions are much more challenging [31].

3. Numerical Solutions

To obtain the analytic solutions of drift–diffusion equations, we have assumed $\partial \mathrm{E}/\partial \mathrm{x}=0$. When applying the commonly adopted vanishing BCs within the constant-lifetime approximation, we have further assumed ${\mu }_n={\mu }_p$ and ${\tau }_n={\tau }_p$, to yield physically meaningful results. Here, we use numerical approaches to discuss the impacts of these approximations.

We first address the polarization effect, caused by the relative displacement of the electron and hole distributions, i.e., $\Delta n\left(x\right)-\Delta p\left(x\right)\ne 0$, and induced by the applied field $E_0=V/L$. The polarization effect is expected to be strong for small $l_D$ (corresponding to a large $g\tau$ value) and $l_{dr}$ values. Either a large $l_D$ or $l_{dr}$ diminishes the excess carrier densities in the channel, thus, the polarization field. If the total field is written as $E\left(x\right)=E_0+\delta E\left(x\right)$, the change in the $E$ field $\delta E\left(x\right)$ can be expressed in terms of a potential $\Phi \left(x\right)$ through $\delta E\left(x\right)=-d\Phi \left(x\right)/dx.$ Besides the $\partial \mathrm{E}/\partial \mathrm{x}$ term, $\delta E\left(x\right)$ also affects the drift term, changing $l_{dr}$ to $l_{dr,0}[1+$ $\delta E\left(x\right)/E_0]$, where $l_{dr,0}$ is the drift length determined solely by $E_0$. By defining $\varphi =\mathrm{\Phi }/V_t$ with $V_t=kT/q$, one can write $\delta E\left(x\right)/E_0=$  $-{\varphi }^{\prime }(\xi )/{\varphi }_0$ with ${\varphi }_0=l_{dr,0}{/l}_{di}^2=V/V_t$. Equation (7) can be then modified as given below

$${\displaystyle \frac{{\partial }^2\delta n(\xi )}{\partial {\xi }^2}}+{\displaystyle \frac{l_{dr,n,0}}{l_{di,n}^2}}{\displaystyle \frac{\partial \delta n(\xi )}{\partial \xi }}-k\left({\displaystyle \frac{\partial (\delta n\left(\xi \right))}{\partial \xi }}{\displaystyle \frac{\partial \varphi \left(\xi \right)}{\partial \xi }}+\delta n(\xi ){\displaystyle \frac{{\partial }^2\varphi \left(\xi \right)}{\partial {\xi }^2}}\right)-{\displaystyle \frac{\delta n\left(\xi \right)}{l_{di,n}^2}}+{\displaystyle \frac{1}{l_{di,n}^2}}=0,$$

(15a)

$${\displaystyle \frac{{\partial }^2\delta p(\xi )}{\partial {\xi }^2}}-{\displaystyle \frac{l_{dr,p,0}}{l_{di,p}^2}}{\displaystyle \frac{\partial \delta p\left(\xi \right)}{\partial \xi }}+k\left({\displaystyle \frac{\partial (\delta p\left(\xi \right))}{\partial \xi }}{\displaystyle \frac{\partial \varphi \left(\xi \right)}{\partial \xi }}+\delta p(\xi ){\displaystyle \frac{{\partial }^2\varphi \left(\xi \right)}{\partial {\xi }^2}}\right)-{\displaystyle \frac{\delta p\left(\xi \right)}{l_{di,p}^2}}+{\displaystyle \frac{1}{l_{di,p}^2}}=0,$$

(15b)

$${\displaystyle \frac{{\partial }^2\varphi (\xi )}{\partial {\xi }^2}}-{\displaystyle \frac{\left(\delta n\left(\xi \right)-\delta p\left(\xi \right)\right)}{l_D^2}}=0,$$

(15c)

where $l_{dr,n,0}$ and $l_{dr,p,0}$ are, respectively, the drift lengths for electrons and holes determined solely by the external applied field, whilst $k=0$ or $k=1$ indicates the absence or presence of the polarization effect, respectively.

Solving the coupled nonlinear equations numerically is challenging for an arbitrarily small $l_D$. Here, the goal is to qualitatively understand the potential impact of the polarization effect. For a not-too-small $l_D$ (e.g., $l_D\ge 0.1$), Equation (15) can be solved numerically for $k=1$ using an iterative method developed in this work. For simplicity, we still adopt ${\mu }_n={\mu }_p$ and ${\tau }_n={\tau }_p$, while applying the same BCs: $\delta n\left(\xi =0\right)=\delta n\left(\xi =1\right)=\delta p\left(\xi =0\right)=\delta p\left(\xi =1\right)=0$ and $\varphi \left(\xi =0\right)=\varphi \left(\xi =1\right)=0$. Explicitly, by setting $k=0$, we first obtain the 0-th order carrier concentrations ${\delta n}_0\left(\xi \right)$ and ${\delta p}_0\left(\xi \right)$, by solving Equation (15a,b), then use the results in Equation (15c) to solve for the 0-th order potential ${\varphi }_0\left(\xi \right)$; next, using ${\varphi }_0\left(\xi \right)$, and setting $k=1$, to solve for ${\delta n}_1\left(\xi \right)$ and ${\delta p}_1\left(\xi \right)$. This process is repeated until the results converge (typically within 10 iterations). The photocurrents at i-th iteration are evaluated as

$$j_{n,i}\left(\xi \right)=l_{dr,n,0}\left(1-k{\displaystyle \frac{l_{di,n}^2}{l_{dr,n,0}}}{\varphi }_{i-1}^{\prime }\left(\xi \right)\right){\delta n}_i\left(\xi \right)+l_{di,n}^2{\displaystyle \frac{\partial (\delta n_i\left(\xi \right))}{\partial \xi }},$$

(16a)

$$j_{p,i}\left(\xi \right)=l_{dr,p,0}\left(1-k{\displaystyle \frac{l_{di,p}^2}{l_{dr,p,0}}}{\varphi }_{i-1}^{\prime }\left(\xi \right)\right){\delta p}_i\left(\xi \right)-l_{di,p}^2{\displaystyle \frac{\partial (\delta p_i\left(\xi \right))}{\partial \xi }},$$

(16b)

$$j_i\left(\xi \right)=j_{n,i}\left(\xi \right)+j_{p,i}\left(\xi \right).$$

(16c)

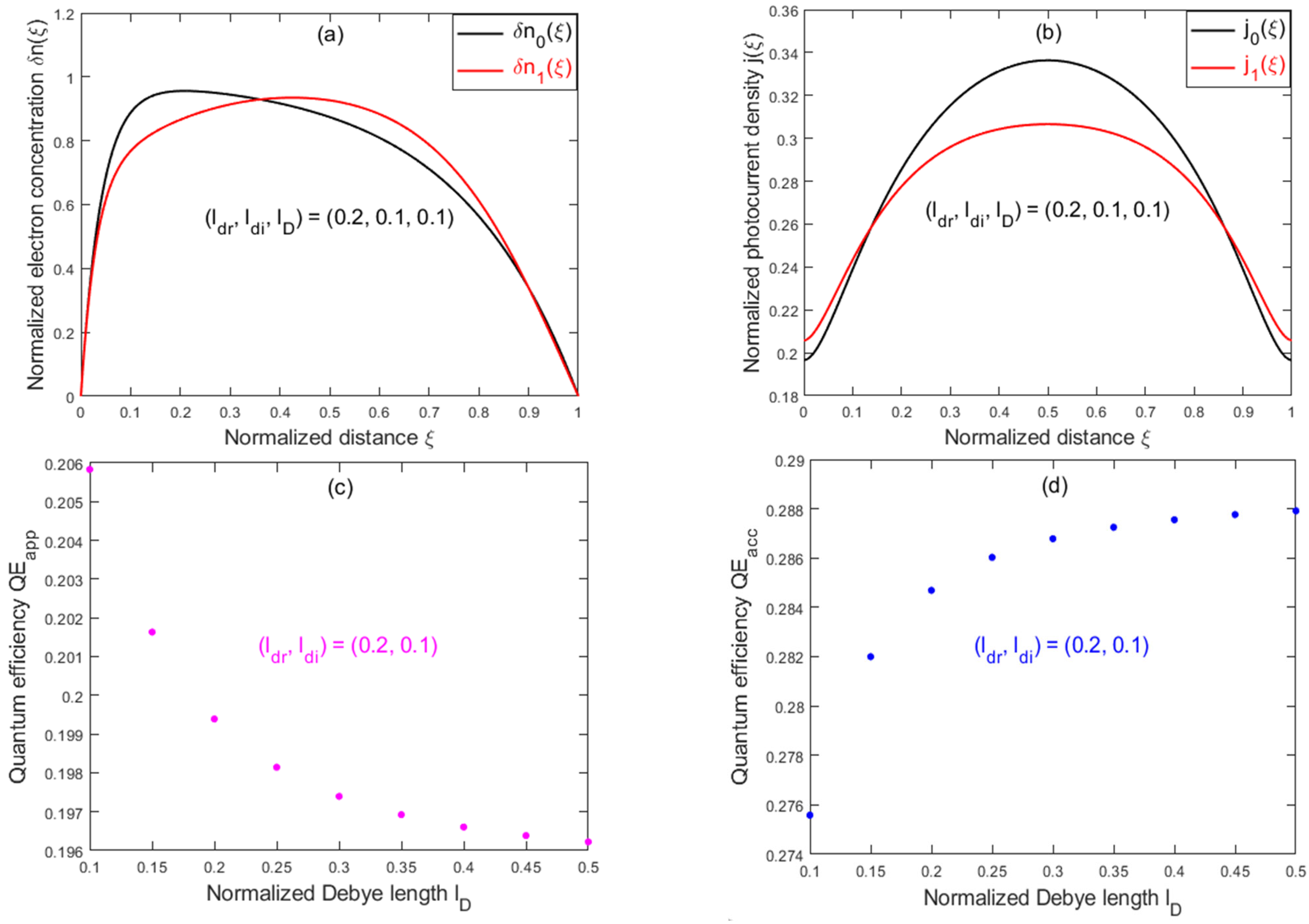

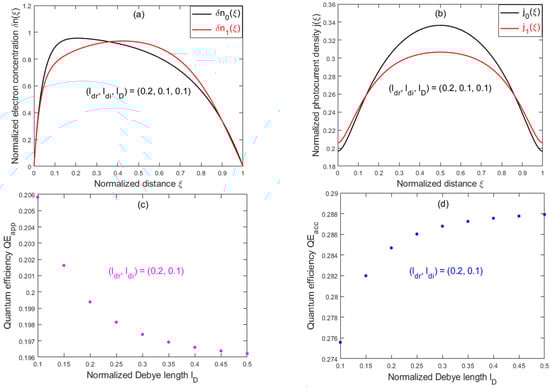

Figure 4 illustrates the impact of the polarization effect on different quantities, assuming $\left(l_{dr},l_{di}{, l}_D\right)=\left(0.2, 0.1, 0.1\right)$, (e.g., a possible combination of a moderately high excitation condition: $\epsilon =16$, $L=3\mathsf{\mu }\mathrm{m}$, $T=300 K$ and $g\tau 2.4\approx {10}^{14}{\mathrm{c}\mathrm{m}}^{-3}$), for $k=0$ and $k=1$ after 10 iterations. Figure 4a compares ${\delta n}_0\left(\xi \right)$ and ${\delta n}_1\left(\xi \right)$, showing that the polarization effect makes the excess carrier distribution more uniform near the central region due to the depolarization field $\delta E\left(x\right)$. Figure 4b compares $j_0\left(\xi \right)$ and $j_1\left(\xi \right)$, showing reduced current near the central region, while increased toward the two electrodes. Reducing $l_D$ from 0.5 to 0.1 leads to the stronger polarization effect, but the impact is relatively small: an increase in ${QE}_{app}$ from 0.196 to 0.206 and decrease in ${QE}_{acc}$ from 0.289 to 0.276, as shown in Figure 4c,d, respectively.

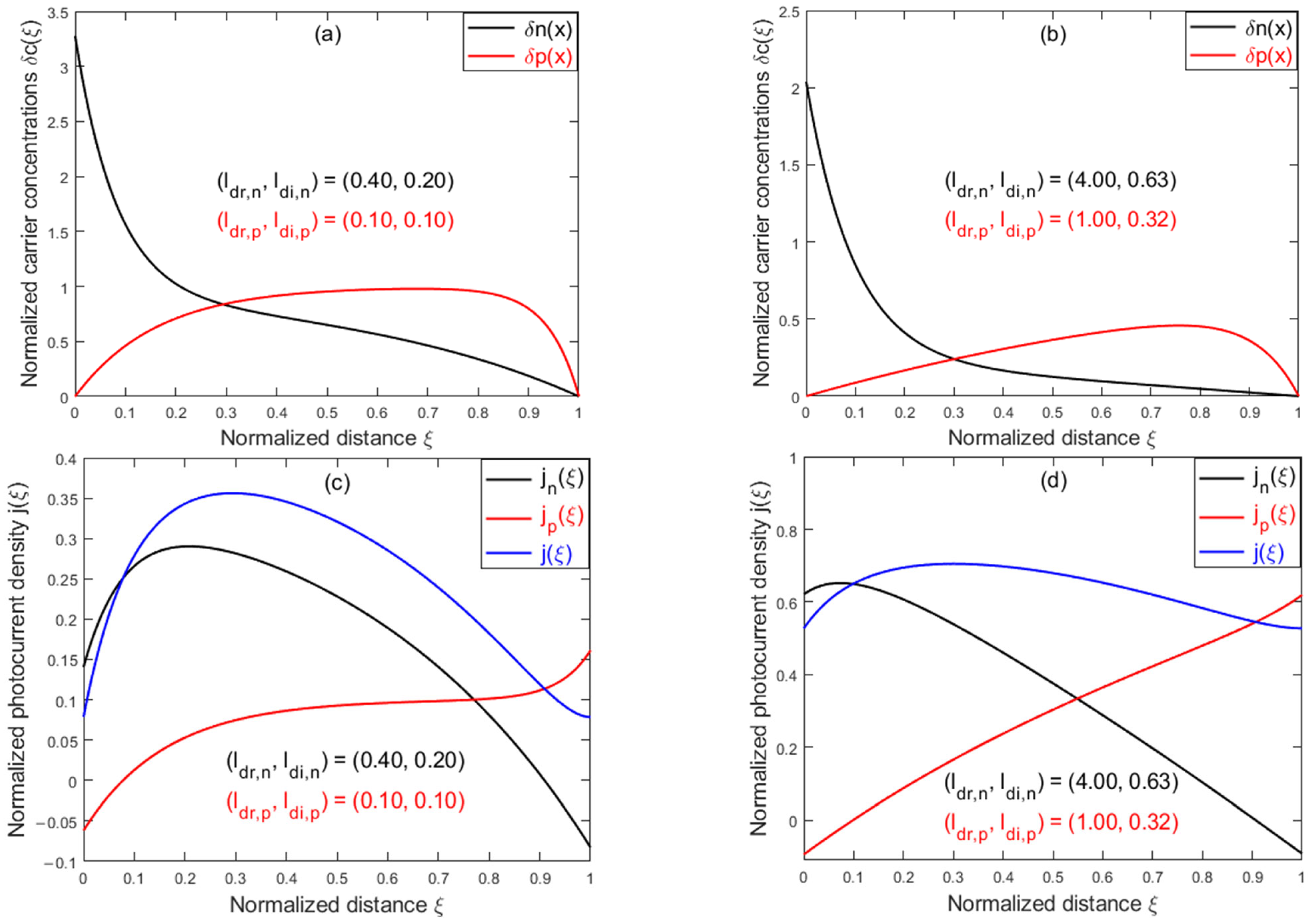

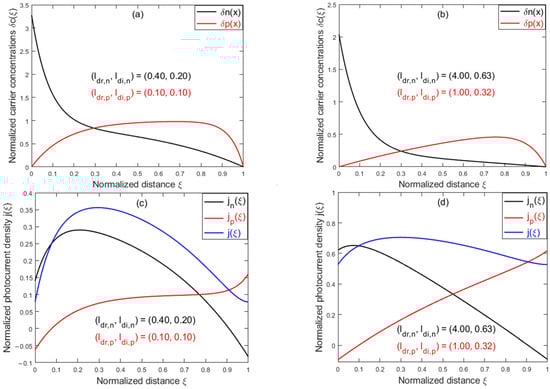

We next examine the possible impacts of non-equality in the mobility-lifetime product of electrons and holes. We assume ${\mu }_n\ne {\mu }_p$ but ${\tau }_n={\tau }_p$ and neglect the polarization effect ($k=0$). For the case of ${\mu }_n={\mu }_p$ and ${\tau }_n={\tau }_p$, the charge neutrality condition $\overline{\delta n}={\int }_0^1\delta n\left(\xi \right)d\xi =\overline{\delta p}={\int }_0^1\delta p\left(\xi \right)d\xi$ is satisfied automatically. However, assuming ${\mu }_n>{\mu }_p$, solving Equation (7) under the same BCs of $\delta n\left(\xi =0\right)=\delta n\left(\xi =1\right)=\delta p\left(\xi =0\right)=\delta p\left(\xi =1\right)=0$ would result in $j\left(\xi =0\right)>j\left(\xi =1\right)$ and $\overline{\delta n}<\overline{\delta p}$, which violates the current continuity and charge neutrality conditions.

The physical explanation is that when electrons coming out of the anode cannot be accepted by the cathode at the same rate when ${\mu }_n>{\mu }_p$, an accumulation of electrons will occur at the boundary with the anode. From $dJ/dx=qg\left[\delta n\left(x\right)-\delta p\left(x\right)\right]$, one can see that if $j\left(\xi =0\right)=j\left(\xi =1\right)$ is satisfied, $\overline{\delta n}=\overline{\delta p}$ will automatically be satisfied as well. Therefore, we need to find $\delta n\left(0\right)\ne 0$ that can satisfy $j\left(\xi =0\right)=j\left(\xi =1\right)$. One possible solution is to allow $\delta n\left(\xi =0\right)>0$, whilst other BCs are kept unchanged. Although an analytical solution can still be obtained, it is too complex to be shown here. Thus, only numerical results for ${\mu }_n=4{\mu }_p$ are given to illustrate the effects. Figure 5a,b plot the carrier distributions of the electrons and the hole, $\delta n\left(\xi \right)$ and $\delta p\left(\xi \right)$, respectively, for two different combinations of $\left(l_{dr,n},l_{di,n}\right)$ and $\left(l_{dr,p},l_{di,p}\right)$. Figure 5c,d plot $j_n\left(\xi \right)$, $j_p\left(\xi \right)$, and $j\left(\xi \right)$, respectively, for the same set of parameters. As expected, with increasing drift and diffusion parameters, both components tend to become linear; thus, the total photocurrent tends to become uniform.

4. Simulation Results

To examine how our analytic model compares to a commonly available device simulator, we perform numerical simulations using “Drift-Diffusion Lab” from nanoHub.org [36]. Note that this simulation tool also assumes constant carrier lifetimes, but considers other effects, such as the field-dependent mobility, i.e., $\mu =\mu \left(E\right)$, that is not considered in our model. To make meaningful comparisons, we attempt to identify a material system (namely Ge) together with a set of material parameters that can minimize the additional complications. However, we would like to clarify that although Ge is used as a prototype material, we do not intend to investigate photodetectors based on Ge. To investigate a realistic photodetector, one would need to consider the specific band structure of the material, for instance, the proximity of the indirect and direct conduction-band edges in Ge [37].

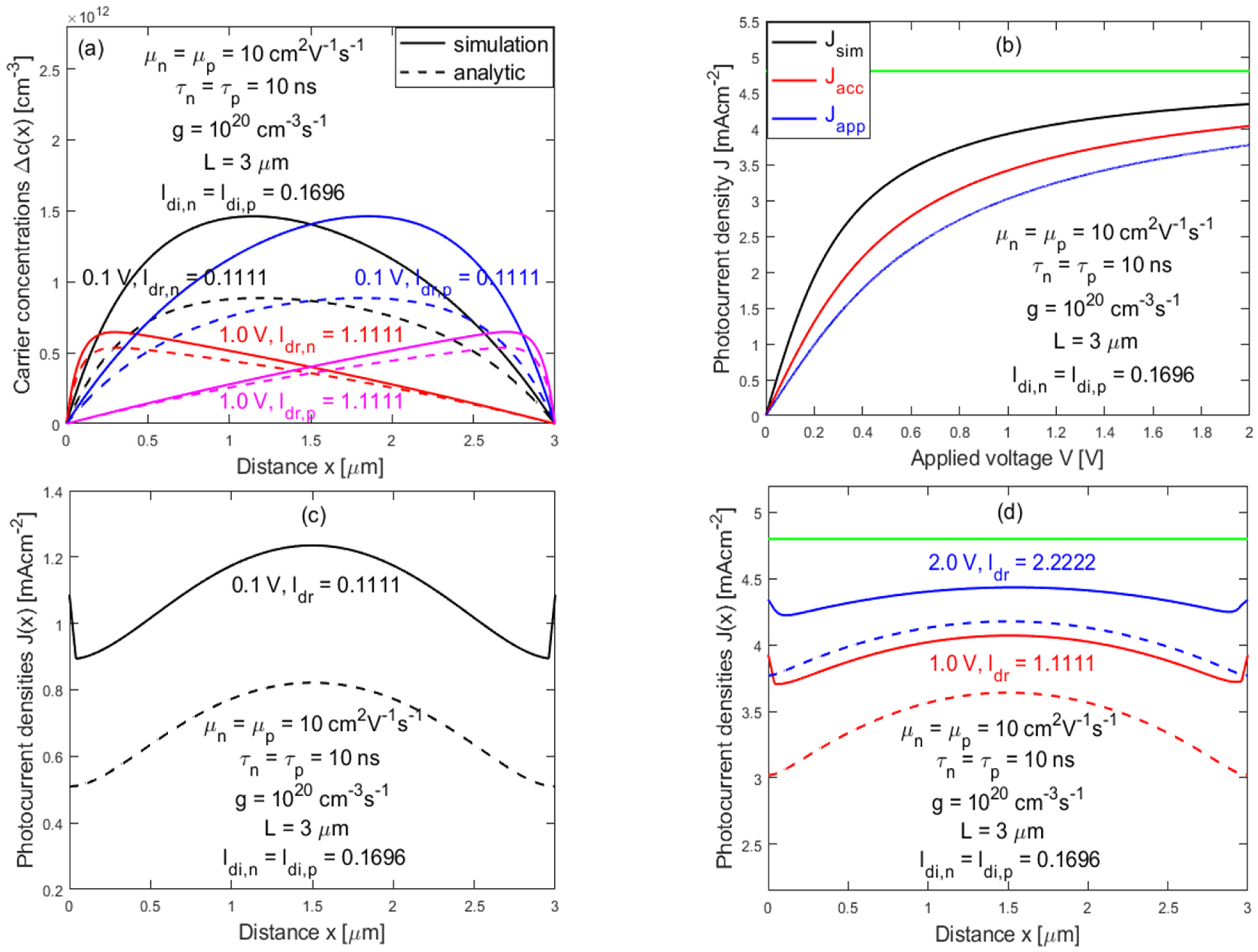

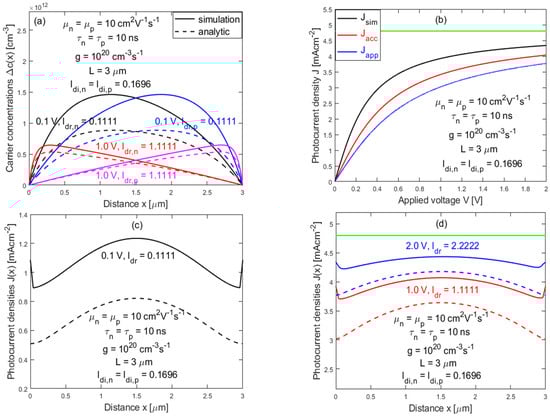

Firstly, by letting ${\mu }_n={\mu }_p$ and ${\tau }_n={\tau }_p$, we compare the potential differences in the carrier distributions. Germanium (Ge) is selected as the active material, with the following parameters: $\mu =10{ \mathrm{c}\mathrm{m}}^2{\mathrm{V}}^{-1}{\mathrm{s}}^{-1}$, $\tau =10 \mathrm{n}\mathrm{s}$, $L=3 \mathsf{\mu }\mathrm{m}$, $g={10}^{20 }{\mathrm{c}\mathrm{m}}^{-3}{\mathrm{s}}^{-1}$, $T=300 \mathrm{K}$, and surface recombination velocity at the electrodes $s={10}^{20}\mathrm{c}\mathrm{m}{\mathrm{s}}^{-1}$, the largest allowed value in the simulator. Although $s$ is meant to be the surface recombination velocity, we take it as the carrier extraction velocity that is assumed to be infinity in the analytic model. Figure 6a plots $\Delta n(x)$ and $\Delta p\left(x\right)$ with $\left({\mu }_n,{\mu }_p\right)=\left(10,10\right) {\mathrm{c}\mathrm{m}}^2{\mathrm{V}}^{-1}{\mathrm{s}}^{-1}$. The simulation results (solid curves) are compared to those obtained from the analytic model (dashed curves). As shown in the figures, for a small applied voltage (e.g., $0.1$ V or $l_{dr}=0.111$), the simulation results are significantly different from those of the analytic model, but the difference diminishes for larger applied voltages (e.g., $>1.0$ V or $l_{dr}>1.111$).

Secondly, we examine the effect of polarization on the J-V characteristics. For the same parameters, Figure 6b plots the J-V curves of the simulated results $J_{sim}$ (black solid curve) and compares them with the analytic results: $J_{acc}$ (red solid curve) and $J_{app}$ (blue solid curve). We find $J_{sim}>J_{acc}>J_{app}$, but they all approach the unity limit for the strong drift.

Thirdly, we examine the differences in the spatial variation in the photocurrent. By using the simulated carrier densities from Figure 6a, we calculate the spatial variations in the photocurrents by using Equation (7), in which the electric field $E(x)$ is obtained by integrating Equation (7c), while keeping same voltage difference between the electrodes as the applied voltage. The results are shown in Figure 6c,d (solid curves), in comparison with the results of the analytic model (dashed curves) for 0.1 V, 1.0 V, and 2.0 V. Due to the singularity in taking a derivative using the numerical data, out of 150 data points, the last 2 data points closest to the respective electrode are found unreliable, and, thus, they have been omitted in the plots. However, the extrapolated values at the electrodes are close to the direct current outputs of the simulations. Thus, the values of the simulation current are used for the end points at $x=0$ and $x=L$. Clearly, the total current remains nonuniform, with a maximum at the center, with comparable modulation amplitudes compared to the analytic results. The ratios between the maximum and minimum points are found to be 1.611, 1.205, and 1.108, from the analytic results, compared to 1.382, 1.099, and 1.050 from the simulation results, for 0.1 V, 1.0 V, and 2.0 V, respectively, and the photocurrents become more uniform under a larger applied electric field. In addition to the systematically larger $J_{sim}(x)$ compared to that of the analytic model $J_{ana}(x)$, the simulated results show upward bending near the end points.

Furthermore, we would like to point out that the differences between analytic and simulation results are not simply due to whether the polarization effect is included or not. In fact, according to our numerical simulation results as described in the previous section, the polarization effect is expected to be minimal for $l_D=1.604$. However, the simulator considers other effects, such as the carrier density and field dependences of mobility. Therefore, even using the same mobility and lifetime parameters for the electrons and holes, the relationship of $\Delta n\left(\mathrm{x}\right)=\Delta p\left(L-x\right)$, predicted by the analytic model, is often found invalid for the simulated results. Consequently, we found that the charge neutrality condition, i.e., $\overline{∆n}=\overline{∆p}$, does not always hold true in the simulated results. However, we have made a concerted effort to identify the parameters, which ensures that the charge neutrality condition in the photoconductive channel is nearly satisfied, as shown in Figure 6a. Overall, the numerical simulations, which include the polarization effect and beyond, do not result in qualitative differences from the analytic model, but do exhibit significant quantitative differences, particularly for the cases of small $l_{dr}$ values, for instance, in Figure 6a,c when $l_{dr}\approx 0.1.$

5. Discussion

There are various possible secondary photoconductive effects, such as the carrier injection from the electrode, caused by either thermal injection (i.e., space-charge limited current or SCLC) [1] or light-induced changes in the MS interface [38], carrier recycling or replenishing [1,4,13,17,39], and other mechanisms [27,40]. Often, photoconductive devices involve doped semiconductors [3,5]. In fact, doping or substantial intrinsic carrier density in the photoconductive channel bears some similarity with the SCLC effect, except that the charges that induce the dark current are provided internally for the former and injected from the electrode for the latter. In both cases, the presence of the pre-existing charges may alter the distributions of the photogenerated carriers, and thus, the quantum yield. However, including any of these secondary photoconductive effects makes it impractical to obtain rigorous analytic solutions for the photocarrier distributions and photocurrent. Nevertheless, various approximate formulae have been given for different situations [16,39,41,42]. Furthermore, for a doped device and under the ambipolar-transport approximation, the gain limit has been found to be $G_{max}={\displaystyle \frac{1}{2}}\left(1+{\displaystyle \frac{{\mu }_{maj}}{{\mu }_{min}}}\right)$, where ${\mu }_{maj}/{\mu }_{min}$ is the ratio of majority to minority carrier mobilities [3,16]. This formula indicates that a modest gain above unity is possible, as verified by numerical simulations [5]. When the equilibrium carrier densities are much greater than the excess carrier densities $\Delta n(x)$ and $\Delta p(x)$ and when the ambipolar diffusion length is much smaller than the channel length, a gain formula equivalent to Equation (1b) is obtained for an intrinsic device, suggesting that quantum yields far exceeding unity are possible [16].

However, as confirmed analytically and by simulations in this work, if only the primary photoconductivity is considered, the undoped photoconductive devices with minimal equilibrium carrier densities cannot have $G$ or $QE$ above unity, independently of the values of the device parameters. The widely used gain formula given by Equation (1) appears to be the low-field-limit result of Equations (11) and (13), when the effect of diffusion is neglected. Secondary photoconductive mechanisms are indeed required to understand many experimental reports of the greater-than-unity gains. However, for various possible secondary photoconductivity mechanisms, the simplified form of photoconductive gain given by Equation (1) is unlikely to remain valid in general. Extending the current work to include secondary photoconductive mechanisms should be the subject of our future work.

6. Conclusions

By assuming primary photoconductivity, perfect carrier extraction, constant parameters of carrier lifetimes and mobilities, negligible thermally generated carriers, and negligible polarization effect, an analytic model with arbitrary strength of diffusion and drift for a photoconductive device with an intrinsic semiconductor has been provided. Numerical simulations have been performed to confirm the conclusions of the analytic model. We have shown that: (1) while the general theory is capable of recovering the drift-only results in the early literature, the photoconductive gain remains limited to unity; (2) the commonly adopted photoconductive gain formula as the ratio of the lifetime $\tau$ to the transit time ${\tau }_t$ is only valid in the low-drift length region, when the effect of diffusion is neglected; (3) when solving the drift–diffusion equations, proper care should be taken in selecting BCs to ensure the equality of photocurrents at both electrodes; (4) the impact of neglecting the polarization effect, due to the relative displacement of the excess electrons and holes, is relatively small; and (5) the non-equivalency of the $QE$ definitions, i.e., ${QE}_{acc} \ne { QE}_{app}$ is the deficiency of the commonly adopted constant-carrier-lifetime approximation, which also leads to the nonuniform photocurrent in the channel. The insights of this work should help in the reexamination of the photoconductive gain theories involving doped semiconductors and/or other secondary photoconductive effects. Thus, it lays the ground for understanding the mechanisms of the experimentally observed above-unity photoconductivity gains.
