Article

Metal Organic Framework-Based Dispersive Solid-Phase Microextraction of Carbaryl from Food and Water Prior to Detection by Ultra-Performance Liquid Chromatography-Tandem Mass Spectrometry

by
Mohamed A. Habila
1,*,
Bushra Alhenaki
1,
Adel El-Marghany
1,
Mohamed Sheikh
1,
Ayman A. Ghfar
1,
Zeid A. ALOthman
1 and
Mustafa Soylak
2
1
Chemistry Department, College of Science, King Saud University, Riyadh 11451, Saudi Arabia
2
Department of Chemistry, Faculty of Science, Erciyes University, Kayseri 38039, Turkey
*
Author to whom correspondence should be addressed.
Separations 2022, 9(2), 32; https://doi.org/10.3390/separations9020032
Submission received: 2 December 2021 / Revised: 21 January 2022 / Accepted: 25 January 2022 / Published: 28 January 2022
(This article belongs to the Special Issue Food Quality and Safety: Advances in Analytical Methods and Applications)
Browse Figures
Versions Notes

Abstract

:
In this work, metal organic frameworks (A100 Al-based MOFs) were used in dispersive solid-phase microextraction (DSPME) for the isolation and preconcentration of the carbaryl from vegetable, fruit and water samples. The A100 Al-based MOFs showed excellent behavior for the adsorption of carbaryl from a water–ethanol solution; additionally, carbaryl was easily desorbed with ethyl acetate for detection by ultra-performance liquid chromatography-tandem mass spectrometry (UPLC-TMS). The analytical process of DSPME together with UPLC-TMS provides the accurate monitoring of trace carbaryl residues. The results show that the optimal recovery% of carbaryl was obtained at a sample apparent pH of 5, with the application of 1 mL of ethyl acetate to elute the carbaryl from the A100 Al-based MOFs. The limit of detection (LOD) and the limit of quantification (LOQ) were 0.01 mg.L−1 and 0.03 mg.L−1, respectively. The RSD% was 0.8–1.9, and the preconcentration factor was 45. DSPME and UPLC-TMS were successfully used for the isolation and detection of carbaryl in food and water samples.

Graphical Abstract

1. Introduction

Carbaryl is a pesticide that is classified as carcinogenic to the human body [1,2]. This pesticide contaminates the environment via its extensive use to reduce flies in agriculture, and the residues of carbaryl may be adsorbed to vegetables and fruits or leached into water, leading to human exposure [3,4,5,6,7,8,9]. High mortality rates and low fertility were observed in rats exposed to carbaryl over three generations. Two studies in which dogs were fed carbaryl presented teratogenic effects, but were neglected because of the difference in metabolism between dogs and humans [3,4,5,10,11,12]. The permitted carbaryl limit in carrots and fruits is reported as 0.5 mg.kg−1 and 0.8 mg.kg−1, respectively, as stated by the Codex Alimentarius, the Food and Agriculture Organization of the United Nations and the World Health Organization [13]. It is reported that the maximum acceptable carbaryl concentration (MAC) in drinking water is 0.09 mg.L−1, while the acceptable daily intake (ADI) of carbaryl in drinking water has been established by the Food and Agriculture Organization (FAO) and the World Health Organization (WHO) as 0.01 mg.kg−1 bw/day [14].
Carbaryl may exist in environmental matrices in trace amounts, which may not be discernable by currently available detection methods. In addition, food and water samples present complex matrices and require many steps for the purification and extraction of carbaryl [15,16,17,18,19]. The diversity of environmental samples leads to the limitation of the possibility of determining more than one analyte in some cases [20,21]. Many factors control component analyses, including the nature of samples and their matrix, sample preparation procedures and instrumental detection process [22,23,24,25]. Sensitive and selective analytical methods, based on mass spectrometry, were recently applied for the analysis of environmental pollutants [26,27,28]. Many instruments were applied for the determination of carbaryl, including high-performance liquid chromatography (HPLC) and gas chromatography (GC); however, these techniques still suffer from many limitations, such as relatively high detection limits as well as matrix interference [29,30]. The application of sample purification and extraction can solve these limitations [31,32]. Common analyte extraction procedures include solid-phase extraction, dispersive liquid–liquid microextraction, supramolecular microextraction and solid-phase microextraction [17,19,33,34,35,36,37,38,39,40]. For example, dispersive liquid–liquid microextraction coupled with HPLC-diode array detection [41] was applied as a sensitive method for the detection of different carbamates in water samples, and was reported to have RSDs of 4.7–6.5%. Goulart et al. [42] optimized and validated a liquid–liquid extraction method with low temperature partitioning for the extraction of carbaryl from chocolate milk and a grape juice sample, and used HPLC to determine the concentration of the extracted carbaryl and reported a recovery% exceeding 90%. Sharma et al. [24] validated a new spectrophotometric method to determine carbaryl in the different types of environmental samples (water, soil and foodstuffs). The method was based on methylamine coupling resulting from the microwave-assisted alkaline hydrolysis of the insecticide with CS2 and (CH3COO)2Ni to form a complex (nickel(II) methyl-di-thiocarbamate) that was measured at 380 nm. The recovery of carbaryl from the vegetables and spiked water samples was 87.60–92.80% with RSDs of 0.54–1.02%. Paiga et al. [23] validated a liquid chromatography method for the detection and quantification of carbaryl in rat feces. The data showed a high recovery% (97.9%) and a relative standard deviation of 1.1% at 167 μg/kg.
MOFs, first introduced by Yaghi et al. [43], are porous structures constructed from the coordinative bonding between organic linkers and metal ions, with superior properties concerning their chemical and physical stability. MOFs have a high surface area, high loading capacity, nanoscale porosity, structural flexibility and unlimited diversity originating from various combinations of metals and organic parts, which enable easy manipulation through the correct selection of primary precursors and preparation conditions [44,45,46,47]. Moreover, the application of MOFs as suitable adsorbent materials has increased in separation science, including their use in solid-phase extraction [47,48,49,50]. Zhang et al. [51] synthesized nanoporous carbon (large surface area) using the MOF-ZIF-90-NPC coupled with gas chromatography-micro electron capture detection (GC-μECD) for the measurement of pyrethroid pesticides. In addition, Kahkha et al. [52] optimized the conditions for applying a zirconium-based MOF (Zr-MOF-NH2) for the preconcentration of carbamazepine that was measured by HPLC. However, the application of MOFs for the extraction of environmental pollutants needs more investigations to evaluate the efficiency for various analytes, in case of different sample matrices for better preconcentration and purification processes prior to instrumental detection. Therefore, this work aims to develop a dispersive solid-phase microextraction (DSPME) method based on A100 Al-based MOFs as adsorbents for the isolation and preconcentration of carbaryl from vegetable, fruit and water samples. Based on our survey, this is the first time A100 Al-based MOFs have been applied for the preconcentration of carbaryl by DSPME prior to UPLC-TMS determination.

2. Experimental

2.1. Reagents and Instruments

High-purity (HPLC-grade) chemicals were used during this study. A carbaryl standard with purity 100%, A100 Al-based MOFs (commercial name: Basolite® A 100) and acetonitrile, propanol, ethyl acetate, ethanol and methanol were purchased from Sigma-Aldrich (St. Louis, MO, USA). A Milli-Q water purification system (Millipore, Bedford, MA, USA) was used to produce high-purity deionized water after filtration through a 0.45 μm nylon filter. A solution of 10 mg.L−1 of carbaryl was prepared as a stock solution in a 1:2 (v/v) acetonitrile:water ratio. The working standard solutions were prepared for daily use by the dilution of the stock solution. A Waters ACQUITY ultra-performance liquid chromatography (UPLC) instrument was used for carbaryl detection; the conditions of detection as well as the calibration curve (Figure S1) are provided in the Supplementary Materials.

2.2. DSPME Preconcentration Process

For the extraction of carbaryl by DSPME before the UPLC-TMS analysis, 0.02 mg of the A100 Al-based MOFs was placed in a centrifuge tube of 50 mL volume. Then, 45 mL of carbaryl in a water/ethanol solution was added, and the solution mixture was adjusted to the apparent pH of 5 using a phosphate-buffered solution. The mixture was then shaken for 120 min, and the carbaryl was adsorbed on the MOF materials. Complete extraction was achieved by centrifuging the mixture at 1000 rpm for 10 min. The adsorbed carbaryl was then eluted with 1 mL of ethyl acetate and detected by UPLC-TMS.
The recovery was calculated using Equation (1):
R e c o v e r y % = ( C f C 0 ) ∗ 100 ,
where Cf is the final concentration, and C0 is the initial concentration.
The same steps for DSPME before UPLC-TMS analysis were performed to study the effect of apparent pH on the microextraction efficiency, eluent type and volume, sample volume optimization and matrix effect by testing the common coexisting ions. All optimization treatments were performed in triplicate with blank readings to ensure the quality of the results. Spiking for the addition recovery evaluation was operated with a standard carbaryl solution of 0.3 mg.L−1 (n = 3), in which 0.3 mg.L−1 of the carbaryl standard solution was injected in the sample mixture of 45 mL, including 2 mL of the sample extract and buffer solution at an apparent pH of 5; the recovery of the spiked solution was evaluated by considering the recovered carbaryl concentration, in this case, as the subtraction of the original carbaryl content from the final detected concentration (Cf). In addition, intra-day and inter-day analyses were performed to evaluate the precision for 0.01, 0.05 and 0.1 mg.L−1 of carbaryl with 7 replicates [53,54,55,56,57].
For the determination of carbaryl in the fruit and vegetable samples, fresh samples were collected from Riyadh city markets. The samples were washed and then cut into small pieces. Twenty grams of each fresh sample was ground in a kitchen mixer, and the final volume was adjusted to 50 mL with deionized water. The extract of the raw sample was used as a stock solution to optimize the proposed microextraction procedures. In particular, portions of 2 mL each were used for the previously described DSPME procedure. The real sample volume in the range of 1–45 mL can be subjected to the previously described DSPME procedures.

3. Results and Discussion

3.1. Optimization of the Conditions for the Preconcentration of Carbaryl

The recovery% of carbaryl after the adsorption onto A100 Al-based MOFs dispersed in a water/ethanol solution during the solid-phase microextraction process was investigated and improved. Due to the extraction mechanism, the procedure was termed DSPME. The developed microextraction procedure was optimized in terms of several controlling parameters, such as the pH, eluent type, eluent volume, sample volume and addition/recovery studies from the real samples [58]. The morphology of the A100 Al-based MOFs was examined by SEM (Figure S2A,B), which showed separated particles in the microscale structures with a crystalline nature (XRD Figure S3). The FTIR examination (Figure S4) for A100 Al-based MOFs showed surface functional groups at 1400 cm−1 and 1700 cm−1, respectively, due to the presence of carbonyl and carboxylic groups in the terephthalate structure of the A100 Al-based MOFs. The peak detected at 3300 cm−1 to 3600 cm−1 is related to the hydroxyl groups from adsorbed water. These polar functional groups in the adsorbent surfaces (A100 Al-based MOFs) play an important role in Van der Waals forces, the dipole–dipole interaction with carbaryl during the microextraction process. Herein, the adsorption capacity for carbaryl onto the applied MOFs is 84 mg/g.

3.1.1. Effect of the Apparent pH on Carbaryl Recovery%

In the microextraction method, the A100 Al-based MOFs act as a matrix for the adsorption/desorption of carbaryl and allows for its uptake from the sample extract as the first step of the preconcentration process. Since the apparent pH of the sample solution is a very important factor for the quantitative recovery of carbaryl in solid-phase microextraction, the influence of the apparent pH of the analyte solution on the recovery was investigated in the apparent pH range of 2.0–8.0. Figure 1 shows that at apparent pH 5 and 8, the recovery of carbaryl approaches its maxima, and there is no increase after pH 8, which indicates that carbaryl adsorption is pH-dependent; a pH of 5 was used during the subsequent optimization steps. The separation of carbaryl onto A100 Al-based MOFs depends on the electrostatic interaction between the nitrogen and oxygen atoms in the carbaryl and the active sites on the A100 Al-based MOFs, such as the carbonyl groups. It is reported that the apparent pH of the medium may affect the attraction adsorption forces during the extraction, due to protonation of carbonyl on the surfaces of A100 Al-based MOFs in an acidic medium. Furthermore, the π–π stacking is expected to share in the adsorption, attracting the forces of the aromatic rings in carbaryl and A100-Al-based MOFs.

3.1.2. Effect of the Eluent Type on the Desorption of Carbaryl

The recovery of the adsorbed carbaryl pesticide from the A100 Al-based MOFs was studied by testing several organic solvents with different polarities. Figure 2 shows the recovery% of carbaryl when different eluents were implemented, including propanol, acetonitrile, ethyl acetate, ethanol and methanol, which were found to be 27, 82, 97, 81 and 82%, respectively. The quantitative recoveries for carbaryl were obtained with ethyl acetate. This indicated that ethyl acetate was sufficient for the desorption of carbaryl from the A100 Al-based MOFs. Ethyl acetate is reported for pesticide elution [52], which may be enhanced by the presence of carboxylic group in their structure, enabling them for a high electrostatic interaction for the dissolution and elution of analytes.

3.1.3. Effect of the Eluent Volume on Carbaryl Recovery%

To determine the lowest amount of ethyl acetate required to recover the adsorbed carbaryl from the A100 Al-based MOFs, different amounts were examined over the volume range of 1–5 mL. As shown in Figure 3, quantitative recoveries are obtained with 1 mL of ethyl acetate. To achieve a higher concentration, a lower volume of eluent was required; hence, the 1 mL volume of the ethyl acetate that yielded a good recovery was also a sufficiently small volume.

3.1.4. Effect of the Sample Volume on the Recovery% of Carbaryl

The starting carbaryl-containing sample volume is important during the development of the microextraction procedure, as microextraction procedures are able to recover analytes from a large sample volume, increasing the extraction efficiency and the preconcentration factor [59,60,61]. In this work, the sample volume was studied in the range of 10 to 50 mL. As shown in Figure 4, the quantitative recoveries obtained are up to 45 mL. By considering the eluate volume of 1 mL, the preconcentration factor was calculated as 45.

3.1.5. Effect of the Coexisting Ions on Carbaryl Recovery%

Investigations to assess the recovery% of carbaryl in presences of some species, such as common cations or anions, are conducted and the results are presented in Table 1. The recoveries are higher than 93% for all the evaluated ions. The obtained percentage recoveries are in the range of 95–100%, indicating that the proposed microextraction procedure is matrix independent.

3.1.6. Analytical Features

To validate the developed analytical procedure, real samples of different kinds, including water, fruits and vegetable samples, were subjected to the developed microextraction procedure, followed by UPLC-TMS analysis for the determination of carbaryl residues. The feasibility of the proposed procedure was determined by spiking the real samples with known concentrations of carbaryl. The results are presented in Table 2 for the water, fruit and vegetable samples. A high efficiency of the DSPME procedure for carbaryl analysis was observed. A good agreement was found between the amounts of carbaryl that were added and measured; additionally, the recovery% was ≥91%. These results reveal the accuracy of the DSPME procedure and indicate that the method is matrix independent. The results show that the optimal quantitative recovery of carbaryl is obtained at apparent pH 5 with 1 mL of ethyl acetate as the eluent.
The preconcentration factor (PF) was calculated from Equation (2)
P F = I n i t i a l   s a m p l e   v o l u m e F i n a l   s a m p l e   v o l u m e
The limit of detection (LOD) was calculated using Equation (3)
L O D s = ( 3 ∗ STD ) m
The limit of quantification (LOQ) was calculated using Equation (4)
L O Q s = ( 10 ∗ STD ) m
where STD is the standard deviation of seven blank readings, and m is the experimental preconcentration factor, calculated considering the ratio of the slopes of the calibration curves with and without the DSPME pre-concentration procedure, which is evaluated in the range from 0.025 mg.L−1 to 1.000 mg.L−1.
The detection limit (LOD) and the quantification limit (LOQ) were 0.01 mg.L−1 and 0.03 mg.L−1, respectively. The preconcentration factor was 45.
The accuracy and reproducibility of the proposed DSPME procedure were investigated by the evaluation of intra-day and inter-day precision for carbaryl by DSPME. The evaluation procedures were performed using 0.01, 0.05 and 0.1 mg.L−1 carbaryl solution (n = 7), as presented in Table 3. The accuracy% was reported in the range 0.2–6.6 and the calculated relative standard deviation (RSD%) was in the range of 0.27–2.13, revealing the high precision and reproducibility of the developed DSPME.
By comparing the achieved efficiency for carbaryl microextraction using A100 Al-based MOFs with that of the other reported methods (Table 4), the DSPME procedure developed in this study exhibits a high microextraction efficiency, which enables the trace analysis of carbaryl. The proposed DSPME procedure was less sensitive than the other reported methods, such as SPE-GC [62] and DLLME-HPLC [41], while it exhibited a higher sensitivity, compared to the other procedures, including QuEChERS [63], LLE-LTP-HPLC-UV [42], QuEChERS-LC-FLD [64] and UHPLC-QqQ-MS/MS [65]. These results indicate the potential application of A100 Al-based MOFs as a solid phase for developing extraction procedures for the preconcentration of carbaryl from various environmental samples. In addition, the proposed DSPME procedures described in this work have a good sensitivity, compared with the main analytical procedures used for the quantification of carbaryl.

4. Conclusions

A DSPME procedure was developed by applying A100 Al-based MOFs as adsorbents for the microextraction of carbaryl from vegetables, fruits and water. The application of DSPME in combination with ultra-performance liquid chromatography-tandem mass spectrometry (UPLC-TMS) allowed for the high-sensitivity detection of carbaryl. The optimized conditions for the microextraction were successfully applied to sample volumes of up to 45 mL. The proposed DSPME procedure enabled a preconcentration factor of 45 and showed matrix-independent behavior. The presence of the terephthalate in the A100 Al-based MOFs enhanced the carbaryl microextraction. The developed procedure can enhance the determination of carbaryl in various food samples, which help in keeping food safety worldwide. The DSPME possesses a high sensitivity, compared with the other procedures that were applied for the extraction of carbaryl. In addition, the effective efficiency of applying metal organic frameworks for microextraction, as reported in this work, will open the space for more research and investigations for the microextraction of various categories of other environmental pollutants. The future research will focus on the improvement of MOFs structures towards the adsorption and preconcentration applications, which may include functionalization with suitable ligands and/or the variation of the metal core in the entire MOFs structure. The variation of the MOFs functional groups and properties is expected to enhance the adsorption/desorption processes of the broad range of species for micro-extraction applications, whether for environmental pollutants and/or biomolecule analysis.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/separations9020032/s1: Figure S1: calibration curve for carbaryl determination by UPLC-TMS; Figure S2: SEM (A,B) of metal organic frameworks (A100 Al-based MOFs); Figure S3: XRD of metal organic frameworks (A100 Al-based MOFs) and Figure S4: FTIR of metal organic frameworks (A100- Al-based MOFs).

Author Contributions

Formal analysis, M.A.H., B.A., M.S. (Mohamed Sheikh), A.A.G. and Z.A.A.; Funding acquisition, M.A.H.; Investigation, M.A.H., A.E.-M. and Z.A.A.; Methodology, M.A.H., B.A., M.S. (Mohamed Sheikh) and A.A.G.; Resources, Z.A.A. and M.S. (Mustafa Soylak); Supervision, M.A.H.; Validation, M.S. (Mustafa Soylak); Writing—original draft, B.A.; Writing—review and editing, M.A.H., A.E.-M., M.S. (Mohamed Sheikh), Z.A.A. and M.S. (Mustafa Soylak). All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Deanship of Scientific Research at King Saud University, grant number Research Group-RG-1438-014.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

The authors extend their sincere appreciation to the Deanship of Scientific Research at King Saud University for funding this Research Group-RG-1438-014.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Arustamov, Y.R.; Sukhanov, P.T.; Gubin, A.S.; Peregudov, Y.S.; Churilina, E.V.; Shatalov, G.V.; Koroleva, E.V. Sorption of carbaryl and naphthols by polymers based on N-vinylamides from aqueous solutions. Russ. J. Appl. Chem. 2013, 86, 1292–1297. [Google Scholar] [CrossRef]
  2. Jiang, Y.; Zhang, X.; Pei, L.; Yue, S.; Ma, L.; Zhou, L.; Huang, Z.; He, Y.; Gao, J. Silver nanoparticles modified two-dimensional transition metal carbides as nanocarriers to fabricate acetycholinesterase-based electrochemical biosensor. Chem. Eng. J. 2018, 339, 547–556. [Google Scholar] [CrossRef]
  3. Chen, H.; He, X.; Rong, X.; Chen, W.; Cai, P.; Liang, W.; Li, S.; Huang, Q. Adsorption and biodegradation of carbaryl on montmorillonite, kaolinite and goethite. Appl. Clay Sci. 2009, 46, 102–108. [Google Scholar] [CrossRef]
  4. Bazrafshan, A.A.; Ghaedi, M.; Rafiee, Z.; Hajati, S.; Ostovan, A. Nano-sized molecularly imprinted polymer for selective ultrasound-assisted microextraction of pesticide carbaryl from water samples: Spectrophotometric determination. J. Colloid Interface Sci. 2017, 498, 313–322. [Google Scholar] [CrossRef] [PubMed]
  5. Hatefi-Mehrjardi, A. Bienzyme self-assembled monolayer on gold electrode: An amperometric biosensor for carbaryl determination. Electrochim. Acta 2013, 114, 394–402. [Google Scholar] [CrossRef]
  6. Abdullah Alfaris, N.; Zaidan Altamimi, J.; Alothman, Z.A.; Wabaidur, S.M.; Ghafar, A.A.; Saleh Aldayel, T. Development of a sensitive liquid-liquid extraction and ultra-performance liquid chromatography-tandem mass spectrometry method for the analysis of carbaryl residues in fresh vegetables sold in Riyadh. J. King Saud Univ.-Sci. 2020, 32, 2414–2418. [Google Scholar] [CrossRef]
  7. Chen, Y.; Qin, X.; Yuan, C.; Shi, R.; Wang, Y. Double responsive analysis of carbaryl pesticide based on carbon quantum dots and Au nanoparticles. Dye. Pigment. 2020, 181, 108529. [Google Scholar] [CrossRef]
  8. Ruengprapavut, S.; Sophonnithiprasert, T.; Pongpoungphet, N. The effectiveness of chemical solutions on the removal of carbaryl residues from cucumber and chili presoaked in carbaryl using the HPLC technique. Food Chem. 2020, 309, 125659. [Google Scholar] [CrossRef]
  9. Xiang, H.; Cai, Q.; Li, Y.; Zhang, Z.; Cao, L.; Li, K.; Yang, H. Review article sensors applied for the detection of pesticides and heavy metals in freshwaters. Hindawi J. Sens. 2020, 2020, 22. [Google Scholar] [CrossRef]
  10. Karnsa-Ard, S.; Santaladchaiyakit, Y.; Srijaranai, S.; Srijaranai, S. Modified QuEChERS and cloud-point extraction combined with visible spectrophotometric detection for carbaryl residue analysis in vegetables. Curr. Anal. Chem. 2012, 9, 150–156. [Google Scholar] [CrossRef]
  11. Mukdasai, S.; Thomas, C.; Srijaranai, S. Enhancement of sensitivity for the spectrophotometric determination of carbaryl using dispersive liquid microextraction combined with dispersive μ-solid phase extraction. Anal. Methods 2013, 5, 789–796. [Google Scholar] [CrossRef]
  12. Tabrizi, A.B.; Rashidi, M.R.; Ostadi, H. Nanoparticle-based solid-phase extraction procedure followed by spectrofluorimetry to determine carbaryl in different water samples. J. Braz. Chem. Soc. 2014, 25, 709–715. [Google Scholar] [CrossRef]
  13. Codex Alimentarius FAO-WHO. Pesticide Detail. Available online: https://www.fao.org/fao-who-codexalimentarius/codex-texts/dbs/pestres/pesticide-detail/en/?p_id=8 (accessed on 1 December 2021).
  14. Guidelines for Canadian Drinking Water Quality: Guideline Technical Document–Carbaryl—Canada.Ca. Available online: https://www.canada.ca/en/health-canada/services/publications/healthy-living/guidelines-canadian-drinking-water-quality-guideline-technical-document-carbaryl.html#fn7 (accessed on 1 December 2021).
  15. Wu, P.; Chen, Z.; Zhang, Y.; Wang, Y.; Zhu, F.; Cao, B.; Jin, L.; Hou, Y.; Wu, Y.; Li, N. Retraction notice to “carbaryl waste-water treatment by rhodopseudomonas sphaeroides” [Chemosphere 233 (October 2019) 597–602]. Chemosphere 2020, 257, 127394. [Google Scholar] [CrossRef]
  16. Derbalah, A.; Sunday, M.; Kato, R.; Takeda, K.; Sakugawa, H. Photoformation of reactive oxygen species and their potential to degrade highly toxic carbaryl and methomyl in river water. Chemosphere 2020, 244, 125464. [Google Scholar] [CrossRef] [PubMed]
  17. Tehrani, M.S.; Givianrad, M.H.; Akhoundi, L.; Akhoundi, M. Preconcentration and determination of carbaryl and carbofuran in water samples using ionic liquids and in situ solvent formation microextraction. Anal. Methods 2013, 5, 2406–2412. [Google Scholar] [CrossRef]
  18. Fairbairn, J.W.; Relph, S.J. Sources of error in quantitative paper and thin layer chromatography II. Movement of solutes from initial to final spotfehlerquellen bei der quantitativen papier-und dünnschicht-chromatographie II. Bewegung der substanz vom start zum endflecksources d’erreurs en chromatographie quantitative sur papier et sur couche mince. II. Mouvement de solutes entre tache initiale et tache finale. Chromatographia 1969, 2, 204–207. [Google Scholar] [CrossRef]
  19. Asensio-Ramos, M.; Hernández-Borges, J.; González-Hernández, G.; Rodríguez-Delgado, M.Á. Hollow-fiber liquid-phase microextraction for the determination of pesticides and metabolites in soils and water samples using HPLC and fluorescence detection. Electrophoresis 2012, 33, 2184–2191. [Google Scholar] [CrossRef]
  20. Biswas, A.K.; Kondaiah, N.; Anjaneyulu, A.S.R.; Setty Rao, G.; Prakash Singh, R. A simple assay for analyzing residues of carbaryl insecticide in buffalo meat by liquid chromatography—Photodiode array detection. Anal. Methods 2010, 2, 393–396. [Google Scholar] [CrossRef]
  21. Bargańska, Ż.; Lambropoulou, D.; Namieśnik, J. Problems and challenges to determine pesticide residues in bumblebees. Crit. Rev. Anal. Chem. 2018, 48, 447–458. [Google Scholar] [CrossRef]
  22. Takino, M.; Yamaguchi, K.; Nakahara, T. Determination of carbamate pesticide residues in vegetables and fruits by liquid chromatography-atmospheric pressure photoionization-mass spectrometry and atmospheric pressure chemical ionization-mass spectrometry. J. Agric. Food Chem. 2004, 52, 727–735. [Google Scholar] [CrossRef]
  23. Alothman, Z.A.; Yilmaz, E.; Habila, M.; Soylak, M. Solid Phase Extraction of Metal Ions in Environmental Samples on 1-(2-Pyridylazo)-2-Naphthol Impregnated Activated Carbon Cloth. Ecotoxicol. Environ. Saf. 2015, 112. [Google Scholar] [CrossRef] [PubMed]
  24. Sharma, D.K.; Dharmani, T.; Sharma, N. Extractive spectrophotometric method for the determination of carbaryl in environmental samples. Bull. Chem. Soc. Ethiop. 2015, 29, 173–186. [Google Scholar] [CrossRef] [Green Version]
  25. Shakouri, A.; Yazdanpanah, H.; Shojaee, M.H.; Kobarfard, F. Method development for simultaneous determination of 41 pesticides in rice using LC-MS/MS technique and its application for the analysis of 60 rice samples collected from tehran market. Iran. J. Pharm. Res. IJPR 2014, 13, 927. [Google Scholar] [PubMed]
  26. Barceló, D.; Petrovic, M. Challenges and achievements of LC-MS in environmental analysis: 25 years on. TrAC-Trends Anal. Chem. 2007, 26, 2–11. [Google Scholar] [CrossRef]
  27. Walorczyk, S.; Gnusowski, B. Development and validation of a multi-residue method for the determination of pesticides in honeybees using acetonitrile-based extraction and gas chromatography-tandem quadrupole mass spectrometry. J. Chromatogr. A 2009, 1216, 6522–6531. [Google Scholar] [CrossRef]
  28. Walorczyk, S.; Kopeć, I.; Szpyrka, E. Pesticide residue determination by gas chromatography-tandem mass spectrometry as applied to food safety assessment on the example of some fruiting vegetables. Food Anal. Methods 2015, 9, 1155–1172. [Google Scholar] [CrossRef]
  29. Jing, X.; Wang, H.; Huang, X.; Chen, Z.; Zhu, J.; Wang, X. Digital image colorimetry detection of carbaryl in food samples based on liquid phase microextraction coupled with a microfluidic thread-based analytical device. Food Chem. 2021, 337, 127971. [Google Scholar] [CrossRef]
  30. Fernández-Ramos, M.D.; Ogunneye, A.L.; Barbarinde, N.A.A.; Erenas, M.M.; Capitán-Vallvey, L.F. Bioactive microfluidic paper device for pesticide determination in waters. Talanta 2020, 218, 121108. [Google Scholar] [CrossRef]
  31. Habila, M.A.; Yilmaz, E.; AlOthman, Z.A.; Soylak, M. 1-Nitroso-2-Naphthol Impregnated Multiwalled Carbon Nanotubes (NNMWCNTs) for the Separation-Enrichment and Flame Atomic Absorption Spectrometric Detection of Copper and Lead in Hair, Water, and Food Samples. Desalin. Water Treat. 2017, 87, 285–291. [Google Scholar] [CrossRef]
  32. Bedassa, T.; Gure, A.; Megersa, N. The QuEChERS analytical method combined with low density solvent based dispersive liquid–liquid microextraction for quantitative extraction of multiclass pesticide residues in cereals. Bull. Chem. Soc. Ethiop. 2017, 31, 1–15. [Google Scholar] [CrossRef] [Green Version]
  33. Farajzadeh, M.A.; Bamorowat, M.; Afshar Mogaddam, M.R. Development of a dispersive liquid-liquid microextraction method based on solidification of a floating ionic liquid for extraction of carbamate pesticides from fruit juice and vegetable samples. RSC Adv. 2016, 6, 112939–112948. [Google Scholar] [CrossRef]
  34. Khodadoust, S.; Hadjmohammadi, M. Determination of N-methylcarbamate insecticides in water samples using dispersive liquid-liquid microextraction and HPLC with the aid of experimental design and desirability function. Anal. Chim. Acta 2011, 699, 113–119. [Google Scholar] [CrossRef] [PubMed]
  35. Kongphonprom, K.; Burakham, R. Determination of carbamate insecticides in water, fruit, and vegetables by ultrasound-assisted dispersive liquid–liquid microextraction and high-performance liquid chromatography. Anal. Lett. 2016, 49, 753–767. [Google Scholar] [CrossRef]
  36. Ma, H.; Feng, W.; Tian, M.; Jia, Q. Determination of N-methylcarbamate pesticides in vegetables by poly(methacrylic acid-co-ethylene glycol dimethacrylate) monolith microextraction coupled with high performance liquid chromatography. J. Chromatogr. B Anal. Technol. Biomed. Life Sci. 2013, 929, 27–32. [Google Scholar] [CrossRef] [PubMed]
  37. Ma, R.; Zhou, X.; Ma, X.; Wang, C.; Wu, Q.; Wang, Z. Determination of carbamate pesticides in vegetables by octadecyl modified graphene reinforced hollow fiber liquid phase microextraction combined with high-performance liquid chromatography. Anal. Lett. 2015, 48, 1671–1685. [Google Scholar] [CrossRef]
  38. Soylak, M.; Elçi, L. Preconcentration and separation of trace metal ions from sea water samples by sorption on amberlite XAD-16 after complexation with sodium diethyl dithiocarbamate. Int. J. Environ. Anal. Chem. 2006, 66, 51–59. [Google Scholar] [CrossRef]
  39. Soylak, M.; Tuzen, M. Diaion SP-850 resin as a new solid phase extractor for preconcentration-separation of trace metal ions in environmental samples. J. Hazard. Mater. 2006, 137, 1496–1501. [Google Scholar] [CrossRef]
  40. Saracoglu, S.; Soylak, M.; Elci, L. Separation/preconcentration of trace heavy metals in urine, sediment and dialysis concentrates by coprecipitation with samarium hydroxide for atomic absorption spectrometry. Talanta 2003, 59, 287–293. [Google Scholar] [CrossRef]
  41. Wu, Q.; Zhou, X.; Li, Y.; Zang, X.; Wang, C.; Wang, Z. Application of dispersive liquid-liquid microextraction combined with high-performance liquid chromatography to the determination of carbamate pesticides in water samples. Anal. Bioanal. Chem. 2009, 393, 1755–1761. [Google Scholar] [CrossRef]
  42. Goulart, S.M.; Alves, R.D.; De Paula, W.X.; De Queiroz, J.H.; Neves, A.A.; De Queiroz, M.E.L.R. Determination of carbamates in beverages by liquid-liquid extraction with low temperature partitioning and liquid chromatography. J. Braz. Chem. Soc. 2012, 23, 1154–1165. [Google Scholar] [CrossRef] [Green Version]
  43. Zhou, H.C.; Long, J.R.; Yaghi, O.M. Introduction to metal–organic frameworks. Chem. Rev. 2012, 112, 673–674. [Google Scholar] [CrossRef] [PubMed]
  44. Sharmin, E.; Zafar, F. Introductory chapter: Metal organic frameworks (MOFs). In Metal-Organic Frameworks; IntechOpen: London, UK, 2016. [Google Scholar]
  45. Manousi, N.; Zachariadis, G.A.; Deliyanni, E.A.; Samanidou, V.F. Applications of metal-organic frameworks in food sample preparation. Molecules 2018, 23, 2896. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Amanzadeh, H.; Yamini, Y.; Masoomi, M.Y.; Morsali, A. Nanostructured metal-organic frameworks, TMU-4, TMU-5, and TMU-6, as novel adsorbents for solid phase microextraction of polycyclic aromatic hydrocarbons. New J. Chem. 2017, 41, 12035–12043. [Google Scholar] [CrossRef]
  47. Rocío-Bautista, P.; Taima-Mancera, I.; Pasán, J.; Pino, V. Metal-organic frameworks in green analytical chemistry. Separations 2019, 6, 33. [Google Scholar] [CrossRef] [Green Version]
  48. Tang, B.; Zhang, J.H.; Zi, M.; Chen, X.X.; Yuan, L.M. Solid-phase extraction with metal–organic frameworks for the analysis of chiral compounds. Chirality 2016, 28, 778–783. [Google Scholar] [CrossRef]
  49. Rocío-Bautista, P.; Termopoli, V. Metal–organic frameworks in solid-phase extraction procedures for environmental and food analyses. Chromatographia 2019, 82, 1191–1205. [Google Scholar] [CrossRef]
  50. Zha, J.; Yin, X.; Baltzegar, J.R.; Zhang, X. Coordinatively Unsaturated Metal Site-Promoted Selective Adsorption of Organic Molecules on Supported Metal–Organic Framework Nanosheets. Langmuir 2019, 35, 12908–12913. [Google Scholar] [CrossRef]
  51. Zhang, S.; Yang, Q.; Wang, W.; Wang, C.; Wang, Z. Covalent bonding of metal–organic framework-5/graphene oxide hybrid composite to stainless steel fiber for solid-phase microextraction of triazole fungicides from fruit and vegetable samples. J. Agric. Food Chem. 2016, 64, 2792–2801. [Google Scholar] [CrossRef]
  52. Rezaei Kahkha, M.R.; Oveisi, A.R.; Kaykhaii, M.; Rezaei Kahkha, B. Determination of carbamazepine in urine and water samples using amino-functionalized metal–organic framework as sorbent. Chem. Cent. J. 2018, 12, 77. [Google Scholar] [CrossRef] [Green Version]
  53. Sitnikov, D.G.; Monnin, C.S.; Vuckovic, D. Systematic assessment of seven solvent and solid-phase extraction methods for metabolomics analysis of human plasma by LC-MS. Sci. Rep. 2016, 6, 38885. [Google Scholar] [CrossRef]
  54. Caban, M.; Migowska, N.; Stepnowski, P.; Kwiatkowski, M.; Kumirska, J. Matrix effects and recovery calculations in analyses of pharmaceuticals based on the determination of β-blockers and β-agonists in environmental samples. J. Chromatogr. A 2012, 1258, 117–127. [Google Scholar] [CrossRef] [PubMed]
  55. Chiadmi, F.; Schlatter, J. Determination and validation of a solid-phase extraction gas chromatography-mass spectrometry for the quantification of methadone and its principal metabolite in human plasma. Anal. Chem. Insights 2015, 10, 17–22. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Jenkinson, C.; Deshmukh, N.I.; Shah, I.; Zachar, G.; Szekely, A.D.; Petroczi, A.; Naughton, D.P. LC-MS/MS-based assay for free and deconjugated testosterone and epitestosterone in rat urine and serum. J. Anal. Bioanal. Tech. 2014, s5, 006. [Google Scholar] [CrossRef] [Green Version]
  57. Zhou, G.; Tan, Z.R.; Zhang, W.; Ou-Yang, D.S.; Chen, Y.; Guo, D.; Liu, Y.Z.; Fan, L.; Deng, H.W. An improved LC-MS/MS method for quantitative determination of ilaprazole and its metabolites in human plasma and its application to a pharmacokinetic study. Acta Pharmacol. Sin. 2009, 30, 1330–1336. [Google Scholar] [CrossRef] [Green Version]
  58. Habila, M.A.; ALOthman, Z.A.; Al-Tamrah, S.A.; Ghafar, A.A.; Soylak, M. Activated carbon from waste as an efficient adsorbent for malathion for detection and removal purposes. J. Ind. Eng. Chem. 2015, 32, 336–344. [Google Scholar] [CrossRef]
  59. Habila, M.; Yilmaz, E.; Alothman, Z.A.; Soylak, M. Flame atomic absorption spectrometric determination of Cd, Pb, and Cu in food samples after pre-concentration using 4-(2-thiazolylazo) resorcinol-modified activated carbon. J. Ind. Eng. Chem. 2014, 20, 3989–3993. [Google Scholar] [CrossRef]
  60. Habila, M.A.; ALOthman, Z.A.; Yilmaz, E.; Alabdullkarem, E.A.; Soylak, M. A new amine based microextraction of lead (II) in real water samples using flame atomic absorption spectrometry. Microchem. J. 2019, 148, 214–219. [Google Scholar] [CrossRef]
  61. Alothman, Z.A.; Habila, M.A.; Yilmaz, E.; Soylak, M.; Alfadul, S.M. Ultrasonic supramolecular microextration of nickel (II) as N,N′-dihydroxy-1,2-cyclohexanediimine chelates from water, tobacco and fertilizer samples before FAAS determination. J. Mol. Liq. 2016, 221, 773–777. [Google Scholar] [CrossRef]
  62. Lal, A.; Tan, G.; Chai, M. Multiresidue analysis of pesticides in fruits and vegetables using solid-phase extraction and gas chromatographic methods. Anal. Sci. 2008, 24, 231–236. [Google Scholar] [CrossRef] [Green Version]
  63. Ruiz-Medina, A.; Llorent-Martínez, E.J.; Fernández-de Córdova, M.L.; Ortega-Barrales, P. Automated optosensor for the determination of carbaryl residues in vegetable edible oils and table olive extracts. J. Food Compos. Anal. 2012, 26, 66–71. [Google Scholar] [CrossRef]
  64. Paíga, P.; Domingues, V.F.; Wanderley, K.A.; Júnior, S.A.; Delerue-Matos, C.M. QuEChERS: A sample preparation for extraction of carbaryl from rat feces. Toxicol. Environ. Chem. 2015, 97, 687–699. [Google Scholar] [CrossRef] [Green Version]
  65. Dias, J.V.; Cutillas, V.; Lozano, A.; Pizzutti, I.R.; Fernández-Alba, A.R. Determination of pesticides in edible oils by liquid chromatography-tandem mass spectrometry employing new generation materials for dispersive solid phase extraction clean-up. J. Chromatogr. A 2016, 1462, 8–18. [Google Scholar] [CrossRef] [PubMed]

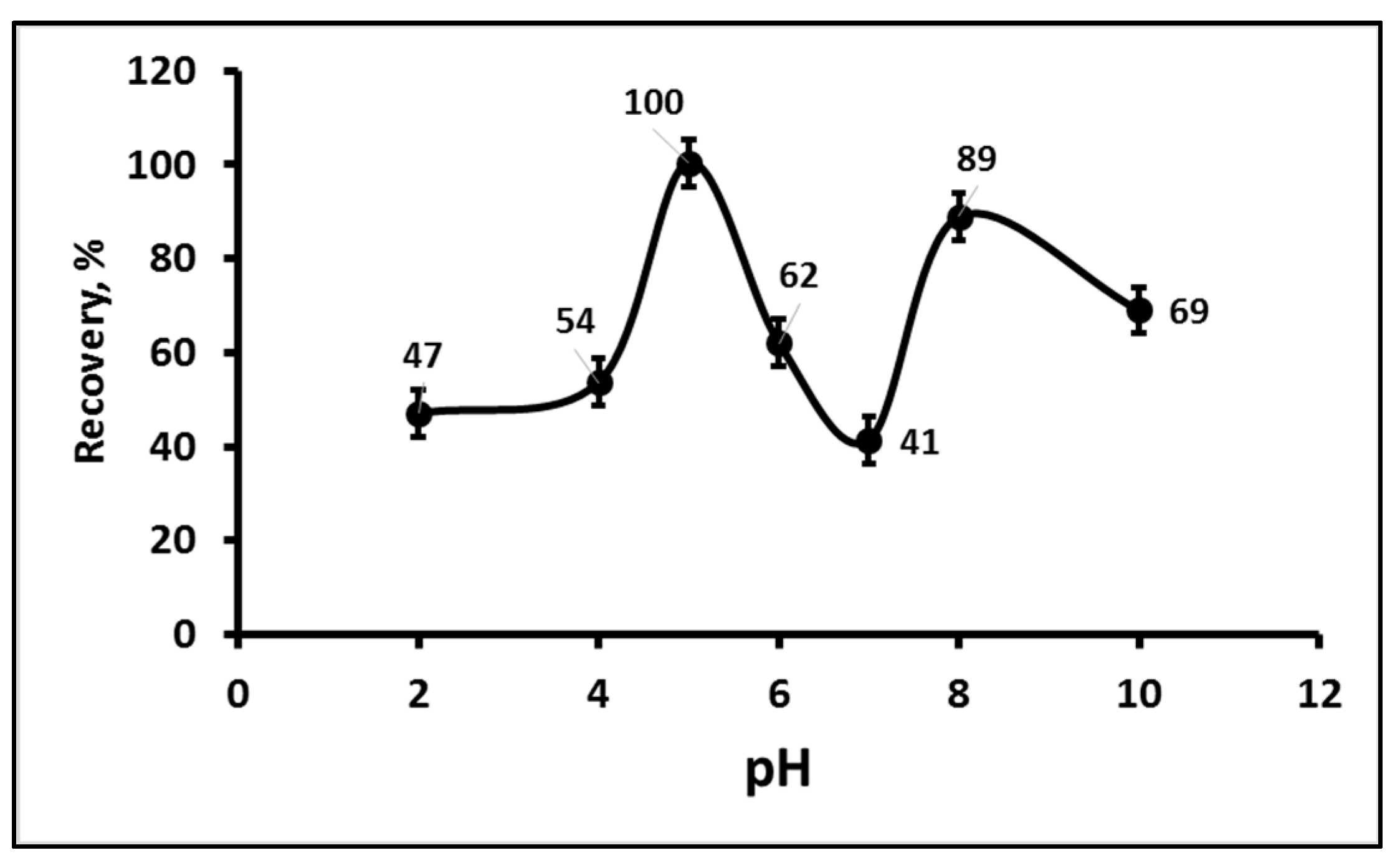

Separations 09 00032 g001 550
Figure 1. The effect of the apparent pH on the recovery of carbaryl from A100 Al-based MOFs (n = 3).
Figure 1. The effect of the apparent pH on the recovery of carbaryl from A100 Al-based MOFs (n = 3).
Separations 09 00032 g001

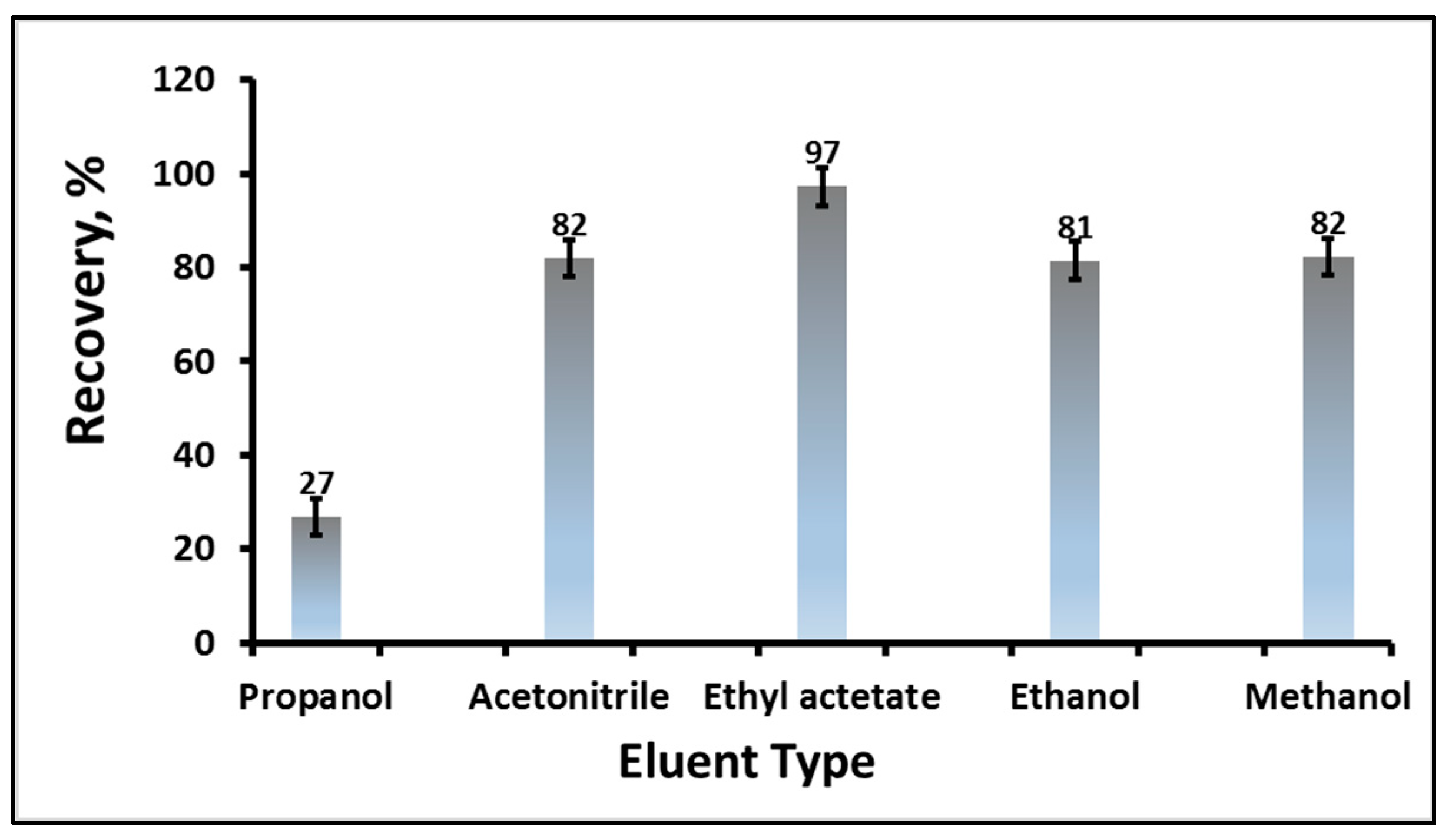

Separations 09 00032 g002 550
Figure 2. Effect of the eluent type on the desorption of carbaryl from A100 Al-based MOFs (n = 3).
Figure 2. Effect of the eluent type on the desorption of carbaryl from A100 Al-based MOFs (n = 3).
Separations 09 00032 g002

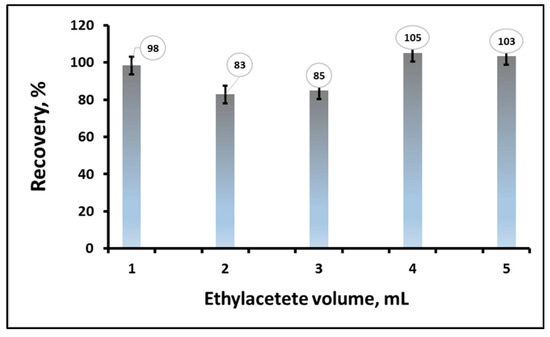

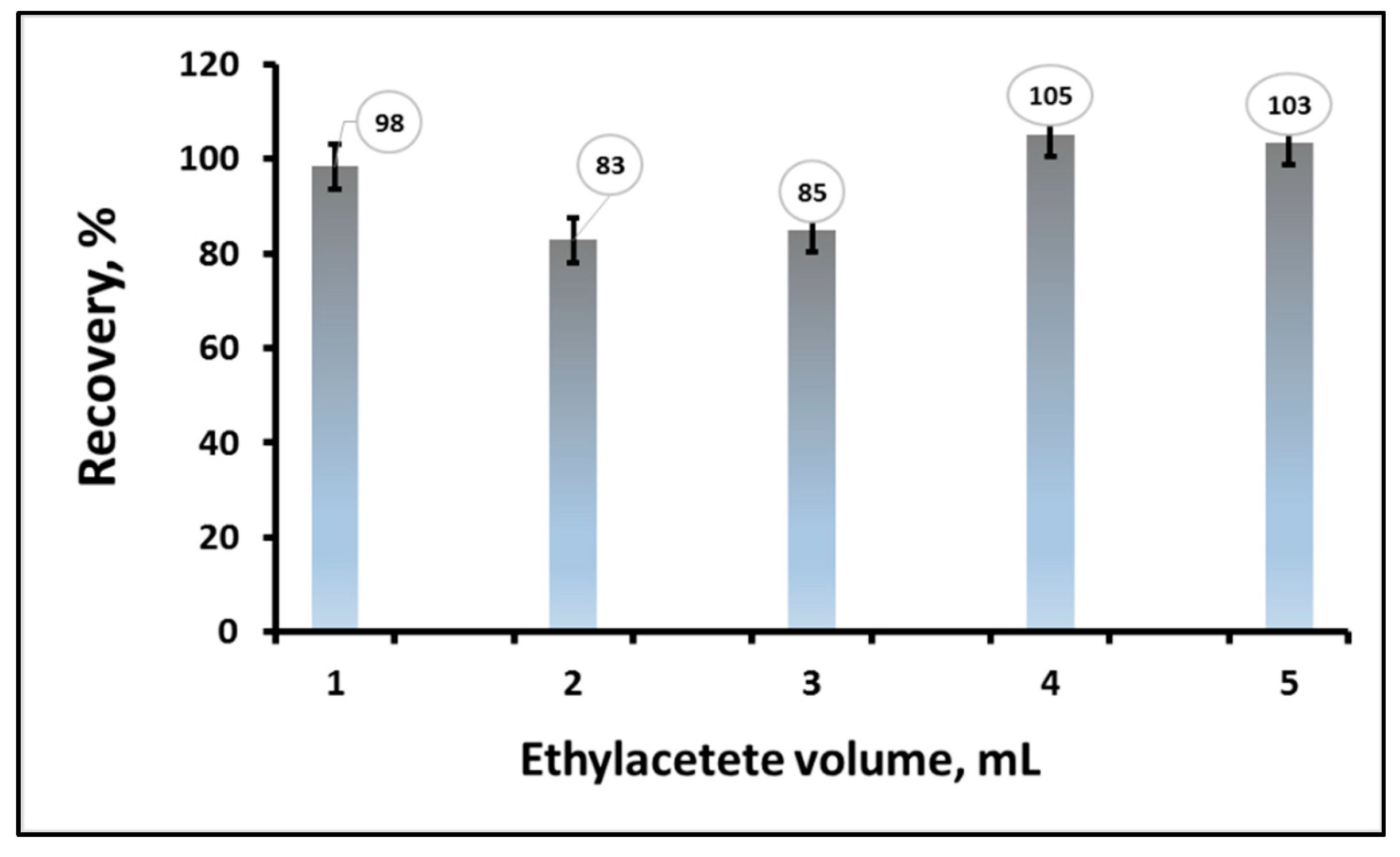

Separations 09 00032 g003 550
Figure 3. Effect of the eluent volume on the desorption of carbaryl from A100 Al-based MOFs (n = 3).
Figure 3. Effect of the eluent volume on the desorption of carbaryl from A100 Al-based MOFs (n = 3).
Separations 09 00032 g003

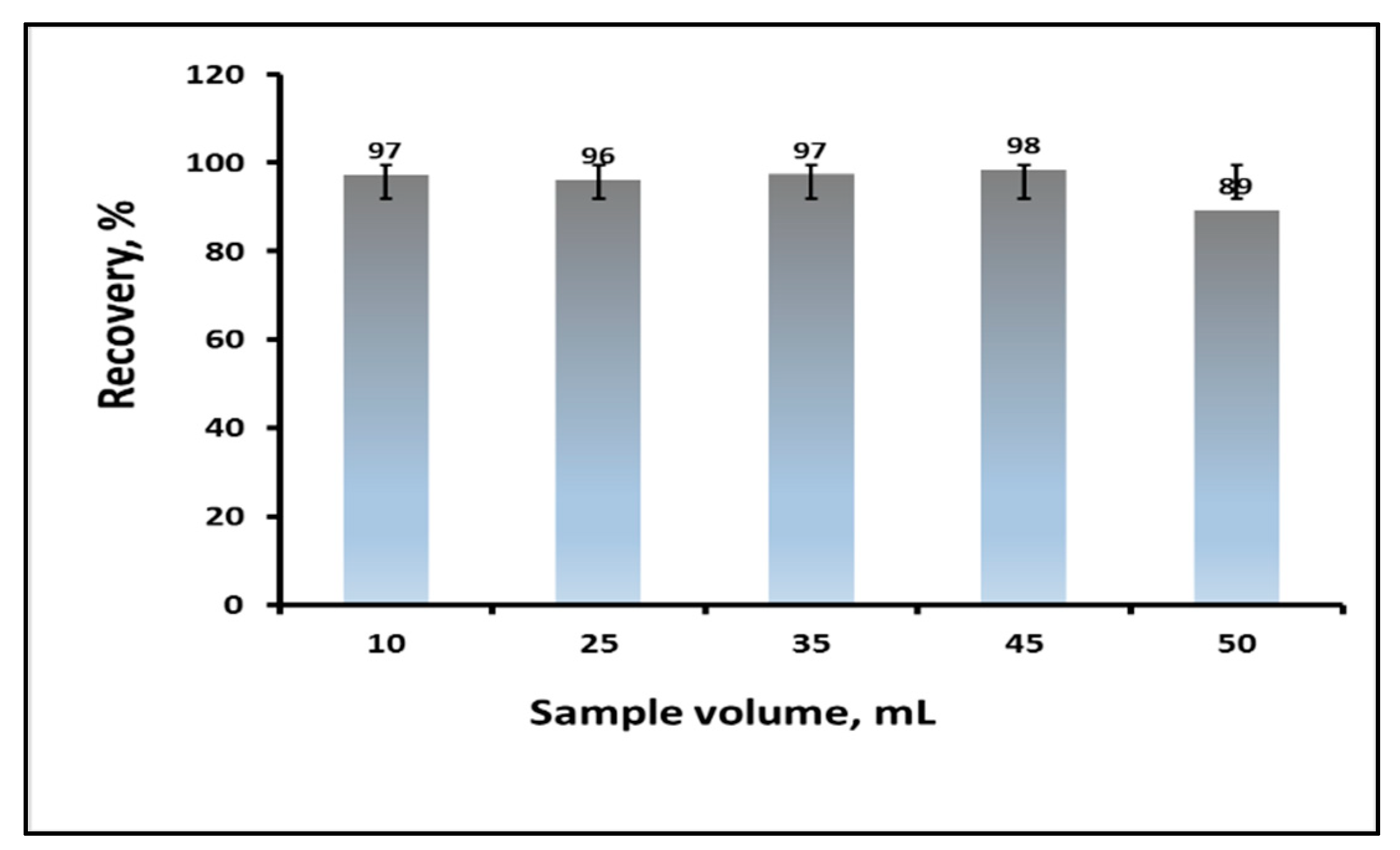

Separations 09 00032 g004 550
Figure 4. Effect of the sample volume on carbaryl recovery% (n = 3).
Figure 4. Effect of the sample volume on carbaryl recovery% (n = 3).
Separations 09 00032 g004
Table
Table 1. The recovery of carbaryl from water in the presence of coexisting ions (n = 3).
Table 1. The recovery of carbaryl from water in the presence of coexisting ions (n = 3).
Co-Existing IonCarbaryl Recovery%
Ca2+97.0 ± 0.2
Mg2+99.0 ± 1.0
Ni2+98.0 ± 0.9
Fe2+96.0 ± 0.5
Zn2+ 96.0 ± 0.8
Na2+100.0 ± 0.2
Cl2+97.0 ± 0.5
SO42−99 ± 0.09
NO3−95.0 ± 1.2
Table
Table 2. The recovery of carbaryl from the water and food samples (n = 3).
Table 2. The recovery of carbaryl from the water and food samples (n = 3).
SamplesCarbaryl ConcentrationRecovered Concentration after Spiking 0.300 mg.L−1 CarbarylRecovery%
Tap water0.00 mg.L−10.298 ± 0.050 mg.L−199
Apple extract0.01 mg.kg−10.294 ± 0.050 mg.L−198
Tomato extract0.02 mg.kg−10.279 ± 0.40 mg.L−193
Red radish0.01 mg.kg−10.285 ± 0.040 mg.L−195
Mango0.01 mg.kg−10.292 ± 0.010 mg.L−197
Carrot0.01 mg.kg−10.274 ± 0.005 mg.L−191
Table
Table 3. Evaluation of the intra-day and inter-day precision for (n = 7).
Table 3. Evaluation of the intra-day and inter-day precision for (n = 7).
Carbaryl Solution
(mg.L−1)		Intra-Day Analysis Inter-Day Analysis
First DayThird DayFifth Day
Detected Concentration (mg.L−1)Accuracy% Precision (RSD%)Detected Concentration (mg.L−1)Accuracy% Precision (RSD%)Detected Concentration (mg.L−1)Accuracy% Precision (RSD%)Detected Concentration (mg.L−1)Accuracy% Precision (RSD%)
0.010.0102.00.870.0103.50.850.0103.80.270.0117.21.03
0.050.0500.21.050.0511.22.130.0490.61.680.0512.21.72
0.100.1044.11.40.1076.61.90.1066.00.80.1043.71.7
Table
Table 4. Comparison of the carbaryl microextraction method developed in this study with the previously reported methods.
Table 4. Comparison of the carbaryl microextraction method developed in this study with the previously reported methods.
Method DescriptionLimit of Detection Limit of QuantificationRSDReferences
SPE-GC0.05 mg.kg−10.15 mg.kg−14.7%[62]
DLLME-HPLC0.4–1.0 μg.L−11.3 μg.L−15.1%[41]
QuEChERS 1.0 mg.kg−1-4%[63]
LLE-LTP-HPLC-UV 8.0 mg.L−125.0 mg.L−1-[42]
QuEChERS-LC-FLD 27.7 mg.kg−1 92.3 mg.kg−11.1%[64]
UHPLC-QqQ-MS/MS -10 mg.kg−14%[65]
DSPME0.01 mg.L−10.03 mg.L−10.27–2.13%This work
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Habila, M.A.; Alhenaki, B.; El-Marghany, A.; Sheikh, M.; Ghfar, A.A.; ALOthman, Z.A.; Soylak, M. Metal Organic Framework-Based Dispersive Solid-Phase Microextraction of Carbaryl from Food and Water Prior to Detection by Ultra-Performance Liquid Chromatography-Tandem Mass Spectrometry. Separations 2022, 9, 32. https://doi.org/10.3390/separations9020032

AMA Style

Habila MA, Alhenaki B, El-Marghany A, Sheikh M, Ghfar AA, ALOthman ZA, Soylak M. Metal Organic Framework-Based Dispersive Solid-Phase Microextraction of Carbaryl from Food and Water Prior to Detection by Ultra-Performance Liquid Chromatography-Tandem Mass Spectrometry. Separations. 2022; 9(2):32. https://doi.org/10.3390/separations9020032

Chicago/Turabian Style

Habila, Mohamed A., Bushra Alhenaki, Adel El-Marghany, Mohamed Sheikh, Ayman A. Ghfar, Zeid A. ALOthman, and Mustafa Soylak. 2022. "Metal Organic Framework-Based Dispersive Solid-Phase Microextraction of Carbaryl from Food and Water Prior to Detection by Ultra-Performance Liquid Chromatography-Tandem Mass Spectrometry" Separations 9, no. 2: 32. https://doi.org/10.3390/separations9020032

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
