Flavonoids Extraction Kinetics, Antimicrobial Activity and Radical Scavenging Potential of Bulgarian Woundwort (Solidago virgaurea L.)

Abstract

The medicinal plant woundwort (Solidago virgaurea L.) characterizes by diuretic, antimutagenic, anti-inflammatory activity and it has been applied for urinary tract, nephrolithiasis and prostate disorders treatment. The aim of the present study was to analyze the extraction kinetics of catechin, epigallocatechin and quercetin from Bulgarian woundwort extracts, to assess the antibacterial potential of the medicinal plant extracts against four bacterial strains (Staphylococcus aureus ATCC25923, Escherichia coli ATCC 25922, Pseudomonas aeruginosa ATCC 27853 and Bacillus cereus), their antioxidant capacity and radical scavenging potential. The concentrations of the flavonoids in the extracts obtained at different extraction conditions (solvent, temperature, extraction time) were determined by newly-developed by the scientific team RP-HPLC-PDA methodologies. The agar well diffusion method was applied to evaluate the antibacterial activity of the plant extracts. The 70% EtOH extracts at 20 °C displayed significantly higher antibacterial activity against the foodborne pathogenic bacteria S. aureus and P. aeruginosa as compared to the 70% and 98% EtOH extracts at 30 °C and 20 °C, respectively. The medicinal plant exhibited satisfactory antioxidant potential and radical-scavenging activity.

1. Introduction

Modern health conscious lifestyle has been taking advantage of medicines, food additives and dietary supplements of natural origin, such as plant extracts containing high amounts of important groups of secondary metabolites. The latter including flavonoids, phenolic acids, quinones, tannins, etc., possess diverse structures and functions and have been putatively recognized to exhibit various biological activities: antioxidant, antimicrobial, antiproliferative, anti-inflammatory, antidiabetic, etc. [1,2,3].

Flavonoids constitute a large class of natural phenolic compounds which are plants bioactive secondary metabolites. Modern scientific studies report their immunomodulatory, anti-inflammatory, hepatoprotective, antiviral and anticancer activities [4]. These effects emanate from the potential of the polyphenolic compounds to reduce oxidative stress, inhibit the oxidation of lipoproteins and vasodilation activity [5,6].

The precise elicitation of the mechanisms of the physiological activities of medicinal plant extracts requires detailed qualitative and quantitative analyses of these multicomponent systems, so that to evaluate the individual biopotency of the components and to reveal their biochemical pathways and therapeutic potential.

With respect to the growing risk of antibiotic resistance and based on novel scientific data that medicinal plants flavonoids have been recognized as promising antimicrobial agents [7], recent scientific studies have been directed towards in-depth investigations in this field of medicinal chemistry and biomedicine. Modern scientific literature reports antibacterial activity of various plant extracts applying water and numerous organic solvents (acetone, ethanol, methanol, ethyl acetate) as extracting agents [8]. Gonelimali et al. [9] reported that roselle (Hibiscus sabdariffa), rosemary (Rosmarinus officinalis), clove (Syzygium aromaticum), and thyme (Thymus vulgaris) water and ethanol extracts displayed antibacterial and antifungal activities against Gram positive and Gram negative bacterial strains. These findings were substantiated by the decline in cytoplasmic pH and cell membrane hyperpolarization [9].

Another study demonstrated high antibacterial potential of O. corniculata extract against Escherichia coli, Salmonella Typhi, MDR Salmonella Typhi, Klebsiella pneumoniae, and Citrobacter koseri. and satisfactory activity of Plumbago indica [10], Artemisia vulgaris, Cinnamomum tamala, and Ageratina adenophora methanolic extracts against Staphylococcus aureus [11]. The investigations of Owusu et al. [12] demonstrated antimicrobial activity of water and ethanol extracts of several African Sub-Saharan medicinal plants against MD-R bacterial pathogens that were previously isolated from post-operative wounds.

Therapies applying antioxidant agents have been suggested as state-of-the-art approaches to mitigate diseases associated with oxidative stress. Antioxidants are proposed to exert versatile and multitargeted mechanisms that are associated with either oxidative homeostasis restoration or free radical accumulation. Plant-derived phenolics and flavonoids in medicinal plants behave as strong free-radical scavengers that prevent the cell damage caused by oxidative stress [13]. In this respect, significant in vitro and in vivo antioxidant potential of butanol extract from Ephedra alte in a concentration-dependent manner were reported by Al-Trad et al. [14]. The water and methanol extracts of P. thonningi displayed satisfactory in vitro antilipid peroxidation potential, DPPH radical scavenging activity, and ferric reducing power efficiency [15]. The study of Zagórska-Dziok et al. [16] demonstrated the potential of M. sativa L. extracts to inhibit free radicals on the external cell environment as well as to reduce intracellular reactive oxygen species level, thus contributing to intercellular oxidative stress reduction.

European woundwort (Solidago virgaurea L., Amphiraphis leiocarpa, Amphiraphis pubescens, Dectis decurrens Raf., Doria virgaurea Scop.) is a representative of the Asteraceae family. In Bulgaria, the medicinal plant grows all around the country: in wetlands, low mountain regions, dry grassland, brush woods, from 500 to 2600 m above sea level. The herb characterizes by versatile bioactivities including cytotoxic, antitumor, anti-inflammatory, analgesic, diuretic, cardioprotective, etc properties [17]. According to scientific literature its pharmacological activity is due to the presence of a number of biologically active substances, among which flavonoids (catechin, epigallocatechin, naringenin, quercetin, genstein, kaempferol, etc.) are considered the most essential [18].

The aim of the present study was to analyze the extraction kinetics of catechin, epigallocatechin and quercetin from Bulgarian woundwort extracts, to assess the antibacterial potential of the medicinal plant extracts against four bacterial strains (Staphylococcus aureus ATCC25923, Escherichia coli ATCC 25922, Pseudomonas aeruginosa ATCC 27853 and Bacillus cereus), their antioxidant capacity and radical scavenging potential.

2. Materials and Methods

2.1. Chemicals

The reagents methanol (MeOH, ≥99.9%), ethanol (EtOH, p.a. ≥ 99.8%), acetonitrile (ACN, ≥99.8%), orthophosphoric acid (H₃PO₄, 85%), L-ascorbic acid, CH₃COOH, NaOH (p.a., HPLC) and DPPH (2,2-diphenyl-1-picrylhydrazyl) were supplied by Sigma-Aldrich (St. Louis, MA, USA). Milli-Q water was used to prepare the mobile phase for the HPLC analyses. The calibration curves of the three analyzed flavonoids were obtained by the use of the following standard compounds: (+)-catechin hydrate (≥96.0%, HPLC), (−)-epigallocatechin (analytical standard), quercetin hydrate (≥95%, HPLC) (Sigma Aldrich, MA, USA) (Supplementary Figure S1).

2.2. Plant Material

Solidago virgaurea L. aerial parts (leaves and inflorescences) were harvested at full flowering stage from Sredna gora Region, Bulgaria, during the period June–July, 2018. The raw material was dried in the shade, at a temperature of 20–30 °C. The water content of woundwort after drying was below 5%. The air-dried plant material was mechanically ground with a laboratory mill to obtain a homogenous powder

2.3. Extraction Procedure

The ground raw material was placed in a stirred batch extraction reactor at liquid/solid ratio ξ = 0.03 m³/kg and filled with the appropriate solvent by heating in a thermostatic water bath with constant stirring. The agitation rate was n = 4 s⁻¹ to ensure internal diffusion mode. The temperature during the experiments in the thermostat was maintained by means of a contact thermometer and an external cycle with cooling water. After the set extraction time has elapsed, the samples were carefully filtered.

Four series of woundwort extracts were prepared and analyzed: Series 1—solvent 70% EtOH, extraction temperature T = 20 °C (samples designated as S1′–S9′); Series 2—solvent 70% EtOH, extraction temperature T = 30 °C (samples designated as S1–S9); Series 3—solvent 98% EtOH, extraction temperature T = 20 °C (samples designated as S1″–S9″); Series 4—solvent H₂O, extraction temperature T = 20 °C (S1‴–S9‴). To study the extraction kinetics nine samples from each series were collected at extraction times 5, 10, 15, 20, 30, 60, 90, 120, 140 and 160 min, respectively.

2.4. RP-HPLC-PDA Analyses

The quantitative analyses of the flavonoids (catechin, epigallocatechin, quercetin) contents in the four woundwort extract series were determined by newly developed by the authors liquid chromatographic techniques specific for each of the bioactive substances analyzed which were described elsewhere [19,20]. In brief, the HPLC system consisted of a Hypersil BDS C18 column (5 µM, 4.6 × 150 mm), a Surveyor LC Pump Plus pump, a PDA detector, and an Autosampler Plus autosampler (Thermo Fisher Scientific, Waltham, MA, USA). All extracts were preliminary filtered through 0.45 μm syringe filters (Hach Lange, Düsseldorf, Germany). The sample volume was 20 μL. The specific chromatographic conditions are summarized in

Table 1. RP-HPLC-PDA conditions for the quantitative flavonoids profile of woundwort extracts.

Flavonoid	Quercetin	Catechin	Epigallocatechin
Mobile phase	MeOH:AcCN:H2O = 40:15:45 (v/v/v) (+1% CH3COOH)
Maximum wavelength	λ = 360 nm—for solvents water, 70% EtOH and 98% EtOH	λ = 260 nm—for solvent water; λ = 325 nm—for solvents 70% EtOH and 98% EtOH
Flow rate	0.5 mL/min	0.5 mL/min
Precolumn derivatization	+	+
Column temperature	30 °C	30 °C
Detection time	t = 5.8 min	t = 4.3 min	t = 3.5 min

.

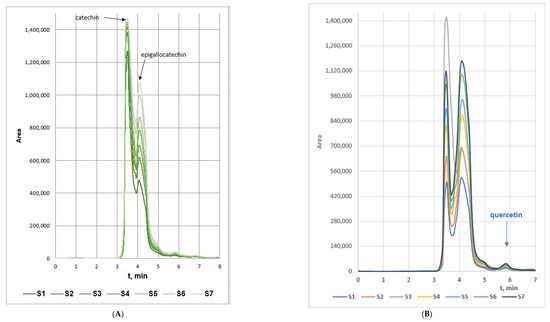

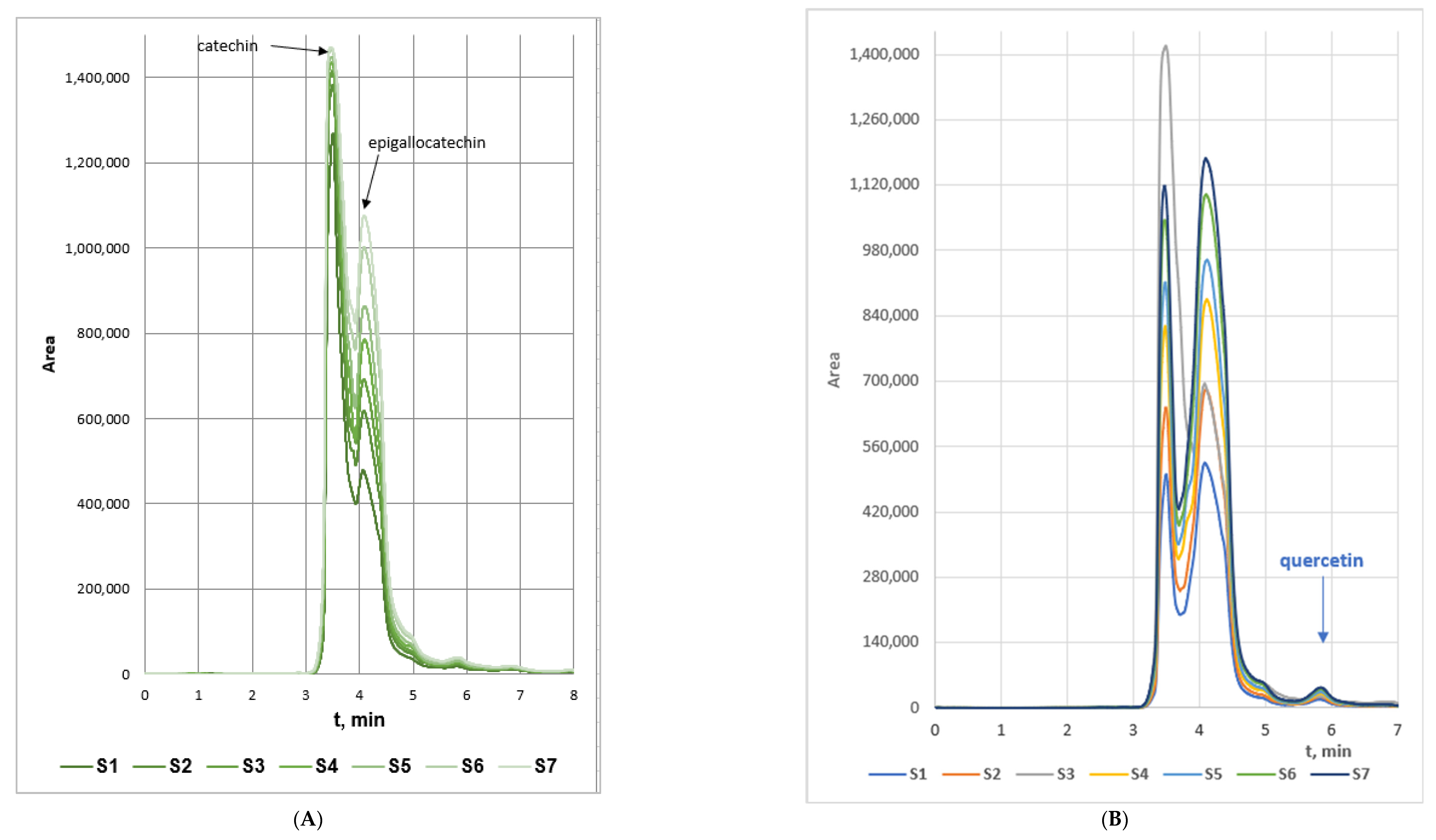

All chromatographic analyses were performed in triplicate and the mean values of the reported concentrations were presented. The experimental HPLC chromatograms were analyzed with ChromQuestTM chromatography workstation software system Version 4.2 (Thermo Electron Corporation, Waltham, MA, USA). The data from the chromatographic analyses allowed the study of the extraction process kinetics.

2.5. FT-IR Analyses

The FT-IR spectra of the liquid extracts were obtained with the CaF₂ plate technique in the range 800–4000 cm⁻¹, while the spectra of the solid powdered standard flavonoids with the KBr disc technique in the range 400–4000 cm⁻¹, using a TENSOR 37 Bruker FTIR spectrometer (Bruker Optik GmbH, Ettlingen, Germany). The spectra in the range from 4000 to 400 cm⁻¹ were the average of 64 scans at a resolution of 2 cm⁻¹. The ATR signal was transformed to transmittance and the obtained spectra were normalized after the baseline correction.

2.6. Antimicrobial Screening

Agar well diffusion method was used to screen the antibacterial activity of the woundwort extracts against Staphylococcus aureus ATCC 25923, Escherichia coli ATCC 25922, Pseudomonas aeruginosa ATCC 27853 and the clinical isolate—Bacillus cereus. In brief, for measuring of antibacterial activity, inoculums were prepared in saline corresponding to 0.5 of the McFarland standard (1.5 × 10⁸ CFU/mL) from 24 h bacterial colonies incubated on trypticase soy agar (Himedia, Mumbai, India) supplemented with 5% defibrinated sheep blood. Twenty mL of molted Mueller Hinton agar (Himedia, Mumbai, India) was added to each Petri dish. A sterile 6 mm cork borer was used for the formation of the wells after the inoculum was pre-applictaed with a sterile cotton swab. 100 μL of the extracts in EtOH (70% and 98%) were added to the wells. A positive control with gentamicin at a concentration of 12.5 μg/mL and a negative one with ethanol (70% and 98%) were performed. The plates were incubated at 37 °C for 24 h under aerobic conditions. Antimicrobial activity was detected by measuring the inhibition zone (IZ, mm) (including the wells diameter) that appeared after the incubation period [21].

2.7. In Vitro Antioxidant Activity

To measure the antioxidant activity of the woundwort extracts, four methods with different mechanisms of action were applied: (i) DPPH Radical Scavenging Assay: The DPPH (2,2-diphenyl-1-picrylhydrazyl) scavenging activity according to Cuendet et al. [22] with slight modifications [23]; (ii) ABTS^•+ assay: The radical-scavenging activity of S. virgaurea L. extracts against 2,2-azinobis (3-ethylbenzothiazoline–6–sulfonic acid) was determined by Re et al. [24] with modifications by Adhikari et al. [25]; (iii) Ferric Reducing Power/electron donation (FRAP) assay: The FRAP assay was performed according to a previously reported method with a slight modification [26,27]; (iv) NO assay: The presence a stable oxidized product as a rsults of nitric oxide ion scavenging of the extracts (50 μg/mL) was performed according to the methodology of Shirwaikar et al. [28] with modification by Karamalakova et al. [29].

2.8. UV-B Treatment

Two of the ethanol extracts with the highest flavonoid concentrations from Series 1 and 2 were irradiated at a distance from the light source of 25 to 35 cm and a quartz cover was applied to permit UV transparency and to halt evaporation of the extract and keeping it in a horizontal position on UV-B–vis Transilluminator 4000 (Stratagene, La Jolla, CA, USA) (emitting between 290 nm and 320 nm; peak 309 nm). The experimental UV-B intensity was calibrated in each experiment. To assess the dose response value of the UV-B radiation effect, the samples were subjected to UV-B irradiation within the range from 0 to 12 kJ/m² without visible ray, at less than 291–293 K. The energy of UV-B irradiation was controlled with 120 min exposure time. Dark, fresh air and 46% relative humidity was circulated in the illuminator throughout the irradiation course.

To study the effect of UV-B radiation on the antioxidant and free radical scavenging activity, the samples were stored at 293 K in the dry air/dark and re-examined for 24 h at the 2nd month of post irradiation.

2.9. Statistical Analysis

The data obtained from the HPLC, kinetics extraction, antimicrobial and in vitro antioxidant activity studies were expressed as means ± standard deviation (SD) from three repetitions with Statistica 7.1, StaSoft Inc. (Tulsa, OK, USA), one-way ANOVA. The statistical significance was determined by Student’s t-test as the post-hoc test. A value of p < 0.05 was considered as statistically significant. The kinetic data were expressed as the average of three independent measurements, which were processed using the computer programs Origin 6.1 (OriginLab Corporation, Northampton, MA, USA) and Microsoft Excel 2010 (Microsoft Corporation, WA, USA).

3. Results and Discussion

3.1. RP-HPLC Analyses of Woundwort Extracts and Extraction Kinetics Curves

The concentrations of catechin (CAT), epigallocatechin (EPI) and quercetin (QUER) in the four extracts series were determined by RP-HPLC on the basis of the standard calibration curves of the three flavonoids. The volume of all samples used in the RP-HPLC assays was 1.5 mL. The RP-HPLC chromatograms of the three biologically active polyphenols characterized with well resolved peaks presented in Figure 1.

The kinetics of the extraction process is influenced by numerous factors such as temperature, solvent type, solute and solvent diffusion capacity, etc. It consists of the release of biologically active compounds from porous or cellular plant matrices into the solvent through mass transfer [30,31,32].

The selection and application of water, 70% EtOH and 96% EtOH as solvents for the extraction of the flavonoids catechin, epigallocatechin and quercetin, on the one hand, was substantiated by the proven efficiency of these extracting agents as reported by novel scientific investigations. According to Koch et al. [33] polyphenols the extraction of polyphenols from green tea was the most efficient with ethanol and water and the lowest with ethyl acetate. The higher efficiency of ethanol and methanol as compared to that of other organic solvents such as acetone and acetonitrile was reported by Vuong et al. [34], while the study of Tsai and Chen [35] undoubtedly prove the highest recovery potential of 70% EtOH as compared to 30% and 50% solutions.

On the other hand, ethanol is characterized with significantly lower toxicity as compared to other organic solvents such as methanol, chloroform, ethyl acetate, etc., applied as extracting agents, which is of utmost significance for the preparation of herbal extracts intended for medical purposes.

The main factors affecting solid-liquid extraction of valuable compounds from plant materials include extraction temperature, type and concentration of the solvents and contact time between the solid phase and the extraction agent. The assessment of the influence of these factors on the kinetics of the extraction process allows the optimization of the process and serves as a powerful tool for the simulation, design, and control of the extraction process.

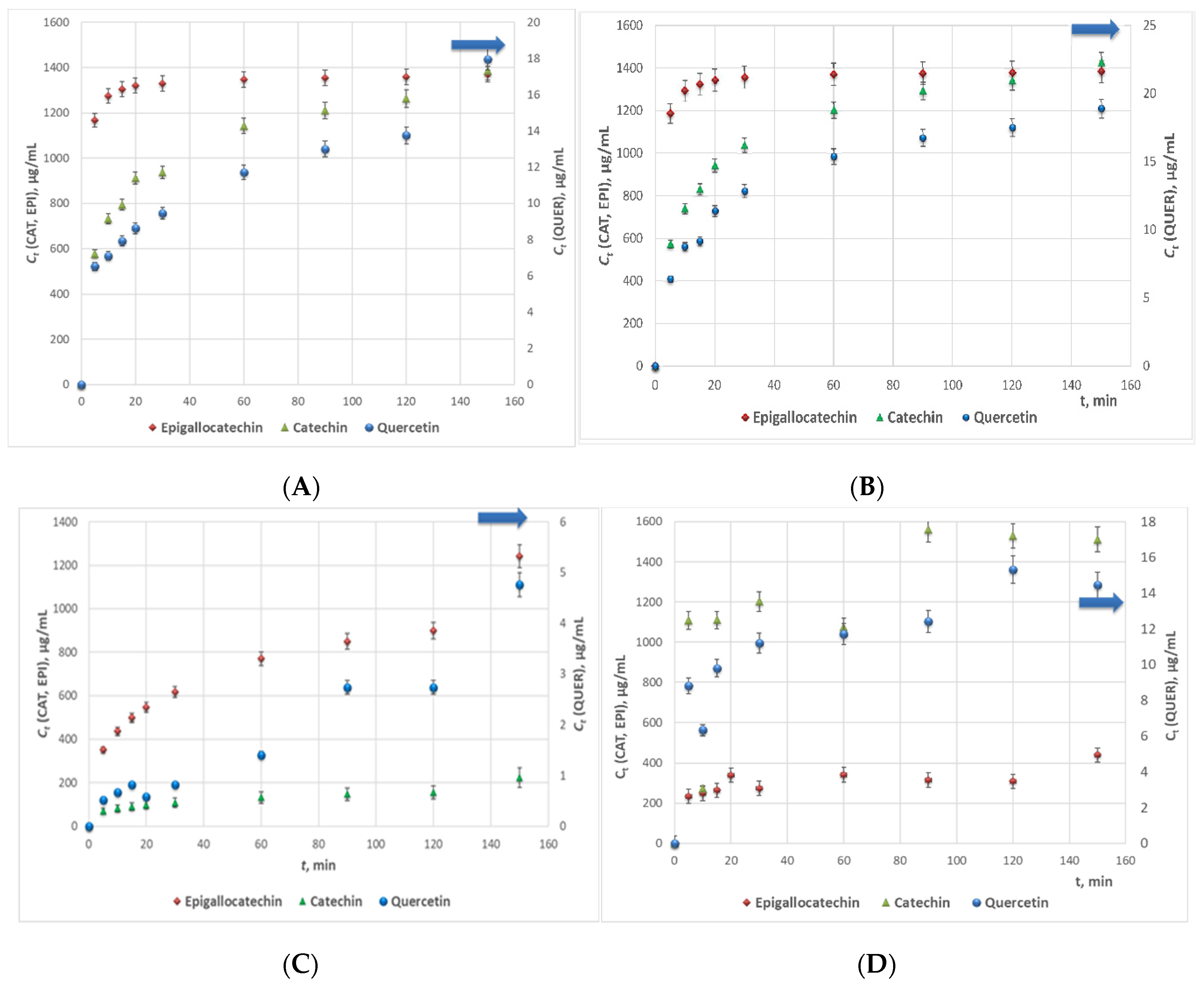

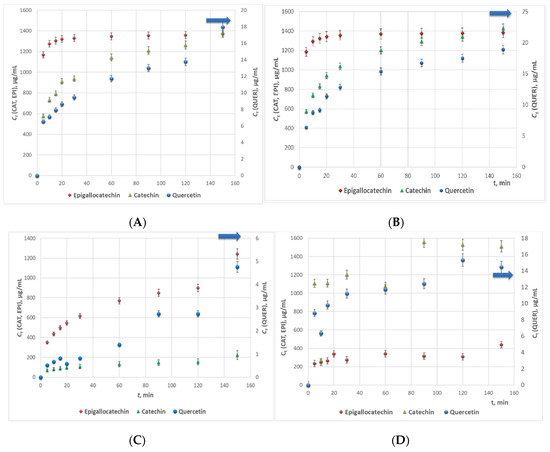

The extraction kinetics curves of the samples from the four series are displayed in Figure 2A–D. Obviously, the concentrations of catechin in the water extracts series prevailed that of epigallocatechin. This aberration of the flavonoids contents ratio could be subjected to the lower solubility of epigallocatechin in water (≈5.0 mg/mL) as compared to that of catechin (≈7.6 mg/mL). Besides, the maximum measured concentration of quercetin in the water extracts was approximately 20% lower than that in the 70% EtOH extracts. The probable reason could also be associated with the low water solubility of the flavanone which accounts to 2.15 µg/mL [32]. From another aspect, the fact that quercetin concentration in the water extracts surpassed the water solubility of the anhydrous bioactive compound could be substantiated by the fact that the water extracts were turbid even after filtration (which imposed precolumn derivatization during the HPLC analyses) probably containing colloidal particles with insolubilized flavonoids that were dissolved in the MeOH containing mobile phase. Besides, the liquid/solid ratio of ξ = 0.03 m³/kg of the extraction processes is a testament for highly concentrated extracts.

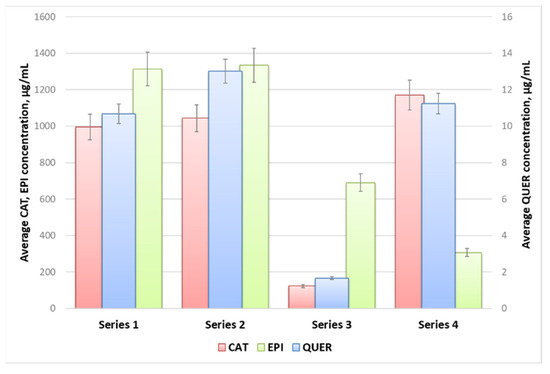

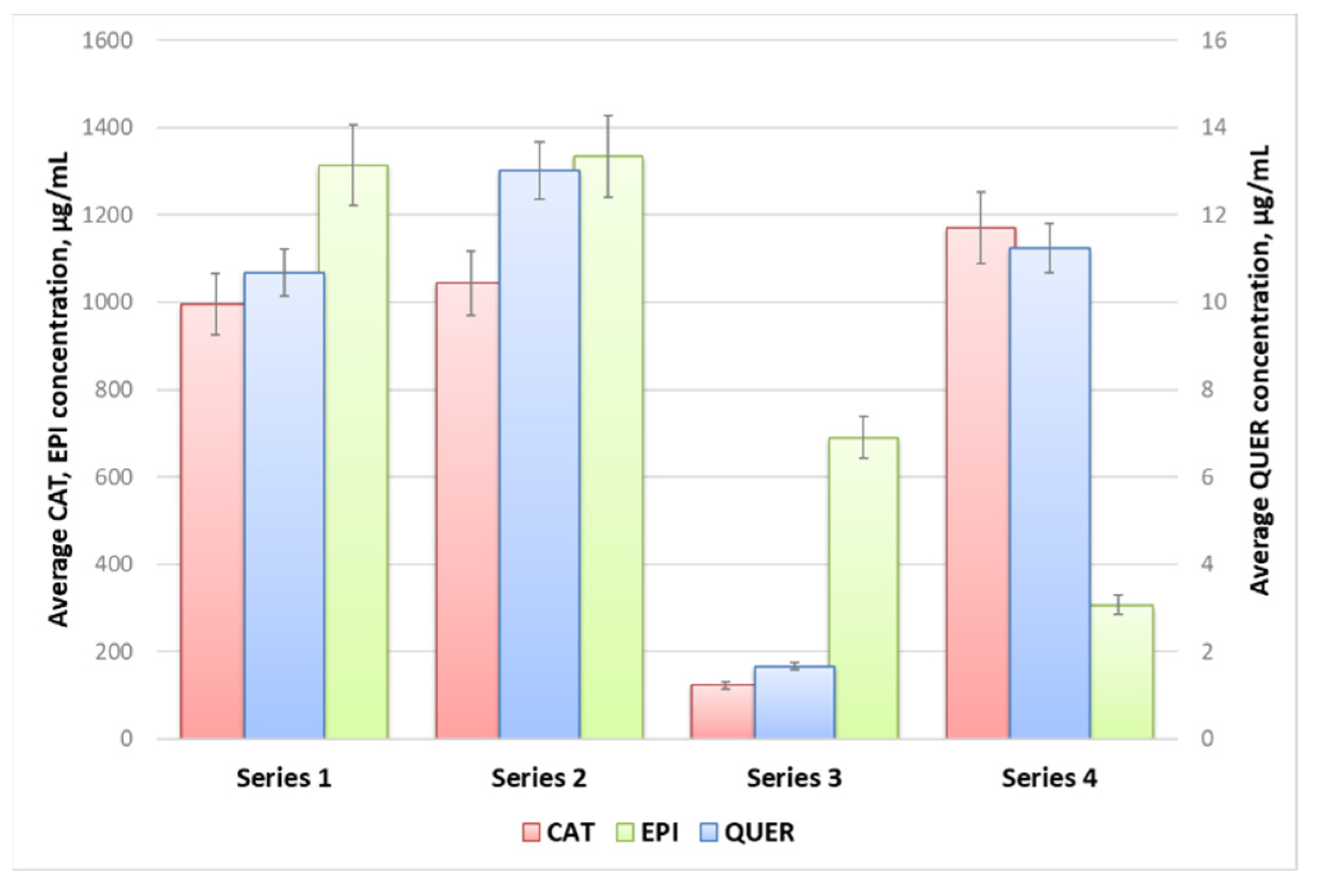

The highest flavonoids concentrations in all studied extracts were registered at 160 min extraction time. The samples from Series 2 characterized with the highest average quercetin and epigallocatechin concentrations, while the concentration of catechin in the samples from Series 1 and 2 was similar, and slightly higher in the extracts from Series 3 (Figure 3). The main conclusion that could be withdrawn from the experimental data is that 98% EtOH is not an appropriate extracting agent of flavonoids from woundwort. Besides, due to the observed twice lower content of epigallocatechin in the extracts from Series 4 as compared to that for Series 1 and 2, on the one hand, and the lower stability of the aqueous extracts as compared to these in ethanol or methanol, on the other, water could not be accepted as an appropriate solvent either.

3.2. FT-IR Analyses

FT-IR spectroscopy is currently one of the most significant analytical techniques available for quantitative and qualitative analyses of plant extracts due to its sensitivity, non-destructive nature, small sample quantities, as well as the possibility for simultaneous determination of various constituents in the same sample from a single measurement [36].

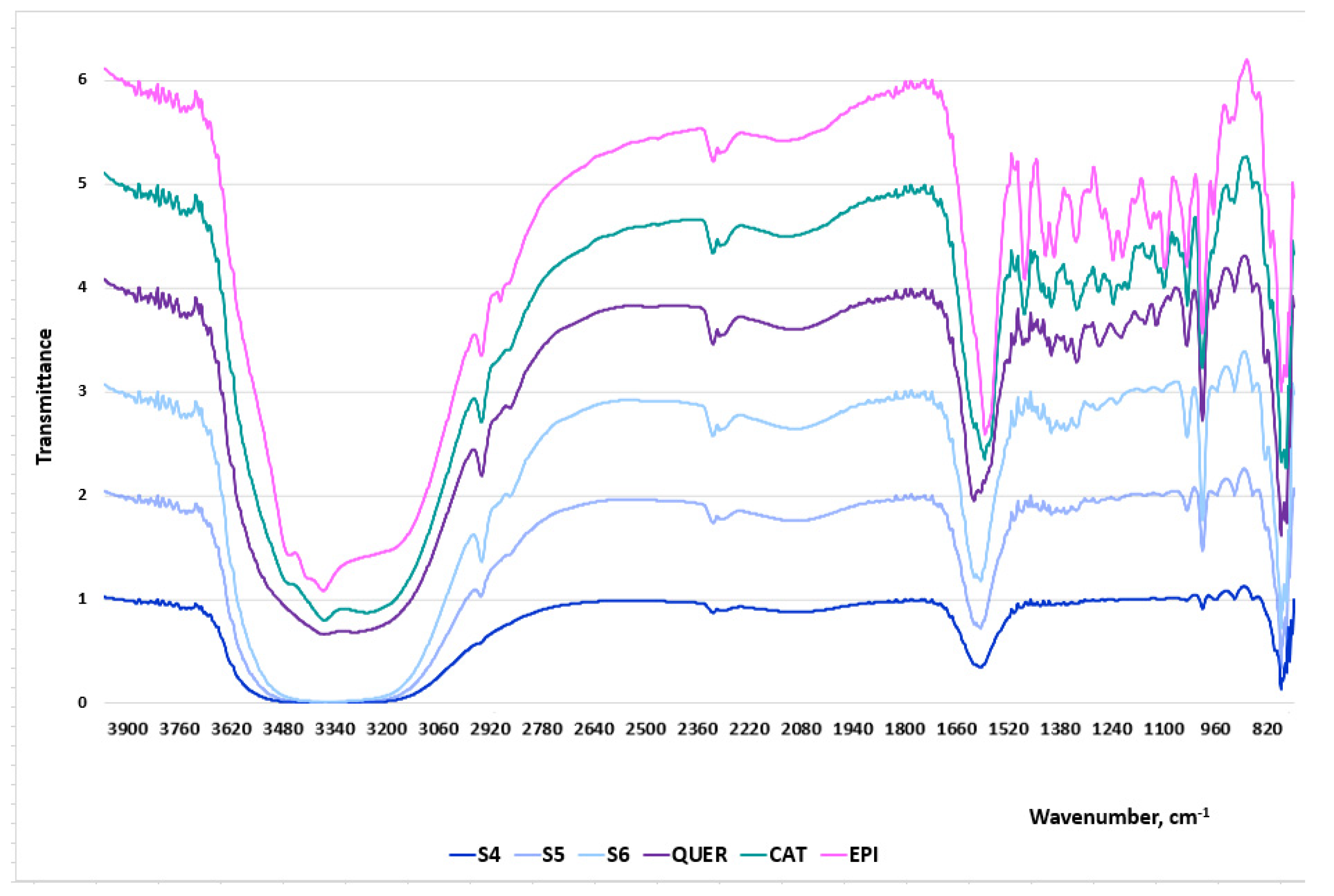

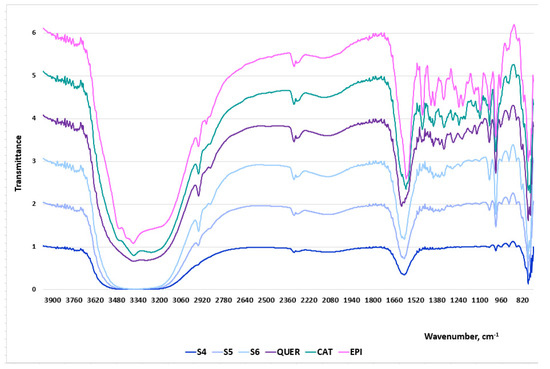

Three samples from Series 2: S3, S4 and S5, obtained at extraction times 20 min, 30 min and 60 min, respectively, were chosen as representatives of the ethanol woundwort extracts. The FT-IR spectral data are presented in Figure 4 and the wavelengths of the characteristic bands together with the corresponding designations—in

Table 2. FT-IR absorption bands assignments of ethanol woundwort extracts, powdered pure powdered catechin, epigallocatechin and quercetin [37,38,39,40].

Wavenumber Range (cm−1) Designation	3500–3300 O–H Linkage of Phenolic Groups; Aromatic Ring Quadrant; Intermolecular H-Bonded Phenolic -OH Groups	2360–2320 C–H-Stretching Vibrations in Aromatic Ring	1690–1670 Medium Intensity Band of C=O Carbonyl Functional Group Stretching	1660–1620 C=C Aromatic Ring Stretching Vibrations, Aromatic Quadrant Ring Stretch	1600–1500 Aromatic Semicircle Ring Stretch; C=C Aromatic Bonds Stretching	1500–1400 C–C Stretching of Aromatic Rings and C–H Bending	1400–1300 C–O Alcohol Vibration; Aromatic Ring of the Phenolic Moiety; =C–O–H Stretching of the Phenolic Group	1300–1000 C–O Stretching Vibrations; C–O-H Bending; Plane Bending Vibrations of Phenyl Group; H-Bonding; C=C–O Aromatic Ring Stretching	1000–900 C–O–C Symmetric Stretching; C–H Aromatic Bending. H Out-of-Plane Deformation of an Aromatic Ring	880–810 Aromatic Ring Vibrations; C–H Alkenes, Stretching of the Catechol Moiety
Catechin	3492, 3477, 3404	2358, 2331	-	1631, 1620	1558, 1529, 1523	1494, 1458, 1417	1342, 1325	1282–1016	975, 921	862, 835, 819
Epigallocatechin	3483, 3473, 3404	2358, 2329	-	1627, 1620	1556, 1542, 1521	1488, 1456, 1417	1340, 1315	1284–1014	979, 923	862, 835, 823, 821
Quercetin	3404	2360, 2331	1685	1658, 1641	1558, 1526, 1523	1475, 1436, 1419	1338, 1321	1265–1014	972, 927	875, 835, 819
Woundwort extracts	-	2358–2356, 2329	-	1649, 1641	1560, 1539, 1519	1471, 1436, 1417	1359, 1338	1272-1006	975, 925	877, 835, 823

.

The bands between 1600 cm⁻¹ and 1500 cm⁻¹ correspond to the C=C stretching of the aromatic ring. Peaks within this region are characteristic of all extracts which indicates the presence of the aromatic compounds catechin, epigallocatechin and quercetin. The region at around 1500–1400 cm⁻¹ represents C–C stretching of aromatic rings and C–H bending vibrations. The highest peaks are recorded for S5, although the intensities of the bands for the three samples are not significant. The bands between 1300 cm⁻¹ and 100 cm⁻¹ are typically assigned to C–O stretching vibrations, C–O–H bending, plane bending vibrations of phenyl group and C=C–O aromatic ring stretching. The presence of multiple peaks in the spectra of the extracts, although not as well pronounced as in these of the pure flavonoids, is indicative of the presence of pyrogallic rings. The low wavenumber region below 1000 cm⁻¹ represents many molecular vibrations, C–O–C symmetric stretching, C–H aromatic bending, H out-of-plane deformation of an aromatic ring, aromatic ring vibrations, C–H alkenes, stretching of the catechol moiety. Significant deviations were not registered in the bands’ intensities between the pure substances and the extracts.

The comparative analyses between the FT-IR spectra of the extracts and the three pure flavonoids (Table 2) undoubtedly prove that the herbal medicinal plant contains catechin, epigallocatechin and quercetin. Besides, the gradual increase of the peak intensities of the extract samples was directly proportional to the increase of the polyphenols concentrations.

3.3. Antibacterial Activity of Woundwort Extracts

The antibacterial activity of the woundwort samples from Series 1–3 was evaluated against four bacterial strains using the agar well diffusion method. We selected the following four strains as classical representatives of the two groups of bacteria differing in the structure of their cell walls—Gram-positive including Staphylococcus aureus ATCC 25923 and Bacillus cereus (clinical isolate) and Gram-negative including Escherichia coli ATCC 25922 and Pseudomonas aeruginosa ATCC 27853, the latter having intrinsic multiple antimicrobial resistance. The reference strains are also used as test quality strains in performing antimicrobial susceptibility tests (CLSI) [41]. In addition, S. aureus, E. coli and P. aeruginosa are causative agents of mild to severe infections in both human and veterinary medicine, including on the urinary tract where the woundwort extracts are deemed as potentially helpful. B. cereus is related to food poisoning, systemic and focal infections in immunocompromised patients. All this prompted us to test the antimicrobial properties of woundwort extracts from Bulgaria against these four strains in the present study.

Gentamicin was selected as a positive control for the antimicrobial investigations as it displays satisfactory antimicrobial efficiency against the four studied strains. The growth inhibition zones of gentamicin relative to the reference strains used in the present study are fully consistent with the CLSI [41] interpretive criteria. Regarding B. cereus, the activity of gentamicin against this clinical isolate was confirmed in other studies [42].

The values of the corresponding inhibition zones (IZ, mm) are presented in

Table 3. Antimicrobial screening test results (IZ ± SD) of ethanol woundwort extracts against four bacterial strains—S. aureus, P. aeruginosa, E. coli and B. cereus.

Sample	Series 1 IZ				Series 2 IZ				Series 3 IZ
	S. aureus	P. aeruginosa	E. coli	B. cereus	S. aureus	P. aeruginosa	E. coli	B. cereus	St. aureus	P. aeruginosa	E. coli	B. cereus
S1′/S1/S1″	12.8 ± 0.3 **	25.2 ± 1.0 ***	-	-	-	-	8.8 ± 0.8 *	-	9.0 ± 0.5 *	-	8.5 ± 0.5 *	-
S2′/S2/S2″	17.2 ± 0.8 ***	24.2 ± 0.8 ***	-	-	8.7 ± 0.6 *	8.7 ± 0.6 *	8.3 ± 0.6 *	-	9.5 ± 0.9 *	8.8 ± 0.3 *	8.7 ± 0.6 *	-
S3′/S3/S3″	21.0 ± 1.0 ***	21.2 ± 0.8 ***	-	-	9.2 ± 0.3 *	8.8 ± 0.8 *	8.7 ± 0.6 *	-	9.7 ± 0.3 *	8.5 ± 0.9 *	9.5 ± 0.5 *	-
S4′/S4/S4″	11.7 ± 1.5 **	14.2 ± 1.0 **	-	-	9.2 ± 0.3 *	9.7 ± 0.6 *	9.2 ± 0.8 *	-	9.7 ± 0.6 *	9.3 ± 0.6 *	8.8 ± 0.3 *	-
S5′/S5/S5″	16.8 ± 0.8 ***	11.3 ± 1.5 **	-	-	9.7 ± 0.6 *	9.5 ± 0.5 *	8.5 ± 0.5 *	-	9.0 ± 1.0 *	-	-	-
S6′/S6/S6″	14.8 ± 0.3 **	-	-	-	10.7 ± 1.2 *	9.2 ± 0.8 *	8.5 ± 0.9 *	-	9.2 ± 1.0 *	-	-	-
S7′/S7/S7″	15.7 ± 0.6 ***	-	-	-	10.5 ± 0.5 *	-	9.7 ± 0.6 *	-	10.3 ± 0.8 *	-	-	-
Positive control (gentamicin)	17.2 ± 0.8	17.0 ± 0.5	16.2 ± 1.0	18.2 ± 0.8	18.7 ± 0.6	17.3 ± 0.6	16.8 ± 0.3	18.5 ± 0.5	18.2 ± 0.8	16.7 ± 0.6	16.5 ± 0.5	18.7 ± 0.3
Negative control (70% EtOH; 98% EtOH)	8.2 ± 0.3	7.5 ± 0.5	7.8 ± 0.3	10.8 ± 0.8	8.2 ± 0.3	7.5 ± 0.5	7.8 ± 0.3	10.8 ± 0.8	7.2 ± 0.3	7.5 ± 0.5	8.2 ± 0.5	9.8 ± 0.8

IZ—inhibition zone, mm; * low antibacterial activity (IZ = 8–10 mm); ** medium antibacterial activity (IZ = 11–14 mm); *** high antibacterial activity (IZ ≥ 15 mm).

. Series 4 extracts were not subjected to antimicrobial screening due to the significantly lower concentrations of the studied flavonoids, as well as due to the deviations in the modes of the experimental kinetics curves. The data outlined the potential of the tested extracts in suppressing microbial growth of food poisoning bacteria with variable activity. It was established that the samples from Series 1 were the most effective extracts retarding the microbial growth of P. aeruginosa and S. aureus. The samples from the other two series exhibited satisfactory efficiency against three of the strains—P. aeruginosa, S. aureus and E. coli. The general conclusion that could be drawn, however, is that the ethanol woundwort extracts were ineffective against B. cereus as neither of the samples suppressed the microbial growth of the strain.

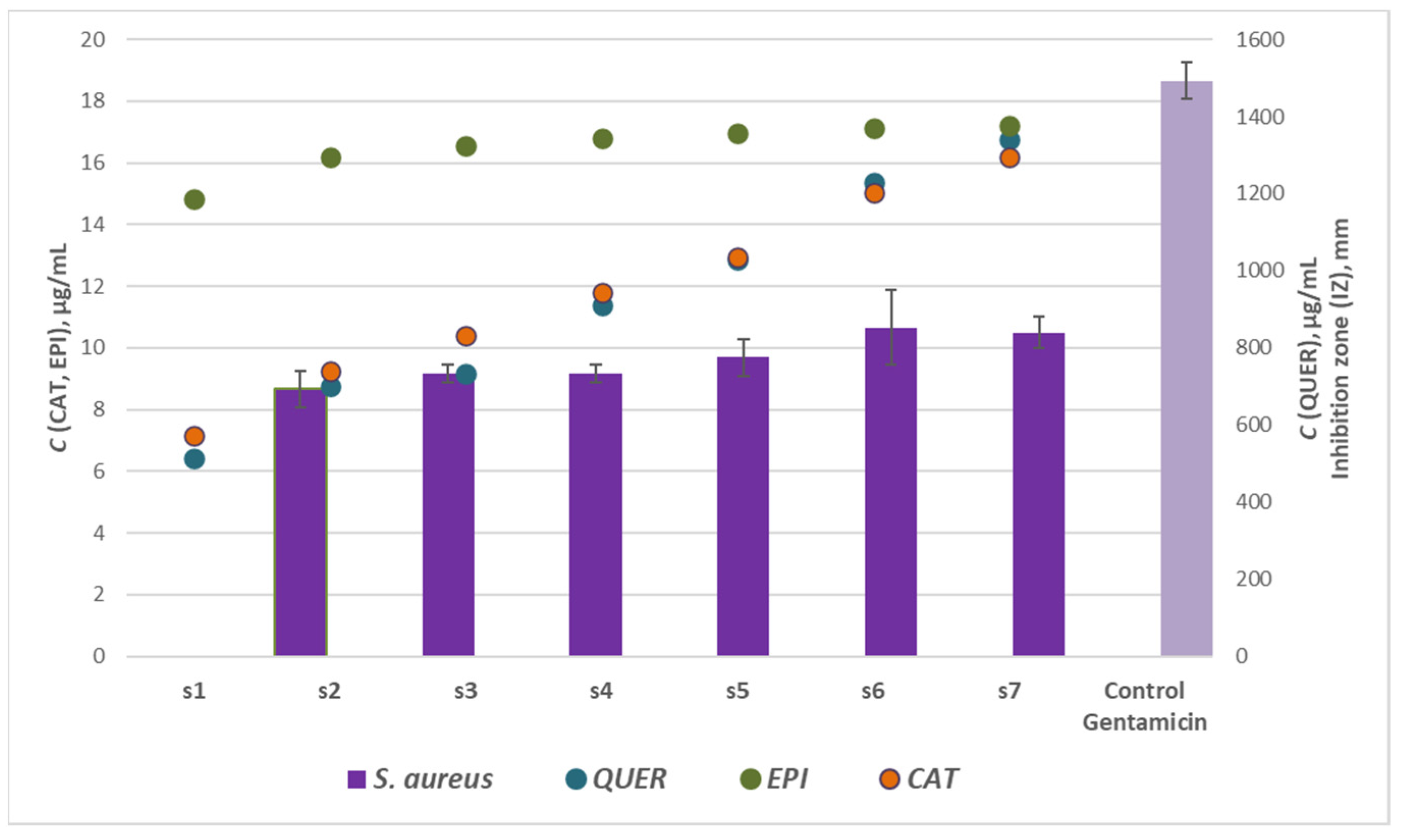

Regarding the effect of the flavonoids (catechin, epigallocatechin and quercetin) concentrations on the antibacterial activity of woundwort, significant correlation and direct dependence was registered only between the antimicrobial potential of the samples from Series 2 against the inhibition zones of S. aureus with the maximum coefficient of determination R² = 0.893, p < 0.05. Thus these results were graphically represented in Figure 5. The highest R² value for Series 1 and 3 were R² = 0.662 (p < 0.05) and R² = 0.135 (p < 0.05), respectively.

The recent investigations suggest that B. cereus was the most resistant strain to woundwort followed by E. coli, while S. aureus and P. aeruginosa were the most susceptible microbial strains to the medicinal plant extract. The latter conclusion is scientifically significant as scientific data have not reported any results on the antibacterial potential of the plant extract against B. cereus strain.

3.4. Antioxidant Activity and Radical-Scavenging Potential of Woundwort Extracts

The antioxidant activity and antiradical potential of four woundwort extracts from Series 1 (samples S8′ and S9′ with quercetin concentration 13.7 and 17.9 µg/mL, respectively) and Series 2 (samples S8 and S9 with quercetin concentration 17.5 and 18.9 µg/mL, respectively) was studied. Quercetin solution in ethanol (50 µg/mL) was used as a positive control.

Flavonoids take beneficial place in the UV oxidative stress protection and regulation due to their antioxidant potential. According to recent studies some plants characterize with independent photoprotective systems and their exposure to UV-B radiation stimulated higher levels of flavonoids biosynthesis and ROS removal [43]. The latter observations provoked the additional subjection to UV-B irradiation of samples S8 and S9 to evaluate its effect on the antioxidant properties of the medicinal plant extracts.

3.5. DPPH Scavenging Activity

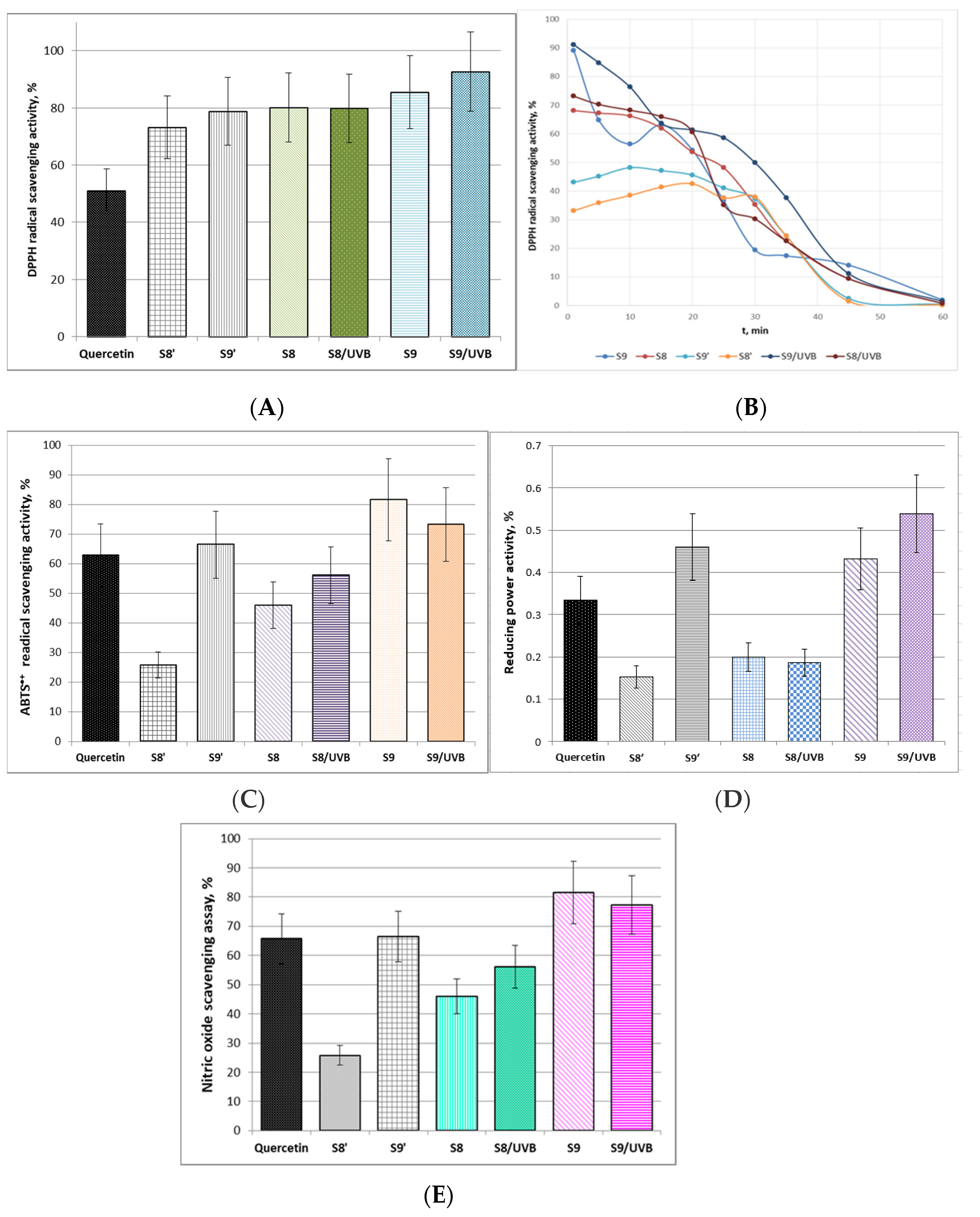

According to the data in Figure 6A the DPPH radical scavenging activities of the tested woundwort samples were higher than that of the positive control. Sample S9 exhibited the highest antioxidant activity, which was additionally increased by 7.2% after UV-B irradiation. The irradiation, however, did not affect the DPPH scavenging activity of S8. These results were confirmed by the antioxidant activity kinetics experiments (Figure 6B). Although the antioxidant activity of samples S8′ and S9′ remains relatively stable up to the 20 min, the kinetics curves clearly outline their significantly lower initial antioxidant activity as compared to S8 and S9. From another aspect, UV-B irradiator slightly increased the antioxidant potential of sample S8 but it did not alter the mode of the kinetics curve. The plot of sample S9 displayed quite different mode of antioxidant kinetics and the initial part is indicative of lower stability of the extract up to the 15 min. However, UV-B irradiation obviously increased this antioxidant stability and activity of the extract and additionally decreased the rate of DPPH radical scavenging activity loss as the plot slope between 25 and 45 min was smoothened.

3.6. ABTS^•+ Radical Scavenging Activity

The proton-radical analysis (ABTS^•+ method) was applied to define the total antioxidant activity of the woundwort extracts. The experimental data presented in Figure 6C clearly outline that samples S9 and S9′ were more effective in quenching proton radicals in the system as compared to the control and to samples S8 and S8′. The probable reason is the higher contents of flavonoids in the samples due to the longer extraction time. Besides, according to the present investigations after UV-B-irradiation sample S9 has accumulated active components and maintains ABTS^•+ reduction level higher than that of pure quercetin. The possible explanation is probable stimulation of the production of secondary metabolites and antioxidant potential by UV-B irradiation, which in turn provokes the ability of adaptation and protection of the extract from the irradiation impact [44].

3.7. Reducing Power Activity

Ferric reducing antioxidant power (FRAP) assay is associated with the antioxidant potential of plants extracts through the reduction of ferric iron (Fe³⁺) to ferrous iron (Fe²⁺) due to the donation of hydrogen atoms by the antioxidants that are present in the studied samples [45]. The data of the ferric reducing activity of the four tested woundwort extracts are presented in Figure 6D. The FRAP activity of samples S9′ and S9 exceeded that of the positive control and samples S8′ and S8. UV-B irradiation did not influence the reducing power activity of S8, while it increased the activity of S9 by approximately 25%.

3.8. Nitric Oxide Scavenging Assay

Nitric oxide scavenging assay evaluates the potential of natural biologically active compounds to counteract the effect of NO^• radicals formation, e.g., through arresting the chain of reactions initiated by excessive NO^• generation and in turn assist the prevention of arising detrimental health effects such as oxidative cell damages and compromised cell NO-functionality [46]. In this respect, the present study provided evidence of the satisfactory NO scavenging ability of sample S9 before and after UV-B irradiation, which prevailed that of the reference standard (Figure 6E). The experimental data indicated commensurable NO scavenging activity of sample S9′ and quercetin. Considering the lower concentration of the flavonoid in the sample (17.9 µg/mL) as compared to the pure substance (50 µg/mL), it could be concluded that the scavenging potential of the extract is higher than the standard. UV-B irradiation did not affect significantly the NO radical scavenging potential of samples S8/UV-B and S9/UV-B. The polyphenols quercetin, catechin and epigallocatechin contained in these extracts serve as donors of hydrophilic scavengers that are able to regulate NO^• production even under UV-B irradiation. According to scientific reports endogenous NO production is capable of modulating the redox state of the mitochondrial electron transport chain, primary metabolism and oxidative stress signaling [47,48].

The experimental results emphasized that the antioxidant capacity and radical scavenging activity of ethanol woundwort extracts depend directly on the extraction time, i.e., on the concentration of the flavonoids quercetin, catechin and epigallocatechin, as well as on the extraction methodology. Besides, the tested samples S9′ and S9 exhibited satisfactory antioxidant ability which even exceeded that of pure quercetin which concentration (50 µg/mL) was significantly higher than that determined in two of the analyzed extracts (S9′—17.95 and S9—18.90 µg/mL). A reasonable explanation is the additional capacity of the catechins contained in the extract which enhance the activity and stability of the medicinal plant to oxidative stress even under UV-B irradiation by donating excessive hydroxyl radicals. The latter determines the role of these bioactive components as potential effective photoprotectors and ROS/NO scavengers formed through UV-B exposure.

4. Conclusions

The present study assessed the kinetics of catechin, epigallocatechin and quercetin from Bulgarian woundwort water and ethanol extracts, the antibacterial potential of 70% and 96% ethanol extracts against four bacterial strains (Staphylococcus aureus ATCC25923, Escherichia coli ATCC 25922, Pseudomonas aeruginosa ATCC 27853 and Bacillus cereus), their antioxidant capacity and radical scavenging potential. According to the RP-HPLC-PDA data and the FT-IR analyses the contents of the natural flavonoids in the ethanol extracts followed the order: epigallocatechin > catechin > quercetin. The kinetics of the extraction process revealed that the 70% and 96% ethanol extracts were the richest in flavonoids and were therefore subjected to antimicrobial and antioxidant assays. The plant extracts from Series 1 (solvent 70% EtOH, extraction temperature T = 20 °C), which proved to be potentially effective against S. aureus and P. aeruginosa, can find application as alternative natural preservatives to control food poisoning diseases and preserve food stuff avoiding the use of health hazardous chemical antimicrobial agents. It was established that the antioxidant potential and radical scavenging activity of ethanol woundwort extracts depended directly on the extraction time, i.e., on the concentration of quercetin, catechin and epigallocatechin, as well as on the extraction methodology. Two of the tested samples (extracted with 70% EtOH at 20 °C and 30 °C) exhibited satisfactory antioxidant ability which even exceeded that of pure quercetin with higher concentration. Consequently, the ethanol extracts of the Bulgarian medicinal plant have been proven as efficient radical scavengers which could be used to minimize oxidative stress caused by reactive oxygen species.
