Qualitative and Quantitative Detection of Acacia Honey Adulteration with Glucose Syrup Using Near-Infrared Spectroscopy

Abstract

Honey adulteration with cheap sweeteners such as corn syrup or invert syrup results in honey of lesser quality that can harm the objectives of both manufacturers and consumers. Therefore, there is a growing interest for the development of a fast and simple method for adulteration detection. In this work, near-infrared spectroscopy (NIR) was used for the detection of honey adulteration and changes in the physical and chemical properties of the prepared adulterations. Fifteen (15) acacia honey samples were adulterated with glucose syrup in a range from 10% to 90%. Raw and pre-processed NIR spectra of pure honey samples and prepared adulterations were subjected to Principal Component Analysis (PCA), Partial Least Squares (PLS) regression, and Artificial Neural Network (ANN) modeling. The results showed that PCA ensures distinct grouping of samples in pure honey samples, honey adulterations, and pure adulteration using NIR spectra after the Multiplicative Scatter Correction (MSC) method. Furthermore, PLS models developed for the prediction of the added adulterant amount, moisture content, and conductivity can be considered sufficient for screening based on RPD and RER values (1.7401 < RPD < 2.7601; 7.7128 < RER < 8.7157) (RPD of 2.7601; RER of 8.7157) and can be moderately used in practice. The R²_validation of the developed ANN models was greater than 0.86 for all outputs examined. Based on the obtained results, it can be concluded that NIR coupled with ANN modeling can be considered an efficient tool for honey adulteration quantification.

1. Introduction

Honey is a food product of high value and, because of this, it is increasingly becoming a target for adulteration. At the global level, two factors are crucial for the authenticity of honey: production and origin [1]. The main production problems are the contact of bees with contaminated water, air, and plants and inadequate beekeeping practices, such as overheating and feeding bees during honey production, for which beekeepers are directly responsible [2]. This is an indirect way of honey adulteration. This approach negatively affects the proline content, sugar content, and mineral content in honey [3]. Furthermore, direct adulteration includes the addition of cheap sweeteners such as starch (corn) syrup and invert syrup (syrup containing glucose and fructose) to honey, resulting in honey of lesser quality [4]. Despite being performed for short-term financial gain, adulteration can harm the objectives of both manufacturers and consumers [5].

As the adulterating substances include characteristic ingredients of honey, it is difficult to identify adulterations [6]. As stated by Naila et al. [7], the detection and quantification of honey adulteration by the addition of different sugars are traditionally performed by highly sophisticated analytical methods such as high-performance liquid chromatography (HPLC), gas chromatography (GC), isotope ratio mass spectroscopy (IRMS), high-performance anion exchange chromatography with pulsed amperometric detection (HPAEC-PAD), or stable carbon isotopic ratio mass spectrometry. Considering the complexity of the above-mentioned methods, researchers have lately focused on spectroscopic methods [8] such as visible spectroscopy (VIS), near-infrared spectroscopy (NIRS), mid-infrared spectroscopy (MIR), and fluorescence coupled with chemometrics [9]. For example, Rios-Corripio et al. [10] presented an efficient application of attenuated total reflectance-Fourier transform infrared (ATR-FTIR) spectroscopy and partial least squares (PLS) modeling to study honey adulteration with standard sugar solutions (glucose, fructose, and sucrose) and with cheap syrups (corn, inverted, and cane sugar). Başar and Özdemir [8] also applied ATR-FTIR coupled with genetic-algorithm-based inverse least squares and partial least squares for the calibration of corn syrup, beet sugar, and water addition to honey. Furthermore, Kumaravelu and Gopal [11] used NIRS and chemometrics to detect the Jagger adulterants in honey, while Skaff et al. [1] applied near- and mid-infrared spectroscopy and Principal Component Analysis (PCA) for classification of honey samples adulterated with glucose, fructose, sucrose, and high-fructose corn syrup. Elhamdaoui et al. [9] applied Fourier transform mid-infrared (FT-MIR) spectroscopy with PCA and hierarchical cluster analysis (HCA) for quantitative discrimination of honey samples adulterated with sugar syrup. There are also examples of the efficient usage of combined VIS and NIR spectra (VIS–NIR) for analysis of honey adulteration: (i) Ferreiro-González et al. [12] used VIS–NIR spectra in combination with HCA, PCA, and linear discriminant analysis (LDA) for the discrimination of honey adulterated with high-fructose corn syrup; (ii) Valinger et al. [13] applied UV–VIS–NIR spectra coupled with PLS and artificial neural networks (ANNs) for quantification of honey adulteration with high-fructose syrup; (iii) Raypah et al. [14] used VIS–NIR spectra coupled with PCA and PLS for discrimination and quantification of honey adulteration with distilled water, apple cider vinegar, and high-fructose syrup.

As described, most of the suitable dealings with honey adulteration are focused on the development of tools for fast and efficient discrimination of the adulterated samples and for quantification of added adulterants. However, there is limited information about the physical and chemical properties of honey samples after adulteration [13]. Therefore, the aim of this work was to develop PLS and ANN models for the detection and quantification of acacia honey adulteration with glucose syrup, and also to develop PLS and ANN models to describe the physical (adulterant content, moisture content, conductivity, and total color change) and chemical (total phenolic content (TPC) and antioxidant activity measured by the Ferric Reducing Antioxidant Power method (FRAP) were used for quantitative analysis) characteristics of pure honey samples and prepared adulterations.

2. Materials and Methods

2.1. Materials

2.1.1. Honey Samples and Adulterant

Fifteen (15) samples of acacia (Robinia pseudoacacia) honey from the Krapina-Zagorje County region (in the northwest of Croatia) provided by members of the Krapina Beekeepers’ Association, from 2018, were investigated in this study. Glucose syrup (Food Colours, Piotrkow Trybulski, Poland) was used as the adulterant. All samples (honey and adulterant) were kept in glass vials in the dark at room temperature. All analyses were performed in 2018, when samples were gathered.

2.1.2. Chemicals

TPTZ (2,4,6-Tris(2-pyridyl)-s-triazine), gallic acid (98%), and iron (II) sulphate heptahydrate were obtained from Sigma-Aldrich Chemie (Steinheim, Germany). Hydrochloric acid (30%), iron (III) chloride hexahydrate, and sodium carbonate were from Gram-Mol d.o.o. (Zagreb, Croatia). Sodium acetate trihydrate was from J.T. Baker (Deventer, The Netherlands). Folin–Ciocalteu reagent was obtained from Kemika d.d. (Zagreb, Croatia), while acetic acid was from T.T.T. d.o.o. (Sveta Nedjelja, Croatia). Chemicals were of analytical reagent grade.

2.2. Methods

2.2.1. Preparation of Honey Adulterations

Glucose syrup and 15 samples of pure honey were combined in weight ratios of 10%, 20%, 30%, 40%, 50%, 60%, 70%, 80%, and 90% to create honey adulterations as previously described by Ferreiro-González et al. [12]. Pure honey (adulterated 0%) and pure glucose syrup (adulterated 100%) were included in the analysis. In all, 165 samples were created (11 different ratios per each sample). After the adulterant was added, the samples were maintained at 35 °C for 24 h while periodically being manually mixed to ensure homogeneity prior to testing.

2.2.2. Moisture Content

A refractometer [13] was used to test the moisture content (ATC, Eustisa, FL, USA). The results of the triplicate moisture content measurements were presented as the average value ± standard deviation.

2.2.3. Conductivity

Using a Seven Compact conductometer (Mettler Toledo, Schwerzenbach, Switzerland), the conductivity of samples of pure honey and prepared adulterated samples was evaluated. Aqueous solutions of the honey samples were made by combining 2 g of the sample with 8 mL of distilled water at room temperature for conductivity measurements [13]. Triplicate conductivity measurements were presented as the average value ± standard deviation.

2.2.4. Color Measurements

The color of all samples (pure honey samples as well as prepared adulterations and pure honey) was determined using a PCE-CSM3 colorimeter (PCE Instruments, Meschede, Germany) [13]. Based on the color information (Hunter’s color coordinates were used) of pure honey samples (for each individual sample) as the reference, the total color change (△E) (Equation (1)) was determined to characterize how the color of the honey samples changed when different amounts of adulterant were added.

$$\mathsf{\Delta }E=\sqrt{{\left(L-L_0\right)}^2+{\left(a-a_0\right)}^2+{\left(b-b_0\right)}^2}$$

(1)

where L₀, a₀, and b₀ values were determined for pure honey samples (control samples) and L, a, and b values were determined for the prepared adulterations. The color measurements were conducted in triplicate, and the results were expressed as the average value ± standard deviation.

2.2.5. Total Polyphenolic Content Measurement

Using a customized approach proposed by Beratta et al. [15], the total polyphenolic content of the pure honey samples and honey adulterations was assessed spectrophotometrically using the Folin–Ciocalteu reagent and a honey sugar analog of honey served as the control sample. A sugar analog of honey made of fructose (40%), glucose (30%), maltose (2%), and sucrose (2%) was used to decrease potential interference of the primary sugar elements in honey with the analytical procedure. In addition, 30% aqueous solutions of pure honey and honey adulterations were used for TPC measurements.

The following ingredients were combined and stirred for two minutes: 100 µL of honey aqueous solution (30%), equal to 10 mg of pure honey; 1 mL of 10% Folin–Ciocalteu reagent solution; 1 mL of 7.5% sodium carbonate solution. After being kept in the dark for 30 min, the absorbance of the prepared samples was measured at 760 nm. TPC was calculated as mg of gallic acid (GAE) per kilogram of honey. TPC measurements were performed in triplicate and the results were expressed as the average value ± standard deviation.

2.2.6. Antioxidant Activity Measurement by the Ferric Reducing Antioxidant Power Method

The FRAP method was used to quantitatively evaluate the antioxidant activity (AOX) of the pure honey samples and honey adulterations in accordance with the approach described by Benzie and Strain [16]. In addition, 50 µL of 30% honey aqueous solution and 450 mL of 37 °C-heated FRAP reagent were combined. Then, 0.3 mol/L of acetate buffer, 0.01 mol/L of TPTZ solution, and 0.02 mol/L of an aqueous solution of iron (III) chloride hexahydrate were previously mixed in a ratio of 10:1:1 to obtain the FRAP reagent. After being kept in the dark for 10 min, the produced samples’ absorbances were measured at 593 nm. A sugar analog of the honey was used as the blank sample. The antioxidant activity of the samples was expressed as mmol of FeSO₄·7H₂O of a 30% honey aqueous solution. Measurements were performed in triplicate and results were expressed as the average value ± standard deviation.

2.2.7. NIR Spectra Measurement

NIR spectra were gathered using the NIR spectrophotometer NIR-128L-1.7-USB/6.25/50 μm (Control Development, South Bend, IN, USA) with a halogen light source (HL-2000) and installed Control Development software Spec32 (v.1.32, Control Development, South Bend, IN, USA). Spectra were gathered in the wavelength range of 904–1699 nm. For every sample, three consecutive spectra were recorded across the entire spectral range.

2.2.8. Statistical Analysis

Average values and standard deviations were estimated using Statistica v.13.0 software (Tibco, Palo Alto, CA, USA)

2.2.9. NIR Spectra Pre-Processing and Data Modeling

Pre-processing of NIR spectra in the wavelength ranges of 904–962 nm and 1400–1699 nm was performed using the Unscrambler software (Version X 10.1. CAMO AS, Oslo, Norway). The efficiency of the following pre-processing methods was tested using: (i) raw spectra, (ii) first-order Savitzky–Golay derivative (SG1), (iii) standard normal variate (SNV), (iv) multiplicative scatter corrections (MSCs), (v) first-order Savitzky–Golay derivative followed by standard normal variate (SG1 + SNV), and (vi) first-order Savitzky–Golay derivative followed by multiplicative scatter corrections (SG1 + MSC). After pre-processing, Principal Component Analysis (PCA) was performed using the Unscrambler software in order to find similarities and differences across samples.

The potential of using Partial Least Squares (PLS) regression models for the prediction of adulterant content, moisture content, conductivity, total color change, total phenolic content, and antioxidant activity measured by the FRAP method of pure and adulterated honey samples based on NIR spectra in the wavelength range of 904–962 nm and 1400–1699 nm was estimated using the Unscrambler X software. Raw and pre-processed spectra were analyzed separately. The performance of the developed models was estimated based on: (i) the coefficients of determination for calibration (R²_cal) and cross-validation (R²_cval), (ii) root-mean-square error for calibration (RMSEC) and cross-validation (RMSECV), (iii) standard error for calibration (SEC) and cross-validation (SECV), (iv) average value of the difference between predicted and measured values (Bias), and (v) ratio of predicted deviation (RPD) and range error ratio (RER).

2.2.10. Artificial Neural Networks Modeling

Based on the PLS performance, an optimal pre-processing method was selected for artificial neural network modeling using Statistica v.13.0 software (Tibco, Palo Alto, CA, USA). Multiple-Layer Perceptron networks (MLP networks), which include an input layer, a hidden layer, and an output layer, were developed to simultaneously predict: (i) adulterant content, moisture content, and total color change; (ii) conductivity, total polyphenolic content, and antioxidant activity measured by the FRAP method of pure honey samples and the prepared adulteration based on the NIR spectra. ANN models include five neurons in the input layer, each representing one of the first five PCA variables. The first five principal components, which together represent more than 99.99% of data variability, were used as the ANN inputs. Identity, Logistic, Hyperbolic tangent, and Exponential were among the options selected at random to serve as the hidden activation function and output activation function. For the hidden layer, the MLP chooses a random number of neurons between 3 and 11.

ANN modeling was performed using data matrix dimensions of 165 × 8: 165 rows representing 15 pure honey samples, 135 honey adulterations, and 15 pure adulterant samples. Here, 8 columns included 5 PCA coordinates (factors) and 3 columns included the analyzed model outputs. Data were randomly divided by the software into three groups for the ANN modeling: 70% for network training, 15% for network testing, and 15% for model validation. There were 1000 networks created for each group of outputs. The back-error propagation approach was used for ANN training. The performance of the proposed ANN models was estimated based on R² and Root-Mean-Squared Error (RMSE) values for training, test, and validation.

3. Results and Discussion

3.1. Effect of the Adulterant Addition on Physical and Chemical Properties of the Honey Samples

According to the European Commission [17], the European Union is the second world producer of honey, with an average production of around 218,000 t in 2021, which is a slight decrease compared to 2018 when 238,000 t was produced. The year 2018 was selected as the samples analyzed in this work originated from 2018. Croatia contributed 7400 t of total EU honey production in 2018 [17]. In this work, acacia honey samples were adulterated and analyzed because they are the most abundant type of honey in the northwest part of Croatia.

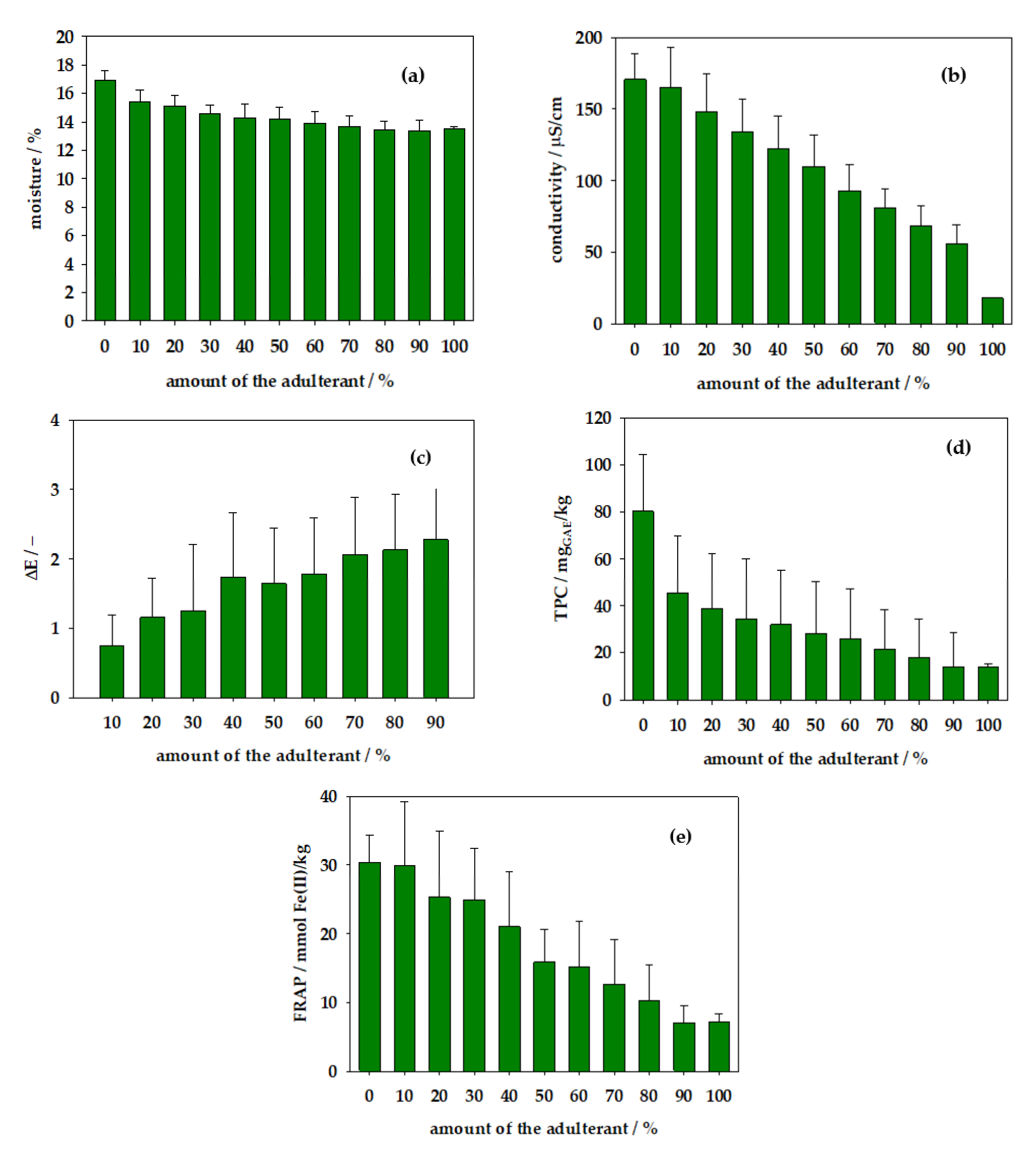

In this work, moisture content, conductivity, total color change, total phenolic content, and antioxidant activity measured by the FRAP method of acacia honey samples adulterated with glucose syrup were analyzed (Figure 1). The results showed that the average moisture content of pure honey samples was 16.93 ± 0.67% (Figure 1a). Similar results were presented by Denžić Lugomer et al. [18] for Croatian acacia honey (moisture content 16.40 ± 1.11%) and Uršulin-Trstenjak et al. [19] for acacia honey from the northwest part of Croatia (moisture content 16.78 ± 1.03%). The addition of glucose syrup reduced the moisture content slightly to around 13.40 ± 0.71% when 90% of the adulterant was added. As presented in Figure 1b, the addition of glucose syrup reduced the conductivity from 170.77 ± 17.82 µS/cm (0%) to 17.83 ± 0.09 µS/cm (100%) with an almost linear trend, opposite to the results obtained by Valinger et al. [13] where the addition of high-fructose syrup to acacia honey resulted in a conductivity increase. For Croatian acacia honey samples analyzed by Uršulin-Trstenjak et al. [19], the conductivity was 150.00 ± 30.00 µS/cm, and for acacia honey samples analyzed by Šarić et al. [20], the conductivity was 200.00 ± 59.00 µS/cm. Yakubu et al. [21] described conductivity as a frequently used method in routine honey quality control and it is considered an effective standard for assessment of the botanical origin and purity of honey. In addition, Kropf et al. [22] stated that the bright color of honey corresponds to lower conductivity in comparison to dark-colored honeys, which is in agreement with the results presented in this work.

The addition of glucose syrup results in samples lightening, i.e., an increase in L coordinate compared to pure honey samples. The total color change (Figure 1c) increased from 0.7 (10% of adulterant) to 2.28 (90% of adulterant) with an increasing amount of adulterant added to the sample.

Color assessment of honey based on visual comparison or spectrophotometric measurements has been widely utilized as an additional method for determination of the botanical origin of the honey [23] and can represent a good method of preliminary control of honey adulteration. Consumers place a high value on the appearance of honey. Honey’s color is a sensory feature that changes across different varieties of honey and is affected by chemical factors such as mineral concentration and polyphenol level [24]. Furthermore, analysis of the chemical properties (TPC and AOX) of the prepared adulterants revealed that the addition of adulterant had a negative effect on both TPC and FRAP (Figure 1d,e). The chemical compositions of honey vary significantly depending on the source of flora from which honey is collected and the geographical structure [25]. Previously analyzed acacia honey samples from Croatia measured different concentrations of TPC and AOX depending on the year and region. For example, Krpan et al. [26] obtained TPC = 43.55 ± 6.45 mgGAE/kg and FRAP = 72.87 ± 15.44 µM Fe(II) for acacia samples from Northwest Croatia. Šarić et al. [27] obtained TPC = 86.26 ± 8.34 mgGAE/kg for acacia honey from Northwest Croatia, while Bešlo et al. [28] measured TPC = 186 ± 36 mgGAE/kg for acacia honey samples from East Croatia. The results confirm the statement that the physicochemical parameters of honey, such as pH, water content, sugar composition, color, acidity, and electrical conductivity, represent quality indicators that characterize each individual variety of honey as well as the origin and season [29].

3.2. NIR Spectra of Honey Aduterations

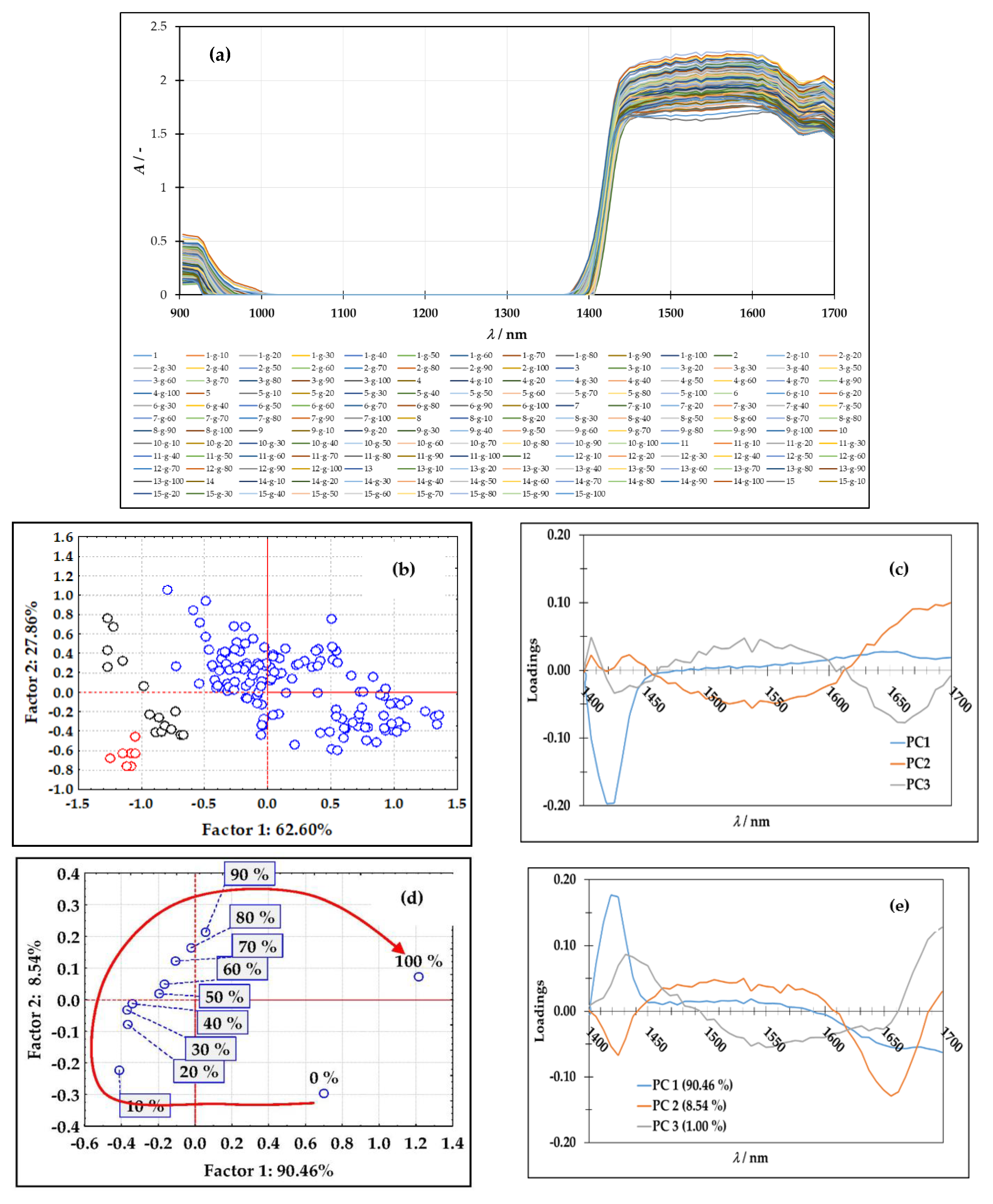

Near-infrared spectra of pure honey samples and all prepared adulterants were recorded in the wavelength range from 904 to 1699 nm. Raw spectra of all samples are present at Figure 2a. Spectra analysis was performed using the wavelength range from 904 to 962 nm and from 1400 to 1699 nm, corresponding to the C-H third overtone and water first overtone, respectively. The effect of the NIR spectra pre-processing methods on the sample grouping was analyzed. As mentioned before, the (i) first-order Savitzky–Golay derivative, (ii) standard normal variate, (iii) multiplicative scatter corrections, (iv) first-order Savitzky–Golay derivative followed by standard normal variate, and (v) first-order Savitzky–Golay derivative followed by multiplicative scatter corrections were used. It can be noticed that MSC pre-treatment (Figure 2b) ensured the samples grouping in three groups as follows: (i) pure honey samples, (ii) adulterations, and (iii) pure adulterant. Furthermore, it can be observed that the first two PC contributed to over 90% of the total variance. The wavelengths that contributed the most to the first three principal components are shown in Figure 2c. Adulterations were prepared using 15 different honey samples and, therefore, it was not possible for PCA to discriminate the amount of adulteration in all parallels (Figure 2b). To overcome that problem, the average spectra for each specific amount of adulterant were calculated, as previously described by Ferreiro-Gonzelez et al. (2018), where the average UV–VIS–NIR spectra were used for detection of honey adulteration. The PCA of the average NIR spectra pre-processed using the MSC method is given in Figure 2d. The specific grouping of the samples with an increase in the amount of added adulterant can be noticed. It can be seen that the addition of even 10% of the adulterant had a significant effect on the sample position on the PC score plot. As for the individual samples (Figure 2b), the first two PCs for average spectra contributed to around 99% of the total variance. The wavelengths that contributed the most to the first three principal components of the average NIR spectra are shown in Figure 2e. The presented results indicate that NIR spectra coupled with PCA can be used for honey sample adulteration detection and are consistent with the available literature. For example, El Orche et al. [30] presented an efficient application of fluorescence spectroscopy and PCA for discrimination of the three oil classes, Vitalis et al. [31] applied PCA for analysis of NIR spectra for adulterated tomato paste, while Bodor et al. [32] analyzed the effect of the heat treatment on the spectral patterns of the unifloral honeys using PCA.

3.3. PLS Modeling of Honey Adulteration Properties

Given that the addition of adulterants to food products lowers their quality and can harm human health [33], it is critical to have an efficient tool that can distinguish the adulterated product from the unadulterated and quantify the amount of the added adulterant. In this work, PLS regression was used to quantify the adulteration of the honey samples based on the NIR spectra and to quantify the effect of the adulterant addition on physical and chemical properties of the samples prepared with glucose syrup as the adulterant. PLS is a method that increases the correlation between spectral data and the parameters to be quantified. PLS latent variables (LVs) indicate significant changes in the spectral data while also being significant in the assessment of the important parameters [34]. PLS models were developed using preselected NIR spectra ranges and using different spectra pre-processing methods. When working with NIR spectra, random noise and systematic variations in the base line can cause problems during analysis, but they can be overcome by different pre-processing techniques such as SNV, MSC, and SG [35]. The models developed in this work were evaluated using cross-validation. The best model among the created models was chosen using the coefficient of determination (R²), standard error of calibration (SEC), and standard error of cross-validation (SECV). The model selected as the best, based on the cross-validation, was further used for the prediction of the analyzed variable value using an independent set of data. The results of PLS models for prediction are given in

Table 1. Applicability of PLS models for prediction of honey adulteration and physical and chemical properties of pure honey samples and prepared glucose syrup adulterations based on different NIR spectra pre-treatments (selected PLS models are marked bold).

Property	Pre-Treatment	R2cal	RMSEC	R2cval	RMSECV	R2pred	RMSEP	Bias	RPD	RER
Amount of adulterant	No	0.8530	12.1806	0.8068	14.1580	0.8238	13.2365	−0.1931	2.3925	7.5549
	SG	0.8276	13.1927	0.7431	16.0956	0.0169	57.0295	25.5142	0.5553	1.7535
	SNV	0.8505	12.2854	0.8286	13.3238	0.8302	12.9964	−0.2964	2.4367	7.6944
	MSC	0.8978	10.1552	0.8557	12.2011	0.8660	11.4736	0.7141	2.7601	8.7157
	SG-SNV	0.8418	12.6388	0.7743	15.4918	0.0950	14.3069	23.2721	2.2135	6.9896
	SG-MSC	0.8464	12.4536	0.7758	15.2649	0.0382	38.8224	40.6612	0.8157	2.5758
moisture	No	0.6039	0.7573	0.4609	0.9205	0.6126	0.7638	−0.0020	1.6246	7.2008
	SG	0.5405	0.8449	0.4002	0.9761	0.0468	3.7426	3.5347	0.3316	1.4696
	SNV	0.6028	0.7855	0.4061	0.9739	0.6201	0.7564	−0.0021	1.6405	7.2713
	MSC	0.6517	0.7356	0.5951	0.9729	0.6623	0.7131	0.0039	1.7401	7.7128
	SG-SNV	0.5489	0.8372	0.4744	0.9108	0.0459	3.4556	2.9932	0.3591	1.5916
	SG-MSC	0.6183	0.7701	0.4762	0.9104	0.1157	17.5681	8.7225	0.0706	0.3131
conductivity	No	0.7333	26.4676	0.6667	29.8836	0.7222	25.3602	−0.0427	1.9668	7.3805
	SG	0.7218	27.0330	0.6375	31.2293	0.0388	46.8494	−4.6610	1.0647	3.9951
	SNV	0.7284	26.7088	0.6987	28.5952	0.7193	25.4936	0.1399	1.9565	7.3418
	MSC	0.7274	26.7563	0.6791	29.2807	0.7162	25.6356	0.0891	1.9457	7.3012
	SG-SNV	0.7099	27.6011	0.6201	32.0004	0.0216	61.8526	23.4137	0.8064	3.0261
	SG-MSC	0.7393	26.1659	0.65	30.4876	0.0537	47.0045	11.1163	1.0612	3.9820
total colour change	No	0.2487	0.7078	0.1696	0.7539	0.1013	0.9191	−0.1642	0.9756	4.1257
	SG	0.2332	0.7151	0.2175	0.7415	0.0697	1.2607	−0.8317	0.7113	3.0078
	SNV	0.3222	0.6723	0.2257	0.7347	0.2098	0.8631	−0.1888	1.0389	4.3934
	MSC	0.3213	0.6728	0.2292	0.7359	0.2101	0.8631	−0.1893	1.0389	4.3934
	SG-SNV	0.2297	0.7167	0.1875	0.7401	0.0183	1.6852	1.3988	0.5321	2.2501
	SG-MSC	0.2300	0.7166	0.1877	0.7395	0.0645	4.3454	1.3222	0.2064	0.8726
TPC	No	0.5787	15.1062	0.4016	18.1346	0.3308	19.8989	0.3618	1.1656	5.3772
	SG	0.6161	14.4203	0.4465	17.4767	0.1807	26.8291	2.6712	0.8645	3.9882
	SNV	0.5868	14.9603	0.4047	18.2062	0.2115	20.3965	0.2148	1.1372	5.2460
	MSC	0.5876	14.9465	0.3661	18.6234	0.3191	20.3672	0.3109	1.1388	5.2535
	SG-SNV	0.6255	14.2430	0.4104	18.1452	0.1710	26.5735	3.9364	0.8729	4.0266
	SG-MSC	0.5664	15.3244	0.3751	18.9777	0.2241	26.6504	2.9317	0.8703	4.0149
FRAP	No	0.4515	7.6689	0.3940	8.7829	0.5015	7.7951	−0.3005	1.4192	6.2365
	SG	0.3941	8.5729	0.3303	9.1163	0.0236	20.1556	−16.7923	0.5489	2.4119
	SNV	0.5154	7.6670	0.4063	8.3726	0.4829	7.9384	−0.2364	1.3936	6.1239
	MSC	0.6068	6.9056	0.4746	8.1335	0.4032	8.8715	−0.5949	1.2470	5.4798
	SG-SNV	0.5023	7.7691	0.3812	8.7352	0.0277	37.8779	22.7238	0.2921	1.2834
	SG-MSC	0.5050	7.7483	0.4014	8.5661	0.0804	25.0587	19.6255	0.4415	1.9400

.

As indicated in Table 1, some of the used pre-processing methods improved the results of PLS modeling when compared to raw spectra, while others did not contribute to the model performance. For prediction of the added adulterant amount, moisture of the samples, and total color change, the best performance was obtained using the multiplicative scatter corrections (MSCs). Raw spectra were the best selection for prediction of conductivity, total phenolic content, and antioxidant activity as determined by the FRAP method. Results also showed that the highest R²_pred was obtained for the PLS model developed for the prediction of the amount of the adulterant. The PLS model selected for prediction of the adulterant amount achieved R²_cal of 0.8978, RMSEC of 10.1552%, R²_cval of 0.8557, RMSECV of 12.2011%, R²_pred of 0.8660, RMSEP of 11.4736%, Bias of 0.7141, RPD of 2.7601%, and RER of 8.7157%. Oppositely, the lowest R²_pred of 0.2101 was obtained for the PLS model developed for prediction of the total color change. The PLS model selected for prediction of the total color change achieved R²_cal of 0.3213, RMSEC of 0.6728, R²_cval of 0.2292, RMSECV of 0.7359, R²_pred of 0.2101, RMSEP of 0.8631, Bias of −0.1893, RPD of 1.0389, and RER of 4.3934. In comparison to the results presented by Valinger et al. [13], it can be noticed that PLS modeling was more efficient for the prediction of honey adulteration properties prepared with high-fructose syrup. The RPD and RER statistics were also considered in the external validation set in order to evaluate the prediction models’ usability on an independent dataset. According to Parrini et al. [36], the model can be considered sufficient for screening if RPD is between 1.5 and 2.5. Moreover, RER values between 3 and 10 and higher than 10 indicate moderate and good practical utility, respectively [37]. Based on those ranges, the PLS model for prediction of the amount of added adulterant (RPD of 2.7601; RER of 8.7157), the model for prediction of the moisture content (RPD of 1.7401; RER of 7.7128), and the model for prediction of the conductivity (RPD of 1.9668; RER of 7.3805) can be considered sufficient for screening and can be moderately used in practice. Other developed PLS models achieved even lower values for RPD and RER and can be considered as nonreliable and should be improved.

Based on available literature data, NIR spectroscopy coupled with PLS modeling has been extensively used for fast and efficient food adulteration detection. Pereira et al. [38] proposed PLS models for the detection of simulated goat milk adulteration with cow milk and quantification of the fat and protein content in the samples based on NIR spectra. Similarly, Mabood et al. [39] developed a PLS model that achieved an R² of 94% and an RMSEC of 1.10% for the quantification of camel milk adulteration with goat milk in the range from 0% to 20%. Basri et al. [40] employed PLS regression for the detection and quantification of palm oil adulteration with lard based on NIR and obtained an R² of approximately 0.99. Furthermore, Alamprese et al. [34] applied PLS to discriminate the adulteration of minced beef with turkey meat using FT-NIR. Cocchi et al. [41] explored the possibility of using NIR to quantify the degree of adulteration of durum wheat flour with common wheat flour. Amirvaresi et al. [42] and Shawky et al. [43] utilized PLS regression for estimation of the adulteration in saffron samples based on NIR and MIR spectroscopy, while Genis et al. [44] developed PLS using NIR spectra to predict green pea and spinach adulteration rates with R² and root-mean-square error of prediction (RMSEP) values, which were found to be 0.9957 and 7.87 for green pea and 0.9968 and 4.69 for spinach, respectively. Wang et al. [45] developed a PLS regression model using raw NIR spectra for detection of quinoa flour adulteration by wheat flour.

3.4. ANN Modeling of Honey Adulteration Properties

Partial Least Squares linear regression models are not always successful in accurately predicting parameters that are not connected to a particular compound or class of related compounds (e.g., different sugar molecules for sweetness), but rather to a complex combination of factors (e.g., water content) [46]. In these situations, it has been demonstrated that using nonlinear models such as artificial neural networks (ANNs) to create the best possible prediction model is preferable [13,47,48]. In this work, two types of ANNs were developed. The first one was for simultaneous prediction of the amount of adulterant, moisture content, and total color change, while the second was for simultaneous prediction of conductivity, TPC, and FRAP. ANN output variables were grouped according to the results of PLS modeling where MSC pre-treatment of NIR spectra ensured the best prediction of adulterant, moisture content, and total color change, while the prediction of conductivity, TPC, and FRAP was the most efficient using raw NIR spectra. Selected networks are given in

Table 2. Characteristics of ANNs selected for prediction of honey adulteration and physical and chemical properties of pure honey samples and prepared glucose syrup adulterations based on different NIR spectra pre-treatments (selected ANN models are marked bold).

Property/ Pre-Treatment	MLP	Training Perf./ Training Error	Test Perf./ Test Error	Validation Perf./ Validation Error	Hidden Activation	Output Activation
Amount of adulterant-moisture-total colour change/ MSC	MLP 5-4-3	0.9434 0.1503	0.9306 1.9238	0.9232 1.9672	Exponential	Exponential
	MLP 5-10-3	0.9440 0.0858	0.9340 0.1142	0.9247 0.1186	Exponential	Identity
	MLP 5-7-3	0.9422 0.1112	0.9297 0.1476	0.9203 0.2004	Exponential	Exponential
	MLP 5-9-3	0.9617 0.1092	0.9354 0.1304	0.9056 0.1888	Exponential	Exponential
	MLP 5-8-3	0.9625 0.0748	0.9215 0.0777	0.9202 0.0851	Tanh	Identity
conductivity TPC-FRAP/ No	MLP 5-5-3	0.8120 1.5222	0.8086 1.5611	0.7243 1.5771	Logistic	Identity
	MLP 5-5-3	0.8222 1.4466	0.8104 1.5394	0.7384 1.5773	Tanh	Identity
	MLP 5-11-3	0.8104 1.4836	0.8298 1.5460	0.7268 1.6095	Logistic	Identity
	MLP 5-6-3	0.7968 1.5257	0.8427 1.5606	0.7303 1.5814	Logistic	Logistic
	MLP 5-9-3	0.8401 1.4883	0.8323 1.5301	0.7254 1.5553	Logistic	Exponentail

.

The ANNs applicability was estimated based on the coefficients of determination for training, test, and validation and the root-mean-square errors for training, test, and validation. It can be noticed that ANNs developed for the prediction of conductivity, TPC, and FRAP achieved a higher R² and lower RMSE at all three levels compared to ANNs for the prediction of adulterant, moisture content, and total color change. The optimal ANN architecture was selected by also taking into account the number of neurons in the hidden layer (fewer neurons in hidden layer mean simpler network). For simultaneous prediction of the amount of adulterant, moisture content, and total color change of pure honey samples and prepared adulterations, MLP 5-8-3 was selected. The selected ANN was characterized by 5 neurons in the input layer, 8 neurons in the hidden layer, and 3 neurons in the output layer. The hidden activation function was Tanh, while the output activation function was the Identity function. R²_training was 0.9625, RMSE_training was 0.0748, R²_test was 0.9215, RMSE_training was 0.0777, R²_validation was 0.9202, and RMSE_validation was 0.0551 for the described ANN. MLP 5-9-3 was selected for the simultaneous prediction of conductivity, TPC, and FRAP of pure honey samples and prepared adulterations. The selected ANN was characterized by 5 neurons in the input layer, 9 neurons in the hidden layer, and 3 neurons in the output layer. The hidden activation function was the logistic function, and the output activation function was the exponential function. The described ANN achieved R²_training of 0.8401, RMSE_training of 1.4883, R²_test of 0.8323, RMSE_training of 1.5301, R²validation of 0.7254, and RMSE_validation of 1.5553. As presented in

Table 3. Correlation coefficients of ANN models.

ANN	Output	R2training RMSEtraining	R2test RMSEtest	R2validation RMSEvalidation
MLP 5-4-3	amount of adulterant	0.9991 1.2010	0.9987 1.4554	0.9987 1.9674
	Moisture	0.9116 0.2087	0.9072 0.5663	0.8503 0.6017
	total colour change	0.9505 0.2364	0.9431 0.3623	0.9261 0.5244
MLP 5-4-3	Conductivity	0.9396 19.7537	0.9130 20.9560	0.8994 21.4561
	TPC	0.7234 16.3911	0.7152 16.4769	0.5639 17.7901
	FRAP	0.8604 5.2505	0.8156 6.5094	0.6726 8.2014

and in Figure 3, the first ANN was the most efficient for the prediction of adulterant amount (R²_training = 0.9991, RMSE_training = 1.2010%, R²_test = 0.9987, RMSE_training = 1.4554%, R²_validation = 0.9987, and RMSE_validation = 1.9674%) (Figure 3a), while the second ANN was the most efficient for the prediction of conductivity (R²_training = 0.9396, RMSE_training = 19.7537 µS/cm, R²_test = 0.9130, RMSE_test = 20.9560 µS/cm, R²_validation = 0.8994, and RMSE_validation = 21.4561 µS/cm) (Figure 3d).

Comparing the obtained results with those achieved using PLS modeling, it can be noticed that ANN modeling was more efficient for prediction of adulterated honey properties based on NIR spectra, which was also previously presented by Son et al. [49] for rice sample analysis, Basile et al. [46] for grape texture prediction, and by Chen et al. [50] for identification of tea varieties.

4. Conclusions

The applicability of NIR spectroscopy was assessed for the detection and quantification of honey adulteration and analysis of the physical and chemical properties of prepared adulterations. Multiplicative scatter corrections of NIR spectra resulted in a distinctive grouping of samples in pure honey samples, honey adulterations, and pure adulteration in the PCA score plot. PLS models created for prediction of the amount of added adulterant, moisture content, and conductivity can be considered adequate for screening and have a limited practical application. Furthermore, the developed ANN models achieved R²_validation over 0.86 for all analyzed outputs (adulterant content, moisture content, conductivity, total color change, total phenolic content, and antioxidant activity measured by the FRAP method) and can be considered as an efficient tool for honey adulteration quantification.
