Mathematical Modelling of Blanch-Assisted Drying of Pomegranate (Punica granatum) Arils in a Hot-Air Drier

Abstract

The effect of blanching conditions on the hot-air drying kinetics of three pomegranates (cvs. “Acco”, “Herskawitz” and “Wonderful”) were assessed. Water blanching conditions considered were 90 °C for 30 s, 90 °C for 60 s, 100 °C for 30 s and 100 °C for 60 s. The drying experiments were carried out at 60 °C, 19.6% relative humidity and at a constant air velocity of 1.0 m s⁻¹. The experimental curves were fitted to seven different drying models. For the Acco cultivar, the drying behaviour was best predicted by the Logarithmic and Page model for blanched (R² ranging between 0.9966 and 0.9989) and unblanched (R² = 0.9918) samples, respectively. Furthermore, for the Herskawitz cultivar, Logarithm, Page and Midili models were most suitable for predicting drying behaviour of both blanched and unblanched samples. Also, for the Wonderful cultivar, Logarithm and Midili models were most accurate for predicting the drying behaviour for both blanched and unblanched samples amongst other models. The blanched samples dried faster with shorter drying times: “Acco” (7 h), “Herskawitz” (8 h), and “Wonderful” (7 h), compared to the unblanched samples, which dried after 15, 20 and 11 h, respectively. Effective diffusion coefficient of moisture in pomegranate arils ranged from 4.81 × 10⁻⁹ and 1.11 × 10⁻⁸ m² s⁻¹ for the Acco cultivar, for the Herskawitz cultivar; 3.29 × 10⁻⁹ and 1.01 × 10⁻⁸ m² s⁻¹ and for the Wonderful cultivar; 5.83 × 10⁻⁹ and 1.09 × 10⁻⁸ m² s⁻¹. Overall, blanching resulted in low energy consumption during drying of pomegranate arils. In addition, the Logarithmic model generally showed an appropriate model for blanched samples regardless of cultivar. For unblanched samples, the Page model was more appropriate for “Acco” and “Herskawitz”, while the Midili model was appropriate for “Wonderful”. Therefore, this study provided science-based and practical drying conditions for the investigated pomegranate cultivars.

1. Introduction

Pomegranate (Punica granatum) fruit consumption has continued to gain global interest among consumers due to its rich nutritional properties and high content of polyphenols [1,2]. It is a good source of phenolic compounds including flavonoids (anthocyanins and flavonols), condensed tannins (proanthocyanidins) and hydrolysable tannins (ellagitannins and gallotannins) [3]. However, pomegranates arils are highly perishable, with a shelf life of 5 to 8 days [4]. This limits pomegranate consumption and availability during the off-season. Drying is one of the oldest methods used to preserve food commodities [5]. Drying has been shown to preserve and add value to pomegranates by transforming fresh arils into a nutrient-dense snack called anardana, with improved sensory attributes [6]. It has an extensive shelf life in proper packaging, substantially reduced fruit weight during transportation and lower handling and storage costs compared to fresh fruit [7].

The drying of food materials involves simultaneous heat and moisture transfer between the surface of the material and the surrounding media [8]. In order to preserve food quality during drying, various drying methods have been developed. For instance, in India, the arils are dried in the sun for 10 to 15 days and then sold as a spice [9]. Also, [10] investigated the use of freeze, convective and vacuum-microwave dryers for production of dried pomegranate arils and rind. The authors noted that significant reductions in the contents of sugars, organic acids, and total polyphenols associated with the drying process. Furthermore, [11] compared a thin layer drying behaviour of sour pomegranate arils using microwave, vacuum, and infrared methods, as well as convection drying. The authors reported that microwave pre-treatment combined with convective drying performed best for the drying of pomegranate arils taking into consideration the drying rate, effective moisture diffusion and activation energy.

However, several changes may occur in the food due to complex thermo-physical and biochemical processes that accompany the drying process. These changes affect the quality attributes of the end product [12]. Reports have shown that high temperature and long drying time affect food physical structures and chemical composition [13]. These changes include browning, shrinkage or loss of texture and a decrease in the bioactive composition of products. For example, according to Krokida [14], long drying times resulted in significant structural and colour changes in dehydrated apple, banana, carrot and potato. Further, Aguilera [15] reported that loss of nutrients during extensive food drying is inevitable. However, these changes could be reduced through pre-treating food materials prior to drying. The type of pre-treatments applied to food materials depends on the type of food to be dried and availability of pre-treatment [16]. Several pre-treatment methods applied to food materials have been studied to reduce the loss of colour due to enzyme activation, minimizing drying time and maintaining optimum nutritional qualities in the food samples [17]. Pre-treatment of food materials can be mechanical, such as soaking or dipping food materials in honey, heating either through steam or water blanching, or chemical application using treatment of materials with chemicals such as sulphur, ascorbic acid and sodium metabisulfite [16,17,18]. However, non-chemical pre-treatment (mechanical and heat) methods are preferable during food processing due to interference with sensory attributes of pre-treated products [19], elimination of off-flavours that may have been formed during postharvest, and removal of any residual pesticides [20,21]. Studies have shown blanching as a pre-treatment method that reduces drying time and preserves quality attributes of food products [22].

The analysis of the drying processes assists in validating appropriate operating conditions. Hence, understanding the temperature and moisture behavioural characteristics for the product is a necessity, especially for handling practices and quality control. Kinetic modelling is a useful approach to design and optimize thermal processes in order to maximise quality [23]. Several mathematical models have been employed for the purpose of moisture diffusion process in food products. Moisture diffusivity in solid food can be obtained in different forms, which changes in accordance with the geometry of the sample and the experimental conditions. These methods have been used to estimate moisture diffusivity and rely on drying kinetics, sorption, or desorption kinetics, as well as moisture profile analysis [24].

The mass transfer coefficient of food materials during drying was determined by Dincer and Hussain [25] to develop new Biot number and lag factor correlation. Mathematical models for pomegranate arils using a vacuum and microwave dryer was studied by Minaei et al. [8] and reported the validity of Midili and Page models. Lee and Kim [26] reported a tremendous change in effective diffusivity by studying the effect of drying temperature and material thickness of Asian white radish slices. Also, by studying the drying kinetics of pumpkin at different pressure and temperature levels, Arevalo-Pinedo and Fernando [27] reported that generated values of effective diffusivity for treated samples were smaller to calculated values. Similarly, by investigating the drying model for apples, Goyal et al. [28] reported that Logarithmic model best described the drying kinetics in comparison to other models investigated.

Several types of hot air drying have been implemented to dry agricultural crops, the design and operation of such dryers have been challenging due to the complexity of the parameters that govern the drying process and the factors affecting the quality of the product. One of the most important factors to be measured in dryer design is the drying rate for the prediction of drying time. Hence, investigating the appropriate model suitable for the modelling and prediction of the drying process is crucial. Since cultivar and nature of pre-treatment may affect the drying process, it is necessary to establish the appropriate drying model as a function of cultivar and pre-treatment. Therefore, the aims of this study were two-fold, first, to investigate the effect of different blanching conditions on thin-layer drying kinetics of three pomegranate cultivars, and second, to determine the mathematical model that best describes the characteristics of the drying process. In addition, effective diffusivity coefficients for the investigated cultivars were determined.

2. Materials and Methods

2.1. Plant Material and Sample Processing

Three pomegranate cultivars, “Acco”, “Herskawitz” and “Wonderful”, classified as sweet, sour and sweet-sour, respectively, were investigated. The fruit was harvested at commercial harvest (13°Brix) between February and April in the 2018 harvest season from a local orchard in Wellington, South Africa (33°01′00″ S, 18°58′59″ E). Fruit was sorted for uniformity in size, shape, and colour and transported in an air-conditioned vehicle to the Postharvest Technology Laboratory at Stellenbosch University. The arils were manually separated from the fruits and used for processing. Immediately before the blanching process, 10 g of pomegranate arils per cultivar were taken for initial moisture content determination [9,29] with slight modification. The initial moisture content of the fresh arils was: 56.67%, 54.95% and 78.51% (w.b) for “Acco”, “Herskawitz” and “Wonderful”, respectively.

2.2. Oven Drying Procedure

Blanching of fresh arils was carried out in a water bath in batches. Samples were blanched at 90 °C and 100 °C, each for 30 s and 60 s. The unblanched sample was used as the control. Blanched arils were dipped in iced water 0 °C for 3 min to halt the continuous heating process and carefully drained before weighing. The process was carried out in triplicates for each treatment. Samples (60 g) were weighed before being subjected to drying in an oven (Model nr. 072160, Prolab Instruments, Sep Sci., South Africa) set at a temperature of 60 °C, 19.6% relative humidity and 1.0 m s⁻¹ constant air velocity. The ambient air was used at 20 ± 0.3 °C and 80%–88% RH. Weight loss was recorded every 60 min until the desired moisture content between 10% ± 0.2%, wet basis (w.b.) was reached [8,9] with slight modification. A schematic view of a laboratory hot-air convective drying system is illustrated in Figure 1.

2.3. Mathematical Modelling

To find the most suitable model, seven models were examined (

Table 1. Empirical models describing blanched and unblanched pomegranate aril drying kinetics.

Model	Name	Emperical Expression	References
1	Lewis	MR = exp (−kt)	[30]
2	Henderson and Pabis	MR = a.exp (−kt)	[30]
3	Logarithmic	MR = a.exp (−kt) + c	[31]
4	Page	MR = exp (−kt n)	[32]
5	Wang and Singh	MR = 1 + at + bt2	[33]
6	Modified Page	MR = exp (−kt) n	[30]
7	Midili	MR = a.exp (−kt n) + bt	[34]

). The selected mathematical models best describe drying mechanisms of food material and provide the required temperature and moisture information for proper control of the process [8].

In these models, the moisture ratio was simplified to Equation (1) according to [35]:

$$MR=\frac{M_t}{M_0}$$

(1)

where M_t is the instantaneous moisture content at time t (h), and M₀ is the initial moisture content.

2.4. Drying Rate (DR)

The drying rate at a particular time was calculated by Sarpong et al. [36] in Equation (2):

$$DR=\frac{M_{t1}-M_{t2}}{t_2-t_1}$$

(2)

where t₁ and t₂ are the drying times (min) at different times during drying; M_t1 and M_t2 are the moisture content of samples (g min⁻¹).

2.5. Effective Moisture Diffusivity Determination

Fick’s second law of diffusion is used to describe the drying process usually controlled by internal diffusion for most biological materials during the falling rate period [36] and shown in Equation (3):

$$\frac{\delta M}{\delta t}=D_{eff }{\nabla }^{2}M$$

(3)

The effective moisture diffusivity (D_eff) (m² s⁻¹) was calculated from the diffusion equation (Equation (3)) for the geometry on the assumption of unstable moisture diffusivity, spherical coordinate movement of moisture, constant temperature and diffusion coefficients and negligible shrinkage during the process of drying is given as the following [37]:

$$MR=\frac{M_t}{M_0}=\frac{6}{{\pi }^2}{\displaystyle \sum }_{n=1}^{\infty }\frac{1}{n^2} exp\left[-\frac{n^2{\pi }^2{D}_{eff}t}{R^2}\right]$$

(4)

where D_eff is the effective moisture diffusivity (m² s⁻¹), t is the time (h), R denotes the radius of the aril, assumed spherical and constant during the drying period, and n is a positive integer. In the case of longer drying periods, the above equation can be simplified to the only first term of series, without much affecting the accuracy of the prediction [8,37,38]:

$$In\left(MR\right)=In\frac{6}{{\pi }^2}-\left(-\frac{{\pi }^2{D}_{eff}t}{R^2}\right)$$

(5)

From Equation (5), a plot of ln(MR) versus drying time gives a straight line with a slope (K) of:

$$K=\frac{{\pi }^2{D}_{eff}}{R^2}$$

(6)

2.6. Statistical Analysis of the Models

Data was processed with STATISTICA (Statistica 13.0, StatSoft Inc., Tulsa, OK, USA) and presented as means ± standard error. All analysis was done in triplicate. Factorial analysis of variance (ANOVA) in order to observe if the mean values were statistically different and the Fisher’s LSD test at a level of significance of 95%. The moisture ratio curves obtained were fitted with seven mathematical models in order to describe the drying characteristics of blanched and unblanched pomegranate arils. Multiple regression analysis was performed using MATLAB software. The experimental data were evaluated with the coefficient of determination (R²) and the root mean square error (RMSE). The higher the R² values, and the lower the RMSE values, the better the model of best fit [30].

$$R^2=\frac{{{\displaystyle \sum }}_{i-1}^N\left(M{R}_i-M{R}_{pre,i}\right)· {{\displaystyle \sum }}_{i=1}^N\left(M{R}_i-M{R}_{exp,i}\right)}{\sqrt{⎣{{\displaystyle \sum }}_{i=1}^N{(M{R}_i-M{R}_{pre,i})}^2⎦}·⎣{{\displaystyle \sum }}_{i=1}^N{(M{R}_i-M{R}_{exp.i})}^2⎦}$$

(7)

$$RMSE=\sqrt{\frac{1}{N}}{\displaystyle \sum }_{i=1}^N{(M{R}_{pre,i}-M{R}_{exp,i})}^2$$

(8)

MR_exp,i is the ith experimentally determined moisture ratio, MR_pre,i is the ith predicted moisture ratio value, N is the number of observations and z, the number of drying constants.

3. Results and Discussion

3.1. Effect of Blanching Conditions on Drying Kinetics of Dried Pomegranate Aril

3.1.1. Moisture Ratio

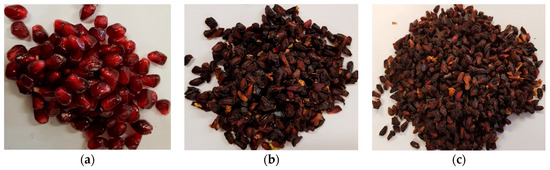

Figure 2 shows a pictorial representation of the trend of pomegranate arils before and after processing. At the end of drying, blanched samples became stickier while the unblanched appeared easily separated from each other, which informs part of the textural properties during crushing and grinding [39].

Also, blanched samples showed glistering dark-purple colour as a result of the occurrence of Maillard reactions during drying [40], while unblanched arils appeared pale. Amongst the investigated cultivars, the order of average drying time blanched sample (100 °C for 60 s) and unblanched sample (control) was observed in the order of cultivar “Herskawitz” (600 min) > “Acco” (420 min) > “Wonderful” (300 min) regardless of blanching condition (Figure 3).

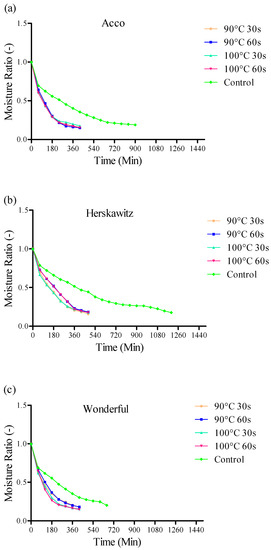

Moisture ratio (MR) decreased rapidly with drying time for “Acco”, “Herskawitz” and “Wonderful” dried pomegranate arils. The drying curves showed the same trend regardless of blanching conditions. For instance, moisture content decreased, and the desired moisture was reached faster in blanched samples (420–480 min) than in the unblanched (660–1200 min), regardless of blanching condition (Figure 4). This amounted to approximately 53%, 60% and 36% reduction in drying time for “Acco”, ”Herskawitz” and “Wonderful”, respectively.

3.1.2. Drying Rate

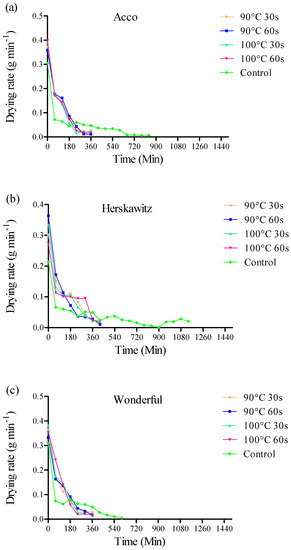

The variation in drying rate with drying time obtained from Equation (2) is shown in Figure 5 for “Acco”, “Herskawitz” and “Wonderful”, respectively.

In the early stages, drying rate increased rapidly, reaching a maximum value, then a progressive decrease with drying time was observed. Drying rates for both blanched and unblanched samples followed a pattern of falling rate period, which is considered as a phenomenon of diffusion-control. A similar trend was observed in the studies by Minaei et al. [8] for pomegranate arils; Wang et al. [30] and Kaya et al. [41] in apples. During the falling rate period, the highest drying rates were found in the blanched samples ranging from (0.358 to 0.398 g min⁻¹; 0.274 to 0.363 g min⁻¹ and 0.333 to 0.382 g min⁻¹) for “Acco”, “Herskawitz” and “Wonderful”, respectively, while all unblanched samples had the lowest drying rate (ranging from 0.214 to 0.311 g min⁻¹) for the three cultivars. The rates of drying for all blanched arils were higher than the unblanched pomegranate arils for “Acco”, “Herskawitz” and “Wonderful”. Also, the differences in drying were highest at the early stage of drying when the greater amount of water in the sample is evaporated and at the later stage, the differences in the amount of moisture evaporation in the sample is gradually lower (Figure 5). The higher drying rate is ascribed to the microstructural differences between the blanched and unblanched pomegranate arils. Microstructural differences between fresh apple pomace and the pre-treated apple pomace were reported by Wang et al. [30]. This is due to the porous structure and shrinkage of arils during blanching as a result of wide spaces between neighbouring cells [42,43].

3.1.3. Moisture Diffusion

An isothermal temperature at 60 °C was maintained during the drying process. There were variations in Deff for all the blanching conditions regardless of the cultivars

Table 2. Moisture effective diffusion (Deff) of dried pomegranate aril under different blanching conditions for different cultivars.

Cultivar/Classification	Blanching Condition	Moisture Diffusivity (m2/s)
Acco	Control	4.81 × 10−9
	90 °C 30 s	1.24 × 10−8
	90 °C 60 s	1.34 × 10−8
	100 °C 30 s	1.11 × 10−8
	100 °C 60 s	1.24 × 10−8
Herskawitz	Control	3.29 × 10−9
	90 °C 30 s	1.04 × 10−8
	90 °C 60 s	1.19 × 10−8
	100 °C 30 s	1.11 × 10−8
	100 °C 60 s	1.01 × 10−8
Wonderful	Control	5.83 × 10−9
	90 °C 30 s	1.09 × 10−8
	90 °C 60 s	1.14 × 10−8
	100 °C 30 s	1.27 × 10−8
	100 °C 60 s	1.29 × 10−8

.

Deff values were within the range of 4.81 × 10⁻⁹ and 1.11 × 10⁻⁸ m² s⁻¹ for the Acco cultivar, for the Herskawitz cultivar; 3.29 × 10⁻⁹ and 1.01 × 10⁻⁸ m² s⁻¹ and for the Wonderful cultivar; 5.83 × 10⁻⁹ and 1.09 × 10⁻⁸ m² s⁻¹. The highest Deff was recorded for samples blanched at 90 °C for 60 s for Acco and Herskawitz cultivars, while (100 °C for 60 s) for the Wonderful cultivar. However, control samples for all cultivars had the lowest Deff values.

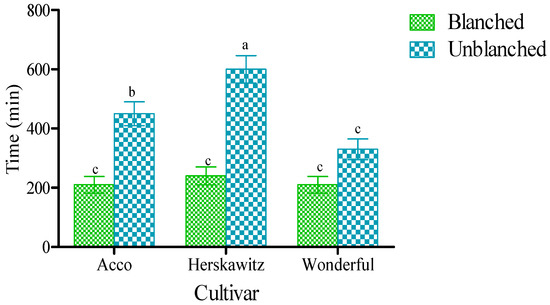

As observed in Figure 4, blanching condition lowered drying time. These results suggested the positive impact of blanching by lowering the drying time of pomegranate arils, regardless of the cultivar. Results from this study correspond with findings by Karaaslan et al. [29], who reported the shortest drying time for pre-treated samples of pomegranate aril under vacuum dryer. A 20% reduction in drying time for banana under a relative humidity-convective air dryer was also reported by Sarpong et al. [36]. Variability in blanching conditions with a similar drying curve indicated that increased temperature or duration during blanching had no distinct differences on the drying kinetics of dried pomegranate arils. This result also agreed with the study by Sarpong et al. [36], who reported no significant effect on the drying kinetics of dried banana as a result of similar drying curves for all treatments.

Moisture diffusion and drying rate phenomena are dependent on temperature and product composition [8]. It is thus logical to attribute the observed differences in moisture diffusion and drying time to initial moisture content in the investigated Acco (56.67%), Herskawitz (54.95%) and Wonderful (78.51%) pomegranate cultivars. Generally, higher values were found in the blanched samples, which is connected to the rapid removal of moisture and faster drying of the samples. Deff values reported in this study were close to the range previously reported for pomegranate arils, with Deff values of 0.74 × 10⁻¹⁰ to 5.25 × 10⁻¹⁰ m² s⁻¹ and 3.05 × 10⁻¹⁰ to 3.43 × 10⁻¹⁰ m² s⁻¹ for vacuum and microwave dried arils, respectively [8]. High Deff values among the blanching conditions indicated that moisture movement in pomegranate arils was in liquid form, a notion reported by Sarpong et al. [36] for banana slices.

3.2. Fitting of Drying Curve

The R² and RMSE were used to determine the goodness of fit model as shown in

Table 3. Curve fitting criteria for various mathematical models and parameters for blanched and unblanched pomegranate arils cv. Acco.

Model Number	k	a	b	c	n	Determining Coefficient (R2)	Root Mean Square Error (RMSE)
90 °C 30 s
1	1.01 × 10−4					0.9821	0.017932
2	9.63 × 10−5	0.9550				0.9779	0.015464
3	1.49 × 10−4	0.8611		0.1365		0.9989	0.000686
4	1.02 × 10−3				0.7371	0.9949	0.02257
5		−8.75 × 10−5	2.22 × 10−9			0.9804	0.01557
6	1.08 × 10−5				9.3788	0.9821	0.017933
7	1.59 × 10−3	1.01107	9.30 × 10−7		0.7097	0.9949	0.003182
90 °C 60 s
1	0.00010					0.9880	0.011722
2	9.91 × 10−5	0.9687				0.9857	0.010517
3	0.000138	0.8899		0.1101		0.9979	0.001314
4	0.00064				0.8036	0.9940	0.003859
5		−8.75 × 10−5	2.22 × 10−9			0.9877	0.010128
6	1.09 × 10−5				9.4298	0.9880	0.011722
7	0.00159	1.0111	9.3 × 10−7		0.7097	0.9905	0.007004
100 °C 30 s
1	0.00010					0.9682	0.031770
2	9.3 × 10−5	0.9550				0.9628	0.027411
3	0.00015	0.8611		0.1365		0.9966	0.002839
4	0.00118				0.7371	0.9914	0.006068
5		−8.75 × 10−5	2.22 × 10−9			0.9691	0.024845
6	1.09 × 10−5				9.4298	0.9694	0.032035
7	0.00159	1.0111	9.3 × 10−7		0.7097	0.9947	0.003418
100 °C 60 s
1	0.00010					0.9753	0.022735
2	9.9 × 10−5	0.8987				0.9721	0.023406
3	0.00015	0.8611		0.1365		0.9977	0.002243
4	0.00118				0.7371	0.9938	0.004394
5		−8.8 × 10−5	2.22 × 10−9			0.9749	0.021579
6	1.08 × 10−5				9.9287	0.9794	0.022169
7	0.00159	1.0111	9.30 × 10−7		0.7097	0.9958	0.003968
Control
1	3.97 × 10−5					0.9525	0.094019
2	3.22 × 10−5	0.8519				0.9353	0.047809
3	2.68 × 10−5	0.7439		0.2561		0.9871	0.009322
4	0.00249				0.5933	0.9918	0.005697
5		−3.50 × 10−5	3.90 × 10−10			0.9599	0.075367
6	9.98 × 10−6				3.99	0.9527	0.094028
7	0.00185	0.99412	4.33 × 10−7		0.6254	0.9920	0.005833

1 Lewis, 2 Henderson and Pabis, 3 Logarithmic, 4 Page, 5 Wang and Singh, 6 Modified Page, 7 Midili.

,

Table 4. Curve fitting criteria for various mathematical models and parameters for blanched and unblanched pomegranate arils cv. Herskawitz.

Model Number	k	a	b	c	n	Determining Coefficient (R2)	Root Mean Square Error (RMSE)
90 °C 30 s
1	7.61 × 10−5					0.9821	0.017932
2	7.27 × 10−5	0.9611				0.9779	0.015464
3	0.00011	0.8611		0.1365		0.9989	0.000686
4	0.001				0.7371	0.9949	0.02257
5		−8.75 × 10−5	2.22 × 10−9			0.9804	0.01557
6	9.17 × 10−6				8.2998	0.9821	0.017933
7	0.00129	1.0211	9.30 × 10−7		0.7097	0.9949	0.003182
90 °C 60 s
1	6.42 × 10−5					0.9880	0.011722
2	6.33 × 10−5	0.9750				0.9857	0.010517
3	0.000109	0.8711		0.1765		0.9979	0.001314
4	0.00018				0.8916	0.9940	0.003859
5		−8.35 × 10−5	2.22 × 10−9			0.9877	0.010128
6	8.43 × 10−6				7.6155	0.9880	0.011722
7	0.00109	1.0111	9.2 × 10−7		0.7097	0.9905	0.007004
100 °C 30 s
1	7.63 × 10−5					0.9682	0.031770
2	7.33 × 10−5	0.9550				0.9628	0.027411
3	0.00011	0.8011		0.1565		0.9966	0.002839
4	0.0002				0.8991	0.9914	0.006068
5		−8.40 × 10−5	2.22 × 10−9			0.9691	0.024845
6	9.19 × 10−6				8.3037	0.9694	0.032035
7	0.00119	1.0011	9.0 × 10−7		0.7097	0.9947	0.003418
100 °C 60 s
1	6.53 × 10−5					0.9753	0.022735
2	6.53 × 10−5	0.9650				0.9721	0.023406
3	6.75 × 10−5	0.9482		0.0295		0.9977	0.002243
4	0.00016				0.9048	0.9938	0.004394
5		−9.0 × 10−5	2.22 × 10−9			0.9749	0.021579
6	7.82 × 10−6				8.3567	0.9794	0.022169
7	0.00129	1.0011	2.21 × 10−6		0.7097	0.9958	0.003968
Control
1	2.96 × 10−5					0.9525	0.094019
2	3.22 × 10−5	0.9819				0.9353	0.047809
3	1.29 × 10−4	0.9611		0.2665		0.9871	0.009322
4	0.00209				0.5933	0.9918	0.005697
5		−3.50 × 10−5	3.90 × 10−10			0.9599	0.075367
6	9.98 × 10−6				2.99	0.9527	0.094028
7	0.00145	0.99412	5.33 × 10−7		0.6254	0.9920	0.005833

1 Lewis, 2 Henderson and Pabis, 3 Logarithmic, 4 Page, 5 Wang and Singh, 6 Modified Page, 7 Midili.

and

Table 5. Curve fitting criteria for various mathematical models and parameters for blanched and unblanched pomegranate arils cv. Wonderful.

Model Number	k	a	b	c	n	Determining Coefficient (R2)	Root Mean Square Error (RMSE)
90 °C 30 s
1	1.02 × 10−4					0.9821	0.017932
2	9.33 × 10−5	0.9880				0.9779	0.015464
3	1.19 × 10−4	0.8611		0.1365		0.9989	0.000686
4	1.07 × 10−3				0.7371	0.9949	0.02257
5		−8.75 × 10−5	2.22 × 10−9			0.9804	0.01557
6	1.01 × 10−5				9.1787	0.9821	0.017933
7	1.39 × 10−3	1.01107	9.30 × 10−7		0.7097	0.9949	0.003182
90 °C 60 s
1	1.01 × 10−4					0.9880	0.011722
2	9.95 × 10−5	0.9999				0.9857	0.010517
3	1.18 × 10−4	0.8899		0.1101		0.9979	0.001314
4	5.2 × 10−4				0.8046	0.9940	0.003859
5		−8.75 × 10−5	2.22 × 10−9			0.9877	0.010128
6	1.00 × 10−5				9.0898	0.9880	0.011722
7	0.00139	1.0011	9.3 × 10−7		0.7097	0.9905	0.007004
100 °C 30 s
1	0.00010					0.9682	0.031770
2	9.97 × 10−5	0.9850				0.9628	0.027411
3	1.49 × 10−4	0.8611		0.1365		0.9966	0.002839
4	0.00118				0.7371	0.9914	0.006068
5		−8.75 × 10−5	2.22 × 10−9			0.9691	0.024845
6	1.08 × 10−5				9.5787	0.9694	0.032035
7	0.00159	1.0111	9.3 × 10−7		0.7097	0.9947	0.003418
100 °C 60 s
1	1.01 × 10−4					0.9753	0.022735
2	9.96 × 10−5	0.9720				0.9721	0.023406
3	1.49 × 10−4	0.8611		0.1265		0.9977	0.002243
4	0.00138				0.7271	0.9938	0.004394
5		−8.85 × 10−5	2.22 × 10−9			0.9749	0.021579
6	1.08 × 10−5				9.7987	0.9794	0.022169
7	0.00169	1.0111	9.30 × 10−7		0.7097	0.9958	0.003968
Control
1	4.97 × 10−5					0.9525	0.094019
2	3.52 × 10−5	0.7506				0.9353	0.047809
3	9.99 × 10−5	0.7439		0.2561		0.9871	0.009322
4	0.00279				0.5933	0.9918	0.005833
5		−3.50 × 10−5	3.90 × 10−10			0.9599	0.075367
6	9.98 × 10−6				4.99	0.9527	0.094028
7	0.00185	0.94412	4.33 × 10−7		0.6254	0.9920	0.005697

1 Lewis, 2 Henderson and Pabis, 3 Logarithmic, 4 Page, 5 Wang and Singh, 6 Modified Page, 7 Midili.

.

For the Acco cultivar, the Logarithmic model gave the highest R² value for all blanched samples which varied from 0.9966 to 0.9989, while for the Page model, for unblanched samples value was 0.9918 (Table 3). Furthermore, the values of RMSE for the Logarithmic model in the Acco cultivar varied from 0.000686 to 0.002839 for blanched samples, while the value was 0.005697 for the page model for unblanched samples (Table 3). For the Herskawitz cultivar, the highest R² values were observed in Logarithmic, Page and Midili models for blanched samples varying from 0.9932 to 0.9973, while the Midili model had the highest R² value for unblanched samples (0.9844) Table 4. Also, the values of RMSE for the Logarithmic, Page and Midili models varied from 0.003201 to 0.004340 for blanched samples, while the value was 0.005697 for Page model for unblanched samples (Table 4). Similarly, for the Wonderful cultivar, the highest R² values were observed in the Logarithmic and Midili models for blanched samples, which varied from 0.9972 to 0.9988 whereas, for unblanched samples, the Midili model had the highest R² value (0.9929, Table 5). Consequently, the RMSE values for the Logarithmic and Midili models for blanched samples varied from 0.001128 to 0.002370 for blanched samples while the value was 0.005697 for Midili model for unblanched samples (Table 5).

From the tables, it was observed that Logarithmic, Page and Midili amongst other models considered for best fit represented the drying characteristics of both blanched and unblanched pomegranate arils for each analysis based on blanching condition and cultivar. The suitability of Logarithmic, Page and Midili models described the observed conformity between R² and RMSE values according to Wang et al. [30], the higher the R² values and the lower the RMSE values, the better the model of best fit. This is also similar to the observations reported for drying of pre-treated and untreated pumpkin [44].

4. Conclusions

The effect of blanching on the drying of “Acco”, “Herskawitz” and “Wonderful” pomegranate arils in a hot-air dryer was investigated. The blanched samples dried faster with a shorter drying time: “Acco” (7 h), “Herskawitz” (8 h) and ”Wonderful” (7 h), compared to the unblanched samples which dried after 15, 20 and 11 h, respectively. The trend of blanching showed a falling rate as observed against time. Blanched samples had a higher drying rate than the unblanched samples. The lowest moisture diffusion was obtained as 4.81 × 10⁻⁹, 3.29 × 10⁻⁹ and 5.83 × 10⁻⁹ m² s⁻¹ for Acco, Herskawitz and Wonderful cultivars, respectively, while the maximum values were 1.34 × 10⁻⁸, 1.19 × 10⁻⁸ and 1.29 × 10⁻⁸ m² s⁻¹ in the same order of cultivar. The suitability of seven mathematical models to describe the drying behaviour of pomegranate arils was investigated. The models that had the best fit with the highest values of R² and lowest values RMSE in Acco cultivar were the Logarithmic model for all blanched samples and the Page model for unblanched samples. The best-fit models in Herskawitz cultivar were Logarithmic, Page and Midili models amongst the blanched samples and Page model for unblanched sample. Wonderful cultivar had the best fit for Logarithmic and Midili models amongst the blanched samples and Midili model for the unblanched sample. Thus, Logarithmic, Page and Midili models were identified as being more suitable for describing the pomegranate aril drying process for the blanching conditions considered.
