Open AccessFeature PaperArticle
Processes 2019, 7(3), 166;

Accelerating Biologics Manufacturing by Upstream Process Modelling

Institute for Separation and Process Technology, Clausthal University of Technology, Leibnizstr. 15, 38678 Clausthal-Zellerfeld, Germany
Author to whom correspondence should be addressed.
Received: 2 February 2019 / Revised: 16 March 2019 / Accepted: 18 March 2019 / Published: 21 March 2019
(This article belongs to the Special Issue Processes Accelerating Biologics Manufacturing by Modelling)
PDF [4248 KB, uploaded 21 March 2019]

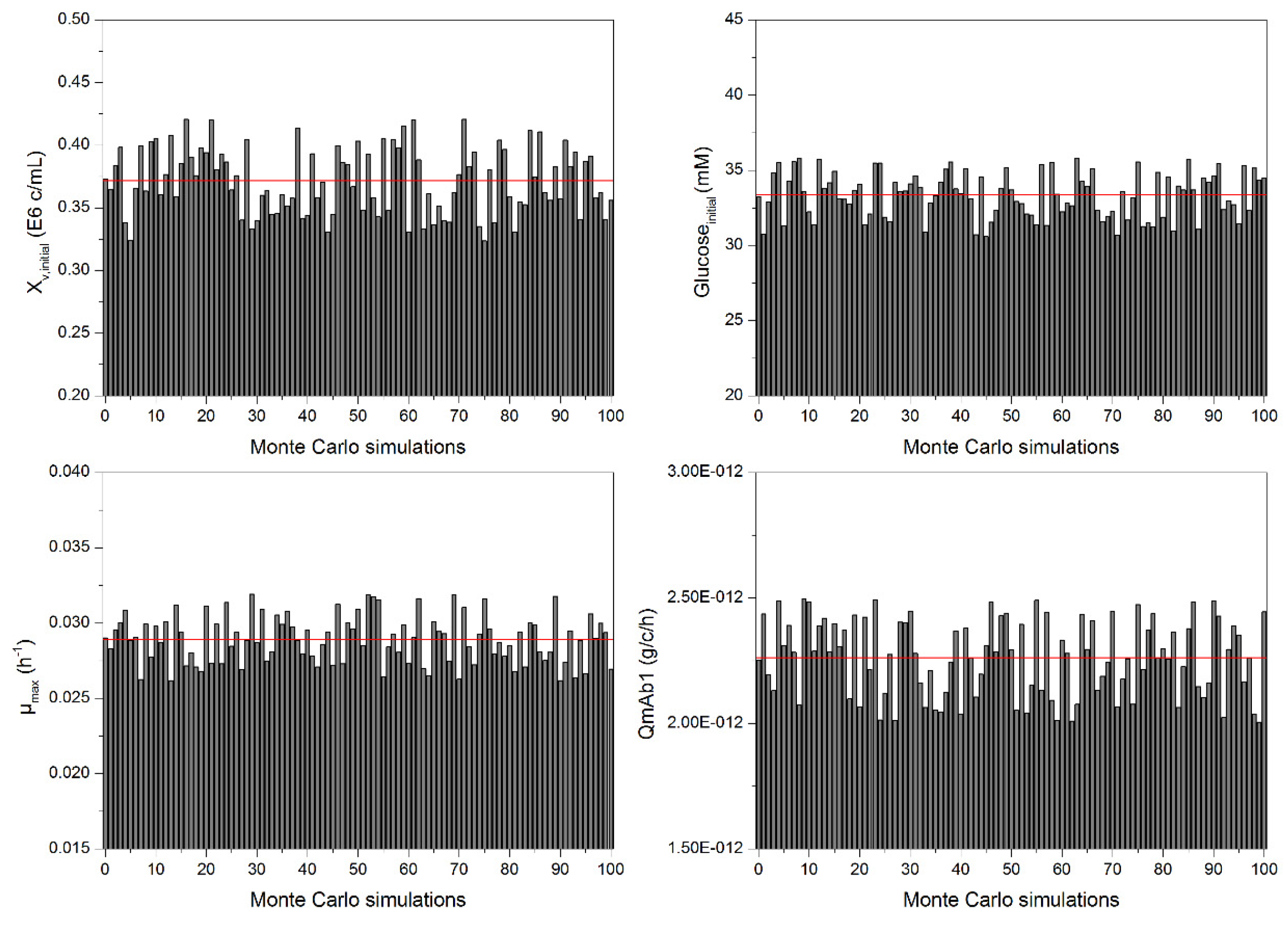

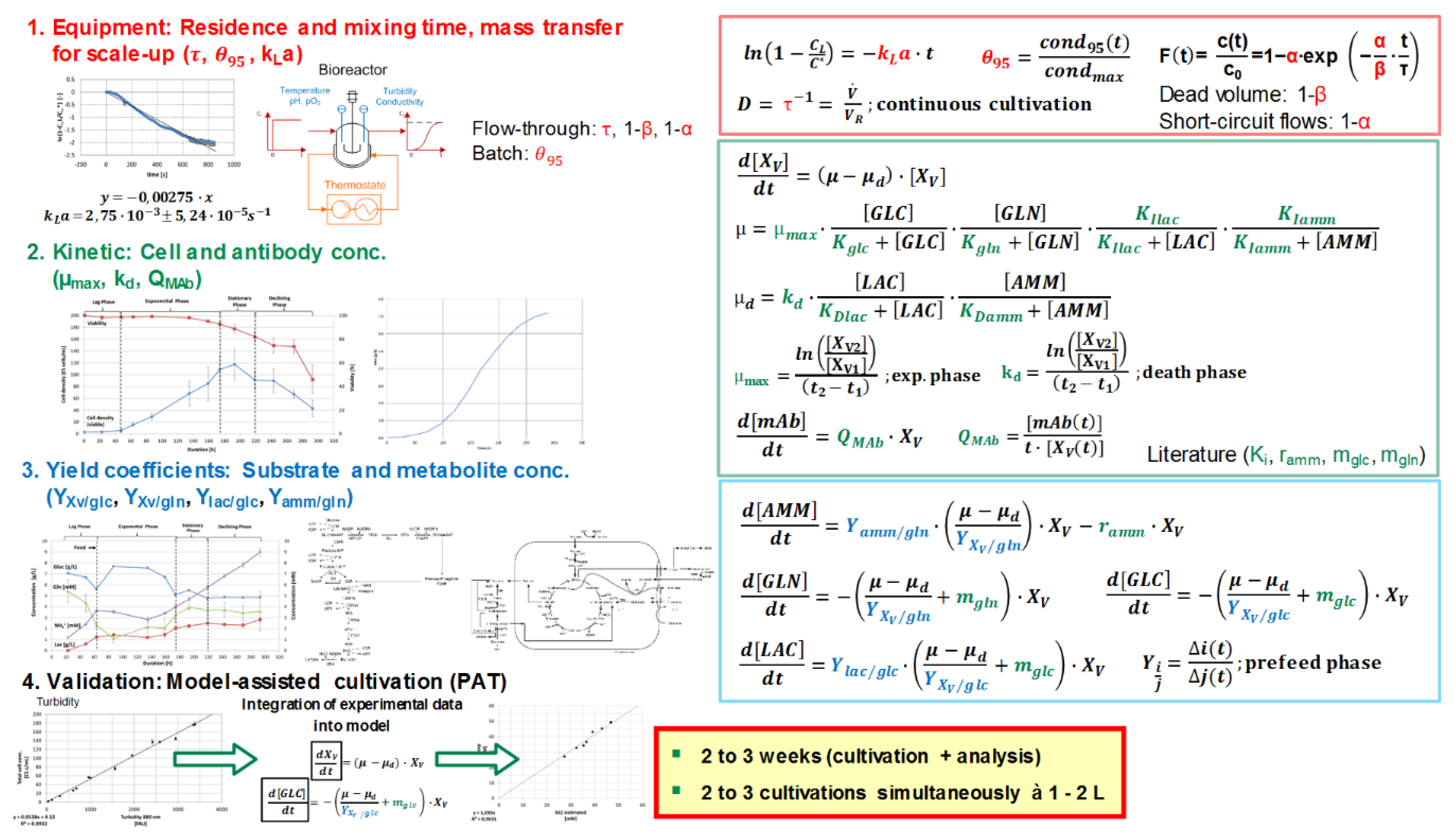

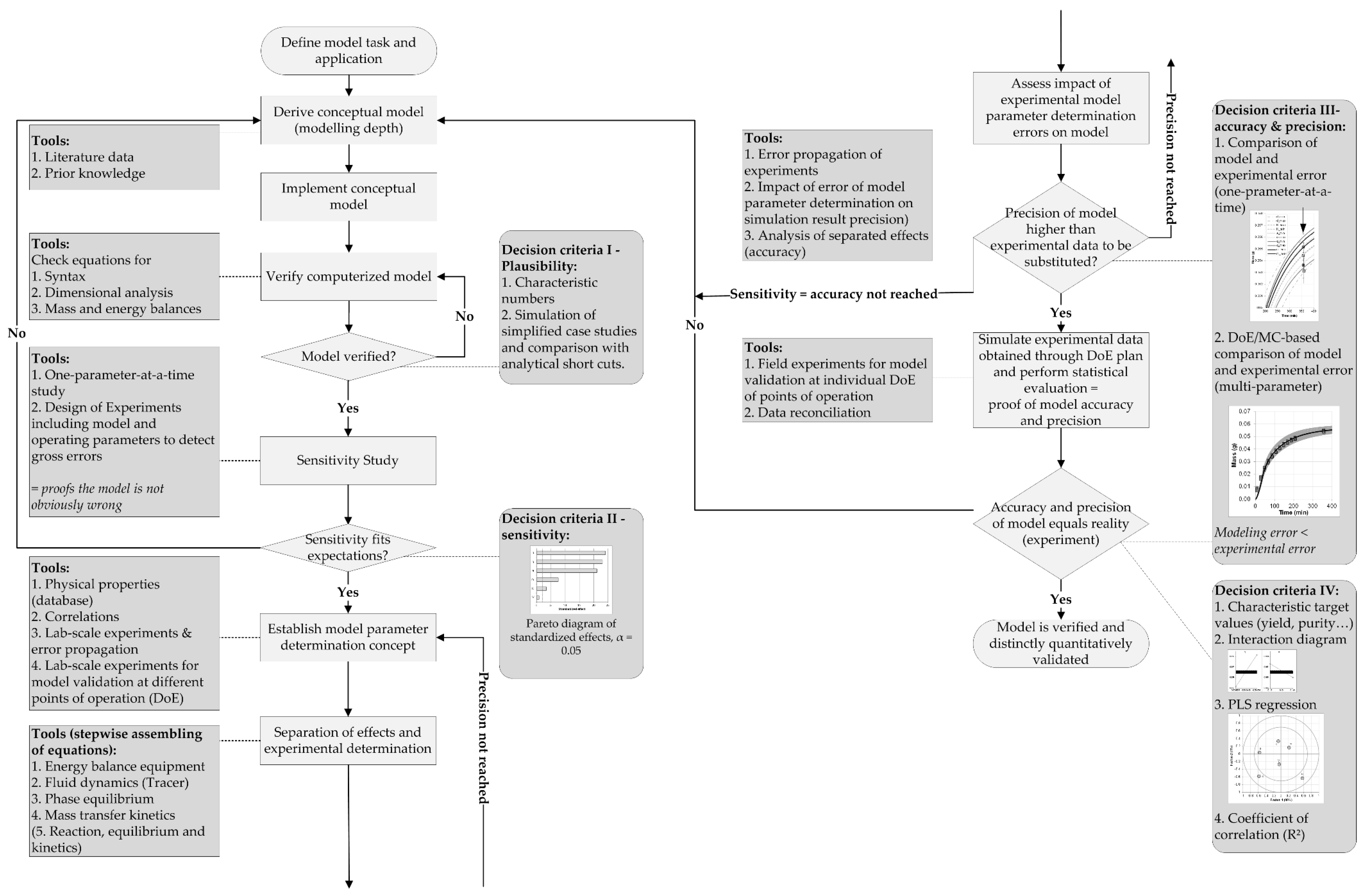

Intensified and accelerated development processes are being demanded by the market, as innovative biopharmaceuticals such as virus-like particles, exosomes, cell and gene therapy, as well as recombinant proteins and peptides will possess no available platform approach. Therefore, methods that are able to accelerate this development are preferred. Especially, physicochemical rigorous process models, based on all relevant effects of fluid dynamics, phase equilibrium, and mass transfer, can be predictive, if the model is verified and distinctly quantitatively validated. In this approach, a macroscopic kinetic model based on Monod kinetics for mammalian cell cultivation is developed and verified according to a general valid model validation workflow. The macroscopic model is verified and validated on the basis of four decision criteria (plausibility, sensitivity, accuracy and precision as well as equality). The process model workflow is subjected to a case study, comprising a Chinese hamster ovary fed-batch cultivation for the production of a monoclonal antibody. By performing the workflow, it was found that, based on design of experiments and Monte Carlo simulation, the maximum growth rate µmax exhibited the greatest influence on model variables such as viable cell concentration XV and product concentration. In addition, partial least squares regressions statistically evaluate the correlations between a higher µmax and a higher cell and product concentration, as well as a higher substrate consumption. View Full-Text
Keywords: biologics; manufacturing; process intensification; modelling; upstream processing; Monod kinetics biologics; manufacturing; process intensification; modelling; upstream processing; Monod kinetics

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
