3.1. Data Collection
In total, 20 professional translators participated in this study, 12 from the French and 8 from the Finnish language department at DGT. All participants were very experienced translators, each with at least 10 years of professional translation practice, and also experienced users of machine translation, each of them having used it professionally on a regular basis for one year or more. DGT translators are free to use MT or not and can decide whether or not to use it project by project. We therefore consider them ‘regular’ users and not ‘systematic’ users. Only a few DGT translators never use machine translation. However, the participants did not belong to this category. In the case of the participants translating into Finnish, all of them had used neural machine translation in their professional work for more than six months prior to the study; previously, they used statistical machine translation, the only technology available at the time. All 20 translators volunteered to participate in the study.
The 20 translators each took part in the experiment for a duration of one month. During this month, they worked in the same conditions as they usually do: they received actual work assignments they had to complete within the same deadlines and to the same quality standards that would have been the case outside the experiment. This setup ensured that the experiment would cover a representative sample of the document types and domains translated within DGT, while also ensuring that the quality standards of the final documents would be comparable to those produced outside experimental conditions. The bulk of documents translated within DGT are legislative documents and external communication documents, i.e., press releases and web site contents that cover a fairly wide variety of domains.
As already mentioned in the introduction, MT is fully integrated in the translation workflow at DGT. If the translator enables MT, in full segment mode, MT suggestions are available for all segments for which no perfect or sufficiently high fuzzy matches are retrieved from the translation memory. In autosuggest mode, the system suggests words or phrases in context based on what the translator is typing. If the translator decides to disable MT, translation suggestions are only retrieved from the translation memory and are thus only available for perfect or high fuzzy matches. All other segments are translated from scratch. During the data collection period, an English–French phrase-based statistical MT engine was used at the French language department (hereafter SMT-FR) as the neural MT engines for English–French were not yet used in production at that time; at the Finnish language department, all participating translators used the English–Finnish neural MT engine (hereafter NMT-FI).
In order to measure the impact of MT in this specific setting, only two types of segments are of interest: segments that were translated while an MT suggestion was available (either in full segment mode or autosuggest mode) and segments that were translated from scratch. To collect the data, we only minimally interfered in the normal translation workflow. We just asked the participants to enable MT for half of the segments in each document. For the other half of the segments in the same document, the translators were asked to disable MT and hence translate the source segments (for which no perfect or sufficiently high fuzzy matches are retrieved from the translation memory) from scratch. To control the impact of getting acquainted with the task at hand (with or without MT) and the broader textual context, MT was enabled or disabled for a different half of each consecutive document. In other words, if a translator enabled MT in the first half of a given document, they would enable MT in the second half of the next document and vice versa. After a document has been translated, the translators logged whether MT was used in the first or the second half of the document and the segment ID before which the MT had been enabled/disabled. This information was used to extract the segments of interest from the SDLXLIFF files and to analyse temporal effort.
The data we collected over a period of one month consisted of 186 XLIFF files, 101 documents from the French language department and 85 documents from the Finnish language department. In fact, more documents were translated during this one month period, but we decided to discard updated versions of source texts that had been translated earlier, as they would have provided no extra information.
Table 1 presents the total number of segments, the total number of source words and the average number of source words per segment for the different segment types. No additional tokenisation has been performed prior to this analysis.
We can group the different types of segments, shown in
Table 1 into three parts. In the upper section, we have the segment types automatically generated by the CAT tool by auto-propagation or by copying the source segment to target. The middle section consists of the segment types in which the translations are retrieved from the translation memory. The bottom section consists of the three segment types of interest in this study: segments that were translated while an MT suggestion was available (referred to as mt_edited when the MT output had been modified and as mt_unchanged otherwise) and the segments that were translated from scratch (from_scratch). In the analyses, we only focused on these three types of segments and ignored all other segment types. Please note that the segments of interest represent 22% of all segments and 42% of all translated source words for French and 18% of all segments and 47% of all translated source words for Finnish. The segment type ‘perfect’ is not included in the total number of words as such segments were not directly visible in the SDLXLIFF files.
By definition, the temporal effort involved in both tasks can be measured by the time it takes to achieve a high-quality translation, either by translating a source segment from scratch or by adapting an MT suggestion (for temporal effort the full segment mode and autosuggest mode segments were analysed together). For each segment, we measured the processing speed for both tasks in seconds per source word. While this can be considered a straightforward measurement, extracting reliable time measurements from the SDLXLIFF files proved to be more challenging than originally expected.
A first challenge is related to the computer-assisted translation tool that was used. The SDLXLIFF files only contain time stamps of the closing of segments after the last modification (the modified_on time stamp) but do not log when segments are opened for editing (instead, SDL Trados Studio stores a time stamp for when a segment is created in a translation memory for the first time). So, the only way to obtain reliable time measurements from the SDLXLFF files was to compare the segment’s modified_on time stamp with the same time stamp of the previous segment. However, this way of working can of course not be used when translators process the text non-sequentially, which happened relatively frequently in our data set, as can be seen in
Table 2. Translators not only edited segments non-sequentially and multiple times over different time periods, they also adopted very creative translation procedures. Some of them even used regular expressions to speed up their work. For that reason, we could only extract reliable processing times for segments that were translated sequentially by comparing the segment’s modified_on time stamp with the modified_on time stamp of the previous segment provided that no other segment was edited between the two time stamps.
A second challenge was the lack of control we had over potential interruptions that could take place during the translation work (such as taking breaks, answering phone calls, switching to more urgent tasks) during which a segment could be left open without actually working on it. In a similar study that analyzes temporal effort involved in translation and post-editing tasks, Federico et al. [
21] introduced two threshold values. They argue that processing times above 30 s per word are assumed to be due to software errors or the translator’s behaviour (pauses, distractions, etc.), and processing times below 0.5 s per word due to accidental interactions with the software (e.g., saving a segment without reading or editing it). In order to exclude measurements that are most probably not related to the complexity of the task at hand, we filtered out segments with processing times outside these two threshold values.
Finally, in the SDLXLIFF files, we also encountered a number of segments that did not contain the expected valid metadata values that were necessary to measure processing speed, such as the segment ID or the modified_on time stamp. Therefore, we also discarded these segments in our analyses. The number of discarded segments is given in
Table 2; the number of retained segments per translator is visualised in
Figure 1.
Using the above-mentioned filtering techniques (which removed non-valid segments, non-sequentially translated segments and segments with processing times below and above the time thresholds, in the given order, we retained a total of 869 segments and 18,343 source words for the French and 897 segments and 16,027 source words for the Finnish data set for further analyses. Please note that applying the filtering methods in different order can result in different number of segments filtered out by each filter.
Table 2 shows the number of segments and source words that were retained and the number of segments and source words that were removed by the different filters.

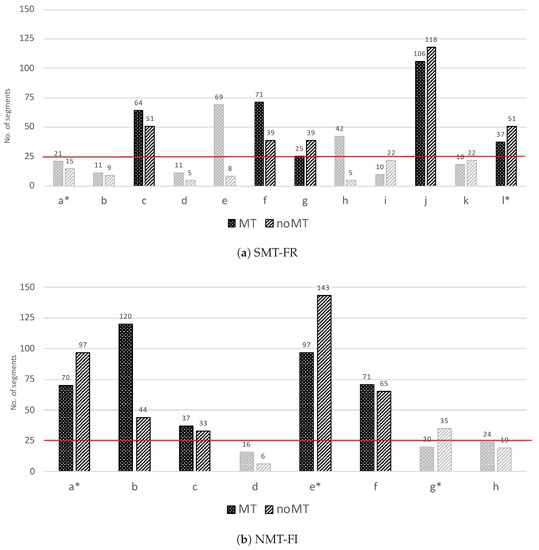

Figure 1 further shows the total number of segments retained per segment type, per translator.
As can be seen from

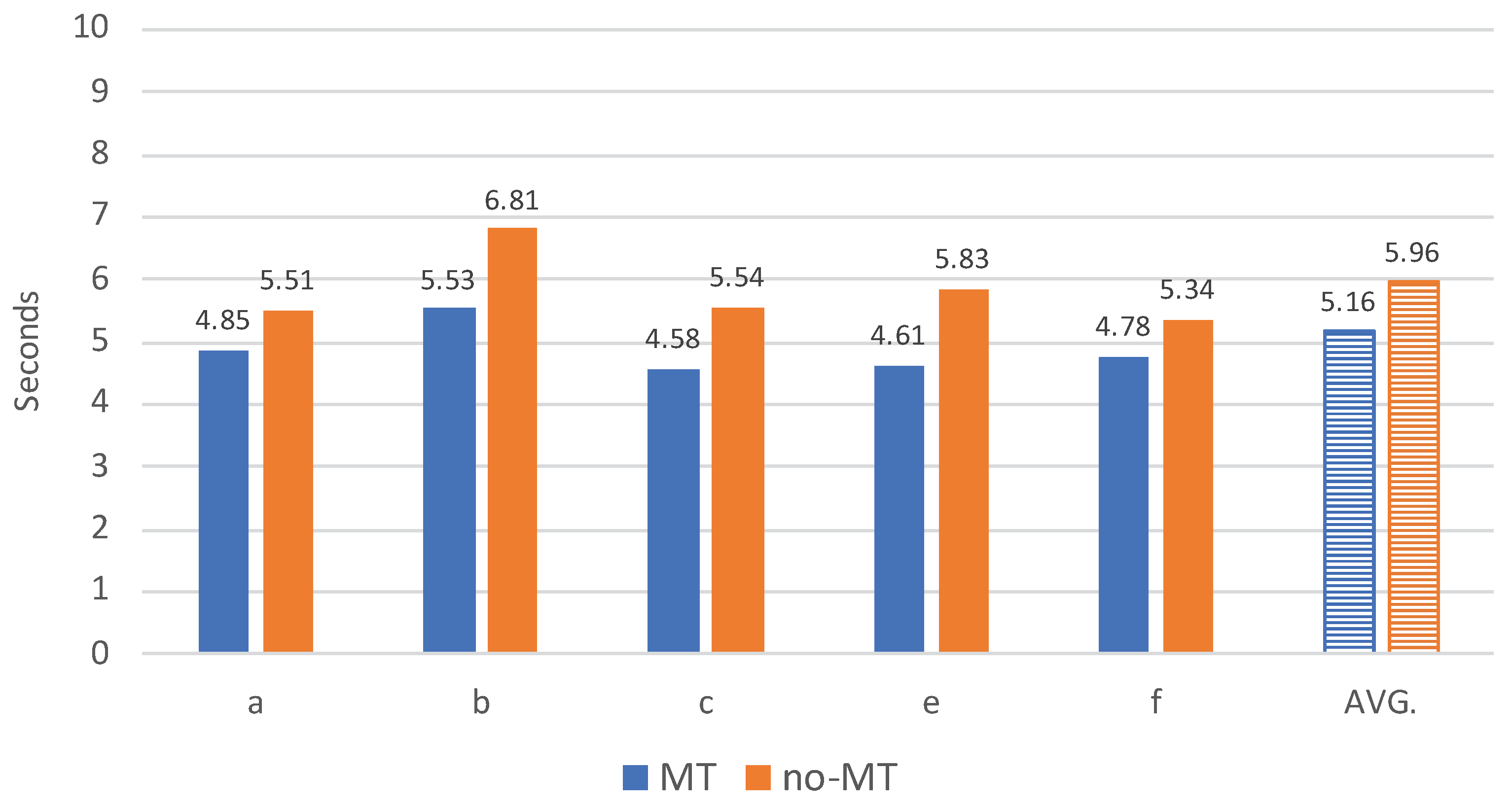

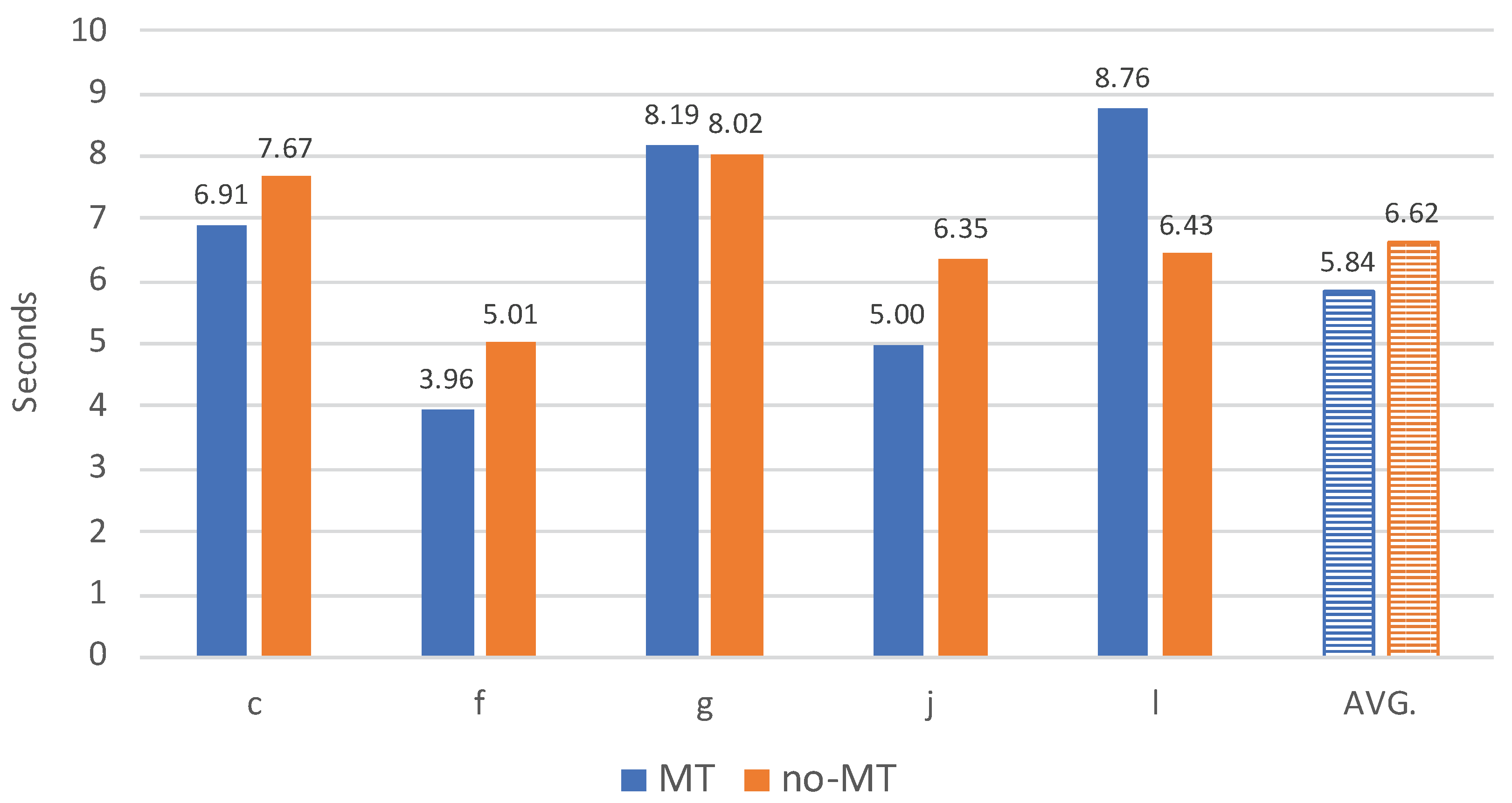

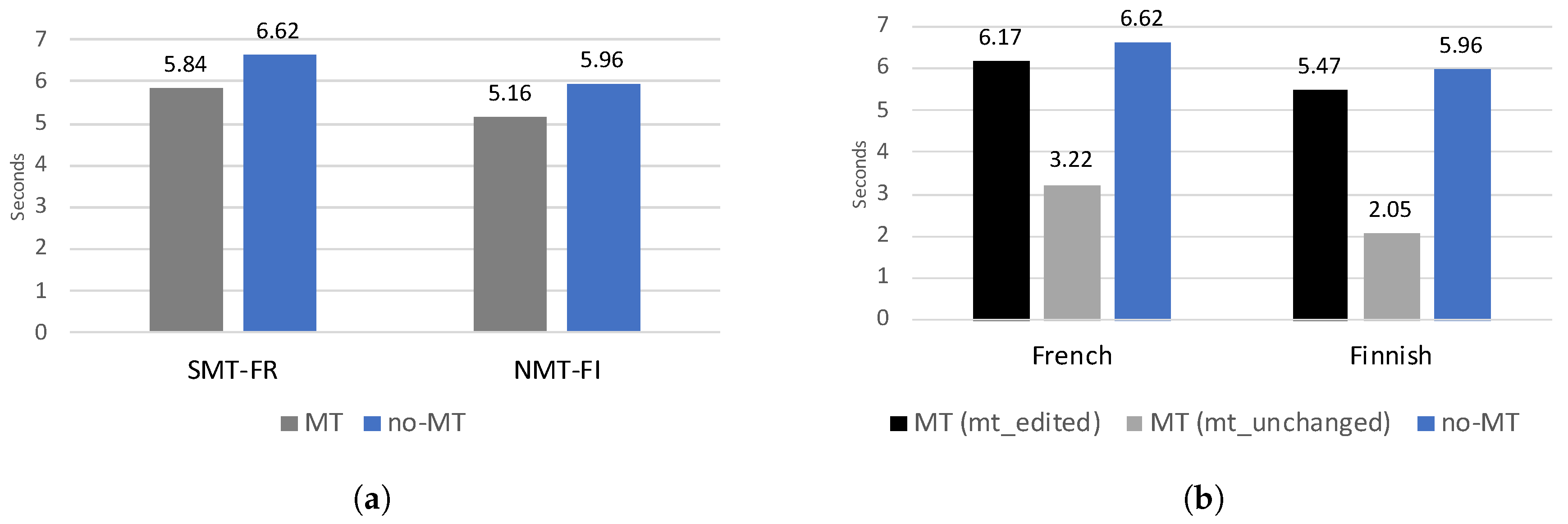

Figure 1, the total number of retained segments per segment type varies among translators, from a minimum of 16 (translator d in the French department) to a maximum of 240 (translator e in the Finnish department). Moreover, the number of available segments per segment type is rather unbalanced. In the analyses, we used all available segments (869 for French and 897 for Finnish) to calculate average processing speed (i.e., we average over all translators). However, in order to calculate processing speed for individual translators, we only retained the translators for which we had a minimum of 25 segments per task (translators c, f, g, j and l of the French department, and a, b, c, e, f of the Finnish department). This threshold is highlighted in the corresponding charts with a red line. Next to temporal effort, we also calculated technical effort for all MT segments as we wanted to examine whether a correlation could be found between the two. We used human-targeted translation edit rate (HTER) [

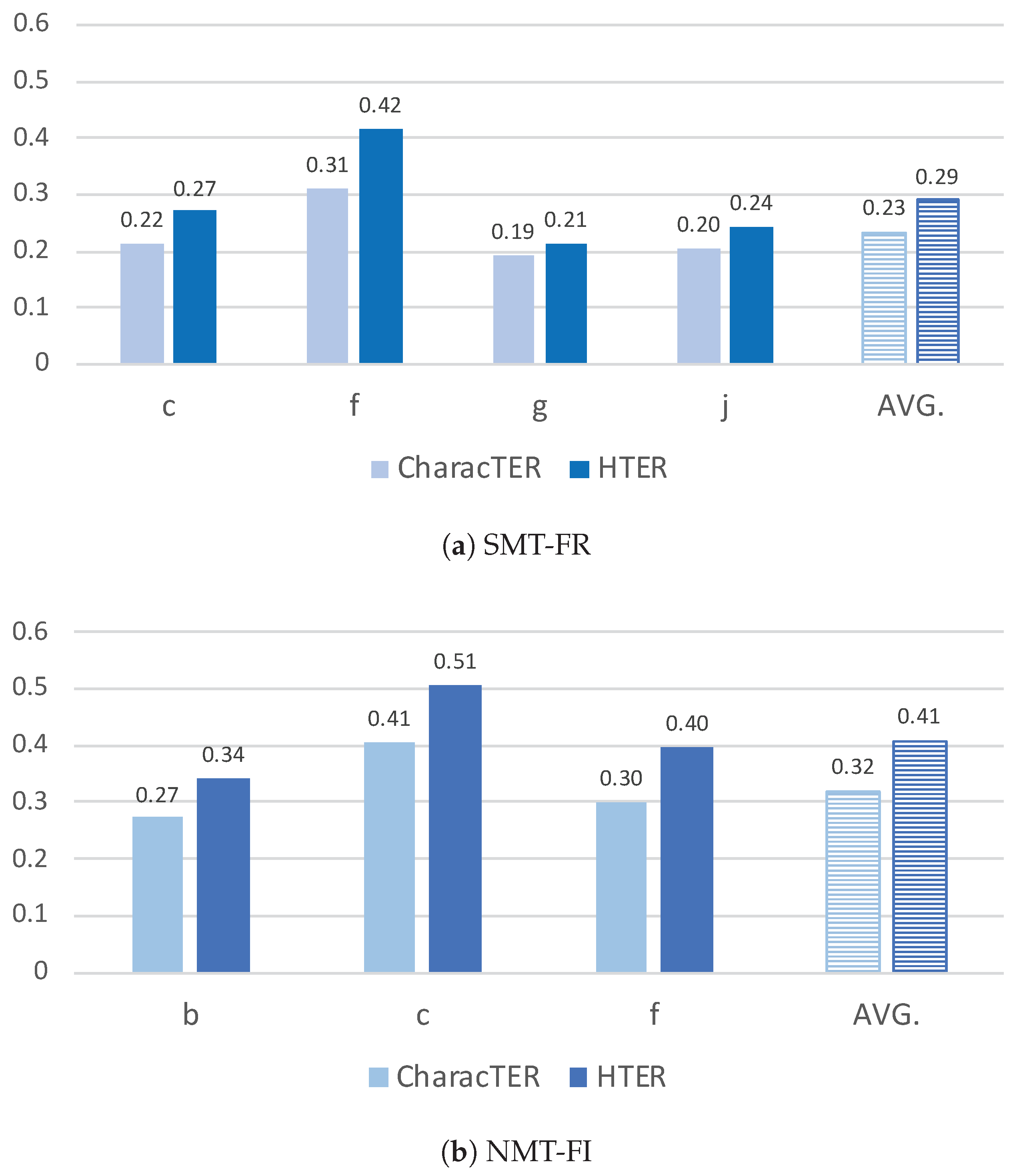

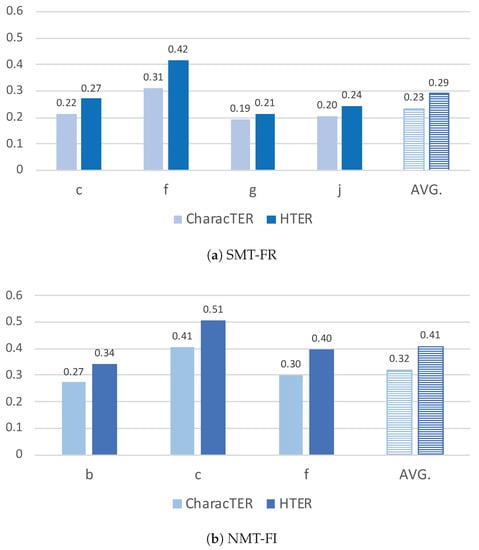

6], which measures the minimum number of edits that are required to transform the MT output into the final translation. Edits are defined as insertions, deletions, substitutions or reordering of word sequences and the HTER score is calculated as the total number of edits divided by the number of words in the final translation. As such, a low HTER score indicates a few number of edits and minimal technical effort involved. We additionally used CharacTER [
25], which similarly to HTER, calculates the minimum number of edits required to adjust the MT output so that it matches the post-edited translation, normalized by the length of the MT output. However, unlike HTER, which works at word level, CharacTER measures edits at character level. CharacTER, therefore, allows us to make a distinction between ‘heavy’ edits (such as substituting one word with another) and ‘light’ edits (such as modifying only a suffix), and might also be better suited for morphologically rich languages such as Finnish. Given that HTER and CharacTER require two versions of a translation to measure the number of edits, they can not be used to measure the effort that was needed to translate from scratch.
