Effect of Thermal Radiation and Double-Diffusion Convective Peristaltic Flow of a Magneto-Jeffrey Nanofluid through a Flexible Channel

by
Asha S. Kotnurkar
1,*,
Joonabi Beleri
1,
Irfan Anjum Badruddin
2,*,
Khaleed H.M.T.
3,
Sarfaraz Kamangar
2 and
Nandalur Ameer Ahammad
4
1
Department of Studies and Research in Mathematics, Karnatak University, Dharwad 580003, India
2
Mechanical Engineering Department, College of Engineering, King Khalid University, Abha 61411, Saudi Arabia
3
Department of Mechanical Engineering, Faculty of Engineering, Islamic University of Madinah, Madinah Munawara 42351, Saudi Arabia
4
Department of Mathematics, Faculty of Science, University of Tabuk, Tabuk 71491, Saudi Arabia
*
Authors to whom correspondence should be addressed.
Mathematics 2022, 10(10), 1701; https://doi.org/10.3390/math10101701
Submission received: 6 March 2022 / Revised: 17 April 2022 / Accepted: 19 April 2022 / Published: 16 May 2022
(This article belongs to the Special Issue Mathematical Problems in Mechanical Engineering)

Abstract

:
The noteworthiness of double-diffusive convection with magneto-Jeffrey nanofluid on a peristaltic motion under the effect of MHD and porous medium through a flexible channel with the permeable wall has been theoretically examined. A non-linearized Rosseland approximation is utilized to show the thermal radiation effect. The governing equations are converted to standard non-linear partial differential equations by using suitable non-dimensional parameters. Solutions of emerging equations are obtained by using the multi-step differential transformation method (Ms-DTM). The differential transformation method (DTM) can be applied directly to nonlinear differential equations without requiring linearization and discretization; therefore, it is not affected by errors associated with discretization. The role of influential factors on concentration, temperature, volume fraction, and velocity are determined using graphs. A significant outcome of the present article is that the presence of double-diffusive convection can change the nature of convection in the system. The present results have a wide biological applicability, including for biomicrofluidic devices that regulate the fluid flow through a flexible endoscope and other medical pumping systems.

1. Introduction

Peristaltic transport is currently one of the most important pumping mechanisms due to its many applications in engineering, medical sciences, and biomechanics. The mechanism of peristalsis is due to a wave transmission along a tube wall or channel. The word “peristalsis” is derived from the Greek word “peristaltikos”, meaning clasping and compression. In 1966, Latham [1] introduced peristalsis, and the motion is the principle behind many devices, including heart–lung machines and finger and roller pumps. The processes of oxygenation and haemodialysis are biologically significant. Further, Shapiro et al. [2] analysed peristaltic pumping with long wavelengths at a low Reynolds number. Jaffrin et al. [3] demonstrated the mechanism of peristaltic flow in Newtonian and non-Newtonian fluids. The study of Non-Newtonian fluid transport phenomena has increased considerably due to their importance in biological and industrial applications. The relationship between shear stress and shear rate is not linear in a non-Newtonian fluid. Examples of non-Newtonian liquids are polymer solutions, starch suspensions, molten polymers, shampoo, and blood. An important class of these non-Newtonian fluids constitutes the linear viscoelastic model. Jeffrey fluid is a viscoelastic fluid model in which viscosity remains constant and shear rate is time dependent. Among several non-Newtonian liquid models, Jeffrey fluid model has gained attention from many investigators. Further, khan et al. [4] studied Unsteady flows of a Jeffrey fluid between two side walls over a plane wall. Baranovskii [5] analysed the stationary motion equations of Jeffreys viscoelastic medium in an inhomogeneous boundary value problem. Baranovskii [6] analysed the optimal control for steady flows of the Jeffreys fluids with slip boundary condition. Baranovskii [7] also studied the Global solutions for a model of polymeric flows with wall slip. Hayat et al. [8] Effect of magnetic field on the peristalsis involving Jeffrey fluid.
Researchers have discovered a number of methods to improve the thermophysical characteristics of fluids in recent years. Adding tiny solid particles with enhanced heat conductivity to fluid is one such method [9]. A fluid suspension containing microparticles or larger particles is unstable and has flow resistance. Surface roughness and clotting can occur when such fluids are introduced in human body. However, a suspension with nanosized particles, from 1 to 100 nm, cover a greater surface area and enhance conduction and convection coefficients. Nanoparticles have significant applications in industries such as engineering. In biomedical fields, cancer therapy using targeted drug delivery involves a nanofluid. The current state of nanofluids research has been made possible by extensive research. Akbar et al. [10] analysed the slip effects on the peristaltic movement of nanofluid. Recently, Ayub et al. [11] showed the impact of thermal radiation in mixed convection peristaltic movement of a third-grade nanoliquid. Further, Asha et al. [12] analysed the peristaltic propulsion of a Carreau nanoliquid under the presence of Joule heating in an inclined asymmetric channel.
The double-diffusion concept is found when fluid movement occurs through with thermal and concentration gradient. In 1976, Aifantis [13] was the first to propose the concept of the double-diffusive model. If a constant temperature difference is maintained, this thermal diffusion in a mixture will produce a concentration gradient in a fluid. Double-diffusive convection is an important concept for understanding industrial, engineering, and biomedical problems. Because of the application of double diffusion in biomedicine, researchers have taken a keen interest in understanding double diffusion at low Reynolds numbers. Peristaltic flow with diffusion convection has found applications in the biomedical domain. Ganesanet al. [14] analysed the impact of thermal radiation and double diffusion in non-Newtonian fluids. Further, Raju et al. [15] combined impact of induced Brownian motion, thermophoresis, and magnetic fields on double stratified nonlinear thermal radiation. The analytical results of double-diffusive convective flow by considering non-Newtonian fluid are given in references [16,17,18,19].
Darcy’s law applies to a porous medium. A flexible channel is a geometry with porous walls that expand and contract. Over the last few decades, there have been many investigations into porous media because of its importance in industrial and biological processes. These include the study of Hussain et al. [20], who investigated the impact of nonlinear radiation of peristaltic pumping by considering hydromagnetic fluids in a porous medium. They found that pressure gradient rises due to the Darcy parameter. The peristaltic movement of the non-Newtonian model liquid along with a porous medium in a channel was investigated by Ramesh et al. [21]. Some recent research on porous medium in peristaltic flow, considering Newtonian and non-Newtonian fluids, was studied by Vajravelu et al. [22], Maitietal [23], and Nooren et al. [24]. Thermal convection in electrically conducting liquid in a porous media under the impact of the external magnetic field has attracted many researchers in the past few decades due to the importance of new porous materials. Recently, Hasona et al. [25] examined the impact of MHD on peristaltic movement. Under multiple conditions, other studies based on numerical methods and experiments have also been described.
In the view of the above literature, the current study shows the application of double-diffusive convective flow and thermal radiation effects in peristaltic nanofluid movement through flexible channels from a mathematical perspective. The present results have broad applications in biological functions, such as biomicrofluidic devices that regulate the fluid flow through a flexible endoscope and another medical pumping systems. In recent years, there has been a lack of focus on developing and applying analytical and numerical approaches. Such strategies can help to overcome the complexity and non-linearity seen in non-Newtonian liquids. Peristaltic mechanisms with non-Newtonian liquids necessitate substantially non-linear partial differential equations. It is hard to find precise answers to such challenges. We employed a semi-analytical technique known as the differential transform method (DTM) in this research. In 1986, Zhou first introduced DTM [26]. The multi-step differential transformation approach (MS-DTM) is a dependable semi-analytical method that is an excellent enhancement over the traditional DTM. The differential transformation method (DTM) can be applied directly to nonlinear differential equations without requiring linearization and discretization; therefore, it is not affected by errors associated with discretization. Unlike other methods, DTM is independent of any small or large quantities. Therefore, DTM can be applied, where or not governing equations and boundary/initial conditions of a given nonlinear problem contain small or large quantities. Unlike the homotopy analysis method (HAM), DTM does not need to calculate the auxiliary parameter Z1; moreover, through h-curves, DTM does not need initial guesses, am auxiliary linear operator, and solves equations directly. Furthermore, Odibat et al. [27] demonstrated the MS-DTM and its application to chaotic or non-chaotic systems. Further work was carried out by Hasona et al. [28,29], Tripathi et al. [30], Hatami et al. [31], and Beg et al. [32] to solve non-linear ODE and PDE.
In present paper, the impact of the magnetic field, Darcy number, nonlinear convection, thermophoresis, and Brownian motion parameters on double-diffusive MHD transport of a Jeffrey nanoliquid through a flexible channel with permeable walls is studied. Non-linear governing equations are solved using MS-DTM. In constrat, Ganesan et al. [14], Raju et al. [15], and Asha et al. [16] analysed the impact of induced Brownian motion, thermophoresis, and magnetic fields on double-stratified nonlinear convective-radiative through analytical results by considering a Jeffrey nanofluid as non-Newtonian fluid. The semi-analytical results of double-diffusive convective flow by considering non-Newtonian fluid through a permeable wall with flexible channel have not yet been studied. The physical parameters of temperature, concentration, velocity, and volume fraction are debated by drawing the graphs. The results obtained by MS-DTM have been compared with the results obtained by NDSolve in Mathematica software and with the finite element method (FEM). The present results have broad biological applications, including biomicrofluidic devices that regulate fluid flow through flexible endoscopes and other medical pumping systems.

2. Mathematical Formulation

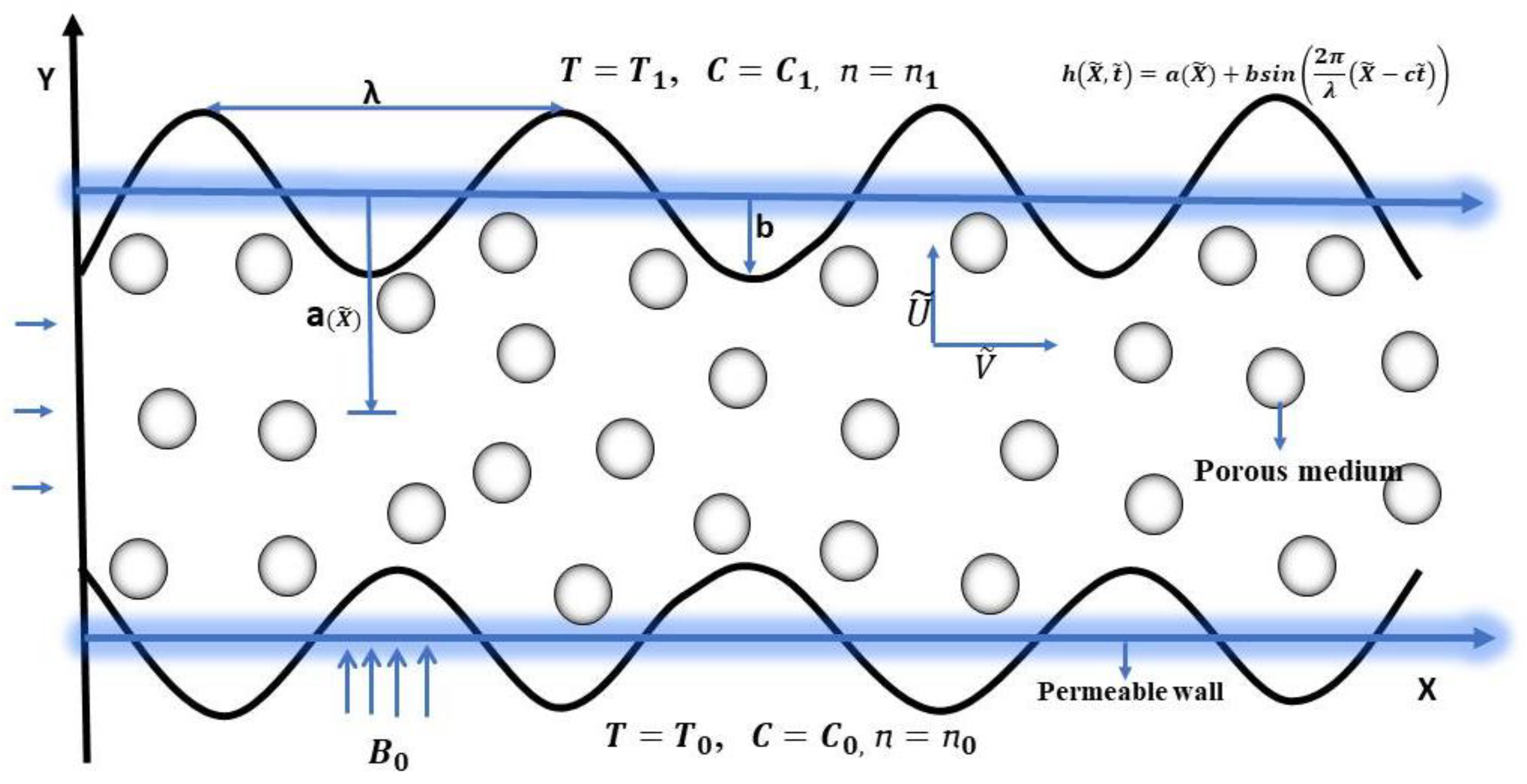

Consider a Jeffrey nanofluid peristaltic movement in a two-dimensional flexible channel propagating a sinusoidal wave towards its permeable walls. Using the Cartesian coordinate system ( X ˜ , Y ˜ ), the physical configuration of the channel wall surface is shown in Figure 1 [33].
h ( X ˜ , t ˜ ) = a ( X ˜ ) + b sin ( 2 π λ ( X ˜ c t ˜ ) )
where a ( X ˜ ) represents the channel half-width, b indicates wave amplitude, λ denotes the length of the wave, c denotes velocity propagation, and t ˜ denotes time.
Let U ˜ and V ˜ be the velocity parameters, respectively, then the velocity field V can be defined as:
V = ( U ˜ , V ˜ , 0 )
For a Jeffrey fluid, the constitutive equations are [4,5,6,7,8]
T = p I + S
S = μ 1 + λ 1 ( A 1 + λ 2 ( A 1 t + V . ) A 1 )
The Rivlin–Ericksen tensor A 1 is defined through A 1 = V + ( V ) T . Here, I represents the identity tensor, p represents the pressure, λ 1 denotes the ratio between relaxation and retardation times, λ 2 denotes the retardation time, μ is the fluid’s viscosity coefficient, S and T are the extra stress tensor and Cauchy stress tensor, respectively.
The governing equations of a Jeffrey nanofluid are given as [14,15]
U ˜ X ˜ + U ˜ Y ˜ = 0
ρ f ( U ˜ t ˜ + U ˜ U ˜ X ˜ + V ˜ U ˜ Y ˜ ) = p ˜ X ˜ + S ˜ x ˜ y ˜ Y ˜ + S ˜ x ˜ x ˜ X ˜ σ B 0 2 U ˜ μ K 0 U ˜ + ρ f g ( T ˜ T ˜ 0 ) + ρ f g ( C ˜ C ˜ 0 ) ( ρ p ρ f ) g ( n ˜ n ˜ 0 ) ,
ρ f ( V ˜ t ˜ + U ˜ V ˜ X ˜ + V ˜ V ˜ Y ˜ ) = p ˜ Y ˜ + S ˜ x ˜ x ˜ X ˜ + S ˜ x ˜ y ˜ Y ˜ σ B 0 2 V ˜
( ρ c ) f ( T ˜ t ˜ + U ˜ T ˜ X ˜ + V ˜ T ˜ Y ˜ ) = k T ( 2 T ˜ X ˜ 2 + 2 T ˜ Y ˜ 2 ) + D T C α c p C S ( 2 C ˜ X ˜ 2 + 2 C ˜ Y ˜ 2 ) q r Y ˜ + ( ρ c ) p D B ( n ˜ X ˜ T ˜ X ˜ + n ˜ Y ˜ T ˜ Y ˜ ) + ( ρ c ) p ( ( T ˜ X ˜ ) 2 + ( T ˜ Y ˜ ) 2 ) D T T m ,
C ˜ t ˜ + U ˜ C ˜ X ˜ + V ˜ C ˜ Y ˜ = D C T ( 2 C ˜ X ˜ 2 + 2 C ˜ Y ˜ 2 ) + ( 2 T ˜ X ˜ 2 + 2 T ˜ Y ˜ 2 ) D S ,
n ˜ t ˜ + U ˜ n ˜ X ˜ + V ˜ n ˜ Y ˜ = D B ( 2 n ˜ X ˜ 2 + 2 n ˜ Y ˜ 2 ) + D T T m ( 2 T ˜ X ˜ 2 + 2 T ˜ Y ˜ 2 )
where ρ p denotes the mass density of nanoparticles, ρ f denotes the fluid’s effective density, ( ρ c ) f and ( ρ c ) p are the fluid’s heat capacity and the nanoparticle material’s effective heat capacity, respectively, k T is the fluid’s thermal conductivity, g is the gravity because of acceleration. Further, D S denotes the solutal diffusivity, K 0 is the porous medium’s permeability constant, C p denotes specific heat at constant pressure, and C s denotes susceptibility of concentration.
The relationship between the laboratory frame and wave frame is defined by:
u ˜ ( x ˜ , y ˜ ) = U ˜ c , v ˜ ( x ˜ , y ˜ ) = V ˜ , x ˜ = X ˜ c t ˜ , y ˜ = Y ˜ ,
where ( u ˜ , v ˜ ) are velocity components, and are coordinated in a wave frame.
Corresponding boundary conditions are given as below:
| u ˜ = 1 D a 2 ψ ˜ ψ Y ˜ 2 , 2 ψ ˜ ψ Y ˜ 2 = 0 , T ˜ = T ˜ 0 , C ˜ = C ˜ 0 , n ˜ = n ˜ 0 at y ˜ = 0 , | u ˜ = 1 + D a 2 ψ ˜ ψ Y ˜ 2 , T ˜ = T ˜ 1 , C ˜ = C ˜ 1 , n ˜ = n ˜ 1 at y ˜ = h ˜ = a ( x ˜ ) + b   s i n 2 π λ ( x ˜ c t ˜ ) }
Introducing the non-dimensional quantities of the following:
x = x ˜ λ , y = y ˜ a , t = c t ˜ λ , M = σ μ B 0 a , p = a 2 p ˜ c λ μ , v = v ˜ c , u = u ˜ c , h = h ˜ a , δ = a λ , P r = μ α R e = ρ f c a μ , α = k T ( ρ c ) f , Ω = C ˜ C ˜ 0 C ˜ 1 C ˜ 0 , θ = T ˜ T ˜ 0 T ˜ 1 T ˜ 0 , χ = n ˜ n ˜ 0 n ˜ 1 n ˜ 0 , R d = 16 σ T ˜ 3 3 k k t , D a = k 0 a 2 G r T = ρ f g a 2 ( T ˜ 1 T ˜ 0 ) c μ , G r C = ρ f g a 2 ( C ˜ 1 C ˜ 0 ) c μ , G r F = ( ρ p ρ f ) g a 2 ( n ˜ 1 n ˜ 0 ) c μ N T C = D T C α c P ( C ˜ 1 C ˜ 0 ) μ k T c S ( T ˜ 1 T ˜ 0 ) , N C T = D C T ( T ˜ 1 T ˜ 0 ) D S ( n ˜ 1 n ˜ 0 ) , N t = ( ρ c ) p D T ( T ˜ 1 T ˜ 0 ) ( ρ c ) f T m μ , N b = ( ρ c ) p D B ( n ˜ 1 n ˜ 0 ) ( ρ c ) f μ h = h ˜ a = 1 + ϕ sin 2 π x , ϕ = b a , f = q c a , u = ψ y , v = δ ψ y . }
Using the above variables with no dimension, the fundamental Equations (5)–(10) can be reduced to:
p x = 1 1 + λ 1 3 ψ y 3 ( M 2 + 1 D a ) ψ y + G r T θ + G r C Ω G r F χ ,
p y = 0 ,
2 θ y 2 + N b P r θ y χ y + N t P r ( θ y ) 2 + R d 2 θ y 2 + N T C P r 2 Ω y 2 = 0 ,
2 Ω y 2 + N C T 2 θ y 2 = 0 ,
2 χ y 2 + N t N b 2 θ y 2 = 0
.
Removing pressure from Equations (14) and (15), gives:
1 1 + λ 1 4 ψ y 4 ( M 2 + 1 D a ) 2 ψ y 2 + G r T θ + G r C Ω G r F χ = 0
The boundary conditions with no dimension in the problem’s wave frame are:
ψ = 0 , u = ψ Y = 1 D a 2 ψ Y 2 , 2 ψ Y 2 = 0 , θ = 0 , Ω = 0 , χ = 0 at y = 0 , ψ = f , u = ψ Y = 1 + D a 2 ψ Y 2 , θ = 1 , Ω = 1 , χ = 1 at y = h = 1 + ϕ sin 2 π x }
Here, the mean flow f over a period is considered as:
Θ = f + 1 , f = 0 h ψ y d y
where Θ = Q c a and f = Q c a .
The skin friction coefficient (wall shear stress), Nusselt number (heat transfer rate), and Sherwood number (mass transfer rate) are presented in the following forms [34,35]:
C f = u y ] y = h
N u = θ y ] y = h
S h = Ω y ] y = h

Method of Solution

Using MS-DTM with symbolic Mathematica, Equations (16) to (19) are computed with boundary conditions (20). Details for the MS-DTM can be found in the references [26,27,28,29,30,31,32].
( 1 1 + λ 1 ) ( k + 1 ) ( k + 3 ) ( k + 2 ) ( k + 4 ) Ψ ( k + 4 ) + Θ ( k + 1 ) G r T ( k + 1 ) + Φ ( k + 1 ) G r C ( k + 1 ) ϒ ( k + 1 ) G r F ( k + 1 ) ( k + 1 ) ( k + 2 ) ( M 2 + 1 D a ) Ψ ( k + 2 ) = 0 ,
( k + 1 ) ( k + 2 ) Θ ( k + 2 ) + N b P r r = 0 k Θ ( k + 1 ) ( k + 1 ) ( k r + 1 ) ϒ ( k r + 1 ) + N T C P r ( k + 1 ) ( k + 2 ) Φ ( k + 2 ) + R d ( k + 1 ) ( k + 2 ) Θ ( k + 2 ) + N t P r r = 0 k Θ ( k + 1 ) ( k + 1 ) ( k r + 1 ) Θ ( k r + 1 ) = 0 ,
( k + 1 ) ( k + 2 ) Φ ( k + 2 ) + N C T ( k + 1 ) ( k + 2 ) Θ ( k + 2 ) = 0 ,
( k + 1 ) ( k + 2 ) ϒ ( k + 2 ) + N t N b ( k + 1 ) ( k + 2 ) Θ ( k + 2 ) = 0
Where Ψ[k], Θ[k], Φ[k], and ϒ[k] are the differential transformation functions of ψ(y), θ(y), Ω(y), and χ(y), respectively, and given as:
ψ ( y ) k = 0 m Ψ ( k ) y k
θ ( y ) k = 0 m Θ ( k ) y k
Ω ( y ) k = 0 m Φ ( k ) y k
χ ( y ) k = 0 m ϒ ( k ) y k
The transformed forms of boundary conditions are as follows:
Ψ ( 0 ) = 0 , Ψ ( 1 ) = 1 , Ψ ( 2 ) = 0 , Ψ ( 3 ) = m 1 6 , Θ ( 0 ) = 0 , Θ ( 1 ) = m 2 , Φ ( 0 ) = 0 , Φ ( 1 ) = m 3 , ϒ ( 0 ) = 0 , ϒ ( 1 ) = m 4 . }
where m 1 , m 2 , m 3 , m 4 are unknown coefficients that must be determined.
Substituting Equation (32) into Equations (25)–(28), and other values of Ψ[k], Θ[k], Φ[k], and Υ[k] can be determined by a recursive method. Hence, substitute all Ψ[k], Θ[k], Φ[k], and Υ[k] into Equations (29)–(31), We have series solutions given as:
ψ ( y ) = ( 1 ) y + m 1 6 y 3 + 1 1 + λ 1 ( G r T m 2 G r C m 3 + G r F m 4 ) y 4 + ( 1 + λ 1 ) 60 { ( G r T + G r C N C T G r F N t N b ) 2 ( 1 + R d ) ( N b P r m 2 m 4 2 N T C P r m 3 N t P r m 2 2 ) + m 1 2 ( M 2 + 1 D a ) } y 5 +
θ ( y ) = m 2 y + ( N b P r m 2 m 4 2 N T C P r m 3 N t P r m 2 2 ) 2 ( 1 + R d ) y 2 + P r ( N b P r m 2 m 4 2 N T C P r m 3 N t P r m 2 2 ) ( 6 ( 1 + R d ) ( ( 1 + R d ) + N T C N C T P r ) ) { N b [ 2 N t N b ( ( N b P r m 2 m 4 2 N T C P r m 3 N t P r m 2 2 ) 2 ( 1 + R d ) + m 4 ) ] N t ( 2 ( N b P r m 2 m 4 2 N T C P r m 3 N t P r m 2 2 ) 2 ( 1 + R d ) + m 2 ) } y 3 +
Ω ( y ) = m 3 y + N C T ( N b P r m 2 m 4 2 N T C P r m 3 N t P r m 2 2 ) 2 ( 1 + R d ) y 2 N C T P r ( N b P r m 2 m 4 2 N T C P r m 3 N t P r m 2 2 ) ( 6 ( 1 + R d ) ( ( 1 + R d ) + N T C N C T P r ) ) { N b [ 2 N t N b ( ( N b P r m 2 m 4 2 N T C P r m 3 N t P r m 2 2 ) 2 ( 1 + R d ) + m 4 ) ] N t ( 2 ( N b P r m 2 m 4 2 N T C P r m 3 N t P r m 2 2 ) 2 ( 1 + R d ) + m 2 ) } y 3 +
χ ( y ) = m 4 y + N t ( N b P r m 2 m 4 + 2 N T C P r m 3 + N t P r m 2 2 ) 2 N b ( 1 + R d ) y 2 ( N t N b ) P r ( N b P r m 2 m 4 2 N T C P r m 3 N t P r m 2 2 ) ( 6 ( 1 + R d ) ( ( 1 + R d ) + N T C N C T P r ) ) { N b [ 2 N t N b ( ( N b P r m 2 m 4 2 N T C P r m 3 N t P r m 2 2 ) 2 ( 1 + R d ) + m 4 ) ] N t ( 2 ( N b P r m 2 m 4 2 N T C P r m 3 N t P r m 2 2 ) 2 ( 1 + R d ) + m 2 ) } y 3 +
Differentiating Equation (33) partially for y we get the velocity equation as:
U ( y ) = ( 1 ) + m 1 3 y 2 + 4 1 + λ ( G r T m 2 G r C m 3 + G r F m 4 ) y 3 + 5 ( 1 + λ 1 ) 60 { ( G r T + G r C N C T G r F N t N b ) 2 ( 1 + R d ) ( N b P r m 2 m 4 2 N T C P r m 3 N t P r m 2 2 ) + m 1 2 ( M 2 + 1 D a ) } y 4 +
Using boundary conditions of Equation (20) and for:
G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , D a = 10 , P r = 7 , λ 1 = 0.6 , M = 0.2 .
Using boundary conditions of Equation (20), we obtain the values of:
m 1 9.464766924662431 ,                                                 m 2 0.930588663657573 , m 3 0.3638757341429297 ,                                     m 4 0.6218840352126972 .

3. Results and Discussion

The study shows the application of double-diffusive convective flow and thermal radiation effects in the peristaltic movement of a nanoliquid though a flexible channel. The results obtained by MS-DTM have been compared with the results obtained by NDSolve in Mathematica software and with FEM. The results matched nicely, as shown in Table 1. Results of the skin friction coefficient C f , Nusselt number N u , and Sherwood number S h obtained by MS-DTM is shown in Table 2. Here, we discuss the development of temperature, velocity, nanoparticle volume fraction, and nanoparticle concentration profiles corresponding to the variation of D a , R d , P r , G r T , G r C , G r F , N b and N t using a graphical method.

3.1. Velocity Profile

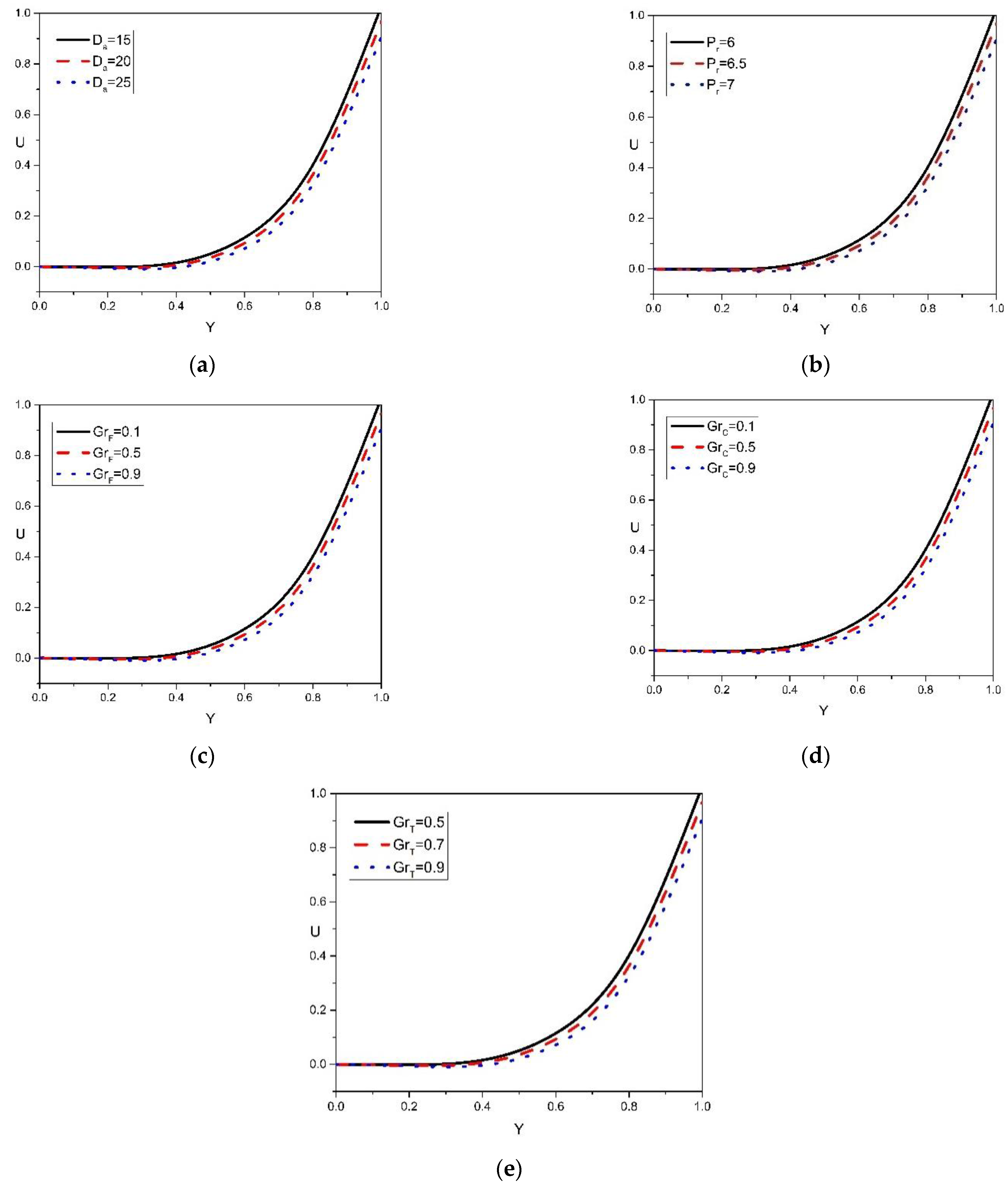

The effects of D a , P r , G r F , G r C and G r T on velocity distribution u ( y ) are presented in Figure 2a–e. Figure 2a shows that velocity in all the regions of the peristaltic pumping diminishes with increasing values of Darcy number D a . Physically, in fluid flow, D a provides less resistance. Figure 2b demonstrates the nature of velocity for different values of the Prandtl number P r . Physically, low Prandtl numbers indicate high heat diffusivity, whereas high Prandtl numbers indicate progressive momentum. The Prandtl number is always positive to control the force and thermal boundary layer thickness. Figure 2c shows that the velocity in all regions of the peristaltic movement decreases with increase values of G r F . Because of an increase in G r F , the fluid viscosity decreases, resulting in a decrease in velocity. From Figure 2d, it is observed that increases in G r C reduce the velocity of the wall; this affects the shrinkage of the thermal boundary layer. Figure 2e shows that with enhancing values of G r T , the velocity profile decreases. The thermal Grashof number satisfies the proportionate impact of viscous hydrodynamic force and thermal buoyancy force. As a result, as the G r T increases, the viscosity decreases.

3.2. Temperature Profile

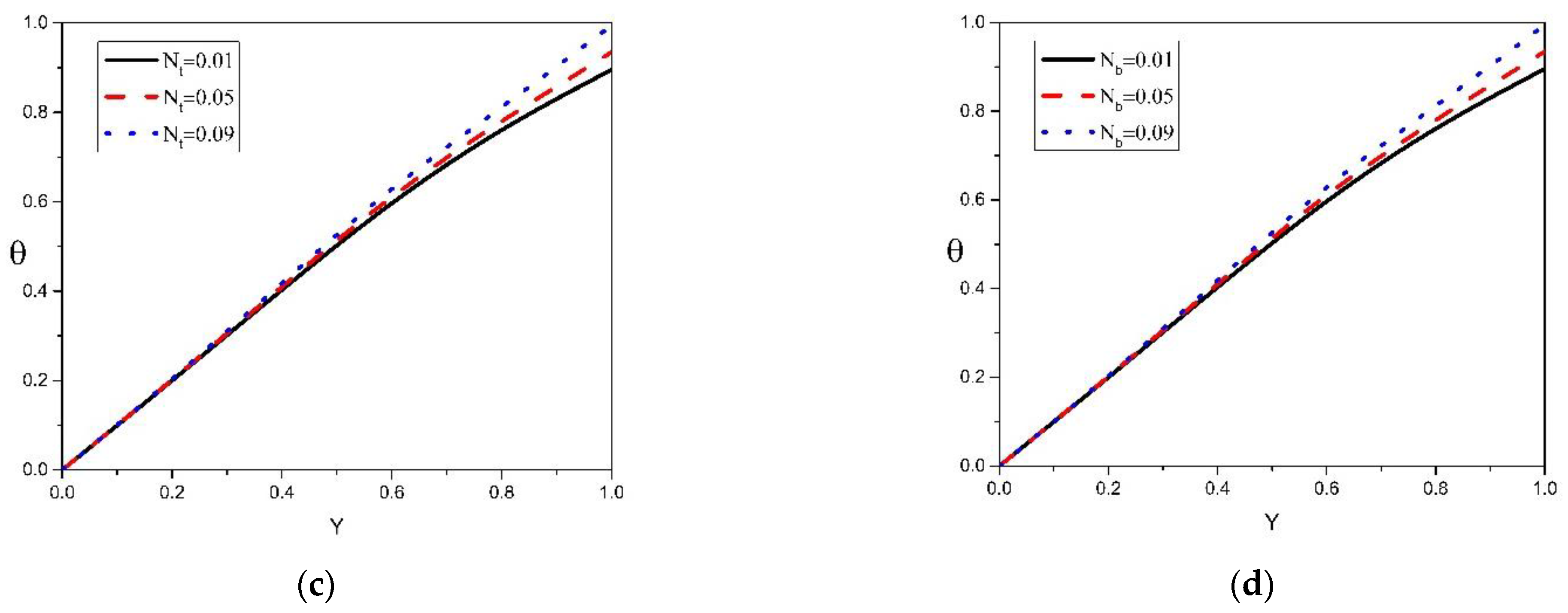

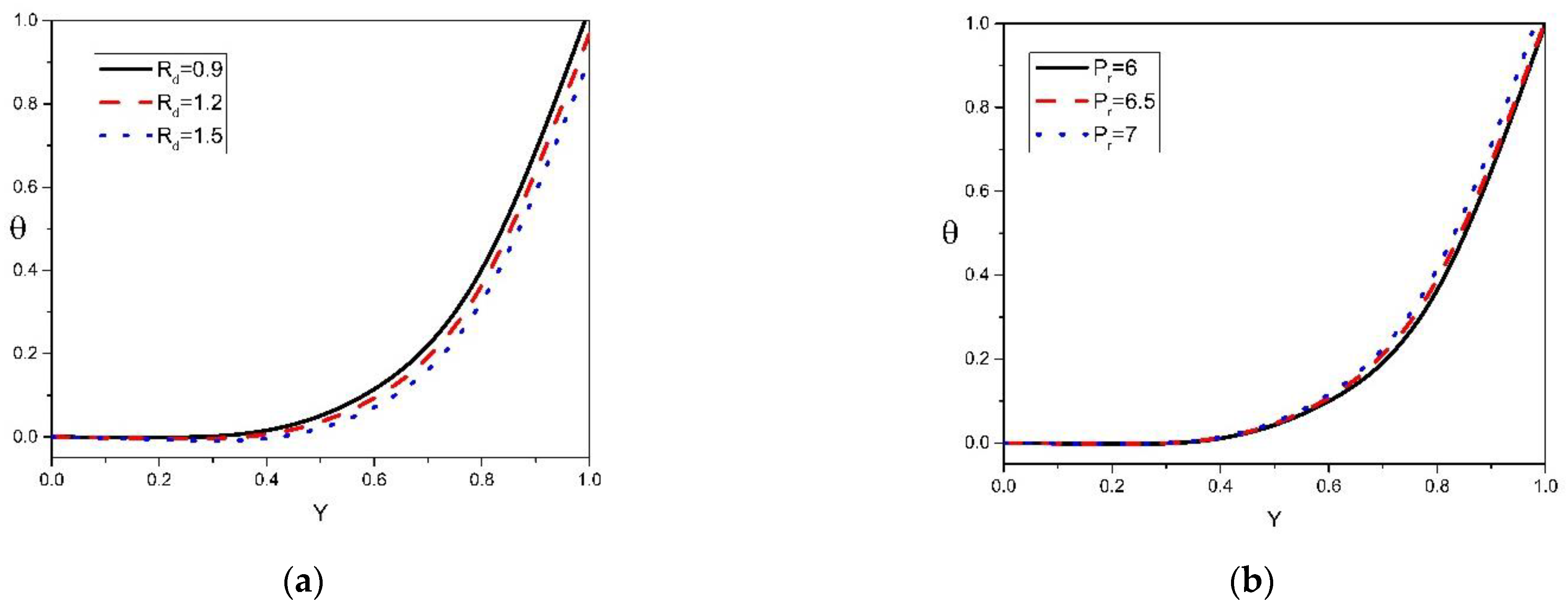

Figure 3a-d were prepared to examine the temperature via R d , P r , N b and N t . From Figure 3a, it can be seen that temperature in all the regions of peristaltic transport diminishes with enhancing the values of thermal radiation R d . When the radiation parameter increases, it improves the movement of electromagnetic waves while suppressing heat conduction. Because dispersion heat exchange occurs as a result of irregular atom proliferation, when it is extinguished, the neighbouring particles spread less, and the vitality exchange rate between them becomes less productive. Furthermore, diffusive heat exchange occurs on a longer time scale than radiative heat exchange. Figure 3b demonstrates the nature of temperature distribution for different values of the Prandtl number P r . Physically, low Prandtl numbers indicate high heat diffusivity, while high Prandtl numbers indicate progressive momentum. The Prandtl number is always positive to control the force and thermal boundary layer thickness. The Brownian motion parameter N b has an enhancing effect on temperature (see Figure 3c). The Brownian motion of nanofluid particles was proposed because small particles move more uniformly, which may help heat transport. The molecules in the nanofluid grew unpredictably, as did the surrounding fluid particles. Brownian motion describes this. The effects of a Brownian motion-induced molecule were used to increase heat transport between particles and thus the heat radiation of nanofluids. An increase in temperature is observed by enhancing the thermophoresis parameter N t (see Figure 3d). When the thermophoresis parameter is increased, thermophoretic power is increased due to the mixing of versatile particles, which improves the temperature profile.

3.3. Concentration Profile

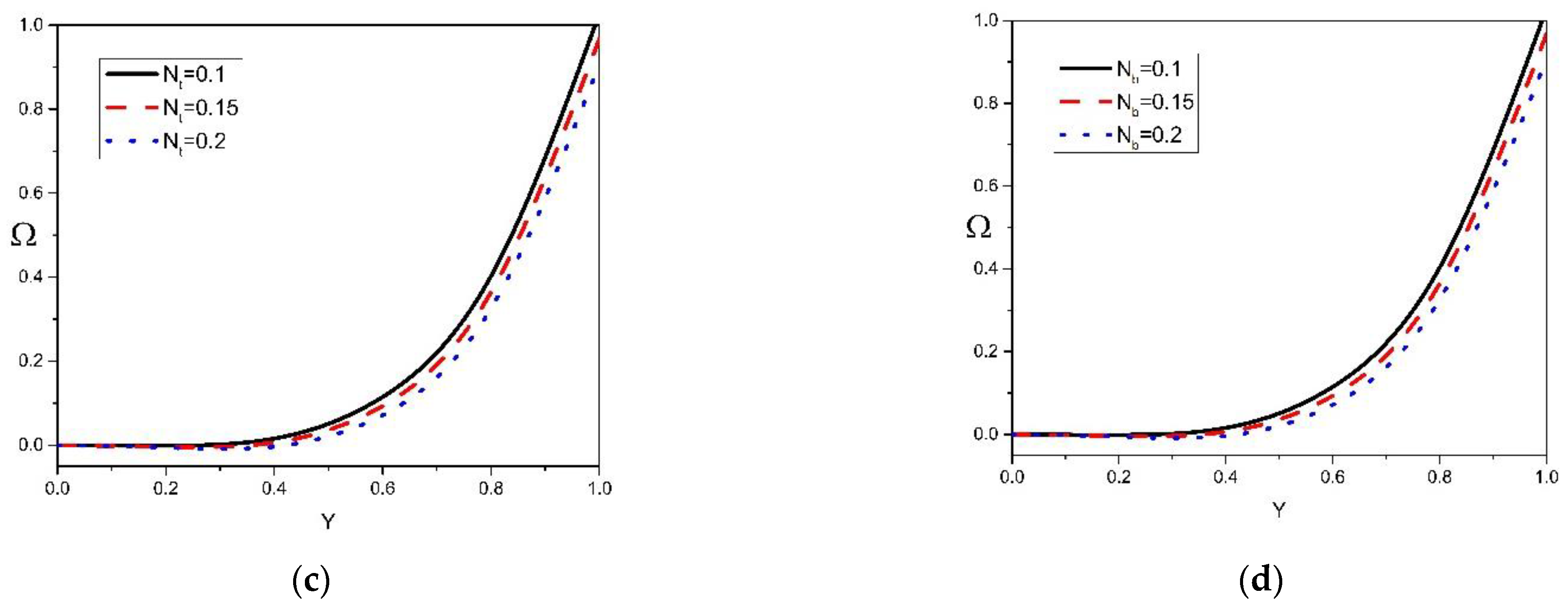

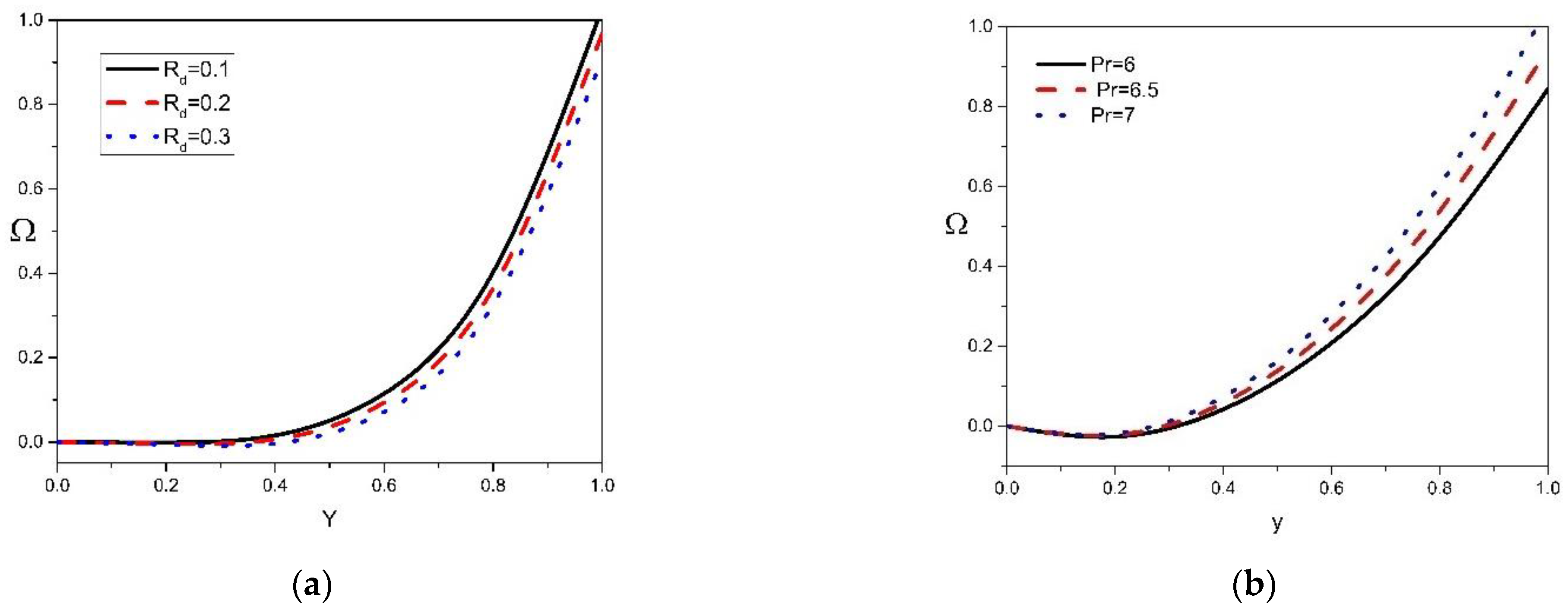

Figure 4a–d demonstrate that the concentration profile of the nanoparticles was clarified by the effects of R d , P r , N b and N t . It is observed from Figure 4a that nanoparticle concentration in all regions of peristaltic movement decreases with increasing values of R d . R d is inversely related to the solute concentration, which decreases with the dimensionless transverse coordinate y. Figure 4b demonstrates that as P r increases, the thermal conductivity of the liquid increases; hence, the concentration of the nanoparticles increases. Figure 4c shows that N t has a decreasing effect on nanoparticle concentration because of the huge transfer of nanoparticle from a hot region to a cold region, which results a decrease in the concentration distribution. Figure 4d shows that N b has a decreasing effect on nanoparticle concentration because of the huge transfer of nanoparticle from a hot region to cold region, which results the decrease in concentration distribution.

3.4. Nanoparticle Volume Fraction Profile

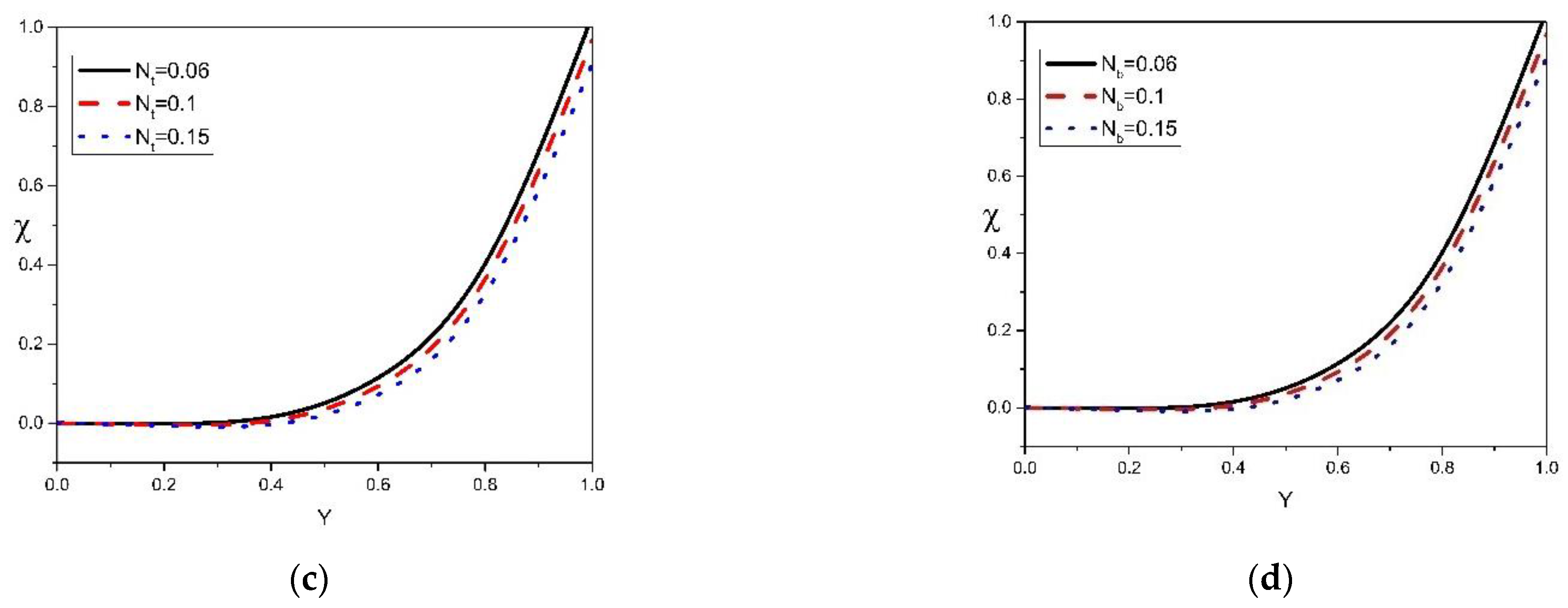

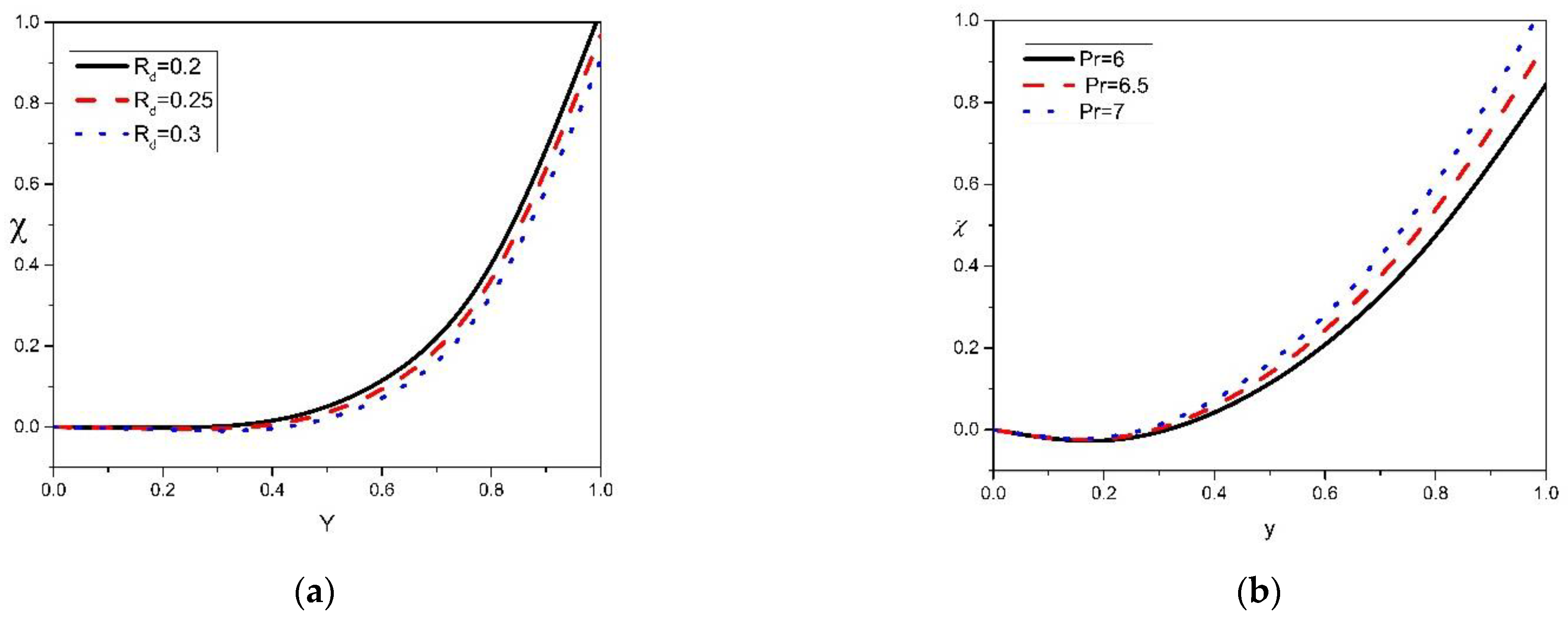

Figure 5a–d represent the volume fraction profile of the nanoparticles are presented under the effects of R d , P r , N b and N t . Figure 5a represents that volume fraction of the nanoparticle in all the regions of the peristaltic pumping diminishes with enhancing the values of R d . Figure 5b demonstrates the nature of the volume fraction profile of the nanoparticle for various values of P r . Figure 5c,d show that N t and N b have a decreasing effect on nanoparticle volume fraction. Because the temperature distribution in nanofluids is low, the volume fraction of nanoparticles in the liquid falls as the Brownian motion parameter increases, which might lead to the system’s distribution. However, in the case of the thermophoresis parameter, the same findings are observed.

3.5. Pressure Gradient

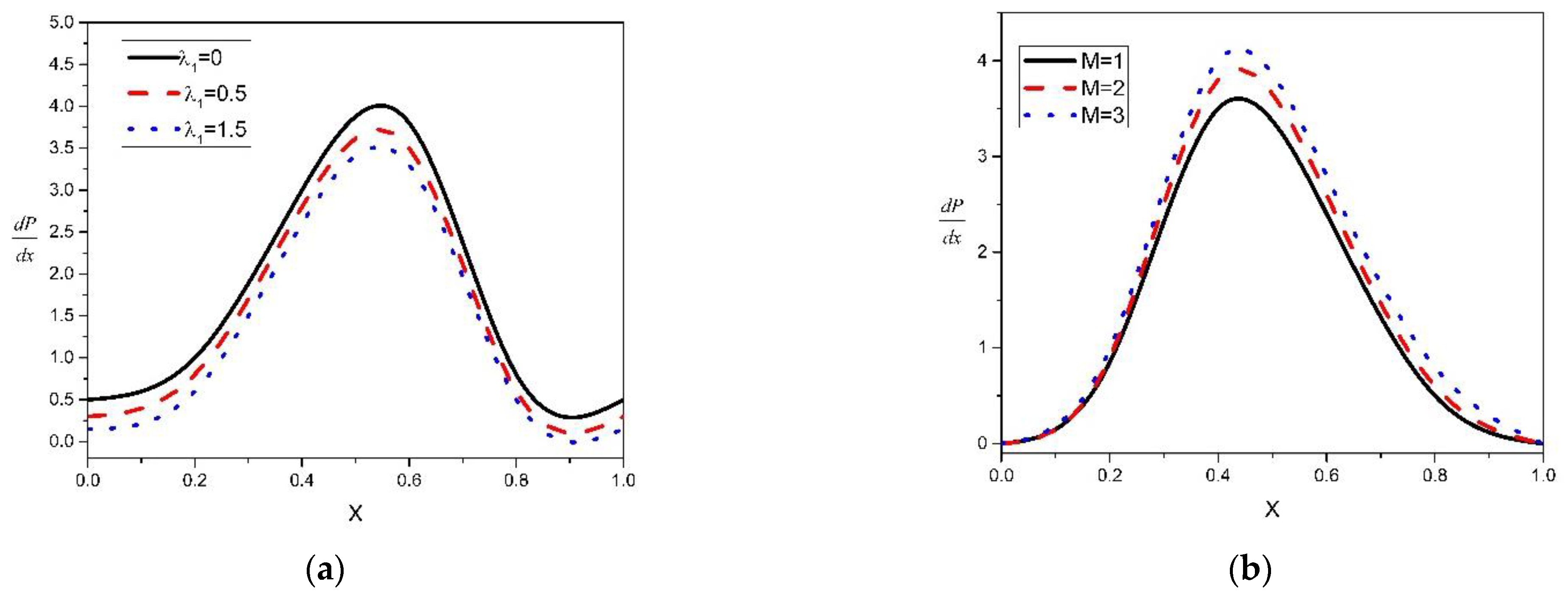

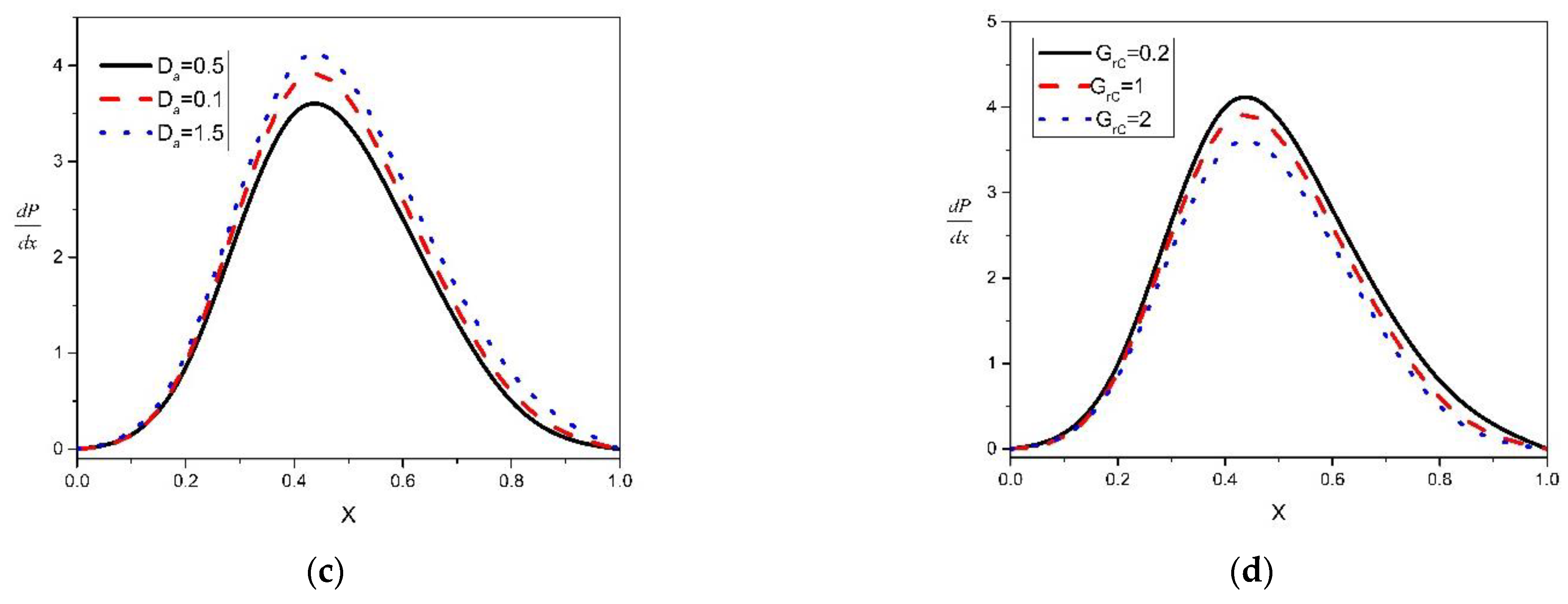

Figure 6a–d represent the pressure gradient under the effects of fluid parameter λ 1 , Darcy number D a , magnetic field M , and solutal Grashof number G r C . Figure 6a shows that the rise in the fluid parameter λ 1 diminishes the pressure gradient. Figure 6b shows that the increase in magnetic field M enhances the pressure gradient. Figure 6c shows that the increase in Darcy number D a enhances the pressure gradient. Figure 6d indicates that the pressure gradient decreases with the increase in solutal Grashof number G r C i.e., the flow can easily pass without the imposition of a large pressure gradient.

3.6. Trapping Phenomenon

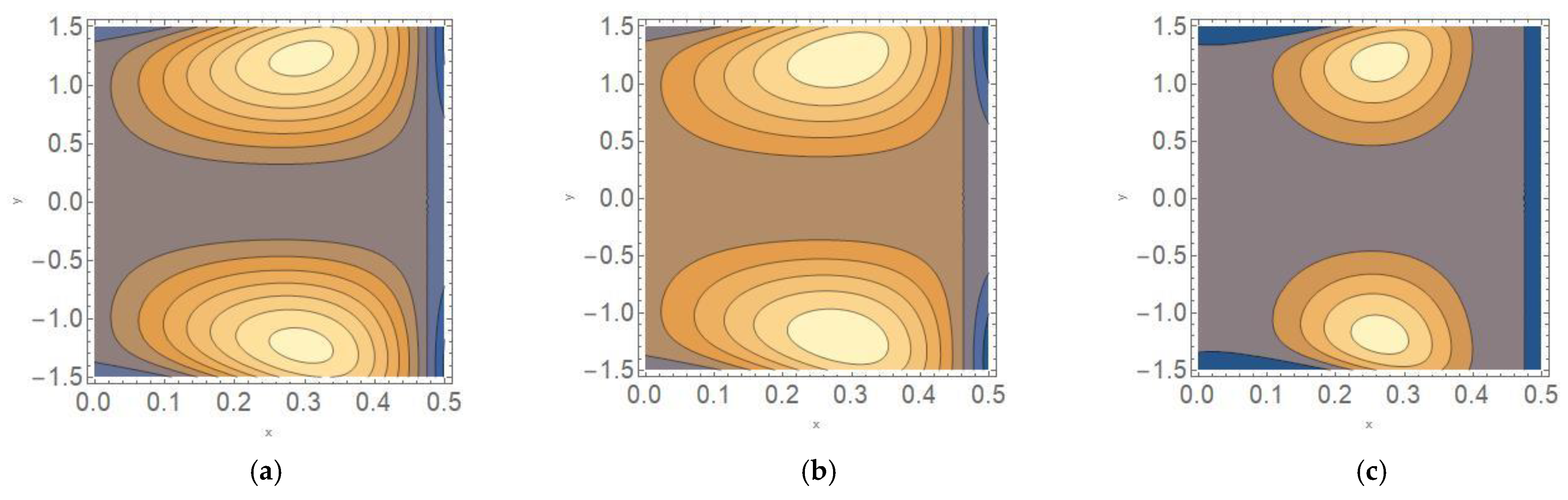

Figure 7, Figure 8 and Figure 9 represent the Streamline graph under the effects of Jeffery fluid parameter λ 1 , magnetic field M , and Darcy number D a . An inimitable hydrodynamic property accompanying peristaltic mechanism is the trapping phenomena that occasionally occur when a fluid is subjected to a large amplitude ratio. In the laboratory frame, the set of stream lines represents a fluid bolus moving with and within the wave, and when stream lines bypass the trapped bolus, they attain a shape similar to that of the wall. The development of a flowing bolus by neighbouring stream lines in the direction of fluid flow is termed as trapping. Basically, it is the creation of an internally circulating bolus. The volume of the bolus is defined as the fluid bound by the closed stream lines. This interesting phenomenon is involved in valuable applications in many biological fluids and bioengineering. The flow behaviour of chime in the gastrointestinal tract and the development of thrombus in blood vessels phenomenon followed such interesting applications. Figure 7a–c demonstrate that enhancing the Jeffery fluid parameter λ 1 diminishes the size of the trapped bolous. We observed from Figure 8a–c that the rise in the magnetic field M parameter decreases the size of the trapped bolus. In the figure, it can be seen that the size of the trapped bolus diminishes, and the boluses decrease on cumulative values of the magnetic field parameter M for weak stream line circulation. Thus, the magnetic field force can be used to control bolus formations. In addition, Figure 9a–c show that an increase in Darcy number D a decreases the magnitude of the bolus.

4. Conclusions

The current work aims to discuss the double-diffusive convection of a magneto-Jeffrey nanofluid on peristaltic motion under the impact of MHD and a porous medium through a flexible channel with a permeable wall.
The main findings of the paper are as follows.
  • The velocity in all the regions of the peristaltic pumping diminishes with increasing values of Darcy number D a ; in fluid flow, D a provides less resistance.
  • The temperature in all regions of peristaltic transport diminishes with increasing values of thermal radiation R d .
  • Nanoparticle concentration in all regions of the peristaltic movement decreases with enhancing the values of R d . The R d is inversely related to the solute concentration, which decreases as the dimensionless transverse coordinate y.
  • As P r increases, the thermal conductivity of the liquid increases; hence, the concentration of nanoparticle increases.
  • The volume fraction of the nanoparticle in all regions of peristaltic pumping diminishes with increasing values of R d .
  • In a pressure gradient, the Jeffrey fluid parameter λ 1 , magnetic field M, Darcy number D a , and solutal Grashof number G r C have the same behaviour.
  • Enhancing the Jeffrey fluid parameter λ 1 diminishes the size of the trapped bolus. The increase in the magnetic field M parameter decreases the size of the trapped bolus. In addition, the increase in Darcy number D a decreases the magnitude of the bolus.

Author Contributions

Conceptualization: A.S.K. and J.B. methodology, A.S.K. and J.B.; formal analyses: I.A.B., S.K., K.H.M.T., N.A.A. Data Curation: J.B., I.A.B., S.K., K.H.M.T., N.A.A., investigation: A.S.K. and J.B.; writing—original draft, A.S.K. and J.B.; resources, I.A.B., S.K., K.H.M.T., N.A.A.; supervision A.S.K., project administration, A.S.K., I.A.B., S.K., N.A.A.; review and editing, I.A.B., S.K., K.H.M.T., N.A.A.; funding, A.S.K., I.A.B., S.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research is funded by King Khalid University.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data is available in the paper itself.

Acknowledgments

The authors extend their appreciation to the Deanship of Scientific Research at King Khalid University for funding this work through the Large Groups Project under grant number RGP.2/101/43. Author Joonabi Beleri would like to thank the Directorate of Minorities for their financial support [DOMWDD/Ph.D//FELLOWSHIP/CR-01/2019-20] Date: 15 October 2019. The authors would like to express their appreciation for the support provided by the Scientific Research Deanship, Islamic University of Madinah.

Conflicts of Interest

We report that we have no potential conflict of interest with any other authors.

Nomenclature

D T Thermophoresis diffusion coefficient ( m 2 s 1 )
T m Fluid mean temperature ( K )
τ Stress tensor ( N m 2 )
σ electrical conductivity
D B Brownian diffusion coefficient ( m 2 s 1 )
Τ ˜ Temperature of the fluid ( K )
a ( X ˜ ) Channel half-width ( m )
b Wave amplitude ( m )
λ Wavelength ( m )
c Velocity propagation ( m 1 s )
t ˜ Time ( s )
N C T Soret parameter
e Electric charge
B 0 Applied magnetic field ( K g s 2 A 1 )
M Magnetic parameter
I Identity tensor
p Pressure
λ 1 The ratio between relaxation and retardation times
λ 2 Retardation time
γ ˙ Shear rate
μ Fluid viscosity coefficient
S Extra stress tensor
T Cauchy stress tensor
ρ p Mass density of nanoparticles
ρ f Fluid effective density ( k g m 3 )
( ρ c ) f Fluid heat capacity
( ρ c ) p Nanoparticle material’s effective heat capacity
k T Fluid thermal conductivity ( W K 1 m 1 )
g Acceleration due to gravity ( m s 1 )
D S Solutal diffusivity
K 0 Permeability constant ( W m 1 K )
C p Specific heat at constant pressure ( J k g 1 K 1 )
C s Susceptibility of concentration
G r T Thermal Grashof number
R e Reynolds number
R d Thermal radiation
G r T Nanoparticle Grashof number
N b Brownian motion parameter
P r Prandtl number
G r C Solutal Grashof number
N T C Dufour parameter
N t Thermophoresis diffusion parameter
C ˜ Concentration of fluid
n ˜ Nanoparticle volume fraction
X ˜ , Y ˜ Cartesian coordinates

References

  1. Latham, T.W. Fluid Motion in a Peristaltic Pump. Ph.D. Thesis, Massachusetts Institute of Technology, Cambridge, MA, USA, 1966. [Google Scholar]
  2. Shapiro, A.H.; Jaffrin, M.Y.; Weinberg, S.L. Peristaltic pumping with long wavelengths at low Reynolds number. J. Fluid Mech. 1969, 37, 799–825. [Google Scholar] [CrossRef]
  3. Jaffrin, M.Y.; Shapiro, A.H. Peristaltic pumping. Annu. Rev. Fluid Mech. 1971, 3, 13–37. [Google Scholar] [CrossRef]
  4. Khan, M.; Iftikhar, F.; Anjum, A. Some unsteady flows of a Jeffrey fluid between two side walls over a plane wall. Z. Nat. A 2011, 66, 745–752. [Google Scholar] [CrossRef] [Green Version]
  5. Baranovskii, E.S. An inhomogeneous boundary value problem for the stationary motion equations of Jeffreys viscoelastic medium. J. Appl. Ind. Math. 2013, 7, 22–28. [Google Scholar] [CrossRef]
  6. Baranovskii, E.S. Optimal control for steady flows of the Jeffreys fluids with slip boundary condition. J. Appl. Ind. Math. 2014, 8, 168–176. [Google Scholar] [CrossRef]
  7. Baranovskii, E.S. Global solutions for a model of polymeric flows with wall slip. Math. Methods Appl. Sci. 2017, 40, 5035–5043. [Google Scholar] [CrossRef]
  8. Hayat, T.; Ahmad, N.; Ali, N. Effects of an endoscope and magnetic field on the peristalsis involving Jeffrey fluid. Commun. Nonlinear Sci. Numer. Simul. 2008, 13, 1581–1591. [Google Scholar] [CrossRef]
  9. Choi, S.U.; Eastman, J.A. Enhancing Thermal Conductivity of Fluids with Nanoparticles; Argonne National Lab.: Argonne, IL, USA, 1995.
  10. Akbar, N.S. Peristaltic flow of a nanofluid with slip effect. Meccanica 2012, 47, 1283–1294. [Google Scholar] [CrossRef]
  11. Ayub, S. Thermal radiation impact in the mixed convective peristaltic flow of third-grade nanofluid. Results Phys. 2017, 7, 3687–3695. [Google Scholar] [CrossRef]
  12. Asha, S.K.; Beleri, J. Peristaltic flow of Carreau nanofluid in presence of Joule heat effect in an inclined asymmetric channel by multi-step differential transformation method. World Sci. News 2022, 164, 44–63. [Google Scholar]
  13. Aifanties, E.C. Continuum basis for diffusion in regions with multiple diffusivities. J. Appl. Phys. 1976, 50, 1334–1338. [Google Scholar] [CrossRef]
  14. Ganesan, S.; Vasanthakumari, R. Influence of magnetic field and thermal radiation on peristaltic motion with double-diffusive convection in Jeffery nanofluids. Heat Transf. 2020, 49, 2025–2043. [Google Scholar] [CrossRef]
  15. Raju, A.; Ojjela, O.; Kambhatla, P.K. The combined effects of induced magnetic field, thermophoresis and Brownian motion on double stratified nonlinear convective-radiative Jeffrey nanofluid flow with heat source/sink. J. Anal. 2020, 28, 503–532. [Google Scholar] [CrossRef]
  16. Shivappa Kotnurkar, A.; Giddaiah, S. Double diffusion on peristaltic flow of nanofluid under the influences of magnetic field, porous medium, and thermal radiation. Eng. Rep. 2020, 2, e12111. [Google Scholar] [CrossRef]
  17. Ali, A.; Ali, Y.; Khan Marwat, D.N.; Awais, M.; Shah, Z. Peristaltic flow of nanofluid in a deformable channel with double diffusion. SN Appl. Sci. 2020, 2, 100. [Google Scholar] [CrossRef] [Green Version]
  18. Sucharitha, G.; Vajravelu, K.; Lakshminarayana, P. Effect of heat and mass transfer on the peristaltic flow of a Jeffrey nanofluid in a tapered flexible channel in the presence of aligned magnetic field. Eur. Phys. J. Spec. Top. 2019, 228, 2713–2728. [Google Scholar] [CrossRef]
  19. Asha, S.K.; Sunita, G. Influence of thermal radiation on peristaltic blood flow of a Jeffrey fluid with double diffusion in the presence of gold nanoparticles. Inform. Med. Unlocked 2019, 17, 100272. [Google Scholar]
  20. Hussain, Q. Nonlinear radiative peristaltic flow of hydromagnetic fluid through a porous medium. Results Phys. 2018, 9, 121–134. [Google Scholar] [CrossRef]
  21. Ramesh, K.; Devakar, M. Peristaltic transport of MHD Walters B fluid through porous medium with heat transfer. Iran. J. Sci. Technol. Trans. A Sci. 2017, 41, 489–504. [Google Scholar] [CrossRef]
  22. Vajravelu, K.; Sreenadh, S.; Lakshminarayana, P.; Sucharitha, G.; Rashidi, M.M. Peristaltic flow of phan- thein-Tanner fluid in an Asymmetric Channel with porous medium. J. Appl. Fluid Mech. 2015, 9, 1615–1625. [Google Scholar]
  23. Maiti, S.; Misra, J.C. Peristaltic flow of a fluid in a porous channel: A study having relevance to flow of bile within ducts in a pathological state. Int. J. Eng. Sci. 2011, 49, 950–966. [Google Scholar] [CrossRef] [Green Version]
  24. Noreen, S.; Qurat, U. Entropy generation analysis on electroosmotic flow in non-Darcy porous medium via peristaltic pumping. J. Therm. Anal. Calorim. 2019, 137, 1991–2006. [Google Scholar] [CrossRef]
  25. Hasona, W.M.; El-Shekhipy, A.A.; Ibrahim, M.G. Combined effects of magnetohydrodynamic and temperature dependent viscosity on peristaltic flow of Jeffrey nanofluid through a porous medium: Applications to oil refinement. Int. J. Heat Mass Transf. 2018, 126, 700–714. [Google Scholar] [CrossRef]
  26. Zhou, J.K. Differential Transformation and Its Applications for Electrical Circuits; Huazhong University Press: Wuhan, China, 1986; pp. 1279–1289. [Google Scholar]
  27. Odibat, Z.M.; Bertelle, C.; Aziz-Alaoui, M.A.; Duchamp, G.H. A multi-step differential transform method and application to non-chaotic or chaotic systems. Comput. Math. Appl. 2010, 59, 1462–1472. [Google Scholar] [CrossRef] [Green Version]
  28. Hasona, W.M.; El-Shekhipy, A.; Ibrahim, M.G. Semi-analytical solution to MHD peristaltic flow of a Jeffrey fluid in presence of Joule heat effect by using multi-step differential transform method. New Trends Math. Sci. 2019, 7, 123–137. [Google Scholar] [CrossRef]
  29. Hasona, W.M. Temperature-dependent electrical conductivity and thermal radiation effects on MHD peristaltic motion of Williamson nanofluids in a tapered asymmetric channel. J. Mech. 2020, 36, 103–118. [Google Scholar] [CrossRef]
  30. Tripathi, D.; Bég, O.A.; Gupta, P.K.; Radhakrishnamacharya, G.; Mazumdar, J. DTM simulation of peristaltic viscoelastic biofluid flow in asymmetric porous media: A digestive transport model. J. Bionic Eng. 2015, 12, 643–655. [Google Scholar] [CrossRef]
  31. Hatami, M.; Ghasemi, S.E.; Sahebi, S.A.R.; Mosayebidorcheh, S.; Ganji, D.D.; Hatami, J. Investigation of third-grade non-Newtonian blood flow in arteries under periodic body acceleration using multi-step differential transformation method. Appl. Math. Mech. 2015, 36, 1449–1458. [Google Scholar] [CrossRef]
  32. Bég, O.A.; Keimanesh, M.; Rashidi, M.M.; Davoodi, M.; Branch, S.T. Multi-step DTM simulation of magneto-peristaltic flow of a conducting Williamson viscoelastic fluid. Int. J. Appl. Math. Mech. 2013, 9, 1–19. [Google Scholar]
  33. Kotnurkar, A.S.; Beleri, J.; Badruddin, I.A.; Kamangar, S.; Ahammad, N.A. Peristaltic Transport of Carreau Nanofluid in Presence of Triple Diffusion in an Asymmetric Channel by Multi-Step Differential Transformation Method. Mathematics 2022, 10, 807. [Google Scholar] [CrossRef]
  34. Reddy, K.V.; Reddy, M.G.; Makinde, O.D. Heat and Mass Transfer of a Peristaltic Electro-osmotic Flow of a Couple Stress Fluid through an Inclined Asymmetric Channel with Effects of Thermal Radiation and Chemical Reaction. Period. Polytech. Mech. Eng. 2021, 65, 151–162. [Google Scholar] [CrossRef]
  35. Vaidya, H.; Rajashekhar, C.; Prasad, K.V.; Khan, S.U.; Riaz, A.; Viharika, J.U. MHD peristaltic flow of nanofluid in a vertical channel with multiple slip features: An application to chyme movement. Biomech. Model. Mechanobiol. 2021, 20, 1047–1067. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Geometry of the physical model.
Figure 1. Geometry of the physical model.
Mathematics 10 01701 g001
Figure 2. (ae) Velocity distribution versus Y for various physical parameters ( a )   G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , P r = 7 , λ 1 = 0.6 , M = 0.2 . ( b )   G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , D a = 10 , λ 1 = 0.6 , M = 0.2 . ( c )   G r T = 0.5 , G r C = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , D a = 10 , P r = 7 , λ 1 = 0.6 , M = 0.2 . ( d )   G r T = 0.5 , G r F = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , D a = 10 , P r = 7 , λ 1 = 0.6 , M = 0.2 . ( e )   G r C = 0.5 , G r F = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , D a = 10 , P r = 7 , λ 1 = 0.6 , M = 0.2 . .
Figure 2. (ae) Velocity distribution versus Y for various physical parameters ( a )   G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , P r = 7 , λ 1 = 0.6 , M = 0.2 . ( b )   G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , D a = 10 , λ 1 = 0.6 , M = 0.2 . ( c )   G r T = 0.5 , G r C = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , D a = 10 , P r = 7 , λ 1 = 0.6 , M = 0.2 . ( d )   G r T = 0.5 , G r F = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , D a = 10 , P r = 7 , λ 1 = 0.6 , M = 0.2 . ( e )   G r C = 0.5 , G r F = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , D a = 10 , P r = 7 , λ 1 = 0.6 , M = 0.2 . .
Mathematics 10 01701 g002
Figure 3. (ad) Temperature distribution versus Y for various physical parameters ( a )   N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , P r = 7 , ( b )   N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , R d = 0.5 . ( c )   N C T = 0.7 , N T C = 0.7 , R d = 0.5 , N t = 0.5 , P r = 7 , ( d )   N C T = 0.7 , N T C = 0.7 , N b = 0.5 , R d = 0.5 , P r = 7 . .
Figure 3. (ad) Temperature distribution versus Y for various physical parameters ( a )   N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , P r = 7 , ( b )   N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , R d = 0.5 . ( c )   N C T = 0.7 , N T C = 0.7 , R d = 0.5 , N t = 0.5 , P r = 7 , ( d )   N C T = 0.7 , N T C = 0.7 , N b = 0.5 , R d = 0.5 , P r = 7 . .
Mathematics 10 01701 g003aMathematics 10 01701 g003b
Figure 4. (ad) Concentration distribution versus Y for various physical parameter ( a )   N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , P r = 7 , ( b )   N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , R d = 0.5 . ( c )   N C T = 0.7 , N T C = 0.7 , R d = 0.5 , N t = 0.5 , P r = 7 , ( d )   N C T = 0.7 , N T C = 0.7 , N b = 0.5 , R d = 0.5 , P r = 7 . .
Figure 4. (ad) Concentration distribution versus Y for various physical parameter ( a )   N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , P r = 7 , ( b )   N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , R d = 0.5 . ( c )   N C T = 0.7 , N T C = 0.7 , R d = 0.5 , N t = 0.5 , P r = 7 , ( d )   N C T = 0.7 , N T C = 0.7 , N b = 0.5 , R d = 0.5 , P r = 7 . .
Mathematics 10 01701 g004aMathematics 10 01701 g004b
Figure 5. (ad) Volume fraction distribution versus Y for various physical parameters ( a )   N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , P r = 7 , ( b )   N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , R d = 0.5 . ( c )   N C T = 0.7 , N T C = 0.7 , R d = 0.5 , N t = 0.5 , P r = 7 , ( d )   N C T = 0.7 , N T C = 0.7 , N b = 0.5 , R d = 0.5 , P r = 7 . .
Figure 5. (ad) Volume fraction distribution versus Y for various physical parameters ( a )   N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , P r = 7 , ( b )   N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , R d = 0.5 . ( c )   N C T = 0.7 , N T C = 0.7 , R d = 0.5 , N t = 0.5 , P r = 7 , ( d )   N C T = 0.7 , N T C = 0.7 , N b = 0.5 , R d = 0.5 , P r = 7 . .
Mathematics 10 01701 g005aMathematics 10 01701 g005b
Figure 6. (ad) Pressure gradient versus X for various physical parameters ( a )   G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , Q = 1 , D a = 10 , M = 0.2 . ( b )   G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , Q = 1 , λ 1 = 0.6 , D a = 10 . ( c )   G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , Q = 1 , λ 1 = 0.6 , M = 0.2 . ( d )   G r T = 0.5 , G r F = 0.5 , D a = 10 , Q = 1 , λ 1 = 0.6 , M = 0.2 . .
Figure 6. (ad) Pressure gradient versus X for various physical parameters ( a )   G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , Q = 1 , D a = 10 , M = 0.2 . ( b )   G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , Q = 1 , λ 1 = 0.6 , D a = 10 . ( c )   G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , Q = 1 , λ 1 = 0.6 , M = 0.2 . ( d )   G r T = 0.5 , G r F = 0.5 , D a = 10 , Q = 1 , λ 1 = 0.6 , M = 0.2 . .
Mathematics 10 01701 g006aMathematics 10 01701 g006b
Figure 7. (ac) Streamlines for ( a )   λ 1 = 0 , ( b )   λ 1 = 1 , ( c )   λ 1 = 2 G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , P r = 7 , D a = 10 , M = 0.6 . .
Figure 7. (ac) Streamlines for ( a )   λ 1 = 0 , ( b )   λ 1 = 1 , ( c )   λ 1 = 2 G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , P r = 7 , D a = 10 , M = 0.6 . .
Mathematics 10 01701 g007
Figure 8. (ac). Streamlines for ( a )   M = 1 , ( b )   M = 2 , ( c )   M = 3 G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , P r = 7 , D a = 10 , λ 1 = 0.6 . .
Figure 8. (ac). Streamlines for ( a )   M = 1 , ( b )   M = 2 , ( c )   M = 3 G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , P r = 7 , D a = 10 , λ 1 = 0.6 . .
Mathematics 10 01701 g008
Figure 9. (ac). Streamlines for ( a )   D a = 10 , ( b )   D a = 15 , ( c )   D a = 20 G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , P r = 7 , M = 0.5 , λ 1 = 0.6 . .
Figure 9. (ac). Streamlines for ( a )   D a = 10 , ( b )   D a = 15 , ( c )   D a = 20 G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , P r = 7 , M = 0.5 , λ 1 = 0.6 . .
Mathematics 10 01701 g009
Table 1. Comparison of the velocity distribution u ( y ) obtained by MS-DTM with NDSolve and FEM solution for G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , D a = 10 , P r = 7 , λ 1 = 0.6 , M = 0.2 .
Table 1. Comparison of the velocity distribution u ( y ) obtained by MS-DTM with NDSolve and FEM solution for G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , D a = 10 , P r = 7 , λ 1 = 0.6 , M = 0.2 .
y Present   Result   u ( y ) NDSolveFEM
0−1−1−1
0.2−0.987243−0.98724−0.987232
0.4−0.894205−0.89420−0.894201
0.6−0.621413−0.62141−0.621411
0.8−0.0304656−0.03046−0.030461
11.0757711.004391
Table 2. Results of the skin friction coefficient C f , Nusselt number N u , and Sherwood number S h obtained by MS-DTM. G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , D a = 10 , P r = 7 , λ 1 = 0.6 , M = 0.2 . .
Table 2. Results of the skin friction coefficient C f , Nusselt number N u , and Sherwood number S h obtained by MS-DTM. G r T = 0.5 , G r C = 0.5 , G r F = 0.5 , N C T = 0.7 , N T C = 0.7 , N b = 0.5 , N t = 0.5 , D a = 10 , P r = 7 , λ 1 = 0.6 , M = 0.2 . .
yPresent Result (Cf)Present Result (Nu) Present Result (Sh)
08.0567897.098765−8.0186068
0.216.98724316.189148−12.073384
0.40.89420510.384279−0.00279364
0.620.62141322.585275−11.602726
0.84.03046566.792017−0.00005
19.07577110.00439−7.0468609
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kotnurkar, A.S.; Beleri, J.; Badruddin, I.A.; H.M.T., K.; Kamangar, S.; Ahammad, N.A. Effect of Thermal Radiation and Double-Diffusion Convective Peristaltic Flow of a Magneto-Jeffrey Nanofluid through a Flexible Channel. Mathematics 2022, 10, 1701. https://doi.org/10.3390/math10101701

AMA Style

Kotnurkar AS, Beleri J, Badruddin IA, H.M.T. K, Kamangar S, Ahammad NA. Effect of Thermal Radiation and Double-Diffusion Convective Peristaltic Flow of a Magneto-Jeffrey Nanofluid through a Flexible Channel. Mathematics. 2022; 10(10):1701. https://doi.org/10.3390/math10101701

Chicago/Turabian Style

Kotnurkar, Asha S., Joonabi Beleri, Irfan Anjum Badruddin, Khaleed H.M.T., Sarfaraz Kamangar, and Nandalur Ameer Ahammad. 2022. "Effect of Thermal Radiation and Double-Diffusion Convective Peristaltic Flow of a Magneto-Jeffrey Nanofluid through a Flexible Channel" Mathematics 10, no. 10: 1701. https://doi.org/10.3390/math10101701

APA Style

Kotnurkar, A. S., Beleri, J., Badruddin, I. A., H.M.T., K., Kamangar, S., & Ahammad, N. A. (2022). Effect of Thermal Radiation and Double-Diffusion Convective Peristaltic Flow of a Magneto-Jeffrey Nanofluid through a Flexible Channel. Mathematics, 10(10), 1701. https://doi.org/10.3390/math10101701

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
