Numerical and Experimental Investigation of the Design of a Piezoelectric De-Icing System for Small Rotorcraft Part 1/3: Development of a Flat Plate Numerical Model with Experimental Validation

1
Anti-icing Materials International Laboratory (AMIL), Université du Québec à Chicoutimi (UQAC), Chicoutimi, QC G7H 2B1, Canada
2
National Research Council Canada, Flight Research Laboratory, Ottawa, ON K1A 0R6, Canada
*
Author to whom correspondence should be addressed.
Aerospace 2020, 7(5), 62; https://doi.org/10.3390/aerospace7050062
Received: 31 March 2020 / Revised: 8 May 2020 / Accepted: 19 May 2020 / Published: 22 May 2020
(This article belongs to the Special Issue Deicing and Anti-Icing of Aircraft)

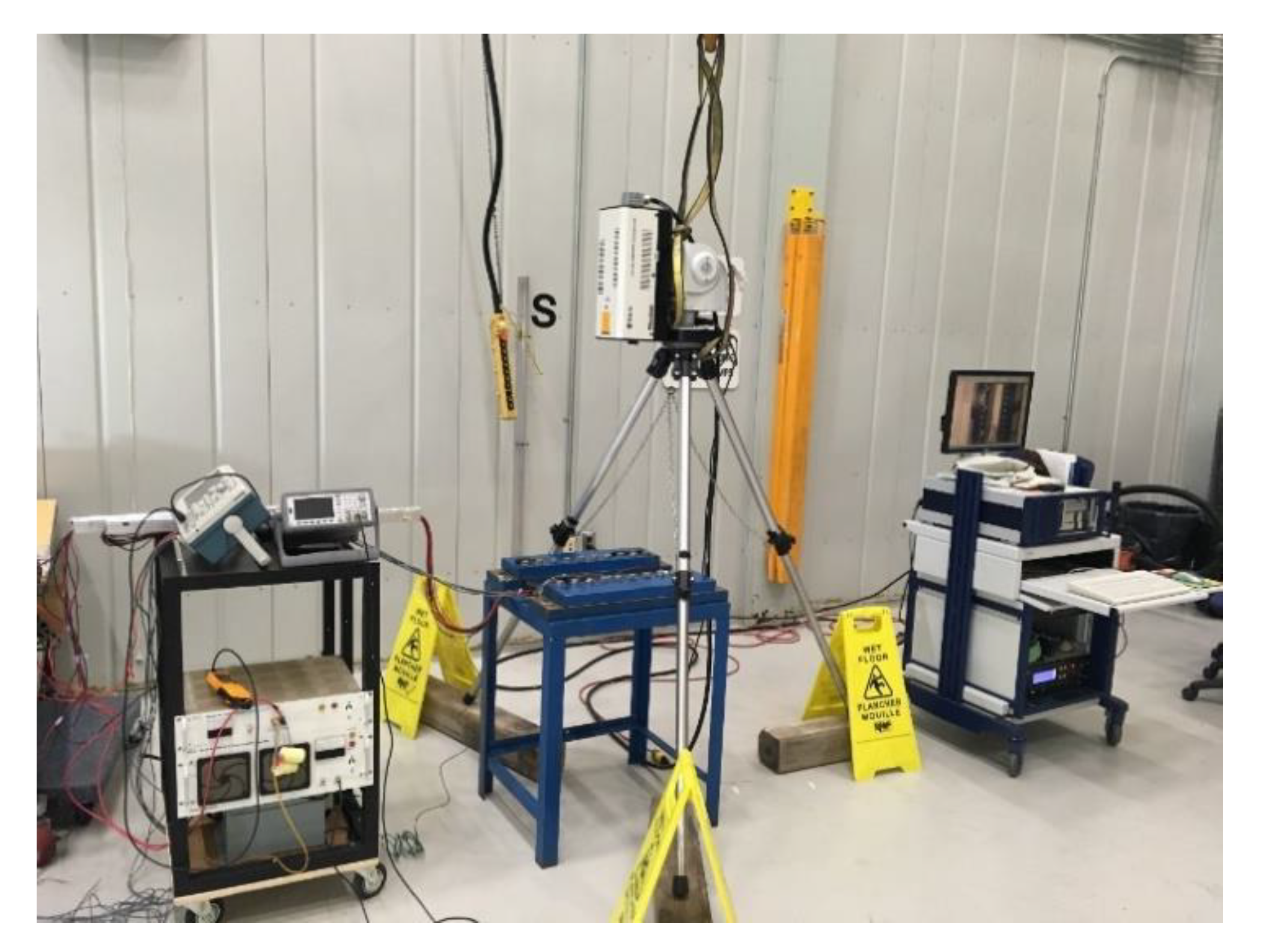

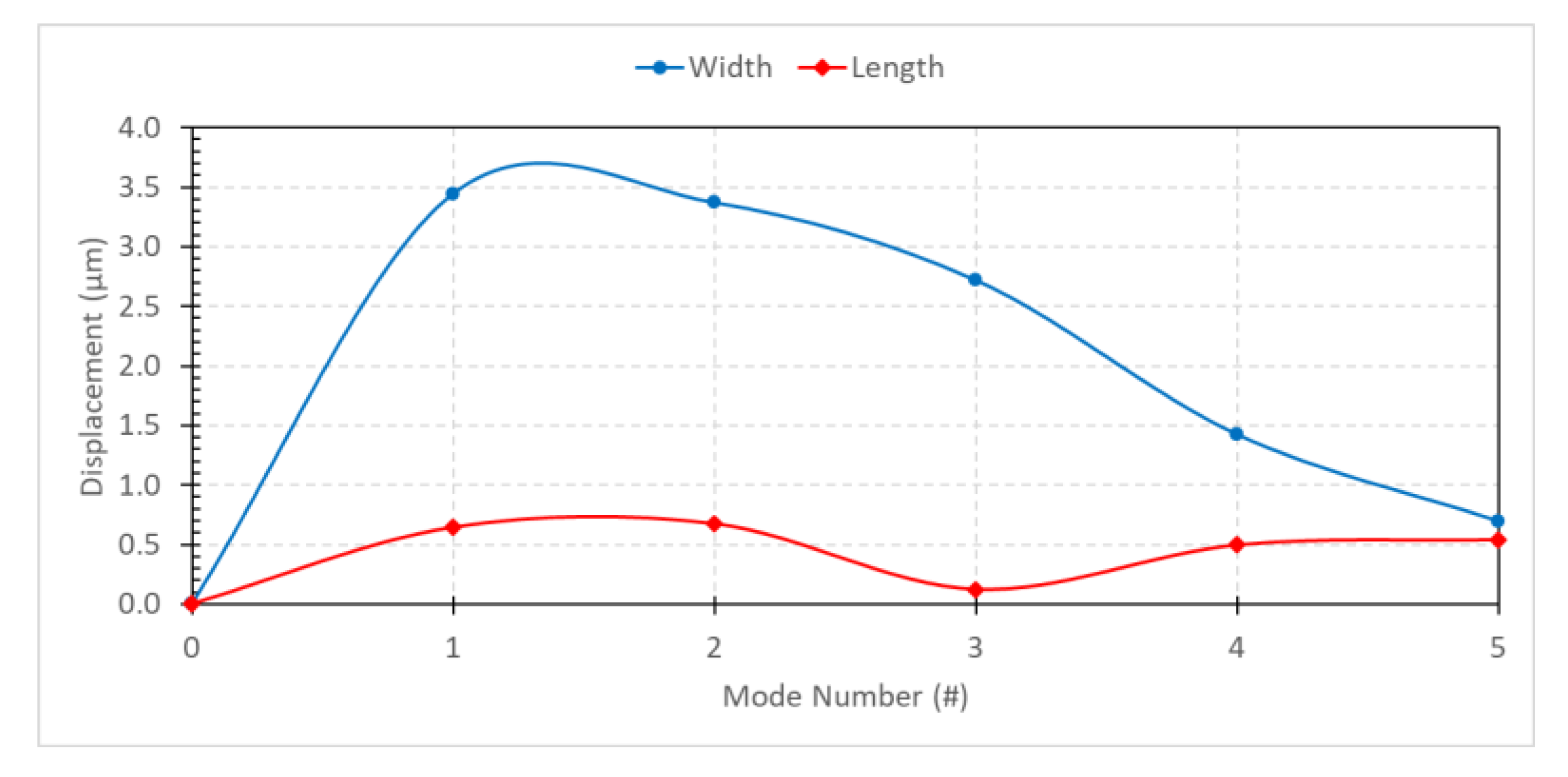

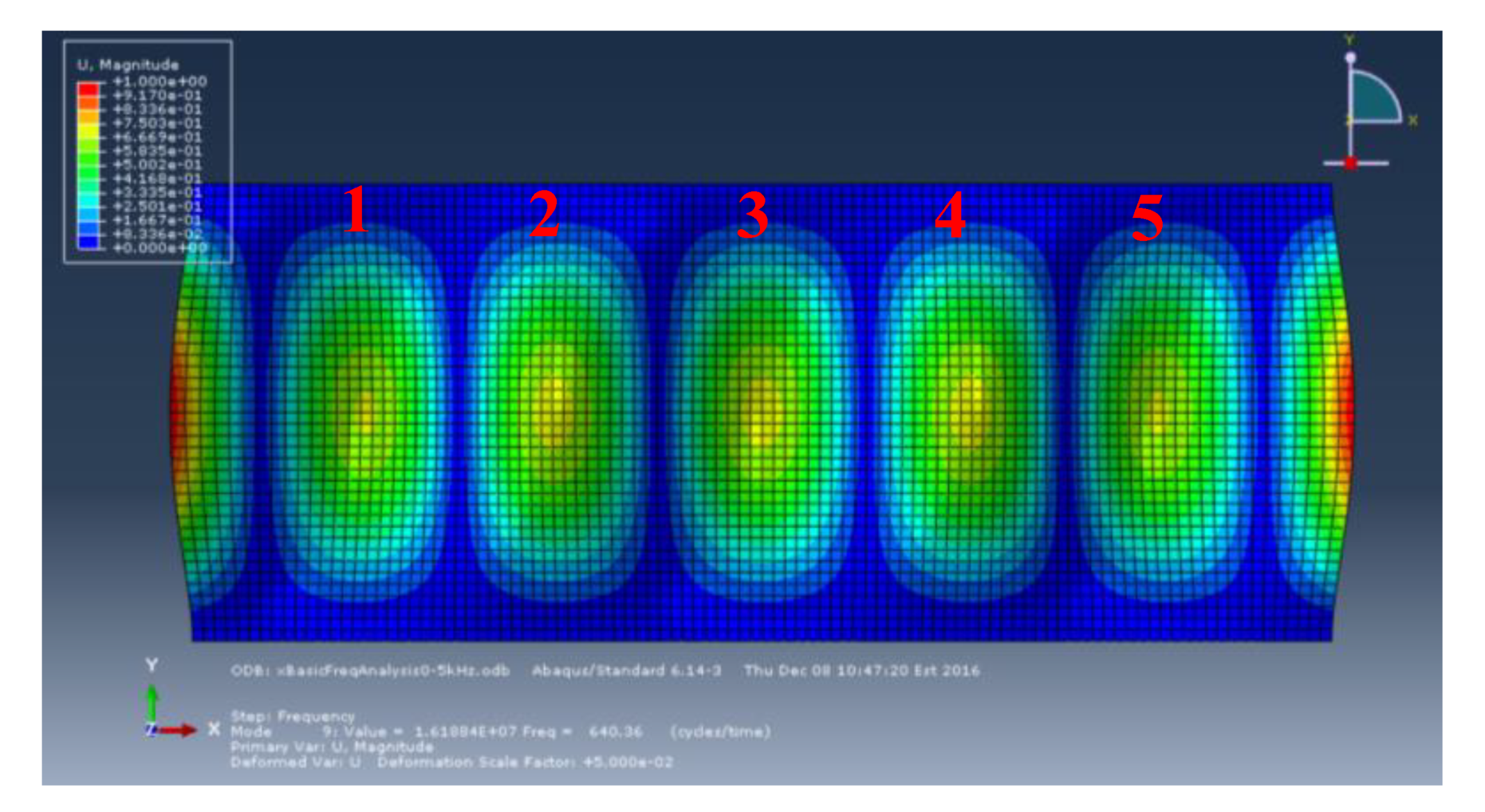

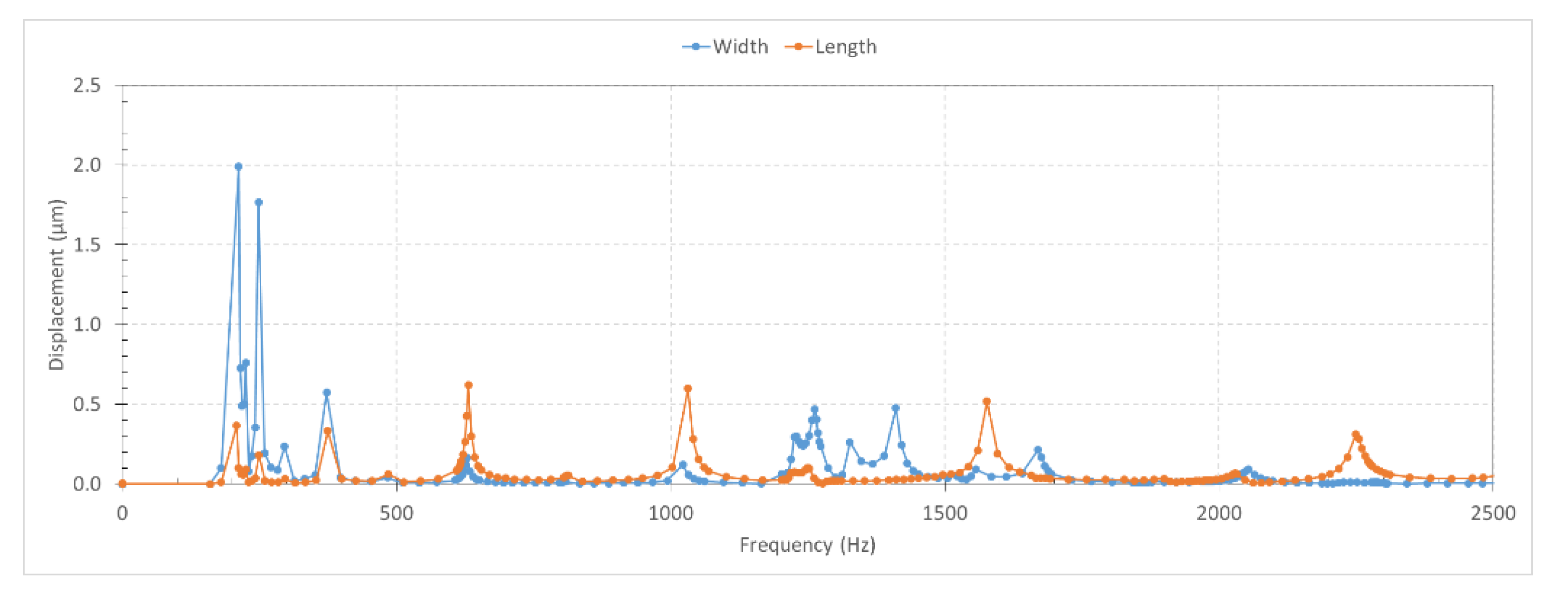

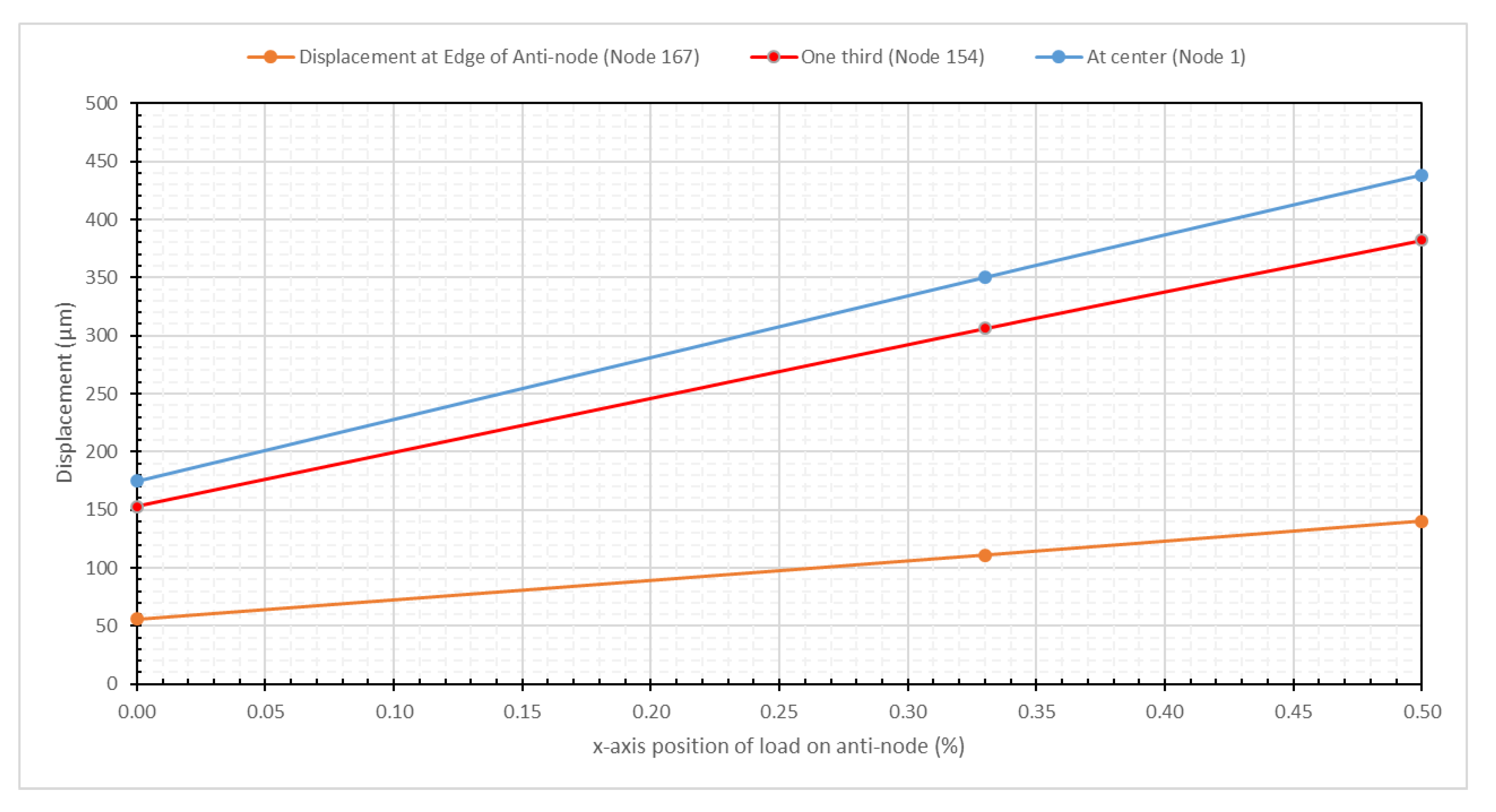

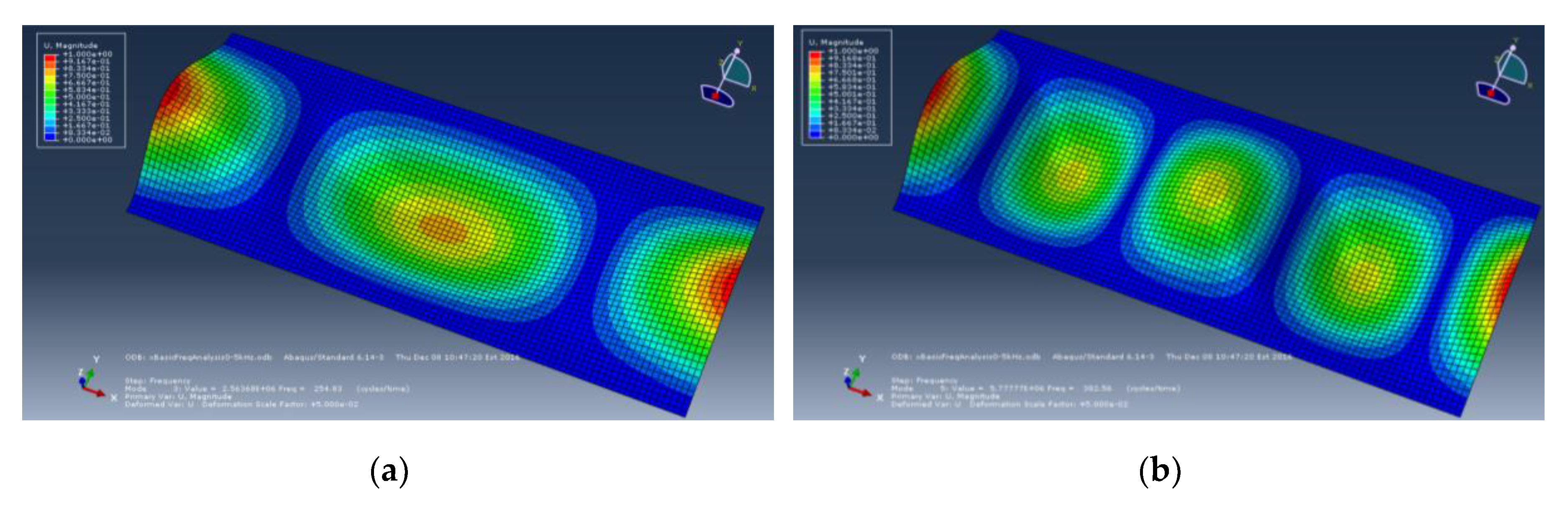

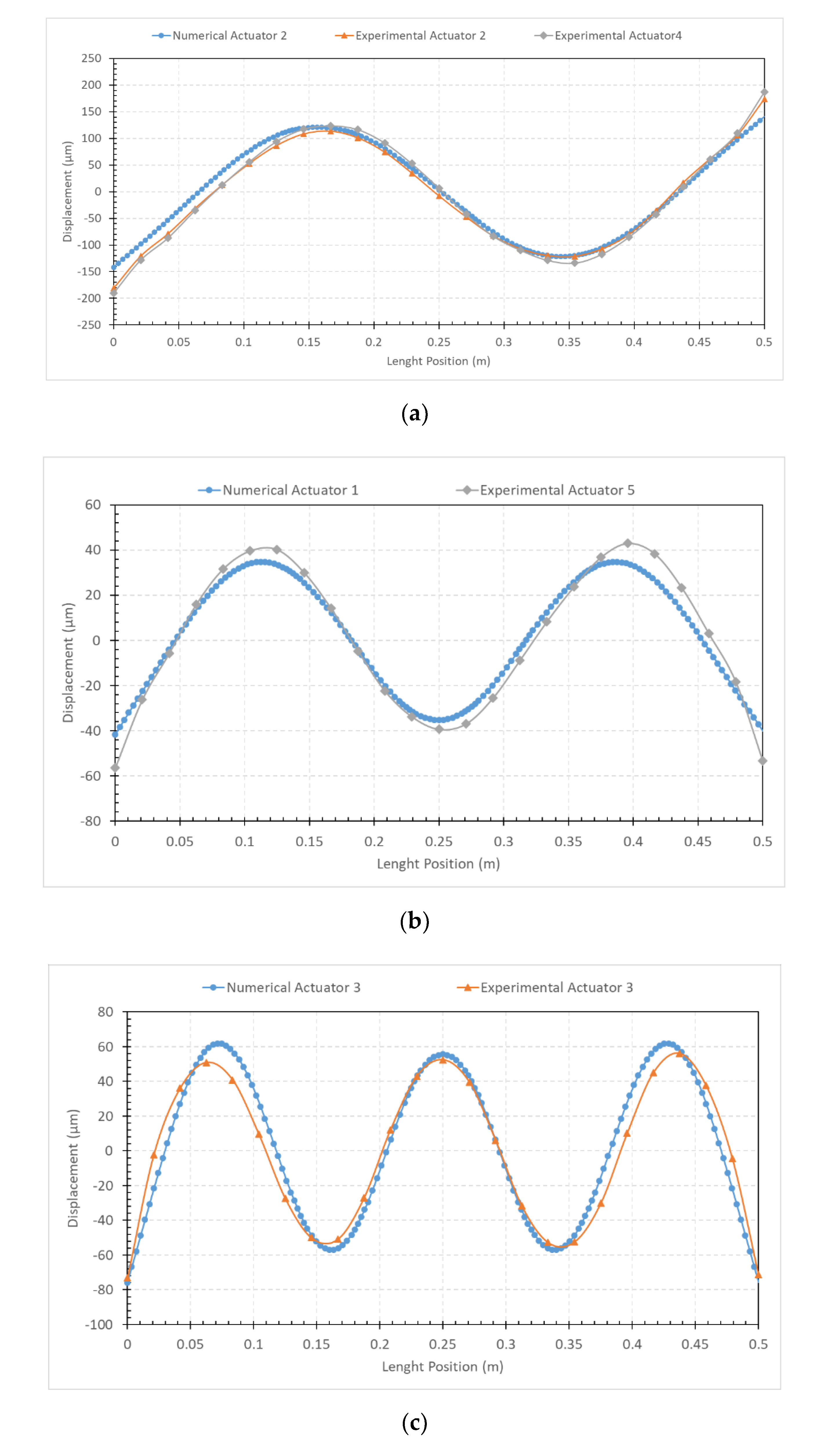

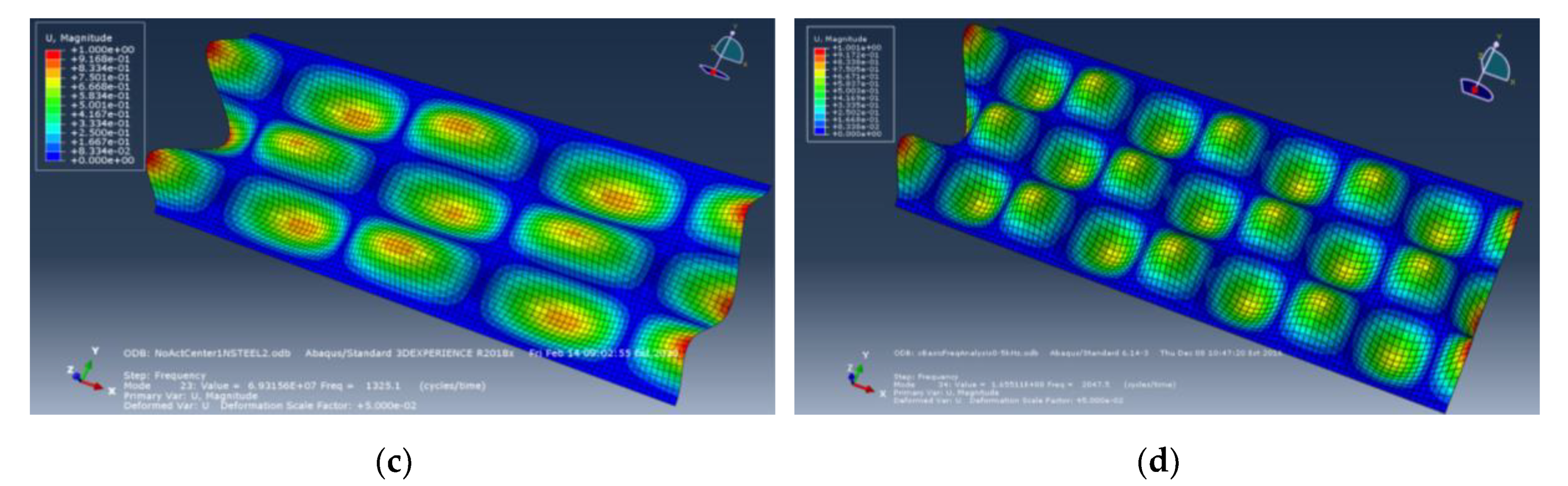

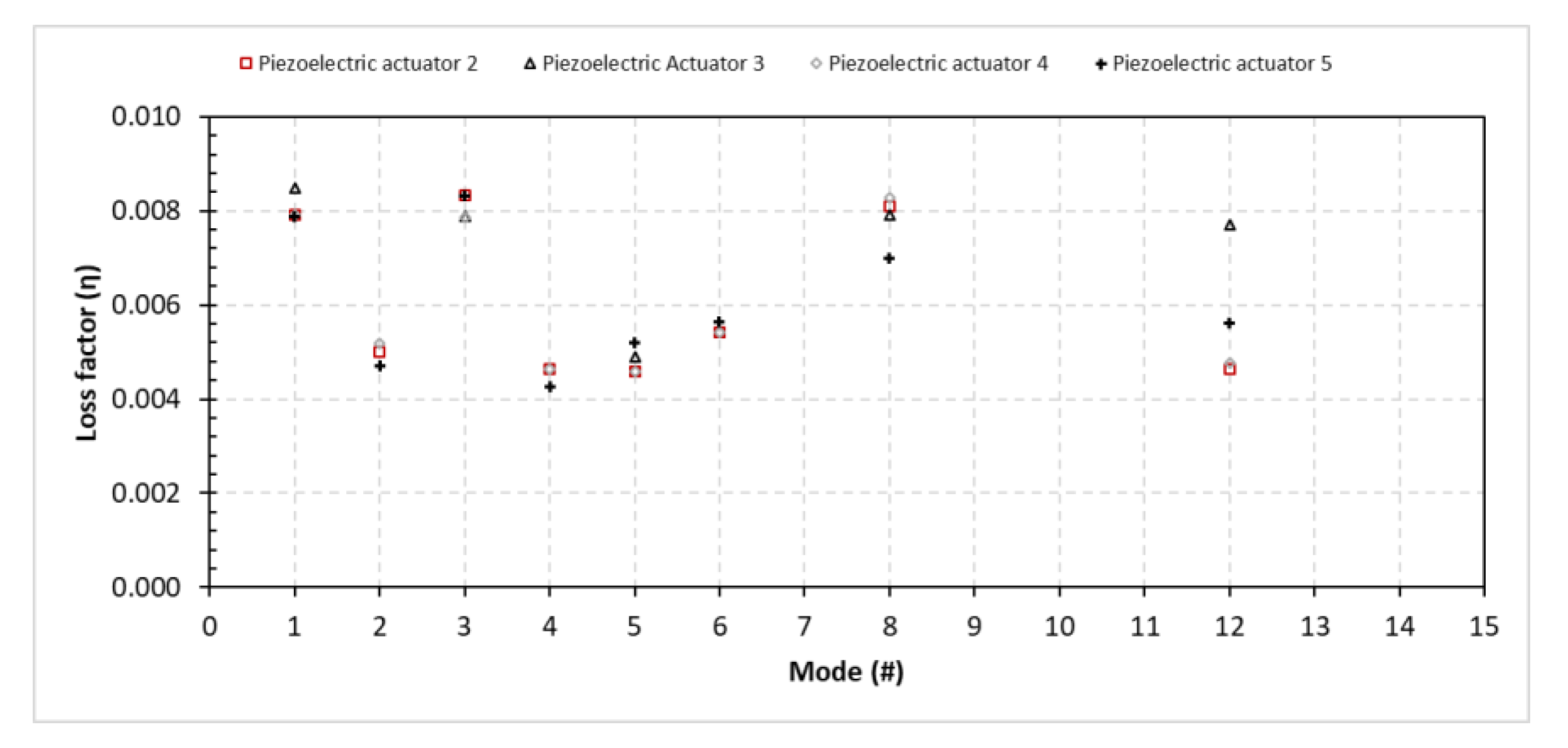

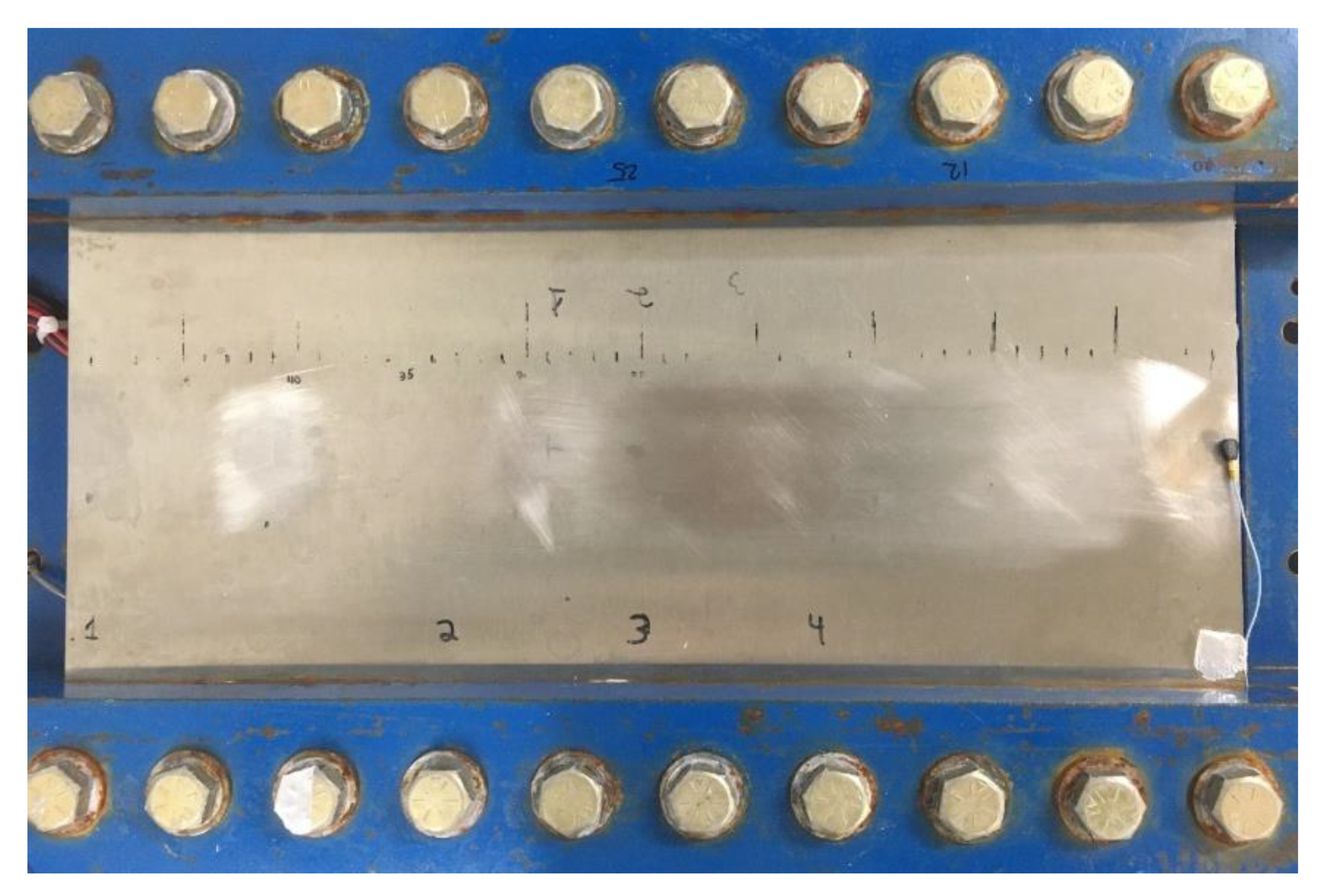

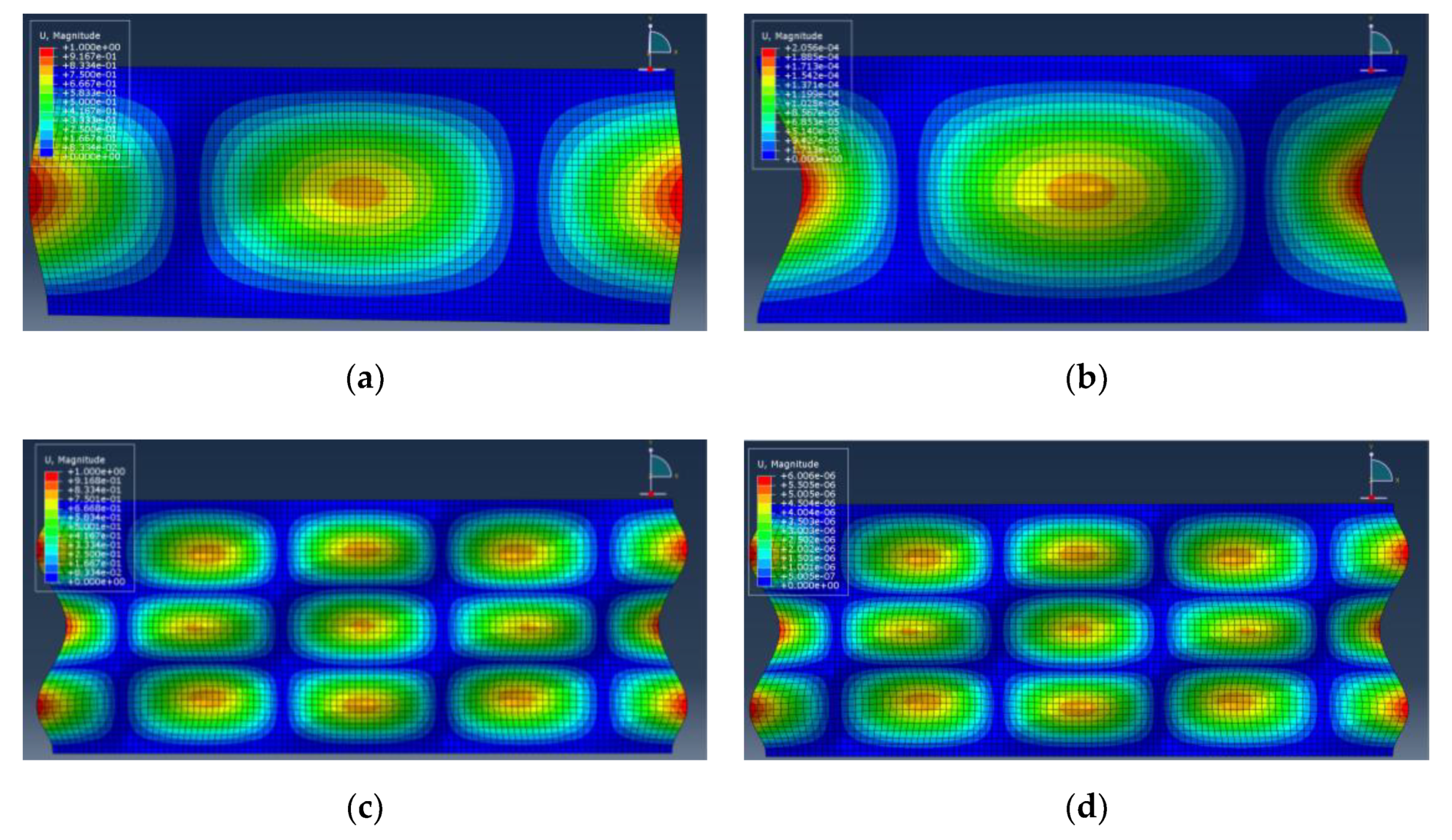

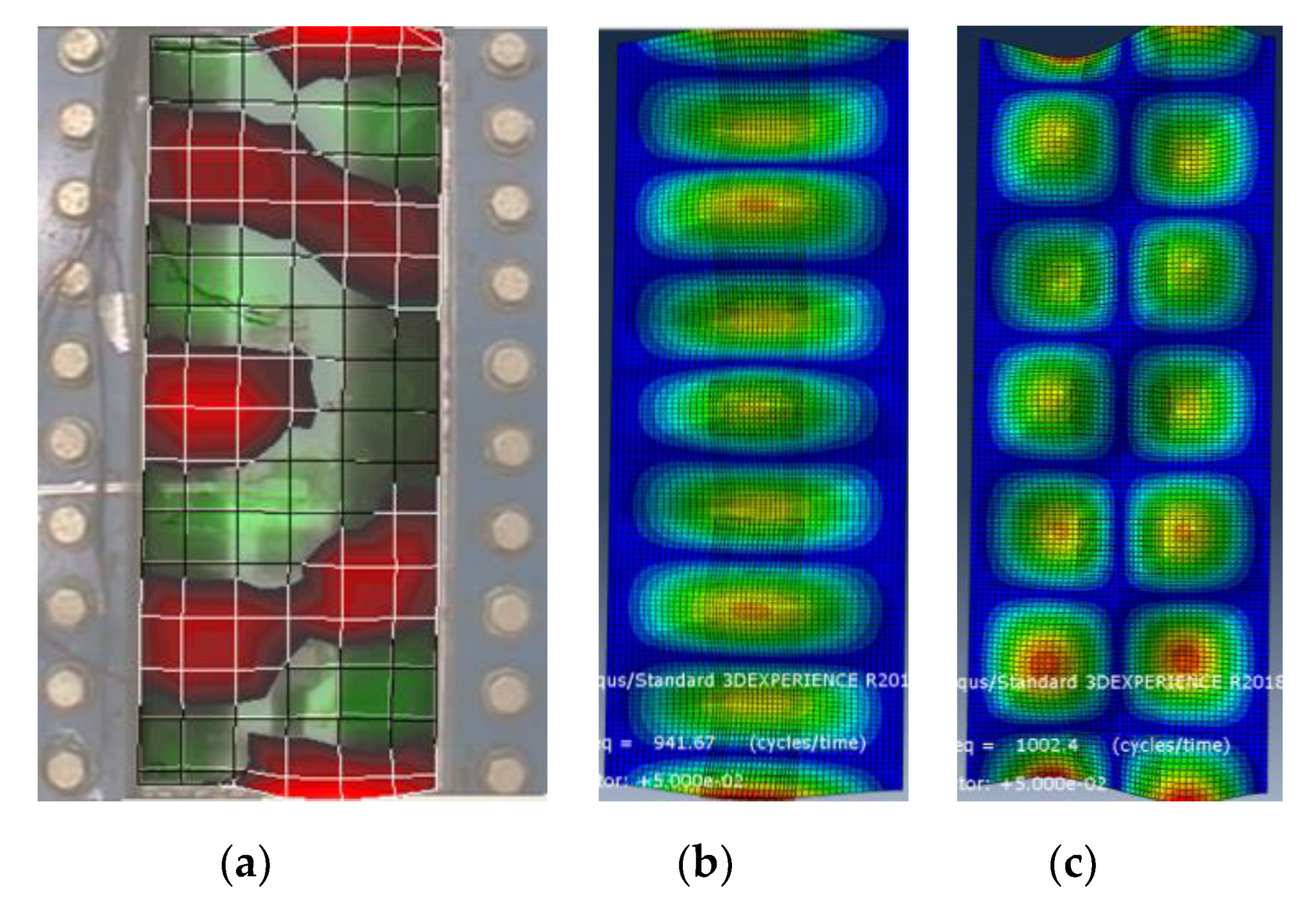

The objective of this research project is divided in four parts: (1) to design a piezoelectric actuator-based de-icing system integrated to a flat plate experimental setup and develop a numerical model of the system with experimental validation, (2) use the experimental setup to investigate actuator activation with frequency sweeps and transient vibration analysis, (3) add ice layer to the numerical model and predict numerically stresses for different ice breaking with experimental validation, and (4) bring the concept to a blade structure for wind tunnel testing. This paper presents the first objective of this study. First, preliminary numerical analysis was performed to gain basic guidelines for the integration of piezoelectric actuators in a simple flat plate experimental setup for vibration-based de-icing investigation. The results of these simulations allowed to optimize the positioning of the actuators on the structure and the optimal phasing of the actuators for mode activation. A numerical model of the final setup was elaborated with the piezoelectric actuators optimally positioned on the plate and meshed with piezoelectric elements. A frequency analysis was performed to predict resonant frequencies and mode shapes, and multiple direct steady-state dynamic analyses were performed to predict displacements of the flat plate when excited with the actuators. In those steady-state dynamic analysis, electrical boundary conditions were applied to the actuators to excite the vibration of the plate. The setup was fabricated faithful to the numerical model at the laboratory with piezoelectric actuator patches bonded to a steel flat plate and large solid blocks used to mimic perfect clamped boundary condition. The experimental setup was brought at the National Research Council Canada (NRC) for testing with a laser vibrometer to validate the numerical results. The experimental results validated the model when the plate is optimally excited with an average of error of 20% and a maximal error obtained of 43%. However, when the plate was not efficiently excited for a mode, the prediction of the numerical data was less accurate. This was not a concern since the numerical model was developed to design and predict optimal excitation of structures for de-icing purpose. This study allowed to develop a numerical model of a simple flat plate and understand optimal phasing of the actuators. The experimental setup designed is used in the next phase of the project to study transient vibration and frequency sweeps. The numerical model is used in the third phase of the project by adding ice layers for investigation of vibration-based de-icing, with the final objective of developing and integrating a piezoelectric actuator de-icing system to a rotorcraft blade structure. View Full-Text
Keywords: Icing; rotorcraft; ice protection system; piezoelectric actuator; vibration; numerical model; experimental testing Icing; rotorcraft; ice protection system; piezoelectric actuator; vibration; numerical model; experimental testing
Show Figures

Figure 1

MDPI and ACS Style

Villeneuve, E.; Volat, C.; Ghinet, S. Numerical and Experimental Investigation of the Design of a Piezoelectric De-Icing System for Small Rotorcraft Part 1/3: Development of a Flat Plate Numerical Model with Experimental Validation. Aerospace 2020, 7, 62.
