Aerospace 2019, 6(12), 127; https://doi.org/10.3390/aerospace6120127

Article
Nano-Sized and Mechanically Activated Composites: Perspectives for Enhanced Mass Burning Rate in Aluminized Solid Fuels for Hybrid Rocket Propulsion
Space Propulsion Laboratory (SPLab), Aerospace Science and Technology Department, Politecnico di Milano, 34, via La Masa, 20156 Milan, Italy
Received: 31 May 2019 / Accepted: 18 November 2019 / Published: 25 November 2019

Abstract

:
This work provides a lab-scale investigation of the ballistics of solid fuel formulations based on hydroxyl-terminated polybutadiene and loaded with Al-based energetic additives. Tested metal-based fillers span from micron- to nano-sized powders and include oxidizer-containing fuel-rich composites. The latter are obtained by chemical and mechanical processes providing reduced diffusion distance between Al and the oxidizing species source. A thorough pre-burning characterization of the additives is performed. The combustion behaviors of the tested formulations are analyzed considering the solid fuel regression rate and the mass burning rate as the main parameters of interest. A non-metallized formulation is taken as baseline for the relative grading of the tested fuels. Instantaneous and time-average regression rate data are determined by an optical time-resolved technique. The ballistic responses of the fuels are analyzed together with high-speed visualizations of the regressing surface. The fuel formulation loaded with 10 wt.% nano-sized aluminum (ALEX-100) shows a mass burning rate enhancement over the baseline of 55% ± 11% for an oxygen mass flux of 325 ± 20 kg/(m2∙s), but this performance increase nearly disappears as combustion proceeds. Captured high-speed images of the regressing surface show the critical issue of aggregation affecting the ALEX-100-loaded formulation and hindering the metal combustion. The oxidizer-containing composite additives promote metal ignition and (partial) burning in the oxidizer-lean region of the reacting boundary layer. Fuels loaded with 10 wt.% fluoropolymer-coated nano-Al show mass burning rate enhancement over the baseline >40% for oxygen mass flux in the range 325 to 155 kg/(m2∙s). The regression rate data of the fuel composition loaded with nano-sized Al-ammonium perchlorate composite show similar results. In these formulations, the oxidizer content in the fuel grain is <2 wt.%, but it plays a key role in performance enhancement thanks to the reduced metal–oxidizer diffusion distance. Formulations loaded with mechanically activated ALEX-100–polytetrafluoroethylene composites show mass burning rate increases up to 140% ± 20% with metal mass fractions of 30%. This performance is achieved with the fluoropolymer mass fraction in the additive of 45%.
Keywords:
nano-sized aluminum; micron-sized aluminum; fluoropolymer; mechanically activated aluminum; coated aluminum; fuel-rich composite powder; aluminum aggregation; aluminum agglomeration; regression rate; mass burning rate

1. Introduction

Hybrid rocket engines (HREs) feature a diffusion-limited combustion process between the atomized liquid (or gaseous) oxidizer and the pyrolyzed/vaporized solid fuel. The turbulent boundary layer combustion is ruled by convective heat transfer, with the rf showing relatively strong dependence on G [1,2,3,4,5]. In the complex boundary layer combustion mechanism, oxidizer-lean conditions are encountered in the region extending from the regressing surface to the flame. Conventional polymer-based solid fuels feature relatively slow rf, in turn yielding low thrust levels with simple grain geometries (i.e., cylindrical grains with single central port perforation). This issue can be partially overcome by multi-port grains enabling increased m ˙ f thanks to the enlarged burning surface area. Such a solution requires complex implementation, with possible system dry mass increases and structural integrity issues [6]. Liquefying fuels show faster regression rates than conventional polymeric formulations thanks to the entrainment of melted fuel droplets [7,8]. On the other hand, liquefying fuels such as paraffin wax feature weak mechanical properties and are unsuitable for effective exploitation in operating systems. Different studies are currently ongoing to obtain reinforced fuel grains combining ballistic and mechanical properties. Paraffin wax blending with reinforcing polymers is a strategy to achieve this purpose [9,10,11,12,13,14]. The improved mechanical properties of the blended formulations are accompanied by increased viscosity of the melted phase; this lessens the entrainment mass transfer, thus decreasing rf and m ˙ f . In spite of differences in the combustion mechanism of polymeric and liquefying fuels, both kinds of formulations can achieve increased ballistic performance thanks to the use of metal-based energetic additives [15,16,17,18,19].
Metal-based energetic additives aim at providing enhanced flame temperatures and/or increased radiation heat transfer to promote faster rf of the solid fuel grain and increased m ˙ f . Moreover, augmented radiation heat transfer reduces the rf(G) dependence, enabling solid fuel ballistic response tailoring [20]. Aluminum is an attractive candidate as an energetic filler, thanks to its oxidation enthalpy [21] and its commercial availability at different dispersity levels (from micron-sized particles to the nanoscale), enabling its use as it is, or as an ingredient for composite additives [22,23,24].
Conventional Al powders feature micron-sized spherical particles [25]. The μAl is typically air-passivated, thus showing a core–shell particle structure with the metal core surrounded by an amorphous Al2O3 layer [26,27,28]. The micrometric size, together with the particle morphology and the specific surface area (SSA) <1 m2/g, yields μAl high metal content (typically >95 wt.%), relatively low reactivity, and inherent safety (i.e., high ignition temperature, reduced dispersion in air, and limited aging influence) [28,29,30,31]. The reactivity of μAl can be enhanced by reducing the particle size down to the nanoscale [32,33,34,35] and by activation processes [23,24,36,37,38,39]. Nano-sized Al is characterized by SSA ~10 m2/g (or higher, depending on the average powder particle size and size distribution). These powders show marked reactivity at temperatures lying below the Al melting point (933 K) [17,34,35,40]. Nano-sized Al is typically passivated by air, although special chemicals may be used to shield the metal from the external environment [34,35,40]. With respect to μAl, air-passivated nAl exhibits reduced CAl and increased sensitivity to storage conditions [28]. Due to the reduced size, the nAl powders feature cold-cohesion phenomena. Clusters of particles exhibit SSA reduction with respect to the single particles. Thus, special manufacturing procedures are typically implemented to disperse nAl in energetic compositions [41,42,43]. Moreover, the use of nano-sized particles is complicated by their effects on propellant/fuel slurry rheology [25,44], and stricter safety requirements than the micron-sized counterpart. Activated Al powders typically feature reactivity tailoring of the starting material by chemical, mechanical, and mechano-chemical methods [22,23,24]. Activation techniques modify the powder surface characteristics (such as SSA and/or composition), and/or the particle morphology, size, and composition [22,23,24,36,37,38,45,46,47,48]. In particular, activation processes enable the creation of composite additives such as dual-metal [38,48] or metal–oxidizer compositions [45,48], offering wide possibilities for additive reactivity tailoring. Focusing on mechanical activation (i.e., ball milling), it is worth noting that the additives produced from micron-sized granules typically feature flake shape. For this particle morphology, thickness is the only nanoscale dimension, while complex surface texture (typically providing increased SSA with respect to conventional μAl) is usually achieved. Thanks to this, these materials offer increased reactivity while reducing the issues related to the difficult handling of nano-sized materials [48]. The creation of composite additives eases the propellant/fuel manufacturing, enabling the use of a single (dual) ingredient, instead of adding/handling different materials.
The presence of metal additives, including Al, implies the possible insurgence of performance losses due to incomplete metal combustion, two-phase flow expansion, and residual accumulation in the combustion chamber/nozzle walls [17,18,19,20,21,22]. All these issues are of particular relevance in HRE combustion due to the diffusion-limited mechanism and the relatively low combustion efficiency of these systems. The mitigation of the low combustion efficiency requires specific implementations such as mixing chambers and/or the design of energetic additives featuring tailored composition and reactivity to lessen the detrimental effects related to metal combustion.
Current open literature includes several experimental studies on the rf behavior of metallized solid fuels for hybrid rocket propulsion [15,16,17,22,49,50,51,52,53,54,55,56]. In these works, differences in additive characterization approaches, experimental operating conditions, and data reduction techniques possibly yield difficult interpretations of the effects of the investigated materials when comparing different studies.
This work investigates the effects of different Al-based energetic additives on the ballistic response of polymer-based fuels for hybrid rocket propulsion. The objectives of this work are (i) evaluating the rf and m ˙ f enhancement offered by innovative Al-based additives, and (ii) analyzing the surface phenomena occurring during the combustion of metallized formulations to link the additive composition effects to the solid fuel ballistic response. Hydroxyl-terminated polybutadiene (HTPB) is considered as a binder in the solid fuel formulations, in light of its suitable mechanical properties [42], making it an interesting candidate for the lab-scale study, as well as for possible applications requiring high volumetric efficiency pursued by high filler loads. The information gained by insight into the burning behavior of polymer-based fuels can provide useful suggestions for the development of energetic additives suitable for paraffin-based fuels reinforced by blending with thermoplastic polymers, in which the entrainment reduction due to the increased melt layer viscosity could be compensated for by using energetic fillers. The investigated additives range from conventional μAl to nAl, and the test matrix includes mechanical-activated powders. The tested nAl powders feature different passivation layers and are either uncoated or coated. Investigated mechanical-activated powders are based on μAl and nAl. Composite powders are fuel-rich formulations including ammonium perchlorate (AP), a copolymer of vinylidene fluoride and hexafluoropropylene (VFHFP) [57], and polytetrafluoroethylene (PTFE) as oxidizers. Composite additives are produced by chemical methods (i.e., particle coating) and mechanical activation. Both approaches aim at reducing the diffusion distances between the AP/fluoropolymer and the metal fuel particles. The composites are formulated to deliver the oxidizing species close to the metal fuel during the combustion. The pursued effects are a prompter Al ignition and combustion in the oxidizer-lean region close to the gasifying fuel surface. The proposed strategy differs from mixed fuel approaches previously presented in the open literature [58,59]. In the current work, the oxidizer is localized in the composite additive, and fluoropolymers are selected as oxidizers due to their relatively high thermal stability joined with reactivity in the presence of metals such as Al. In general, the oxidizer-loaded solid fuels possibly imply a loss of some of the HRE peculiarities such as faint rf dependence on the pc (in turn simplifying throttling operations and granting combustion tolerance to grain cracks), stop–restart capability, and reduced environmental impact. The current work focuses on the combustion behavior of metallized solid fuels, and on the analysis of the surface phenomena involved in this process; therefore, the abovementioned effects are not considered in this study. On the other hand, it is worth noting that the operating flexibility of HREs is not lost in the presence of solid fuel grains embedding oxidizing substances, unless the resulting formulation is burnt above its pressure deflagration limit (PDL). The latter is the lowest pressure a solid propellant/mixed hybrid can exhibit self-sustained combustion at. If a mixed hybrid is burning at pc < PDL, the combustion can be stopped and restarted without differences from what occurs in an equivalent fuel composition with no oxidizer load [59].
The work starts with pre-burning characterization of the investigated materials, and then focuses on the burning behavior of the HTPB-based fuels. The ballistic responses of the fuel formulations are characterized by time-resolved rf and m ˙ f measurements and by high-speed visualizations of the burning surface.
This work aims at providing a detailed view of the combustion process of aluminized fuel formulations. Pre-burning characterization of the metal additives is analyzed together with time-resolved ballistics of the loaded fuels. In the open literature, solid fuel combustion behavior is typically evaluated by time- and space-averaged data reduction techniques based on pre- and post-firing measurements of relevant parameters. The time-resolved technique for rf and m ˙ f tracks the combustion evolution from ignition to the final condition, providing the fuel ballistic response over a range of Gox with a single test. High-speed visualizations of the burning surface phenomena offer detailed insight into the effects of the metal additives on the fuel combustion behavior, and they enable evaluating the impact of aggregation/agglomeration phenomena on the combustion of Al-based additives. These effects are not widely investigated for solid fuel formulations. The combination of ballistic analyses and surface visualizations contributes to clarifying the reasons for some contrasting results observed in the open literature for the combustion of aluminized fuels, in particular when nAl formulations are considered.

2. Background

A background of the current work is hereby presented considering open literature studies focused on (i) the fundamentals of the solid fuel combustion process, (ii) the influence of metal additives on the solid fuel ballistics, and (iii) a discussion of Al aggregation and agglomeration phenomena (with particular emphasis on solid fuel formulations).

2.1. Fundamentals of Solid Fuel Combustion Process

In hybrid rockets, the flame has a diffusive nature, and it is set in the boundary layer generated by the oxidizer flow over the grain surface. Fundamentals of the HRE combustion mechanism were reviewed by Chiaverini [4] and Marquardt and Majdalani [5]. A survey on solid fuel thermal decomposition (a phenomenon playing a central role in HRE combustion) was given by Lengellé [60]. The behavior of non-metallized polymeric fuel formulations is dominated by convective heat transfer, and it is subject to heat transfer blockage due to mass blowing from the surface [1,2,3]. Under these conditions, theoretical modeling of the combustion mechanism yields r f ( G ) =   a r · G n r (or r f ( G o x ) =   a r · G o x n r ), with nr = 0.8 [1,2,3]. Experimental investigations typically yield r f ( G ) power law approximations with nr in the range 0.6 to 0.8 [4]. Radiation heat transfer plays a role as convective phenomena are lessened [4,20,61,62]. The effects of radiation are due to gas radiation (playing a minor role), to soot, and (if present) to radiating metal particles [1,2,3,4,5,20,61,62,63]. Under the influence of radiation heat transfer, rf may exhibit pc dependence [4,20], and the r f ( G ) power law approximation shows nr < 0.8 [1,2,3,4,5,20,61,62,63]. Liquefying fuels show a regression rate dependence on G similar to the polymeric formulations, although their r f exhibits percentage increases of 300–400% with respect to reference HTPB [7,8]. This enhanced performance is achieved thanks to an instability of the melt fuel layer formed at the regressing surface. If this layer features low viscosity and reduced surface tension, its interaction with the oxidizer stream yields the formation of waves from which melt fuel droplets are detached [7,8]. Therefore, in liquefying fuels the overall rf is the sum of the vaporization and of the entrainment contributions. The latter does not affect the convective heat transfer blockage; moreover, the entrained mass flow rate does not require vaporization enthalpy absorption at the regressing surface [7,8]. Current liquefying fuels offer low mechanical properties. Typical mechanical properties reinforcement techniques yield a reduction of the entrainment effect due to the augmented viscosity of the melted fuel layer [10,11,12,13,14,19]. Recent efforts proposed innovative reinforcing strategies exerting minor effects on the liquid phase viscosity such as self-disintegrating structures [64], as well as the use of three-dimensional (3D) printed cellular structures [65,66].
The diffusion-limited combustion of HREs implies low combustion efficiency, thus requiring specific countermeasures such as enhanced oxidizer-fuel vapors mixing in the aft-combustion chamber and/or the use of diaphragms [67], non-conventional oxidizer injection implementations (playing a role in rf enhancement) [68,69,70], and/or design of special engine configurations [71].

2.2. Regression Rate Performance and Metal Additives

For both polymer- and paraffin-based fuel formulations, augmented or tailored, rf performance is typically pursued by loading the fuel grains with energetic additives such as oxidizer, metal, and hydride powders. A comprehensive review of the early steps of this approach was given by Risha et al. in [15]. First studies on the combustion of metal-loaded fuels investigated the effects of micron-sized additives (such as Al and Mg). In these analyses, the achieved rf enhancements were mainly due to the augmented radiation heat transfer caused by the presence of metal particles, the effect on the flame temperature being limited by the high ignition temperatures, and relatively long burning times of these conventional additives [15,20,61,62]. Different analyses showed that μAl exerts no marked influence on the rf by particle sizes in the range of 30 to 250 μm [15,20,61,62]. Thanks to their enhanced reactivity over the micron-sized counterpart, nanometric additives disclose new opportunities for solid fuel performance enhancement. In general, the lower ignition temperatures and the shorter combustion times of nano-sized particles should promote increased rf [15,16,17,18,40,41,50,51,52,53,54], as well as relatively high combustion efficiencies [55]. On the other hand, the open literature shows contrasting results for fuel formulations loaded with nAl. The ballistic responses of HTPB-based fuels doped with different nano-sized ingredients was extensively investigated by Risha et al. [50,51,52]. In these studies, rf variations were observed for different sets of formulations featuring similar compositions [50,51,52]. These effects were probably due to different manufacturing procedures (without/with fuel slurry sonication). Results for HTPB + 13 wt.% nAl (air-passivated, nominal size 100–150 nm, SSA = 13 m2/g), exhibited a rf enhancement over the HTPB baseline of 105% (Gox = 112 kg/(m2∙s)) [52]. In the same dataset, formulations loaded with Viton-A-coated nAl and μAl showed an rf increase (relative to the baseline) of 123% and 142%, respectively [52]. Experimental evidences suggest an easier ignition and a more complete combustion of the fluoropolymer coated powder with respect to the other tested additives. The data presented in References [55,56] show moderate (if any) rf enhancement for nAl-loaded formulations. In the work of Thomas et al. [56], the absence of marked effects of the nAl on the solid fuel ballistic response of HTPB-based fuels was probably due to the limited additive mass fraction (5 wt.%). In a recent study, Connell et al. reported a maximum rf increase of 20% over a non-metallized baseline for HTPB + 10 wt.% nAl [72]. In the same study, results on innovative Ti–Al–B nanopowders were presented. These new additives showed rf effects similar to the aforementioned nAl, but with a reduced Gox sensitivity [72]. The ballistic response of a paraffin-based fuel formulation loaded with micron-sized Al flakes (with nano-metric thickness) was presented in Reference [18]. The metallized fuel promoted an rf enhancement over a pure paraffin formulation, although slight differences in operating conditions prevented a precise relative grading. Galfetti et al. reported significant performance benefits achieved by the use of nAl (nominal sizes of 50 nm and 100 nm) in entrainment-producing fuels tested in a lab-scale slab burner [19]. The solid fuel rf increase over an HTPB baseline was 186% for pure solid wax fuel, while it reached 210% for nAl-doped compositions.
Fuel formulations loaded with AP produce rf increases over an HTPB-baseline up to 300% for a solid oxidizer mass fraction of 25 wt.% [59]. Reference [73] discussed the characteristics and the performance of a solid fuel formulation with 80 wt.% PTFE + 20 wt.% B that is considered for specific hybrid propulsion applications.
Mechanical, chemical, and mechano-chemical activation processes offer breakthrough opportunities for the development of new energetic composites [22,23,24,36,37,38,39,45,46,47,48]. The use of mechanical and mechano-chemical activation processes enables coupling ingredients featuring relatively low compatibility [24,45]. Detailed discussions on the design strategy for mechanically activated powders were presented in Reference [24]. Micron-sized Al-rich composites containing PTFE and produced by mechanical activation were presented in Reference [74]. In the analysis, a paraffin and ethylene-vinyl acetate blend was loaded with an Al + PTFE composite and featured a 300% rf increase over the non-metallized counterpart.

2.3. Aluminized Solid Fuel Formulations: Aggregation and Agglomeration

Aluminum combustion under solid/hybrid rocket motor conditions implies the presence of condensed combustion products (CCPs) [75,76,77,78]. Condensed products feature different compositions, morphologies, and sizes, depending on their genesis conditions (i.e., solid propellant/fuel composition details and operating conditions). Following the nomenclature introduced in Reference [77], CCPs include (i) smoke-oxide particles (SOP), and (ii) agglomerates. The SOP consist of fine particles (<1 μm) formed by condensation of gaseous reaction products and combustion of non-agglomerated particles [77]. Agglomerates are composed by Al and Al2O3 (with the eventual presence of binder decomposition products). Agglomerates feature enlarged size with respect to the original Al powder particles loaded in the solid propellant/fuel grain. This size growth is caused by aggregation of single particles at the burning propellant surface/subsurface, and by the coalescence of agglomerates (possibly followed by particle breakup during expansion) [79]. A larger agglomerate particle size and mass fraction results in higher performance losses due to incomplete combustion and two-phase flow [17]. Experimental and numerical studies on the Al combustion in solid propellant formulations were discussed in References [75,76,77,78,79,80,81,82,83].
The burning behavior of HTPB-based formulations doped with high mass fractions of μAl was presented in Reference [61]. In this study by Strand et al., 7 kg/(m2∙s) ≤ Gox ≤ 35 kg/(m2∙s), and the investigated fuel featured 30 wt.% Al powder and 30 wt.% coal (added to the formulation to segregate the metal particles). Experimental results showed a layered combustion. The formation of an HTPB–coal melt containing Al was observed. Filigrees/flakes protruded from the regressing surface to the reaction zone, and large-size particles (~1 mm) were ejected by the regressing surface. During motor firings on different lab-scale set-ups, Risha et al. noted different rf performance from similar aluminized formulations loaded with Al flakes with nanometric thickness [15]. SEM images of extinguished fuel grains showed the more abundant Al melt layer accumulation at the regressing surface of the larger motor and causing the lower rf. Observation of aggregation and incipient agglomeration of μAl- and nAl-loaded fuels and mixed hybrid compositions were reported in References [17,84] where high-speed and high-magnification visualizations were performed. The captured high-speed images showed localized particle aggregation phenomena affecting the investigated fuels that were tested under low Gox (10 kg/(m2∙s)) with the use of 60 wt.% O2 + 40 wt.% N2 as oxidizer.

3. Investigated Materials

3.1. Aluminum and Al-Based Powders

An overview of the tested Al powders and Al-based composites is reported in Table 1. A conventional micron-sized Al (μAl15) was taken as the reference for relative grading of the additives. Two different families of Al-based energetic materials are presented: (a) nAl passivated by different methods and without/with coating, and (b) mechanically activated metal powders and fuel-rich composites based on both μAl and nAl. AP, VFHFP, and PTFE were included in nano- and/or micron-sized fuel-rich composites. Composite powders exploited the oxidizing species release from the oxidizer/fluoropolymer decomposition to trigger metal ignition and to provide (partial) metal oxidation in the fuel-rich conditions encountered close to the solid grain regressing surface. Table 2 provides the relative grading of Tfl for Al composites (heat of formation for VFHFP and PTFE from References [85,86,87], respectively). The Al + AP combustion at 1.0 MPa for oxidizer content ≥15 wt.% yielded a Tfl exceeding the melting point of Al2O3 (~2300 K). The VFHFP offered reduced calculated flame temperature with respect to PTFE due to the lower F content (66 wt.% vs. 76 wt.%) [57,87]. Focusing on the oxidizer densities, PTFE featured the highest value. This characteristic is of interest for the design of composites with high densities for enhanced m ˙ f .
Air-passivated ALEX powders with nominal sizes of 100 nm and 50 nm were considered in the study. The nominal coating mass fraction was 10% for all the coated powders but AP15-ALEX-100B (see Table 1). Production details for the starting nAl powders and for the variants coated by stearic acid and fluoropolymer are reported elsewhere [40]. The AP15-ALEX-100B was produced by dispersing nAl in an acetone solution of AP. The ingredients were mixed during ultrasound irradiation of the bath. Solvent was gradually removed by evaporation at 318 K. Powders were dried for 72 h in an oven at 333 K before grinding. Activated powders were produced by low-energy (LE) and high-energy (HE) mechanical activation (MA) processes, both developed at SPLab. Details on the former process are provided in dedicated works [24,48], while the latter procedure is undergoing patenting. Mechanical activation enables the coupling of different materials, removing some of the limitations of other techniques, such as the chemical compatibility required for efficient coating.

3.2. Tested Formulations

Tested fuel formulations are reported in Table 3. Relative ballistic grading was performed considering a non-metallized HTPB baseline (for formulation details, see Reference [63]). The investigated compositions were all produced at lab-scale level. Formulations F2 to F7 featured a 10 wt.% load of Al powders, and they were produced by a special manufacturing procedure aiming at inter-particle cold-cohesion mitigation (i.e., ultrasound irradiation [41,42,43]). The solid fuel compositions from F8 to F14 featured the same metal molar content as F2, and they were prepared without special procedures for the additive dispersion in the matrix. The effects of the addition to the HTPB binder of PTFE and of (separated) Al and PTFE powders were investigated using F15 and F16. High-energy mechanical milling was used to produce the additives tested in the fuel formulations with the highest metal mass fractions (F17 to F19), which were designed to explore the possibility of significantly augmented m ˙ f using high loads of Al-based composites with PTFE. Fuels F16 to F18 were formulated granting the same HTPB to PTFE ratio as the F15. Actual fuel densities were evaluated by a high-precision balance measuring sample dry weight and buoyancy. For all the tested fuel formulations, the difference between the actual density and the theoretical maximum density (TMD) was lower than 3%.

4. Experimental Methods

4.1. Aluminum and Aluminum-Based Additives Pre-Burning Characterization

The pre-burning characterization of the metal additives included particle size distribution (PSD) by laser diffraction (Malvern Mastersizer 2000 with dry/liquid dispersion unit for micron- and nano-sized particles, respectively), SSA determination by N2 adsorption/desorption, scanning electron microscopy (SEM), transmission electron microscopy (TEM), and transmission energy dispersion (TED) imaging. The CAl of the powders was determined by Al + H2O reaction in a basic solution (10 wt.% NaOH) The reactivity of the powders was investigated by slow heating rate thermogravimetry (TG). The TG relative grading of the additives was performed in air, at 10 K/min, considering the reactivity parameters identified by Ilyin et al. [34]. The reactivity data evaluated on the TG trace are illustrated in Figure 1. The Al → Al2O3 conversion factor was evaluated as follows:
α ( T ) = Δ m ( T ) 0.89 C A l .

4.2. Burning Behavior Investigation

4.2.1. Lab-Scale Two-Dimensional (2D) Radial Micro-Burner

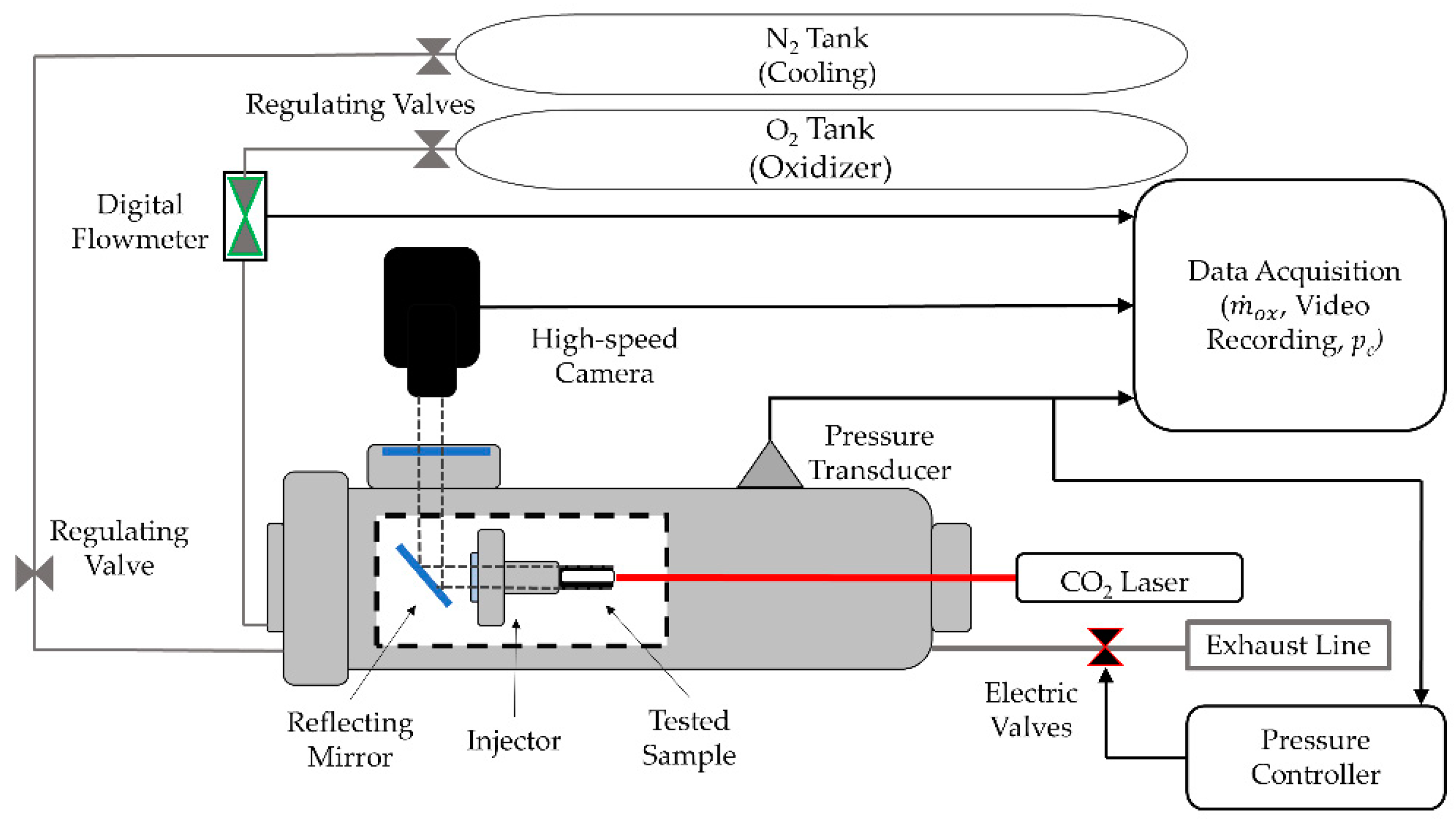

The SPLab research team designed and developed a 2D radial burner for the relative ballistic grading of solid fuel formulations at the lab-scale level. Cylindrical-shaped fuel grains with a length of 30 mm, outer case diameter of 20 mm, and central port diameter (D0) of 4 mm are typically tested. The SPLab facility features peculiar characteristics such as the visualization of the burning specimen head-end, and a quasi-steady pc during the combustion [63]. In the 2D radial burner, the pc(t) is monitored by a piezo-resistive pressure transducer and controlled by a pressure regulator commanding exhaust electro-valves. These servo-actuators are opened/closed depending on the sensed pressure difference between actual and threshold values. The latter was selected for the test (and it could be easily changed between different runs, if needed). The m ˙ o x ( t ) was monitored and controlled by a digital flowmeter. The m ˙ o x ( t ) and the pc(t) could be controlled independently. Oxidizer injection was performed by standard (non-swirled) flow. Tested strand ignition was achieved by a primer charge whose combustion was initiated by a laser beam impinging on it. A scheme of the experimental set-up is shown in Figure 2, while its peculiarities were discussed elsewhere [63]. In the current study, gaseous oxygen (GOX) was taken as the oxidizer, and combustion tests were performed with m ˙ o x of 5 g/s and 6 g/s (the two operating conditions were identified as A and B, respectively), with pc = 1.0 MPa.

4.2.2. Time-Resolved Regression Rate

An optical, time-resolved technique for rf measurement was developed and validated at SPLab [16,53,63]. The time-resolved rf was evaluated by central port diameter sampling during the combustion (see Figure 3). Regression surface tracking started from the frame when the head-end central port diameter became visible (after primer charge ignition). Data sampling extended until the end of the combustion (depending on visualization quality). Diameter sampling was performed with the maximum possible frequency (5–20 Hz under the investigated conditions, with higher frequencies in the earlier phases of the burning process). During the combustion, central port diameter was sampled along different radial directions (depending on combustion uniformity). The local diameters were averaged to provide D ¯ i . This diameter was considered uniform for the whole specimen length. The D ¯ i ( t i ) was a discrete information in time, which was successively fitted to achieve a continuous D ¯ ( t ) , as shown in Equation (2).
D ¯ ( t ) D 0 = a D ( t t 0 ) n D ,   t t i g n > t 0 = 0 .
In time-resolved techniques, the function describing the diameter evolution in time was valid starting from tign. The latter parameter was ad hoc defined as the one enabling the maximization of the data fitting (R2) of the D ¯ ( t ) D 0 based on aD and nD (Equation (2)). In the implemented technique, the tign values were in agreement with convective ignition time estimated by open literature models, as discussed in References [53,63]. The ballistic data of a fuel formulation tested under the selected conditions were determined starting from Equation (2) [63]. The time derivative of the D ¯ ( t ) D 0 provided the rf(t), while the Gox(t) could be determined from the diameter history once the operating condition (and, in particular, m ˙ o x ) was defined [63]. The rf(Gox) history in time was approximated by a power law as follows:
r f ( G o x ) = a r G o x n r ( t ) ,   t t i g n > t 0 .
The rf(t) and the D ¯ ( t ) were used to evaluate the mass burning rate.
m ˙ f ( t ) = ρ f [ π D ¯ ( t ) L f ] r f ( t ) ,   t t i g n > t 0 .
Time-resolved data could be used to determine the time-averaged ballistics of the investigated formulation [63]. In particular, the time-averaged values of the r f and of the G o x were evaluated as follows:
r f ( t ) = 1 t t i g n t i g n t r f ( t ) d t ,   t e n d t t i g n > t 0 .
G o x ( t ) = 1 t t i g n t i g n t G o x ( t ) d t ,   t e n d t t i g n > t 0 .
As extensively discussed in References [16,63], Equations (5) and (6) can be used to compare the overall time-averaged data derived from Equation (2) to thickness over time (TOT) results of a test. The typical experimental output obtained by this data reduction technique is shown in Figure 4, where time-resolved instantaneous and time-averaged data for a HTPB-GOX run are reported and compared with the corresponding TOT-based r f and Gox, which were defined as follows:
r f T O T =   1 2 D ¯ ( t e n d ) D ¯ ( t i g n ) t e n d t i g n ,   t e n d > t i g n > t 0 .
G o x T O T = 4   m ˙ o x π [ D ¯ ( t e n d ) + D ¯ ( t i g n ) 2 ] 2 ,   t e n d > t i g n > t 0
Equations (5) and (6) and the TOT data typically show percent differences of less than 5% (see References [16,63] for details). Under the investigated conditions, the time-averaged and the instantaneous data featured minor differences at a given oxidizer mass flux (see Figure 4).
For a given experimental condition ( D 0 ,   m ˙ o x , and pc), single tests for the same fuel formulation yielded the definition of ensemble average curves, enabling the relative grading of the different compositions [16,63]. Ensemble average curves were completed by error bars considering the data dispersion of the performed combustion tests. Single-test diameter histories resulting from the application of Equation (2) were fitted together in the ensemble curve of the same kind. The resulting D ¯ ( t ) D 0 was then used to determine the relevant ballistic parameters. Thus, following the same logical steps performed on a single test, rf(Gox) and m ˙ f ( G o x ) could be evaluated. The uncertainties on the ensemble average curve were evaluated by considering confidence intervals with 95% accuracy. A minimum of three tests were considered for error bar definition.

4.2.3. Lab-Scale Micro-Slab Motor

Combustion surface visualizations were performed in a windowed micro-slab burner [17,84]. The implemented set-up featured the same general layout as the radial burner shown in Figure 2. Burning fuel strand images were captured by side-window. Recorded images showed the solid fuel slab and the flame zone. A typical combustion frame is shown in Figure 5. The burning strands had a length of 15 mm and a square cross section of 3 × 3 mm. The ignition of the samples was achieved by a non-aluminized propellant primer charge (in turn ignited by a hot wire). The facility enabled the exploration of different pc by changing the throat area of the implemented nozzle. The burning surface visualization runs were intended to provide qualitative insight into the phenomena involved in the combustion of metallized fuel formulations, while no detailed quantitative information could be captured by these tests. The visualizations were performed in GOX, with pc = 0.4 MPa, and 145 kg/(m2∙s) ≤ Gox ≤ 160 kg/(m2∙s). The frame rate of the captured videos was in the range 5000–10,000 frames per second (fps), depending on the investigated fuel rf and observable phenomena.

5. Experimental Results and Discussion

5.1. Additives Pre-Burning Characterization

The PSD, SSA, and CAl data for the tested additives are reported in Table 4. Selected SEM and TED images of the additives are shown in Figure 6. Slow heating rate reactivity parameters from the TG tests are reported in the Table 5. In this work, the implemented LE and HE activation procedures aimed at reducing the diffusion distance between the PTFE and the Al. When considering metal-loaded fuel formulations for hybrid rocket applications, the pursued effects of additives are increased rf and m ˙ f . The achievement of enhanced ballistic performance requires materials with fast reactivity, while additive metal content exerts limited effects on performance (particularly when O2 is used as oxidizer) [25].

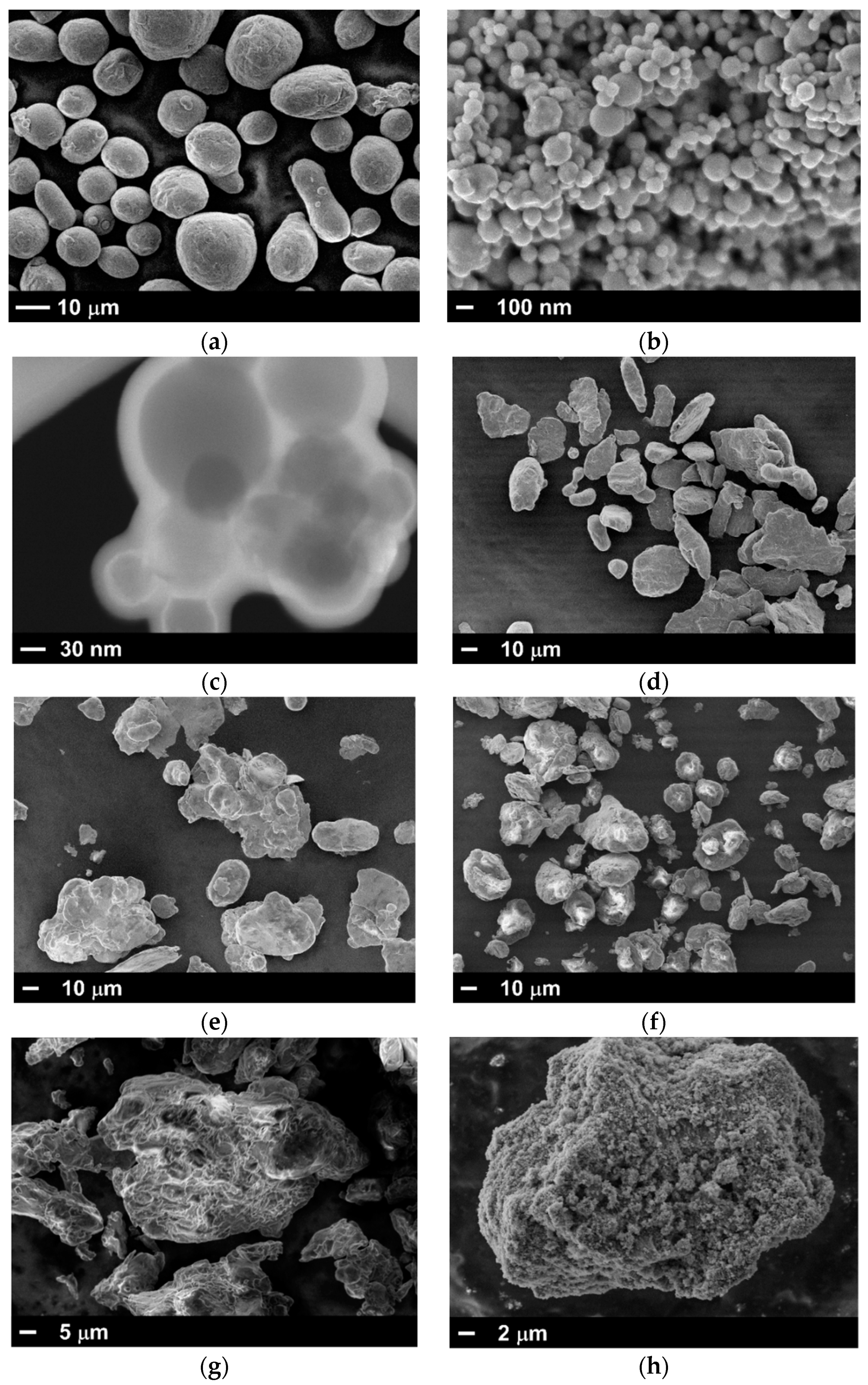

The μAl15 featured spherical/spheroid particles, with (apparent) smooth texture (see Figure 6a). The PSD data reported in Table 4 show a monomodal distribution of the measured diameters. The powder showed a limited reactivity under slow heating rates (α (933 K) = 1.1%, α (1273 K) = 8%) due to the low SSA. The μAl7.5 featured a small volumetric fraction of sub-micrometric particles (~2%), as testified by the low D(0.1) reported in Table 4. The TG reactivity of the powder was similar to the one of the coarser counterpart (see Table 5). In spite of the SSA difference (see Table 4), ALEX-100 and ALEX-50 exhibited similar Ton,1. ALEX-50 showed the highest α (933 K) and α (1273 K) in the dataset. The pyrocatechol-coated powder showed no marked SSA and reactivity differences with respect to the ALEX-100 (see Table 4 and Table 5). This was due to the reduced coating mass fraction (0.2 wt.%), limiting coating-related effects such as particle clustering. Other coated powders featured higher SSA reduction (i.e., particle size increase) due to coating gluing of originally separated particles and because of cluster coverage by coating deposition. The AP15-ALEX-100B showed micron-sized particles that were clusters of the original ALEX-100B glued and (at least partially) covered by AP. Fluoropolymer coating reduced the reactivity of the powders at slow heating rates, yielding increased Ton,1 and lowered α (1273 K). This was probably induced by carbonaceous residuals from coating degradation that partially shielded the particles from oxidation. The effect was lowered for VF-ALEX-50E, which was prepared from a powder featuring higher reactivity than the 100-nm counterpart. In spite of the composition differences between the hydrocarbon coating and the AP composite, AP15-ALEX-100B and the L-ALEX-100 showed nearly the same reactivity as the original powders, due to the degradation behavior of their surface layers featuring vaporization/sublimation for temperatures <670 K.
The non-isothermal oxidation of LE-μAl15 showed an anticipated Ton,1 and higher α (933 K) and α (1273 K) than the original micron-sized powder. Activated powders derived from μAl15 showed irregular shape and texture (Figure 6e,f). PTFE friction and wearing properties were the likely explanation for the size reduction of these powders with respect to LE-μAl15 (see Table 4) [88]. The PTFE-based composites showed CAl decrease with respect to μAl15. The metal content reduction was 9% ± 1% for LE-μAl15-T10 and 31% ± 1% for LE-μAl15-T30 and LE-μAl7.5-T30. The Δm0 data of Table 5 show a general agreement with these values, thus confirming the quality of the produced powders. All the LE-activated powders featured SSA <1 m2/g. The SEM images of LE-μAl15 showed flake particles with limited surface roughness, and the presence of some spheroid particles due to the low-energy process (Figure 6d). The laser diffraction measurement showed an increase in the particle size (see Table 4). The PSD data were evaluated considering spherical and smooth-texture particles (Malvern Mastersizer 2000 data reduction algorithm); thus, considering the flake morphology of mechanically activated particles (Figure 6d–h) achieved results should be considered for the relative grading of milled particles only. LE-μAl15 showed a reduced CAl with respect to μAl15 due to the crack-healing of the alumina shell during the activation process. The activation volume was filled with air; thus, the Al2O3 shell ruptures induced by the mechanical stresses yielded Al core exposure and oxidation with consequent CAl reduction. The oxidation onset of the LE PTFE-containing composites occurred at higher temperatures with respect to μAl15 and LE-Al15. Under the investigated conditions, LE-μAl7.5-T30 was the LE-activated composite featuring the highest α (T). This result was probably due to the reduced particle size of the initial powder, in turn yielding a final product with reduced D43 and D0.5 with respect to other μAl15-based composites. Both HE-activated composites featured increased SSA with respect to the LE-activated powders, as shown in Table 4. HE-μAl15-T45 showed particles with rough texture and irregular shape (see Figure 6g). The HE-ALEX-50-T45 SSA reduction with respect to the original ALEX was due to the creation of nAl + PTFE granules with a complex structure but increased size (see Figure 6h). Data for Al → Al2O3 conversion of the two powders showed α (1273 K) = 27.5% for the μAl15-based composite, and α (1223 K) = 61.0% for HE-ALEX-50-T45.

5.2. Burning Behavior

5.2.1. Time-Resolved Regression Rate

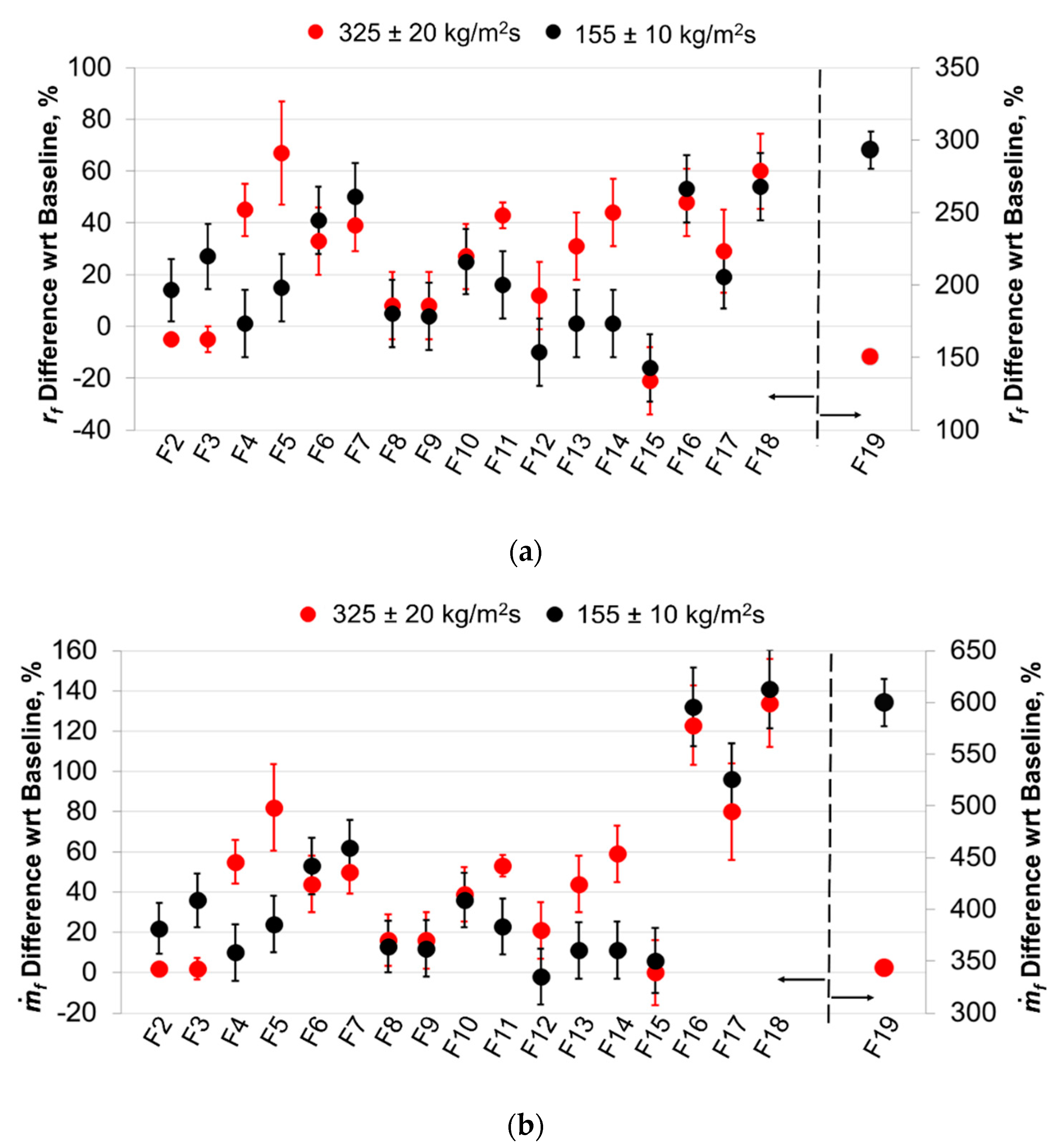

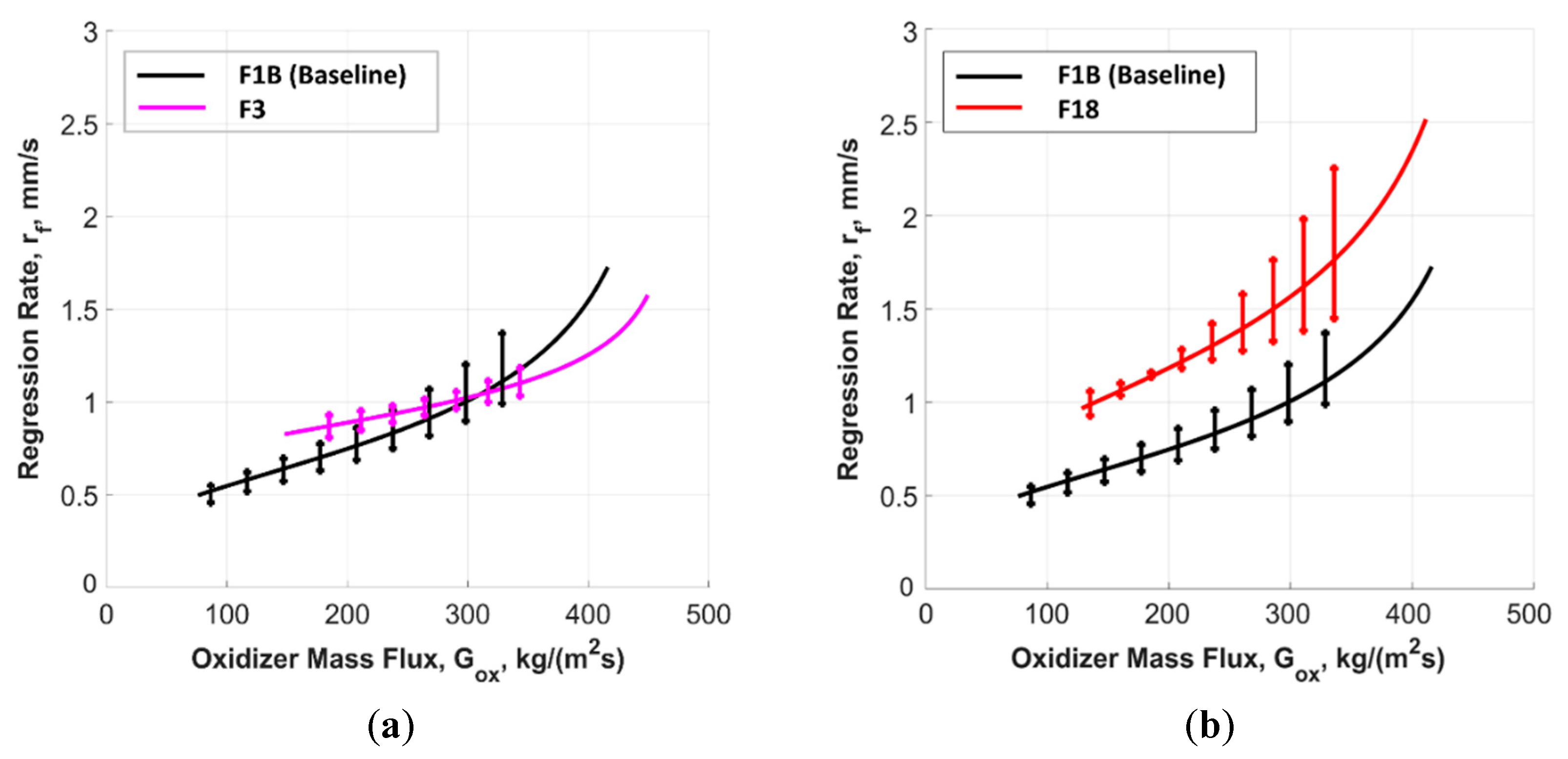

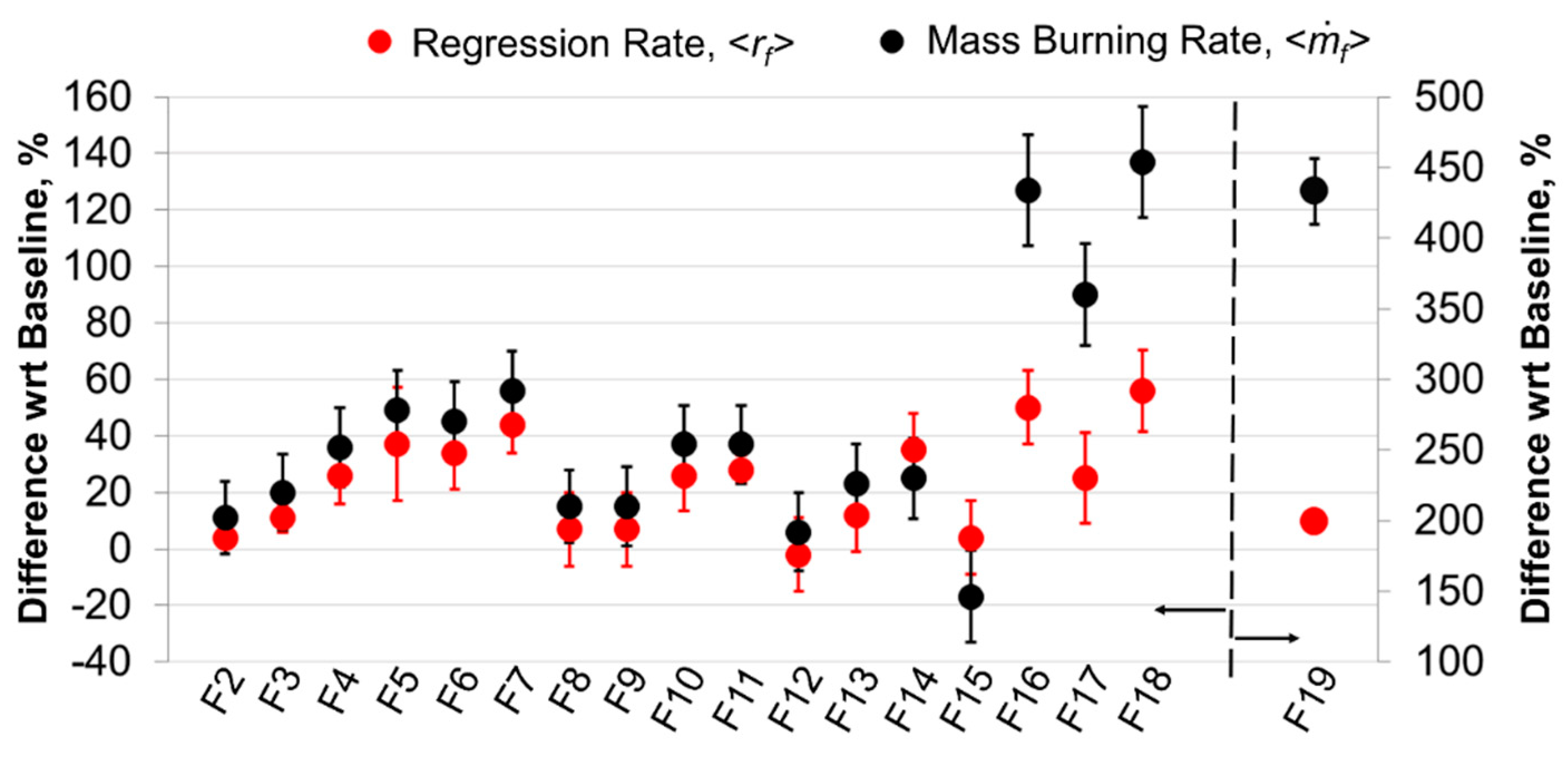

Relative ballistic grading results are reported in Figure 7 and Figure 8 and Table 6. All the ballistic data were defined by ensemble average curves summarizing, at least four tests per formulation. All the fuels but F3, F8–F10, and F15–F19 were tested with m ˙ o x . = 5 g/s; thus, their performance was evaluated taking F1A as baseline. For the tests with m ˙ o x = 6 g/s, F1B was considered as the reference for the relative grading. Data reported in Table 6 feature relatively low R2 due to the typical trend captured by time-resolved approaches, as originally reported by Evans et al. [18] (see Figure 4b,c). The time-averaged data of Figure 8 were evaluated using Equations (5) and (6) at G o x = (250 ± 15) kg/(m2∙s). The latter value was selected since it was common to all the tested formulations.
In spite of the (minor) differences in the operating conditions, solid fuel formulations loaded with μAl (F2 and F3) featured similar ballistic responses (see Figure 7 and Figure 8). The rf(Gox) of F3 is shown in Figure 9a. Fuels loaded with μAl exhibited no significant performance enhancement over the baseline for Gox > 200 kg/(m2∙s). This reflected the relatively low TG reactivity of these additives (see Table 5), yielding limited heat transfer enhancement for high oxidizer mass fluxes (long burning/reaction time). Faint rf and m ˙ f increases were achieved for Gox = 155 kg/(m2∙s), thanks to the radiation heat transfer that mitigated the effects of convective heat transfer decrease (as testified by the nr ~0.5 in Table 6).
The F4 showed marked rf and m ˙ f increases over the baseline for relatively high Gox (see Figure 7). This performance was quickly lost as the convection decreased, as testified by the rf(Gox) power law approximation reported in Table 6, and by the low Gox data of Figure 7. The time-averaged data of Figure 8 captured this effect, as testified by r f = 26% ± 10%, in turn yielding m ˙ f = 36% ± 14%. In the high-Gox region, the augmented flame temperature obtained thanks to ALEX-100 combustion increased the convective heat transfer, and the emitting particles enhanced the radiation contribution. Figure 10 shows images captured during F4 combustion. In the earlier phases of the combustion, small and bright slivers detached from the regressing surface and from the strand head-end (Figure 10a,b). As the burning proceeded (Figure 10c,d), the formation of a surface crust layer was observed at the head-end (but likely also on the regressing surface). The creation of this surface layer was not observed in μAl-loaded fuels (see Figure 3). A more detailed discussion of this phenomenon is given in Section 5.2, where Al aggregation/agglomeration phenomena are discussed.
Interestingly, the nAl-loaded formulation manufactured without additive dispersion techniques (F8) showed no performance enhancement over the corresponding baseline probably due to the metal particle clustering inhibiting Al combustion (see Figure 7 and Figure 8). The F5 showed rf performance and Gox sensitivity similar to F4, as testified by the data reported in Figure 7 (note the relatively high error bars for Gox = 325 kg/(m2∙s)) and Table 6. The stearic acid coating exerted no marked influence on the powder characteristics (Table 4) and reactivity (Table 5); this surface treatment was implemented mainly for storage purposes. The solid fuel formulations F6 and F7 exhibited a limited rf dependence on Gox (see Table 6), while providing interesting instantaneous and time-averaged m ˙ f . In particular, these formulations featured a nearly uniform m ˙ f enhancement over the baseline for the whole investigated Gox range. This suggests that, at high heating rates, the metal reaction with fluoropolymer decomposition products may enhance the metal combustion performance close to/at the regressing surface in both high- and low-Gox regimes. Such an effect was not observed at slow heating rate (see Table 5). Data reported in Figure 7 showed that, for Gox = 155 kg/(m2∙s), the average m ˙ f increase over the baseline of F6 and F7 were 53% ± 14% and 62% ± 14%, respectively, with marked differences with respect to the ALEX-loaded fuel.
The ballistic responses of fuel formulations loaded with VF-ALEX showed similarities with the burning behavior of F10. The AP-ALEX-100B-loaded formulation featured an average m ˙ f increase over the baseline of ~37% over the whole investigated Gox range (see Figure 7). The AP content in the solid fuel was ~2 wt.%; however, locating it in the composite powder enabled a maximization of the oxidizer impact formulation ballistic response. This was testified by the fact that F9 (same nominal composition of F10, but with AP and nAl that were added separately) showed no significant performance enhancement over the baseline (see Figure 7 and Figure 8). The performance difference between F10 and the VF-ALEX-100-loaded fuel was partially due to the higher SSA and reduced particle size of the latter, promoting the additive reactivity at fast heating rates and compensating for the higher flame temperature of Al + AP (see Table 2).
Data for F11 burning with Gox = 325 kg/(m2∙s) showed that the m ˙ f enhancement of μAl15 was improved by the LE mechanical activation (see Figure 7 and Figure 8). Similarly to F4, F11 showed reduced rf and m ˙ f performance as Gox decreased. The TG analyses suggested a slightly improved reactivity of LE-μAl15 with respect to the starting μAl (see α (933 K) and α (1273 K) in Table 5), although the SSA of the powders featured no significant differences. The morphology of LE-μAl15 was the likely reason for the augmented reactivity of the powder at the high heating rates encountered in the combustion process. In addition to this, the irregular shape of particles of LE-μAl15 may augment the gasifying surface roughness when protruding from the regressing fuel grain. As an effect, the increased surface roughness may have played a minor role in the rf enhancement of F11.
The ballistic effects of the fuels loaded with Al + PTFE composites obtained from LE mechanical activation showed no differences for Gox = 155 kg/(m2∙s). On the other hand, for Gox = 325 kg/(m2∙s), the ballistic response of F14 exhibited a rf increase over the baseline of 44% ± 13%. This corresponded to an m ˙ f enhancement of 59% ± 15%. In Figure 7, the uncertainty interval of F14 data at high Gox partially overlapped those of F12 and F13. In spite of this, it should be noted that the average rf and m ˙ f increases over the baseline of the fuels loaded with PTFE–μAl composites from LE activation showed higher values as the fluoropolymer content was risen and the particle size of the starting Al was reduced (see Table 4 and Table 5 and Figure 7). Under the investigated conditions, the presence of a particle fraction of sub-micrometric size probably played a key role in the effectiveness of the activation process of μAl7.5, compensating for the lubricant effect of the PTFE.
The use of an HE process enabled the production of Al + PTFE composites by more intense activation stresses. These, in turn, permitted higher fluoropolymer mass fractions in the composites than the LE procedure. Under the investigated conditions, the solid fuels loaded with additives produced by HE mechanical activation featured the highest m ˙ f performance enhancements (see Figure 7 and Figure 8). F15 showed no significant m ˙ f enhancement over the baseline, since the exploitation of PTFE as the oxidizer required the presence of additional metal ingredients (acting as fluorine scavengers [10,24,87]). Formulations in which the Al–PTFE reaction was exploited showed enhanced ballistic performance over non-loaded HTPB in terms of both rf and m ˙ f . For F17, rf enhancements were mainly observed for Gox < 250 kg/(m2∙s), due to a relatively low impact of the Al + PTFE reaction on the metal combustion under intense convection. This was possibly related to the slow heating rate behavior of HE-μAl15-T45 (see Table 5). This powder showed a relatively low α (1273 K), and a higher Ton,1 with respect to LE-μAl7.5-T30 and nano-sized additives featuring strong rf increases at high Gox. The F16 and F18 formulations featured the same composition, although the former was loaded with mixed ALEX-50 + PTFE (separated and not mechanically activated powders), while the second was loaded with HE-ALEX-50-T45. The ballistic response of F18 was similar to that of F16, as reported in Figure 7. Both formulations featured strong data dispersion in the early phases of the combustion, with ensemble uncertainty intervals close to those of the baseline formulation. For this reason, in Figure 7, the data for rf and m ˙ f increases of F18 at 325 ± 20 kg/(m2∙s) are presented without error bars. As combustion proceeded, data scattering was reduced, and F18 showed percentage rf enhancements over the baseline of 54% ± 13% at 155 ± 10 kg/(m2∙s). Under these operating conditions, the uncertainties in the performance enhancement were as for the other formulations, showing interesting performance with an m ˙ f increase over the baseline of 141% ± 20% (see Figure 7). F16 and F18 showed similar ballistic responses. This was partially due to the high PTFE and nAl loads providing good fluoropolymer and metal dispersion (fuel slurry was treated by ultrasound irradiation, thus mitigating metal particle clustering). Thus, the relative grading was performed in conditions favoring F16. In addition to this, three points should be highlighted to understand the advantages offered by F18: (i) the implemented HE activation procedure parameters used in this study aimed at a simple diffusion distance reduction between Al and PTFE, without pursuing further reactivity increases, (ii) the preparation of this fuel formulation proceeded in a simpler way than that of F16 since the micron-sized HE-ALEX-50-T45 was added to the formulation as a single ingredient that did not require ultrasound irradiation for effective dispersion and reduced the fuel formulation viscosity (see PSD and SSA data in Table 4), and (iii) the use of a micron-sized composite based on nAl reduced the risks of particle suspension in air due to the use of a nano-sized ingredient. In spite of the high metal load, neither F16 nor F18 showed evidence of regressing surface phenomena inhibiting the nAl combustion. F19 showed a ballistic response that was not dependent on Gox, while, for the other PTFE-loaded formulations, the rf(Gox) power law approximations yielded nr ~0.8 (see Table 6). Thanks to this, the m ˙ f enhancement over the baseline of F19 exceeded 600% for Gox = 155 kg/(m2∙s). These interesting results show the possibilities offered by fuel-rich composite additives, although the optimization of their performance requires future investigations to evaluate the impact of the high Al + PTFE mass fraction on the nature of the formulation combustion behavior and, in particular, on its PDL.

5.2.2. Combustion Surface Visualization

Combustion surface visualizations were performed on selected fuel formulations (F1, F3, F4, F8, F17, F18, and F19). The F1 was tested to provide details on the non-metallized baseline behavior, while the surface behavior of F3 provided insight into the solid fuel surface phenomena in the presence of the standard μAl. A comparative analysis of F4 and F8 enabled a comparison of the burning behavior of nAl-loaded fuels with and without sonication for additive dispersion. The PTFE-containing formulations F17, F18, and F19 were tested to evaluate the surface phenomena characterizing the fuels featuring the highest metal powder load and ballistic performance.

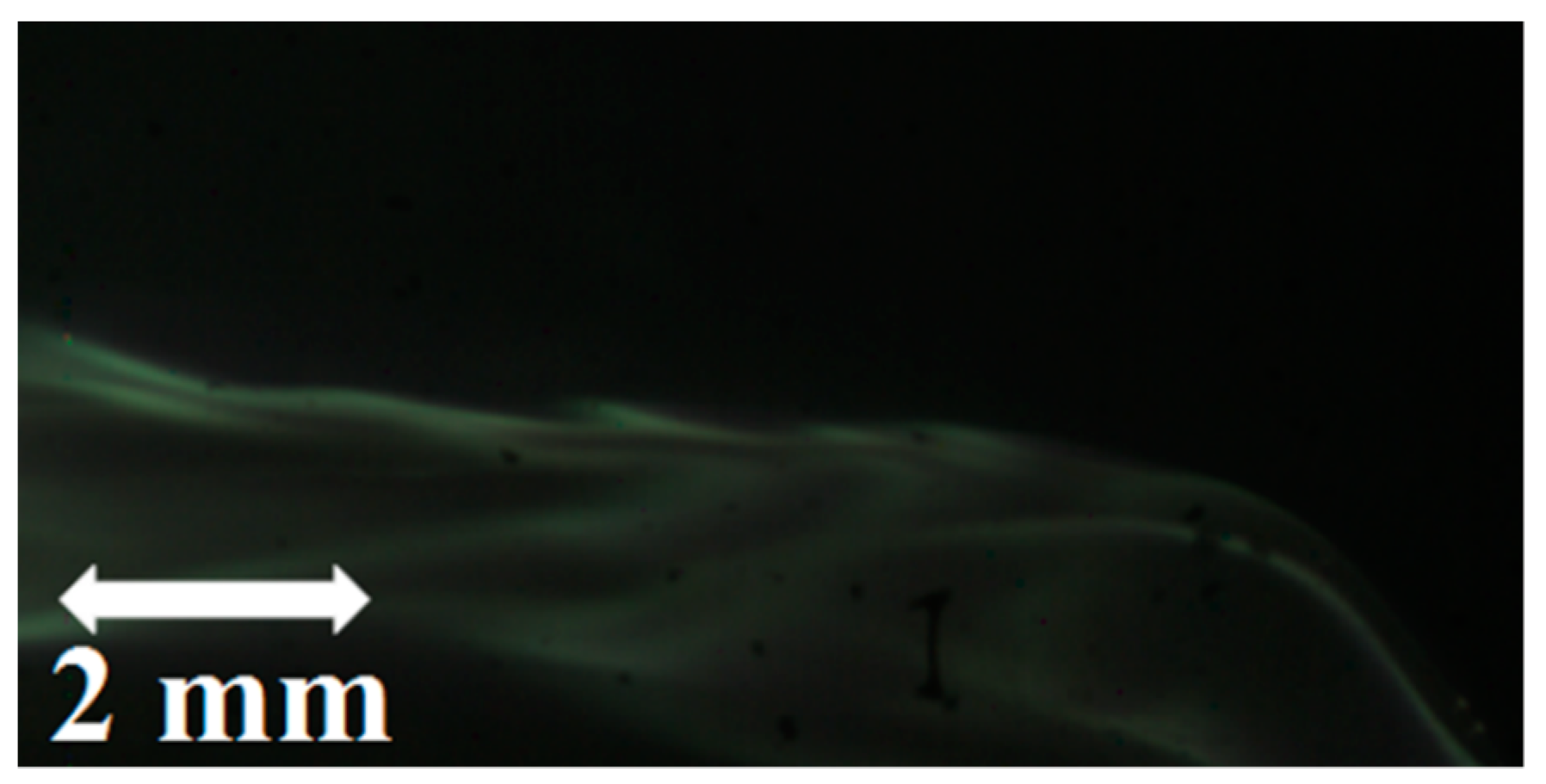

Figure 5 shows a representative frame for the combustion of F1. The burning proceeded uniformly along the visible sample length. High-speed visualization of the HTPB binder burning with 100 kg/(m2∙s) ≤ Gox ≤ 400 kg/(m2∙s) revealed the detachment of small fragments from the fuel grain [63]. This phenomenon was not observed under the investigated conditions. The image sequences reported in Figure 11 and in Figure 12 show the combustion of F3 and F4, respectively. The fuel loaded by the micron-sized additive featured a combustion surface similar to that of F1, but with the detachment of small elements of intense brightness (see Figure 11). These were Al particles or agglomerates released by the burning surface. The composition of these elements included Al, Al2O3, and (probably) binder decomposition products. The image sequence of Figure 11e–g shows the protrusion from the regressing surface of an apparently non-ignited spherical aggregate (apparent size of ~200 μm). The latter was then inflamed during its flow in the boundary layer, as testified by the growth of its brightness and by the appearance of a diffusion trail.
Under the investigated conditions, the velocity of the gaseous mass blown from the regressing surface was relatively slow (approximately one order of magnitude lower than in solid propellant formulations), while the surface layer exerted relatively intense retention forces due to the viscosity of the pyrolyzing fuel. As a consequence, μAl-7.5 showed a faint activity at the gasifying surface (where temperature should be in the range of the Al melting point). On the one hand, this low activity limited the particle aggregation at the regressing surface and, in particular, the creation of a crust layer hampering the combustion. On the other hand, the metal powder characteristics hindered the additive enthalpy release close to the regressing surface once the particle was captured by the oxidizer stream. The condensed products leaving the regressing surface featured an apparent particle size of 100–200 μm (this observed size is not statistically relevant, and it should be taken as a rough estimation). Such a particle size range suggested relatively long burning times with energy release occurring far from the fuel grain (see Figure 11a and, for a convenient comparison with the burning tests, Figure 3). F4 showed a different burning behavior with respect to both F1 and F3. In the early phases of the combustion, the gasifying surface of HTPB + ALEX-100 showed the insurgence of a marked nAl aggregation (see Figure 12a–d, with the white arrow in Figure 12a highlighting the point the surface layer formation started at). This phenomenon probably began in the sub-surface layer of the pyrolyzing fuel. The insurgence of this surface layer was the likely cause of the fast decrease of the rf and m ˙ f performance observed in the F4 combustion tests (see Figure 7, Figure 8, and Figure 12). Under the investigated conditions, the time-resolved rf of F8 showed no significant performance enhancement with respect to the baseline. Observing the image sequence reported in Figure 12i–l, a reduction in the aggregation phenomena characterizing F4 was noted for this fuel. The similarities between the high-speed surface visualization of F3 and F8 captured the effect of the reduction of nAl reactivity due to clustering, with a limited rf effect caused by the relatively large size of the Al agglomerates detaching from the surface (see Figure 12j).
Under the tested Gox conditions, these aggregates were not detached from the fuel grain and gradually covered the entire gasifying surface of the port. As a result, the vaporization surface was shielded from the flame by a layer of unreacted (or partially oxidized) metal. This condition is shown in Figure 12d. Under these circumstances, the heat feedback to the solid fuel grain was reduced by the missed/incomplete metal oxidation.

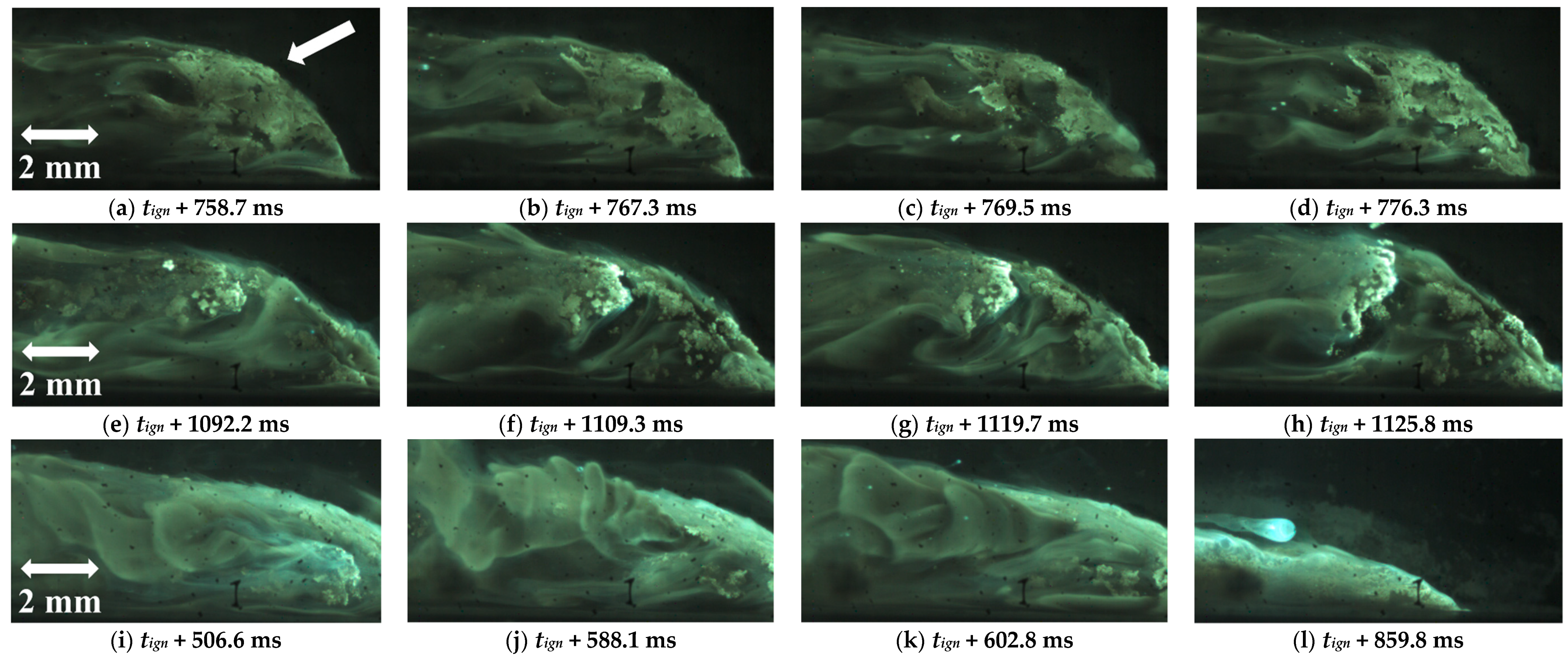

The highly loaded fuel compositions with Al and PTFE featured a regressing surface with a glowing appearance (see Figure 13). This was a possible effect of the reaction between Al and the fluoropolymer. Independently from the micro- or nano-metric size of the Al particles embedded in the formulation, F17, F18, and F19 featured a surface layer that was apparently weaker than that formed in F4. This surface layer was also easily exfoliated by the oxidizer flow in the (relatively low) Gox conditions tested in the high-speed visualizations. The weakness of the surface layer limited (or avoided) the inhibition of heat feedback to the solid fuel grain encountered with F4. As a result, metal combustion occurred in more favorable conditions and, therefore, rf enhancement was achieved.

5.2.3. Concluding Remarks

The screening of different fuel formulations was performed starting from the pre-burning characterization of a variety of Al-based energetic fillers. Composite additives were investigated together with air-passivated μAl and nAl. Effects of ingredients as AP and fluoropolymers on the metal ignition and combustion in the oxidizer-lean conditions encountered at/close to the regressing surface of burning fuel formulations were investigated.
Under the investigated conditions, F4 showed an rf enhancement over the non-metallized baseline of 59% ± 10% at 350 kg/(m2∙s) and a marked rf(Gox) sensitivity. The ballistic performance of the nAl-load formulation worsened as the oxidizer mass flux decreased. The rf increase over the baseline reduced to 45% ± 10% at 325 kg/(m2∙s) and were absent at 155 kg/(m2∙s). The resulting m ˙ f at G o x = 250 ± 15 kg/(m2∙s) was 36% ± 14%, and the power law approximation of rf(Gox) yielded nr = 0.959 ± 0.022. The latter value highlighted other effects on the combustion evolution than the convective heat transfer decrease. High-speed visualizations of the burning surface suggested that F4 burning performance loss was mainly caused by metal aggregation occurring at the regressing surface/subsurface. This phenomenon yielded the formation of a shield of unreacted/partially oxidized Al that limited the heat feedback toward the surface. Combustion tests results and surface visualizations supported the idea that high Gox promoted Al particle/aggregate removal from the surface (and their combustion), as shown by Figure 10 and Figure 12. On the other hand, under 145 kg/(m2∙s) ≤ Gox ≤ 160 kg/(m2∙s), the aggregates resided on the fuel surface, creating a crust of accumulated material. This was a likely effect of subsurface aggregation creating a relatively strong web with good cohesion (see Figure 10 and Figure 12). Such behavior was not observed for fuels loaded with μAl (F2–F3) and for F8 (that was prepared without nAl dispersion procedures). These fuels exhibited no significant rf and m ˙ f enhancements over the baseline at high Gox, while at 155 kg/(m2∙s), μAl-loaded fuels showed increased performance over both F4 and F8. For F2–F3, F4, and F8, relatively large aggregates were observed to detach from the surface. The use of AP- and fluoropolymer-containing composites based on Al contrasted the rf detriment observed for ALEX-100, thanks to the metal reaction with the oxidizer/coating decomposition products. In spite of an increased additive (and metal) mass fraction with respect to the other investigated fuels, combustion surface visualizations of F18 showed the build-up of a surface metal layer of reduced cohesion. This was the likely effect of the partial reaction between the metal and the PTFE. The resulting surface layer was easily exfoliated by the oxidizer flow, and faster rf was, therefore, achieved by a combination of convective and radiation effects (see Figure 7 and Figure 8).

6. Conclusions and Future Developments

This work focused on the lab-scale investigation of the combustion behaviors of solid fuel formulations based on hydroxyl-terminated polybutadiene loaded with Al-based energetic additives. Tested metal-based fillers spanned from micron- to nano-sized powders and included oxidizer-containing fuel-rich composites. The latter were obtained by chemical and mechanical processes applied to the starting Al powders. The aim of these processes was the reduction of the diffusion distance between the metal and the oxidizing species source, and/or the modification of the particle characteristics (i.e., morphology, size). The chemical and mechanical processes pursued easier Al ignition and combustion in the oxidizer-lean conditions characterizing the region between the diffusion flame and the regressing surface of the burning grains. The combustion behaviors of the tested formulations were analyzed considering the solid fuel regression rate and the mass burning rate as the main parameters of interest. A non-metallized formulation was taken as baseline for the relative grading of the tested fuels. Instantaneous and time-average regression rate (rf) and mass burning rate ( m ˙ f ) data were determined using an optical time-resolved technique. The ballistic responses of the fuels were analyzed together with high-speed visualizations of the regressing surface.
The ballistic responses of fuel formulations loaded with uncoated air-passivated nano-sized Al (nominal size 100 nm, ALEX-100) showed a strong dependence on the fuel manufacturing procedure. The dispersion of nano-sized Al down to the nanoscale requires special manufacturing procedures to mitigate the clustering of particles. In the study, a fuel formulation prepared by ultrasound irradiation was contrasted with a similar composition prepared without any effort toward a clustering reduction. For oxygen mass fluxes >250 kg/(m2∙s), the fuels loaded with ALEX-100 and prepared by nanopowder dispersion procedures showed increased rf and m ˙ f with respect to formulations where the same additive was included without special treatments. The polymeric fuel loaded with ALEX-100 and prepared by additive dispersion techniques exhibited instantaneous mass burning rate enhancement over the baseline of 55% ± 11% for an oxidizer mass flux of 325 ± 20 kg/(m2∙s). This ballistic performance was lost as the oxidizer mass flux decreased, and, at 155 ± 10 kg/(m2∙s), no significant m ˙ f increase over the baseline was identified. Under the same operating conditions, a formulation prepared without special procedures for ALEX-100 dispersion yielded a m ˙ f increase over the baseline of 15% ± 13% at 325 ± 20 kg/(m2∙s), and this performance remained nearly unchanged over the whole investigated oxidizer mass flux range.
Combustion surface visualizations performed on ALEX-100-loaded solid fuel slabs burning at oxygen mass fluxes in the range of 145 to 160 kg/(m2∙s) suggested that the observed ballistic responses were due to different metal aggregation/agglomeration phenomena (in turn induced by the different manufacturing procedures). In fuel formulations prepared by special manufacturing procedures for ALEX-100 dispersion, for oxygen mass flux <160 kg/(m2∙s), intense aggregation of the metal particles was noted at the burning surface. This phenomenon caused the formation of a crust of sintered and (possibly) partially oxidized metal, inhibiting the combustion process and canceling the performance enhancement over the baseline of the ALEX-100-loaded fuel. Such phenomena were probably limited at relatively high oxygen mass fluxes, thanks to the more intense convection that yielded more effective combustion conditions for ALEX-100. No marked aggregation/agglomeration surface phenomena were observed during the combustion of the ALEX-100-loaded fuel prepared without procedures for additive dispersion. In this latter formulation, clusters of metal particles were ejected from the regressing surface and burned relatively far from it, with a combustion mechanism similar to that observed in fuels loaded with micron-sized Al. This was a consequence of the combustion of relatively large clusters of particles featuring a reduced specific surface area compared to the smaller clusters or single nanoparticles (and, therefore, a lower reactivity). With heat release occurring far from the regressing surface, and a likely incomplete combustion of the clusters, the fuel loaded with ALEX-100 and prepared without additive dispersion procedures yielded a lower performance enhancement at high oxygen fluxes, and a limited m ˙ f with reduced oxygen mass fluxes.
Composite Al-rich additives limited the negative effects of ALEX-100 aggregation/agglomeration on combustion, while providing increased regression rate and mass burning rate performance over the baseline. The fuel loaded with air-passivated nano-sized Al coated with a copolymer of vinylidene fluoride and hexafluoropropylene showed a mass burning rate enhancement over the baseline of 45% ± 14% at 155 kg/(m2∙s), with a limited sensitivity of this result with regard to the oxidizer mass flux changes. A similar ballistic response was achieved by a composite featuring nano-sized Al as fuel, and ammonium perchlorate (AP) as oxidizer. In this case, in spite of the presence of large clusters of nano-sized Al and AP, the m ˙ f enhancement over the baseline was 39% ± 14% at 325 kg/(m2∙s) and 36% ± 13% at 155 kg/(m2∙s). In both the latter formulations, the oxidizer content in the final fuel was <2 wt.%; thus, a crucial role was played by the limited diffusion distance between the metal and the oxidizing species source. The ballistic responses of the fuels prepared with nAl-based composites produced by chemical methods suggested an interaction between Al and the oxidizing species in the additive during the combustion. This interaction promoted the metal ignition and combustion, and it lessened the effects of the nano-sized aluminum aggregation under the oxidizer-lean conditions encountered at/close to the regressing surface. This observation was supported by combustion surface visualizations of solid fuels containing mechanically activated composites with nano-sized Al and polytetrafluoroethylene (PTFE) as oxidizer. This fuel formulation featured an additive load of 54.4 wt.%, with a composition of the energetic filler that was 55 wt.% air-passivated nAl (nominal size 50 nm) and 45 wt.% PTFE. In spite of a relatively high nano-sized Al mass fraction (30% of the whole formulation), the fuel loaded with this additive did not show evidence of the formation of a surface layer of aggregated metal hindering the combustion process. The nAl reaction with PTFE favored the metal ignition and combustion at/close to the regressing surface, as in the case of the composites containing fluoropolymer/AP produced by chemical methods. The fuel formulation loaded with the mechanically activated nano-sized Al and PTFE exhibited augmented performance with respect to the baseline, with a mass burning rate increase of 141% ± 20% at 155 kg/(m2∙s). Yet, when considering the data scattering between different combustion tests, the performance of the composite additive produced by mechanical activation did not differ significantly from that of fuels containing a simple mix of nano-sized Al and polytetrafluoroethylene. This result was mainly due to two reasons. Firstly, in this work the mechanical activation procedure for the realization of the nano-sized Al–PTFE composite was not optimized. Secondly, the relatively high PTFE content in the formulation (24.5 wt.%) favored its dispersion in the binder matrix and also reduced the distance between fluoropolymer and metal particles in the case of non-activated, simply mixed ingredients.
The achieved results provide a better understanding of the effects of the use of nAl in solid fuel formulations, showing the possible detrimental effects due to the metal aggregation observed at relatively low oxidizer mass fluxes. On the other hand, the ballistic responses of fuel formulations loaded with nAl-based composite additives testify that the behavior of the nano-sized metal powders can be tailored to mitigate possible shortcomings due to the oxidizer-lean conditions locally encountered in the reacting boundary layer. Moreover, the use of composite powders promises simplified manufacturing procedures for the production of nAl-containing fuels, since chemical and mechanical activation processes may be designed to provide additives with tailored reactivity and suitable particle size distribution. All these aspects show the attractive perspectives offered by fuel-rich composite additives.
Future activities for augmented rf and m ˙ f of solid fuels on nAl-based composite additives should focus on (i) combustion efficiency of the fuel formulations loaded with composite additives, (ii) suitability of the proposed approach to liquefying fuel formulations, (iii) impacts of green oxidizers on the preparation of the composites, and (iv) determination of the PDL of the fuel formulations, to evaluate the effects of composite additives on stop/restart and throttling capabilities of solid fuel grains loaded with these additives.

Funding

This research received no external funding.

Acknowledgments

The author thanks Stefano Dossi (ReActive-Powder Technology srl, Milan, Italy) for the work done on the development of procedures for the mechanical activation processes and helpful discussions. The efforts of Marco Castagna and Marco DiLorenzo, who helped with the experimental data collection during their MSc activities at the SPLab of Politecnico di Milano, are highly appreciated. Special thanks go to Gianluigi Marra (Istituto ENI Donegani, Novara, Italy) for the work done on the SEM, TEM, and SSA data collection.

Conflicts of Interest

the author declares no conflicts of interest.

Nomenclature

Roman and Greek Symbols
. ¯ space-averaged value
. time-averaged value
α(T)Al → Al2O3 conversion factor, %
Δm0mass change before the first intense oxidation onset temperature, %
Δm(T)mass change at the temperature T, %
μAlmicron-sized Al powder
ρAlAl density, kg/m3
ρffuel density, kg/m3
aDpre-exponential coefficient in diameter change power law fitting, mm/snD
arpre-exponential coefficient in regression rate power law approximation, mm/s/(kg/(m2∙s))nr
asparticle size derived from the specific surface area, nm
CAlactive Al content, wt.%
D(0.1)particle diameter below which 10% of the particles lay, μm
D(0.5)particle diameter below which 50% of the particles lay, μm
D(0.9)particle diameter below which 90% of the particles lay, μm
D32surface-based mean particle diameter, μm
D43volume-based mean particle diameter, μm
D i i-th sampled port diameter, mm
Gtotal mass flux (G = Gox + Gf), kg/(m2∙s)
Gffuel mass flux, kg/(m2∙s)
Goxoxidizer mass flux, kg/(m2∙s)
L f fuel grain length, m
m ˙ f fuel mass burning rate, kg/s
m ˙ o x oxidizer mass flow rate, kg/s (except where otherwise stated)
nAlnano-sized Al powder
nDexponent in diameter change power law fitting
nrexponent in regression rate power law approximation
pccombustion chamber pressure, MPa
R2data fitting parameter
rfsolid fuel regression rate, mm/s (m/s in Equation (4))
Ttemperature, K
ttime, s
tendend time, s
Tflcalculated flame temperature, K
titime of the i-th diameter sampling, s
tignignition time, s
Ton,ii-th intense oxidation onset temperature, K
Acronyms
ALEXaluminum exploded (nAl produced by electrical explosion of wires, typically air-passivated)
APammonium perchlorate
CBcarbon black
CCPcondensed combustion product
DTGdifferential of the thermogravimetry trace
GOXgaseous oxygen
HEhigh energy (mechanical activation)
HREhybrid rocket engine
HTPBhydroxyl-terminated polybutadiene
LElow energy (mechanical activation)
MAmechanical activation
PDLpressure deflagration limit, MPa
PTFEpolytetrafluoroethylene
SEMscanning electron microscopy
SSAspecific surface area, m2/g
SOPsmall oxide particles
TEDtransmission energy dispersion
TEMtransmission electron microscopy
TOTthickness over time
TGthermogravimetry
TMDtheoretical maximum density, kg/m3
VFHFPvinylidene fluoride hexafluoropropylene copolymer
wrtwith respect to
