Multicriteria Spatial Modeling: Methodological Contribution to the Analysis of Atmospheric and Surface Heat Islands in Presidente Prudente, Brazil

Abstract

Several studies demonstrate the potential of models for the representation of phenomena such as urban heat islands. This article aimed to analyze atmospheric heat islands (UHI_ucl) by integrating primary air temperature data with spatial information such as land use and relief from a multicriteria model based on multiple linear regression. Furthermore, we compared the measured and estimated air temperature at 11 p.m. with the surface temperature at 10:51 p.m. (local time). These temperatures were obtained through the thermal band of the Landsat 8 satellite considering extraction points of interest in Presidente Prudente city, Brazil. The multicriteria model showed reliability in UHI_ucl spatialization, reaching the confidence interval (p-value ≤ 0.05). The model proves that urban surface materials are the main energy sources modulating heat transfer to the atmosphere, while vegetation has a temperature-reducing effect. Precise mappings such as the one proposed here are relevant for the formulation of measures that support decision-making by public authorities. These mappings aim at urban planning that is resilient to the effects of urban climate and can be replicated in other realities.

1. Introduction

The diagnosis and spatial representation of urban heat islands (UHIs) challenge the scientific community dedicated to this topic. This is mostly because the UHI phenomenon varies in time and space, and thus generalizations of its spatial representation limit real knowledge of climate characteristics at the local scale [1]. This becomes even more relevant when climate recording sites are discontinuous, which compromises spatialization reliability.

In line with concerns of this nature, contemporary studies are strongly supported by Geographic Information Systems (GIS). These systems are provided with statistical and geostatistical tools, being advantageous for integrated data treatment aiming at a detailed spatial analysis [2]. Application of these resources is increasingly present in different areas of knowledge, notably in the field of urban climatology [3,4].

For a long period, researchers associated the representation of UHI with ordinary kriging, which contributed to a spatialization that was reliable near climate recording sites but doubtful in discontinuous data areas [5,6].

Another limitation of this form of representation is that a kriging-generated statistical surface is homogeneous and does not incorporate surface heterogeneities inherent to the geography of the areas of interest, which involve construction features, vegetation, and relief. It is not interesting that these heterogeneities are omitted, as they may reveal important explanatory singularities of UHI_ucl formation.

In this article we opted to represent one of the most documented climatic phenomena by using the local scale [7]. The aim was to analyze atmospheric heat islands (UHI_ucl) by integrating primary air temperature data with spatial information (e.g., land use and relief) from a multicriteria model based on multiple linear regression to represent the variability of air temperature. We also sought to compare measured air temperature (MAT), model-estimated temperature (MET), and surface temperature (ST) by considering extraction points of interest (fixed points), benefiting from the advantageous use of night-time satellite image and simultaneous in situ data recording.

Several studies have demonstrated the potential of models to represent phenomena such as UHI_ucl and UHI_surf. Amorim et al. [8] incorporated the analysis of Rennes, France, and Presidente Prudente, Brazil, by establishing a relative comparison between the UHI_ucl and UHI_surf patterns of these cities in temperate and tropical environments.

Agathangelidis et al. (2020) [9] analyzed the statistical association between temperature and surface parameters such as impermeable surface fractions, construction fraction, and building height. These authors proved the consistent influence of the impermeable surface fraction on the Earth’s surface temperature.

When analyzing urban ecological scenarios aimed at improving thermal comfort in southern Italy, Gatto et al. (2021) [10] attested to the importance of urban greenery in this context in a region with Mediterranean climate. Similar to other authors, they proved that the close relationship between built environments and thermal anomalies negatively affects human thermal comfort.

Considering this presentation framework, representing the UHI_ucl is a pressing need. This is because among the framework of reasons that negatively interfere with the quality of life of urban populations in tropical environments are those resulting from climate change at the local scale, especially thermal comfort variables. Urban, atmospheric (UHI_ucl), and surface (UHI_surf) heat islands [7] are the immediate effects of urban climate that compromise human health, comfort, and performance [11,12].

One can explain the genesis of urban heat island at the urban canopy level—UHI_ucl [13]—by the relationship between solar radiation and the Earth’s surface. This relationship transits through emission, reflection, transmission, and absorption schemes, that is, the radiation balance. The differences between densely built urban features and open rural areas give birth to UHI_ucl, recorded under stable atmospheric conditions [13].

Urbanization interferes with this energy exchange scheme and it is thus necessary to consider the surface and heat transport to the adjacent atmosphere when investigating this phenomenon. Therefore, UHI_ucl is a phenomenon that varies in time and space, depending on controls such as operating atmospheric conditions, city size, differences in intraurban features, and daily and seasonal radiation cycles [13,14].

By definition, UHI_surf consists of temperature differences between the interface of the atmosphere and solid materials in the city, which is equivalent to the rural air–land interface [7]. This level of analysis requires the use of remote sensing from the conversion of gray levels of thermal images into pixel radiant temperature [15,16].

Several studies confirm the occurrence of the two types of UHI in Brazilian tropical cities of different population sizes [6,8,17,18,19,20,21]. These events have patterns of spatial distribution and peak moments different from those occurring in temperate climate cities [3,8,22].

Some Considerations about the UHI Discussion in Brazil and in the World

Discussions about urban climate phenomena have increased in Brazil since Monteiro’s systemic theoretical–methodological proposal [11]. This proposal relied on the general theory of systems [23], providing climatologists with tools to study the urban atmosphere focusing on aspects such as thermal comfort, air quality, and rainfall. Since then, climate studies in Brazilian cities have been carried out focusing on the thermodynamic system and on the human perception of thermal comfort. This has to do with the typical characteristics of the tropical environment, in which heat continuously affects people [11].

Depending on the active atmospheric systems, such as the entrance of cold fronts and the Atlantic polar mass that suddenly decrease winter temperatures, the heat island can benefit populations in the sense of alleviating the effects of cold. This correlates specifically with the natural conditions of the urban terrain, in connection with thermal inversions at the valley floor [24].

Spatialization of this phenomenon is a first approach for diagnosing problems that can compromise urban thermal comfort.

These products reiterate the importance of considering climatic parameters to assess habitability and quality of life in urban areas. These parameters can improve a set of measures applicable to urban planning and at the architectural level to mitigate thermal comfort problems. Even with this recognition, what occurs in tropical cities is the restricted incorporation of this information, mainly due to lack of data or difficulty of communication between scientists and planners [25].

A common occurrence is the strong appeal to climate control in indoor environments, which adds heat to the atmosphere and increases the demand for electricity. In addition, these resources are not accessible to people with lower income, especially in underdeveloped countries [26,27].

These are the confrontations highlighted by contemporaneity that require urgent management. This situation is even more worrisome when considering notable climate changes on a local scale and the increase in the frequency of extreme weather events such as droughts, cold waves, and heat waves, which enhance the harmful effects of UHI [28].

2. Materials and Methods

The study was applied to Presidente Prudente city, western São Paulo State, Brazil. The region has Aw-type climate [29], with a dry and mild season and a hot and rainy season (Figure 1).

Presidente Prudente is a medium-sized city, whose population in the year 2021 was estimated at 231,953 by the Brazilian Institute of Geography and Statistics [30]. Economic activities in the city involve the agropastoral sector, commerce, provision of services, and educational services. Industrial activities are restricted to food and beverage, plastics, and wood and metal processing industries.

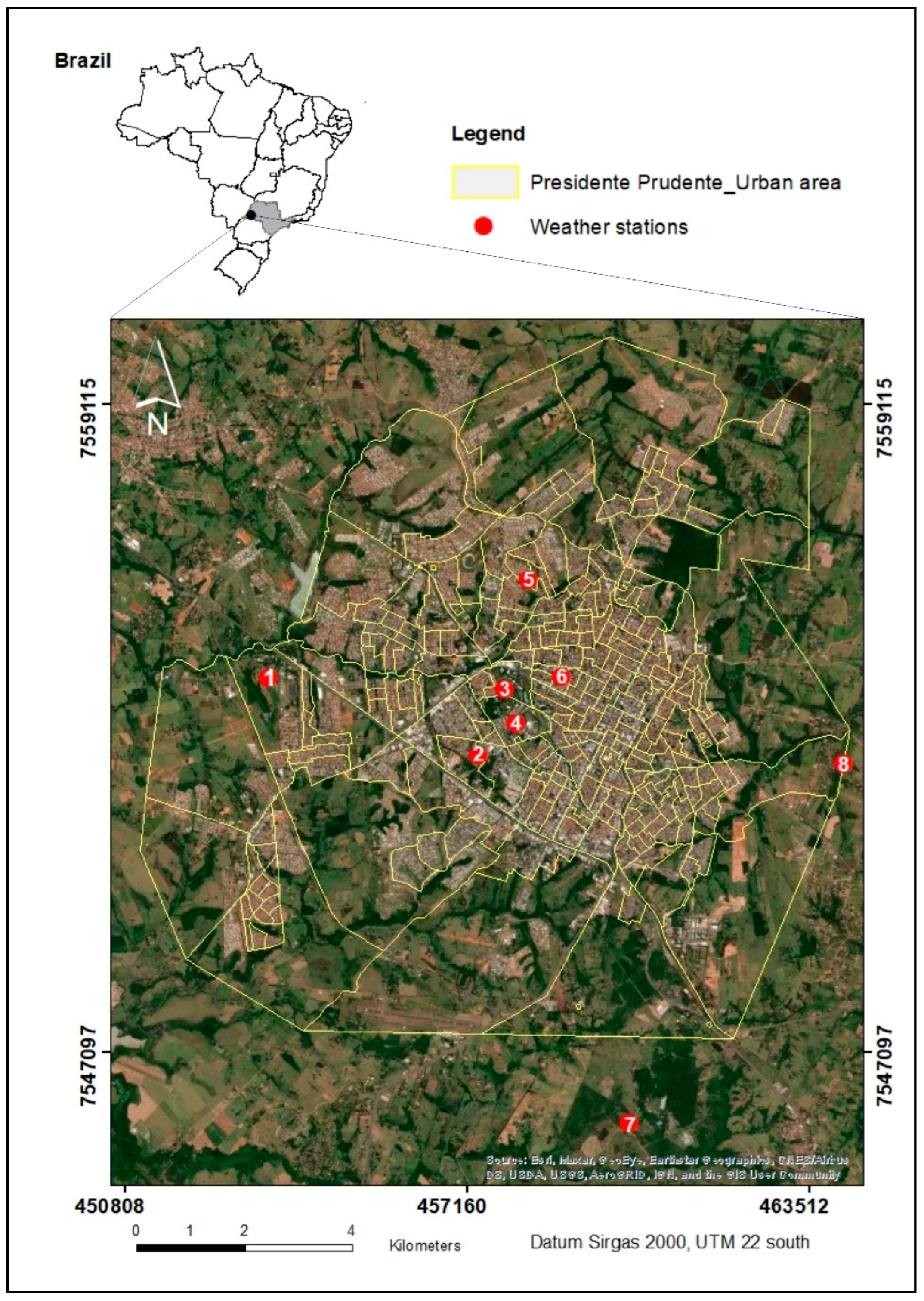

Figure 1. Location of Presidente Prudente, Brazil; measured air temperature points. Source: World Imagery, Esri (2022) [31]. Access: January 2022; IBGE Census Bureau (2010) [32].

Figure 1. Location of Presidente Prudente, Brazil; measured air temperature points. Source: World Imagery, Esri (2022) [31]. Access: January 2022; IBGE Census Bureau (2010) [32].

2.1. Acquisition of Primary Data

This article investigated UHIs at the lower atmospheric/urban canopy level and at the surface level by considering the temperature of the targets [7].

In order to relate air temperature (measured and estimated) to surface temperature, we sought to extract surface temperatures by fixed points measured from the conversion of gray levels into radiant temperature [33,34,35]. For that, we used the thermal image of band 10 captured at night on 10 May 2020 by the Landsat 8 satellite (

Table 1. Landsat 8 satellite images used in the study applied to Presidente Prudente (SP).

TIRS Image Presidente Prudente	Daytime	Night-Time
Applied bands	3, 4, 5	10
Point set and orbit	222/075	104/169
Date	5 April 2020	5 October 2020
Shooting time (local time)	10 h 22 a.m.	10 h 51 p.m.

Source: United States Geological Survey [36] (2021).

).

Modeling required the application of visible bands 3, 4, and 5 of a daytime image from the same sensor, obtained at a date close to that of the night-time thermal image, for knowledge of land use classes. In this case, we used the image obtained on 4 May 2020.

The thermal channel image was treated in the Idrisi Selva application (Clark Labs) through parameters and fixed variables extracted from the USGS website and applied through formulas. The radiometric scaling coefficients provided by the metadata file (MTL.txt) convert gray levels into radiance, and later Kelvin temperature into Celsius.

The atmospheric level of the urban canopy was obtained by monitoring air temperature from ground level to the average height of roofs and treetops [7]. For this purpose, primary air temperature data were recorded at fixed points established in representative areas of urban features and control points in the surrounding rural area [13]. Field research used Hobo data logger sensors (U23-002) protected by Hobo RS3 solar radiation shields distributed at points of interest. The equipment is typically uncertain to ±0.21 °C (0 to 50 °C) [37].

Furthermore, a Davis Instruments Vantage Pro 2 meteorological station, as well as the official station of the National Institute of Meteorology [38] and the automatic station of Universidade do Oeste Paulista (UNOESTE), provided air temperature data, totaling eight sampling points. Figure 2 shows the characteristics of these sampling points.

Air temperature was recorded on May 10 at 11 p.m. (local time) to coincide with the time of the capture of the satellite image in Presidente Prudente. Data were tabulated in an Excel spreadsheet (branded by Microsoft Corporation). For presentation of the results, UHI_ucl and UHI_surf magnitudes (△T) were obtained, using as a reference the difference between the urban and rural areas from control point 8 (from its air temperature recorded at 11 p.m. and surface temperature recorded at 10:51 p.m.), positioned in the eastern portion of the urban fabric. The definition of point 8 as a reference for the calculation of the magnitude of the UHI_ucl and UHI_surf is related to the preservation of prior-to-urbanization features, with less anthropogenic influence (forest fragment).

2.2. Multicriteria Modeling: Selection of Independent Variables

A linear multicriteria model allows per-pixel generalization of a satellite image relating land use classes, relief, and air temperature with greater reliability due to the statistical correlation between variables. Air temperature is assumed to be a dependent variable (y), while land use classes and relief are assumed to be independent variables (x), climate controls for air temperature variation [7].

Knowledge of surface heterogeneities requires mapping model input information. Land use and land cover features were revealed using multispectral visible bands of the daytime image obtained on 4 May 2020. The near-infrared band 5 and the red band 4 composed the Normalized Difference Vegetation Index (The processing of images of bands 4 and 5 provided the NDVI of the areas of interest, incorporated in the cluster classifica-tion of generation of land use and occupation classes.) (NDVI). This index was calculated by the division made after the subtraction of the near-infrared band in relation to the red band and the sum of both bands, resulting in an index ranging from −1 to 1, extremes that refer to greater (1) or less (−1) exuberance of vegetation [41].

In order to compose the chart of surface features, band 3, bands 4 and 5, and NDVI generated, by automatic unsupervised classification, a cluster chart that grouped elements of the same type and by proximity into class intervals.

The cluster functionality performed in the Idrisi application uses the one-dimensional histogram peak technique to group similar classes. Each peak groups a frequency that is considered higher than that of its side neighbors. Once the peaks are identified, the other values are assigned to the closest peak and the divisions between classes are assigned to the mean values between peaks.

Thus, an initial broad classification was performed based on seven land use classes in the study area. Taking as a reference the NDVI indices in each of these to consider the presence or absence of vegetation, a final refinement was carried out, resulting in three classes of land use and occupation in view of the prior knowledge of the study area.

The reclassification of this chart individualized land use classes for the areas of interest, identifying construction classes, exposed soils, high-vegetation areas (forest fragments, valley floors), and low-vegetation areas. This reclassification characterized the pastures present in rural surroundings, as in the study by Amorim (2020) [17].

Once the features of land use and occupation were known, per-pixel generalization was made by calculating their frequencies around air temperature measurement points. These frequencies were extracted from atmospheric observation windows expandable in proportion to the spatial resolution (30 m) of the Landsat 8 satellite. This phase allowed the generalization of spatial information and the constitution of numerical variables of the model, calculated as a function of land use features, as can be analyzed in Figure 3.

For the insertion of altimetric information of the terrain in the multicriteria model, a hypsometric chart was generated from images of the Shuttle Radar Topography Mission (SRTM) georeferenced in the same spatial resolution as the Landsat 8 satellite image. The extraction of the altitudes of each measured point provided the model with information on geomorphometric parameters.

Independent variables (x) resulted from cluster classification and hypsometry. These variables were incorporated into the model through their value attributes.

Recorded air temperature data were then crossed, which required the application of simple linear regression statistics. These explained the relationship between variables x (land use classes, relief) and y (air temperature), considering the fit in a scatter diagram according to the minimum square deviation method. Numerical correlation coefficients indicated whether there was a relationship between variables x and y, as well as the strength of association [42].

Each x variable has a partial coefficient, that is, a value of change in relation to the variable y obtained by simple regression. Ferreira (2014) [42] states that the analysis of values of change considers the geometric instrument and the quantitative parameter on the degree of dependence between variables that are, respectively, the regression line and the regression coefficient “r”. The other parameter for checking dependence between variables is given by the coefficient of determination r².

From the partial coefficients of correlation r and determination r², we could numerically select the most important independent variables for the prediction of “y” (air temperature) while admitting urban land use classes, high vegetation, and relief. This information was crossed using the multiple linear regression function of the Idrisi application, whose global coefficient result (adjusted R²) represented the percentage of variation that is explained by the model with the adopted variables.

The regression function resulted in the treatment formula, a mathematical representation of the relationship between variables x and y. The formula incorporated the input maps of the x variables chosen for the prediction of y, as shown in Formula (1):

Air temperature model = 11.2003 + 0335 ∗ construction class 33 × 33 − 0.4292 ∗
High vegetation class 33 × 33 + 0.0245 Hypsometry,

(1)

where

Air temperature model is the estimated temperature;

Construction class 33 × 33 is the extrapolation per measured point of the percentage of variation of class 1 (urban) in the 33 by 33 pixel range window (990 m × 990 m);

High vegetation class 33 × 33 is the extrapolation per measured point of the percentage of variation of class 3 (high vegetation) in the 33 by 33 pixel range window;

Hypsometry refers to the altimetry value of each measured point.

The results were validated by analysis of variance (ANOVA) significance tests, through which the p-value could prove the validity of models and the global correlation between variables. For this, the significance level α ≤ 0.05 was adopted, which established a confidence interval of 95%, assuming the 5% probability of the association not to be real or random [43]. Another test performed was the F test, in which the F value was considered a parameter to determine the significance of the terms together in the model, from the same confidence interval (95%). Statistical processing was performed using the data analysis tool of the Microsoft Excel application (branded by Microsoft Corporation). Scheme 1 summarizes the sequence of procedures that involve the digital processing of images with the crossing of data recorded on the surface.

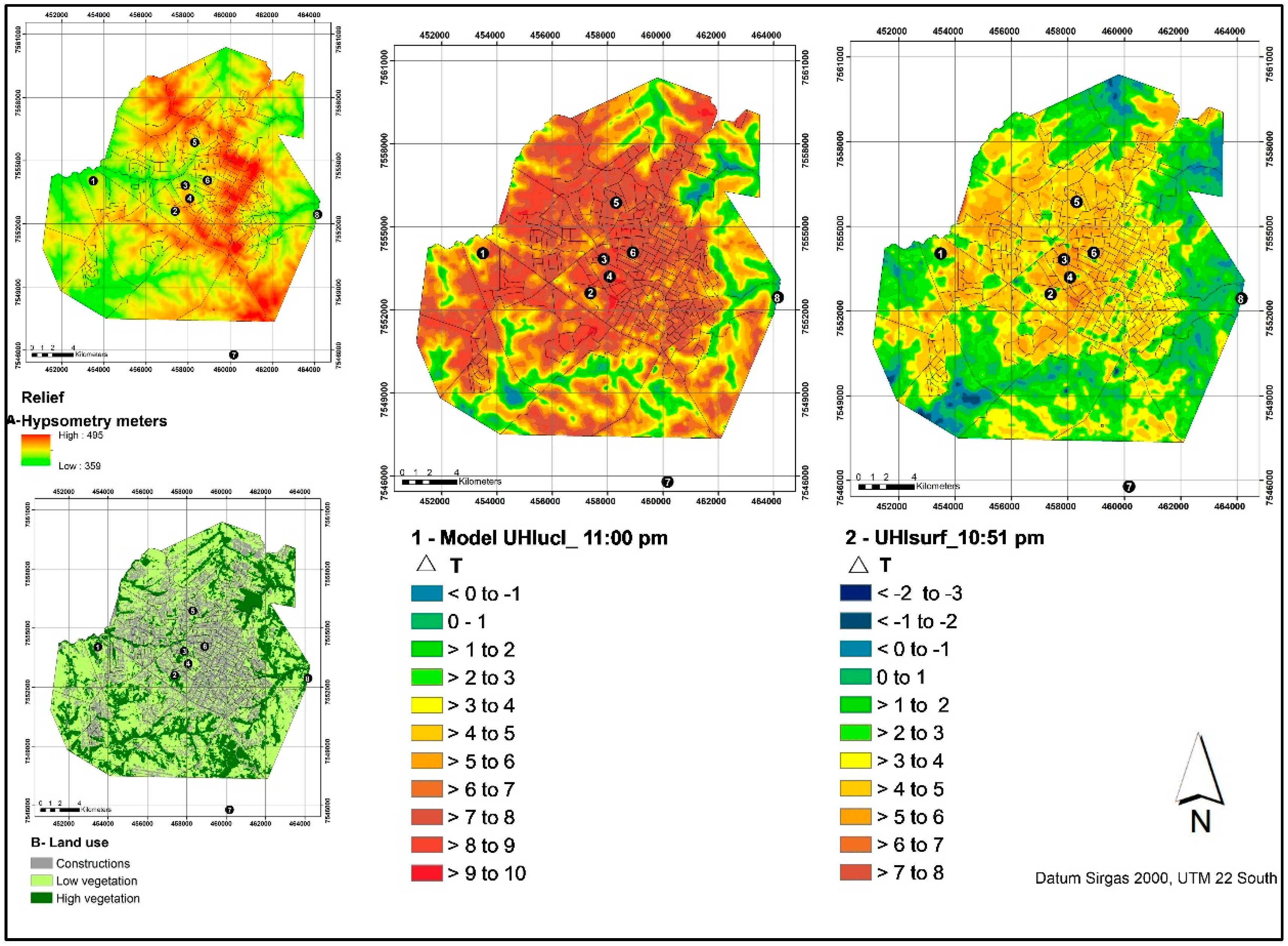

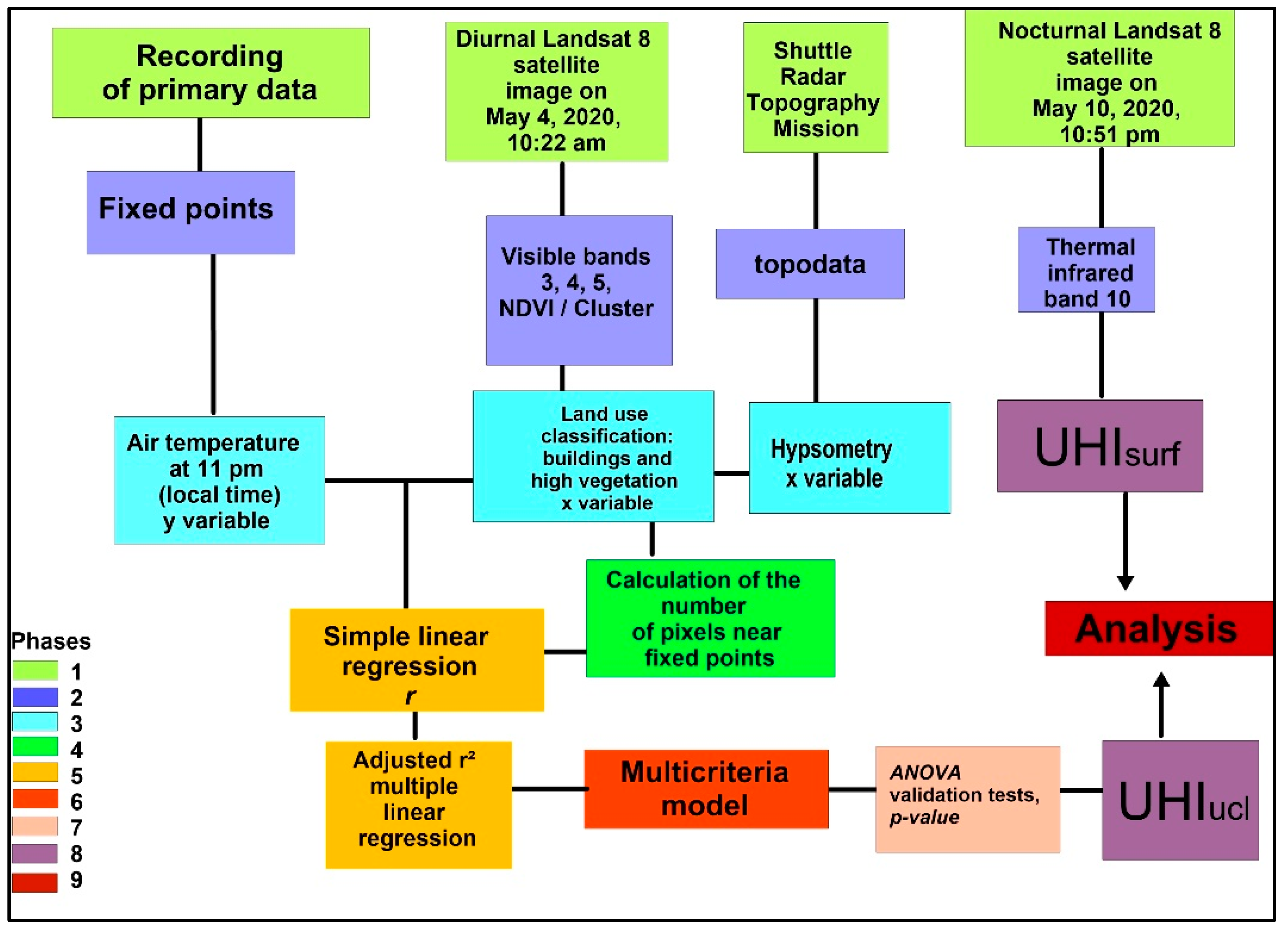

This chain of procedures resulted in a spatial model of the UHI_ucl, whose analysis compared the air temperature and the surface temperature extracted at fixed points, meeting the objective of the article.

3. Results

At 11:00 p.m. on 10 May 2020, the maximum and minimum spatialized atmospheric temperature were 23.5 °C and 11 °C, respectively (Figure 4). The UHI_ucl referenced the eastern rural area (point 8), with the highest △T of the UHI_ucl reaching 9 °C, clearly in construction areas. Cool islands were formed [7] that reached a △T of −1 °C on valley floors and along high-vegetation areas. Undergrowth vegetation sites showed intermediate temperatures and magnitudes. With regard to surface temperatures, the maximum temperature of the sample was 20.8 °C, occurring in central and densely built areas. The temperature of the targets decreased in peripheral urban areas. The minimum surface temperature was 10.4 °C, in areas with undergrowth and arboreal (high) vegetation, both in the bordering rural area and on valley floors, where the cores of the cool island were also formed. With △T being calculated from the extraction of the temperature of point 8, the maximum △T reached 7 °C, and the △T of the cool island reached −3 °C.

The multicriteria model with the adopted independent variables (e.g., buildings, high vegetation, and relief) explained reality with 95% reliability.

Table 2. Results of data validation of the spatial model considering simple and multiple linear regression and significance tests with p-value (α ≤ 0.05), as performed by ANOVA in Presidente Prudente, Brazil.

Presidente Prudente 33 × 33 window (990 × 990 m)			05 October 2020 Air Temperature at 11 p.m.
Multicriteria model 3 variables	r	p-value	Significant F value	Adjusted R2
Construction class	0.73	0.62
High vegetation	−0.93	0.03	0.000	0.80
Relief	0.56	0.00

Data source: USGS (2021); Data recording on 10 May 2020. Organized by the authors. December 2021.

demonstrates this situation together with the results of the model validation. Despite its moderately positive correlation with air temperature, the urban class exceeded the confidence interval adopted in the composition of the model. This shows that in addition to constructive features, temperature variation depends on other climate controls of the local scale, including wind strength (At the time of recording air temperature data, the wind was at a speed of 2.5 m/s and had a southwesterly direction, inter-fering with atmospheric stability.) and unknown or unmonitored variables.

The correlation between high vegetation and air temperature is highly negative (r = −0.93), which clearly highlights the role of vegetation in reducing air temperature. The significance level reached by the term high vegetation indicates that this factor strongly affects temperature variation, proving that the correlation is not random.

Relief correlated moderately and positively with air temperature. In this regard, the temperature tends to be higher at higher, rather than lower, altitudes of the urban terrain. This relationship is expressive because the relief reached the adopted confidence interval, demonstrated by the p-value of 0.00.

In the joint analysis of the model with the adopted independent variables, the spatial model came closer to reality in the episode of 10 May 2020. This can be seen from the results obtained by the significance test that gave reliability to the spatialization of the UHI_ucl, both in air temperature recording sites and in discontinuous data areas. These results are supported by the correspondence between the features of land use and altimetry in distant areas of climate monitoring.

In the relationship between the recorded air temperature and the pixel-calculated radiative surface temperature, both extracted by the measured points (

Table 3. Results of the simple regression and ANOVA p-value (α ≤ 0.05) considering measured air temperature and surface temperature in Presidente Prudente on 10 May 2020.

Air Temperature X Surface Temperature	r	p-Value	Significant F Value	Adjusted R2
Surface temperature	0.93	0.00	0.00	0.88

Data source: USGS (2021); Data recording on 10 May 2020. Organized by the authors, December 2021.

), the correlation is highly positive (0.93). This indicates that air temperature tends to be higher on the most heated surfaces, while in undergrowth vegetation sites the differences between air and surface temperatures are smaller, being practically null in areas with arboreal vegetation. In this relationship, the coefficient of determination was 0.88 and the confidence interval was fully reached.

4. Discussion

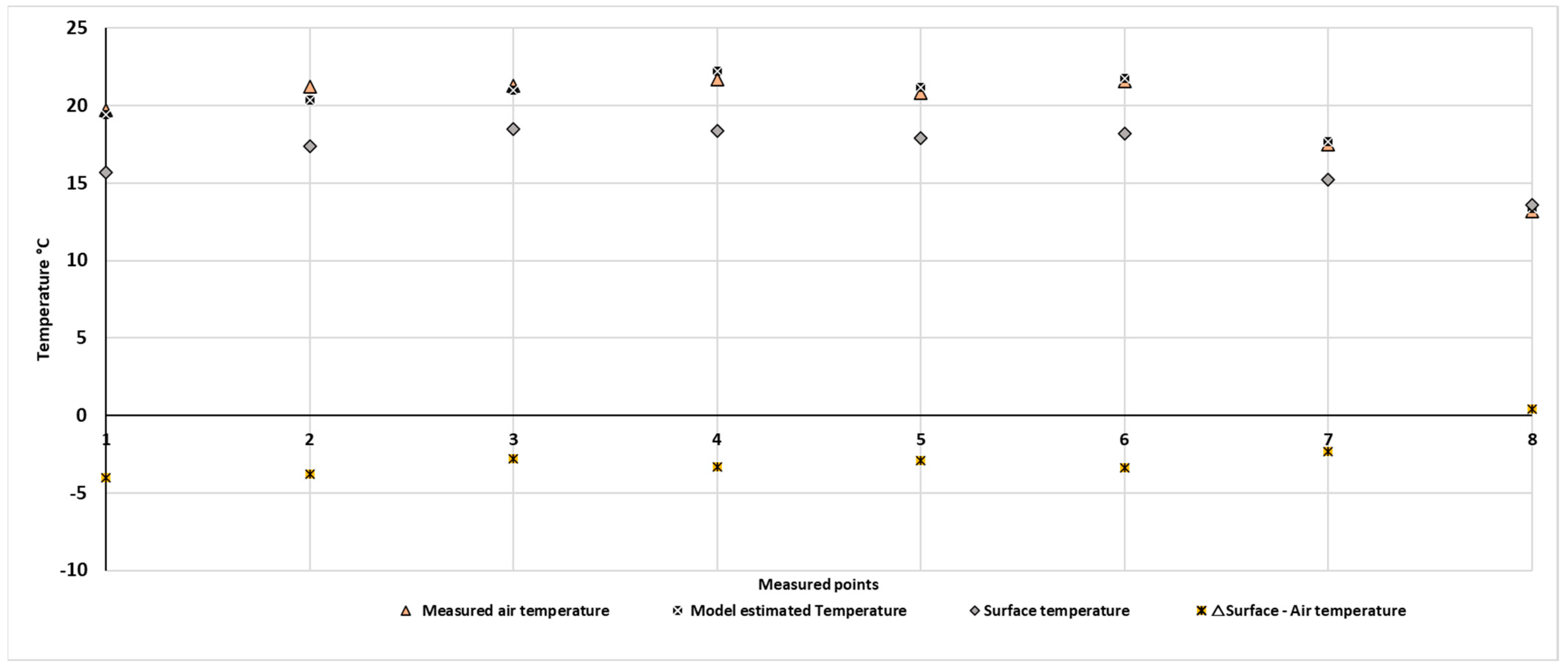

The comparison between measured air temperature and the air temperature estimated by the multicriteria model showed slight differences (residues) in points 2 and 4, characterized by densely built-up areas. Thus, the model approached the reality of data recording. Furthermore, this variation in densely constructed points (2 and 4) suggests that unknown or unmonitored influences controlled the result in these places.

In the comparison between measured air temperature and surface temperature, greater thermal deviations occurred at 11 p.m. (local time) in the air and surface temperature extracted from urban fixed points (Figure 5). These points may undergo greater variations due to urban heterogeneities, as demonstrated by Xiong et al. [44]. These results reflect the differences between urban surfaces and surfaces with undergrowth and arboreal vegetation.

The thermal response of urban materials present on the surface (urban targets captured by remote sensing, mostly characterized by watertight and little evaporative materials) shows lower thermal capacity for these components, which require less energy to heat up in the presence of radiation. However, urban surface components do not conserve energy after sunset, providing heat to the adjacent atmosphere that becomes warmer than the surfaces [22,45].

Differently, vegetated areas showed little or no variation between air and surface temperature. Due both to the interception of radiation and to having greater thermal capacity, vegetation takes longer to heat up and slows down its cooling, keeping air–surface temperatures more constant. Point 8, characterized by dense vegetation cover, presented atmospheric heating content very close to the surface temperature pattern, assuming a difference of 0.4 °C in favor of the temperature of the target. This is because surfaces provided with undergrowth or arboreal vegetation transfer energy by the latent heat flow generated from evapotranspiration. Through this process, plants convert sensible heat into latent heat without adding heat to the atmosphere [42].

Less variation between measured air temperature and surface temperature also occurred in open areas, devoid of buildings, whose surfaces are characterized by undergrowth vegetation. This was the case for stations 1 and 3 and point 7. Meteorological stations at points 1 and 3 kept the ideal characteristics for the installation of equipment, but in recent years they have been incorporated into the urban fabric due to the territorial expansion of Presidente Prudente, as has happened to several cities in São Paulo State [46].

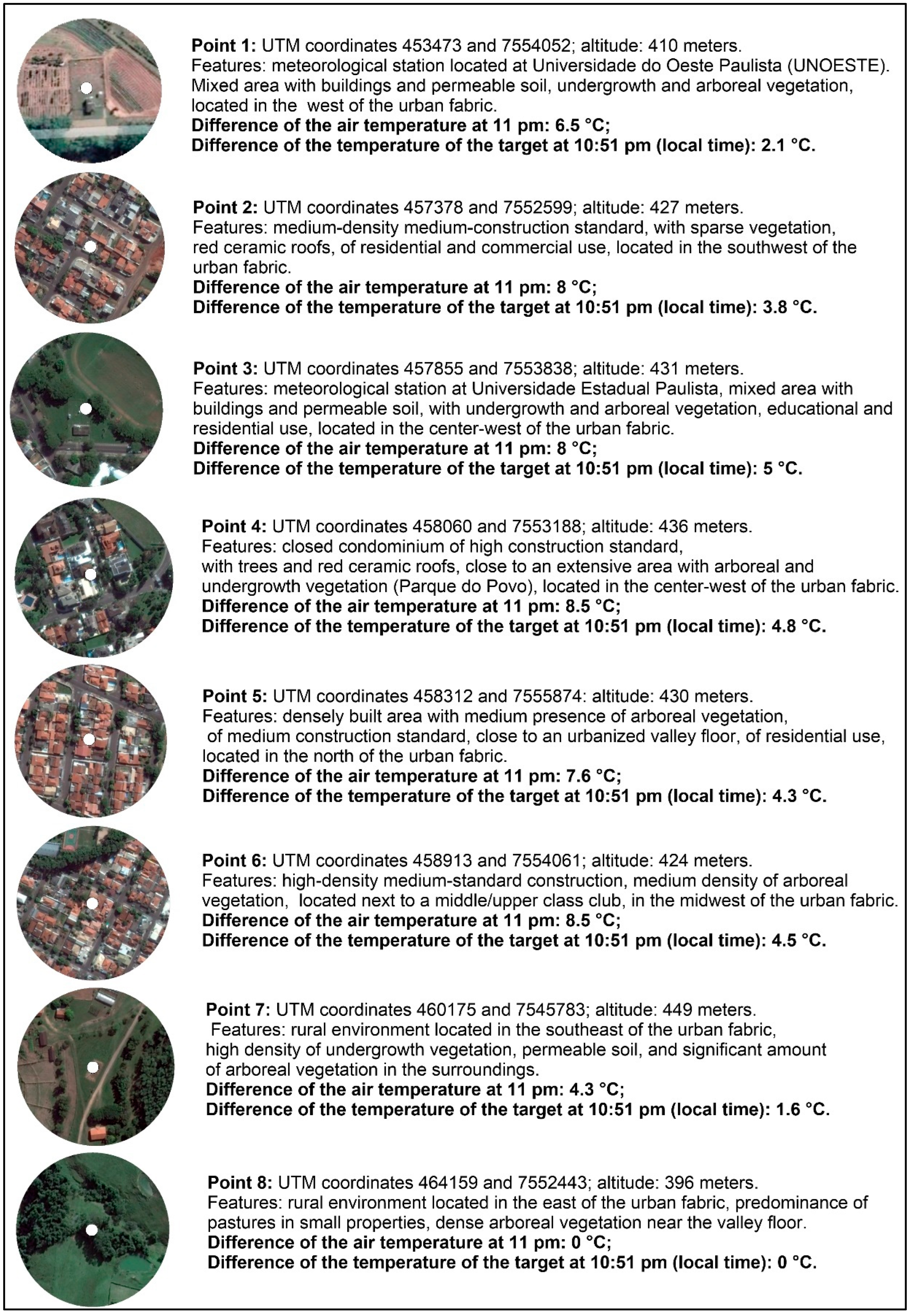

Given its location in the west of the urban grid, point 1 received the greatest influence from the sunset. This became evident at 5:50 p.m. (local time) on May 10, on the west–northwest horizon (https://www.vercalendario.info/pt/sol/brasil-mes-maio-2020.html, accessed on 12 January 2022). In association with the southwesterly wind direction, heating at this site was equivalent to that of built-up areas.

Unlike vegetated areas, built-up areas have a lower thermal capacity, assuming greater deviations between air and surface temperature. The literature explains this fact from the transport of surface heat towards the atmosphere after sunset [13]. Urban materials are thus the main heating sources modulating heat transfer to the atmosphere.

These results corroborate the classic profile of nocturnal UHI_ucl presented by Amorim (2020) [17] for Presidente Prudente city. In that study, the author used 26 fixed monitoring stations and daytime satellite images crossed with the temperature recorded at synoptic times (0 h, 3 h, 6 h, 9 h, 12 h, 15 h, 18 h, and 21 h) in 2 days of observation. Of this total of fixed points, eight composed the observation points of this article. The models generated by Amorim (2020), which used construction, high vegetation, and altitude variables, showed evidently higher overall correlations at night-time, especially at 9 p.m. (local time).

Presenting an advance in the procedure, in the present article we used satellite image, simultaneous in situ data recording, correlation analysis, and the significance test. Overall correlation indices showed correspondence in both studies, and the average of the overall coefficient obtained from the two episodes of the previous study was 0.91 at 9 p.m.

At 11 p.m., as shown in this article, the overall coefficient of the generated equation was 0.8. In addition, the significance test, which considered the p-value (α ≤ 0.05), proved that the relationship between the variables was not random or capricious.

5. Conclusions

Data recorded at the atmospheric level by the UHI_ucl study were crossed by a multicriteria linear regression model. This model estimated air temperature with proximity measures and mathematical reliability considering the different classes of land use and relief, assuming that these are important controls for the variation of air temperature on the local scale. In addition to the lower atmospheric level, the present study also included the analysis of UHI_surf through the application of remote sensing.

The combination of data involving reliable spatialization of UHI_ucl and UHI_surf enabled a comparative analysis between air temperature and the temperature of the targets as extracted by points of interest in the nocturnal episode of 10 May 2020.

The model efficiently estimated air temperature, as the temperatures in the eight points of interest enabled extrapolation of the information to discontinuous data areas with similar surface characteristics, with mathematical confidence. The validation tests and the adopted p-value supported this result.

The model proves to be more advantageous than the general treatments performed by ordinary kriging that ignore the spatial variation of surface features. This is important for regions lacking broad and qualitative data coverage and which hinder the development of climate studies, especially fine-scale studies. The products generated and the validation of the results clearly demonstrated the configuration of UHI_ucl and UHI_surf in Presidente Prudente city, meeting the results of Amorim [17]. This author states that the greatest magnitude of the atmospheric heat island occurs at night, proving this through correlation coefficients that ranged from moderately to highly positive in the construction class and from moderately to highly negative for the high and low vegetation classes. The spatial variation of UHI_ucl and UHI_surf shows particularities that depend on the differentiated heating of surface features (vegetation, water, soils, buildings), on the diurnal variation in temperature, on prevailing meteorological conditions, and on other climate controls at a local scale (even on unknown or unsupervised influences).

In the simultaneous nocturnal analysis between air and surface temperature, UHI_ucl stood out in relation to UHI_surf due to the cooling of surfaces in the hours following sunset. This relationship is well defined in built-up areas, which transfer heat to the atmosphere close to the surface at night. Differently, vegetated surfaces are preserved warmer than the surfaces of built-up areas, with vegetation delaying surface cooling due to its capacity of converting sensible heat into latent heat from evapotranspiration, a process that does not add heat to the atmosphere. Depending on vegetation size, these areas will delineate minor or zero differences between air–surface temperatures.

The modulation of air temperature, as a function of surface temperature, reaching a coefficient of determination of 88%, allows us to infer that this relationship leaves 12% of doubt. This can be attributed to unmonitored influences at the atmosphere interface (wind speed and direction) or even to the generalization common to studies using remote sensing data. However, further studies may respond, either by adopting a larger number of observational fixed points or by incorporating local circulation schemes that can overcome the limitation of the air–target relationship.

Finally, we affirm that the model is applicable to other climate realities and we reiterate the importance of vegetation in the organization of urban spaces, mitigating the harmful effects of excess heat in urban areas, especially in the tropical continental environment.

Thus, planning urban surfaces becomes effective in mitigating the harmful effects of UHI. Reliable mappings can reflect positively on the composition of strategies and support governmental decision-making for urban planning to be resilient to the effects of urban climate.
