UHPLC Analysis of Reynoutria japonica Houtt. Rhizome Preparations Regarding Stilbene and Anthranoid Composition and Their Antimycobacterial Activity Evaluation
Institute of Pharmaceutical Sciences, University of Graz, Beethovenstraße 8, 8010 Graz, Austria
*
Author to whom correspondence should be addressed.
Plants 2021, 10(9), 1809; https://doi.org/10.3390/plants10091809
Submission received: 3 August 2021
/
Revised: 26 August 2021
/
Accepted: 27 August 2021
/
Published: 30 August 2021
(This article belongs to the Collection The Use and Management of Invasive Plants)
Abstract
:Reynoutria japonica Houtt. is a critical invasive alien plant in Europe and North America with a drastic impact on native flora. However, R. japonica has medicinal potential, especially as a source of stilbenes. In order to explore the potential of simple extractions of R. japonica, we conducted qualitative and quantitative analyses of fresh R. japonica rhizome infusion, decoction, and macerates with ethanol by UHPLC-DAD-ESI-MSn and UHPLC-DAD, with a focus on major constituent groups of stilbenes and anthranoids. Since R. japonica rhizome extracts showed antimicrobial potential in the past, we also evaluated the antimycobacterial effect of raw R. japonica extracts for the first time against Mycobacterium smegmatis. Of thirty-four characterized substances, six were stilbenes and twelve anthranoids. The main constituents, four trans-stilbenes and eight anthranoids, were quantified in a validated UHPLC-DAD method. The 38% ethanol macerate showed high stilbene (155.078 mg/100 g fluid extract) and low anthranoid content (5.420 mg/100 g fluid extract), while decoction showed the highest anthranoids. Antimycobacterial testing gave good results for all macerates (MIC 256 µg/mL) and trans-resveratrol (64 µg/mL). Extraction and enrichment of stilbenes from fresh plant material by simple extraction methods with food-grade solvents might encourage consideration of wild harvest of rhizomes over classic means of eradication of R. japonica.
1. Introduction
Reynoutria japonica Houtt. (Syn. Fallopia japonica (Houtt.) Ronse Decr., Polygonum cuspidatum Siebold and Zucc.) is an herbal perennial plant in the family of Polygonaceae [1]. The plant is native to eastern Asian regions of China, Japan, and Korea, but was introduced to the west as a garden plant in the 19th century [2]. It grows to heights of up to three metres in various conditions, and possesses thickened rhizomes, which may extend 4.5 m deep and up to 20 m away from parent plants [3,4]. Rhizomes regenerate easily even from small fragments, and therefore asexual dispersal forms the main way of reproduction in Europe and North America, often following natural disturbances or disposal of rhizome contaminated soil. Due to R. japonica being a fast-growing competitor early in the season, capturing space and resources, it is an invasive alien plant which can significantly diminish native flora [3,4]. However, in its native regions of China, R. japonica is also grown and harvested for long-lasting medicinal use in traditional Chinese medicine (TCM) [5]. Dried rhizome is called “Hu Zhang” in Chinese and listed in the Pharmacopeia of the People’s Republic of China, as well as the European Pharmacopeia [6,7]. Indications in TCM comprise jaundice, hepatitis, amenorrhoea and cough, among others [6]. In Korean folk medicine, R. japonica rhizome is used to support dental hygiene. Antibacterial effects against Streptococcus mutans and Streptococcus sanguinis are reported and considered to prevent dental plaque formation and therefore tooth decay, as well as accelerate wound healing on gums [8]. Major secondary metabolites in the constituent profile of R. japonica rhizomes are stilbenes, such as polydatin and resveratrol, and anthranoids, such as emodin. Emodin and polydatin serve as quality indicators according to the Chinese Pharmacopoeia, with respective minimum contents of 0.6% and 0.15% [5]. According to the European Pharmacopoeia, emodin content of 1.0% and polydatin content of 1.5% are mandatory for quantitative quality assurance of dried plant material [7]. Furthermore, naphthalene derivates such as torachrysone, gallates, catechins and proanthocyanidins are reported [9,10].
R. japonica rhizome is a major source of resveratrol for the dietary supplement industry [11]. Resveratrol is used for its antioxidative properties. It can support the therapy of liver ailments following oxidative stress or improve skin condition in combination with oligomeric proanthocyanidins [12,13]. Other stilbenes found in R. japonica rhizomes, polydatin and piceatannol also show high antioxidative potential and cytotoxic effects against various cancer cells [14,15]. Resveratrol also exhibits antimicrobial effects against various bacteria, including Mycobacterium smegmatis, Helicobacter pylori, Vibrio cholerae, Neisseria gonorrhoeae, Campylobacter coli and Arcobacter cryaerophilus [16]. For piceatannol, effects against Staphylococcus aureus and Pseudomonas aeruginosa are reported [17]. The anthranoid emodin is a known stimulant laxative used in treatment of constipation. It also shows anticancer, antibacterial, diuretic and vasorelaxant effects [18]. However, in order to estimate the biological activities of glycosidic plant constituents, the impact of gut microbiota has to be taken into account. The interindividual differences in gut microbiota composition, which is also influenced by individual physiological or pathophysiological conditions, can lead to differences in absorption rates of glycosides as well as their metabolization [19]. In this study, we asked the question of whether traditional preparations like infusion, decoction, and maceration with different ethanol concentrations are suitable methods for extracting the main constituent groups of stilbenes and anthranoids in favorable composition from fresh R. japonica rhizome material. We hypothesise that different extraction methods, especially variations in ethanol concentration of macerates, have major influences on yield and composition of extracts and on their antimycobacterial activities. Extracts were evaluated in detail by UHPLC-DAD-ESI-MSn for qualitative, and UHPLC-DAD for quantitative analysis, in validated methods. Since R. japonica rhizome extracts and its major constituents showed antimicrobial potential in the past, including good results for pure resveratrol against M. smegmatis achieved in our own working group [20], we also evaluated the antimycobacterial effect of raw R. japonica extracts for the first time, by investigating their minimum inhibitory concentration (MIC) against Mycobacterium smegmatis mc² 155.
2. Results
2.1. Drug Extract Ratio (DER)
Drug extract ratios were determined for all investigated R. japonica rhizome extracts after freeze-drying. Subsequently used abbreviations are as follows: RI for infusion, RD for decoction, and RM for macerates of different ethanol concentrations. Results for DERs are given in Table 1.
Within macerates, yields rose with higher alcohol content of extraction solvent (p < 0.01). The extract yield of 12.13% for RD was comparable to the highest macerate yield in RM96 (12.07%) (p > 0.05). RM70 and RM38 were similar in extraction efficiency (p > 0.05), and both yielded over 10%, while RI gave, by far, the lowest yield of all investigated extraction methods at 3.88% (p < 0.01).
2.2. Qualitative Analysis via UHPLC-DAD-ESI-MSn
Interpretation of DAD-UV and MSn data in negative ionization mode led to the characterization of thirty-four substances in R. japonica rhizome extracts by comparison with literature data and available reference compounds. UV spectra of cis-resveratrol and cis-polydatin obtained by photoisomerization of reference substances aided identification. With the exception of substance 3 (procyanidin dimer Type B), which only seemed to be present in RD, traces of all substances could be found in every extract, confirmed by spectral data and matching retention times (RT). Results are given in Table 2, with threshold for listed fragment ions in MSn set as ≥10% relative intensity.
Of thirty-four characterized substances, six stilbenes, twelve anthranoids, six proanthocyanidins, epicatechin, catechin, one catechin/epicatechin gallate derivative, two torachrysones, and hydropiperoside were tentatively identified or confirmed by reference substances. Two compounds could be attributed to the class of anthranoids without further identification, another two substances remained undefined. Structural examples, which represent the two main constituent groups of stilbenes and anthranoids, are given in Figure 1.
Concerning substances which could not be directly confirmed with available reference substances and where previously reported findings in literature merely showed derivatives, some additional explanations are needed and presented hereafter. For 16, −162 amu (m/z 393 to 231) in MS2 was indicative of a loss of one hexose unit, leaving demethylated torachrysone. In 25, the loss of 80 amu in MS2 could be attributed to -SO3 from a sulfonyl moiety to give torachrysone (m/z 325 to 245). Substance 17 showed −162 amu (m/z 445 to 283) in MS2 and 28 a loss of 204 amu in MS3 (m/z 487 to 283), which could be attributed to hexose and acetylhexose respectively, both resulting in an aglycone equivalent to emodin methyl ether 30. In all three substances, this was followed by a loss of 15 amu indicative of -CH3 stemming from a methoxy group (m/z 283 to 268), and consequently showing deprotonated fragment ions of emodin 32. MS2 of substance 29 showed loss of CO2 at −44 amu (m/z 355 to 311) to give a fragment equivalent to acetylemodin 31, followed again by deprotonated fragment ions of emodin.
2.3. Quantitative Analysis of Stilbenes and Anthranoids via UHPLC-DAD
Quantification was performed for main trans-stilbenes and anthranoids in different extracts by UHPLC-DAD. Arithmetic means of triplicate measurements of peak areas (AUC) in UHPLC-DAD chromatograms (λ = 318 nm for stilbenes and 424 nm for anthranoids) were used for calculation. Relative standard deviations (RSD%) for AUCs were <0.60% for stilbenes and < 1.66% for anthranoids, with few exceptions (2 in RM96, RSD = 4.25%; 6 in RM96, RSD = 2.42%; 6 in RD, RSD = 5.63%). Quantities in freeze-dried extracts, native fluid extracts, and extraction from plant material were calculated from results for sample concentration 2 mg/mL freeze-dried extract in UHPLC analysis, using exact masses of plant material, solvents, and freeze-dried extracts (Supplementary Materials, Table S1). Correction factors (Tables S2 and S3) were applied according to differences in molecular weight of analytes and reference substances. Purity of references was considered and determined to be 99.76% for trans-resveratrol and 97.91% for emodin. Results for stilbenes are given as mg/g dry extract after freeze-drying (Table 3), mg/100 g extract solution after filtration (Table 4), and mg/g plant material used for extraction (Table 5), in the same order, results for anthranoids are presented in Table 6, Table 7 and Table 8. Glycoside and aglycone contents represent proportions of total amounts.
Results for mg/100 g fluid extract (Table 4 and Table 7) showed main stilbenes to be 11 and 13 in all extracts. A comparably high amount of 18 could be found in RM38. The main anthranoid was 32 in all macerates, whereas 23 was dominant in RD and RI. Total stilbene and anthranoid extraction followed the trend RM96 > RM70 > RM38 > RD > RI (p < 0.01 for total stilbene and p < 0.037 for total anthranoid amount), as did stilbene glycoside (p < 0.01) and anthranoid aglycone (p < 0.01) extraction (Figure 2). An opposite trend was true for stilbene aglycones in macerates (p < 0.01), with highest extraction in RM38, while water extractions still gave the lowest results (p < 0.01), with no quantifiable stilbene aglycones in RI. Highest amounts of anthranoid glycosides were extracted in RD (p < 0.01), none could be quantified in RM70 and RM38.
When analysing relative composition of extracts regarding stilbenes and anthranoids, as illustrated in Figure 3, without considering absolute yield, it showed that RM38 had lowest anthranoid content at 3.38% (p < 0.01) and a remarkably high fraction of aglycones within stilbenes (25.13%) (p < 0.01). RD and RI showed highest anthranoid (31.11 and 30.56%) and total glycoside content (97.13% and 98.20%) in similar relative compositions (Figure 3) (p < 0.01 compared to other extraction methods).
Validation of Quantitative UHPLC-DAD Method
Linearity of measurements was confirmed for the quantitative UHPLC method used in this study. For reference substance, resveratrol in a working range of 2–300 µg/mL and emodin of 2–500 µg/mL separate correlation coefficients showed (R2) = 1. Intra-day and inter-day precision were investigated for sample RM96. Results are shown in Table 9. Accuracies were found to be 72.44%, 94.99%, and 94.58% for emodin (3, 200, 400 µg/mL) and 82.85%, 93.64%, and 93.83% for resveratrol (3, 100, 200 µg/mL). For emodin, recovery rates at 3, 200, and 400 µg/mL spike concentrations were determined to be 92.54%, 98.76%, and 98.92%, respectively. For resveratrol at 3, 100, and 200 µg/mL, recovery rates were 109.62%, 96.65%, and 96.81%.
2.4. Antimycobacterial Testing of Freeze-Dried Extracts and Reference Substances
MIC testing of freeze-dried extracts showed antimycobacterial effects against M. smegmatis for macerates and reference substance resveratrol in the tested concentration ranges (extracts 512–1 µg/mL, reference substances 128–0.25 µg/mL). Infusion and decoction, as well as polydatin and emodin, had no relevant antibacterial effect. Results are summarized in Table 10.
3. Discussion
In this study, we analysed different extraction methods of fresh R. japonica rhizome, which are easily reproducible without specialized instrumental equipment and using food-grade solvents, to compare yields and composition, particularly focusing on main secondary metabolite groups of anthranoids and stilbenes. UHPLC-DAD-ESI-MSn lead to the characterization of thirty-four substances, of which six were stilbenes, and twelve anthranoids. Substances 16, 25, 28, and 29 (Table 2) can be regarded as new derivatives of previously reported compounds. The main constituents, four trans-stilbenes and eight anthranoids, were quantified by means of UHPLC-DAD. Furthermore, we investigated the antimycobacterial potential of extracts and reference compounds against Mycobacterium smegmatis in micro-dilution minimum inhibitory concentration (MIC) assays.
Macerates prepared with 38%, 70%, and 96% (v/v) ethanol (RM38, RM70, RM96) showed yields of 10.32, 10.54, and 12.07% (Table 1), giving the highest ethanol concentration in solvents a slight advantage in yield; however, these did not mark drastic changes in extraction efficiency. Infusion (RI) yields were low at 3.88%, which is to be expected from a short extraction time of 10 min and makes this preparation least suitable for further consideration of usability. Decoction (RD) yielded 12.13% and needs merely 30 min of extraction time compared to three weeks for macerates. However, when extract composition is considered, RD showed the highest anthranoid extraction of all extracts at 31% of quantified substances (Figure 3), which could be considered an undesirable trait of R. japonica extracts. Although the European Pharmacopoeia demands minimum contents for polydatin (stilbene) and emodin (anthranoid) in dried R. japonica rhizome [7], higher stilbene content and low anthranoid content in extracts seems more desirable to emphasize the antioxidative and antibacterial effects of stilbenes [14,15,16,17], while minimizing the laxative effects of emodin and derivatives [18]. In accordance with the reported results for lyophilized and pulverized R. japonica rhizome samples [24], the extraction of anthranoids from fresh and cut R. japonica rhizome is rising with ethanol concentration. However, a reported decline in extraction efficiency over 80% ethanol concentration was not found to be occurring in fresh rhizome macerates. From this point of view, RM38 seems most promising, with high stilbene and a remarkably low anthranoid content of 3.38% of quantified substances (5.420 mg/100 g fluid extract, Figure 3, Table 7). Absolute stilbene content amounted to 155.078 mg/100 g fluid extract (Table 4) and could easily be improved through scale-up processes like large batch processing and concentration of constituents by evaporation of solvent. A stilbene extraction from fresh R. japonica rhizome with liquified dimethyl ether was reported to yield 0.342 mg/g resveratrol and 2.57 mg/g polydatin, calculated per gram of dry rhizome [25]. Extraction of resveratrol from dried and pulverized R. japonica rhizome with deep eutectic solvents (DES) yielded up to 9.00 mg/g dry rhizome [26]. In comparison with both methods, we found RM38 to also yield good quantities of 2.057 mg/g resveratrol and 3.013 mg/g polydatin. Maceration with 38% (v/v) ethanol can, similarly to DES, be employed without the need to dry and grind plant material, but requires neither specialized equipment, nor complex or critical organic solvents.
The highest relative glycoside content among quantified substances was found in hot water extracts RD and RI (97.13% and 98.20%, Figure 3), which could be due to denaturation of glycosidases by hot water, and therefore prohibition of enzymatic hydrolysis. In macerates, high water content encourages hydrolysis and RM38 showed the lowest glycoside content accordingly (71.49%), entirely made up of stilbene glycosides, with no quantifiable anthranoid glycosides. Interestingly, RM70, and not RM96, showed the highest relative glycoside content among macerates. This could be explained by improved glycoside extraction at 30% (v/v) water content in solvent, while high ethanol of 70% (v/v) suffices to stabilize glycosides in solution over longer extraction times.
Antimycobacterial testing against M. smegmatis showed good results for all freeze-dried macerates at 256 µg/mL, with no visible effects of different extract compositions regarding stilbenes and anthranoids (Table 10). Water extracts RD and RI, however, showed no significant antibacterial effect (>512 µg/mL), which could be attributed to high glycoside content, and therefore less uptake by bacteria due to higher polarity of compounds. Reference compounds trans-resveratrol and trans-polydatin support this assumption for stilbenes, with promising results for the aglycone trans-resveratrol (64 µg/mL), while glycoside the trans-polydatin showed no relevant effect (>128 µg/mL). Anthranoid emodin also showed no inhibitory effect (>128 µg/mL).
As R. japonica is highly invasive outside its native regions of Eastern Asia and an aggressive competitor in foreign ecosystems, new perspectives on medicinal use in the West show benefits that might encourage consideration of wild harvest over classic means of eradication, which mostly involve heavy use of herbicides [27]. Extraction and enrichment of stilbenes from fresh plant material can be accomplished by simple extraction methods with food-grade solvents which are also suitable for scale-up, most significantly by maceration with 38% (v/v) ethanol. Stilbene aglycones of natural origin and their derivatives promise to be interesting targets for further antimycobacterial evaluation.
4. Materials and Methods
4.1. Plant Material
Rhizomes of R. japonica were harvested in September of 2020 in Graz, Austria (47°04′39.38″ N, 15°27′08.90″ E), and stored at +4 °C. A voucher was deposited at the herbarium of the Department of Pharmacognosy, Institute of Pharmaceutical Sciences, University of Graz (specimen voucher: Alperth 010). The plant material was processed the day after collection by washing with cold water and cutting into approximately 2 mm thick slices shortly before extraction. Only pieces with complete cross-sections were used to facilitate comparability between different extraction methods.
4.2. Solvents and Reference Substances
Reference substances for qualitative and quantitative analysis were trans-resveratrol (99% purity, Sigma-Aldrich, St. Louis, MO, USA), emodin (90% purity, Sigma-Aldrich), and polydatin CRS (trans-polydatin, 99.1% purity, EDQM—Council of Europe, Strasbourg, France). For extract preparation, deionized water and ethanol (AustrAlco, Spillern, Austria) were used. Samples of reference substances were prepared in p.a. grade methanol (VWR, Radnor, PA, USA). HPLC mobile phases were made up of ultrapure water (Barnstead Easypure RF, Barnstead) and HPLC-grade acetonitrile (VWR).
4.3. Photoisomerization of Reference Stilbenes by UV-Exposure
Separate reference solutions of trans-resveratrol and trans-polydatin were prepared as 1 mg/mL in methanol and treated with UV light (λ = 365 nm) in clear glass vials for 18.5 h to trigger cis/trans-isomerization for further reference data.
4.4. Extract Preparation
Separate samples of fresh plant material were extracted by infusion, decoction, and maceration before filtration with suction and freeze-drying using a VirTis Sentry freeze-dryer (SP Scientific, Warminster, PA, USA). For infusion, 100 g of boiling, deionized water were added to 2 g of cut rhizome in a beaker and covered for an extraction time of 10 min. For decoction, 100 g of cold, deionized water and 2 g of plant material were brought to a boil and then extracted for 30 min under reflux. Macerates were prepared with 20 g of rhizome and 100 g of 38%, 70% and 96% (v/v) partly denatured ethanol respectively, with an extraction time of three weeks in the dark.
4.5. UHPLC-DAD-ESI-MSn for Qualitative Analysis
A Dionex UltiMate 3000 RS Ultra-high performance liquid chromatography (UHPLC) system (Thermo Fisher Scientific, Waltham, MA, USA) comprising pump, autosampler, column compartment and diode array detector (DAD) was used for qualitative analysis of extracts. A Kinetex C18 100 mm × 2.1 mm, 2.6µm column (Phenomenex, Torrance, CA, USA) offered the stationary phase, while the mobile phase consisted of water + 0.1% formic acid (A) and acetonitrile + 0.1% formic acid (B). Runs started at 3% B, increasing to 15% B at 12 min, 42% B at 20 min and 70% B at 23 min, then plateaued until 25 min before dropping back to 3% B at 25.2 min, which was held until 30 min total runtime. Column temperature was kept at 40 °C with flow rate being 0.350 mL/min. DAD recorded spectra in a wavelength range of 190 to 700 nm. For mass spectrometric (MS) detection, the system was coupled to an LTQ XL linear ion-trap mass spectrometer with electrospray ionization (ESI) ion source (Thermo Scientific). Conditions were set to source heater temperature 300 °C, sheath gas flow 40 arb (arbitrary units), auxiliary gas flow 10 arb, source voltage 3.5 kV (ESI neg), and recorded mass range of m/z 50 to 2000 amu.
4.6. UHPLC-DAD for Quantitative Analysis
Quantitative analysis was conducted on a separate Dionex UltiMate 3000 RS UHPLC system (Thermo Fisher Scientific), comprising the same modules as for qualitative analysis without coupling to MS. All chromatographic parameters were identical, with extracted quantification wavelengths from DAD-UV detection being 318 nm for stilbenes and 424 nm for anthranoids. Freeze-dried extracts were redissolved in concentrations of 2 mg/mL, with water as solvent for dry extracts from infusion and decoction, and 50% (v/v) ethanol for macerates. Reference substances were used in 1 mg/mL methanolic stock solutions and subsequent serial dilutions (1:10, 1:100, 1:1000). Injection volumes were 1 and 5 µL for samples and 1 to 5 µL for references according to desired concentration. All measurements were performed in triplicate and quantified substances calculated for their AUC arithmetic means.
4.7. Validation of UHPLC-DAD Method
4.7.1. Linearity
To establish linearity of measurements in a working range of 2–300 µg/mL for reference substance, resveratrol concentrations 2, 5, 10, 30, 100, 300 µg/mL were evaluated. For emodin in a working range of 2–500 µg/mL, concentrations 2, 5, 10, 30, 100, 300, 500 µg/mL were used.
4.7.2. Precision
Intra-day and inter-day precision were determined for sample RM96 at a sample concentration of 2 mg/mL in 50% (v/v) ethanol and injection volume of 1 µL. For intra-day precision, the sample solution was injected six consecutive times in one day and relative standard deviation (RSD) in peak areas (area under the curve, AUC) calculated for four stilbenes and three anthranoids. For inter-day precision, the same sample was injected 3 times each on two consecutive days.
4.7.3. Accuracy
For determination of accuracy, serial dilutions of emodin and resveratrol reference stock solutions were measured in different injection volumes to give target concentrations of 3, 200, and 400 µg/mL for emodin and 3, 100, and 200 µg/mL for resveratrol.
4.7.4. Recovery Rate
Recovery rates for emodin and resveratrol were measured by spiking samples of RM38 at a concentration of 2 mg/mL with reference concentrations also used for determination of accuracy (3, 200, and 400 µg/mL for emodin and 3, 100, and 200 µg/mL for resveratrol).
4.8. Antimycobacterial Assay
All freeze-dried extracts and reference compounds were tested in a well-established serial micro-dilution minimum inhibitory concentration (MIC) assay against the bacterial strain Mycobacterium smegmatis mc² 155 (ATCC 700084) [28]. Starting concentrations for dilution were 512 mg/L for extracts and 128 mg/L for reference compounds. In short, samples were dissolved in dimethyl sulfoxide (Roth, Karlsruhe, Germany) before serial dilution with Mueller Hinton Broth medium (Oxoid, Basingstoke, Hampshire, UK) in 96-well plates and incubation for 72 hours at 37 °C with a 5 × 105 cfu/mL bacterial inoculum (n = 4). Isoniazid (Sigma, St. Louis, MO, USA) served as control antibiotic. Growth and sterile control were included per plate. Evaluation was performed via Methylthiazolyldiphenyl-tetrazoliumbromide (MTT) (Sigma) colorimetric detection, after additional incubation of 30 min.
4.9. Statistical Analysis
All statistical analyses were performed in IBM SPSS Statistics 26. To test correlations, Spearman Correlation test was employed as correlations might not be linear and extraction methods are transformed to ordinal variables. For mean comparisons, an ANOVA with a Bonferroni-Holm corrected t-test as a post hoc test was used. The α-level was set to 0.05.
5. Conclusions
Reynoutria japonica, as one of the most critical invasive species in Europe and North America, requires constant attention in management. To shed light on benefits beyond eradication can promote the use of invasive species. As hypothesized, differences in simple extraction methods are apparent. Remarkably, a simple macerate with 38% (v/v) ethanol gives good yields of stilbenes while showing low anthranoid content and could therefore be a target for large-scale processing of R. japonica rhizomes. However, concerning their antimycobacterial potential, all ethanolic macerates showed similar results, both aqueous preparations were less active.
Optimal harvest times for high stilbene content need to be investigated in future research. Also, antimycobacterial stilbene aglycones, their isolation, derivatization, and testing, proved to be promising for future investigation.
Supplementary Materials
The following are available online at https://www.mdpi.com/article/10.3390/plants10091809/s1, Table S1: Data used for quantitative calculations, Table S2: Correction factors for stilbene quantification relative to reference trans-resveratrol, Table S3: Correction factors for anthranoid quantification relative to reference emodin.
Author Contributions
Conceptualization, F.A. and F.B.; methodology, F.A.; validation, L.M. and F.A.; investigation, L.M. and F.A.; resources, F.A. and F.B.; writing—original draft preparation, F.A.; writing—review and editing, F.B., J.-P.F. and L.M.; visualization, J.-P.F.; supervision, F.B. All authors have read and agreed to the published version of the manuscript.
Funding
This research received no external funding.
Data Availability Statement
Data are included in this article.
Acknowledgments
The authors acknowledge the financial support by the University of Graz.
Conflicts of Interest
The authors declare no conflict of interest.
References
- WFO. Reynoutria japonica Houtt. Available online: http://www.worldfloraonline.org/taxon/wfo-0000406106 (accessed on 30 June 2021).
- Bailey, J.P.; Conolly, A.P. Prize-Winners to Pariahs—A History of Japanese Knotweed s.l. (Polygonaceae) in the British Isles. Watsonia 2000, 23, 93–110. [Google Scholar]
- Jones, D.; Bruce, G.; Fowler, M.S.; Law-Cooper, R.; Graham, I.; Abel, A.; Street-Perrott, F.A.; Eastwood, D. Optimising physiochemical control of invasive Japanese knotweed. Biol. Invasions 2018, 20, 2091–2105. [Google Scholar] [CrossRef] [Green Version]
- Global Invasive Species Database. Species Profile: Polygonum cuspidatum. Available online: http://www.iucngisd.org/gisd/speciesname/Polygonum+cuspidatum (accessed on 30 June 2021).
- Peng, W.; Qin, R.; Li, X.; Zhou, H. Botany, phytochemistry, pharmacology, and potential application of Polygonum cuspidatum Sieb.et Zucc.: A review. J. Ethnopharmacol. 2013, 148, 729–745. [Google Scholar] [CrossRef] [PubMed]
- Zhang, H.; Li, C.; Kwok, S.-T.; Zhang, Q.-W.; Chan, S.-W. A Review of the Pharmacological Effects of the Dried Root of Polygonum cuspidatum (Hu Zhang) and Its Constituents. Evid. Based Complement. Altern. Med. 2013, 2013, 208349. [Google Scholar] [CrossRef] [Green Version]
- Europäisches Arzneibuch: 10. Ausgabe, Grundwerk. Polygoni Cuspidati Rhizoma et Radix; Verlag Österreich: Vienna, Austria, 2020; pp. 2085–2087.
- Nawrot-Hadzik, I.; Hadzik, J.; Fleischer, M.; Choromańska, A.; Sterczała, B.; Kubasiewicz-Ross, P.; Saczko, J.; Gałczyńska-Rusin, M.; Gedrange, T.; Matkowski, A. Chemical Composition of East Asian Invasive Knotweeds, their Cytotoxicity and Antimicrobial Efficacy Against Cariogenic Pathogens: An In-Vitro Study. Med. Sci. Monit. 2019, 25, 3279–3287. [Google Scholar] [CrossRef]
- Fu, J.; Wang, M.; Guo, H.; Tian, Y.; Zhang, Z.; Song, R. Profiling of components of rhizoma et radix polygoni cuspidati by high-performance liquid chromatography with ultraviolet diode-array detector and ion trap/time-of-flight mass spectrometric detection. Pharmacogn. Mag. 2015, 11, 486–501. [Google Scholar] [CrossRef] [Green Version]
- Nawrot-Hadzik, I.; Ślusarczyk, S.; Granica, S.; Hadzik, J.; Matkowski, A. Phytochemical Diversity in Rhizomes of Three Reynoutria Species and their Antioxidant Activity Correlations Elucidated by LC-ESI-MS/MS Analysis. Molecules 2019, 24, 1136. [Google Scholar] [CrossRef] [Green Version]
- Chen, H.; Tuck, T.; Ji, X.; Zhou, X.; Kelly, G.; Cuerrier, A.; Zhang, J. Quality assessment of Japanese knotweed (Fallopia japonica) grown on Prince Edward Island as a source of resveratrol. J. Agric. Food Chem. 2013, 61, 6383–6392. [Google Scholar] [CrossRef]
- Ahmad, A.; Ahmad, R. Resveratrol mitigate structural changes and hepatic stellate cell activation in N′-nitrosodimethylamine-induced liver fibrosis via restraining oxidative damage. Chem. Biol. Interact. 2014, 221, 1–12. [Google Scholar] [CrossRef]
- Buonocore, D.; Lazzeretti, A.; Tocabens, P.; Nobile, V.; Cestone, E.; Santin, G.; Bottone, M.G.; Marzatico, F. Resveratrol-procyanidin blend: Nutraceutical and antiaging efficacy evaluated in a placebocontrolled, double-blind study. Clin. Cosmet. Investig. Dermatol. 2012, 5, 159–165. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Piotrowska, H.; Kucinska, M.; Murias, M. Biological activity of piceatannol: Leaving the shadow of resveratrol. Mutat. Res. 2012, 750, 60–82. [Google Scholar] [CrossRef] [PubMed]
- Su, D.; Cheng, Y.; Liu, M.; Liu, D.; Cui, H.; Zhang, B.; Zhou, S.; Yang, T.; Mei, Q. Comparision of piceid and resveratrol in antioxidation and antiproliferation activities in vitro. PLoS ONE 2013, 8, e54505. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Vestergaard, M.; Ingmer, H. Antibacterial and antifungal properties of resveratrol. Int. J. Antimicrob. Agents 2019, 53, 716–723. [Google Scholar] [CrossRef] [PubMed]
- Mattio, L.M.; Dallavalle, S.; Musso, L.; Filardi, R.; Franzetti, L.; Pellegrino, L.; D’Incecco, P.; Mora, D.; Pinto, A.; Arioli, S. Antimicrobial activity of resveratrol-derived monomers and dimers against foodborne pathogens. Sci. Rep. 2019, 9, 19525. [Google Scholar] [CrossRef]
- Zheng, Y.-F.; Liu, C.-F.; Lai, W.-F.; Xiang, Q.; Li, Z.-F.; Wang, H.; Lin, N. The laxative effect of emodin is attributable to increased aquaporin 3 expression in the colon of mice and HT-29 cells. Fitoterapia 2014, 96, 25–32. [Google Scholar] [CrossRef]
- Braune, A.; Blaut, M. Bacterial species involved in the conversion of dietary flavonoids in the human gut. Gut Microbes 2016, 7, 216–234. [Google Scholar] [CrossRef] [Green Version]
- Lechner, D.; Gibbons, S.; Bucar, F. Plant phenolic compounds as ethidium bromide efflux inhibitors in Mycobacterium smegmatis. J. Antimicrob. Chemother. 2008, 62, 345–348. [Google Scholar] [CrossRef] [Green Version]
- Fan, P.; Hay, A.-E.; Marston, A.; Lou, H.; Hostettmann, K. Chemical variability of the invasive neophytes Polygonum cuspidatum Sieb. and Zucc. and Polygonum sachalinensis F. Schmidt ex Maxim. Biochem. Syst. Ecol. 2009, 37, 24–34. [Google Scholar] [CrossRef]
- Feng, J.; Ren, H.; Gou, Q.; Zhu, L.; Ji, H.; Yi, T. Comparative analysis of the major constituents in three related polygonaceous medicinal plants using pressurized liquid extraction and HPLC-ESI/MS. Anal. Methods 2016, 8, 1557–1564. [Google Scholar] [CrossRef] [Green Version]
- Kimura, Y.; Kozawa, M.; Baba, K.; Hata, K. New Constitutents of Roots of Polygonum cuspidatum. Planta Med. 1983, 48, 164–168. [Google Scholar] [CrossRef]
- Glavnik, V.; Vovk, I. Extraction of Anthraquinones from Japanese Knotweed Rhizomes and Their Analyses by High Performance Thin-Layer Chromatography and Mass Spectrometry. Plants 2020, 9, 1753. [Google Scholar] [CrossRef]
- Kanda, H.; Oishi, K.; Machmudah, S.; Wahyudiono; Goto, M. Ethanol-free extraction of resveratrol and its glycoside from Japanese knotweed rhizome by liquefied dimethyl ether without pretreatments. Asia-Pac. J. Chem. Eng. 2021, 16. [Google Scholar] [CrossRef]
- Sun, B.; Zheng, Y.-L.; Yang, S.-K.; Zhang, J.-R.; Cheng, X.-Y.; Ghiladi, R.; Ma, Z.; Wang, J.; Deng, W.-W. One-pot method based on deep eutectic solvent for extraction and conversion of polydatin to resveratrol from Polygonum cuspidatum. Food Chem. 2021, 343, 128498. [Google Scholar] [CrossRef] [PubMed]
- Delbart, E.; Mahy, G.; Weickmans, B.; Henriet, F.; Crémer, S.; Pieret, N.; Vanderhoeven, S.; Monty, A. Can land managers control Japanese knotweed? Lessons from control tests in Belgium. Environ. Manag. 2012, 50, 1089–1097. [Google Scholar] [CrossRef] [PubMed]
- Stavri, M.; Schneider, R.; O’Donnell, G.; Lechner, D.; Bucar, F.; Gibbons, S. The antimycobacterial components of hops (Humulus lupulus) and their dereplication. Phytother. Res. 2004, 18, 774–776. [Google Scholar] [CrossRef] [PubMed]

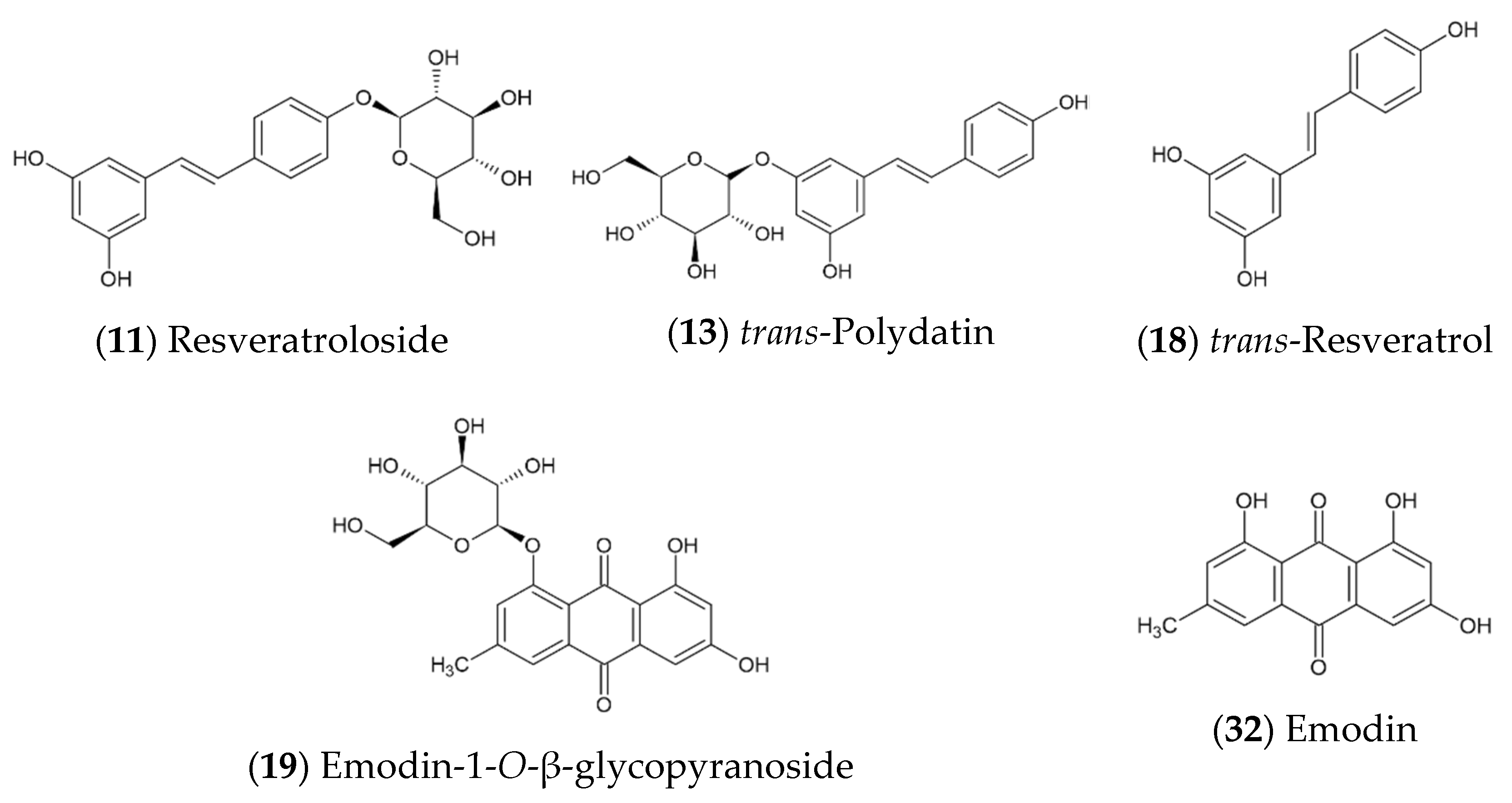

Figure 1.
Molecular structures of several identified compounds in Reynoutria japonica rhizome extracts belonging to major constituent groups of stilbenes (11, 13, 18) and anthranoids (19, 32).
Figure 1.
Molecular structures of several identified compounds in Reynoutria japonica rhizome extracts belonging to major constituent groups of stilbenes (11, 13, 18) and anthranoids (19, 32).

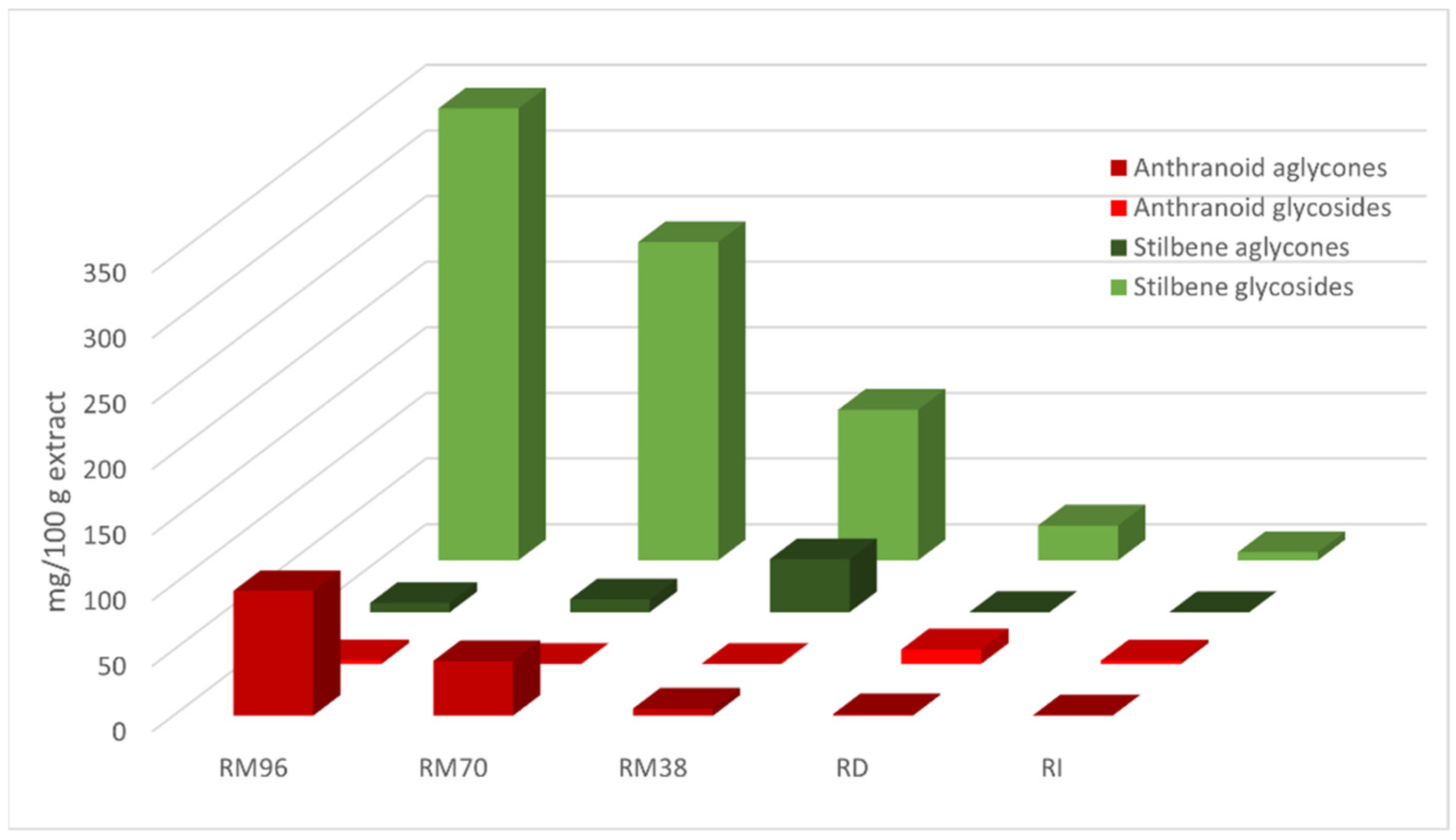

Figure 2.
Stilbene and anthranoid glycoside and aglycone content given as mg/100 g fluid extract.

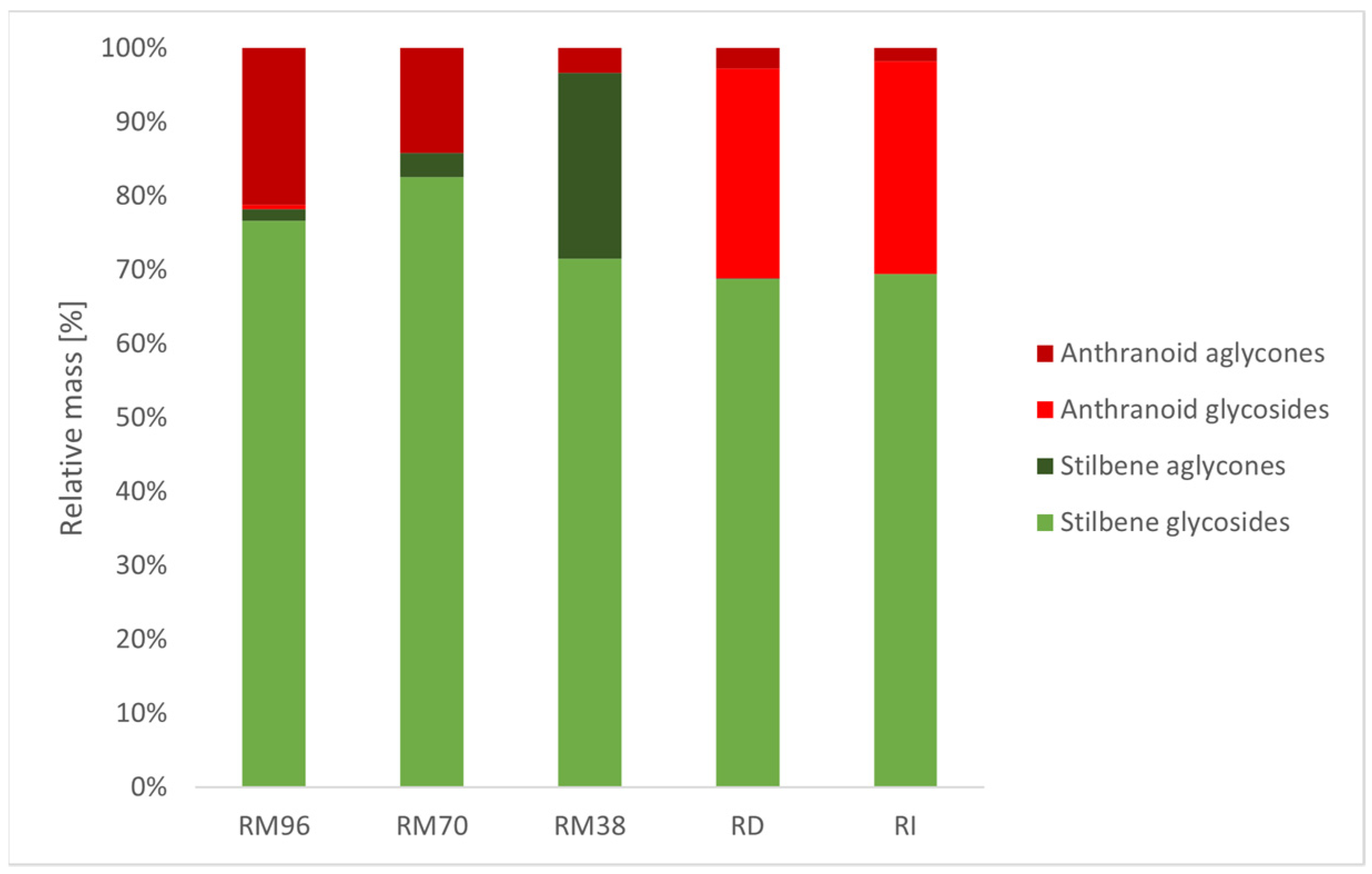

Figure 3.
Relative distribution of stilbene and anthranoid glycoside and aglycone content in fluid extracts.
Figure 3.
Relative distribution of stilbene and anthranoid glycoside and aglycone content in fluid extracts.
Table 1.
Drug extract ratios for investigated Reynoutria japonica rhizome extracts.
| Extract 1 | DER | Yield [%] |
|---|---|---|
| RI | 25.75:1 | 3.88% |
| RD | 8.24:1 | 12.13% |
| RM96 | 8.29:1 | 12.07% |
| RM70 | 9.49:1 | 10.54% |
| RM38 | 9.69:1 | 10.32% |
1 RI = infusion, RD = decoction, RM = macerates prepared with 96, 70, 38% (v/v) ethanol.
Table 2.
Qualitative analysis of Reynoutria japonica rhizome extracts.
| Substance | RT [min] | Molecular Ion [m/z] | MSn [m/z], Relative Intensity (%) | Molecular Weight [g/mol] | Tentative Identification |
|---|---|---|---|---|---|
| 1 | 5.15 | 577 [M-H]− | MS2[577]: 425 (100), 470 (35), 289 (15) MS3[425]: 407 (100), 273 (10) MS4[407]: 285 (100), 281 (70), 398 (53), 297 (50) | 578 | Procyanidin dimer Type B [9,10] |
| 2 | 5.35 | 335 [M+HCOO]− 289 [M-H]− | MS2[289]: 245 (100), 205 (38), 179 (15) MS3[245]: 203 (100), 227 (30), 187 (25), 161 (20) MS4[203]: 175 (100), 188 (65), 161(35), 157 (20) | 290 | Catechin [9,10,21] |
| 3 | 6.15 | 577 [M-H]− | MS2[577]: 425 (100), 470 (35), 289 (15) MS3[425]: 407 (100), 273 (10) MS4[407]: 285 (100), 281 (70), 398 (53), 297 (50) | 578 | Procyanidin dimer Type B [9,10] |
| 4 | 6.81 | 577 [M-H]− | MS2[577]: 425 (100), 470 (35), 289 (15) MS3[425]: 407 (100), 273 (10) MS4[407]: 285 (100), 281 (70), 398 (53), 297 (50) | 578 | Procyanidin dimer Type B [9,10] |
| 5 | 7.46 | 577 [M-H]− | MS2[577]: 425 (100), 470 (35), 289 (15) MS3[425]: 407 (100), 273 (10) MS4[407]: 285 (100), 281 (70), 398 (53), 297 (50) | 578 | Procyanidin dimer Type B [9,10] |
| 6 | 7.72 | 335 [M+HCOO]− 289 [M-H]− | MS2[289]: 245 (100), 205 (38), 179 (15) MS3[245]: 203 (100), 227 (30), 187 (25), 161 (20) MS4[203]: 175 (100), 188 (65), 161(35), 157 (20) | 290 | Epicatechin [9,10,21] |
| 7 | 7.97 | 383 [M-H]− | MS2[383]: 303 (100), 285 (13) MS3[303] 285 (100) MS4[285]: 241 (100), 175 (50), 243 (20), 199 (18), 257 (15), 217 (15) | 384 | Undefined |
| 8 | 8.77 | 186 [M-H]− | MS2[186]: 125 (100) MS3[125]: 97 (100), 125 (35), 57 (18) | 187 | Undefined |
| 9 | 9.88 | 865 [M-H]− | MS2[865]: 695 (100), 577 (68), 739 (65), 575 (35), 425 (25), 847 (22), 287 (20) MS3[695]: 543 (100), 451 (38), 677 (35), 405 (32), 243 (30), 525 (28), 289 (17) | 866 | Procyanidin trimer Type B [10] |
| 10 | 9.90 | 405 [M-H]− | MS2[405]: 243 (100) MS3[243]: 225 (100), 201 (50), 199 (35), 175 (30) MS4[225]: 157 (100), 197 (60), 181 (45), 225 (30) | 406 | trans-Piceatannol-hexoside [9,10,21] |
| 11 | 10.13 | 435 [M+HCOO]− | MS2[435]: 289 (100), 227 (13) MS3[289]: 227 (100) MS4[227]: 185 (100), 183 (50), 157 (40), 159 (40) | 390 | Resveratroloside [10,21] |
| 12 | 10.40 | 729 [M-H]− | MS2[729]: 559 (100), 407 (95), 577 (93), 441 (75), 603 (70), 451 (55), 711 (30), 289 (28) | 730 | Procyanidin dimer monogallate [10] |
| 13 | 11.86 | 435 [M+HCOO]− | MS2[435]: 289 (100) MS3: 227 (100) MS4[227]: 185 (100), 183 (50), 157 (40), 159 (40) | 390 | trans-Polydatin 1 |
| 14 | 12.08 | 441 [M-H]− | MS2[441]: 289 (100), 169 (22), 331 (18) MS3[289]: 245 (100), 205 (38), 179 (18) MS4[245]: 203 (100), 127 (25), 187 (22), 161 (20), 217 (10) | 442 | Catechin/Epicatechin monogallate [9] |
| 15 | 14.86 | 435 [M+HCOO]− | MS2[435]: 289 (100) MS3: 227 (100) MS4[227]: 185 (100), 183 (50), 157 (40), 159 (40) | 390 | cis-Polydatin 2 |
| 16 | 15.12 | 393 [M-H]− 505 [M-H]− | MS2[393]: 231 (100) MS2[505]: 289 (100), 215 (38) | 394 (1) 506 (2) | Demethylated torachrysone- hexoside [9,10] (1), Undefined (2) |
| 17 | 15.43 | 445 [M-H]− | MS2[445]: 283 (100) MS3[283]: 240 (100), 265 (70), 268 (35) | 446 | Emodin methyl ether hexoside [22] |
| 18 | 15.58 | 227 [M-H]− | MS2[227]: 185 (100), 183 (58), 157 (50), 159 (47) | 228 | trans-Resveratrol 1 |
| 19 | 15.97 | 431 [M-H]− | MS2[431]: 269 (100), 311 (10) MS3[269]: 225 (100), 241 (18) MS4[225]: 181 (100), 210 (80), 225 (65), 197 (25) | 432 | Emodin-1-O-β-glucopyranoside [9,10] |
| 20 | 16.25 | 511 [M-H]− | MS2[511]: 269 (100), 431 (43) MS3[296]: 225 (100), 241 (25), 269 (15) | 512 | Emodin-O-(sulfonyl)-hexoside [9,10] |
| 21 | 16.87 | 299 [M-H]− | MS2[299]: 256 (100), 284(25) MS3[256]: 227 (100), 228 (70), 226 (65), 239 (26), 211 (20), 256 (20) | 300 | Undefined anthranoid |
| 22 | 16.9 | 273 [M+HCOO]− | MS2[273]: 227(100) MS3[227]: 185 (100), 183 (55), 157 (40), 159 (40) | 228 | cis-Resveratrol 2 |
| 23 | 17.49 | 431 [M-H]− | MS2[431]: 269 (100), 311 (10) MS3[269]: 225 (100), 241 (18) MS4[225]: 181 (100), 210 (83), 225 (63), 197 (25) | 432 | Emodin-hexoside [9,10] |
| 24 | 18.20 | 517 [M-H]− 1035 [2M-H]− | MS2[517]: 473 (100) MS3[473]: 269 (100), 311 (10), MS4[269]: 225 (100), 241 (18) | 518 | Emodin-8-O- (6′-O-malonyl)- hexoside [9,10] |
| 25 | 18.46 | 325 [M-H]− | MS2[325]: 245 (100) MS3[245]: 230 (100) MS4[245]: 215 (100) | 326 | Sulfonyl- torachryson [9] |
| 26 | 18.7 | 285 [M-H]− | MS2[285]: 241 (100), 257 (45), 285 (30), 211 (10) MS3[241]: 211 (100), 195 (52), 212 (35), 224 (35) | 286 | Hydroxyemodin [23] |
| 27 | 18.87 | 779 [M-H]− | MS2[779]: 633 (100), 615 (12), 487 (10) MS3[633]: 487 (100), 453 (25), 469 (20) | 780 | Hydropiperoside [10] |
| 28 | 19.57 | 533 [M+HCOO]− | MS2[533]: 487 (100), 283 (92), 486 (20) MS3[487]: 283 (100), 427 (35), 455 (33), 409 (25), 469 (15) MS3[283]: 240 (100), 268 (40) | 488 | Emodin methyl ether acetylhexoside [22] |
| 29 | 19.80 | 355 [M-H]− | MS2[355]:311 (100) MS3[311]: 267 (100), 268 (65), 283 (35), 311 (15) | 356 | Malonylemodin [9] |
| 30 | 20.94 | 283 [M-H]− | MS2[283]: 240 (100), 268 (30) MS3[240]: 212 (100), 240 (33), 196 (10), 184 (10) MS4[212]: 184 (100) | 284 | Emodin methyl Ether [22] |
| 31 | 22.38 | 311 [M-H]− | MS2[311]: 267 (100), 268 (50), 283 (60), 311 (43) MS3[267]: 224 (100), 225 (33), 240 (30), 223 (12) MS4[224]: 196 (100), 195 (15) | 312 | Acetylemodin [9] |
| 32 | 22.79 | 269 [M−H]− | MS2[269]: 225 (100), 241 (24), 269 (15) MS3[225]: 281 (100), 210 (73), 225 (63), 197 (30) MS4[281]: 181 (100), 153 (10) | 270 | Emodin 1 |
| 33 | 23.81 | 509 [M-H]− | MS2[509]: 254 (100), 491(10) MS3[254]: 226 (100), 254 (23), 225 (15) | 510 | Emodin-bianthron [10] |
| 34 | 24.51 | 353 [M-H]− | MS2[353]: 123 (100), 335 (15), 309 (12), MS3[123]: 123 (100), 95 (65) | 354 | Undefined anthranoid |
1 identified by comparison with reference compound; 2 identified after UV-isomerization of reference compound.
Table 3.
Quantitative analysis of stilbenes in Reynoutria japonica rhizome extracts calculated as mg/g freeze-dried extract.
Table 3.
Quantitative analysis of stilbenes in Reynoutria japonica rhizome extracts calculated as mg/g freeze-dried extract.
| Extract | 10 | 11 | 13 | 18 | Total | Glycosides | Aglycones |
|---|---|---|---|---|---|---|---|
| RI | 2.669 | 29.975 | 47.883 | - 1 | 80.527 | 80.527 | - |
| RD | 3.618 | 40.132 | 67.427 | 0.236 | 111.413 | 111.177 | 0.236 |
| RM96 | 4.968 | 53.561 | 87.993 | 2.952 | 149.474 | 146.521 | 2.952 |
| RM70 | 4.014 | 42.334 | 71.068 | 4.684 | 122.100 | 117.416 | 4.684 |
| RM38 | 2.024 | 25.473 | 29.192 | 19.926 | 76.615 | 56.689 | 19.926 |
1 = not quantifiable.
Table 4.
Quantitative analysis of stilbenes in Reynoutria japonica rhizome extracts calculated as mg/100 g fluid extract.
Table 4.
Quantitative analysis of stilbenes in Reynoutria japonica rhizome extracts calculated as mg/100 g fluid extract.
| Extract | 10 | 11 | 13 | 18 | Total | Glycosides | Aglycones |
|---|---|---|---|---|---|---|---|
| RI | 0.205 | 2.302 | 3.678 | - 1 | 6.185 | 6.185 | - |
| RD | 0.865 | 9.590 | 16.112 | 0.057 | 26.623 | 26.567 | 0.057 |
| RM96 | 11.676 | 125.880 | 206.802 | 6.938 | 351.296 | 344.358 | 6.938 |
| RM70 | 8.293 | 87.464 | 146.829 | 9.678 | 252.264 | 242.587 | 9.678 |
| RM38 | 4.096 | 51.561 | 59.087 | 40.333 | 155.078 | 114.745 | 40.333 |
1 = not quantifiable.
Table 5.
Quantitative analysis of stilbenes in Reynoutria japonica rhizome extracts calculated as mg/g plant material.
Table 5.
Quantitative analysis of stilbenes in Reynoutria japonica rhizome extracts calculated as mg/g plant material.
| Extract | 10 | 11 | 13 | 18 | Total | Glycosides | Aglycones |
|---|---|---|---|---|---|---|---|
| RI | 0.104 | 1.164 | 1.860 | - 1 | 3.128 | 3.128 | - |
| RD | 0.439 | 4.868 | 8.179 | 0.029 | 13.515 | 13.487 | 0.029 |
| RM96 | 0.600 | 6.464 | 10.619 | 0.356 | 18.039 | 17.683 | 0.356 |
| RM70 | 0.423 | 4.460 | 7.488 | 0.494 | 12.865 | 12.371 | 0.494 |
| RM38 | 0.209 | 2.629 | 3.013 | 2.057 | 7.907 | 5.851 | 2.057 |
1 = not quantifiable.
Table 6.
Quantitative analysis of anthranoids in Reynoutria japonica rhizome extracts calculated as mg/g freeze-dried extract.
Table 6.
Quantitative analysis of anthranoids in Reynoutria japonica rhizome extracts calculated as mg/g freeze-dried extract.
| Extract | 19 | 23 | 24 | 26 | 28 | 30 | 32 | 34 | Total | Glycosides | Aglycones |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RI | 2.459 | 24.433 | 3.540 | 0.996 | 2.919 | 0.000 | 1.087 | - 1 | 35.433 | 33.350 | 2.084 |
| RD | 4.002 | 35.318 | 3.663 | 2.461 | 2.923 | 0.221 | 1.717 | - | 50.307 | 45.907 | 4.400 |
| RM96 | - | 1.218 | - | - | - | 3.104 | 35.422 | 1.920 | 41.664 | 1.218 | 40.446 |
| RM70 | - | - | - | - | - | 2.184 | 17.170 | 0.791 | 20.145 | - | 20.145 |
| RM38 | - | - | - | - | - | 1.172 | 1.505 | - | 2.678 | - | 2.678 |
1 = not quantifiable.
Table 7.
Quantitative analysis of anthranoids in Reynoutria japonica rhizome extracts calculated as mg/100 g fluid extract.
Table 7.
Quantitative analysis of anthranoids in Reynoutria japonica rhizome extracts calculated as mg/100 g fluid extract.
| Extract | 19 | 23 | 24 | 26 | 28 | 30 | 32 | 34 | Total | Glycosides | Aglycones |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RI | 0.189 | 1.877 | 0.272 | 0.077 | 0.224 | - 1 | 0.083 | - | 2.721 | 2.561 | 0.160 |
| RD | 0.956 | 8.440 | 0.875 | 0.588 | 0.698 | 0.053 | 0.410 | - | 12.021 | 10.970 | 1.051 |
| RM96 | - | 2.863 | - | - | - | 7.294 | 83.250 | 4.512 | 97.919 | 2.863 | 95.056 |
| RM70 | - | - | - | - | - | 4.511 | 35.475 | 1.634 | 41.620 | - | 41.620 |
| RM38 | - | - | - | - | - | 2.373 | 3.047 | - | 5.420 | - | 5.420 |
1 = not quantifiable.
Table 8.
Quantitative analysis of anthranoids in Reynoutria japonica rhizome extracts calculated as mg/g plant material.
Table 8.
Quantitative analysis of anthranoids in Reynoutria japonica rhizome extracts calculated as mg/g plant material.
| Extract | 19 | 23 | 24 | 26 | 28 | 30 | 32 | 34 | Total | Glycosides | Aglycones |
|---|---|---|---|---|---|---|---|---|---|---|---|
| RI | 0.095 | 0.949 | 0.137 | 0.039 | 0.113 | - 1 | 0.042 | - | 1.376 | 1.295 | 0.081 |
| RD | 0.485 | 4.284 | 0.444 | 0.299 | 0.355 | 0.027 | 0.208 | - | 6.103 | 5.569 | 0.534 |
| RM96 | - | 0.147 | - | - | - | 0.375 | 4.275 | 0.232 | 5.028 | 0.147 | 4.881 |
| RM70 | - | - | - | - | - | 0.230 | 1.809 | 0.083 | 2.123 | - | 2.123 |
| RM38 | - | - | - | - | - | 0.121 | 0.155 | - | 0.276 | - | 0.276 |
1 = not quantifiable.
Table 9.
Intra-day and inter-day precision RSD (%) for several quantified stilbenes (10–18) and anthranoids (30–34).
Table 9.
Intra-day and inter-day precision RSD (%) for several quantified stilbenes (10–18) and anthranoids (30–34).
| Substance | Intra-Day Precision RSD [%] | Inter-Day Precision RSD [%] |
|---|---|---|
| 10 | 0.3612 | 0.9405 |
| 11 | 0.3318 | 0.8861 |
| 13 | 0.4201 | 1.0069 |
| 18 | 0.6999 | 1.1285 |
| 30 | 3.8111 | 2.6544 |
| 32 | 0.7511 | 1.5208 |
| 34 | 6.2563 | 7.7805 |
Table 10.
Minimum inhibitory concentrations of freeze-dried extracts on Mycobacterium smegmatis mc2 155 growth (n = 4).
Table 10.
Minimum inhibitory concentrations of freeze-dried extracts on Mycobacterium smegmatis mc2 155 growth (n = 4).
| Sample | MIC [µg/mL] |
|---|---|
| RI | >512 |
| RD | >512 |
| RM96 | 256 |
| RM70 | 256 |
| RM38 | 256 |
| trans-Resveratrol | 64 |
| trans-Polydatin | >128 |
| Emodin | >128 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
MDPI and ACS Style
Alperth, F.; Melinz, L.; Fladerer, J.-P.; Bucar, F. UHPLC Analysis of Reynoutria japonica Houtt. Rhizome Preparations Regarding Stilbene and Anthranoid Composition and Their Antimycobacterial Activity Evaluation. Plants 2021, 10, 1809. https://doi.org/10.3390/plants10091809
AMA Style
Alperth F, Melinz L, Fladerer J-P, Bucar F. UHPLC Analysis of Reynoutria japonica Houtt. Rhizome Preparations Regarding Stilbene and Anthranoid Composition and Their Antimycobacterial Activity Evaluation. Plants. 2021; 10(9):1809. https://doi.org/10.3390/plants10091809
Chicago/Turabian StyleAlperth, Fabian, Lena Melinz, Johannes-Paul Fladerer, and Franz Bucar. 2021. "UHPLC Analysis of Reynoutria japonica Houtt. Rhizome Preparations Regarding Stilbene and Anthranoid Composition and Their Antimycobacterial Activity Evaluation" Plants 10, no. 9: 1809. https://doi.org/10.3390/plants10091809
Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.
