Article

Combining the Stock Unearthing Method and Structure-from-Motion Photogrammetry for a Gapless Estimation of Soil Mobilisation in Vineyards

by
Alexander Remke
1,2,*,
Jesús Rodrigo-Comino
2,3,
Yeboah Gyasi-Agyei
4,
Artemi Cerdà
5 and
Johannes B. Ries
2
1
Diensleistungszentrum Ländlicher Raum Mosel, 54470 Bernkastel-Kues, Germany
2
Physische Geographie, Universität Trier, 54286 Trier, Germany
3
Instituto de Geomorfología y Suelos, Department of Geography, University of Málaga, 29071 Málaga, Spain
4
School of Engineering and Technology, Central Queensland University, Rockhampton, QLD 4702, Australia
5
Soil Erosion and Degradation Research Group, Department of Geography, University of Valencia, 46010 Valencia, Spain
*
Author to whom correspondence should be addressed.
ISPRS Int. J. Geo-Inf. 2018, 7(12), 461; https://doi.org/10.3390/ijgi7120461
Submission received: 13 September 2018 / Revised: 9 November 2018 / Accepted: 21 November 2018 / Published: 27 November 2018
(This article belongs to the Special Issue Leading Progress in Digital Terrain Analysis and Modeling)

Abstract

:
In vineyards, especially on steep slopes like the Ruwer-Mosel Valley, Germany, soil erosion is a well-known environmental problem. Unfortunately, some enterprises and farmers are not aware of how much soil is being lost and the long-term negative impacts of soil erosion. The non-invasive technique of the stock unearthing method (SUM) can be used for a quick assessment of soil erosion in vineyards. SUM uses the graft union as a reference elevation for soil surface changes since the time of plantation commencement, which is modelled with the help of a geographic information system. A shortcoming of SUM is that the areas between the pair-vine cross sections are not surveyed, hence it is not accurate enough to identify erosion hot-spots. A structure-from-motion (SfM) photogrammetric technique is adopted to complement SUM to fill this data gap. Combining SUM (only measuring the graft unions) and SfM techniques could lead to an improved, easy and low-cost method with a higher accuracy for estimation of soil erosion based on interpolation by projection, and contact and gapless measuring. Thus, the main aim of this paper was to map the current soil surface level and to improve the accuracy of estimation of long-term soil mobilisation rates in vineyards. To achieve this goal, the TEPHOS (TErrestrial PHOtogrammetric Scanner), a static five camera array, was developed on a 20 m2 plot located in a steeply sloping vineyard of the Ruwer-Mosel Valley, Trier, Germany. A total soil mobilisation of 0.52 m3 (9.14 Mg ha yr−1) with soil surface level differences in excess of 30 cm in the 40 years since plantation commencement were recorded. Further research is, however, needed to reduce the number of photos used for the point cloud without loss of accuracy. This method can be useful for the observation of the impacts of other factors in vineyards, such as tillage erosion, runoff pathway detection or the trampling effect on soil erosion in vineyards.

1. Introduction

Soil erosion in German vineyard plantations is a major concern to farmers and policymakers, particularly where slopes are steep, and soil erosion investigation started nearly 50 years ago [1]. However, soil erosion mitigation measures are scarce largely because they are very costly, tedious to implement on the steep slopes, and there is a lack of awareness by some farmers and farm managers. In addition, the high stone contents in German vineyards contribute to a high variability of the hydrological processes, making it very difficult to implement soil erosion control strategies [2]. Regardless, some strategies of soil erosion protection, such as the use of grass cover [3], shrub covers [4] or straw mulches [5], have been implemented with successful results in numerous Mediterranean areas. These could also be applied in the Ruwer-Mosel valley in Germany, but it seems some farmers are not convinced of the value of such erosion control measures. Thus, there is a need to develop an accurate, visually attractive, and user-friendly survey method to highlight the rate of soil loss through erosion that could help to increase stakeholders´ awareness and encourage their participation in erosion control and mitigation.
Several methods, involving rainfall simulations [6], modelling techniques [7] and Gerlach troughs or pins in erosion plots [8,9] have been conducted in vineyards to quantify soil erosion rates. However, rainfall simulations are able to quantify initial soil erosion processes but for only a few controlled events and at the pedon scale [9], which in vineyards may not be representative enough due to the high variability of natural rainfall in some cases. Open or enclosed erosion plots, Gerlach troughs, and pins need several years of monitoring (>3 or 5 years) before soil loss can be estimated accurately because of the high climate and pedological variability [10,11]. Moreover, these methods are characterised as being invasive because external objects have to be installed into the soil.
The stock unearthing method (SUM), a non-invasive technique, could be considered as an appropriate method for measuring long-term soil erosion in vineyards [12]. It uses the elevation difference between the current soil surface level and the graft union (which serves as a passive bioindicator or botanical benchmark) to estimate total soil mobilisation rates [13,14]. Recently, improvements (ISUM—improved stock unearthing method) were done by taking measurements at the graft union as well as several locations within the inter-row areas of opposite pair vines. ISUM better detects linear soil erosion features such as rills and ephemeral gullies [15]. However, a shortcoming of ISUM is that there are gaps in the order of centimetres within the cross-sectional areas that are not captured. Therefore, the highest possible accuracy for soil erosion estimations cannot be reached using only the SUM or ISUM.
In order to fill the missing data gaps, a structure-from-motion (SfM) photogrammetry technique could be employed in combination with SUM to improve erosion measurement accuracy in vineyards. SfM allows calculation of a continuous three-dimensional model of the soil surface by means of photogrammetric approaches [16,17]. It is widely used in environmental sciences and, specifically, in soil erosion surveys [18,19]. SfM allows computation of three-dimensional models using two-dimensional photos taken from different angles [20,21]. If the preparatory work is properly conducted, the derived models are of a striking accuracy due to the use of high-resolution photographs in combination with carefully selected points of view and exposure conditions. Notable examples using SfM to survey transient surface changes can be found in References [20,21].
Different devices, such as mobile phones and hand-held cameras [22], have been applied to conduct SfM measurements but the determination of the initial soil surface level (t0) using environmental markers, or qualitative observations, introduces errors in the measurements, leading to inaccurate soil erosion estimation. Thus, SfM could be used to enhance the spatial resolution of SUM, and in return, the reference level of SfM could be set to the position of the initial soil surface level at the time of plantation commencement provided by SUM. The main aim of this research was to combine the methodologies of the stock unearthing and SfM to map the current soil surface level to improve the accuracy of the estimate of soil mobilisation rates in vineyards. This methodological research could present an improved, low-tech and low-cost method to assess the long-term soil erosion processes in vineyards, with a higher accuracy compared with ISUM. We consider that conducting more accurate and visually-friendly soil erosion surveys would help us to understand soil erosion processes in sloping vineyards. Moreover, we strongly agree that it would increase stakeholders´ awareness of the need to guard their vineyards against land degradation processes.

2. Materials and Methods

2.1. Study Area

The study area (latitude 49.7418 N; longitude 6.7524 E) shown in Figure 1 is located on the sloping vineyards of Waldrach, a small village in the Ruwer Valley, Rhineland-Palatinate, Germany. The geology belongs to the Rhenish metamorphic unit, characterised by the Hunsrück Slate, a Lower Devonian lithostratigraphic unit. The lithology is, therefore, characterised by Devonian greywackes, slates, partially quartzites, and Pleistocene silts deposited near the Ruwer River, an affluent of the Mosel River. The Riesling is the grape variety of this vineyard which is a conventionally managed 40-year-old plantation. The vines are regular vertically-trellised in the direction of dip of slope length varying between 60 m and 75 m.
The paired-vine rows are separated by 1.7 m and the inter-vine distance on the same row is 0.9 m. Slope angles vary from 15 to 30° with a general convex morphology and the altitude ranges between 190 and 270 m a.s.l. Grass cover and trees can be observed downslope near the vineyard and the agricultural roads.
The soils are classified as leptic-humic Regosols [23]. The horizons are characterised by a stone content of 37.9%. Soil particle analysis indicated 64.7% silt, 26% sand and 9.3% clay. On average the field capacity (FC) of the soil is 30% and the wilting point (WP) is 12.3%. Other properties of the soil are: total organic carbon (TOC) is 7.9% along with a soil profile of about 25 cm depth, carbonate content (CaCO3) < 1%, electrical conductivity (EC) is 0.35 dS m−1, pHwater is 7.2, and potassium chloride (KCl) is 6.4%. Therefore, no soil acidification trends are noted. More information about the soil properties can be found in Reference [2].
The average annual rainfall is 765 mm and the maximum amounts occur during the summer months, mostly during thunderstorms. The mean annual temperature is around 9°C, with maximum values in June, July and August (16.2–17.6 °C) and minimum values in January and December (1.5–2.3 °C).
The yearly soil management is as follows: (i) a mechanical soil tillage (20 cm depth); (ii) removal of grass cover in the inter-row (with maximum height of 20 cm) and in the rows (between 10 cm and 35 cm height); (iii) a utilisation of a slate rock fragment cover to keep the soil temperature stable; and (vi) the use of pesticides and herbicides during spring and summer to eliminate weeds. Rills and ephemeral gullies (caused by wheel tracks and footpaths) located in the embankments and inter-row areas can be noted in Figure 2.

2.2. The Stock Unearthing Method (SUM) and Its Improvement (ISUM, Improved Stock Unearthing Method)

The main aim of these soil erosion surveys in vineyards is to estimate the long-term soil mobilisation by observing the distance between the marks on the graft union and the current soil surface level (SUM), and extra measurements taken in the inter-row areas (ISUM) [16].
The necessity to graft vine stocks occurred during the period of 1860–1920 because of the Phylloxera crisis in which a large part of the commercial grapevines around Europe was infected by a pest (Daktulosphaira vitifoliae), originally native to eastern North America [24,25]. The solution was to graft the vines onto an American vine stock, which now shows an unearthing or buried signal [12,14]. The vine graft unions are a clear signal of the initial height above the soil surface at the time of planting because the original vine stock does not grow vertically [26].
SUM (stock unearthing method) and ISUM (improved stock unearthing method) are well-established methods used for case studies such as the differentiation of soil mobilisation in vineyards with different ages and parent materials [27]. For this study, the first step was to collect information about the plantation systems of our plot. The studied vineyard in Waldrach was manually planted and the graft unions were regularly situated 2 cm above the original soil surface level (Figure 3). Prior to planting, the surface was mechanically flattened and the vine roots were then planted into the soil. This information was confirmed by the farmers in the field, the governmental advisory board DLR (Dienstleistungszentrum Ländlicher Raum) Mosel, and it was also observed in new plantations in the surroundings of the study area [2]. Therefore, the possible changes from the theoretical initial soil surface conditions since the time of plantation commencement due to soil movements could be quantified. The separation between the graft union and the surface eliminates problems associated with high soil moisture, freezing, and fungi plagues, to the plants. In each paired-vine, the American graft unions were identified and a measuring tape was stretched horizontally between pair unions. The vertical distance between the horizontally stretched measuring tape and the current soil surface were measured with a meter stick. In cases where the graft union would have been buried, the measuring tape was situated at 30 cm above the graft union. This action was necessary to avoid difficulties in combining measurements between buried (positive values, an indication of accumulation) and unburied (negative values, an indication of depletion) grafts.
To eliminate systematic bias, it was important that the same person carried out all of the distance measurements. A total of 20 graft unions, 10 on each row of two opposite pair-vine rows 1.7 m apart with an inter-plant distance of 0.9 m, were selected for this experimental approach. The total plot area of 20 m2 (10 m long and 2 m wide) includes margins of 0.5 m at the ends and 0.15 m on the sides of the two-opposite paired-vine rows. The addition of the margins was to allow the assessment of the possible influence between vines, which is usually obviated by SUM and ISUM. If a grass cover made the visibility of the graft union impossible, it was carefully cut.
To compare the results obtained by the combination of SUM and SfM, ISUM method involving 19 (2 graft unions and 17 extra inter-row) measuring points per opposite pair graft union cross section was also used to generate the current soil surface map. The measured data were used to develop a soil surface level map using ArcMap 10.5 software (ESRI, USA), after creating a grid of 190 measuring points (“fishnet”). Different methods, such as cokriging, empirical Bayesian kriging, local polynomial interpolation and inverse distance weighting, were tested to identify the micro-topographical changes. Finally, the simple cokriging was selected because it showed the lowest root mean square error (RMSE) and the highest R2 coefficient.

2.3. Structure-from-Motion (SfM) Photogrammetry

SfM provides a perfect opportunity to survey any terrain of interest by taking a sufficient number of photos from specific positions [28,29], to develop a continuous point cloud. The point clouds of specific different sampling points in time, when the measurements were made, are subtracted in order to achieve a Digital Elevation Model (DEM) of the difference [30]. In this paper, it is shown how to obtain a model of soil erosion by comparing the model of the actual soil surface with the hypothetical bulldozer-flattened surface derived from the SUM [31].
While the SUM-derived ideal flat soil surface can be described easily, the actual surface with its micro-topographical surface irregularities has to be assessed with a sufficient resolution best achieved by means of an SfM. This sufficient overall resolution must be obtained according to the size of the targets. The lowest limit of resolution must, therefore, be closely connected to the range of the target´s sizes which is assumed to lie between soil aggregates to the little stones typical of vineyards on Mosel valley slates [32]. This leads to dimensions from square millimetres to square centimetres, which indicate the maximum limit of the required potential resolution. In order to get a solid basis to start from, we called this premise “The best pictures, the best 3-D-model”. Corroborating with other researchers, the quality of the 3D-model strongly relies on the quality of the photoset [33,34]. To achieve this goal, we designed the TEPHOS (TErrestrial PHOtogrammetric Scanner).

2.3.1. TEPHOS (TErrestrial PHOtogrammetric Scanner)

The TEPHOS can be defined as a static five camera array based on our design. In Figure 4, it is shown the TEPHOS in action in the study area. In order to keep the device affordable, multiple Nikon L2 cameras (Figure 4a1–a5) were used to get perpendicular and oblique views of the vine rows and inter-row areas. The cameras are characterised by (i) a 3× Zoom-Nikkor lens with 6.3–19.2 mm format equivalent to approximately 38–116 mm); (ii) an f-stop/3.2–5.3; (iii) lenses grouped into five elements and in five groups; (iv) 6.0 million effective pixels; (v) a sensor format of 1/2.5 inch and a sensor size of ~24.71 mm2 (5.76 mm × 4.29 mm); and (vi) an approximate pixel pitch of 2.05 microns. All cameras were synchronised by a purpose-built tethered remote-control unit, which also serves as constant power supply and is fed by a 12 V/48 Ah car battery.
The cameras are placed on a horizontal aluminium rail that has several bores in symmetrical configuration to adapt the device to different photogrammetry-related requirements like overlap, depth of field, and others. The rail is mounted to a telescopic arm with a maximum range of approximately 3.5 m (labelled as b in Figure 4) by a spherical joint to achieve a gimballed system (labelled as c and d in Figure 4). The connection between the telescopic arm and the survey tripod is by clamping. The structural engineering calculation follows the example of a construction crane. Therefore, the heavy camera array on the long arm is compensated for by the weight of the relatively huge car battery. All parts of the TEPHOS were made of non-magnetic materials such as PE and aluminium in order to avoid a biasing effect on the electronics of the cameras. Other requirements on SfM serviceable photos had to be implemented as well. Ideal crop and suitable scale, which are questions of focal length, correct exposure, high contrast, sufficient sharpness, enclosing depth of field (all questions of shutter-speed and aperture), were ensured prior to taking photographs. In addition, minimum blur and hemispherical exposure positions were dealt with. All these demands were fulfilled by the mounted camera device. To improve the accuracy, a fixed array of five Nikon L2 cameras was used. The spatial interval of taking a series of synchronised photos in longitudinal direction downslope was defined as 10 cm. Herewith we acquired the lowest possible shutter speeds and, by means of systematisation, we reduced the post-processing time. The crisp sharp pictures and the sufficient overlap in both directions avoided data gaps.
In addition to the photo sets acquired with the TEPHOS, a Nikon D80 camera (with AF-S NIKKOR 18–70mm ED DX lens) was used to manually take photos from intricate parts where it was uncertain whether all the surface areas had been entirely recorded. The resolution of the Nikon D80s’ sensor is 3872 × 2592 (pixel size of 6.19 × 6.19 µm) with a focal length of 18 mm. In total, about 800 photos were taken in the field.
In order to get an appropriate DEM, a cloudy day was chosen to avoid casting shadows by direct sunlight, which could aggravate the processing of the photosets. Moreover, the grass cover between the vine stocks was removed by hand to get an undisturbed view of the soil surface.

2.3.2. Image Treatment Using AGISOFT Photoscan and CloudCompare

In order to compare the actual surface (t1) to the initial one (t0, representing the time of initial vine plantation), the photosets (t1) had to be converted into a point cloud. To do this, we used a Lenovo Think Station S30 with double GPU Nvidia Quadro K4000 and 64MB Memory, and an SSD (Solid State Drive). The photosets were processed with AGISOFT Photoscan (AGISOFT, version 1.3.5., Russia) following similar procedures designed by [35,36], and CloudCompare (Telecom ParisTech, version 2.1., France). Another advantage is the processing system, especially, while handling big photo sets. For our studied vineyard survey of 10 m length, we had to process around 600 to 800 pictures, which took 3–4 days in total, a time that would have been lost, if the software did not process flawlessly.
First, AGISOFT Photoscan was used in order to compute the 3-D-models. This software is able to perform the photogrammetric processing of digital images and the generation of 3-D-spatial data and the calculation of the corresponding propagation of uncertainty. This procedure can be made performing the extraction and matching of key points, the orientation of the cameras, triangulation and creation of the point clouds. The adjustment of the controlling elements was always aimed to get the highest possible accuracy. This even meant that all six photo sets had to be copied onto the dedicated SSD for higher computing velocity (five photosets come from the TEPHOS‘s fixed array and one from the Nikon D80 DSLR). The procedures of the image treatment were as follows: (i) adjusting preference settings and loading photos from all six cameras; and (ii) aligning all photos, optimisation of camera alignment, and building a dense point cloud.
In order to make the point cloud measurable, we also circumferentially inserted 62 markers (meter tapes) and combined them with 34 scale bars into the soils between the vines. The whole problem area of calibration was handed over to the Photoscan adaptive camera model fitting function because any pre-calibration of our motorised zoom lens cameras would have only lasted until the first focusing. We used the function “placing markers” provided by AGISOFT with markers spread all around the plot. These signals were combined to scale bars. In addition to this, all the pictures from the five Nikon L2 cameras had been treated with the same calibration parameters by AGISOFT Photoscan because of the identical metadata concerning their camera type.
For measuring purposes, we imported the dense point cloud into CloudCompare. The next step was to horizontally align the cloud which enabled the colouring by height. The aligning job was initiated by fitting a plane to the point cloud. In the console window of CloudCompare, the position of the inserted plane (including translations and rotations) was displayed in the form of an editable transformation matrix. This matrix was used to transform the original point cloud to the horizontal plane. After visually checking, the exact adjustment of the inserted plane according to the positions of the graft unions in the point cloud was done. The final step, involving the colourising by height, was enabled by exporting the Z (vertical) coordinates into a scalar field.

2.3.3. Estimation of Volume of Soil Mobilisation and Soil Erosion Rate

To map the volume of the eroded material, we imported the aligned point cloud (*.ply): Polygon File Format or Stanford Triangle Format) into CloudCompare. Then, we inserted another plane which represented the initial surface levels at the date of initial vine planting and adjusted it according to the positions of the graft unions in the point cloud by editing the spatial properties of the plane. The next step, the colourising by height, was carried out by exporting each difference value to the new scalar field and then customising its colour ramp.
This scalar field of vertical coordinates is the basis for the final volume calculation by (i) fitting one plane, if possible, or (ii) fitting several plane segments which will better cover the successive lines of the graft unions. Following the stock unearthing method, we created a polygon crossing each paired-vine graft union. A total of four polygons were added covering the entire area with the help of the polyline function. The operator had to connect the side-lines of the segments to the graft unions. The polylines delineated the tetragons of the model in which a single volume calculation took place. After reckoning the individual volumes for every plane segment, they were summed up to work out the total volume. Finally, the total soil mobilisation of this transect could be estimated in Mg ha−1 yr−1 using the measurements from the volume difference between t0 (polygons) and t1 (soil surface map). The total soil mobilisation was calculated from the erosion-deposition (ER) equation proposed by [26]:
ER = V × BD/(S × A)
where V (m3) is the volume, S (ha) is the total surface for the considered field unit, A is the age of the vines (40 years-old) and BD is the soil bulk density (1.4 g cm−3). The soil bulk density was obtained as the mean from 36 soil samples collected along the hillslope in different slope positions.

3. Results and Discussion

3.1. 3D Model Obtained from TEPHOS and Localisation of the Graft Union

The results of computing the actual soil surface illustrate a continuous DEM of the 10 m plot of a total area of 20 m². The initial visual inspection showed no extensive data gaps. A total of 638 out of 800 photos were processed by AGISOFT Photoscan to create 5,414,868 tie points. Altogether 12,871,537 projections with a reprojection error of 0.307 pixels were obtained (ground surface pixel area 0.625 mm × 0.625 mm). In the end, the dense point cloud consisted of 375,821,848 points. The final 3-D model is presented in Figure 5. We have presented the 20 m2 segment of the study plot and three screenshots of different slope positions. Moreover, three extra pictures with even higher zoom were added in order to demonstrate the accuracy of the obtained model, which can be emphasised by a mean point density of 18,791,092 points per m2.
As other researchers have mentioned, there are a lot of obstacles in generating a model without gaps, including the shadows due to the vegetation cover, leaves and stones [37]. In some transects close to the plants, this situation sometimes made it difficult to conduct the measurements. However, the combination of the TEPHOS (5 cameras) with the hand-held Nikon DSLR (1 camera) enabled us to manage these problems. We believe, that the systemised usage of the fixed array cameras prevented us from taking either too many or too few photos. Too many pictures would mean extended computation time, whereas too few pictures would result in data gaps.
One disadvantage was observed during the fieldwork, this being the demand for storage and transport space for the TEPHOS, especially if all the equipment had to be carried by the operator in such a difficult terrain. Also, we noted that managing the more than 300-million-points point cloud was another issue that should be looked into in the future. For example, we could take less but more demand-oriented pictures and use a more powerful computer. We recommend the number of points in the point cloud be decreased in order to speed processing time. Thus, a systematic test should be done to assess how many photographs/points are needed to maintain the required accuracy of the soil erosion estimate. This would speed up the next investigation and data processing and would be of interest to those of the SfM community who decide to work with this combined method.
After that, following the indications of the authors that worked on the stock unearthing method, we created a polygon crossing each paired-vine graft union. A total of four polygons were added covering the entire area (Figure 6).

3.2. Soil Surface Level Assessment and Soil Mobilisation Rates

The computation of the relative height map was done in order to calculate the total volume of mobilised soil in the study area during the 40 years using SfM and SUM. This map also shows key information related to the connectivity processes, which allow us to assess flow paths, accumulation points or pools [38,39]. Figure 7a shows the final map of the relative height used to assess the micro-topographical changes, which is more accurate than the map created by ISUM (Figure 7b). Grey colours in Figure 7a represent areas with a relative height of zero or higher. Note that with ISUM, the graft union locations and the inter-row measuring points appearing as green dots were used and interpolated over the entire plot in Figure 7b.
In both maps, we detected that the highest depleted areas are located in the upper part of the transect (orange-red colours) reaching values higher than 20 cm, and in the areas close to the vine rows (orange-yellow colours). Our results corroborate with other researchers who found these parts to be the most eroded areas due to wheel or chain traffic effects [40,41] as a result of gravitational processes [42]. Conversely, the areas with the lowest soil depletion are situated in the middle part of the plot, unaffected by the tractor impacts and also non-compacted [43].
Using the photogrammetric technique, the total soil volume mobilised from the study area was 0.52 m3, and, using the bulk density value of 1.4 g cm−3 we obtained a soil depletion rate of 9.14 Mg ha yr−1. In contrast, the ISUM method gave a total depletion volume of 1.86 m3 leading to an unreasonable depletion rate of 40 Mg ha yr−1.
It is important to remark that the bulk density estimate is for a specific sampling time and the number of sampling points will determine the representativeness of the actual rates. Regardless, the bulk density values were used only to obtain a comparable result in one of the most common units (Mg ha yr−1). As is well-known, the bulk density is a soil property that can vary after rainfall events, tillage practices or changes in organic carbon contents among others, although the variation may not be extreme [44,45]. However, in order to avoid any over-or under-estimation, the use of volume can also be an acceptable unit as used in other studies [14,31].
Considering that our results correspond to a small plot using a photogrammetric technique, the registered soil erosion rates are not significantly different from those reported in other studies in Germany. Using empirical methods such as RUSLE (Revised Universal Soil Loss Equation), References [46,47] estimated within the same viticultural region (Ruwer-Mosel Valley) values of 6.47 and 11.28 Mg ha yr−1 over some years. Also, for several German vineyards, Reference [48] calculated an average value of 5.2 Mg ha yr−1.

3.3. Challenges and Future Lines

Combining SfM and SUM for the estimation of long-term erosion rates is the most important achievement of this investigation. In this paper, the combined methodological approach is a proof of concept as it was applied to a small plot. The intention is to apply the method on a much larger scale at a later date to inspire others for uptake in vineyards. Table 1 compares the main advantages and disadvantages of SUM and ISUM and highlights issues that have been improved or even solved by the combination of SUM and SfM. This paper focused more on SfM, considering that the graft union can be easily identified in the same data with high accuracy because they are visible in images, which may not be easily identified in LiDAR point clouds, as shown by Reference [38] for example at the larger scales. We consider the easy identification of the graft unions is a major advantage for SfM over the use of LiDAR in vineyards, especially considering the lower prices (drones vs camera-array), higher accuracy (e.g., RIEGL VZ-400i: accuracy of 5 mm) and time required in the field.
The main issue solved was the detection of the soil surface components such as stones, and remains of leaves and grasses. On the whole, we consider our results as very positive and accurate, making the detection of previous micro-topographical changes very easy.
Our novel approach to detect the micro-topographical changes uninterruptedly with the consequence of a huge number of points (more than 375 million) and software limitations may make it difficult to statistically assess the values obtained. For example, calculation of the mean, maximum or minimum values as other authors have done [47,49]. Therefore, further research must be done in order to implement these kinds of calculations to make our results directly comparable to those in the literature. Data analysis should be implemented to improve the use of both methods.

4. Conclusions

By using the combination of SUM and SfM, we found that a total of 0.5 m3 of soil was mobilised on a 20 m2 plot over a period of 40 years. For this small transect, ISUM overestimated the total volume of mobilised soil (1.86 m3). With the combined method, we could monitor the soil surface differences in the upper part of the study area from the initial level to the current one in excess of 30 cm.
The combination of stock unearthing method (SUM) with the Structure-from-Motion Photogrammetry (SfM) has been verified as a very efficient non-invasive method for monitoring long-term soil erosion in vineyards. The main shortcoming of ISUM, namely not being able to scan all areas between opposite pair vines, is overcome by the TEPHOS, an SfM method. TEPHOS (TErrestrial PHOtogrammetric Scanner) allowed us for the first time to scan an entire 20 m2 plot located within a steep sloping vineyard of the Ruwer Valley, Trier (Germany). An easy and low-cost method to estimate soil erosion in vineyards with very high spatial resolution has been presented. With this method, we can demonstrate the importance of soil erosion as a severe environmental concern for farmers in a convincing manner. This argumentation aid may hopefully help us to persuade the owners of particularly steep sloping vineyards to undertake erosion control measures.

Author Contributions

Conceptualisation, J.R.-C. and A.R.; Methodology, A.R., J.R.-C., A.C., J.B.R. and Y.G.-A.; Formal Analysis, A.R. and J.R.-C.; Writing-Original Draft Preparation, J.R.-C. and A.R.; Writing-Review & Editing, A.C., J.B.R. and Y.G.-A.

Funding

This research received no external funding.

Acknowledgments

We acknowledge the Weinbauverb and Moseland, the winery Gebrüder Steffes (Waldrach) and the winery Langguth (Traben-Trarbach) for providing access to the studied areas. We also acknowledge laboratory technicians (GSoilLab) M. Pedraza and R. Rojas. Constructive comments by four reviewers are gratefully acknowledged. Additionally, we thank Julia Campbell and Nathalie Kremer who supported the accomplishment of the experiments.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Rodrigo-Comino, J. Five decades of soil erosion research in “terroir”. The State-of-the-Art. Earth-Sci. Rev. 2018, 179, 436–447. [Google Scholar] [CrossRef]
  2. Rodrigo-Comino, J.; Quiquerez, A.; Follain, S.; Raclot, D.; Le Bissonnais, Y.; Casalí, J.; Giménez, R.; Cerdà, A.; Keesstra, S.D.; Brevik, E.C.; et al. Soil erosion in sloping vineyards assessed by using botanical indicators and sediment collectors in the Ruwer-Mosel valley. Agric. Ecosyst. Environ. 2016, 233, 158–170. [Google Scholar] [CrossRef]
  3. Biddoccu, M.; Ferraris, S.; Opsi, F.; Cavallo, E. Long-term monitoring of soil management effects on runoff and soil erosion in sloping vineyards in Alto Monferrato (North–West Italy). Soil Tillage Res. 2016, 155, 176–189. [Google Scholar] [CrossRef]
  4. Lieskovský, J.; Kenderessy, P. Modelling the effect of vegetation cover and different tillage practices on soil erosion in vineyards: A case study in Vráble (Slovakia) using WATEM/SEDEM. Land Degrad. Dev. 2014, 25, 288–296. [Google Scholar] [CrossRef]
  5. Prosdocimi, M.; Jordán, A.; Tarolli, P.; Keesstra, S.; Novara, A.; Cerdà, A. The immediate effectiveness of barley straw mulch in reducing soil erodibility and surface runoff generation in Mediterranean vineyards. Sci. Total Environ. 2016, 547, 323–330. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Blavet, D.; De Noni, G.; Le Bissonnais, Y.; Leonard, M.; Maillo, L.; Laurent, J.Y.; Asseline, J.; Leprun, J.C.; Arshad, M.A.; Roose, E. Effect of land use and management on the early stages of soil water erosion in French Mediterranean vineyards. Soil Tillage Res. 2009, 106, 124–136. [Google Scholar] [CrossRef]
  7. Chevigny, E.; Quiquerez, A.; Petit, C.; Curmi, P. Lithology, landscape structure and management practice changes: Key factors patterning vineyard soil erosion at metre-scale spatial resolution. CATENA 2014, 121, 354–364. [Google Scholar] [CrossRef]
  8. Novara, A.; Gristina, L.; Guaitoli, F.; Santoro, A.; Cerdà, A. Managing soil nitrate with cover crops and buffer strips in Sicilian vineyards. Solid Earth 2013, 4, 255–262. [Google Scholar] [CrossRef] [Green Version]
  9. Iserloh, T.; Fister, W.; Seeger, M.; Willger, H.; Ries, J.B. A small portable rainfall simulator for reproducible experiments on soil erosion. Soil Tillage Res. 2012, 124, 131–137. [Google Scholar] [CrossRef]
  10. Kinnell, P.I.A. A review of the design and operation of runoff and soil loss plots. CATENA 2016, 145, 257–265. [Google Scholar] [CrossRef]
  11. Stroosnijder, L. Measurement of erosion: Is it possible? Catena 2005, 64, 162–173. [Google Scholar] [CrossRef]
  12. Brenot, J.; Quiquerez, A.; Petit, C.; Garcia, J.-P.; Davy, P. Soil erosion rates in Burgundian vineyards. Boll. Della Soc. Geol. Ital. 2006, 6, 169–173. [Google Scholar]
  13. Brenot, J.; Quiquerez, A.; Petit, C.; Garcia, J.-P. Erosion rates and sediment budgets in vineyards at 1-m resolution based on stock unearthing (Burgundy, France). Geomorphology 2008, 100, 345–355. [Google Scholar] [CrossRef]
  14. Casalí, J.; Giménez, R.; De Santisteban, L.; Álvarez-Mozos, J.; Mena, J.; Del Valle de Lersundi, J. Determination of long-term erosion rates in vineyards of Navarre (Spain) using botanical benchmarks. Catena 2009, 78, 12–19. [Google Scholar] [CrossRef]
  15. Rodrigo-Comino, J.; Cerdà, A. Improving stock unearthing method to measure soil erosion rates in vineyards. Ecol. Indic. 2018, 85, 509–517. [Google Scholar] [CrossRef] [Green Version]
  16. Castillo, C.; Taguas, E.V.; Zarco-Tejada, P.; James, M.R.; Gómez, J.A. The normalized topographic method: An automated procedure for gully mapping using GIS. Earth Surf. Process. Landf. 2014, 39, 2002–2015. [Google Scholar] [CrossRef]
  17. Castillo, C.; James, M.R.; Redel-Macías, M.D.; Pérez, R.; Gómez, J.A. SF3M software: 3-D photo-reconstruction for non-expert users and its application to a gully network. Soil 2015, 1, 583–594. [Google Scholar] [CrossRef] [Green Version]
  18. Eltner, A.; Mulsow, C.; Maas, H.-G. Quantitative measurement of soil erosion from Tls and Uav data. ISPRS Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci. 2013, 1, 119–124. [Google Scholar] [CrossRef]
  19. Esposito, G.; Salvini, R.; Matano, F.; Sacchi, M.; Danzi, M.; Somma, R.; Troise, C. Multitemporal monitoring of a coastal landslide through SfM-derived point cloud comparison. Photogramm. Rec. 2017, 32, 459–479. [Google Scholar] [CrossRef]
  20. Snavely, N.; Seitz, S.M.; Szeliski, R. Modeling the World from Internet Photo Collections. Int. J. Comput. Vis. 2008, 80, 189–210. [Google Scholar] [CrossRef]
  21. Fonstad, M.A.; Dietrich, J.T.; Courville, B.C.; Jensen, J.L.; Carbonneau, P.E. Topographic structure from motion: A new development in photogrammetric measurement. Earth Surf. Process. Landf. 2013, 38, 421–430. [Google Scholar] [CrossRef]
  22. Vinci, A.; Todisco, F.; Brigante, R.; Mannocchi, F.; Radicioni, F. A smartphone camera for the structure from motion reconstruction for measuring soil surface variations and soil loss due to erosion. Hydrol. Res. 2017, 48, 673–685. [Google Scholar] [CrossRef]
  23. IUSS Working Group WRB. World Reference Base for Soil Resources 2014; World Soil Resources Report; FAO: Rome, Italy, 2014. [Google Scholar]
  24. Wang, Z.; Su, J.; Liu, W.; Guo, Y. Effects of intercropping vines with tobacco and root extracts of tobacco on grape phylloxera, Daktulosphaira vitifoliae Fitch. J. Integr. Agric. 2015, 14, 1367–1375. [Google Scholar] [CrossRef]
  25. Herbert, K.; Powell, K.; Mckay, A.; Hartley, D.; Herdina, N.; Ophel-Keller, K.; Schiffer, M.; Hoffmann, A. Developing and testing a diagnostic probe for grape phylloxera applicable to soil samples. J. Econ. Entomol. 2008, 101, 1934–1943. [Google Scholar] [CrossRef] [PubMed]
  26. Paroissien, J.-B.; Lagacherie, P.; Le Bissonnais, Y. A regional-scale study of multi-decennial erosion of vineyard fields using vine-stock unearthing–burying measurements. Catena 2010, 82, 159–168. [Google Scholar] [CrossRef]
  27. Rodrigo-Comino, J.; Novara, A.; Gyasi-Agyei, Y.; Terol, E.; Cerdà, A. Effects of parent material on soil erosion within Mediterranean new vineyard plantations. Eng. Geol. 2018, 246, 255–261. [Google Scholar] [CrossRef]
  28. Glendell, M.; McShane, G.; Farrow, L.; James, M.R.; Quinton, J.; Anderson, K.; Evans, M.; Benaud, P.; Rawlins, B.; Morgan, D.; et al. Testing the utility of structure-from-motion photogrammetry reconstructions using small unmanned aerial vehicles and ground photography to estimate the extent of upland soil erosion. Earth Surf. Process. Landf. 2017, 42, 1860–1871. [Google Scholar] [CrossRef] [Green Version]
  29. Heindel, R.C.; Chipman, J.W.; Dietrich, J.T.; Virginia, R.A. Quantifying rates of soil deflation with Structure-from-Motion photogrammetry in west Greenland. Arct. Antarct. Alp. Res. 2018, 50, SI00012. [Google Scholar] [CrossRef]
  30. Eltner, A.; Baumgart, P.; Maas, H.-G.; Faust, D. Multi-temporal UAV data for automatic measurement of rill and interrill erosion on loess soil. Earth Surf. Process. Landf. 2015, 40, 741–755. [Google Scholar] [CrossRef]
  31. Quiquerez, A.; Brenot, J.; Garcia, J.-P.; Petit, C. Soil degradation caused by a high-intensity rainfall event: Implications for medium-term soil sustainability in Burgundian vineyards. Catena 2008, 73, 89–97. [Google Scholar] [CrossRef]
  32. Richter, G. On the soil erosion problem in the temperate humid area of Central Europe. GeoJournal 1980, 4, 279–287. [Google Scholar] [CrossRef]
  33. Balaguer-Puig, M.; Marqués-Mateu, Á.; Lerma, J.L.; Ibáñez-Asensio, S. Estimation of small-scale soil erosion in laboratory experiments with Structure from Motion photogrammetry. Geomorphology 2017, 295, 285–296. [Google Scholar] [CrossRef]
  34. Cooper, S.D.; Roy, D.P.; Schaaf, C.B.; Paynter, I. Examination of the Potential of Terrestrial Laser Scanning and Structure-from-Motion Photogrammetry for Rapid Nondestructive Field Measurement of Grass Biomass. Remote Sens. 2017, 9, 531. [Google Scholar] [CrossRef]
  35. Maiellaro, N.; Zonno, M.; Lavalle, P. Laser scanner and camera-equipped UAV architectural surveys. ISPRS Int. Arch. Photogramm. Remote Sens. Spat. Inf. Sci. 2015, XL-5/W4, 381–386. [Google Scholar] [CrossRef]
  36. Usmanov, B.; Nicu, I.C.; Gainullin, I.; Khomyakov, P. Monitoring and assessing the destruction of archaeological sites from Kuibyshev reservoir coastline, Tatarstan Republic, Russian Federation. A case study. J. Coast. Conserv. 2018, 22, 417–429. [Google Scholar] [CrossRef]
  37. Tarolli, P.; Cavalli, M.; Masin, R. High-resolution morphologic characterization of conservation agriculture. CATENA 2019, 172, 846–856. [Google Scholar] [CrossRef]
  38. López-Vicente, M.; Álvarez, S. Influence of DEM resolution on modelling hydrological connectivity in a complex agricultural catchment with woody crops. Earth Surf. Process. Landf. 2018, in press. [Google Scholar] [CrossRef]
  39. Cossart, É.; Fressard, M. Assessment of structural sediment connectivity within catchments: Insights from graph theory. Earth Surf. Dyn. 2017, 5, 253–268. [Google Scholar] [CrossRef]
  40. Ferrero, A.; Usowicz, B.; Lipiec, J. Effects of tractor traffic on spatial variability of soil strength and water content in grass covered and cultivated sloping vineyard. Soil Tillage Res. 2005, 84, 127–138. [Google Scholar] [CrossRef]
  41. Arnáez, J.; Ruiz, P.; Lasanta, T.; Ortigosa, L.M.; Llorente, J.A.; Pascual, N.E.; Lana-Renault, N. Efectos de las rodadas de tractores en la escorrentía y erosión de suelos en laderas cultivadas con viñedos. Cuad. Investig. Geográfica 2012, 38, 115–130. [Google Scholar]
  42. Biddoccu, M.; Zecca, O.; Audisio, C.; Godone, F.; Barmaz, A.; Cavallo, E. Assessment of long-term soil erosion in a mountain vineyard, Aosta Valley (NW Italy). Land Degrad. Dev. 2018, 29, 617–629. [Google Scholar] [CrossRef]
  43. Bogunović, I.; Kisić, I.; Maletić, E.; Perčin, A.; Matošić, S.; Roškar, L. Soil compaction in vineyards of different ages in Pannonian Croatia. Part I. Influence of machinery traffic and soil management on compaction of individual horizons. J. Cent. Eur. Agric. 2016, 17. [Google Scholar] [CrossRef]
  44. Hänsel, P.; Schindewolf, M.; Eltner, A.; Kaiser, A.; Schmidt, J. Feasibility of high-resolution soil erosion measurements by means of rainfall simulations and SfM photogrammetry. Hydrology 2016, 3, 38. [Google Scholar] [CrossRef]
  45. Al-Shammary, A.A.G.; Kouzani, A.Z.; Kaynak, A.; Khoo, S.Y.; Norton, M.; Gates, W. Soil Bulk Density Estimation Methods: A Review. Pedosphere 2018, 28, 581–596. [Google Scholar] [CrossRef]
  46. Hacisalihoglu, S. Determination of soil erosion in a steep hill slope with different land-use types: A case study in Mertesdorf (Ruwertal/Germany). J. Environ. Biol. 2007, 28, 433–438. [Google Scholar] [PubMed]
  47. Rodrigo-Comino, J.; Brings, C.; Lassu, T.; Iserloh, T.; Senciales, J.; Martínez Murillo, J.; Ruiz Sinoga, J.; Seeger, M.; Ries, J. Rainfall and human activity impacts on soil losses and rill erosion in vineyards (Ruwer Valley, Germany). Solid Earth 2015, 6, 823–837. [Google Scholar] [CrossRef] [Green Version]
  48. Auerswald, K.; Fiener, P.; Dikau, R. Rates of sheet and rill erosion in Germany—A meta-analysis. Geomorphology 2009, 111, 182–193. [Google Scholar] [CrossRef]
  49. Vaudour, E.; Leclercq, L.; Gilliot, J.M.; Chaignon, B. Retrospective 70 y-spatial analysis of repeated vine mortality patterns using ancient aerial time series, Pléiades images and multi-source spatial and field data. Int. J. Appl. Earth Obs. Geoinf. 2017, 58, 234–248. [Google Scholar] [CrossRef]
Figure 1. Location of the study area (a), general view of the plot (b), and details of the measurement works (c).
Figure 1. Location of the study area (a), general view of the plot (b), and details of the measurement works (c).
Ijgi 07 00461 g001
Figure 2. Examples of soil erosion indicators in the vineyard´s embankments.
Figure 2. Examples of soil erosion indicators in the vineyard´s embankments.
Ijgi 07 00461 g002

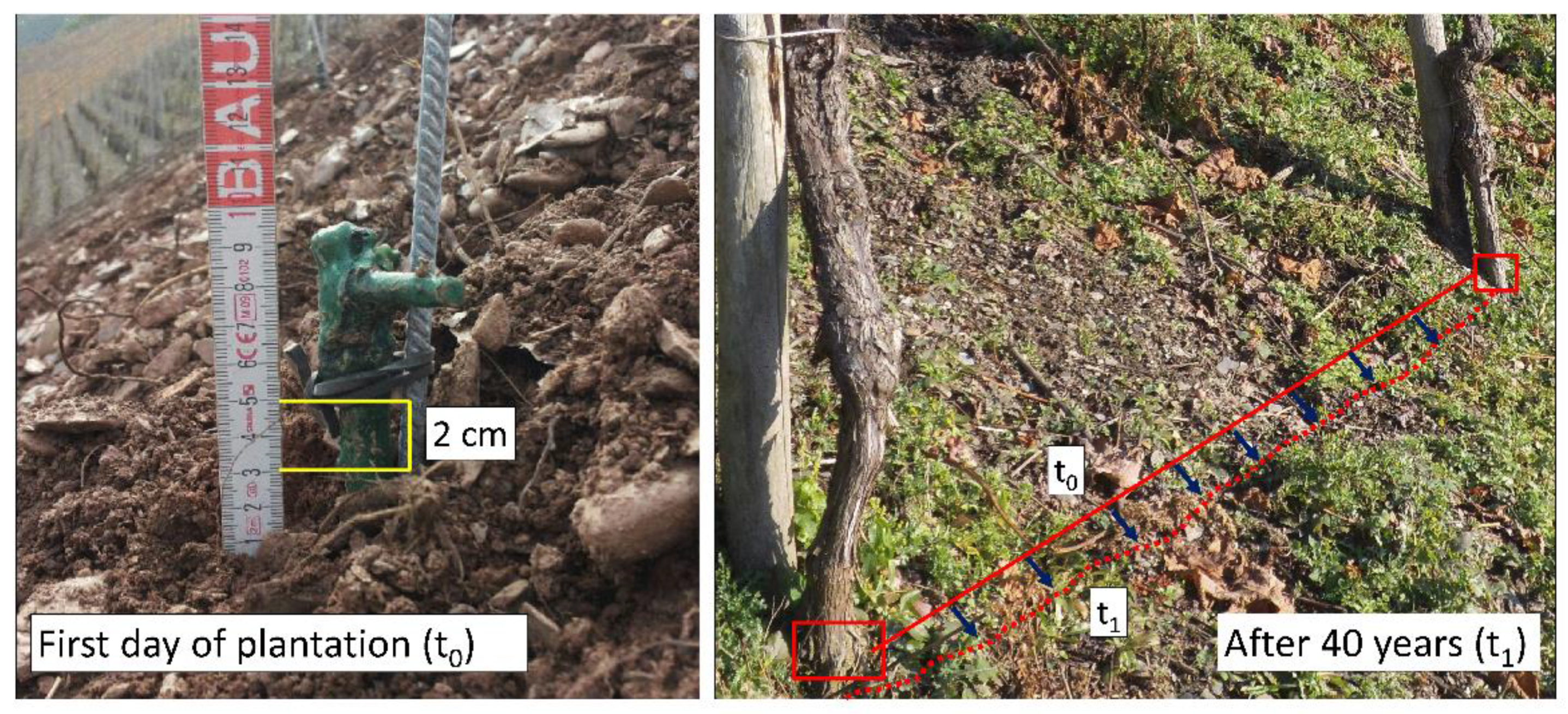

Figure 3. The first day of vine plantation with graft union 2 cm from the soil surface (left picture) and after 40 years the height of the graft union (t0) from the soil surface level (t1) changed (t1; right picture).
Figure 3. The first day of vine plantation with graft union 2 cm from the soil surface (left picture) and after 40 years the height of the graft union (t0) from the soil surface level (t1) changed (t1; right picture).
Ijgi 07 00461 g003

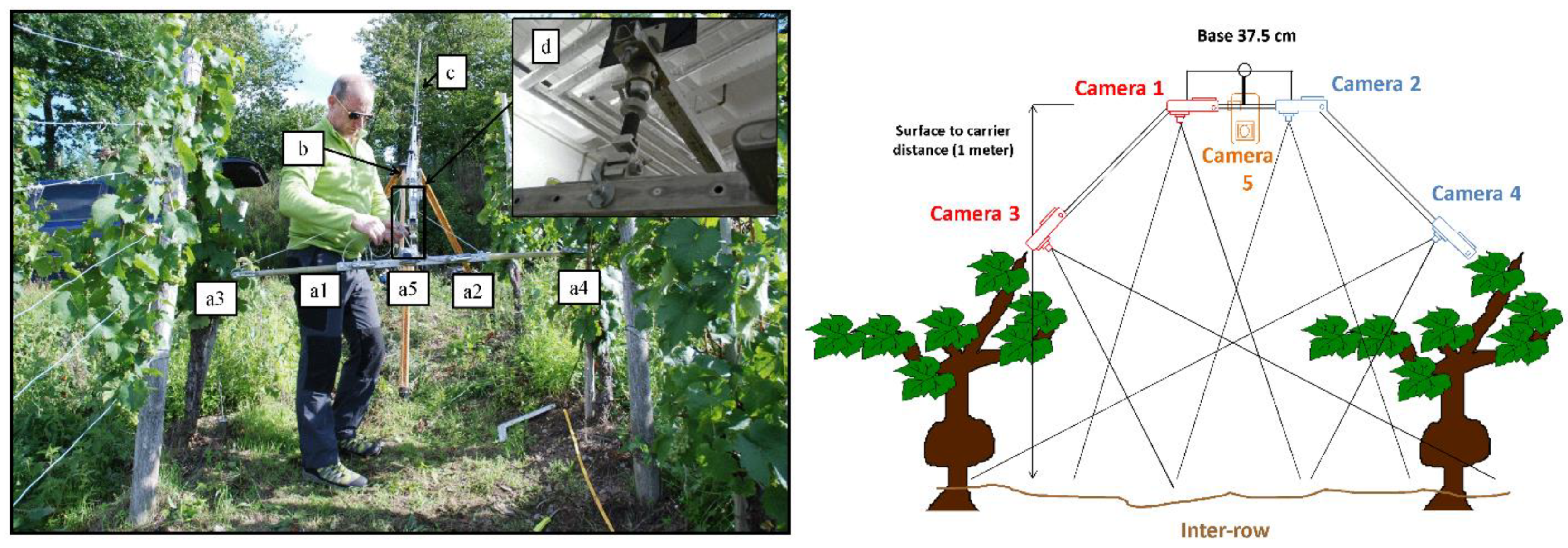

Figure 4. The configuration of the TEPHOS (TErrestrial PHOtogrammetric Scanner); a1–a5 are digital cameras, b is the telescopic arm, c is the guy wire, d is the spherical joint.
Figure 4. The configuration of the TEPHOS (TErrestrial PHOtogrammetric Scanner); a1–a5 are digital cameras, b is the telescopic arm, c is the guy wire, d is the spherical joint.
Ijgi 07 00461 g004

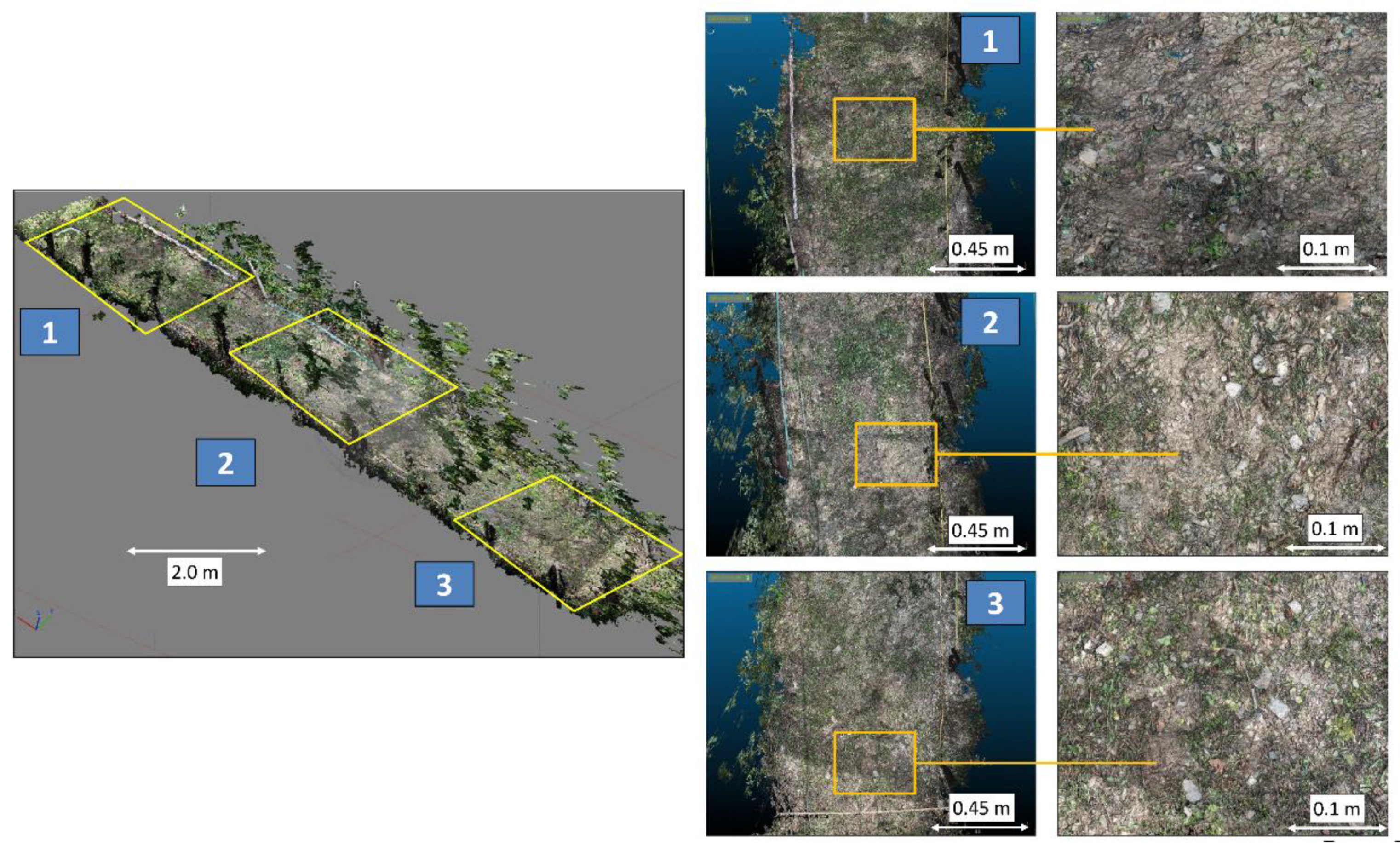

Figure 5. Examples of a 3-D model of three segments selected from the 40-years old vineyard to show the resolution of the TEPHOS.
Figure 5. Examples of a 3-D model of three segments selected from the 40-years old vineyard to show the resolution of the TEPHOS.
Ijgi 07 00461 g005

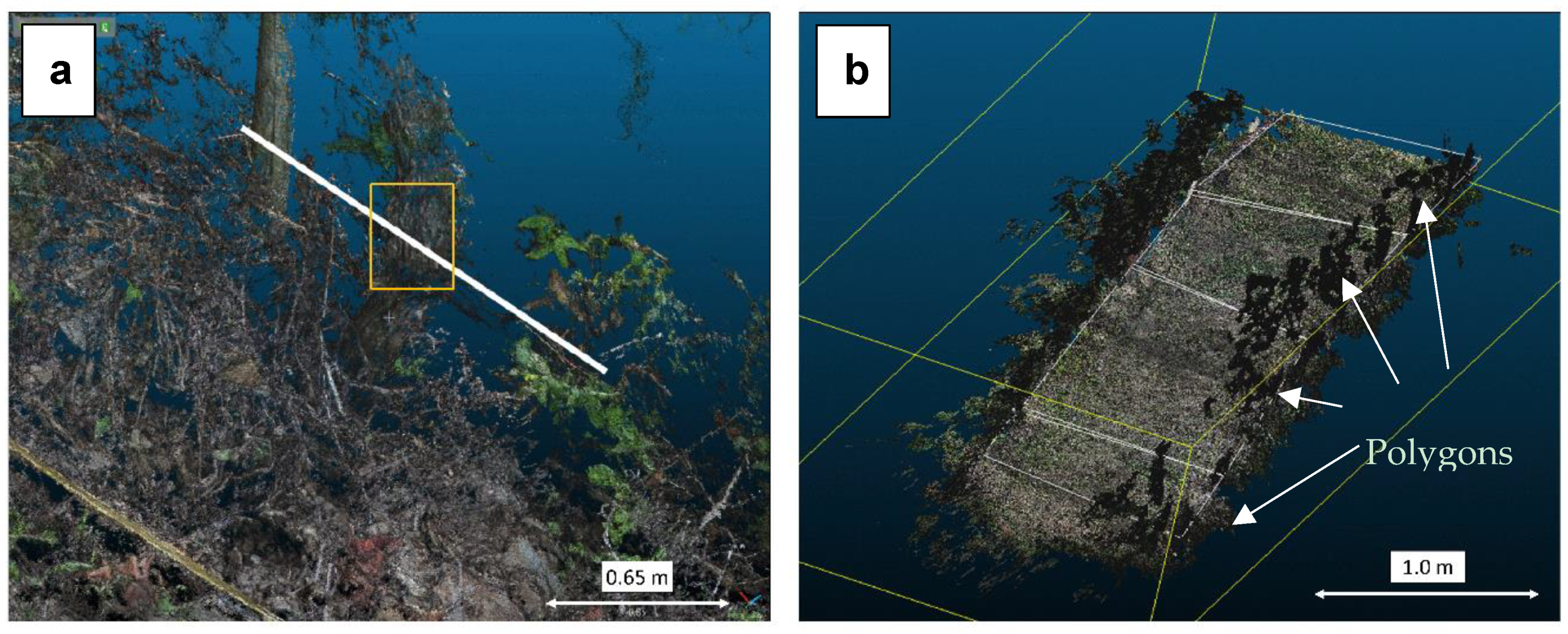

Figure 6. (a) Paired-vine graft unions and polygon boundaries, (b) composition of polygons to estimate the volume of soil mobilisation rates (white lines).
Figure 6. (a) Paired-vine graft unions and polygon boundaries, (b) composition of polygons to estimate the volume of soil mobilisation rates (white lines).
Ijgi 07 00461 g006

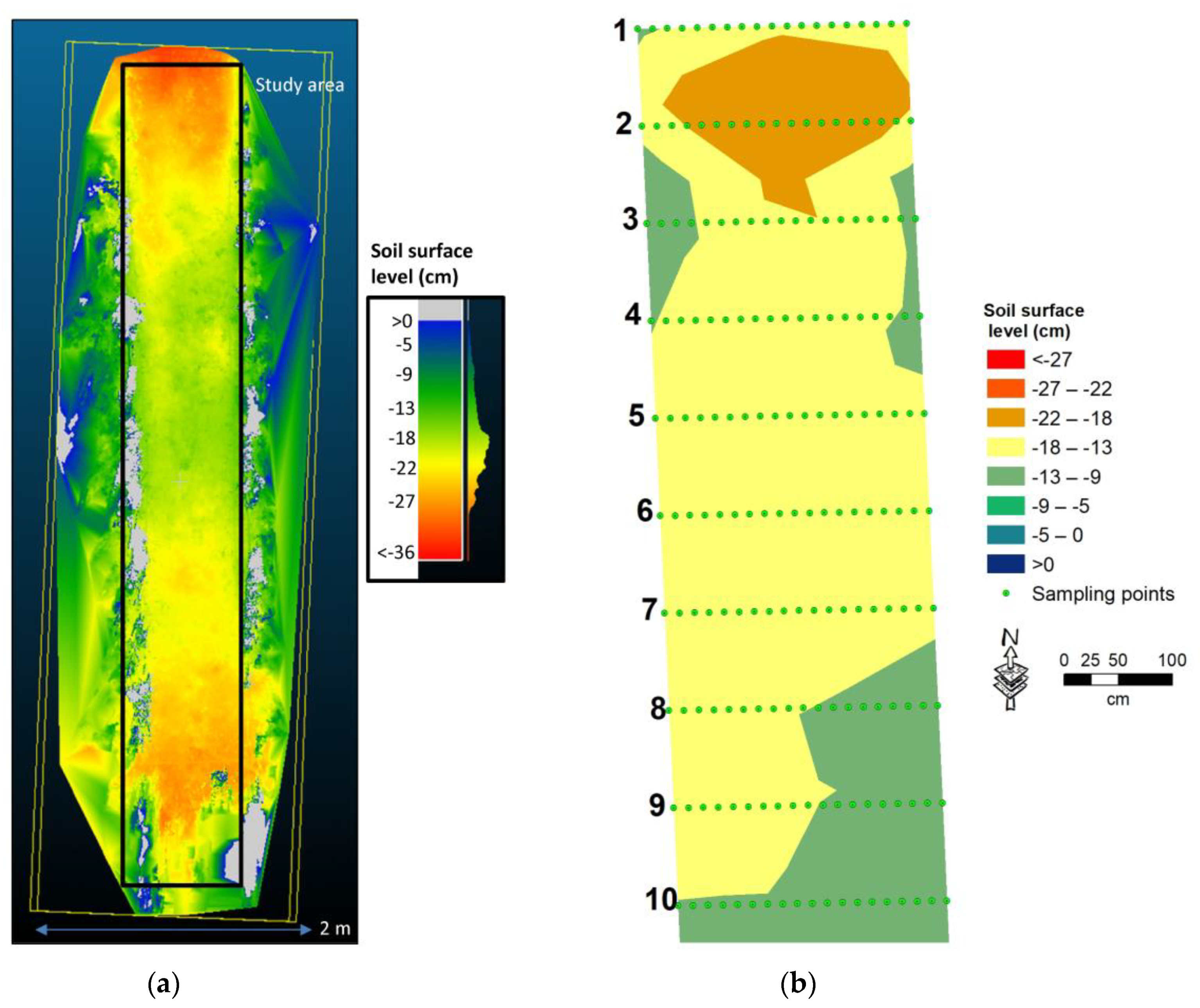

Figure 7. (a) DEM (Digital Elevation Model) of relative height using the graft union locations as a marker of the paleo-surface area (SUM) + SfM; (b) contour map derived from the row and inter-row measures (ISUM); numbers indicate the graft union locations and green points the inter-row extra measures within the plot.
Figure 7. (a) DEM (Digital Elevation Model) of relative height using the graft union locations as a marker of the paleo-surface area (SUM) + SfM; (b) contour map derived from the row and inter-row measures (ISUM); numbers indicate the graft union locations and green points the inter-row extra measures within the plot.
Ijgi 07 00461 g007
Table 1. Advantages and disadvantages of SUM and ISUM, and technical issues solved by the combination of SUM and SfM.
Table 1. Advantages and disadvantages of SUM and ISUM, and technical issues solved by the combination of SUM and SfM.
SUM and ISUM
AdvantagesDisadvantages
  • Low-cost method.
  • Low time invested.
  • A reproducible method for other vineyards and grafted plants.
  • Reproducible under different land management regimes (herbicides, organic farming, etc.) and environmental conditions (steep slopes, terraces, arid- and semi-arid areas, etc.).
  • Interesting information about current soil dynamics: flow pathways, accumulation pools, soil depletion, etc.
  • Estimation of long-term erosion rate.
  • Current soil surface maps with 10 cm accuracy.
  • Soil mapping not affected by shadows, sunny days, vegetation and stone cover.
  • Large areas can be assessed.
  • An accuracy of centimetres, low for a soil surface component assessment.
  • Different interpolation methods must be tested and validated depending on the study area.
  • Uncertainties about how many points must be obtained in order to obtain the most accurate map and soil mobilisation map.
  • To correctly interpret the conclusions, the previous tillage practices and environmental conditions must be perfectly known, which is impossible without a good relationship with the farmer.
SUM + SfM
Solved disadvantagesChallenges and new research lines
  • The accuracy of millimetres.
  • Soil surface components can be detected and considered.
  • No interpolation methods must be done.
  • No discussion about the exact number of point measures that must be taken.
  • Paleo-surface is easily detected using the graft unions.
  • Increase the study area.
  • Decrease the number of the point cloud.
  • Depicting the mean, maximum and minimum values of soil surface levels.
  • Applying the same method to assess key factors not-well quantified by other methods such as trampling effect or flow pathways through cracks and stones.

Share and Cite

MDPI and ACS Style

Remke, A.; Rodrigo-Comino, J.; Gyasi-Agyei, Y.; Cerdà, A.; Ries, J.B. Combining the Stock Unearthing Method and Structure-from-Motion Photogrammetry for a Gapless Estimation of Soil Mobilisation in Vineyards. ISPRS Int. J. Geo-Inf. 2018, 7, 461. https://doi.org/10.3390/ijgi7120461

AMA Style

Remke A, Rodrigo-Comino J, Gyasi-Agyei Y, Cerdà A, Ries JB. Combining the Stock Unearthing Method and Structure-from-Motion Photogrammetry for a Gapless Estimation of Soil Mobilisation in Vineyards. ISPRS International Journal of Geo-Information. 2018; 7(12):461. https://doi.org/10.3390/ijgi7120461

Chicago/Turabian Style

Remke, Alexander, Jesús Rodrigo-Comino, Yeboah Gyasi-Agyei, Artemi Cerdà, and Johannes B. Ries. 2018. "Combining the Stock Unearthing Method and Structure-from-Motion Photogrammetry for a Gapless Estimation of Soil Mobilisation in Vineyards" ISPRS International Journal of Geo-Information 7, no. 12: 461. https://doi.org/10.3390/ijgi7120461

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
