Evaluating BFASTMonitor Algorithm in Monitoring Deforestation Dynamics in Coniferous and Deciduous Forests with LANDSAT Time Series: A Case Study on Marmara Region, Turkey
Abstract
:1. Introduction
1.1. Related Works
1.2. Paper Contributions
- Does BFASTMonitor produce accurate results in the detection of disturbances over coniferous and deciduous forests in the Marmara region of Turkey?
- Does BFASTMonitor produce accurate results in both large- and small-scale deforestation?
- Among water-sensitive and chlorophyll-sensitive VIs, which ones selected in this study indicated highly accurate results?
2. Study Area and Data
2.1. Study Area
2.1.1. Euxine–Colchic Deciduous Forests
2.1.2. Anatolian Coniferous and Deciduous Forests
2.2. Landsat Data

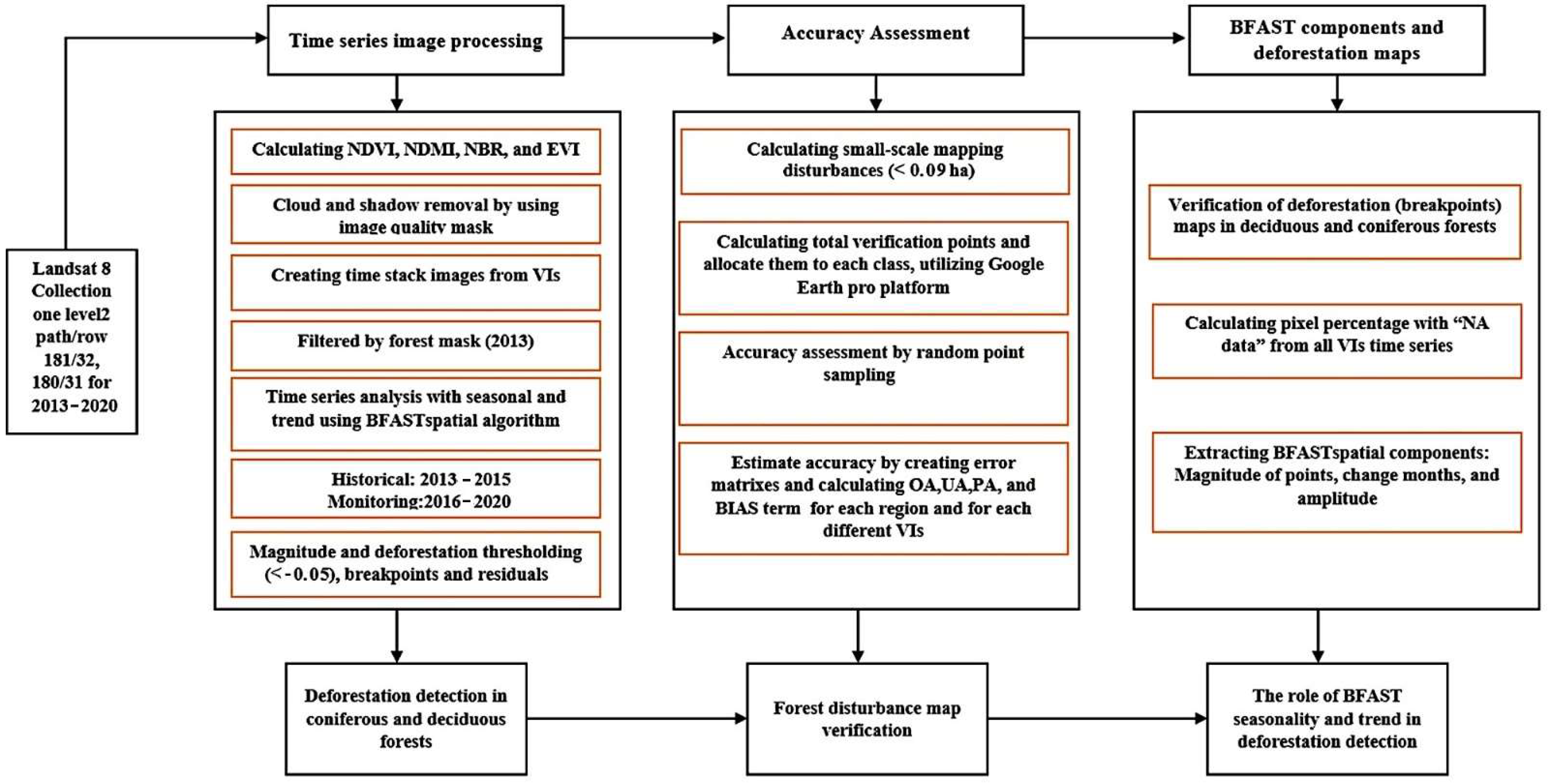

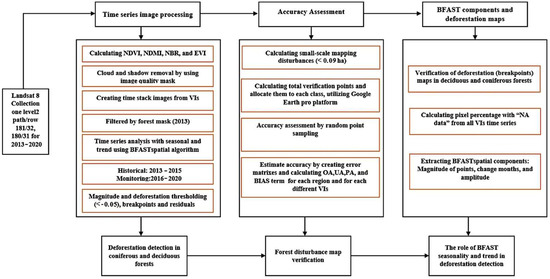

3. Methodology
3.1. Defining Forest and Deforestation Scale
3.2. Spectral Vegetation Indices
3.3. Forest Mask
3.4. BFASTMonitor Implementation
- Formula—regression model formula (harmonic and/or trend component);
- Order—order of the harmonic term;
- Start—starting date of the monitoring period;
- History—specification of the stable history period;
- h—bandwidth relative to the sample size in the MOSUM monitoring process, the numeric between 0–1.
3.5. Reference Data and Validation
4. Results

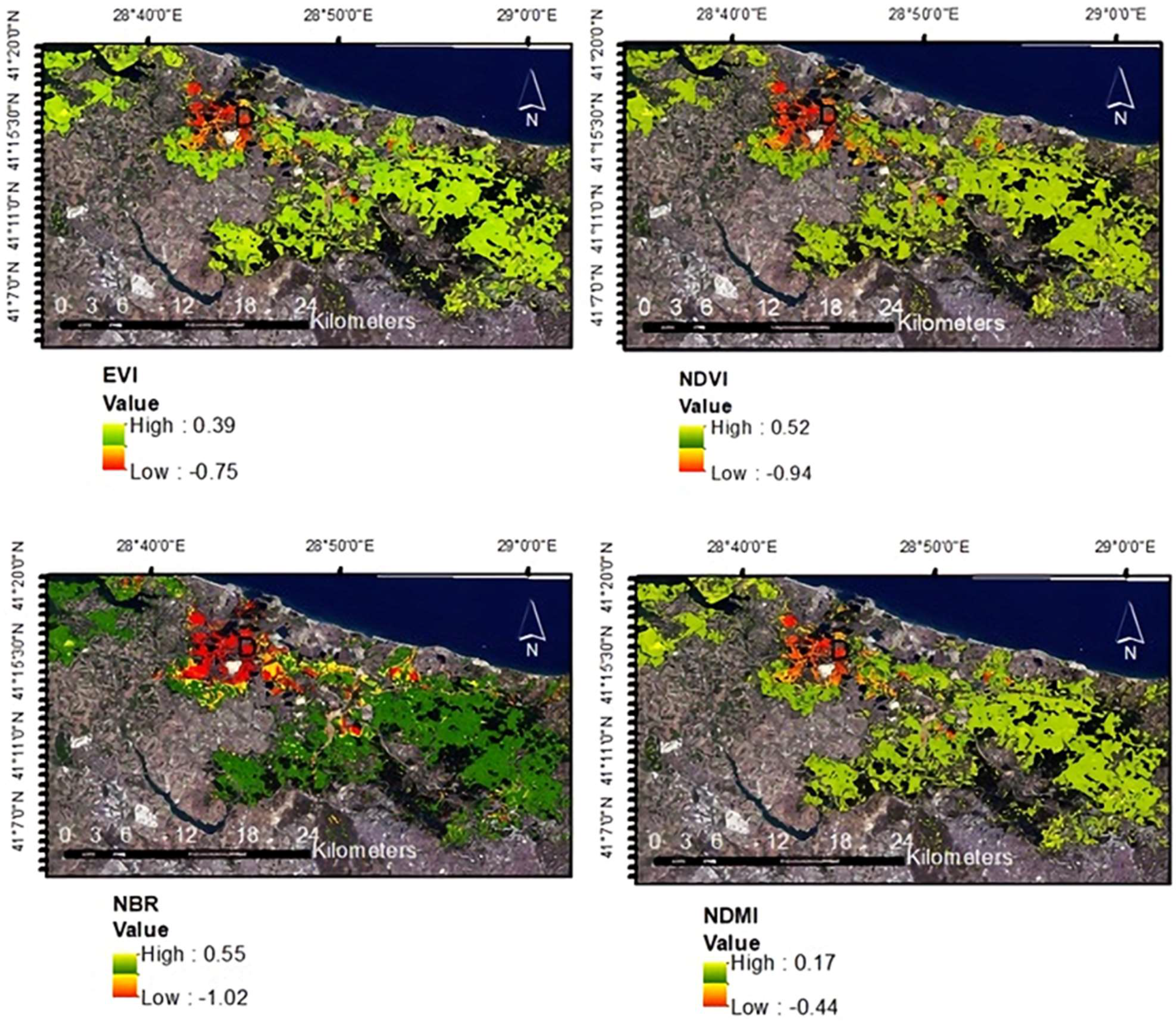

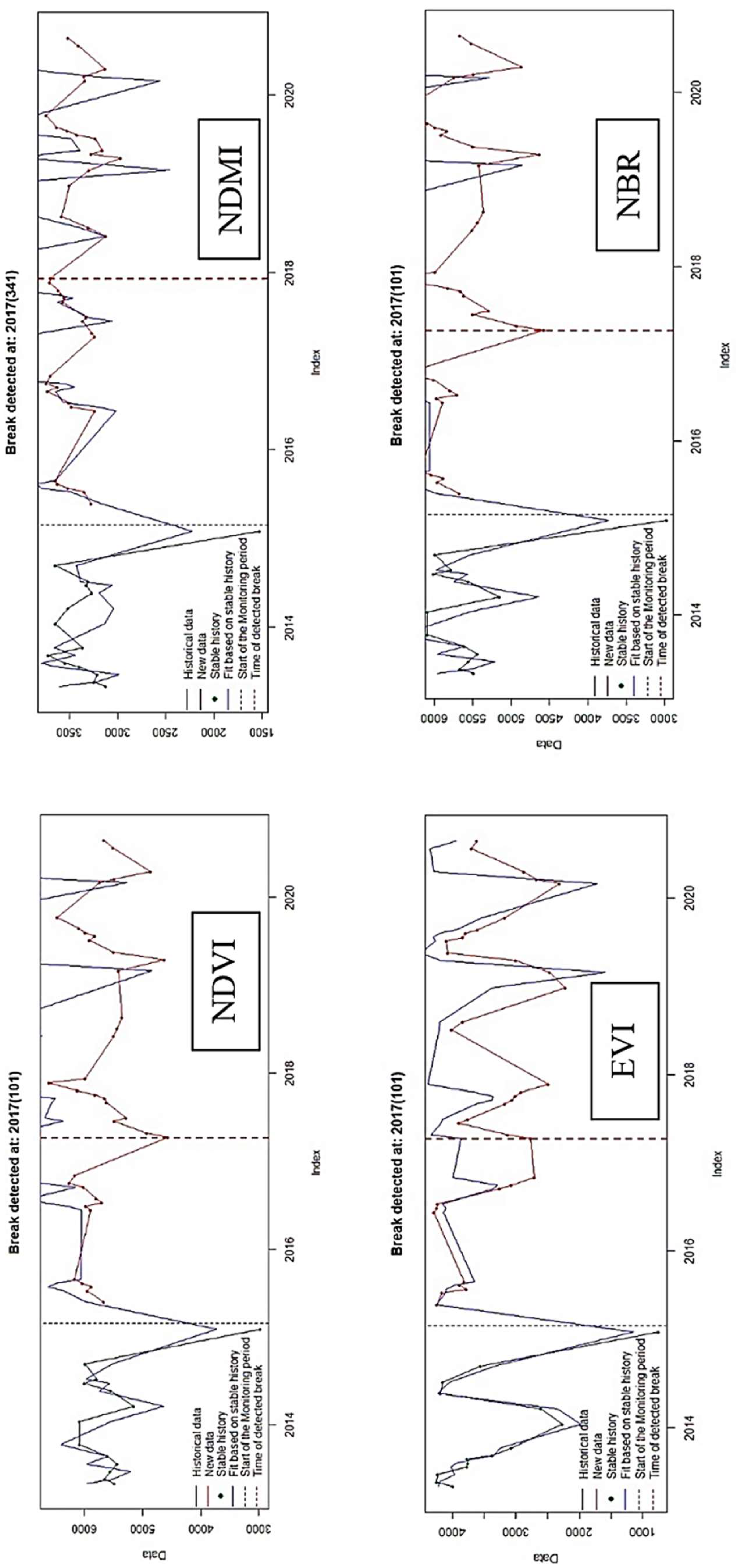

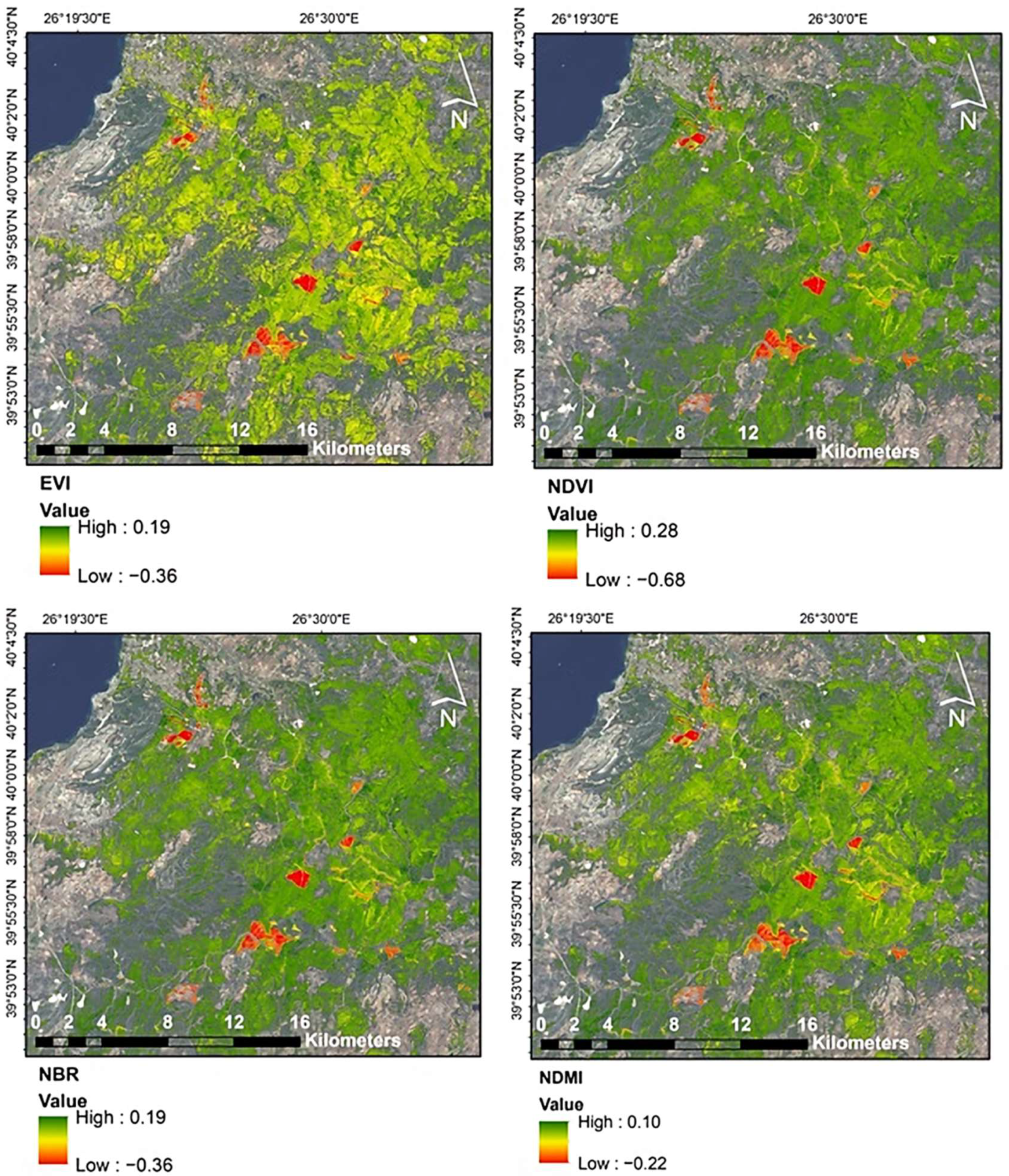

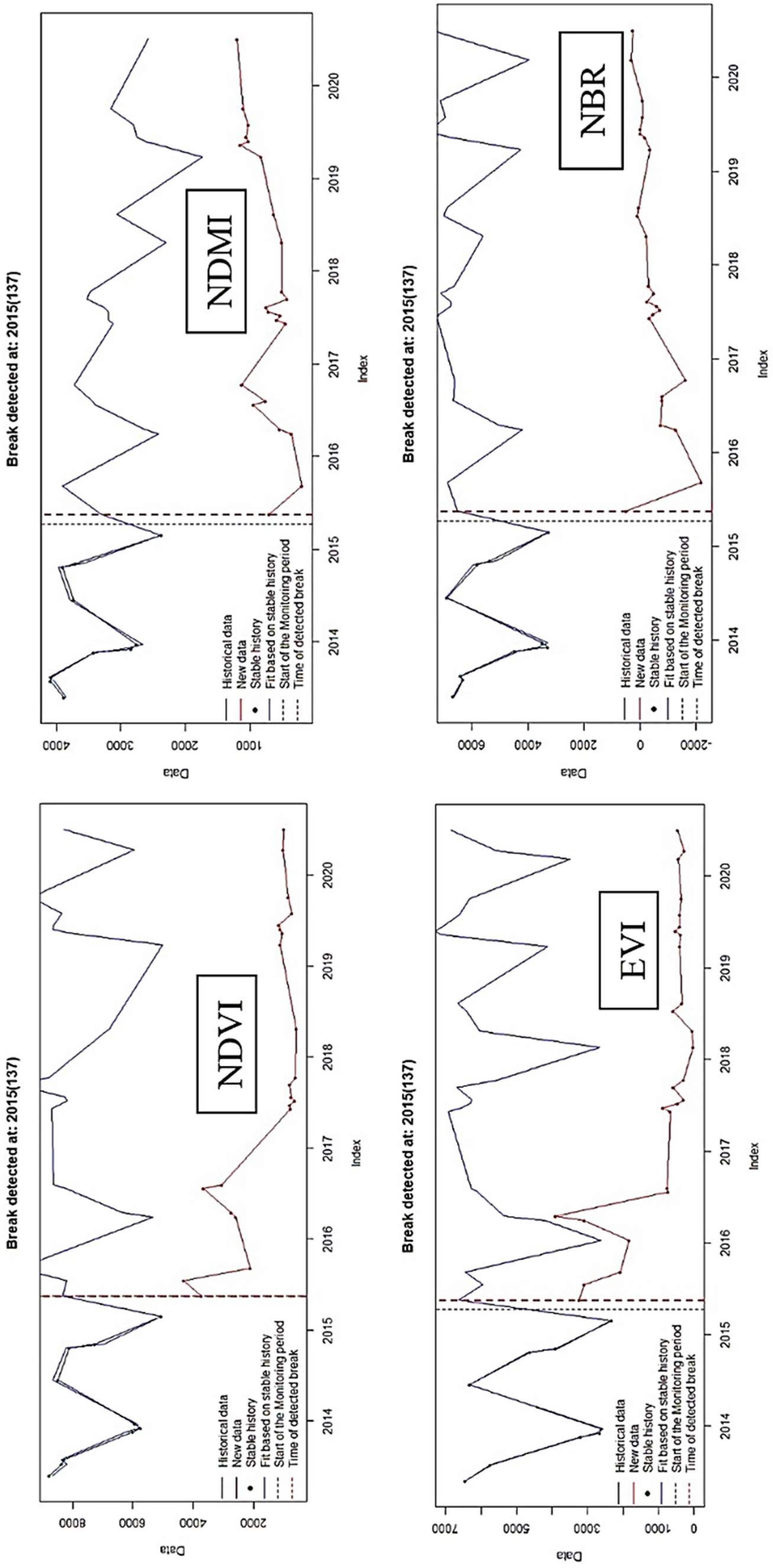

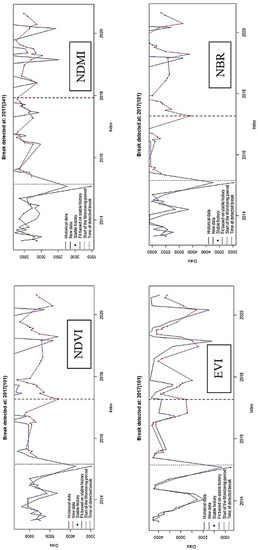

4.1. Breakpoints and Magnitude

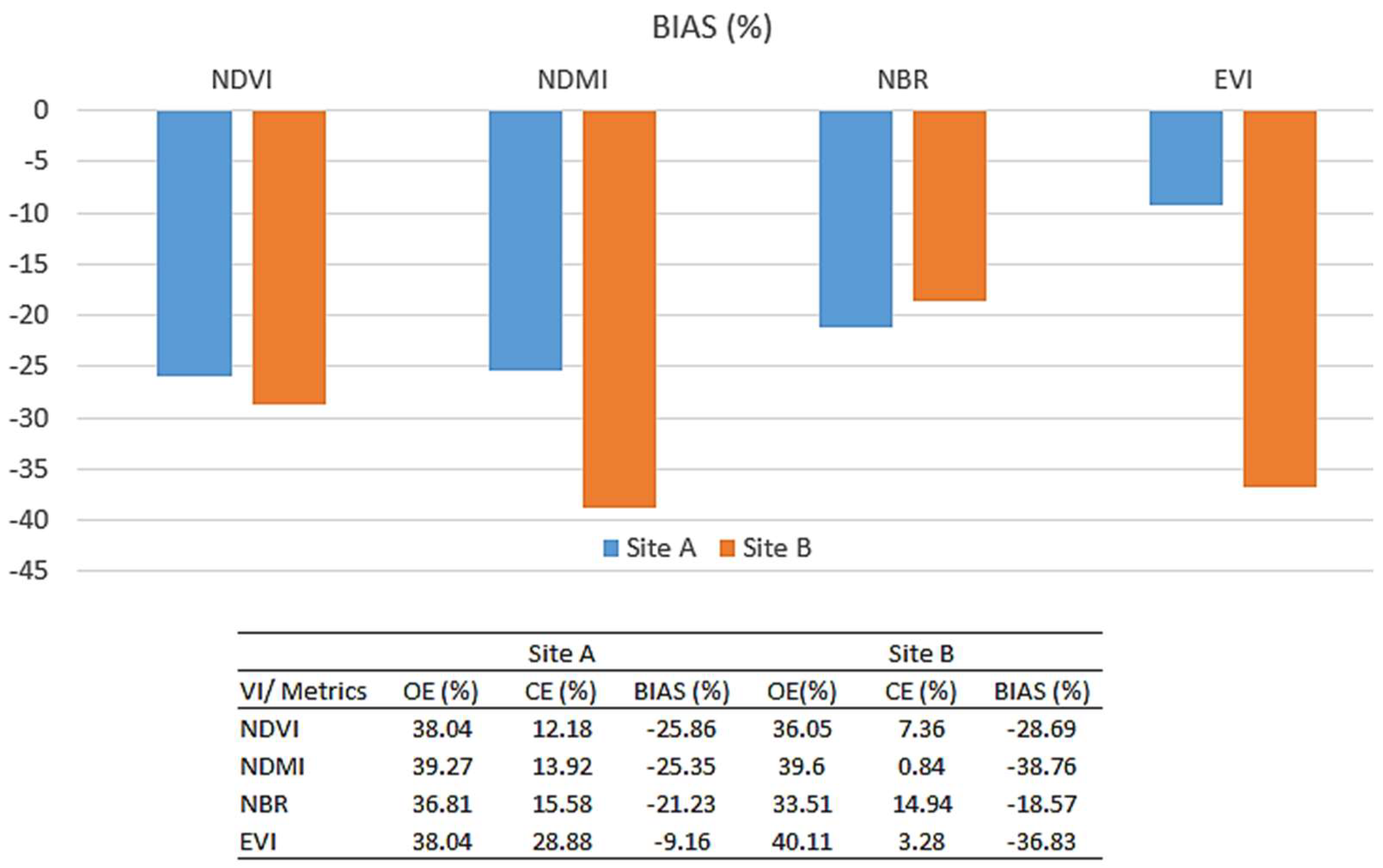

4.2. Accuracy Assessment of Detected Changes
5. Discussions
6. Conclusions
Author Contributions
Funding
Data Availability Statement
Conflicts of Interest
References
- McKinney, M.L.; Lockwood, J.L. Biotic homogenization: A few winners replacing many losers in the next mass extinction. Trends Ecol. Evol. 1999, 14, 450–453. [Google Scholar] [CrossRef]
- Portillo-Quintero, C.; Sanchez-Azofeifa, A.; Calvo-Alvarado, J.; Quesada, M.; do Espirito Santo, M.M. The role of tropical dry forests for biodiversity, carbon and water conservation in the neotropics: Lessons learned and opportunities for its sustainable management. Reg. Environ. Chang. 2015, 15, 1039–1049. [Google Scholar] [CrossRef]
- Gillespie, T.W.; Foody, G.M.; Rocchini, D.; Giorgi, A.P.; Saatchi, S. Measuring and modelling biodiversity from space. Prog. Phys. Geogr. 2008, 32, 203–221. [Google Scholar] [CrossRef]
- Klein Goldewijk, K.; Beusen, A.; Van Drecht, G.; De Vos, M. The HYDE 3.1 spatially explicit database of human-induced global land-use change over the past 12,000 years. Glob. Ecol. Biogeogr. 2011, 20, 73–86. [Google Scholar] [CrossRef]
- Van der Werf, G.; Morton, D.; DeFries, R.; Olivier, J.G.J.; Kasibhatla, P.S.; Jackson, R.B.; Collatz, G.J.; Randerson, J.T. CO2 emissions from forest loss. Nat. Geosci. 2009, 2, 737–738. [Google Scholar] [CrossRef]
- Lu, D.; Mausel, P.; Brondízio, E.; Moran, E. Change detection techniques. Int. J. Remote Sens. 2004, 25, 2365–2401. [Google Scholar] [CrossRef]
- Wu, L.; Li, Z.; Liu, X.; Zhu, L.; Tang, Y.; Zhang, B.; Xu, B.; Liu, M.; Meng, Y.; Liu, B. Multi-type forest change detection using BFAST and monthly Landsat time series for monitoring spatiotemporal dynamics of forests in subtropical wetland. Remote Sens. 2020, 12, 341. [Google Scholar] [CrossRef] [Green Version]
- Zhang, L.; Wu, C. Advance and future development of change detection for multi-temporal remote sensing imagery. Acta Geod. Cartogr. Sin. 2017, 46, 1447–1459. [Google Scholar] [CrossRef]
- Verbesselt, J.; Hyndman, R.; Newnham, G.; Culvenor, D. Detecting trend and seasonal changes in satellite image time series. Remote Sens. Environ. 2010, 114, 106–115. [Google Scholar] [CrossRef]
- Boriah, S. Time Series Change Detection: Algorithms for Land Cover Change. Ph.D. Thesis, University of Minnesota, Minneapolis, MN, USA, 2010; 160p. [Google Scholar]
- DeVries, B.; Decuyper, M.; Verbesselt, J.; Zeileis, A.; Herold, M.; Joseph, S. Tracking disturbance-regrowth dynamics in tropical forests using structural change detection and Landsat time series. Remote Sens. Environ. 2015, 169, 320–334. [Google Scholar] [CrossRef]
- Verbesselt, J.; Zeileis, A.; Herold, M. Near real-time disturbance detection using satellite image time series. Remote Sens. Environ. 2012, 123, 98–108. [Google Scholar] [CrossRef]
- Schultz, M.; Verbesselt, J.; Herold, M.; Avitabile, V. Assessing error sources for Landsat time series analysis for tropical test sites in Viet Nam and Ethiopia. In Earth Resources and Environmental Remote Sensing/GIS Applications IV; SPIE: Bellingham, WA, USA, 2013; pp. 121–131. [Google Scholar] [CrossRef]
- Awty-Carroll, K.; Bunting, P.; Hardy, A.; Bell, G. An Evaluation and Comparison of Four Dense Time Series Change Detection Methods Using Simulated Data. Remote Sens. 2019, 11, 2779. [Google Scholar] [CrossRef] [Green Version]
- Verbesselt, J.; Hyndman, R.; Zeileis, A.; Culvenor, D. Phenological change detection while accounting for abrupt and gradual trends in satellite image time series. Remote Sens. Environ. 2010, 114, 2970–2980. [Google Scholar] [CrossRef] [Green Version]
- Watts, L.M.; Laffan, S.W. Effectiveness of the BFAST algorithm for detecting vegetation response patterns in a semi-arid region. Remote Sens. Environ. 2014, 154, 234–245. [Google Scholar] [CrossRef]
- Atzberger, C. Advances in remote sensing of agriculture: Context description, existing operational monitoring systems and major information needs. Remote Sens. 2013, 5, 949–981. [Google Scholar] [CrossRef] [Green Version]
- Lambert, J.; Drenou, C.; Denux, J.P.; Balent, G.; Cheret, V. Monitoring forest decline through remote sensing time series analysis. Gisci. Remote Sens. 2013, 50, 437–457. [Google Scholar] [CrossRef]
- Lambert, J.; Denux, J.P.; Verbesselt, J.; Balent, G.; Cheret, V. Detecting clear-cuts and decreases in forest vitality using MODIS NDVI time series. Remote Sens. 2015, 7, 3588–3612. [Google Scholar] [CrossRef] [Green Version]
- Schmidt, M.; Lucas, R.; Bunting, P.; Verbesselt, J.; Armston, J. Multi-resolution time series imagery for forest disturbance and regrowth monitoring in Queensland, Australia. Remote Sens. Environ. 2015, 158, 156–168. [Google Scholar] [CrossRef] [Green Version]
- Chandra, P. Performance evaluation of vegetation indices using remotely sensed data. Int. J. Geomat. Geosci. 2011, 2, 231–240. [Google Scholar]
- Dutrieux, L.P.; Verbesselt, J.; Kooistra, L.; Herold, M. Monitoring forest cover loss using multiple data streams, a case study of a tropical dry forest in Bolivia. ISPRS J. Photogramm. 2015, 107, 112–125. [Google Scholar] [CrossRef]
- Gao, Y.; Solórzano, J.V.; Quevedo, A.; Loya-Carrillo, J.O. How bfast trend and seasonal model components affect disturbance detection in tropical dry forest and temperate forest. Remote Sens. 2021, 13, 2033. [Google Scholar] [CrossRef]
- Smith, V.; Portillo-Quintero, C.; Sanchez-Azofeifa, A.; Hernandez-Stefanoni, J.L. Assessing the accuracy of detected breaks in Landsat time series as predictors of small scale deforestation in tropical dry forests of Mexico and Costa Rica. Remote Sens. Environ. 2019, 221, 707–721. [Google Scholar] [CrossRef]
- Chen, L.; Michishita, R.; Xu, B. Abrupt spatiotemporal land and water changes and their potential drivers in Poyang Lake, 2000-2012. ISPRS J. Photogramm. 2014, 98, 85–93. [Google Scholar] [CrossRef]
- Platt, R.V.; Ogra, M.V.; Badola, R.; Hussain, S.A. Conservation-induced resettlement as a driver of land cover change in India: An object-based trend analysis. Appl. Geogr. 2016, 69, 75–86. [Google Scholar] [CrossRef]
- Tsutsumida, N.; Saizen, I.; Matsuoka, M.; Ishii, R. Land cover change detection in Ulaanbaatar using the breaks for additive seasonal and trend method. Land. 2013, 2, 534–549. [Google Scholar] [CrossRef]
- Saxena, R.; Watson, L.T.; Wynne, R.H.; Brooks, E.B.; Thomas, V.A.; Zhiqiang, Y.; Kennedy, R.E. Towards a polyalgorithm for land use change detection. ISPRS J. Photogramm. 2018, 144, 217–234. [Google Scholar] [CrossRef]
- Detsch, F.; Otte, I.; Appelhans, T.; Hemp, A.; Nauss, T. Seasonal and long-term vegetation dynamics from 1-km GIMMS-based NDVI time series at Mt. Kilimanjaro, Tanzania. Remote Sens. Environ. 2016, 178, 70–83. [Google Scholar] [CrossRef]
- Hulley, G.; Veraverbeke, S.; Hook, S. Thermal-based land cover change detection techniques using a new dynamic MODIS multispectral emissivity product (MOD21). Remote Sens. Environ. 2014, 140, 755–765. [Google Scholar] [CrossRef]
- Waller, E.K.; Villarreal, M.L.; Poitras, T.B.; Nauman, T.W.; Duniway, M.C. Landsat time series analysis of fractional plant cover changes on abandoned energy development sites. Int. J. Appl. Earth Obs. 2018, 73, 407–419. [Google Scholar] [CrossRef]
- Bueno, I.T.; McDermid, G.J.; Silveira, E.M.O.; Hird, J.N.; Domingos, B.I.; Acerbi Júnior, F.W. Spatial agreement among vegetation disturbance maps in tropical domains using Landsat time series. Remote Sens. 2020, 12, 2948. [Google Scholar] [CrossRef]
- Lu, M.; Pebesma, E.; Sanchez, A.; Verbesselt, J. Spatio-temporal change detection from multidimensional arrays: Detecting deforestation from MODIS time series. ISPRS J. Photogramm. 2016, 117, 227–236. [Google Scholar] [CrossRef]
- Cai, X.; Feng, L.; Hou, X.; Chen, X. Remote Sensing of the Water Storage Dynamics of Large Lakes and Reservoirs in the Yangtze River Basin from 2000 to 2014. Sci. Rep. 2016, 6, 36405. [Google Scholar] [CrossRef] [Green Version]
- Che, X.; Feng, M.; Yang, Y.; Xiao, T.; Huang, S.; Xiang, Y.; Chen, Z. Mapping extent dynamics of small lakes using downscaling MODIS surface reflectance. Remote Sens. 2017, 9, 82. [Google Scholar] [CrossRef] [Green Version]
- Potter, C. Changes in vegetation cover of Yellowstone National Park estimated from MODIS greenness trends, 2000 to 2018. Remote Sens. Earth Syst. Sci. 2019, 2, 147–160. [Google Scholar] [CrossRef]
- Liu, H.; Zhang, Y.; Zhang, X. Monitoring vegetation coverage in tongren from 2000 to 2016 based on landsat7 etm+ and landsat8. An. Acad. Bras. Cienc. 2018, 90, 2721–2730. [Google Scholar] [CrossRef]
- Romero-Sanchez, M.E.; Ponce-Hernandez, R. Assessing and monitoring forest degradation in a deciduous tropical forest in Mexico via remote sensing indicators. Forests 2017, 8, 302. [Google Scholar] [CrossRef]
- Hamunyela, E.; Rosca, S.; Mirt, A.; Engle, E.; Herold, M.; Gieseke, F.; Verbesselt, J. Implementation of BFASTmonitor algorithm on Google Earth Engine to support large-area and sub-annual change monitoring using earth observation data. Remote Sens. 2020, 12, 2953. [Google Scholar] [CrossRef]
- Alganci, U. Dynamic land cover mapping of urbanized cities with Landsat 8 multi-temporal images: Comparative evaluation of classification algorithms and dimension reduction methods. ISPRS Int. Geo-Inf. 2019, 8, 139. [Google Scholar] [CrossRef] [Green Version]
- Çolak, A.H.; Rotherham, I.D.; Ian, D. A review of the forest vegetation of Turkey: Its status past and present and its future conservation. Biol. Environ. Proc. R. Irish Acad. 2011, 106, 343–354. [Google Scholar] [CrossRef] [Green Version]
- U.S. Geological Survey. Landsat 7 (L7) Data Users Handbook. 7 November 2019; p. 151. Available online: https://www.usgs.gov/media/files/landsat-7-data-users-handbook (accessed on 5 August 2022).
- Kalamandeen, M.; Gloor, E.; Mitchard, E.; Quincey, D.; Ziv, G.; Spracklen, D.; Spracklen, B.; Adami, M.; Aragaõ, L.E.O.C.; Galbraith, D. Pervasive Rise of Small-scale Deforestation in Amazonia. Sci. Rep. 2018, 8, 1–10. [Google Scholar] [CrossRef]
- Huete, A. Vegetation Indices. In Encyclopedia of Remote Sensing. Encyclopedia of Earth Sciences Series; Njoku, E.G., Ed.; Springer: New York, NY, USA, 2014. [Google Scholar] [CrossRef]
- Huang, C.; Goward, S.N.; Masek, J.G.; Gao, F.; Vermote, E.F.; Thomas, N.; Schleeweis, K.; Kennedy, R.E.; Zhu, Z.; Eidenshink, J.C.; et al. Development of time series stacks of landsat images for reconstructing forest disturbance history. Int. J. Digit. Earth 2009, 2, 195–218. [Google Scholar] [CrossRef]
- Schultz, M.; Clevers, J.G.P.W.; Carter, S.; Verbesselt, J.; Avitabile, V.; Quang, H.V.; Herold, M. Performance of vegetation indices from Landsat time series in deforestation monitoring. Int. J. Appl. Earth Obs. 2016, 52, 318–327. [Google Scholar] [CrossRef]
- Sexton, J.O.; Song, X.P.; Feng, M.; Noojipady, P.; Anand, A.; Huang, C.; Kim, D.H.; Collins, K.M.; Channan, S.; DiMiceli, C.; et al. Global, 30-m resolution continuous fields of tree cover: Landsat-based rescaling of MODIS vegetation continuous fields with lidar-based estimates of error. Int. J. Digit. Earth 2013, 6, 427–448. [Google Scholar] [CrossRef] [Green Version]
- Reiche, J.; Verbesselt, J.; Hoekman, D.; Herold, M. Fusing Landsat and SAR time series to detect deforestation in the tropics. Remote Sens. Environ. 2015, 156, 276–293. [Google Scholar] [CrossRef]
- DeVries, B. Monitoring Tropical Forest Dynamics Using Landsat Time Series and Community-Based Data. Ph.D. Thesis, Wageningen University, Wageningen, The Netherlands, 2015; 170p. [Google Scholar] [CrossRef]
- Zeileis, A.; Leisch, F.; Kleiber, C.; Hornik, K. Monitoring structural change in dynamic econometric models. J. Appl. Econom. 2005, 20, 99–121. [Google Scholar] [CrossRef] [Green Version]
- Congalton, R.G. A review of assessing the accuracy of classifications of remotely sensed data. Remote Sens. Environ. 1991, 37, 35–46. [Google Scholar] [CrossRef]
- Olofsson, P.; Foody, G.M.; Herold, M.; Stehman, S.V.; Woodcock, C.E.; Wulder, M.A. Good practices for estimating area and assessing accuracy of land change. Remote Sens. Environ. 2014, 148, 42–57. [Google Scholar] [CrossRef]
- Grogan, K.; Pflugmacher, D.; Hostert, P.; Verbesselt, J.; Fensholt, R. Mapping clearances in tropical dry forests using breakpoints, trend, and seasonal components from modis time series: Does forest type matter? Remote Sens. 2016, 8, 657. [Google Scholar] [CrossRef]
- Murillo-Sandoval, P.J.; Van Den Hoek, J.; Hilker, T. Leveraging multi-sensor time series datasets to map short- and long-term tropical forest disturbances in the Colombian Andes. Remote Sens. 2017, 9, 179. [Google Scholar] [CrossRef] [Green Version]
- Schultz, M.; Verbesselt, J.; Avitabile, V.; Souza, C.; Herold, M. Error Sources in Deforestation Detection Using BFAST Monitor on Landsat Time Series Across Three Tropical Sites. IEEE J.-STARS 2016, 9, 3667–3679. [Google Scholar] [CrossRef]
- Hamunyela, E.; Verbesselt, J.; Herold, M. Using spatial context to improve early detection of deforestation from Landsat time series. Remote Sens. Environ. 2016, 172, 126–138. [Google Scholar] [CrossRef]
- Wilson, E.H.; Sader, S.A. Detection of forest harvest type using multiple dates of Landsat TM imagery. Remote Sens. Environ. 2002, 80, 385–396. [Google Scholar] [CrossRef]
- Sims, D.A.; Gamon, J.A. Estimation of vegetation water content and photosynthetic tissue area from spectral reflectance: A comparison of indices based on liquid water and chlorophyll absorption features. Remote Sens. Environ. 2003, 84, 526–537. [Google Scholar] [CrossRef]
- Verbesselt, J.; Somers, B.; Van Aardt, J.; Jonckheere, I.; Coppin, P. Monitoring herbaceous biomass and water content with SPOT VEGETATION time-series to improve fire risk assessment in savanna ecosystems. Remote Sens. Environ. 2006, 101, 399–414. [Google Scholar] [CrossRef]
Study Site | Coordinate (Lat/Long) | Climate |
---|---|---|
Site A (Selected part of Istanbul forest) | 41°11′44.38″ N | Warm and hot weather during the summer, and winter is rainy and mild. Annual precipitation in the year 2020 was 820 mm and the average temperature was 14.95 °C. |
28°45′57.42″ E | ||
Site B (Çanakkale province) | 40°9′4.50″ N | Transition climate type, summer is hot and dry, winter is cold and rainy. July is the warmest month while January is the coldest month with long-term averages of 6.4 °C and 25 °C. |
27°8′58.88″ E |
Vegetation Index | NDVI | NDMI | NBR | EVI | |
---|---|---|---|---|---|
Total Breakpoints | Deciduous forest | 124,822 | 141,229 | 173,126 | 199,275 |
Total Pixels | 275,913 | 275,913 | 275,913 | 275,913 | |
Percentage | 45.24% | 51.19% | 62.74% | 72.22% | |
Total Breakpoints | Coniferous forest | 375,605 | 388,647 | 420,210 | 249,464 |
Total Pixels | 471,281 | 471,281 | 471,281 | 471,281 | |
Percentage | 79.70% | 82.47% | 89.16% | 52.93% |
Vegetation Index | NDVI | NDMI | NBR | EVI | |
---|---|---|---|---|---|

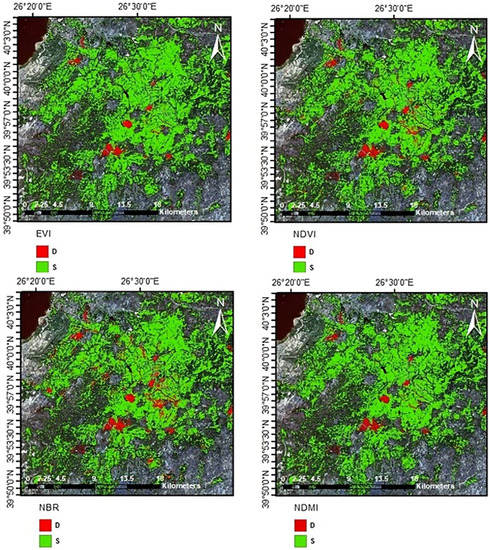

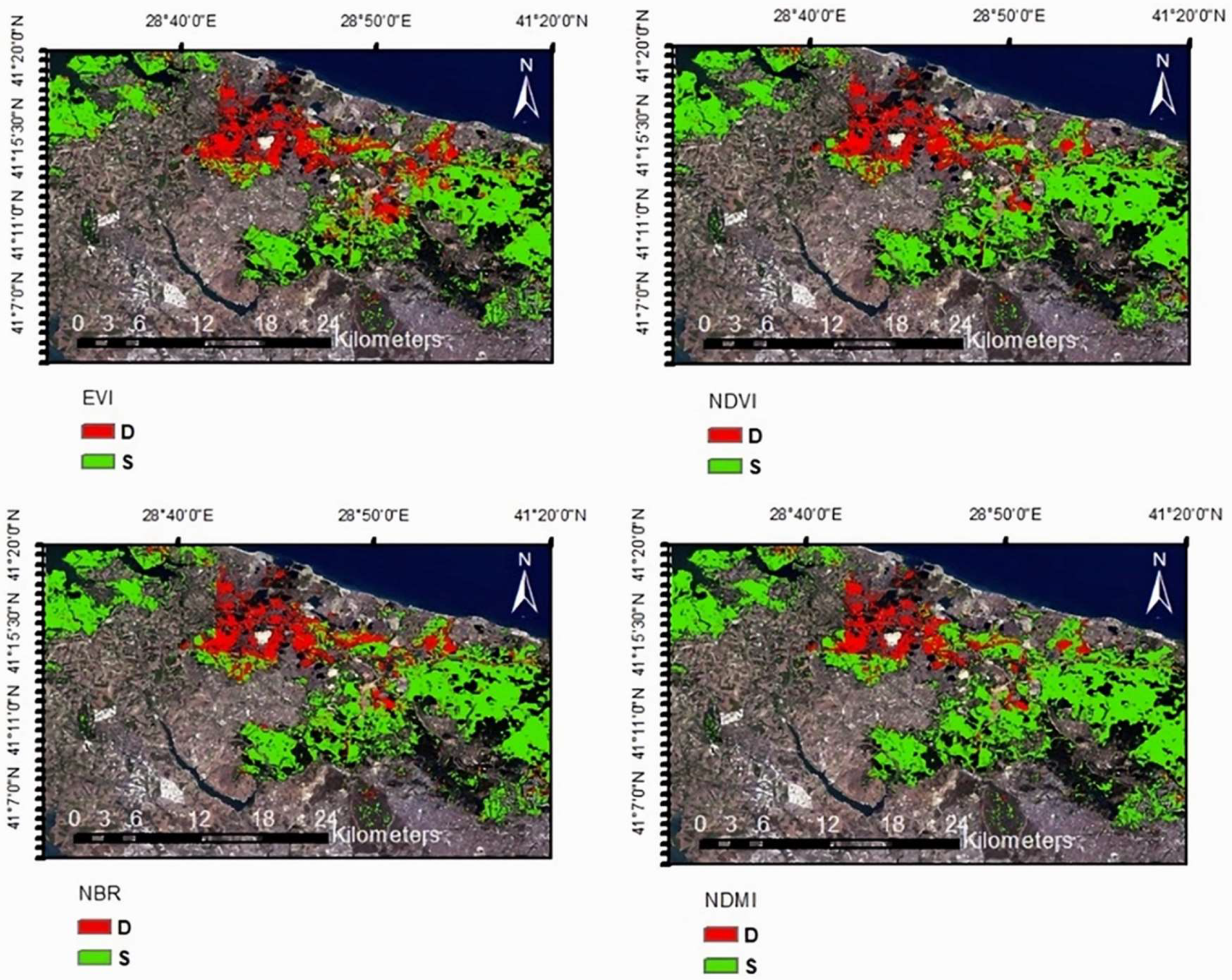

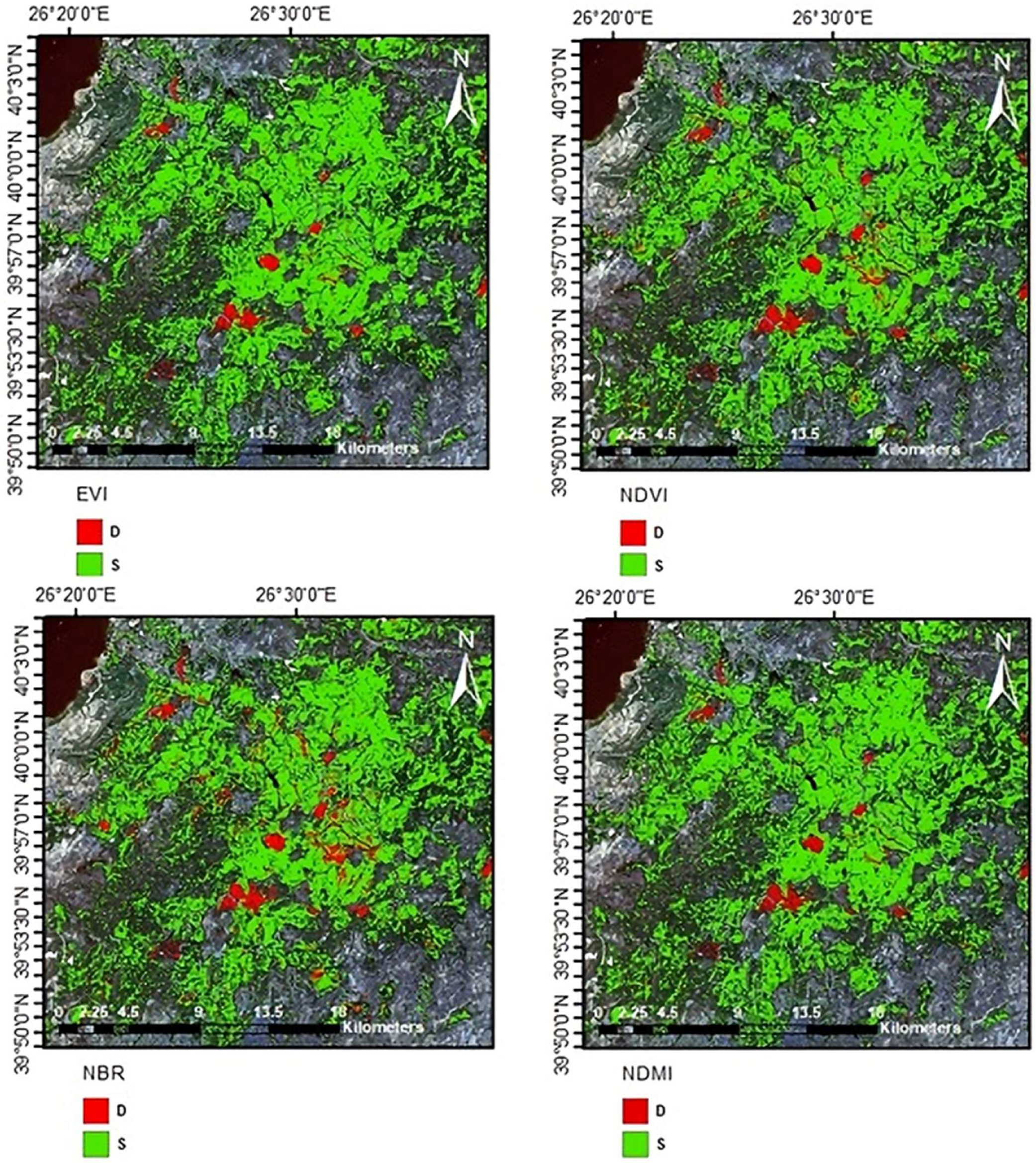

Total Deforested Pixels | Deciduous forest | 45,195 | 35,515 | 49,510 | 61,679 |
Percentage | 16.38% | 12.87% | 17.94% | 22.35% | |
Total Deforested Pixels | Coniferous forest | 24,537 | 14,243 | 34,921 | 13,239 |
Percentage | 5.20% | 3.02% | 7.40% | 2.80% |
Deciduous Forest (A) | Coniferous Forest (B) | ||||||||
---|---|---|---|---|---|---|---|---|---|
NDVI | D | S | Total | UA | NDVI | D | S | Total | UA |
D | 101 | 14 | 115 | 87.82% | D | 126 | 10 | 136 | 92.64% |
S | 62 | 323 | 385 | 83.89% | S | 71 | 493 | 564 | 87.41% |
Total | 163 | 337 | 500 | Total | 197 | 503 | 700 | ||
PA | 61.96% | 95.84% | OA= | 84.80% | PA | 63.95% | 98.01% | OA= | 88.42% |
NDMI | D | S | Total | UA | NDMI | D | S | Total | UA |
D | 99 | 13 | 115 | 86.08% | D | 119 | 1 | 120 | 99.16% |
S | 64 | 324 | 385 | 84.15% | S | 78 | 502 | 580 | 86.55% |
Total | 163 | 337 | 500 | Total | 197 | 503 | 700 | ||
PA | 60.73% | 96.14% | OA= | 84.60% | PA | 60.40% | 99.80% | OA= | 88.71% |
NBR | D | S | Total | UA | NBR | D | S | Total | UA |
D | 103 | 19 | 122 | 84.42% | D | 131 | 23 | 154 | 85.06% |
S | 60 | 318 | 378 | 84.12% | S | 66 | 480 | 546 | 87.91% |
Total | 163 | 337 | 500 | Total | 197 | 503 | 700 | ||
PA | 63.19% | 94.36% | OA= | 84.20% | PA | 66.49% | 95.42% | OA= | 87.28% |
EVI | D | S | Total | UA | EVI | D | S | Total | UA |
D | 101 | 44 | 142 | 71.12% | D | 118 | 4 | 122 | 96.72% |
S | 62 | 293 | 355 | 82.53% | S | 79 | 499 | 578 | 86.33% |
Total | 163 | 337 | 500 | Total | 197 | 503 | 700 | ||
PA | 61.96% | 86.94% | OA= | 78.80% | PA | 59.89% | 99.20% | OA= | 88.14% |
